DTC 33-9x (‘‘x’’ can be 0 thru 9 or A thru F):

Special Tools Required

YES

24-97

07XAZ-S1A0200

07SAZ-TB4011A

Short to Ground in Left Side Curtain Airbag
Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200
• SRS simulator lead F 07XAZ-SZ30100

NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-16) and General Troubleshooting Information
(see page 24-27).

1. Clear the DTC memory (see page 24-28).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, the system is OK at this

time. Go to Troubleshooting Intermittent Failures
(see page 24-29). If another DTC is indicated,
troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

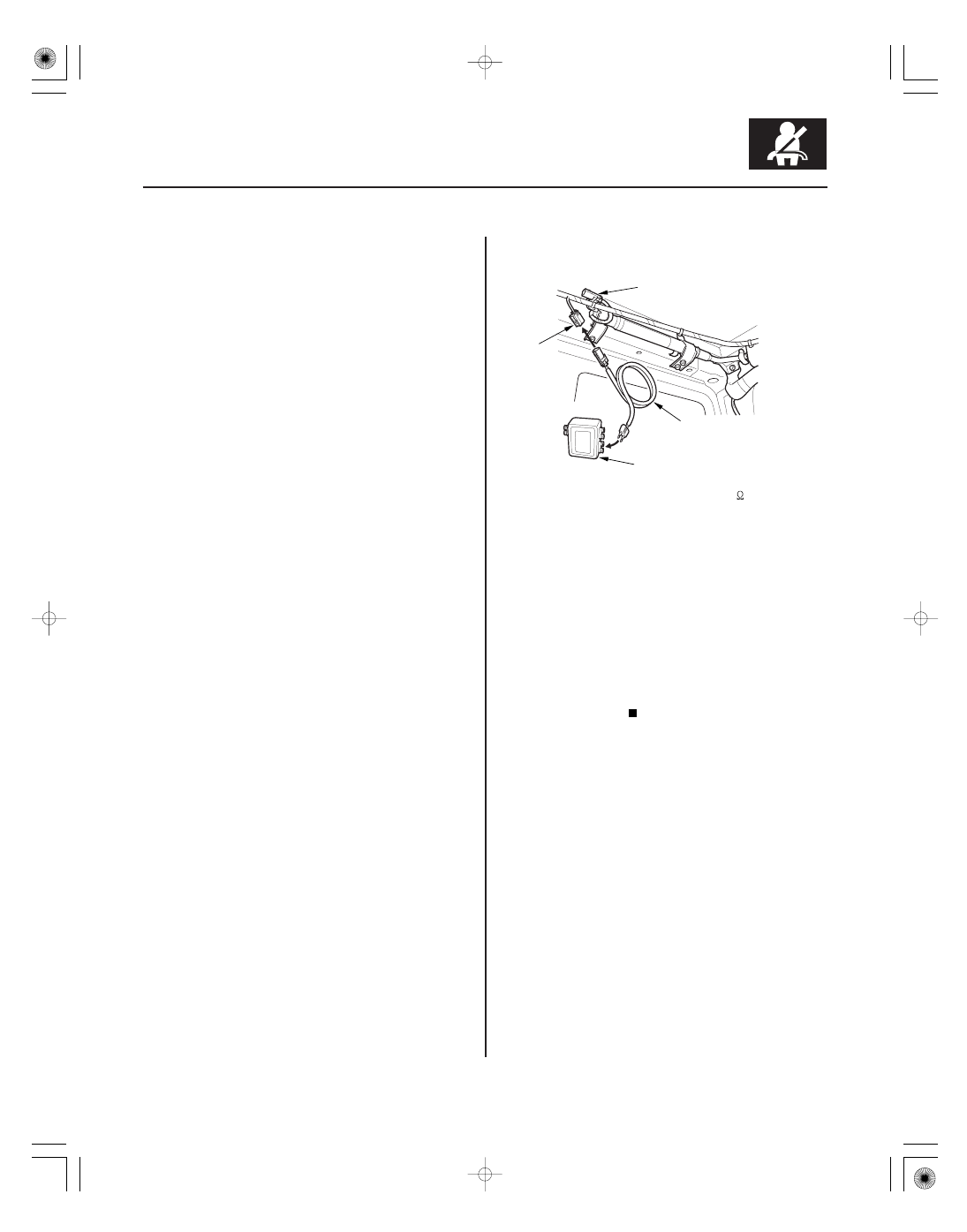

4. Disconnect the roof wire harness 2P connector (A)

from the left side curtain airbag connector (B).

5. Connect the SRS inflator simulator (2

connector)

and simulator lead E to the roof wire harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see page 24-27).

Go to step 9.

Short to ground in the left side curtain airbag

inflator; replace the left side curtain airbag
(see page 24-177).

9. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

(cont’d)

Does the SRS indicator stay on, and is DT C 33-9x
indicated?

Is DT C 33-9x indicated?

０２

０３

−

YES

24-98

SRS

DTC Troubleshooting (cont’d)

07SAZ-TB4011A

07XAZ-SZ30100

FLOOR
WIRE HARNESS
4P CONNECTOR

10. Disconnect floor wire harness 4P connector C501

(A) from the roof wire harness connector C501 (B).

11. Connect the SRS inflator simulator (2

connectors) and simulator lead F to the floor wire
harness.

12. Reconnect the negative cable to the battery.

13. Clear the DTC memory.

14. Read the DTC (see page 24-27).

Go to step 15.

Short to ground in the roof wire harness;

replace the roof wire harness.

15. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

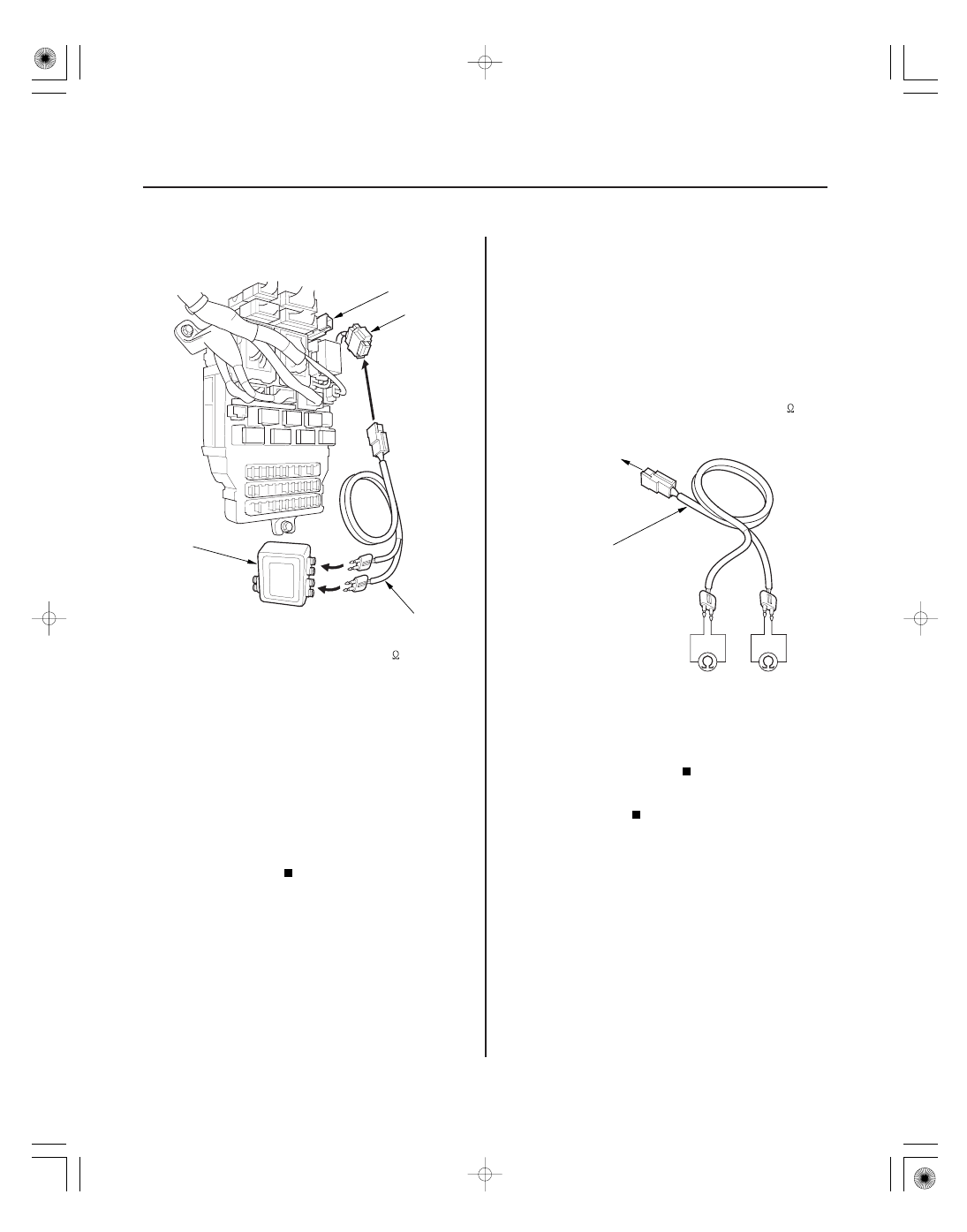

16. Disconnect SRS unit connector C (28P) from the

SRS unit (see step 7 on page 24-26).

17. Disconnect the SRS inflator simulator from the SRS

simulator lead F.

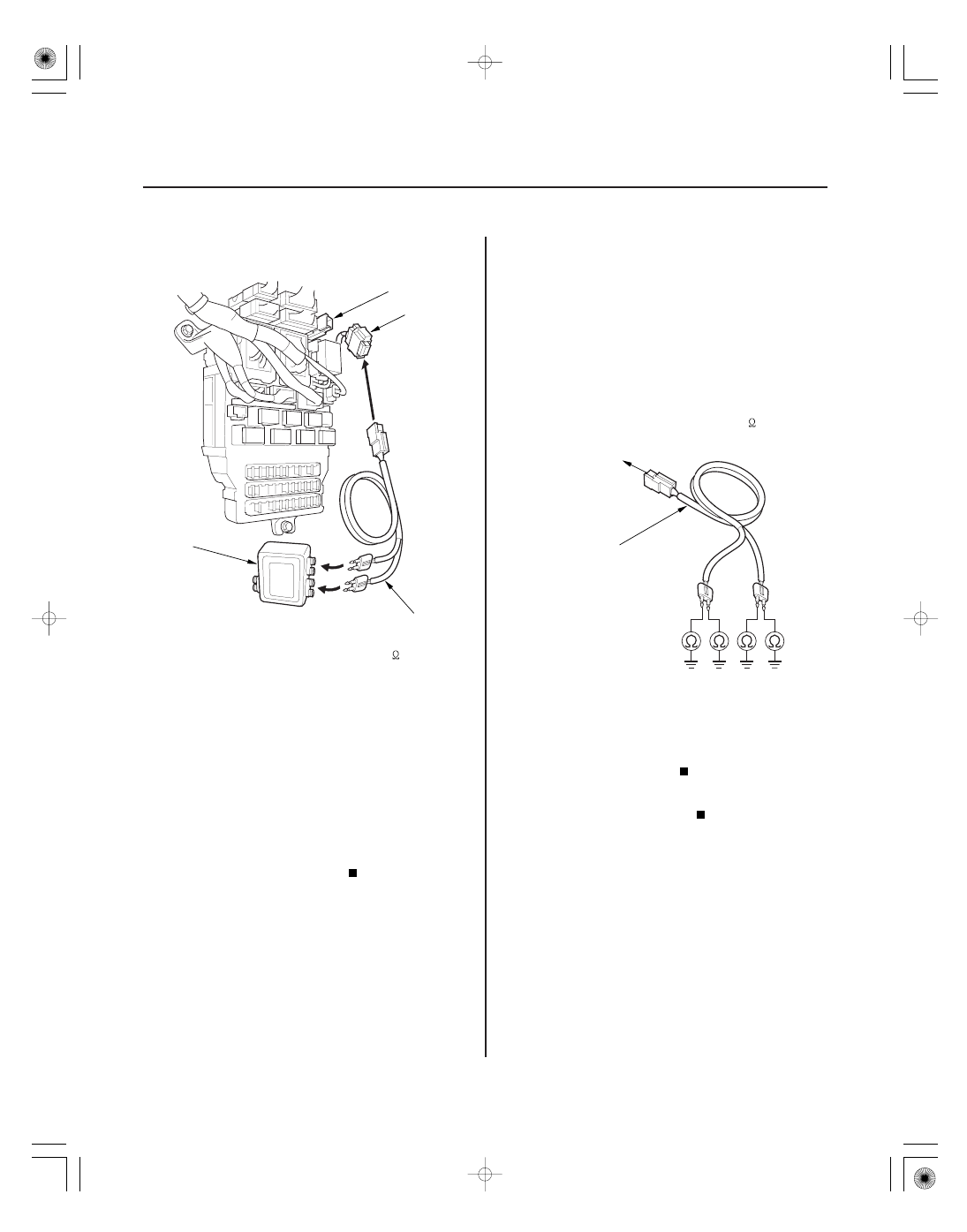

18. Measure the resistance between each terminal of

both SRS simulator leads and body ground. There
should be an open circuit or at least 1 M

Faulty SRS unit or poor connection at SRS

unit connector C (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-188).

Short to ground in the floor wire harness;

replace the floor wire harness.

Is DT C 33-9x indicated?

Is the r esistance as specif ied?

０１

ＳＪＣ８Ａ００Ｋ７９１０００Ｒ３４１ＸＦＡＡＴ００

−

DTC 34-1x (‘‘x’’ can be 0 thru 9 or A thru F):

Special Tools Required

YES

24-99

07XAZ-S1A0200

07SAZ-TB4011A

Open in Right Side Curtain Airbag Inflator

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead E 07XAZ-S1A0200
• SRS simulator lead F 07XAZ-SZ30100

NOTE: Before doing this troubleshooting procedure,
review SRS Precautions and Procedures (see page
24-16) and General Troubleshooting Information
(see page 24-27).

1. Clear the DTC memory (see page 24-28).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, the system is OK at this

time. Go to Troubleshooting Intermittent Failures
(see page 24-29). If another DTC is indicated,
troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

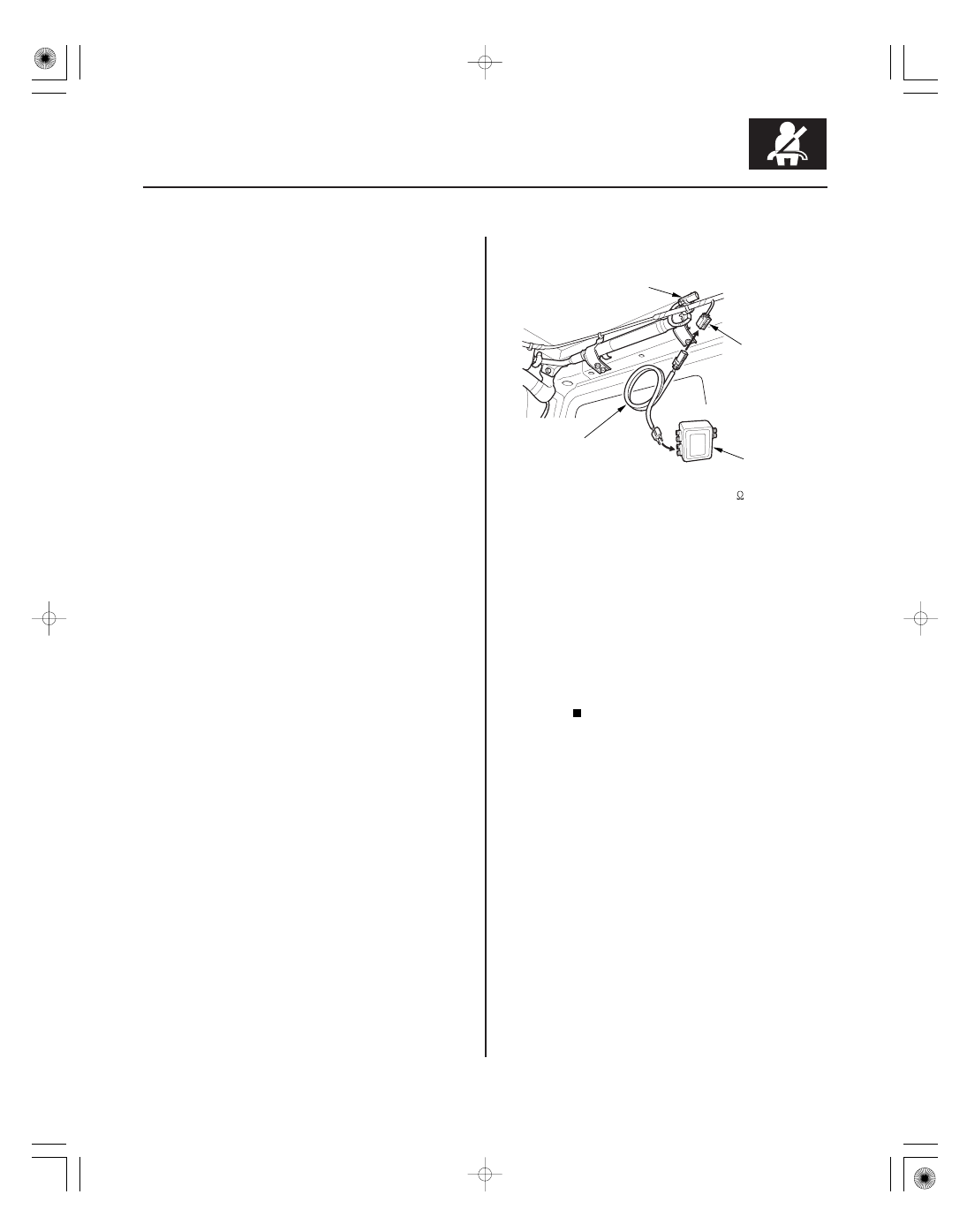

4. Disconnect the roof wire harness 2P connector (A)

from the right side curtain airbag connector (B).

5. Connect the SRS inflator simulator (2

connector)

and simulator lead E to the roof wire harness.

6. Reconnect the negative cable to the battery.

7. Clear the DTC memory.

8. Read the DTC (see page 24-27).

Go to step 9.

Open in the right side curtain airbag inflator,

replace the right side curtain airbag (see page
24-177).

9. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

(cont’d)

Does the SRS indicator stay on, and is DT C 34-1x
indicated?

Is DT C 34-1x indicated?

０２

０３

−

YES

24-100

SRS

DTC Troubleshooting (cont’d)

07SAZ-TB4011A

07XAZ-SZ30100

FLOOR
WIRE HARNESS
4P CONNECTOR

10. Disconnect floor wire harness 4P connector C501

(A) from the roof wire harness connector C501 (B).

11. Connect the SRS inflator simulator (2

connectors) and simulator lead F to the floor wire
harness.

12. Reconnect the negative cable to the battery.

13. Clear the DTC memory.

14. Read the DTC (see page 24-27).

Go to step 15.

Open in the roof wire harness; replace the

roof wire harness.

15. Turn the ignition switch OFF. Disconnect the

negative cable from the battery, and wait for 3
minutes.

16. Disconnect SRS unit connector C (28P) from the

SRS unit (see step 7 on page 24-26).

17. Disconnect the SRS inflator simulator from the SRS

simulator lead F.

18. Measure the resistance between the terminals of

both SRS simulator leads. There should be 1.0

less.

Faulty SRS unit or poor connection at SRS

unit connector C (28P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 24-188).

Open in the floor wire harness; replace the

floor wire harness.

Is DT C 34-1x indicated?

Is the r esistance as specif ied?
