Outside Air Temperature Indicator Logic

Update to the outside air temperature
indicator while driving

Troubleshooting

22-264

Gauges

Outside Air Temperature Indicator Calibration

NOTE: To test the outside air temperature sensor
(see page 21-52).

The outside temperature sensor is located behind the
center of the front bumper. The gauge control module
uses measurements from this sensor to display the
outside air temperature.
Because of the location of the sensor, it may be affected
by heat reflection from the road, engine and radiator
heat or hot exhaust from surrounding traffic.
These conditions can heat soak the outside air
temperature sensor and cause inaccurate readings.
Logic has been written into the gauge control module to
help prevent abnormal or fluctuating outside air
temperature indicator readings.

Initial outside air temperature indication after the
ignition switch is turned ON (II).

• If the engine coolant temperature is 140 °F (60 °C) or

higher when the ignition switch is turned ON (II), the
outside air temperature indicated the last time the
key was turned off will be displayed regardless of the
current temperature measured by the outside air
temperature sensor.

• If the engine coolant temperature is 139 °F (59 °C) or

lower when the ignition switch is turned ON (II), the
current temperature measured by the outside air
temperature sensor will be indicated.

If the temperature measured by the outside air
temperature sensor is greater than the temperature on
the outside air temperature indicator, the outside
temperature indicator will increase by 1.8 °F (1 °C) per
minute after the vehicle speed is greater than 19 mph
(30 km/h) for more than 1 minute and 30 seconds. It will
continue to increase until the current outside air
temperature is indicated. So, the first change to the
outside air temperature indicator is 1 minute and
30 seconds after the vehicle speed is greater than
19 mph (30 km/h). If the vehicle speed drops below
19 mph (30 km/h), the indicator will not update again
until the vehicle speed is increased to 19 mph (30 km/h)
or more for more than 1 minute and 30 seconds again.
If the outside air temperature is less than the indicated
temperature, the temperature will decrease 1 °F every
1.1 seconds (1 °C every 2 seconds) every 2 seconds
until the current outside air temperature is indicated
regardless of vehicle speed.

If the indicator displays ‘‘

’’ for more than

2 seconds after selecting the outside air temperature
display mode, check the outside temperature sensor or
gauge control module self-diagnosis (see page 22-244).

±

±

±

01

02

Calibration

Example:
Incorrect value

= 68 °F (20 °C)

Desired correction valve =

2 °F (

1 °C)

Correct valve

= 70 °F (21 °C)

Desired correction valve =

2 °F (

1 °C)

Correct valve

= 66 °F (19 °C)

22-265

B

A

C

The outside air temperature indicator’s displayed
temperature can be recalibrated

5 °F (or

3 °C) to

meet the customer’s expectations.

1. Turn the ignition switch ON (II).

2. Select the odometer/trip A or odometer/trip B

display.

3. Press and hold the RESET switch for 10 seconds.

While you continue to hold the button, the display
will scroll through temperature settings from

5 °F

to

5 °F (or

3 °C to

3 °C) as shown.

4. When the desired correction value appears on the

display, release the button, and the recalibrated
outside air temperature will be displayed.
Each time a desired correction valve is entered, it
replaces the previous valve.

NOTE: The recalibration temperature is not the
value the sensor sees. Therefore the temperature
can only be adjusted

degrees from the sensor.

NOTE: To recalibrate the display to the true
temperature, remove the outside air temperature
sensor (A), but leave it connected. Submerge the sensor
and a thermometer (B) in a container of ice water (C).
Select the calibration mode as described above, then
recalibrate the display to the true temperature.

01

02

SJC8A00J22170859901FHAT00

22-266

Gauges

Select/Reset Switch Test/Replacement

A

B

Terminal

Position

SELECT

2

5

1

6

3

RESET

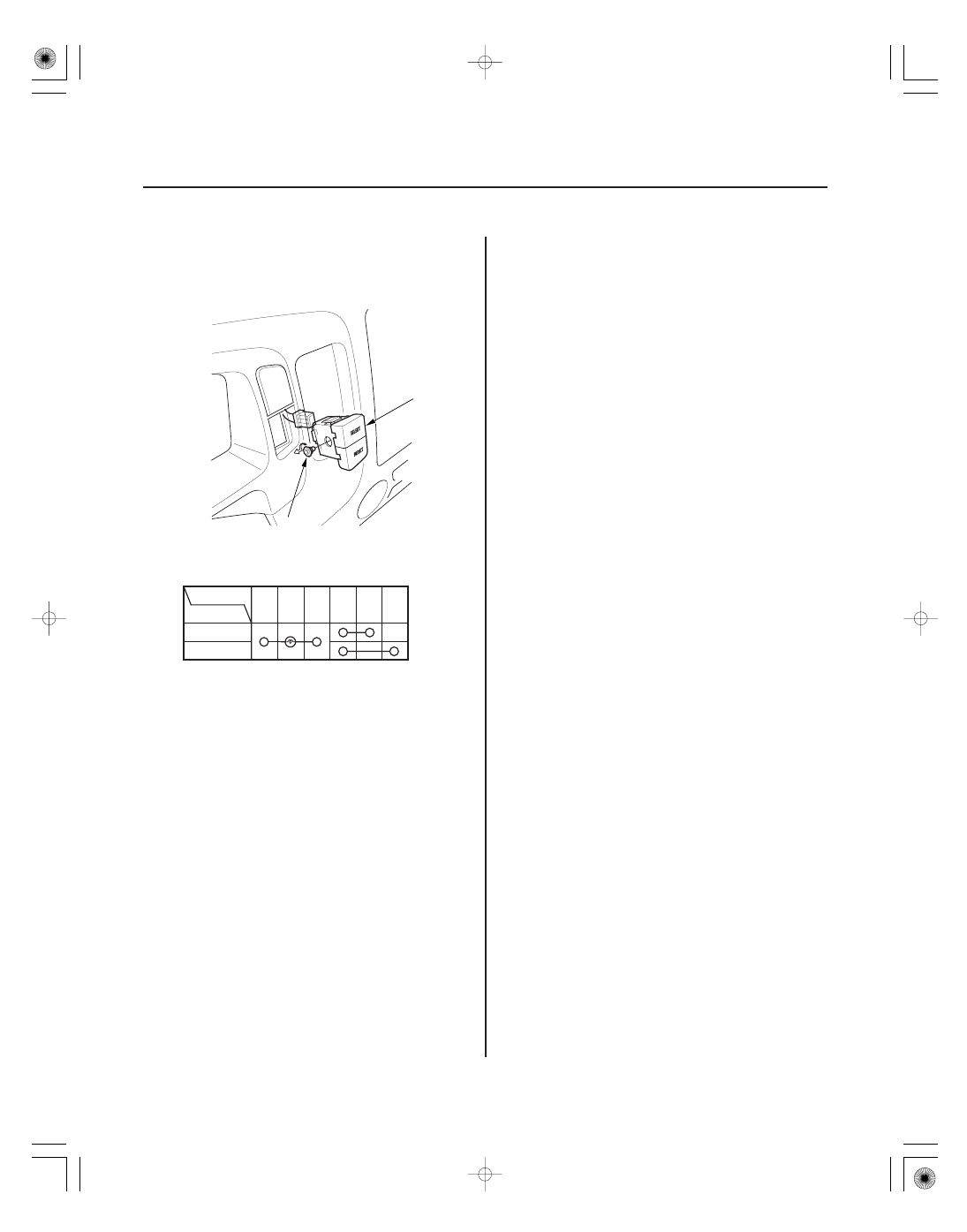

1. Remove the instrument panel (see page 20-81).

2. Carefully push out the select/reset switch (A) from

behind the instrument panel.

3. Check for continuity between the terminals in each

switch position according to the table.

4. If the continuity is not as specified, replace the

illumination bulb (B) or the switch.

*01

SJC8A00J26370100000DAAT00

22-267

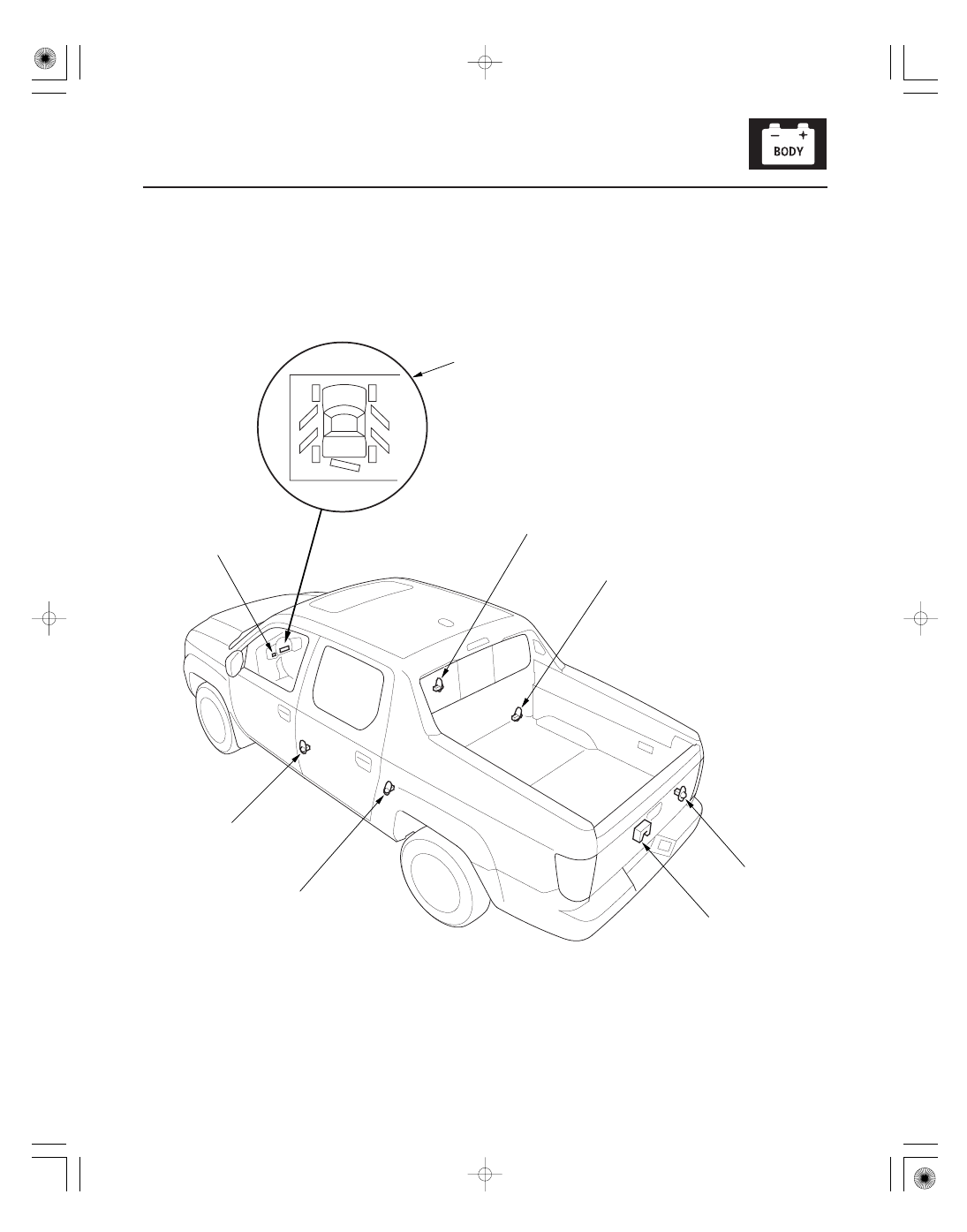

Safety Indicator System

Component Location Index

DOOR and TAILGATE OPEN MONITOR

TIRE PRESSURE MONITOR

IN-BED TRUNK LID OPEN
INDICATOR

FRONT PASSENGER’S DOOR SWITCH

RIGHT REAR DOOR SWITCH

TAILGATE SWITCH

IN-BED TRUNK LID
LATCH SWITCH

LEFT REAR DOOR SWITCH

DRIVER’S DOOR SWITCH

Input Test, page 22-269
