Honda Ridgeline. Manual - part 100

０１

ＳＪＣ８Ａ００Ｋ７７１０００９２２４５ＦＡＡＴ３０

−

DTC P2245:

DTC P2249:

YES

11-164

PGM-FI System

DTC Troubleshooting (cont’d)

PCM CONNECTOR B (44P)

VCENTB1 (RED)

VCENTB2
(RED/WHT)*

Rear A/F Sensor (Bank 1,

Sensor 1) VCENT Circuit Low Voltage

Front A/F Sensor (Bank 2,

Sensor 1) VCENT Circuit Low Voltage

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the A/F sensor (Sensor 1) and the PCM.

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

7. Disconnect the A/F sensor (Sensor 1) 8P connector.

8. Disconnect PCM connector B (44P).

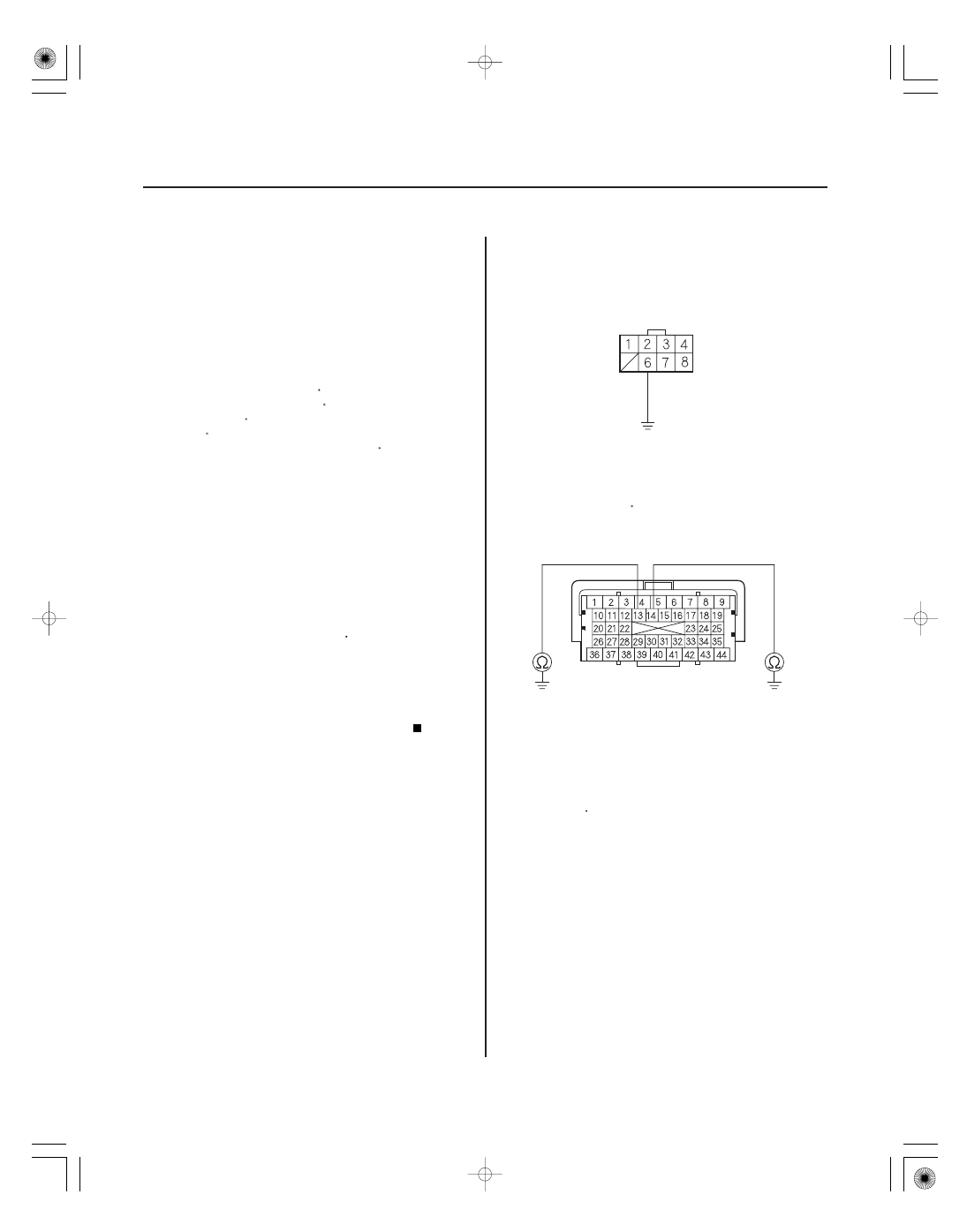

9. Check for continuity between PCM connector

terminal B38 (B22) and body ground.

Repair short in the wire between the PCM

(B38 (B22) ) and the A/F sensor (Sensor 1), then go
to step 14.

Go to step 10.

10. Reconnect PCM connector B (44P).

11. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

Terminal side of female terminals

Is DT C P2245 and/ or P2249 indicated?

Is ther e continuity?

０２

−

YES

11-165

A/F SENSOR (SENSOR 1) 8P CONNECTOR

VCENTB1 (RED)
VCENTB2 (RED/WHT)*

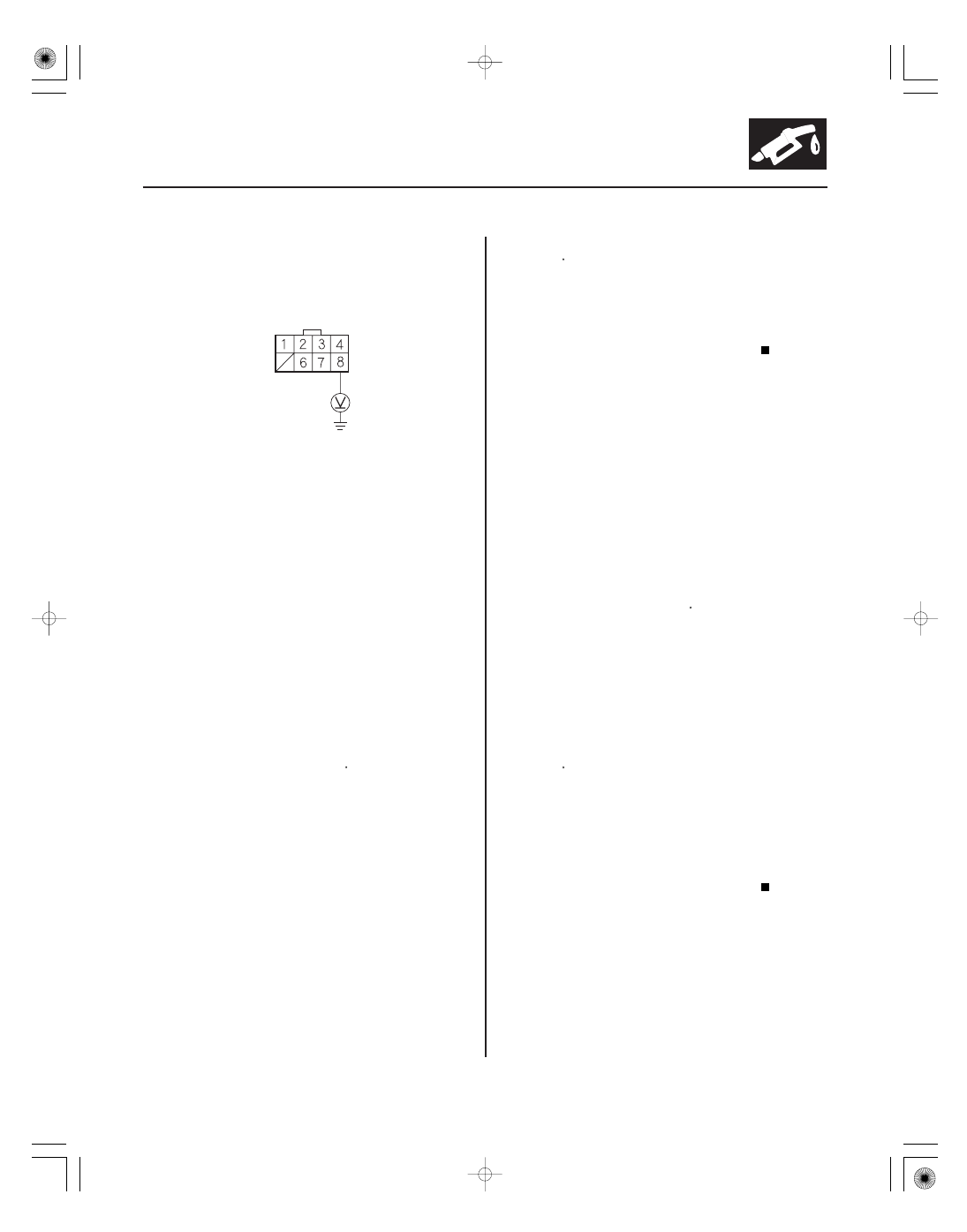

12. Measure voltage between A/F sensor (Sensor 1) 8P

connector terminal No. 8 and body ground.

Go to step 20.

Go to step 13.

13. Replace the A/F sensor (Sensor 1) (see page

11-199).

14. Reconnect all connectors.

15. Turn the ignition switch ON (II).

16. Reset the PCM with the HDS.

17. Do the PCM idle learn procedure (see page 11-273).

18. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM,
then go to step 1.

Go to step 19.

19. Monitor the OBD STATUS for DTC P2245 and/or

P2249 in the DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 18,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the PCM, then go to step 1. If the
screen indicates NOT COMPLETED, keep idling
until a result comes on.

20. Turn the ignition switch OFF.

21. Reconnect all connectors.

22. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

23. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM.
If the PCM was updated, substitute a known-good
PCM (see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

Go to step 24.

24. Monitor the OBD STATUS for DTC P2245 and/or

P2249 in the DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 23,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the PCM. If the PCM was updated,
substitute a known-good PCM (see page 11-8), then
recheck. If the PCM was substituted, go to step 1. If
the screen indicates NOT COMPLETED, keep idling
until a result comes on.

Wire side of female terminals

Is ther e about 0.2 V or less?

Is DT C P2245 and/ or P2249 indicated?

Does the scr een indicate PASSED?

Is DT C P2245 and/ or P2249 indicated?

Does the scr een indicate PASSED?

０１

０２

ＳＪＣ８Ａ００Ｋ７７１０００９２２５１ＦＡＡＴ３０

−

DTC P2251:

DTC P2254:

YES

11-166

PGM-FI System

DTC Troubleshooting (cont’d)

A/F SENSOR (SENSOR 1) 8P CONNECTOR

VSB1 (BLU)
VSB2 (RED/BLU)*

JUMPER WIRE

PCM CONNECTOR B (44P)

VSB2 (RED/BLU)*

VSB1 (BLU)

Rear A/F Sensor (Bank 1,

Sensor 1) VS Circuit High Voltage

Front A/F Sensor (Bank 2,

Sensor 1) VS Circuit High Voltage

NOTE:

• Before you troubleshoot, record all freeze data and

any on-board snapshot, and review the general
troubleshooting information (see page 11-3).

• If DTC P2251 and/or P2254 is stored at the same time

as DTC P0134 and/or P0154 , troubleshoot DTC P2251
and/or P2254 first, then recheck for P0134 and/or
P0154 .

• Information marked with an asterisk ( ) applies to the

front bank (Bank 2).

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

4. Check for Temporary DTCs or DTCs with the HDS.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the A/F sensor (Sensor 1) and the PCM.

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

7. Disconnect the A/F sensor (Sensor 1) 8P connector.

8. Disconnect PCM connector B (44P).

9. Connect A/F sensor (Sensor 1) 8P connector

terminal No. 6 to body ground with a jumper wire.

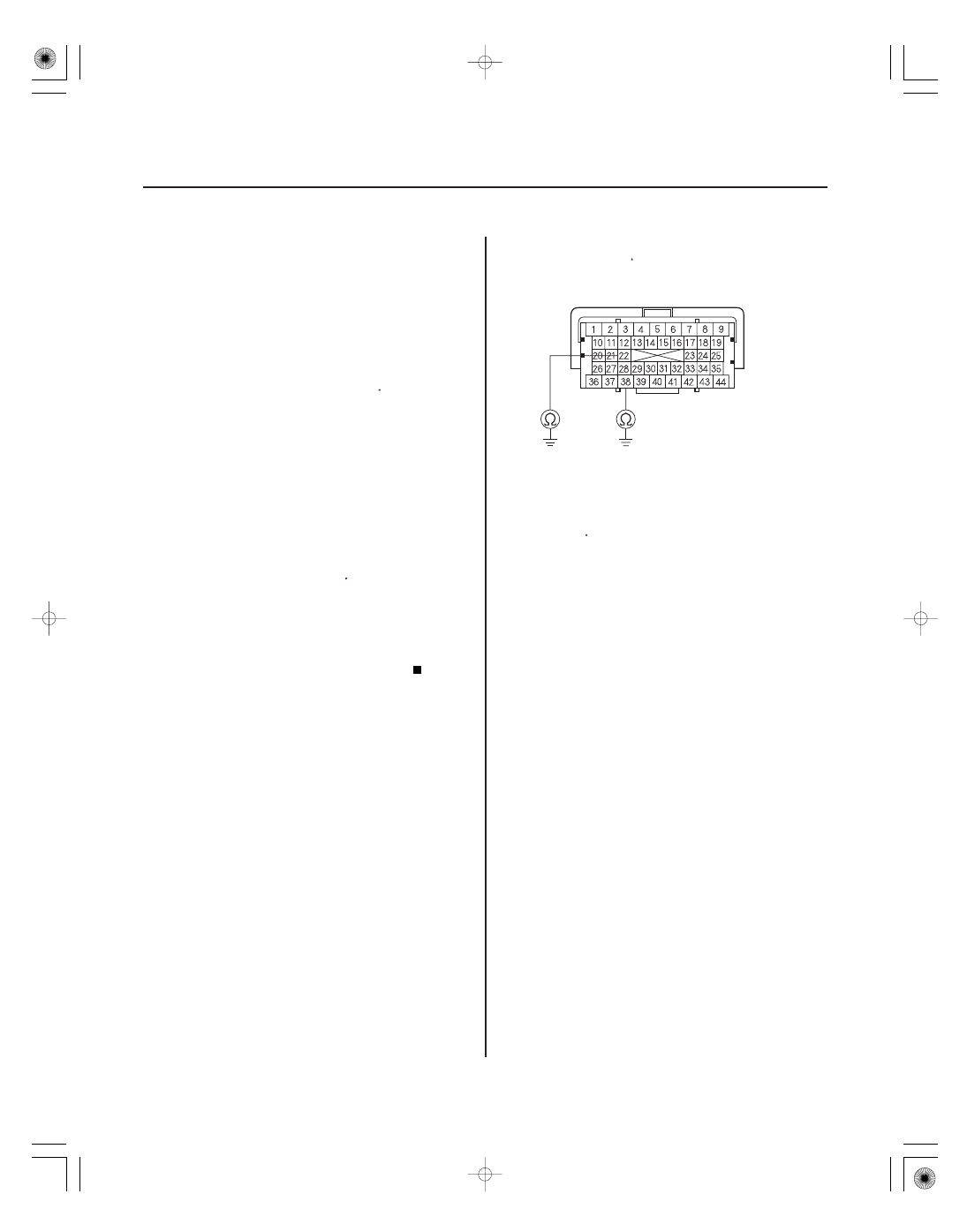

10. Check for continuity between PCM connector

terminal B13 (B14) and body ground.

Go to step 11.

Repair open in the wire between the PCM

(B13 (B14) ) and the A/F sensor (Sensor 1), then go
to step 15.

11. Remove the jumper wire from the A/F sensor

(Sensor 1) 8P connector, then reconnect PCM
connector B (44P).

Wire side of female terminals

Terminal side of female terminals

Is DT C P2251 and/ or P2254 indicated?

Is ther e continuity?

０３

−

YES

11-167

A/F SENSOR (SENSOR 1) 8P CONNECTOR

VSB1 (BLU)
VSB2 (RED/BLU)*

12. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle 2 minutes.

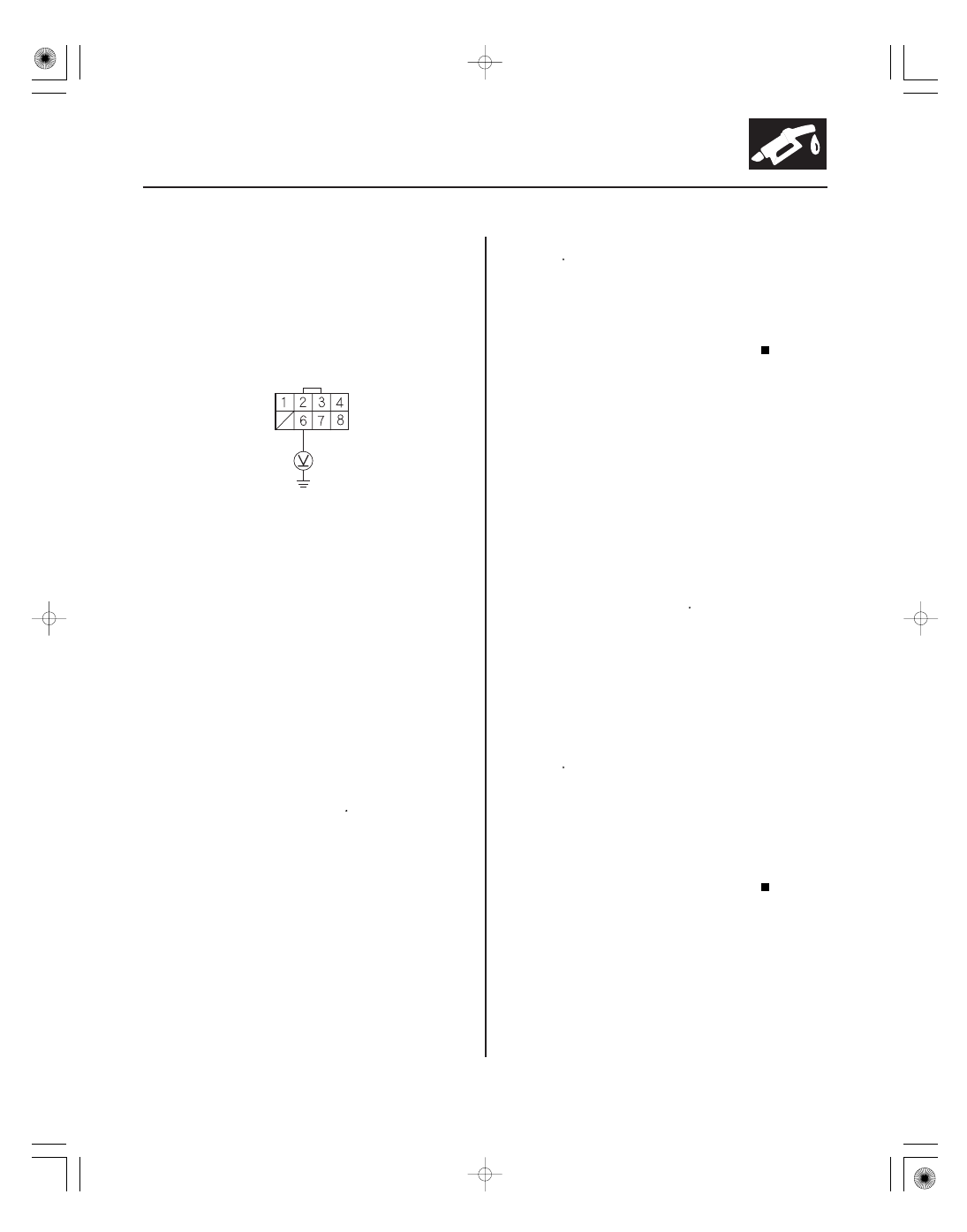

13. Measure voltage between A/F sensor (Sensor 1) 8P

connector terminal No. 6 and body ground.

Go to step 21.

Go to step 14.

14. Replace the A/F sensor (Sensor1) (see page 11-199).

15. Reconnect all connectors.

16. Turn the ignition switch ON (II).

17. Reset the PCM with the HDS.

18. Do the PCM idle learn procedure (see page 11-273).

19. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM,
then go to step 1.

Go to step 20.

20. Monitor the OBD STATUS for DTC P2251 and/or

P2254 in the DTCs MENU with the HDS.

Troubleshooting is complete. If any other

Temporary DTCs or DTCs were indicated in step 19,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

connections or loose terminals at the A/F sensor
(Sensor 1) and the PCM, then go to step 1. If the
screen indicates NOT COMPLETED, keep idling
until a result comes on.

21. Turn the ignition switch OFF.

22. Reconnect all connectors.

23. Update the PCM if it does not have the latest

software (see page 11-7), or substitute a known-
good PCM (see page 11-8).

24. Check for Temporary DTCs or DTCs with the HDS.

Check for poor connections or loose

terminals at the A/F sensor (Sensor 1) and the PCM.
If the PCM was updated, substitute a known-good
PCM (see page 11-8), then recheck. If the PCM was
substituted, go to step 1.

Go to step 25.

25. Monitor the OBD STATUS for DTC P2251 and/or

P2254 in the DTCs MENU with the HDS.

If the PCM was updated, troubleshooting is

complete. If the PCM was substituted, replace the
original PCM (see page 11-205). If any other
Temporary DTCs or DTCs were indicated in step 24,
go to the indicated DTC’s troubleshooting.

If the screen indicates FAILED, check for poor

Wire side of female terminals

Is ther e about 0.2 V or less?

Is DT C P2251 and/ or P2254 indicated?

Does the scr een indicate PASSED?

If DT C P2251 and/ or P2254 indicated?

Does the scr een indicate PASSED?
