Honda Element. Manual - part 498

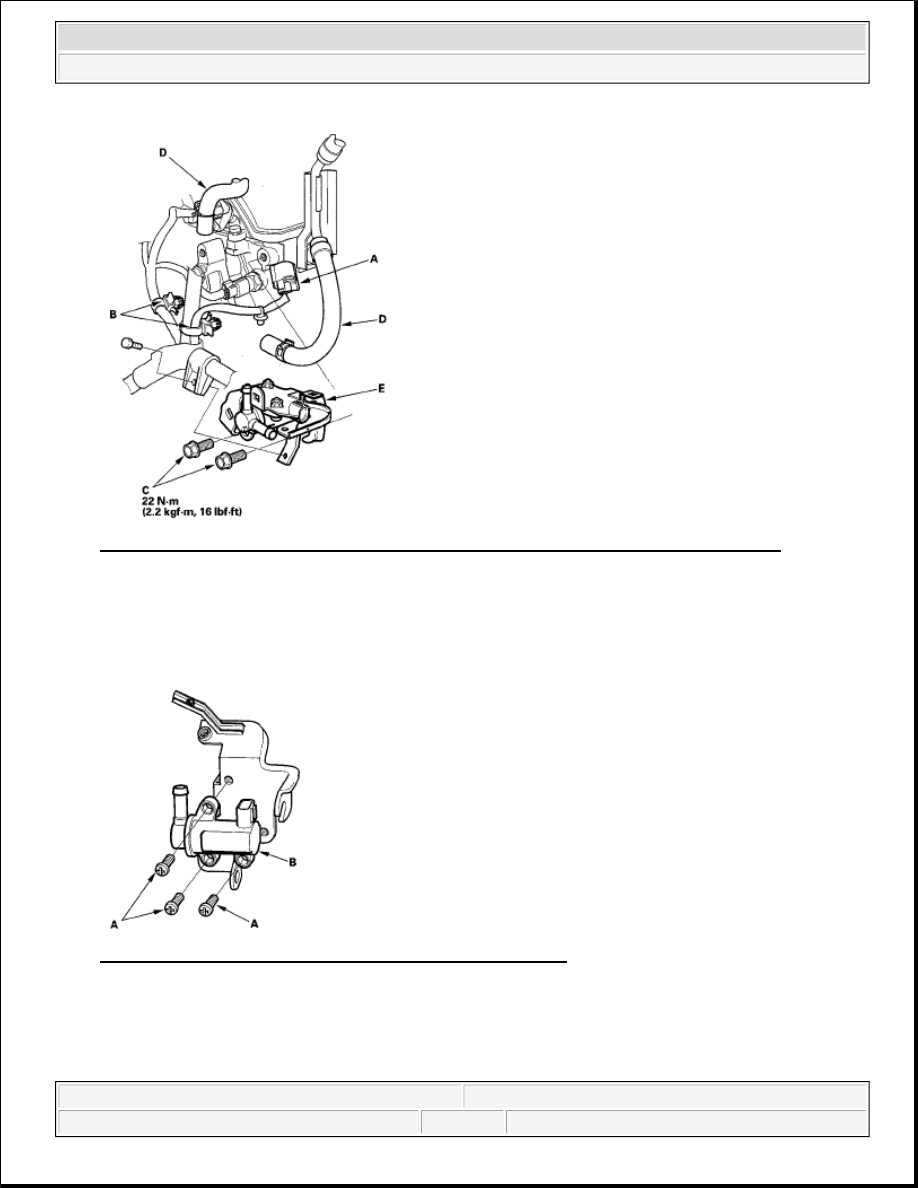

Fig. 44: Identifying EVAP Canister Purge Valve Components With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the harness clips (B), the bolts (C), and the hoses (D), then remove the EVAP canister purge

valve assembly (E).

3. Remove the screws (A).

Fig. 45: Identifying EVAP Canister Purge Valve And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the EVAP canister purge valve (B) from the bracket.

5. Install the parts in the reverse order of removal.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE EVAP System - Element



EVAP CANISTER VENT SHUT VALVE REPLACEMENT

1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).

2. Pry the lock tabs outward (A), then remove the EVAP canister vent shut valve (B).

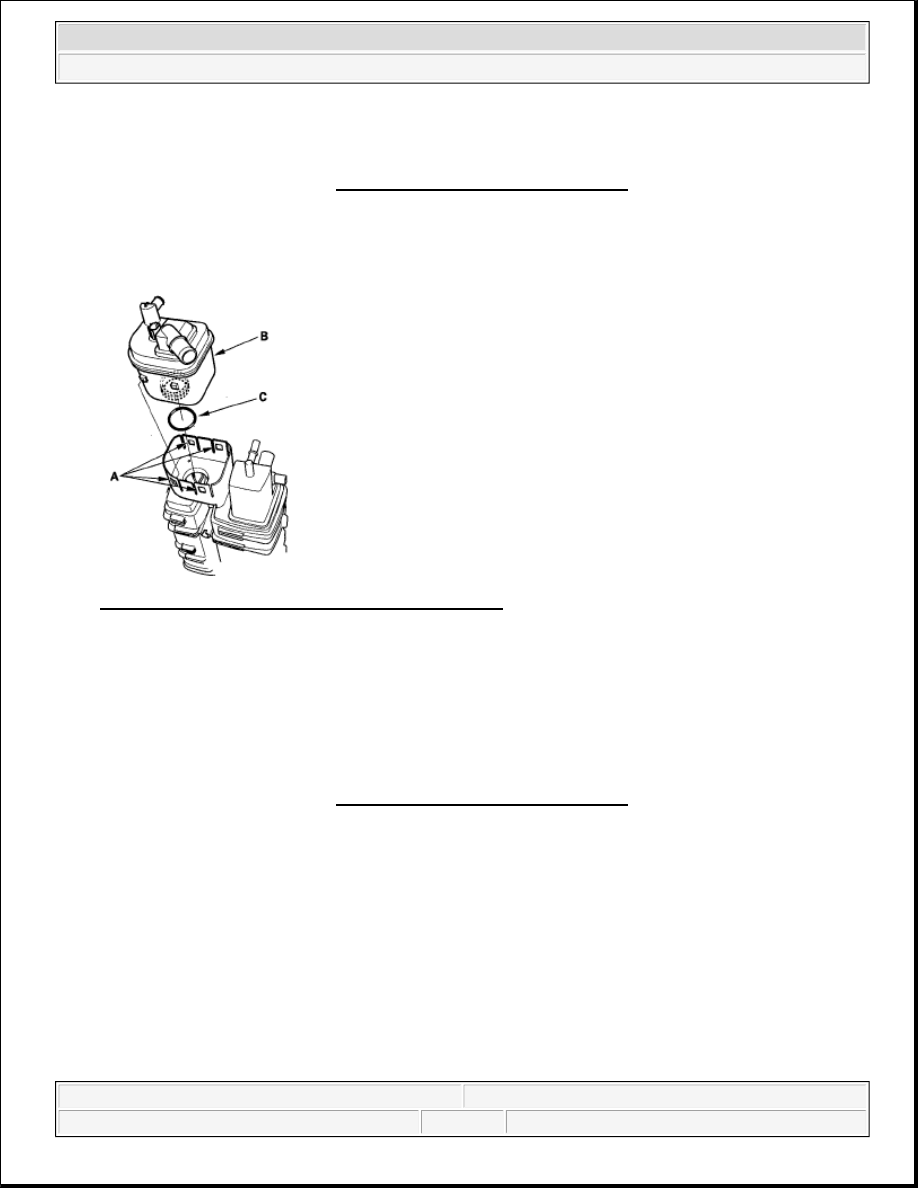

Fig. 46: Identifying EVAP Canister Vent Shut Valve
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Install the parts in the reverse order of removal with a new O-ring (C).

EVAP CANISTER FILTER REPLACEMENT

1. Remove the EVAP canister (see EVAP CANISTER REPLACEMENT ).

2. Disconnect the hose (A).

NOTE:

Be careful not to damage the lock tabs.

NOTE:

Do not coat the O-ring with engine oil, etc.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE EVAP System - Element



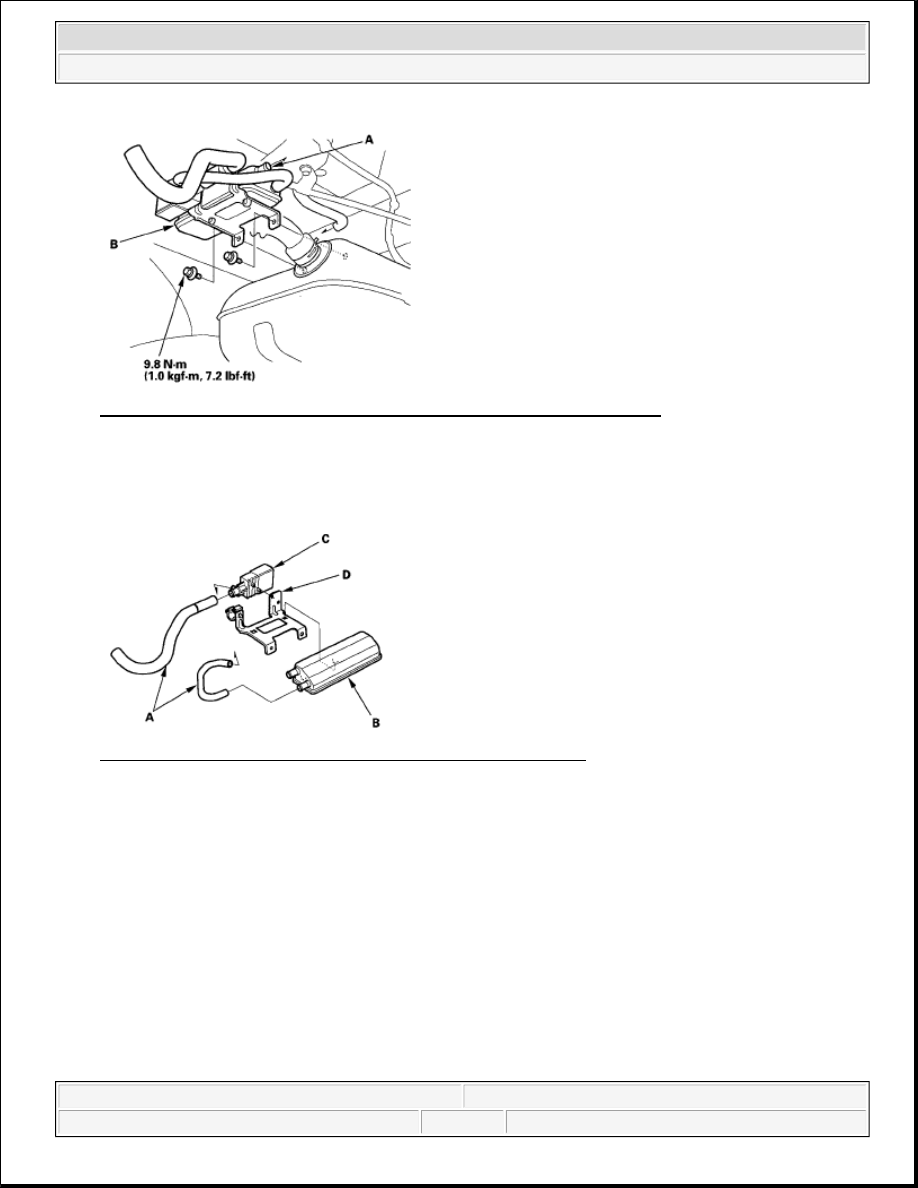

Fig. 47: Identifying EVAP Canister And Hose With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the EVAP canister filter and bracket (B).

4. Disconnect the hoses (A).

Fig. 48: Identifying EVAP Canister Filter, Screws And Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the EVAP canister filter (B) from the joint (C) and bracket (D).

6. Install the parts in the reverse order of removal.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE EVAP System - Element
