CONNECTOR TO HARNESS INDEX

Connector or Terminal

Ref Cavities

Location

Connects to

Notes

Air fuel ratio (A/F) sensor

15

4

Under middle of
vehicle





Brake fluid level switch

23

2

Left side of engine
compartment





ELD unit (see CONNECTOR TO
FUSE/RELAY BOX INDEX )

19

3

Under-hood
fuse/relay box





Horn

12

1

Behind left side of
front bumper





Left front wheel sensor

14

2

Left side of engine
compartment





Left front impact sensor

13

2

Behind left side of
front bumper





Left side marker light

9

2

Behind left
headlight





Left front turn signal/parking lights

8

3

Behind left
headlight





Left headlight connector B

5

2

Behind left
headlight





Optional connector (for fog light)

10

1

Behind left side of
front bumper





Power steering pressure (PSP) switch

2

2

Rear of engine
compartment





Radiator fan motor

4

2

Front of engine
compartment





Right front impact sensor

1

2

Behind right side
of front bumper





Secondary heated oxygen sensor
(SHO2S)

3

4

Under middle of
vehicle





Under-hood fuse/relay box connector A
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

21

2

Under-hood
fuse/relay box





Under-hood fuse/relay box connector B
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

16

5

Under-hood
fuse/relay box





Under-hood fuse/relay box connector C
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

20

12

Under-hood
fuse/relay box





Under-hood fuse/relay box connector D
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

17

14

Under-hood
fuse/relay box





Under-hood fuse/relay box connector E
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

18

7

Under-hood
fuse/relay box







2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



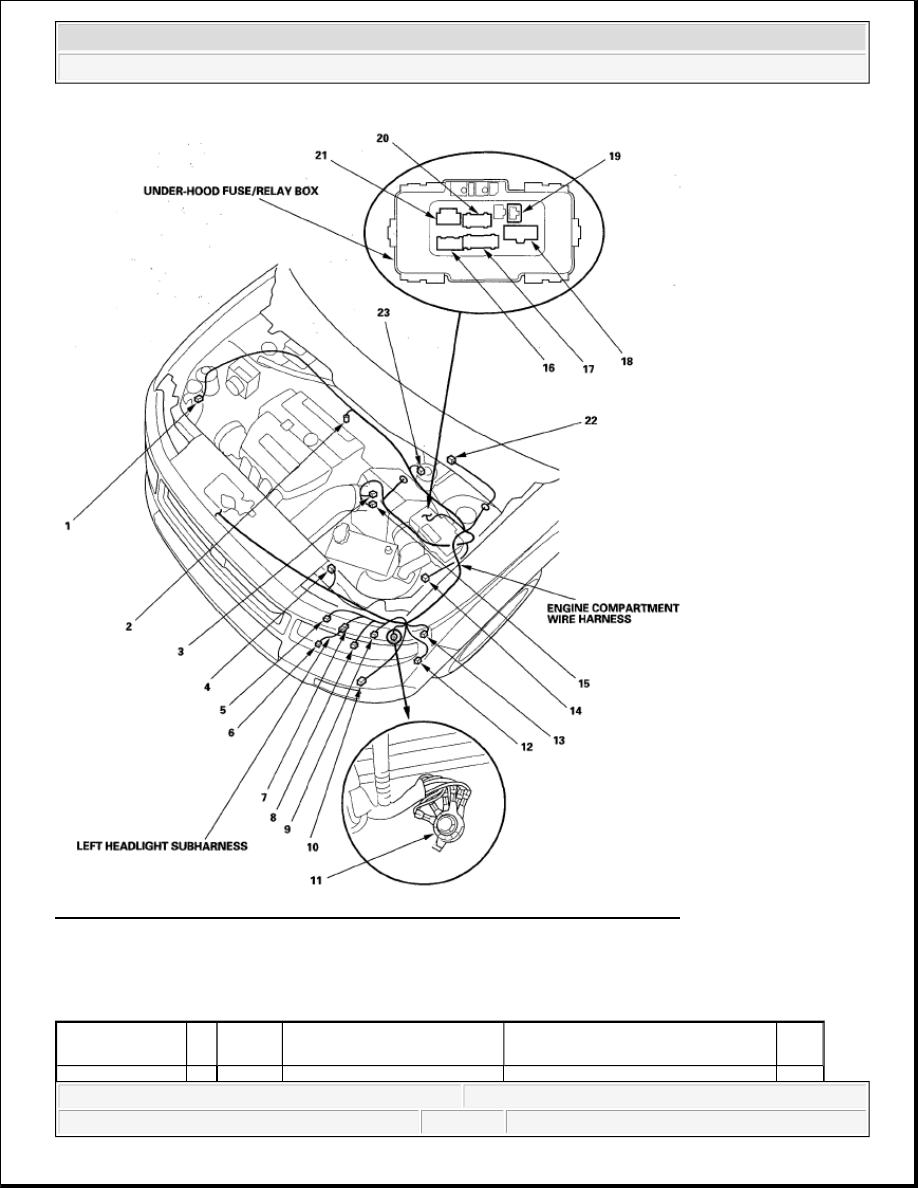

LEFT HEADLIGHT SUBHARNESS (SC MODEL)

CONNECTOR TO HARNESS INDEX

Windshield wiper motor

22

5

Under left side of
cowl cover





C350

7

2

Behind left
headlight

Left headlight
subharness



G301

11



Behind left side of
front bumper

Body ground, via engine
compartment wire
harness



Connector or Terminal Ref Cavities

Location

Connects to

Notes

Left headlight connector A

6

2

Behind left headlight



C350

7

2

Behind left headlight Engine compartment wire harness



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



Fig. 8: Identifying Engine Compartment Wire Harness (Left Branch) (SC Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD)

CONNECTOR TO HARNESS INDEX

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



Optional
connector (for
fog light)

10

3

Under left side of dash





C401

8

20

Under middle of dash

Dashboard wire harness B (see
DASHBOARD WIRE HARNESS
B )



C402

9

16

Under middle of dash (see
DASHBOARD WIRE
HARNESS B )

Dashboard wire harness B



C405 (Junction
connector)

1

20

Under middle of dash





C451

6

20

Under middle of dash

ECM/PCM wire harness (see
ECM/PCM WIRE HARNESS )



C452

7

3

Under middle of dash

ECM/PCM wire harness (see
ECM/PCM WIRE HARNESS )



C501

3

14

Under middle of dash

Dashboard wire harness A (see
DASHBOARD WIRE HARNESS
A (LEFT BRANCH) )



C502

2

13

Under middle of dash

Dashboard wire harness A (see
DASHBOARD WIRE HARNESS
A (LEFT BRANCH) )



C553

4

14

Under middle of dash

Floor wire harness (see FLOOR
WIRE HARNESS (RIGHT
BRANCH) )



C853

5

1

Under middle of dash

A/C wire harness (see A/C WIRE
HARNESS )



G402

11



Under middle of dash

Body ground, via engine
compartment wire harness





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element
