Honda Element. Manual - part 339

Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the filter lid from the blower unit, then pull out the first dust and pollen filter. Slide the second

filter to the left and pull it out. See Fig. 2.

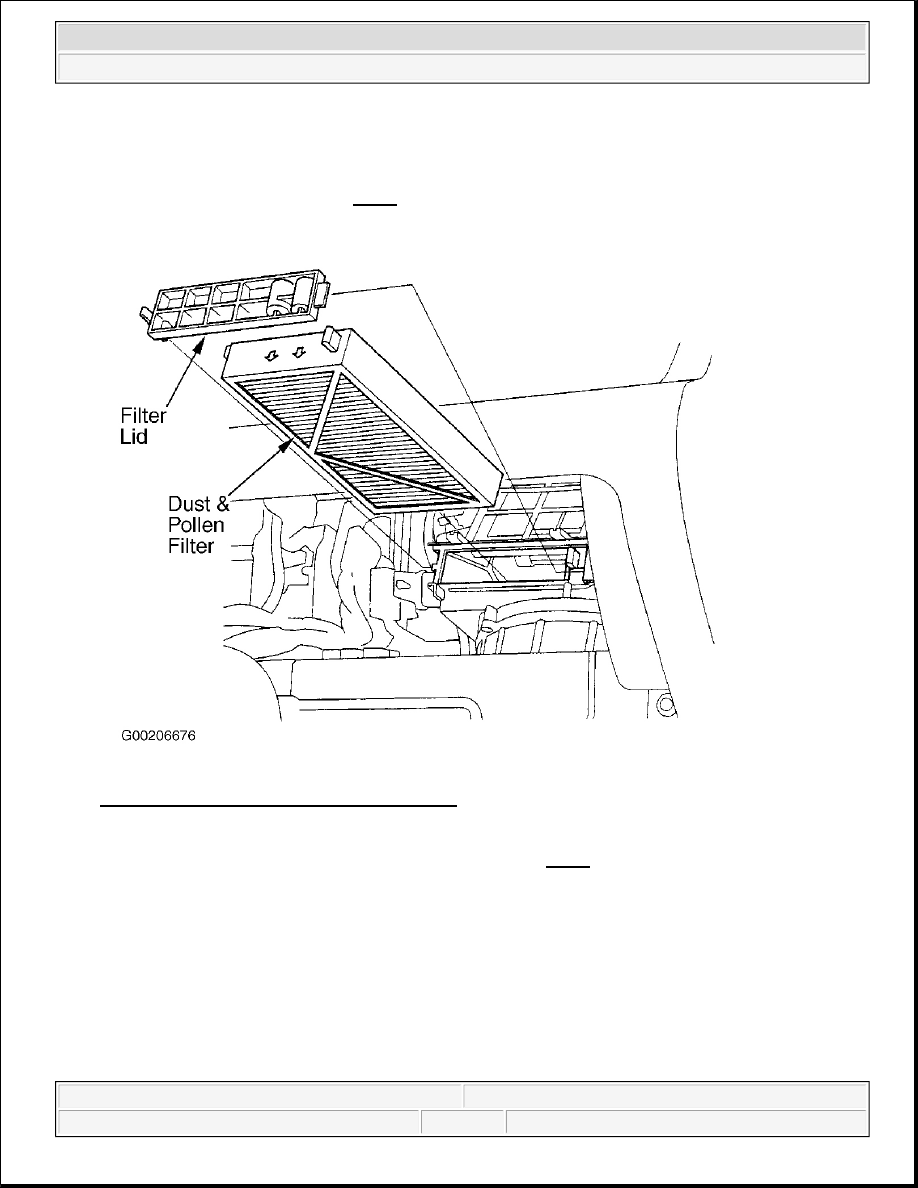

Fig. 2: Removing Filter Lid From Blower Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the filter from the housing and replace the filter. See Fig. 3.

4. To install the filter, reverse removal procedure. Ensure arrow marks on edge of filter face in direction of

air flow.



2007 Honda Element EX

CABIN AIR FILTERS Dust & Pollen Filter - Element & RSX

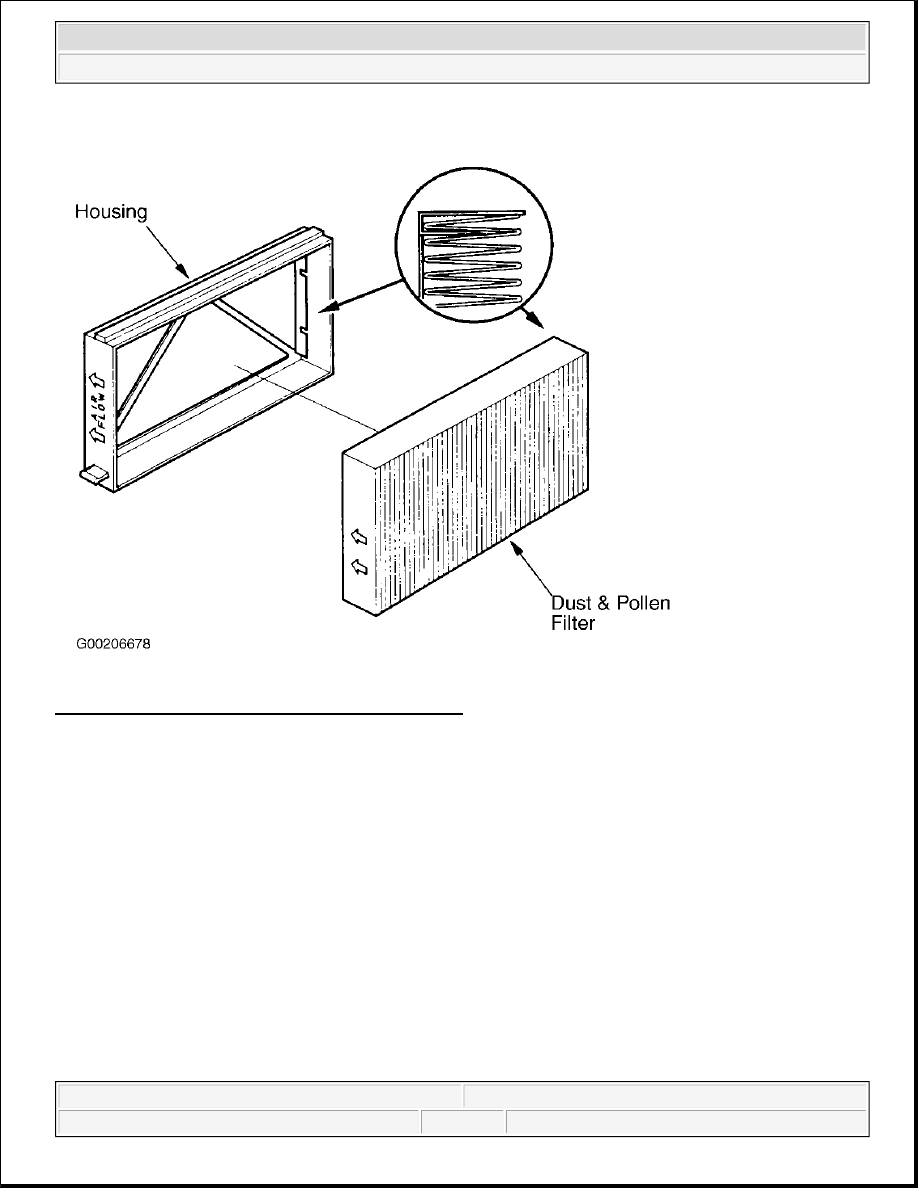

Fig. 3: Removing Dust & Pollen Filter From Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

CABIN AIR FILTERS Dust & Pollen Filter - Element & RSX



2007-08 ELECTRICAL

Charging System - Element

COMPONENT LOCATION INDEX

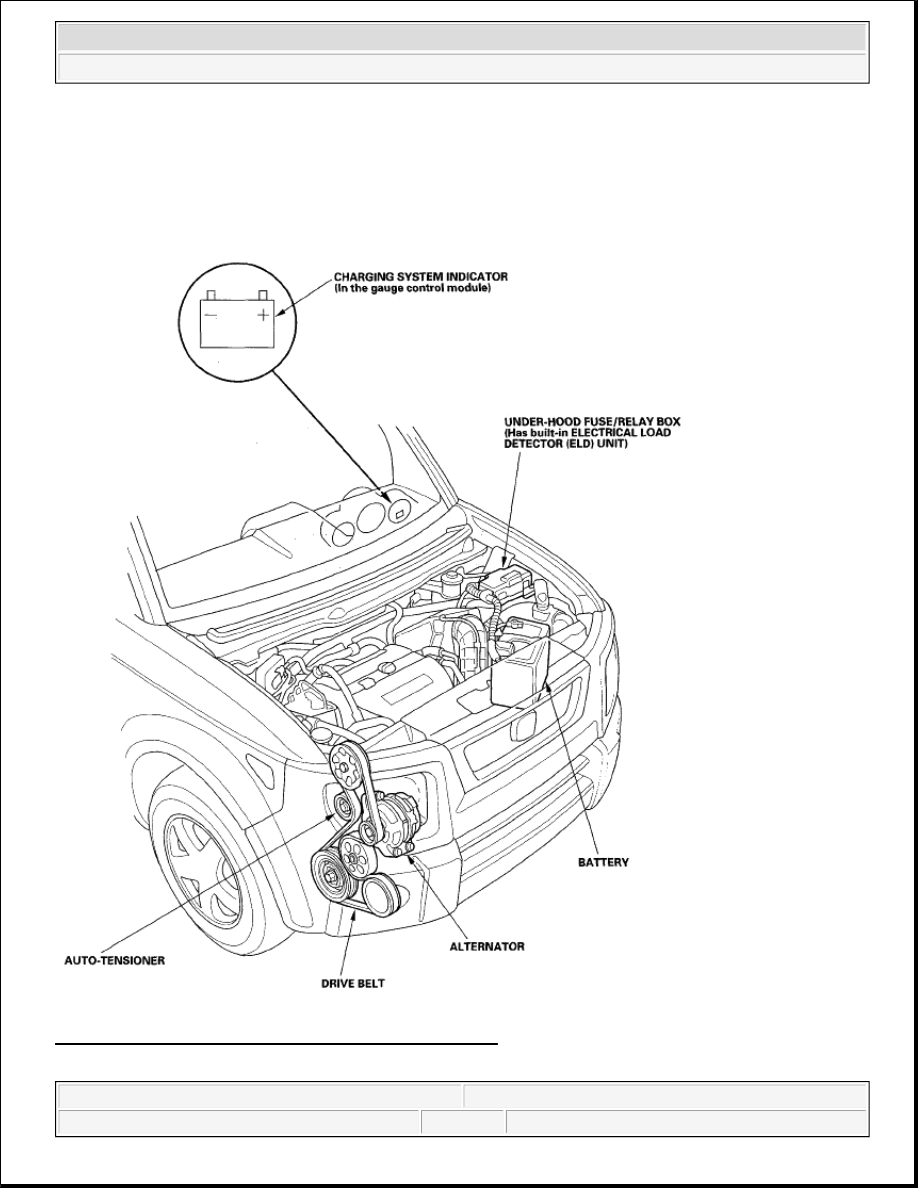

Fig. 1: Identifying Charging System Component Location



2007 Honda Element EX

2007-08 ELECTRICAL Charging System - Element





2007 Honda Element EX

2007-08 ELECTRICAL Charging System - Element



SYMPTOM TROUBLESHOOTING INDEX

SYMPTOM TROUBLESHOOTING CHART

CIRCUIT DIAGRAM

Symptom

Diagnostic procedure

Charging system indicator does not come on
with the ignition switch ON (II)

Troubleshoot the charging system indicator circuit (see
CHARGING SYSTEM INDICATOR CIRCUIT
TROUBLESHOOTING ).

Charging system indicator stays on

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING INFORMATION ).

2. Troubleshoot the charging system indicator

circuit (see CHARGING SYSTEM
INDICATOR CIRCUIT
TROUBLESHOOTING ).

3. Check for a broken drive belt (see DRIVE

BELT INSPECTION ).

4. Check the drive belt auto-tensioner (see DRIVE

BELT AUTO-TENSIONER INSPECTION ).

Battery discharged

1. Check for excessive parasitic electrical current

draw with the ignition switch is OFF, and the key
removed. The multiplex control unit may take up
to 10 minutes to turn off (sleep mode) for some
models.

2. Check for a broken drive belt (see DRIVE

BELT INSPECTION ).

3. Check the drive belt auto-tensioner (see DRIVE

BELT AUTO-TENSIONER INSPECTION ).

4. Troubleshoot the alternator and regulator circuit

(see ALTERNATOR AND REGULATOR
CIRCUIT TROUBLESHOOTING ).

5. Check for a poor connection at the battery

terminal.

6. Test the battery (see BATTERY TEST ).

Battery overcharged

1. Troubleshoot the alternator and regulator circuit

(see ALTERNATOR AND REGULATOR
CIRCUIT TROUBLESHOOTING ).

2. Test the battery (see BATTERY TEST ).



2007 Honda Element EX

2007-08 ELECTRICAL Charging System - Element
