Honda Element. Manual - part 317

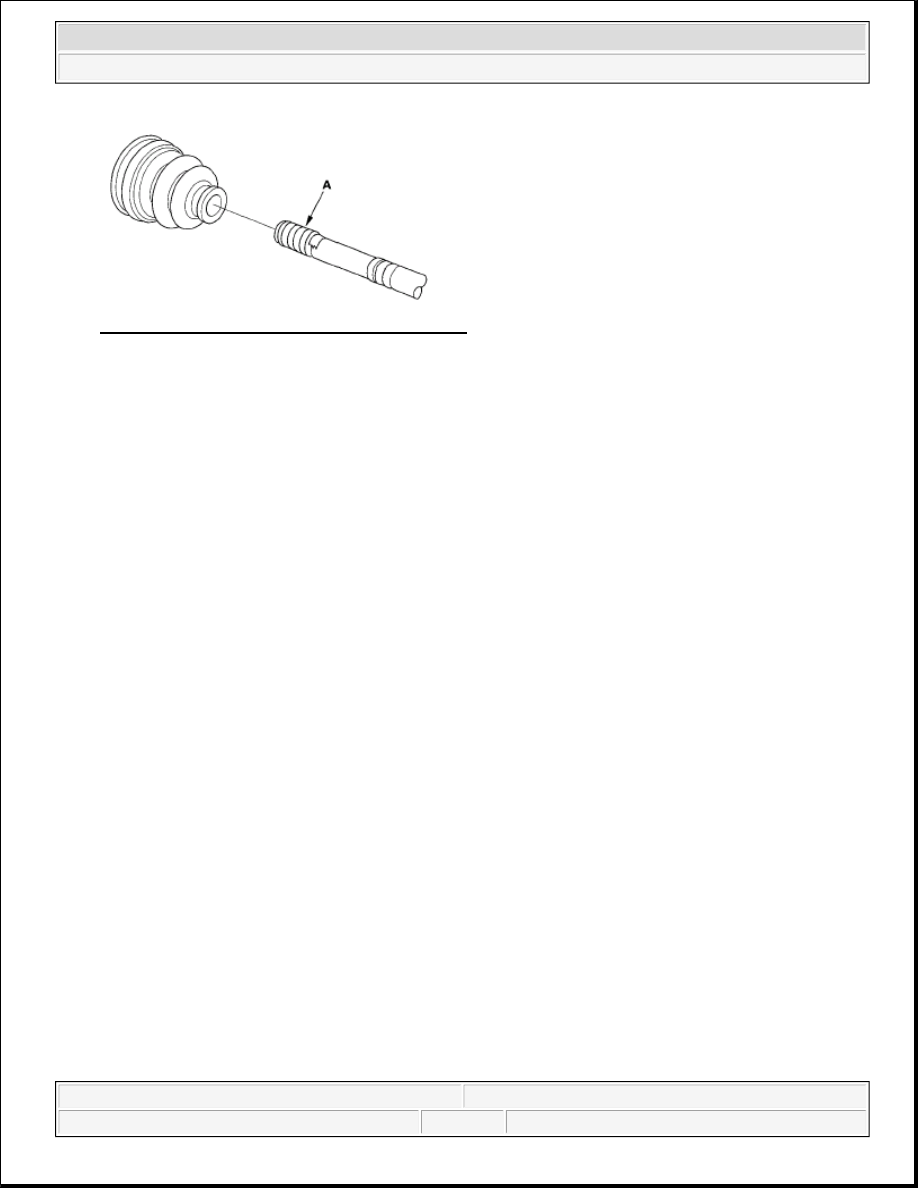

Fig. 83: Identifying Driveshaft With Vinyl Tape
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. Remove the outboard boot. Be careful not to damage the boot.

9. Remove the vinyl tape.

REAR DRIVESHAFT REASSEMBLY

EXPLODED VIEW



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



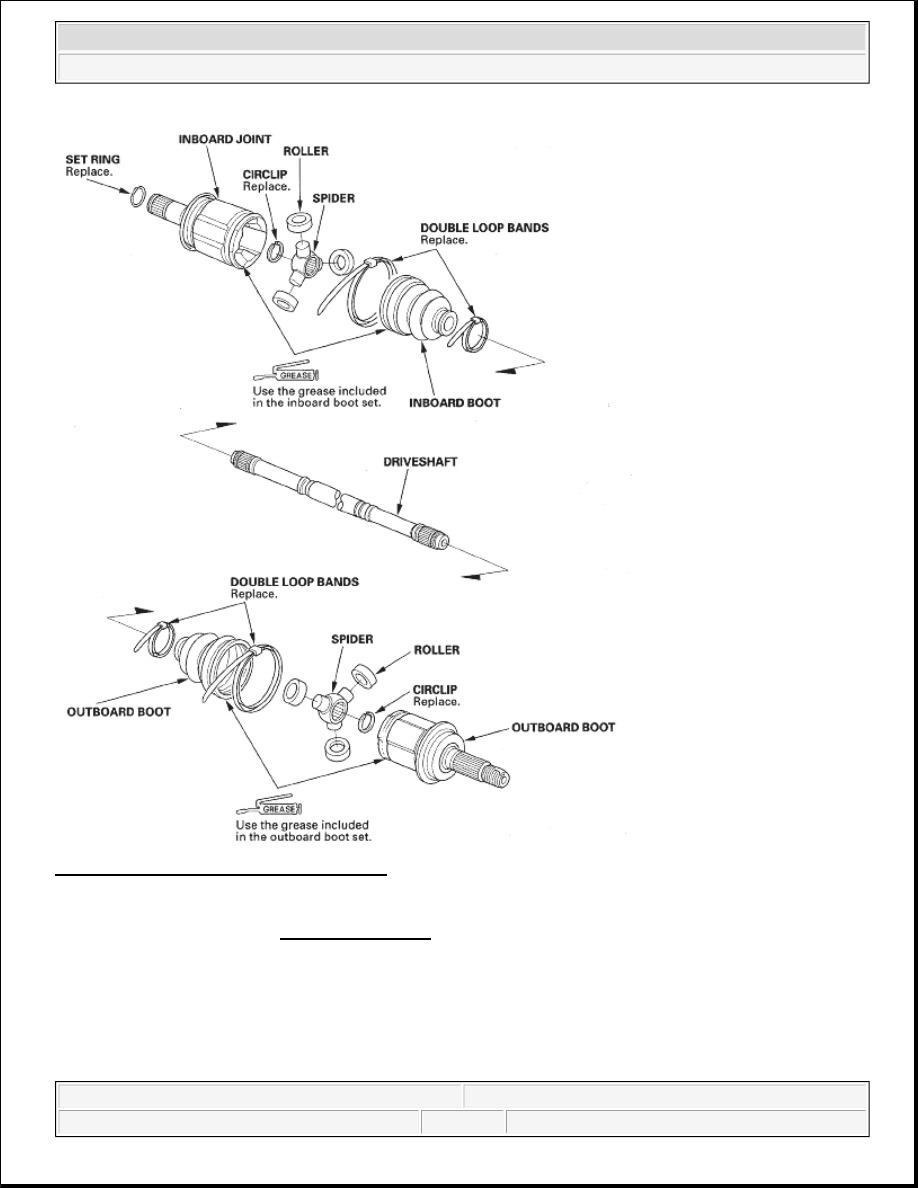

Fig. 84: Exploded View Of Rear Driveshaft
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

INBOARD JOINT SIDE

1. Wrap the splines with vinyl tape (A) to prevent damaging the inboard boot.

NOTE:

Refer to the EXPLODED VIEW, as needed, during this procedure.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



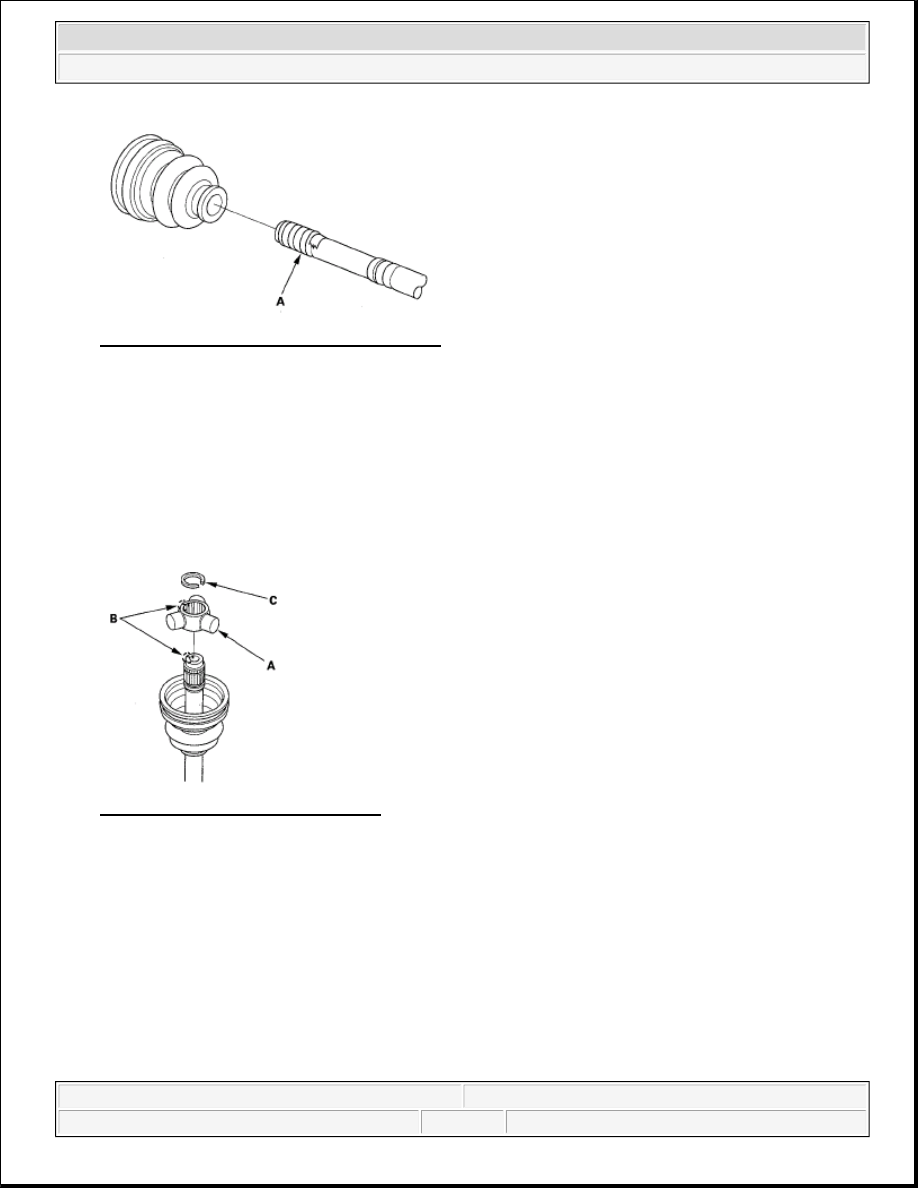

Fig. 85: Identifying Splines With Vinyl Tape
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Install the inboard boot onto the driveshaft, then remove the vinyl tape. Be careful not to damage the

inboard boot.

3. Install the spider (A) onto the driveshaft by aligning the marks (B) you made on the spider and the end of

the driveshaft.

Fig. 86: Identifying Mark On Spider
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

4. Install the new circlip (C) into the driveshaft groove. Always rotate the circlip in its groove to make sure

it is fully seated.

5. Fit the rollers (A) onto the spider (B) with their high shoulders facing outward and note these items:



Reinstall the rollers in their original positions on the spider by aligning the marks (C) you made.



Hold the driveshaft pointed up to prevent the rollers from falling off.

NOTE:

If you are installing a new joint, install the spider aligning its position to
differ by 60° from the position of the outboard side spider.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



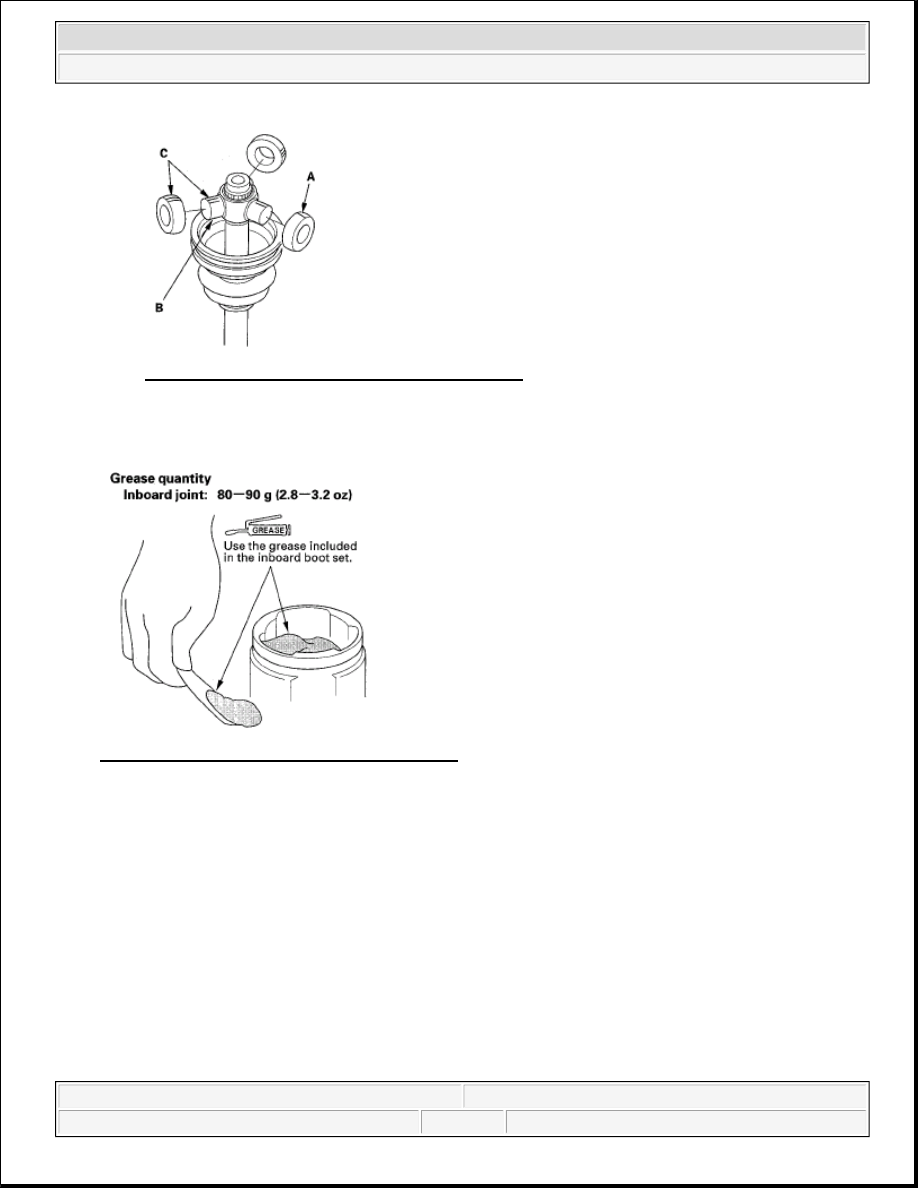

Fig. 87: Identifying Mark On Rollers And Spider
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

6. Pack the inboard joint with the joint grease included in the new inboard boot set.

Fig. 88: Applying Grease On Inboard Boot Set
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. Fit the inboard joint onto the driveshaft and note these items:



Reinstall the inboard joint onto the driveshaft by aligning the marks (A) you made on the inboard
joint and the rollers.



Hold the driveshaft so the inboard joint is pointing up to prevent it from falling off.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element
