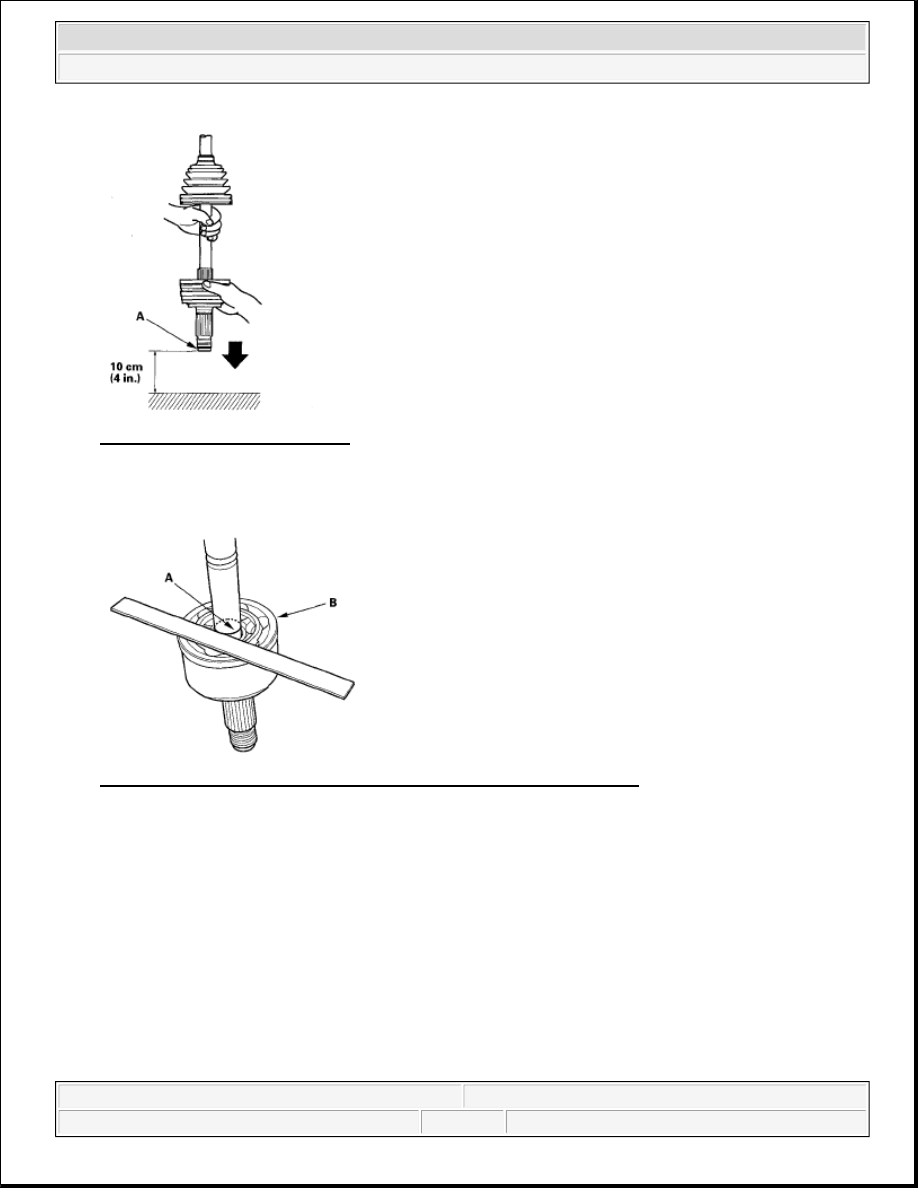

Fig. 44: Tapping Thread Section
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

7. Check the alignment of the paint mark (A) you made with the outboard joint rim (B).

Fig. 45: Checking Alignment Of Paint Mark And Outboard Joint Rim
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

8. Pack the outboard joint (A) with the remaining joint grease included in the new outboard boot set.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



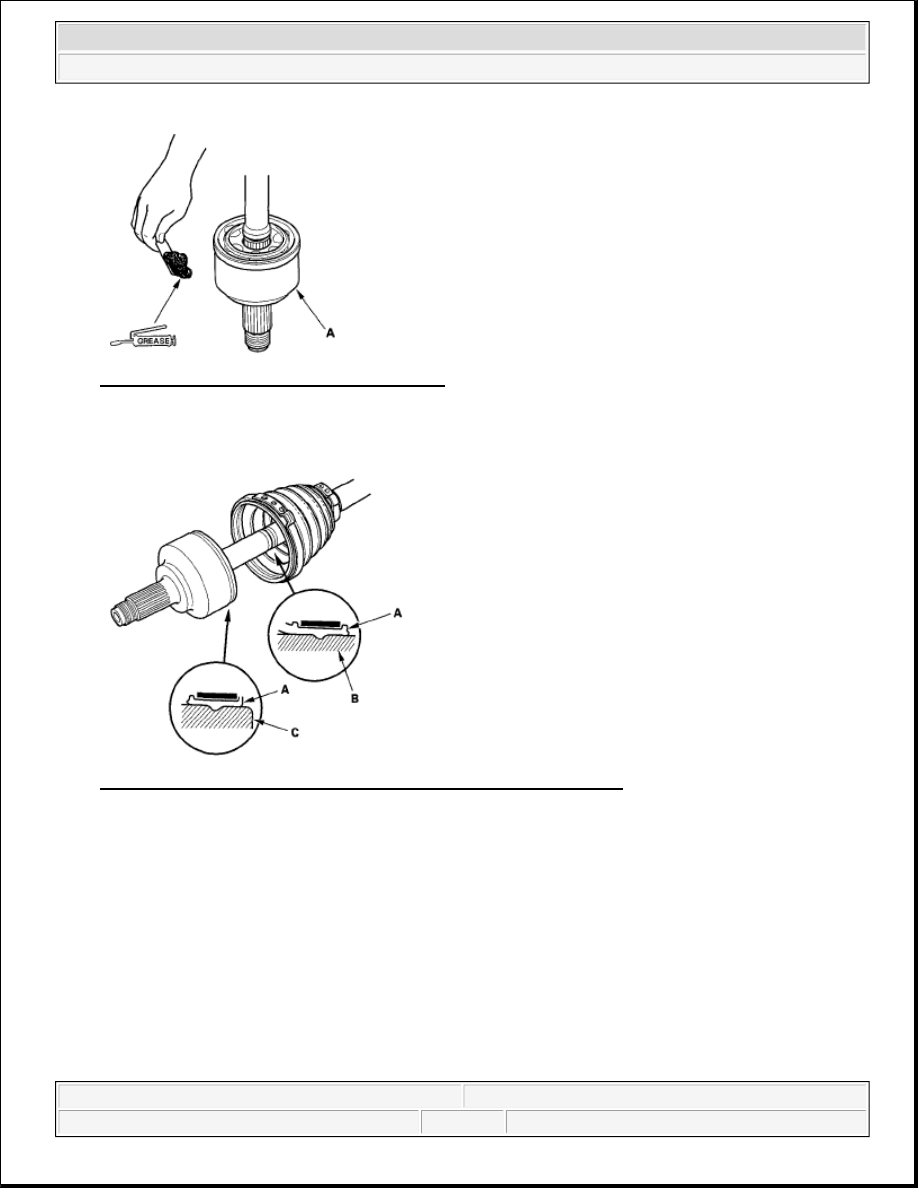

Fig. 46: Applying Grease On Outboard Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

9. Fit the boot (A) ends onto the driveshaft (B) and the outboard joint (C).

Fig. 47: Identifying Boot Ends Onto Driveshaft And Outboard Joint
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

10. Close the ear portion (A) of the band with commercially available boot band pliers Kent-Moore J-35910

or equivalent (B).



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element



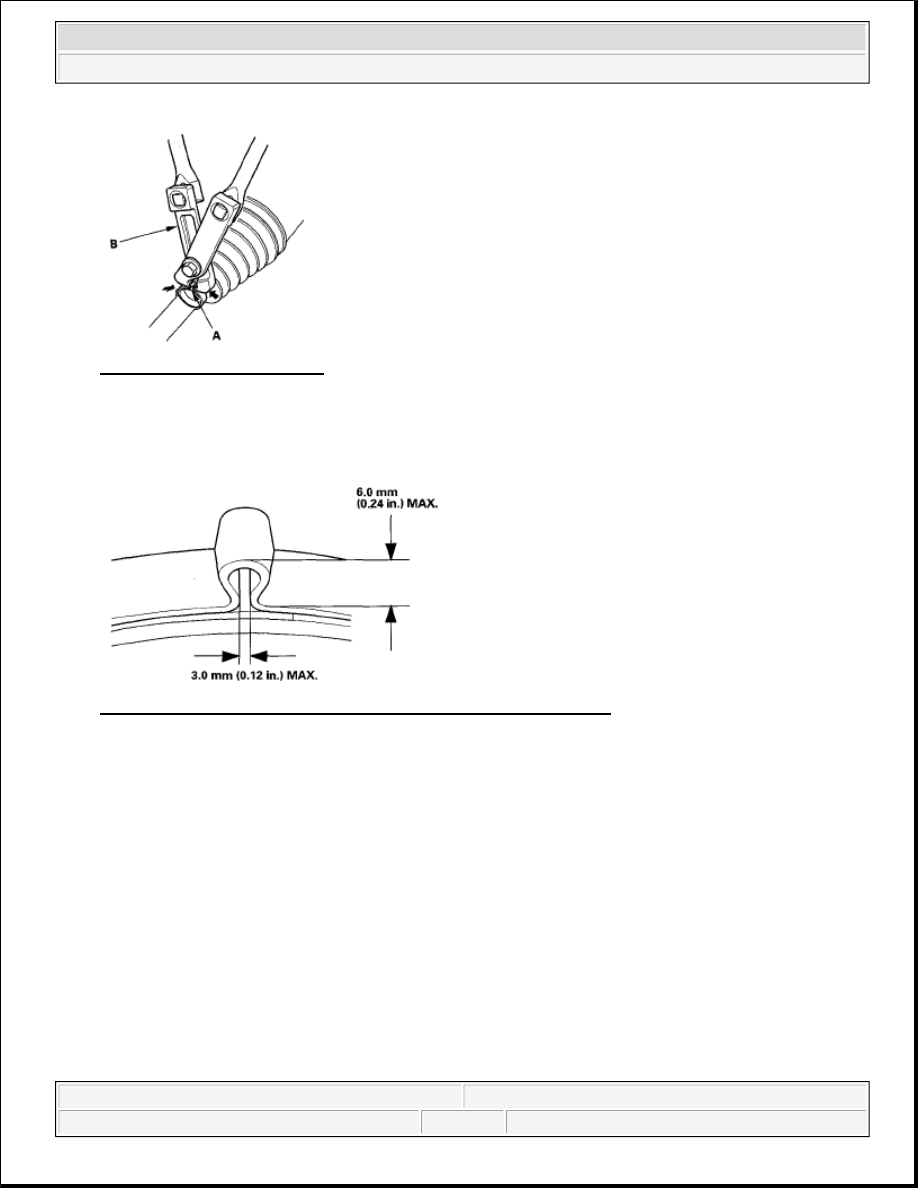

Fig. 48: Banding Ear Portion
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

11. Check the clearance between the closed ear portion of the band. If the clearance is not within the

standard, close the ear portion of the band tighter.

Fig. 49: Checking Clearance Between Closed Ear Portion Of Band
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

12. Repeat steps 10 and 11 for the band on the other end of the boot.

FRONT DRIVESHAFT INSTALLATION

1. Apply grease about 5 g (0.18 oz) to the contact area (A) of the outboard joint and the front wheel bearing.

NOTE:

Before starting installation, make sure the mating surfaces of the joint and the
splined section are not dusty or dirty.

NOTE:

The paste helps to prevent noise and vibration.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Driveline/Axle - Element

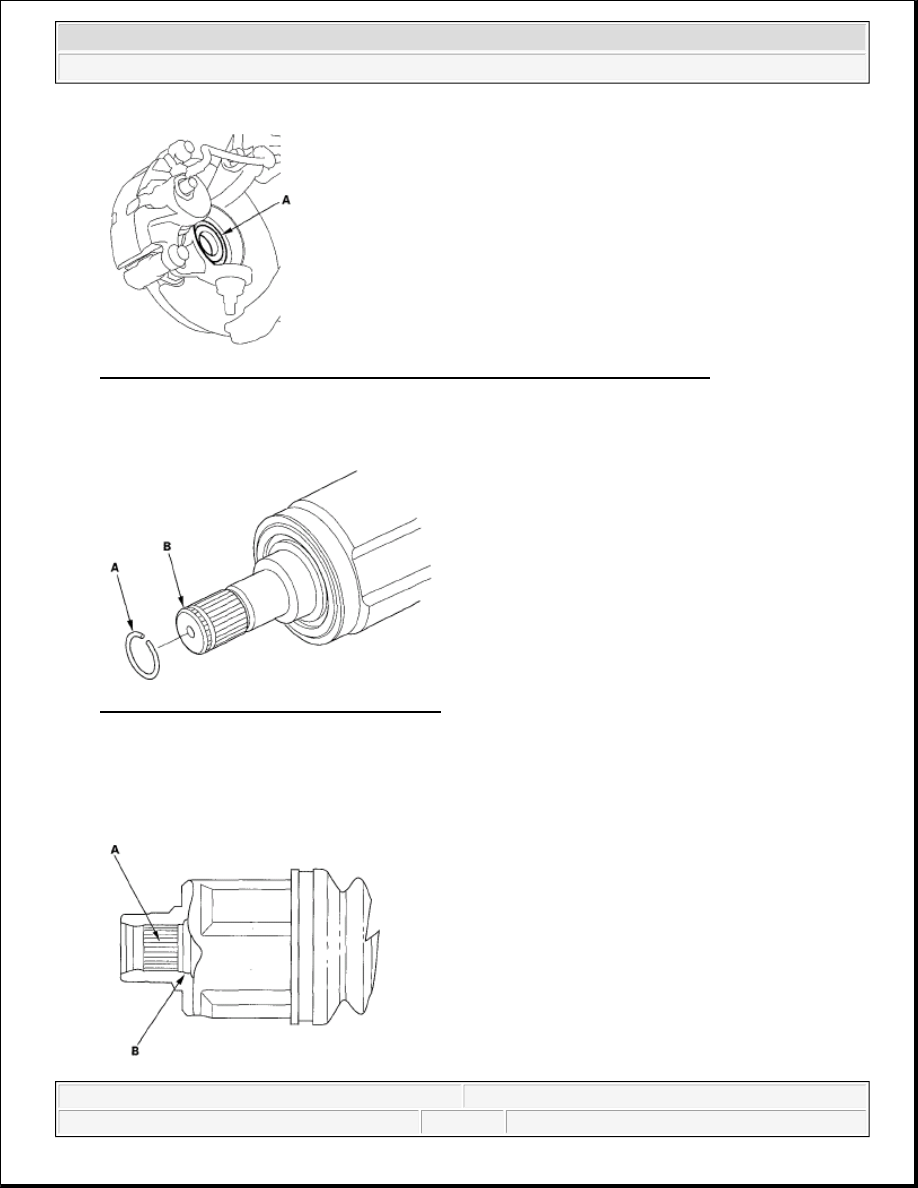

Fig. 50: Identifying Contact Area Of Outboard Joint And Front Wheel Bearing
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

2. Install a new set ring (A) onto the set ring groove of the driveshaft (left driveshaft) (B).

Fig. 51: Identifying Set Ring And Driveshaft
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

3. Apply 0.5- 1.0 g (0.02-0.04 oz) of grease to the whole splined surface (A) of the right driveshaft. After

applying grease, remove the grease from the splined grooves at intervals of 2-3 splines and from the set
ring groove (B) so that air can bleed from the intermediate shaft.
