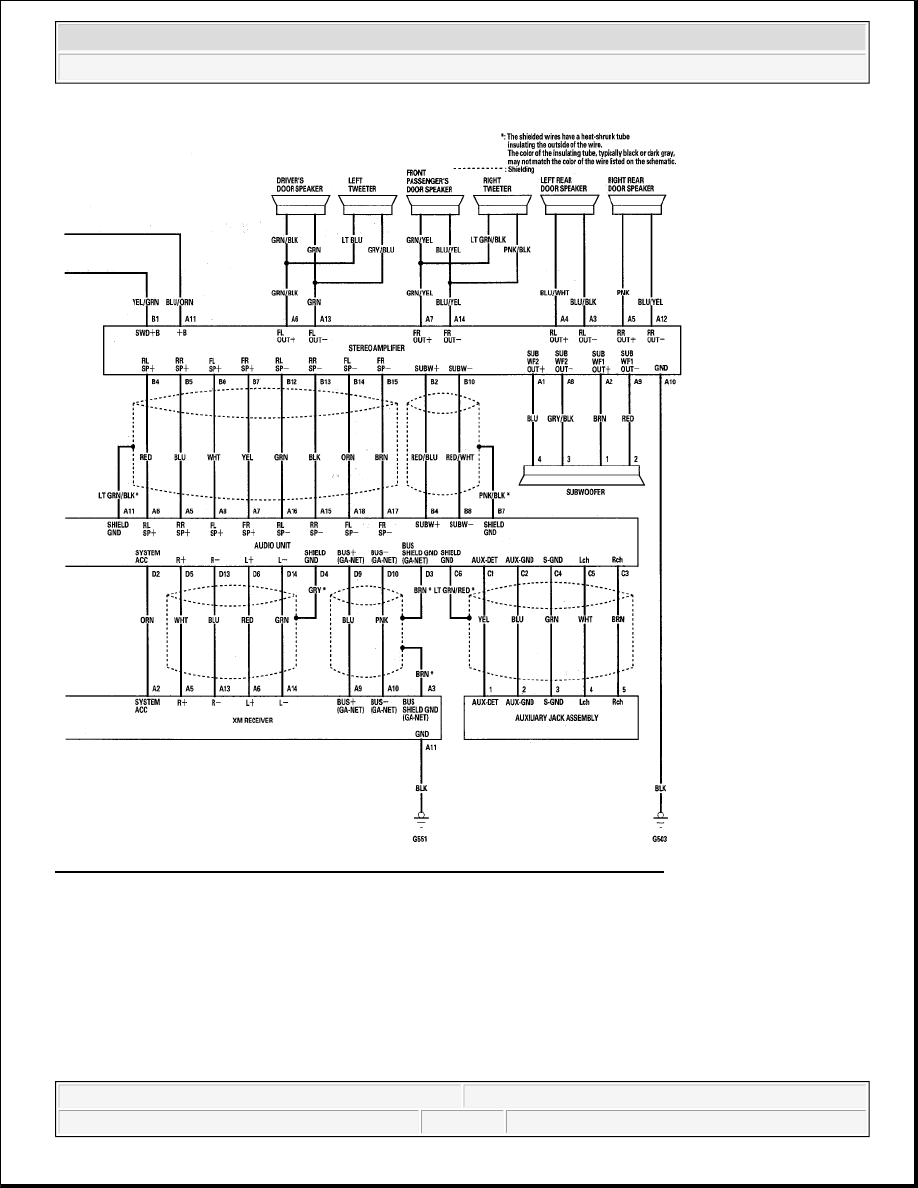

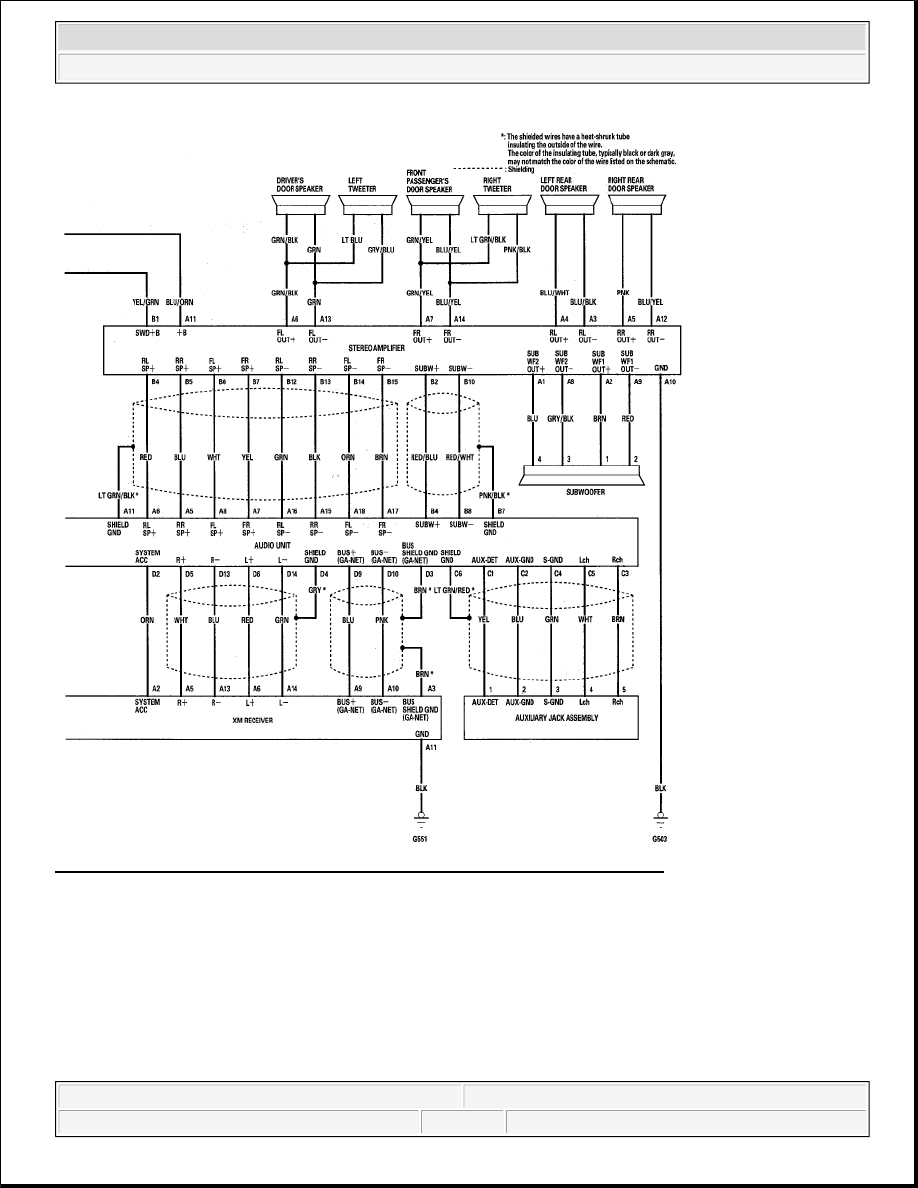

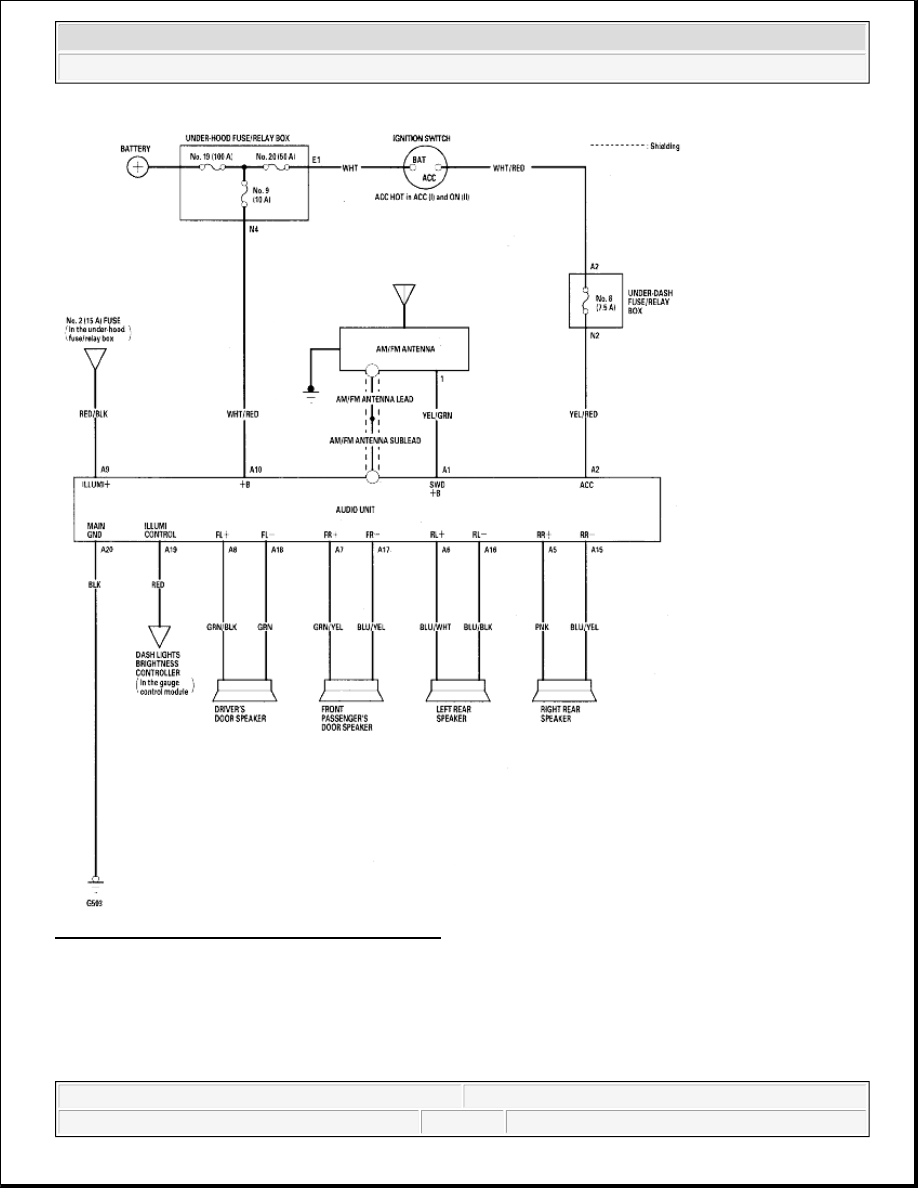

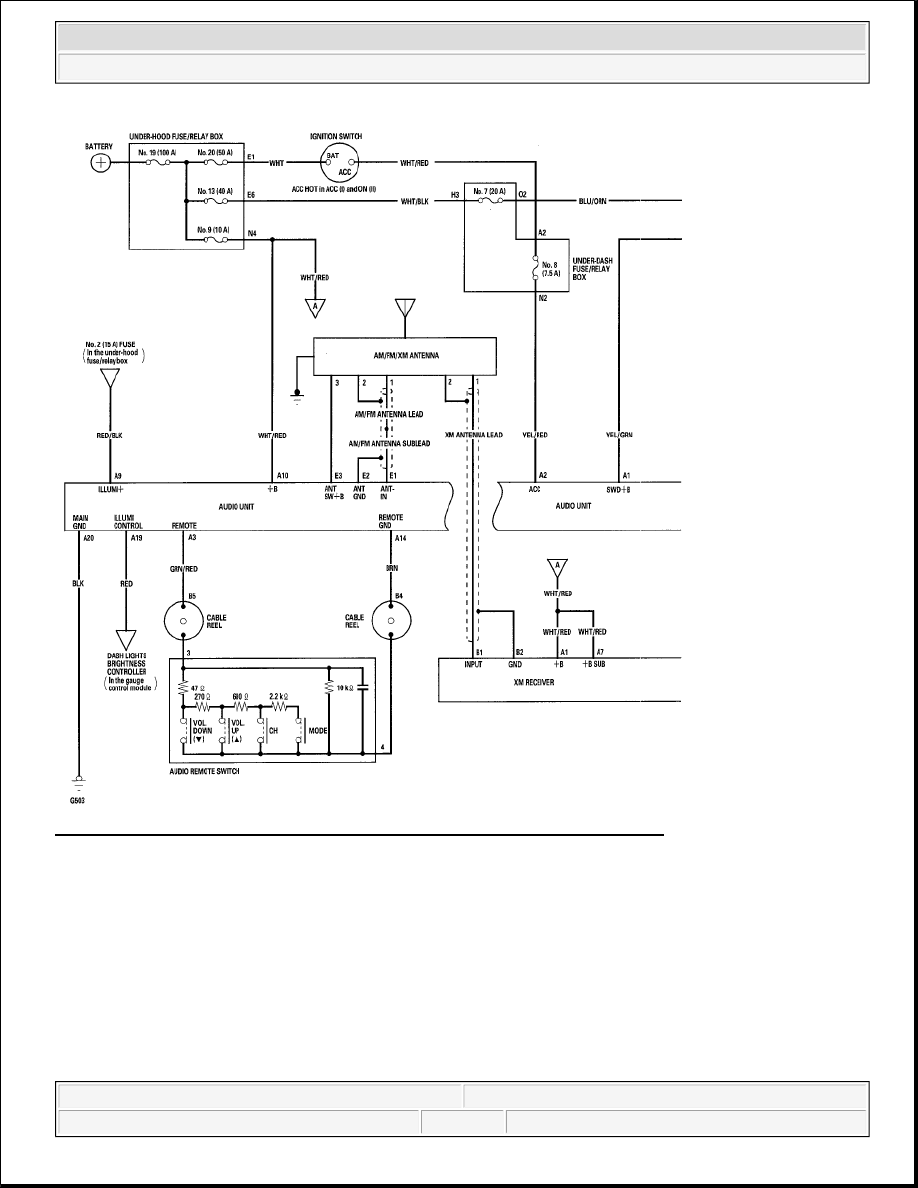

CIRCUIT DIAGRAM
LX model
Volume
Compensation (SVC)
The SVC increases the audio volume to compensate for increased interior noise
when the vehicle drives at freeway speeds.
Subwoofer
A loudspeaker made to reproduce the lowest audio frequencies, approx 25 Hz to
125 Hz.
Track
A sound recording on a CD, tape, or PC card.
Treble
An adjustment to control the "volume" of the high frequency sounds.
Tuner
A component (or part of a component) that receives radio signals and selects one
broadcast from many.
Tweeter
A speaker designed to reproduce the higher frequencies (treble) only.
Voice Coil
A coil of wire wrapped around a tube and then attached to the speaker cone or
diaphragm. When an audio signal is applied, the coil becomes an electromagnet
and interacts with the permanent magnet causing the cone or diaphragm to vibrate.
We interpret this vibration as sound.
Volume Control
Allows you to control the loudness of the music.
WMA music file
Windows Media Audio File. This is an accepted format for music files to be
played on either a CD-R, a CD-RW, or a PC card.
Woofer
A speaker that is designed to reproduce bass frequencies only.
XM Radio
Satellite based radio transmission, which also uses a ground based repeater
network to ensure seamless reception. The channels originate from XM's broadcast
center, in Washington, DC, and uplink to two satellites. These satellites transmit
the signal across the entire continental United States.
XM Receiver
The external component that receives and processes the XM signals from the XM
satellites, and terrestrial (land) stations. The audio unit communicates to the XM
receiver over the GA-Net bus.
