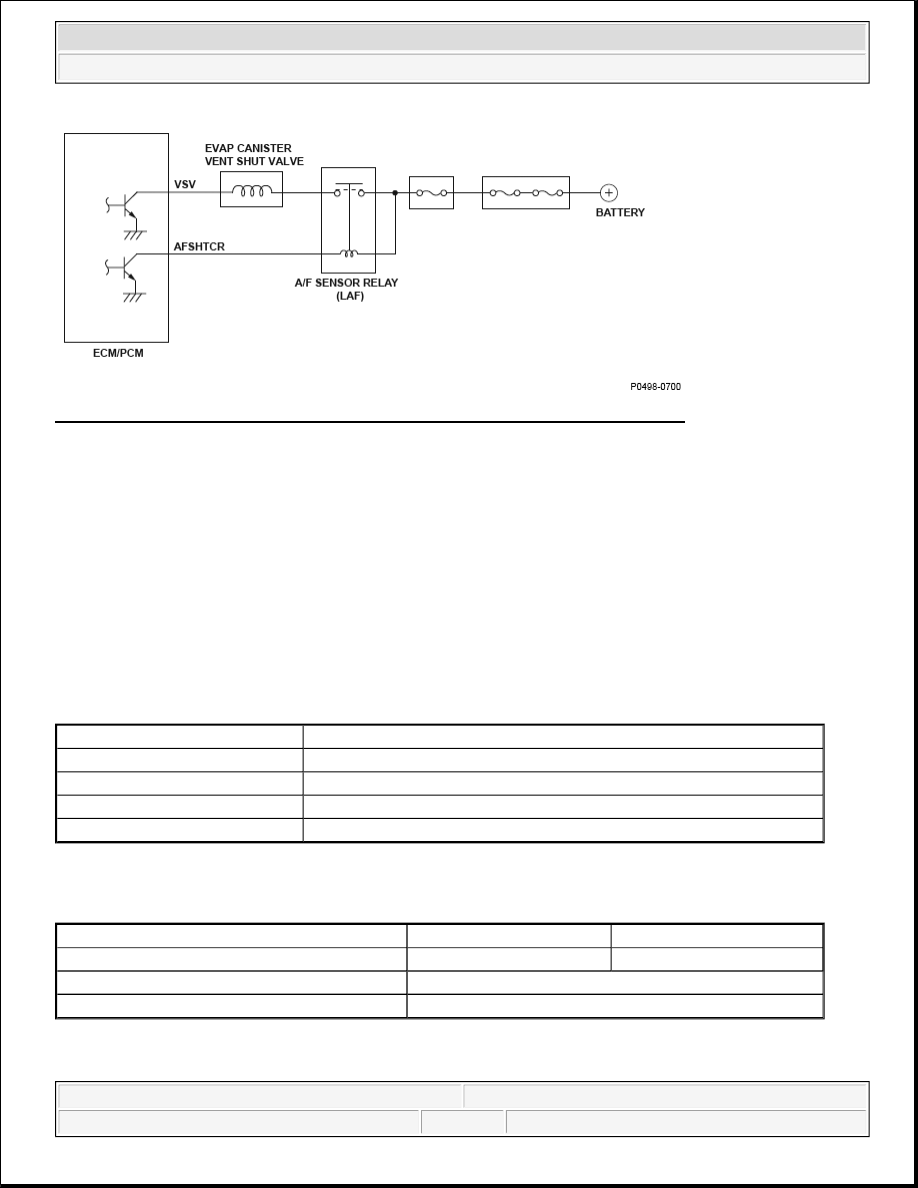

Fig. 74: Evaporative Emission (EVAP) Canister Vent Shut Valve Circuit Diagram

General Description

The evaporative emission (EVAP) canister vent shut valve is attached to the EVAP canister to control the
venting of the EVAP canister to atmosphere.

The EVAP canister vent shut valve is open (open to atmosphere) when the VSV signal is OFF.

If the return signal is "OFF" when the engine control module (ECM)/powertrain control module (PCM) outputs
the "ON" signal to the EVAP canister vent shut valve, the ECM/PCM detects a malfunction and a DTC is
stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

Execution

Continuous

Sequence

None

Duration

5 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition

Minimum

Maximum

Battery voltage

10.1 V

-

State of the engine

Running

No active DTCs

P0499



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



The return signal is "OFF" for at least 5 seconds when the ECM/PCM outputs the "ON" signal to the EVAP
canister vent shut valve.

Confirmation Procedure with the HDS

Do the EVAP CVS ON in the INSPECTION MENU with the HDS.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

DTC P0499 (117): ADVANCED DIAGNOSTICS

DTC P0499: EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT VALVE CIRCUIT HIGH
VOLTAGE

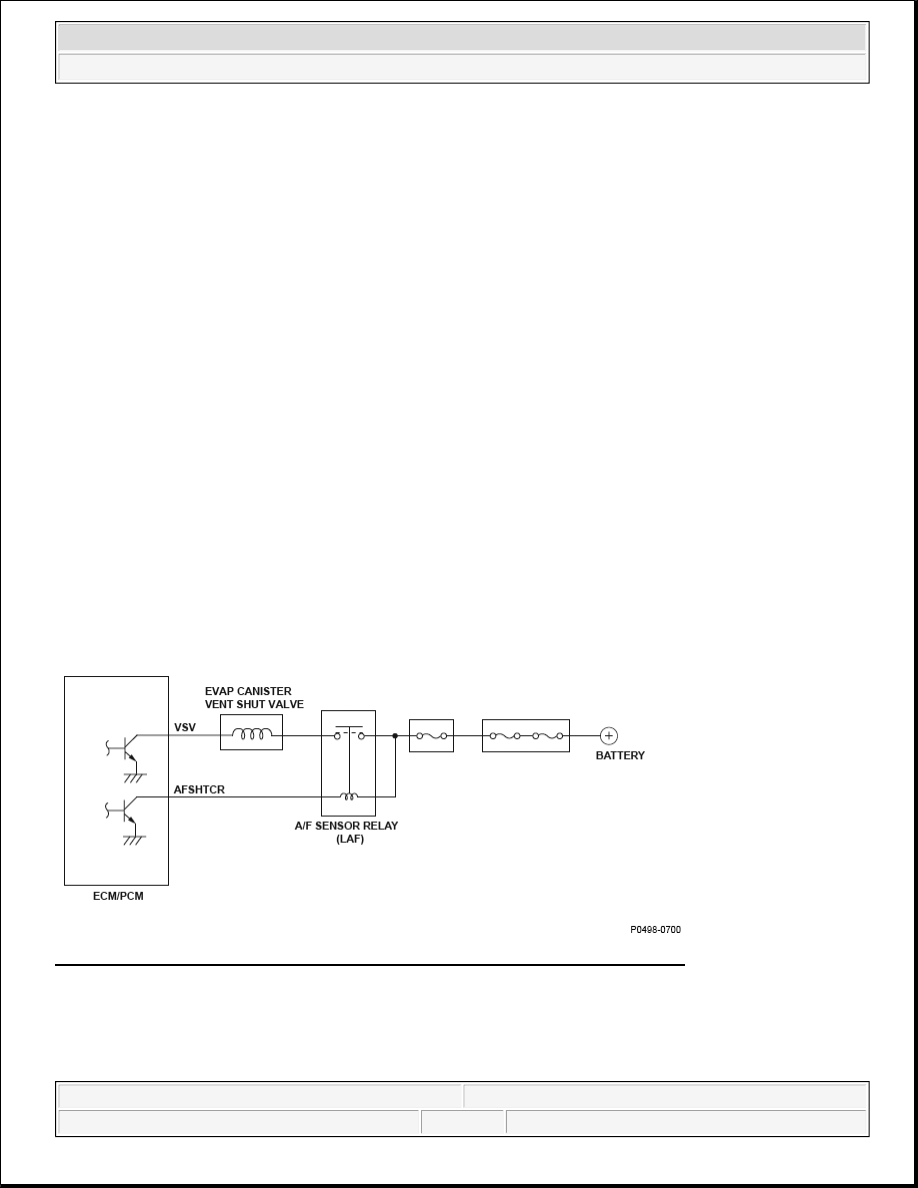

Fig. 75: Evaporative Emission (EVAP) Canister Vent Shut Valve Circuit Diagram

General Description

The evaporative emission (EVAP) canister vent shut valve is attached to the EVAP canister to control the
venting of the EVAP canister to atmosphere.



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



The EVAP canister vent shut valve is open (open to atmosphere) when the VSV signal is OFF.

If the return signal is "ON" when the engine control module (ECM)/powertrain control module (PCM) outputs
the "OFF" signal to the EVAP canister vent shut valve, the ECM/PCM detects a malfunction and a DTC is
stored.

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

MONITOR DESCRIPTION

Enable Conditions

ENABLE CONDITIONS

Malfunction Threshold

The return signal is "ON" for at least 5 seconds when the ECM/PCM outputs the "OFF" signal to the EVAP
canister vent shut valve.

Confirmation Procedure with the HDS

Do the EVAP CVS ON in the INSPECTION MENU with the HDS.

Diagnosis Details

Conditions for illuminating the MIL

When a malfunction is detected, the MIL comes on and the DTC and the freeze frame data are stored in the
ECM/PCM memory.

Conditions for clearing the MIL

The MIL will be cleared if the malfunction does not recur during three consecutive trips in which the diagnostic
runs.

The MIL, the DTC, and the freeze frame data can be cleared by using the scan tool Clear command or by
disconnecting the battery.

Execution

Continuous

Sequence

None

Duration

5 seconds or more

DTC Type

One drive cycle, MIL ON

OBD Status

N/A

Condition

Minimum

Maximum

Battery voltage

10.1 V

-

State of the engine

Running

No active DTCs

P0498



2007 Honda Element EX

2007 ENGINE PERFORMANCE Advanced Diagnostics - Element



DTC P0506 (14): ADVANCED DIAGNOSTICS

DTC P0506: IDLE CONTROL SYSTEM RPM LOWER THAN EXPECTED

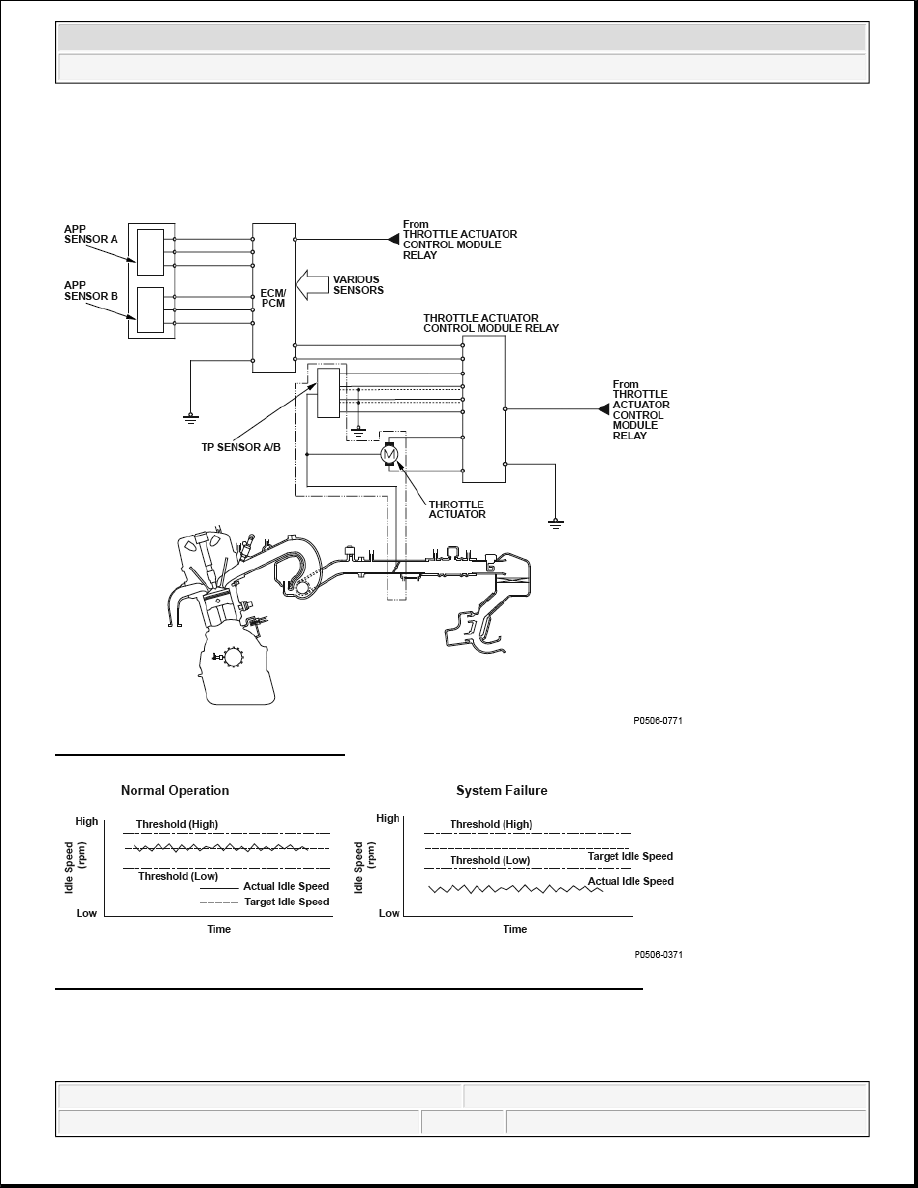

Fig. 76: Idle Control System Diagram

Fig. 77: Idle Control System Normal Operation And System Failure - Graph

General Description

A target idle speed that meets the engine operating conditions (coolant temperature, A/C ON or OFF, etc.) is
