Harley Davidson Model WLA (motorcycle, solo). Service manual (October, 1943) - page 1
*ТМ 9-S79
RESTRICTED
TECHNICAL MANUAL ) WAR DEPARTMENT
No. 9-879 j Washington, IS October 1943
MOTORCYCLE, SOLO
(Harley-Davidson Model WLA)
Dissemination of restricted matter. — 77ie information contained in
restricted documents, and the essential characteristics of restricted
materiel, may be given to any person known to be in the service of the
United States, and to persons of undoubted loyalty and discretion who
are cooperating in Government work, but will not be com-municated to the
public or to the press except by authorized military public relations
agencies. (See also paragraph 18b, AR 380-5, 28 September 1942.)
CONTENTS
PART ONE-VEHICLE OPERATING INSTRUCTIONS
Paragraph* Pages

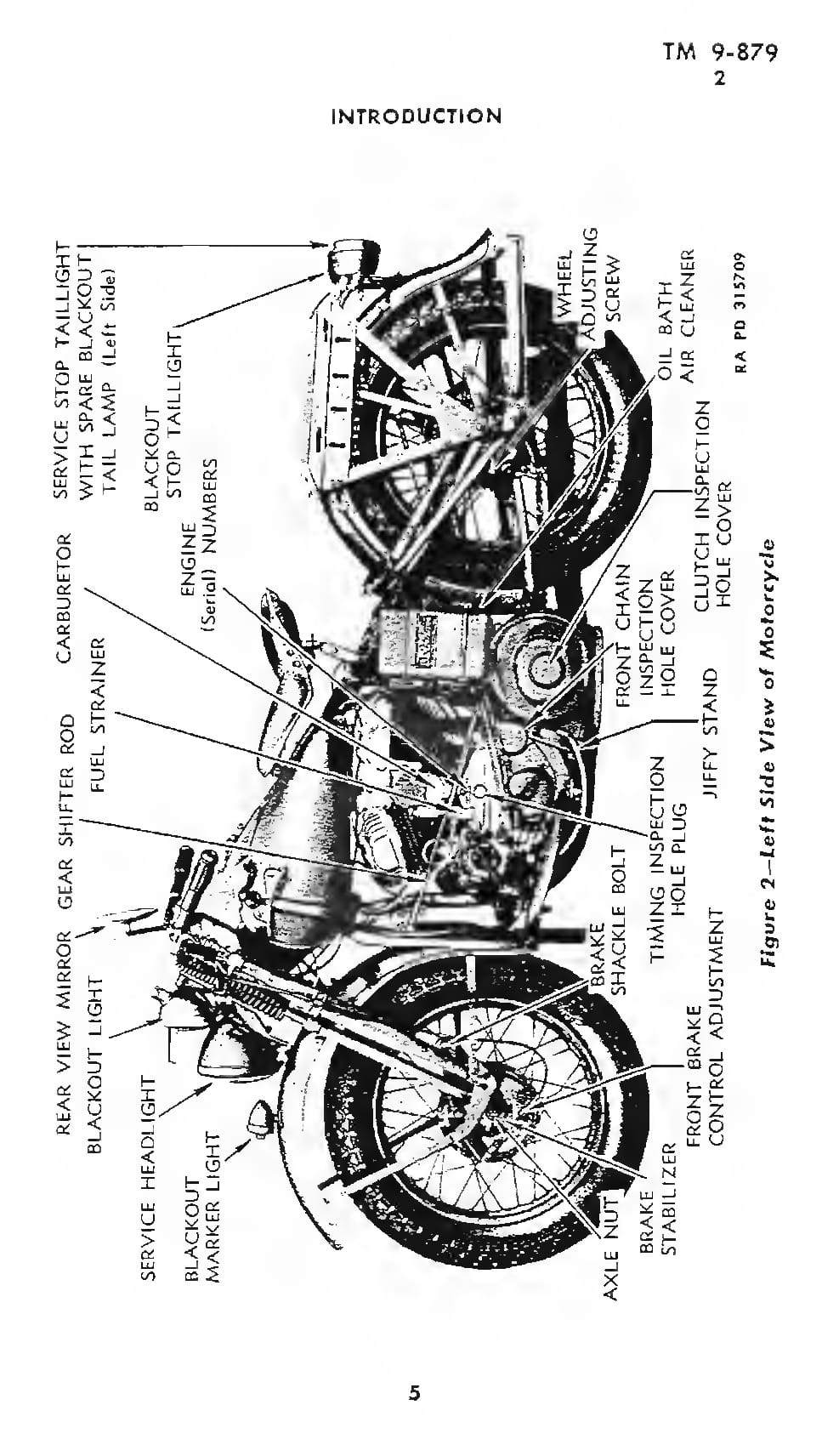

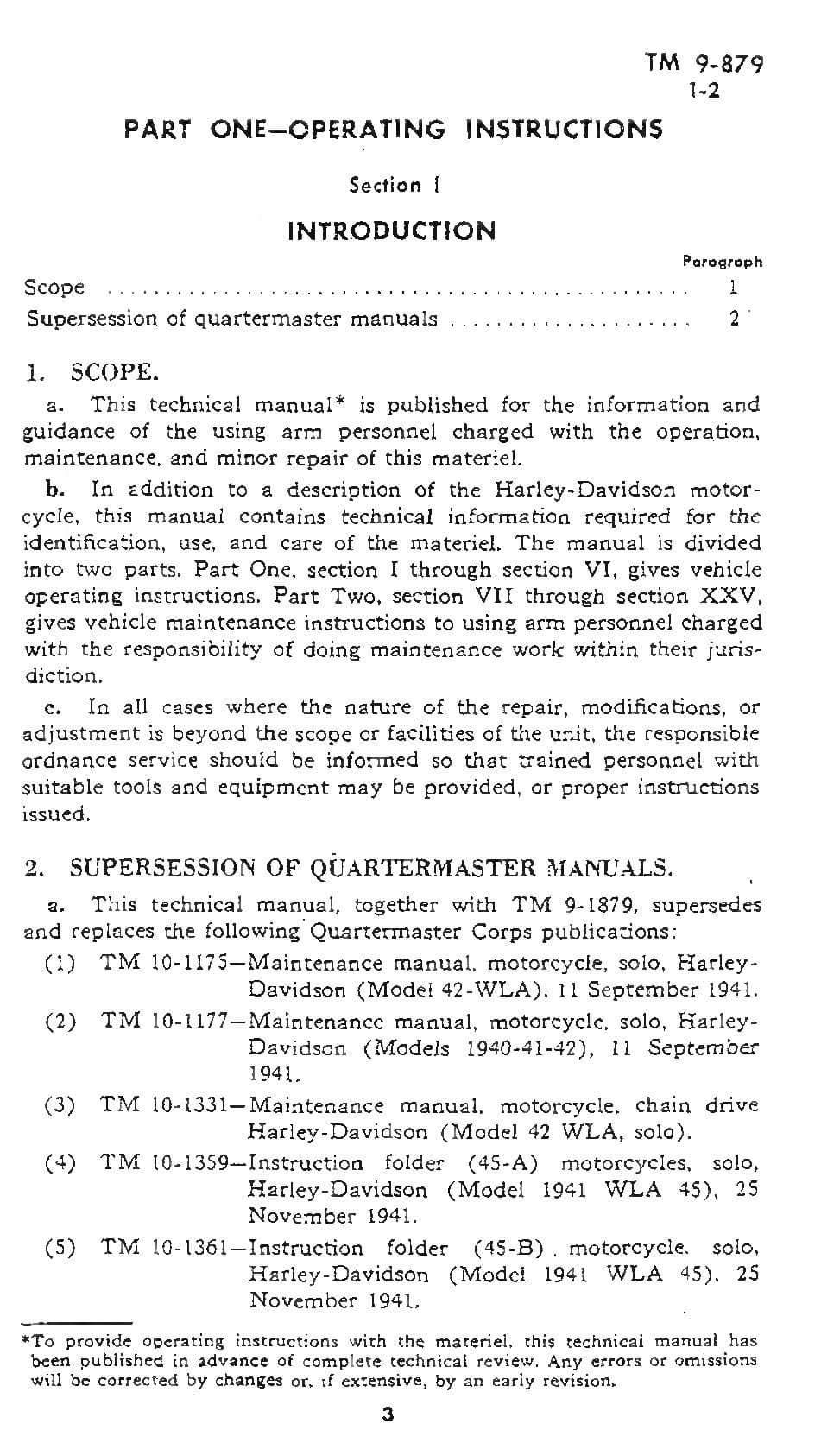

Section I Introduction ..................................1-2 3-6

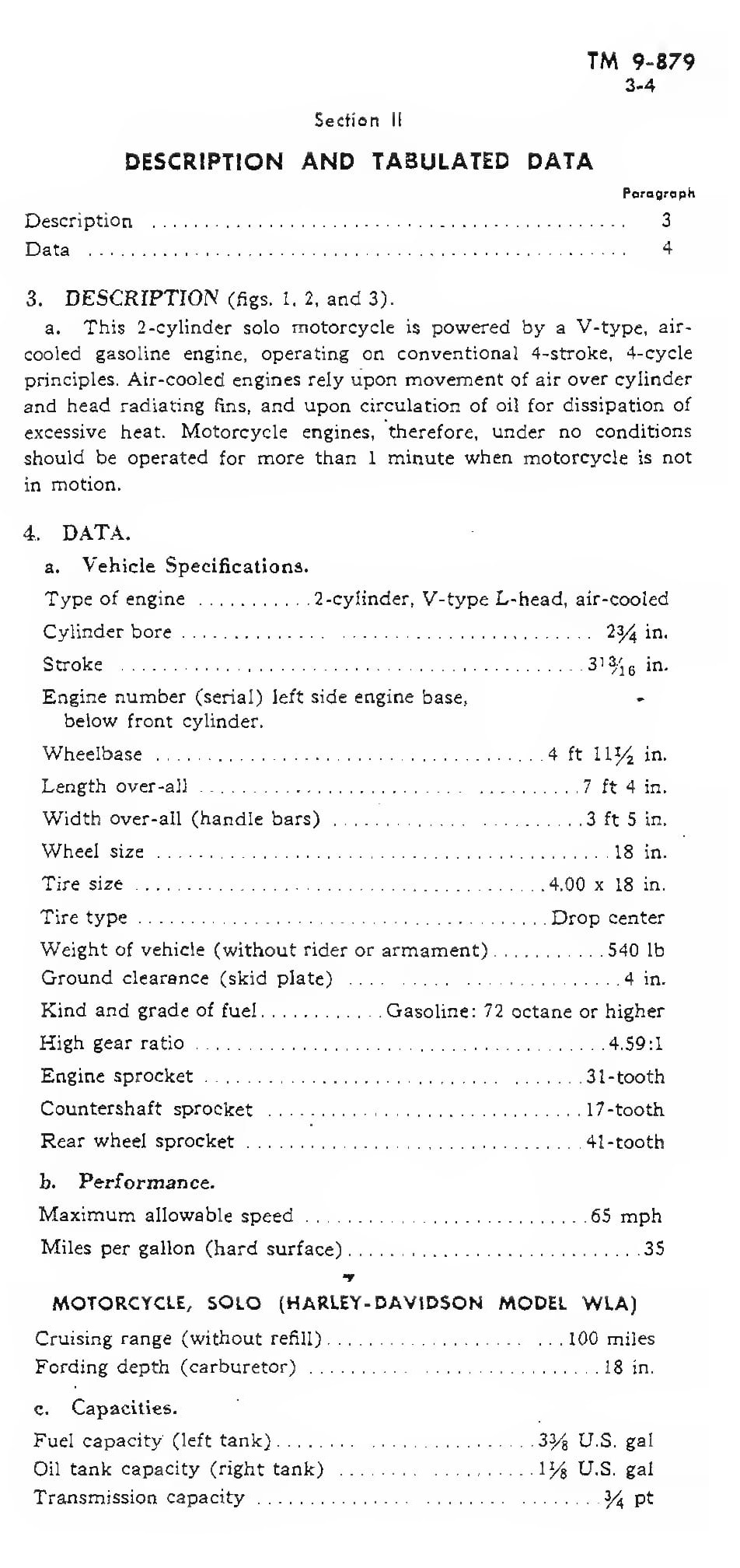

II Description and tabulated data 3—i 7-8

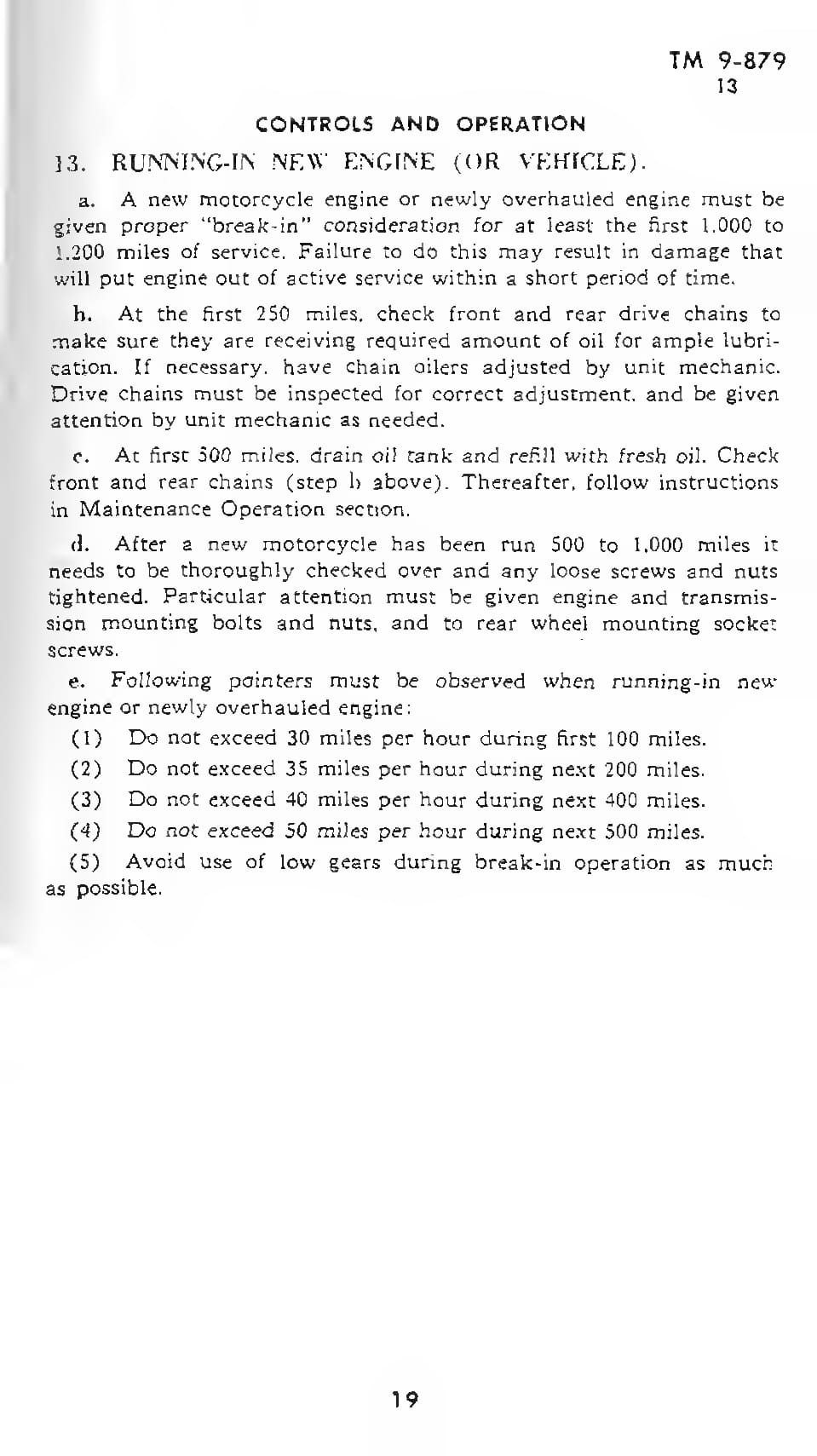

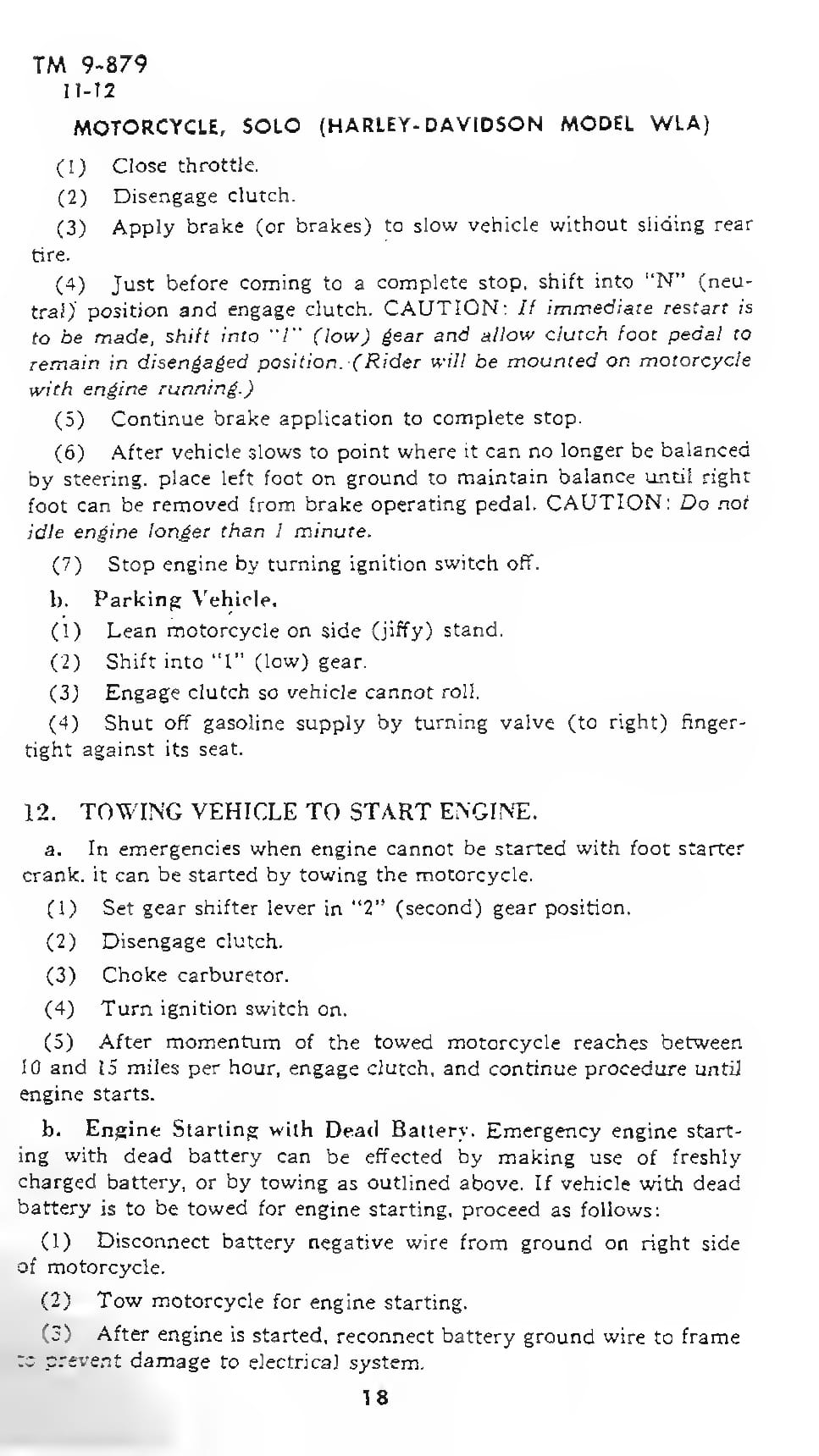

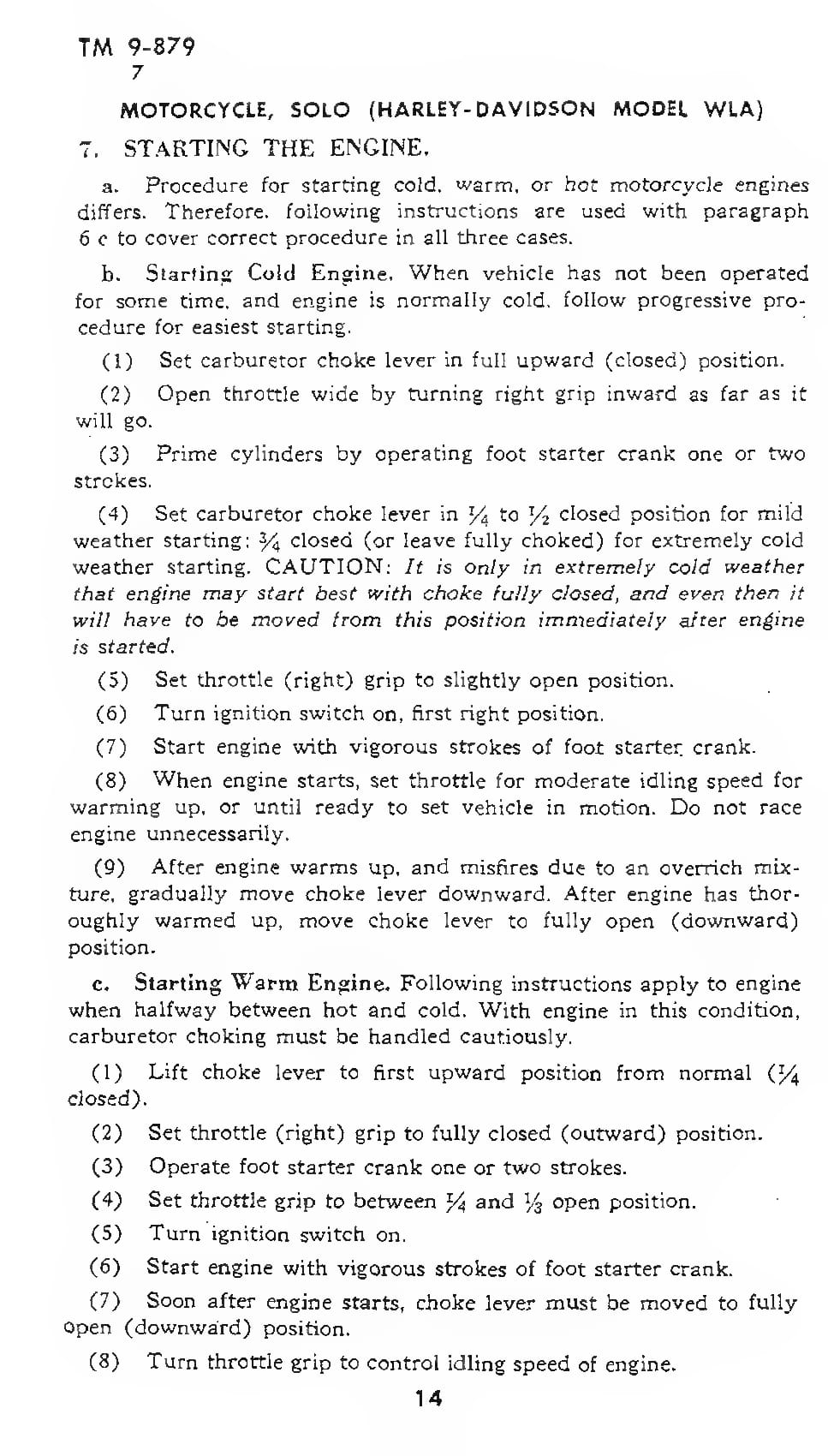

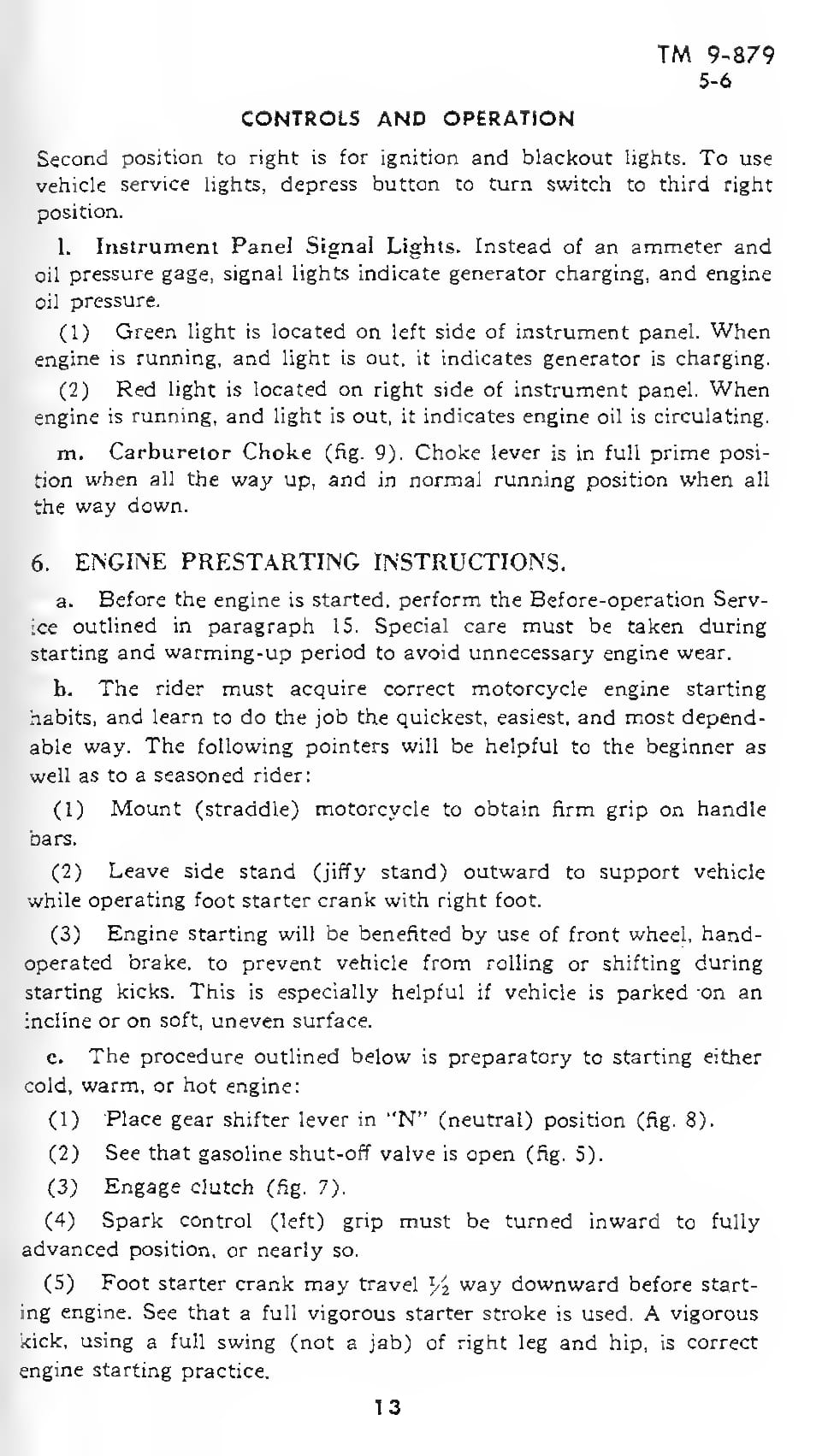

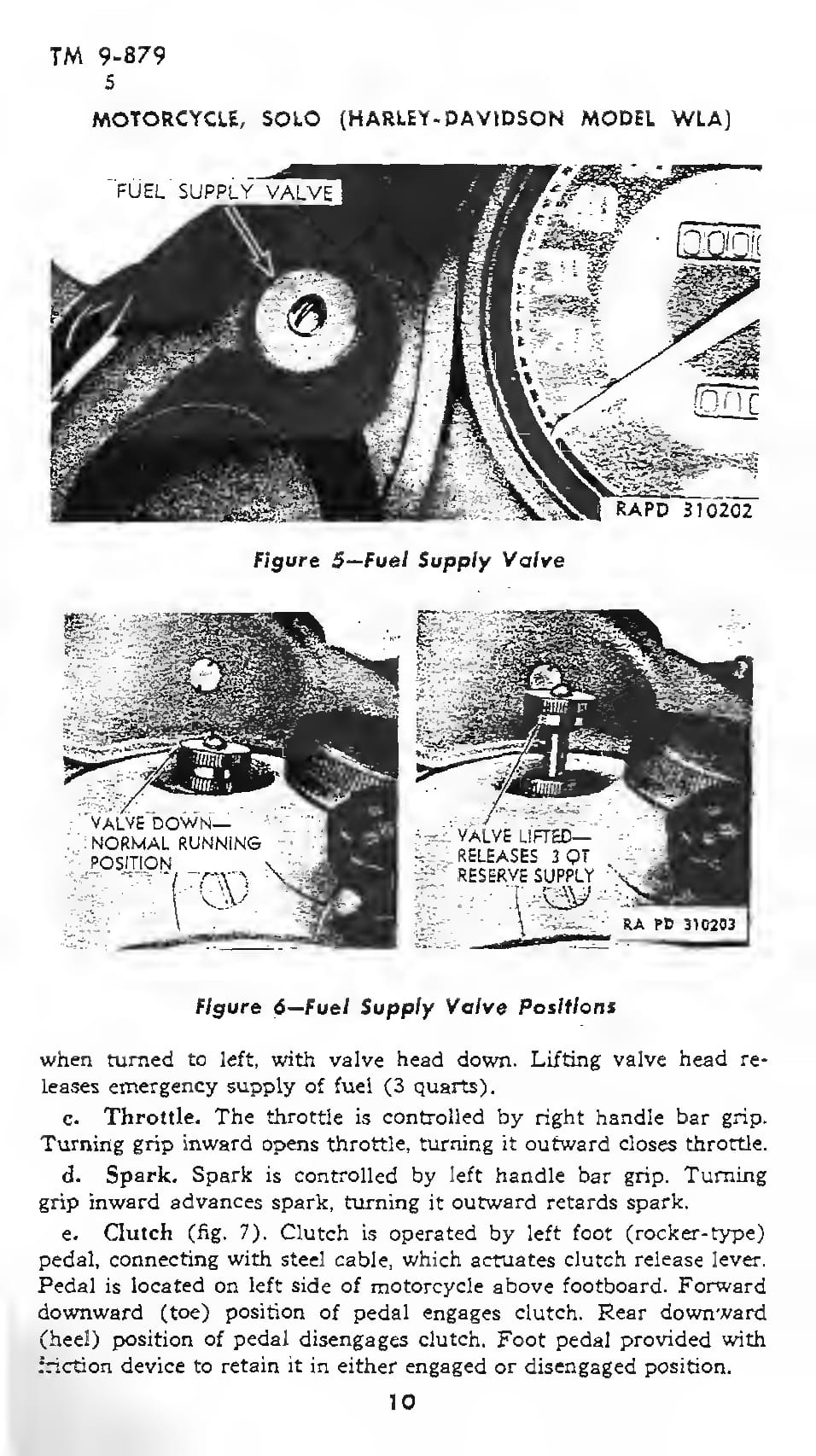

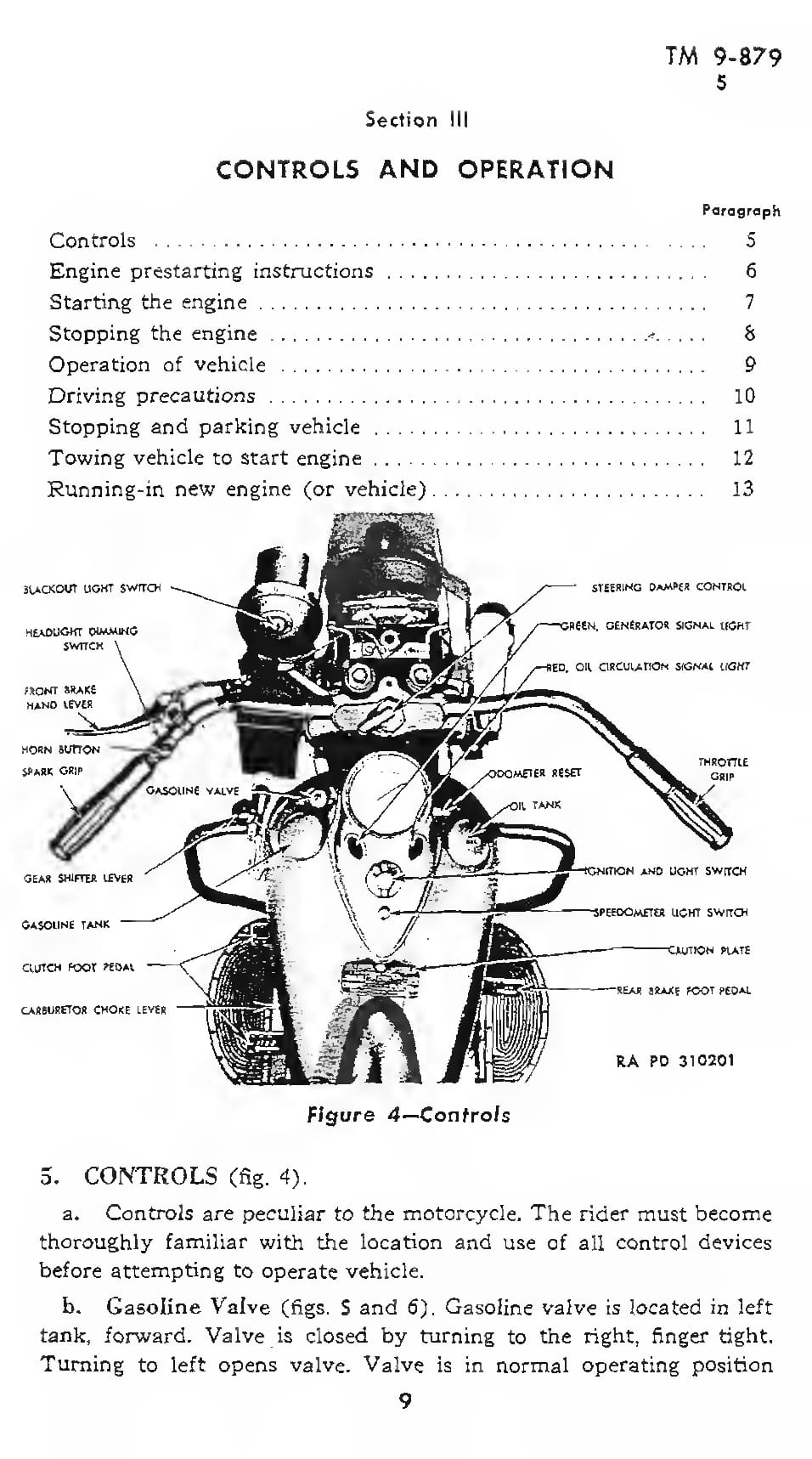

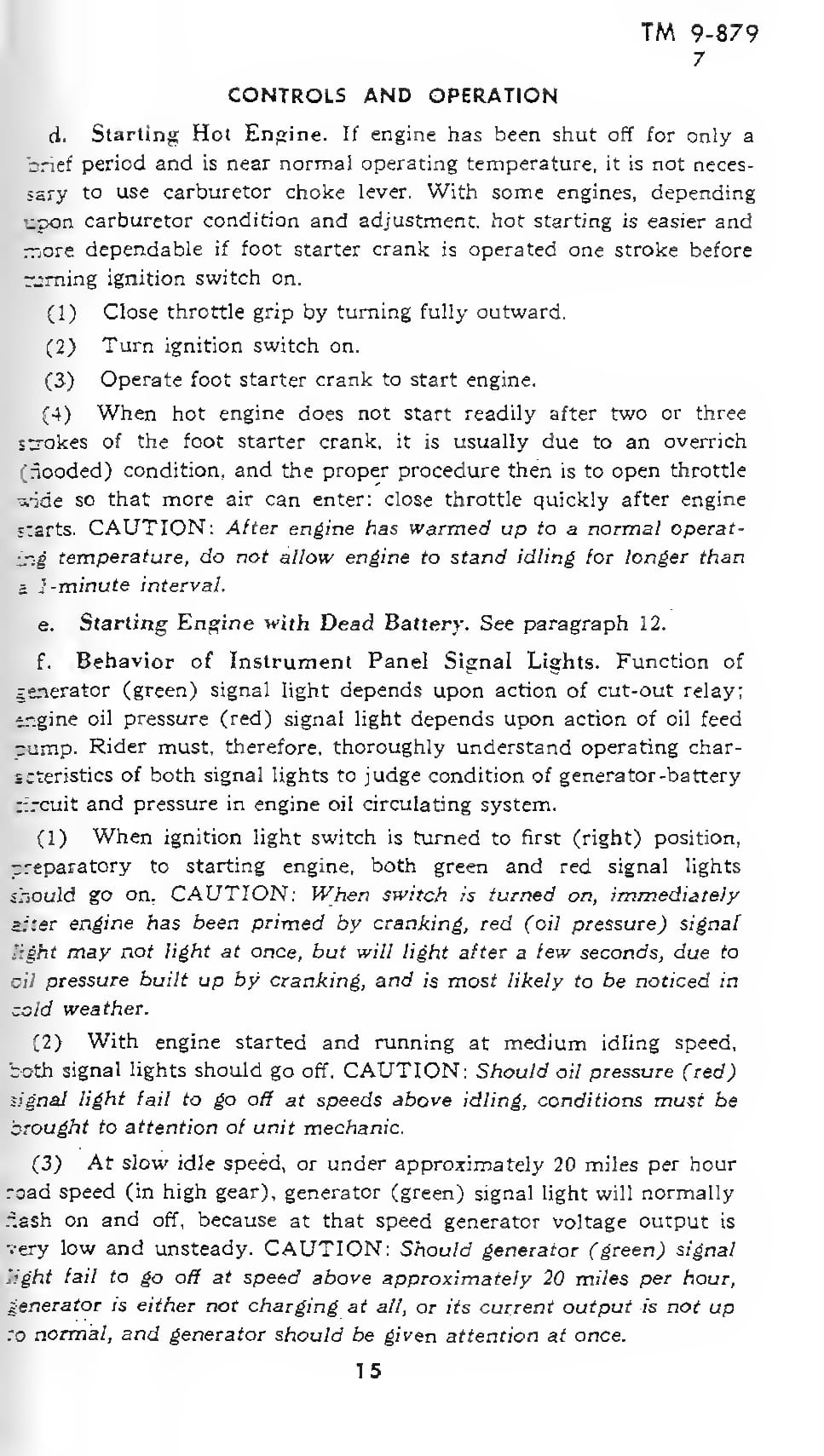

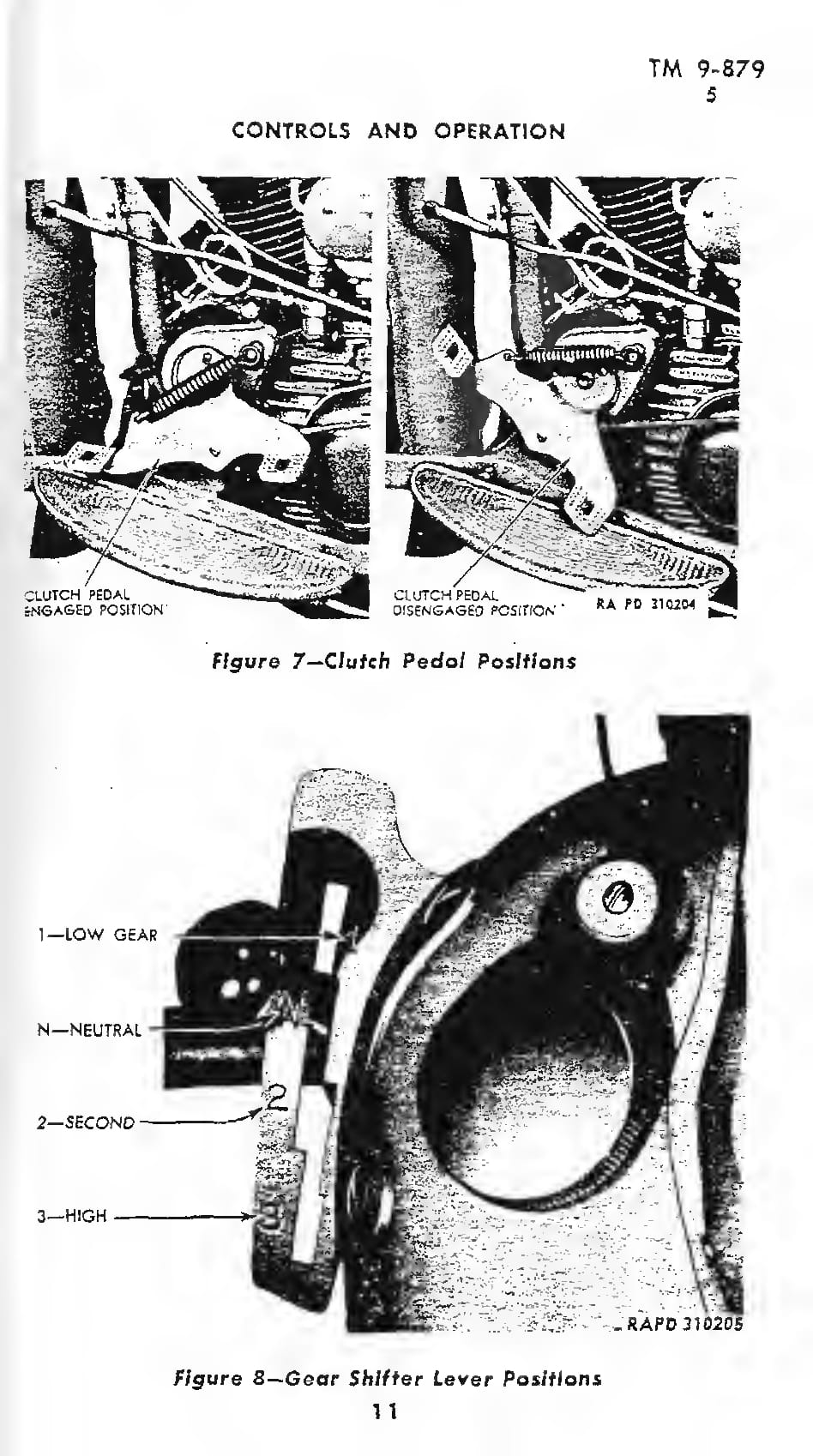

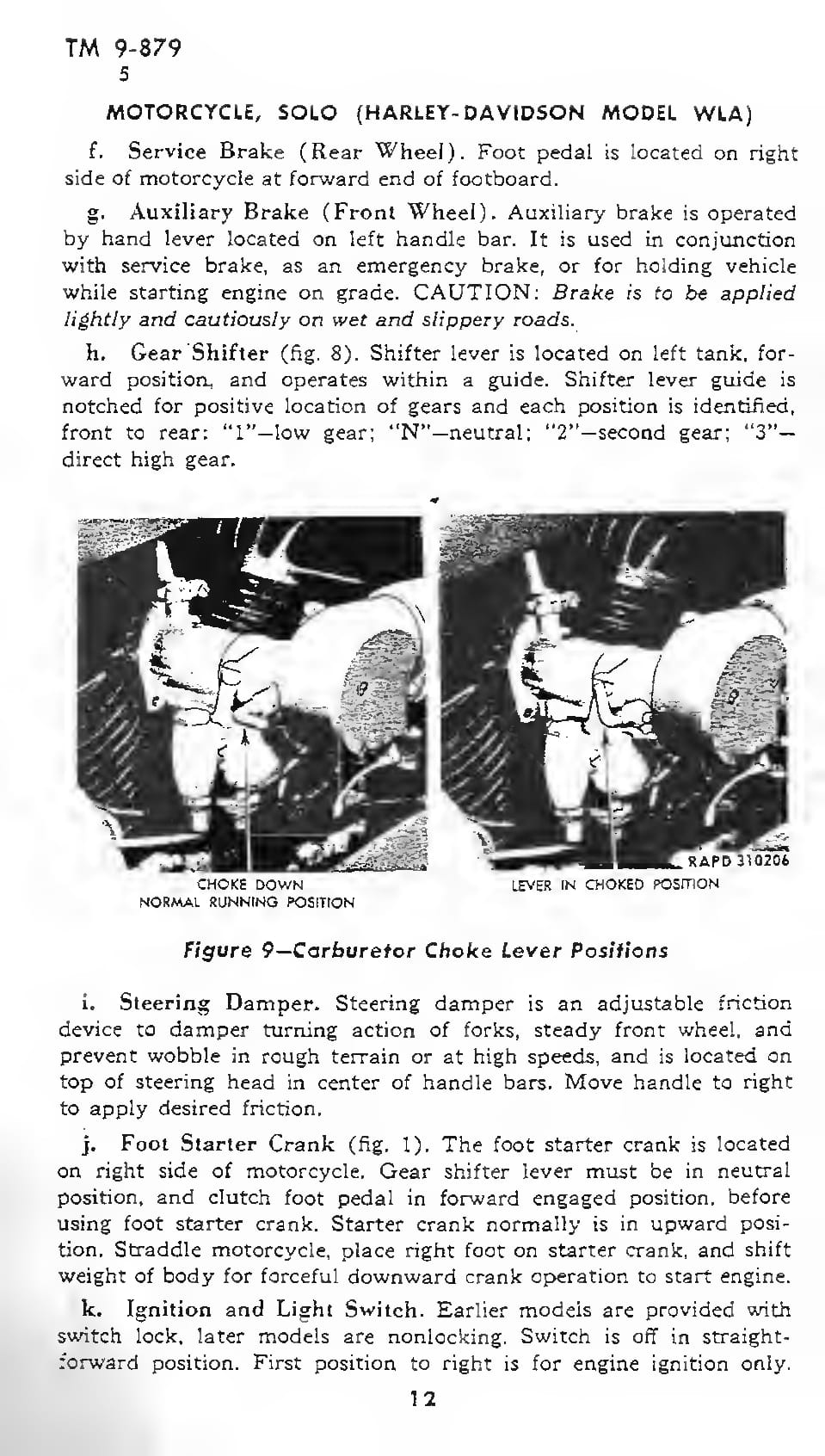

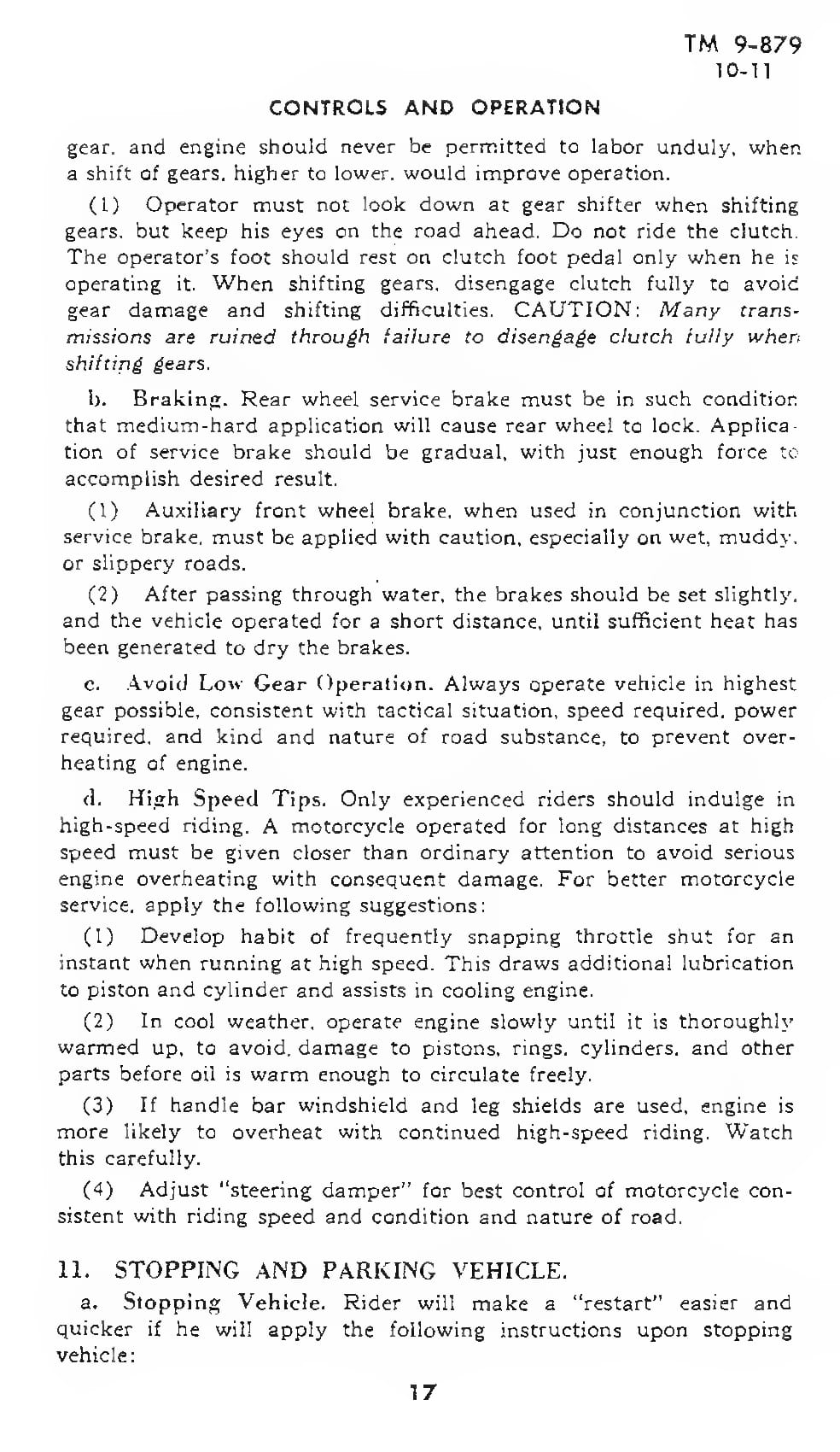

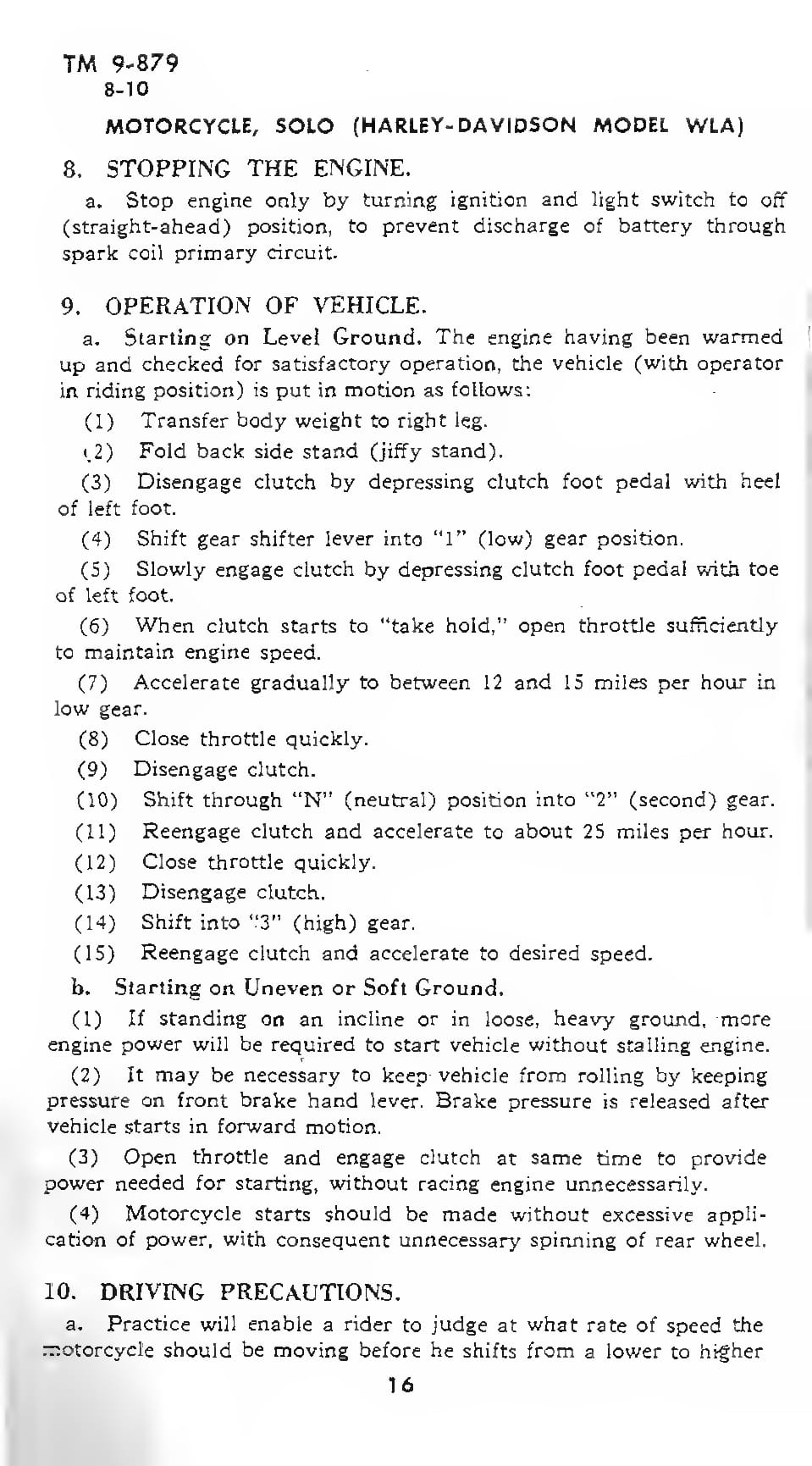

III Controls and operation ..............5-13 9-19

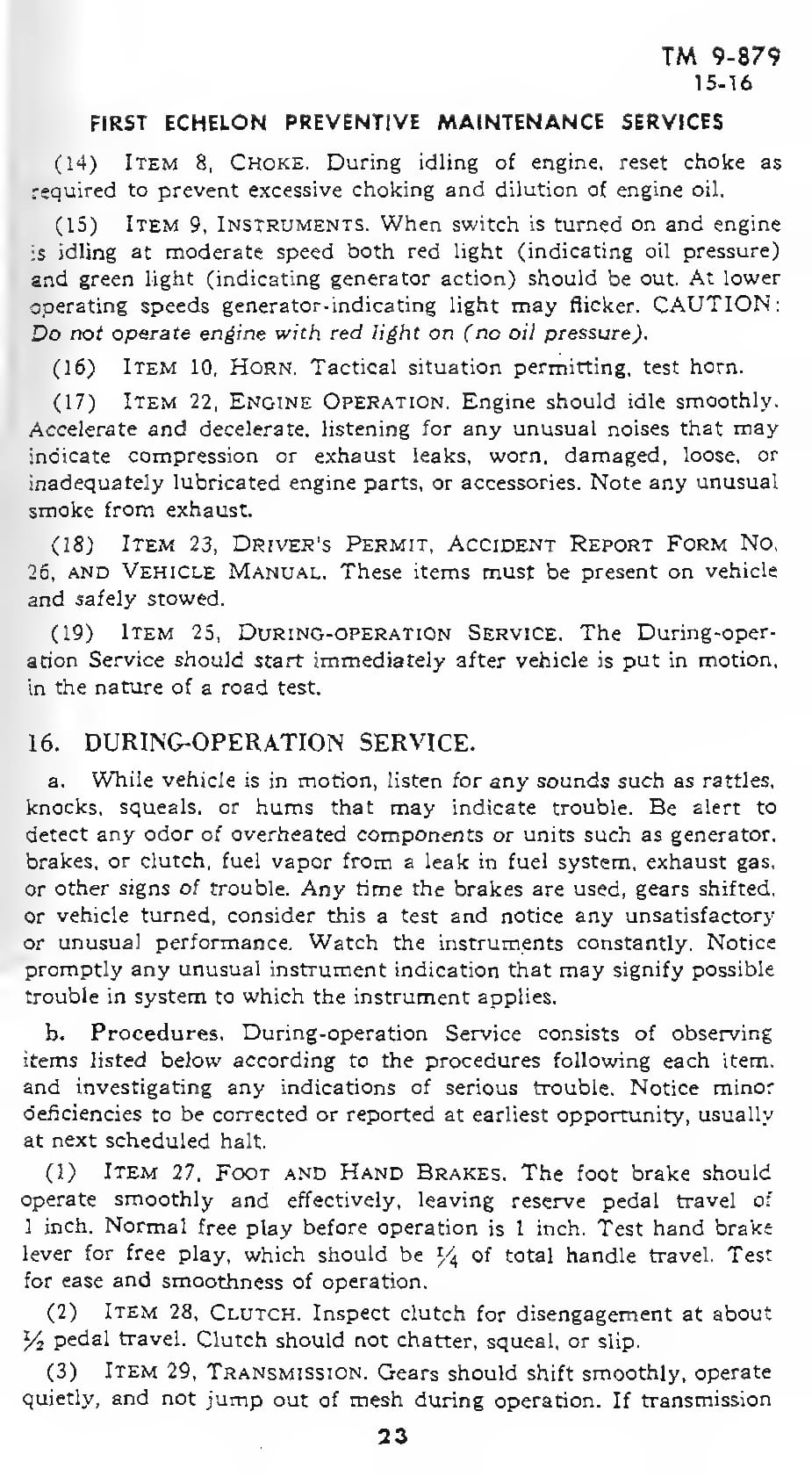

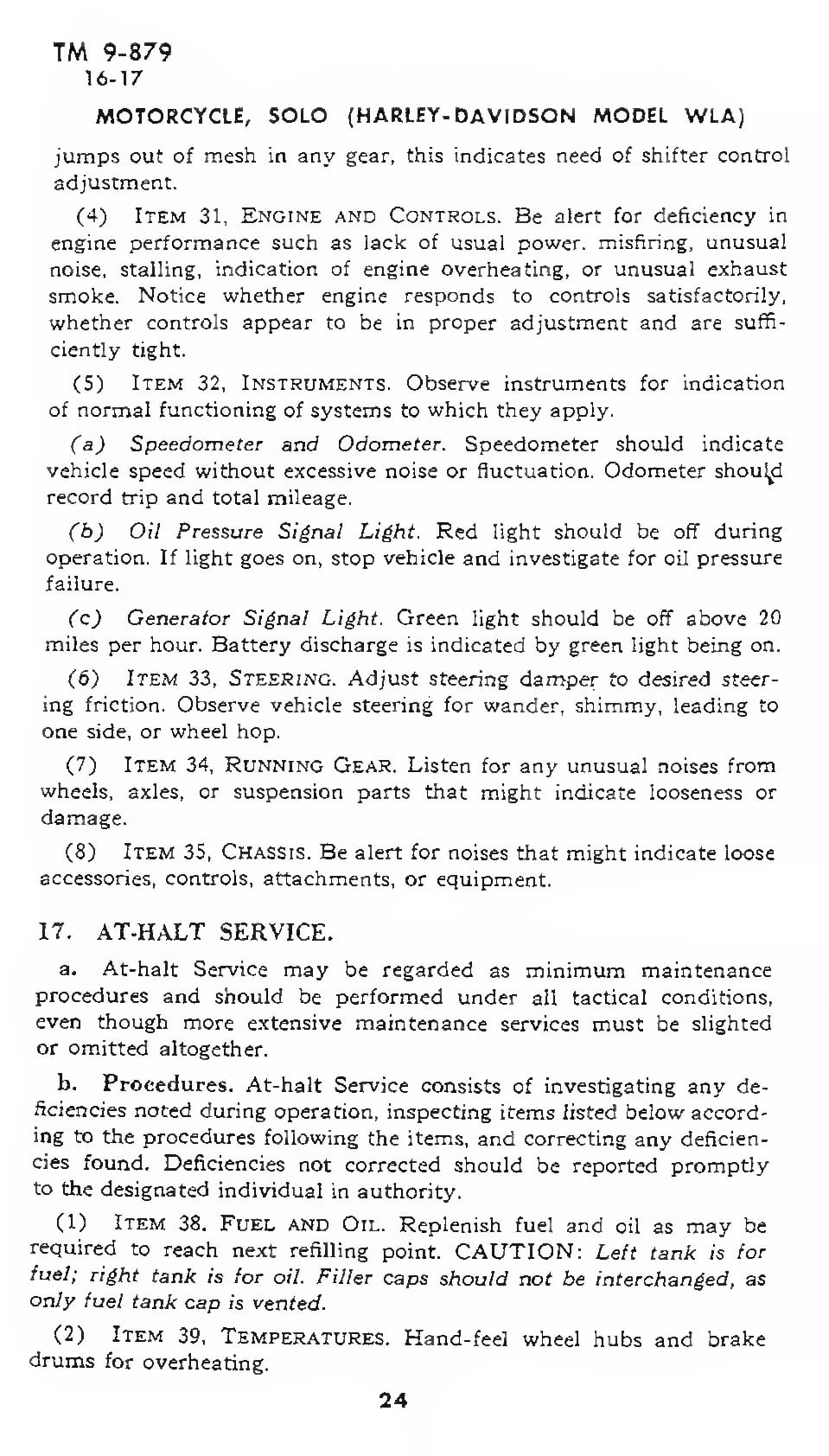

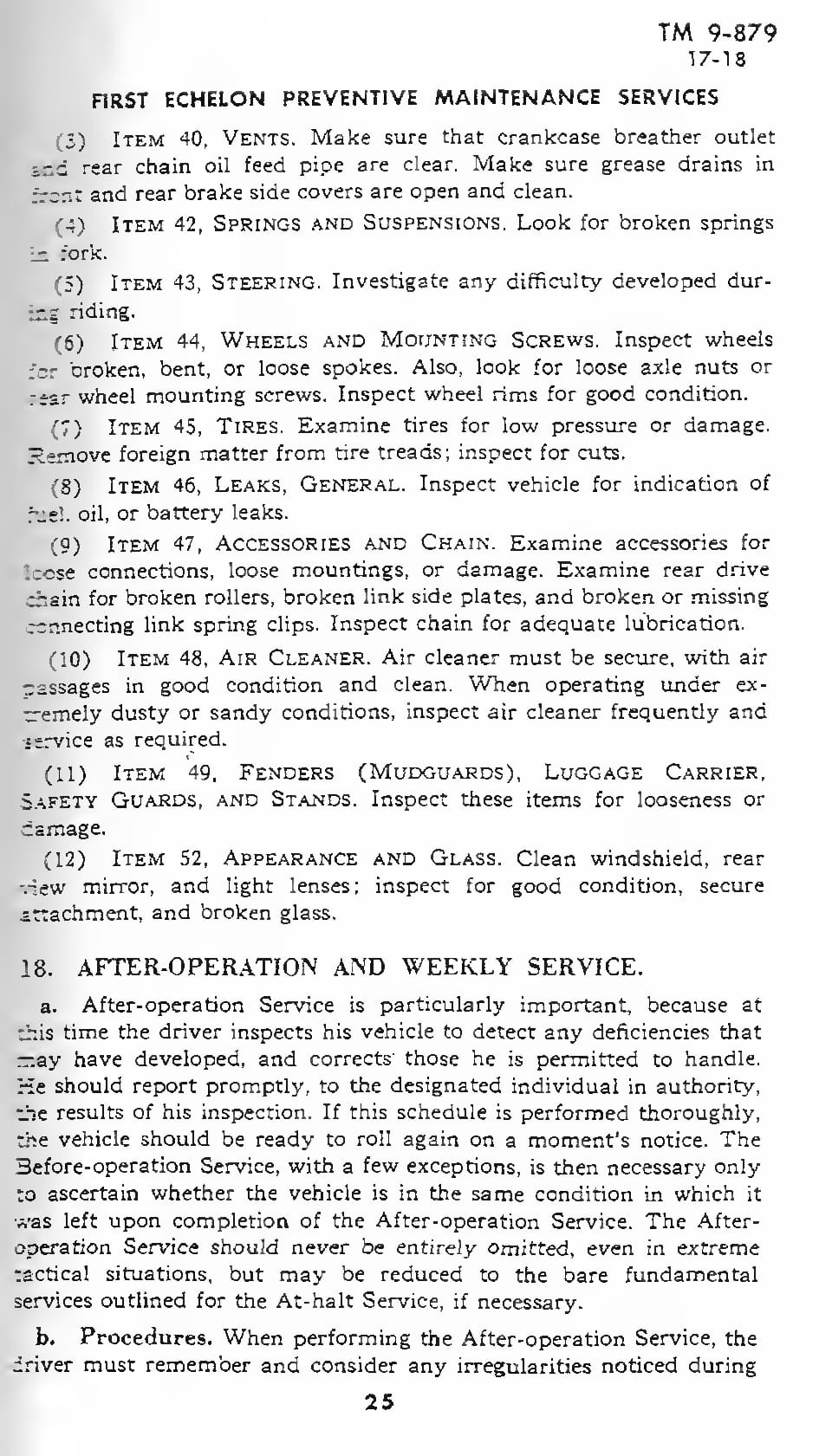

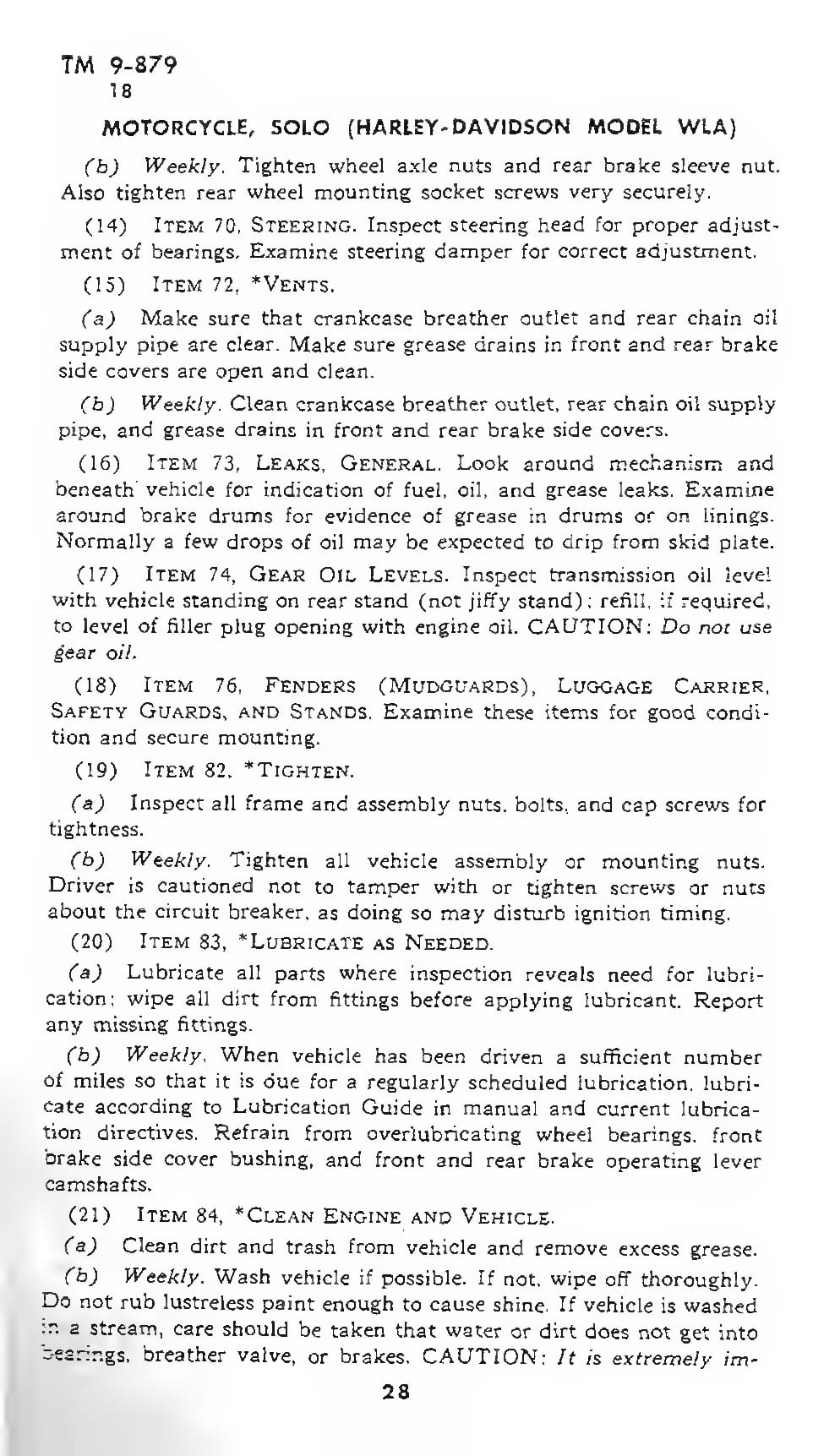

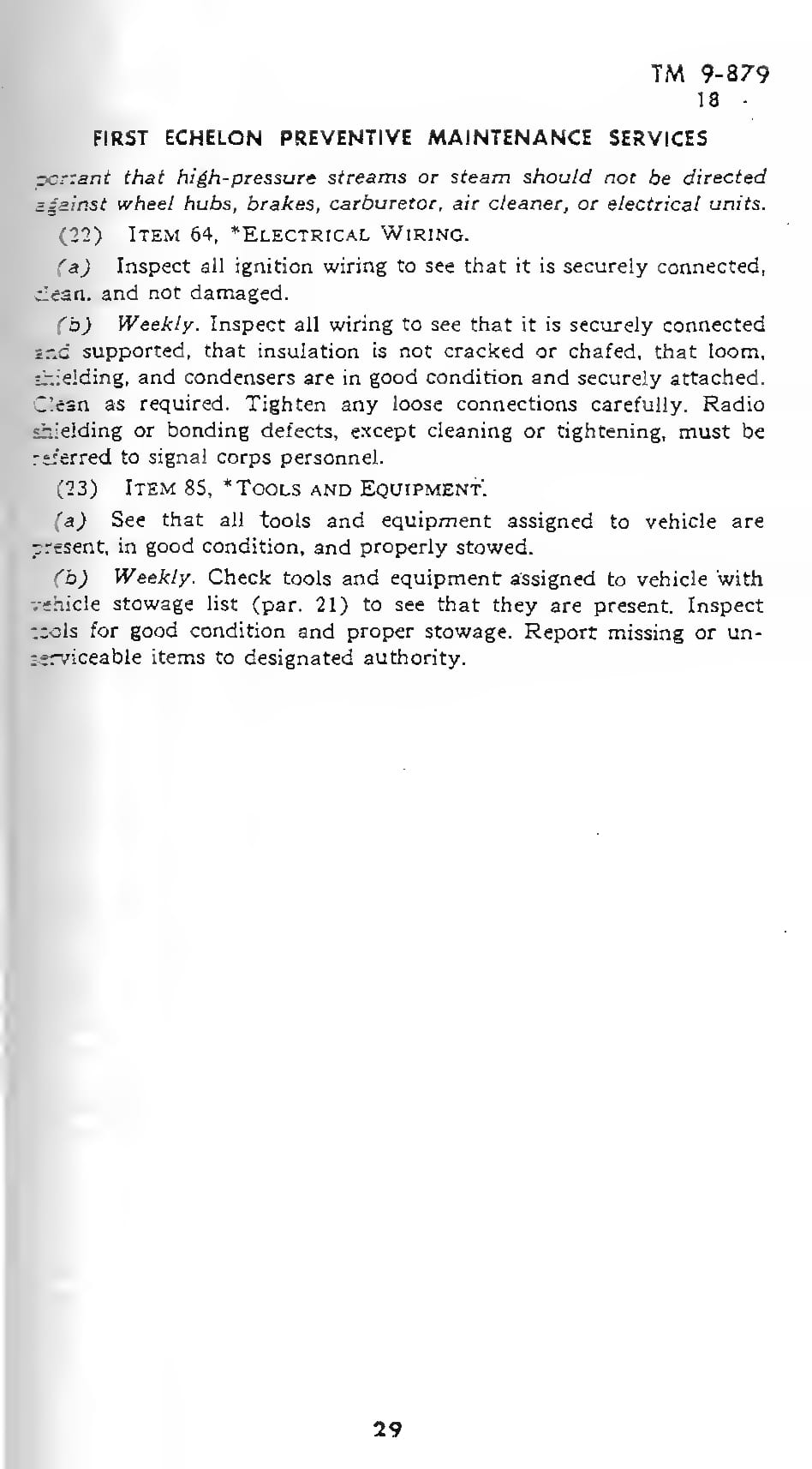

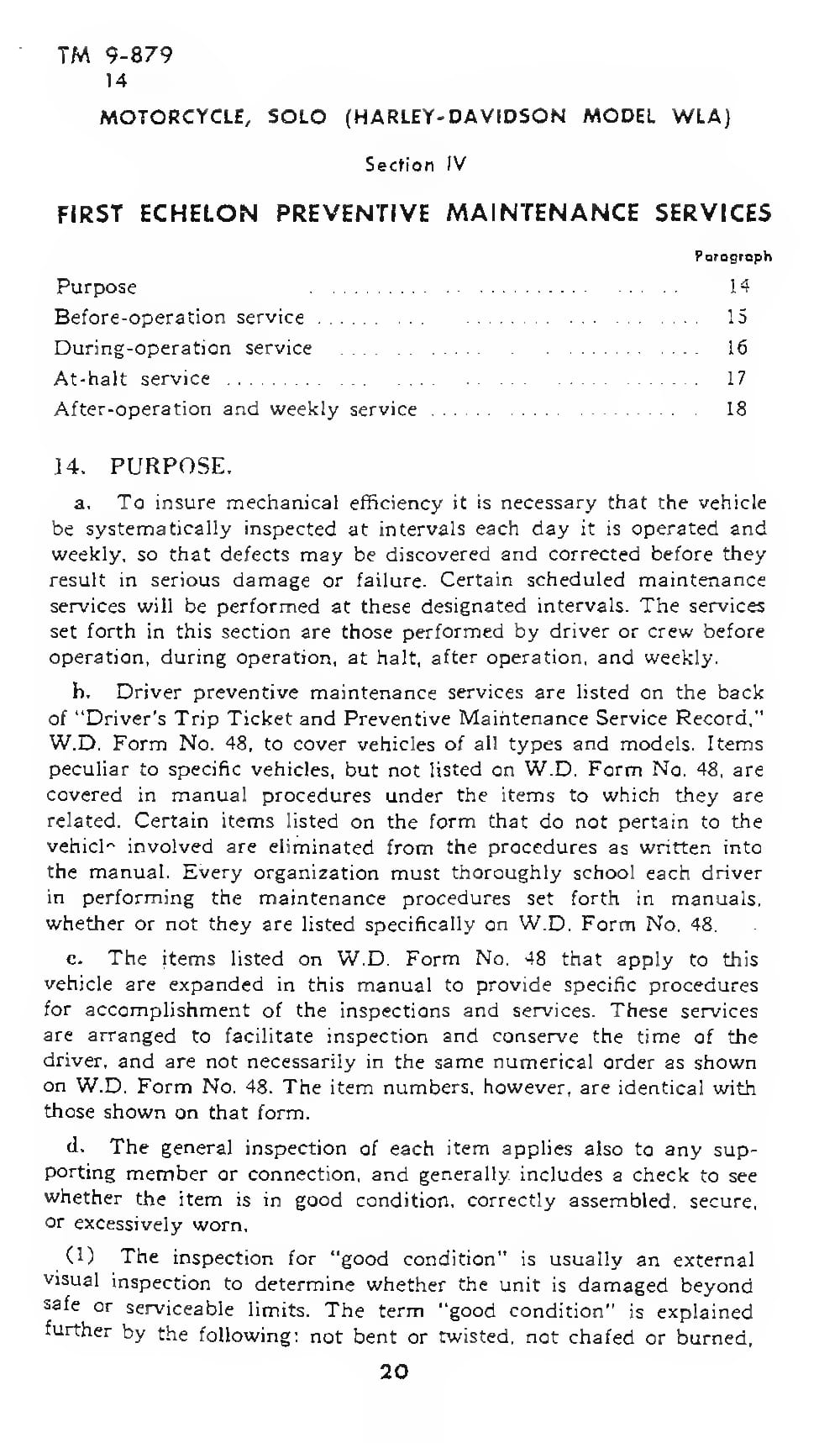

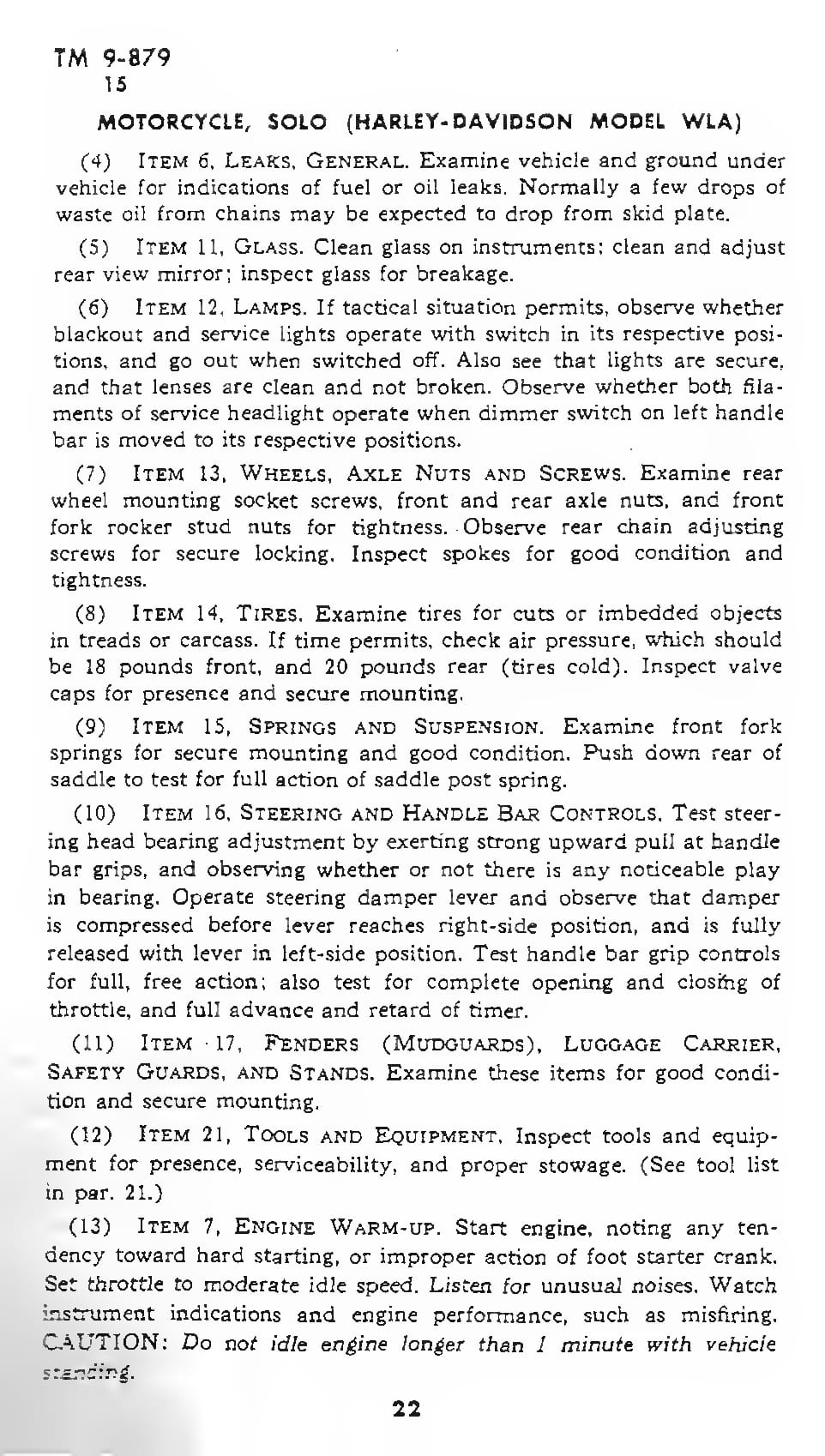

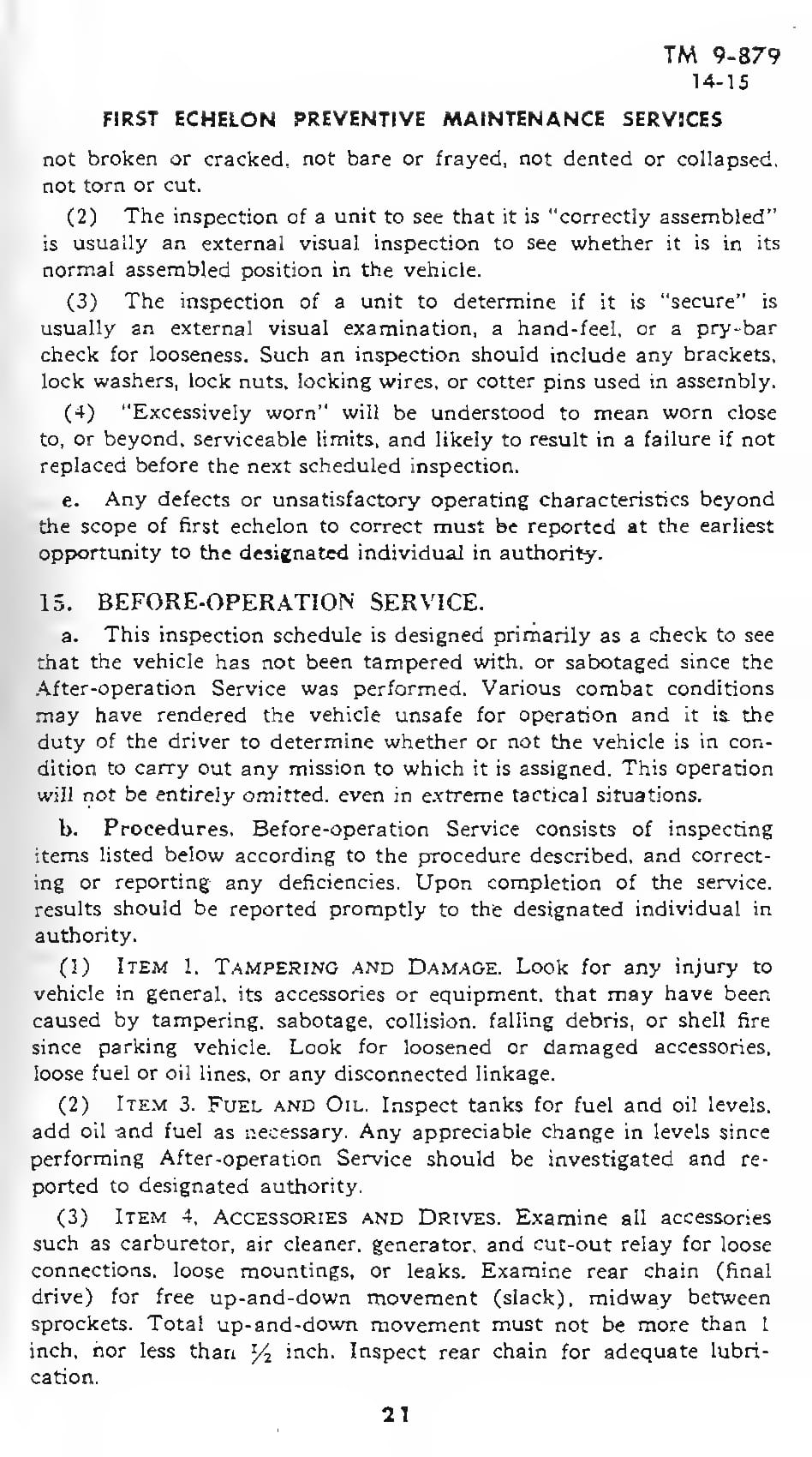

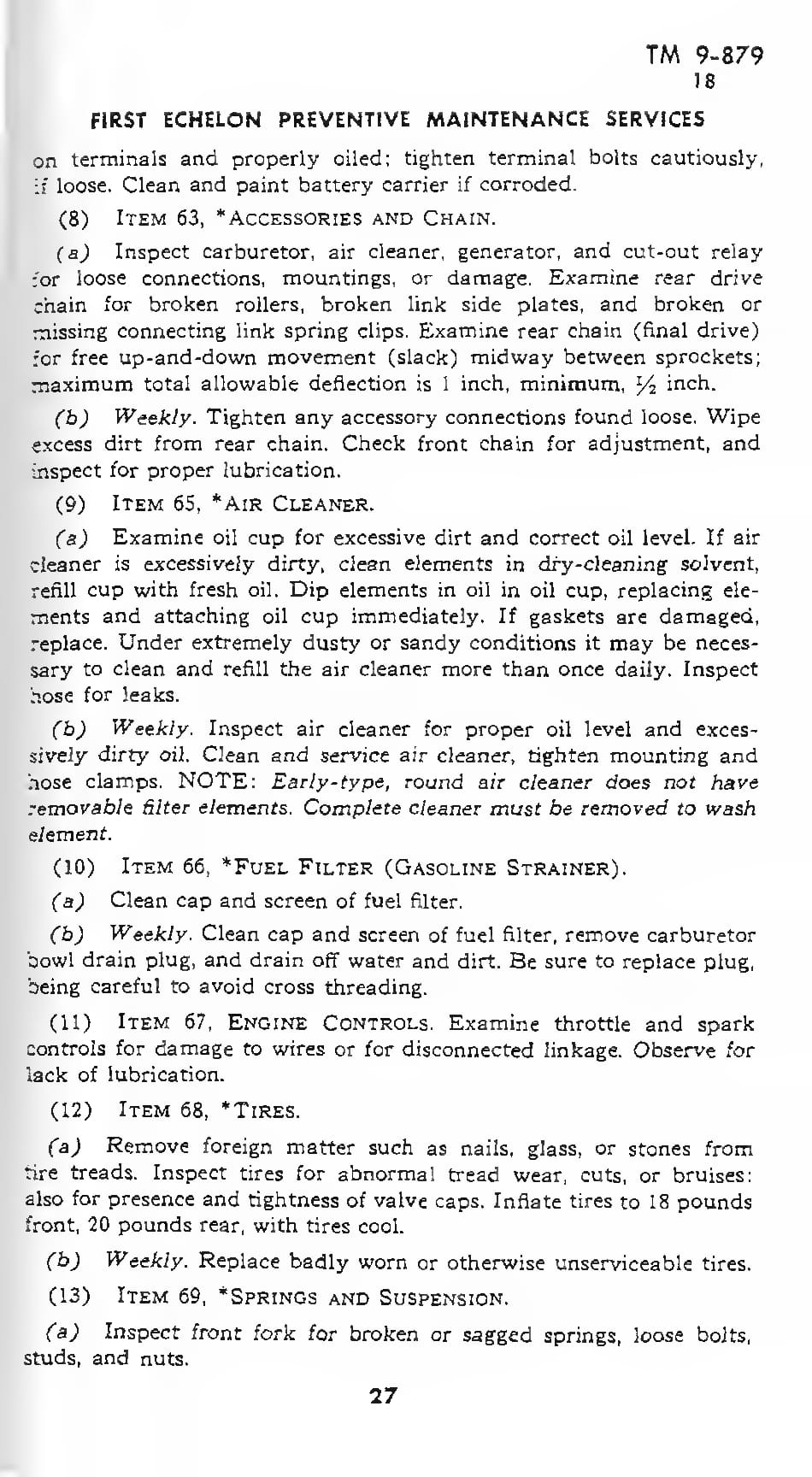

IV First echelon preventive mainte-nance services
........................14-18 20-29

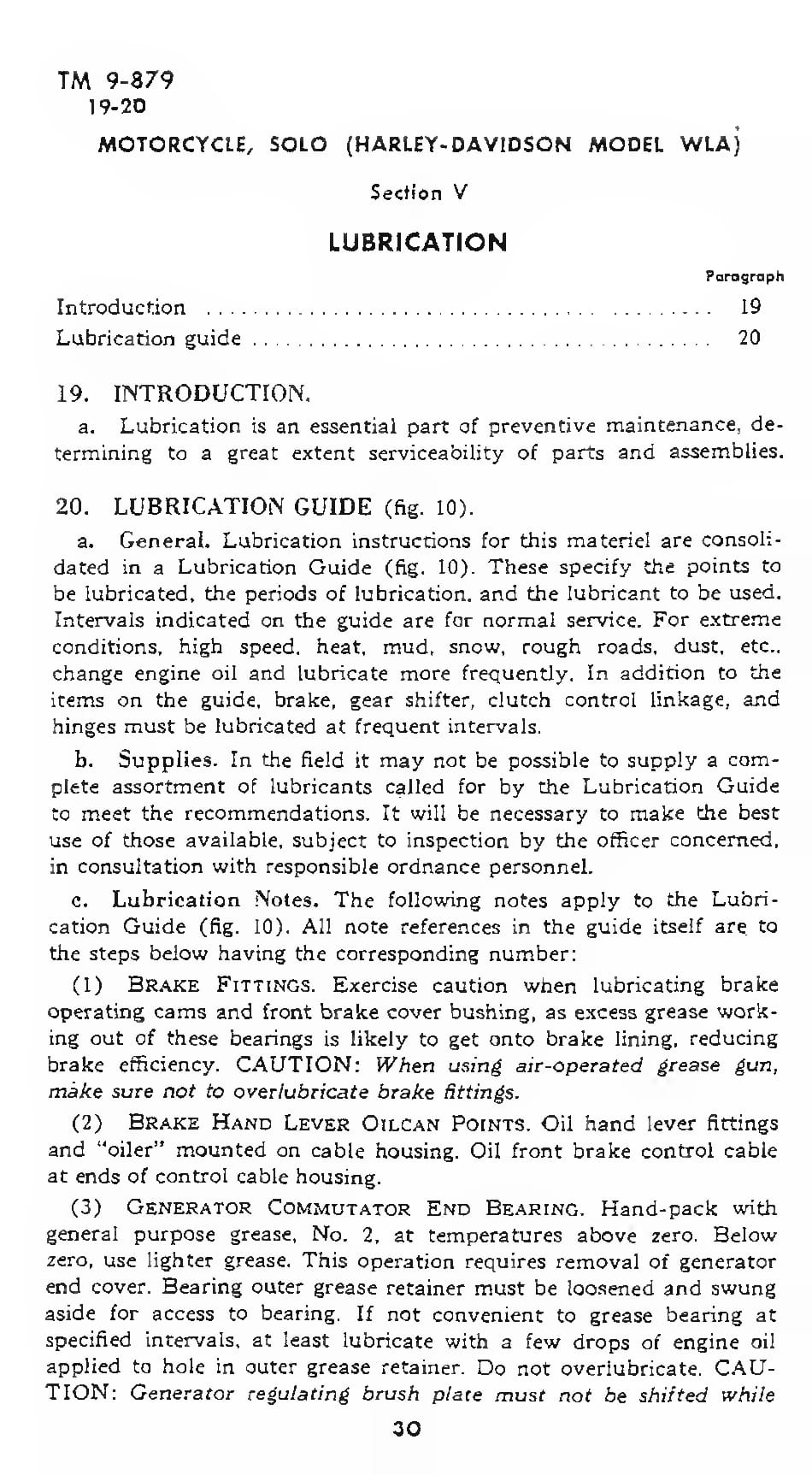

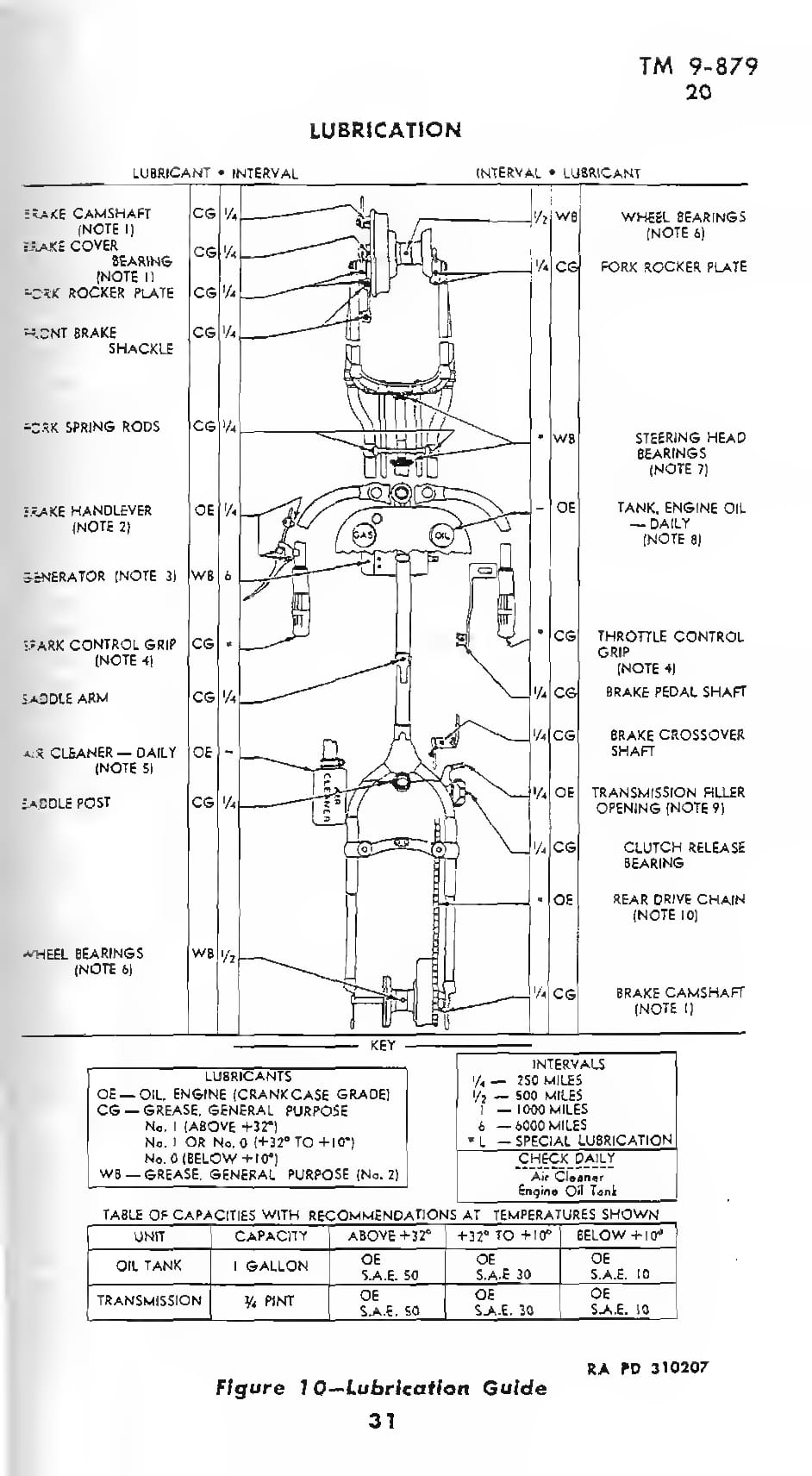

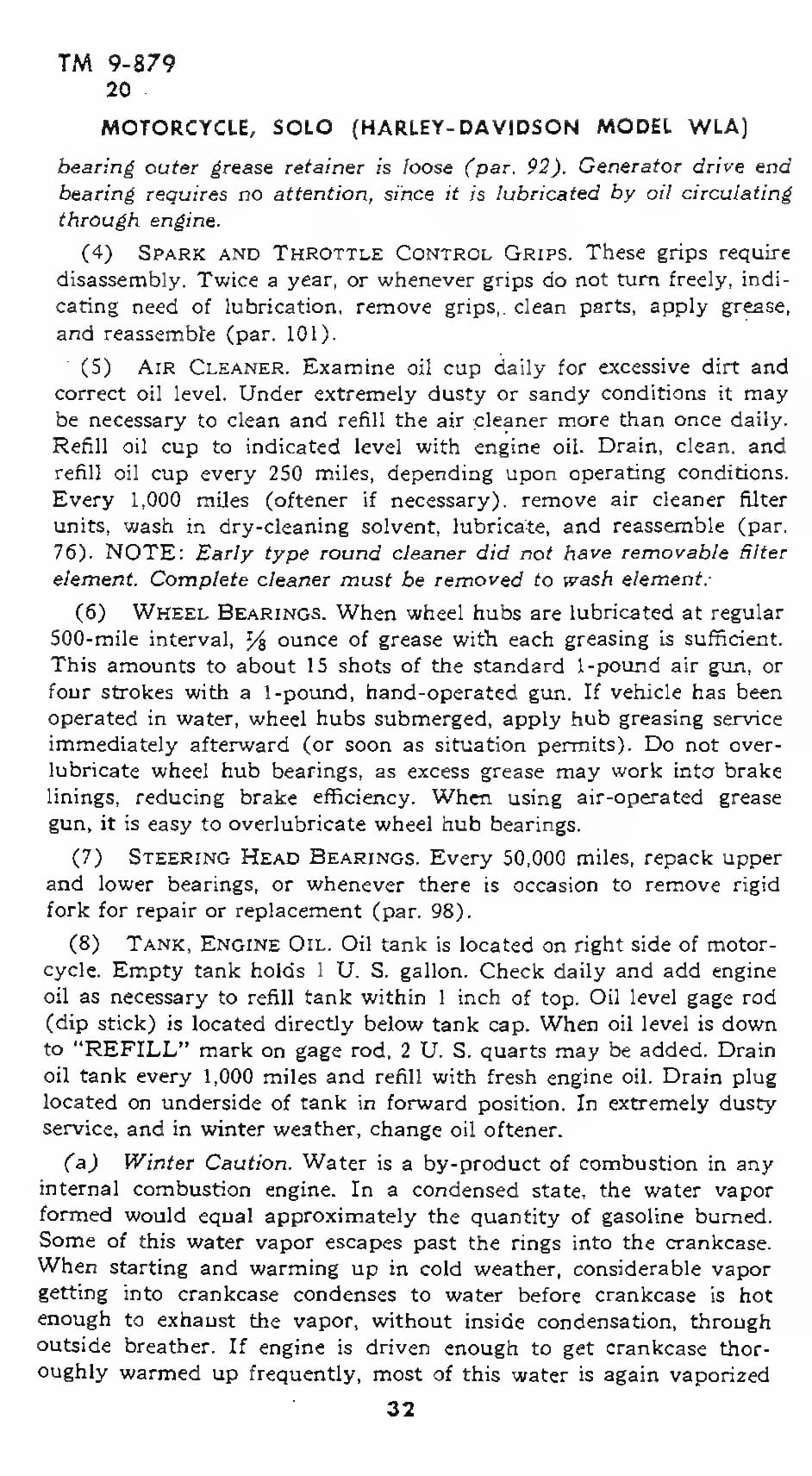

V Lubrication ....................................19-20 30—34
VI Tools and equipment stowage
on the vehicle..........................21-23 35-38
PART TWO—ORGANIZATIONAL MAINTENANCE
Section VII Maintenance allocation ..............24-25 39-44
VIII Second echelon preventive
maintenance services ..........26 45-59
IX Organization tools and equipment
............................................27 60
X Trouble shooting..........................28-38 61-71
XI Engine ............................................39-44 72-77
XII Engine—removal and installation 45-46 78—84
XIII Clutch ........................................47-52 85-95
*For supersession of quartermaster manuals, refer to paragraph 2.
