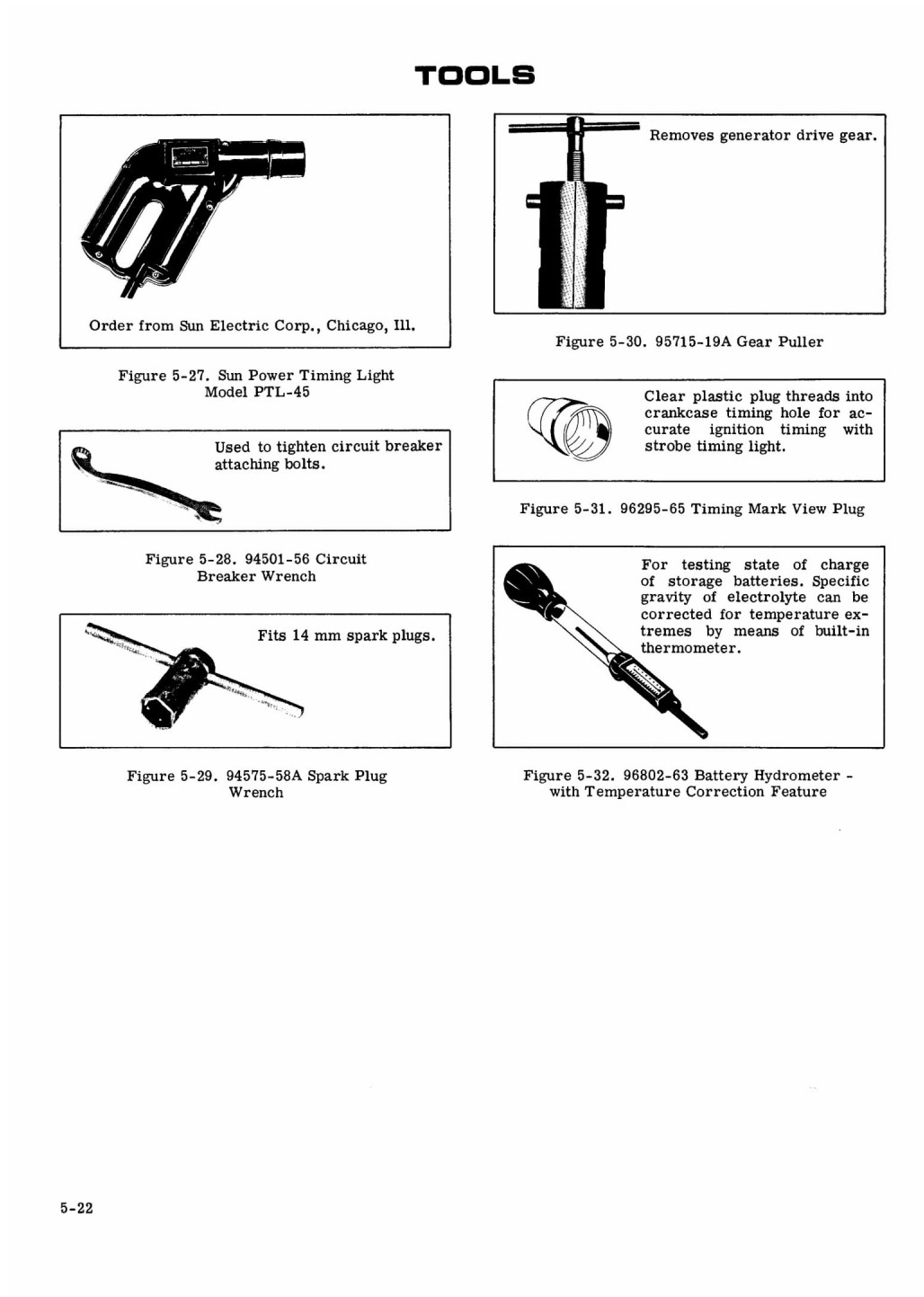

(This procedure will result in approximate timing
and engine can be operated in an emergency for a short period until
advanced position timing can be obtained with a strobe timing light.)
At regular intervals of 5000 miles or at least once a year, have your
dealer check ignition timing and, if necessary, readjust circuit breaker
setting to compensate for wear on circuit breaker that may have caused a
slight change in timing.
DISASSEMBLING AND ASSEMBLING

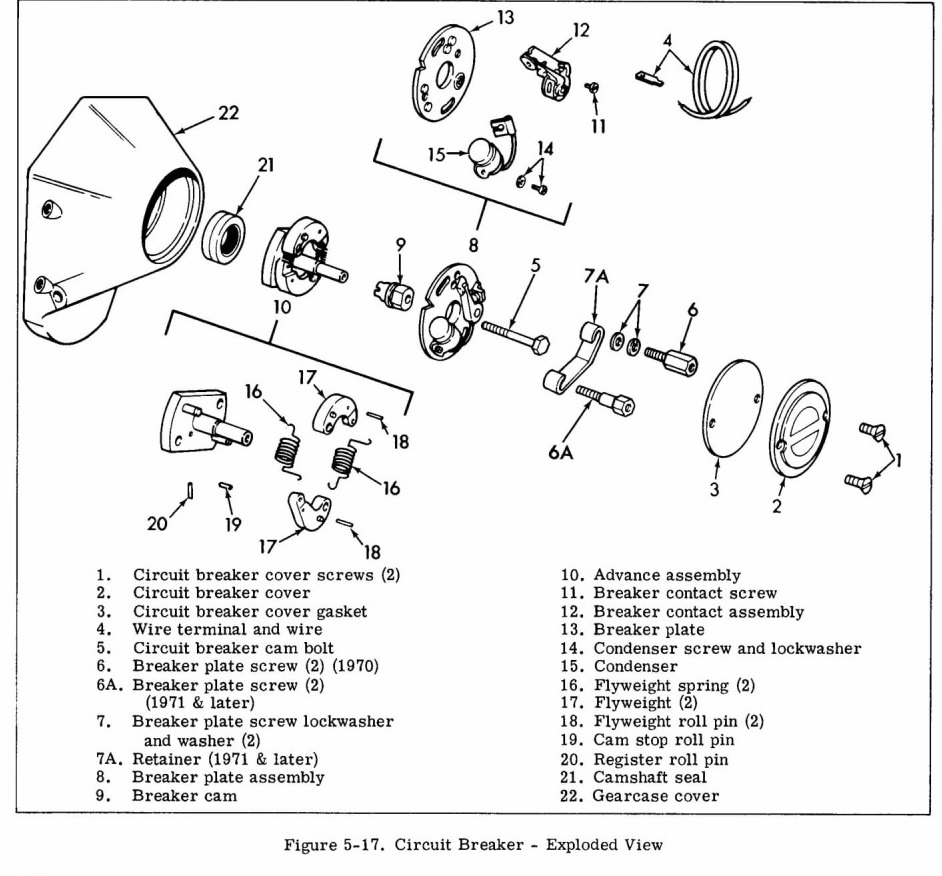

REMOVING CIRCUIT BREAKER PARTS (Figure 5-17)
Remove circuit breaker cover screws (1), cover (2) and gasket (3). Pull
wire terminal (4) from breaker contact assembly (12) terminal post.
Remove circuit breaker cam bolt (5). Remove breaker plate
screws (6 or 6A) and lockwashers and washers (7) or
retainer (7A), to free breaker plate assembly (8).
Remove cam (9) from advance assembly (10) and remove advance assembly
from gearcase cover.
To remove circuit breaker contact assembly (12) from circuit breaker
plate (13), pull condenser (15), terminal from breaker contact terminal
post. Also unhook flat spring from terminal post. Remove screw (11) to
free point set from breaker plate (13). To remove condenser (15), remove
screw and lock-washer (14) from breaker plate (13).

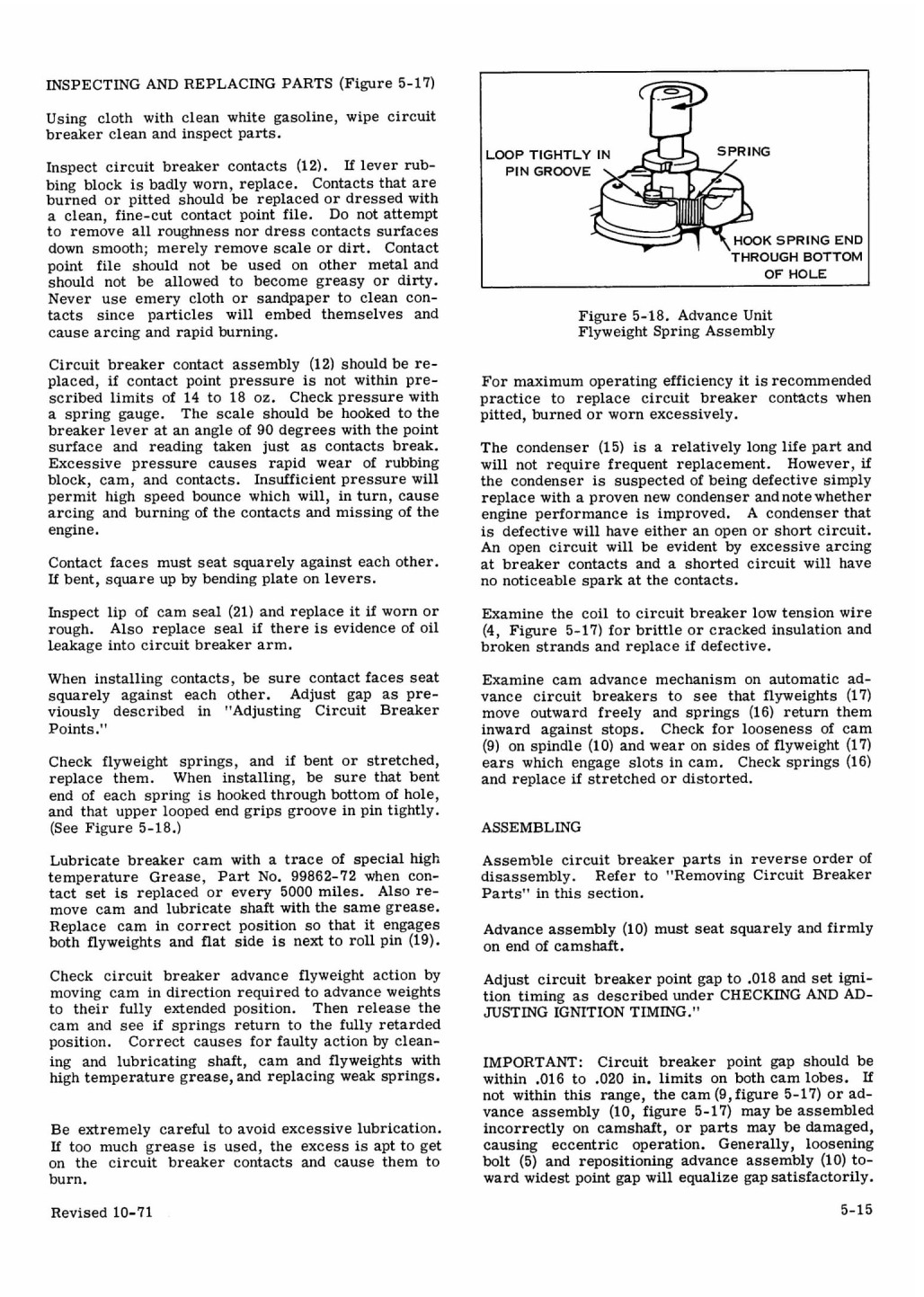

To disassemble advance mechanism, unhook spring (16) loops from grooves
in pivot pins and slip flyweights (17) with spring from pivot pins on
advance base (18). Do not remove springs from flyweights unless they are
to be replaced. Roll pins (18, 19 and 20) are pressed in and can be
replaced if necessary.
