Harley Davidson FL/FX models 1200 / 1340cc 4-Speed (1978 1/2 to 1984). Service manual - page 8

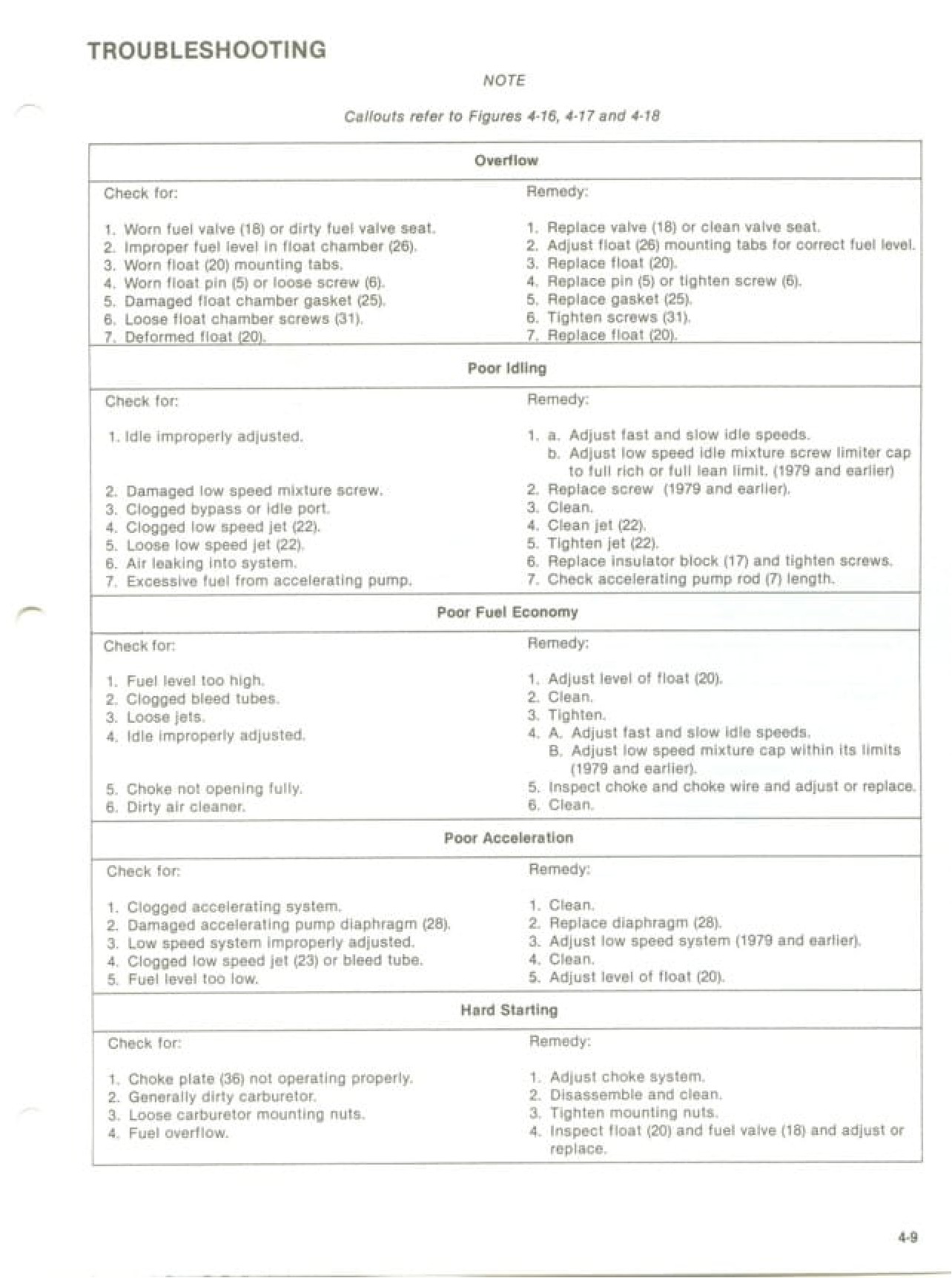

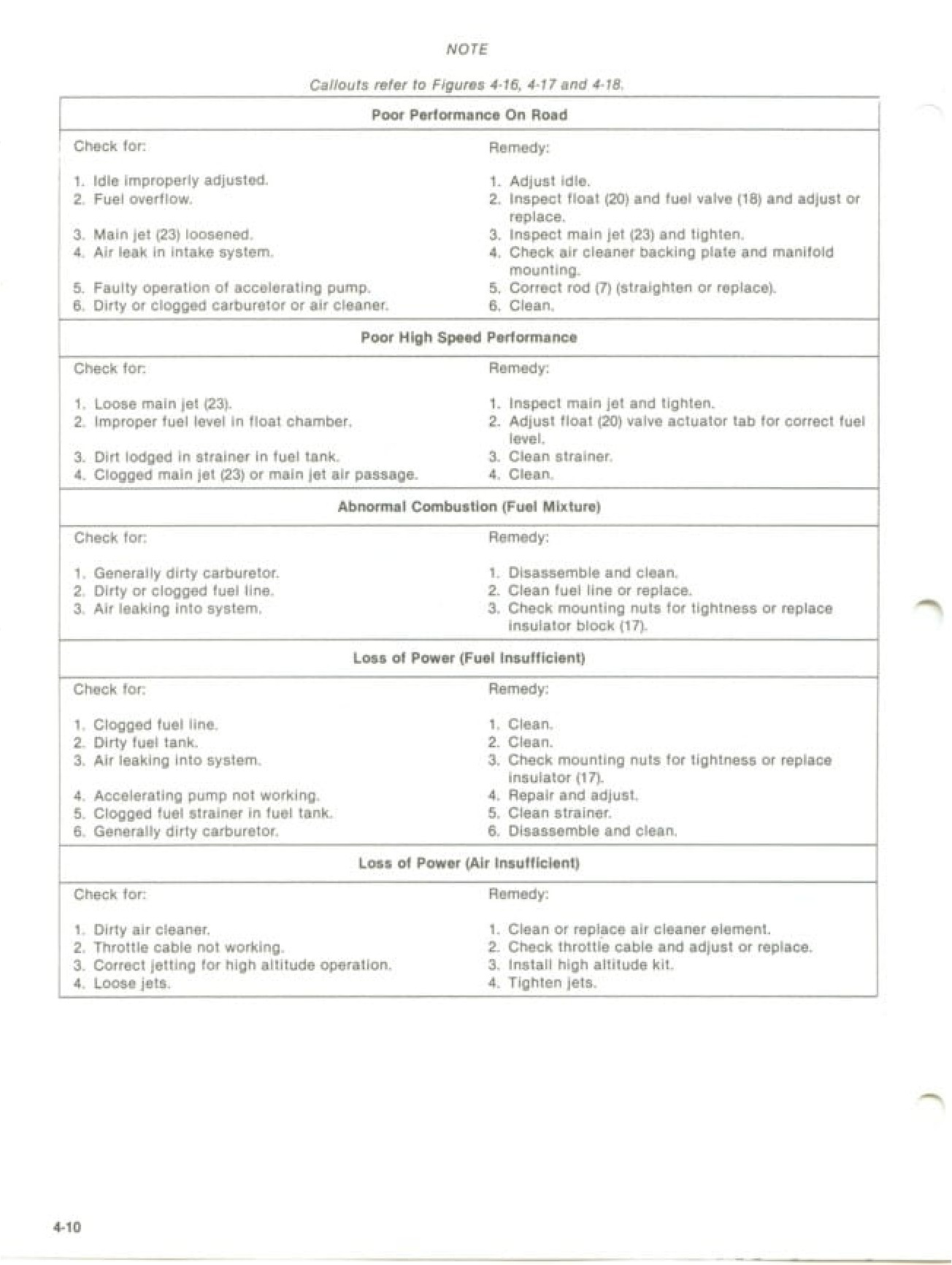

TROUBLESHOOTING

note

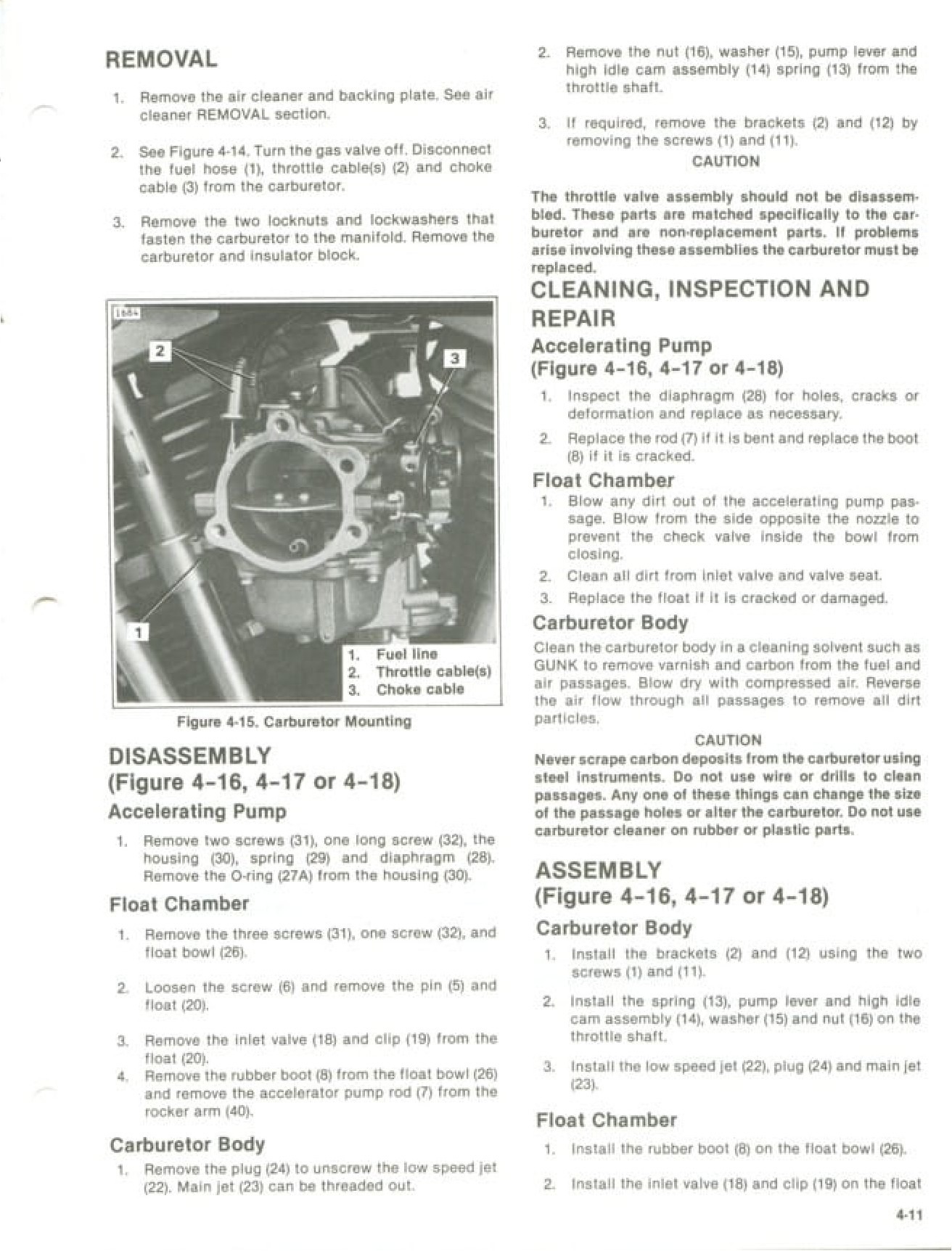

REMOVAL

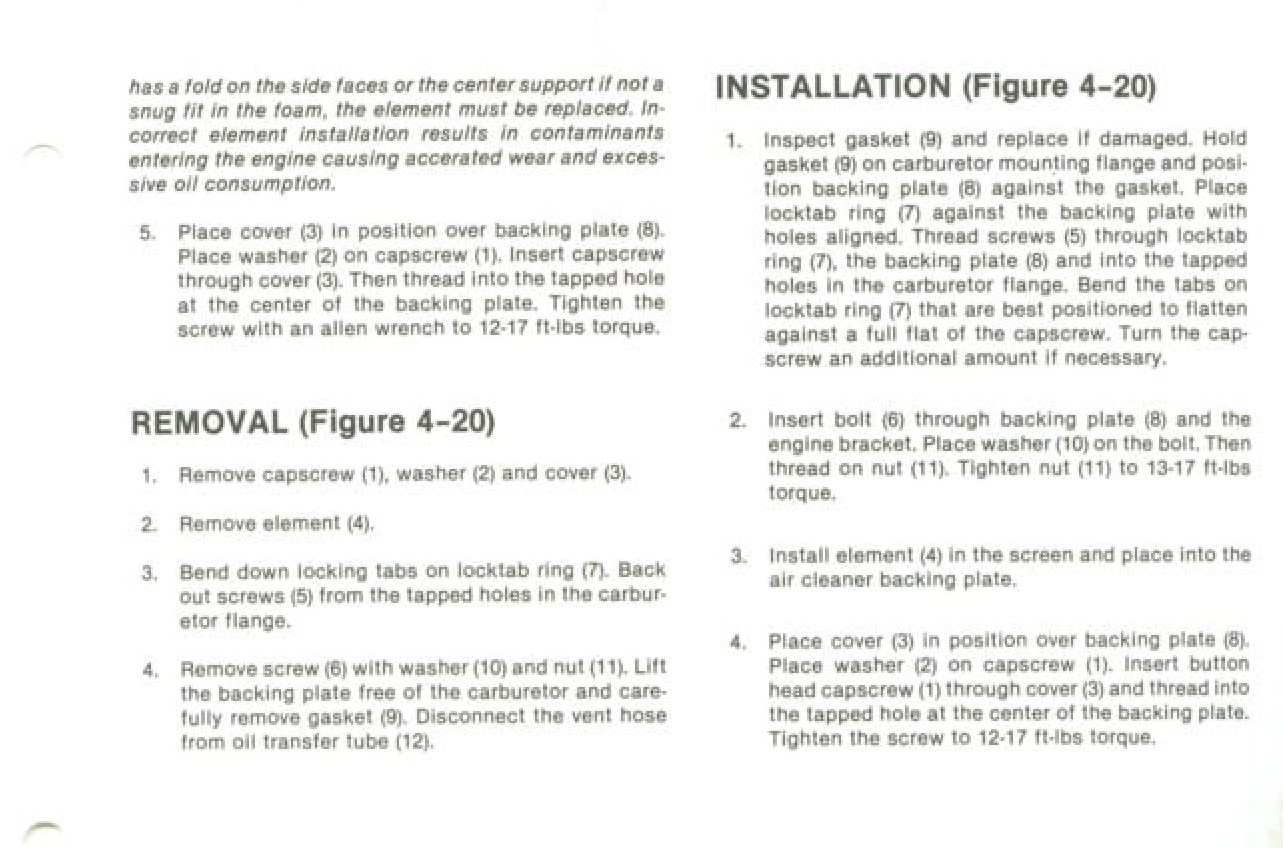

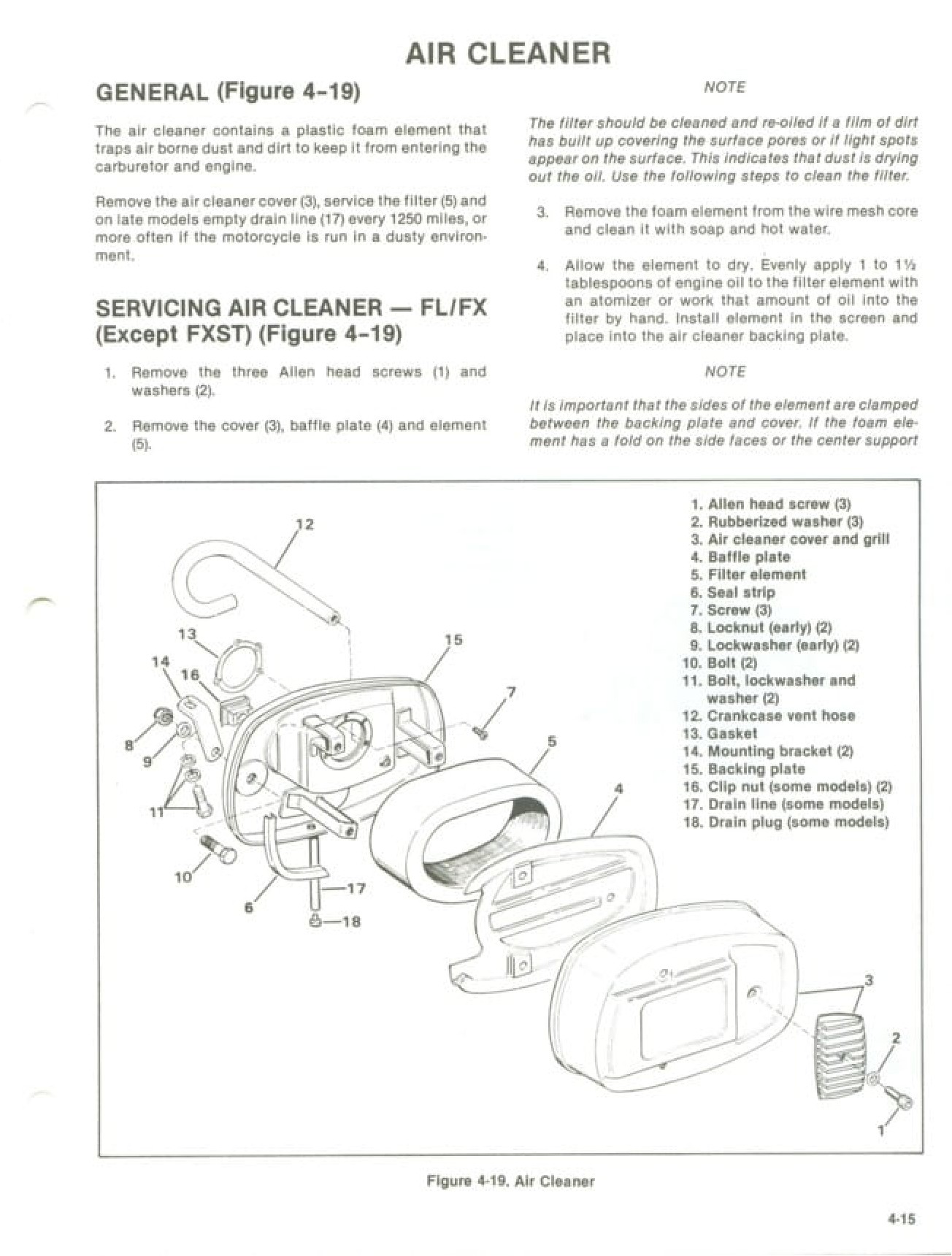

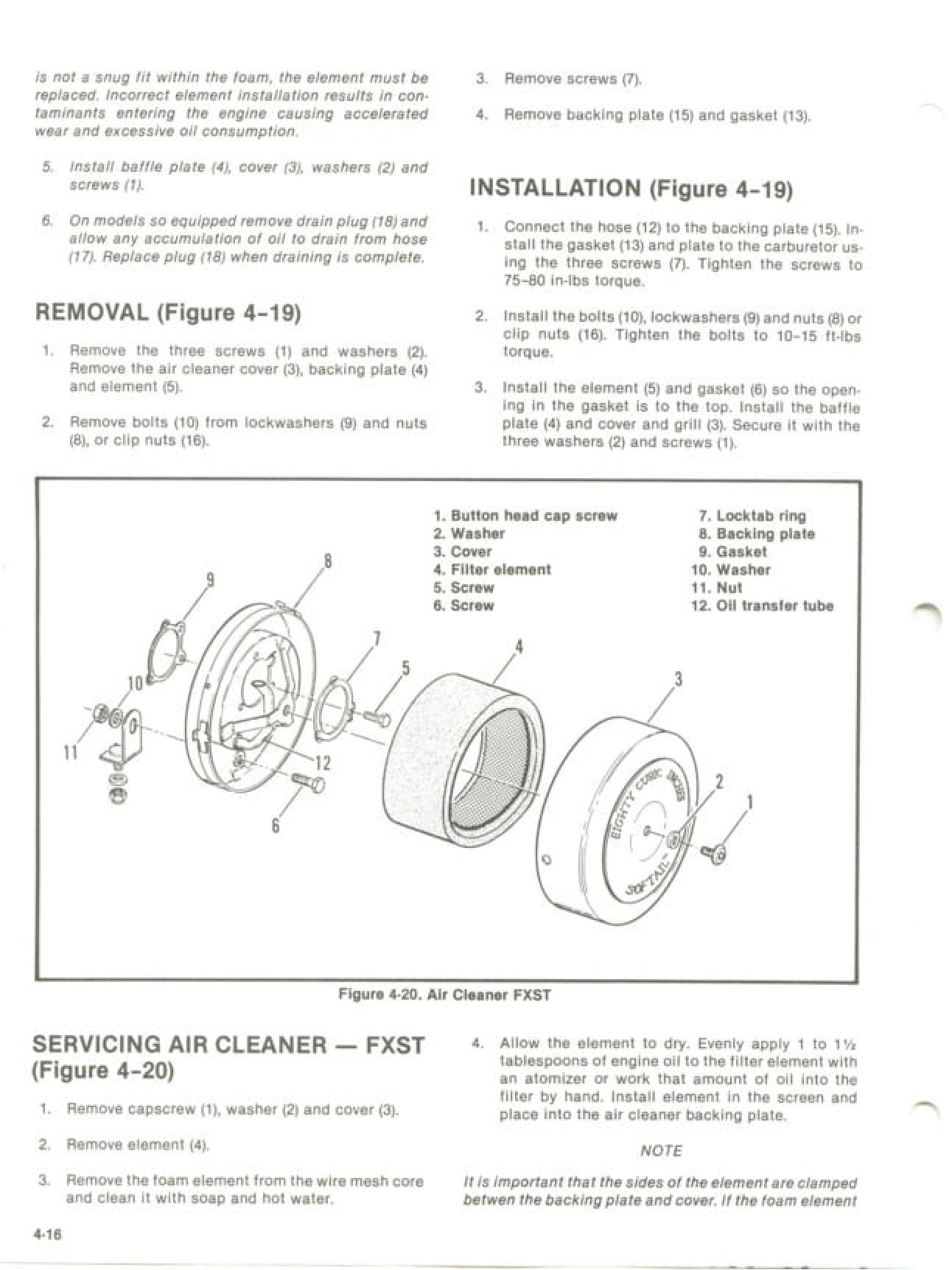

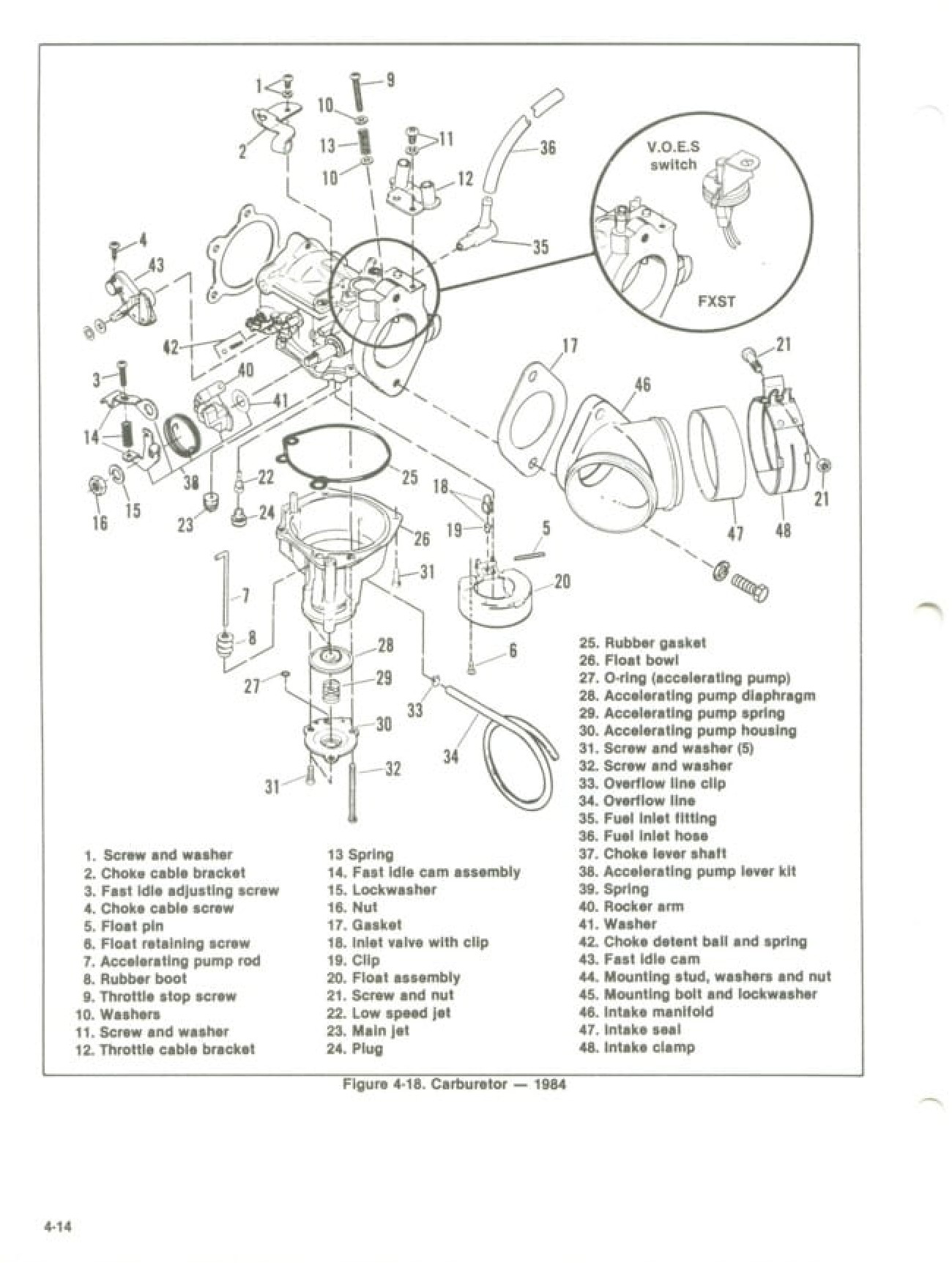

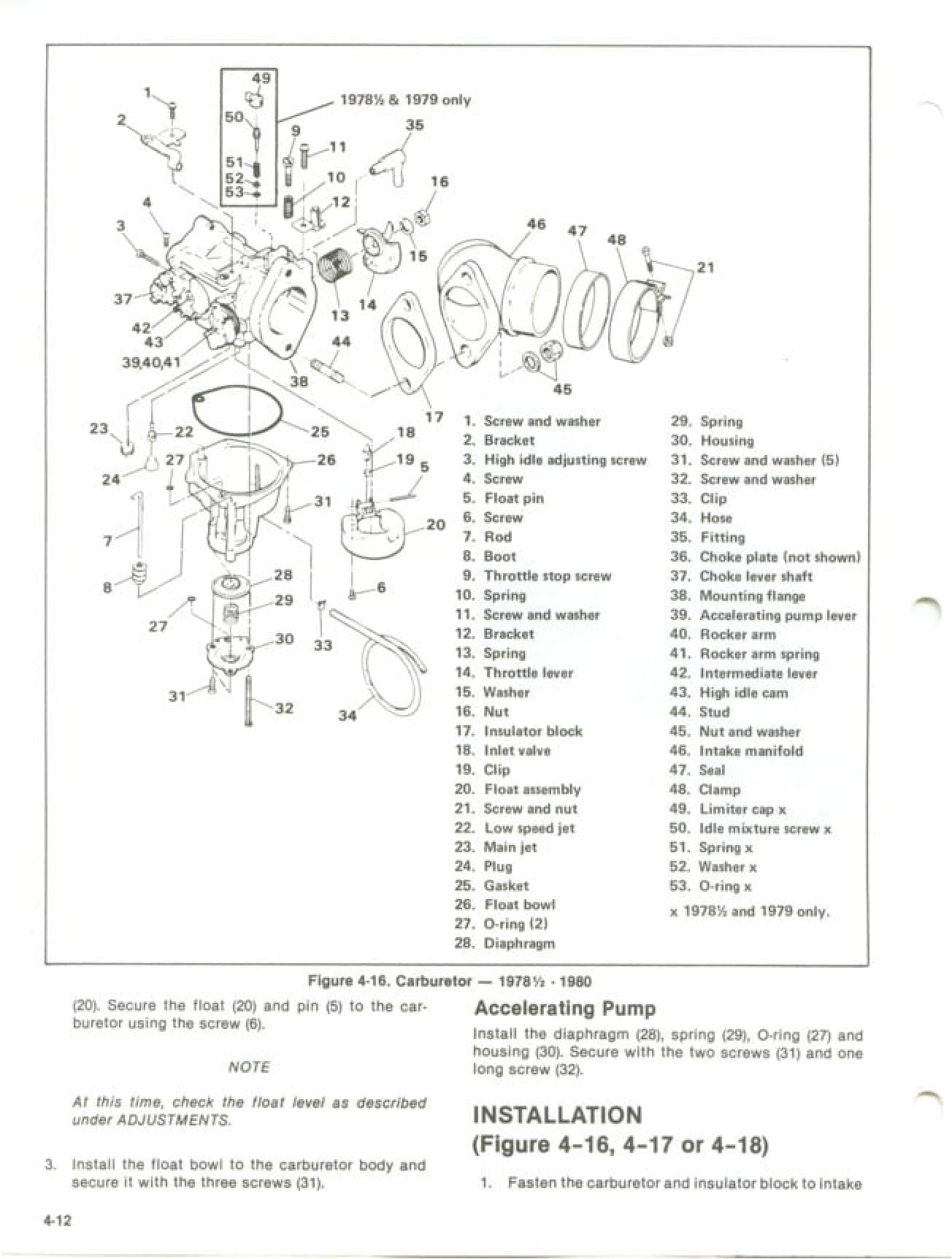

AIR CLEANER

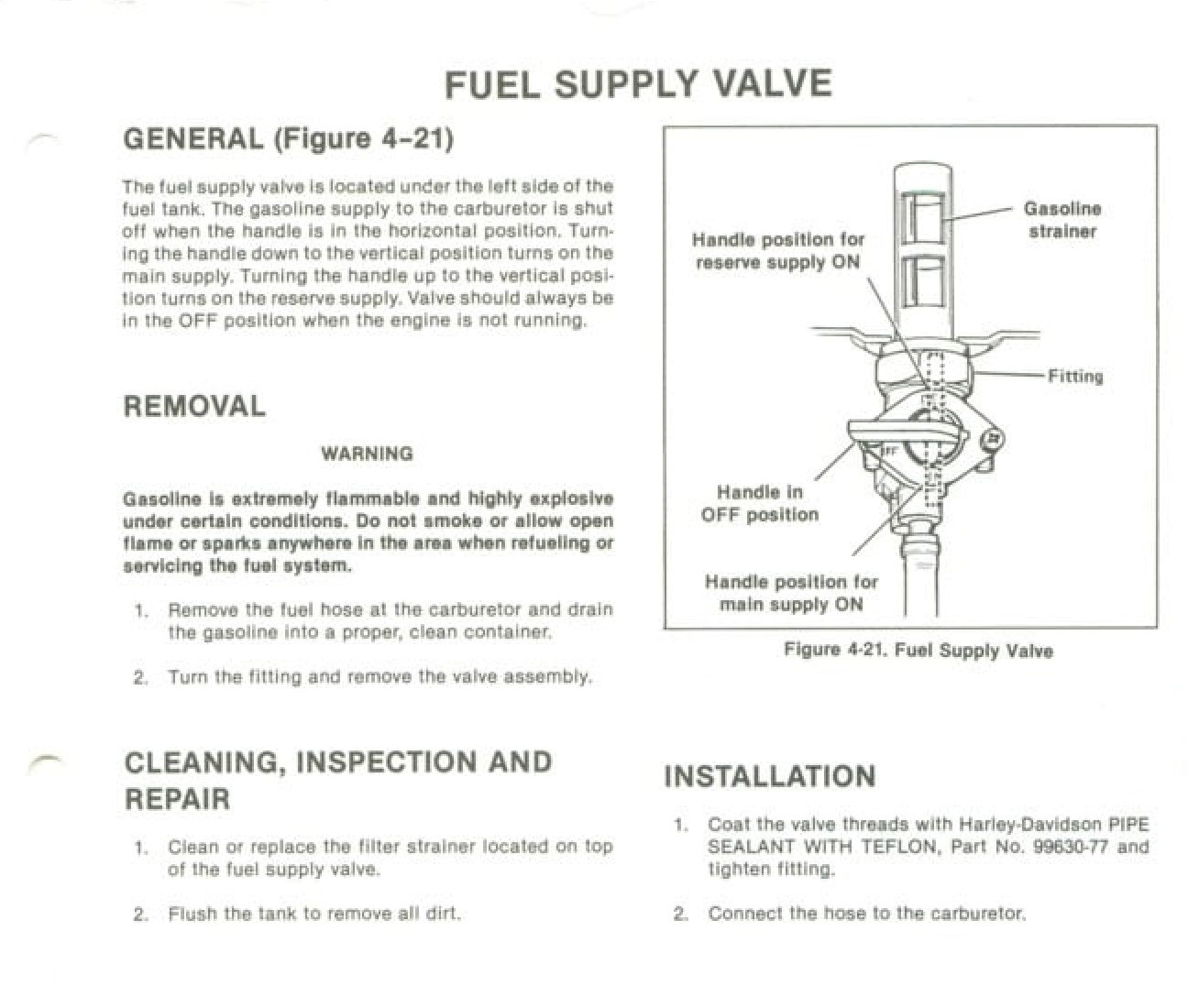

FUEL SUPPLY VALVE

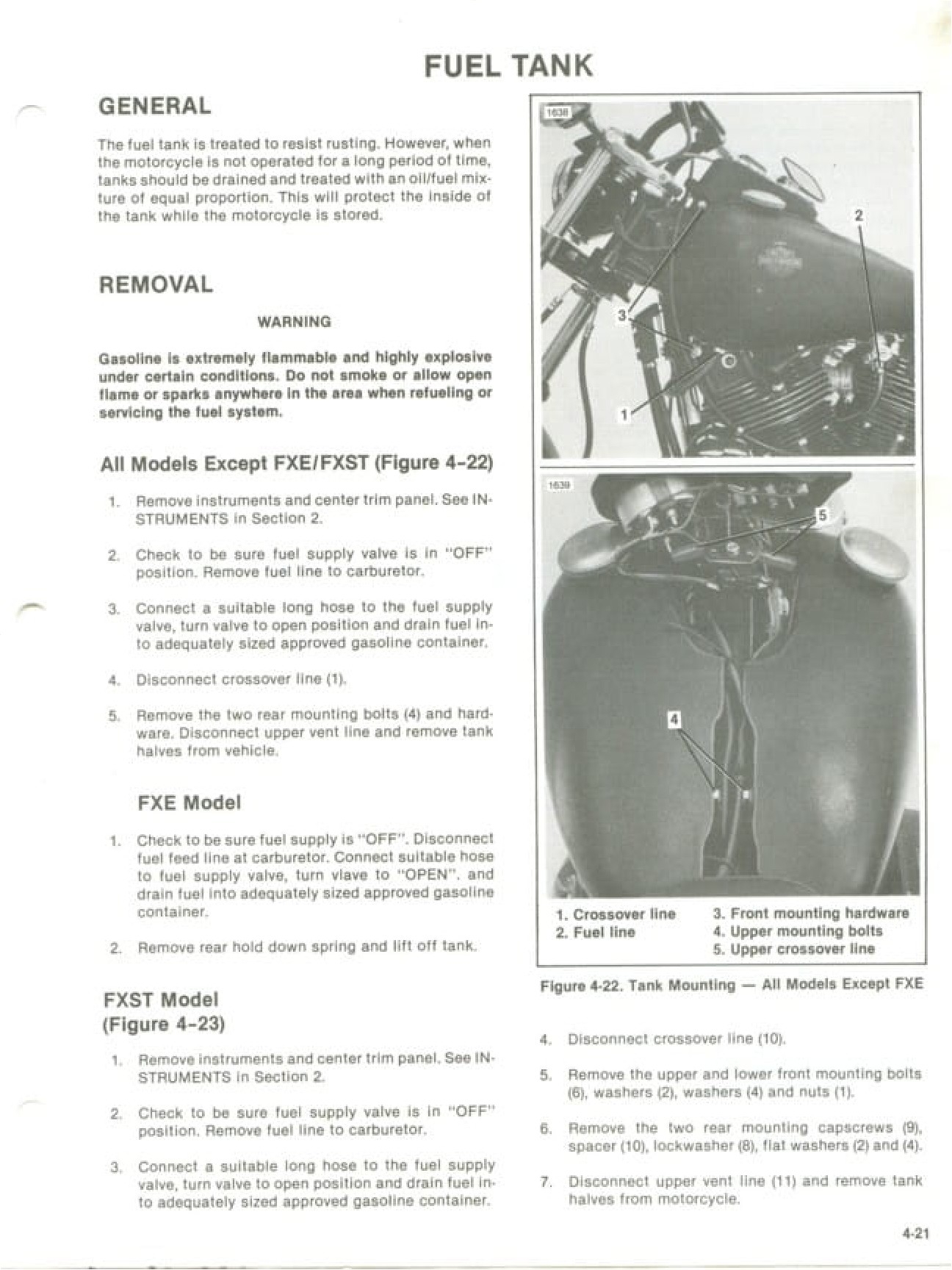

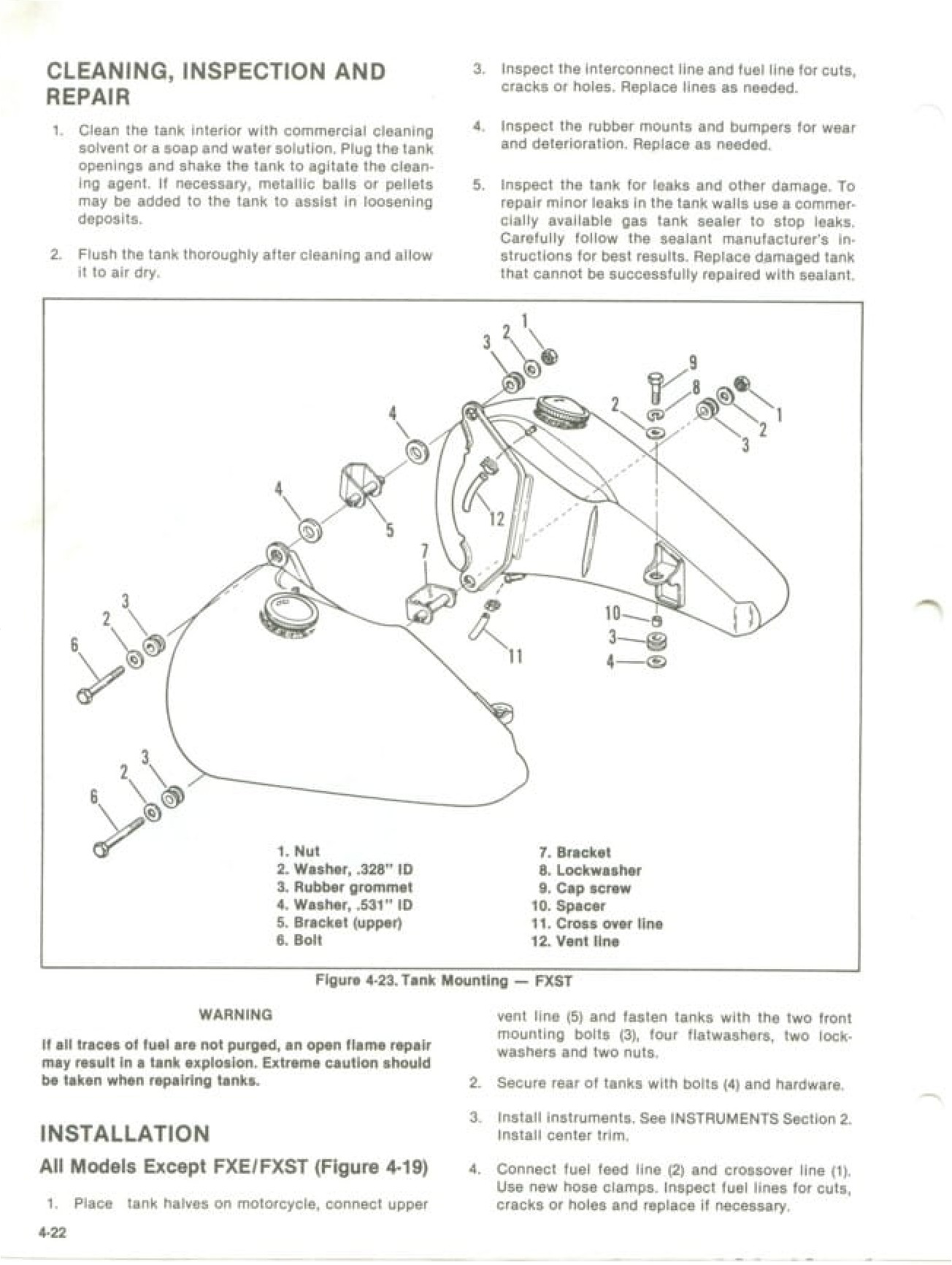

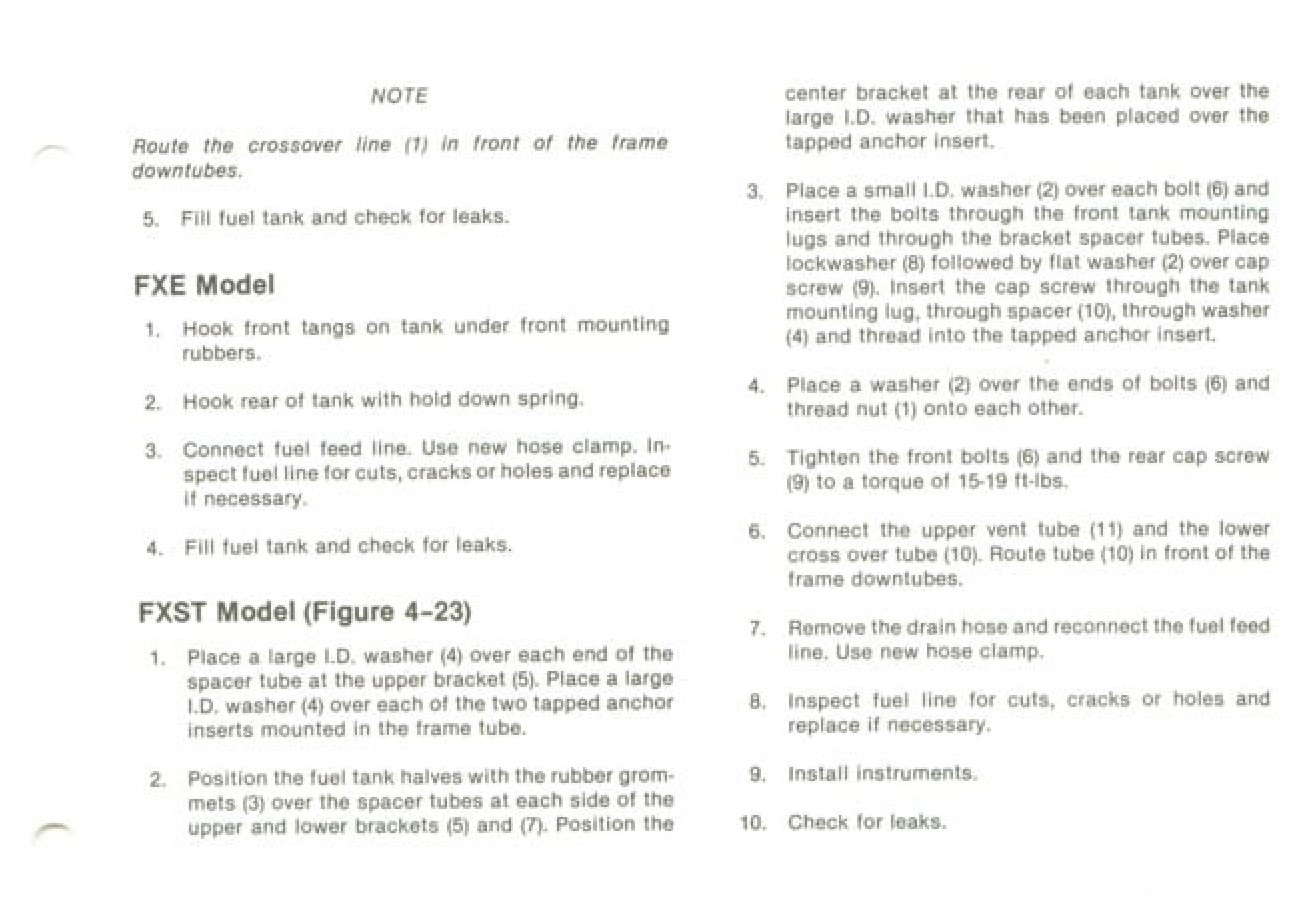

FUEL TANK

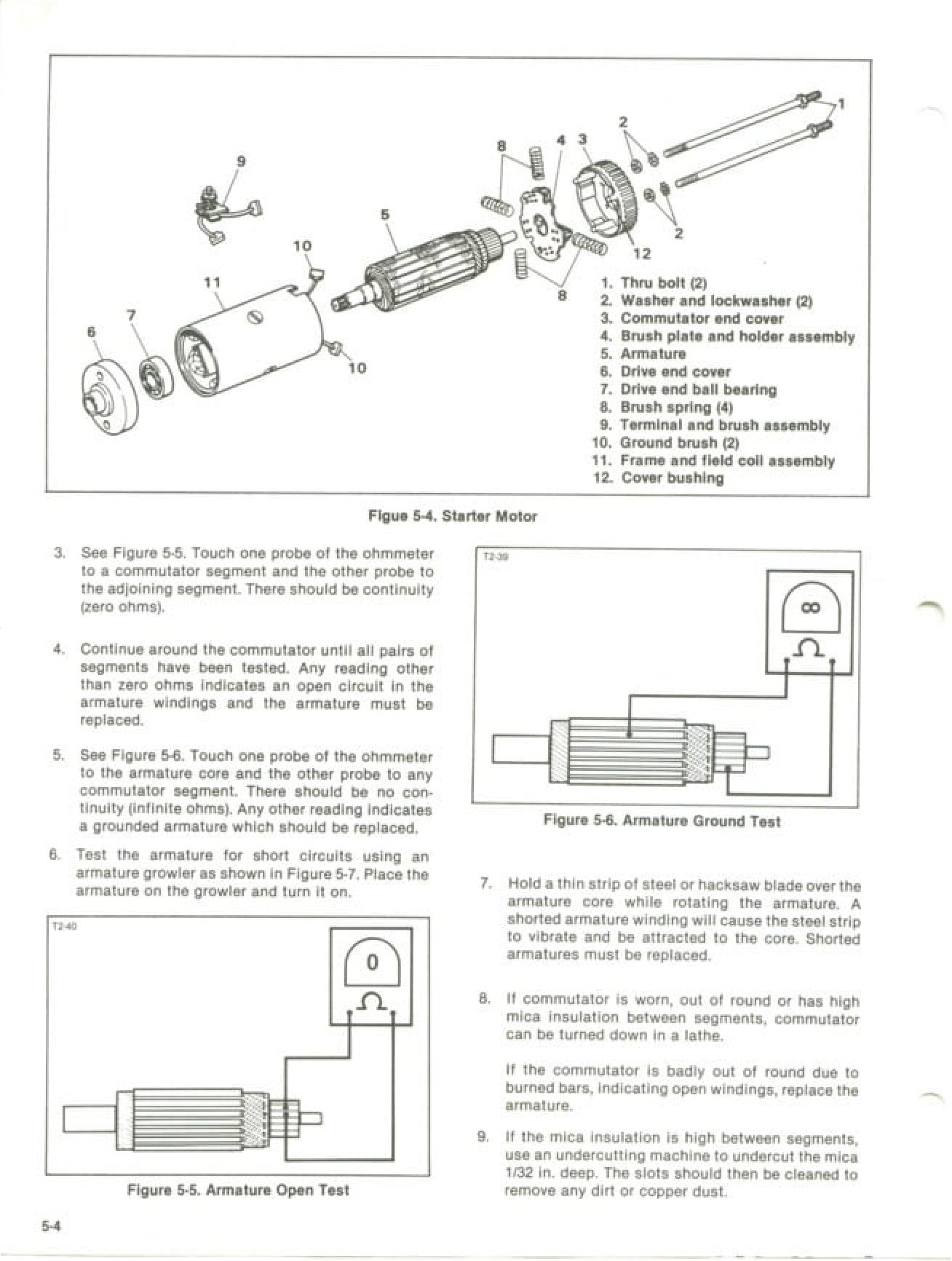

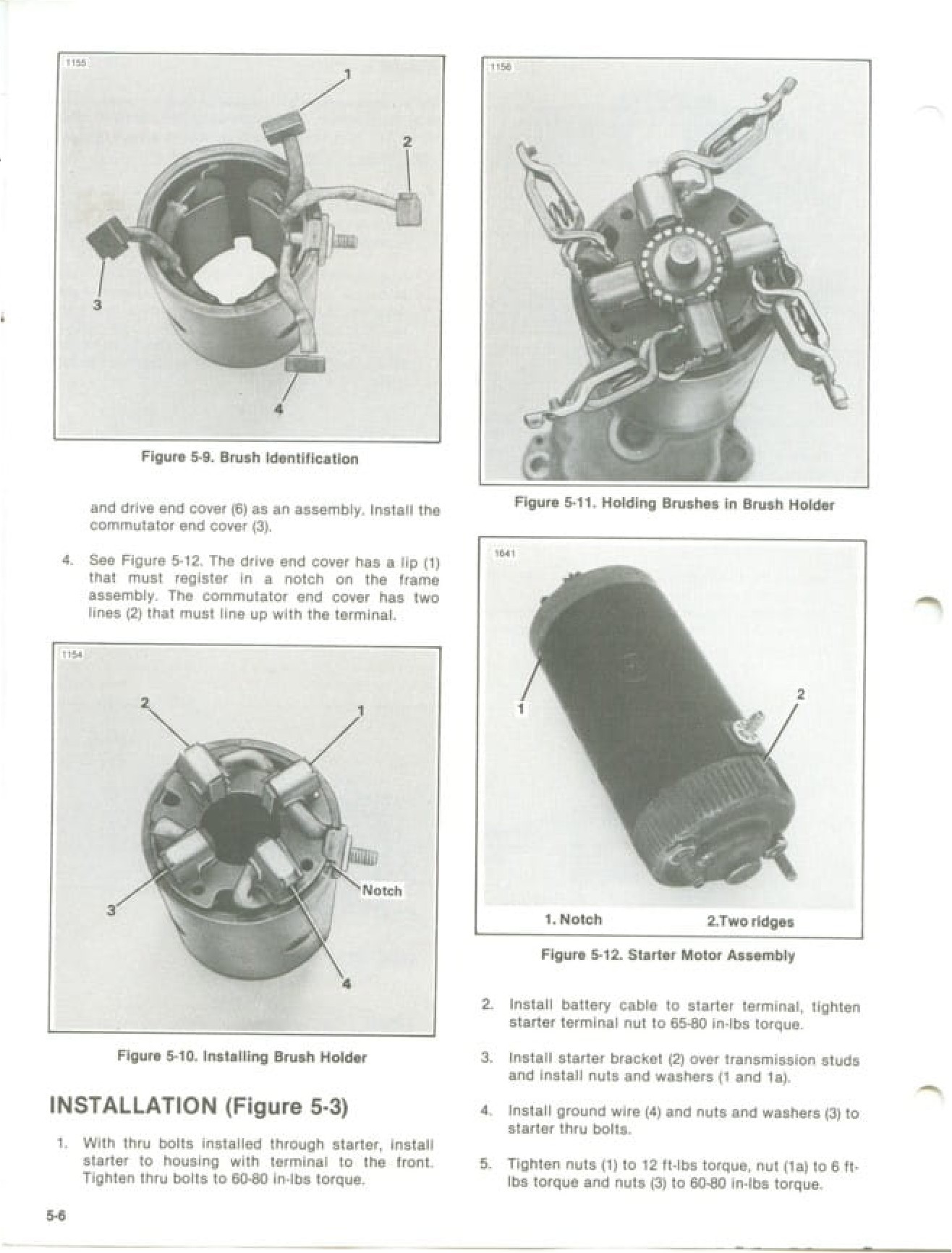

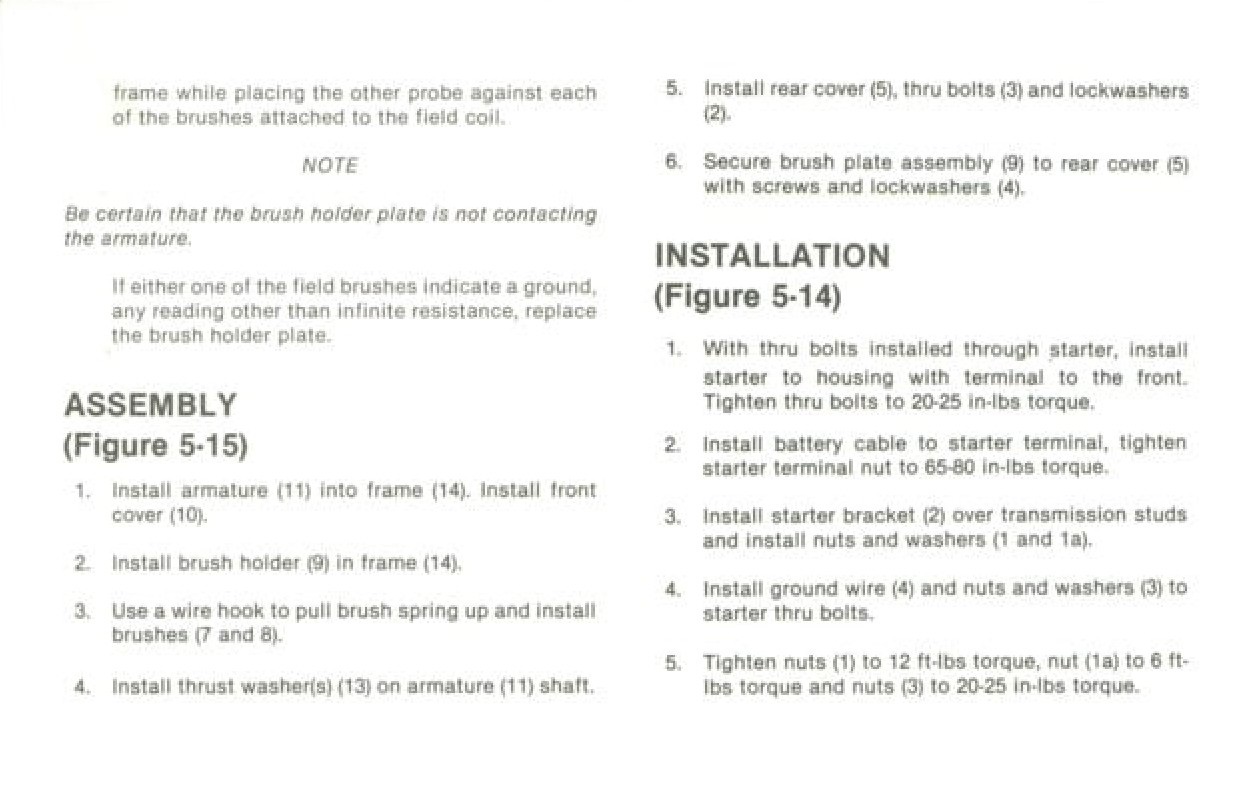

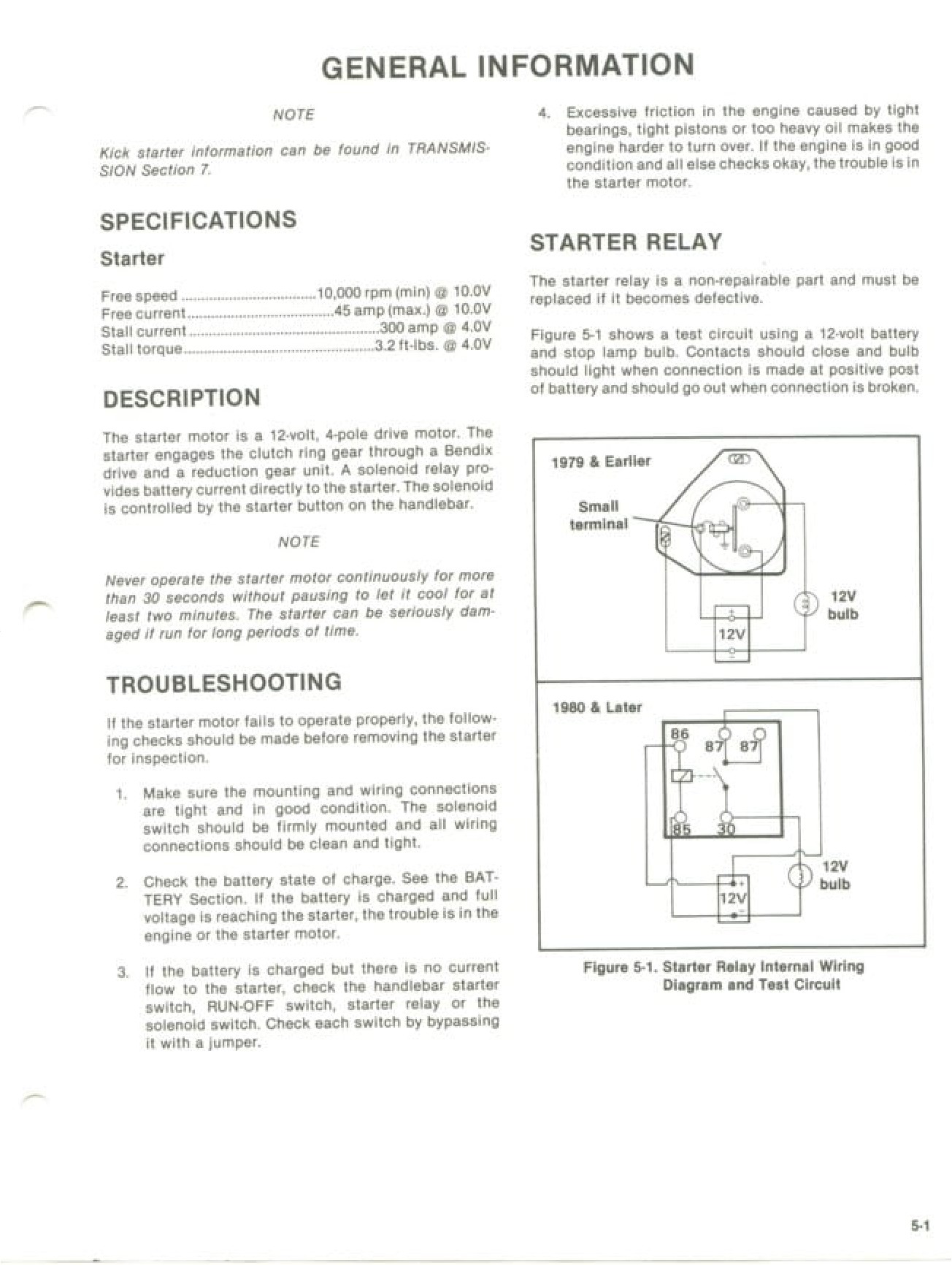

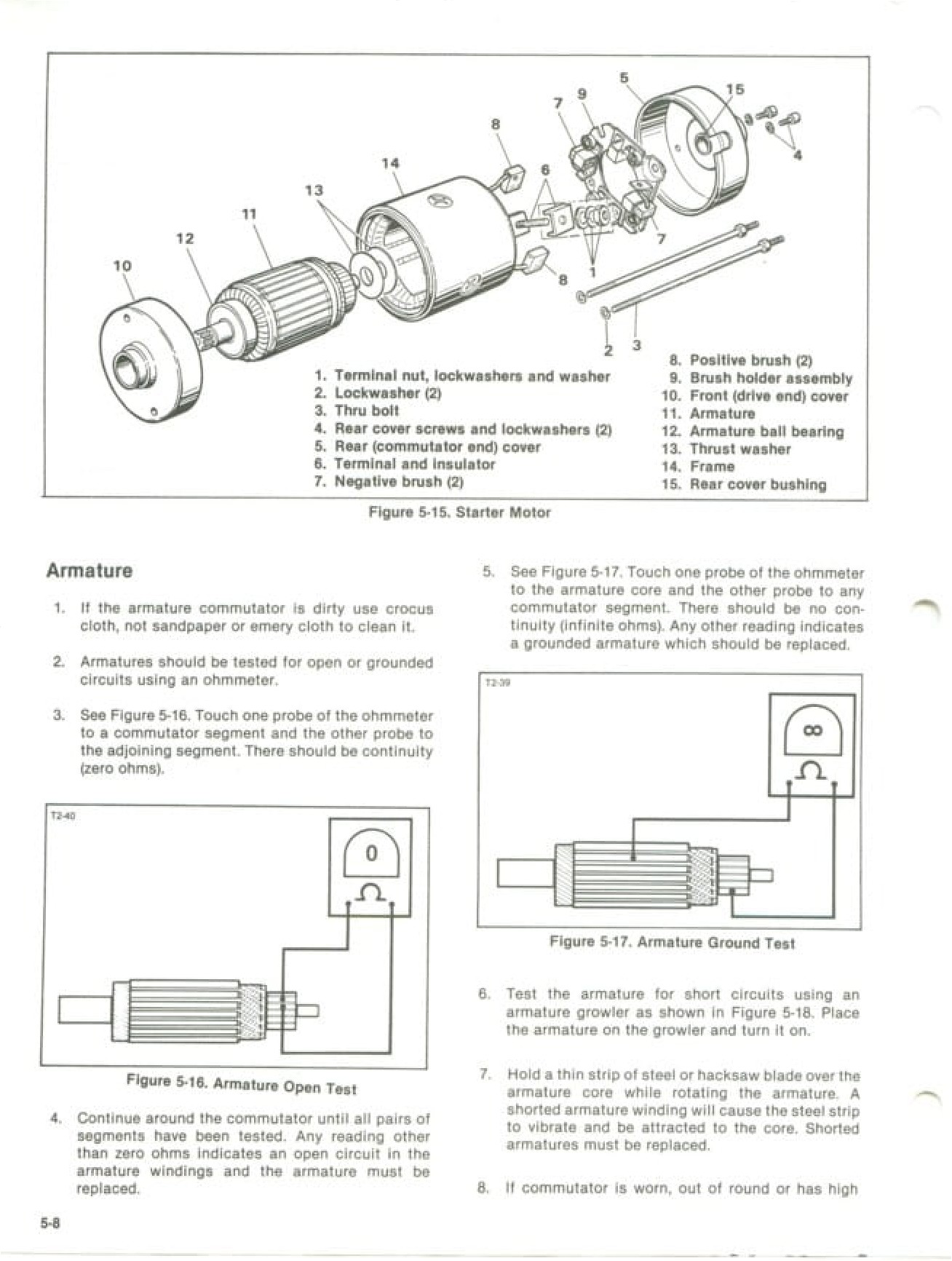

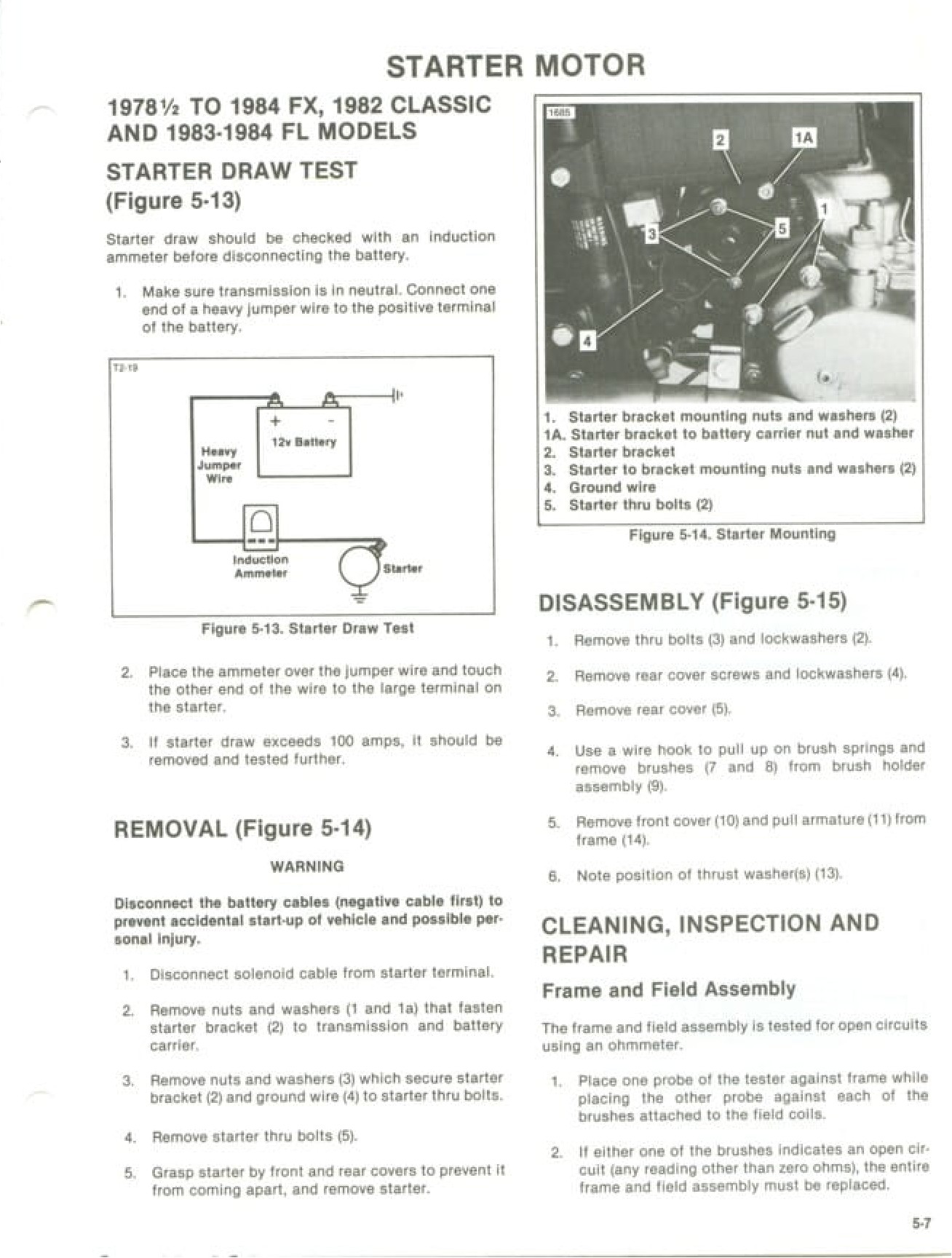

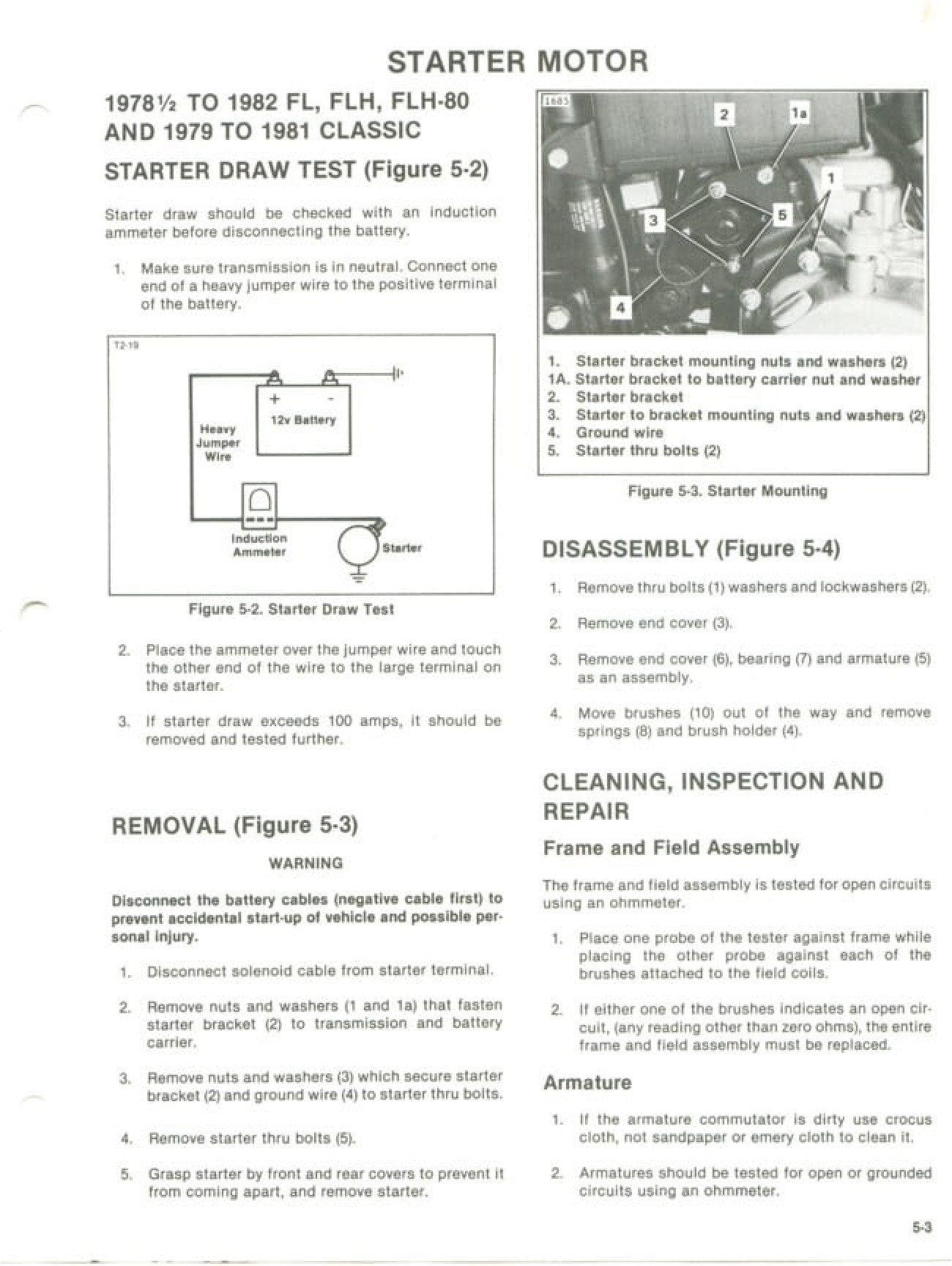

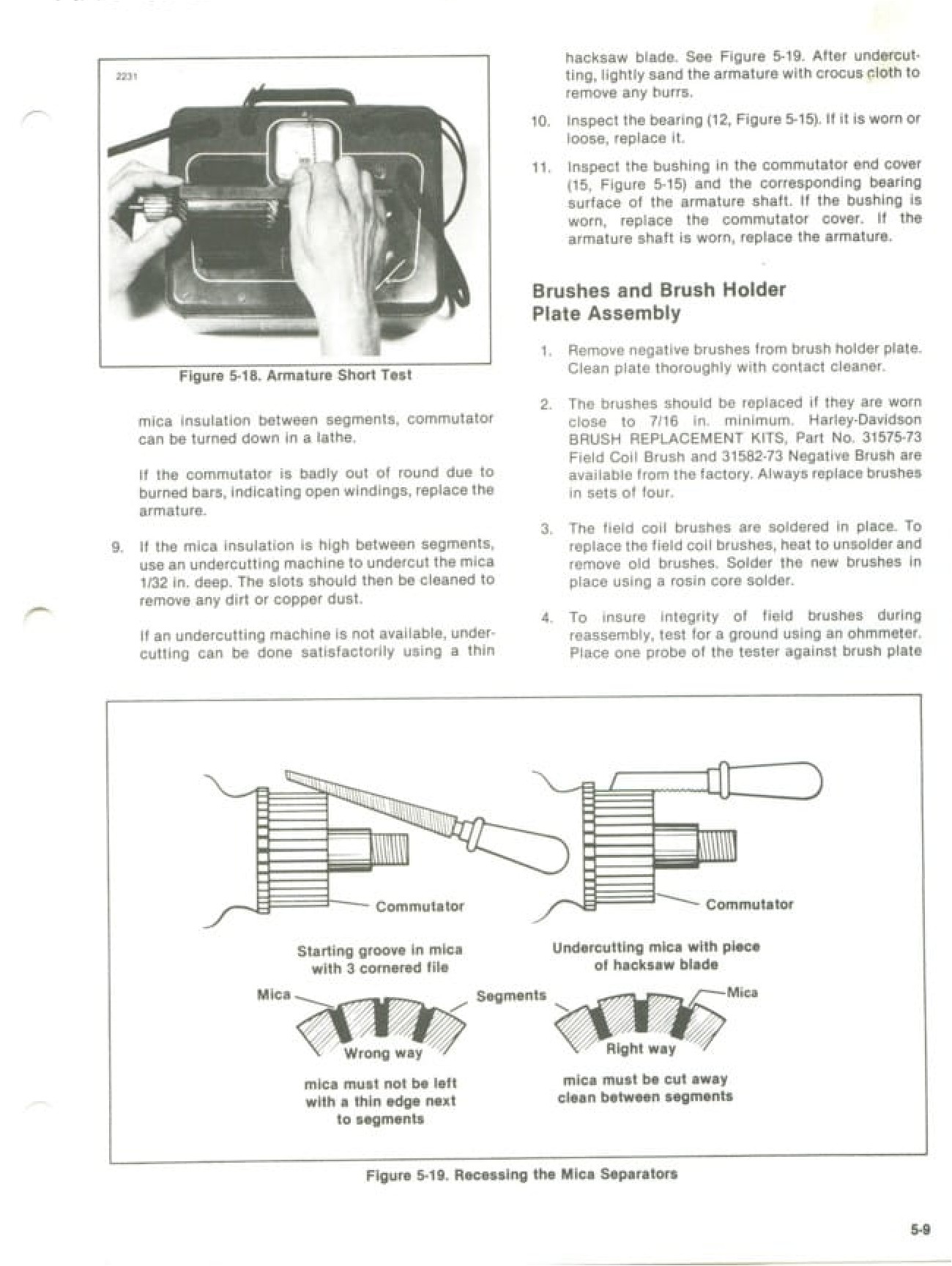

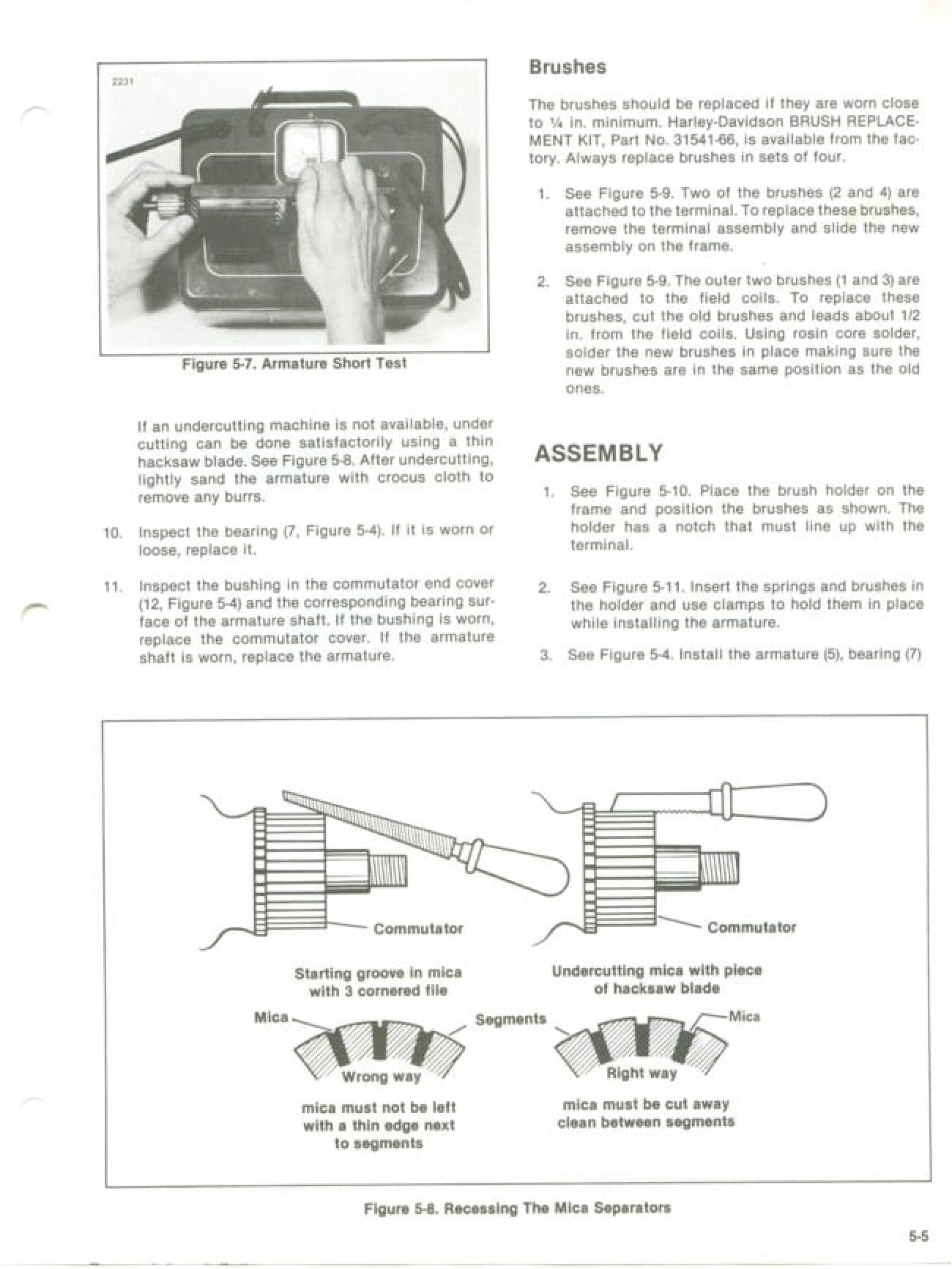

STARTER MOTOR

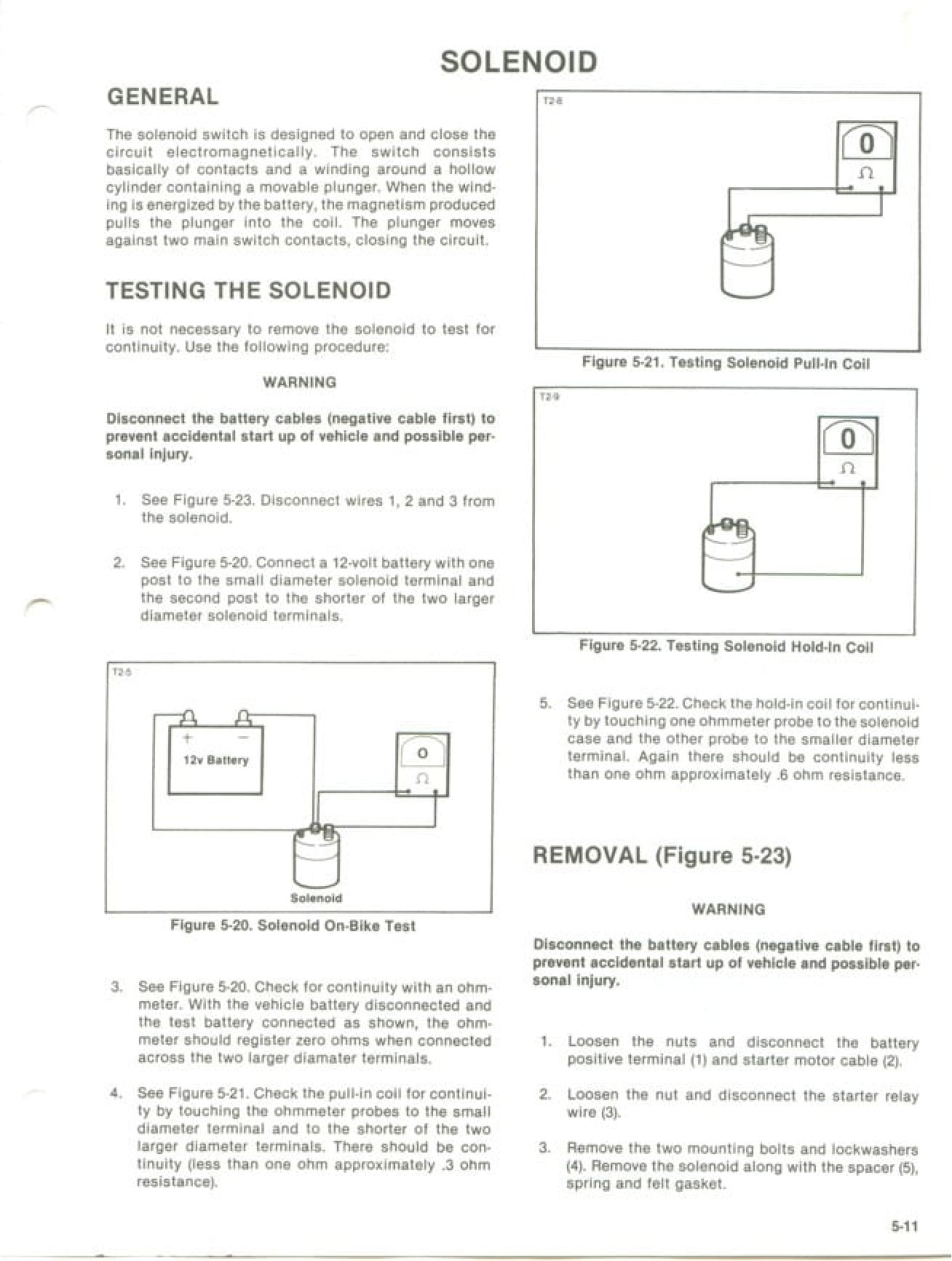

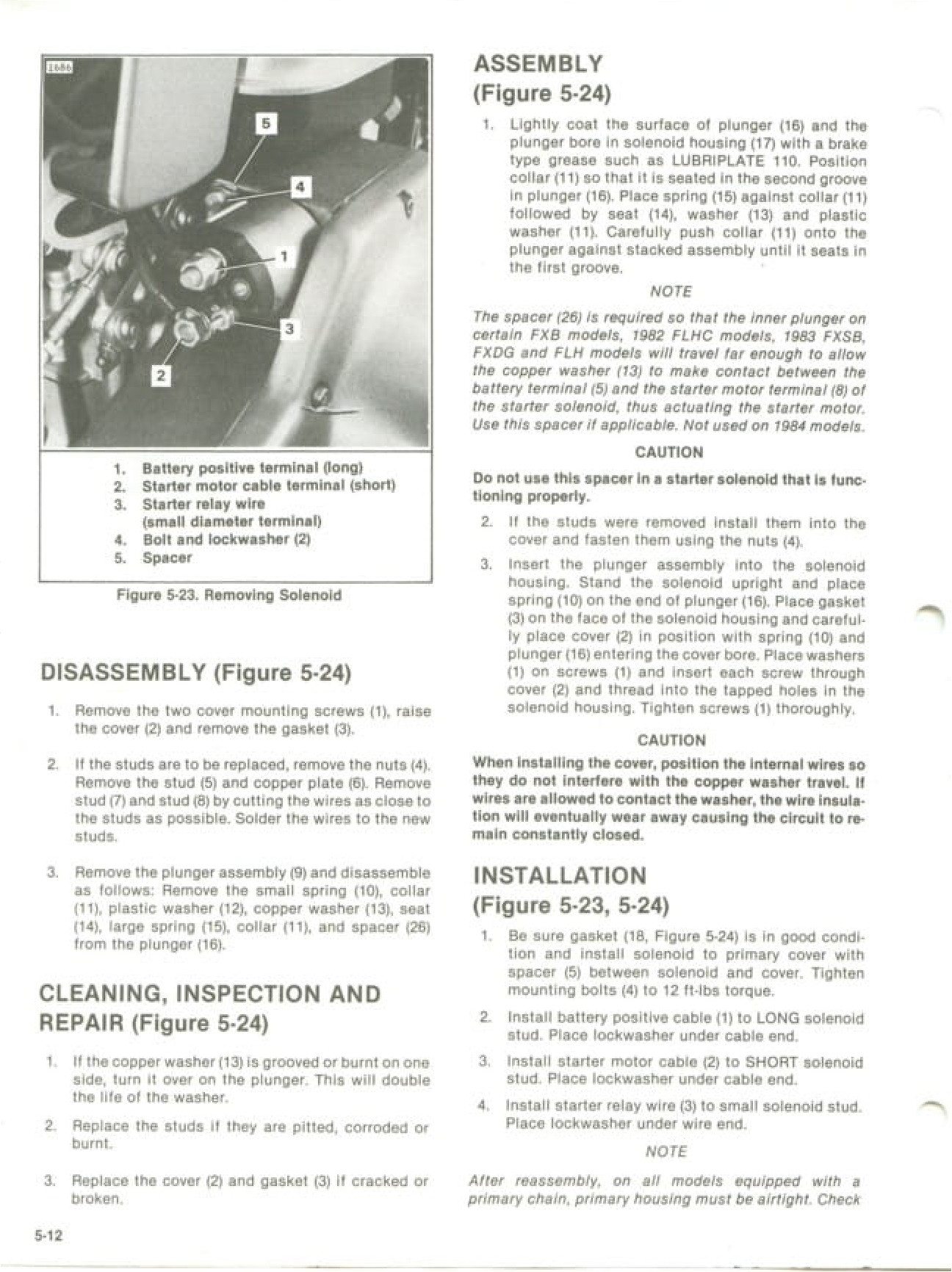

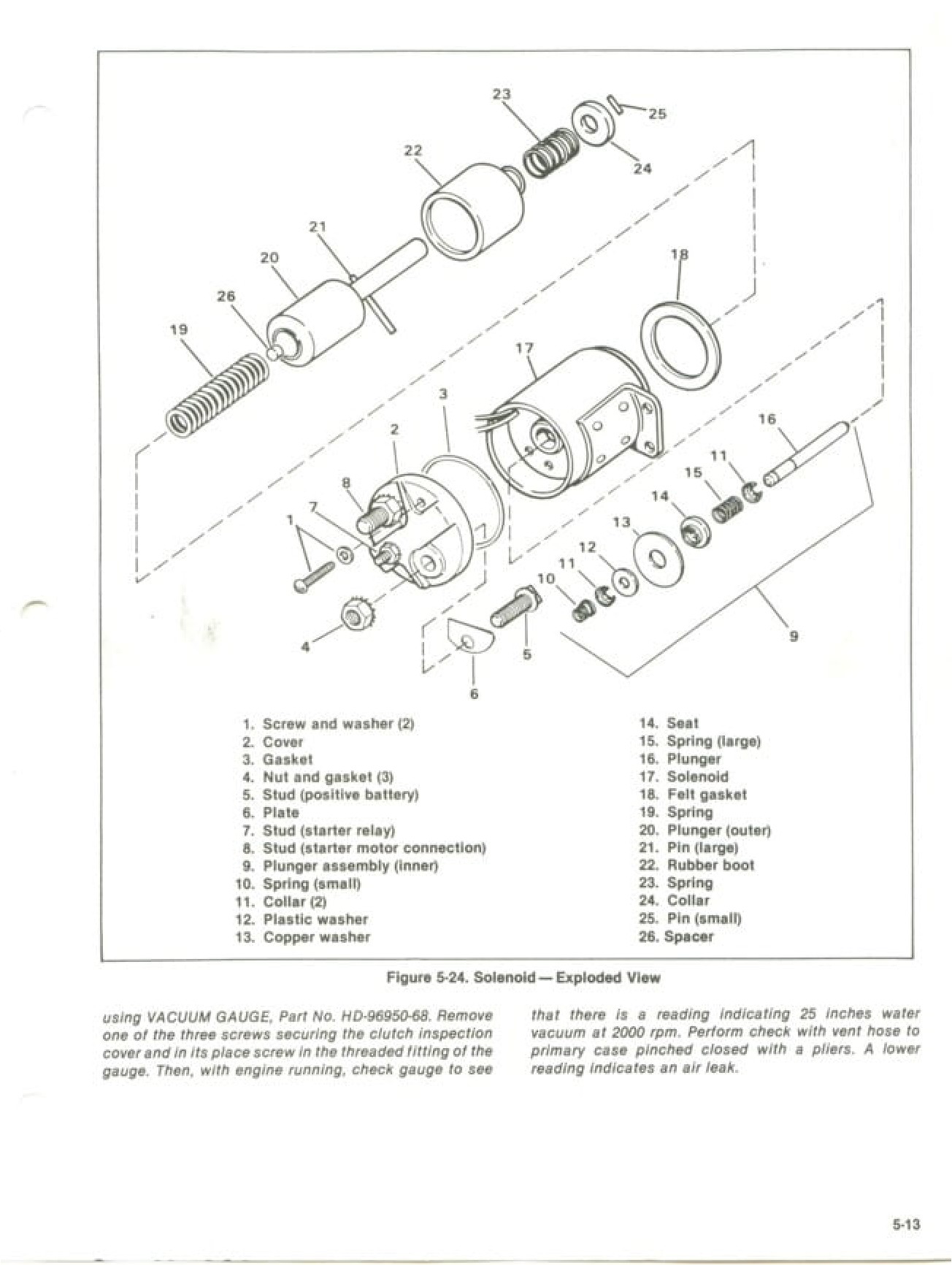

SOLENOID

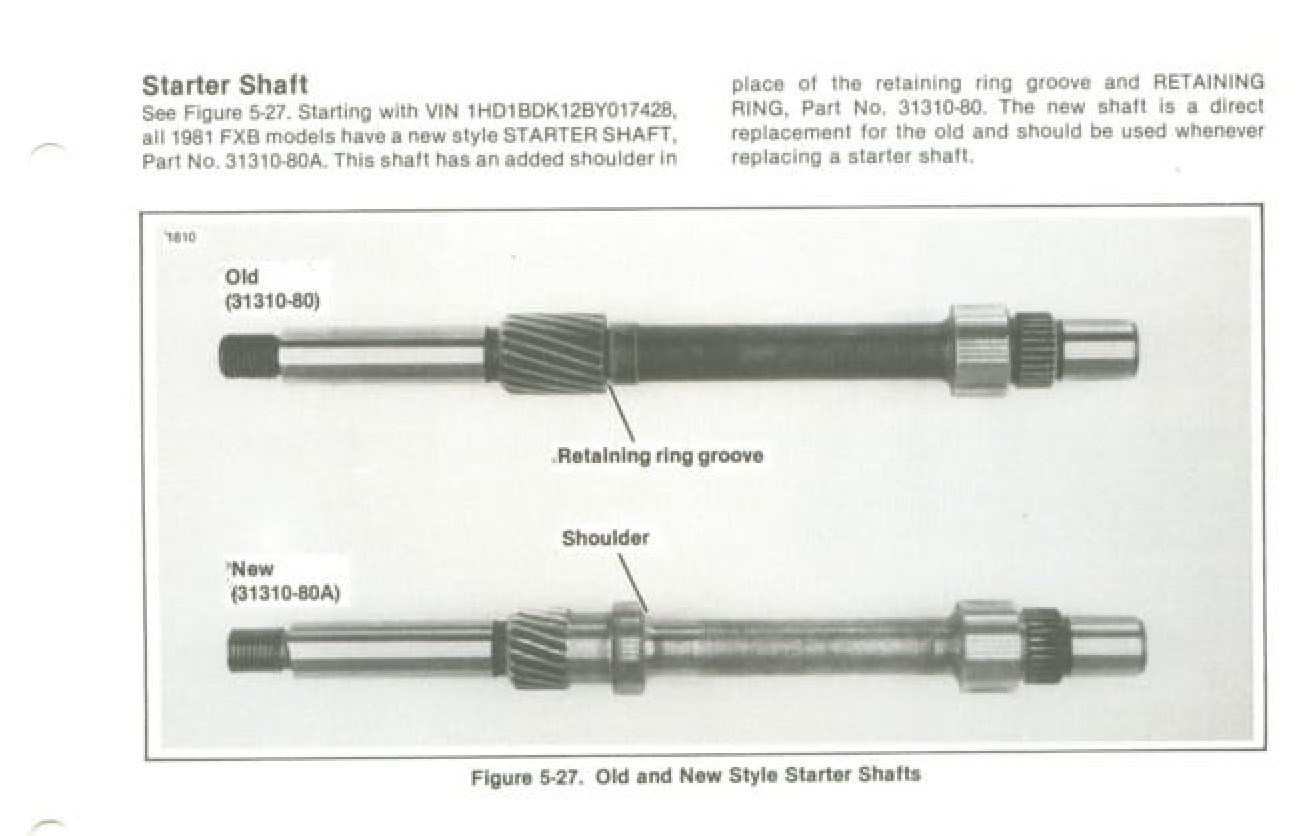

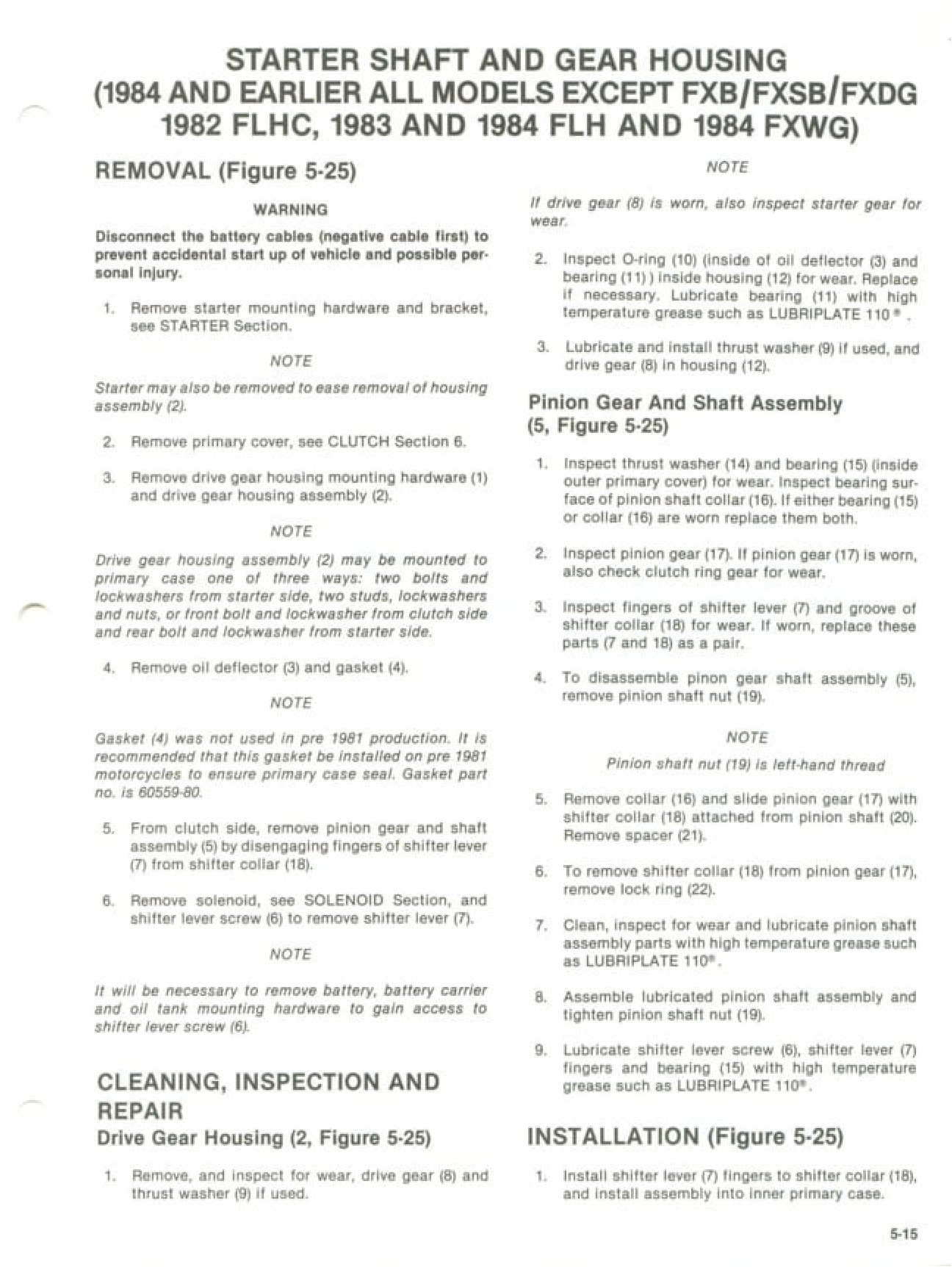

STARTER SHAFT AND GEAR HOUSING (1984 AND EARLIER ALL MODELS EXCEPT FXB/FXSB/FXDG 1982 FLHC, 1983 AND 1984 FLH AND 1984 FXWG)

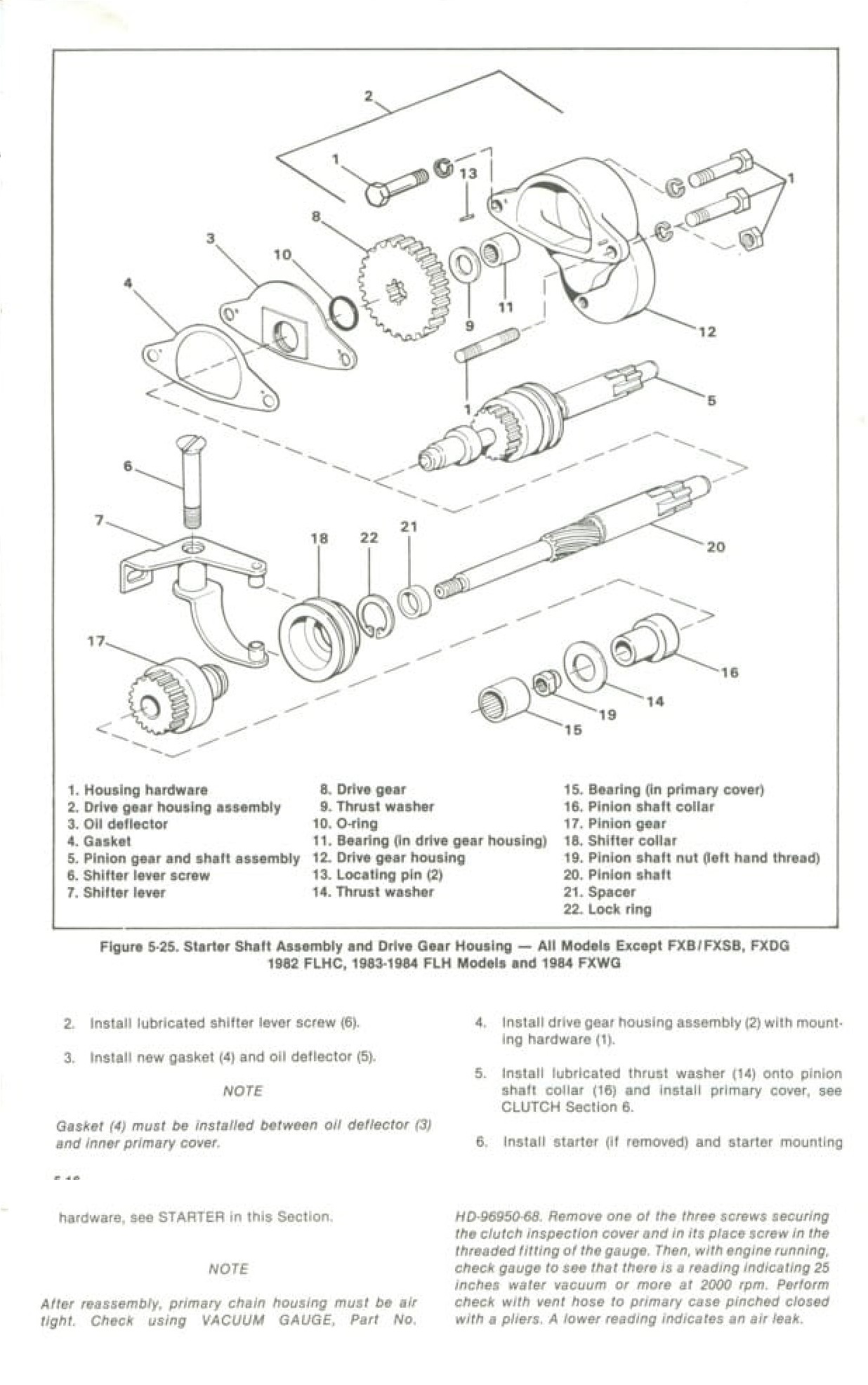

REMOVAL (Figure 5-25)

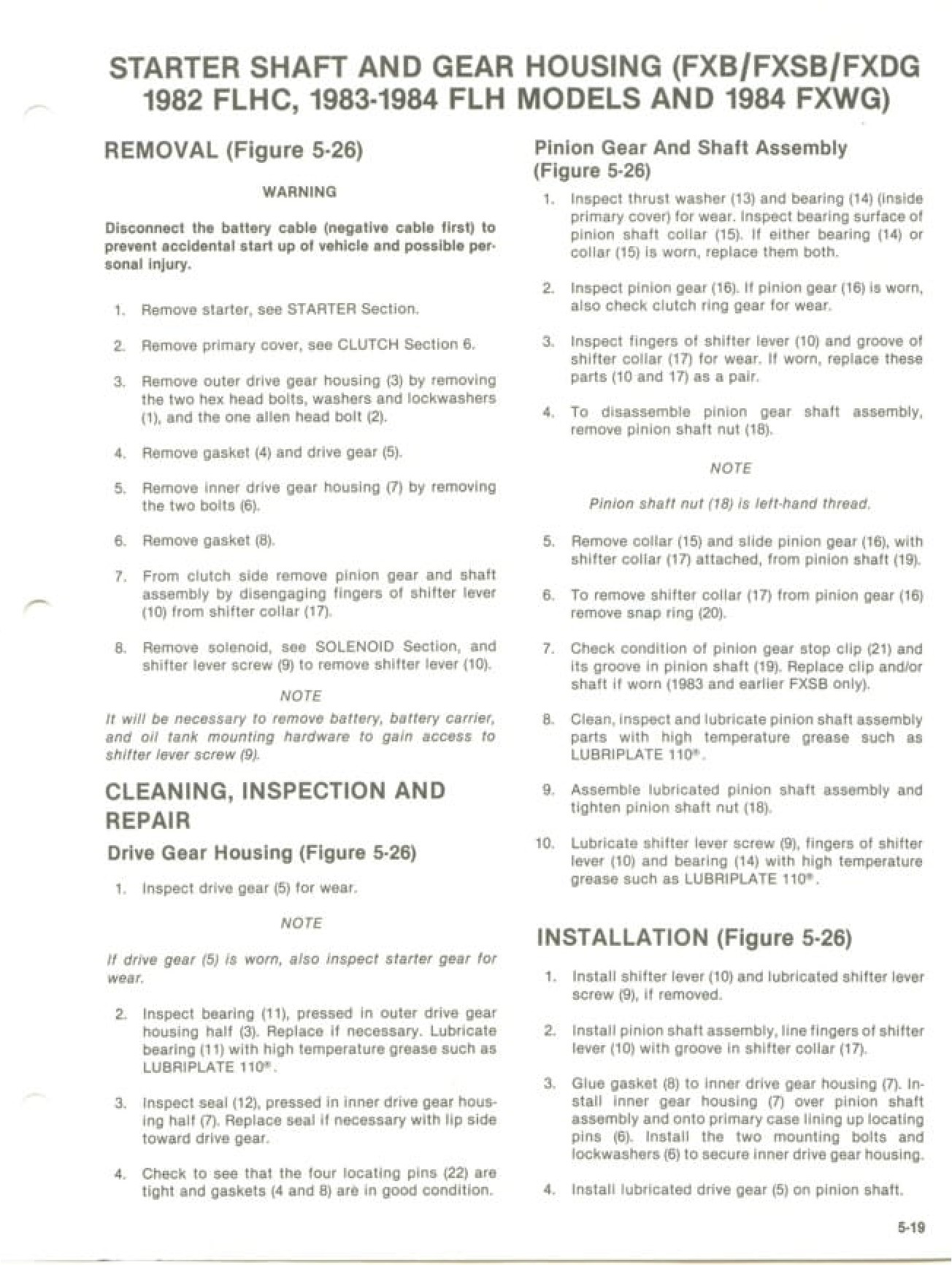

STARTER SHAFT AND GEAR HOUSING (FXB/FXSB/FXDG 1982 FLHC, 1983-1984 FLH MODELS AND 1984 FXWG)

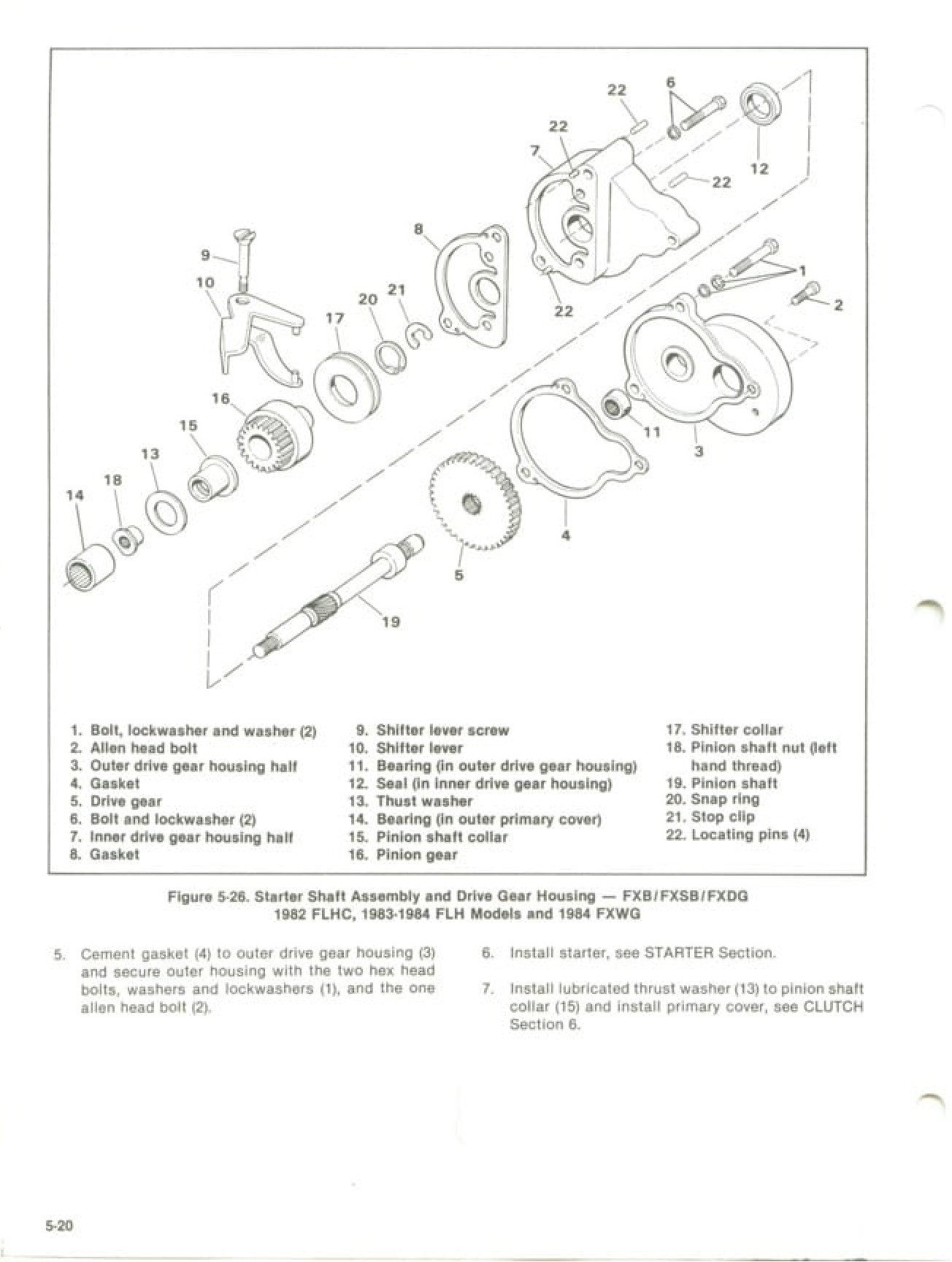

REMOVAL (Figure 5-26)
