Harley Davidson Sportster 1970-2003. Owner's Manual - page 4

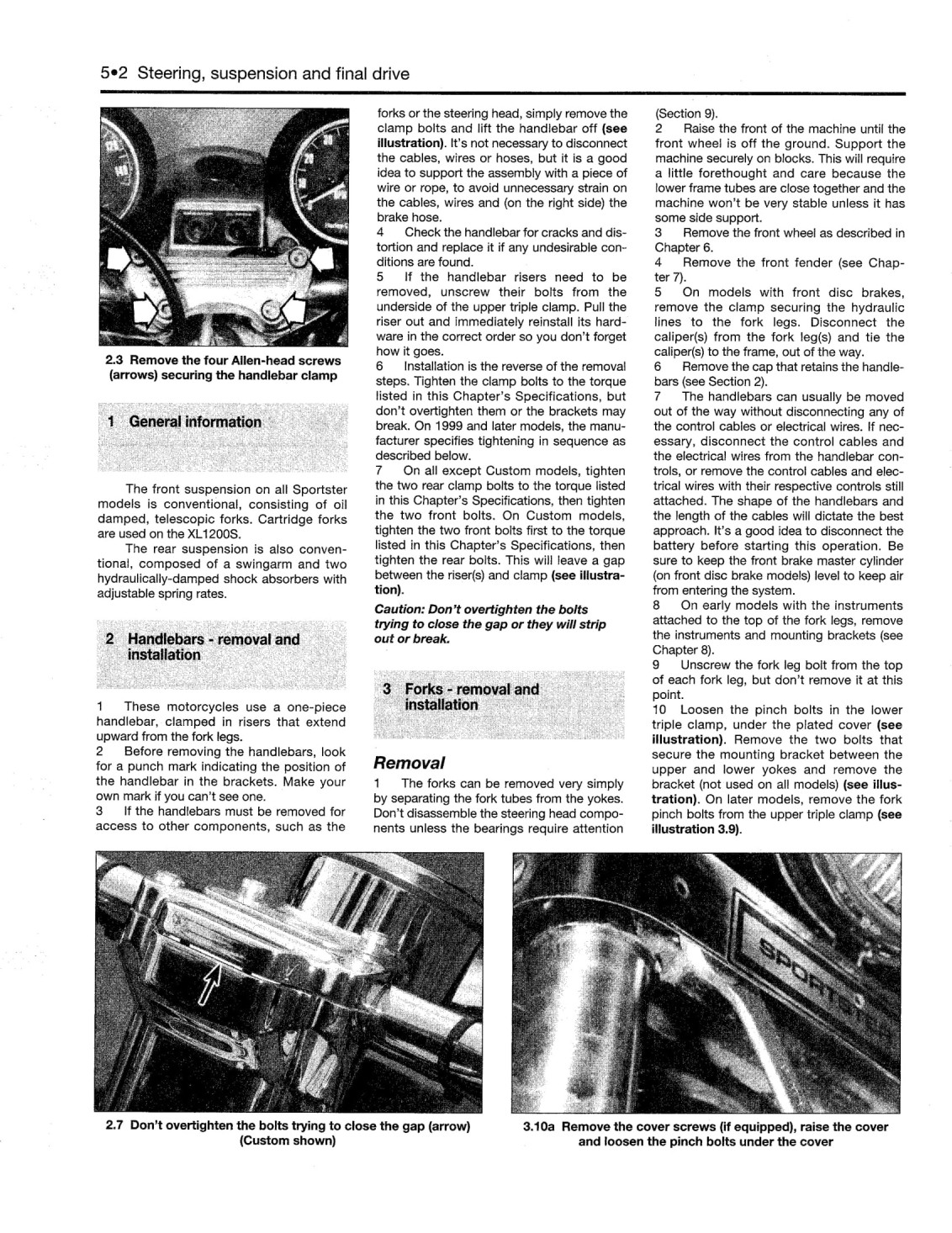

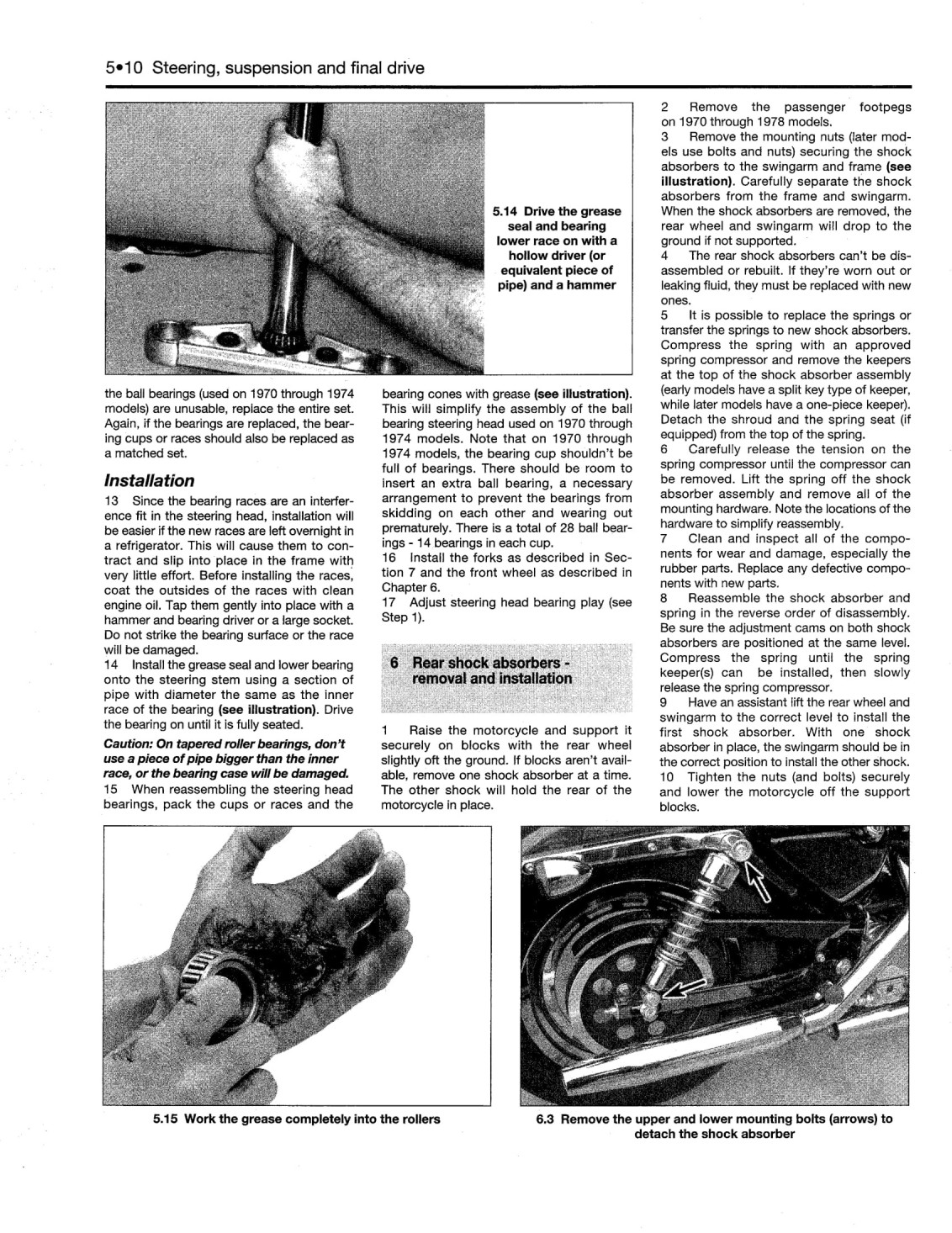

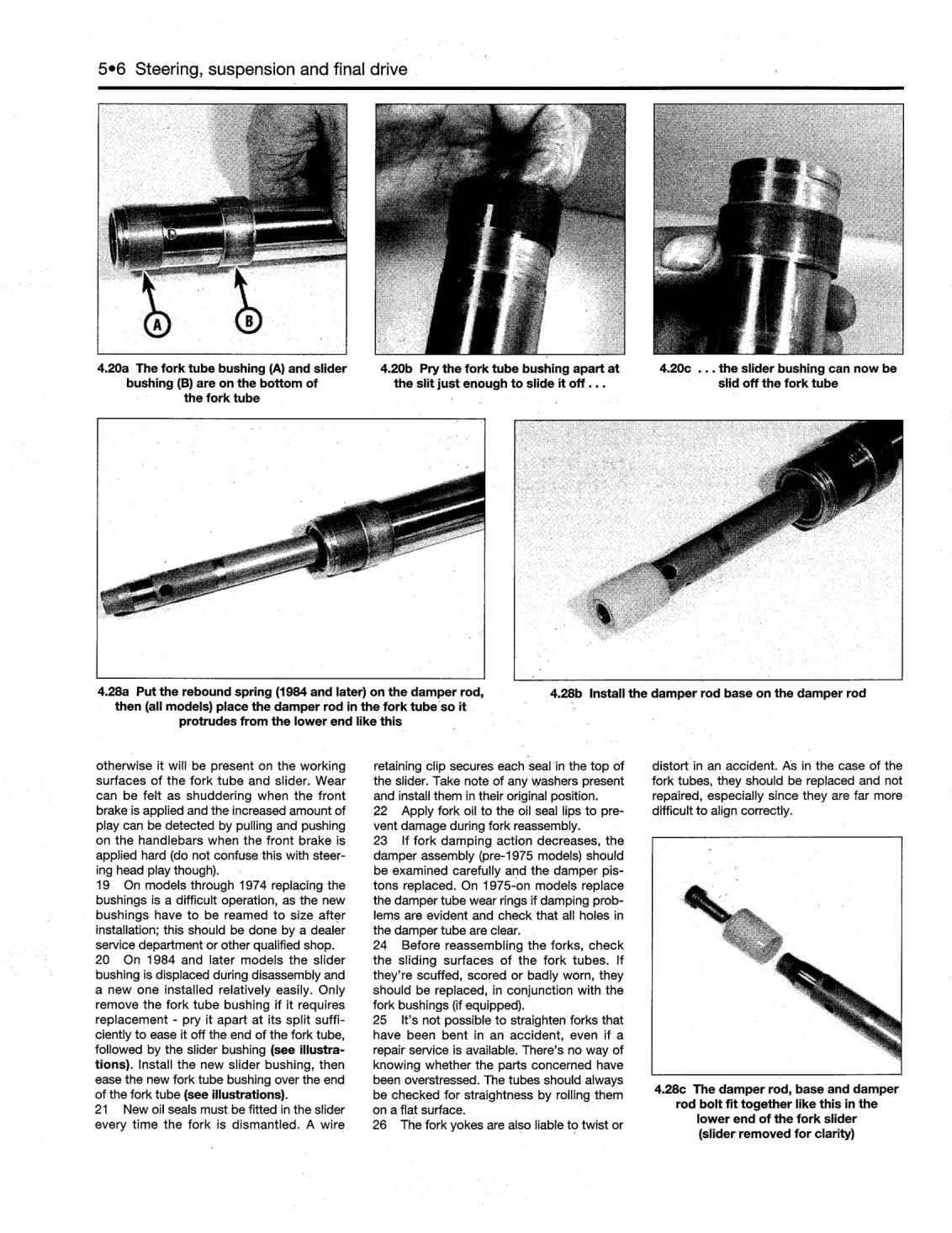

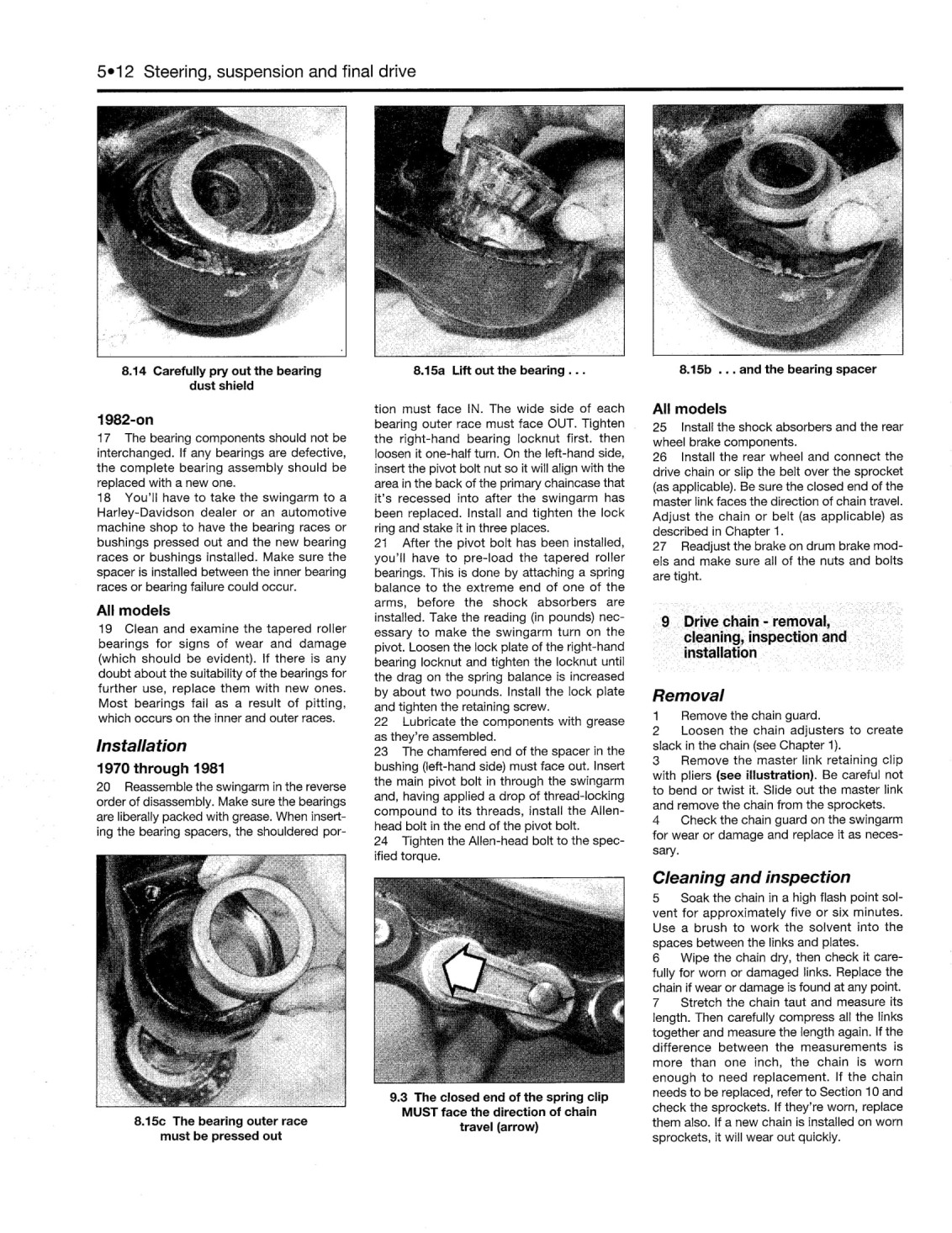

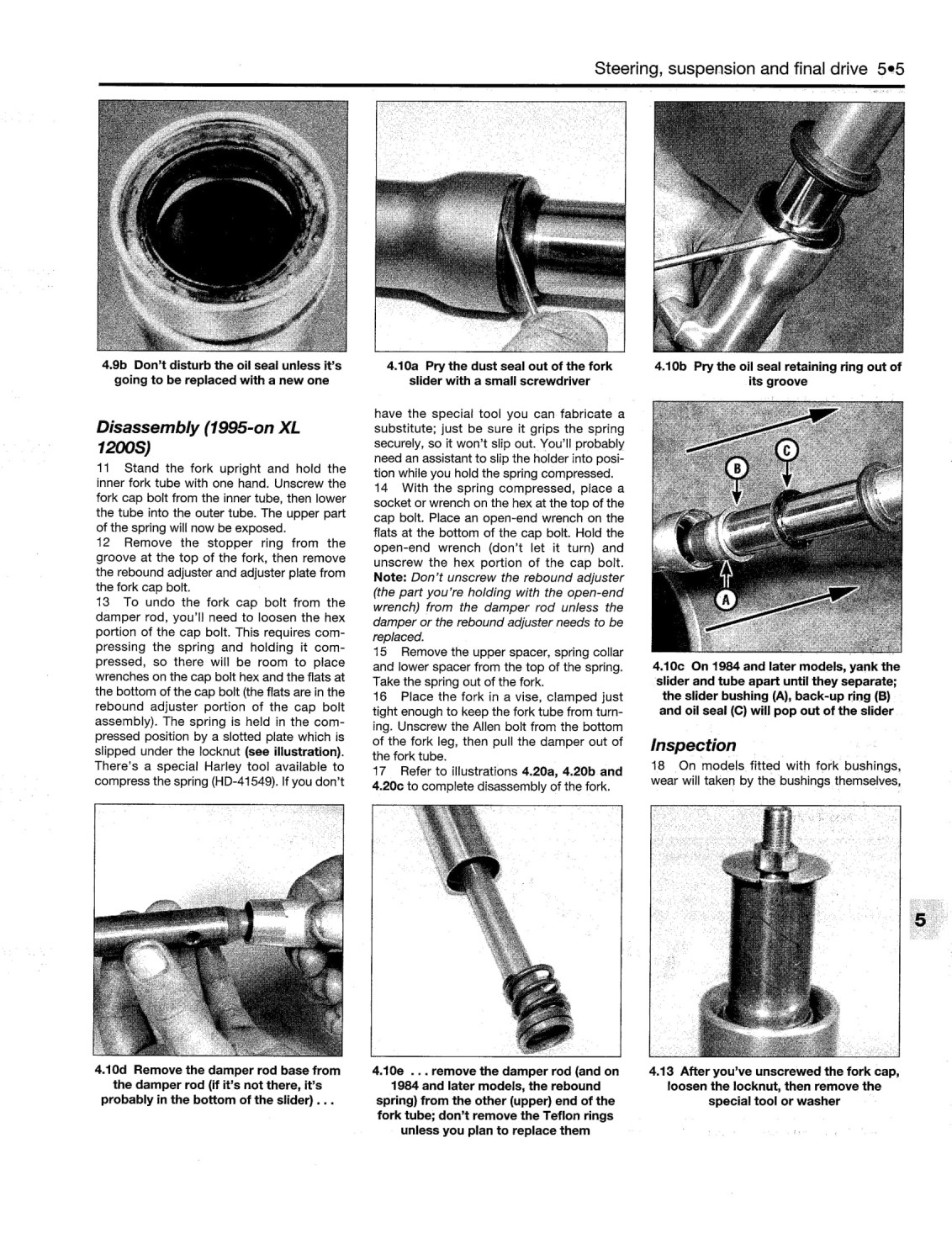

Chapter 5

Steering, suspension and final drive

Contents

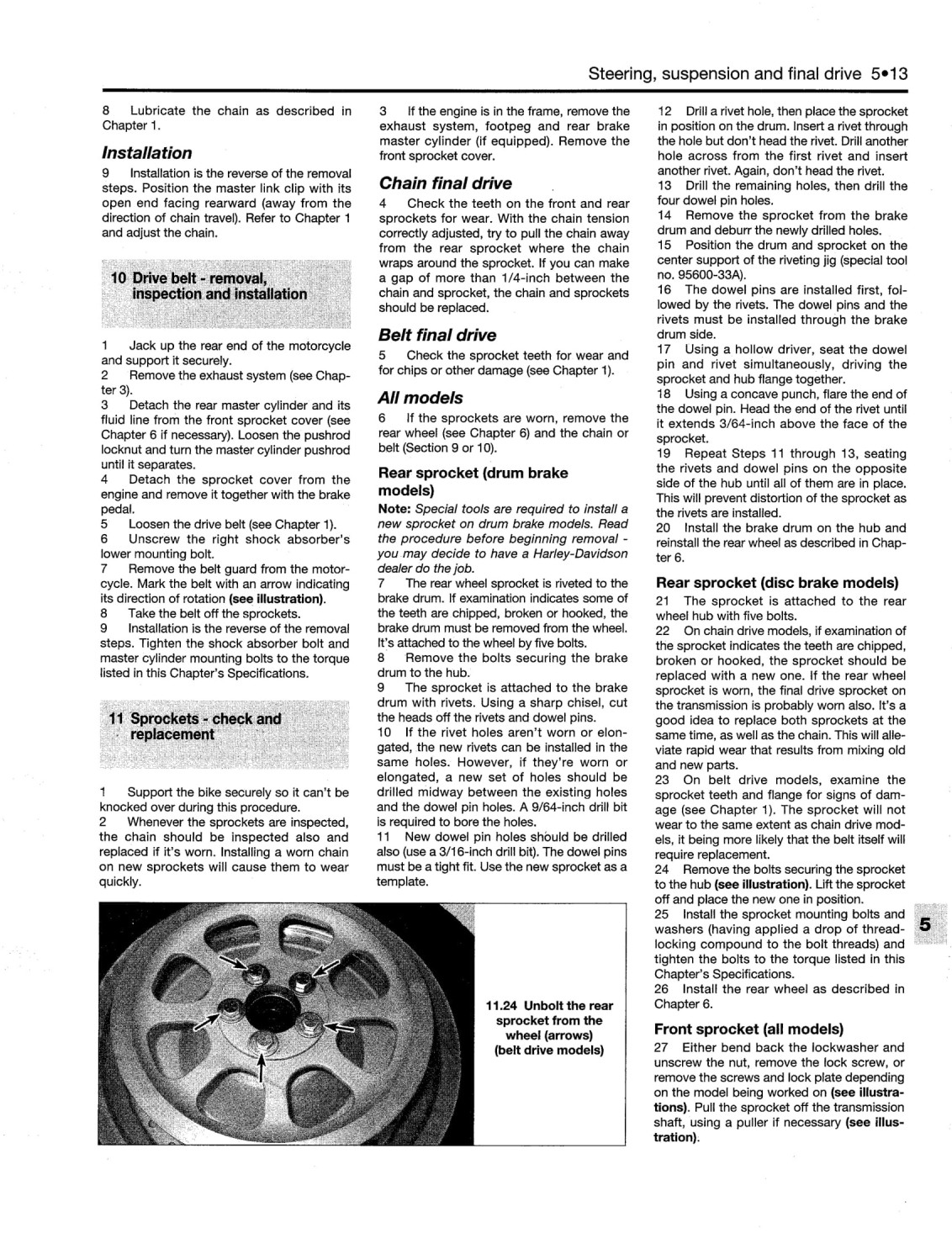

Drive belt - removal, inspection and installation........................... 10

Drive chain - removal, cleaning, inspection and installation..................9

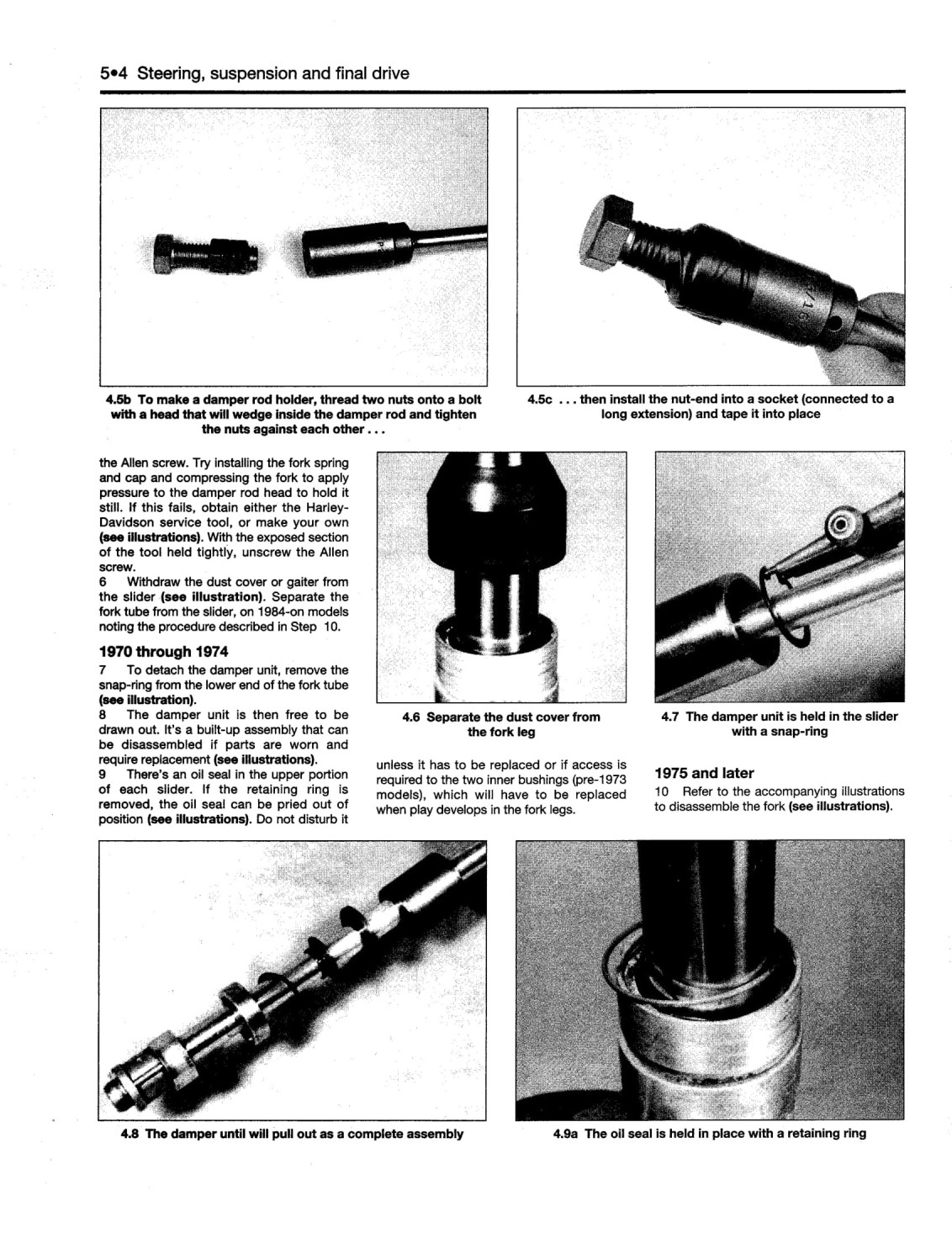

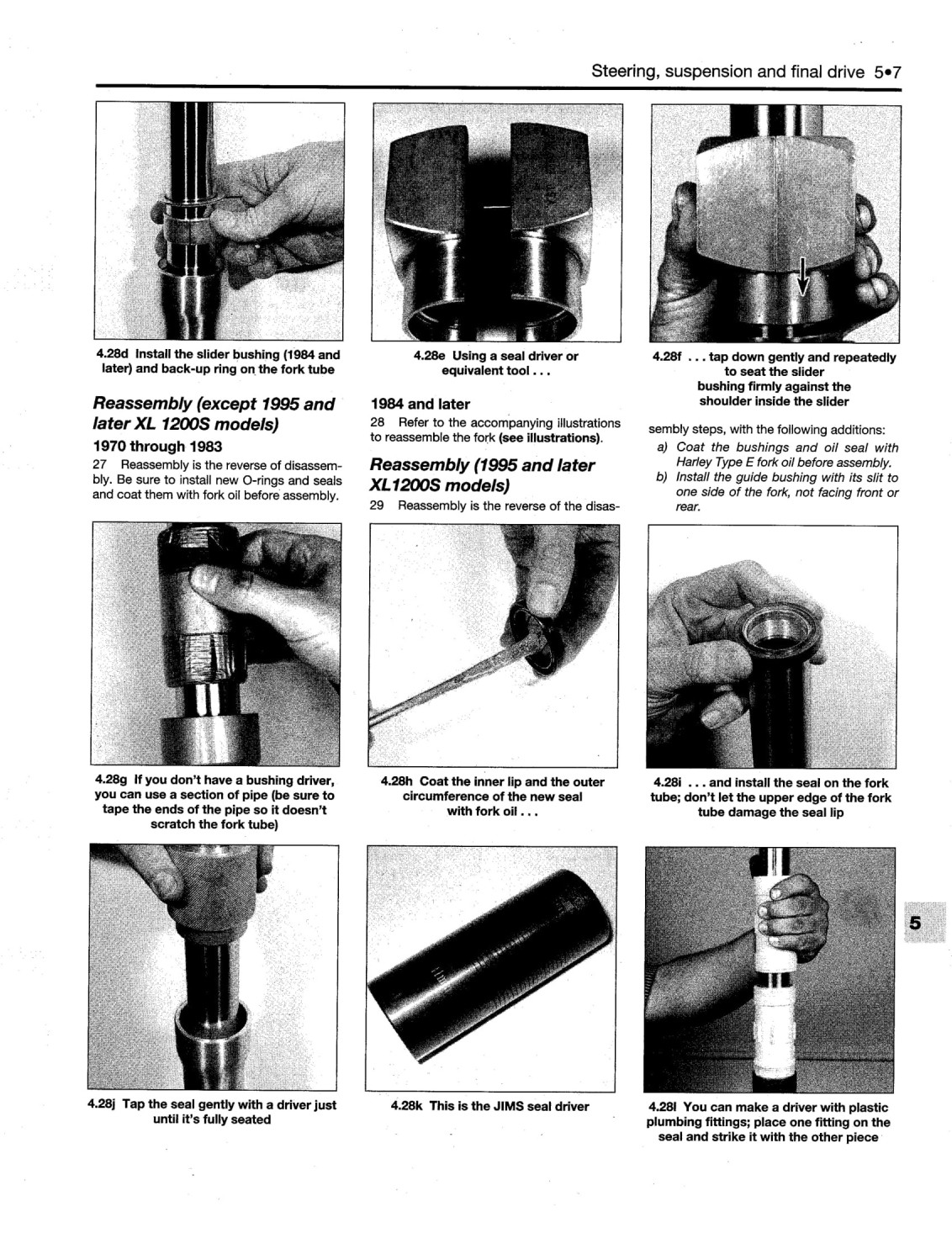

Forks - disassembly, inspection and reassembly..................................................4

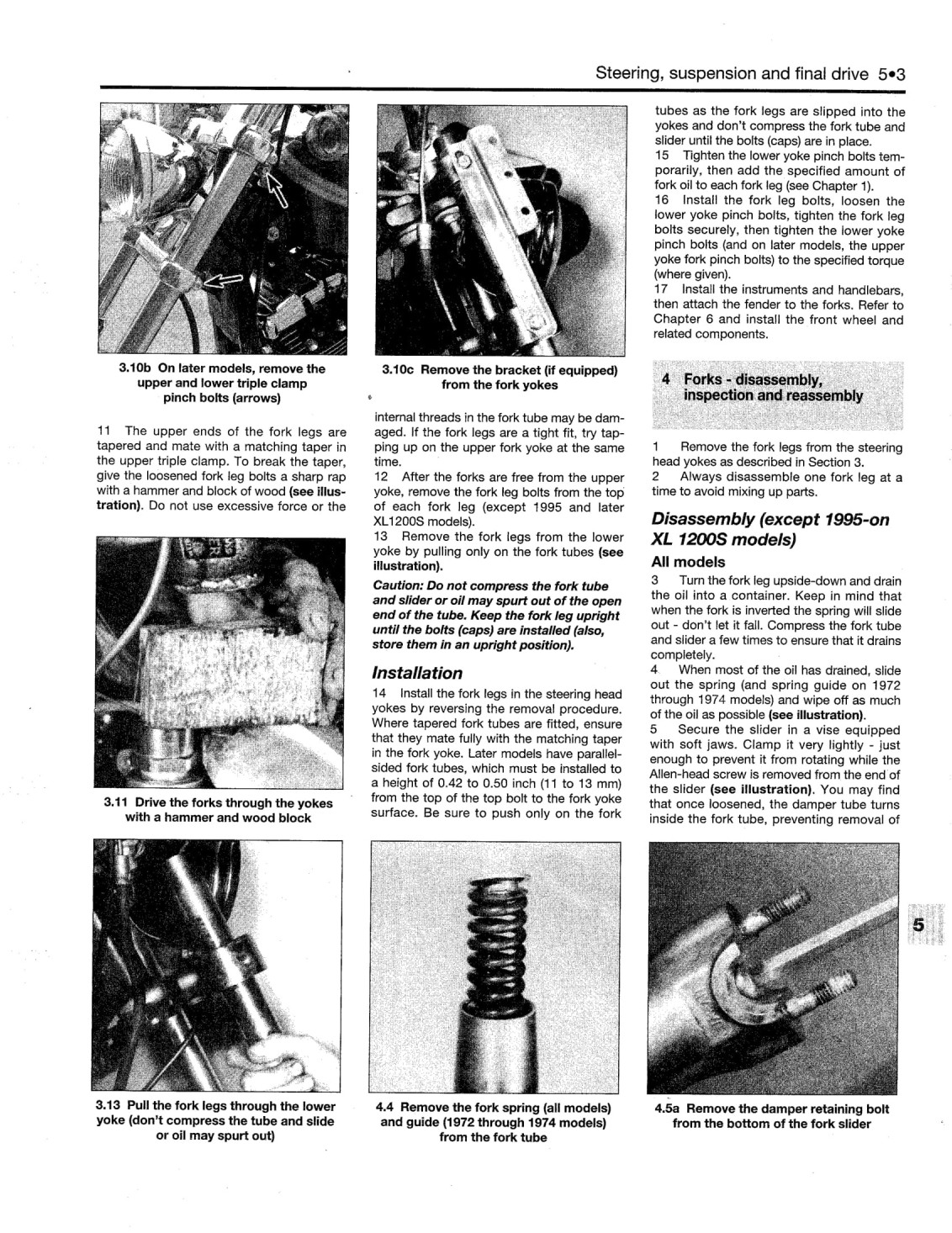

Forks - removal and installation........................................................................................................3

General information............................................................................................................................................1

Handlebars - removal and installation....................................................................................2

Rear shock absorbers - removal and installation..................................................6

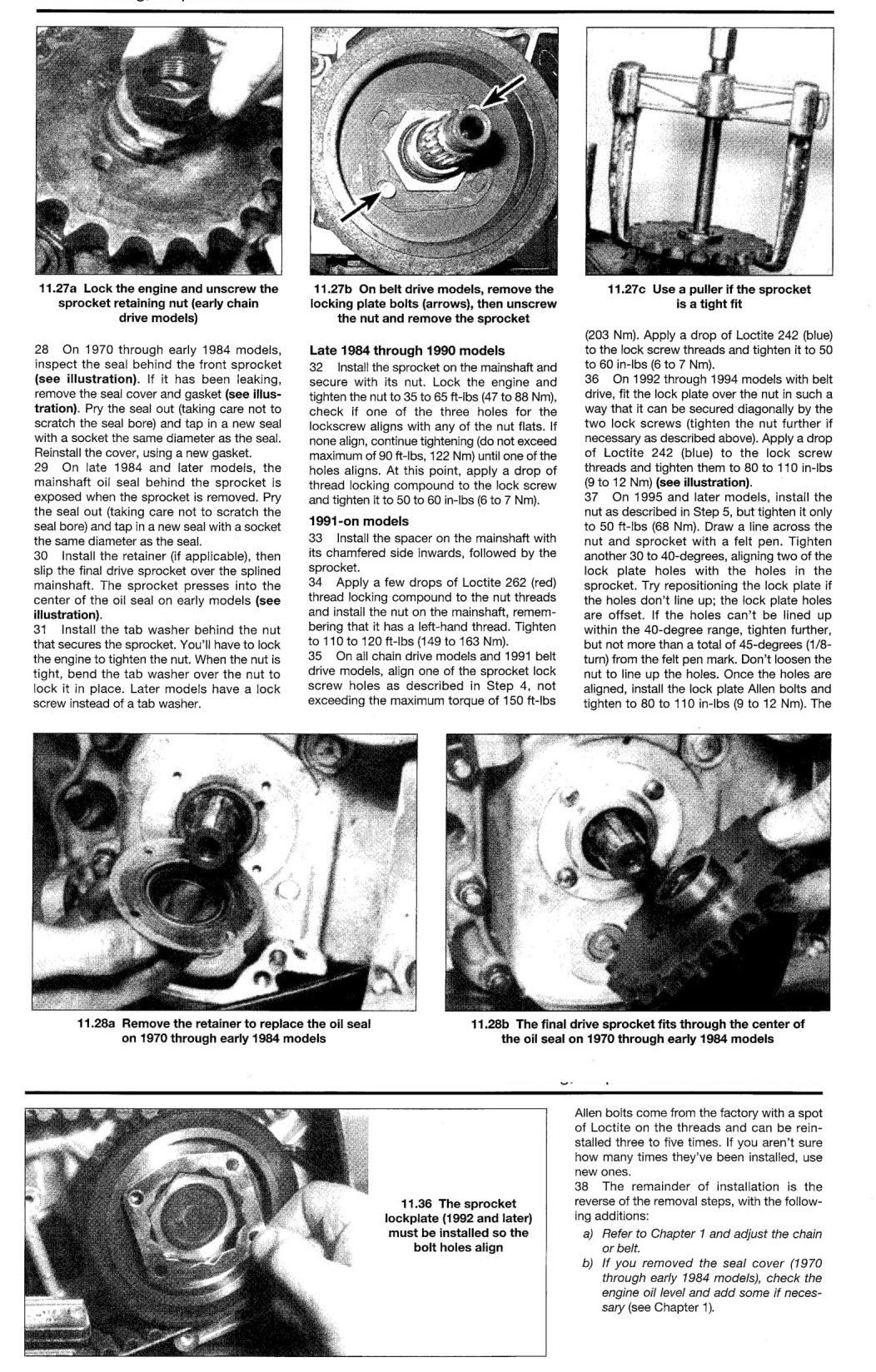

Sprockets - check and replacement............................................. 11

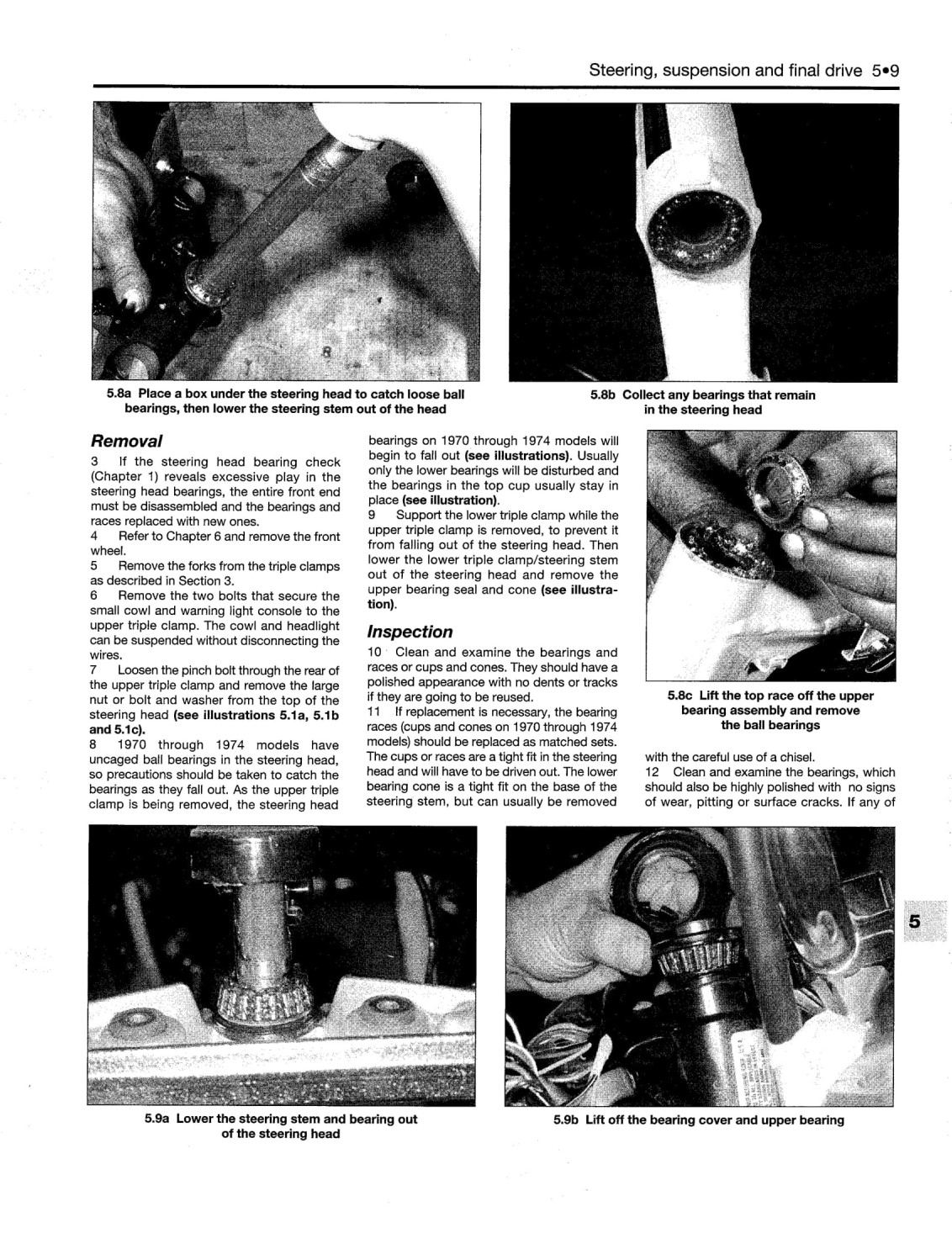

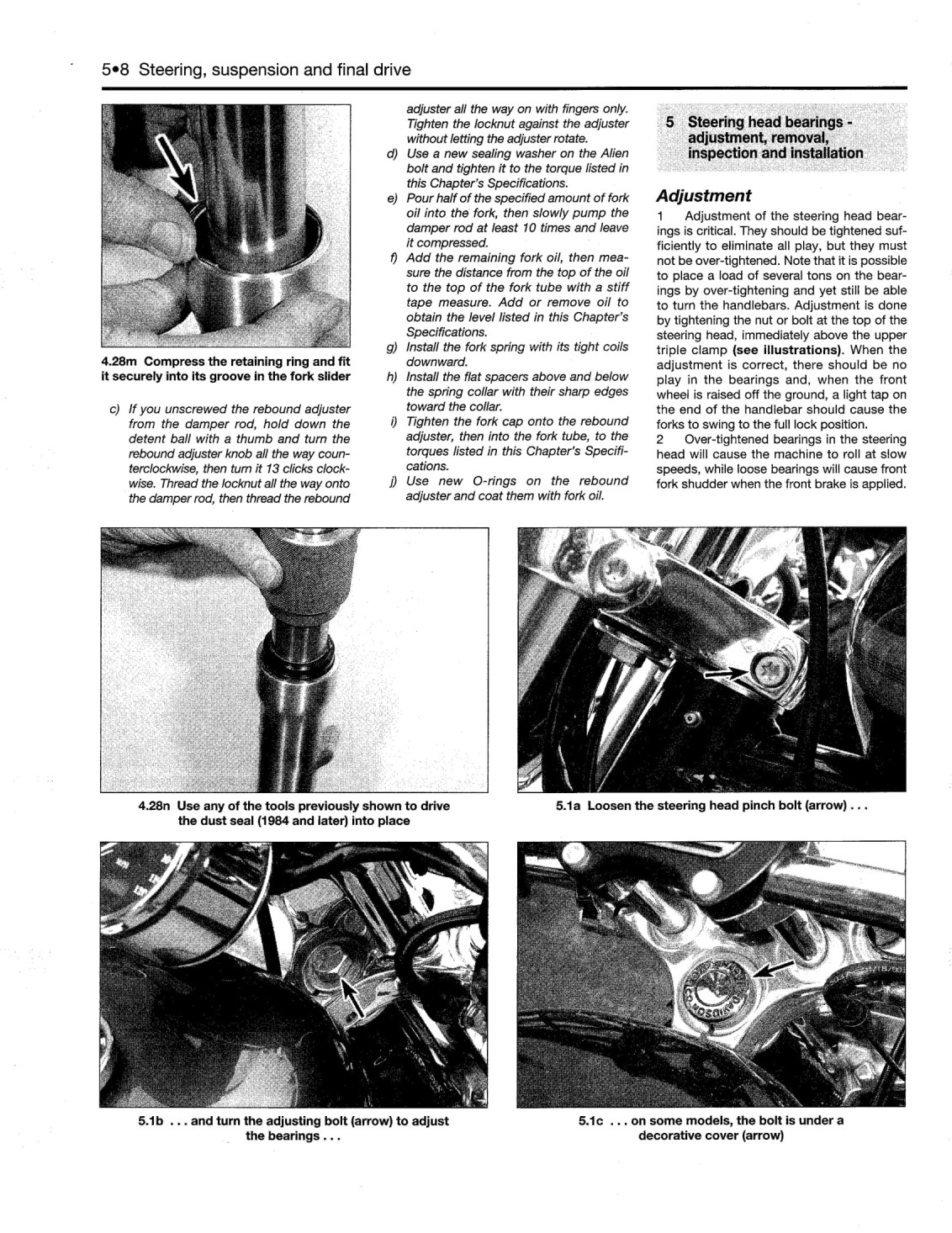

Steering head bearings - adjustment, removal, inspection

and installation................................................................................................................................................5

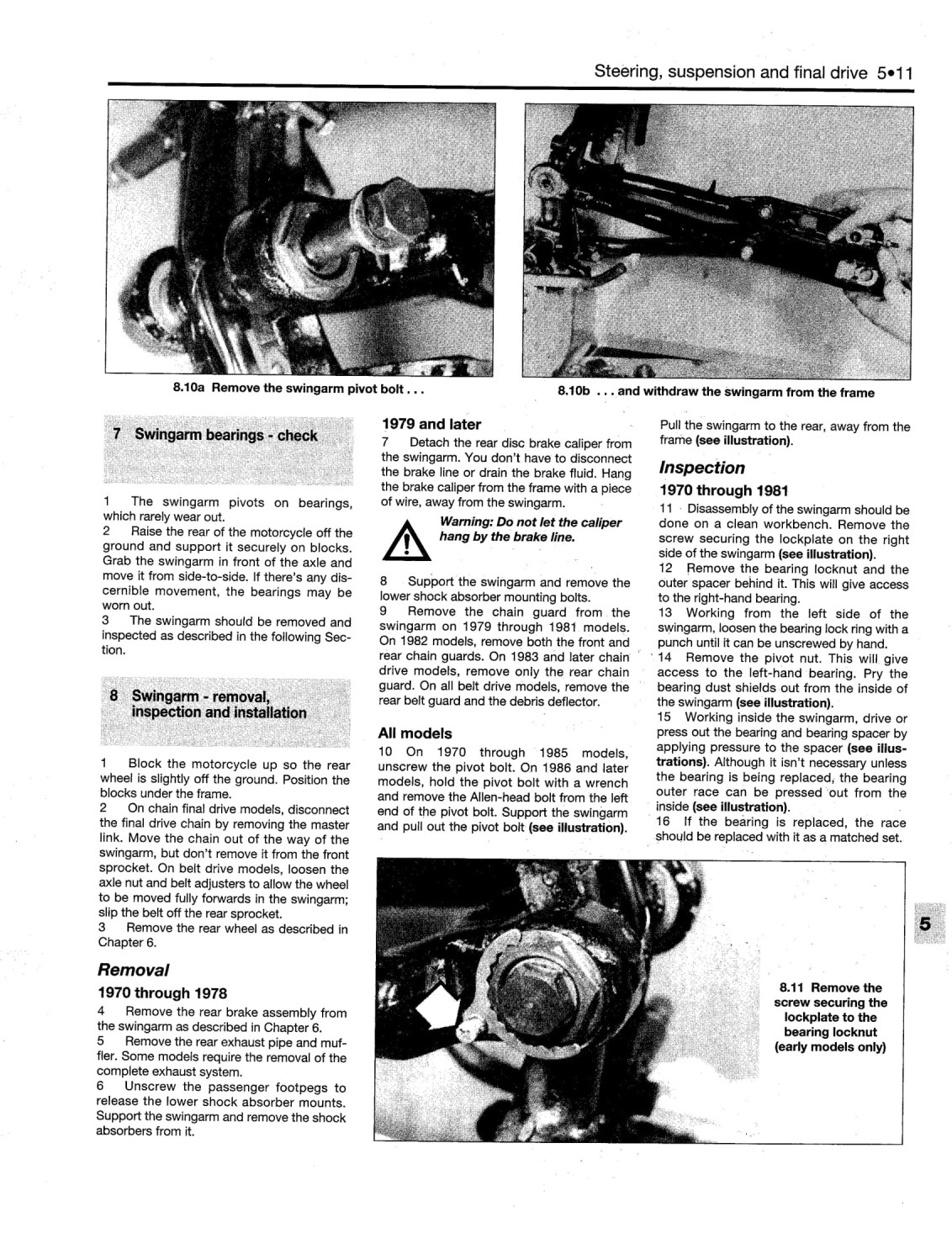

Swingarm - removal, inspection and installation....................................................8

Swingarm bearings - check....................................................................................................................7

Specifications

Fork oil capacity See Chapter 1
Torque specifications
Handlebar clamp bolts (1999 and later) 12 to 15 ft-lbs (16 to 20 Nm)
Steering stem pinch bolt
1970 through 1978 20 to 25 ft-lbs (27 to 34 Nm)
1979 through 1985 21 to 27 ft-lbs (28 to 37 Nm)
1986 through 1989 25 to 30 ft-lbs (34 to 41 Nm)
1999 and later 30 to 35 ft-lbs (41 to 47 Nm)
Upper triple clamp pinch bolts
1970 through 1985
1986 and 1987 21 to 27 ft-lbs (28 to 37 Nm)
1988 through 1990 25 to 30 ft-lbs (34 to 41 Nm)
1991 and later 30 to 35 ft-lbs (41 to 47 Nm)
Lower triple clamp pinch bolts
1970 through 1978 35 ft-lbs (47 Nm)
1979 through 1987 30 to 35 ft-lbs (41 to 47 Nm)
1988 and later 883 models 30 to 35 ft-lbs (41 to 47 Nm)
1988 through 1990 1200 models 25 to 30 ft-lbs (34 to 41 Nm)
1991 and later 1200 models 30 to 35 ft-lbs (41 to 47 Nm)
Swingarm pivot shaft (1979 through 1985) 50 ft-lbs (68 Nm)
Swingarm Allen bolts (1986 and later) 50 ft-lbs (68 Nm)

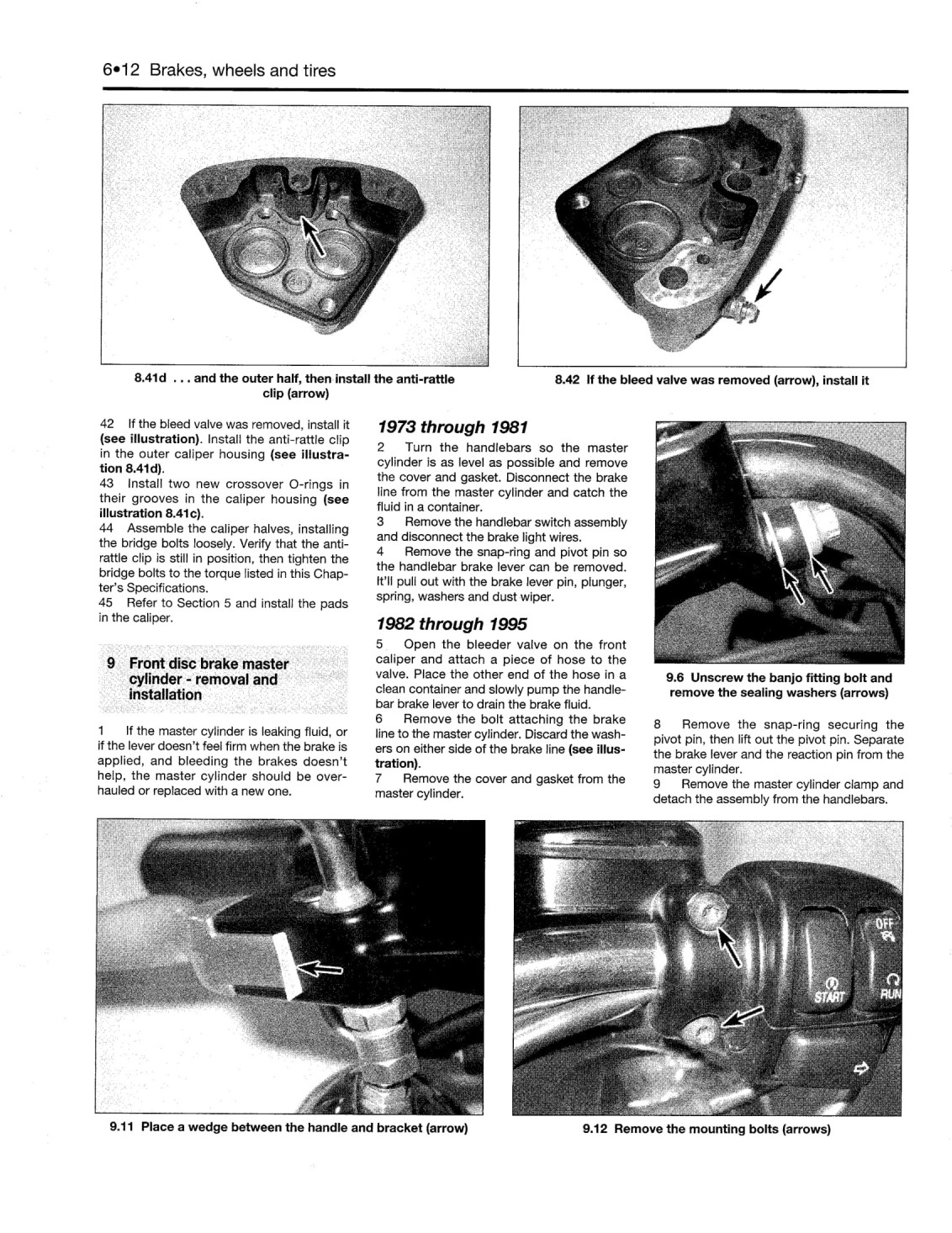

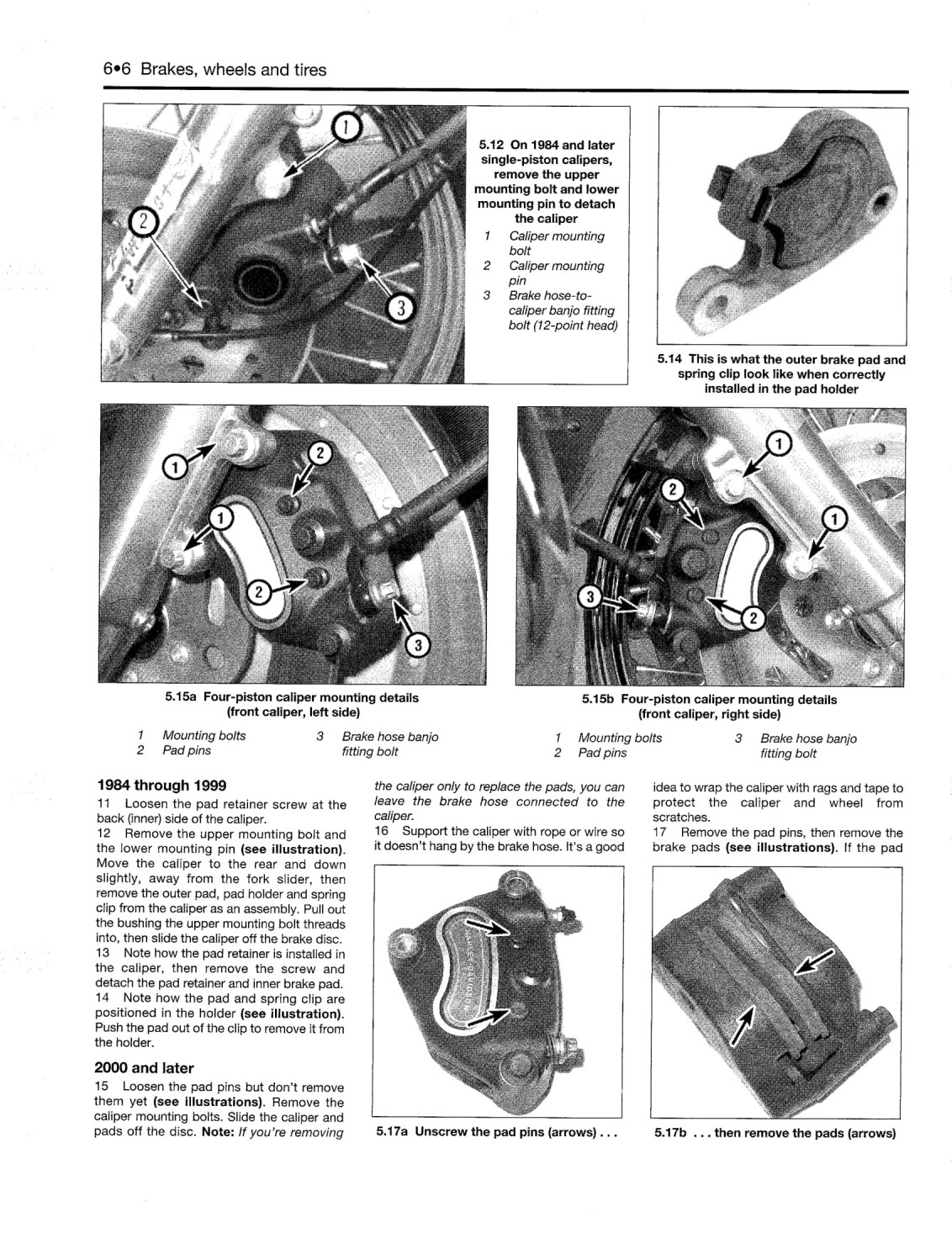

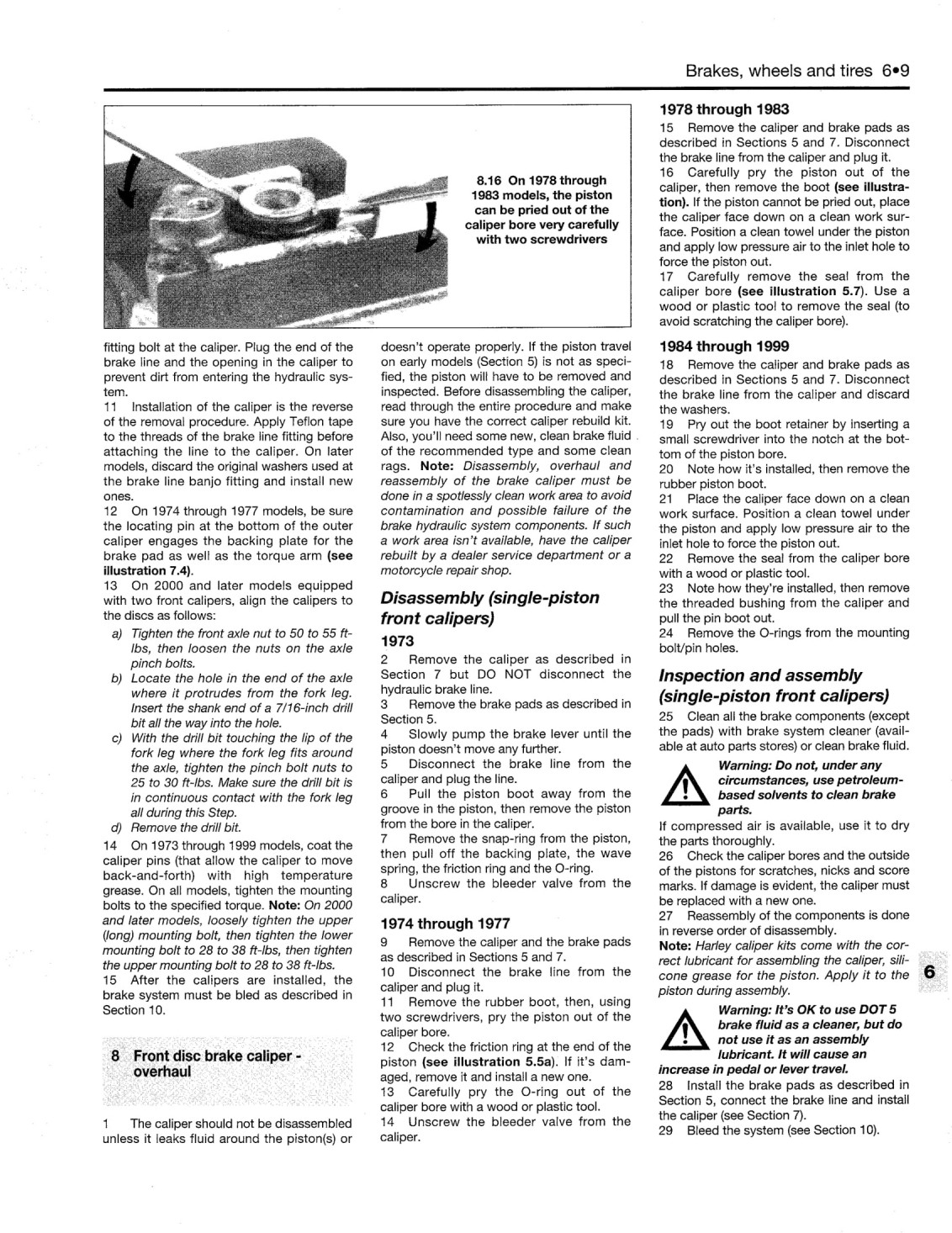

Chapter 6

Brakes, wheels and tires

Contents

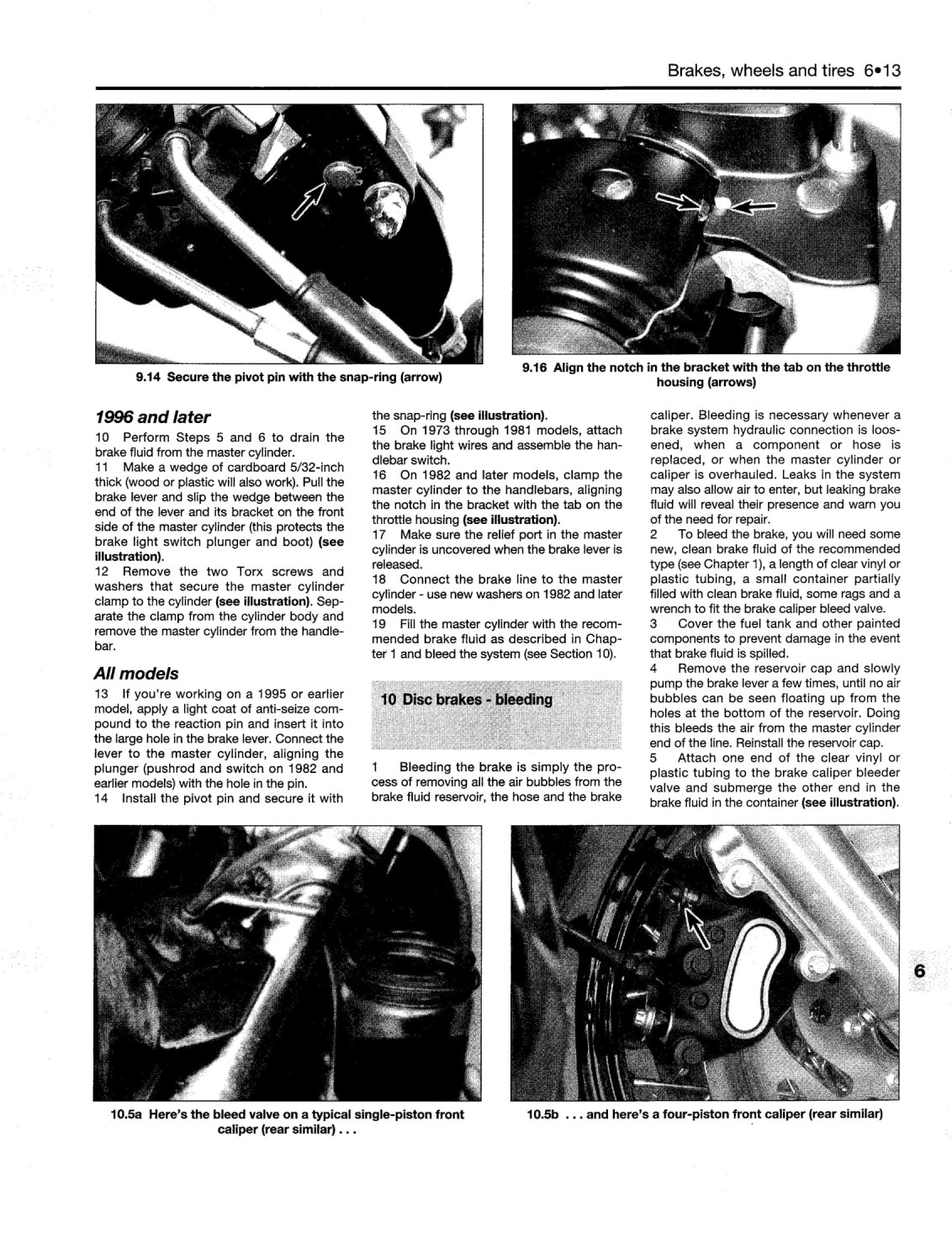

Disc brakes - bleeding....................................................................................................................................10

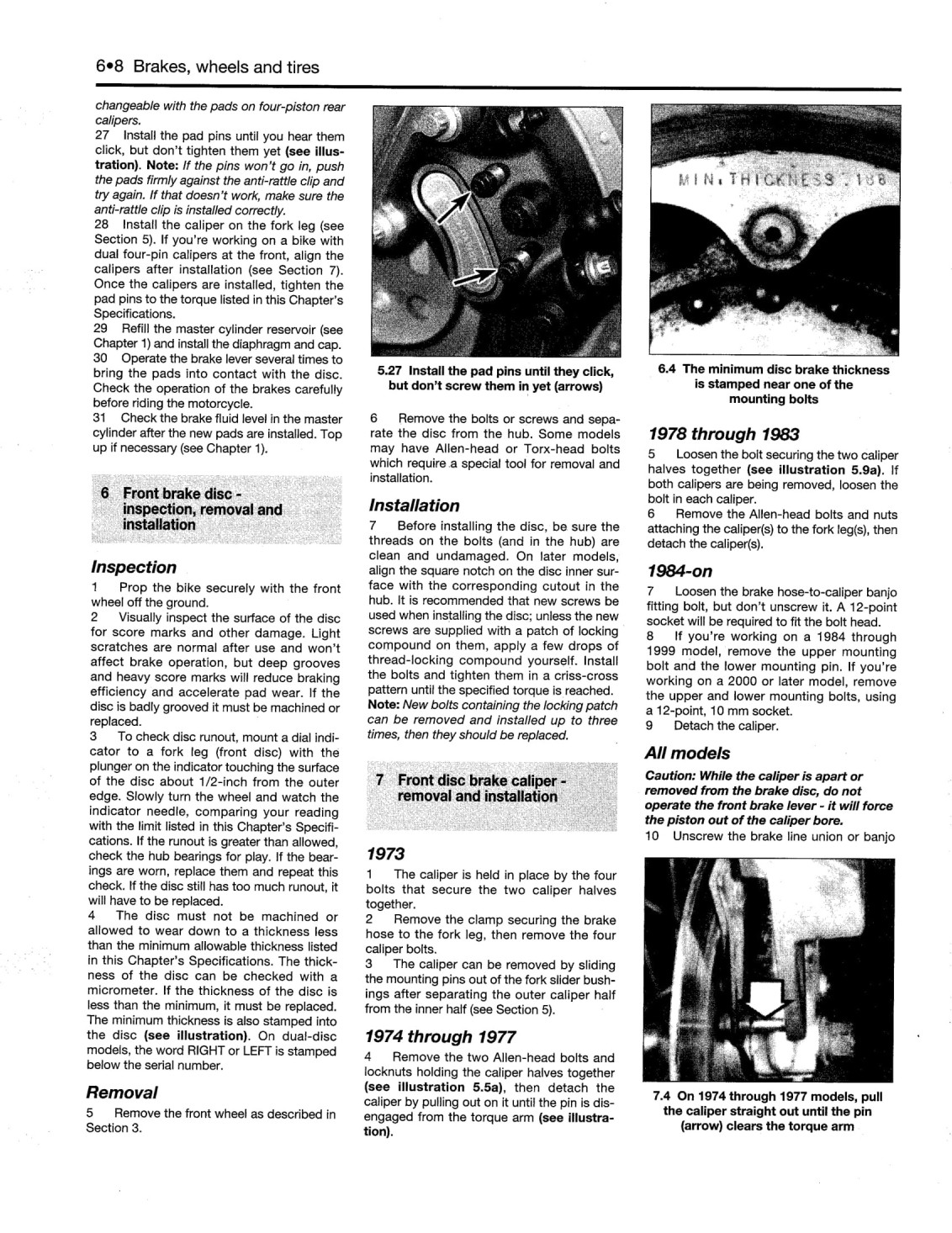

Front brake disc - removal and installation....................................................................6

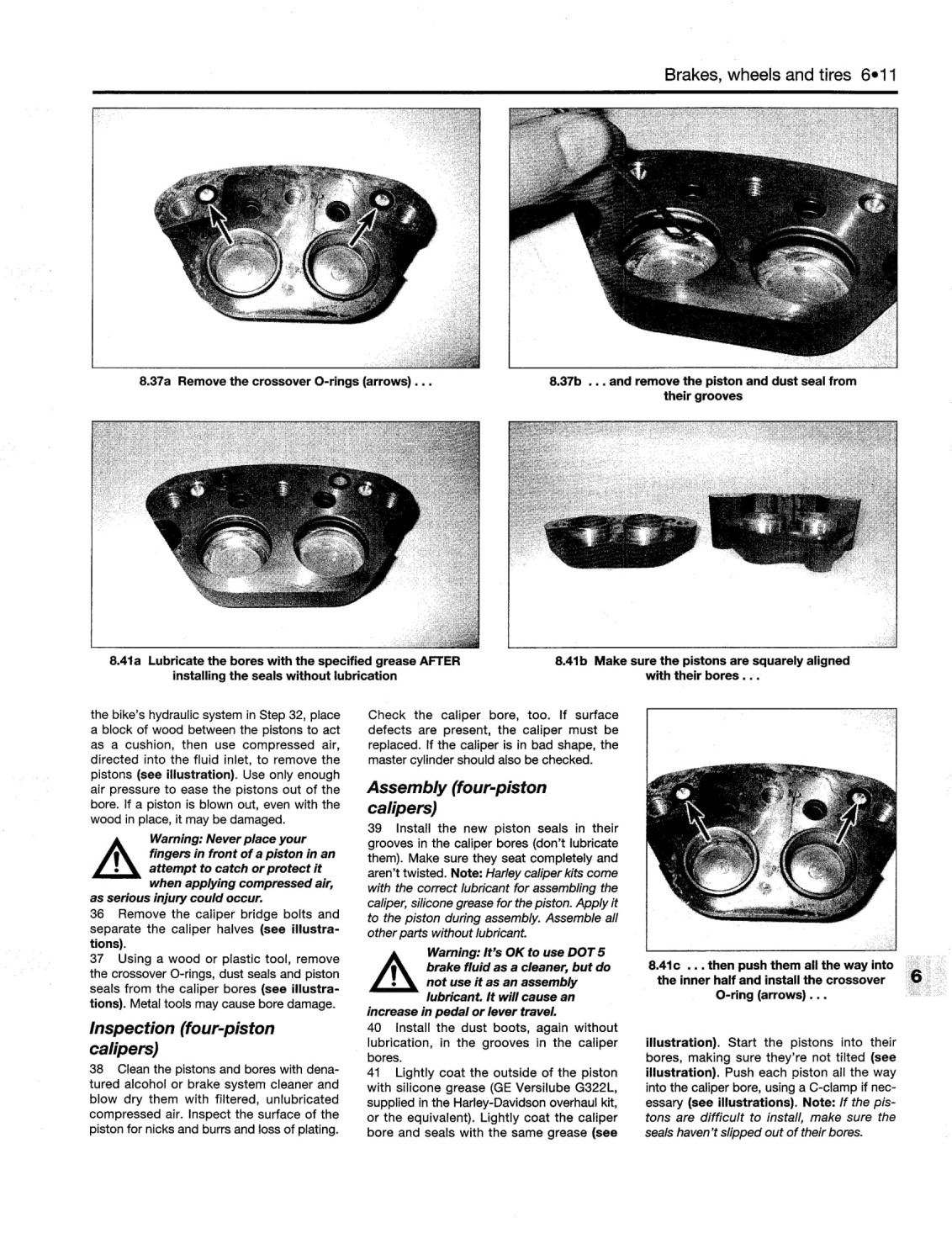

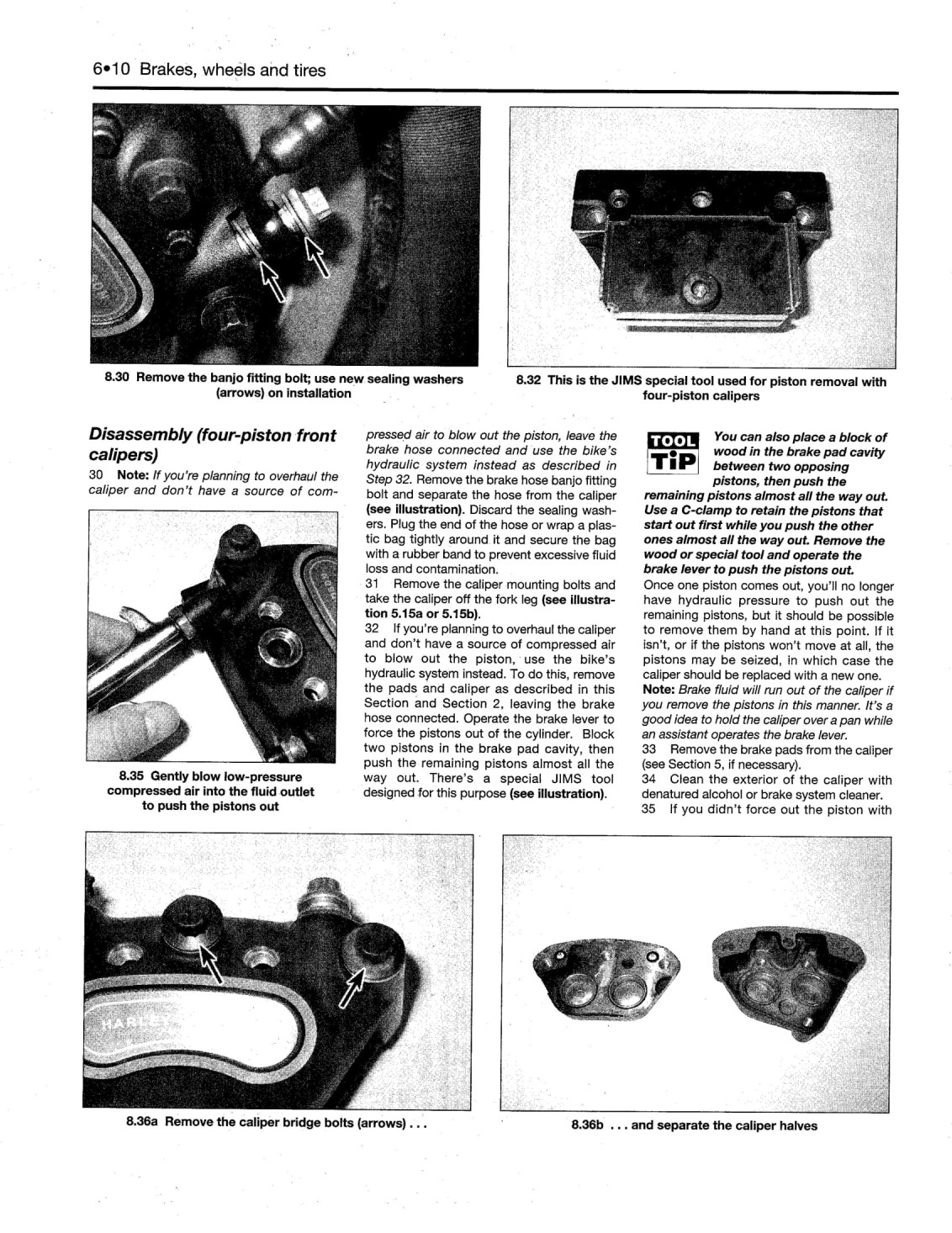

Front disc brake caliper - overhaul..............................................................................................8

Front disc brake caliper - removal and installation..............................................7

Front disc brake master cylinder - removal and installation..................9

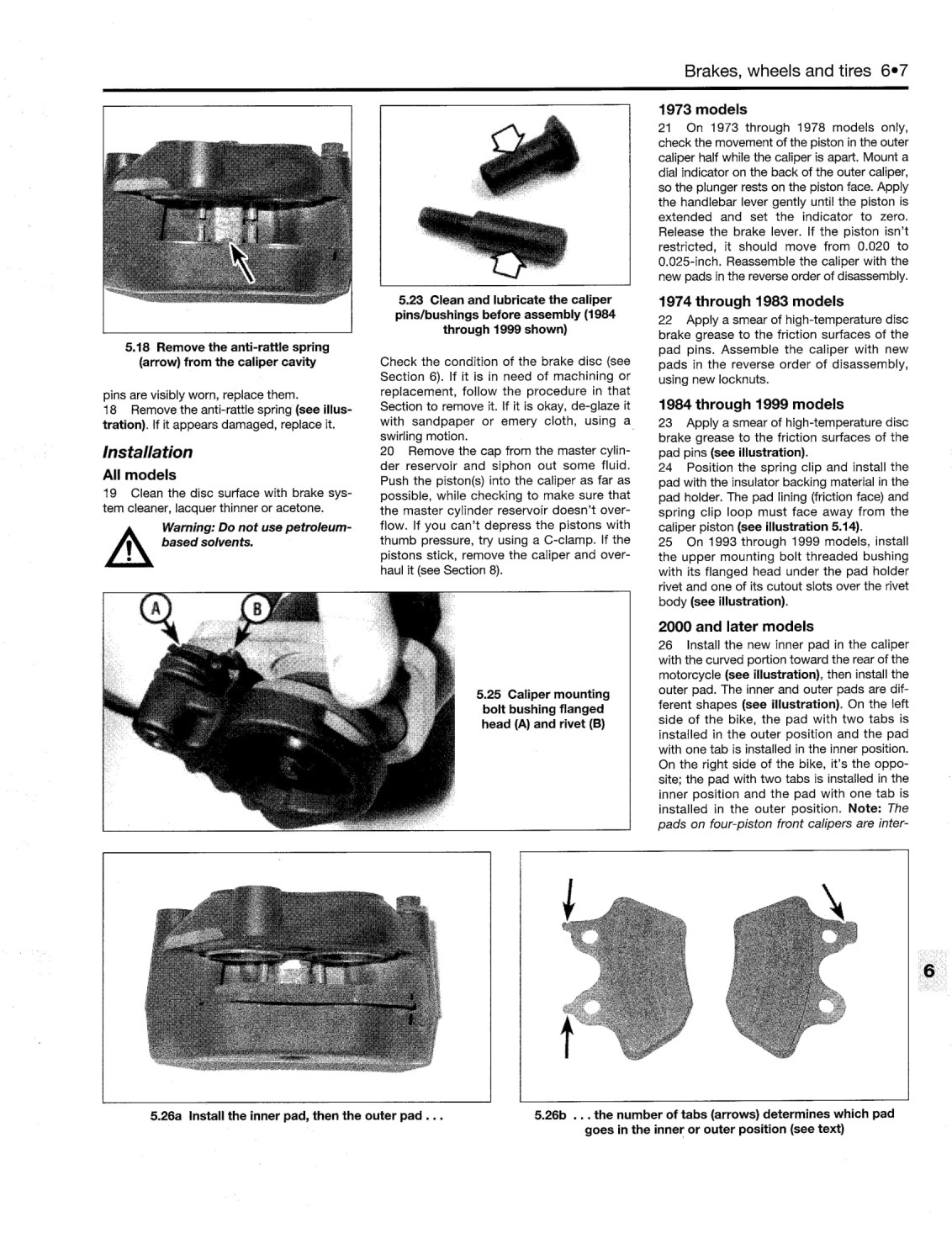

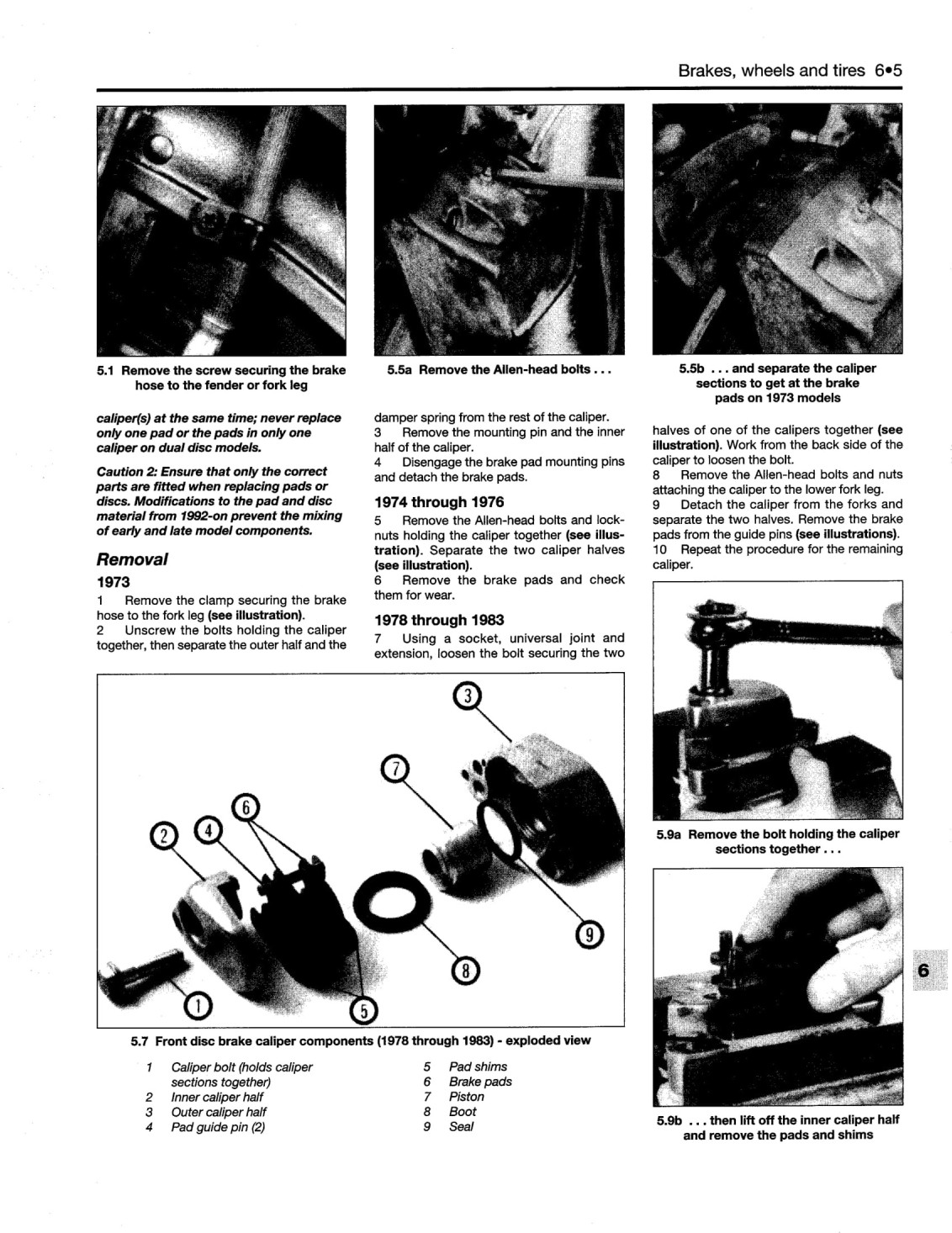

Front disc brake pad replacement................................................................................................5

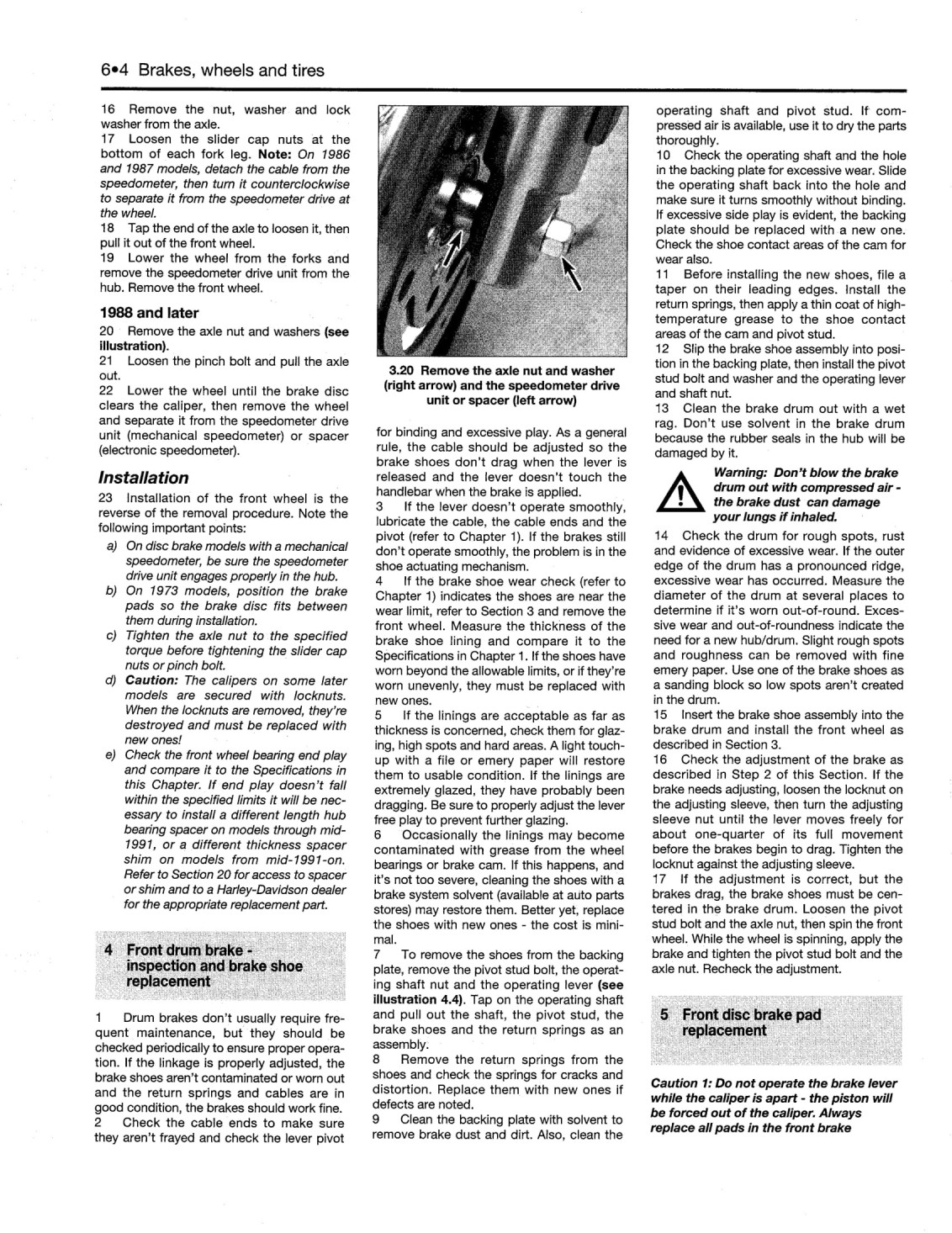

Front drum brake - inspection and brake shoe replacement..............4

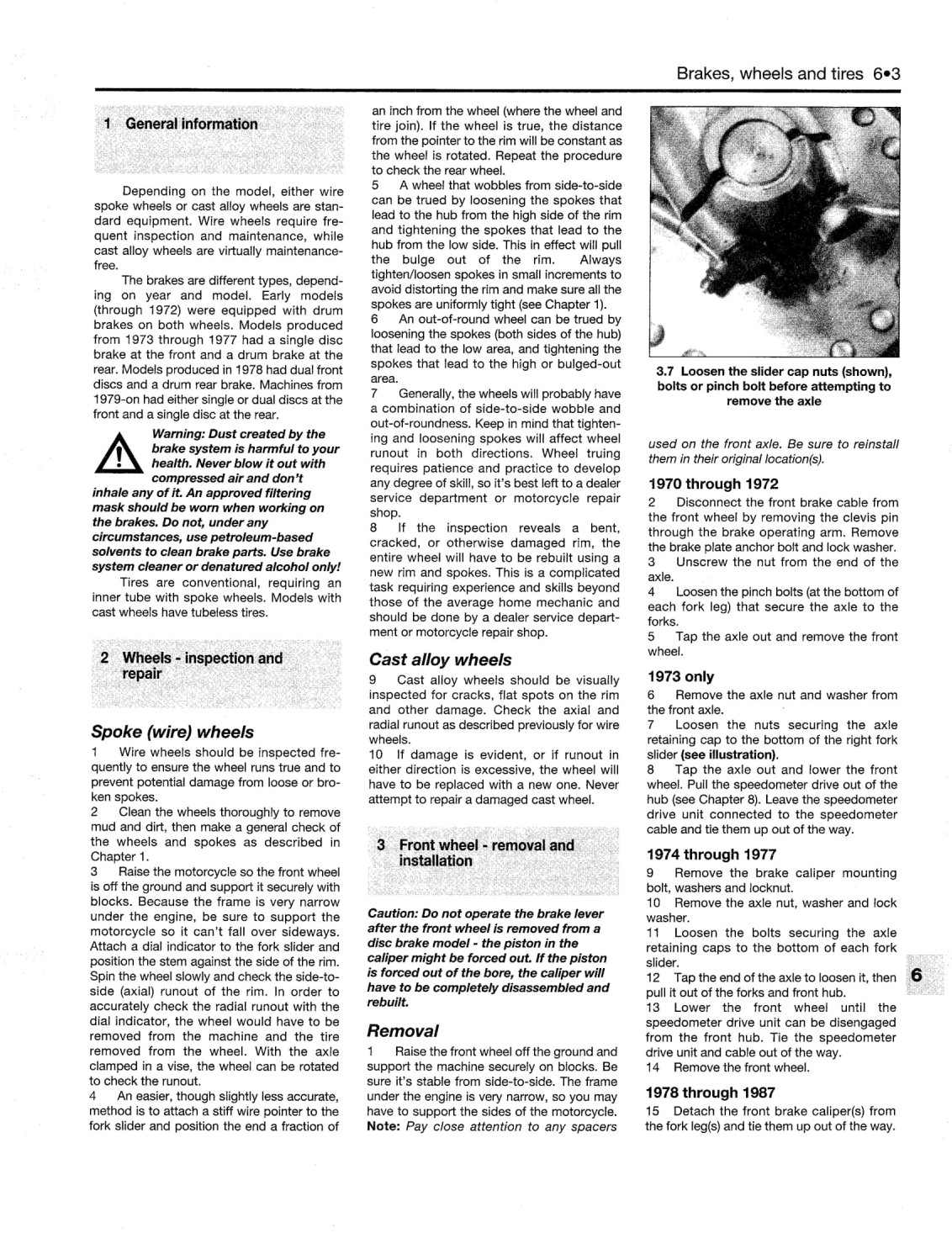

Front wheel - removal and installation....................................................................................3

General information............................................................................................................................................1

Rear brake disc - removal and installation......................................................................16

Rear disc brake - brake pad replacement........................................................................13

Rear disc brake caliper - removal, overhaul and installation................14

Rear disc brake master cylinder - removal and installation....................15

Rear drum brake - inspection and brake shoe replacement................12

Rear wheel - removal and installation......................................................................................11

Tube tires - removal and installation..........................................................................................18

Tubeless tires - general information..........................................................................................17

Tubes-repair................................................................................................................................................................19

Wheels - inspection and repair..........................................................................................................2

Wheel bearings - inspection and maintenance............................ 20

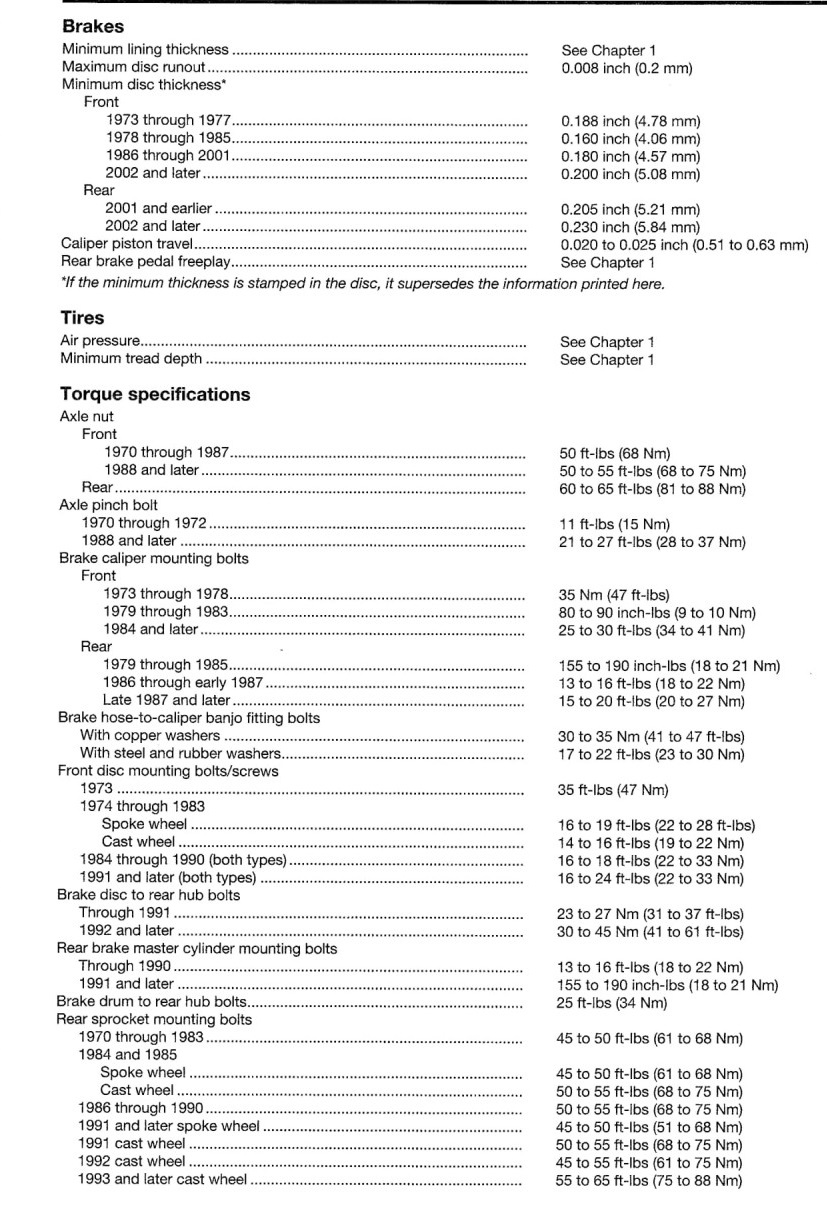

Specifications

Wheels

Size (diameter)

1970 through 1979

Front............................................................................................................................................................................................19 inches

Rear............................................................................................................................................................................................16 inches

1980 and later

Front............................................................................................................................................................................................19 or 21 inches

Rear............................................................................................................................................................................................16 inches

Wheel bearing end play

1970 through mid-1991............................................................................................................................................0.004 to 0.018 inch (0.10 to 0.46 mm)

Mid-1991 through 1999............................................................................................................................................0.002 to 0.006 inch (0.05 to 0.15 mm)

2000 and later........................................................................................................................................................................0.002 inch (0.05 mm) or less

Rim runout (front and rear)

Spoke wheel..............................................................................................................................................................................1/32 inch (0.79 mm)

Cast wheel

Lateral (axial)..................................................................................................................................................................3/64 inch (1.19 mm)

Radial........................................................................................................................................................................................1/32 inch (0.79 mm)
