Harley Davidson 2007 Softail. Service manual - page 5







HEADLAMP ALIGNMENT


INSPECTION


Awarning
The automatic-on headlamp feature provides increased

visibility of the rider to other motorists. Be sure headlamp is on at all times. Poor visibility of rider to other

motorists can result in death or serious injury. (00030b)

Check headlamp for proper height and lateral alignment:

• When the new owner takes delivery of the motorcycle.

• When there is a change in load (adding luggage, etc.)

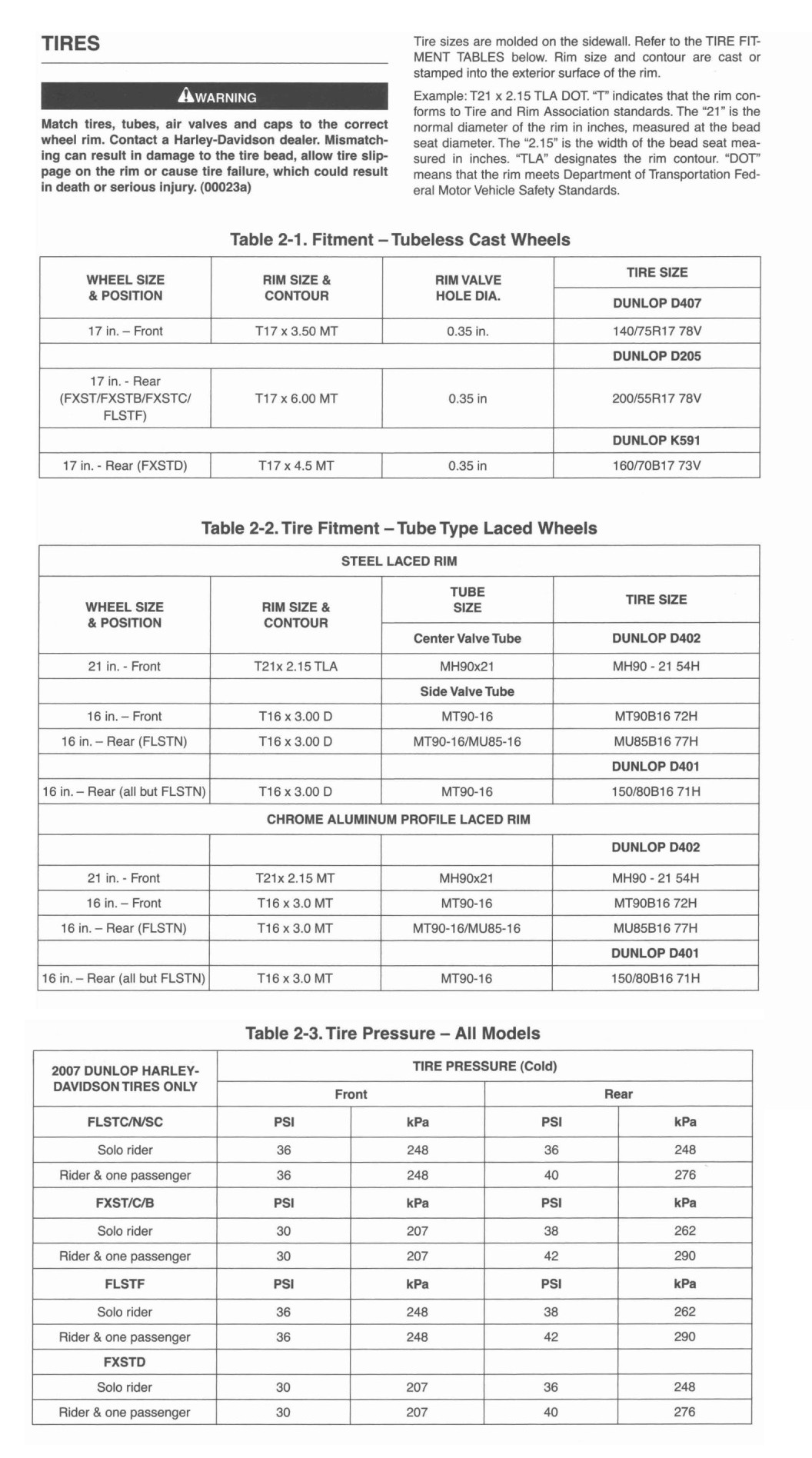

1. Verify correct front and rear tire pressure. See 1.9 TIRES AND WHEELS.

2. Place motorcycle on level floor (or pavement) in an area with minimum light.

3. Position motorcycle 25 ft (7.6 m) away from a screen or wall. Measure the distance from directly below the front axle to the base of the screen/wall.

4. Set mark for alignment purposes.

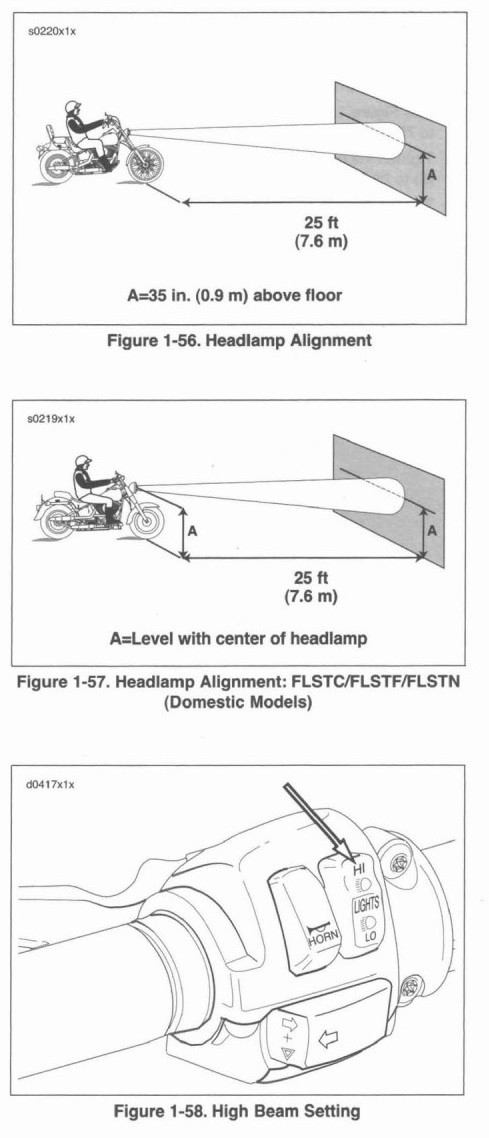

a. See Figure 1-56. For FXST, FXSTB, FXSTD, FXSTC, FLSTSC and (and HDI FLSTC/FLSTF) vehicles, draw a horizontal line 35 in. (0.9 m) above floor on screen/wall.

b. See Figure 1-57. For FLSTC, FLSTF and FLSTN vehicles, draw a horizontal line level with the center of the headlamp.

5. Load vehicle with rider, passenger (if normally present) and any cargo. Weight will compress vehicle suspension slightly.

6. Stand motorcycle upright with both tires resting on floor and with front wheel held in straight alignment (directly forward).

7. See Figure 1-58. Turn ignition switch ON. Set handlebar headlamp switch to HIGH beam position.

8. Check light beam for alignment.

a. The main beam, which is a broad, flat pattern of light, should be centered equally above and below the horizontal line.

b. The main beam of light should also be directed straight ahead. Properly adjusted headlamps project an equal area of light to right and left of center.

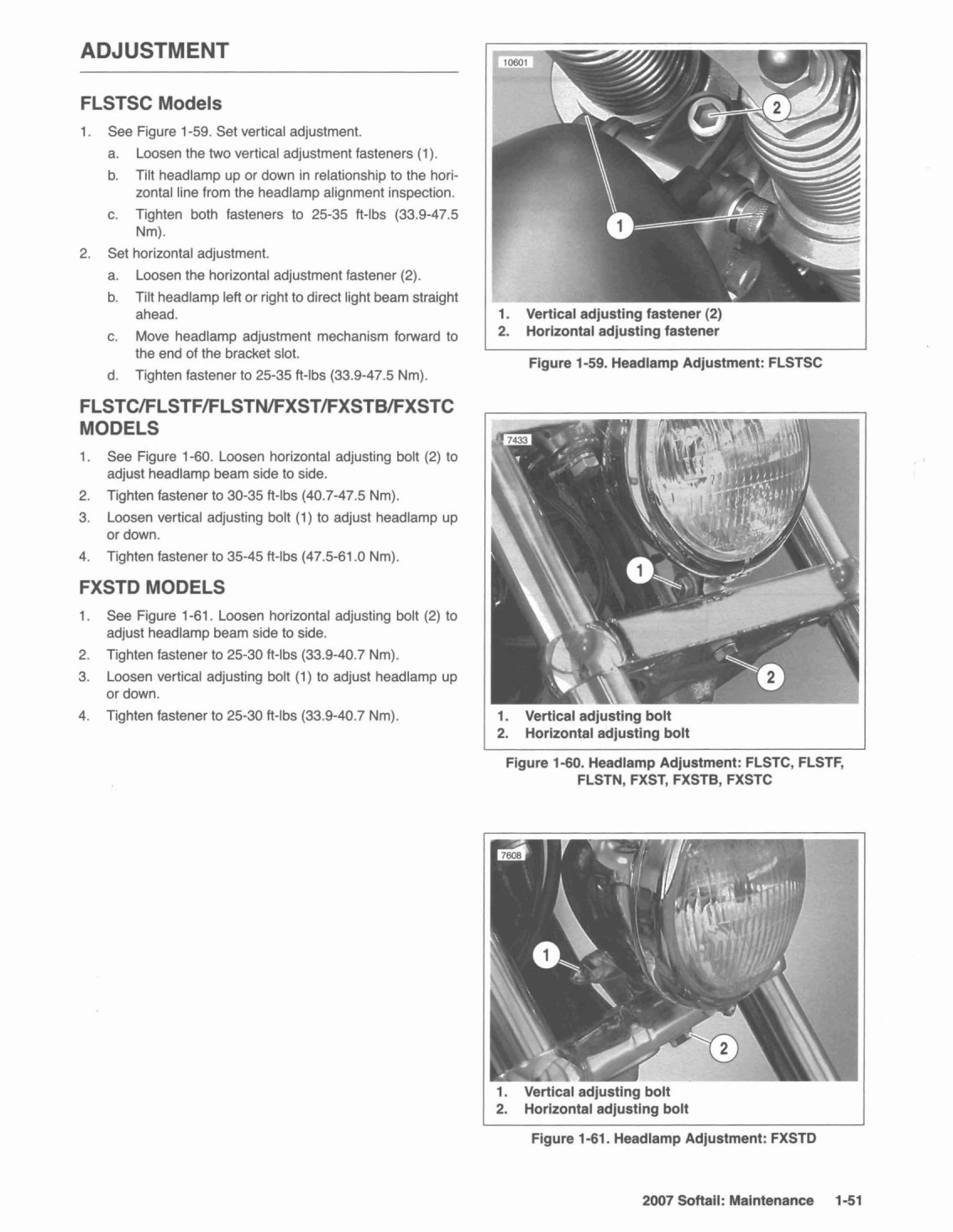

c. Adjust headlamp alignment if necessary.





































CHASSIS


SUBJECT PAGE NO.

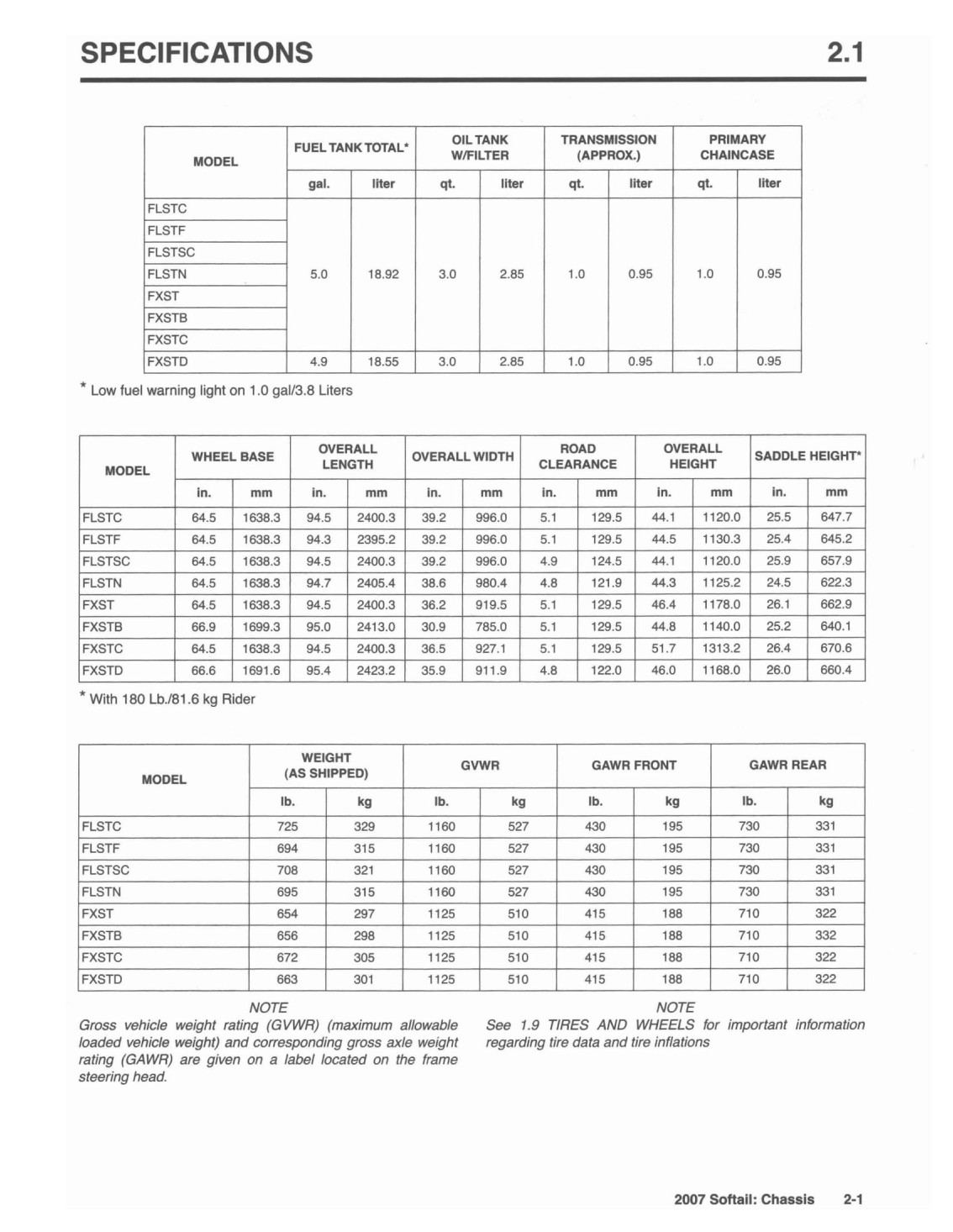

2.1 Specifications....................................................................................................2-1

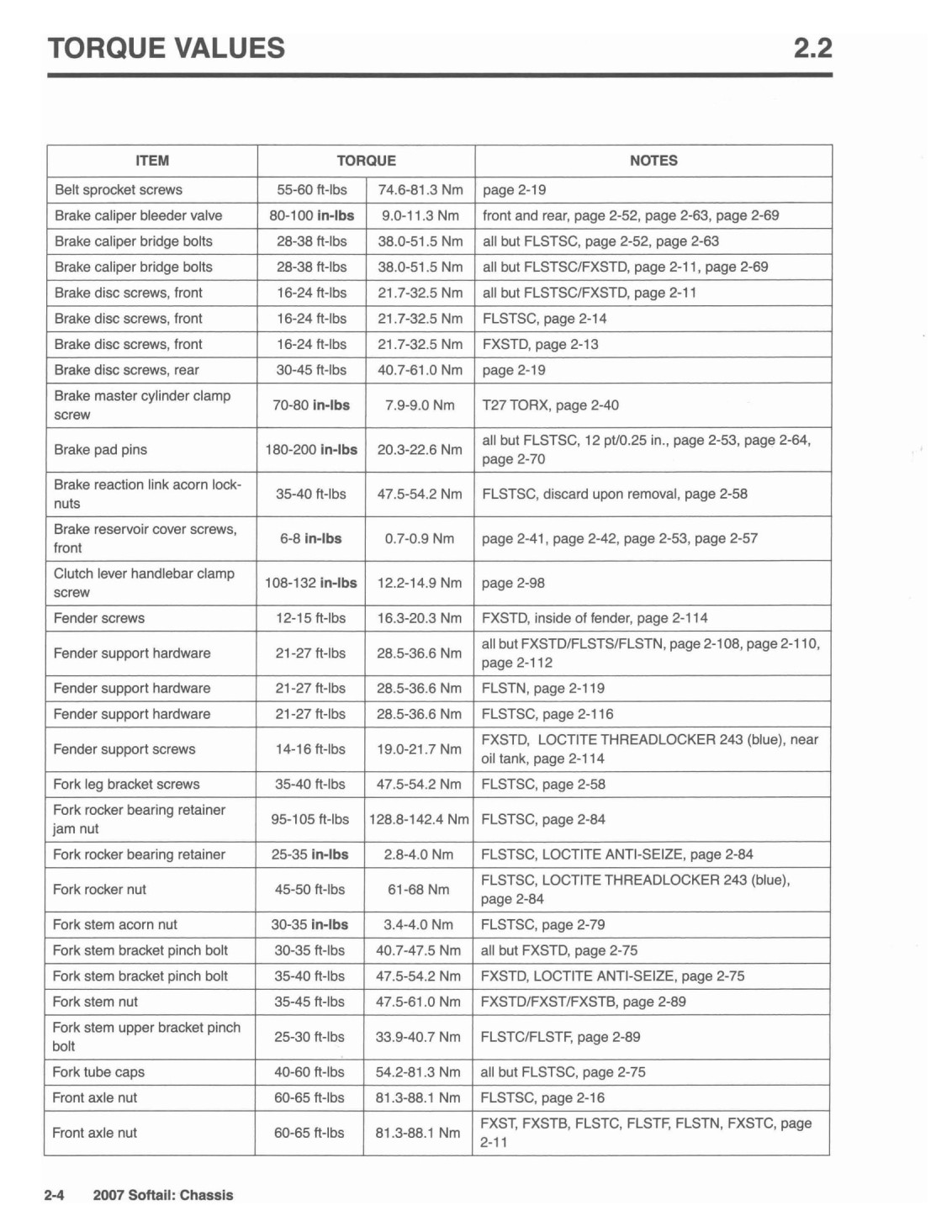

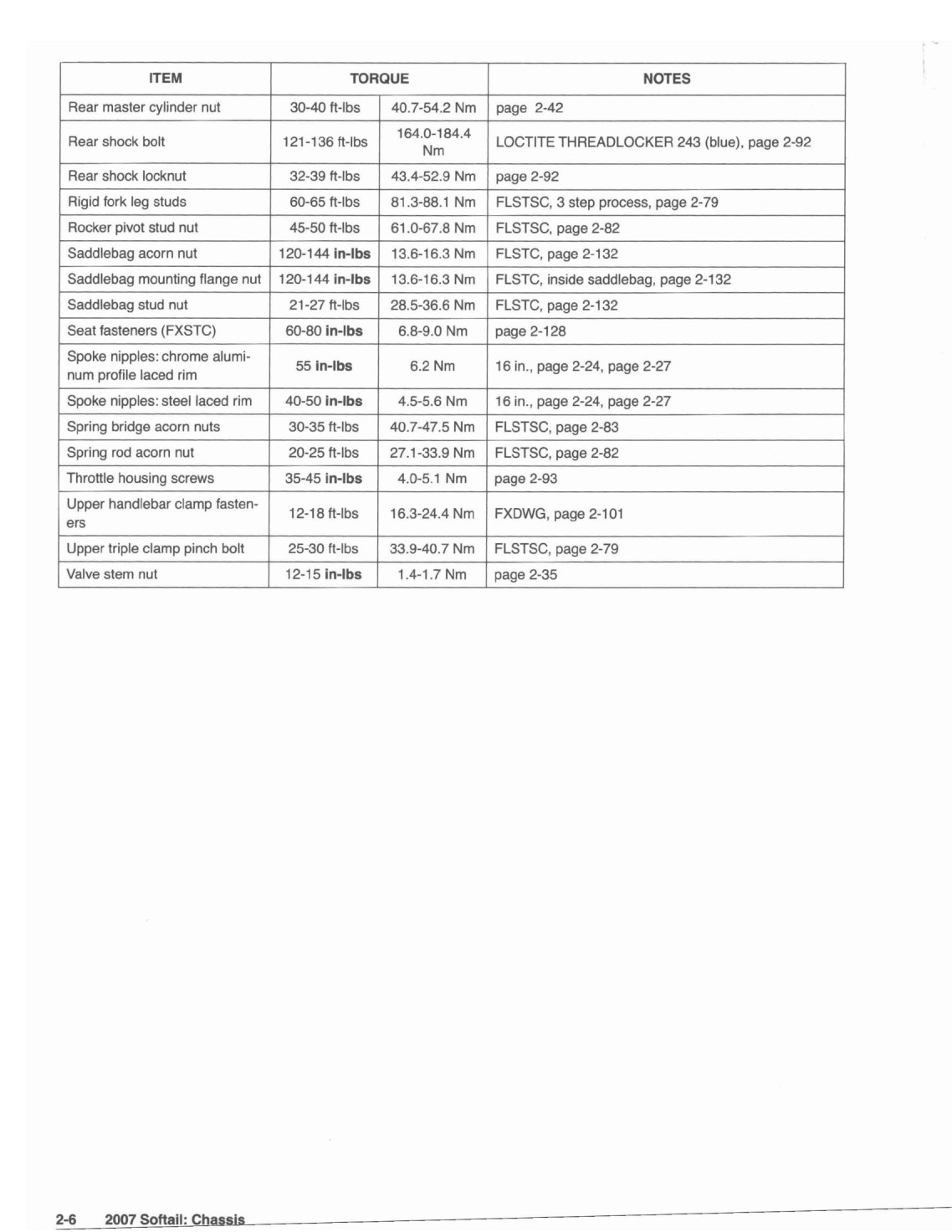

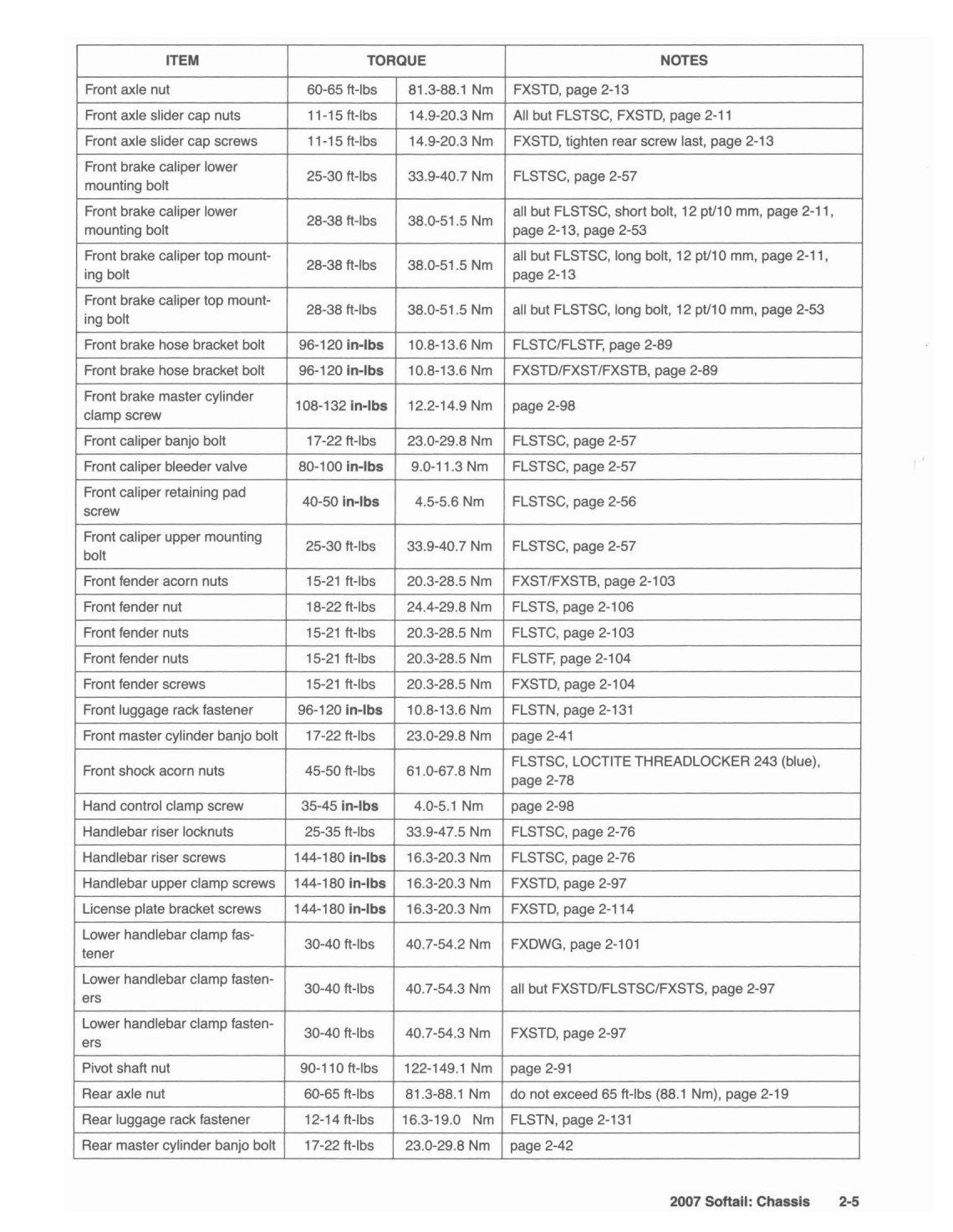

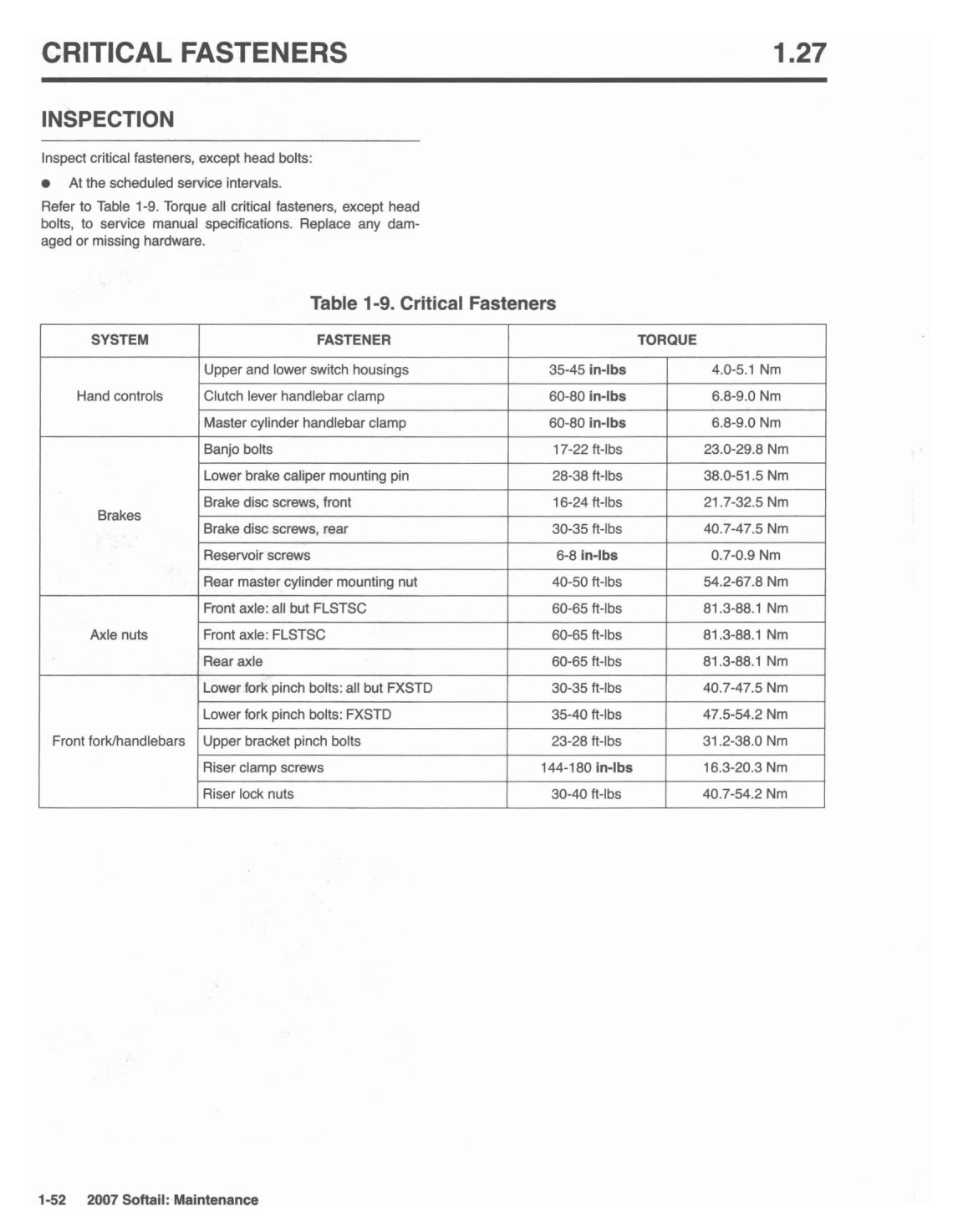

2.2 Torque Values..................................................................................................2-4

2.3 Vehicle Identification Number (V.I.N.)..............................................................2-7

2.4 Front Wheel: All But FLSTSC/FXSTD..............................................................2-9

2.5 Front Wheel: FXSTD........................................................................................2-12

2.6 Front Wheel: FLSTSC......................................................................................2-14

2.7 Rear Wheel......................................................................................................2-17

2.8 Sealed Wheel Bearings....................................................................................2-20

2.9 Wheel Lacing: 16 In. Rim..................................................................................2-22

2.10 Wheel Lacing: 21 In. Rim................................................................................2-25

2.11 Truing Laced Wheel........................................................................................2-28

2.12 Disc Rim Runout............................................................................................2-32

2.13 Tires................................................................................................................2-33

2.14 Vehicle Alignment ..........................................................................................2-36

2.15 Front Brake Master Cylinder..........................................................................2-37

2.16 Rear Brake Master Cylinder/Reservoir ..........................................................2-42

2.17 Front Brake Caliper: All But FLSTSC ............................................................2-48

2.18 Front Brake Caliper: FLSTSC ........................................................................2-54

2.19 Rear Brake Caliper: All But FXST/FXSTB/FXSTC/FLSTF ............................2-60

2.20 Rear Brake Caliper: FXST/FXSTB/FXSTC/FLSTF........................................2-65

2.21 Front Forks: All But FLSTSC..........................................................................2-71

2.22 Springer Fork: FLSTSC..................................................................................2-76

2.23 Steering Head ................................................................................................2-86

2.24 Rear Fork........................................................................................................2-90

2.25 Rear Shock Absorbers....................................................................................2-92

2.26 Throttle Control ..............................................................................................2-93

2.27 Handlebars (All but FLSTF/FLSTSC) ............................................................2-95

2.28 Handlebars: FLSTF........................................................................................2-99

2.29 Clutch Hand Control ........................................... 2-102

2.30 Front Fender: All But FLSTSC.................................... 2-103

2.31 Front Fender: FLSTSC ......................................... 2-105

2.32 Rear Fender: FLSTC........................................... 2-107

2.33 Rear Fender: FLSTF........................................... 2-109

2.34 Rear Fender: FXST/FXSTB/FXSTC ............................... 2-111

2.35 Rear Fender: FXSTD........................................... 2-113

2.36 Rear Fender: FLSTSC.......................................... 2-115

2.37 Rear Fender: FLSTN........................................... 2-117

2.38 Rear Fender Wire Conduit: All But FXSTD.......................... 2-120

2.39 Belt Guard/Debris Deflector...................................... 2-122

2.40 Jiffy Stand ................................................... 2-123

2.41 Fork Lock.................................................... 2-125

2.42 Seat/Strap Retention Nut........................................ 2-126

2.43 Seat: FXST/FXSTB............................................ 2-127

2.44 Seat: FXSTC................................................. 2-128

2.45 Seat: FXSTD................................................. 2-129

2.46 Seat: FLSTSC/FLSTN/FLSTF/FLSTC.............................. 2-130

2.47 Luggage Rack: FLSTN ......................................... 2-131

2.48 Saddlebags: FLSTC ........................................... 2-132

2.49 Windshield: FLSTC............................................ 2-133
