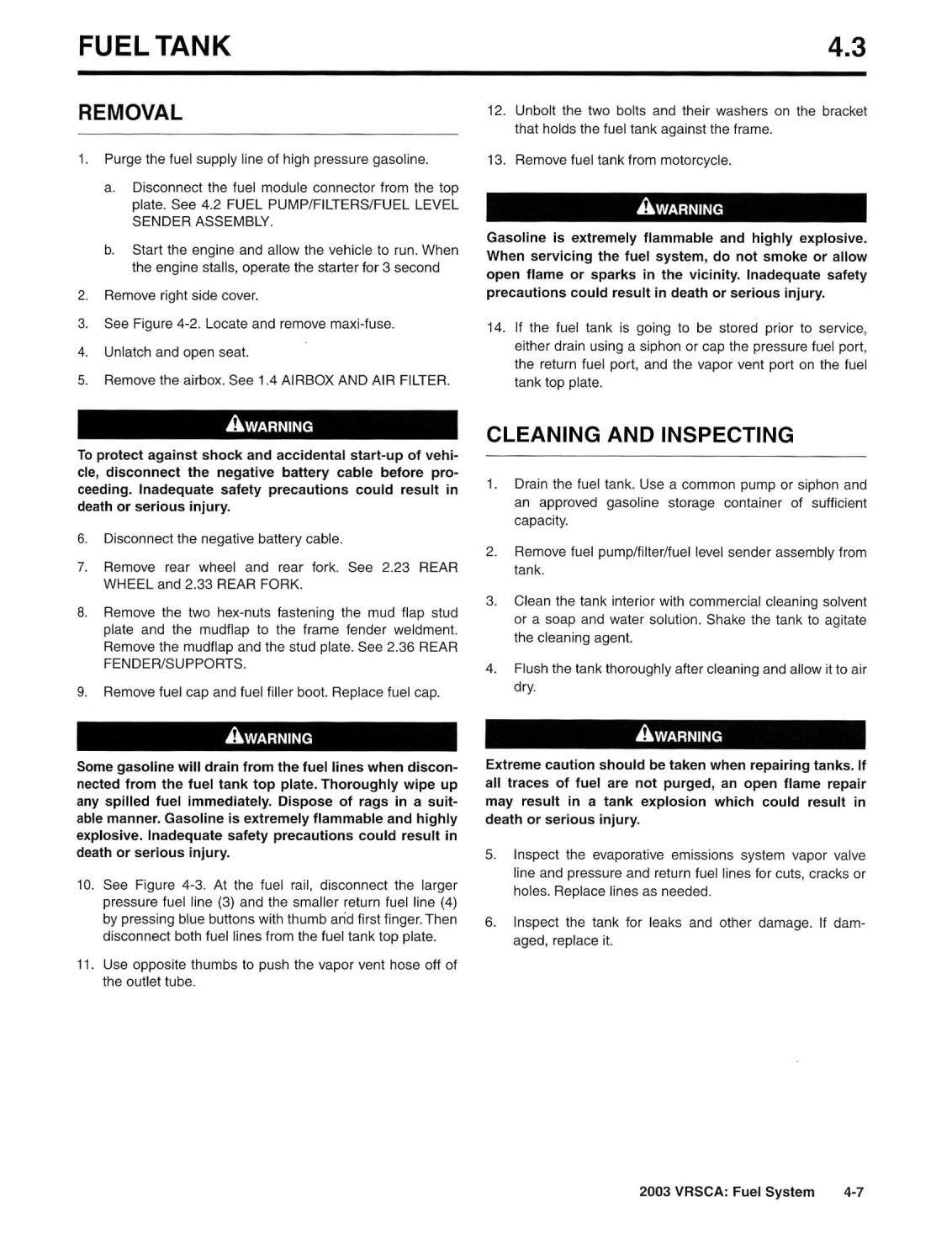

Harley Davidson 2003 VRSCA model. Service manual - page 18





































HOSE ROUTING/REPLACEMENT
NOTE

Record location of cable ties before removal. Install cable ties in same location when installing.
^WARNING
Gasoline is extremely flammable and highly explosive. Always stop the engine when refueling or servicing the fuel system. Do not smoke or allow open flame or sparks near the work site. Inadequate safety precautions could result in death or serious injury.

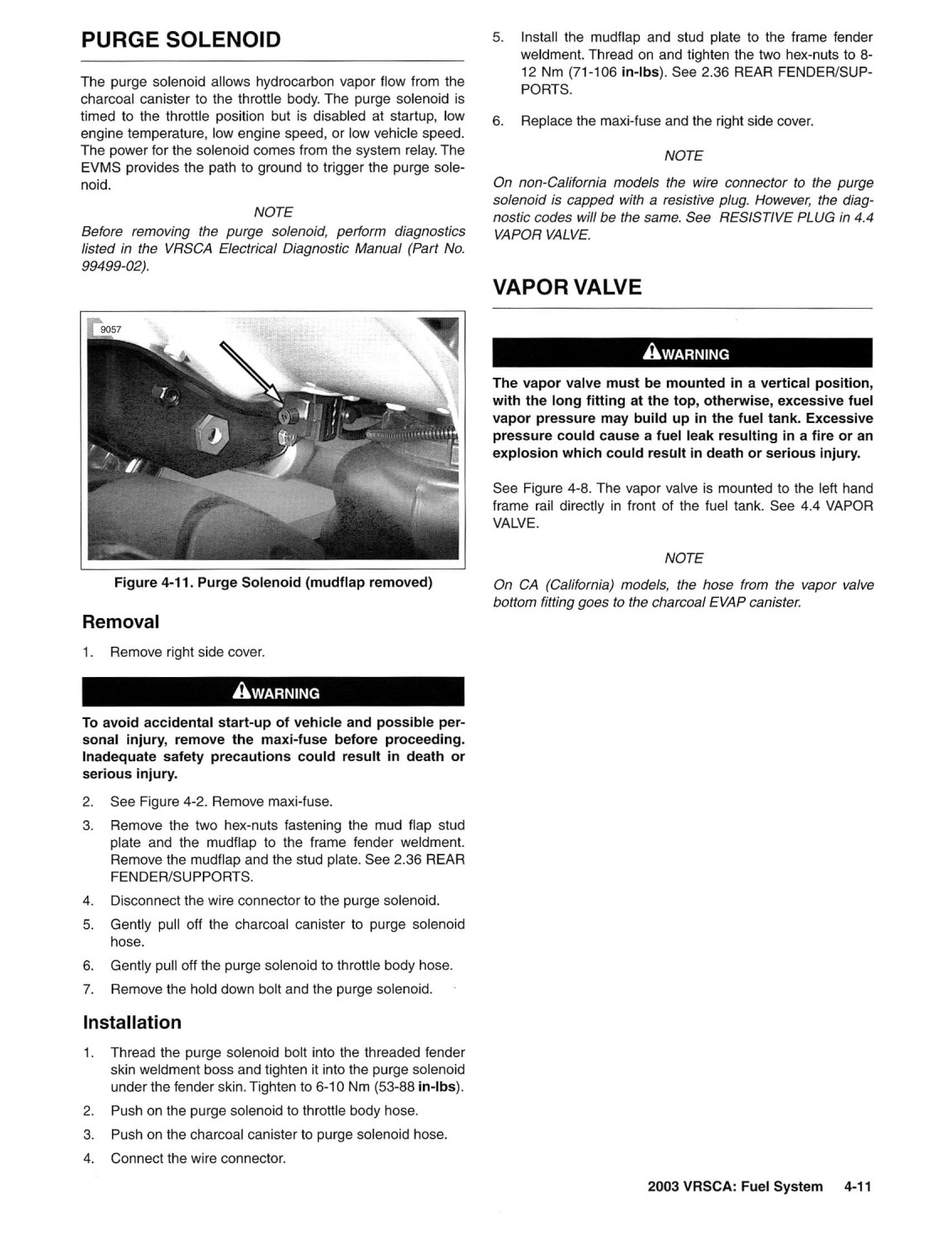

1. Route purge solenoid hoses.

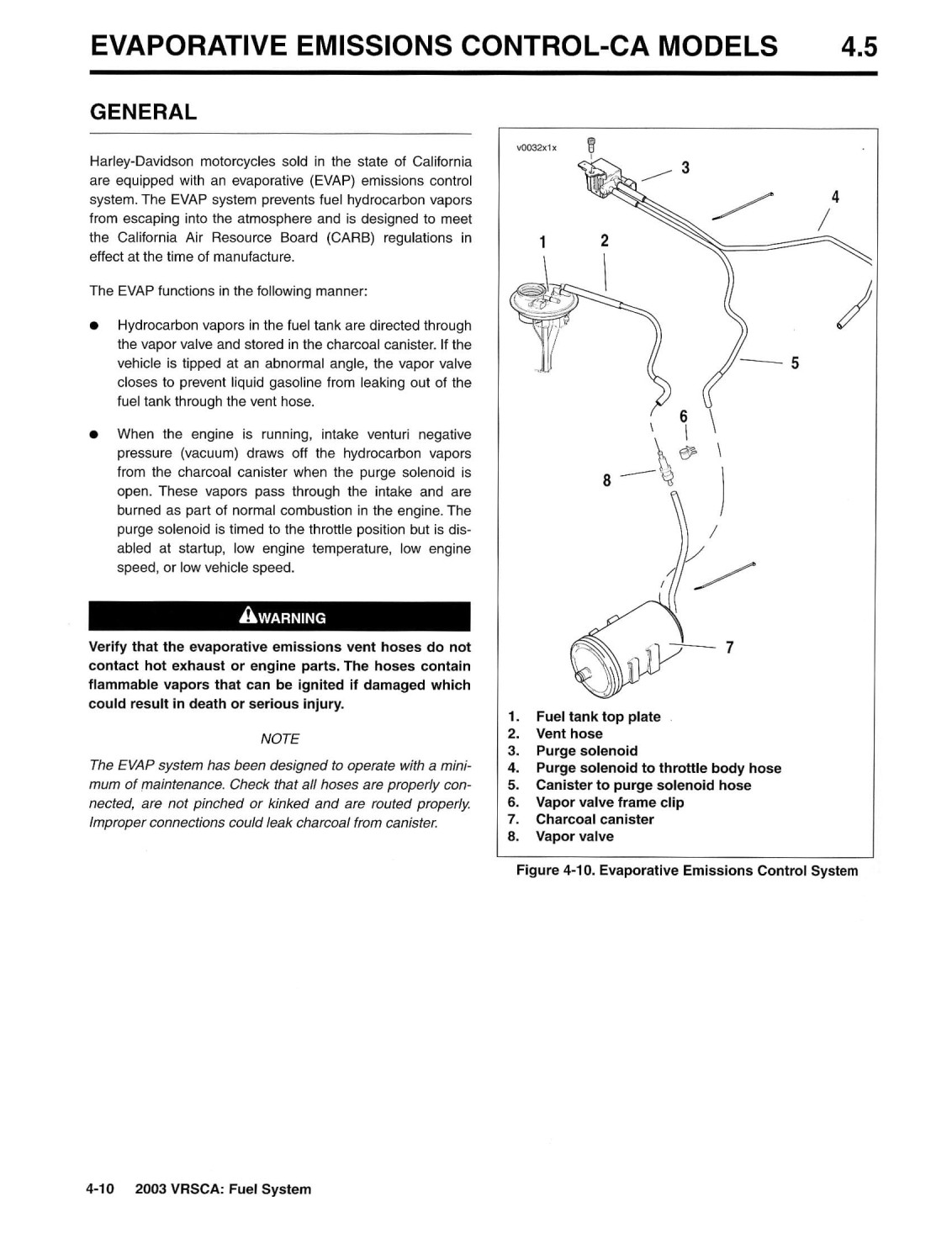

a. See Figure 4-10. Attach the purge solenoid to throttle body hose (4) to the throttle body.

b. Route purge solenoid to throttle body hose (4) under frame tube to purge solenoid (3). Install cable ties.

c. Attach the canister to purge solenoid hose (5) to the purge solenoid.

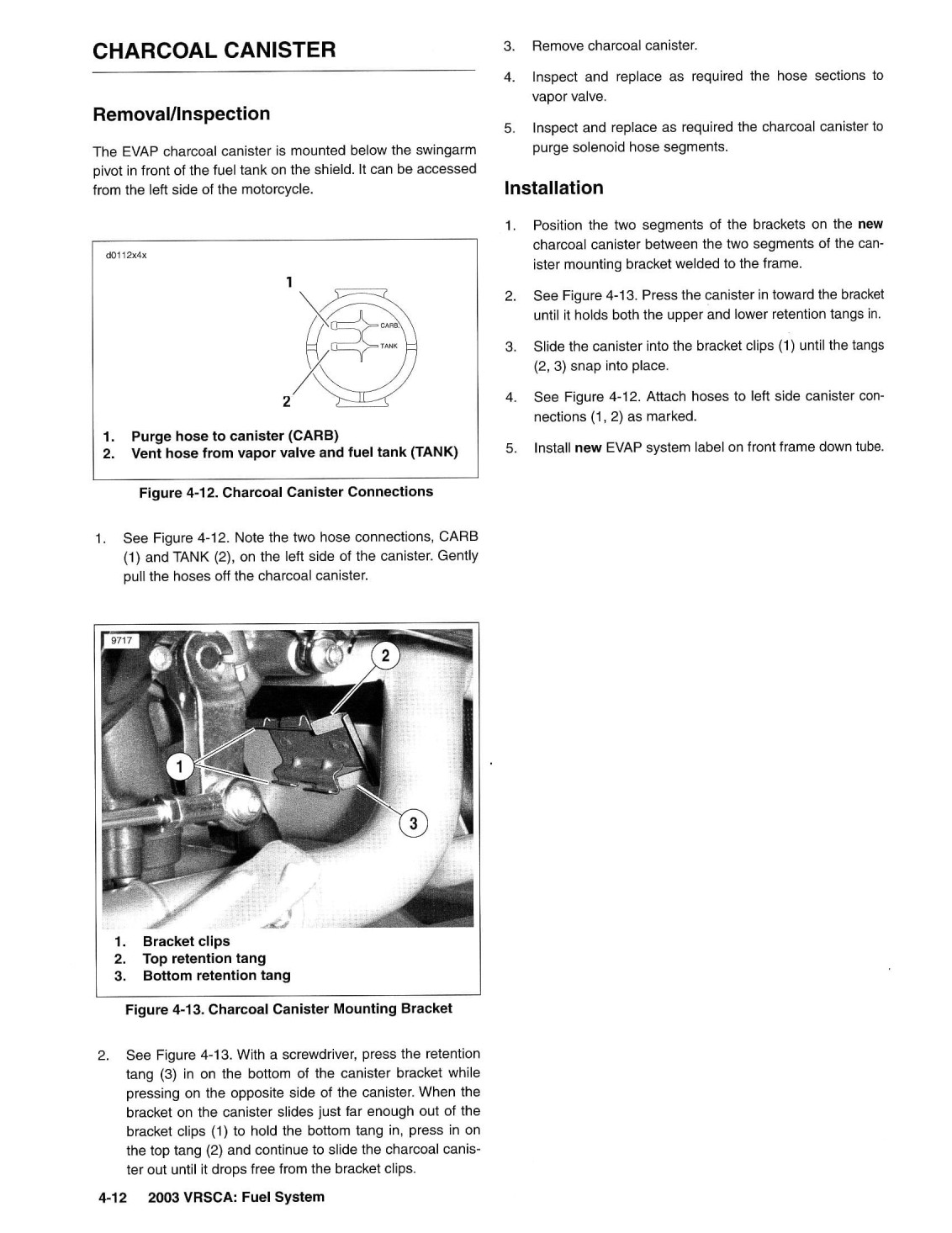

d. Route canister to purge solenoid hose (5) to the charcoal canister (7). See Figure 4-12. Attach the hose to the fitting marked CARB (1) on left side of canister. Install cable ties.

2. Route fuel tank vapor vent hoses.

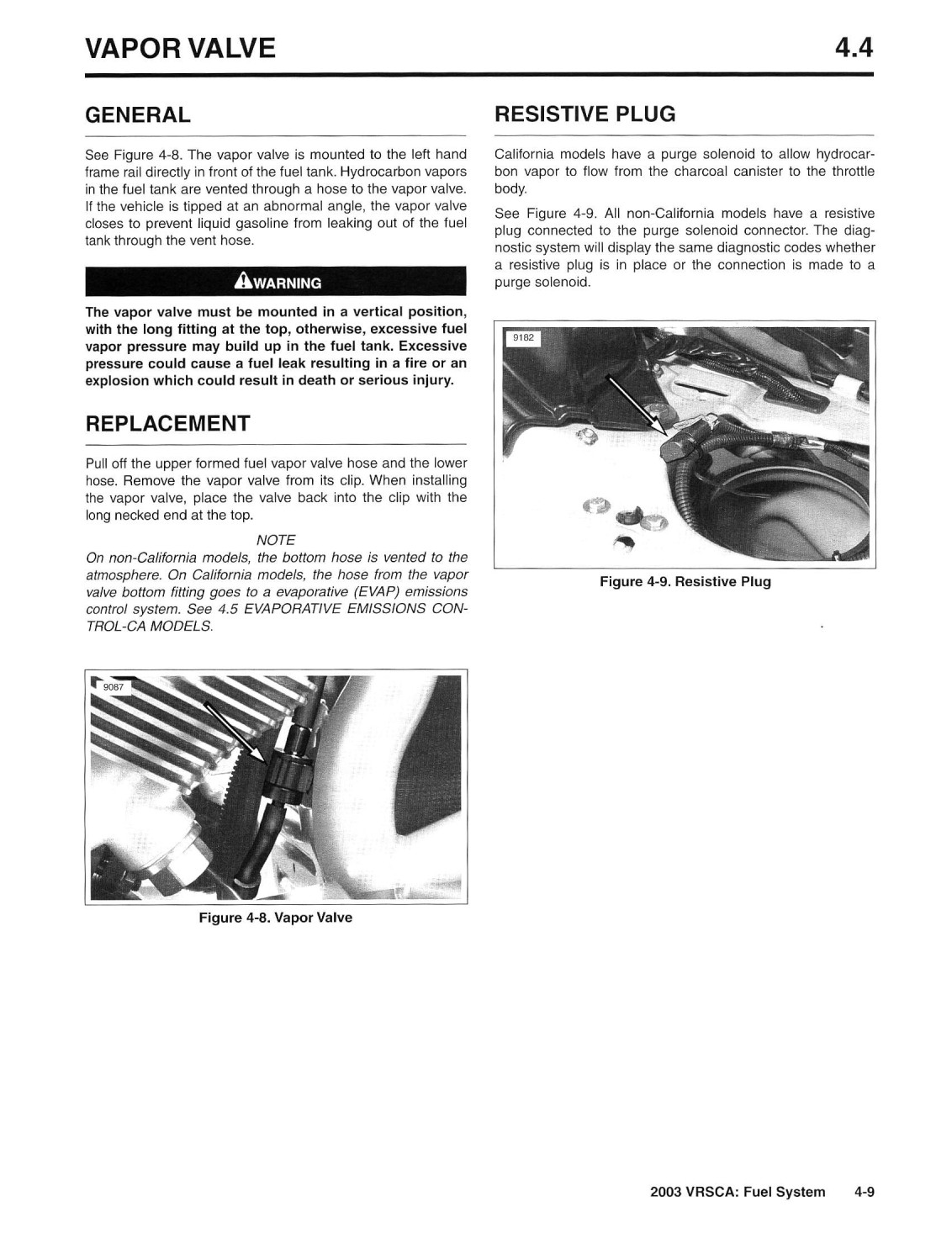

a. See Figure 4-10. Route fuel tank vent hose (2) along left side of frame to top or long end of the vapor valve (8) clipped on frame tube. Install cable ties. Gently press the hose onto the top plate outlet port and onto the long end of the vapor valve.

b. See Figure 4-12. Attach short segment of hose to the bottom or short end of the vapor valve and to the fitting marked TANK (2) on left side of the charcoal canister.





ELECTRIC STARTER
SUBJECT PAGE NO.

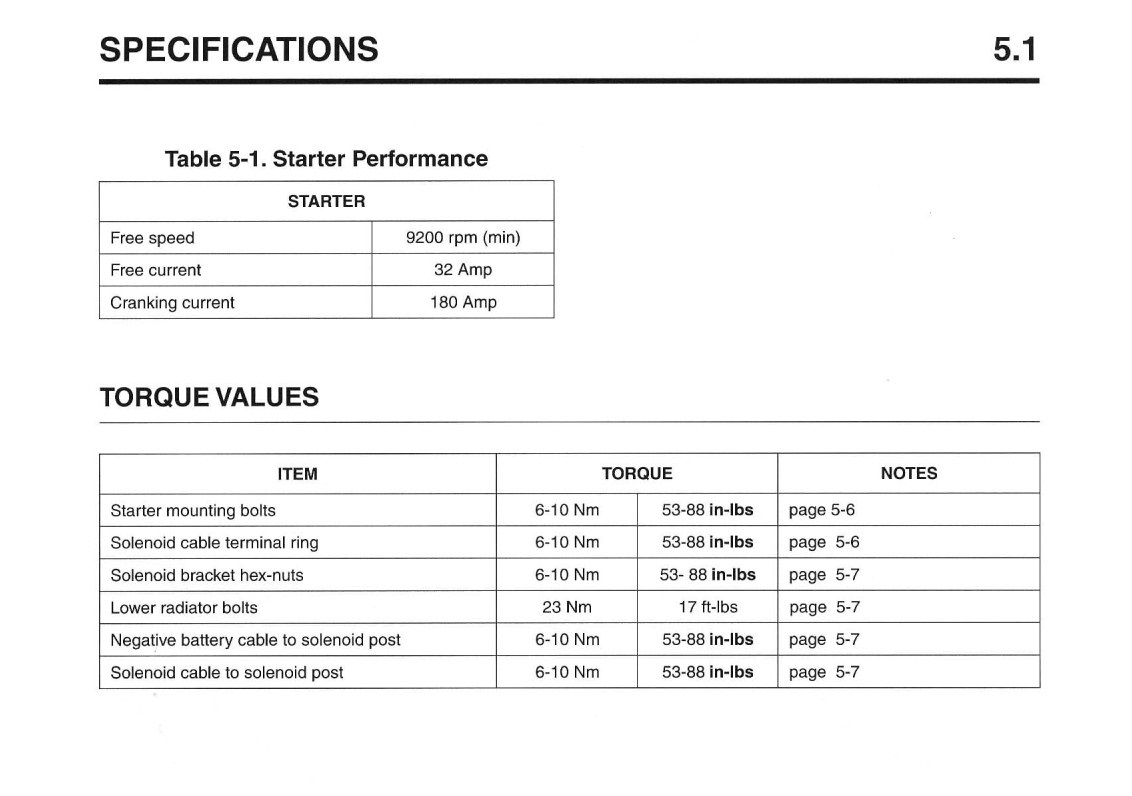

5.1 Specifications ..................................................................................................5-1

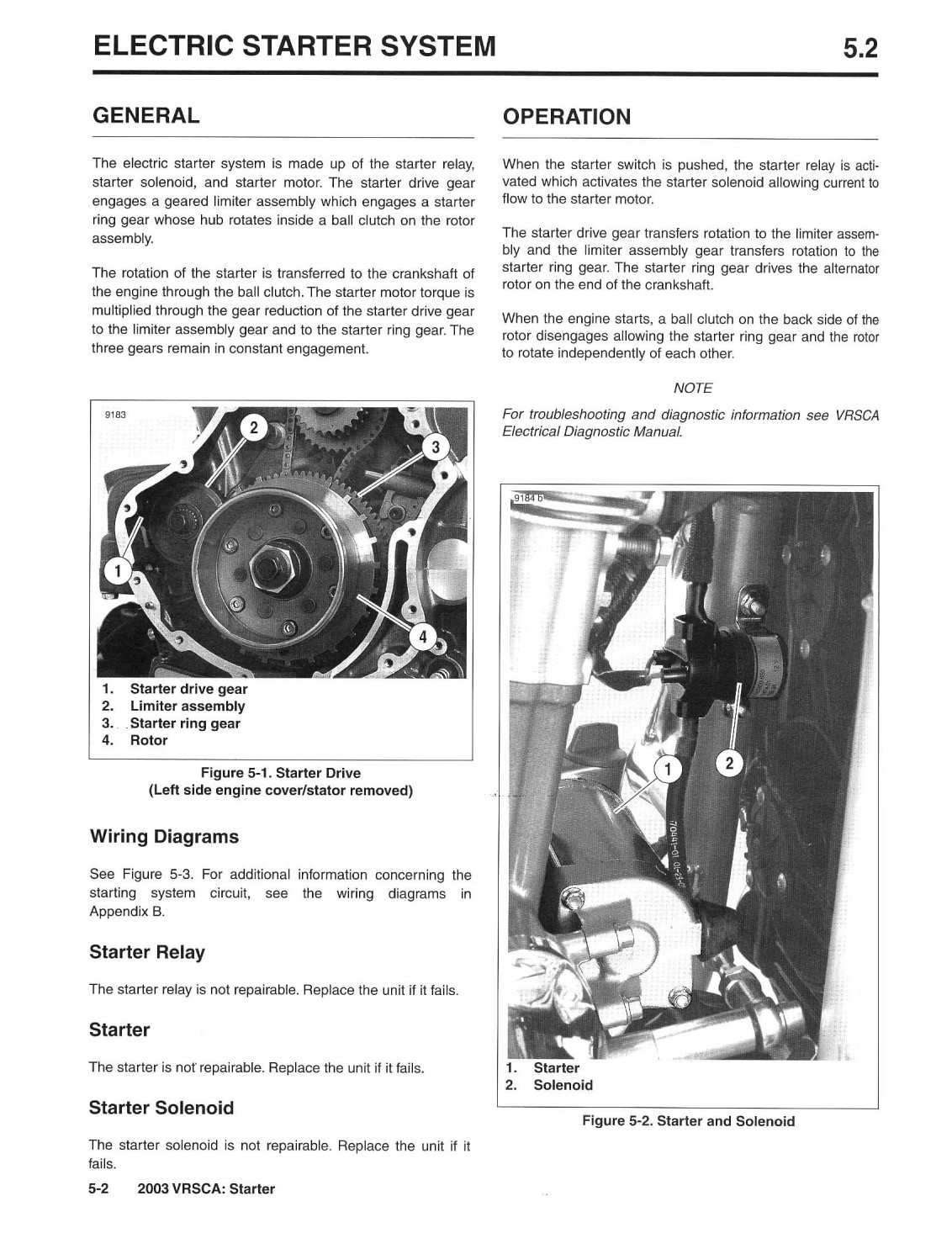

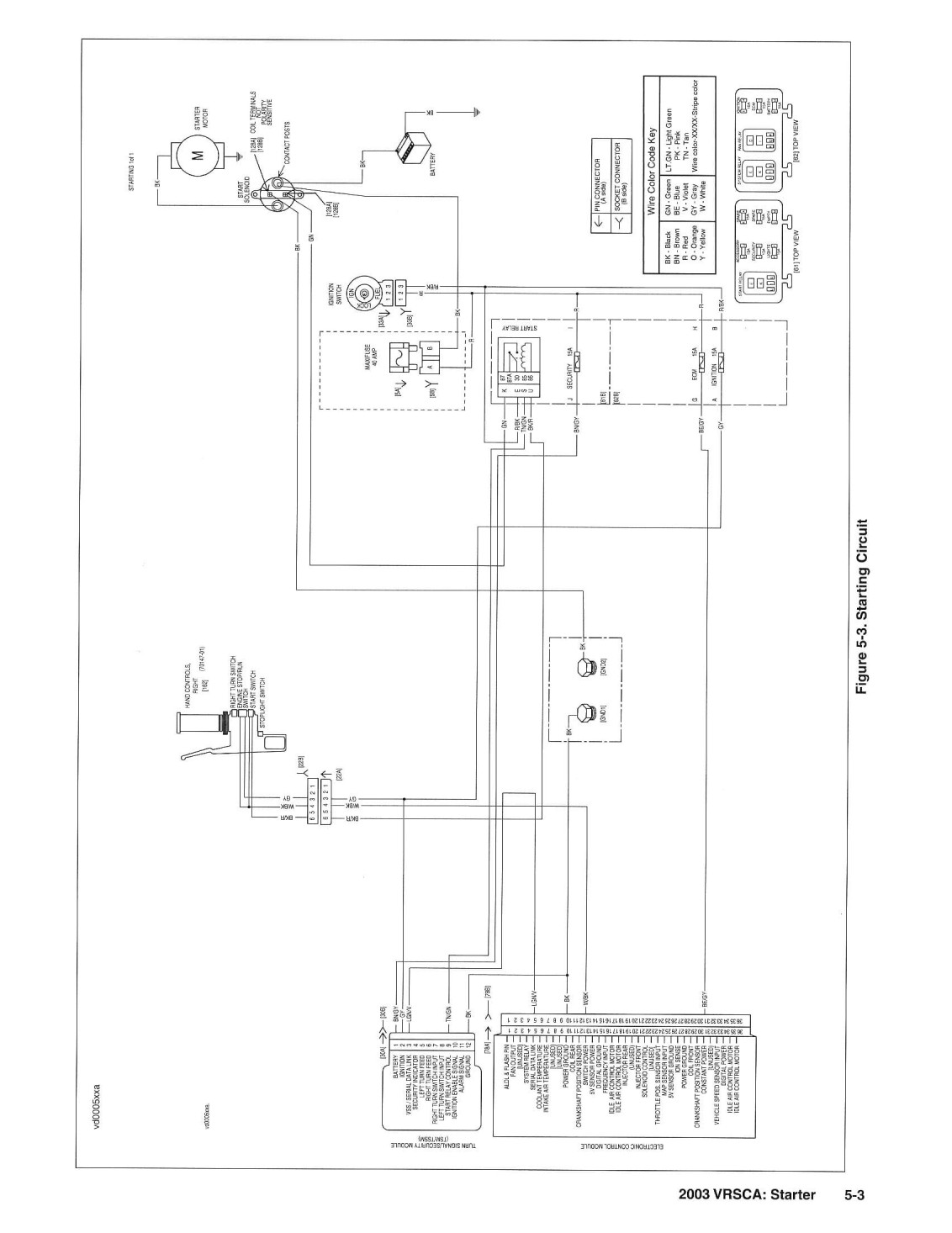

5.2 Electric Starter System ....................................................................................5-2

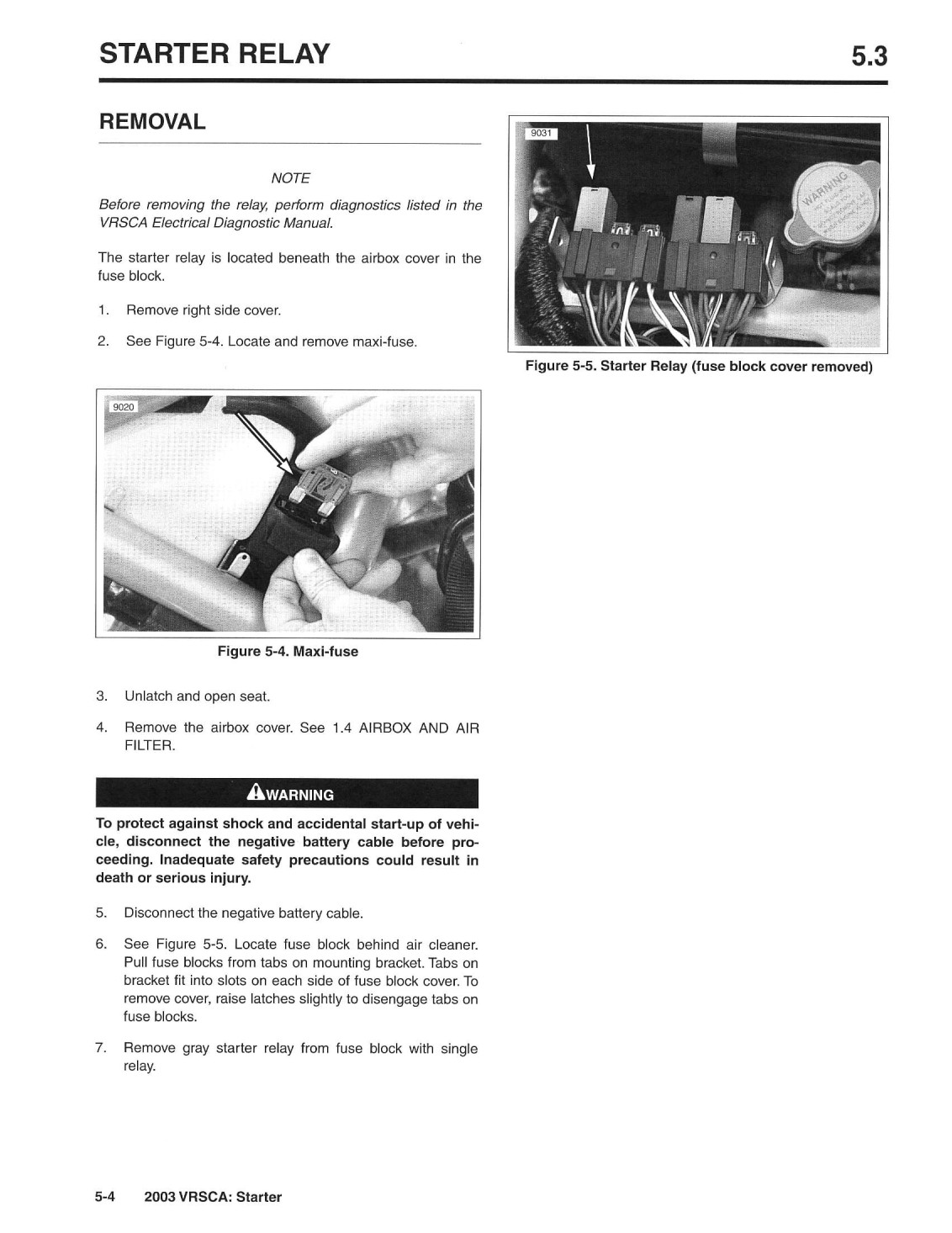

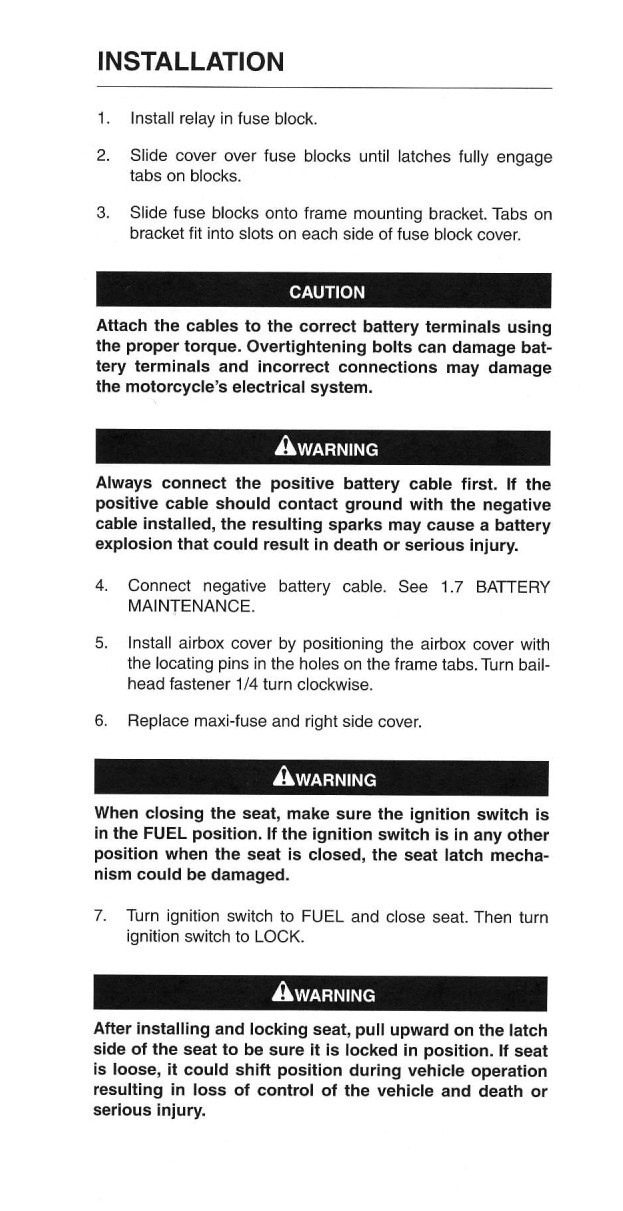

5.3 Starter Relay....................................................................................................5-4

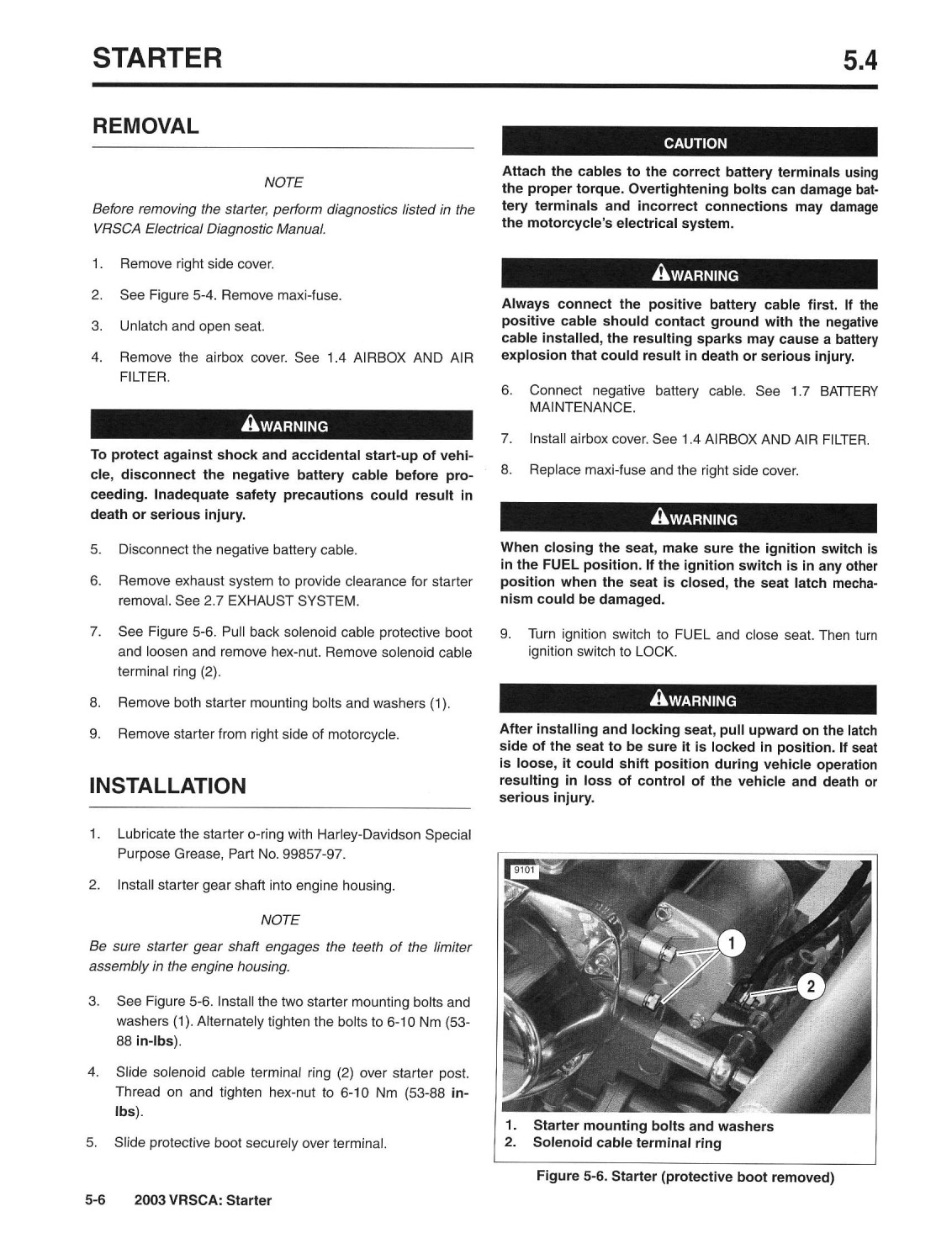

5.4 Starter ..............................................................................................................5-6

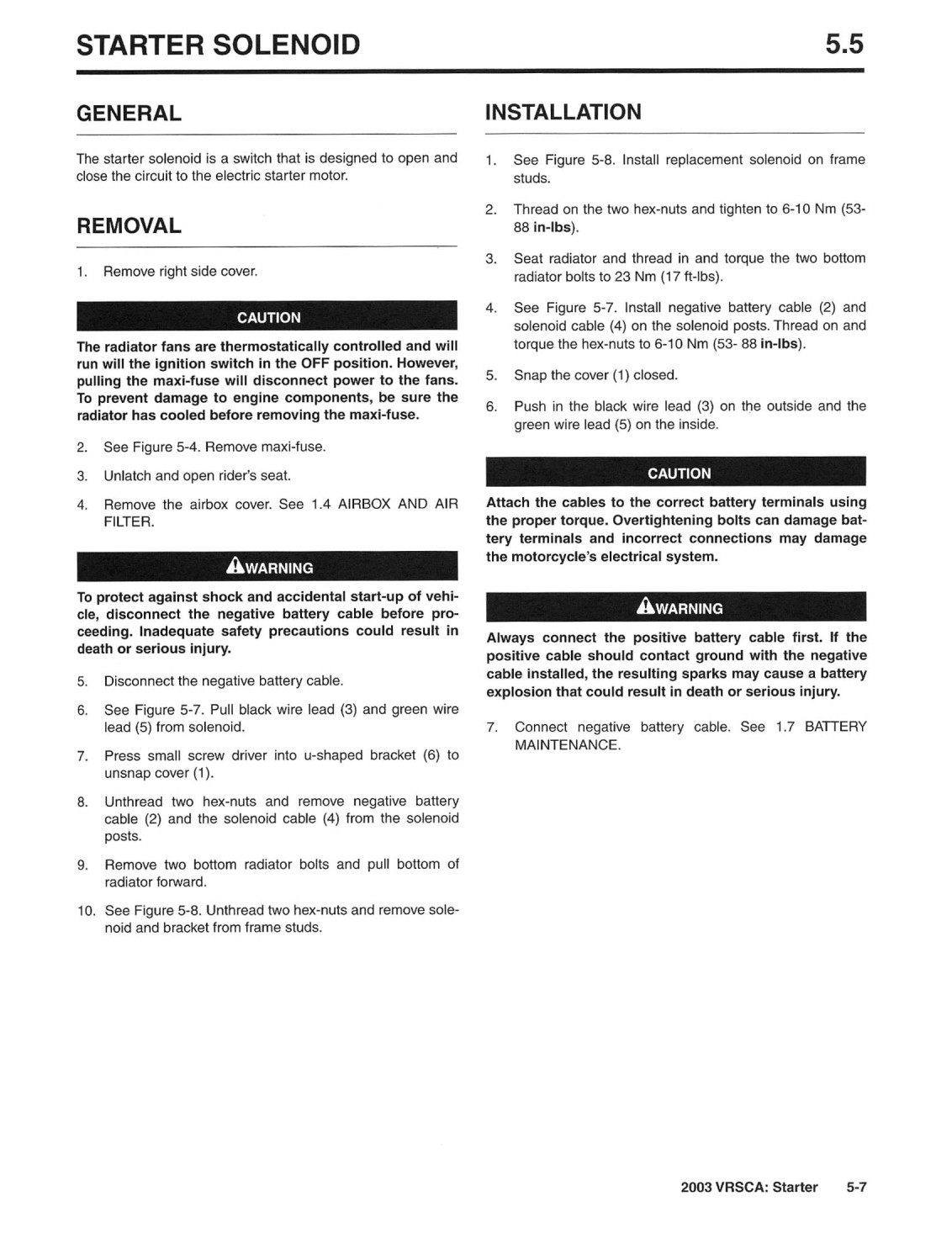

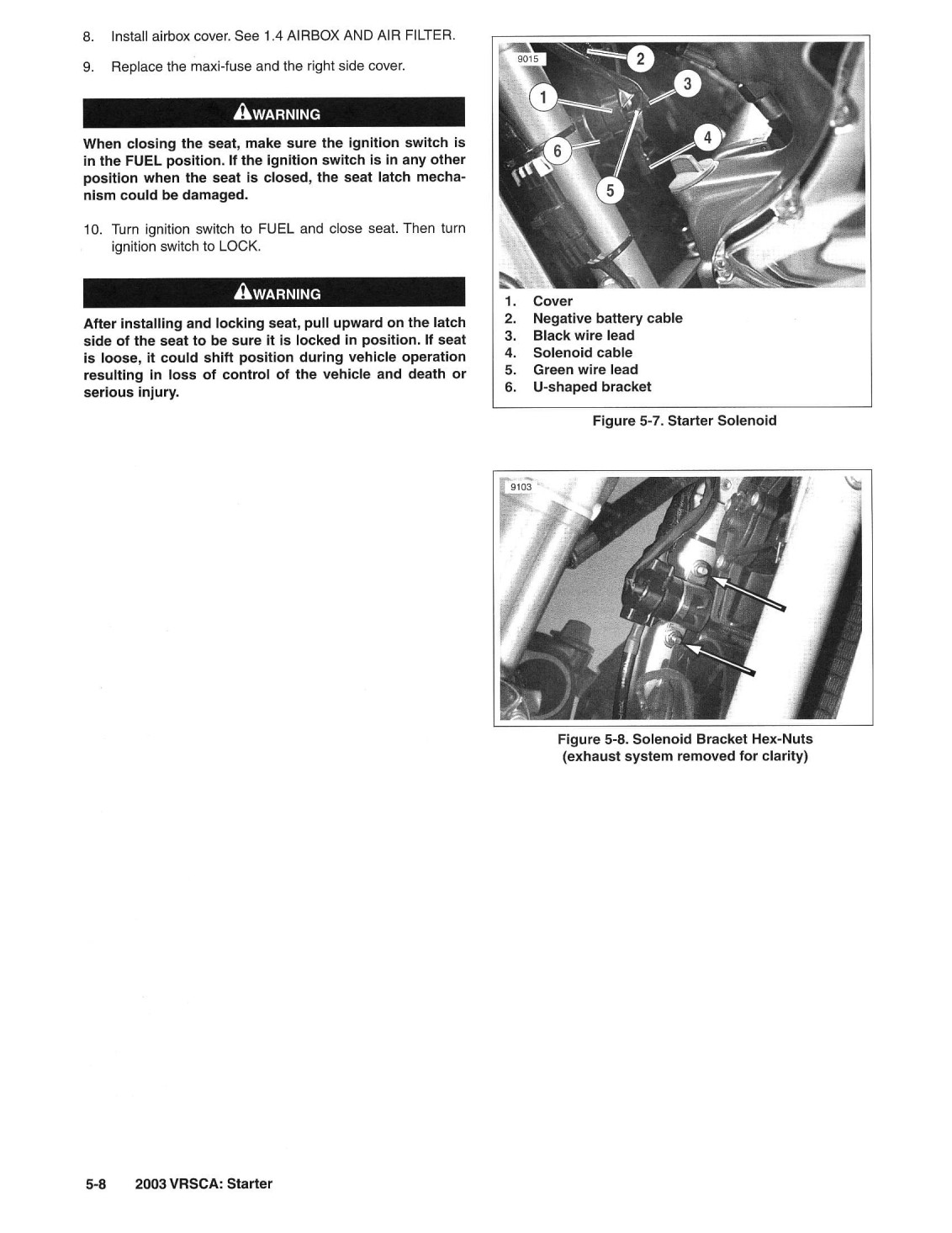

5.5 Starter Solenoid................................................................................................5-7
