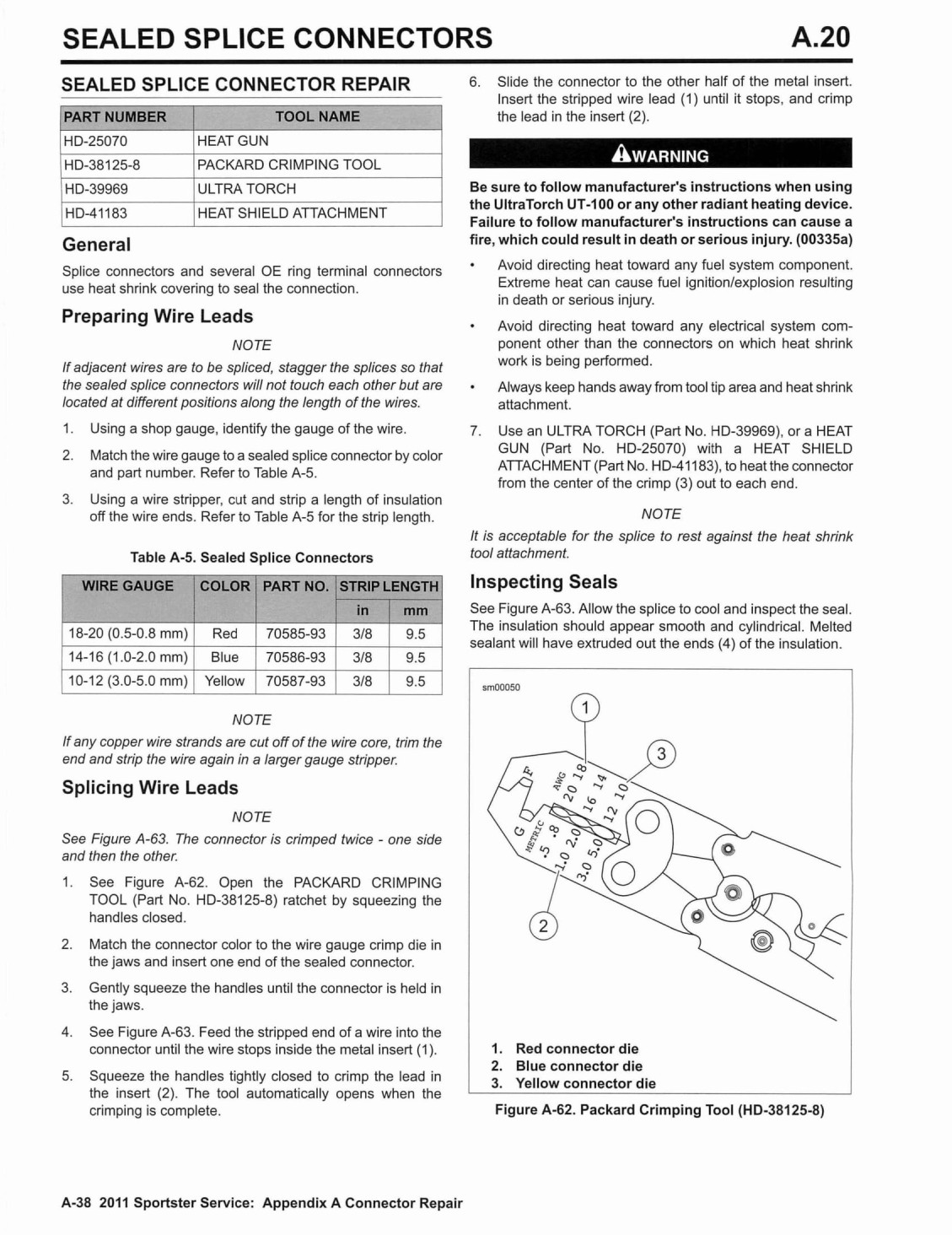

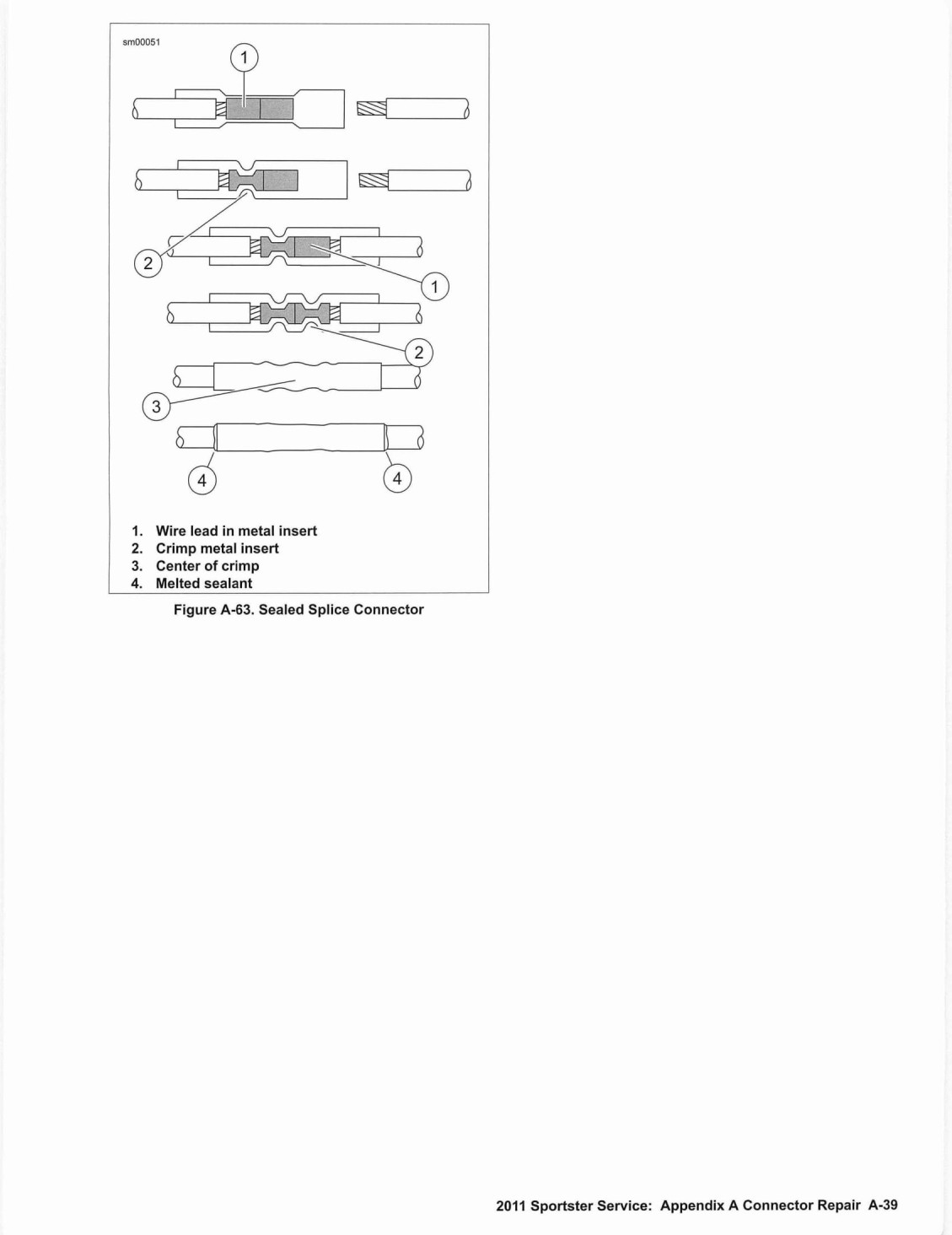

Harley Davidson Sportster models 2011. Service manual - page 41

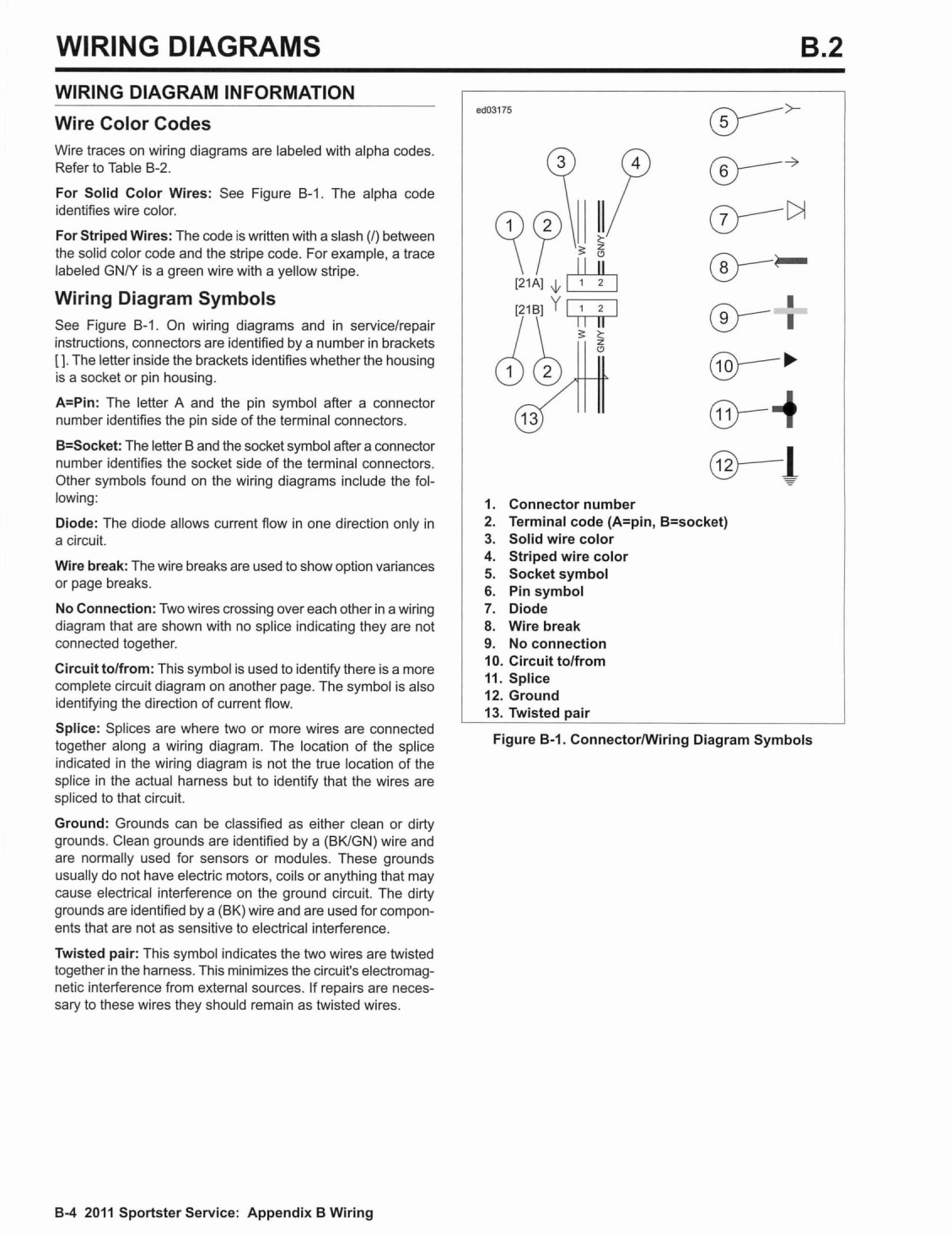

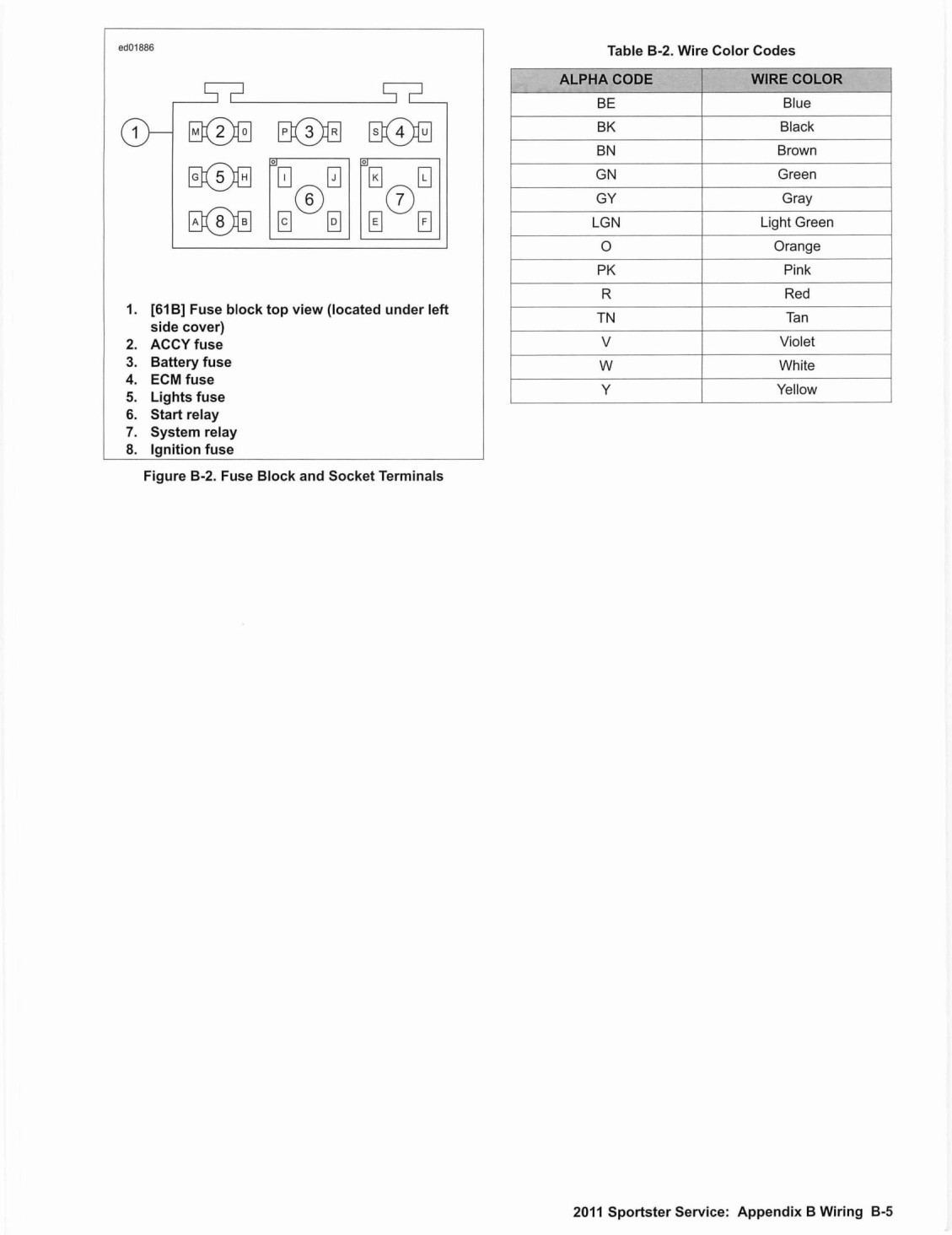

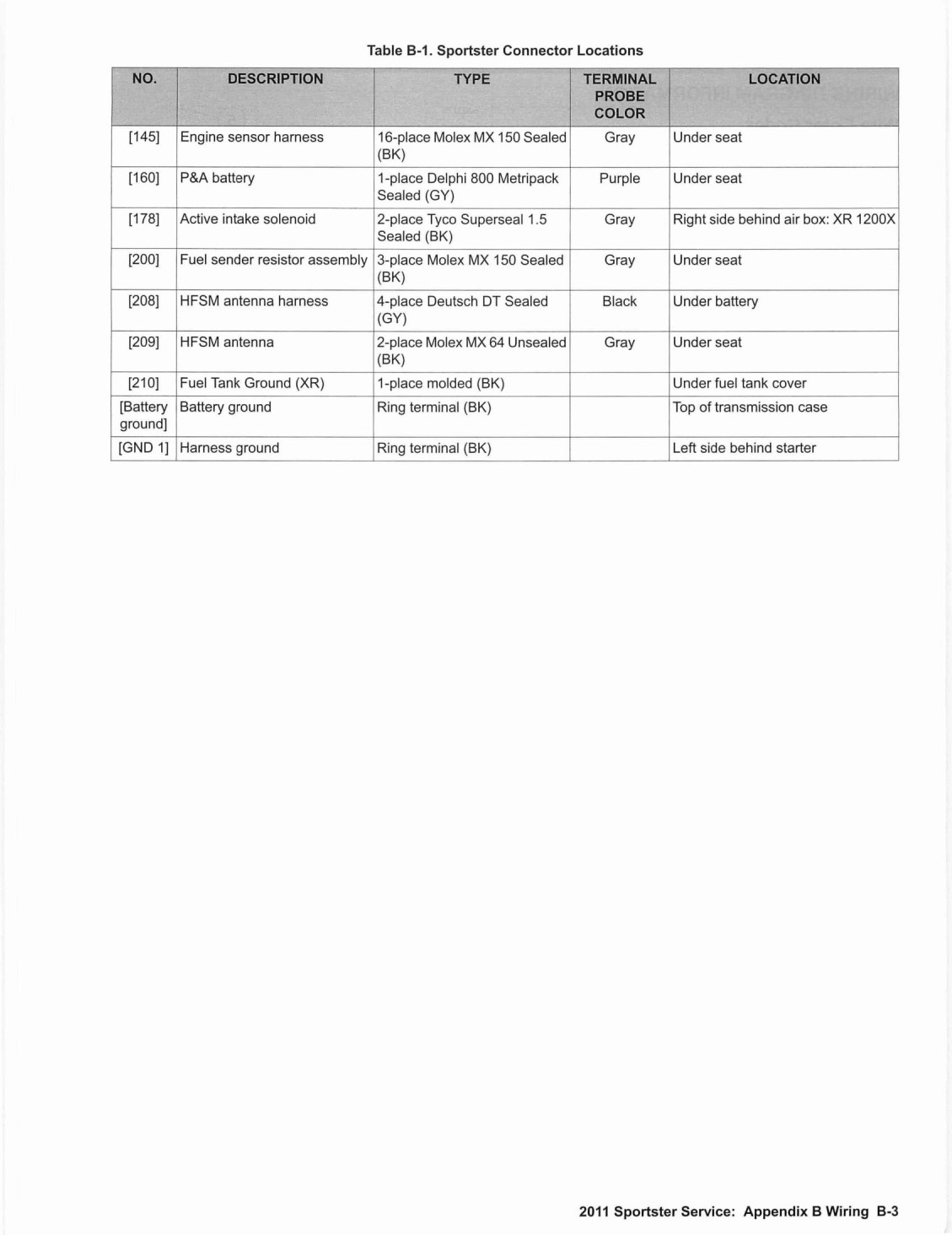

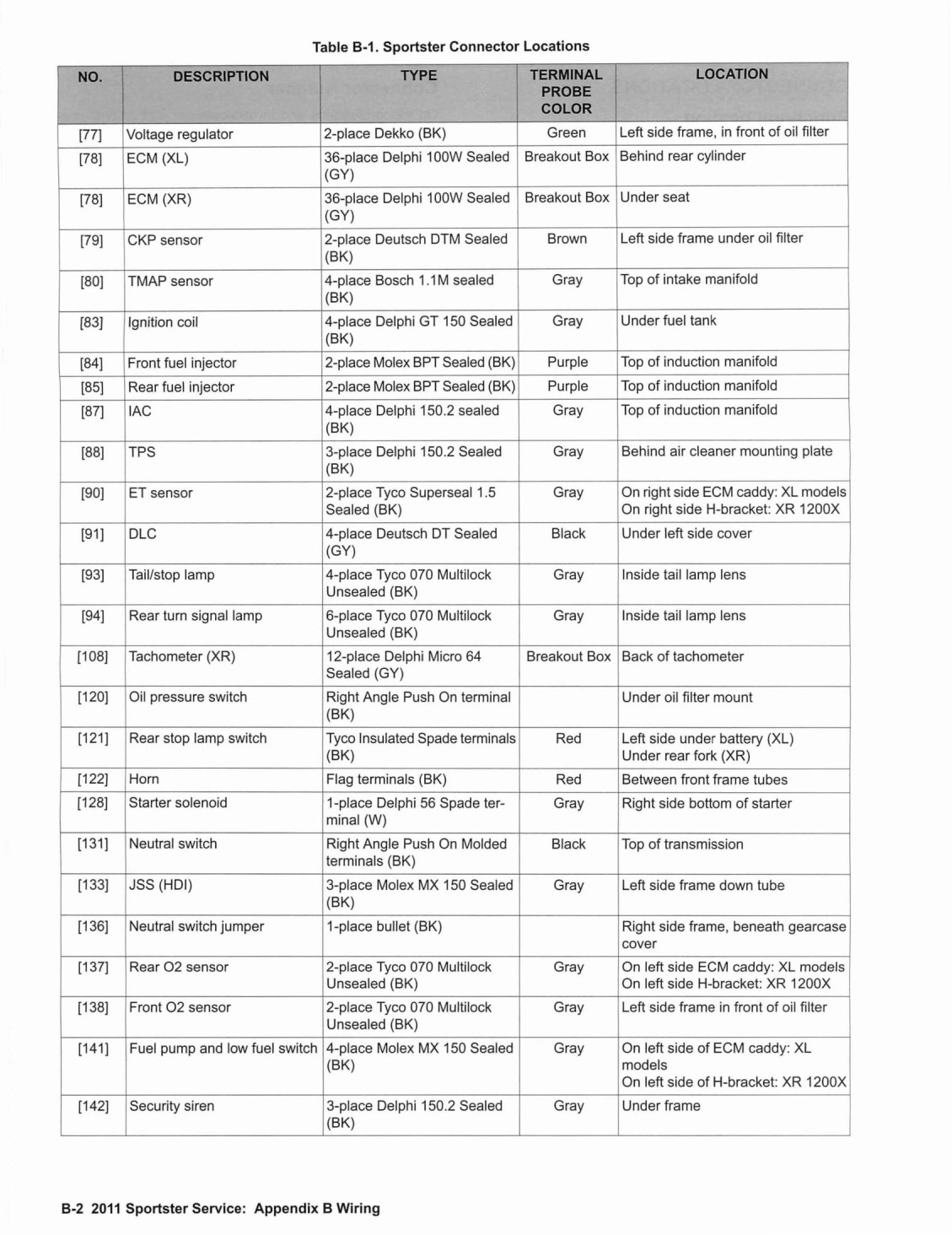

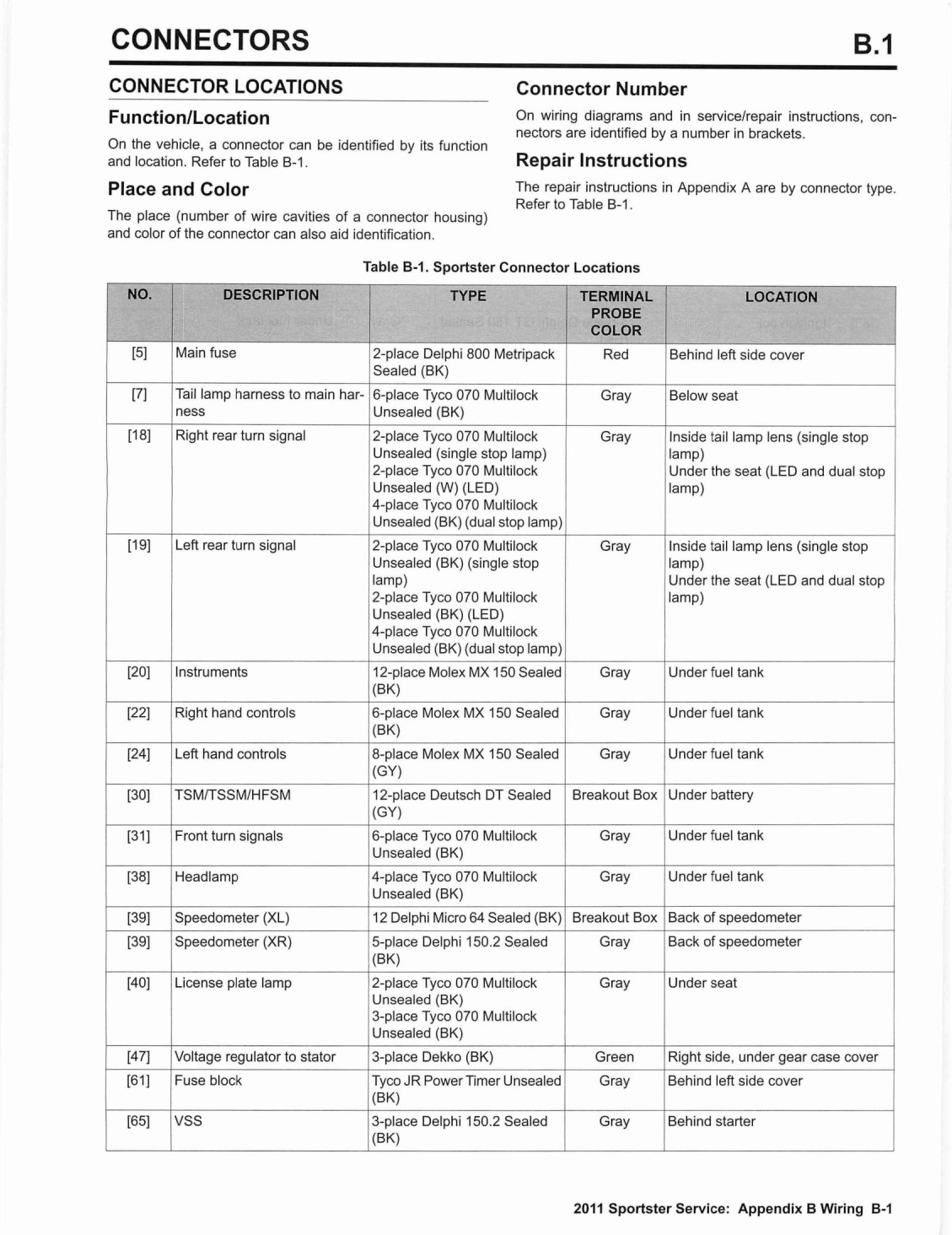

Wiring Diagram List

DIAGRAM LOCATION

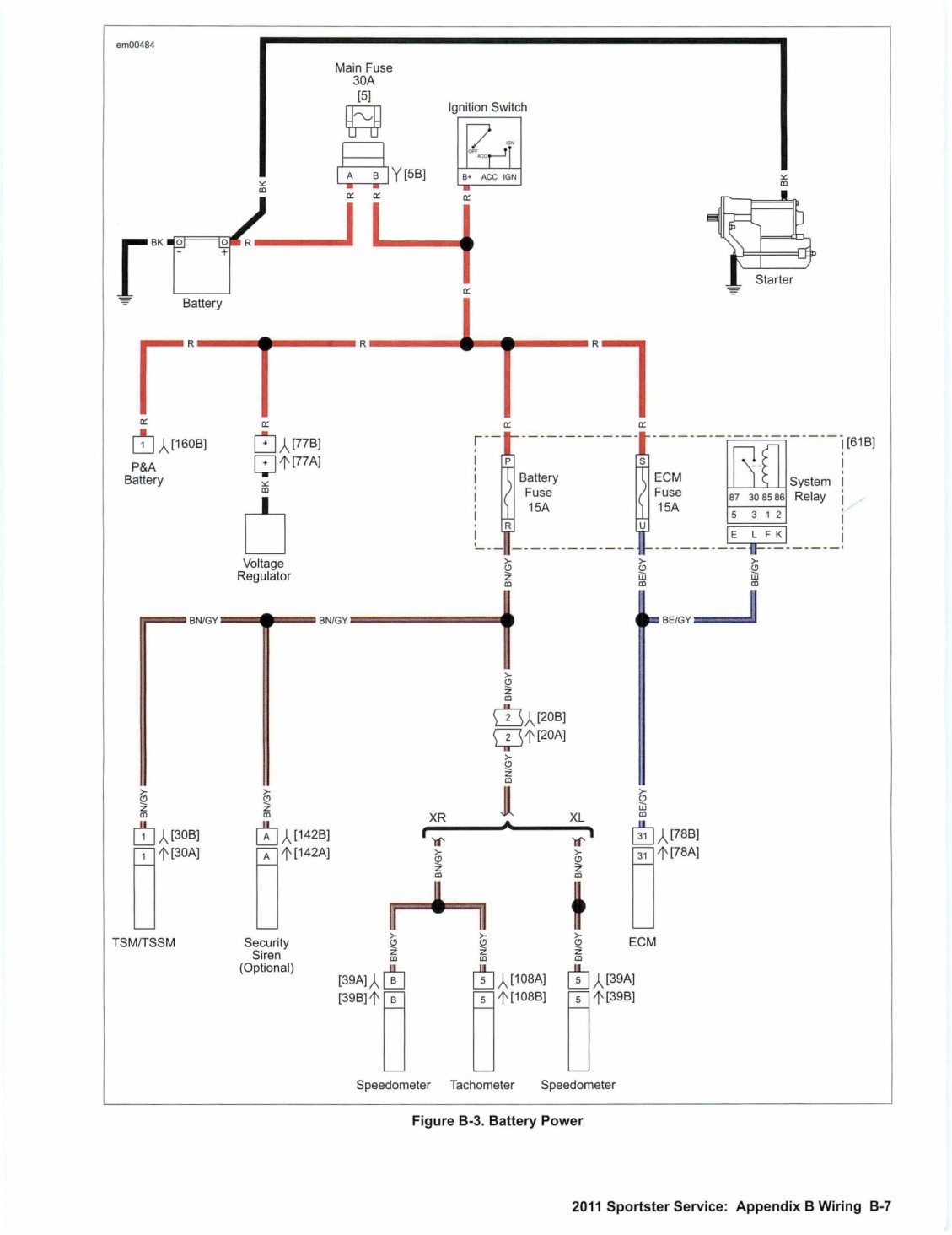

Battery Power Figure B-3

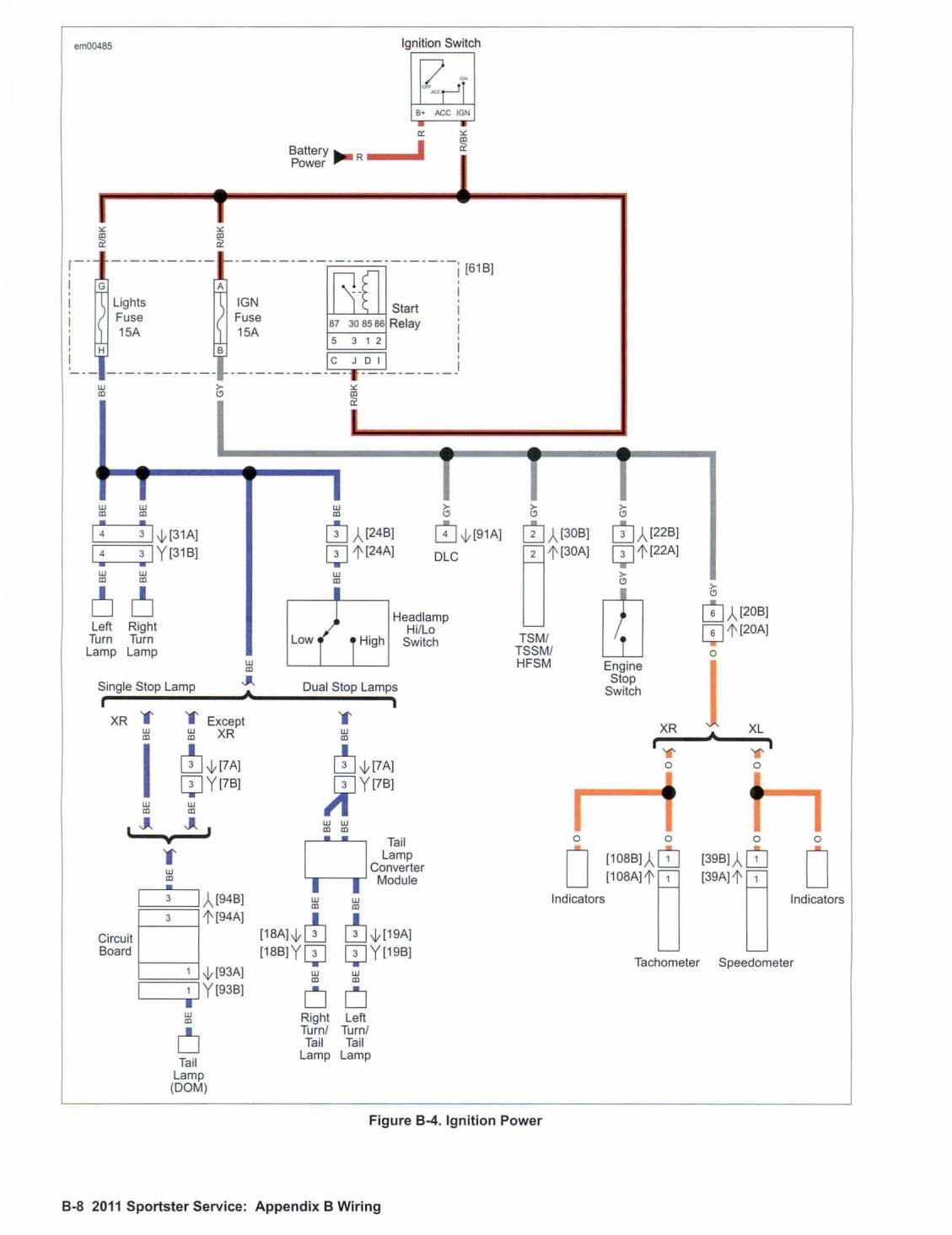

Ignition Power Figure B-4

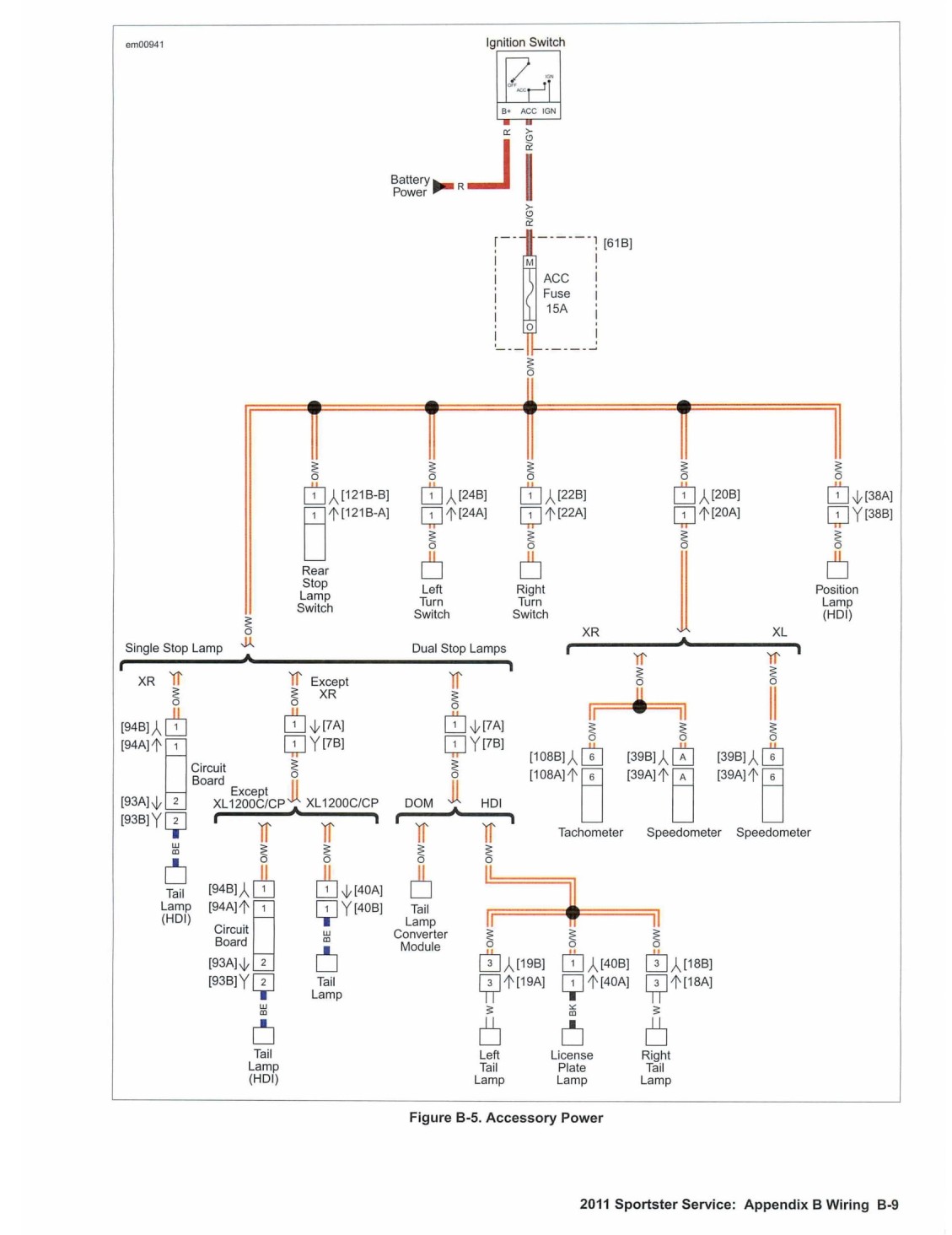

Accessory Power Figure B-5

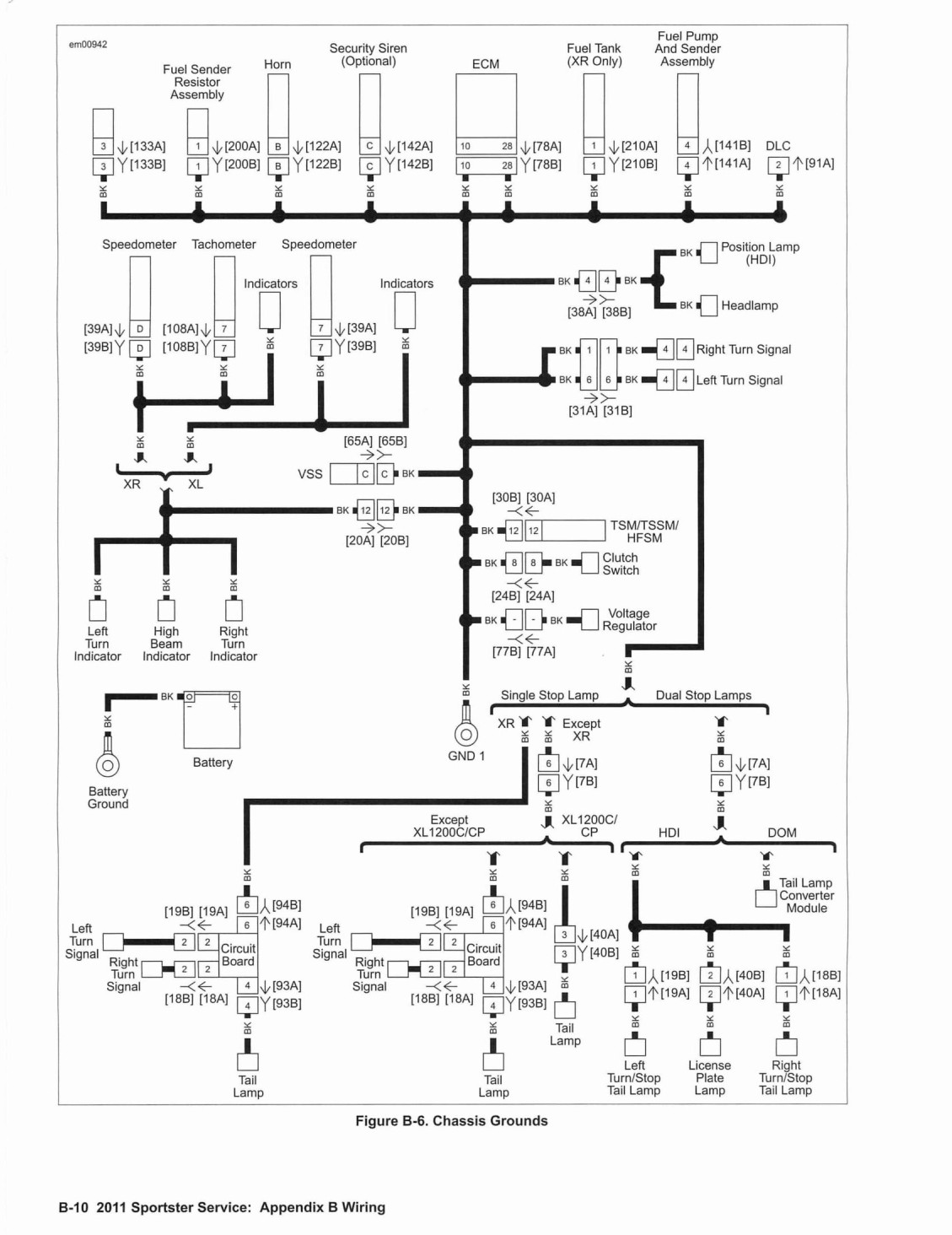

Chassis Grounds Figure B-6

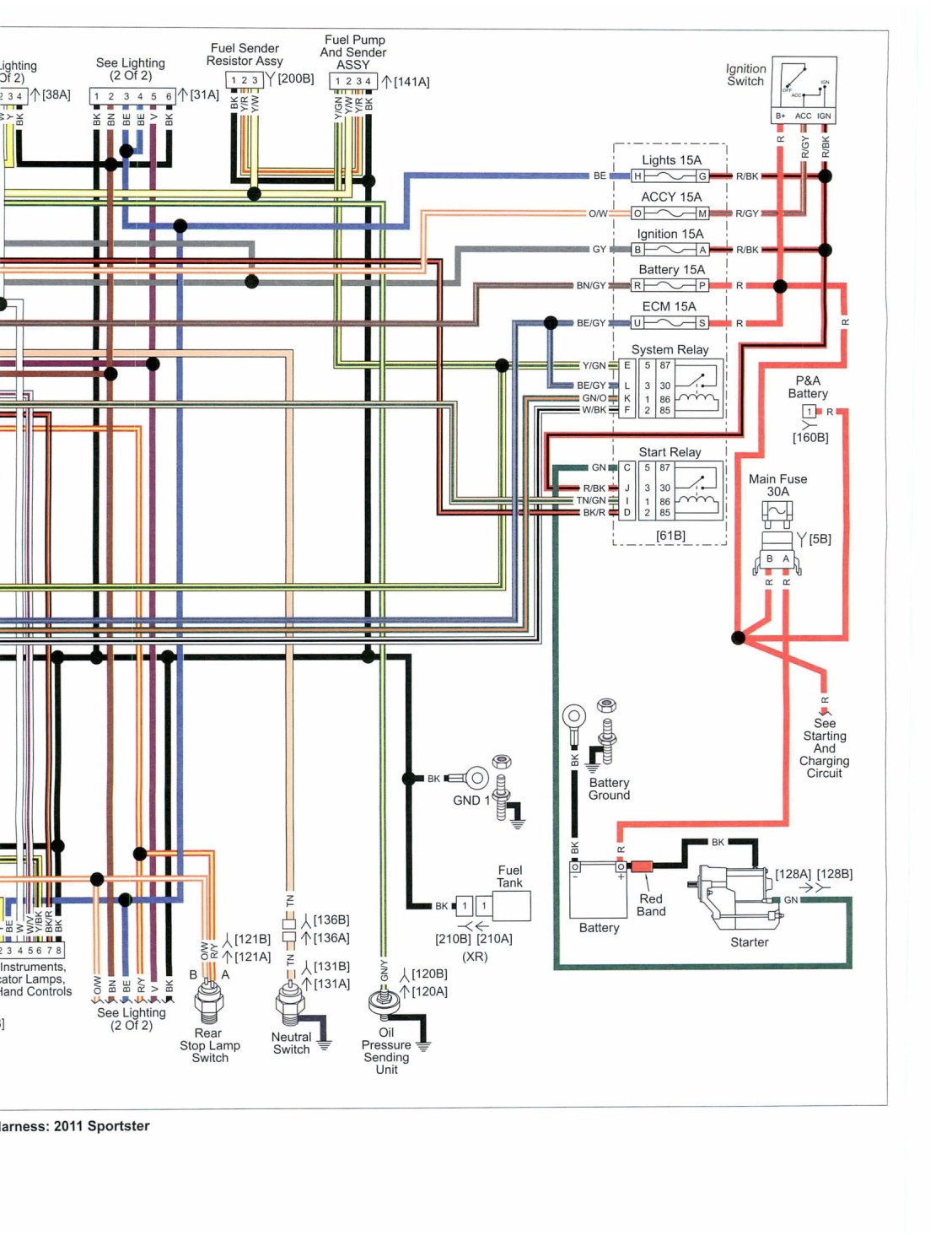

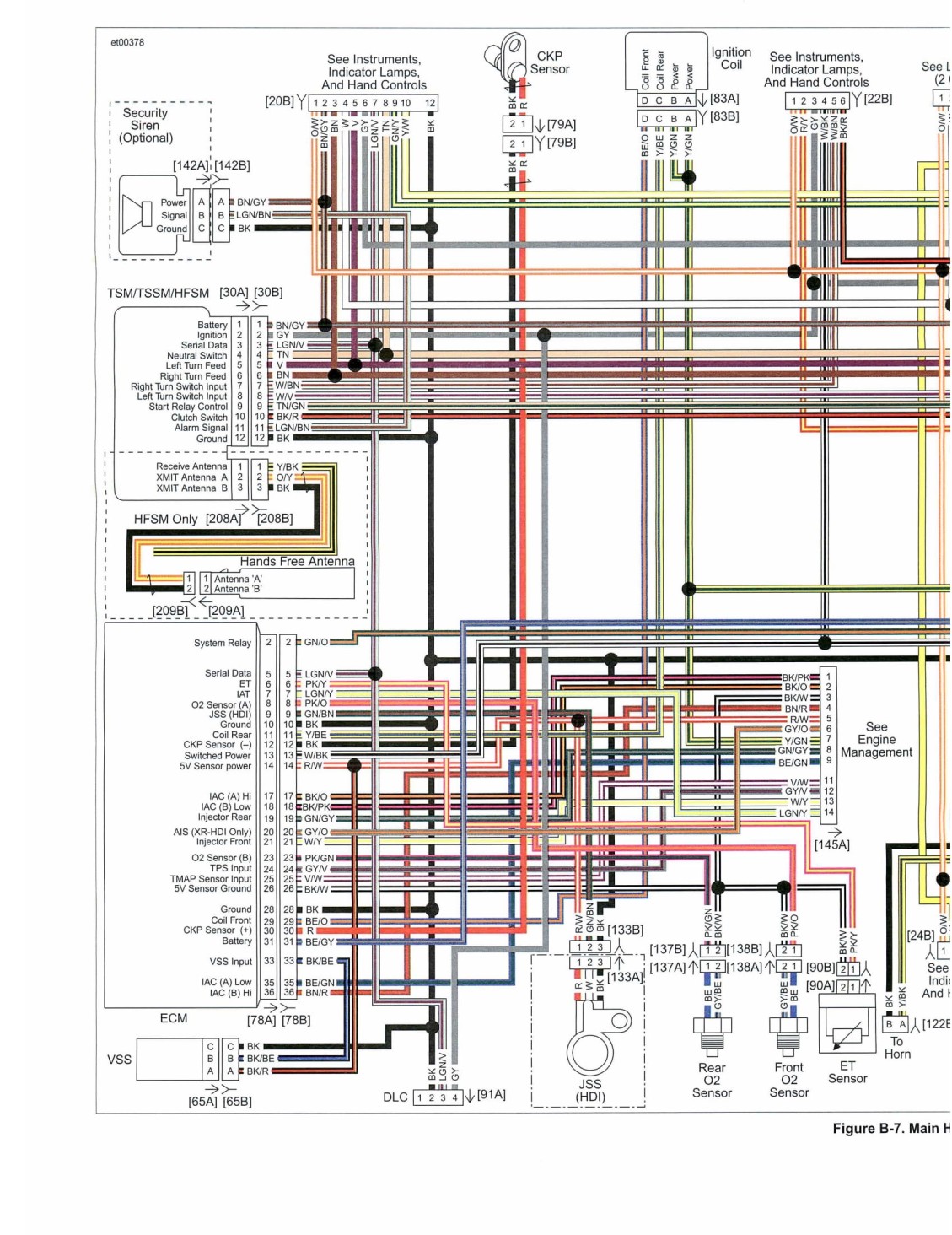

Main Harness: 2011 Sportster Figure B-7

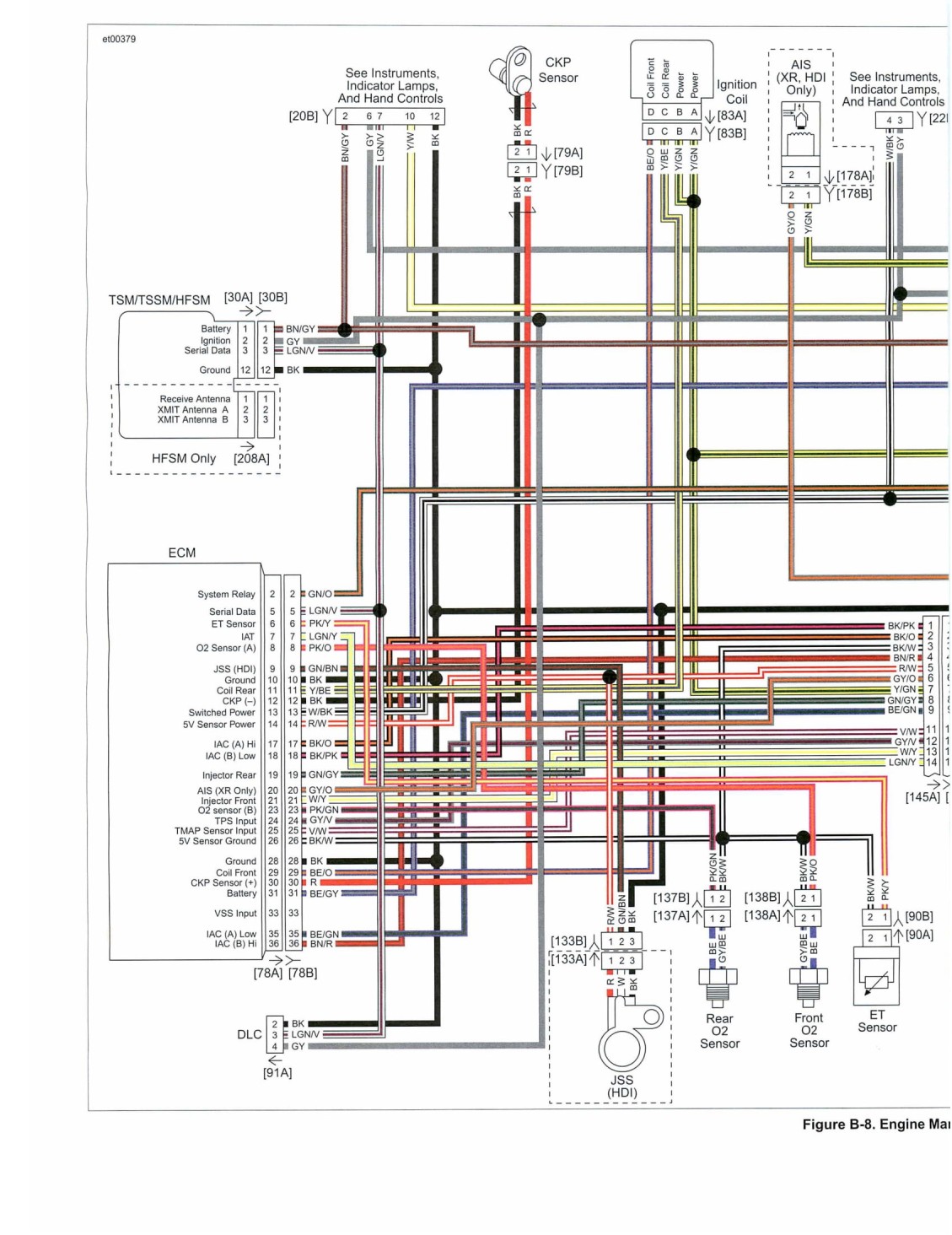

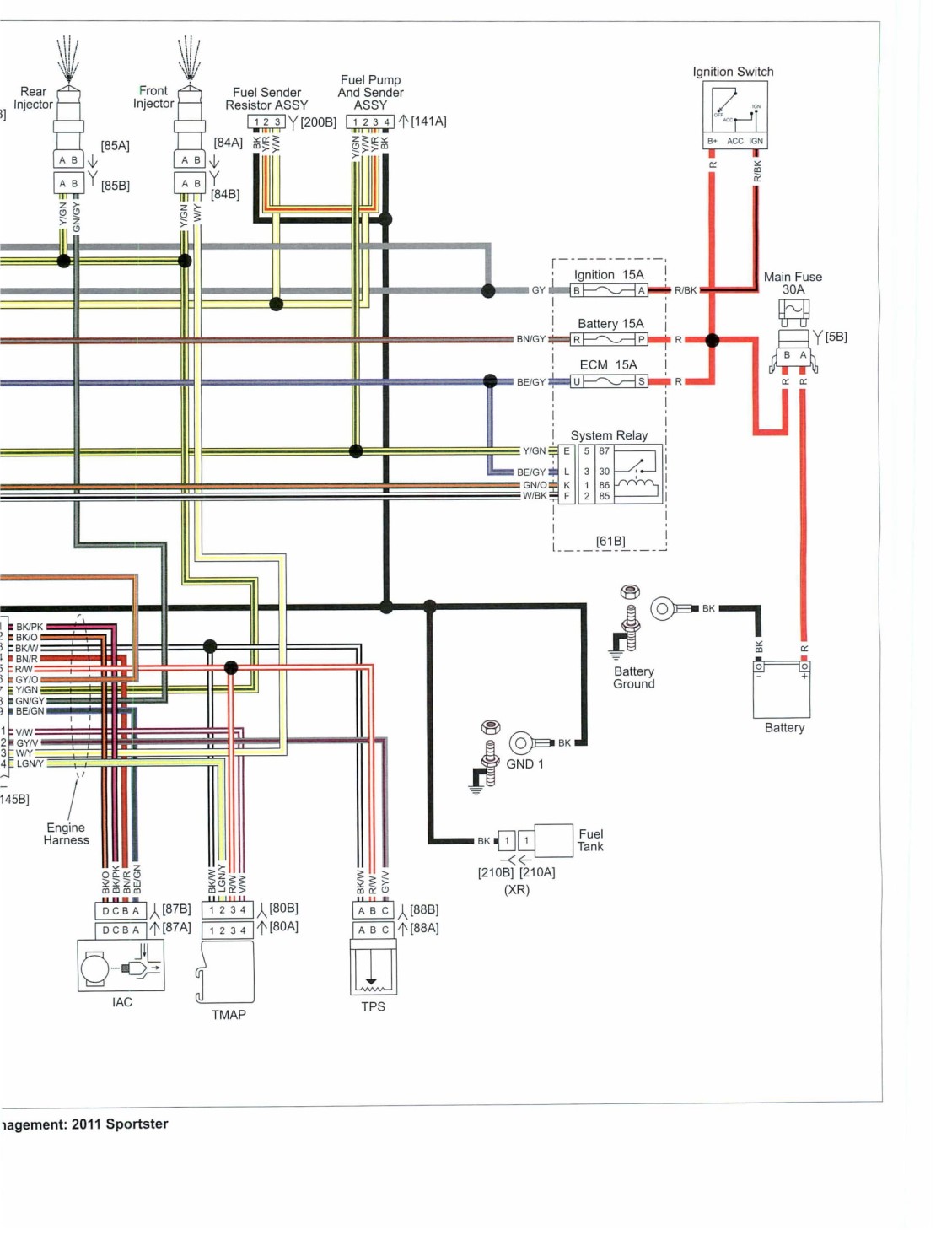

Engine Management: 2011 Sportster Figure B-8
Starting and Charging Circuit: 2011 Sportster Figure B-9
Lighting (1 of 2): 2011 Sportster Figure B-10
Lighting (2 of 2): 2011 Sportster Figure B-11
Instrument, Indicators, and Hand Controls: 2011 Sportster Figure B-12
Security Circuit: 2011 Sportster Figure B-13
Security Circuit with Anti-Theft Tracking Module: 2011 Sportster Figure B-14
