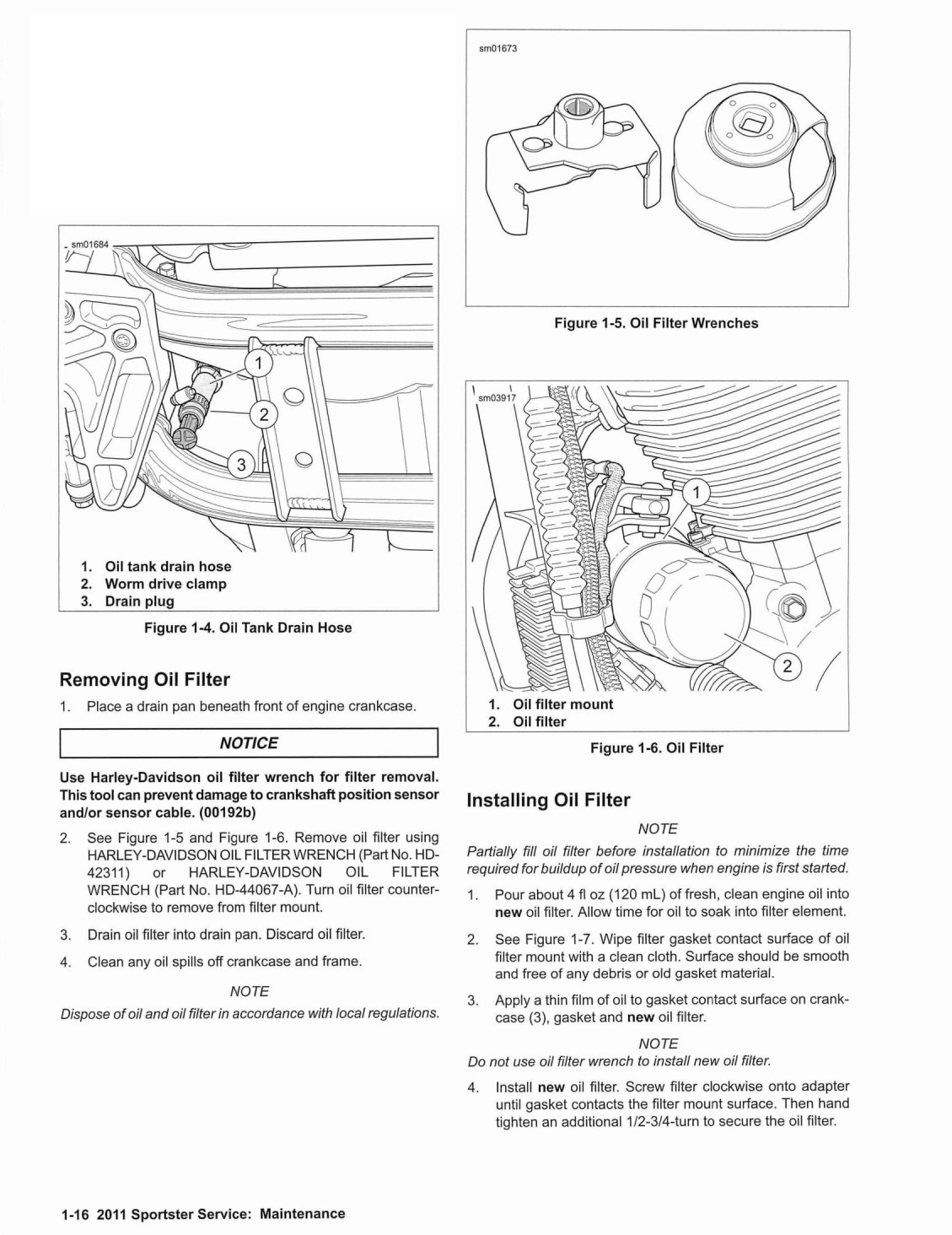

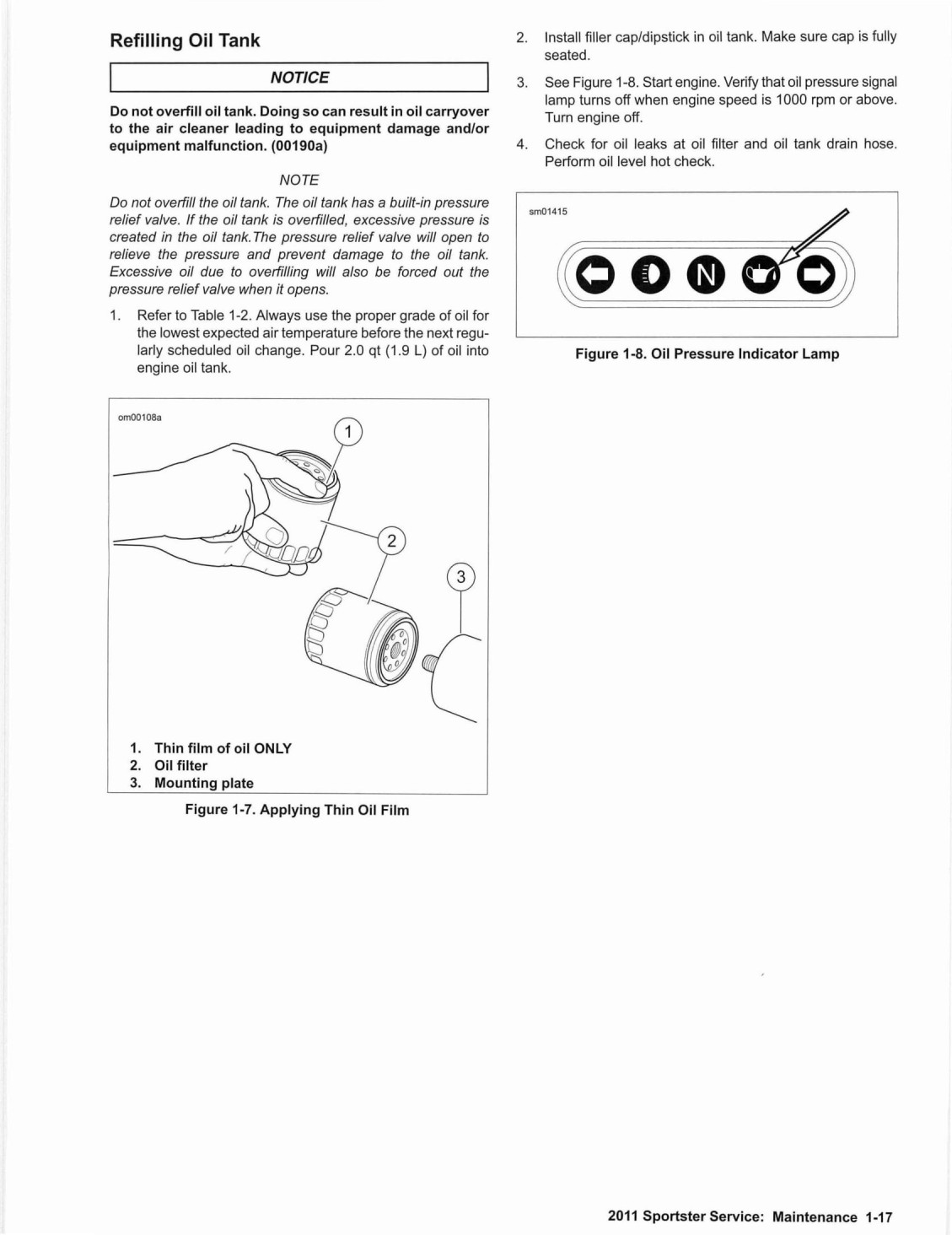

3. See Figure 1-4. Place a suitable container directly under the drain hose (1) at the bottom rear of the engine crankcase. The container must be able to hold approximately 3.0 qt (2.8 L).

4. Loosen worm drive clamp (2) and pull drain plug (3) from end of drain hose. Completely drain engine oil from oil tank. It is not necessary to drain engine crankcase.

5. Install drain plug into end of drain hose and tighten worm drive clamp securely.

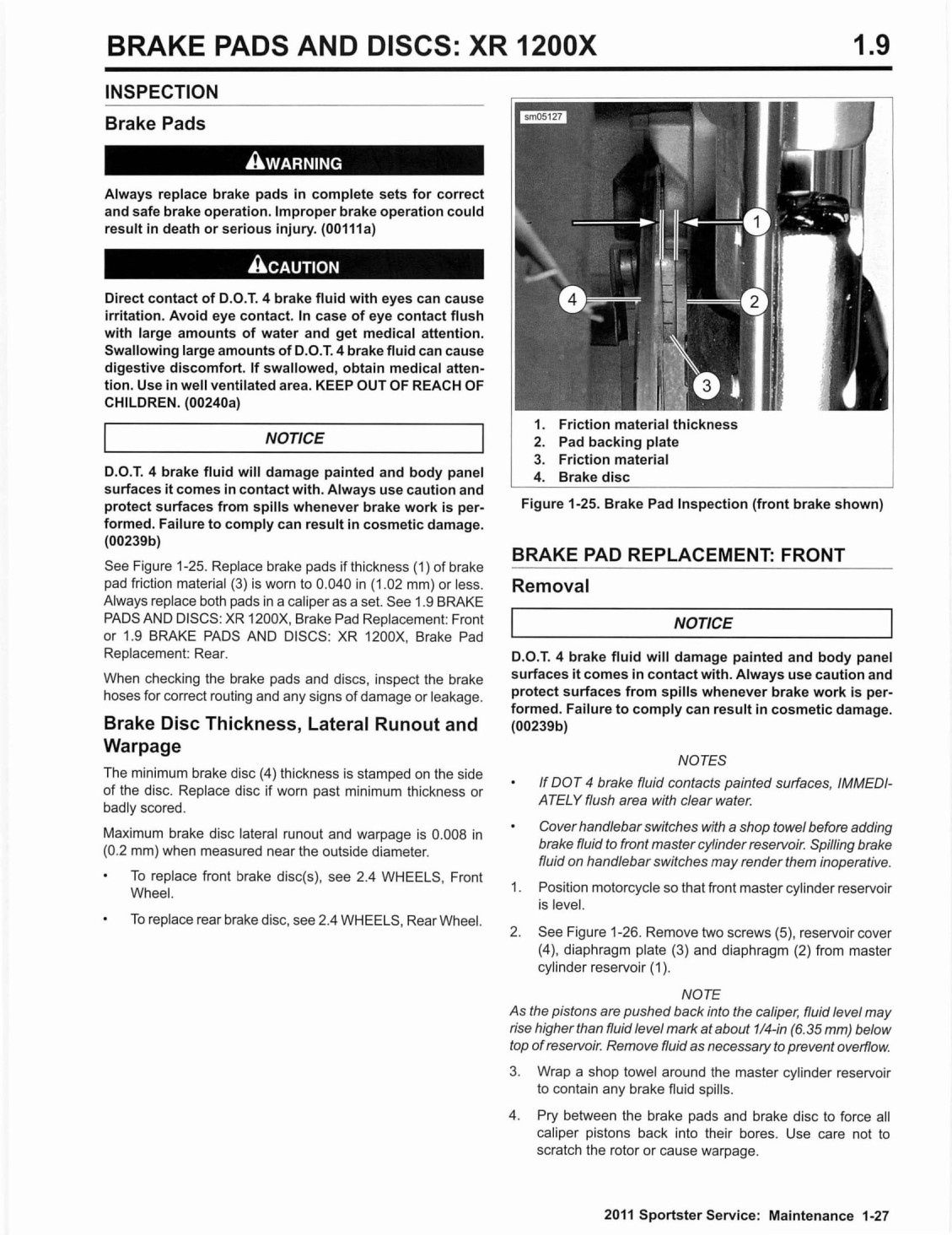

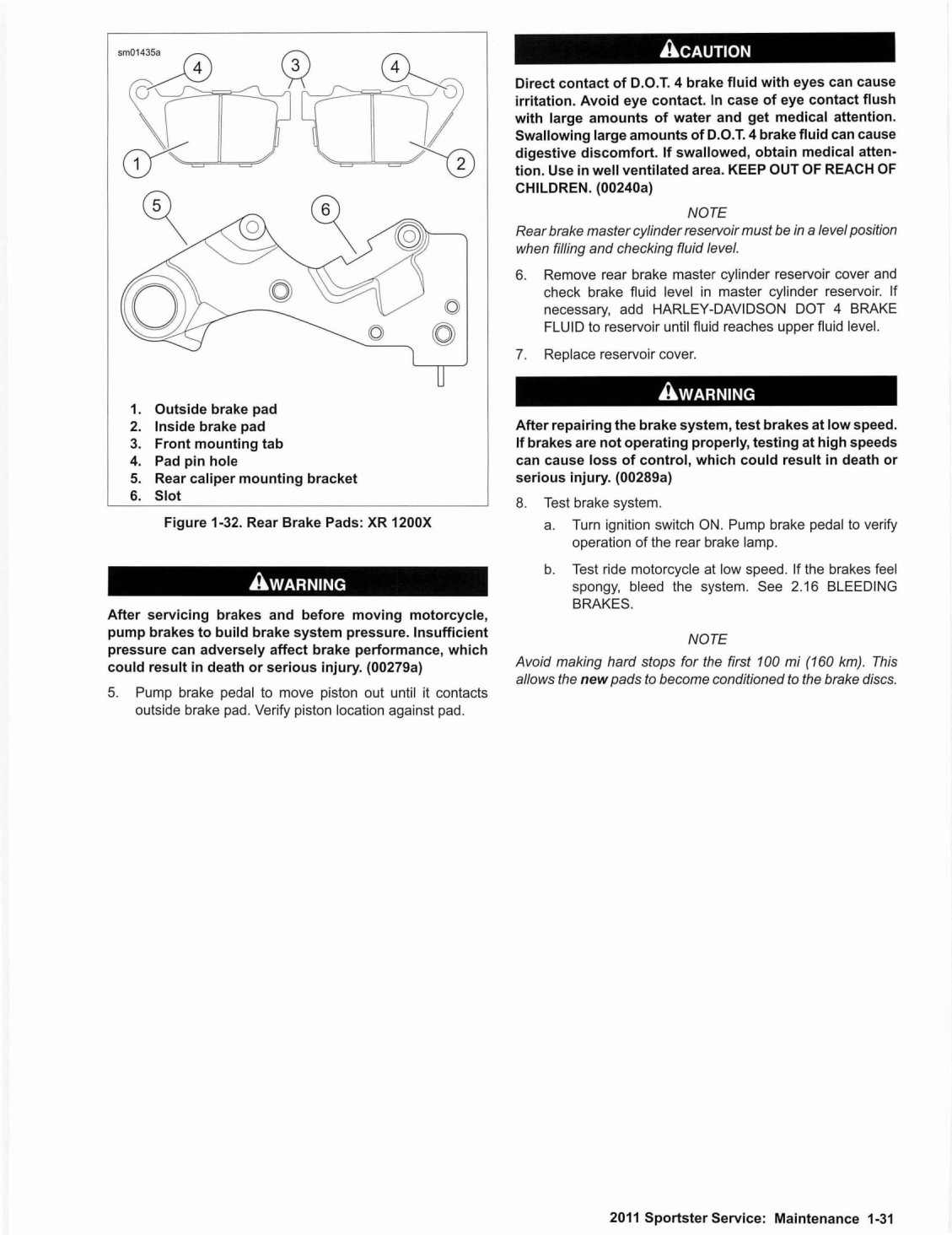

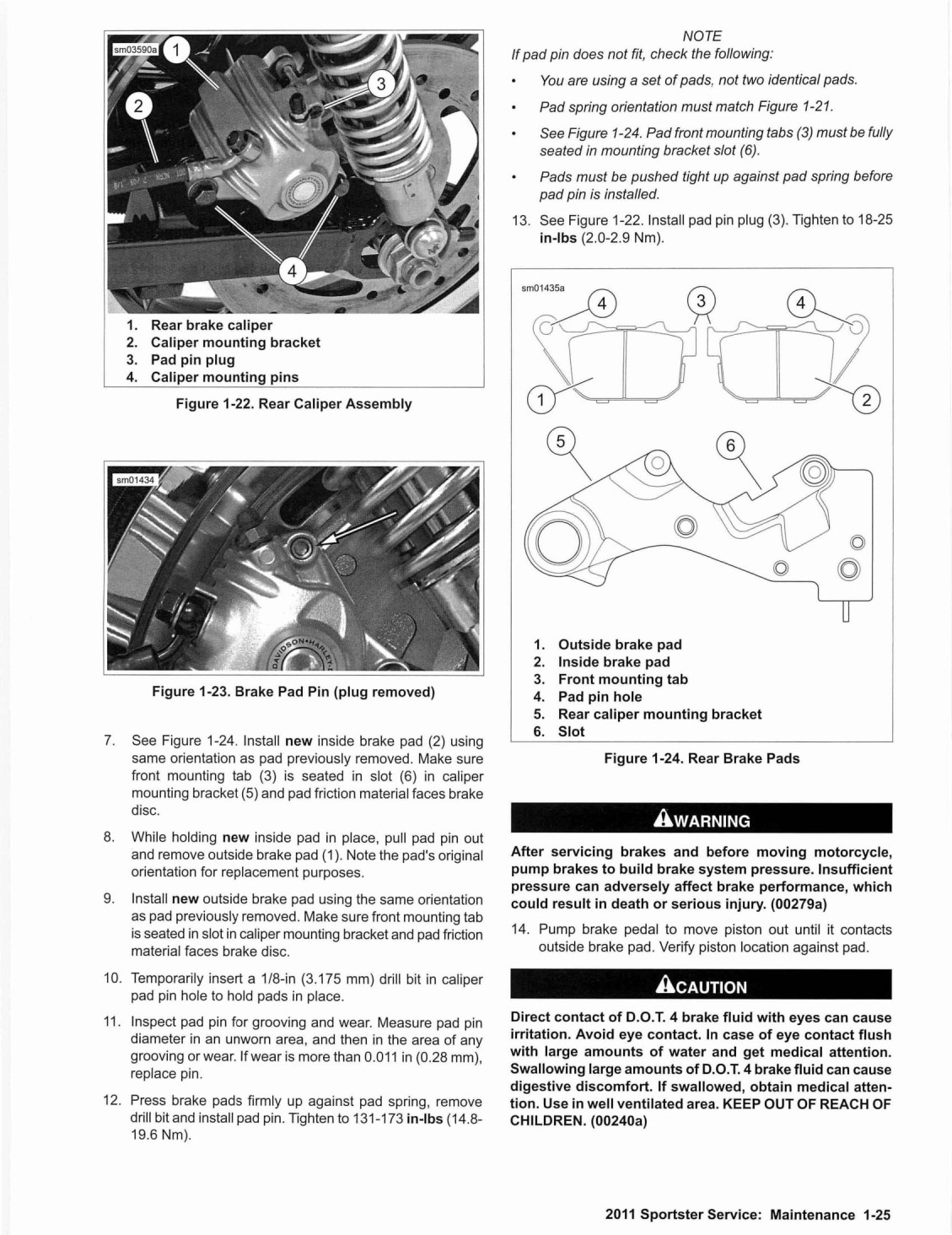

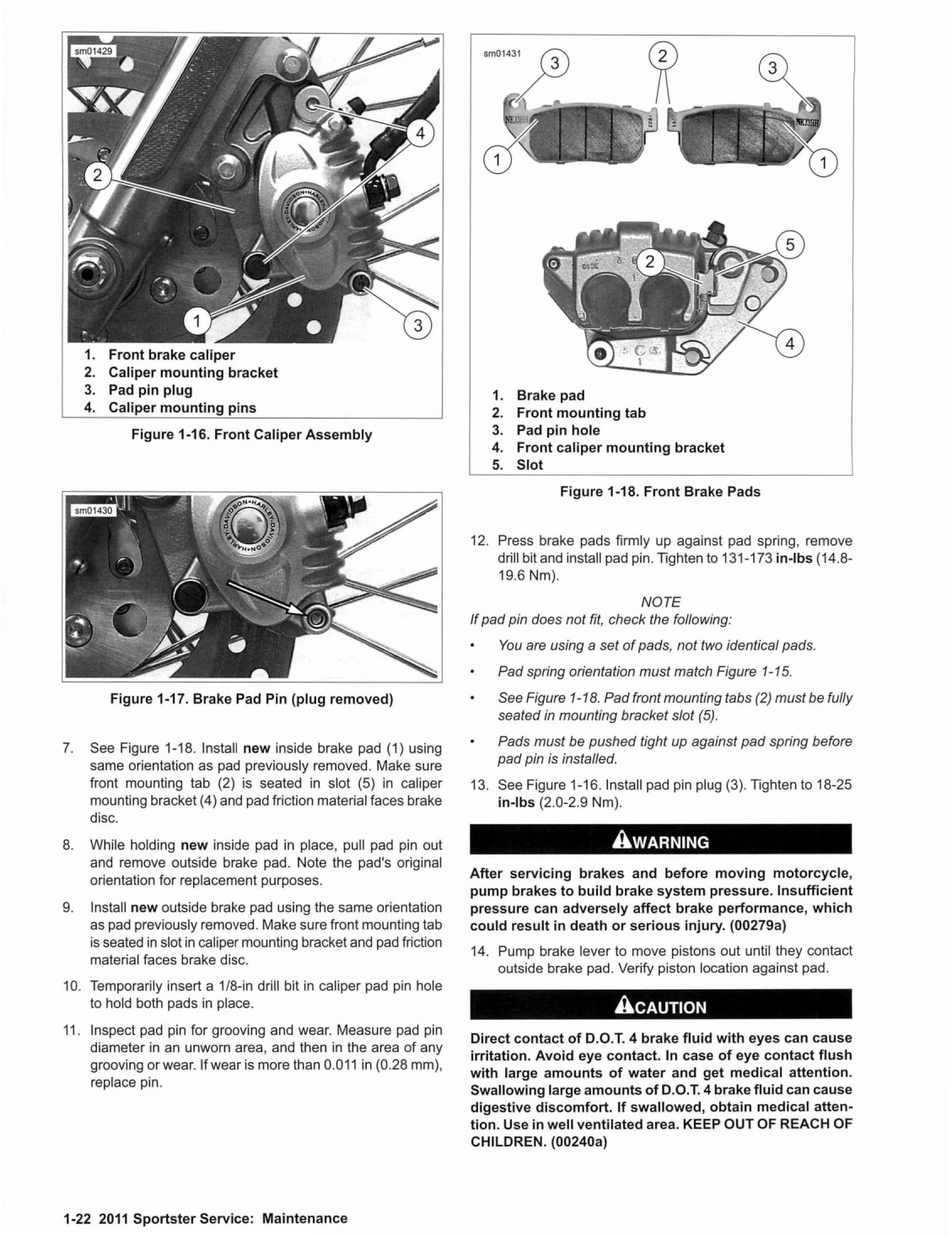

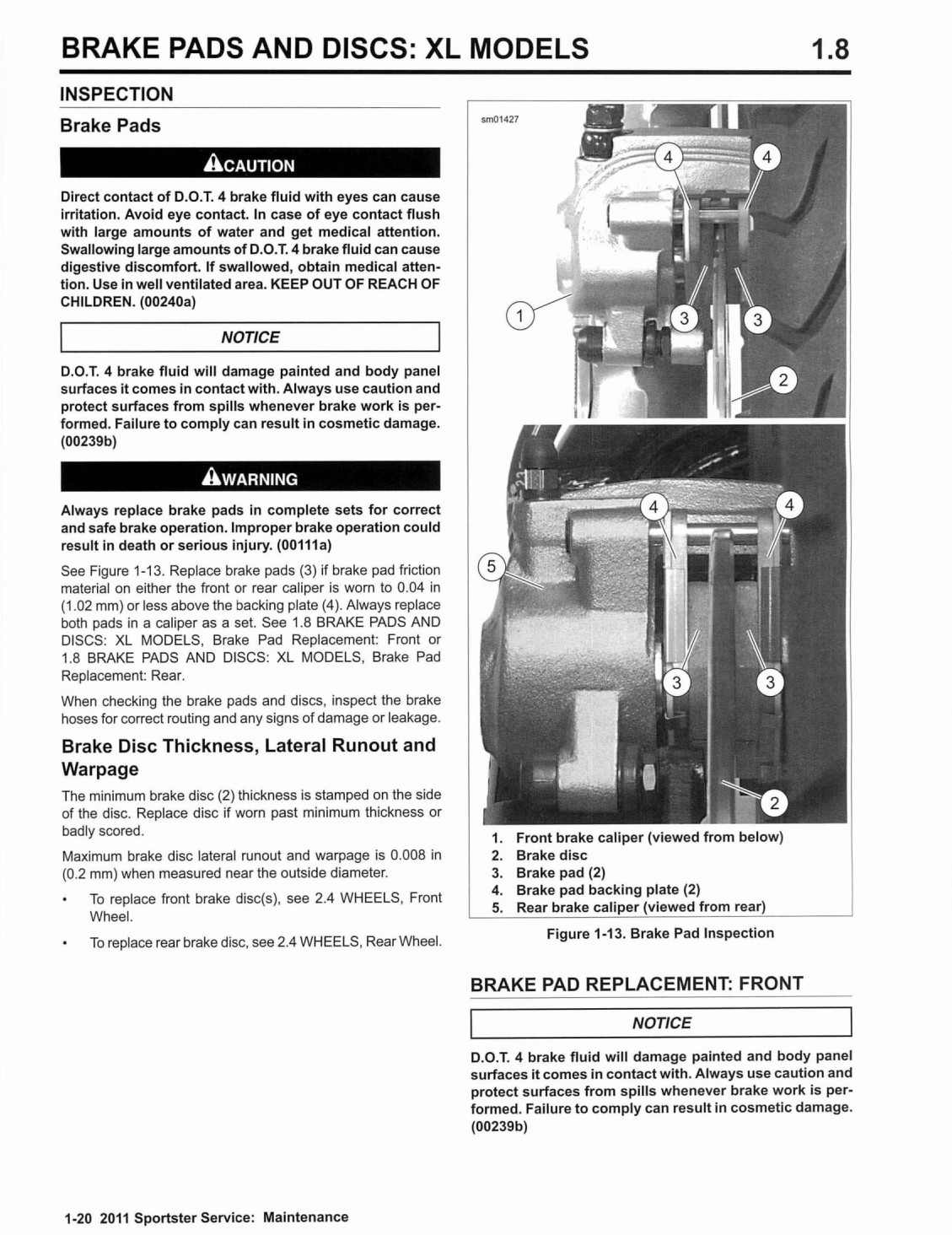

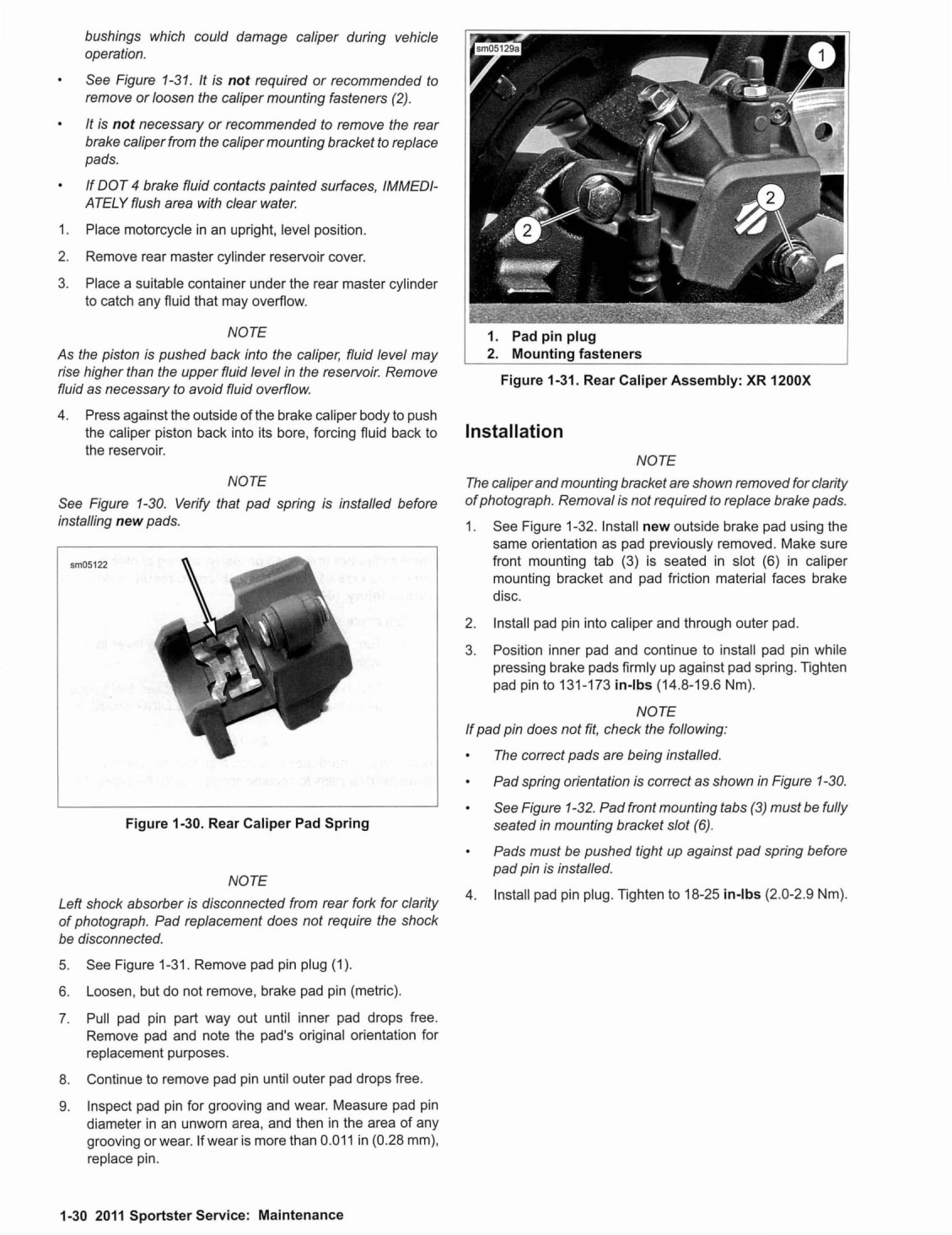

BRAKES
GENERAL

The front and rear brakes are fully hydraulic disc brake systems that require little maintenance.
^WARNING
Use denatured alcohol to clean brake system components.

Do not use mineral-based solvents (such as gasoline or 3. paint thinner), which will deteriorate rubber parts even after assembly. Deterioration of these components can cause brake failure, which could result in death or serious injury. (00291a)
Acaution
Direct contact of D.O.T. 4 brake fluid with eyes can cause irritation. Avoid eye contact. In case of eye contact flush with large amounts of water and get medical attention. Swallowing large amounts of D.O.T. 4 brake fluid can cause digestive discomfort. If swallowed, obtain medical attention. Use in well ventilated area. KEEP OUT OF REACH OF CHILDREN. (00240a)
NOTICE
D.O.T. 4 brake fluid will damage painted and body panel surfaces it comes in contact with. Always use caution and protect surfaces from spills whenever brake work is performed. Failure to comply can result in cosmetic damage. (00239b)

NOTES

If DOT 4 brake fluid contacts painted surfaces, IMMEDIATELY flush area with clear water.

Cover handlebar switches with a shop towel before adding brake fluid to front master cylinder reservoir. Spilling brake fluid on handlebar switches may render them inoperative.
^WARNING
After repairing the brake system, test brakes at low speed. If brakes are not operating properly, testing at high speeds can cause loss of control, which could result in death or serious injury. (00289a)

FLUID LEVEL

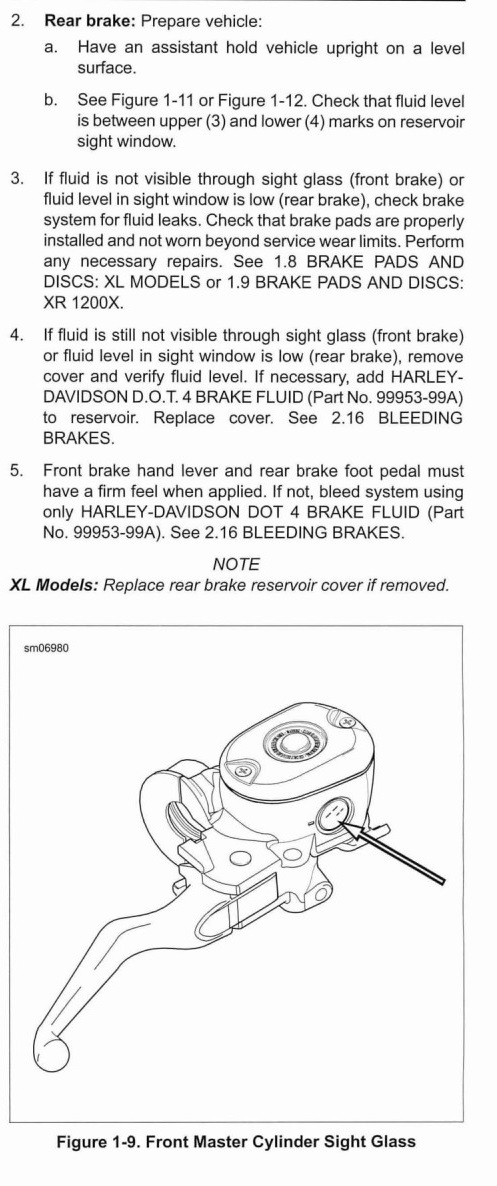

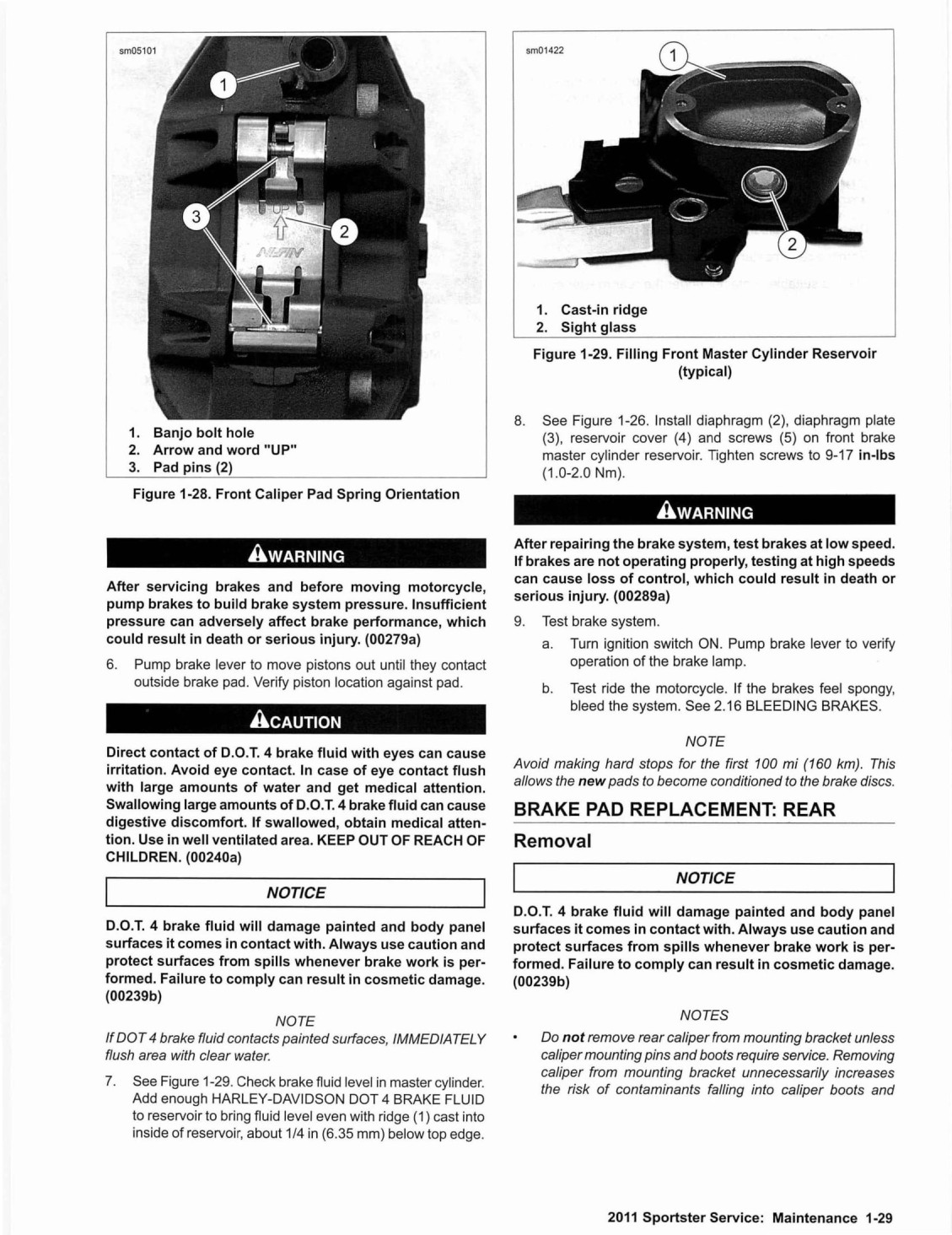

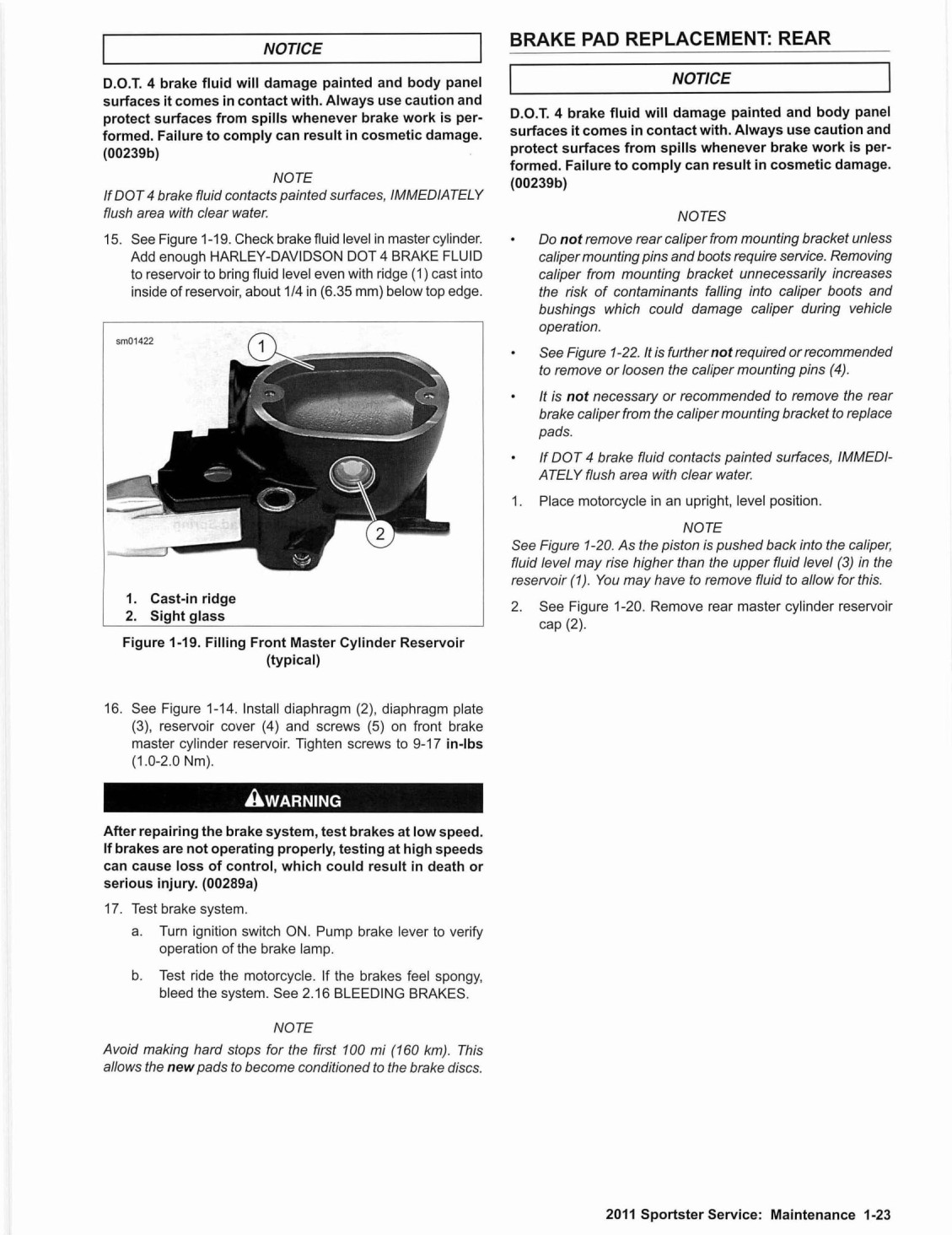

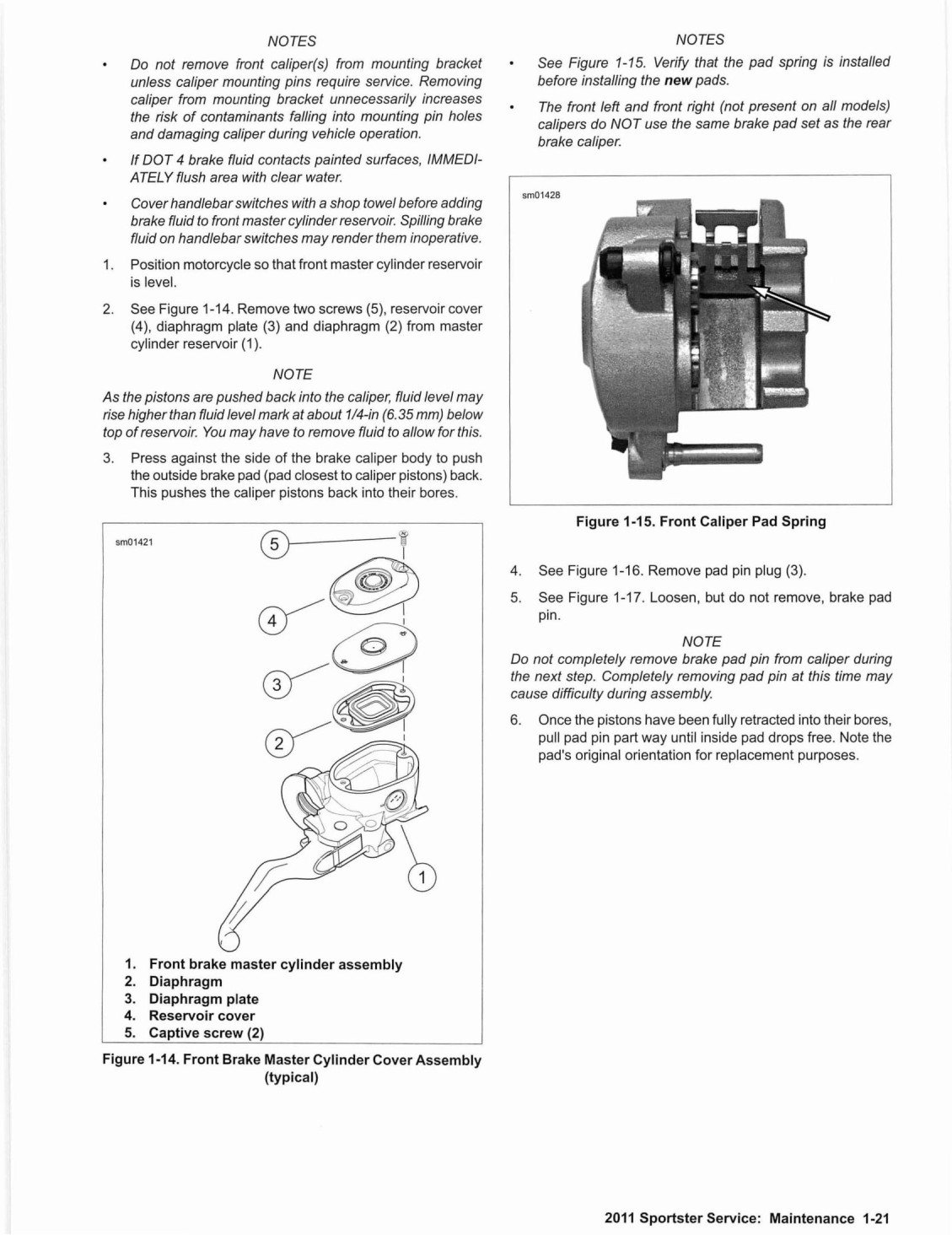

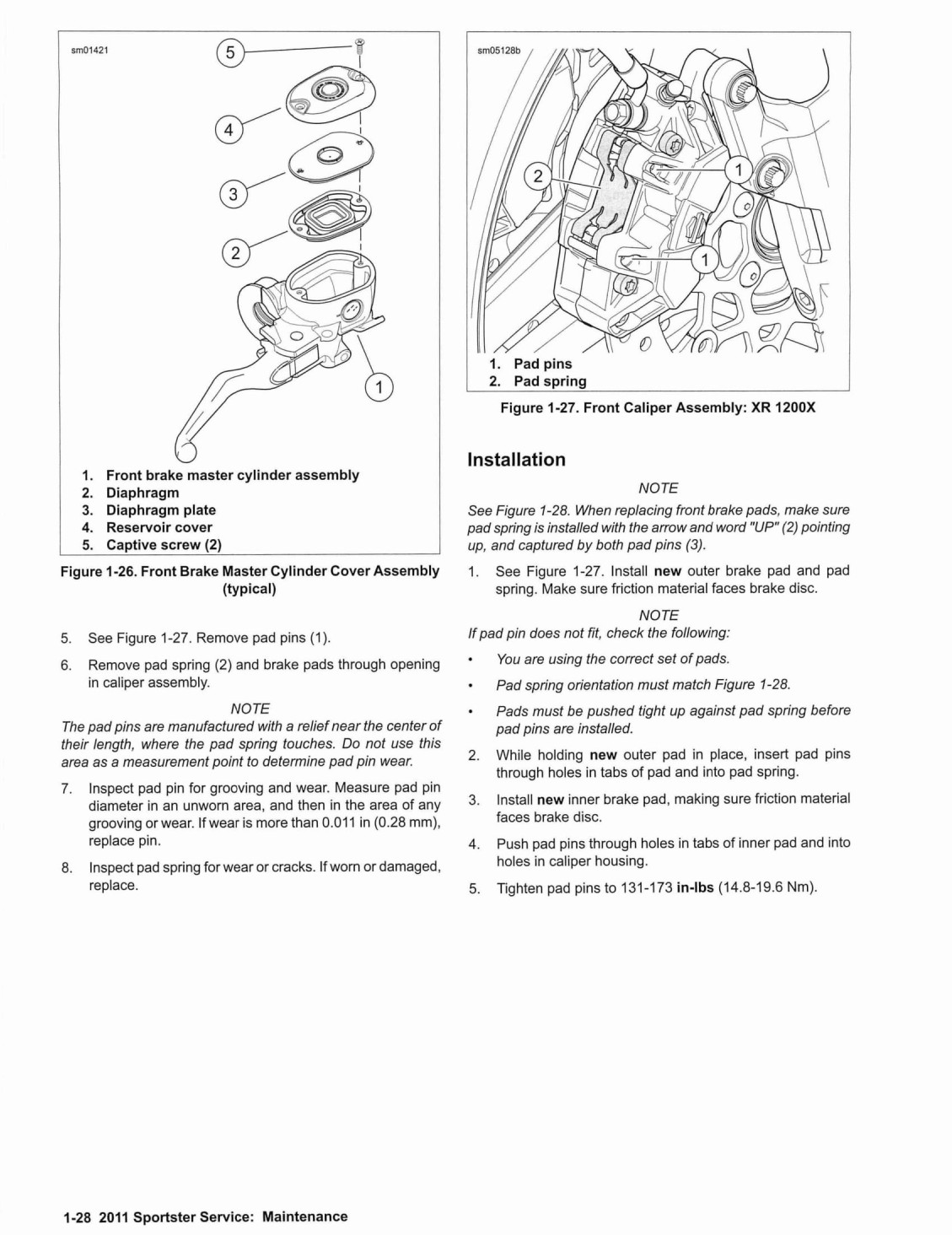

1. Front brake: Position vehicle on a flat level surface. Turn handlebar so front brake master cylinder is approximately level. See Figure 1-9. View reservoir sight glass and verify fluid presence.

NOTE

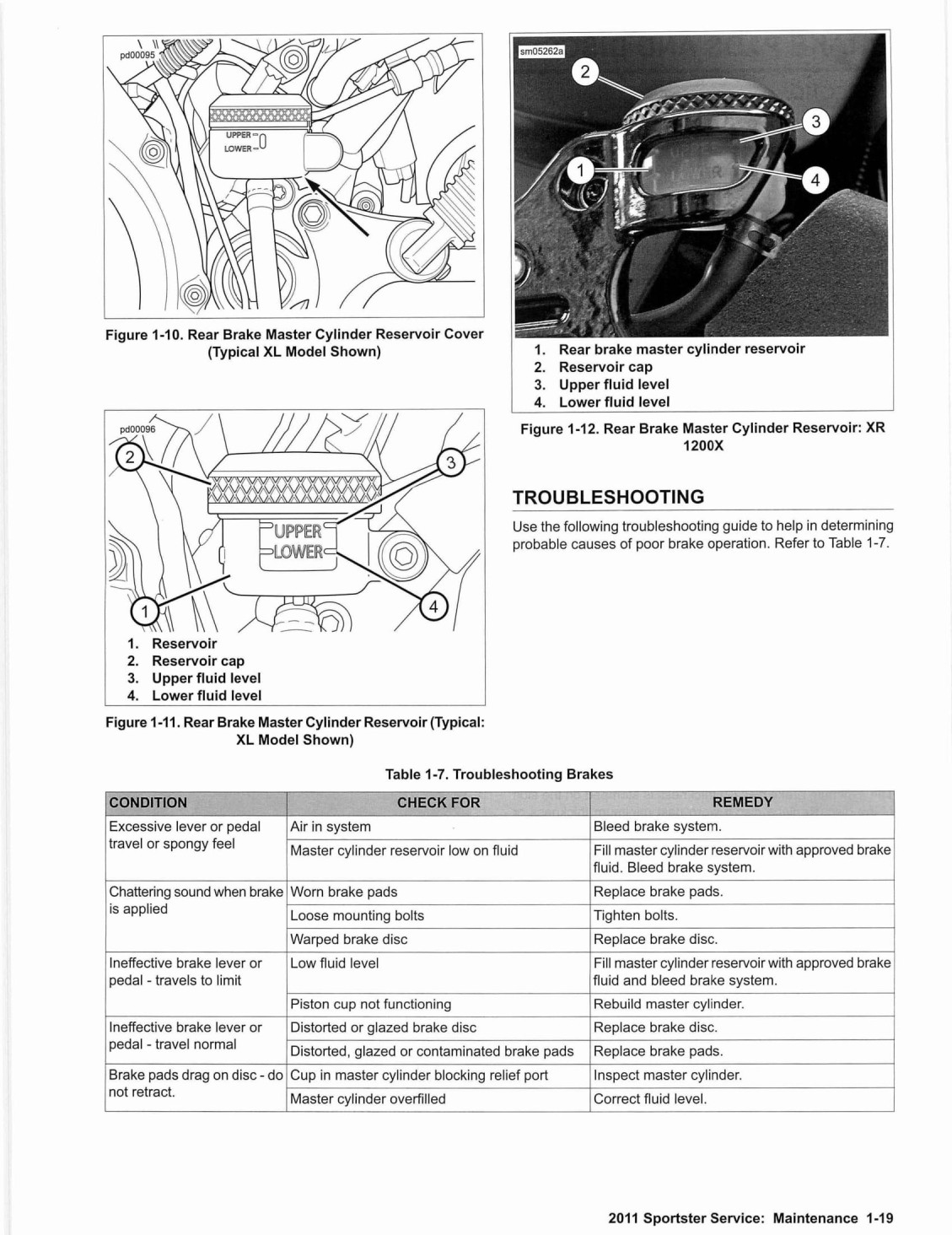

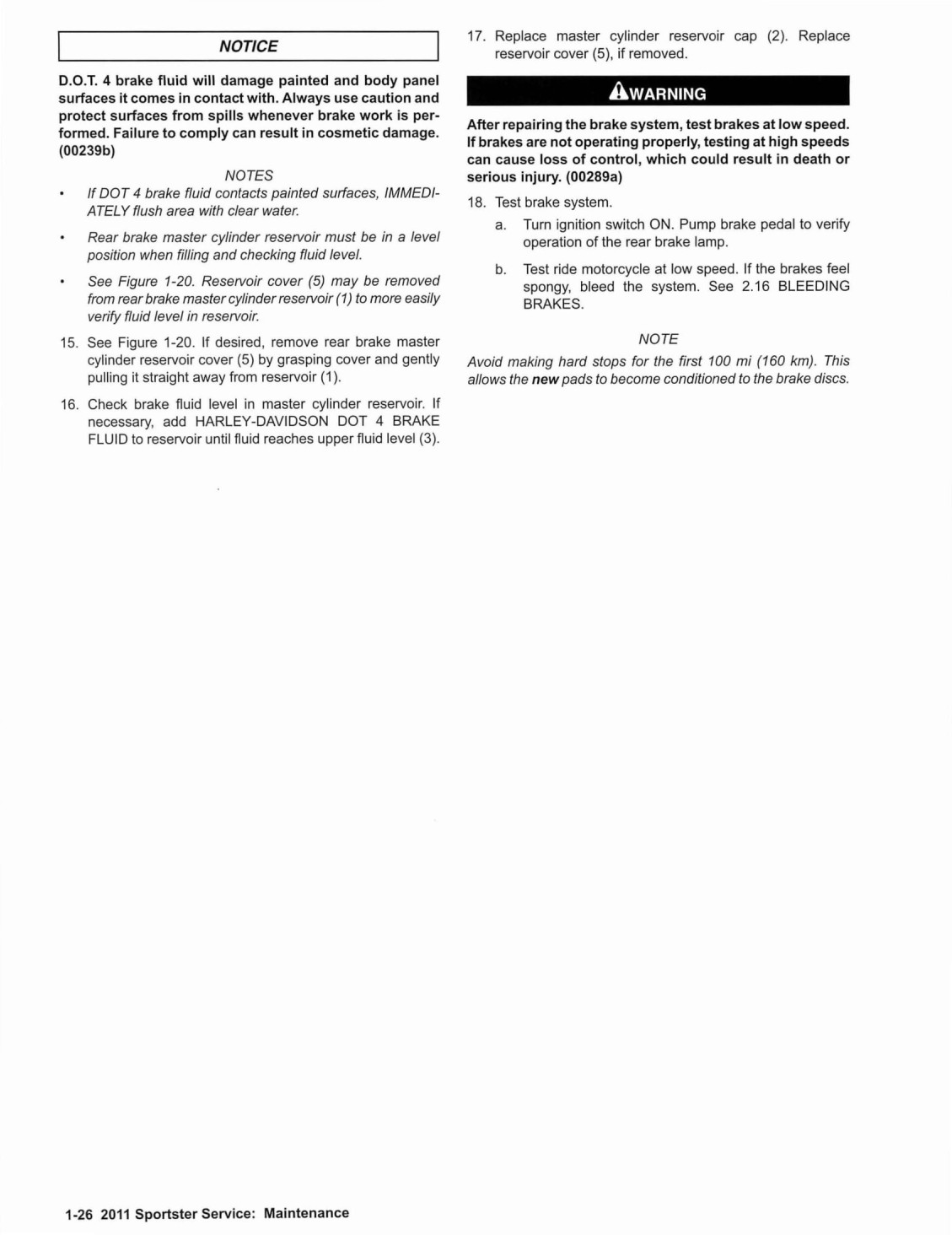

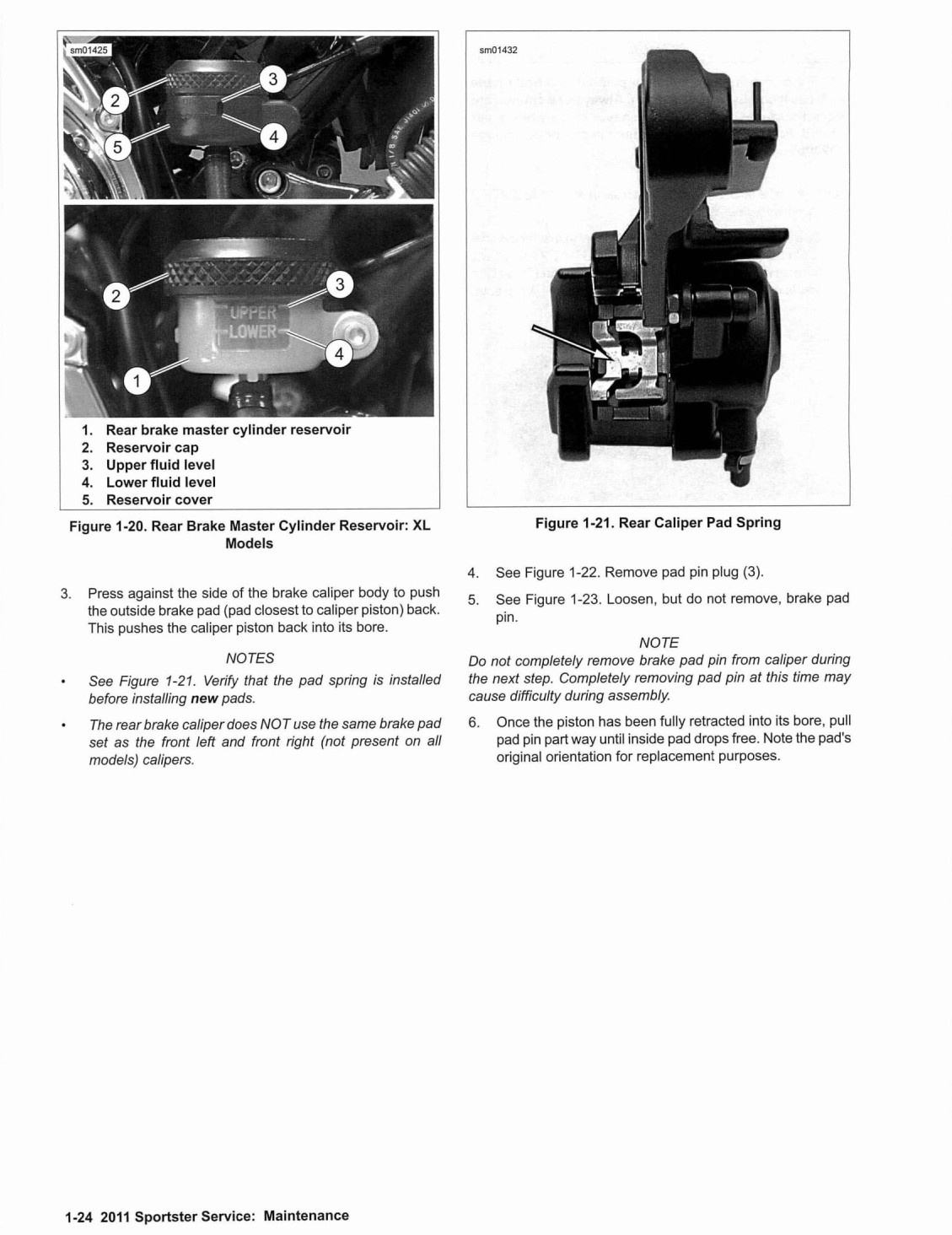

XL Models: See Figure 1-10. Rear brake reservoir cover may be removed to more easily verify fluid level in reservoir.
