2010 SPORTSTER WIRING DIAGRAMS

Refer to the table below for wiring diagram information.

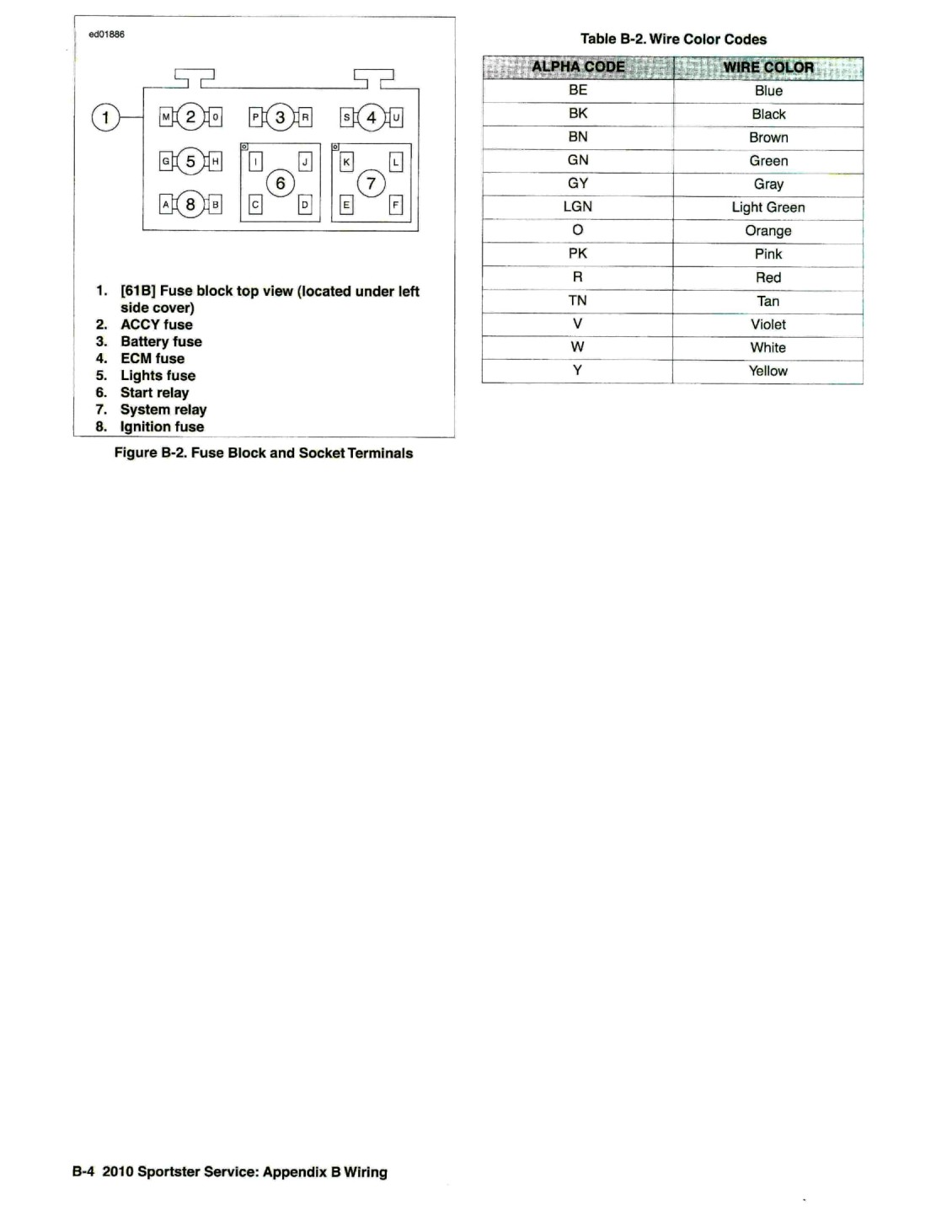

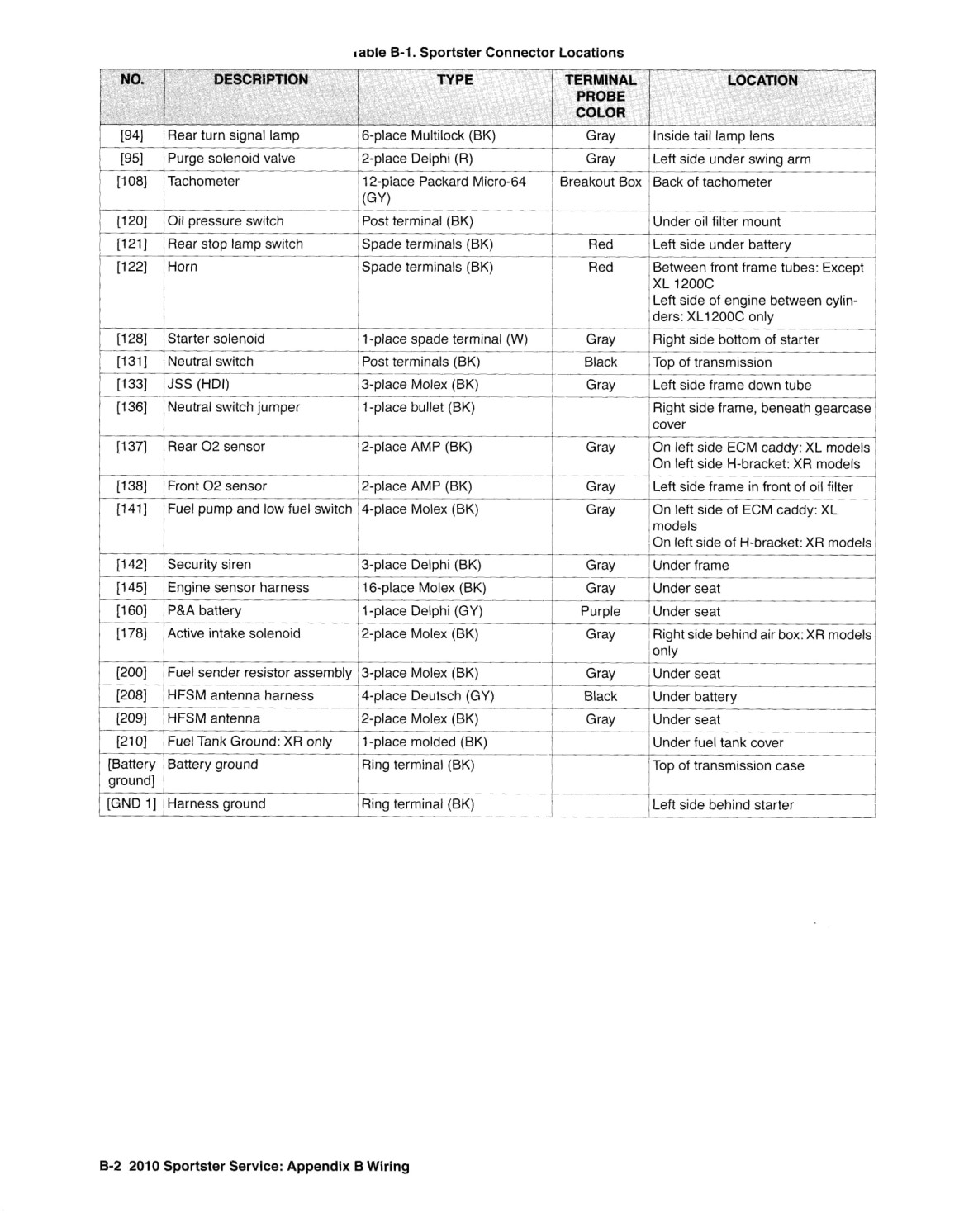

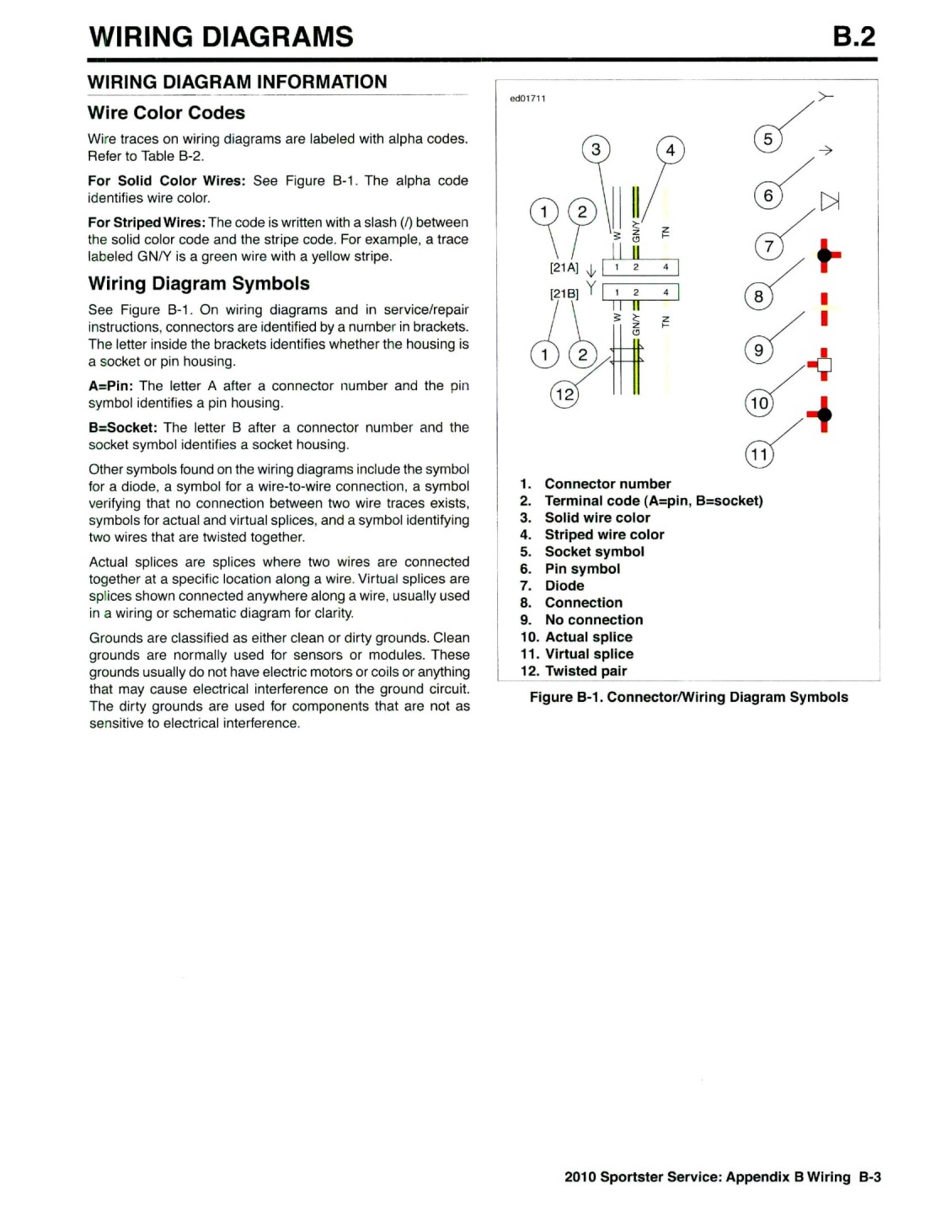

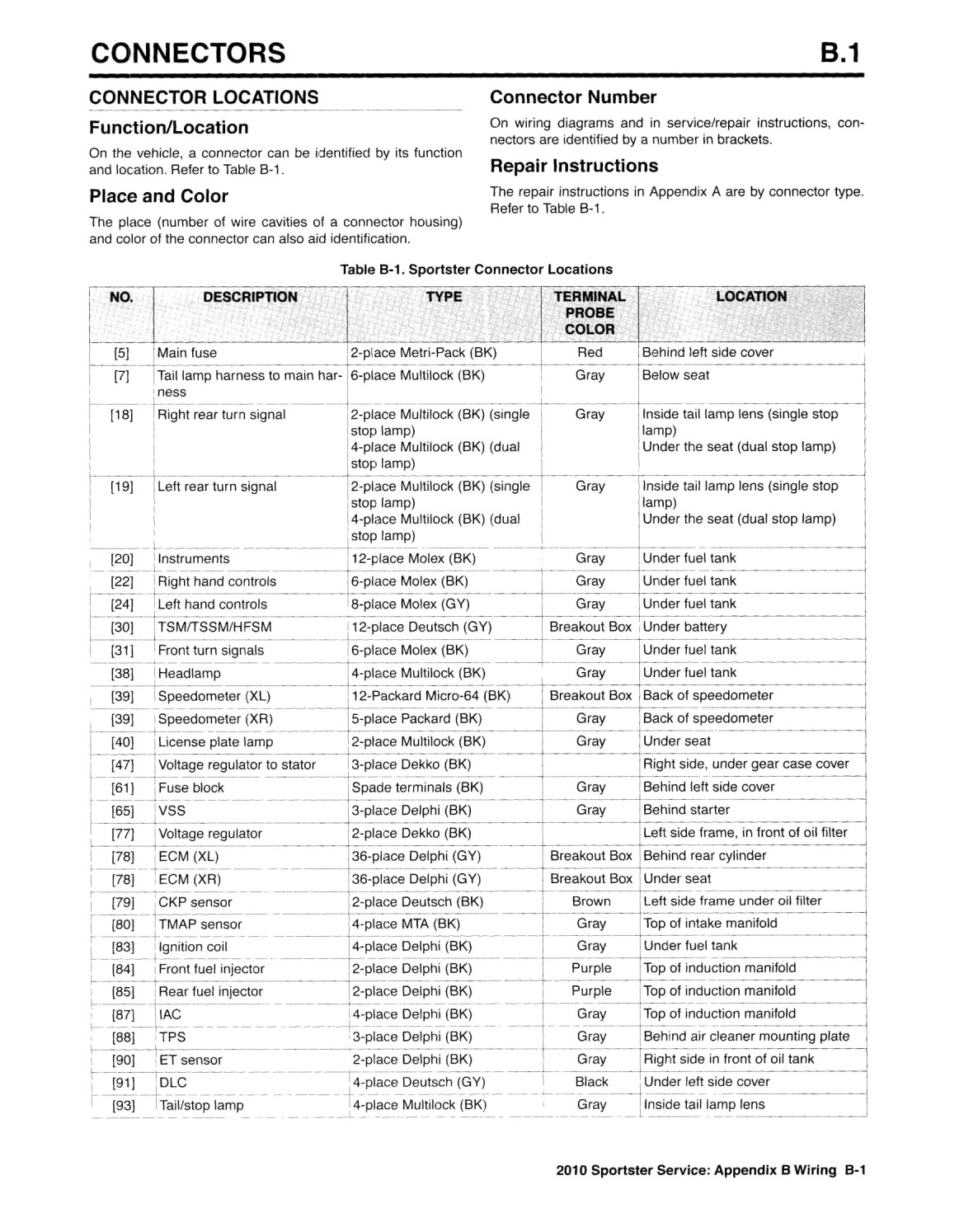

Wiring Diagram List

DIAGRAM LOCATION

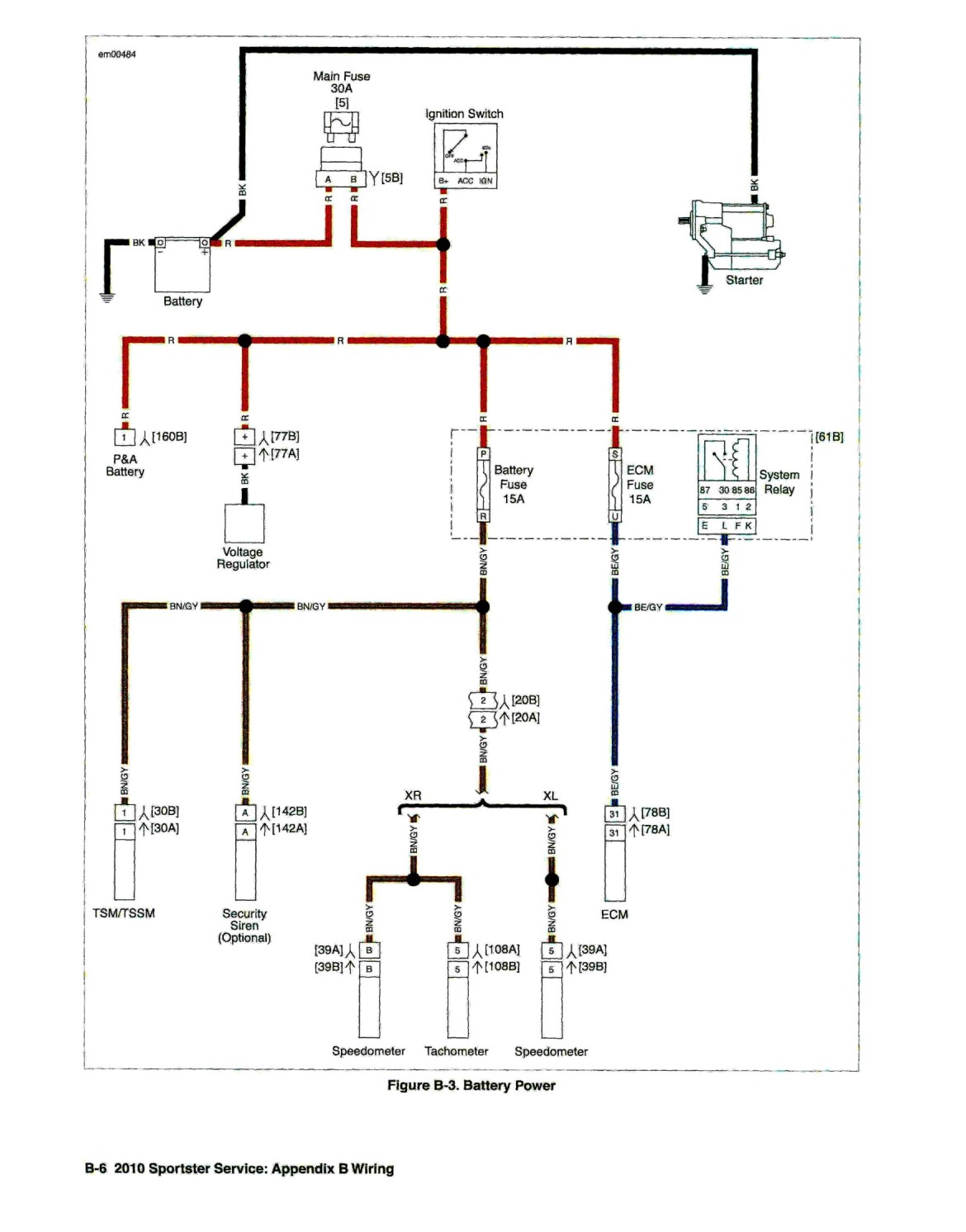

Battery Power Figure B-3

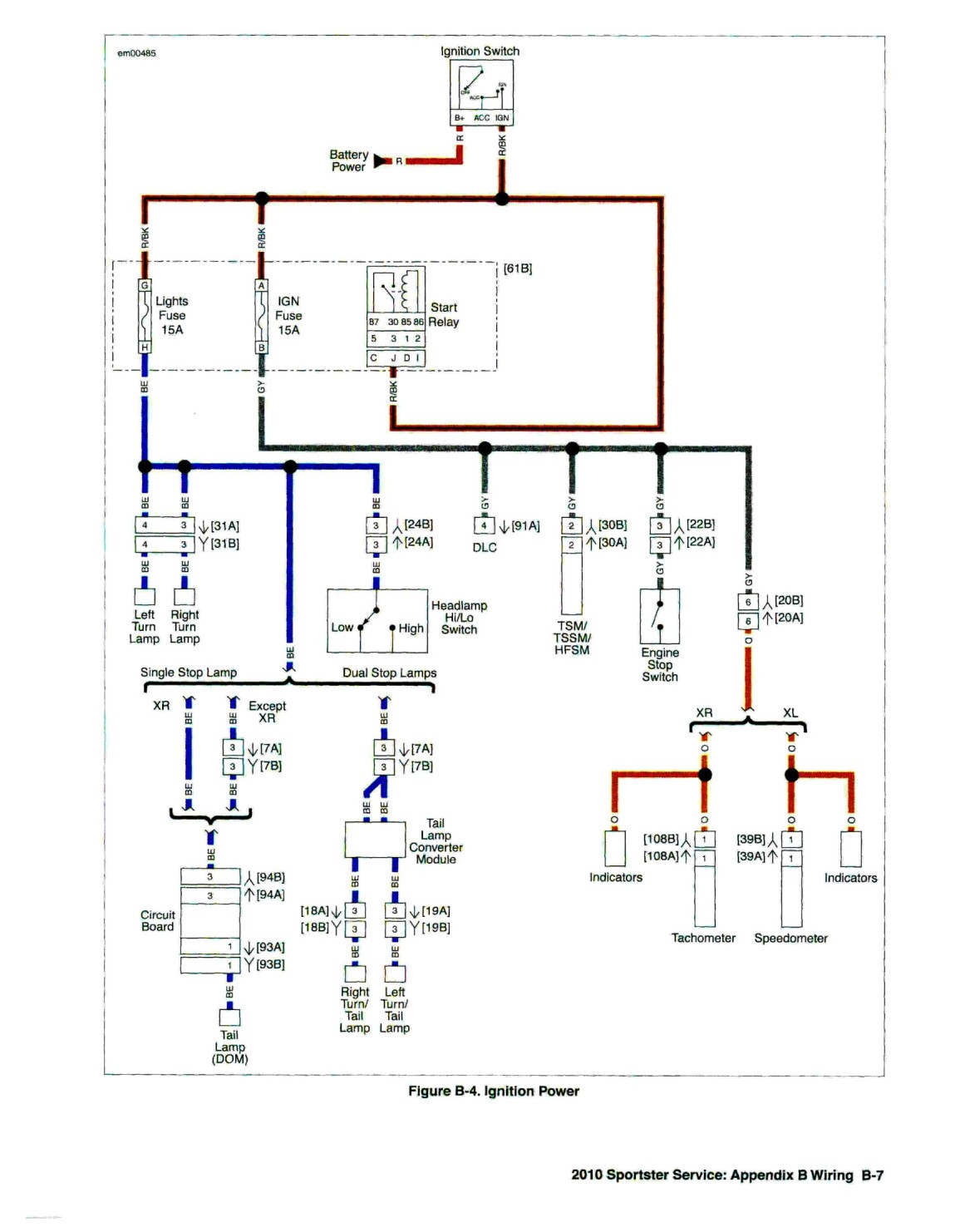

Ignition Power Figure B-4

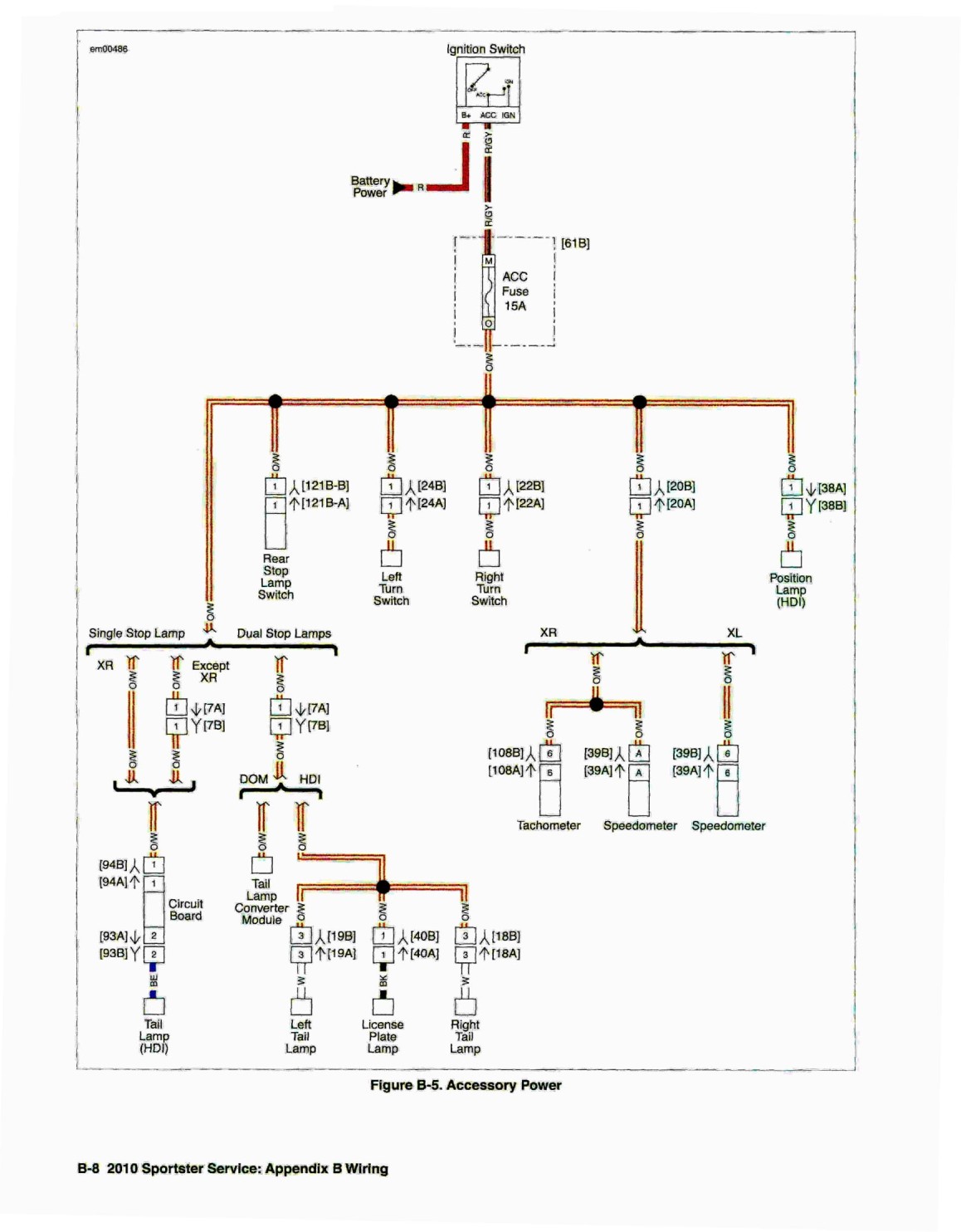

Accessory Power Figure B-5

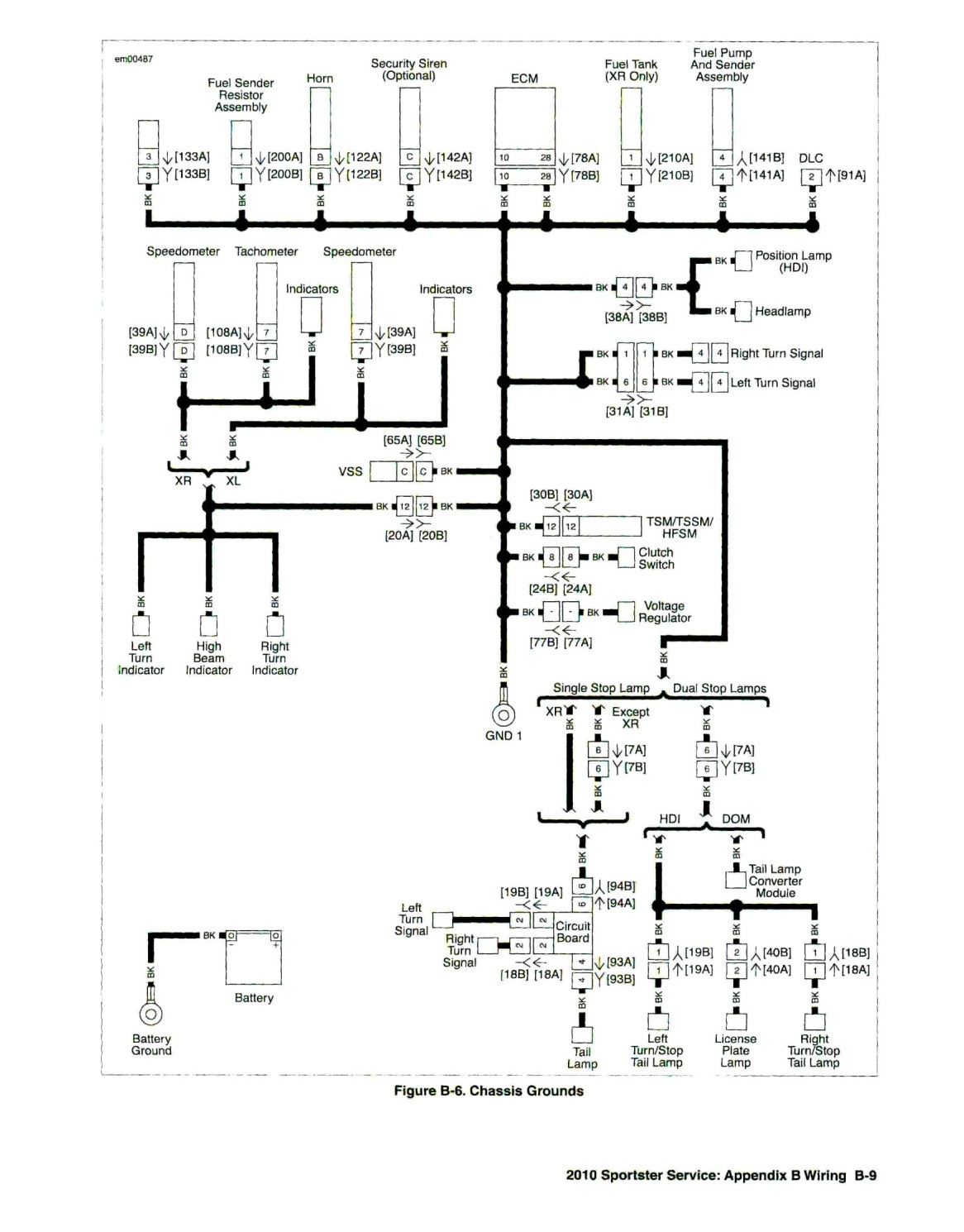

Chassis Grounds Figure B-6

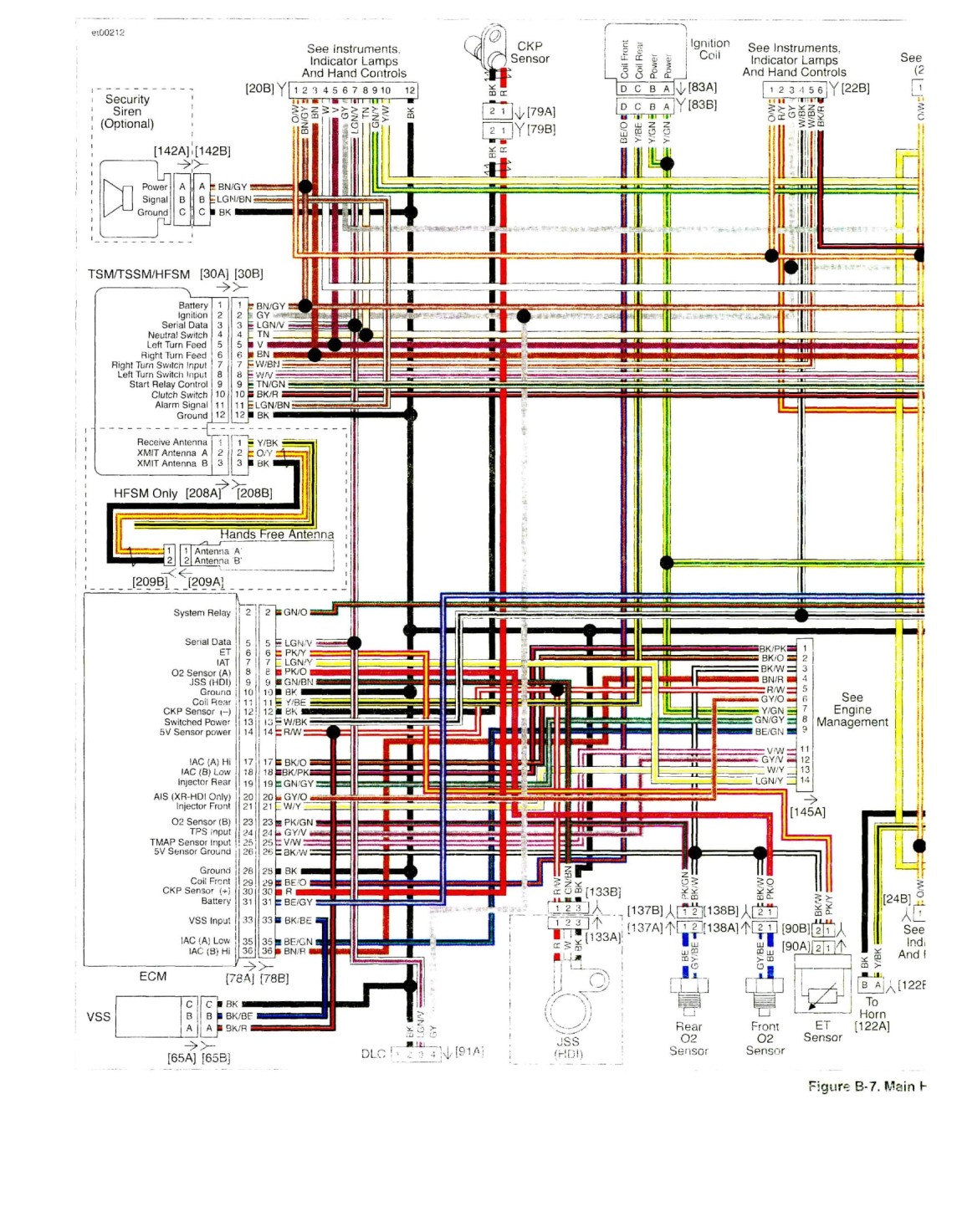

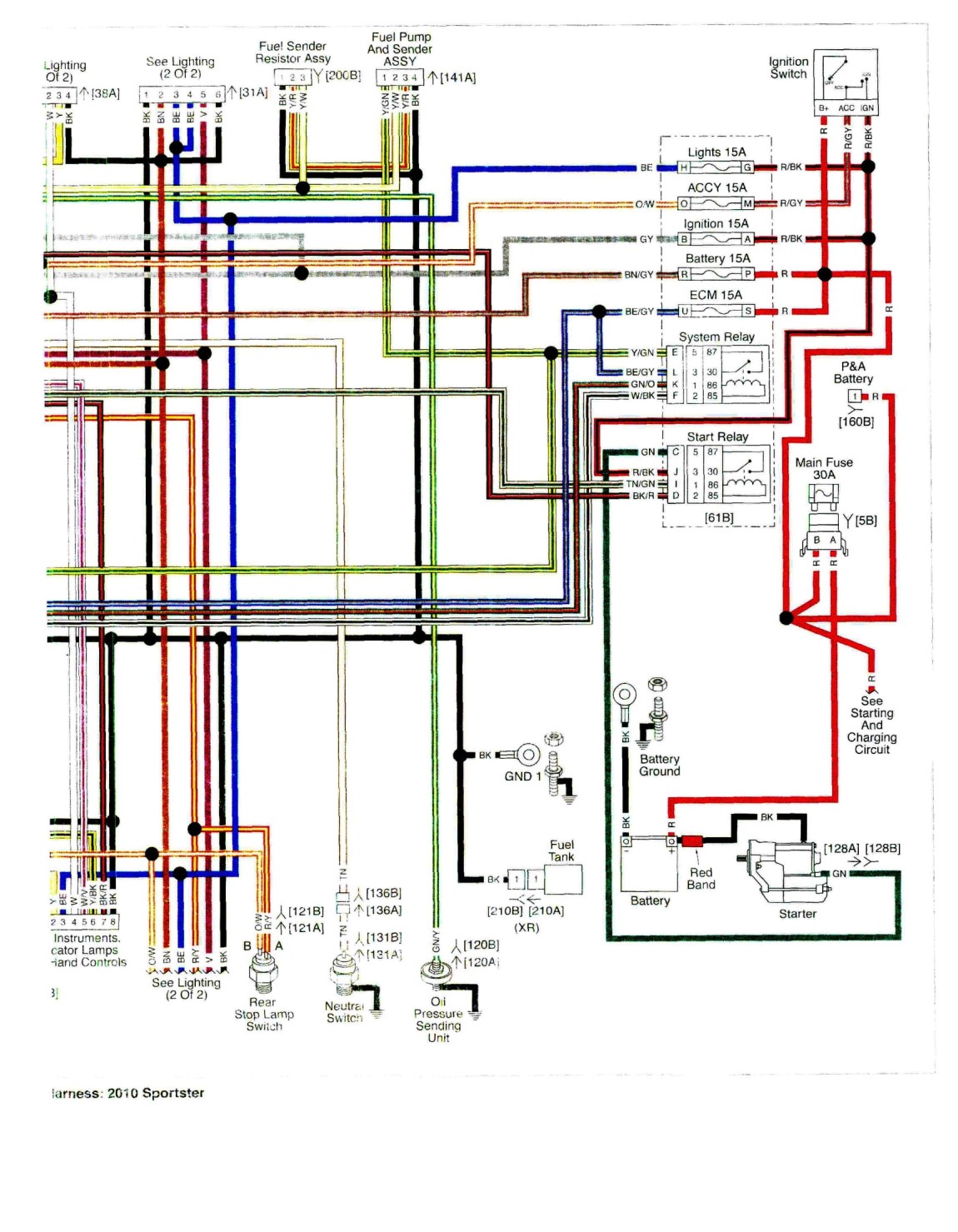

Main Harness: 2010 Sportster Figure B-7

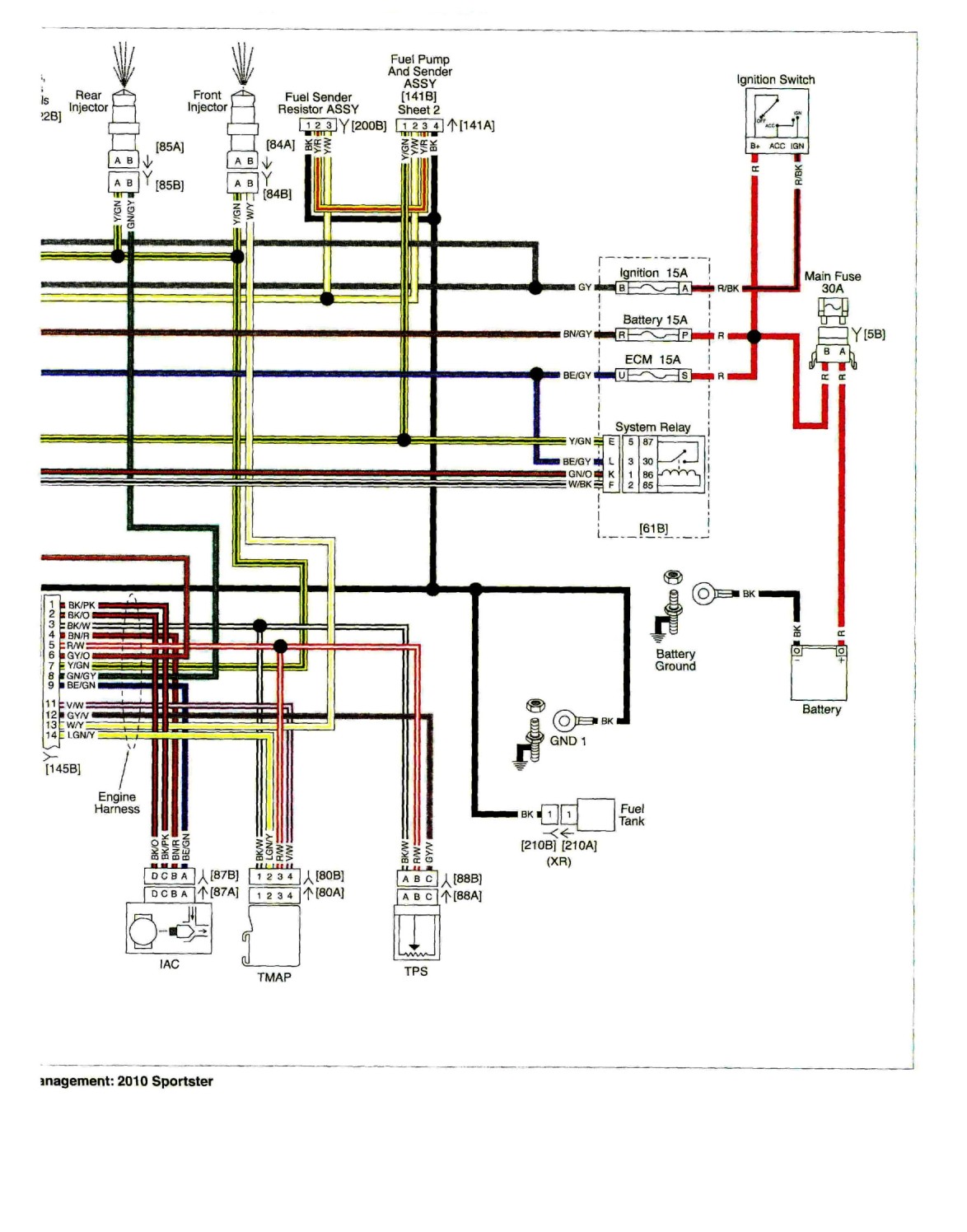

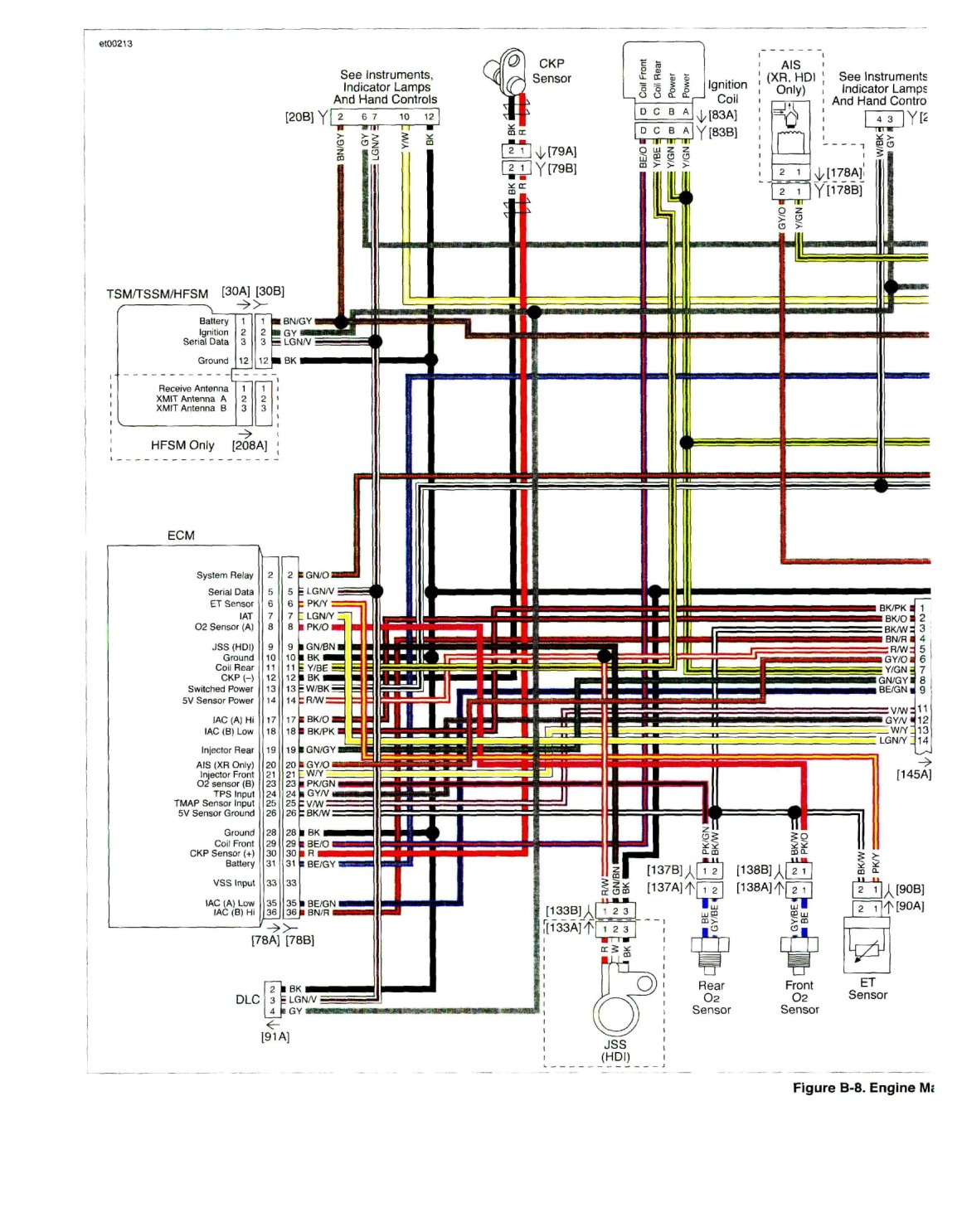

Engine Management: 2010 Sportster Figure B-8
Starting and Charging Circuit: 2010 Sportster Figure B-9
Lighting (1 of 2): 2010 Sportster Figure B-10 Figure B-11
Lighting (2 of 2): 2010 Sportster
Instrument, Indicator Lamps, and Hand Controls: 2010 Sportster Figure B-12
Security Circuit: 2010 Sportster Figure B-13
