Harley Davidson 2016 Softail Models. Service manual - page 31

APPENDIX A WIRING

SUBJECT PAGE NO.

A.1 CONNECTORS........................................................................................................................A-1

A.2 WIRING DIAGRAMS................................................................................................................A-5

Wiring Diagram List

DIAGRAM LOCATION

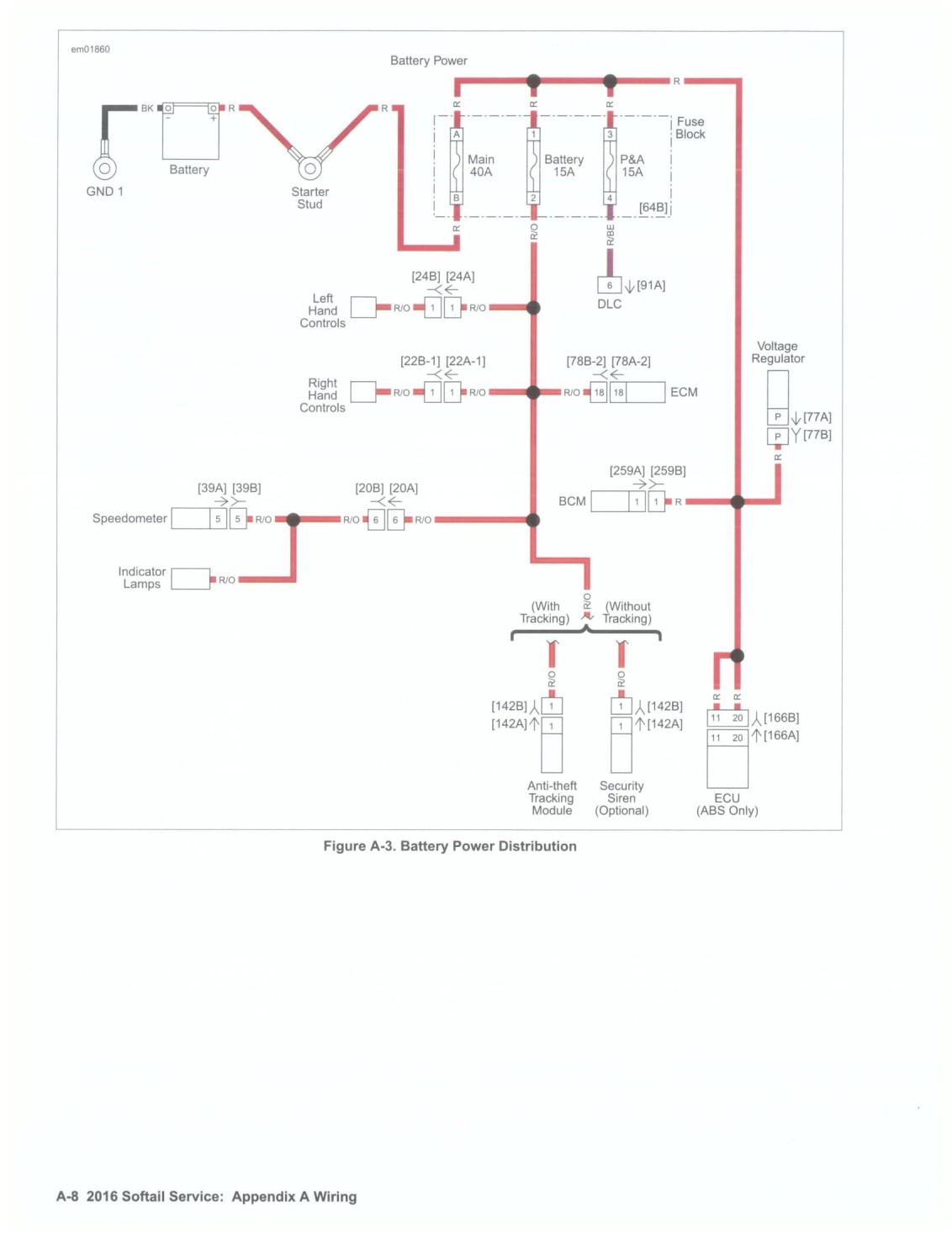

Battery Power Distribution Figure A-3
Ignition and Accessory Power Distribution: Except FXSB, FLS, FLSS Figure A-4
Ignition and Accessory Power Distribution: FXSB Figure A-5
Ignition and Accessory Power Distribution: FLS, FLSS Figure A-6
Sensor Grounds Figure A-7
Ground Circuit: Except FXSB, FLS, FLSS Figure A-8
Ground Circuit: FXSB, FLS, FLSS Figure A-9
Front Lighting and Hand Controls: 2016 Softail Figure A-10
Main Harness 1 of 2: 2016 Softail (Except FXSB, FLS, FLSS) Figure A-11
Main Harness 2 of 2: 2016 Softail (Except FXSB, FLS, FLSS) Figure A-12
Main Harness 1 of 2: 2016 Softail (FXSB) Figure A-13
Main Harness 1 of 2: 2016 Softail (FLS, FLSS) Figure A-14
Main Harness 2 of 2: 2016 Softail (FXSB, FLS, FLSS) Figure A-15
Rear Lighting: 2016 Softail Figure A-16
