Harley Davidson 2015 Softail Models. Service manual - page 33

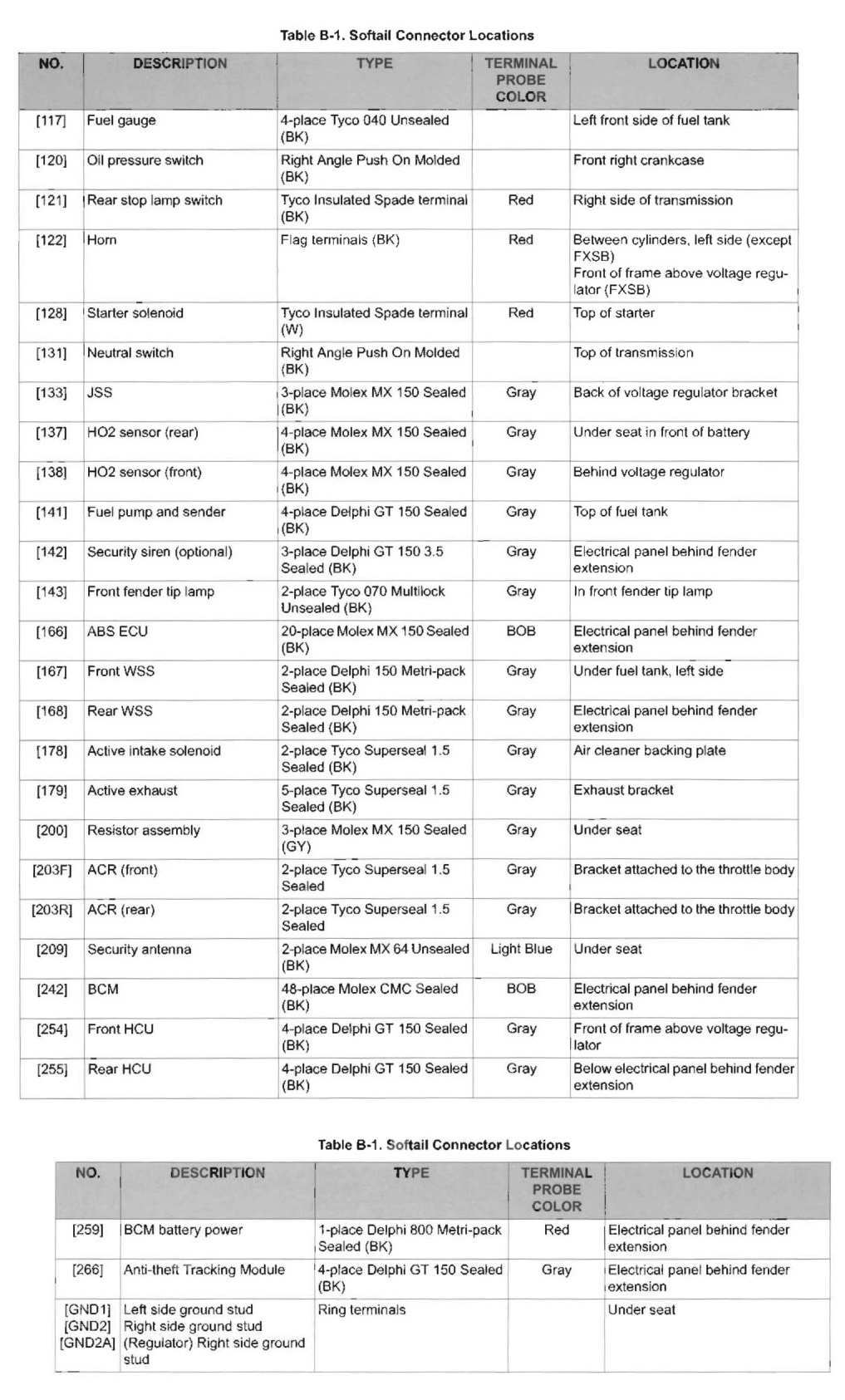

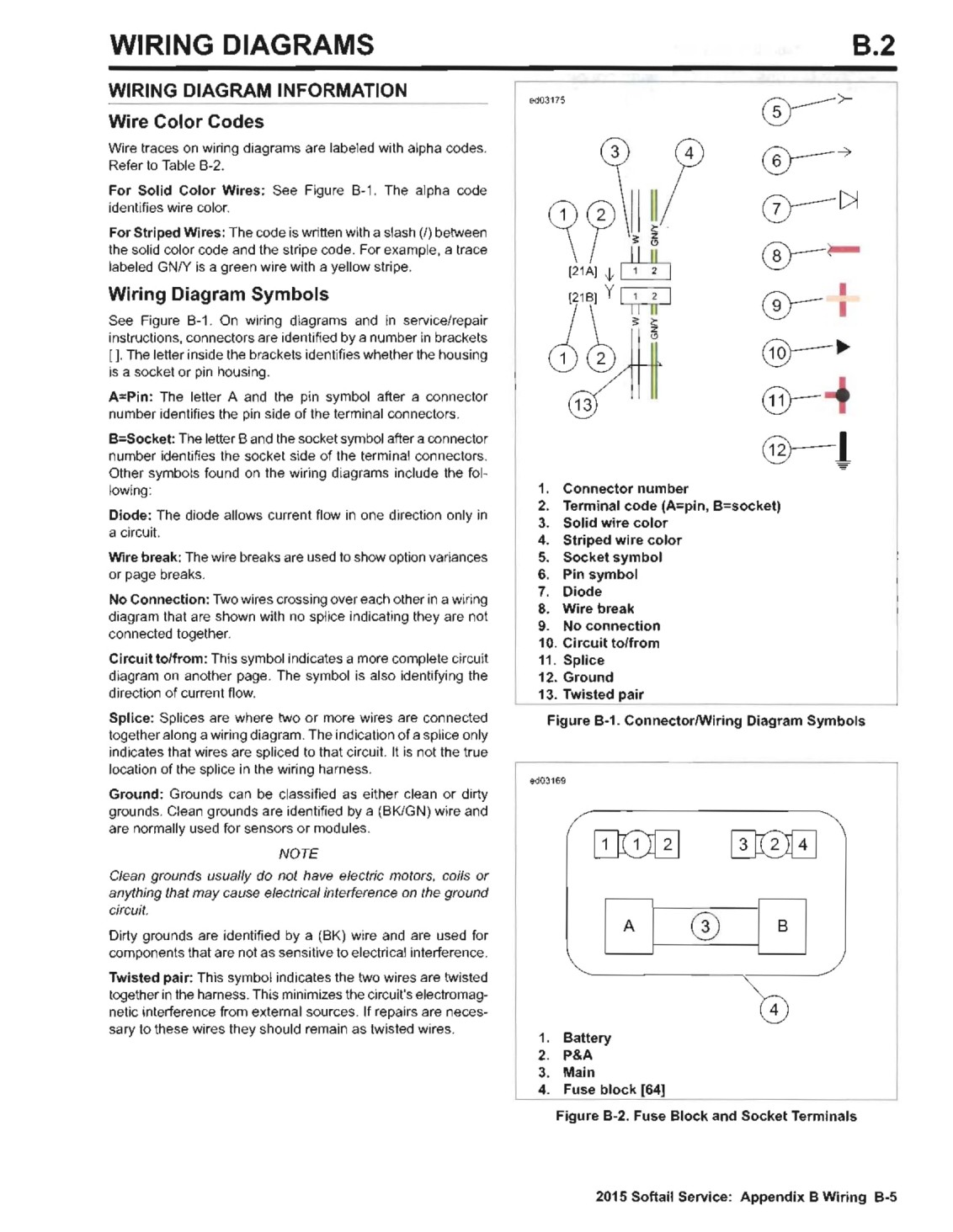

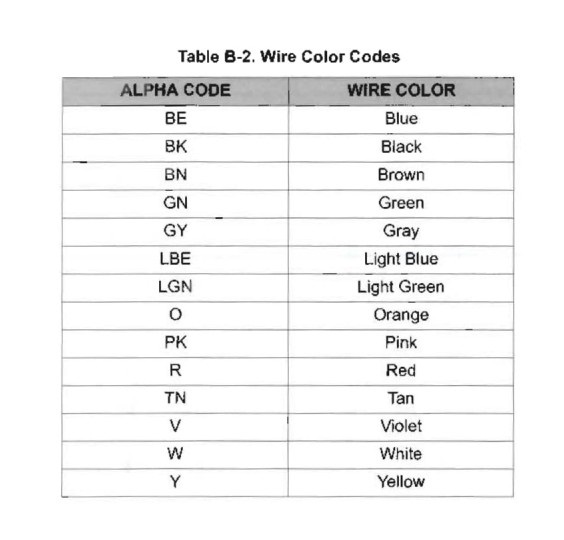

DIAGRAM LOCATION

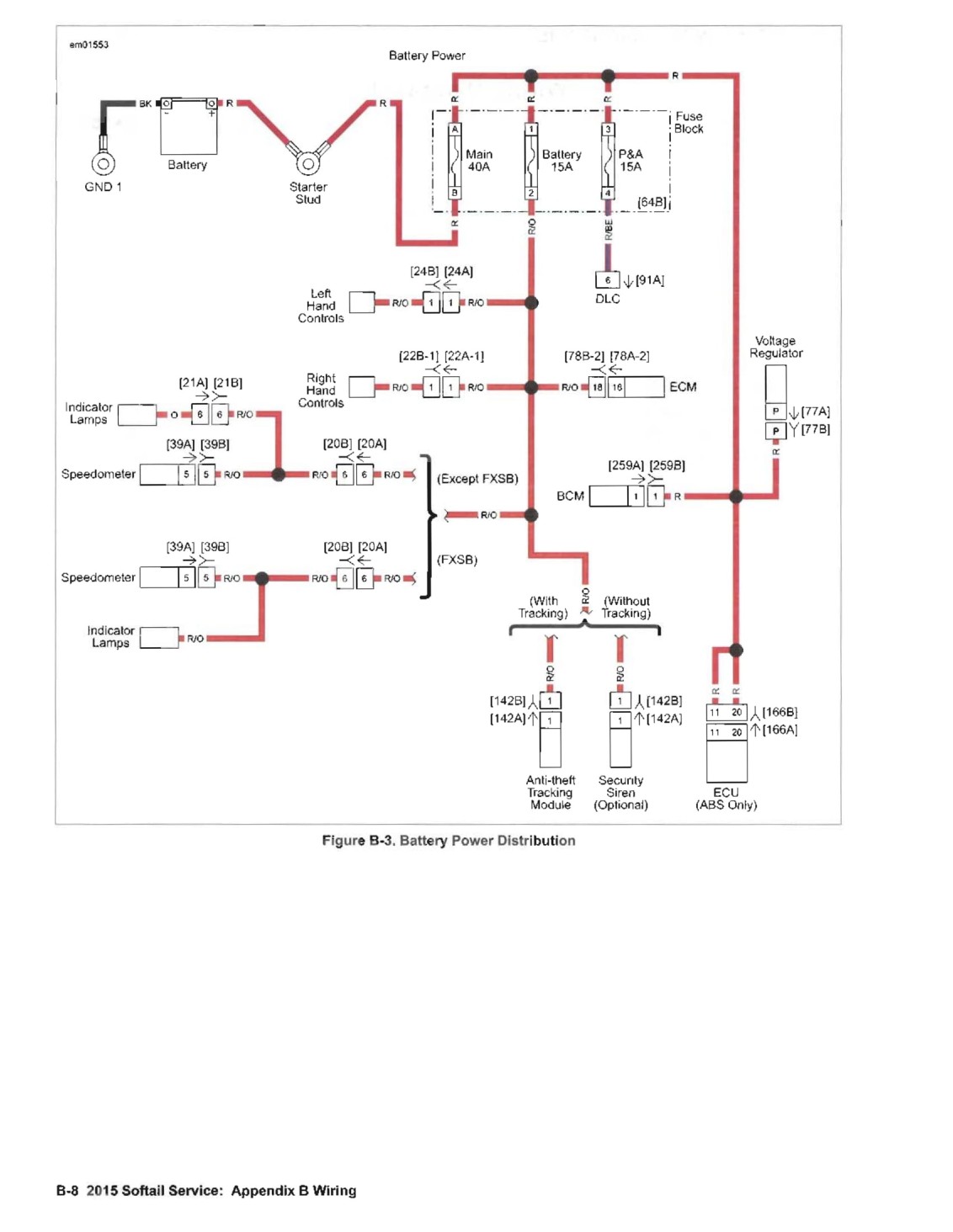

Battery Power Distribution Figure B-3

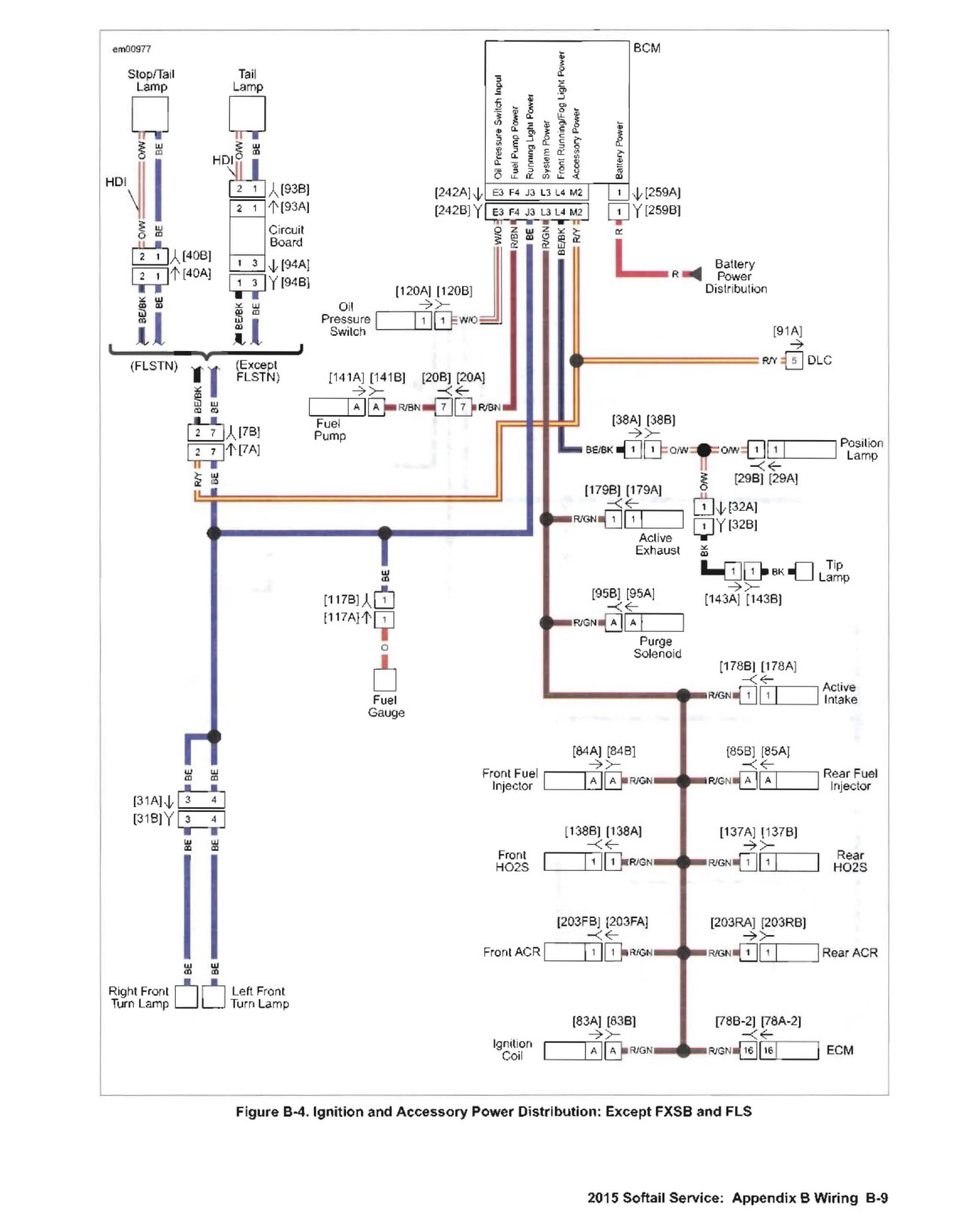

Ignition and Accessory Power Distribution: Except FXSB and FLS Figure B-4

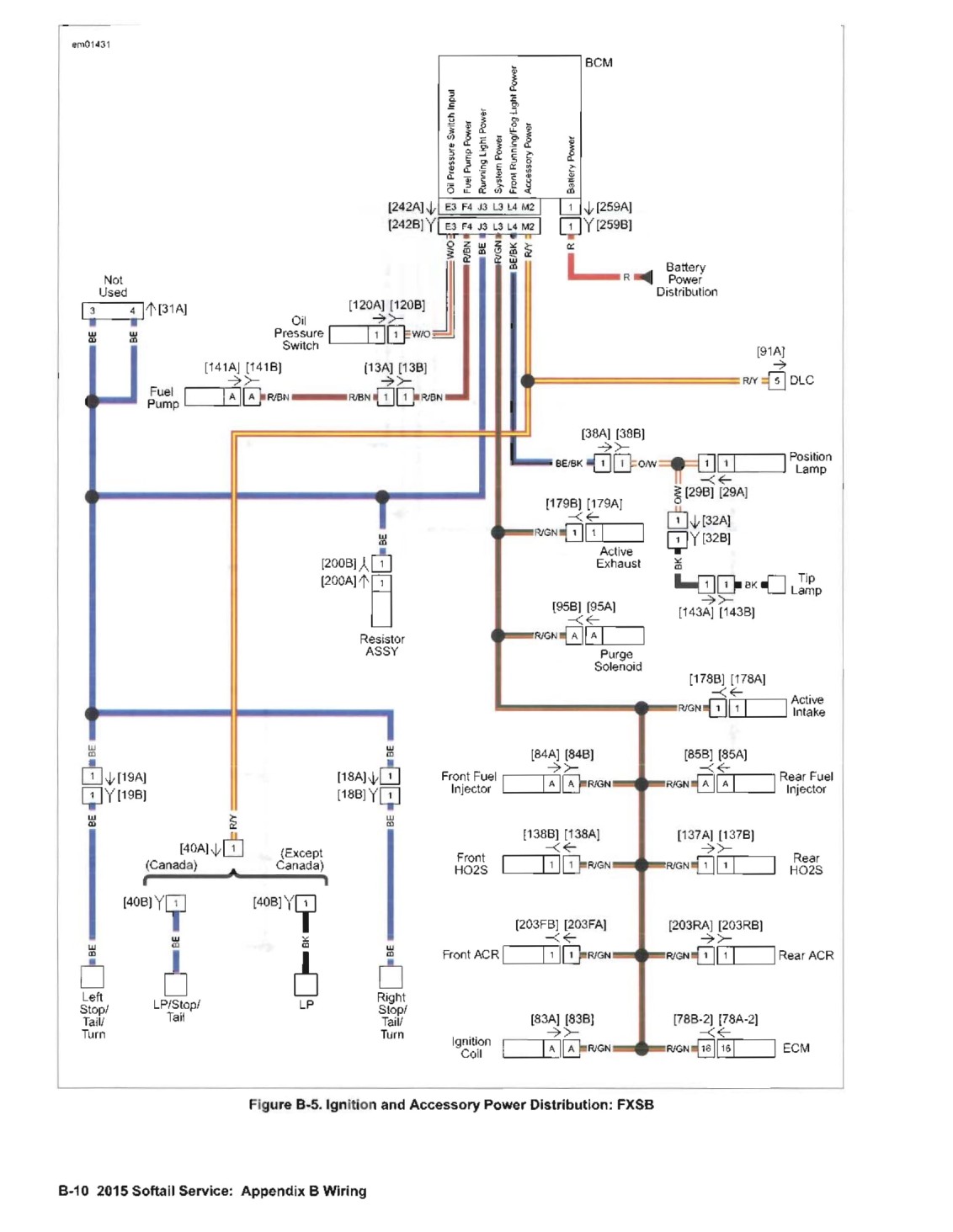

Ignition and Accessory Power Distribution: FXSB Figure B-5

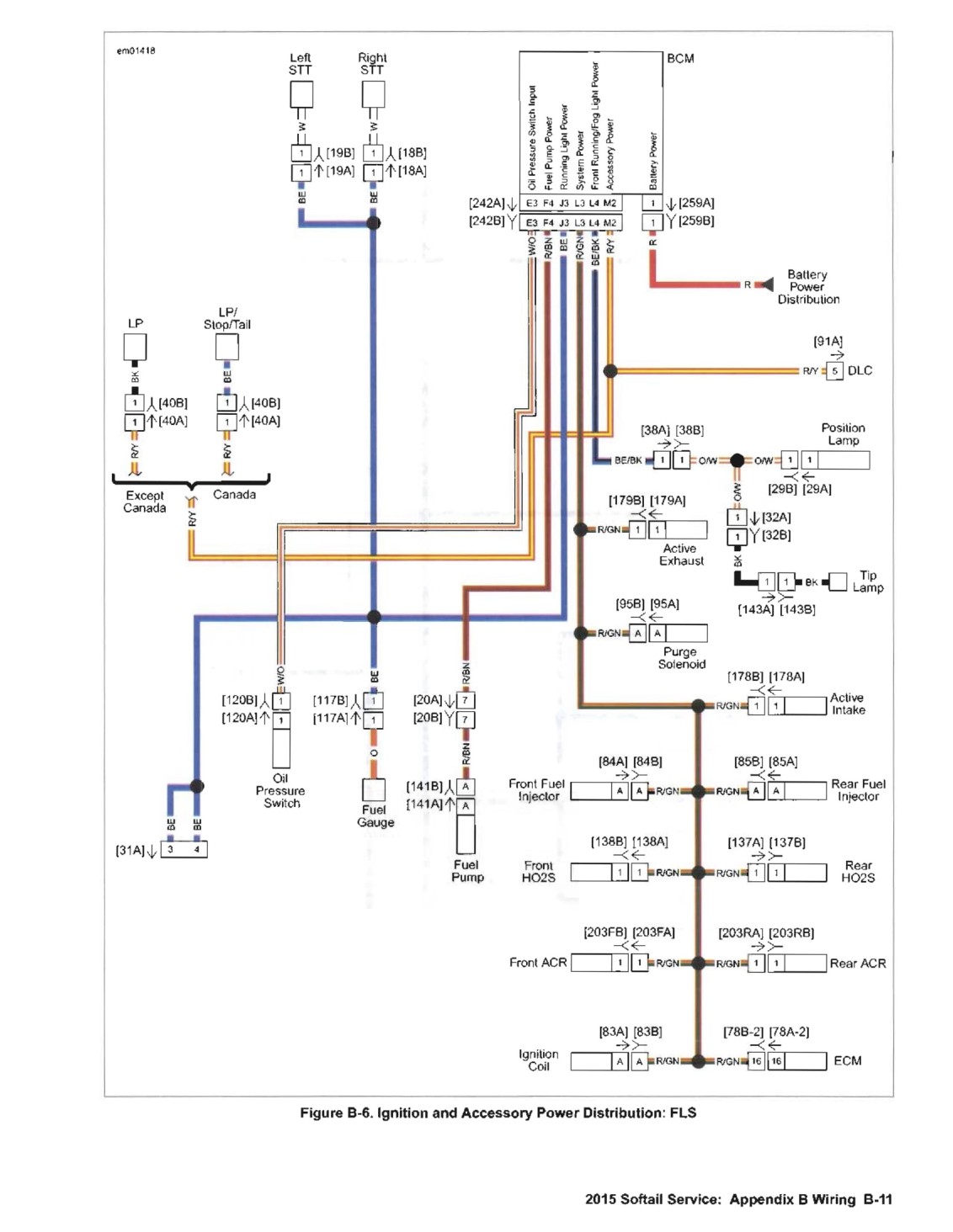

Ignition and Accessory Power Distribution: FLS Figure B-6

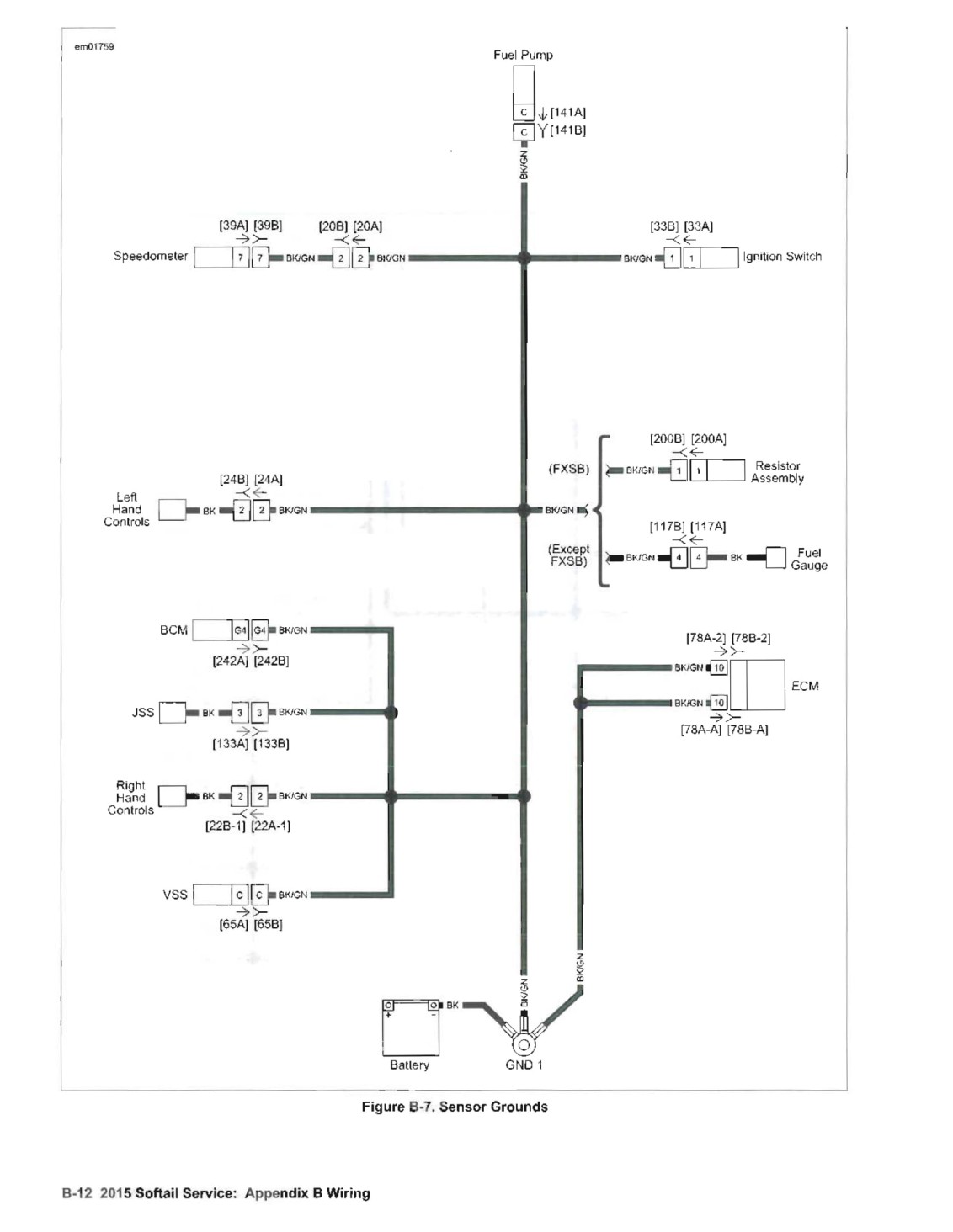

Sensor Grounds Figure B-7

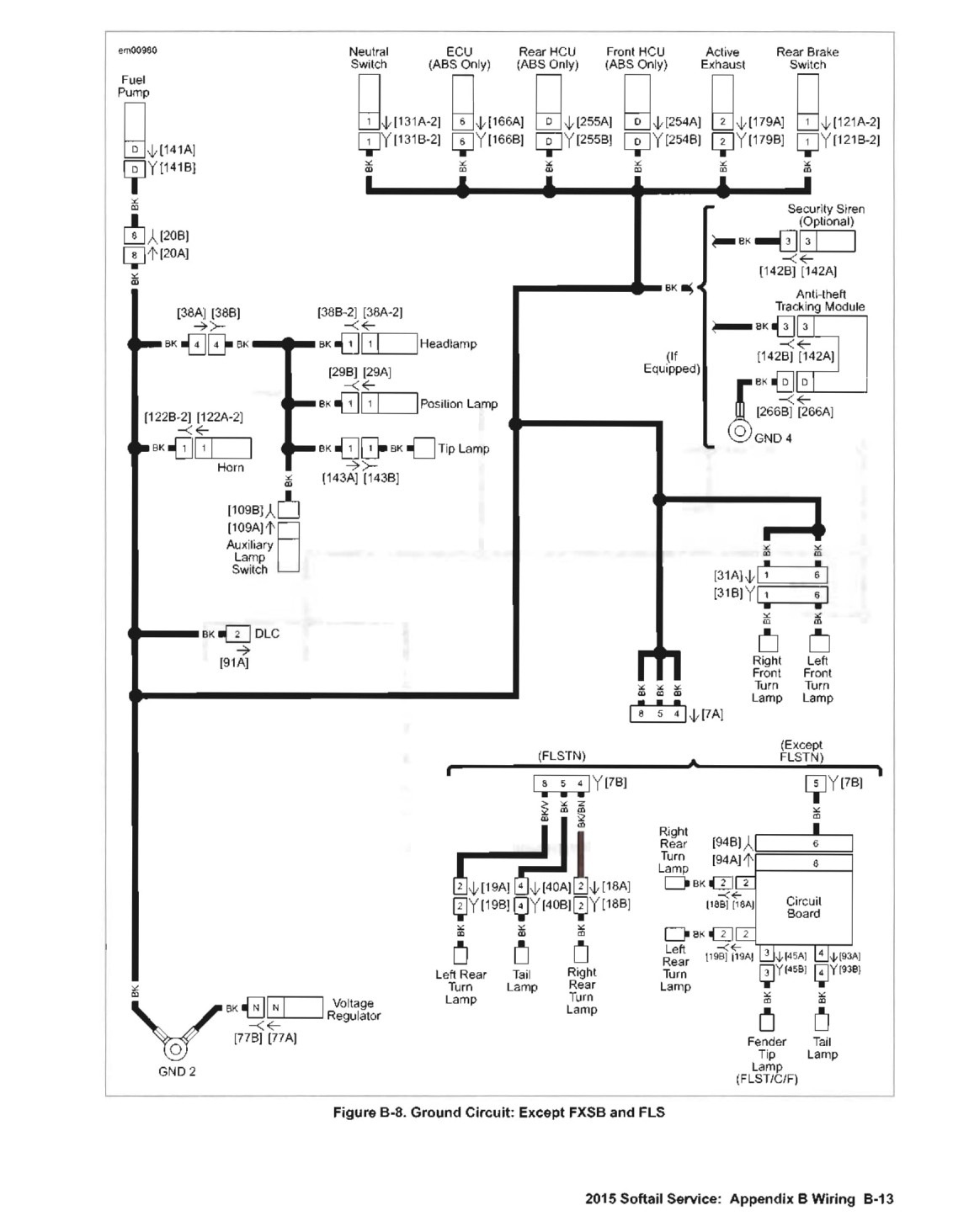

Ground Circuit: Except FXSB and FLS Figure B-8

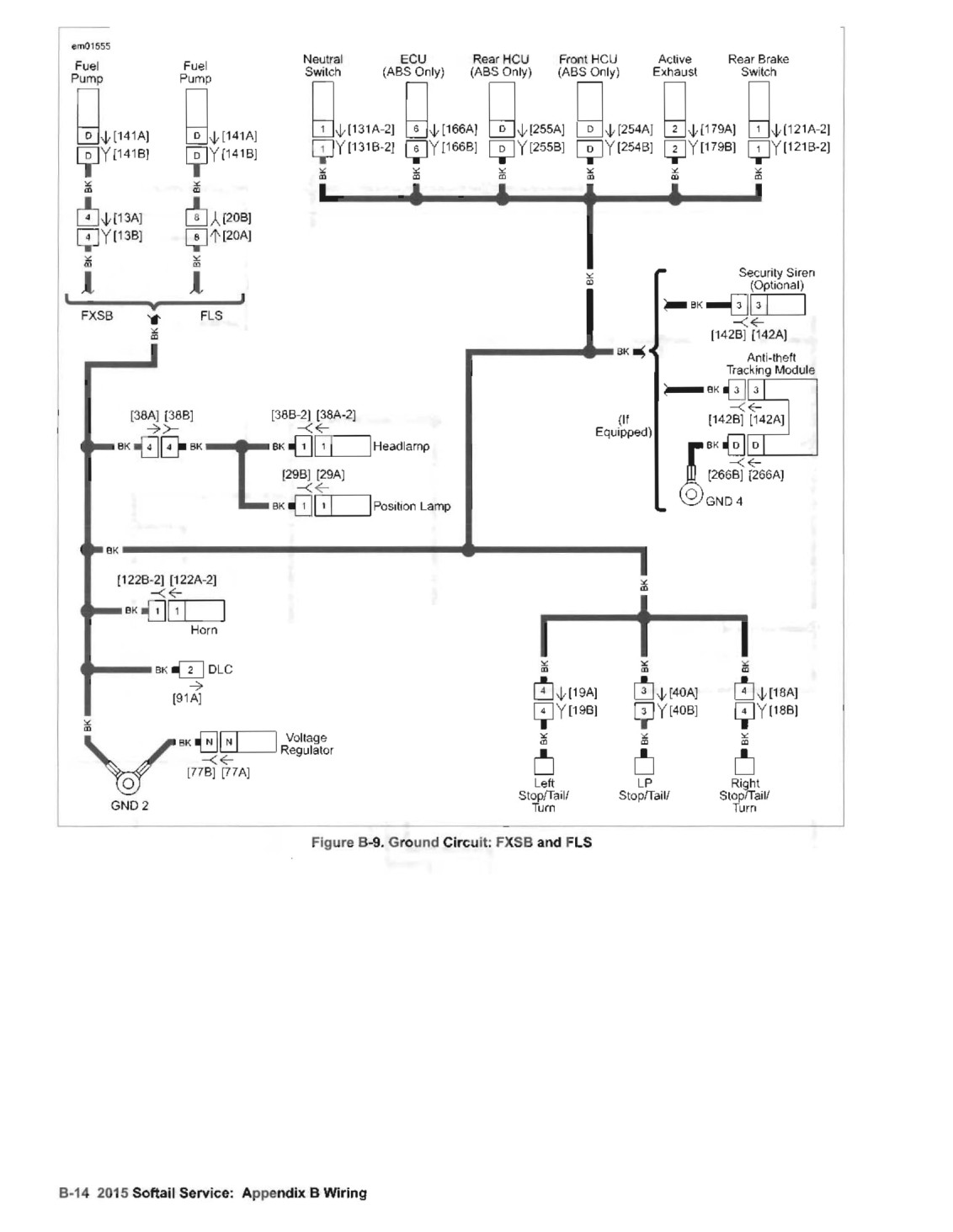

Ground Circuit: FXSB and FLS Figure B-9

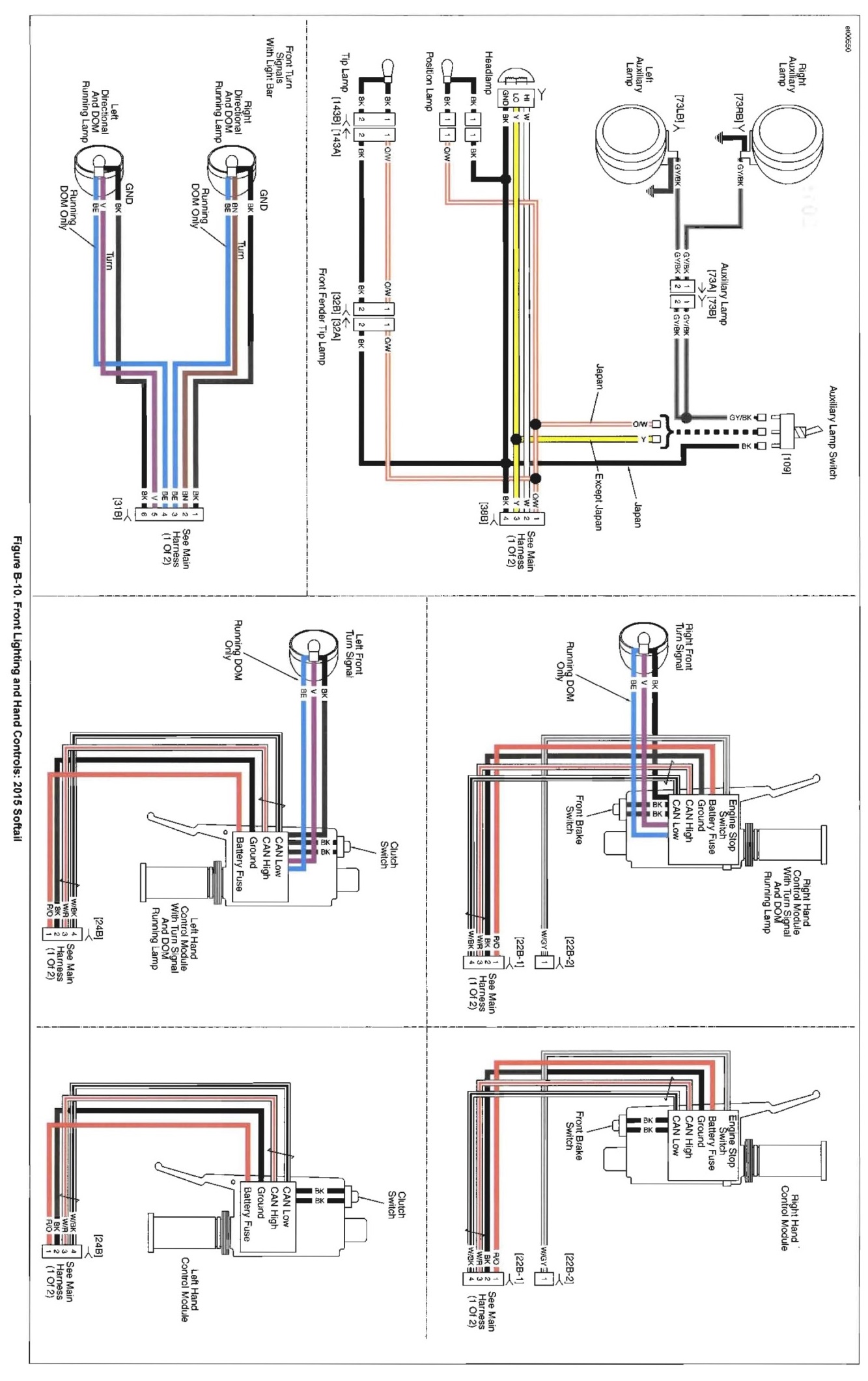

Front Lighting and Hand Controls: 2015 Softail Figure B-10

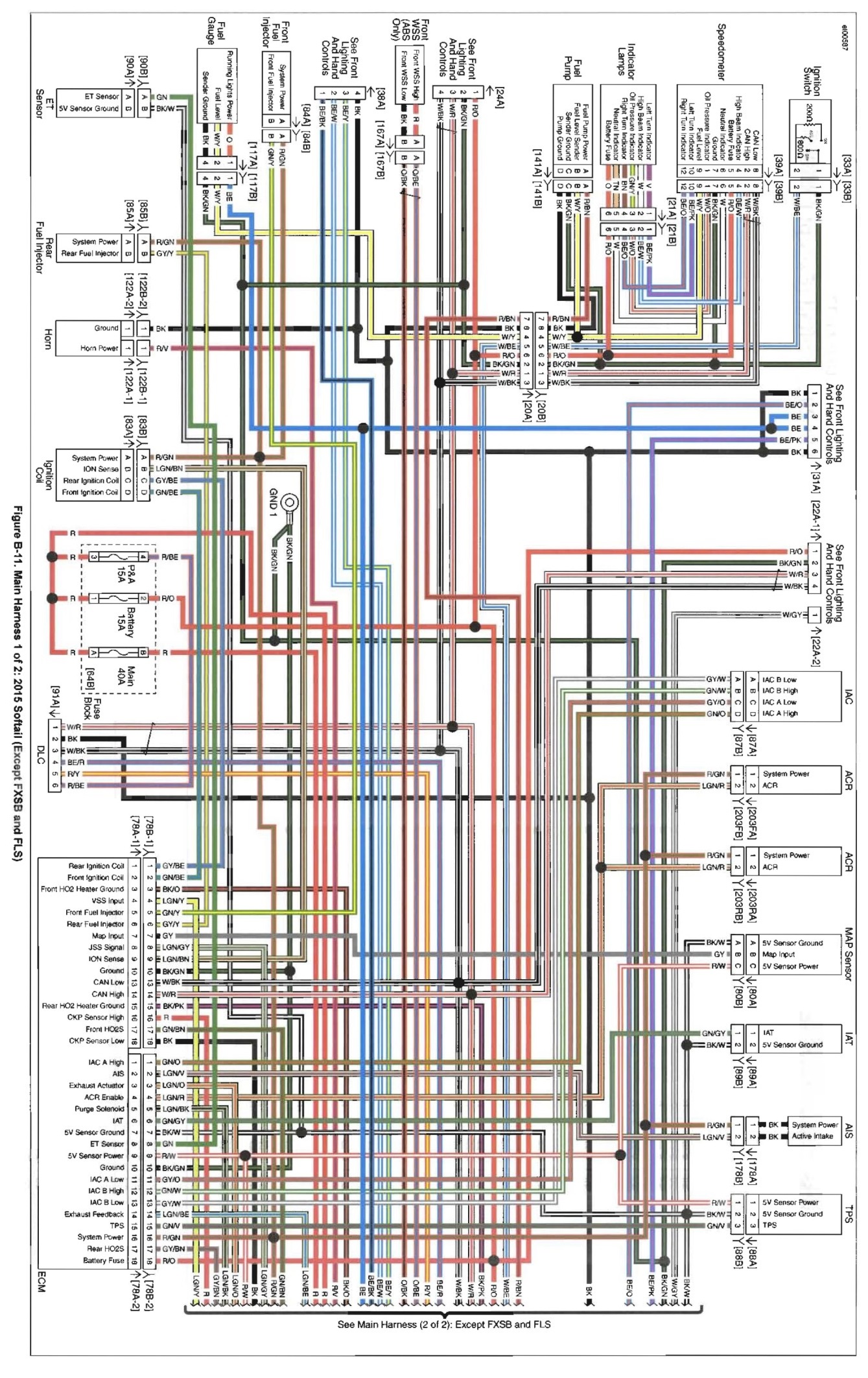

Main Harness 1 of 2: 2015 Softail (Except FXSB and FLS) Figure B-11

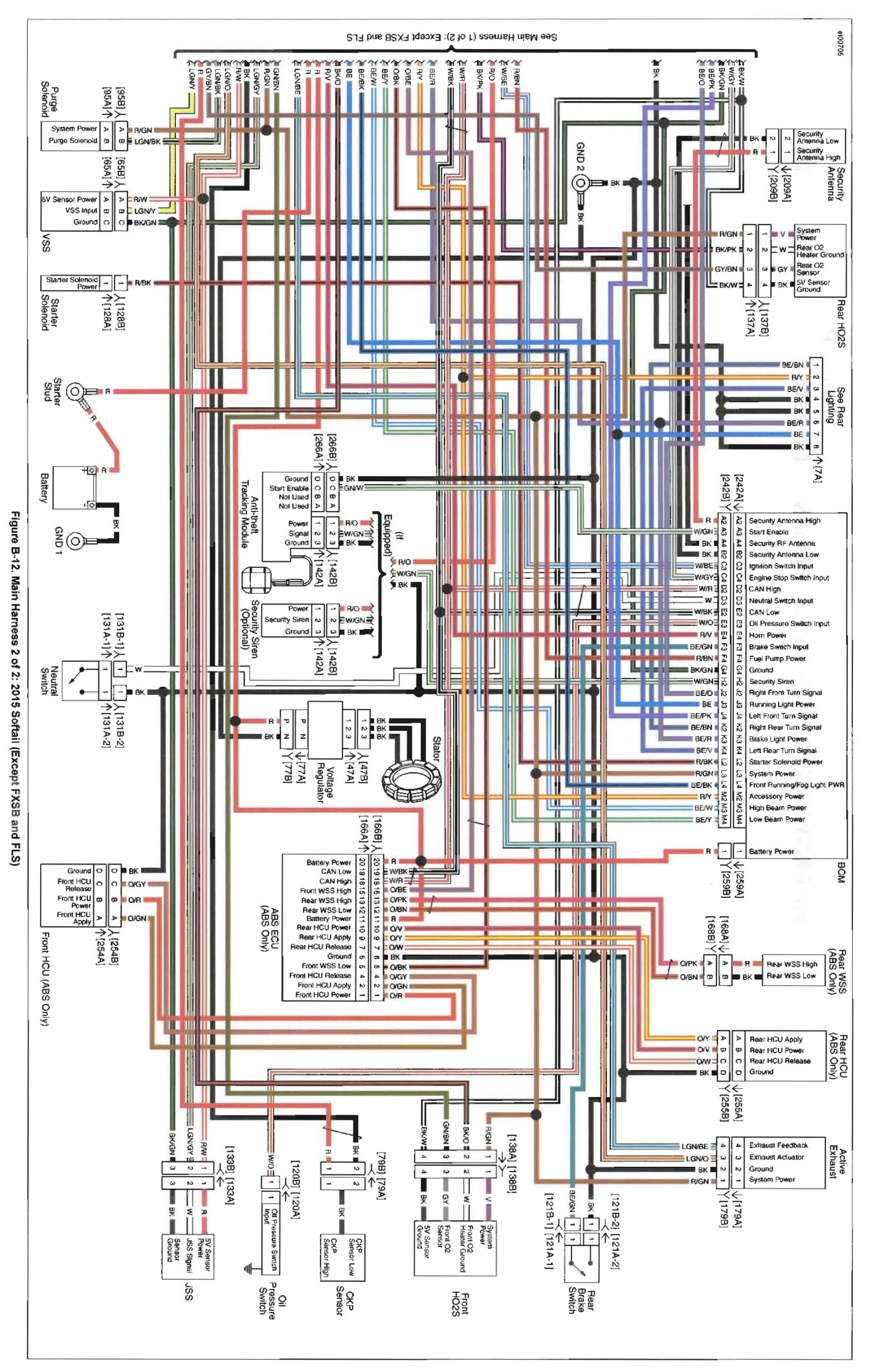

Mam Harness 2 of 2: 2015 Softail (Except FXSB and FLS) Figure B-12
Main Harness 1 of 3: 2015 Softail (FXSB) Figure B-13
Main Harness 2 of 3: 2015 Softail (FXSB and FLS) Figure B-14
Mam Harness 3 of 3: 2015 Softail (FXSB and FLS) Figure B-15
Rear Lighting: 2015 Softail Figure B-16
