Harley Davidson 2015 Softail Models. Service manual - page 12

ENGINE

SUBJECT PAGE NO.

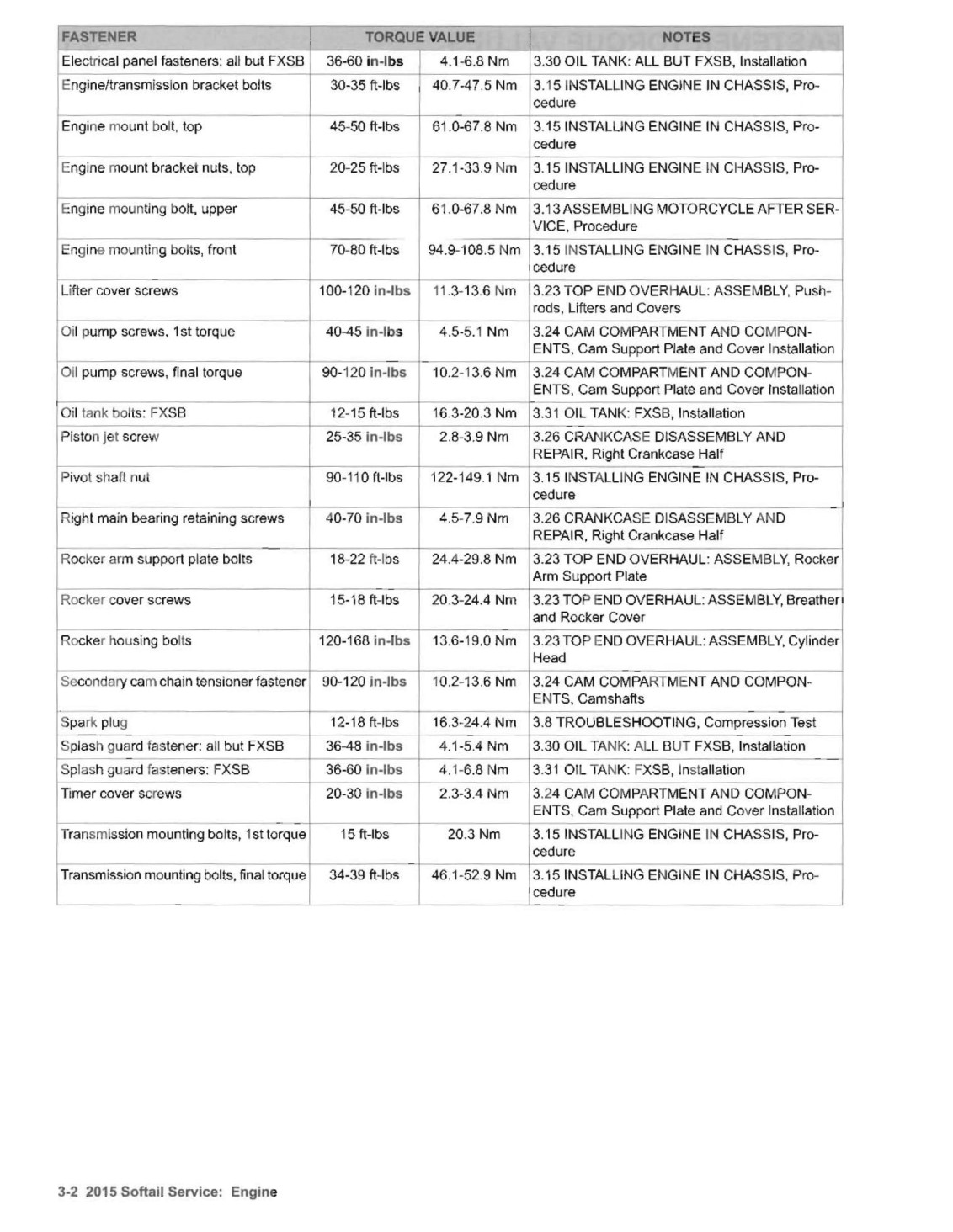

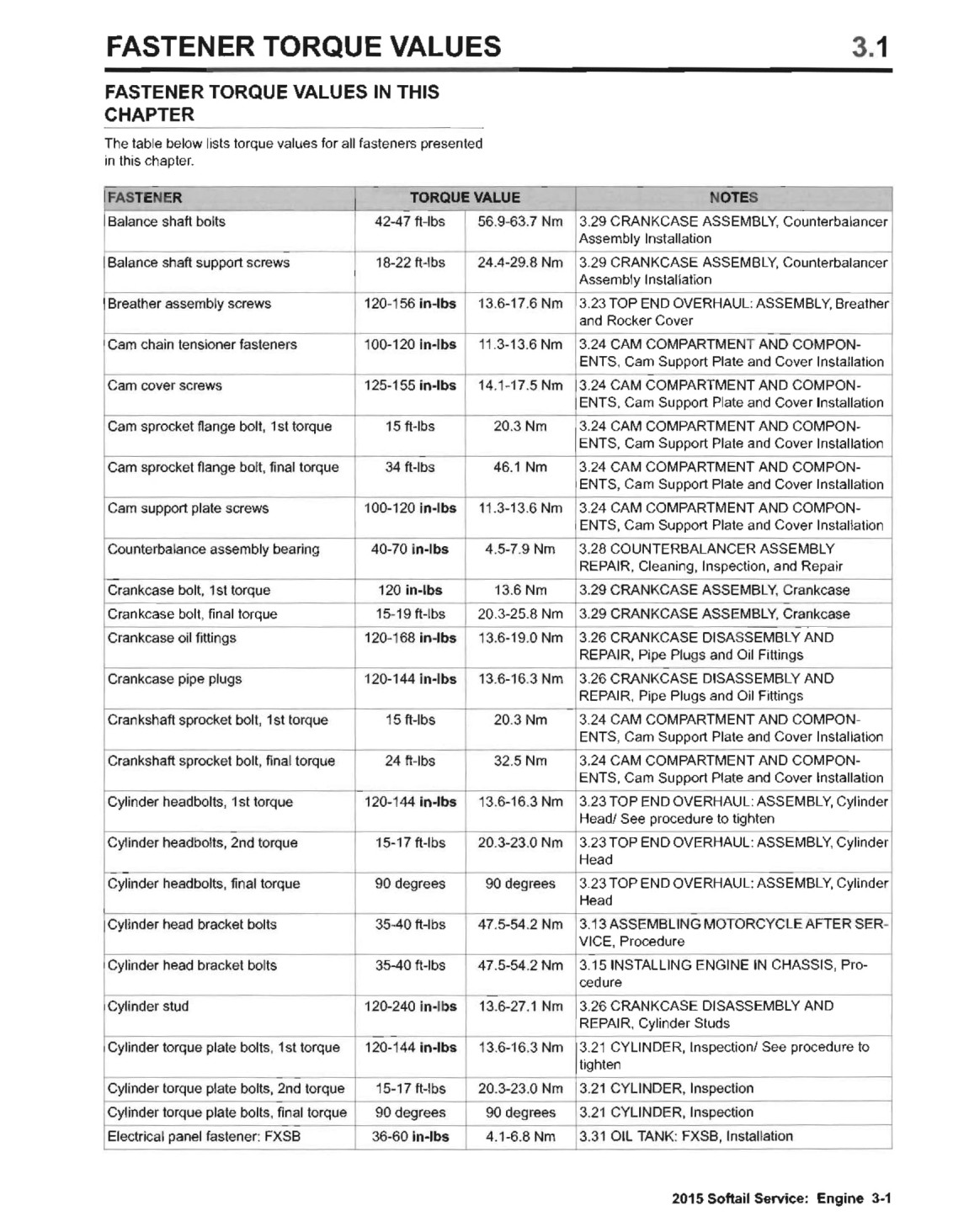

3.1 FASTENER TORQUE VALUES.................................................................................................3-1

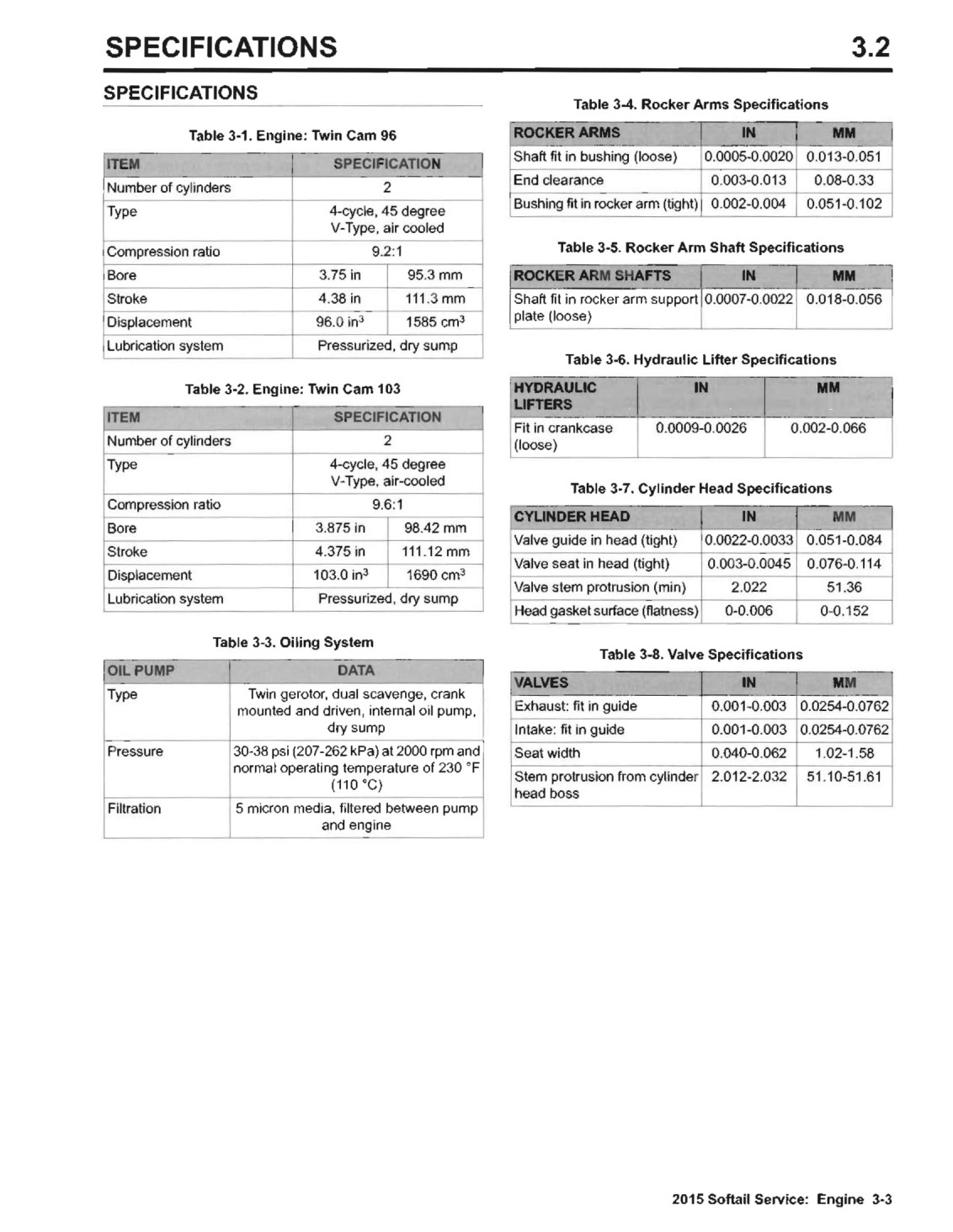

3.2 SPECIFICATIONS....................................................................................................................3-3

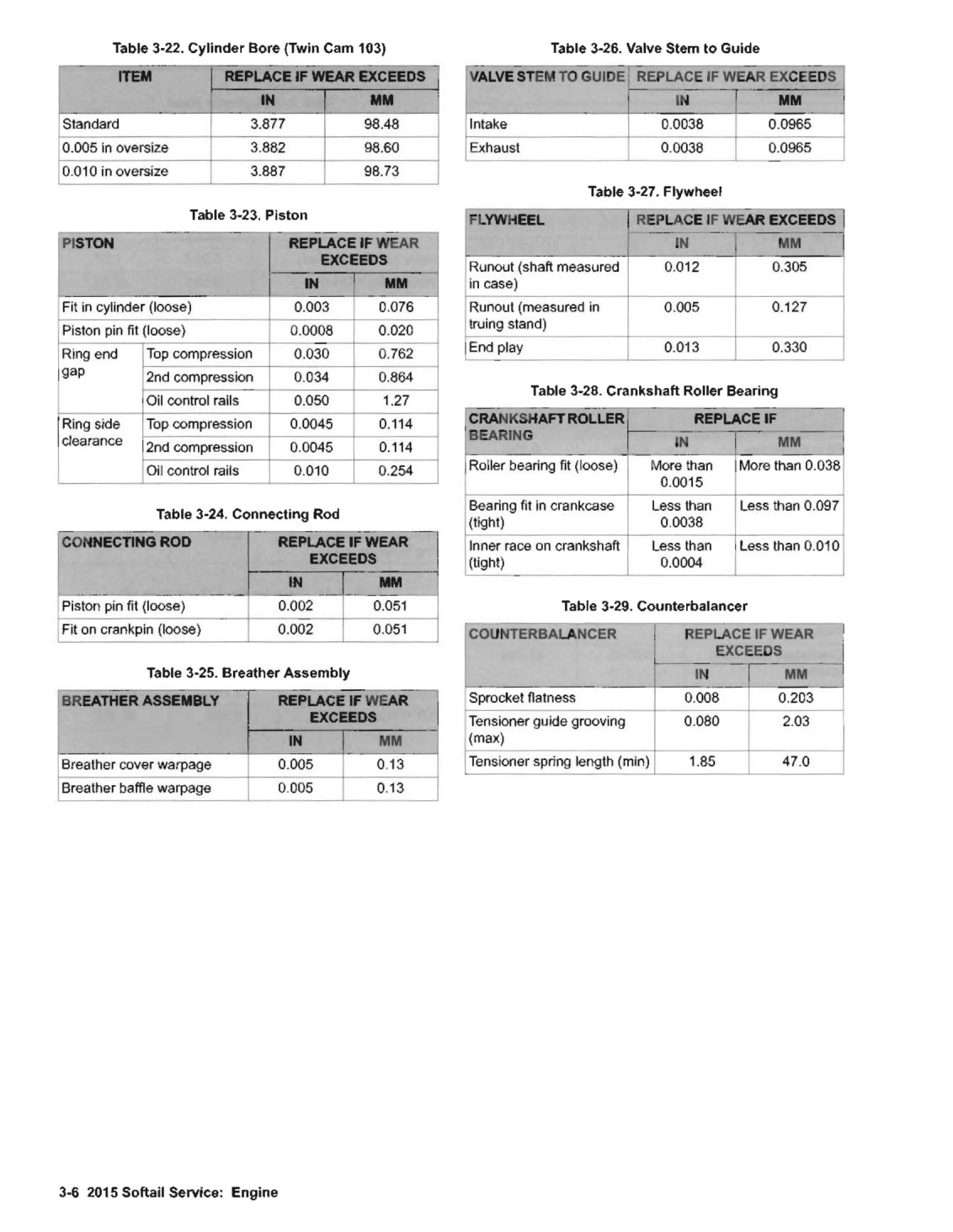

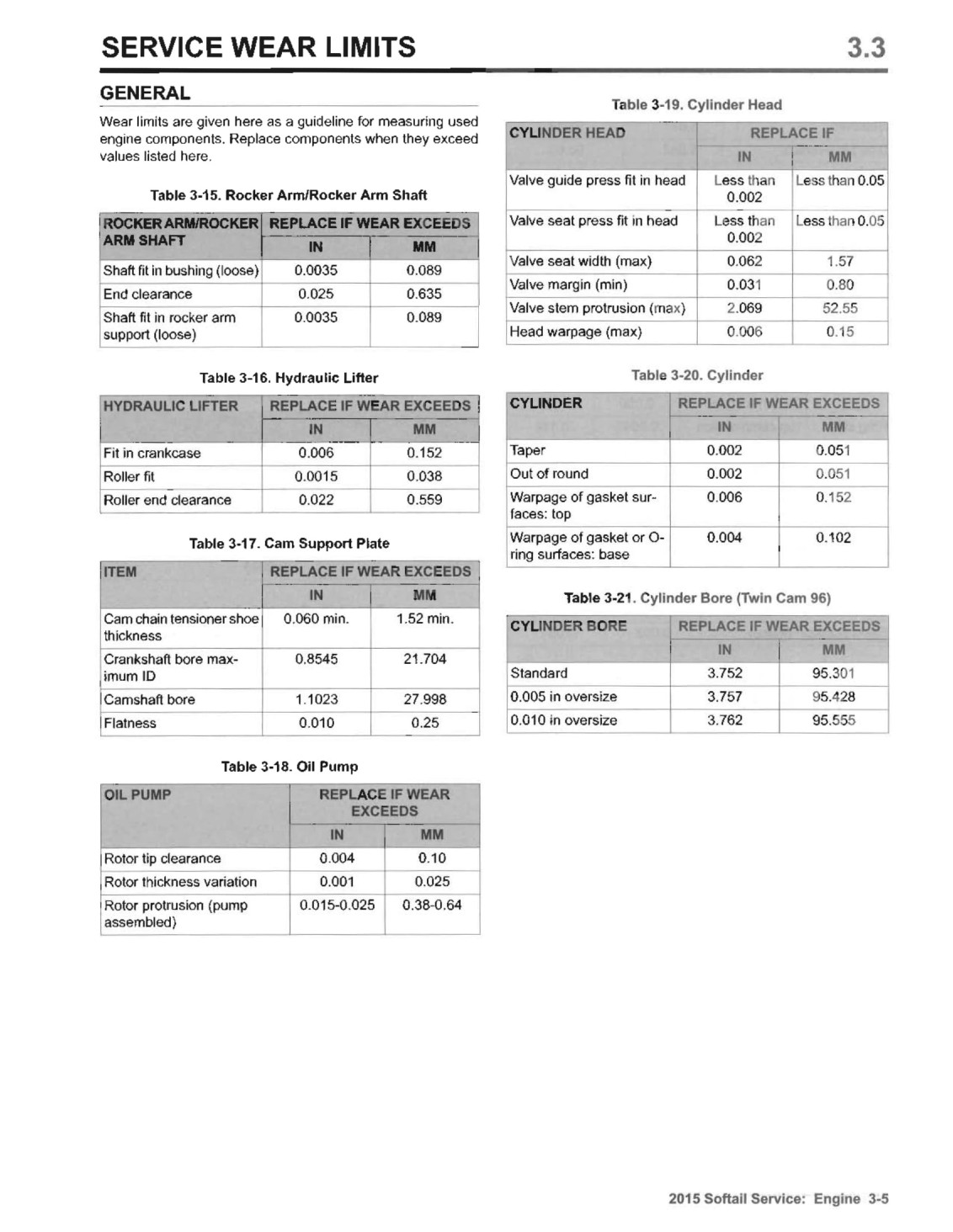

3.3 SERVICE WEAR LIMITS...........................................................................................................3-5

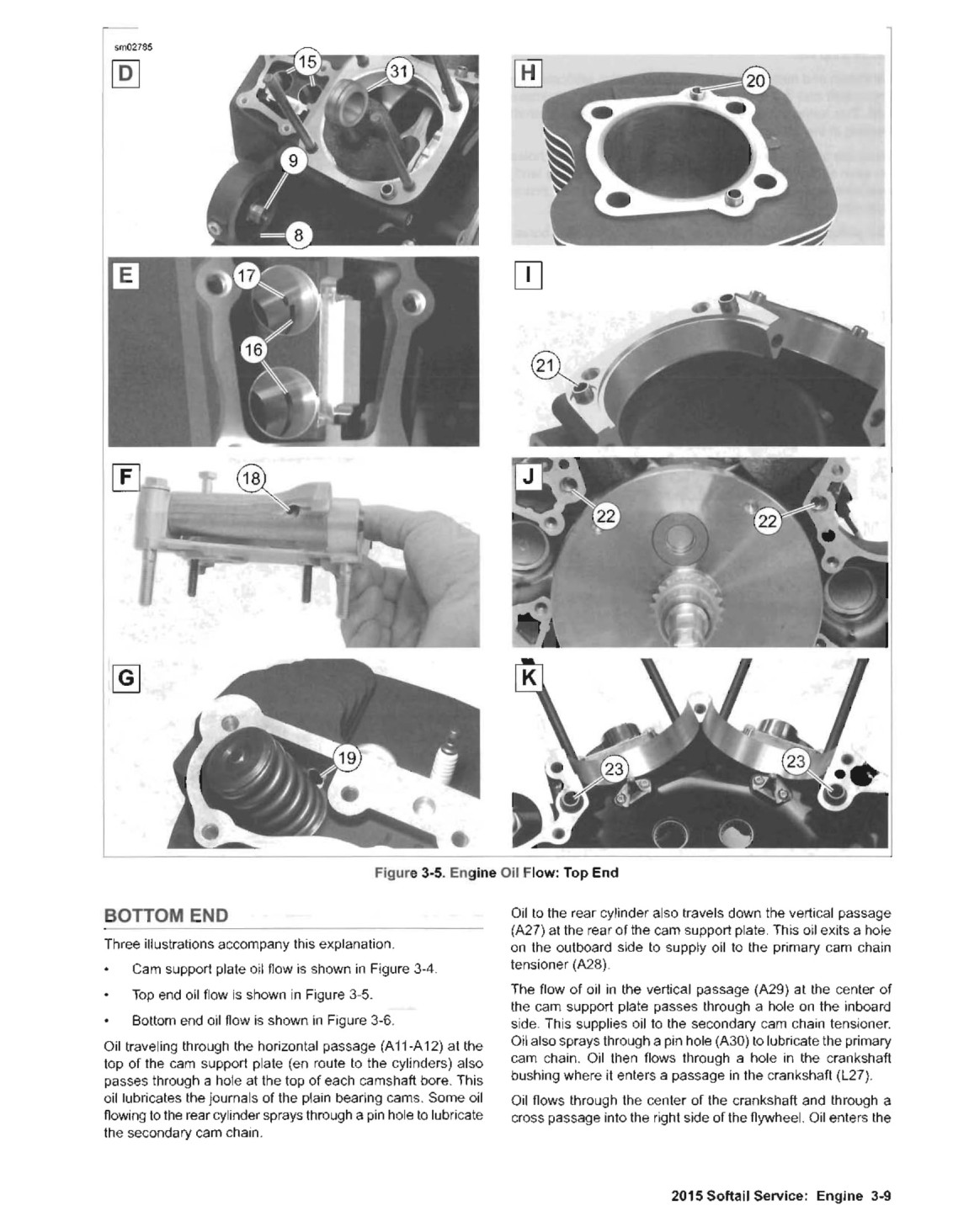

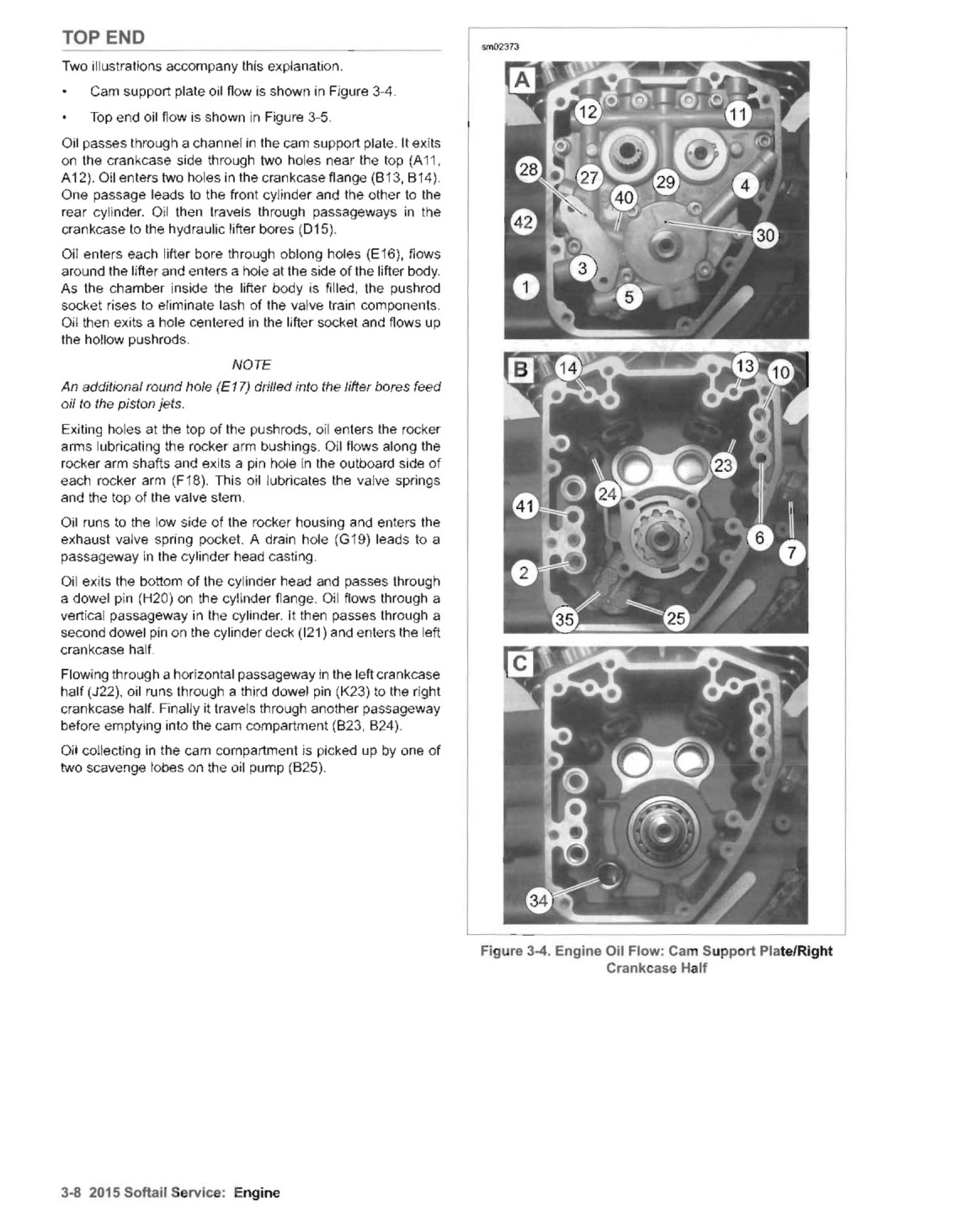

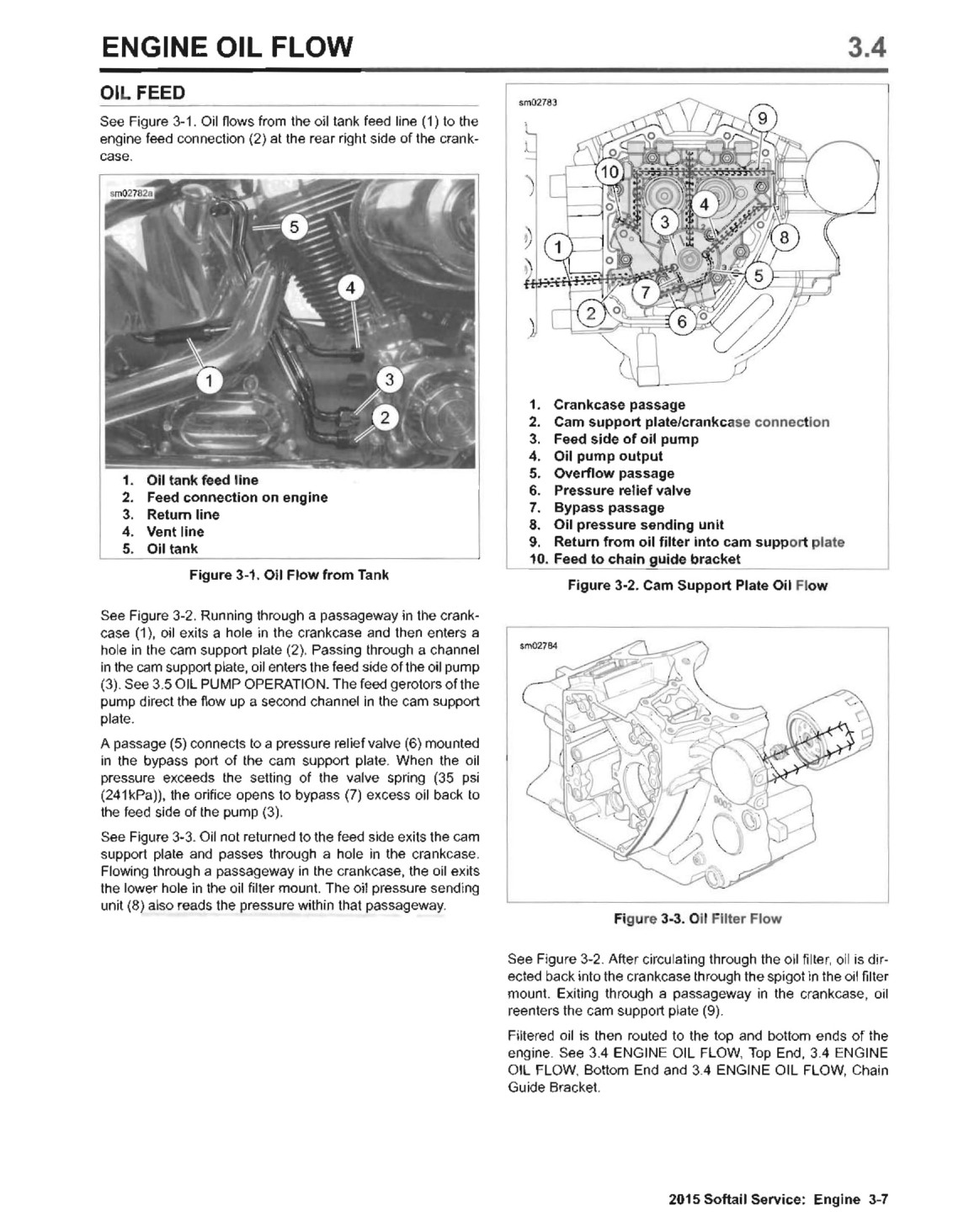

3.4 ENGINE OIL FLOW...................................................................................................................3-7

3.5 OIL PUMP OPERATION..........................................................................................................3-12

3.6 BREATHER OPERATION........................................................................................................3-14

3.7 OIL PRESSURE......................................................................................................................3-15

3.8 TROUBLESHOOTING.............................................................................................................3-17

3.9 HOW TO USE THIS SECTION................................................................................................3-19

3.10 TOP END SERVICE..............................................................................................................3-20

3.11 CAM COMPARTMENT SERVICE..........................................................................................3-22

3 12 STRIPPING MOTORCYCLE FOR SERVICE........................................................................3-24

3.13 ASSEMBLING MOTORCYCLE AFTER SERVICE................................................................3-25

3.14 REMOVING ENGINE FROM CHASSIS................................................................................3-26

3.15 INSTALLING ENGINE IN CHASSIS......................................................................................3-27

3 16 TOP END OVERHAUL: DISASSEMBLY...............................................................................3-29

3.17 BREATHER ASSEMBLY........................................................................................................3-35

3.18 ROCKER ARM SUPPORT PLATE........................................................................................3-36

3.19 PUSHRODS, LIFTERS AND COVERS.................................................................................3-39

3.20 CYLINDER HEAD..................................................................................................................3-41

3.21 CYLINDER.............................................................................................................................3-51

3.22 PISTON..................................................................................................................................3-55

3.23 TOP END OVERHAUL: ASSEMBLY.....................................................................................3-59

3.24 CAM COMPARTMENT AND COMPONENTS.......................................................................3-69

3.25 OIL PUMP.............................................................................................................................3-81

3.26 CRANKCASE DISASSEMBLY AND REPAIR........................................................................3-83

3.27 FLYWHEEL AND CONNECTING RODS...............................................................................3-93

3.28 COUNTERBALANCER ASSEMBLY REPAIR.......................................................................3-95

3.29 CRANKCASE ASSEMBLY..................................................................................................3-100

3.30 OIL TANK: ALL BUT FXSB..................................................................................................3-106

3.31 OIL TANK: FXSB..................................................................................................................3-110
