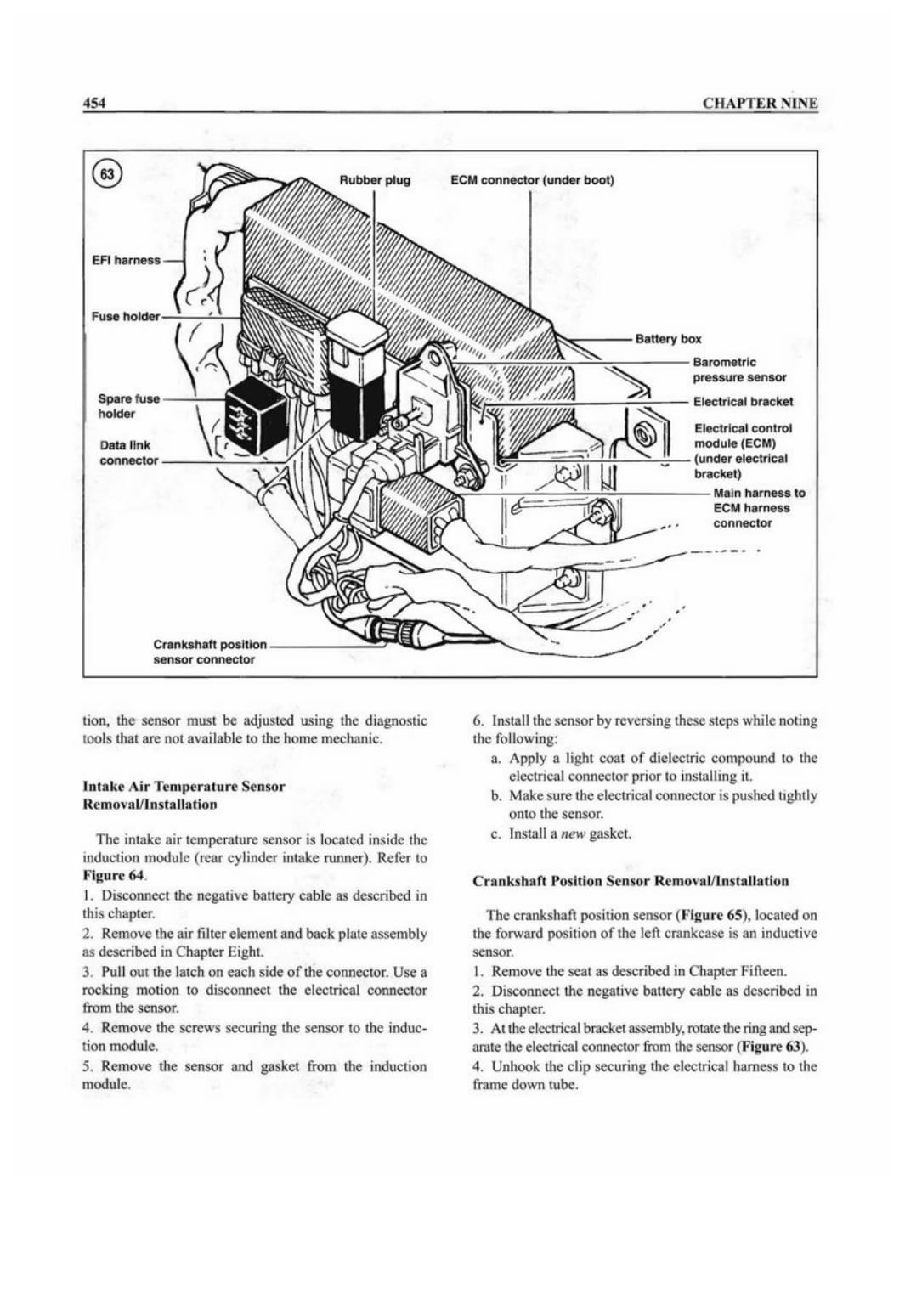

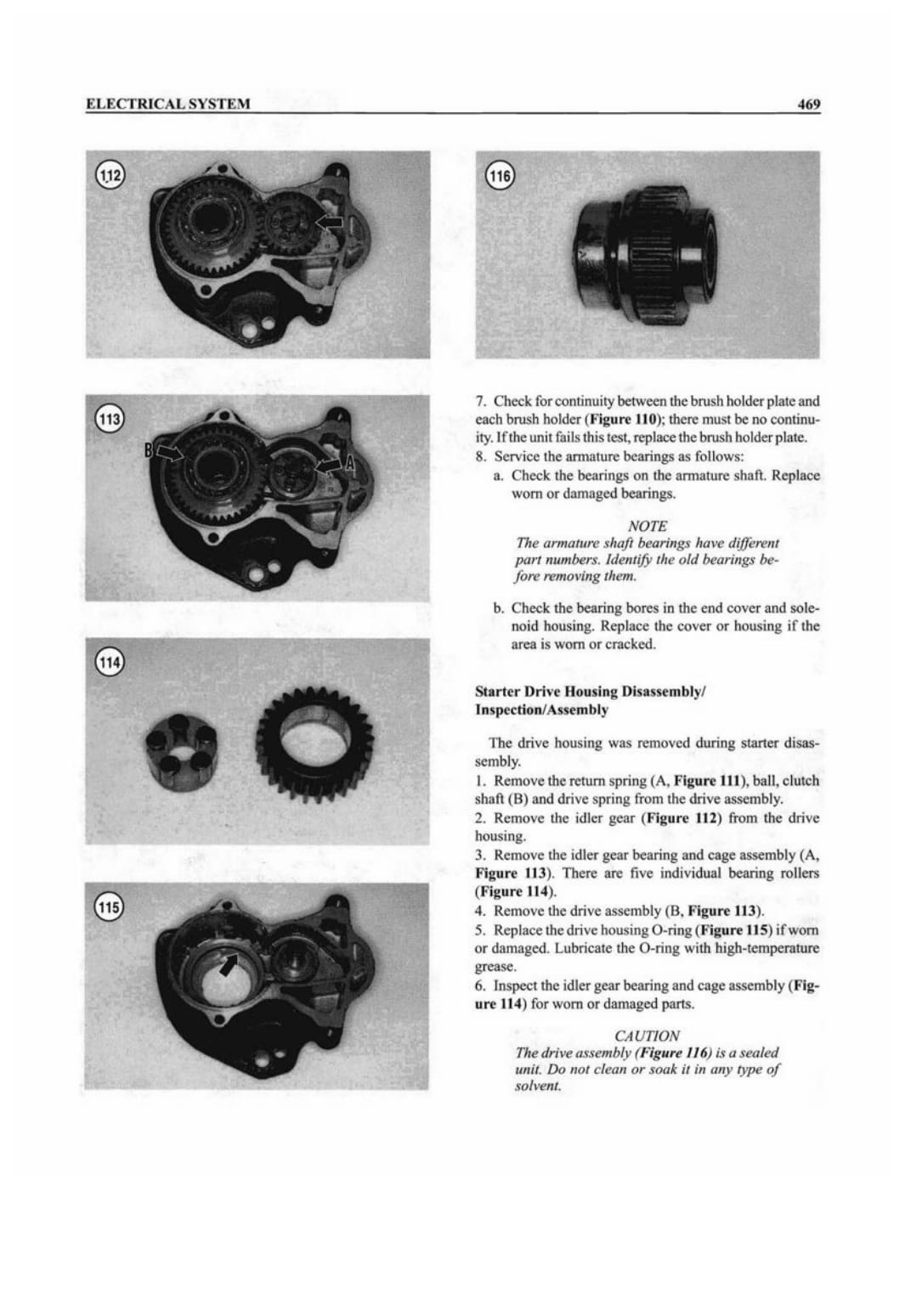

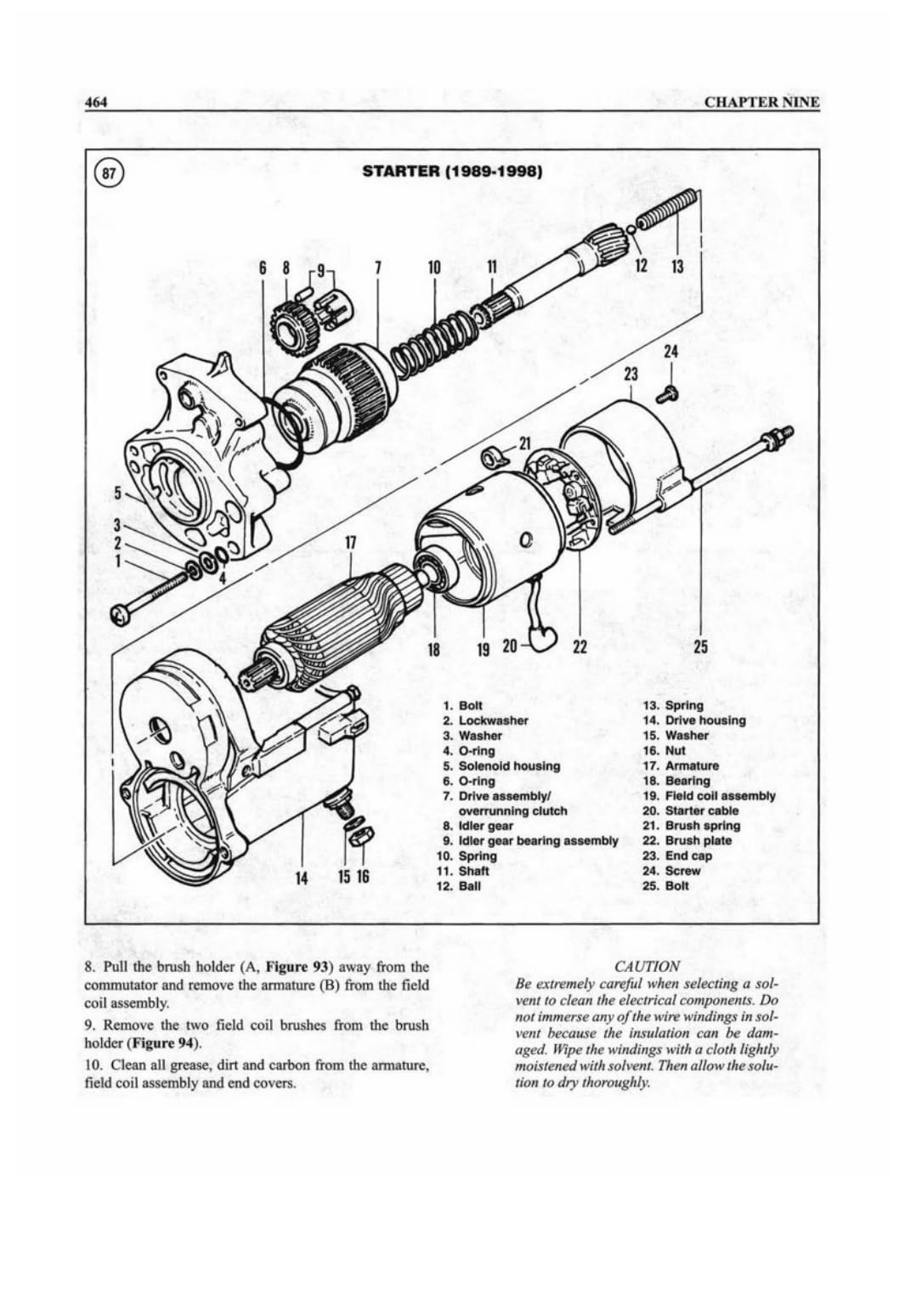

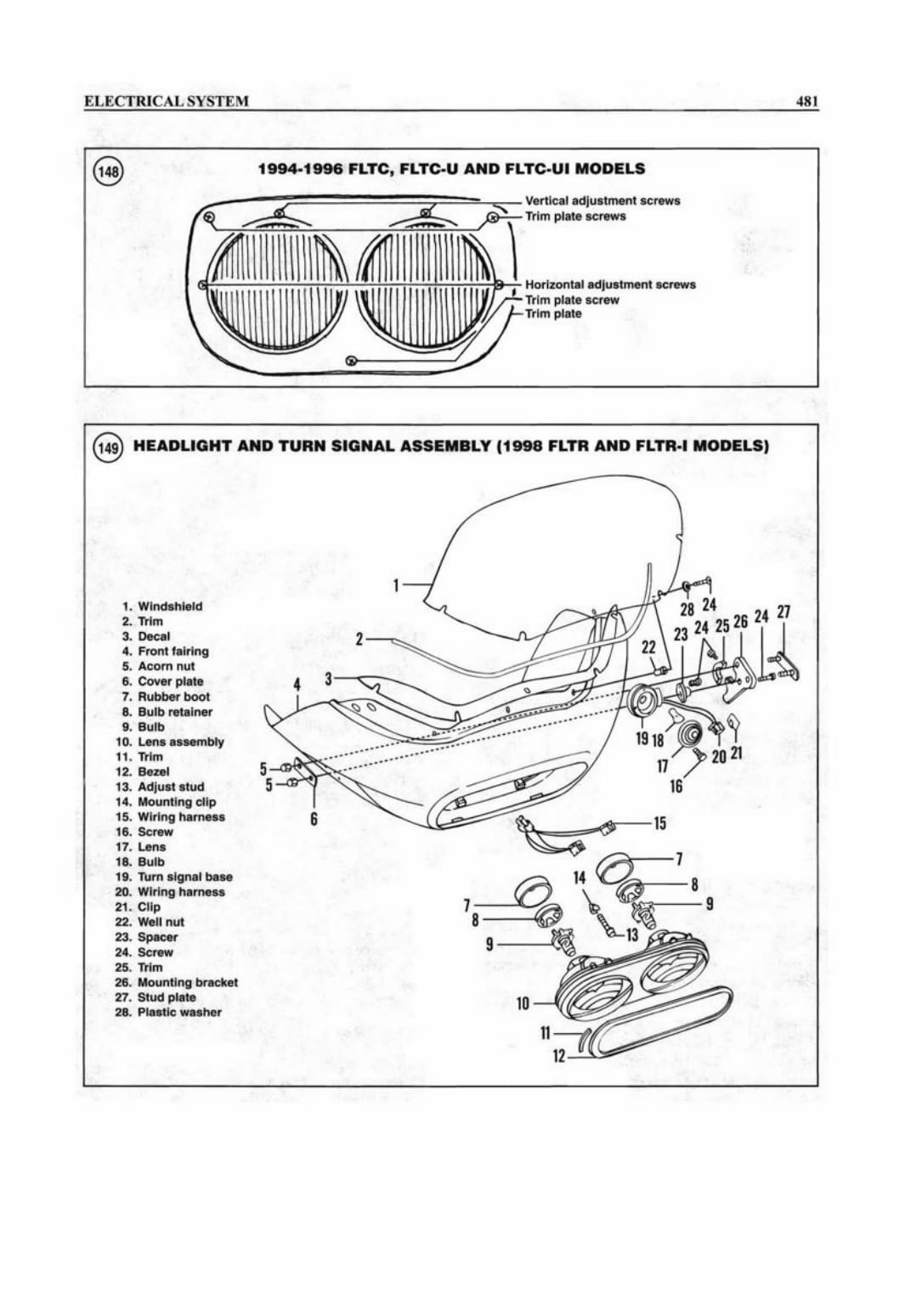

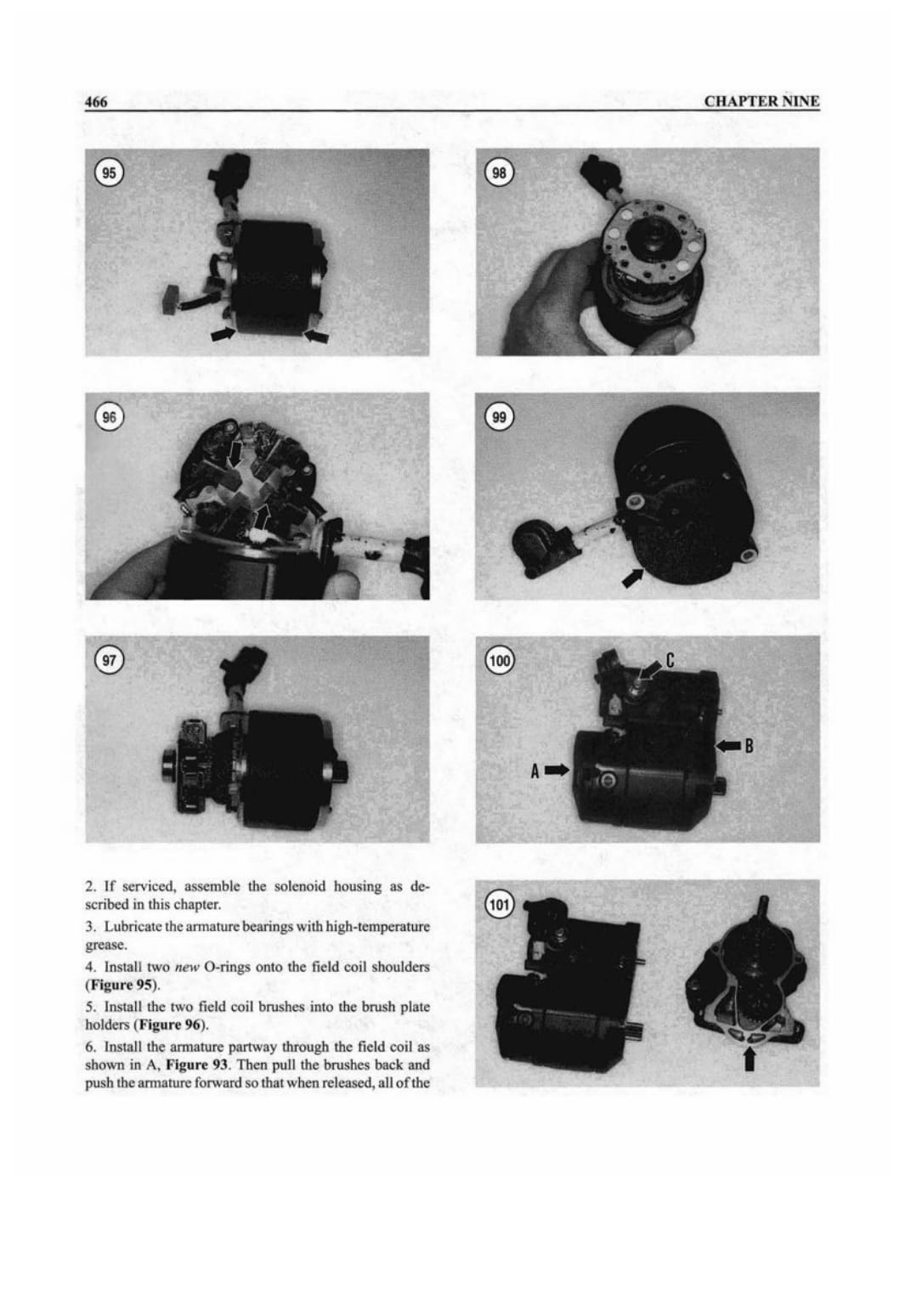

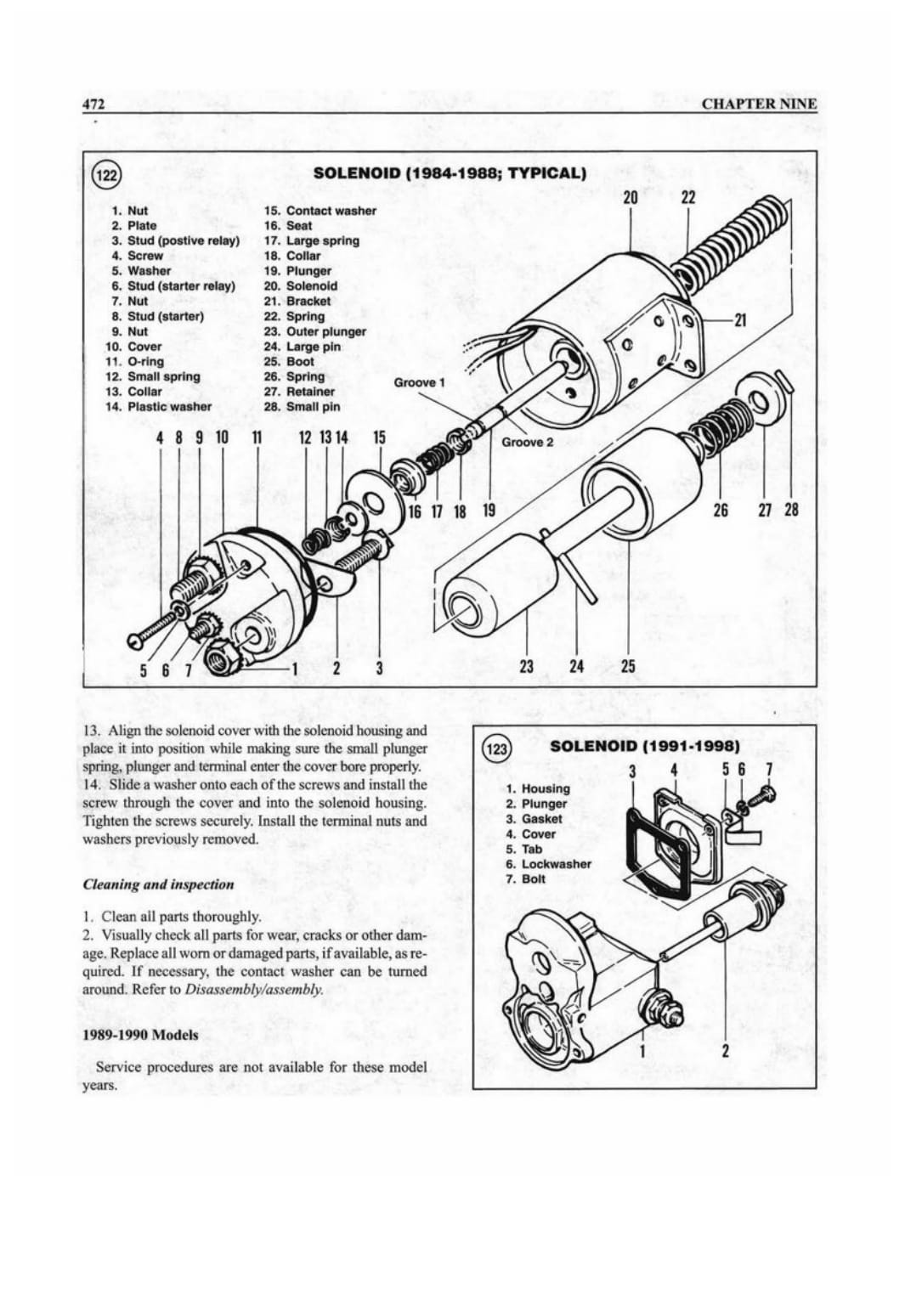

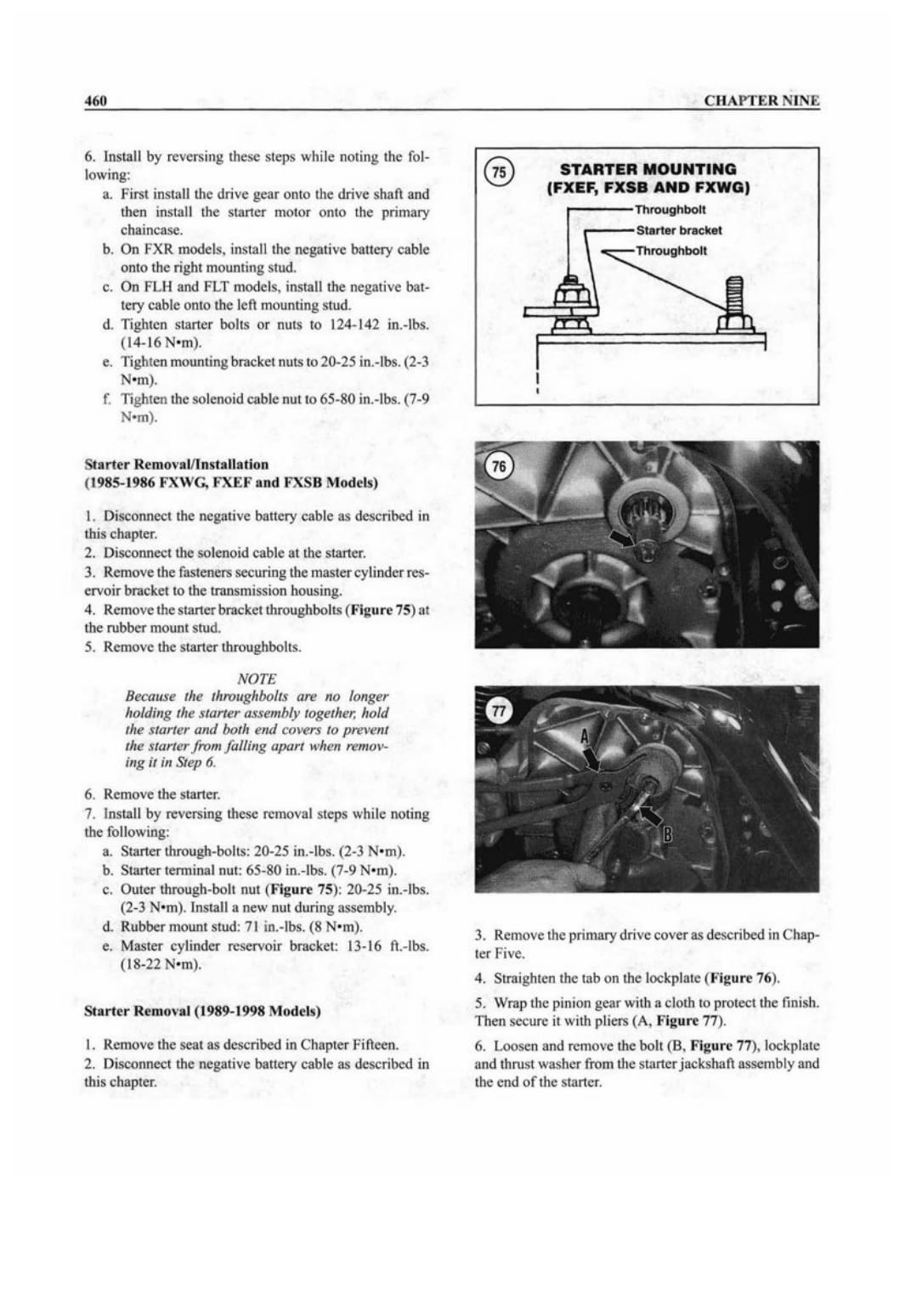

ELECTRICAL SYSTEM

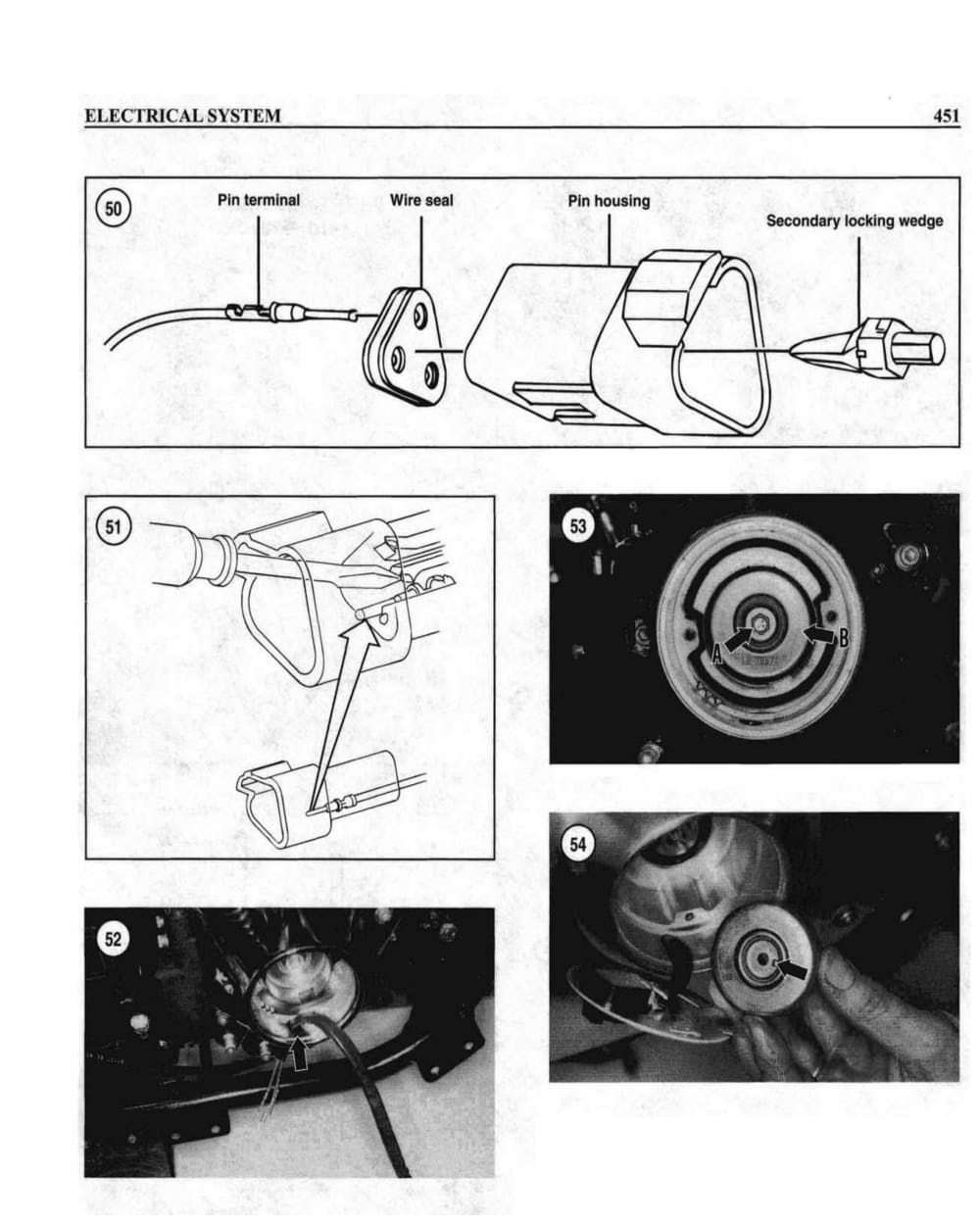

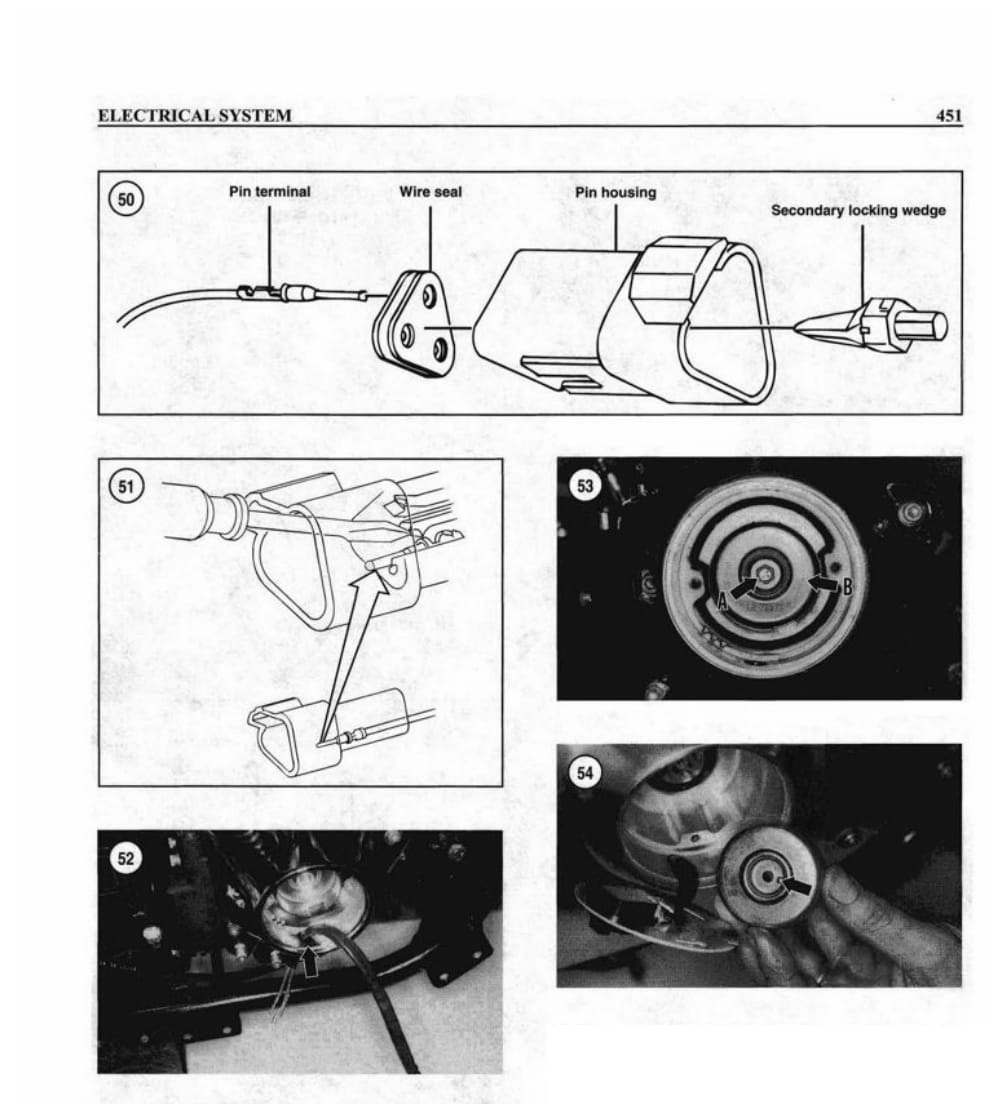

d. Install the secondary locking wedge into the socket housing as
shown in Figure 50. Press the secondary locking wedge down until it is
locked into place.
5. Before riveting the cover in place, check the ignition timing as
described in Chapter Three.
6. Install the inner cover and gasket (Figure 45). Install the screws
and tighten securely.

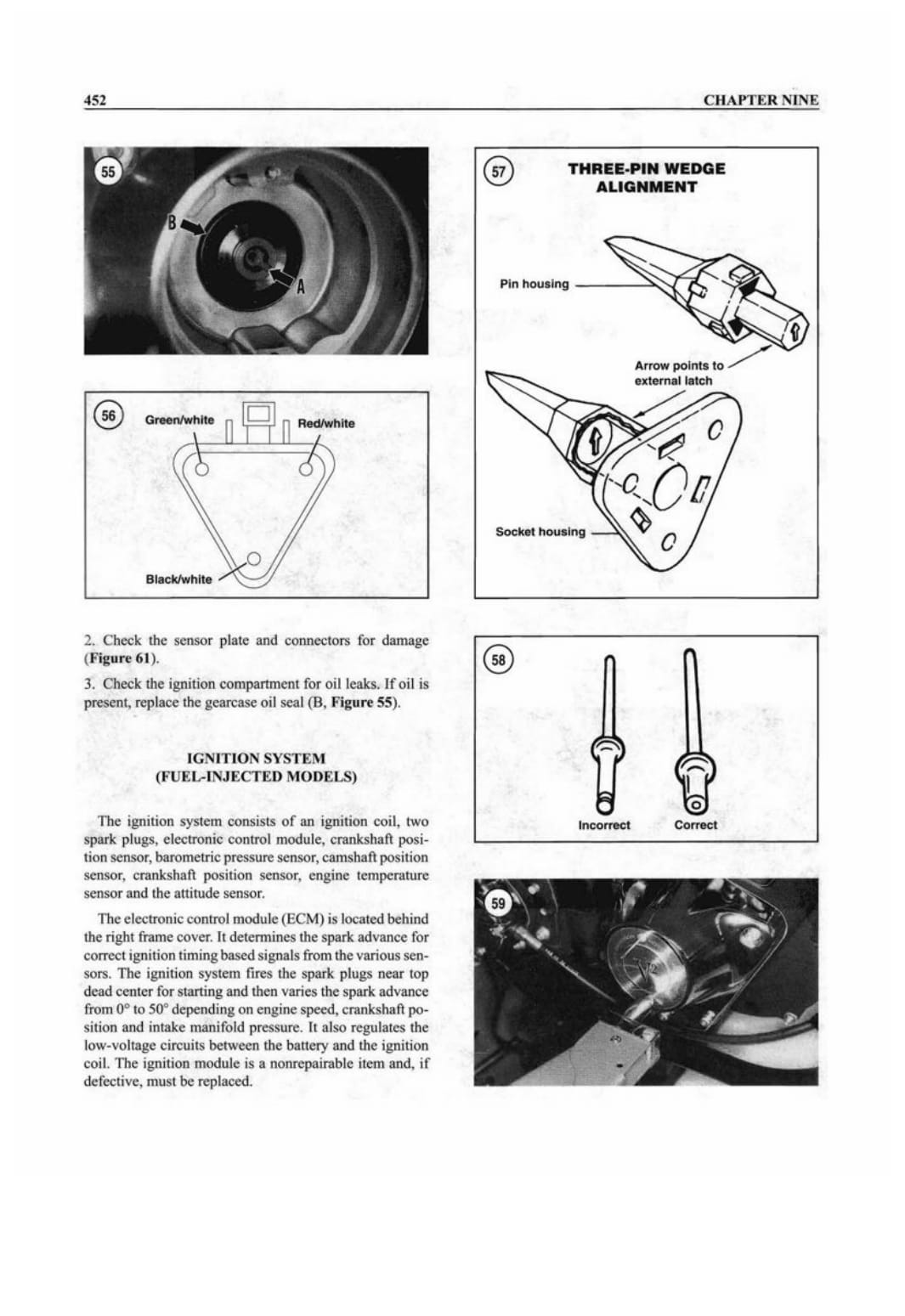

7. Use only OEM timing cover rivets (H-D part No. 8699) (Figure 58).

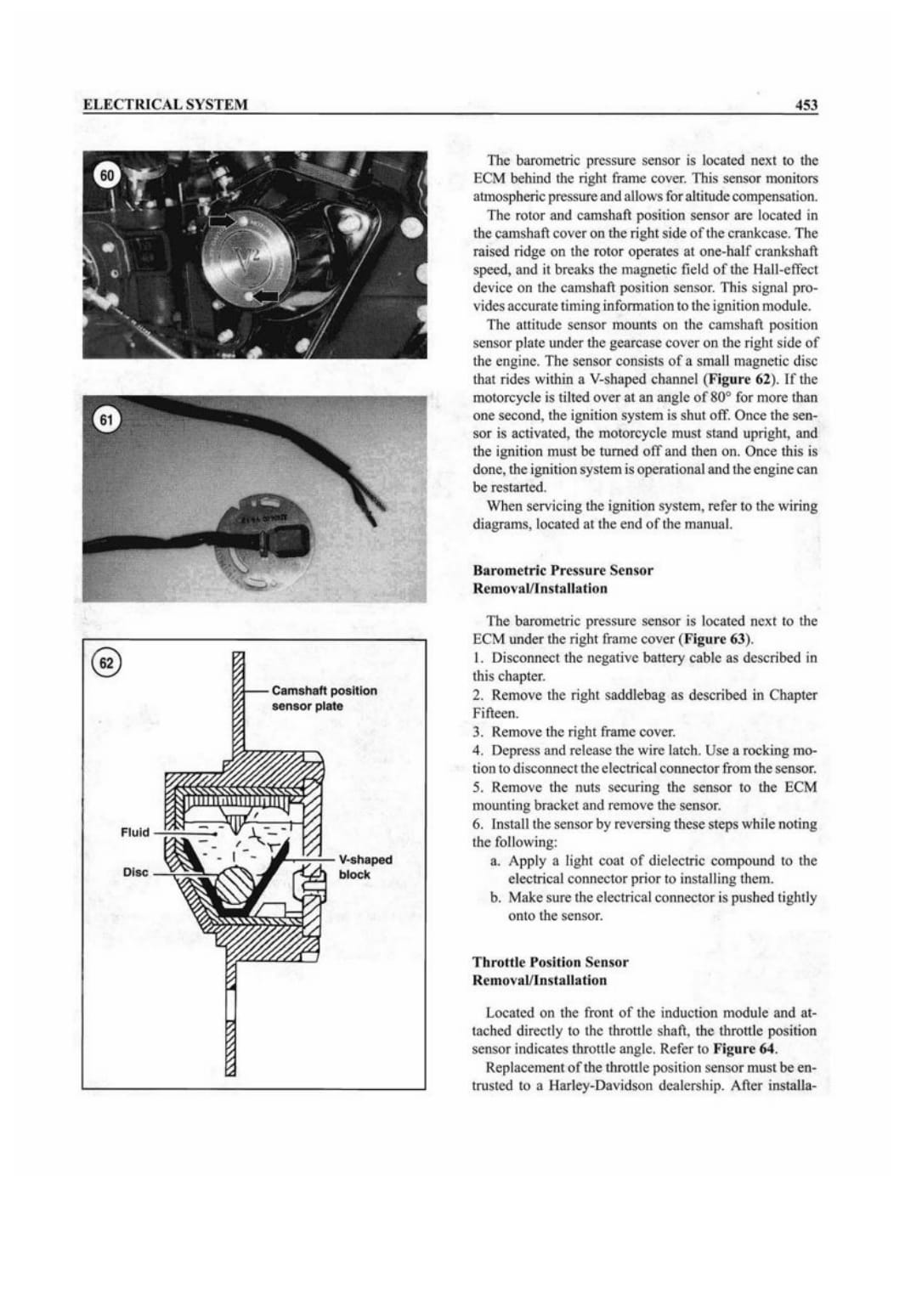

Rivet the cover to the inner cover (Figure 59). The rivets must be flush
against the outer cover (Figure 60).
8. Connect the negative battery cable.
Stator Plate Inspection (All Models)
1. If necessary, troubleshoot the ignition system as described in
Chapter Two.
