Harley Davidson 1998 XLH sportmaster models. Service manual - page 15

DRIVE/TRANSMISSION 6
SUBJECT PAGE NO.

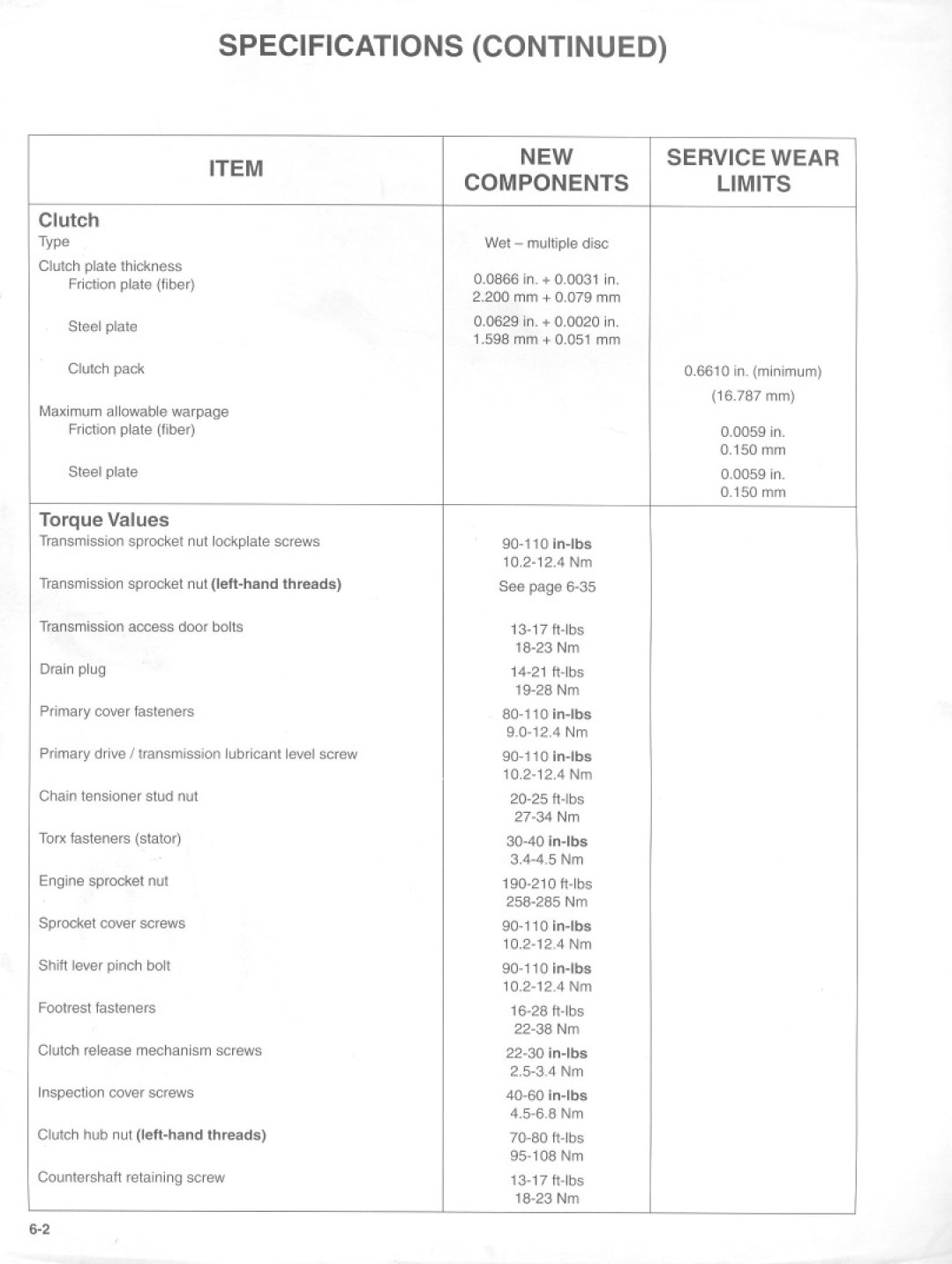

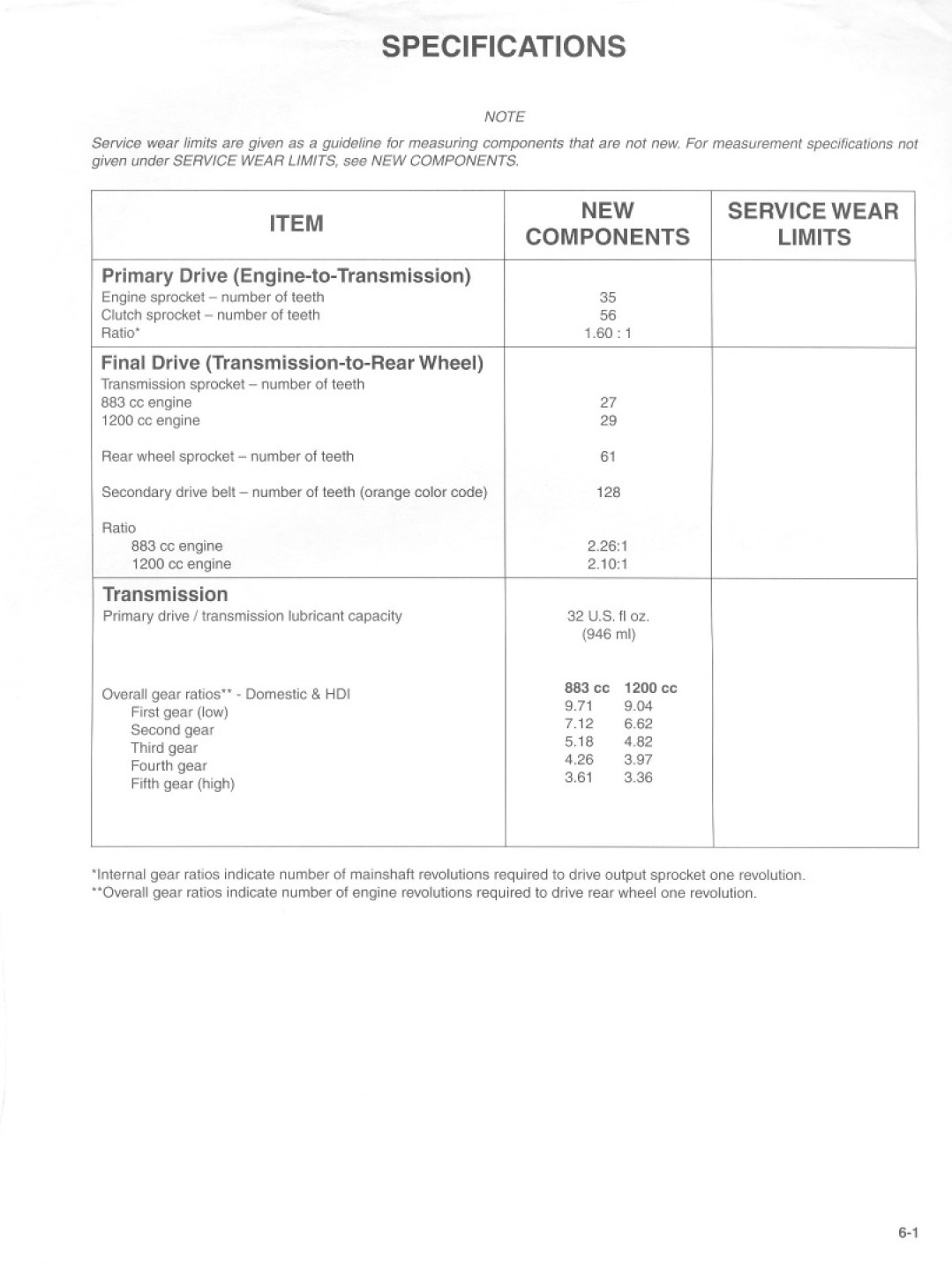

1. Specifications................................................6-1

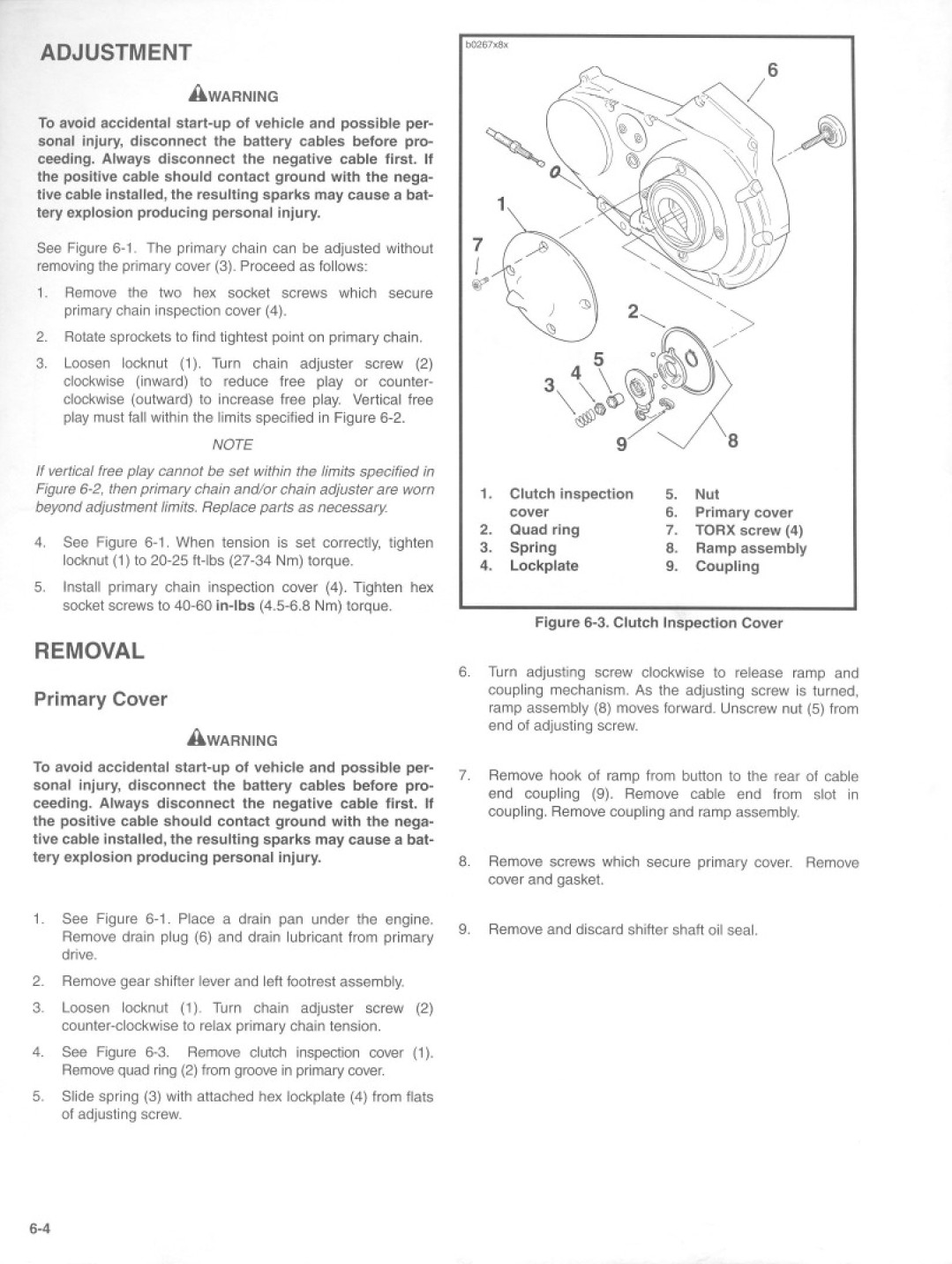

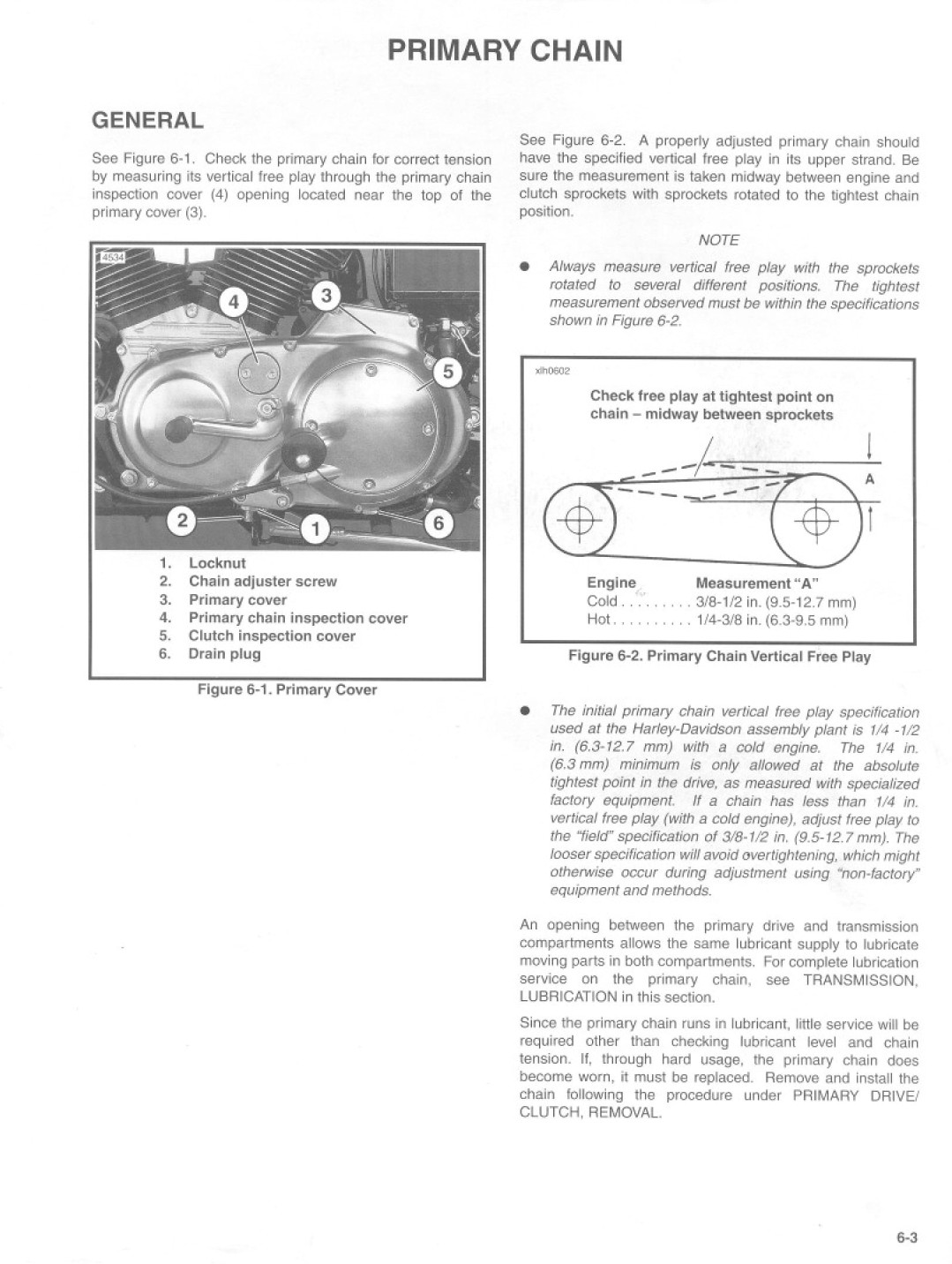

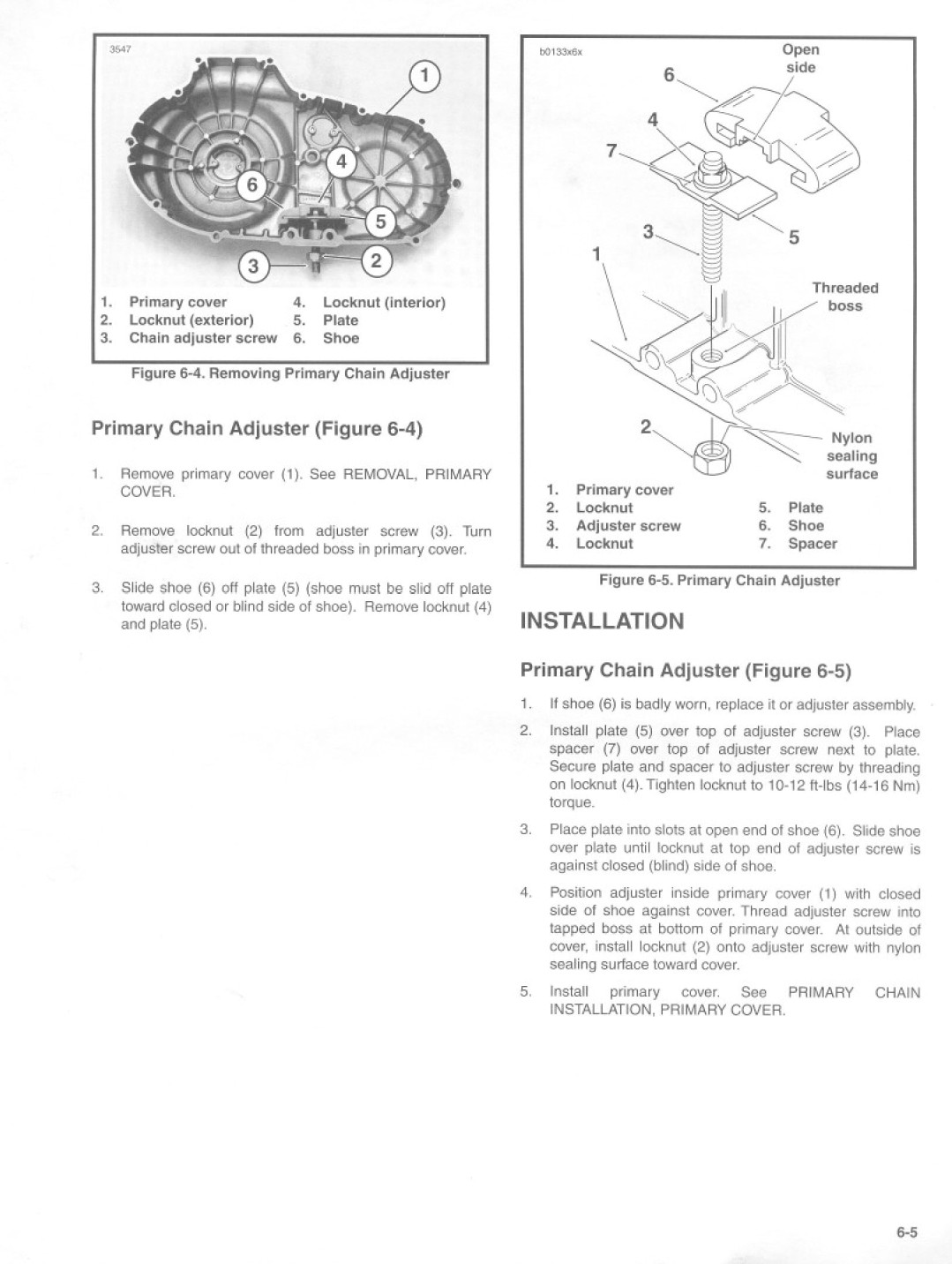

2. Primary Chain ...............................................6-3

3. Secondary Drive Belt..........................................6-7

4. Clutch......................................................6-9

5. Clutch Release Mechanism....................................6-10

6. Primary Drive/Clutch .........................................6-12

7. Transmission ...............................................6-16

8. Transmission Case...........................................6-18

9. Shifter Forks and Drum .......................................6-20

10. Mainshaft and Countershaft....................................6-23

11. Main Drive Gear.............................................6-30

12. Access Door Bearings ........................................6-32

13. Right Transmission Case Bearings...............................6-33

14. Transmission Installation and Shifter Pawl Adjustment ...............6-34
