Harley Davidson 1997-1998 Softail Models. Service manual - page 20

ELECTRICAL

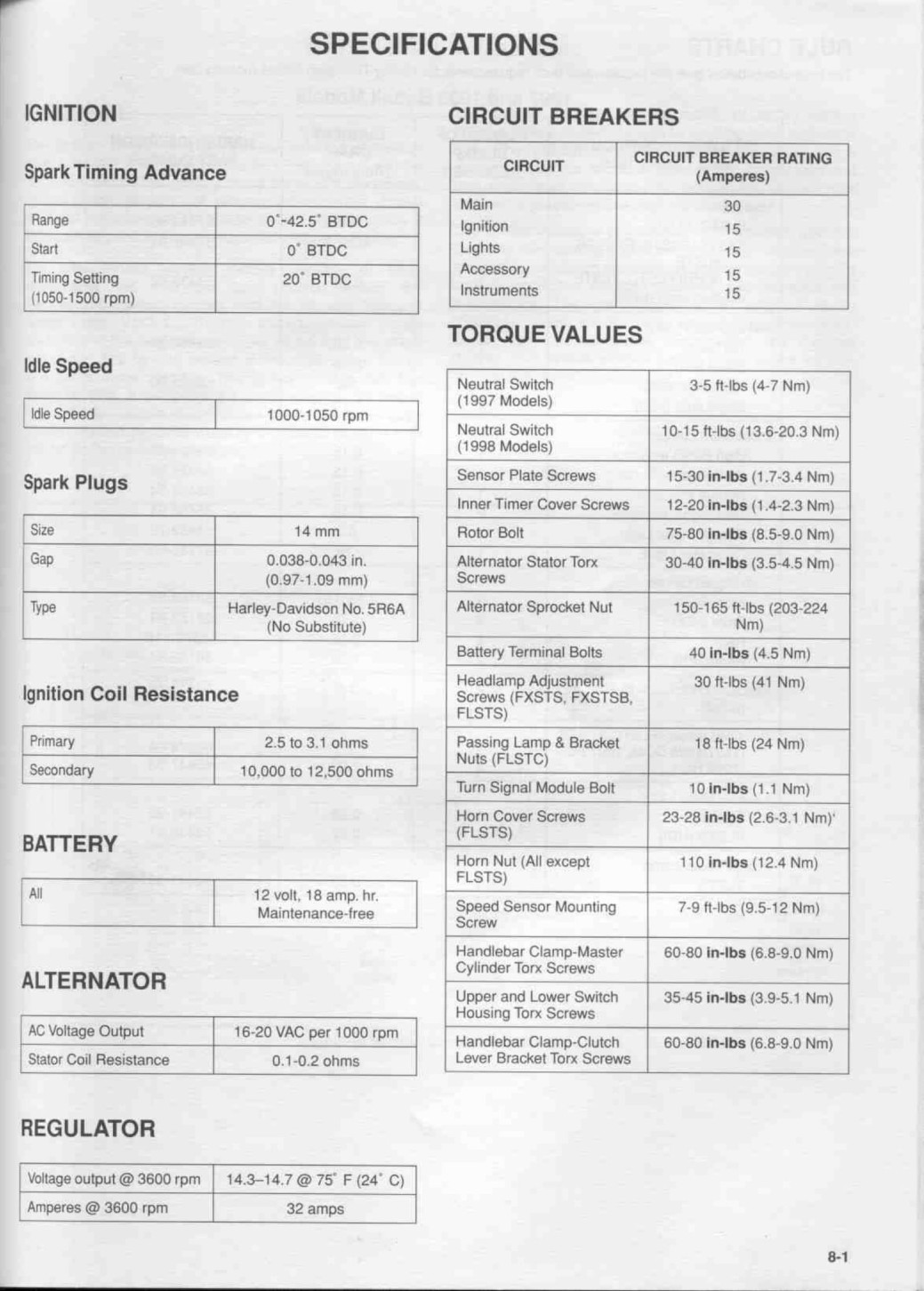

1. Specifications......................................................................................................8-1

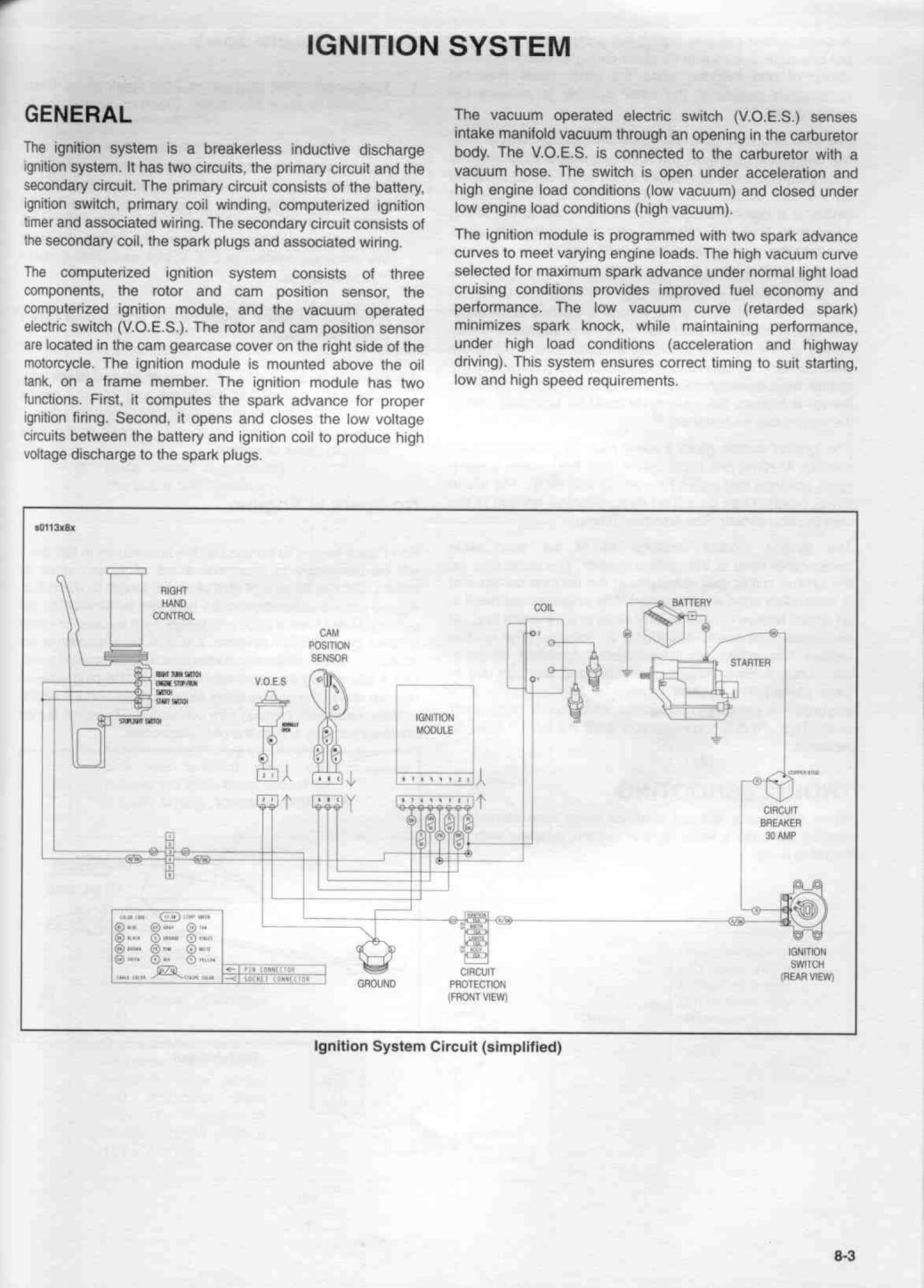

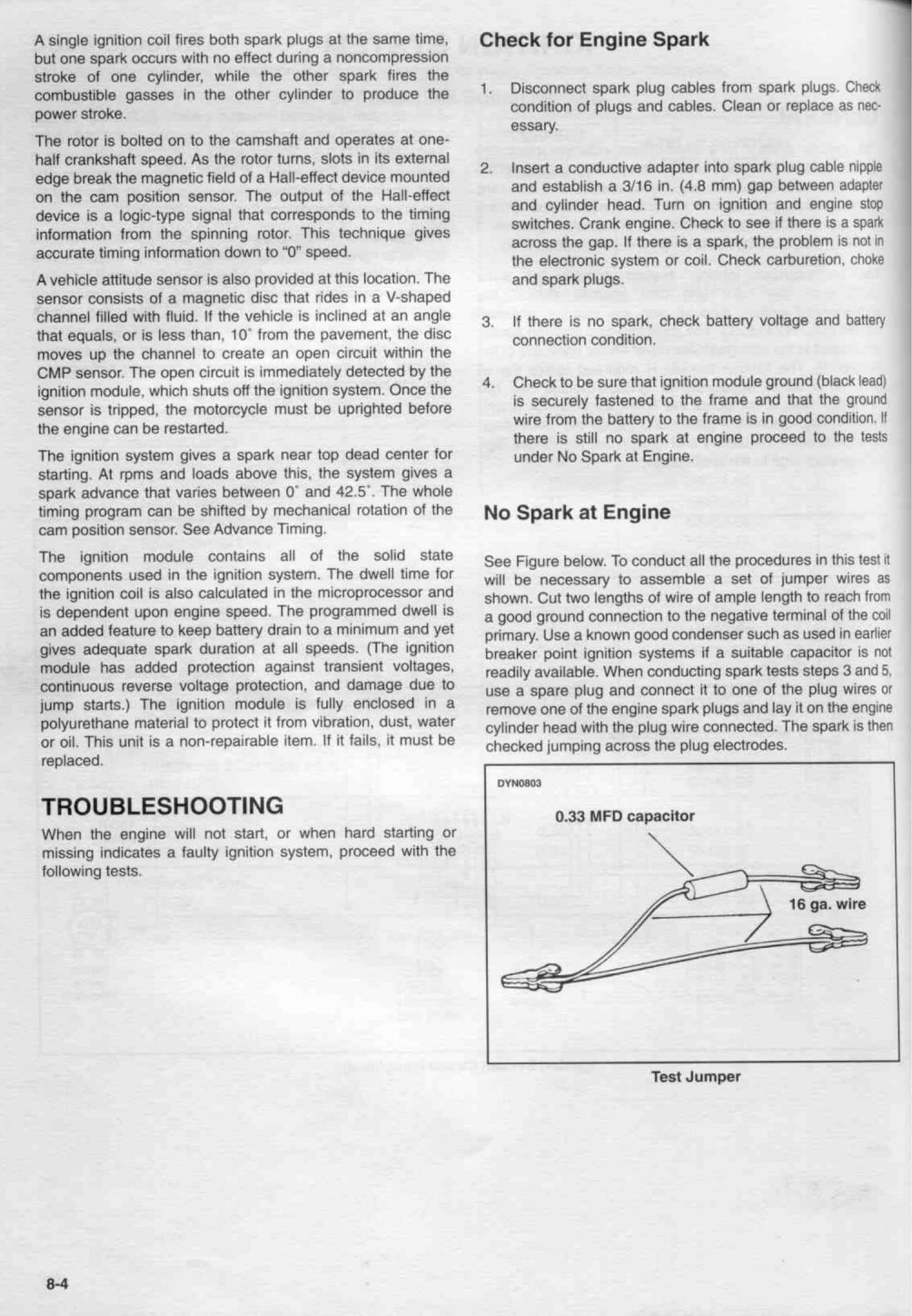

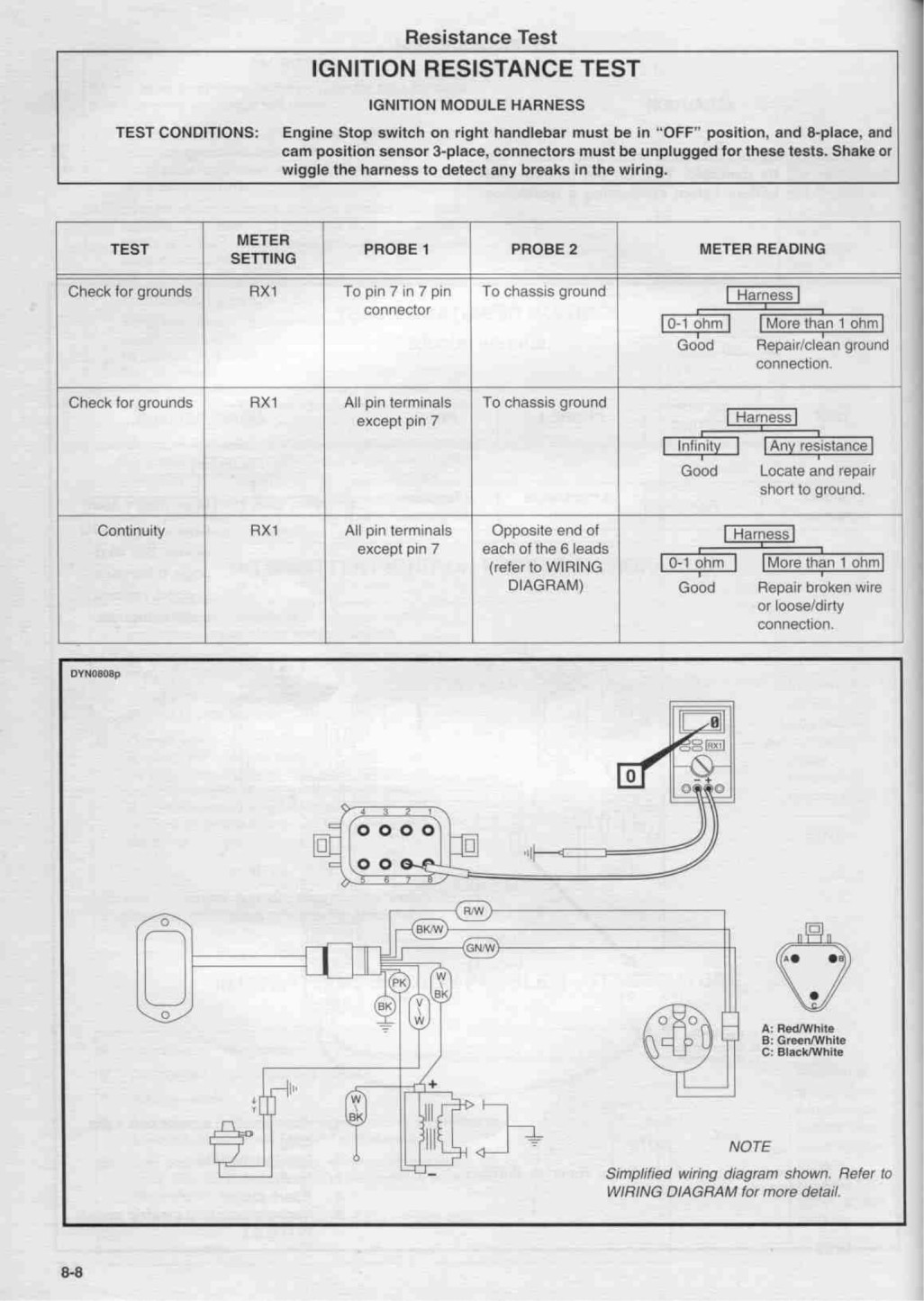

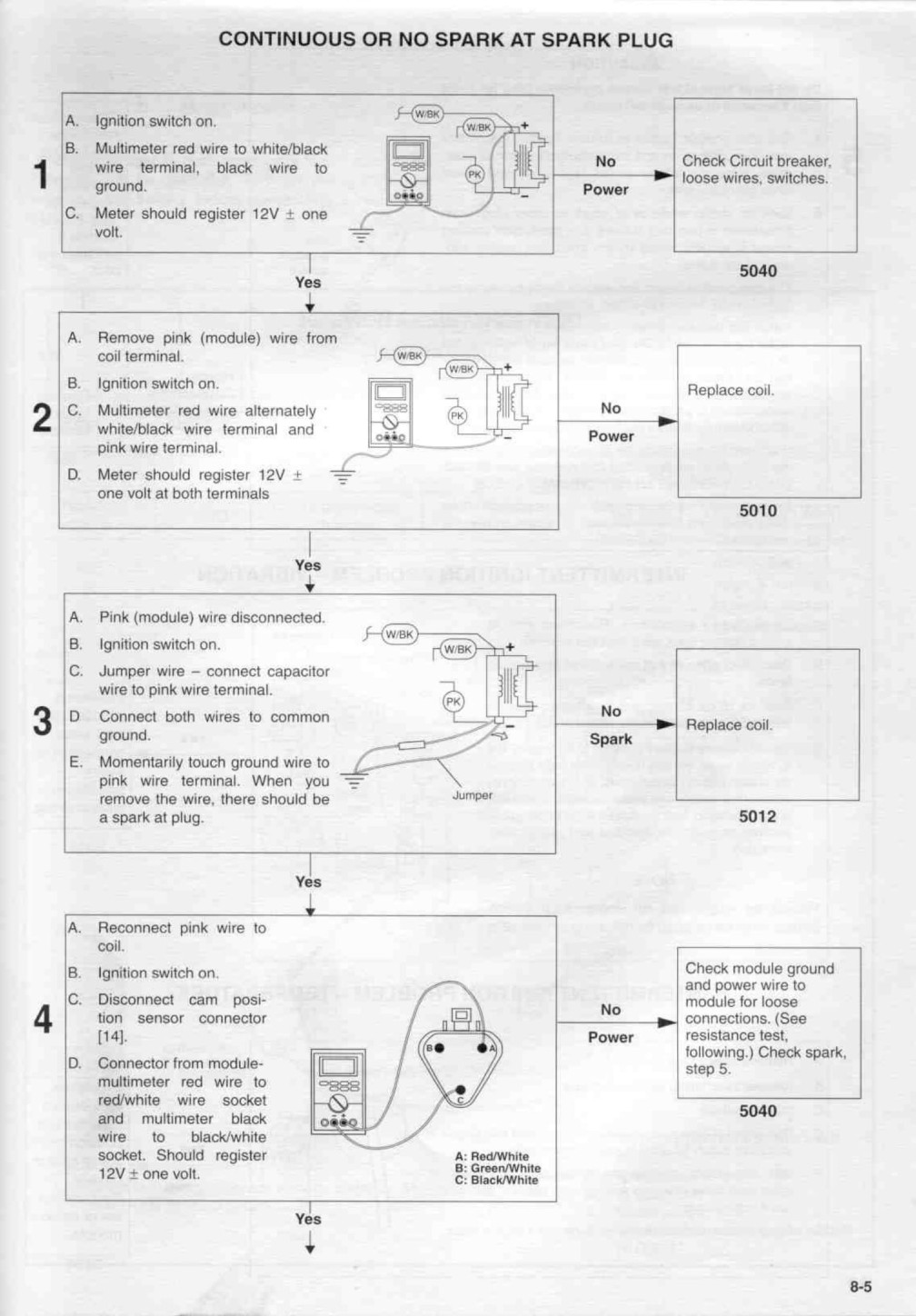

2. Ignition System....................................................................................................8-3

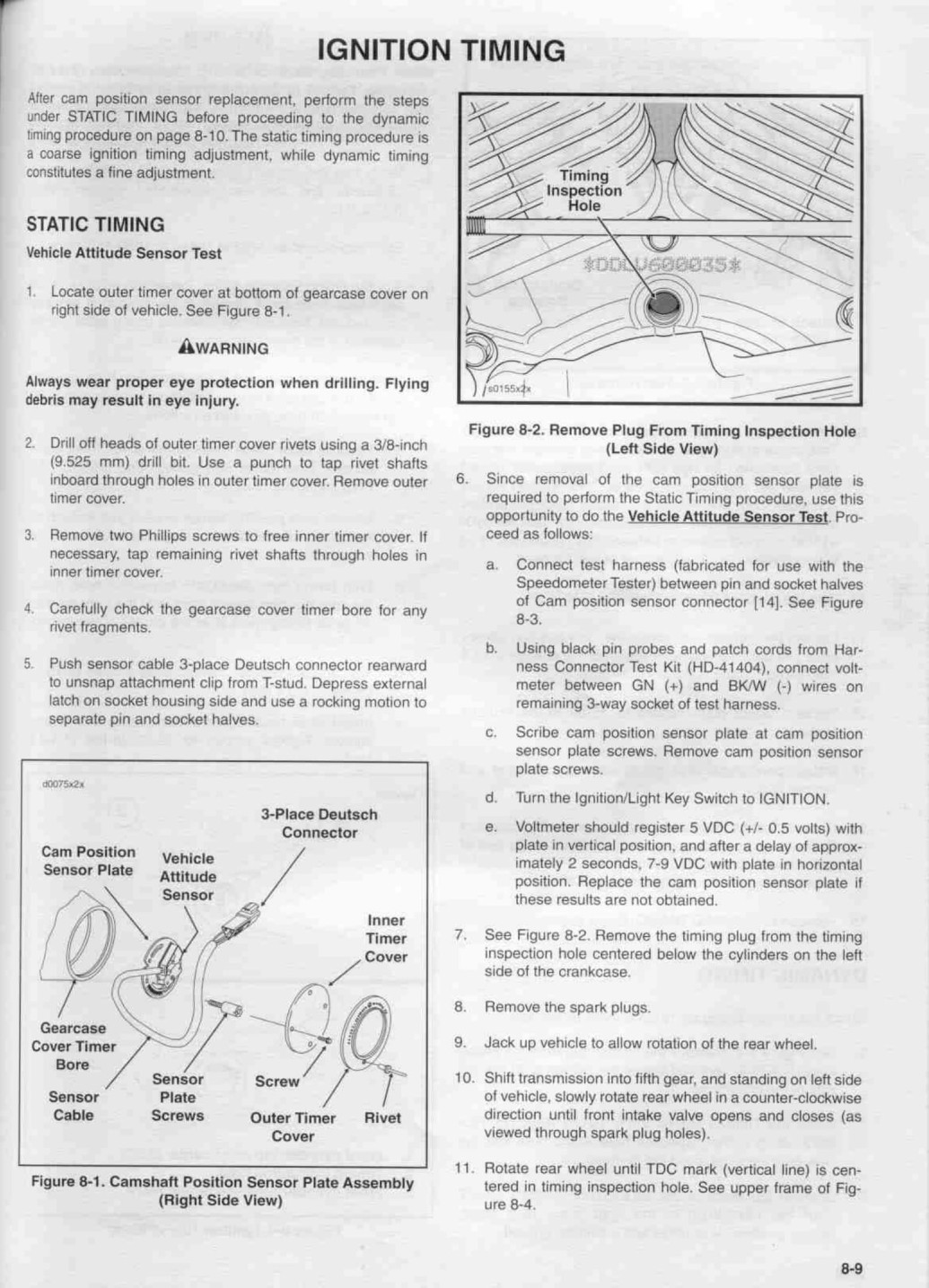

3. Ignition Timing......................................................................................................8-9

4. Vacuum Operated Electric Switch (V.O.E.S)............................ 8-12

5. Ignition Module and Cam Position Sensor............................. 8-14

6. Ignition Coil..................................................... 8-16

7. Ignition/Light Switch.............................................. 8-17

8 Neutral Switch................................................... 8-18

9. Charging System................................................. 8-20

10 Alternator....................................................... 8-25

It Voltage Regulator................................................ 8-26

12 Battery......................................................... 8-27

13 Headlamp...................................................... 8-30

14. Turn Signal&Hunning Lights........................................ 8-34

15. Tail Lamp....................................................... 8-36

16 Passing Lamps.................................................. 8-37

17 Passing Lamp Bracket (FLSTC)..................................... 8-38

18. Passing Lamp Bracket (FLSTS)..................................... 8-39

19. Front Fender Lamp (FLSTS)........................................ 8-40

20. Turn Signal Canceller............................................. 8-41

21. Horn.......................................................... 8-49

22. Main Wiring Harness.............................................. 8-52

23. Electronic Speedometer........................................... 8-54

24 Speedometer Speed Sensor........................................ 8-61

25 Speedometer Performance Check ..................................................................8-62

26 Solenoid Electrical Tests (on California air cleaner backplate assembly)...... 8-64

27. Handlebar Switch Assemblies....................................... 8-69
