Indian motorcycle 2015-2017 Scout / Scout Sixty. Service Manual - page 24

CHAPTER 9 BRAKES

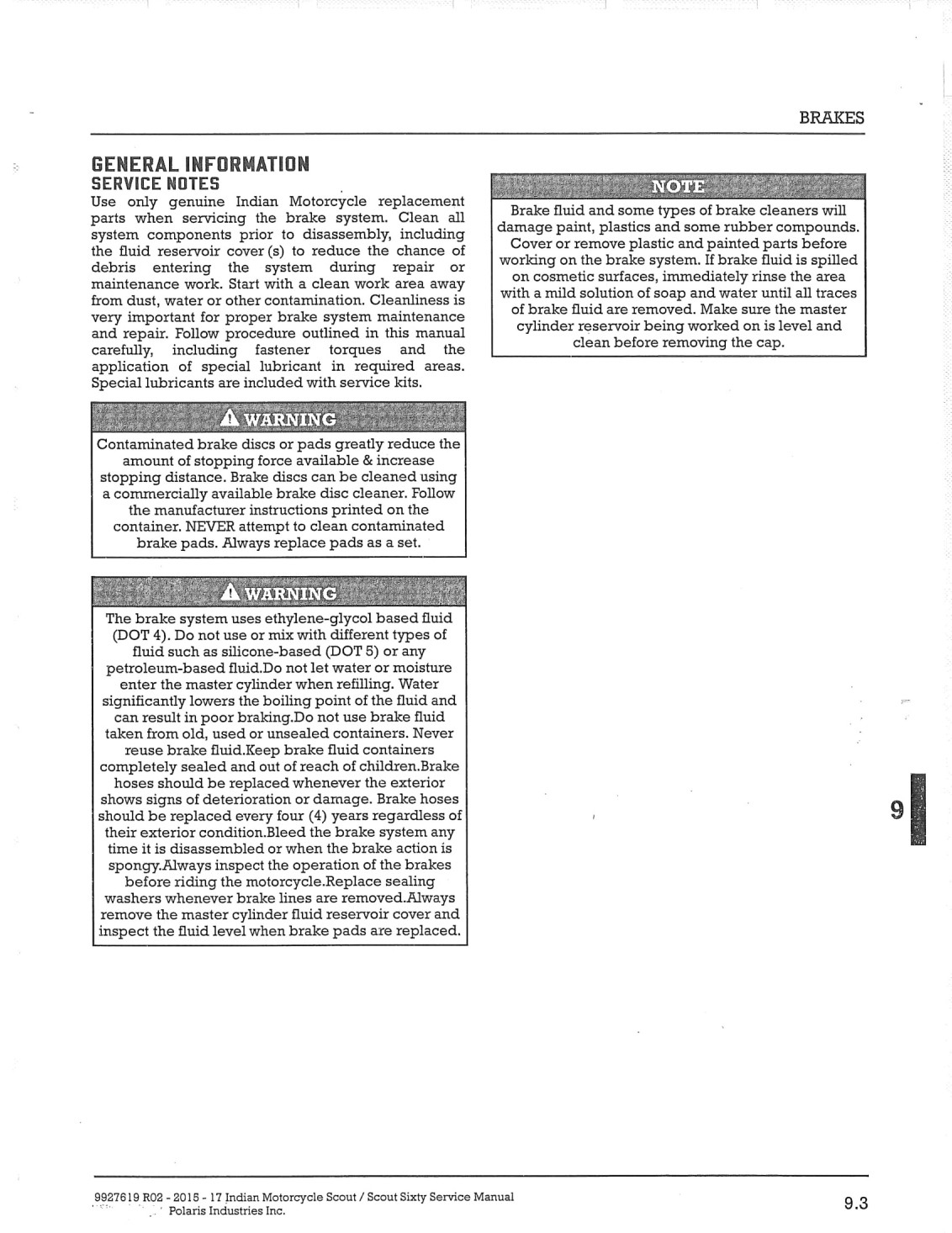

GENERAL INFORMATION...............................................................................9.3

SERVICE NOTES......................................................................................9.3

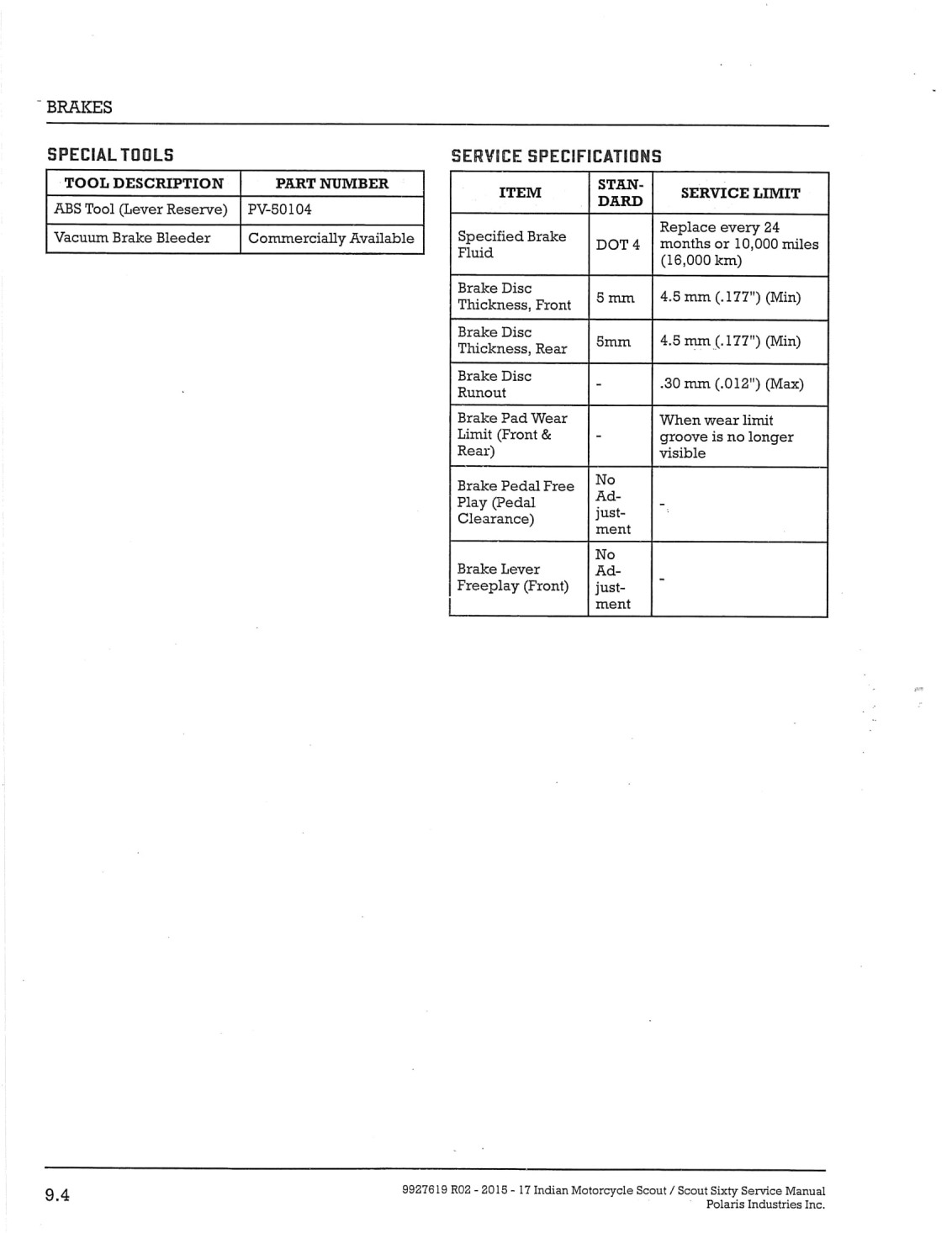

SPECIAL TOOLS.......................................................................................9.4

SERVICE SPECIFICATIONS...........................................................................9.4

ASSEMBLY VIEWS.........................................................................................9.5

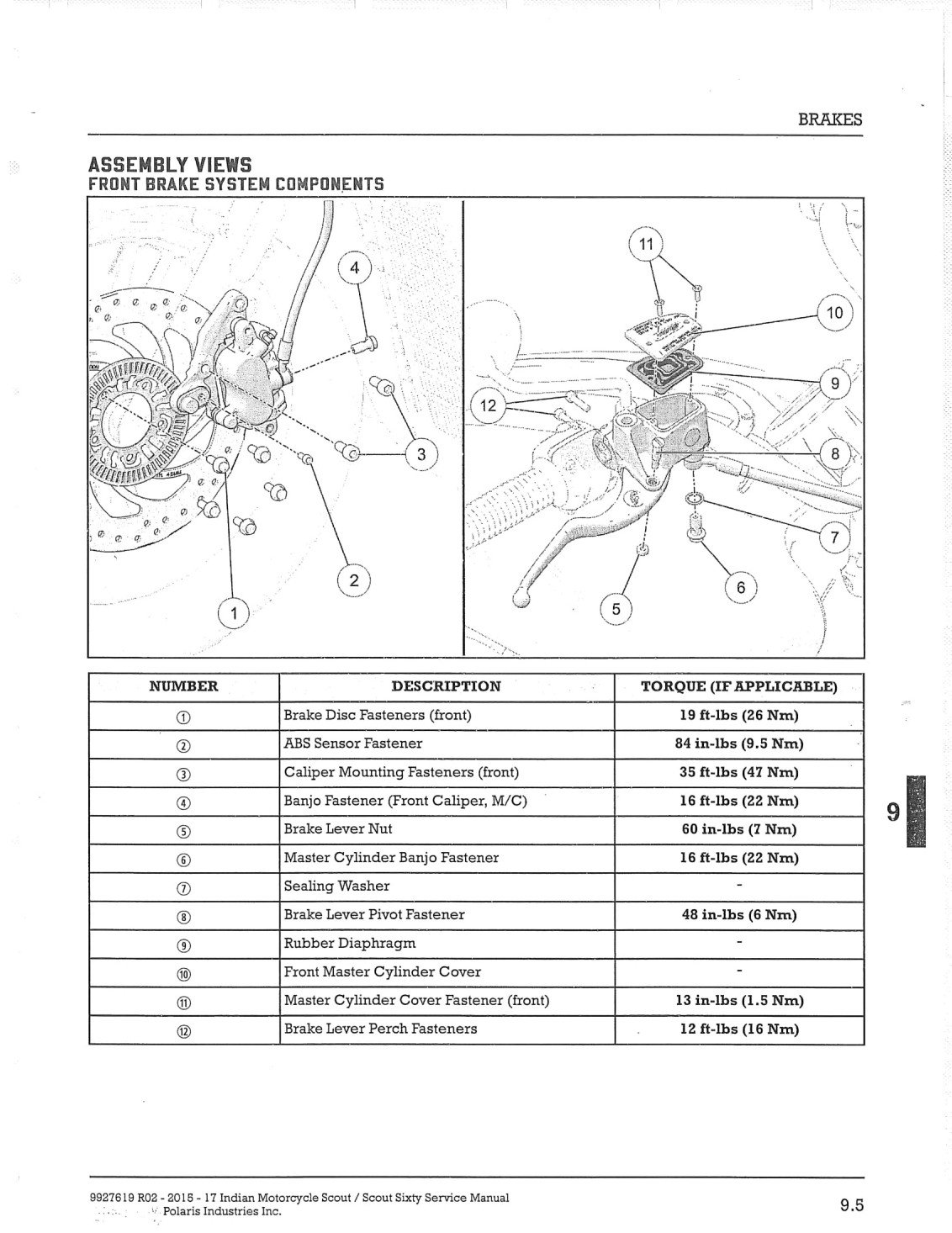

FRONT BRAKE SYSTEM COMPONENTS...............................................................9.5

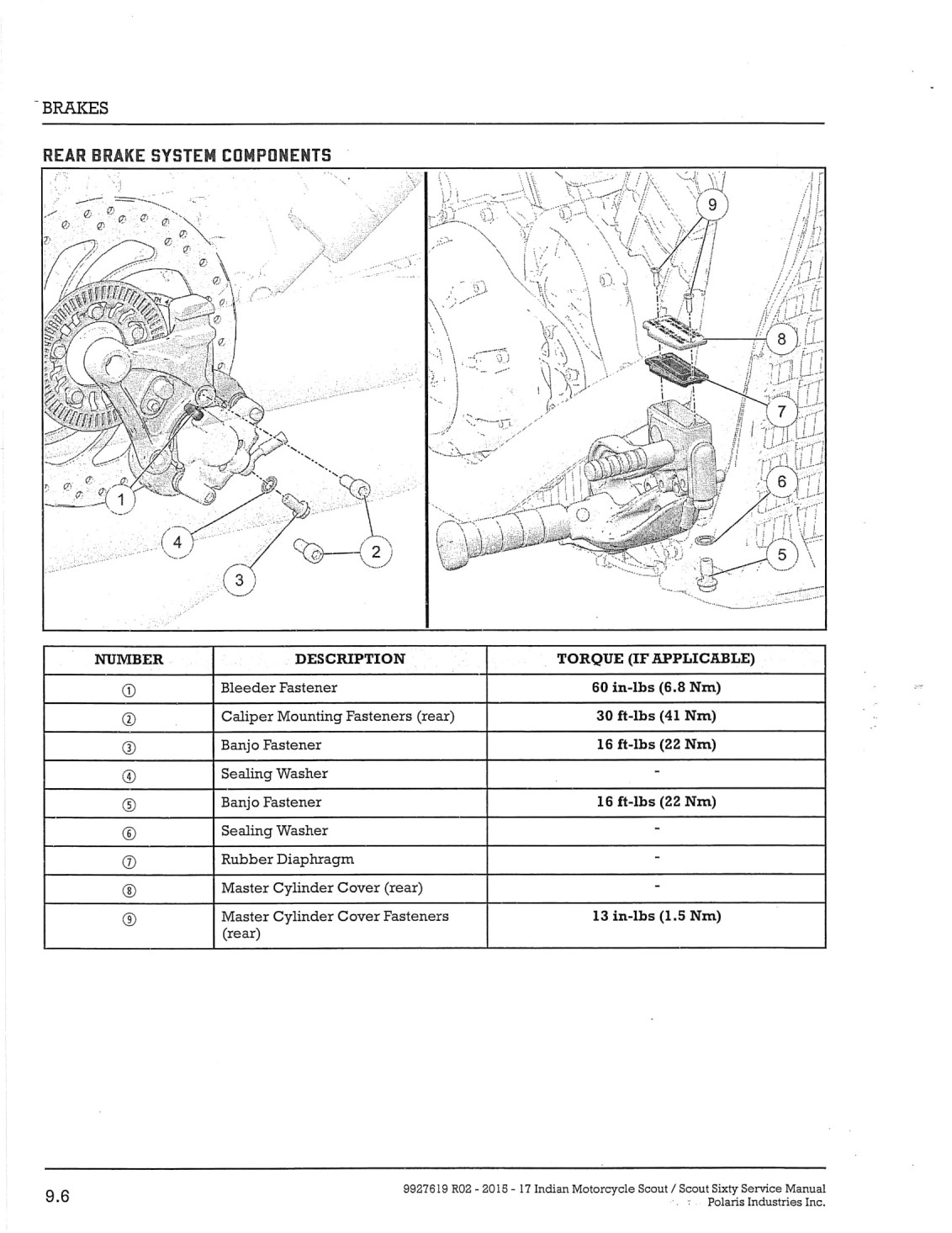

REAR BRAKE SYSTEM COMPONENTS.................................................................9.6

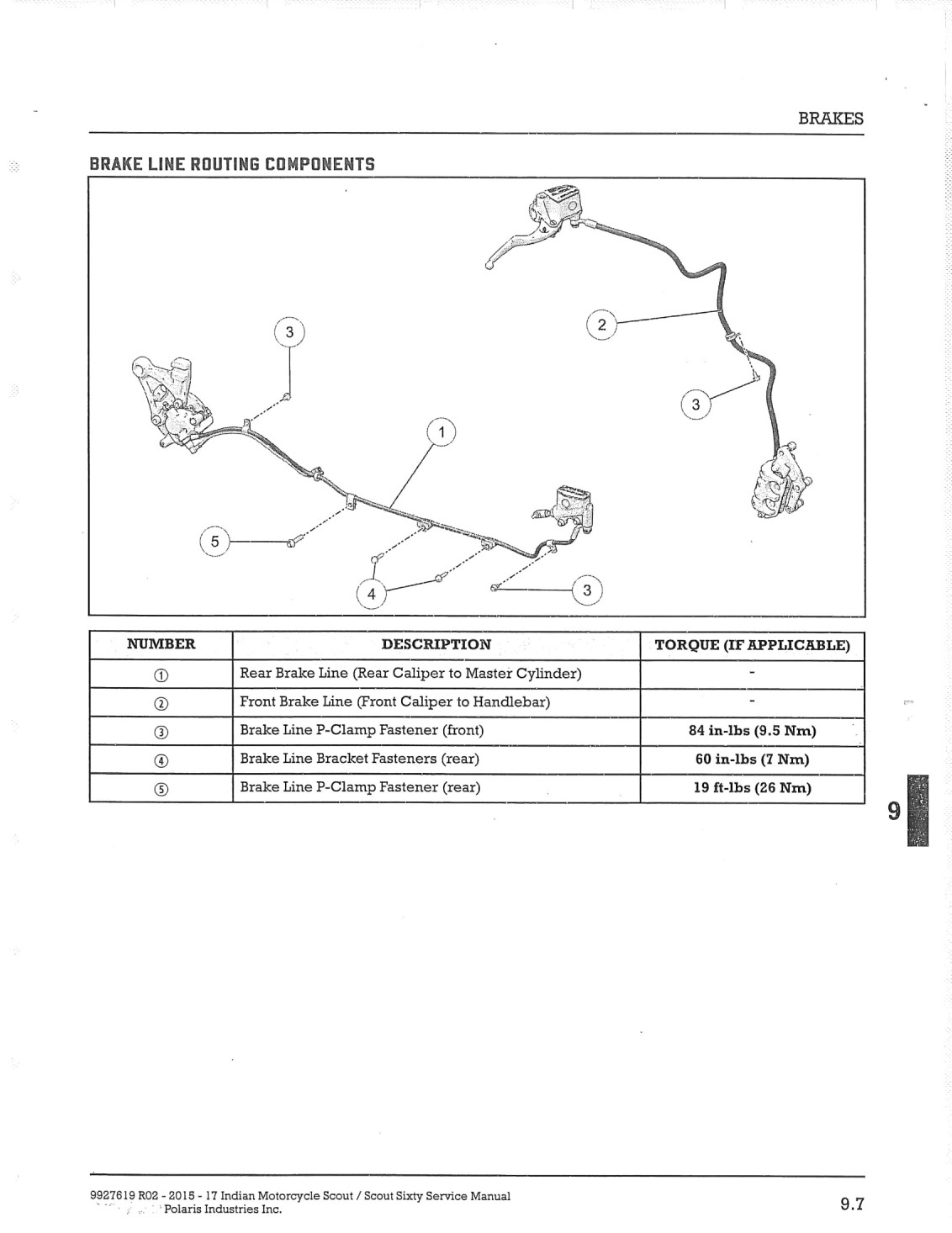

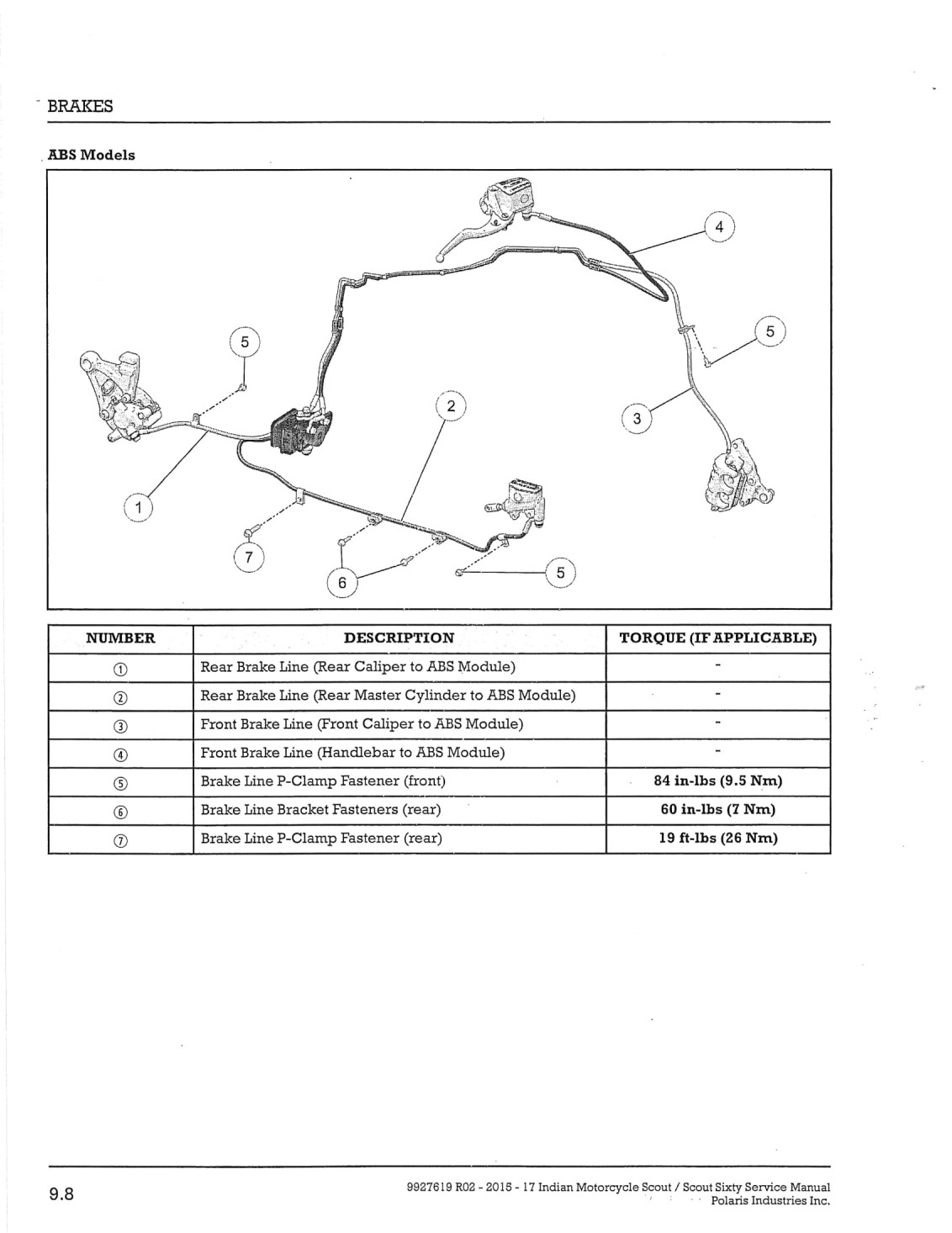

BRAKE LINE ROUTING COMPONENTS................................................................9.7

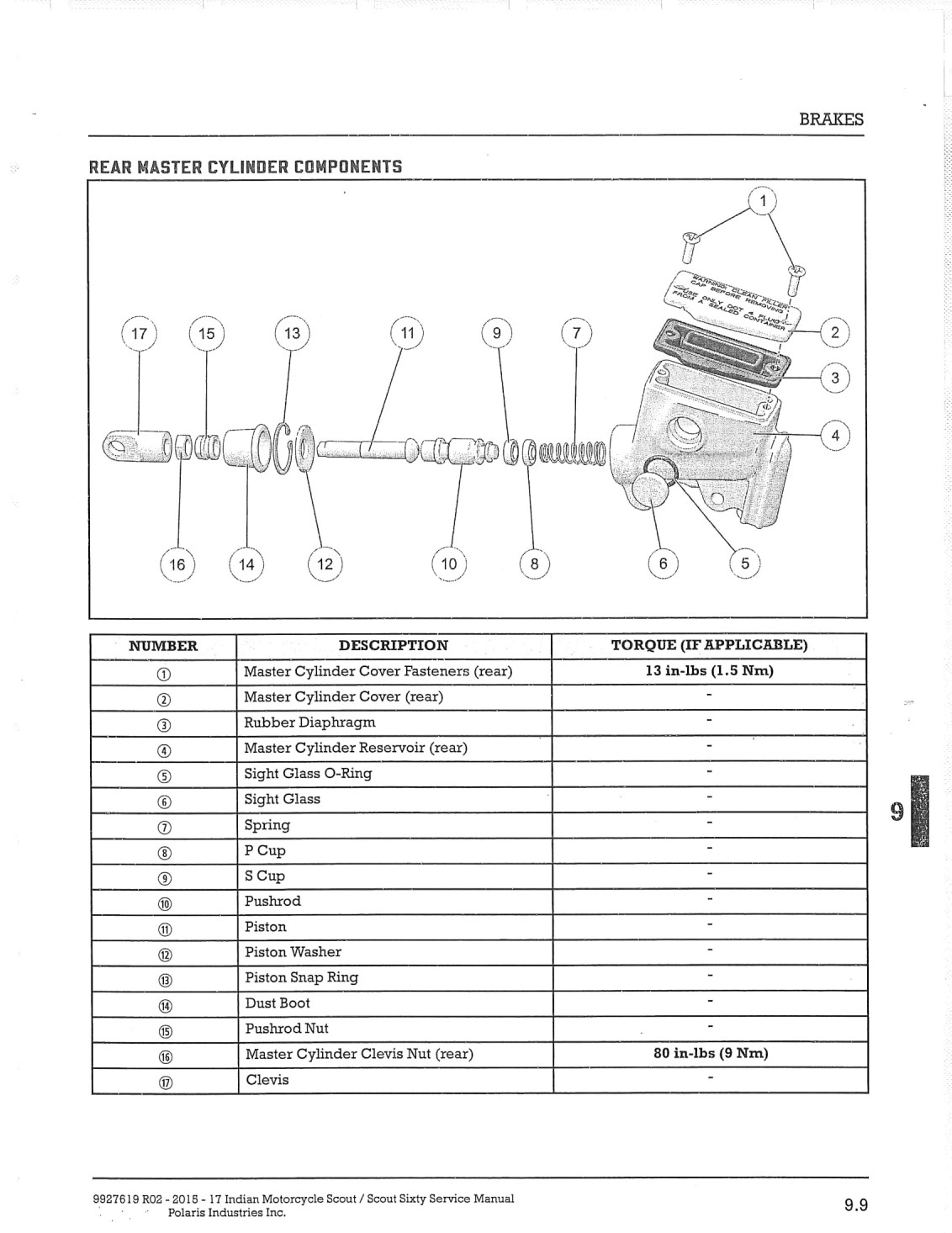

REAR MASTER CYLINDER COMPONENTS............................................................9.9

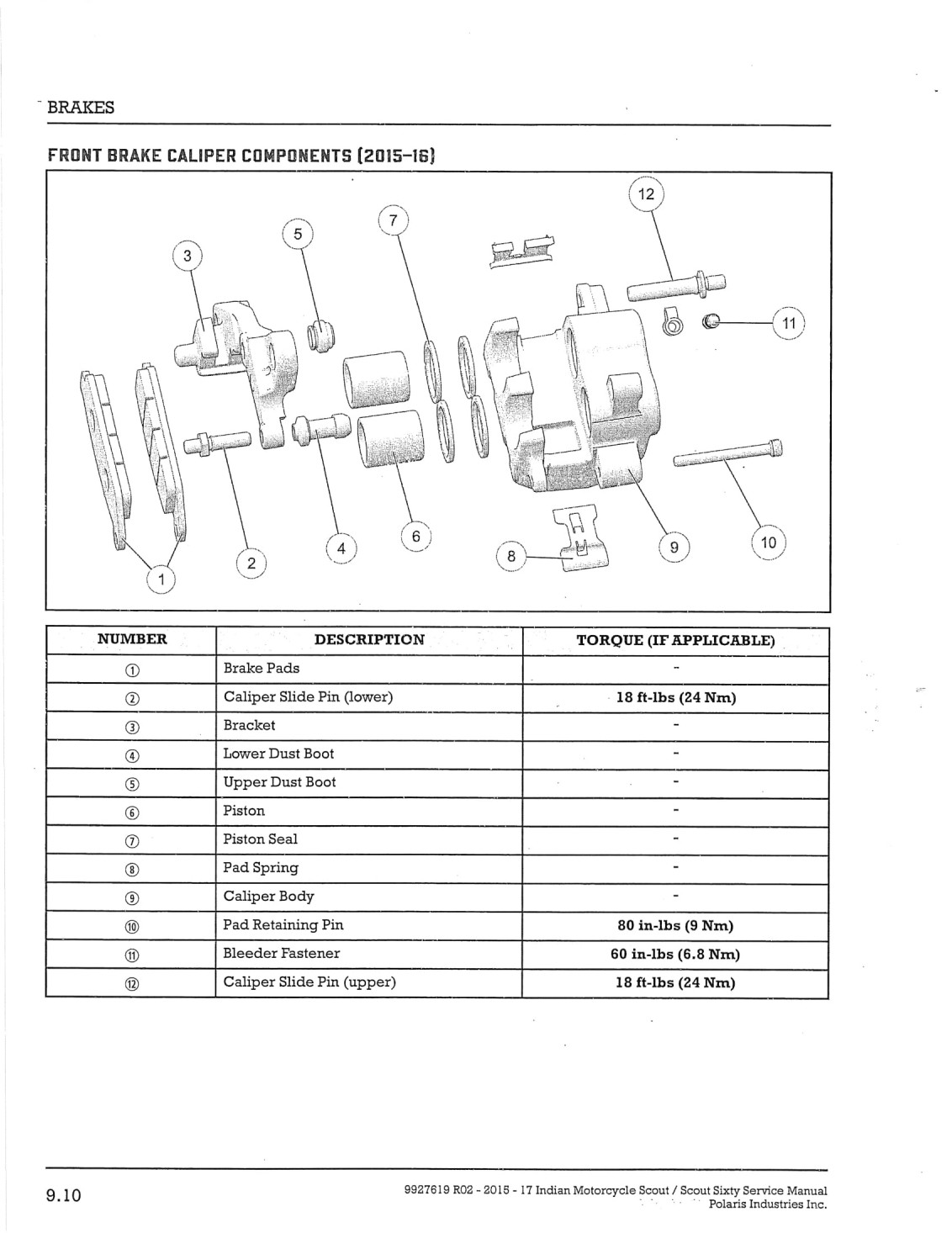

FRONT BRAKE CALIPER COMPONENTS (2015-16)...................................................9.10

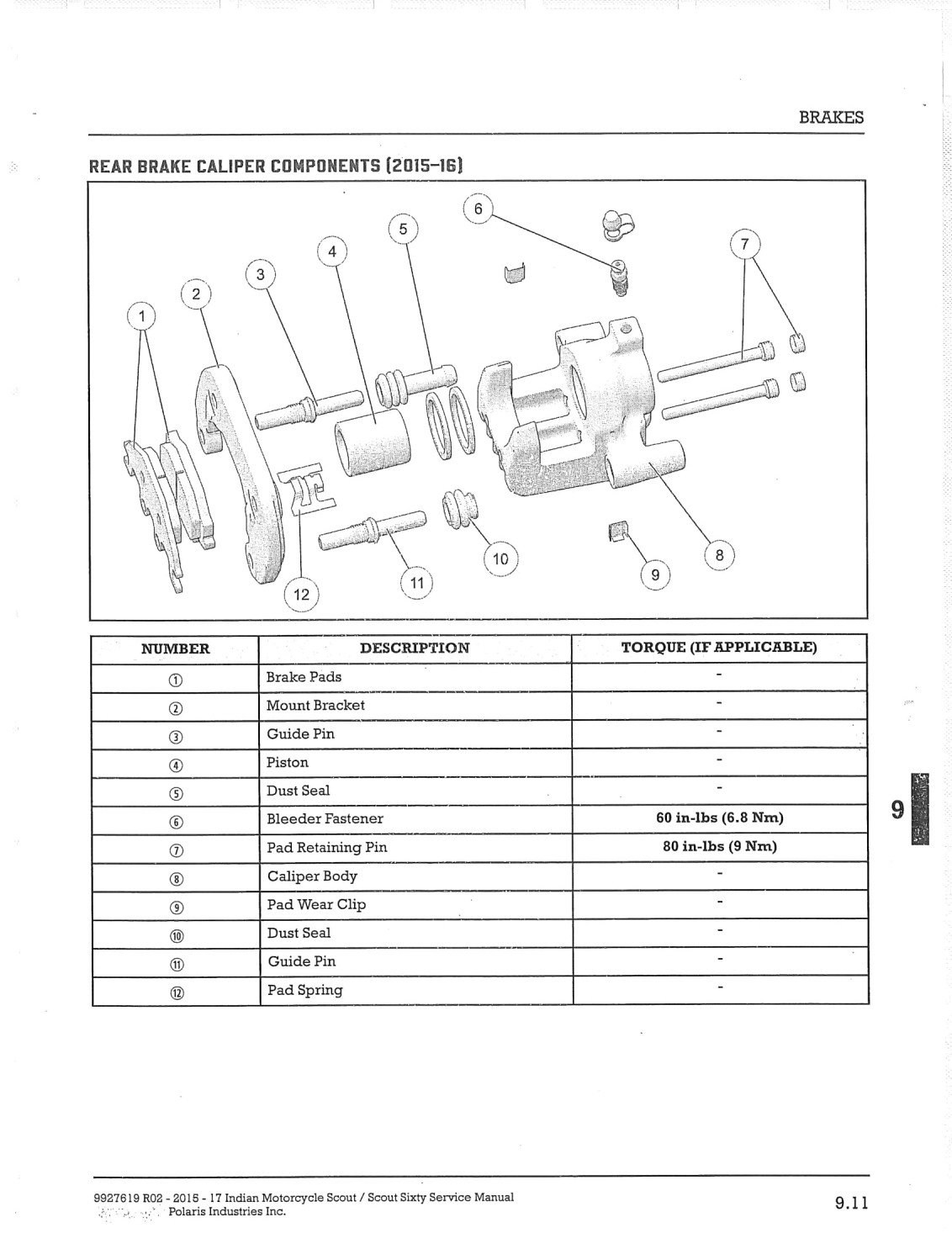

REAR BRAKE CALIPER COMPONENTS (2015-16)....................................................9.11

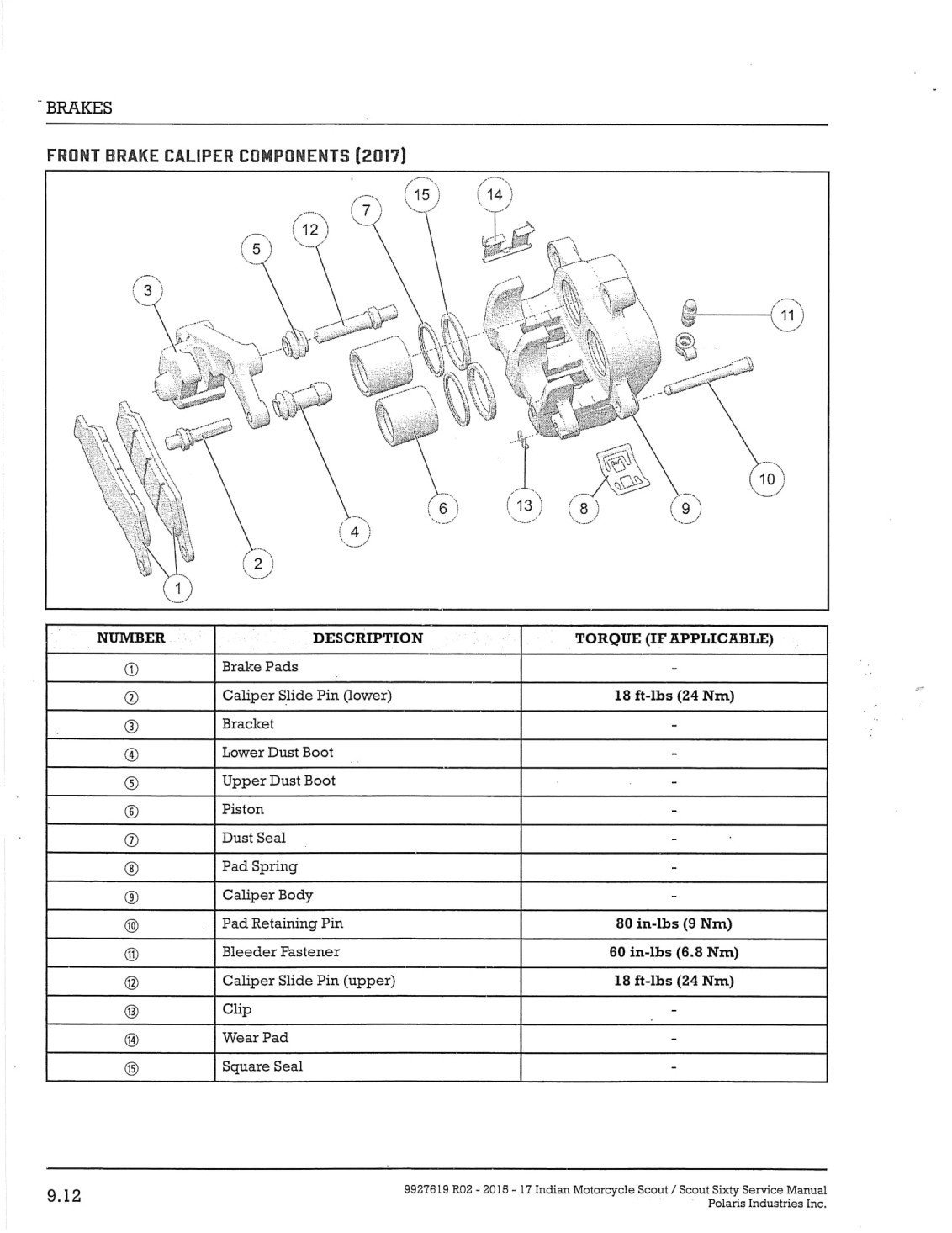

FRONT BRAKE CALIPER COMPONENTS (2017)......................................................9.12

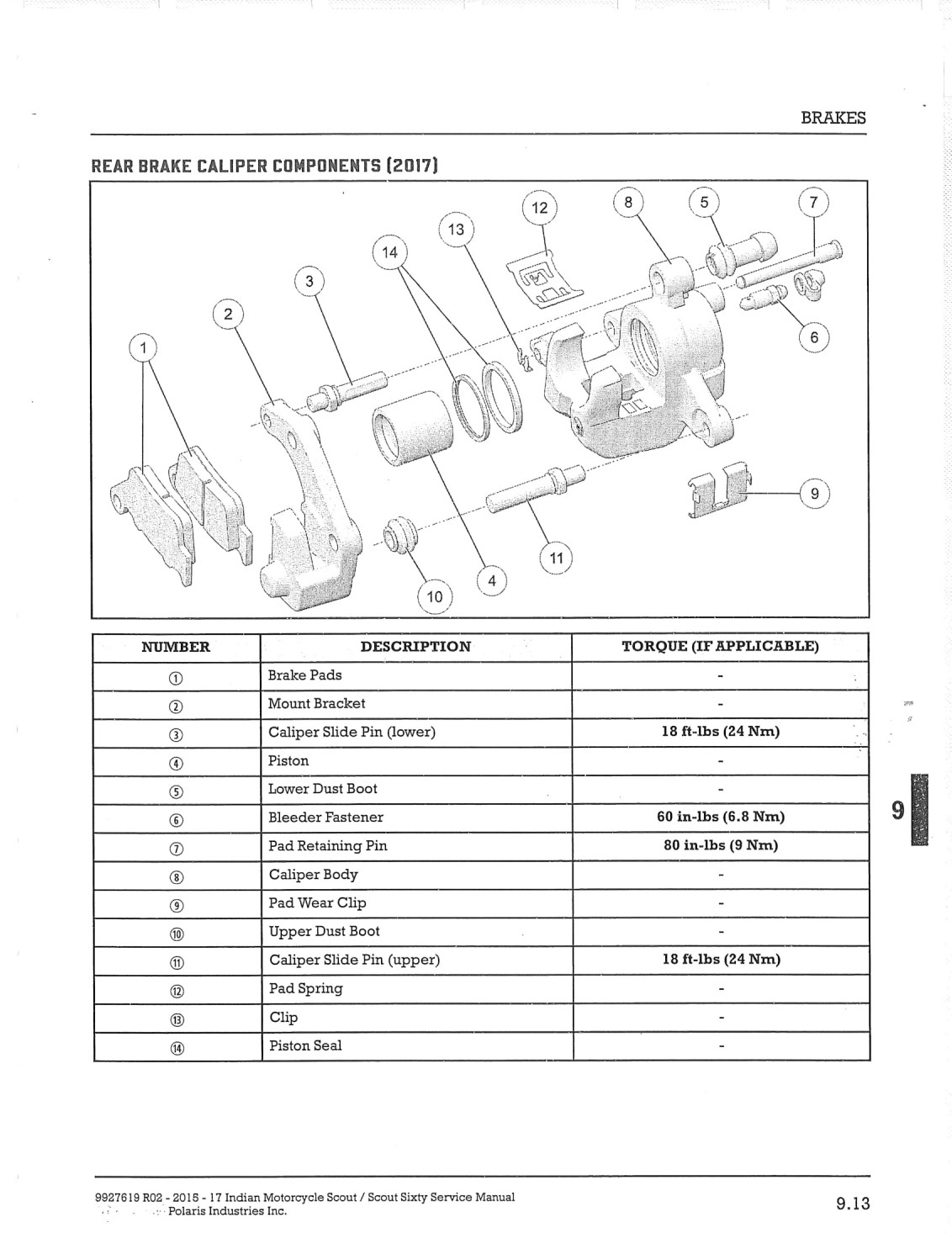

REAR BRAKE CALIPER COMPONENTS (2017)........................................................9.13

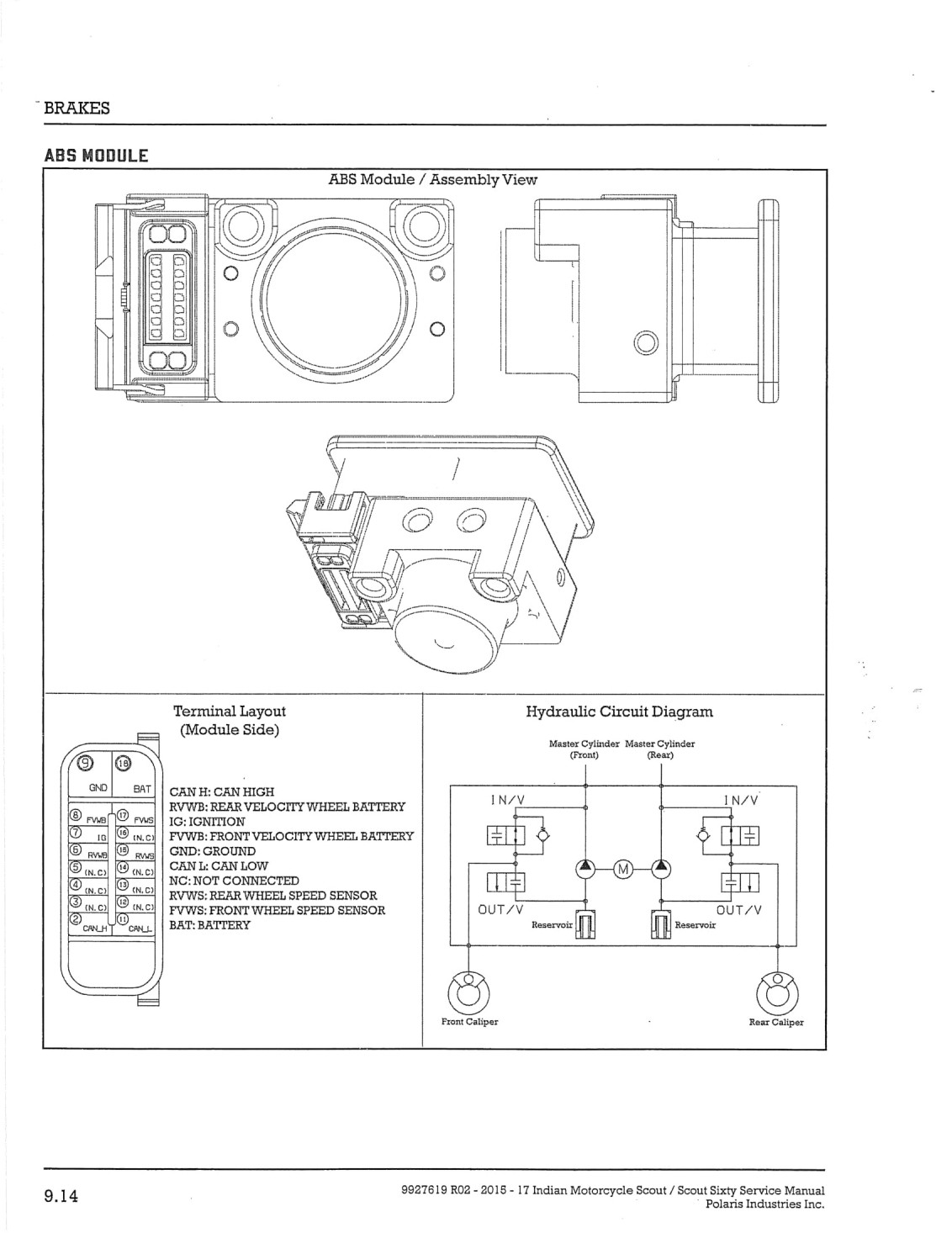

ABS MODULE........................................................................................9.14

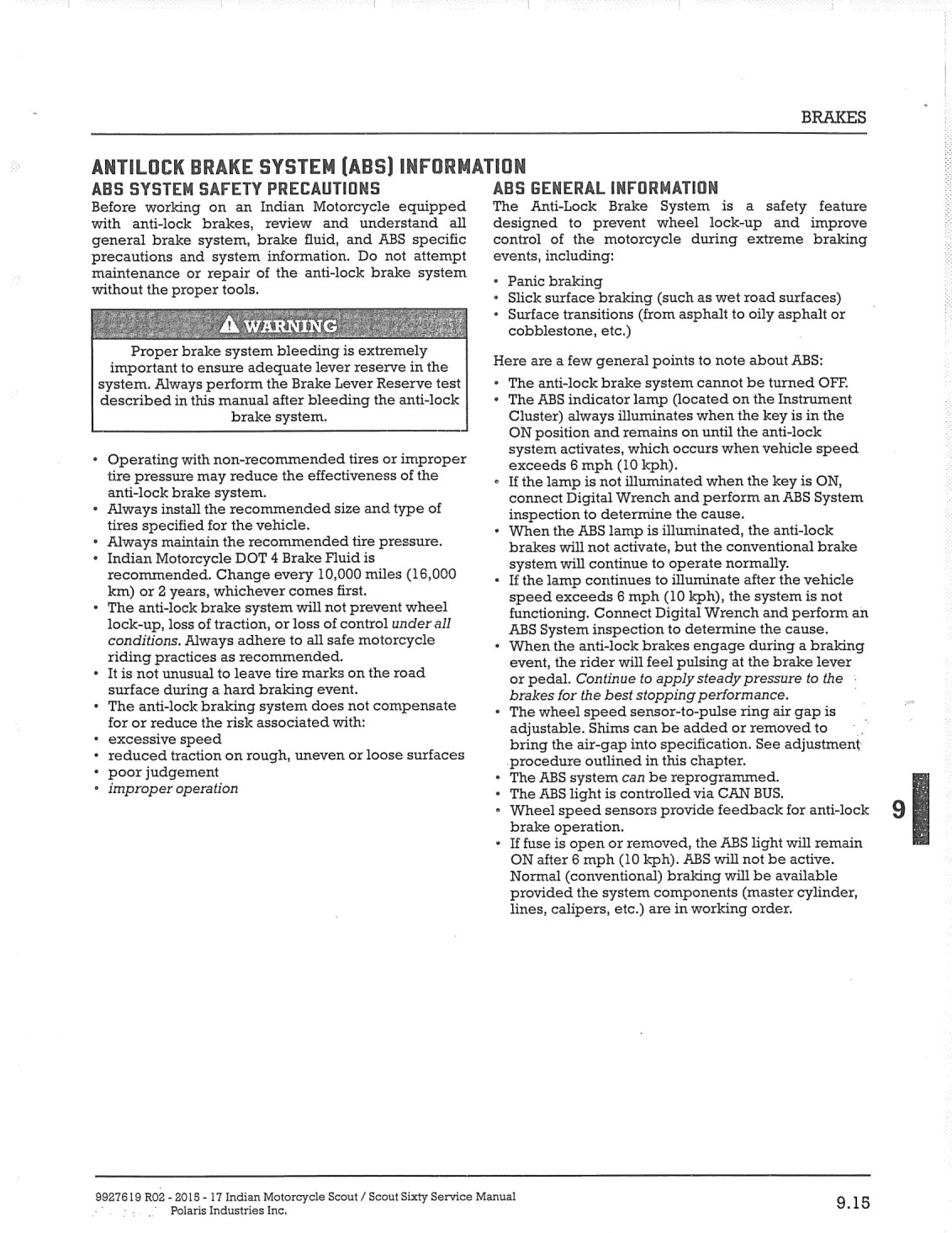

ANTILOCK BRAKE SYSTEM (ABS) INFORMATION...................................................9.15

ABS SYSTEM SAFETY PRECAUTIONS.................................................................9.15

ABS GENERAL INFORMATION.......................................................................9.15

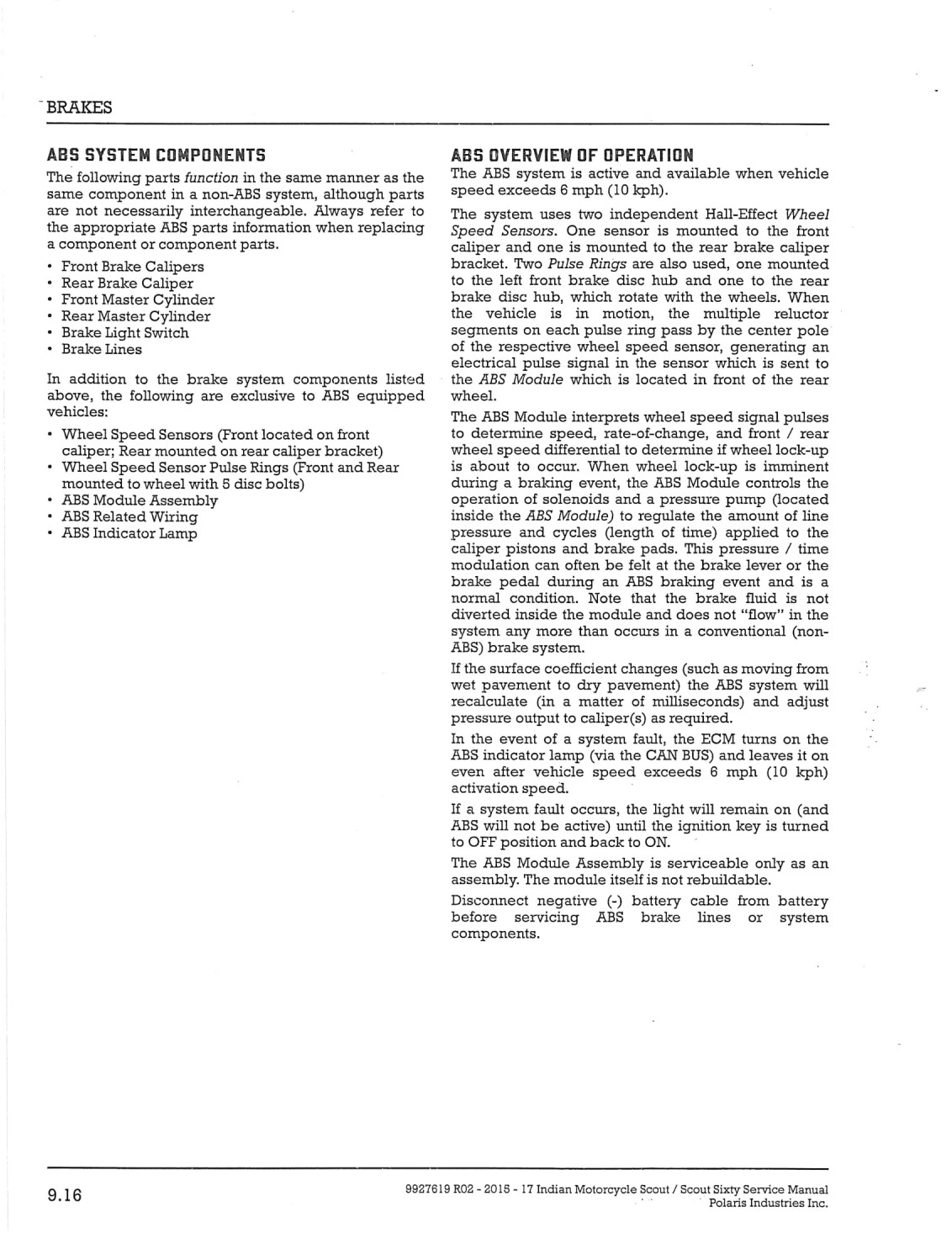

ABS SYSTEM COMPONENTS.........................................................................9.16

ABS OVERVIEW OF OPERATION.....................................................................9.16

ABS SYSTEM SERVICE..................................................................................9.17

WHEEL SPEED SENSOR REPLACEMENT.............................................................9.17

WHEEL SPEED SENSOR AIR GAP ADJUSTMENT......................................................9.18

ABS MODULE REPLACEMENT........................................................................9.19

ABS BRAKE SYSTEM BLEEDING.......................................................................9.20

BRAKE FLUID REPLACEMENT / BLEEDING PRECAUTIONS...........................................9.20

ABS BRAKE VACUUM BLEEDER......................................................................9.21

ABS FLUID CHANGE.................................................................................9.21

ABS REAR BRAKE BLEEDING.........................................................................9.21

ABS FRONT BRAKE BLEEDING.......................................................................9.22

BRAKE LEVER RESERVE INSPECTION................................................................9.23

BRAKE SYSTEM SERVICE..............................................................................9.24

FRONT BRAKE PAD REPLACEMENT (2015-16).......................................................9.24

FRONT BRAKE PAD REPLACEMENT (2017)...........................................................9.25

REAR BRAKE PAD REPLACEMENT (2015-16).........................................................9.26

REAR BRAKE PAD REPLACEMENT (2017)............................................................9.27

BRAKE DISC INSPECTION............................................................................9.28

FRONT MASTER CYLINDER SERVICE................................................................9.29

FRONT CALIPER SERVICE (2015-16).................................................................9.31

FRONT CALIPER SERVICE (2017)....................................................................9.32

FRONT CALIPER INSTALLATION.....................................................................9.34

REAR MASTER CYLINDER SERVICE..................................................................9.34

REAR CALIPER SERVICE (2015-16)..................................................................9.36
REAR CALIPER SERVICE (2017)...........................................................................9.37

TROUBLESHOOTING.............•...........................................................................9.39
