Harley Davidson 1991-1992 1340 models. Parts catalog - page 1

GENERAL INFORMATION
This Parts Catalog has been prepared for your convenience when ordering parts for the 1991 and later 1340cc models. This unique combined format allows you to compare the parts usage on all FLT, FXR, Softail and Dyna model motorcycles. Refer to the Glossary at the end of the book for unfamiliar abbreviations. A complete Hardware Listing is also featured. Wherever possible, parts are shown in assembly breakdown sequence. Index numbers shown in the illustrations correspond to index numbers in parts lists. Consult the illustrations when ordering parts so you are sure to get the part required. Number in parenthesis following description of part is the quantity needed for complete assembly. If there is no number in parenthesis, only one is used. Prices of parts in this catalog are published separately.

The following instructions should be followed carefully when ordering parts:

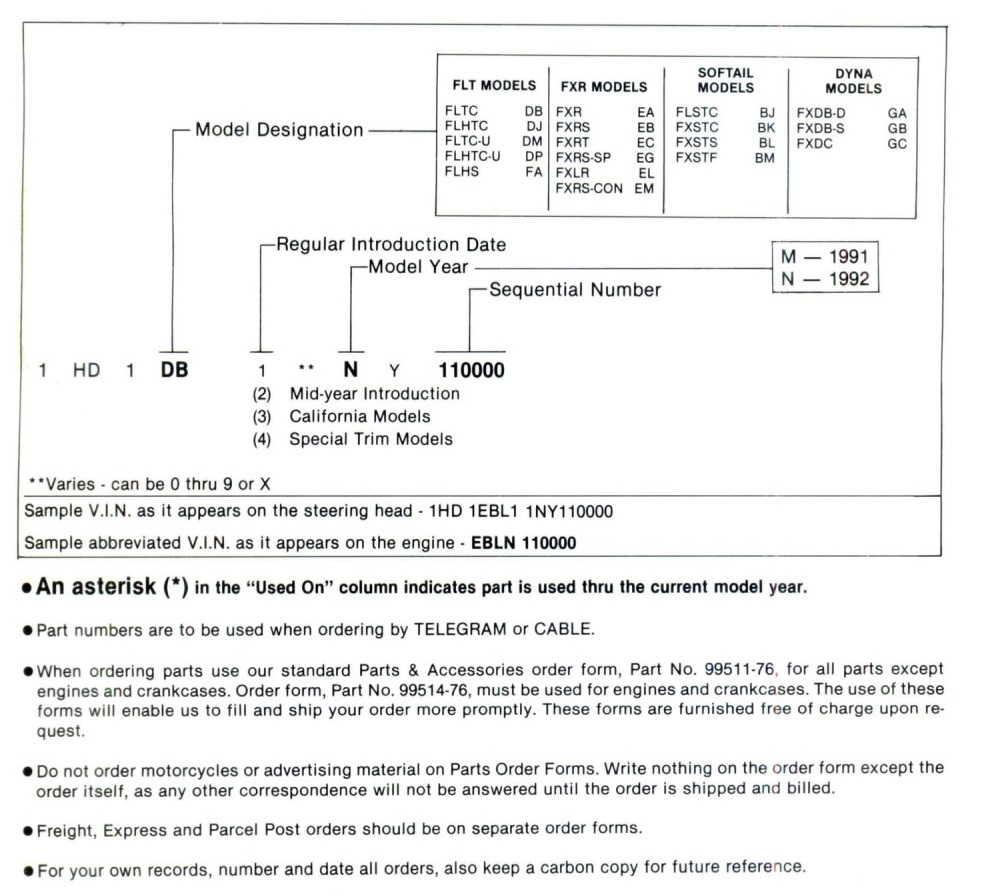

• The model usage column has a two character code, corresponding to the V.I.N. Model Designation. If the part fits all models “All” will be in the appropriate model usage column. The models classified as FLT, FXR, Softail or Dyna and the two character codes are listed at the bottom of each right hand, odd numbered page.

• Specify the correct part number for each item. Check the model usage column of the parts list which shows the model on which the part fits. Whenever in doubt, refer to the Vehicle Identification Number (V.I.N.). A 17 digit V.I.N. is stamped on the front of the frame and frame right downtube label. An abbreviated V.I.N. is stamped on the left engine crankcase.

Always give one of these numbers when ordering parts or making any inquiry about your motorcycle.

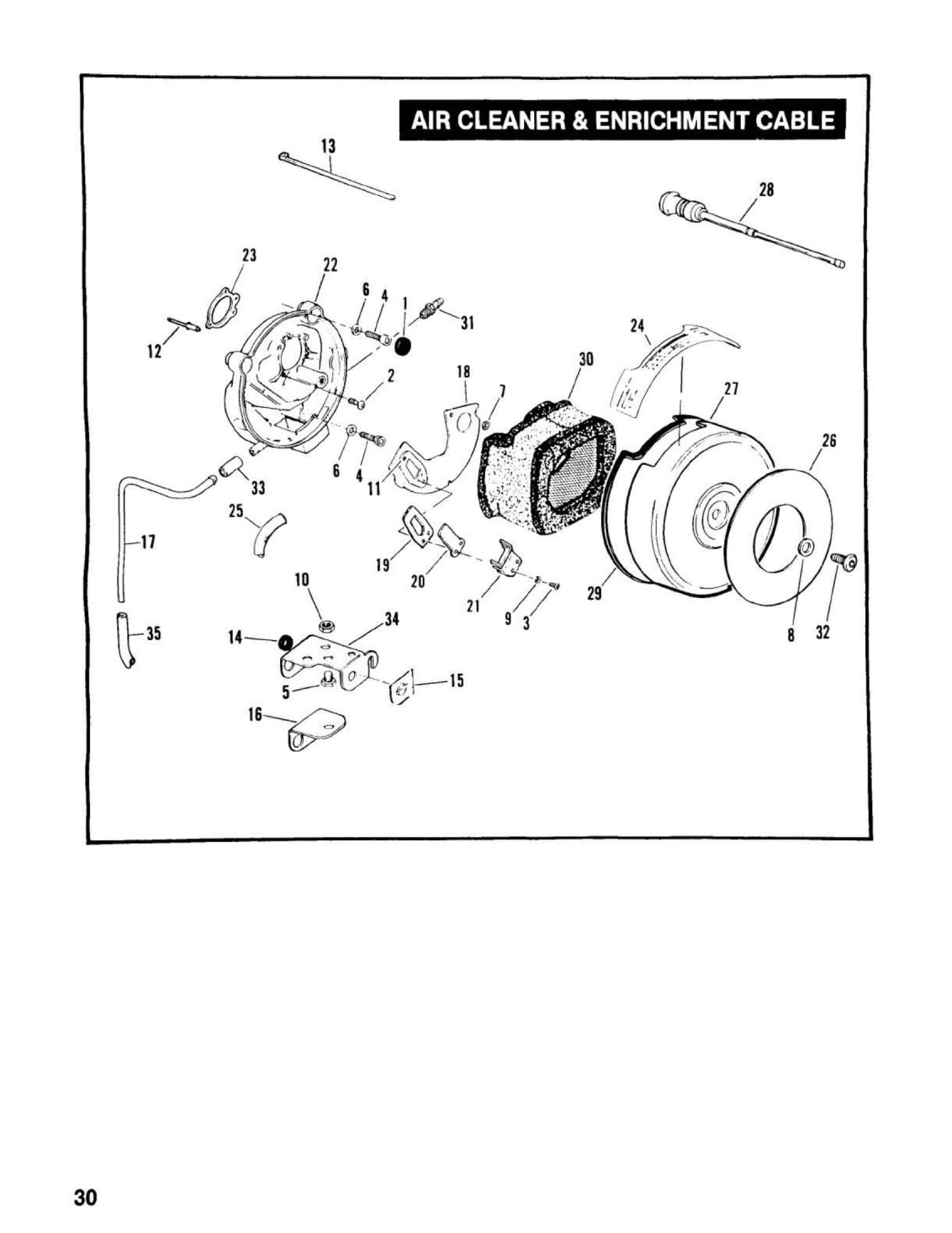

Air Cleaner 31,33
Air Control, front fork 111,113
Alternator 35
Antenna Splitter 271
Battery 233
Battery Tray-DYNA 235
Belt, rear 59
Belt Guard 61
Brake Caliper, front 65
Brake Caliper, rear 83.85
Brake Control, front 63
Brake Control, rear 71-81
Brake Disc 69.87
С. B. System 271

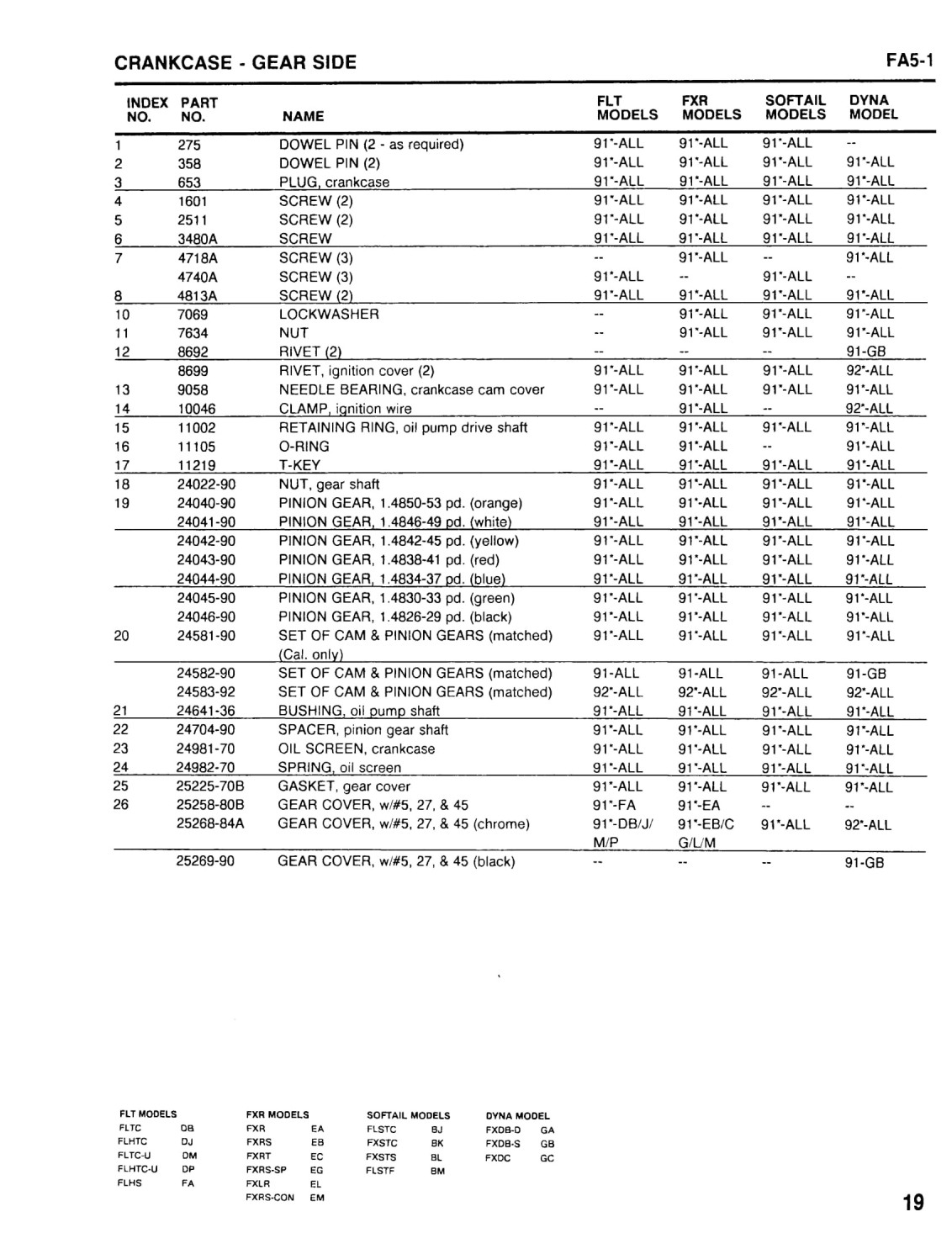

Cam Gears 19

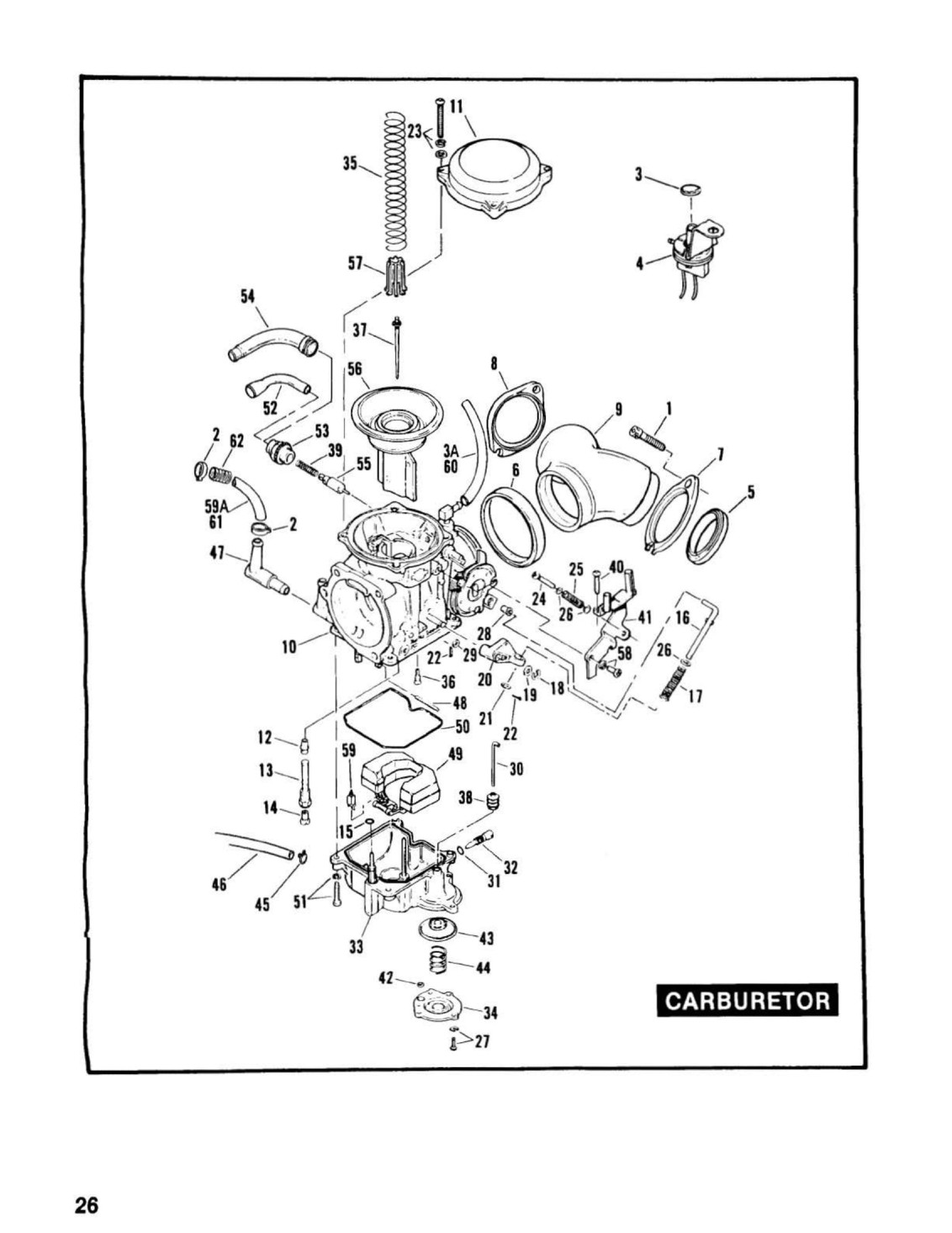

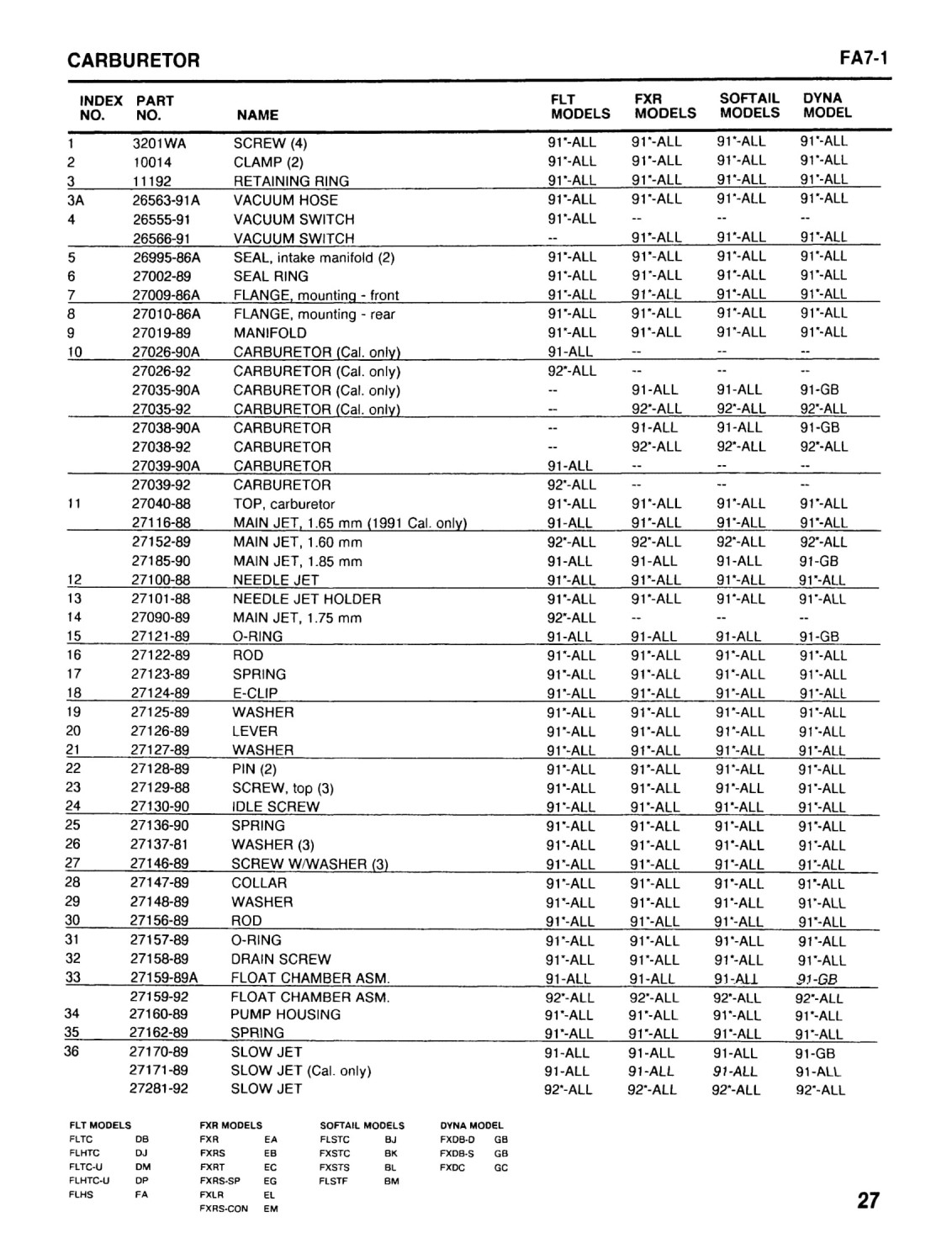

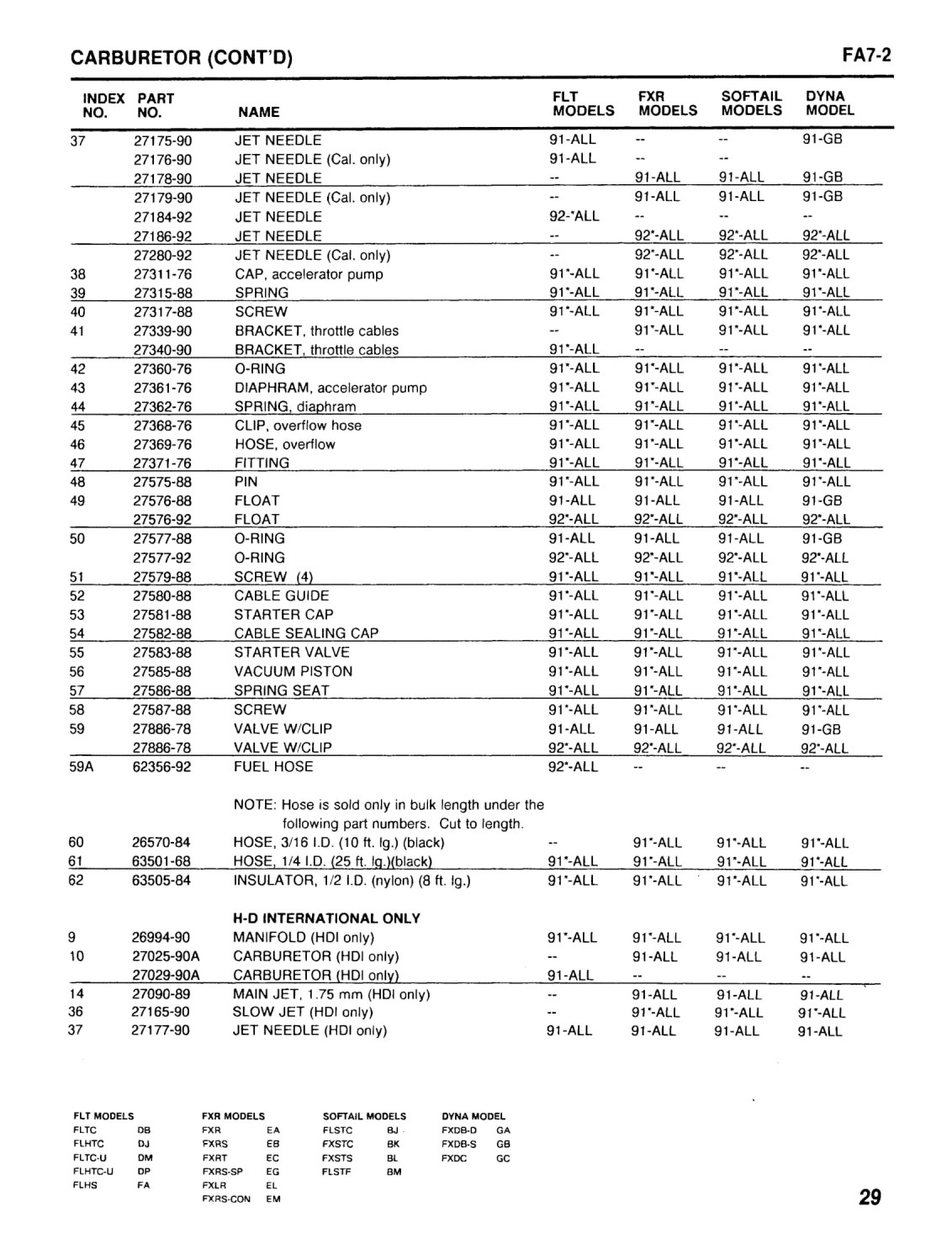

Carburetor 27
Cham, primary 59
Circuit Breakers 279,281,283.285
Clutch 55
Clutch Control 57
Coil, ignition 39

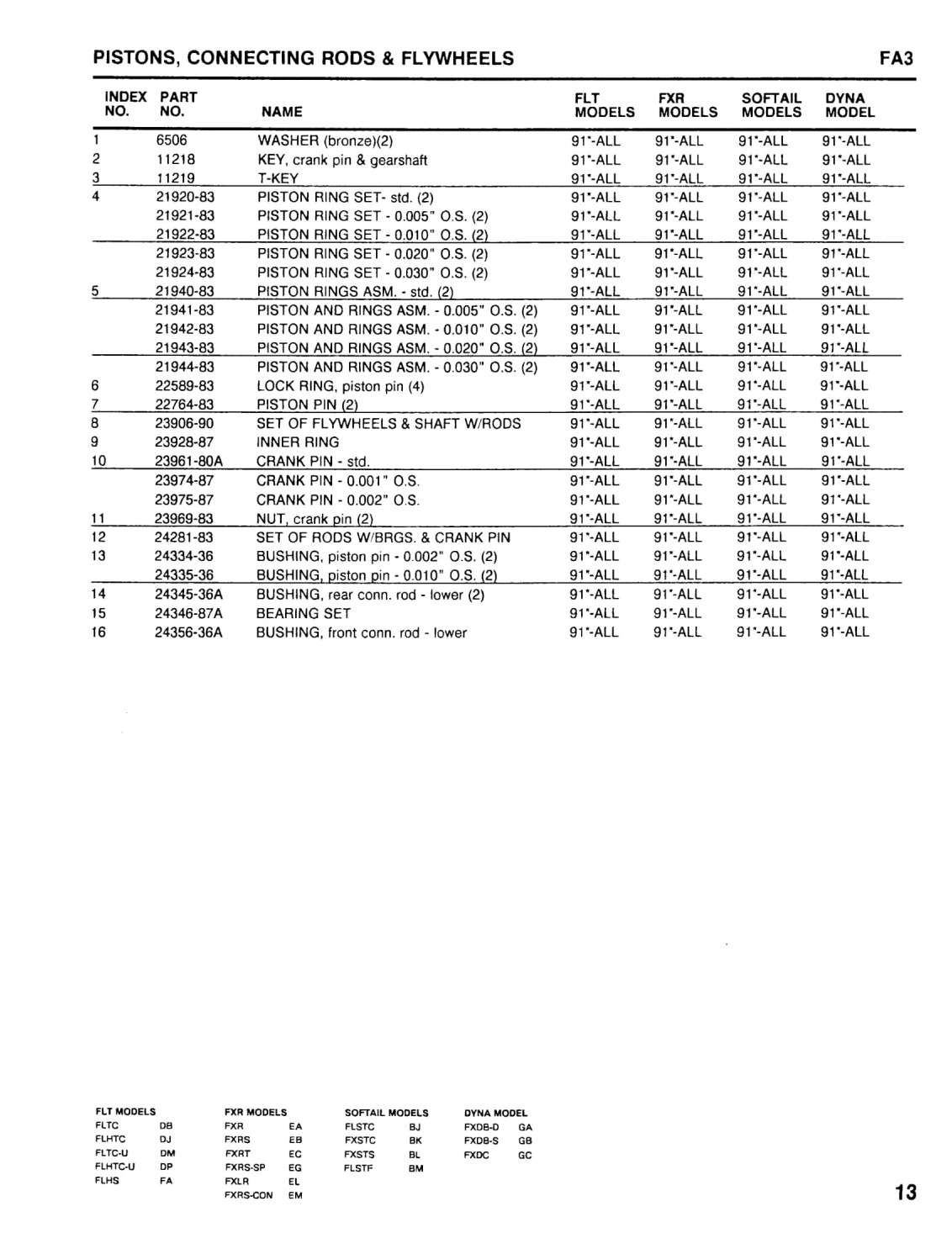

Connecting Rods 13

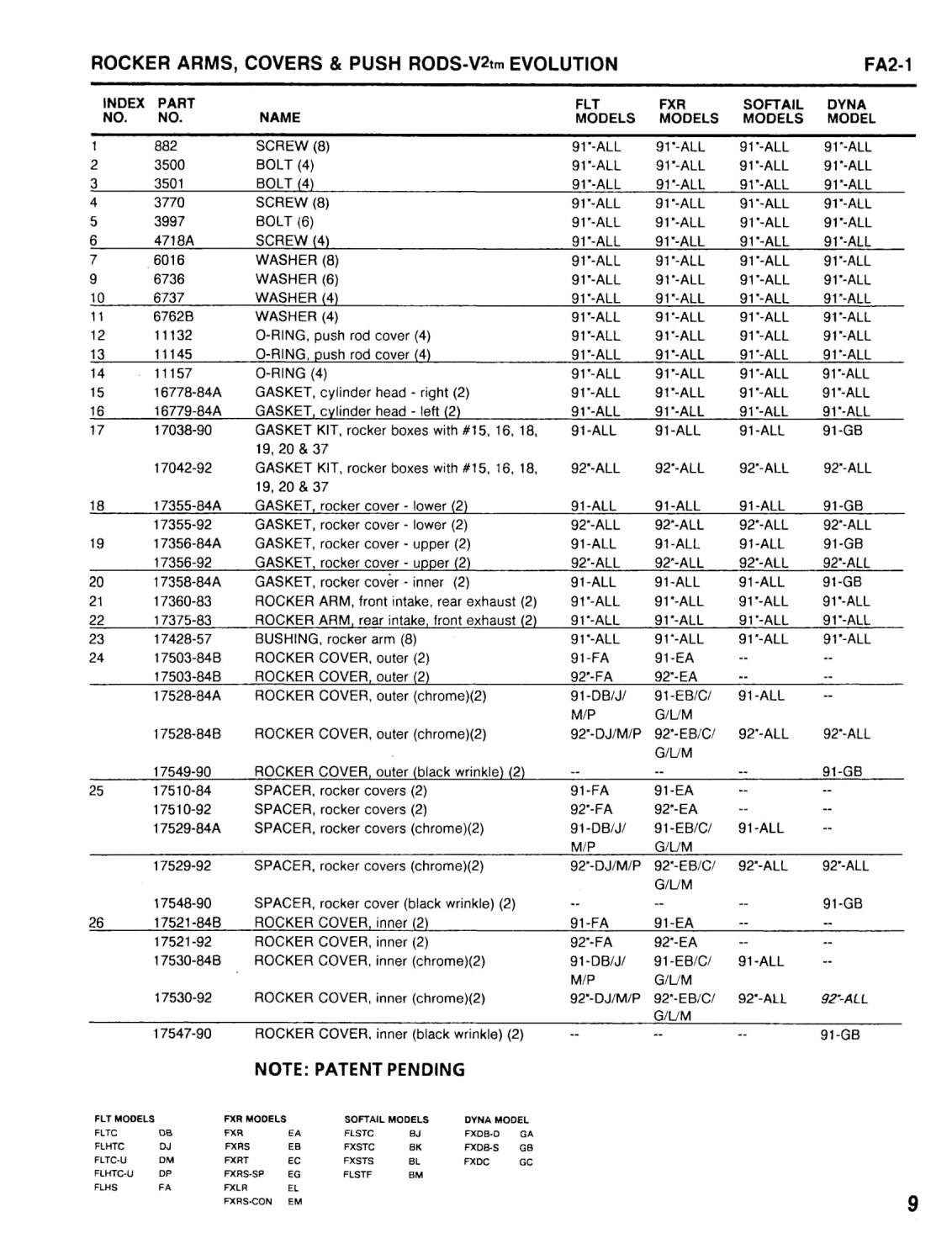

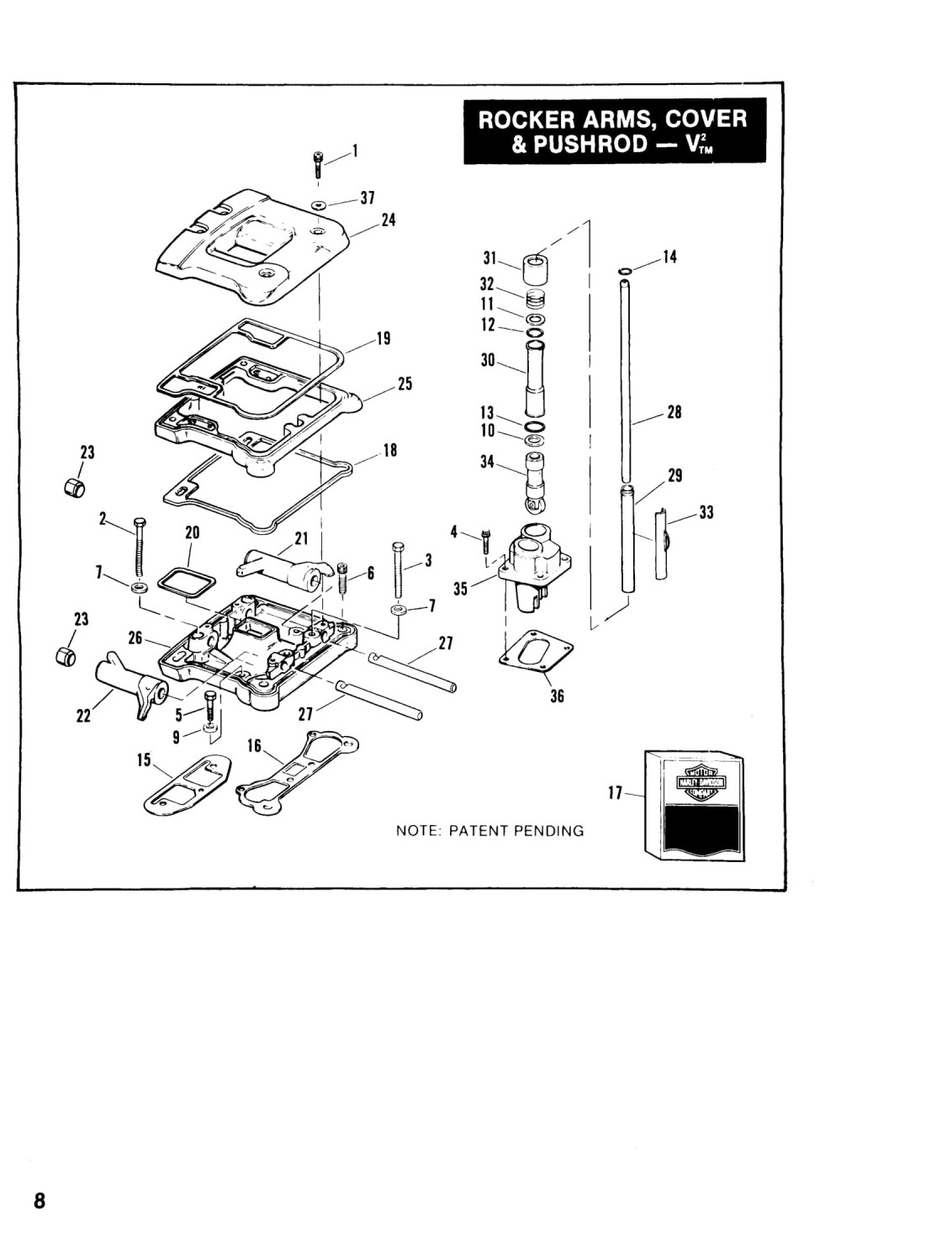

Covers, rocker arm 9

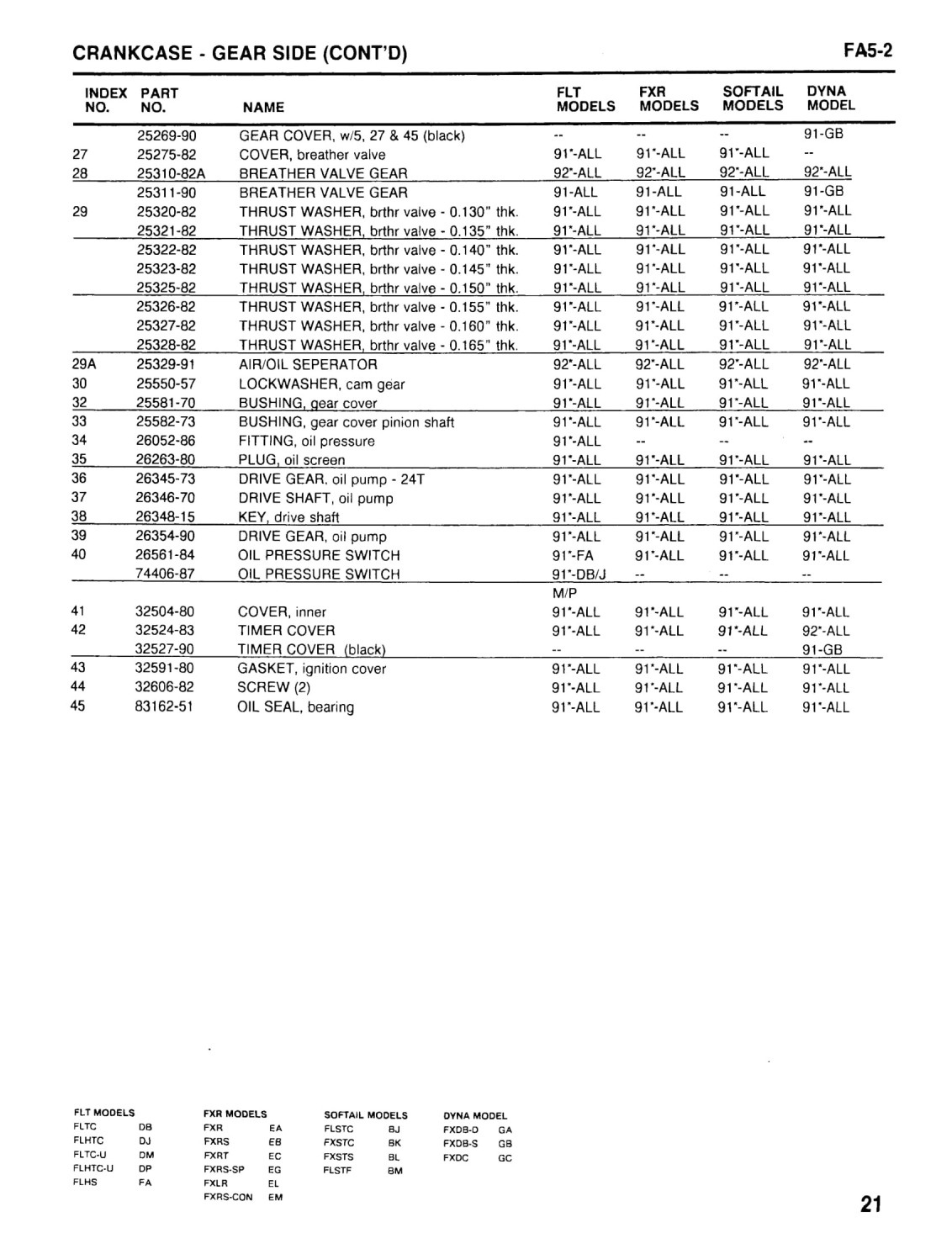

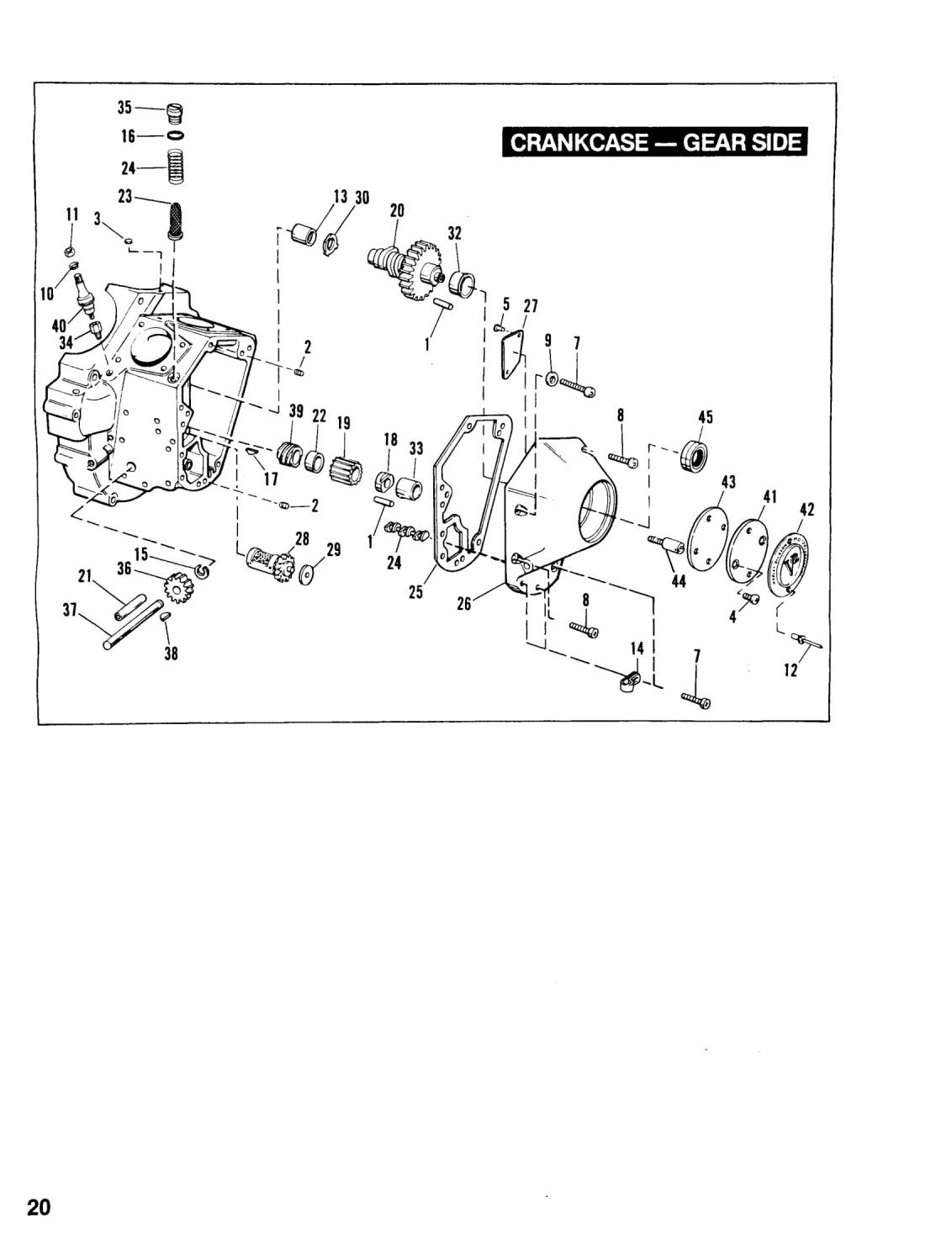

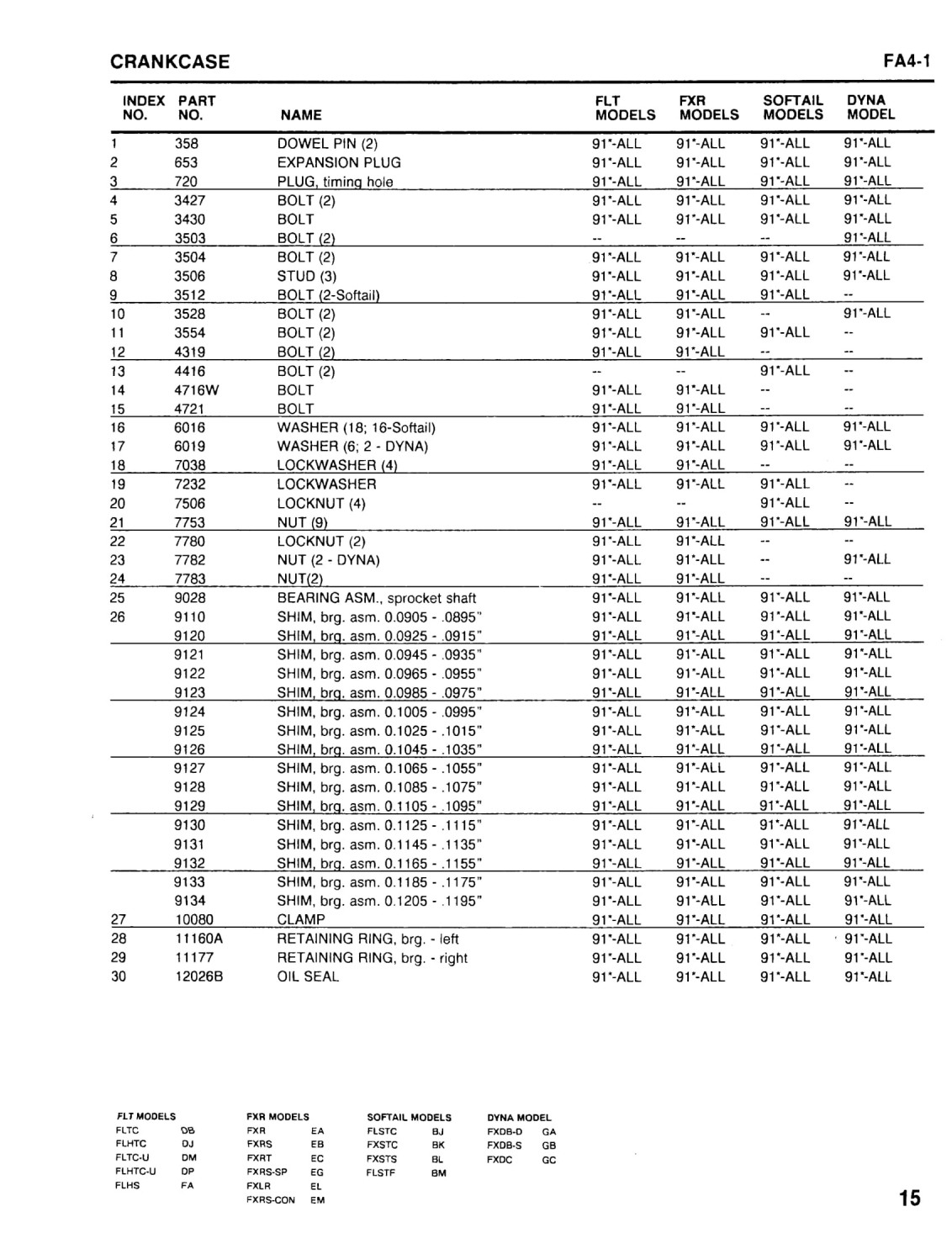

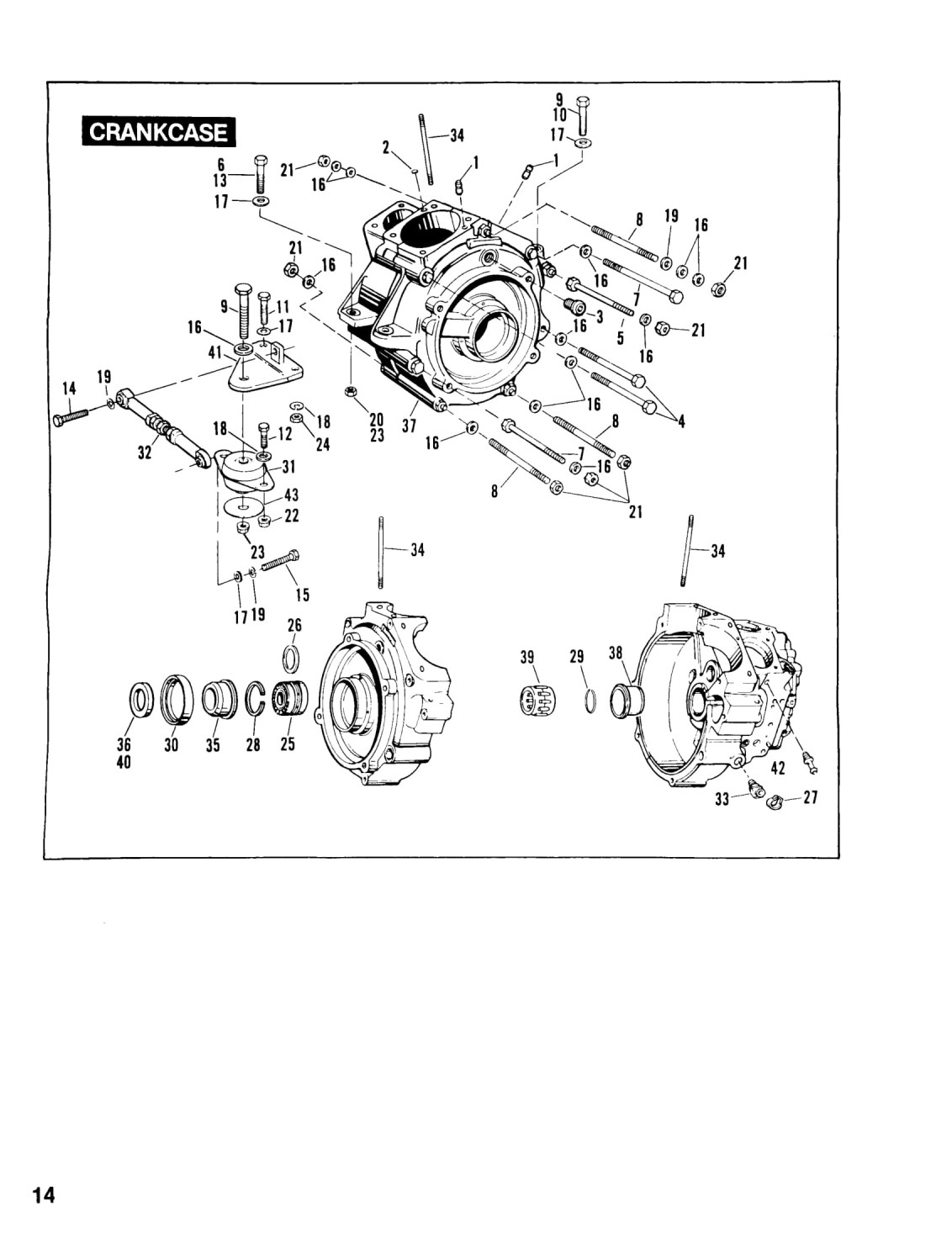

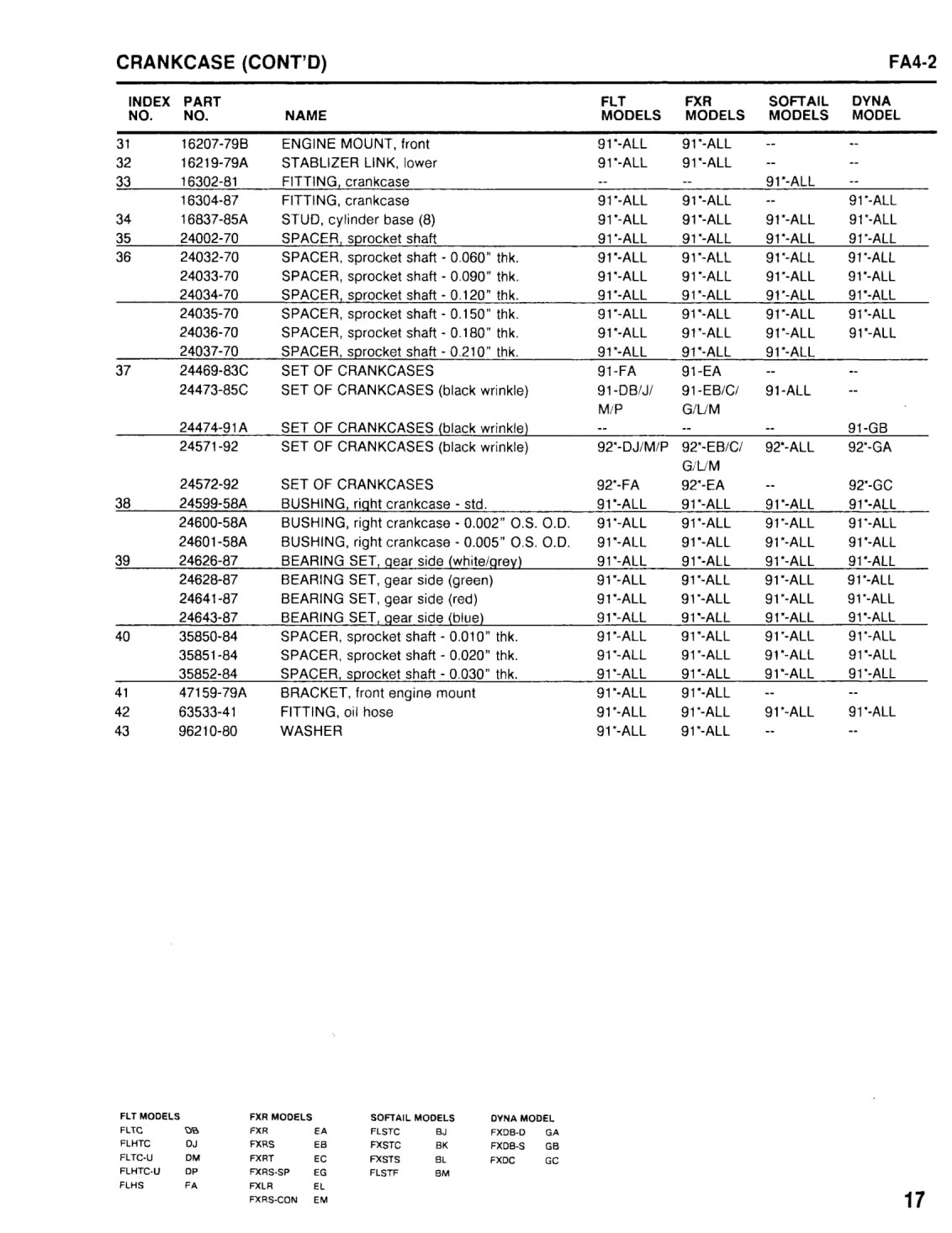

Crankcase 17
Cruise Control 159

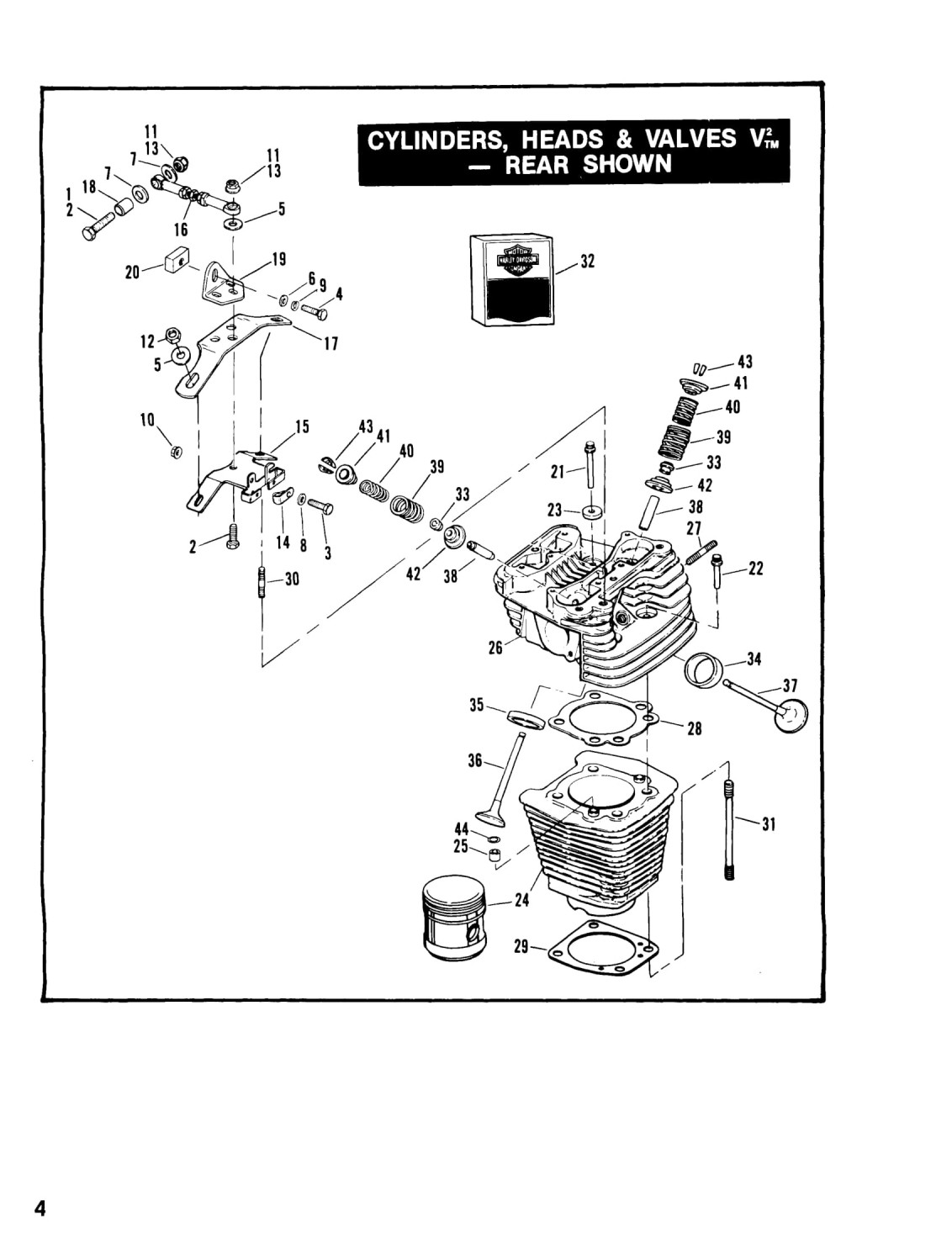

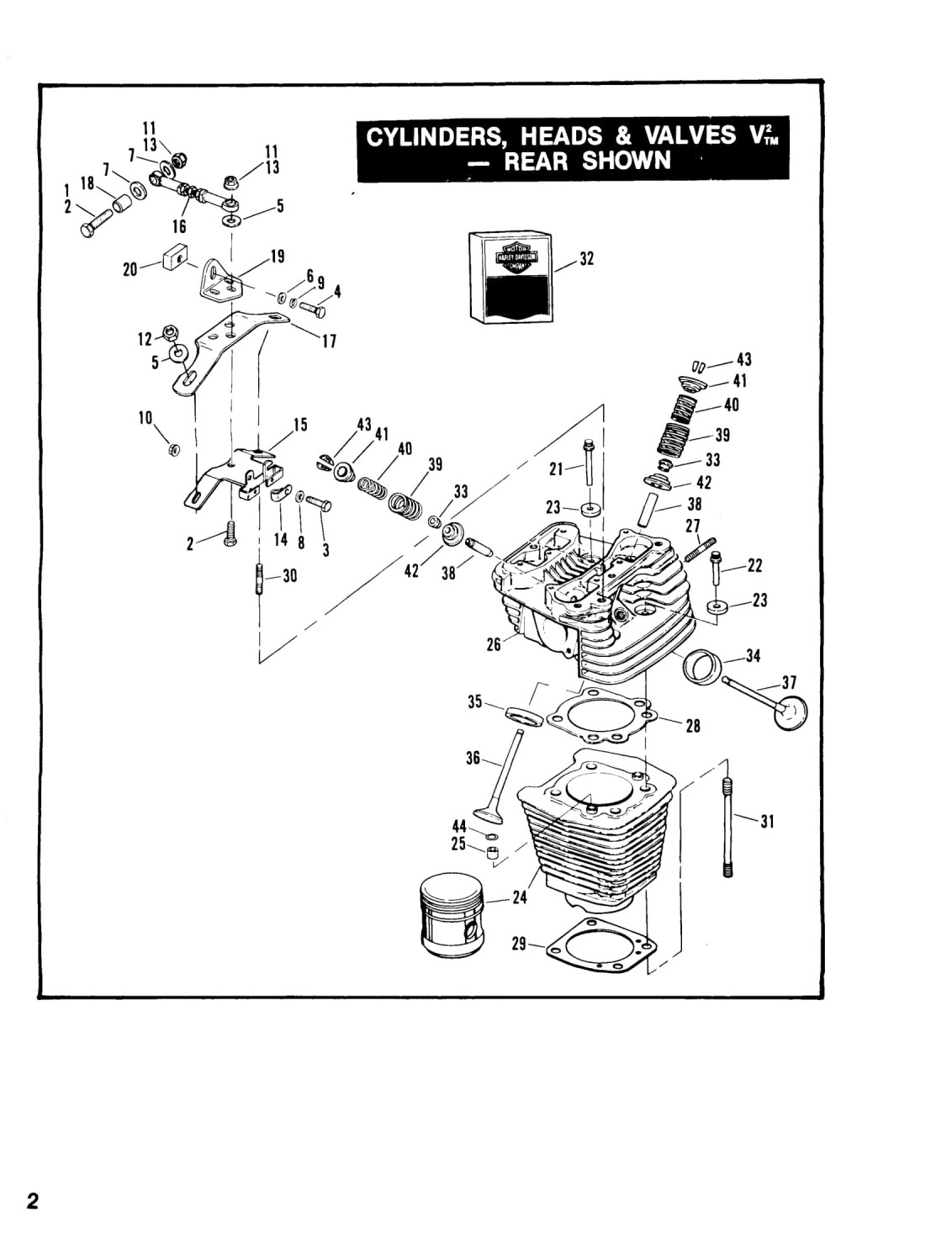

Cylinders, engine 5

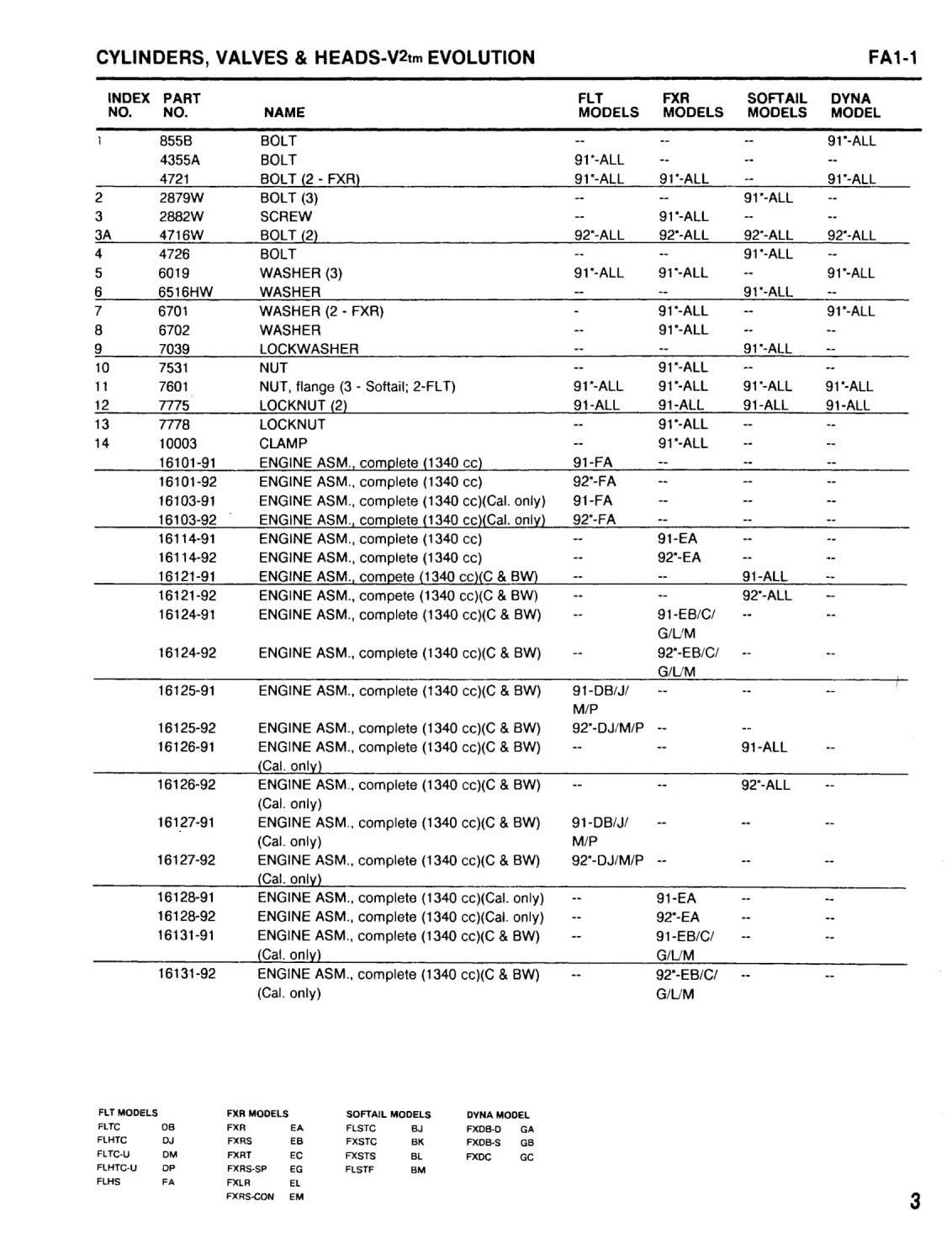

Engine 3,7
Engine Guard 117.119
Enrichener Cable 33
Evaporative Emissions Kit . 322
Exhaust Systems 225-231
Fairing 161-167,173,175
Fairing Lowers 181
Fenders 189-195,313
Fender Supports, rear 199
Flywheels 13
Footboards 141
Footrests 137,139
Fork, front 91-107
Fork Rockers 109
Frame & Rear Fork 115-125
Fuel Tanks 207-213
Fuel Tank Trim 215,217
Fuse Board - С. В 277
Gear Shifter 43.45
Gasket Kits 5. 9
Glossary 323
Handlebar 153,155
Hardware Listing 324

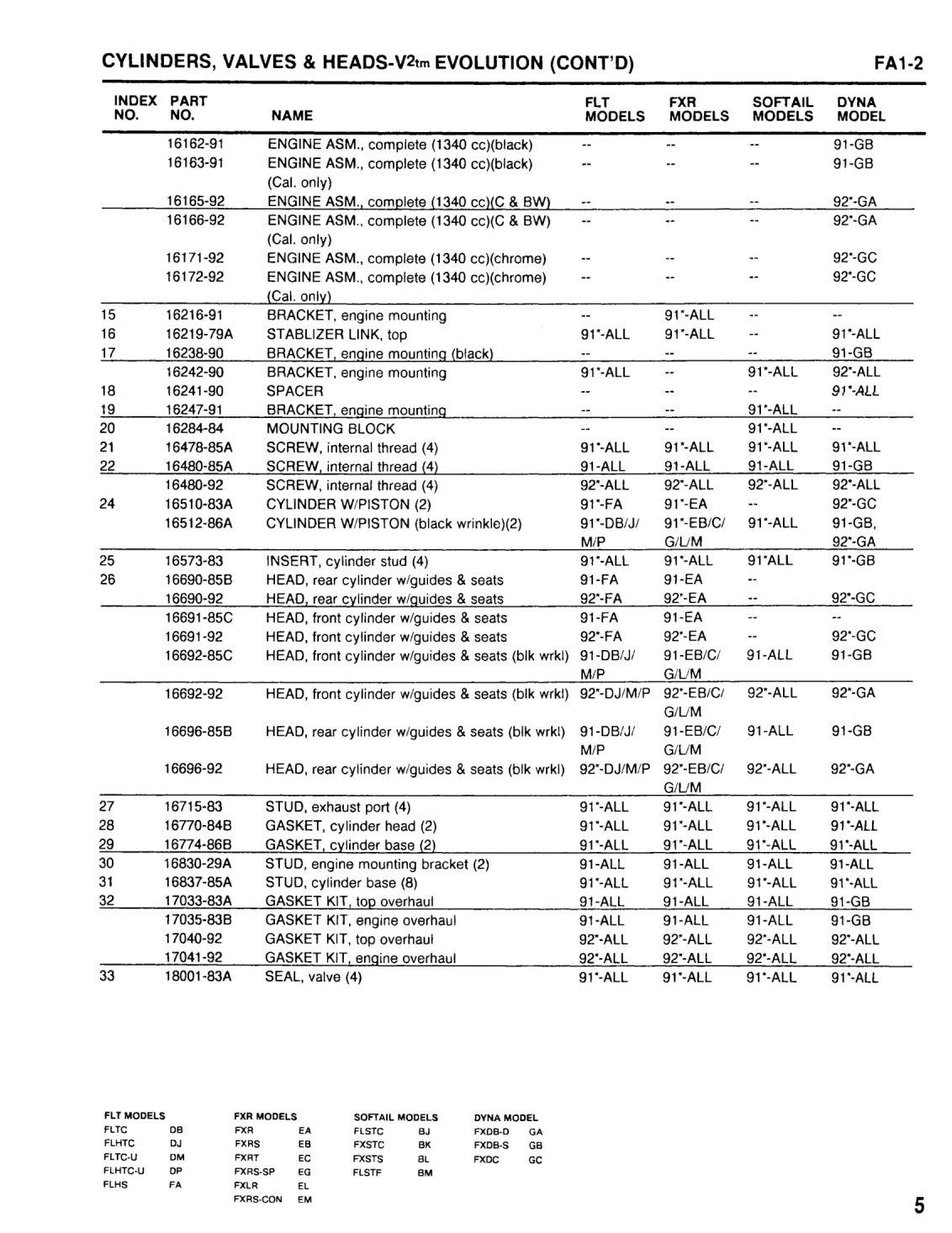

Head, cylinder 5
Headlamps 163,165,175,183,185
Horn 257
Ignition System 37.39
Intercom System 271
Indicator Lamps 237,239.241.243,245,249

Page
Inner Fairing - FLHTC 169
Instruments - FLT 169,237
Instruments - FXR & DYNA . 211,239-245
Instruments ■ Softail 247,249
Jiffy Stand 117,119,123,125
License Plate Bracket 127.195
Luggage Carrier - FLT 127
Mirrors 297
Module, ignition 39
Numerical Index 332

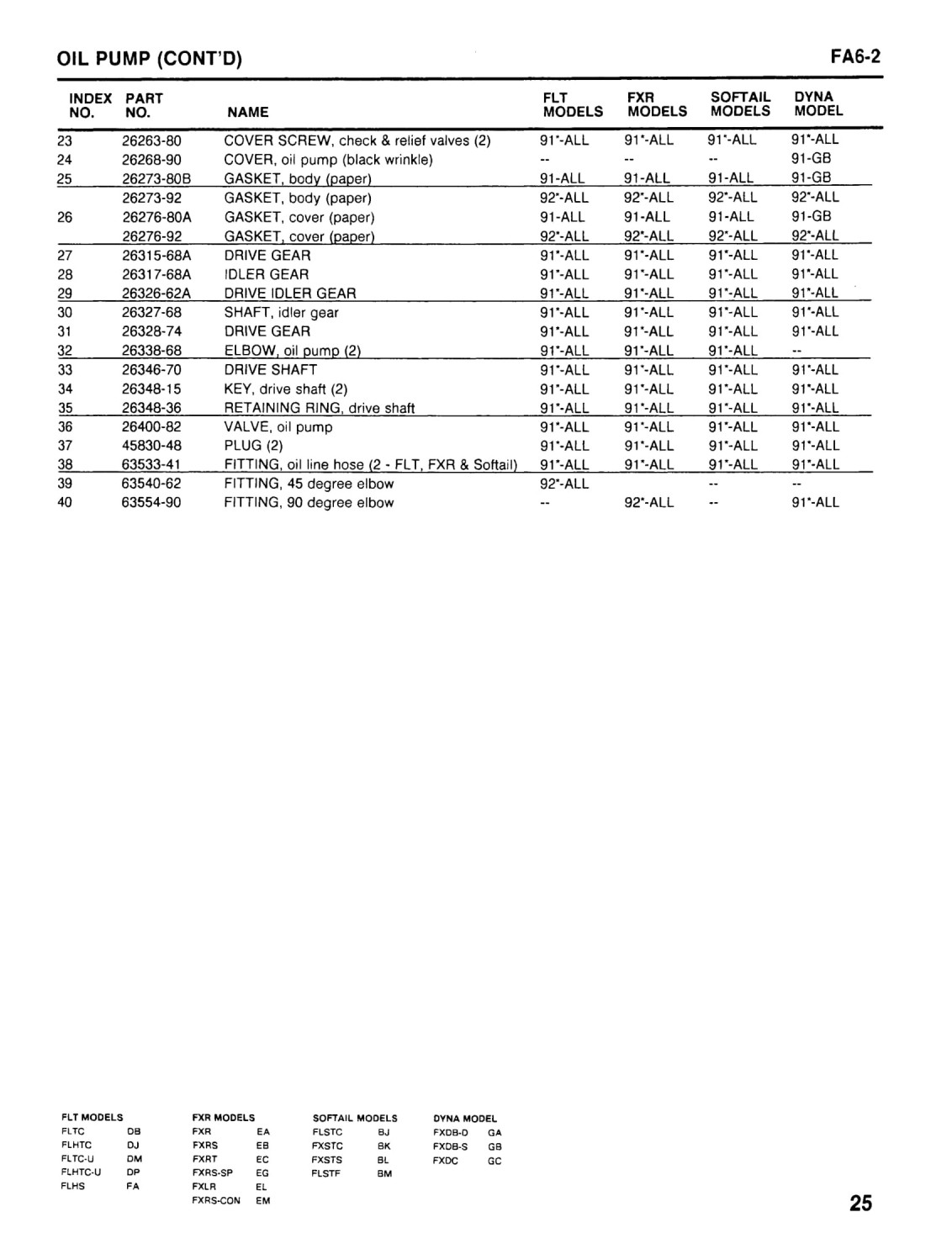

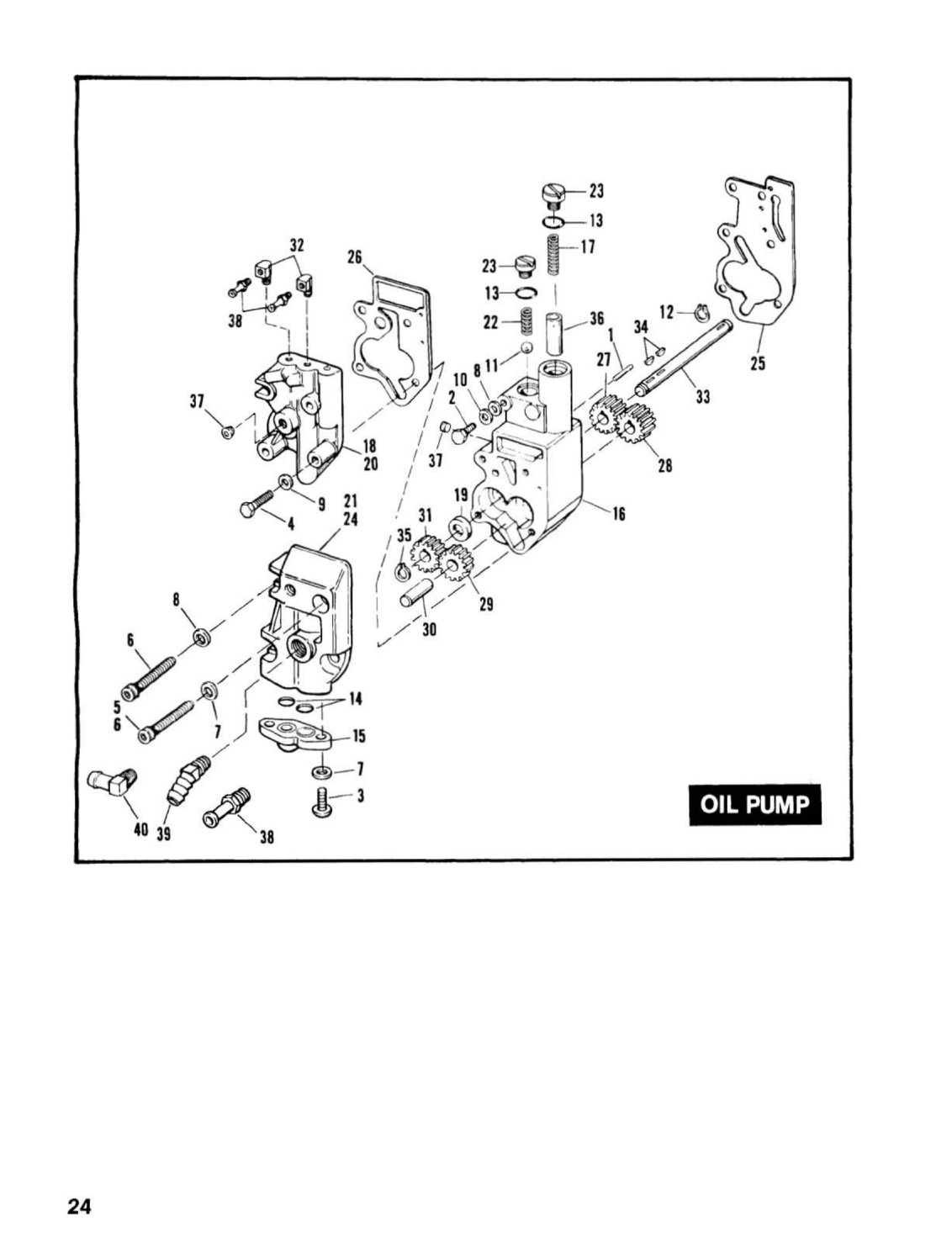

Oil Filters & Mounts 223

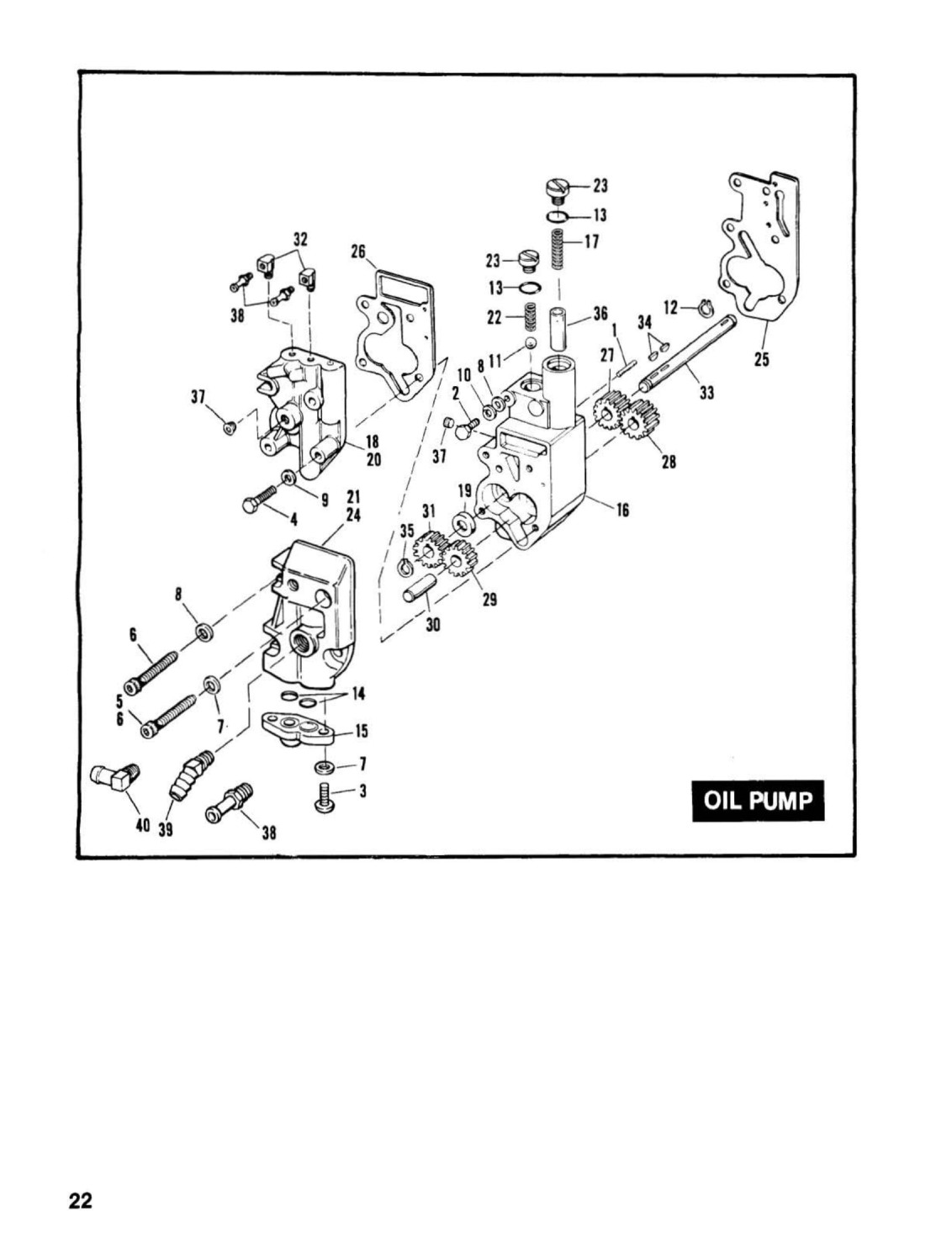

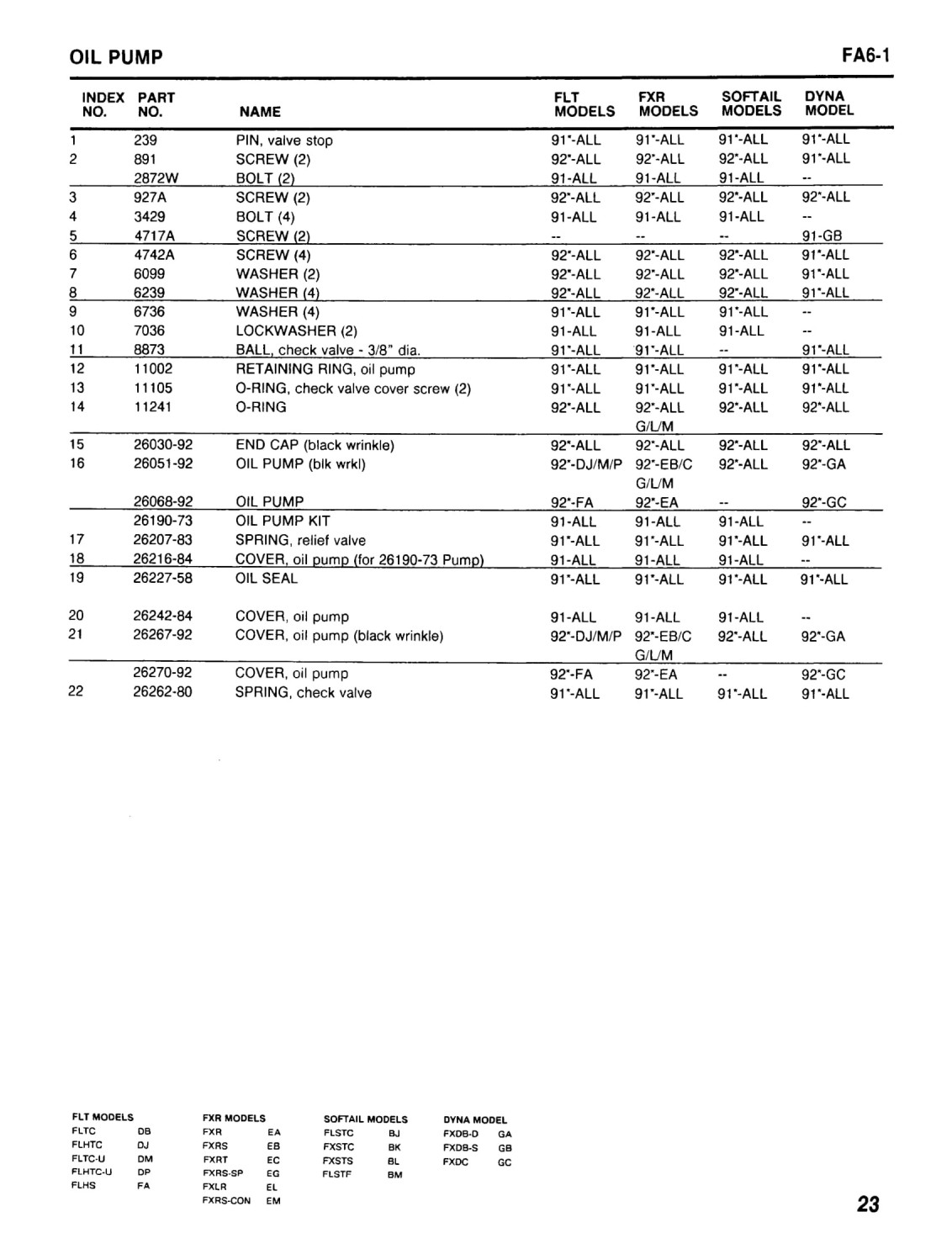

23
Oil Tank 219
Oil Tank - DYNA 51
Passing Lamps 187

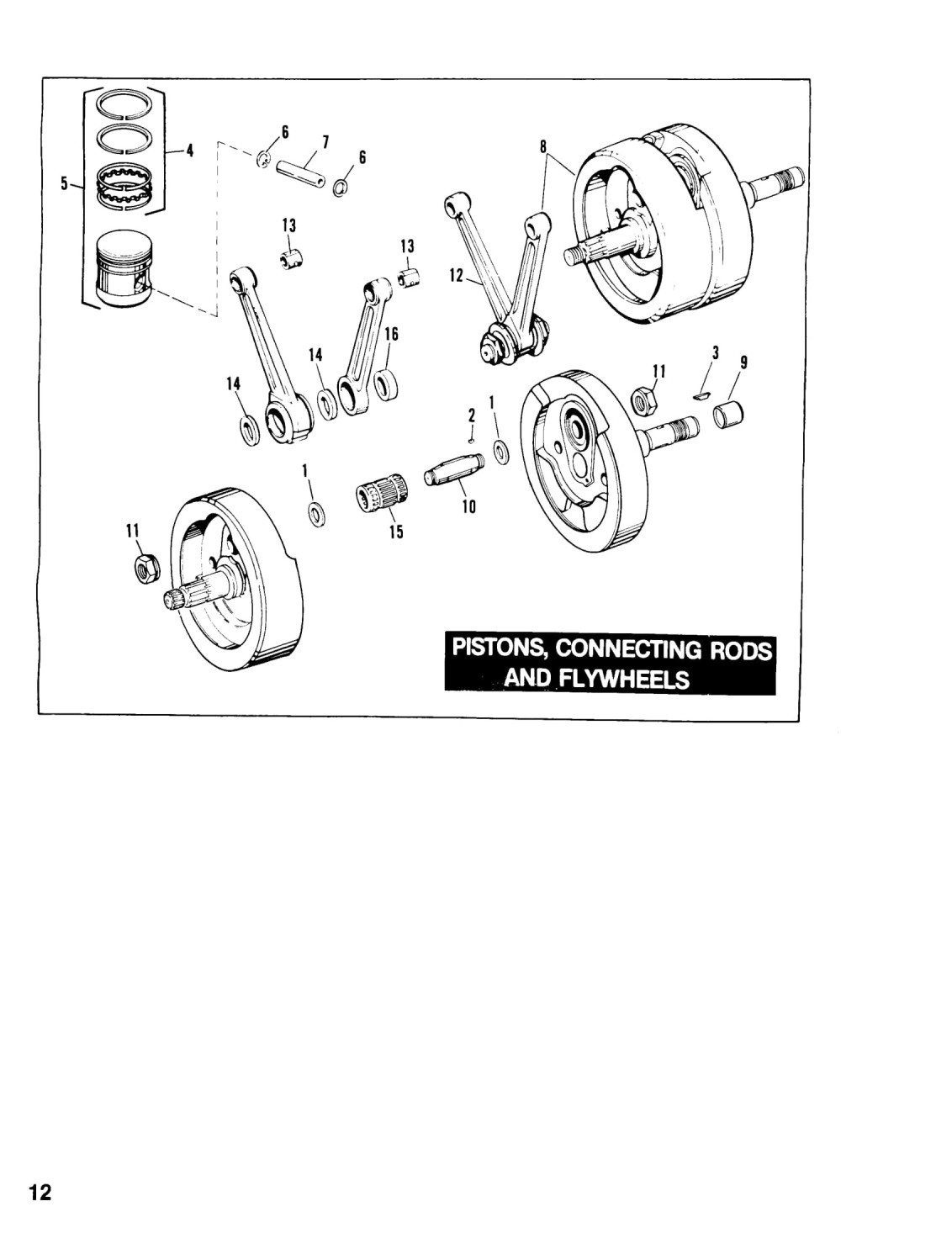

Pistons & Piston Rings 13
Primary Housing 201,203

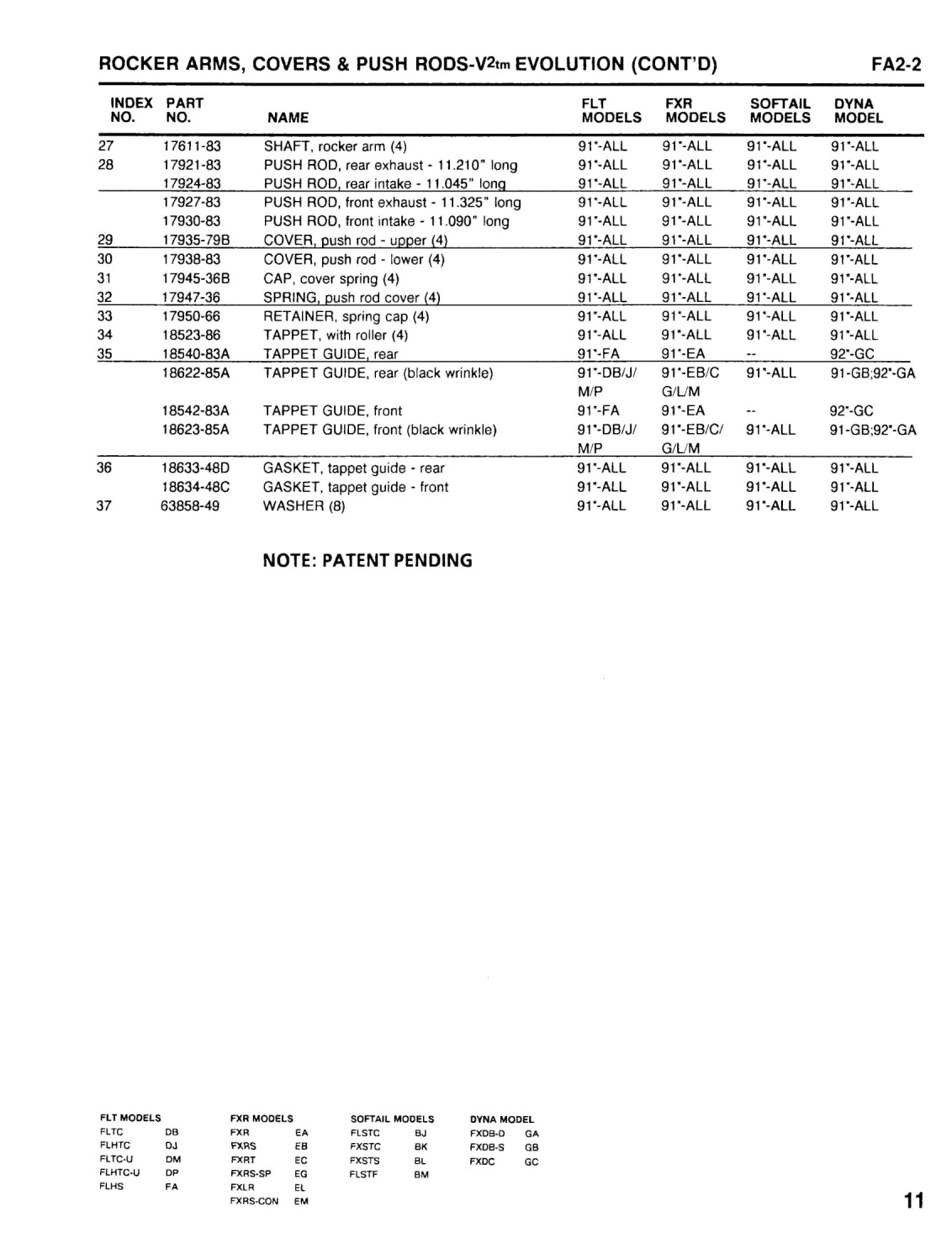

Push Rods 11
Regulator 35

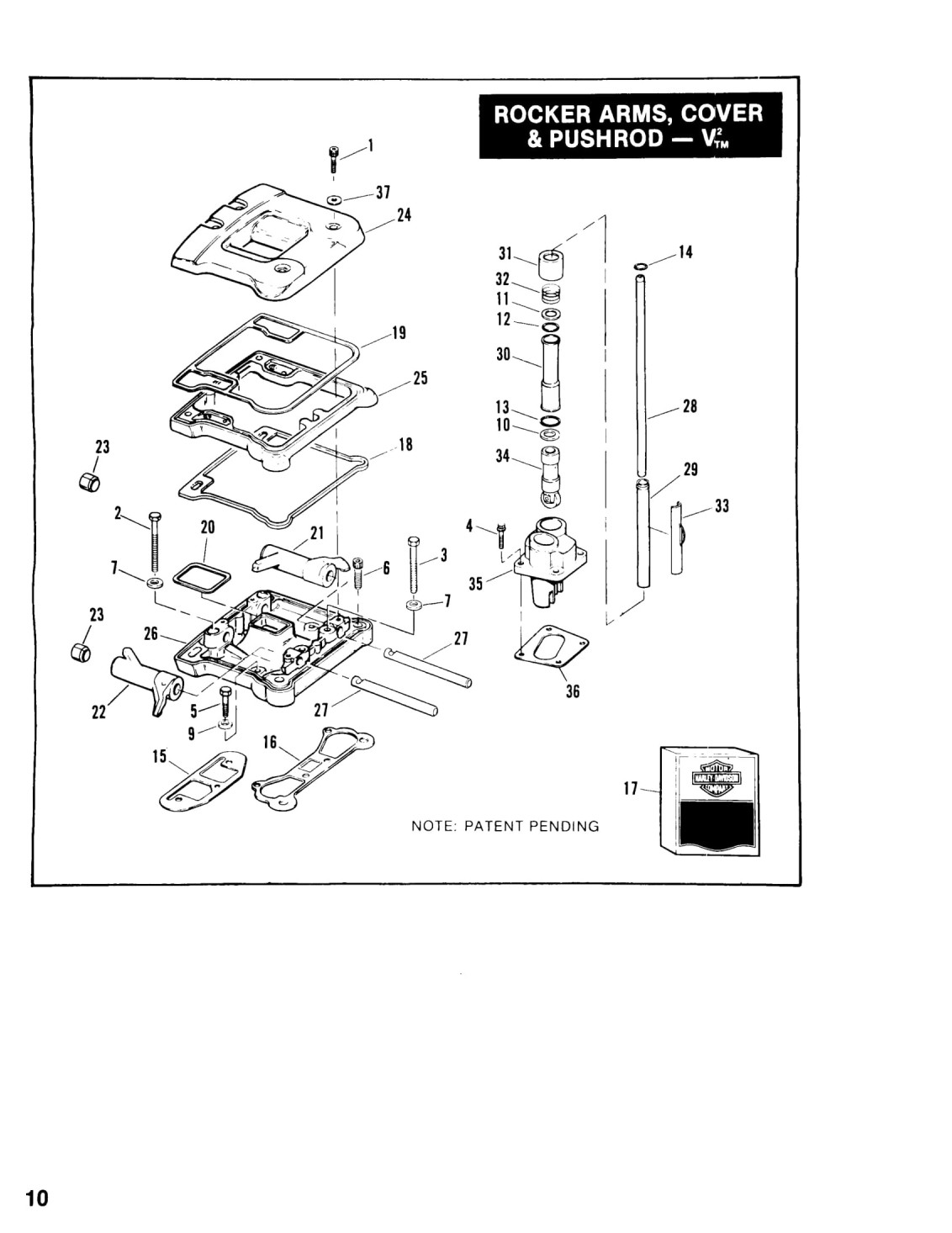

Rocker Arms 9
Rotor, ignition 39
Saddlebags 286-293
Saddlebag Guards 295
Seats 127-137
Sensor Assembly 39
Shock Absorbers 149,151
Sidecar 299-321
Sissy Bar 131,133,135
Sound System 267.269,321
Spark Plugs 39
269,321
Speaker Housing, rear 147
Speedometer 237-247
Sprockets 49,59.87
Stabilizer Link, engine 5.17
Starter Motor 41
Switches, ignition 277,281,283.285
Switches . 21,159-169,187,277-285
Switchers, Handlebar 273,275
Tachometer . . . 237,239,241,243,245
Tail Lamp 255,314
Tail Lamp - Tour-Рак 147
11
Throttle Control 157,273
287
Tour-Рак 143-147
Transmission 47-53
Turn Signals 163,175,187,251-255,315
Turn Signal Canceller 277,281,283,285
Ultra Sidecar 319,321
Vacuum Switch 27

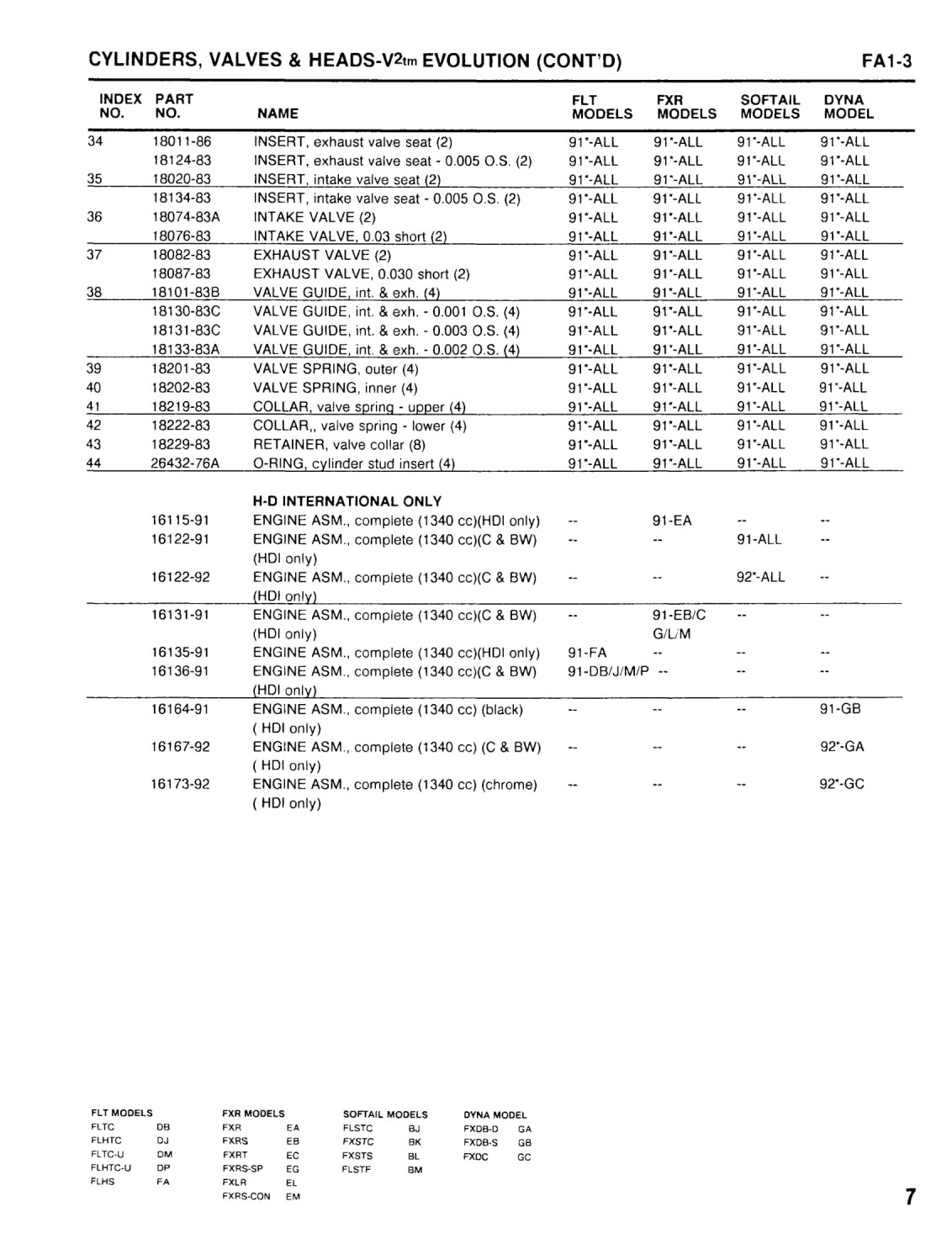

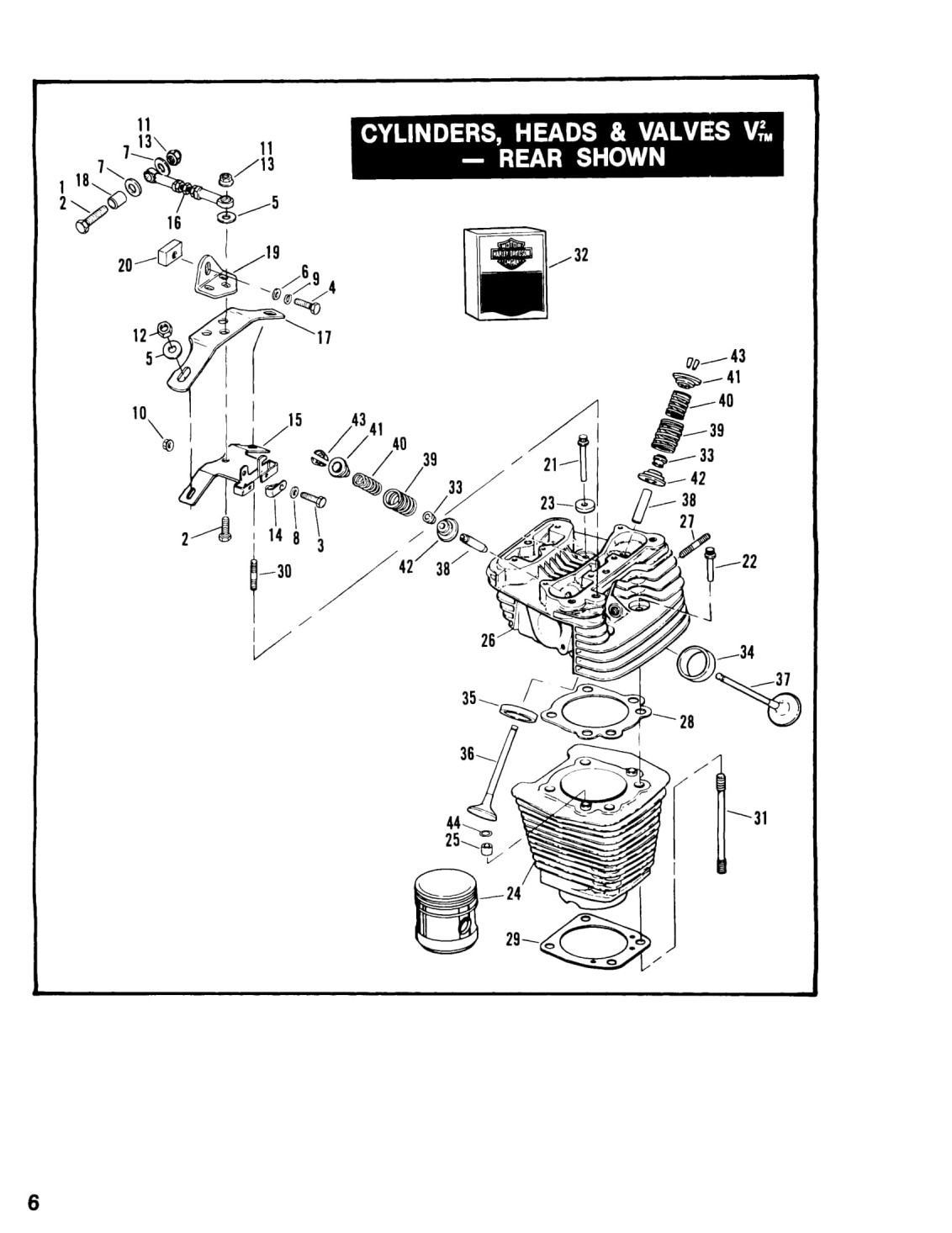

Valves 7
Wheels 67,69,87,317
Windshields 161,165,173-179,301,319
Wiring 259-265
