Harley Davidson 1971-1980 FX Models, Super Glide. Parts catalog - page 1

Harley-David
PARTS CATALOG on CD FX Models

Super Glide

ISSUED: FEBRUARY. 1980

No. 99455-80

GENERAL INFORMATION
This Parts Catalog has been prepared for your convenience when ordering parts for SUPER GLIDE Models FX FXS, FXEF, FXS-80 and FXEF-80. Wherever possible, parts are shown in assembly breakdown sequence. Index numbers shown in the illustrations correspond to index numbers in parts lists. Consult the illustrations when ordering parts so you are sure to get what you want. In most cases, only the latest parts are shown in the illustrations, however, parts lists cover some parts used as early as 1971.

Number in parenthesis following description of part is the quantity needed for complete assembly shown in illustration. If there is no number in parenthesis, only one is used.

Prices of parts and accessories listed in this catalog are published separately in the latest RETAIL PRICE LIST.

The following instructions should be followed carefully when ordering parts:

• Specify the correct part number for each item. Check the “Used On” column of the parts list which shows the model on which the part fits. Whenever in doubt, refer to the Vehicle Identification Number (V.I.N.) stamped on the engine crankcase.

The Vehicle Identification Number (V.I.N.) is located on the engine right crankcase and is the same as the frame number located on the right side of the steering head.
The V.I.N. (vehicle identification number) for SUPER GLIDE MODELS are as follows:

ALPHABETICAL INDEX

Air Cleaner - Late 1978 & Later... Page 37
Air Cleaner -1971 to Early 1978 .. 39
Alternator 41
Axle-Front 101,103,105
Axle-Rear 107,109
Battery 179
Brake - Front 79, 89, 91
Brake - Rear 93, 95, 99
Brake Caliper 81,85,87
Brake Control - Front 79
Brake Control - Rear 93,95
Brake, Disc 81,85, 89,101,103
Carburetor-1971 to 1975 107,109 35

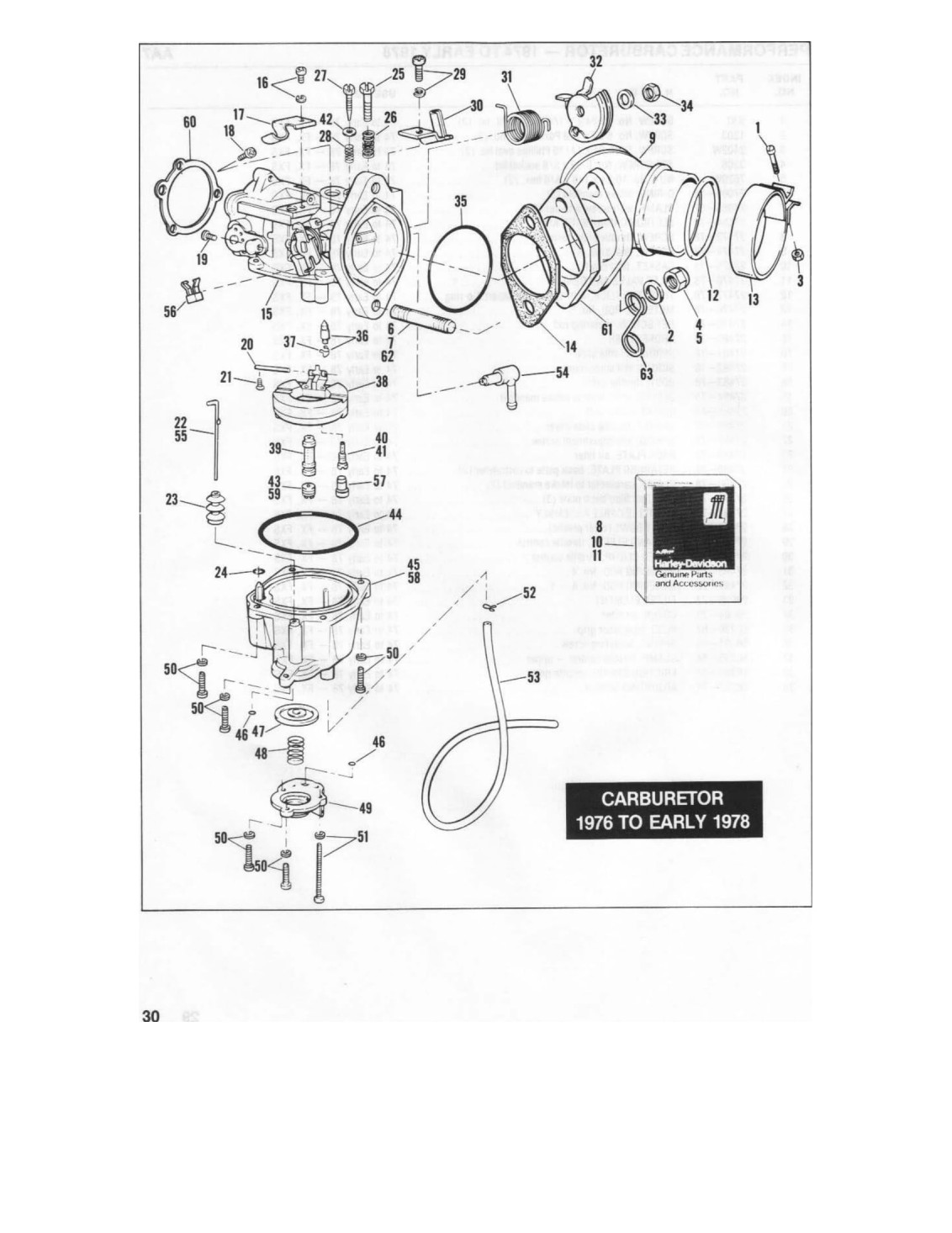

Carburetor-1976 to Early 1978 .. 31

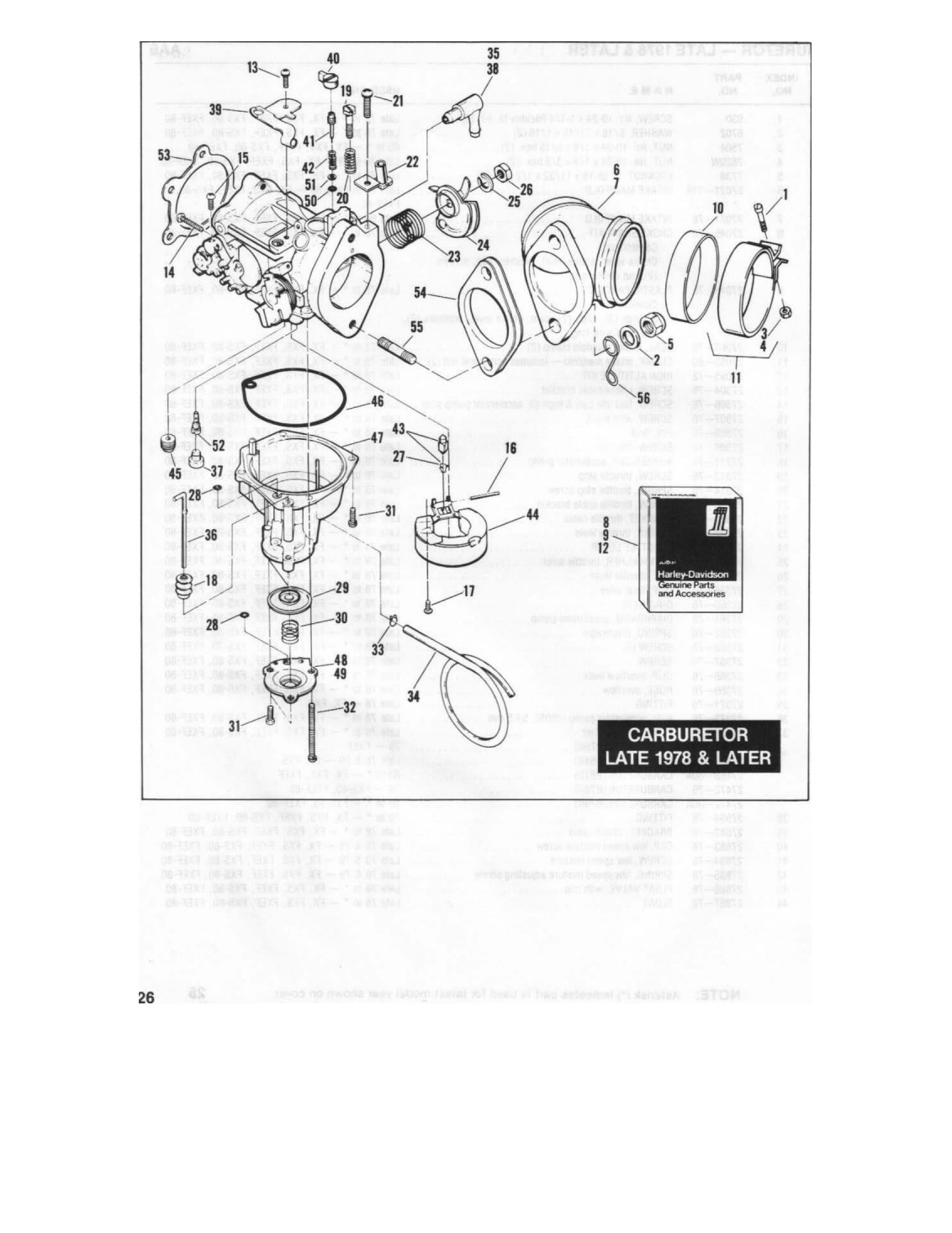

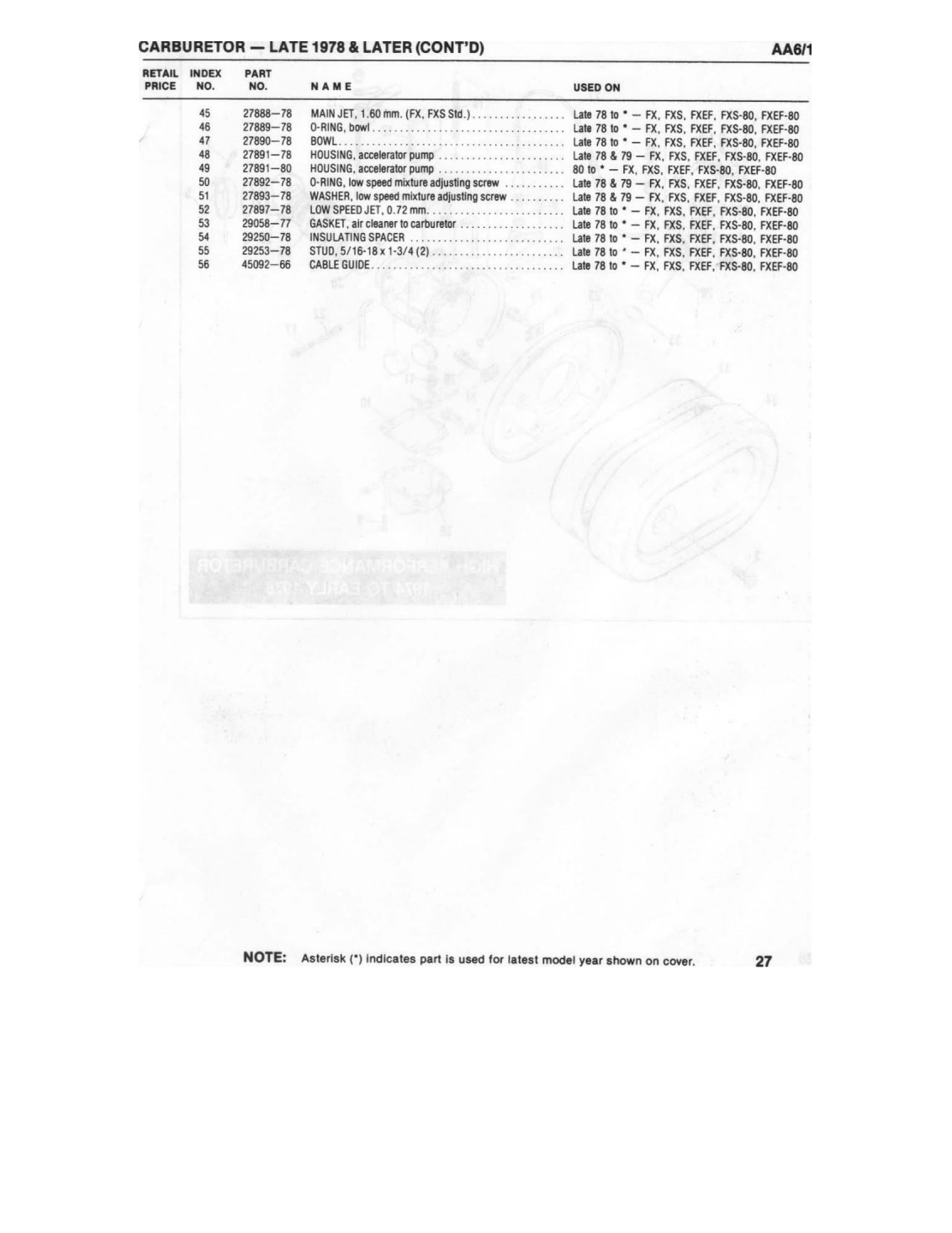

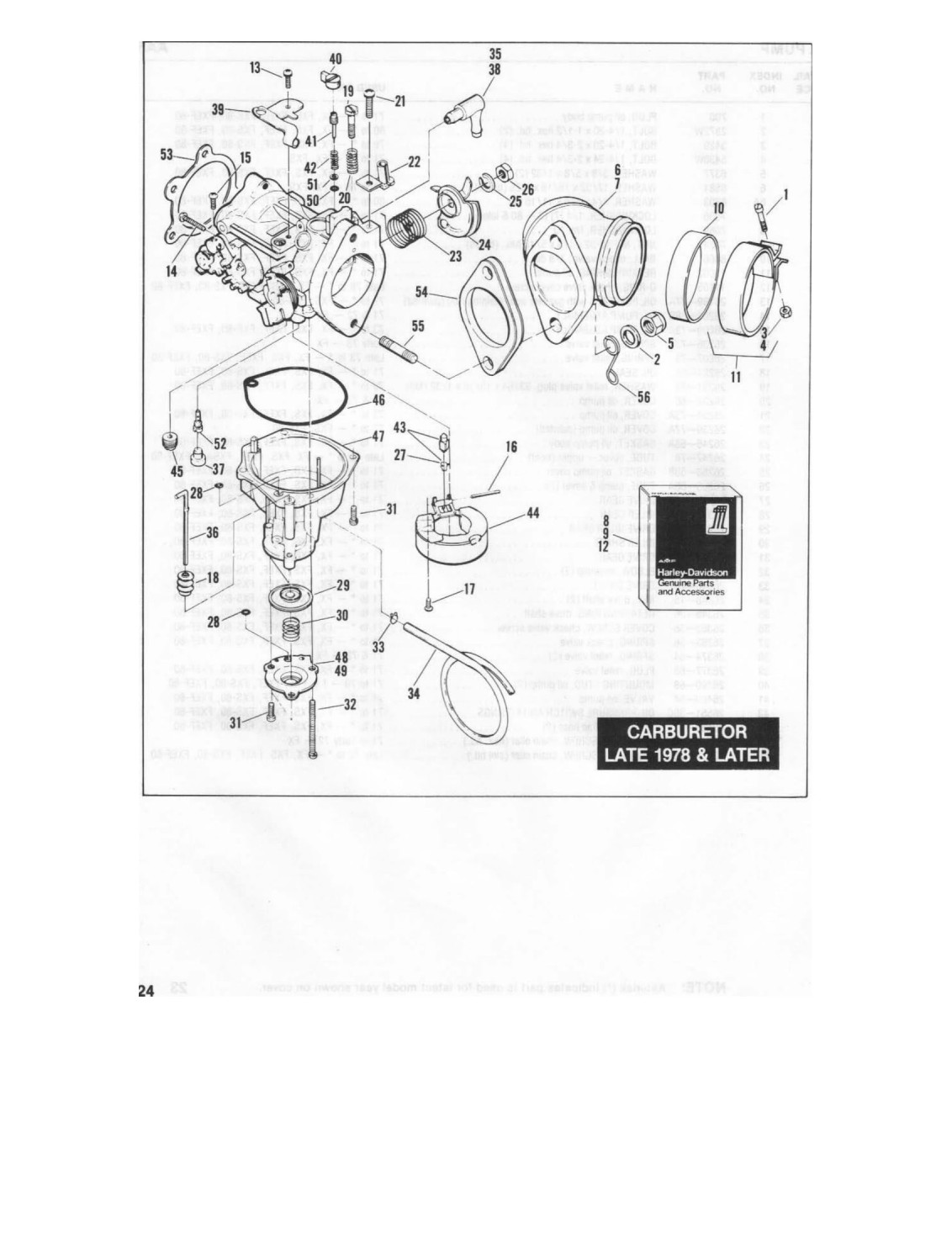

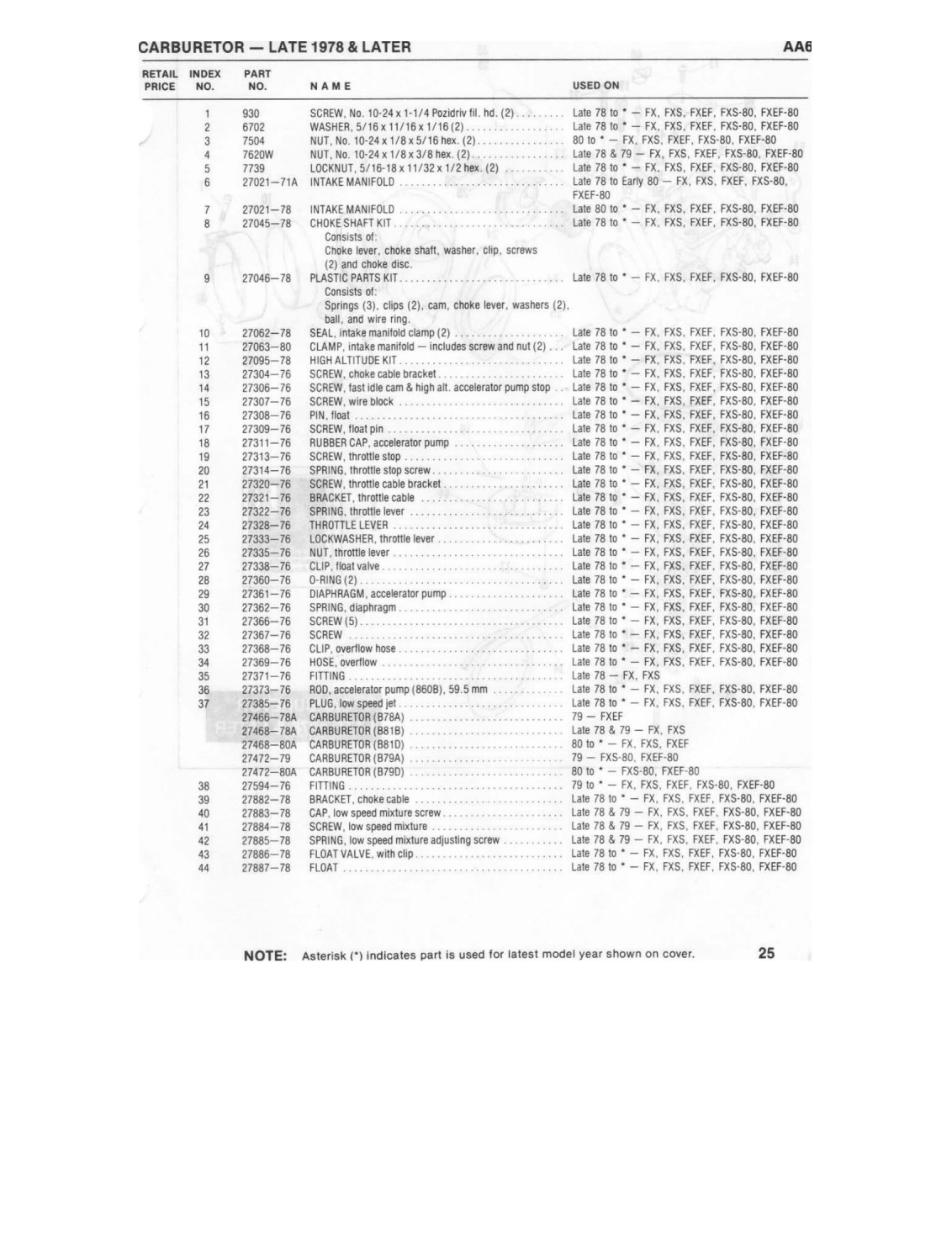

Carburetor - Late 1978 & Later... 25

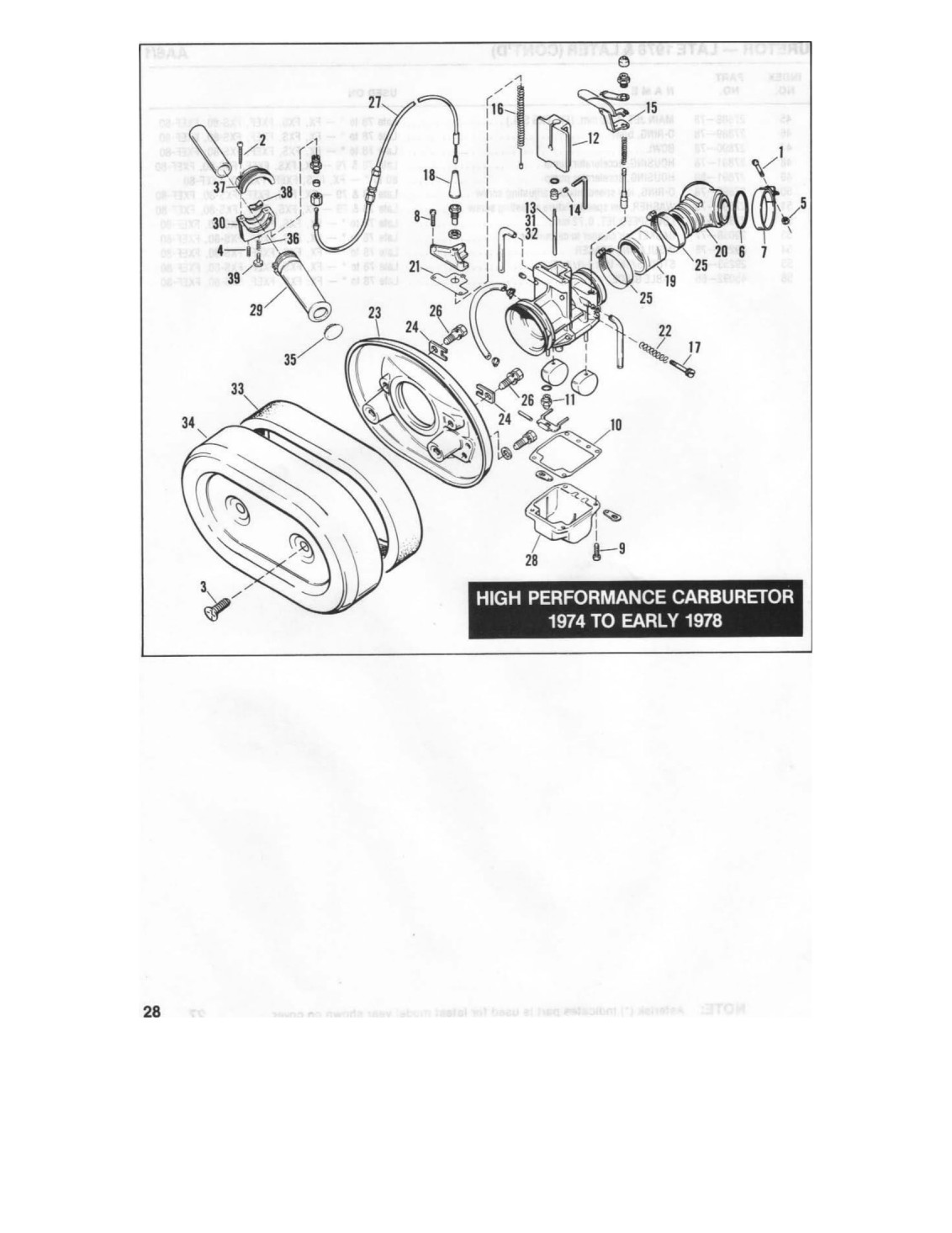

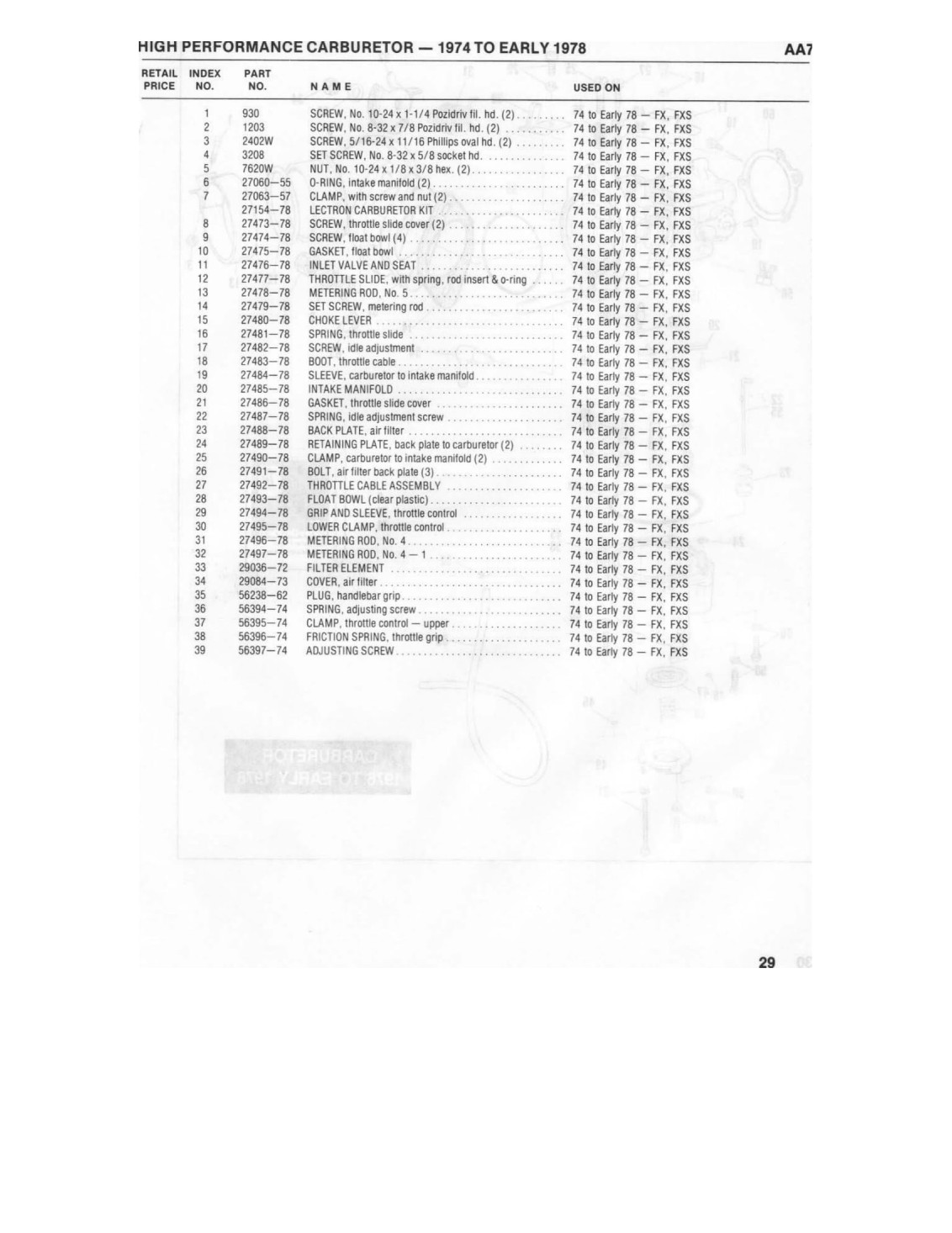

Carburetor - High Performance .. 29
Cast Wheel 103,109
Center Stand 125
Chain 75
Chain Guard 147
Chain Housing 153
Chain Oiler 163
Choke 37,39
Circuit Breaker 213
Clutch 71
Clutch Hand Control 23
Connecting Rods 13

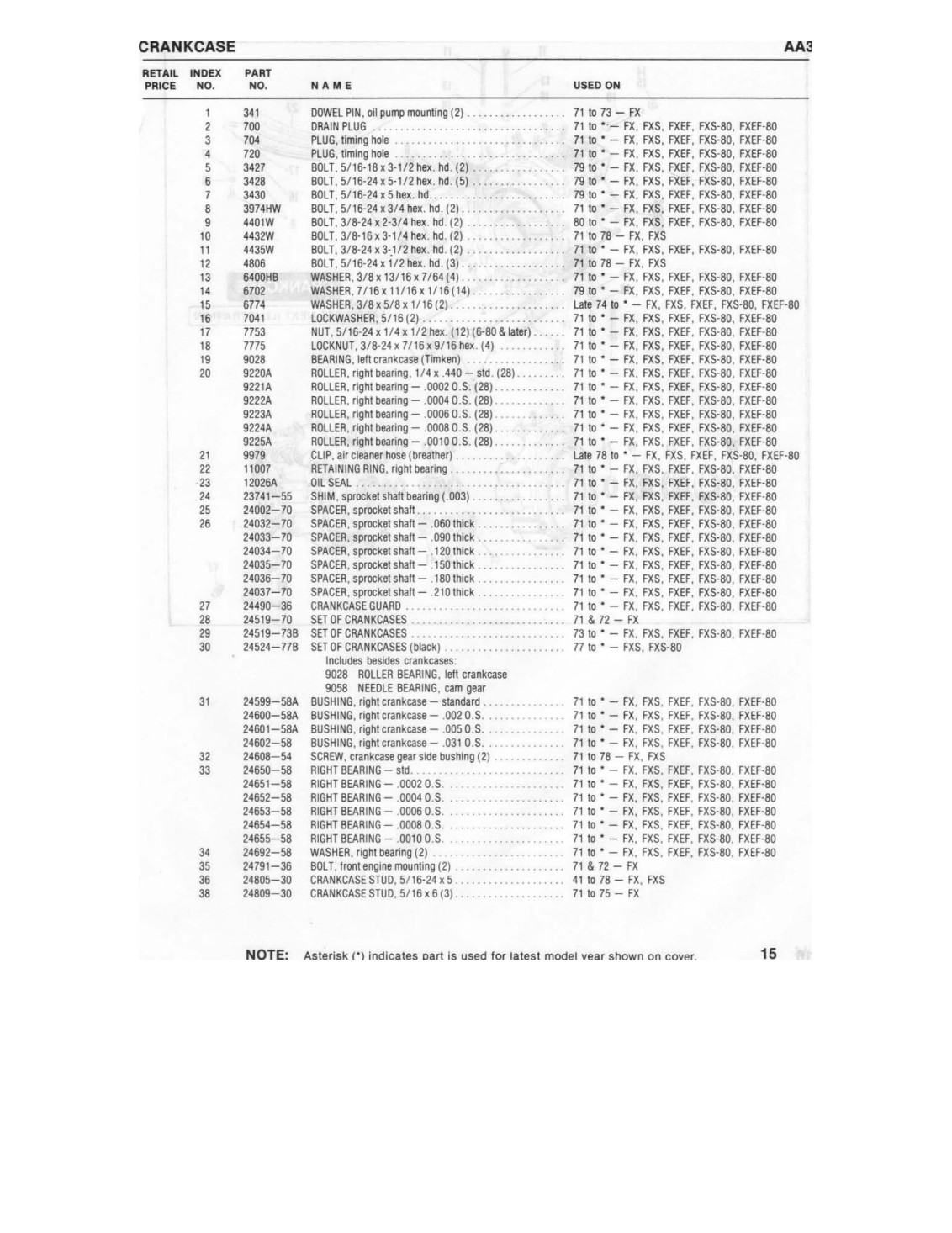

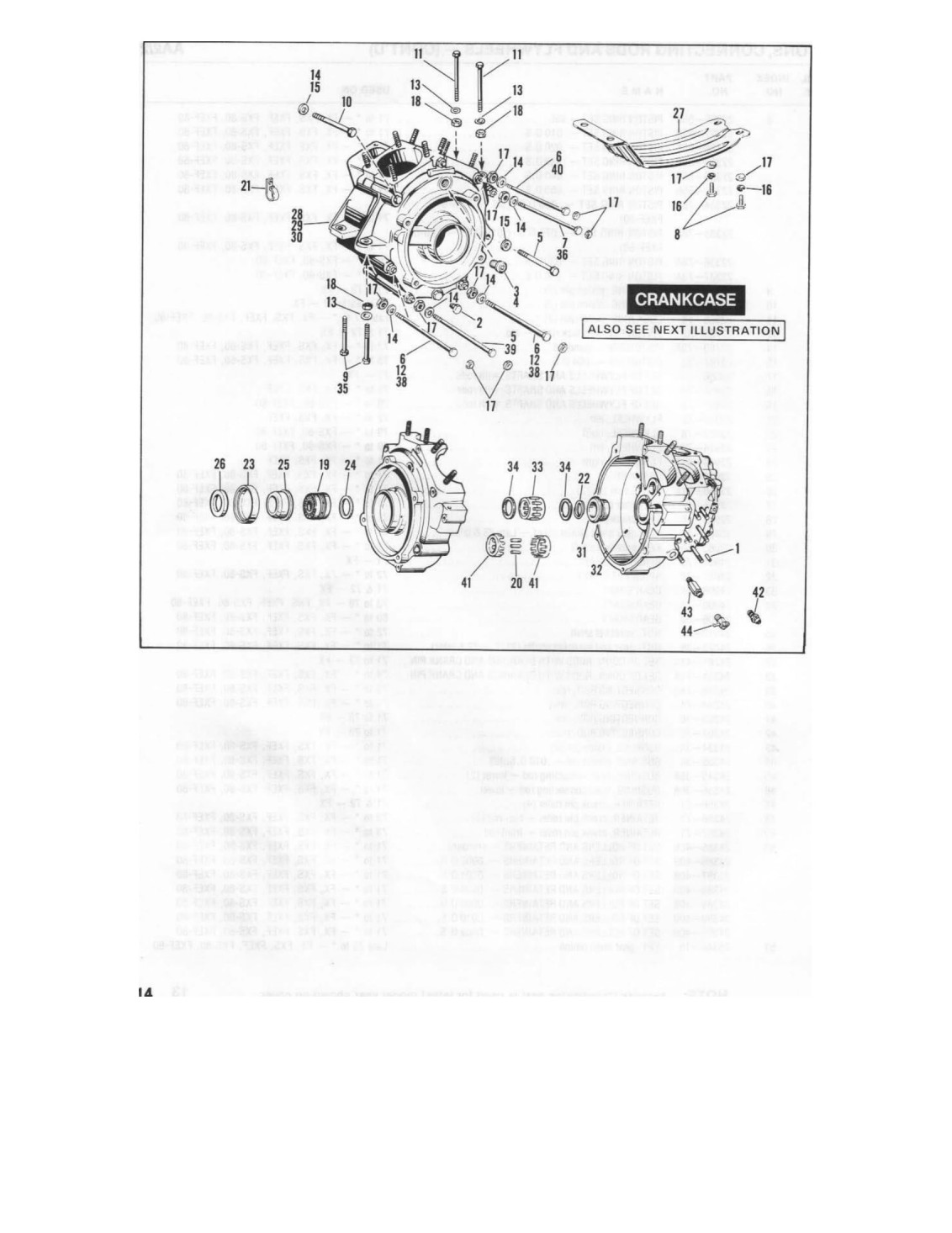

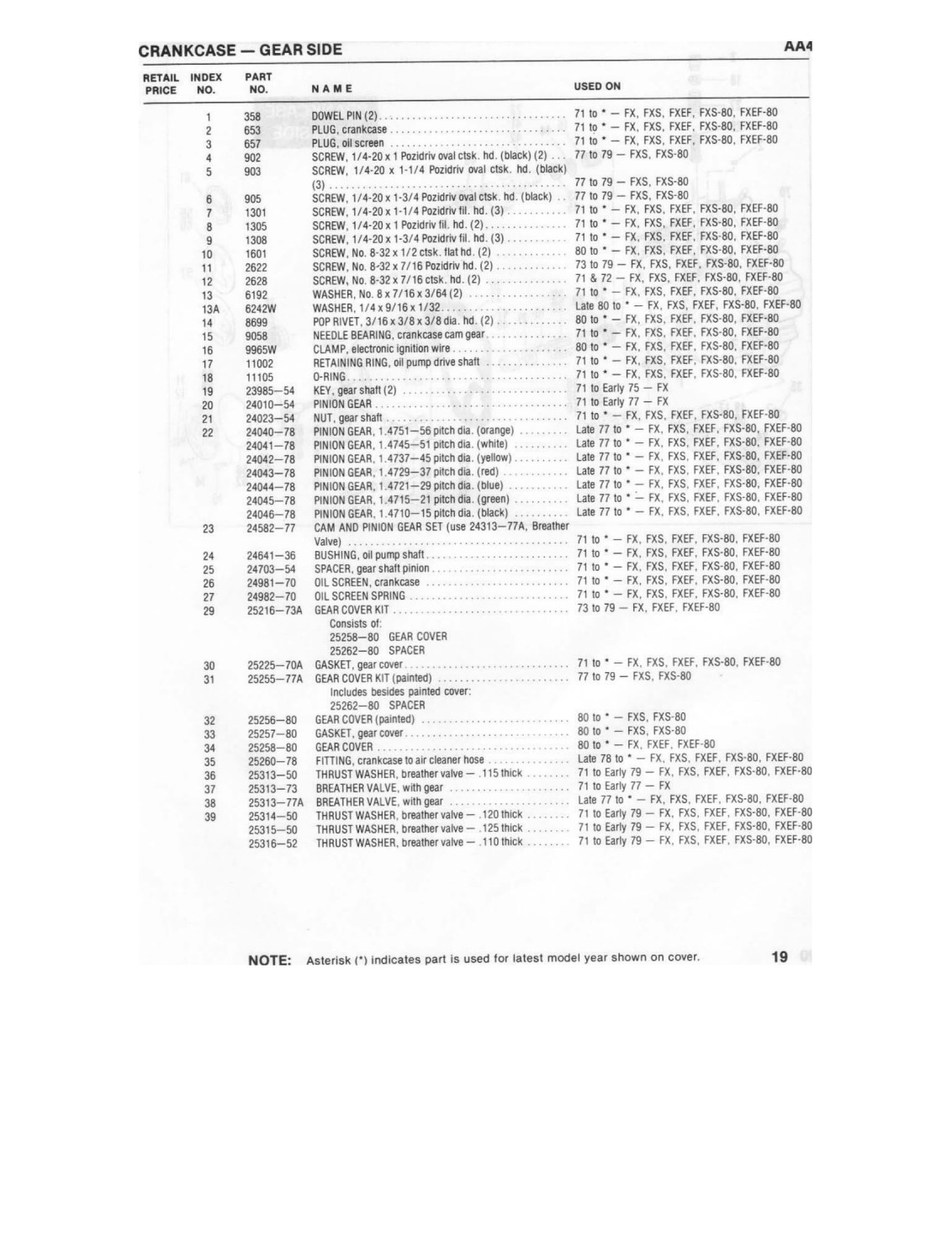

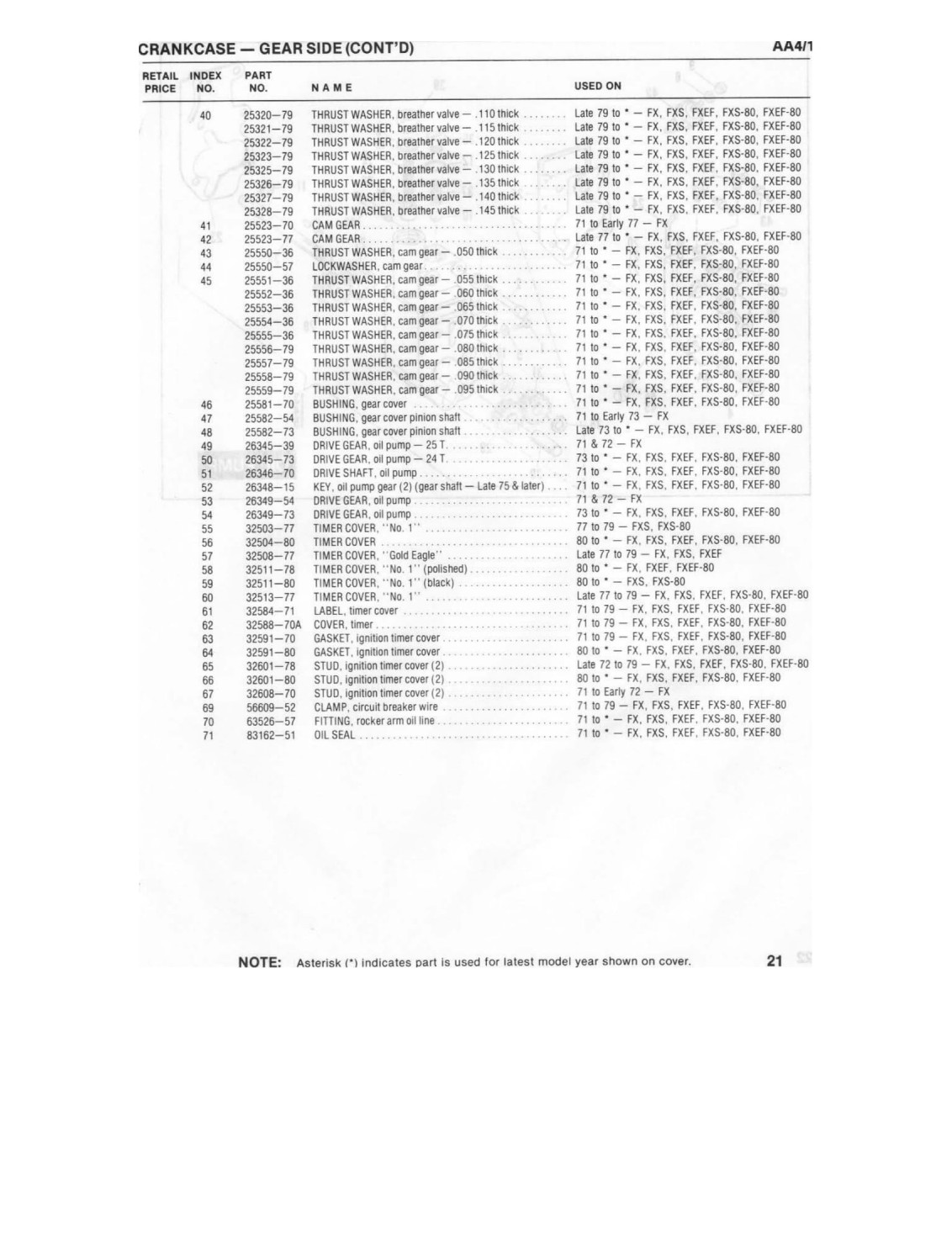

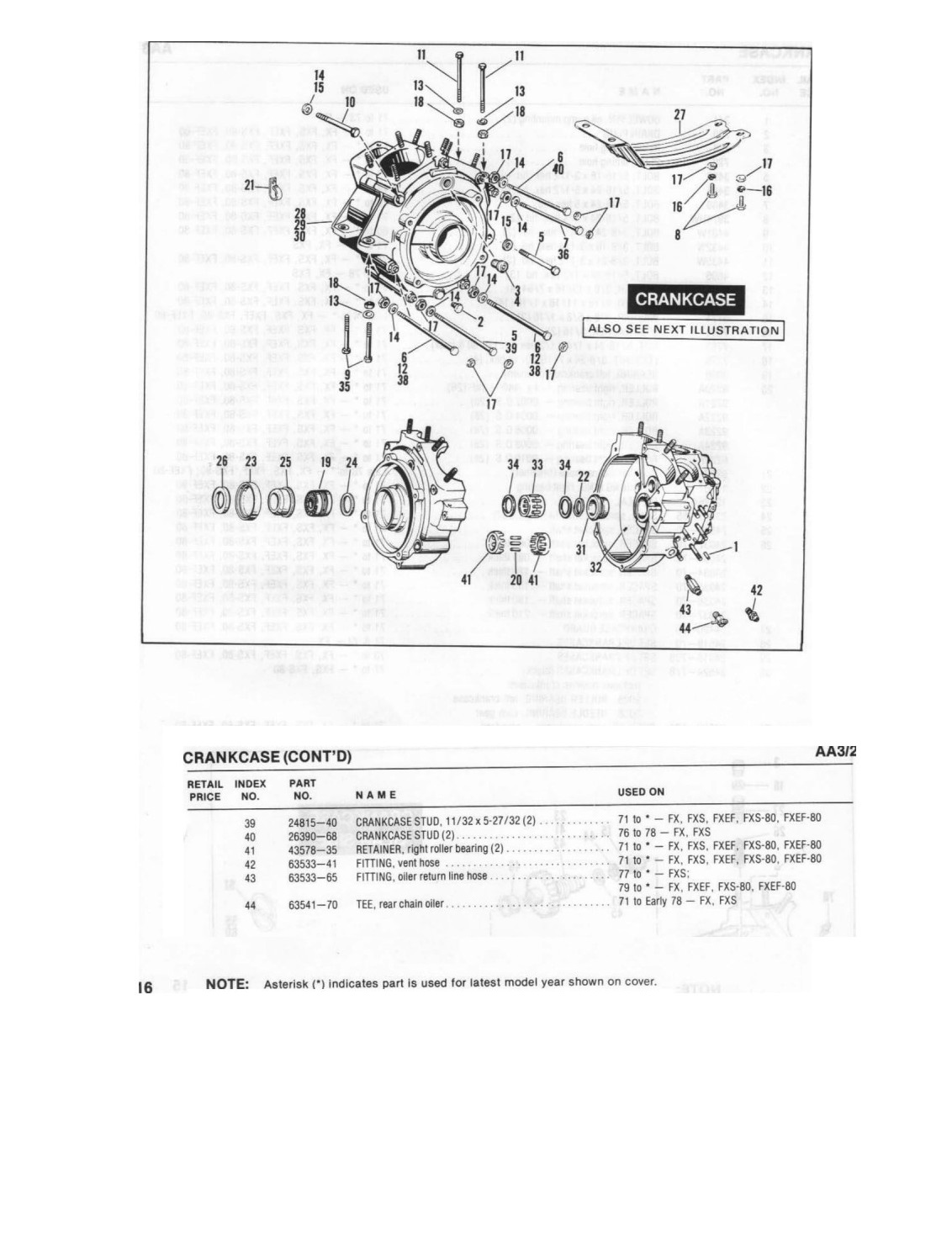

Crankcase 15,19

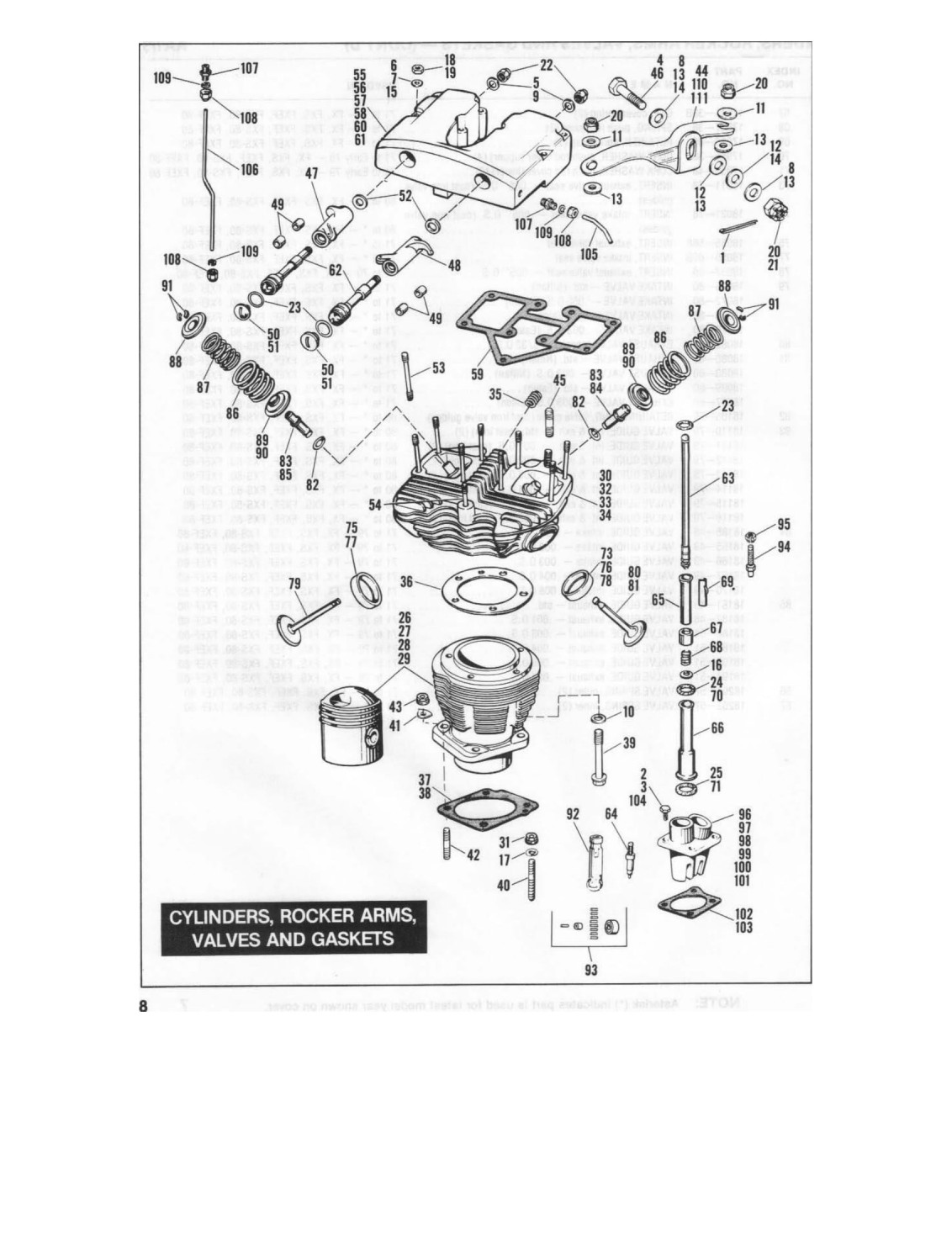

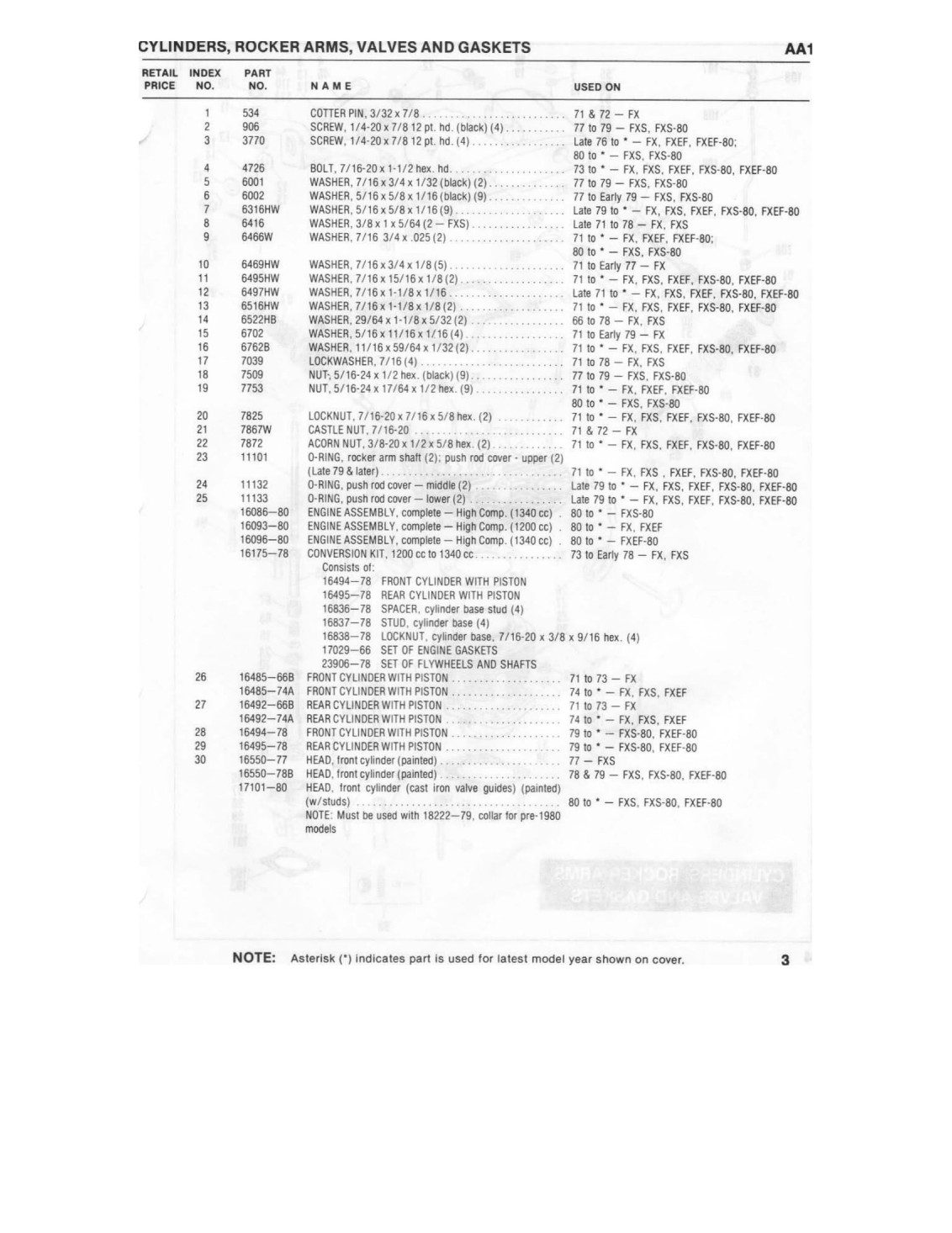

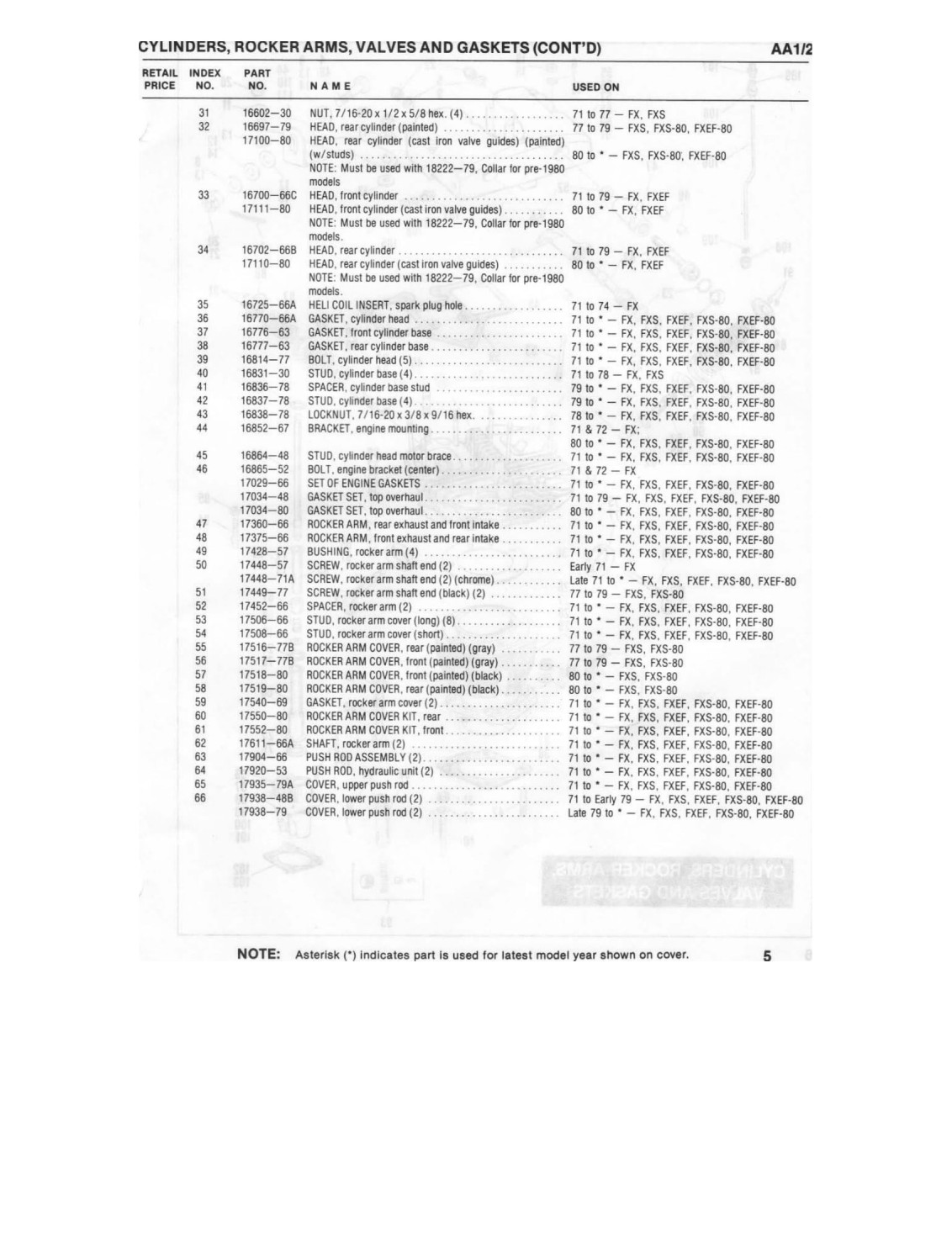

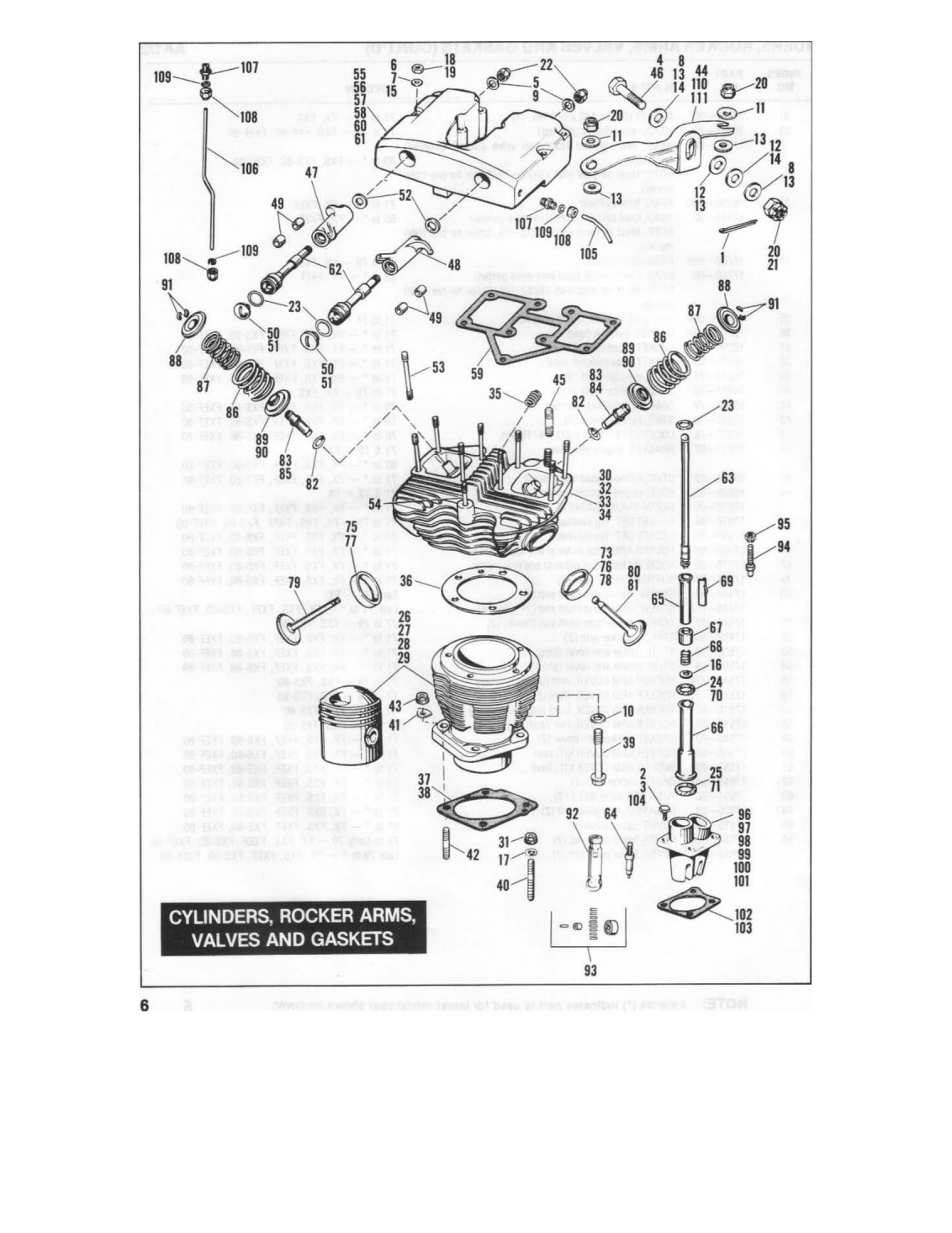

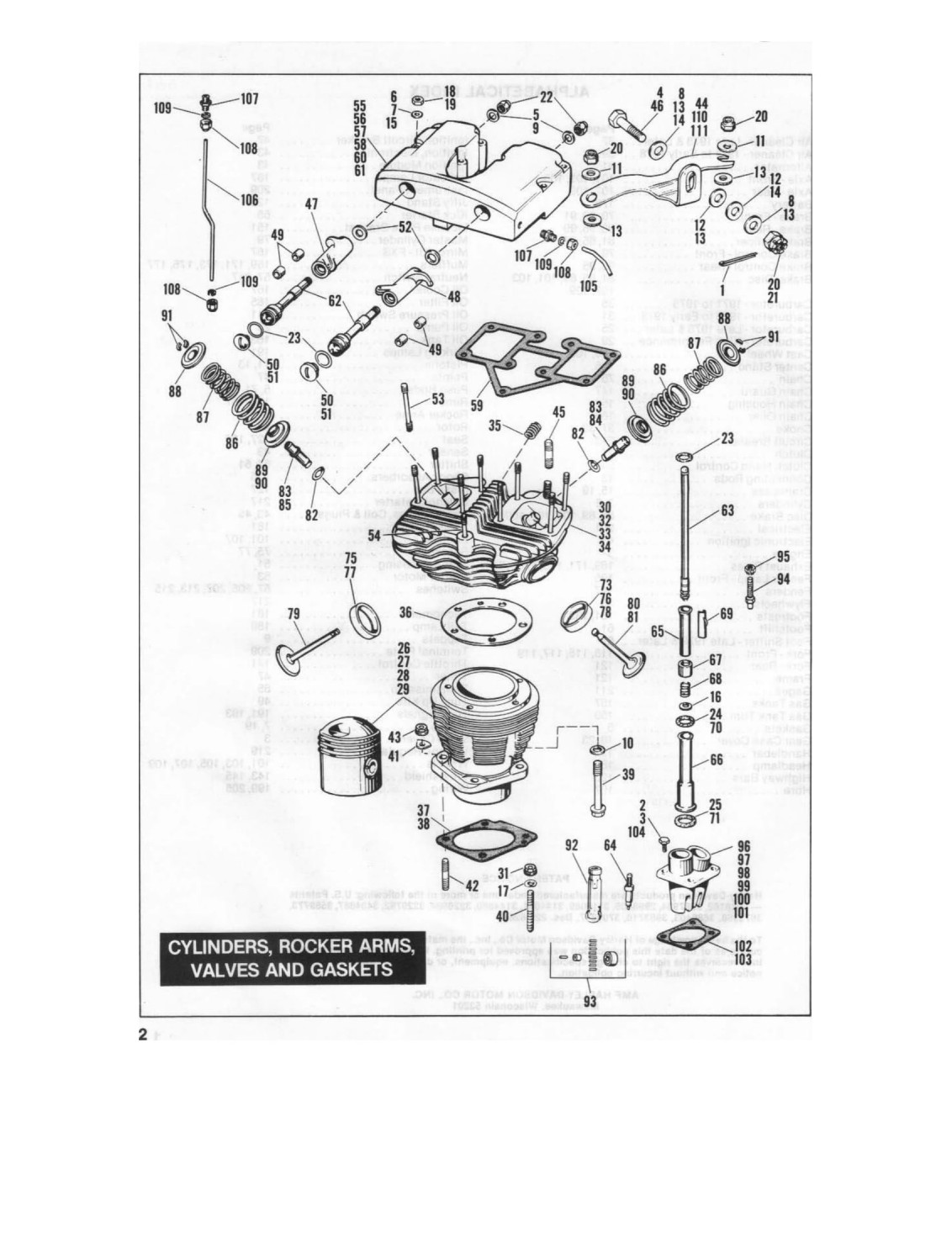

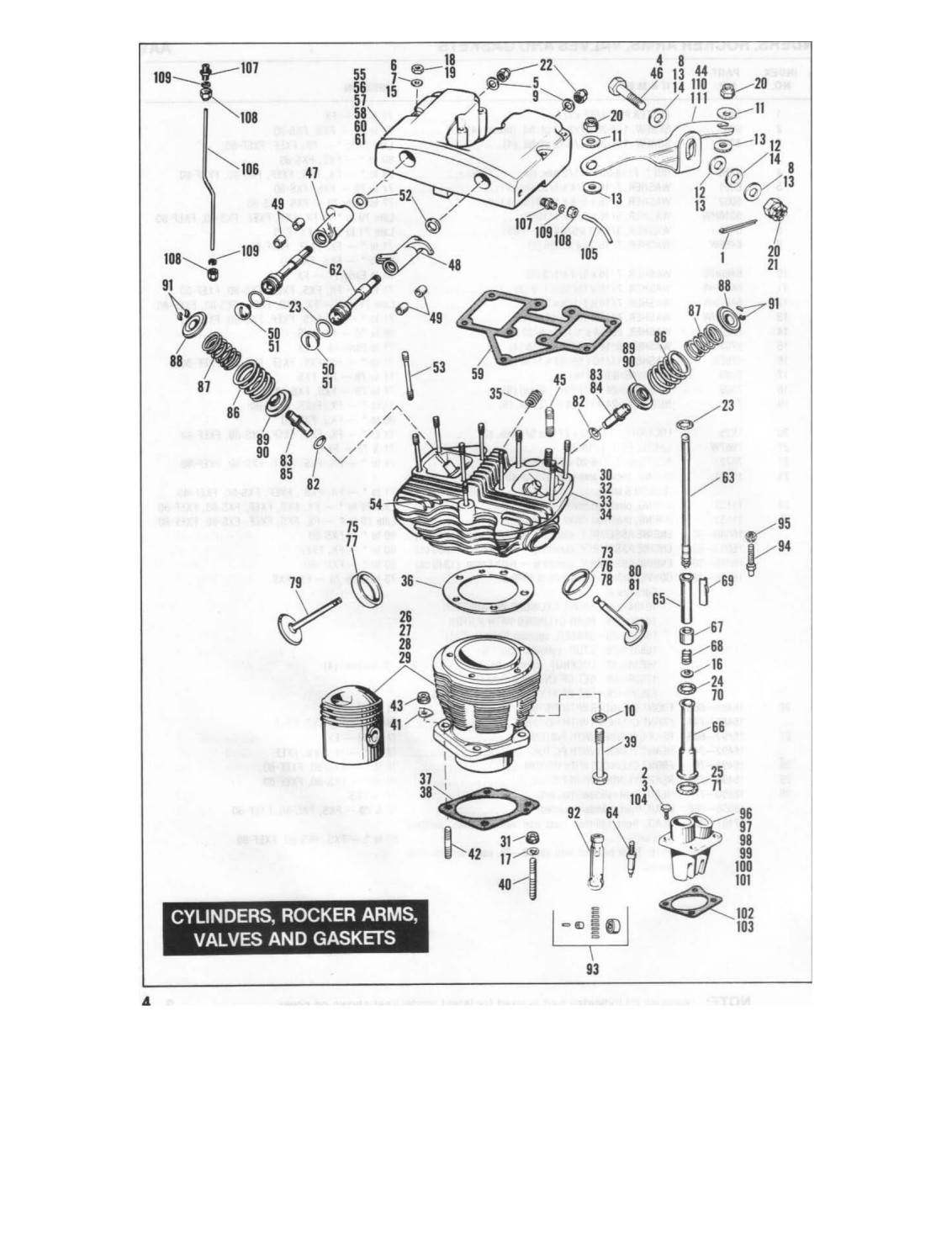

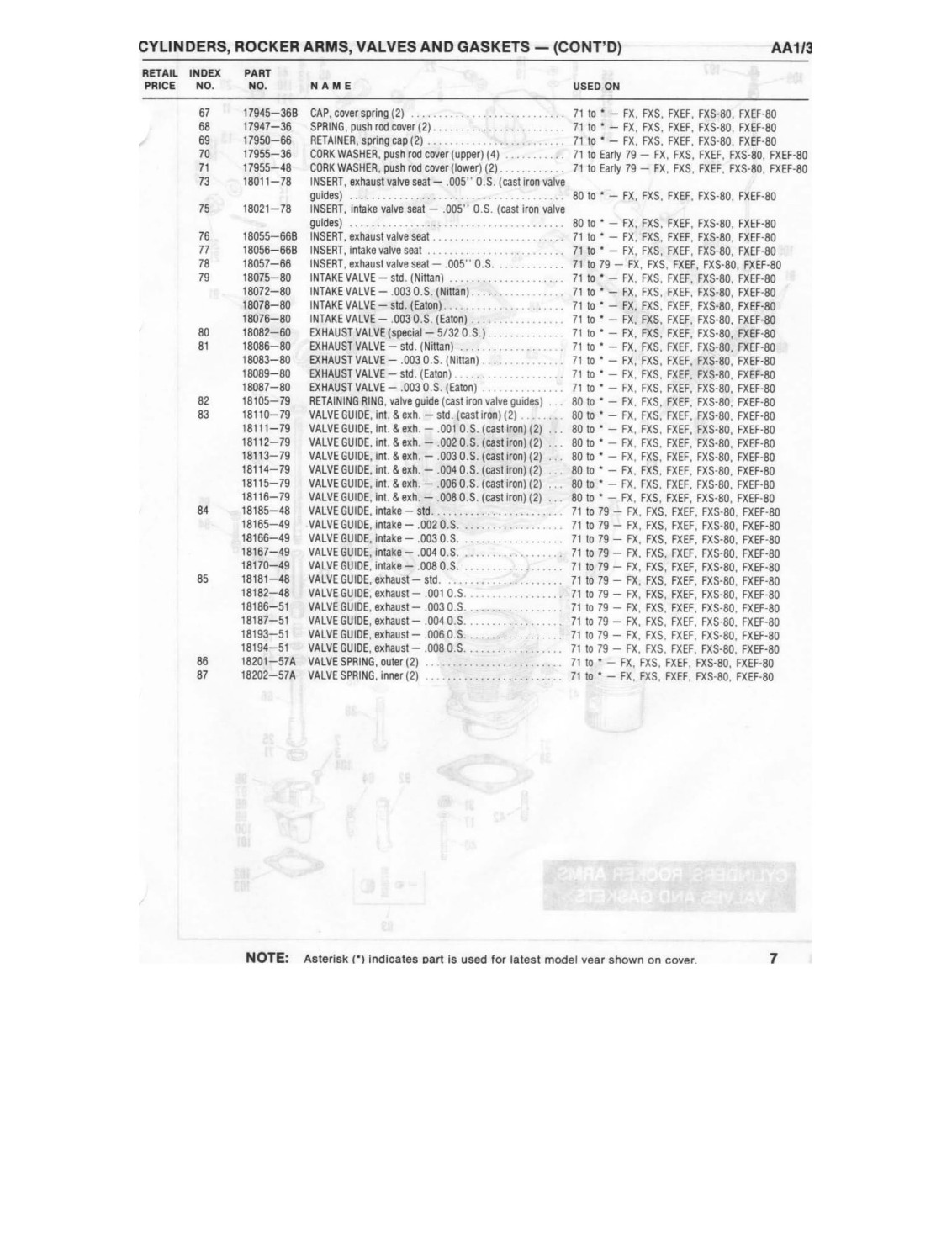

Cylinders 3,5
Disc Brake 85,89,103,107,109
Electrical 201
Electronic Ignition 43
Engine 3
Exhaust Pipes 169,171,173, 175,177
Fender Lamp - Front 195
Fenders 147
Flywheels 13
Footrests 131,133
Footshift 61
Foot Shifter - Late 1979 & Later.. 57
Fork-Front 113,115,117,119
Fork - Rear 121
Frame 121
Gages 211
Gas Tanks 157
GasTank Trim 159
Gaskets 5

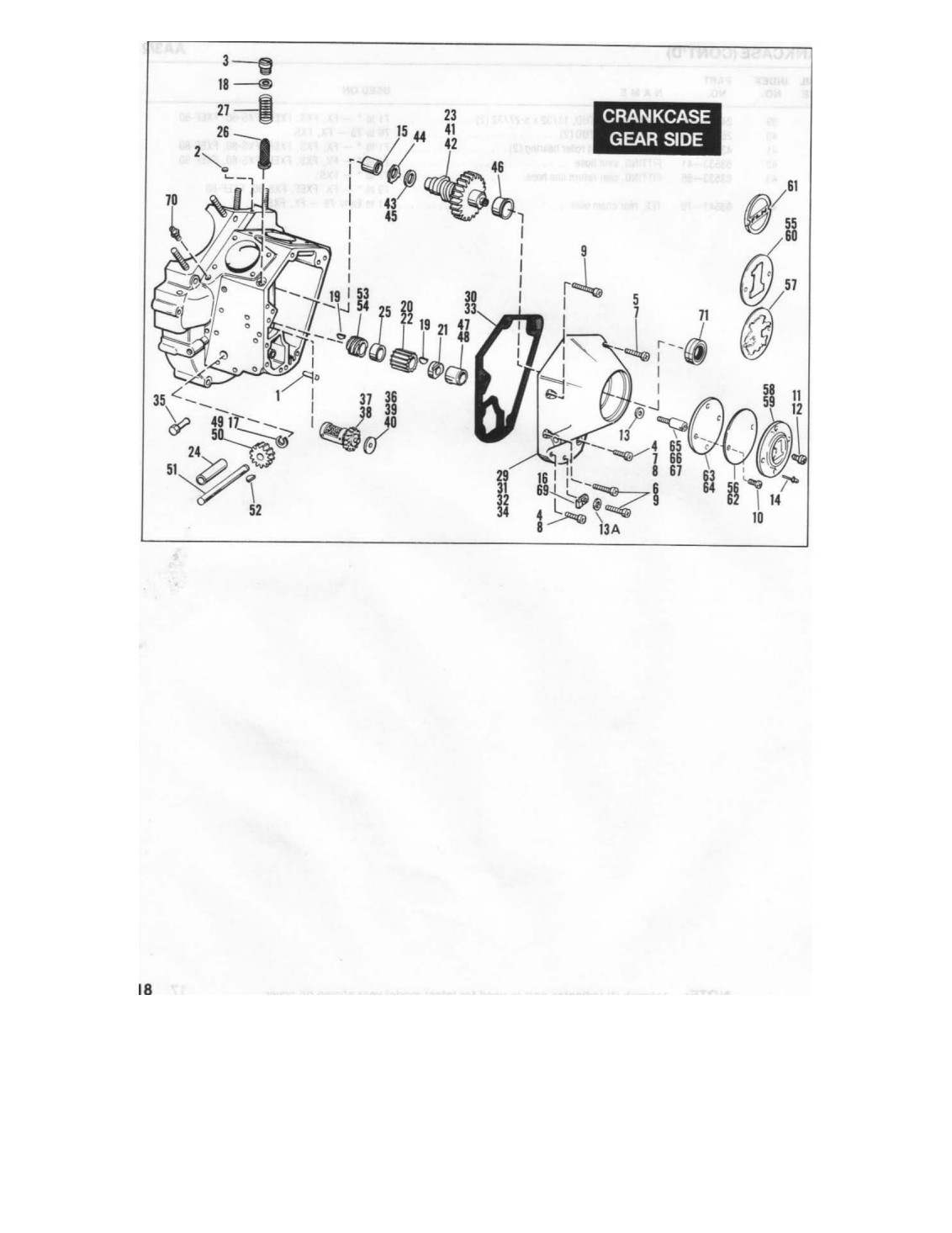

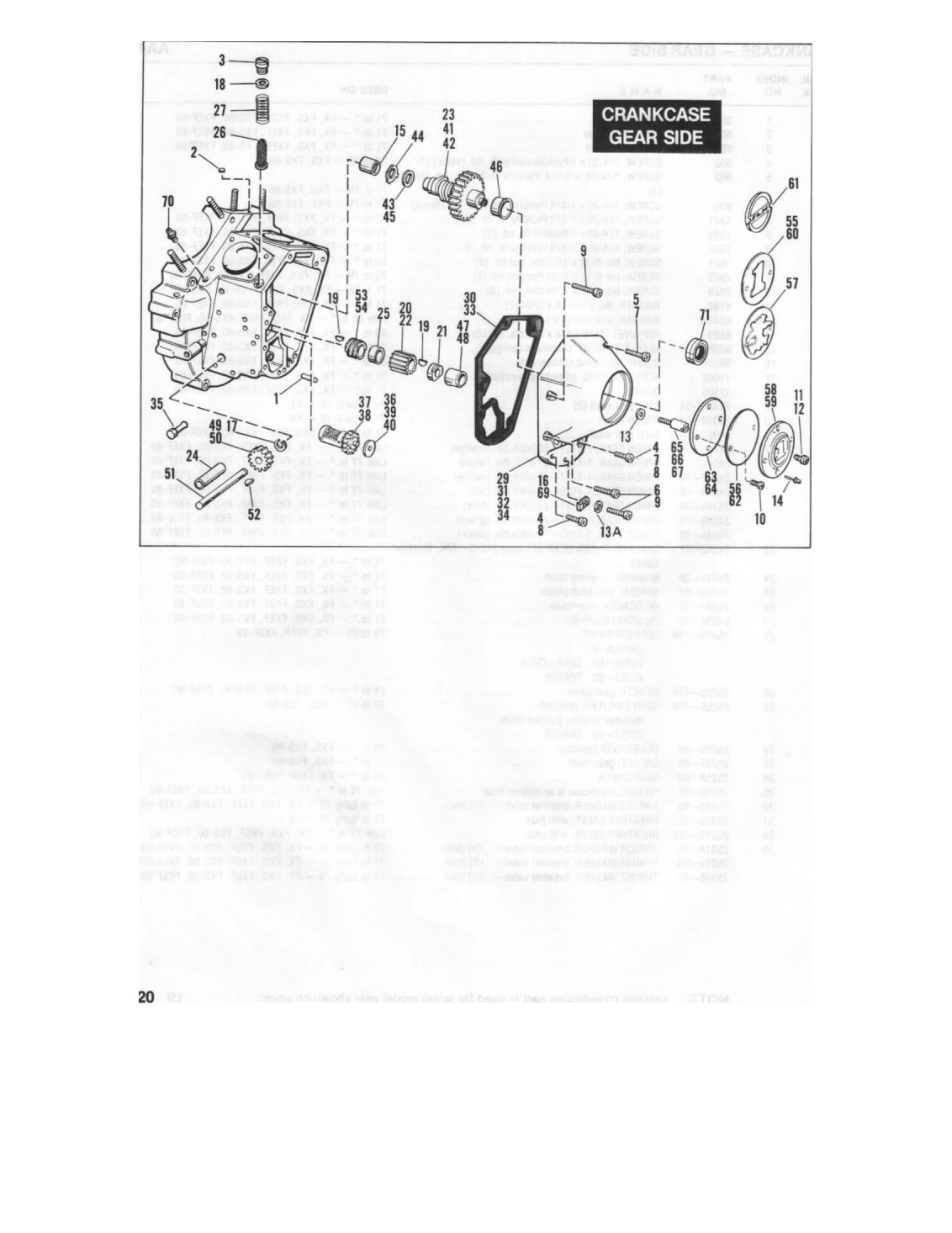

Gear Case Cover 19,23
Handlebar 137
Headlamp 185
Highway Bars 123
Horn 197

Ignition Circuit Breaker........ 47

Ignition, Electronic............ 43

Ignition Module............... 43

Indicator Lamps.............. 187

Instrument Panel.............. 209

Jiffy Stand................... 125

Kick Starter.................. 55

License Plate Bracket.......... 151

Master Cylinder............... 79

Mirror Kit-FXS............... 167

Mufflers..................... 169,171,173,175,17;

Neutral Switch................ 57,217

Oil Cooler.................... 167

Oil Filter..................... 165

Oil Pressure Switch ........... 211

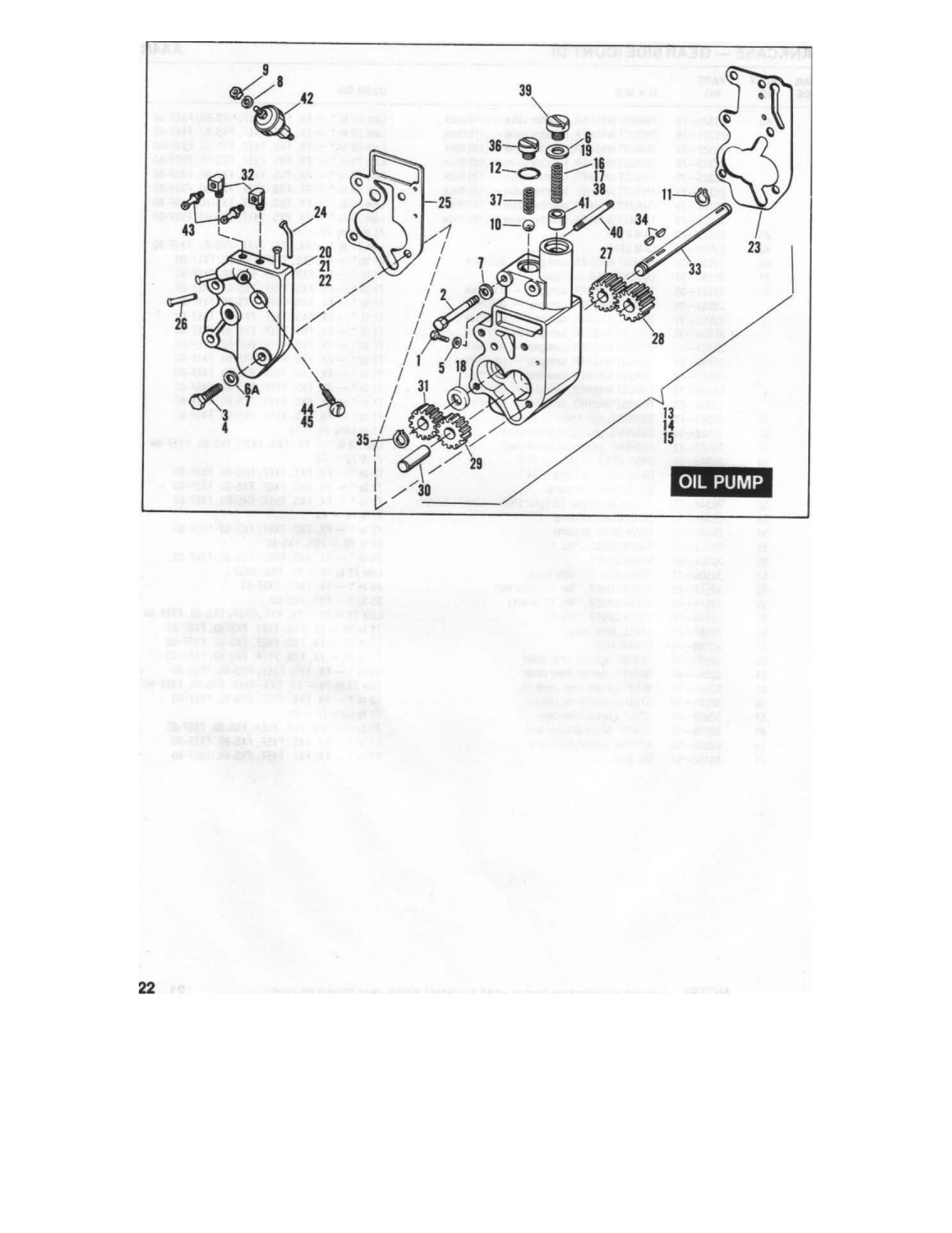

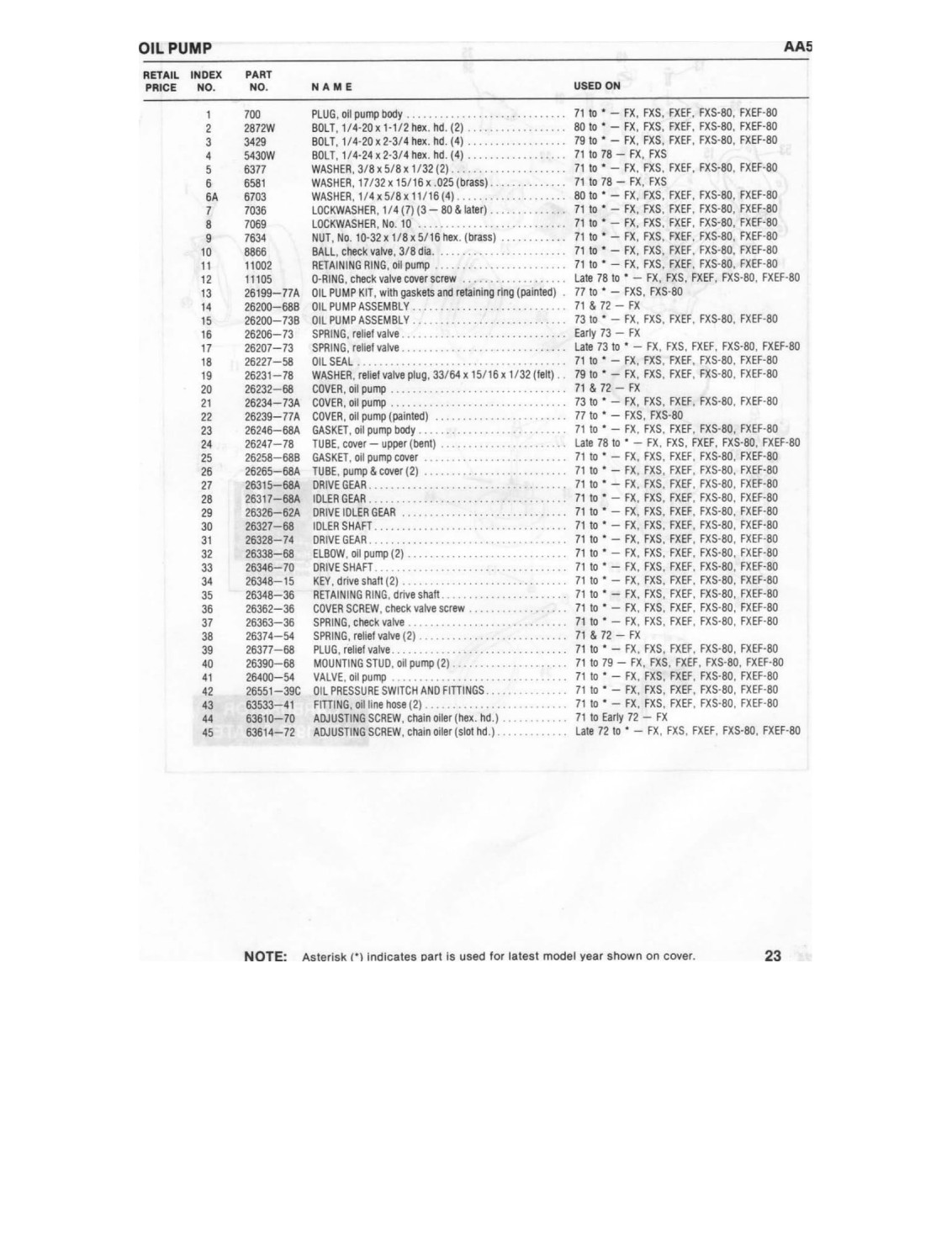

Oil Pump.................... 23

Oil Tank..................... 163

Parking Lamps ............... 191

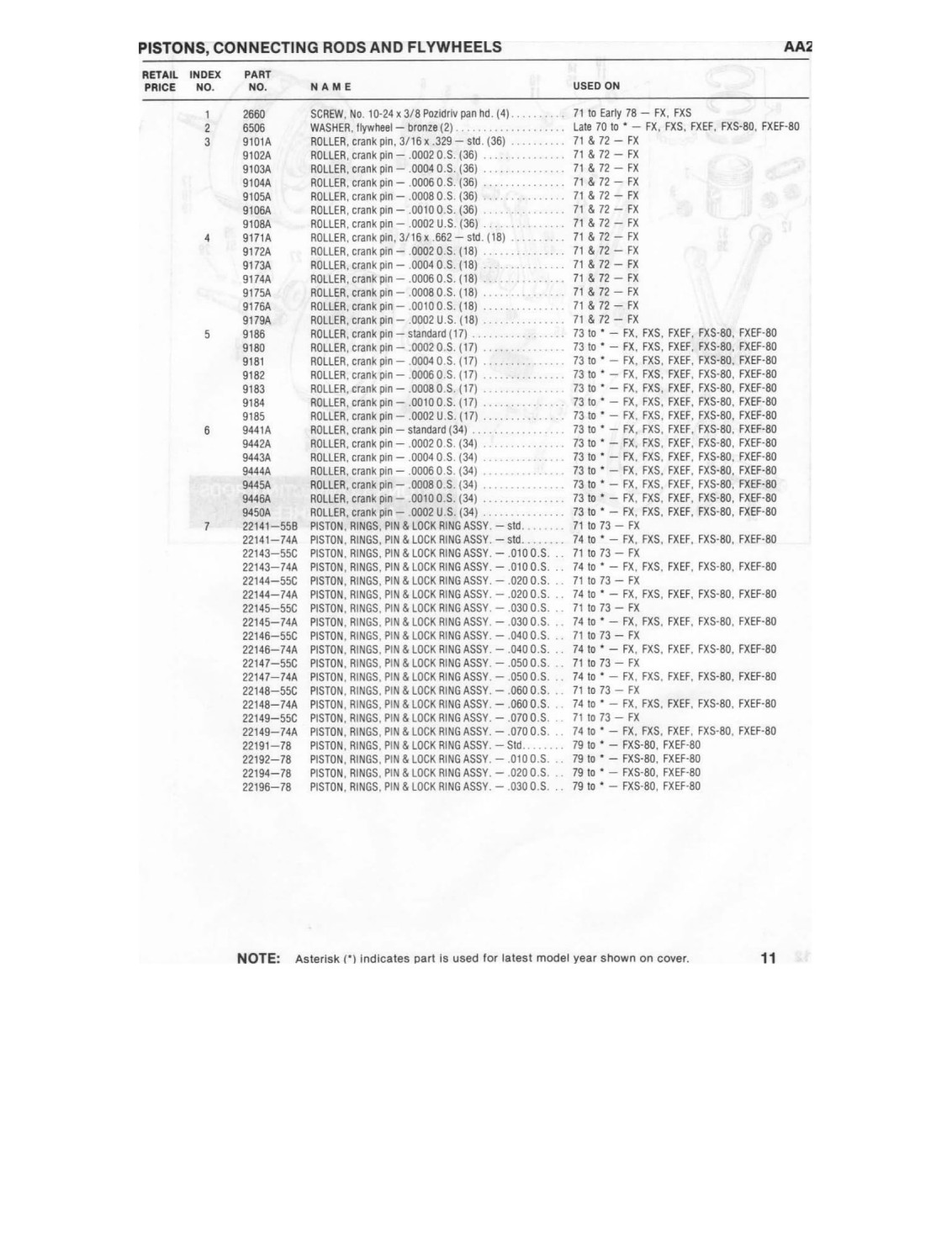

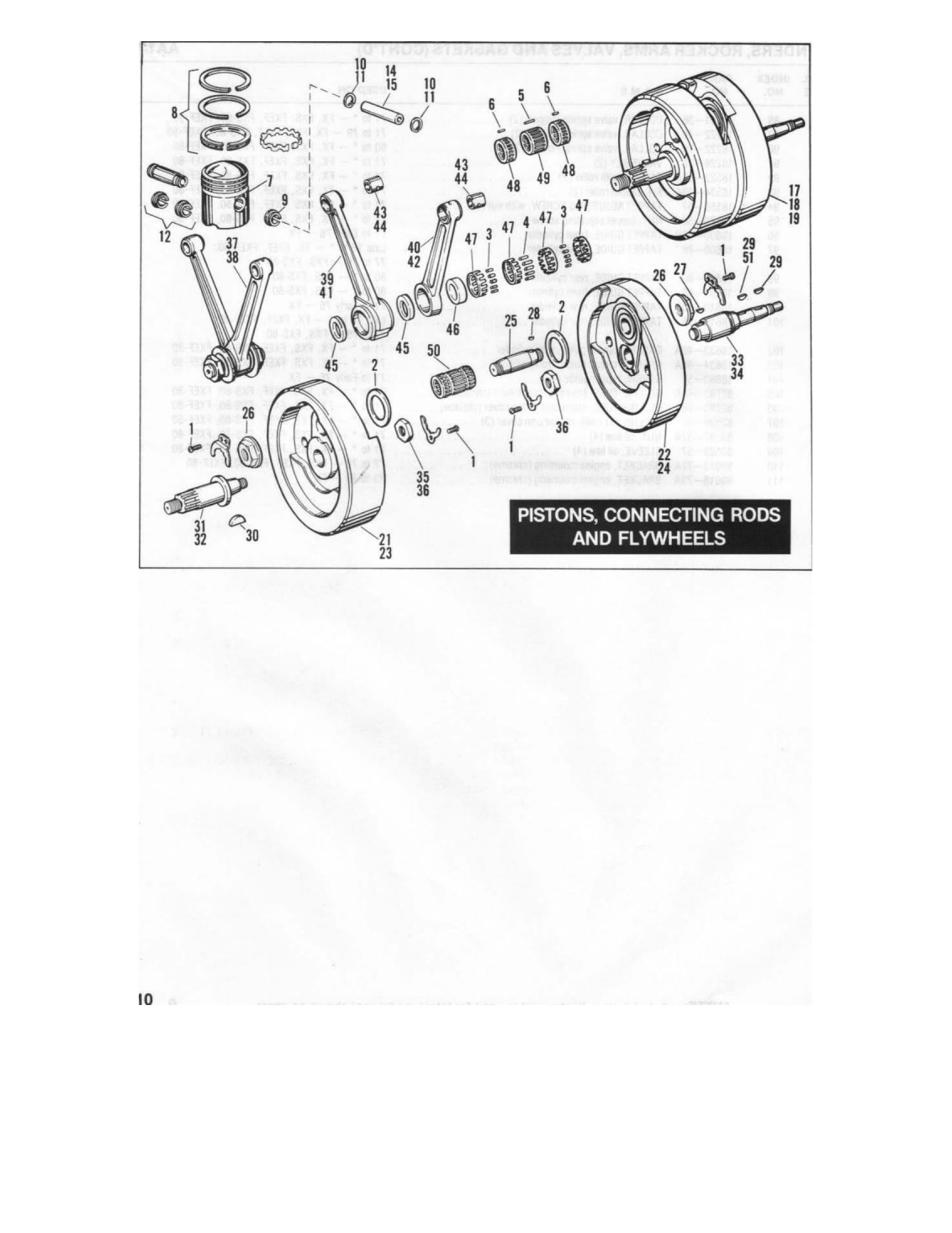

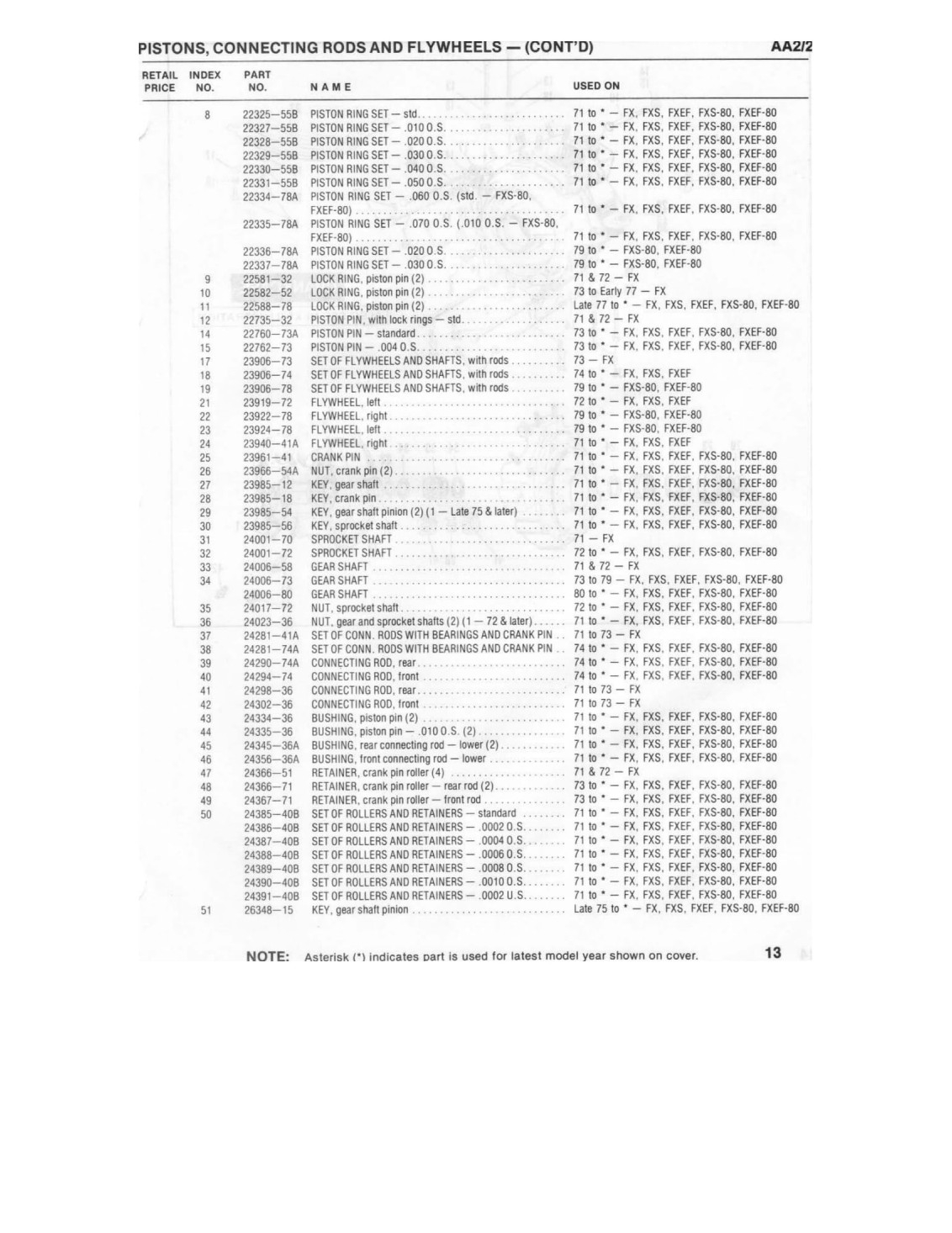

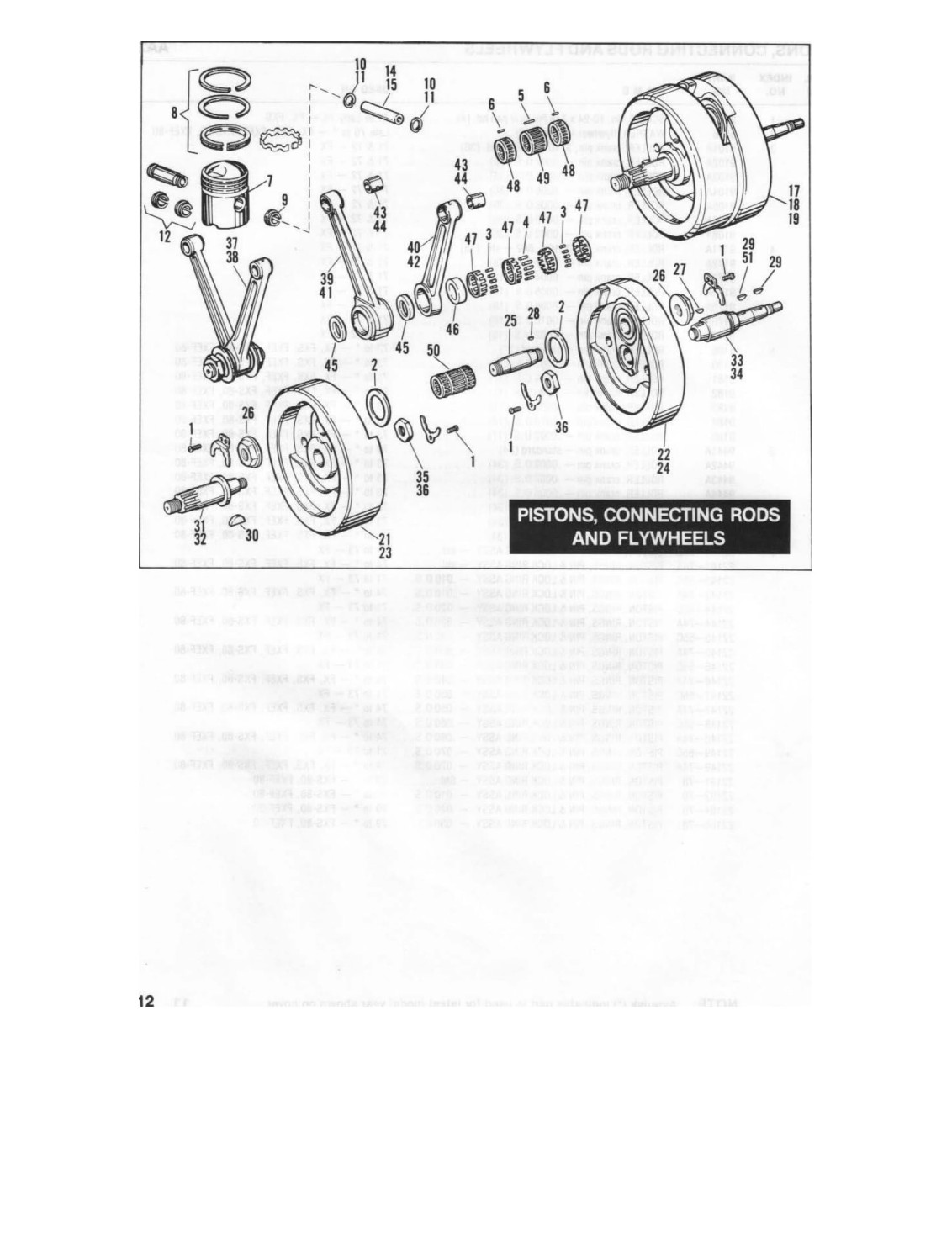

Pistons...................... 11,13

Points....................... 47

Push Rods................... 5, 71

Rims........................ 101,107

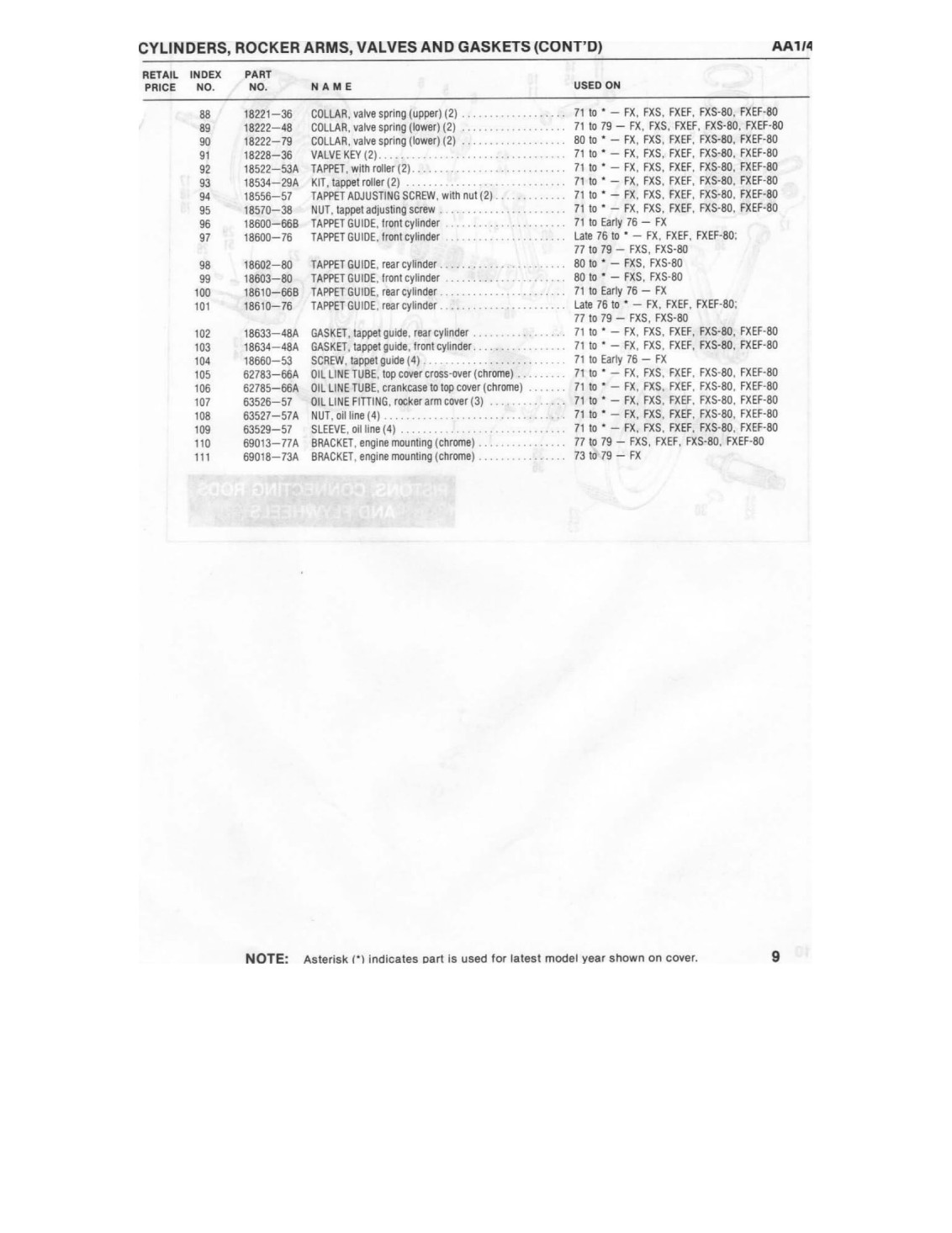

Rocker Arms................. 5

Rotor........................ 43

Seat........................ 127,129

Sensor...................... 43

Shifter ...................... 57,61

Shock Absorbers.............. 135

Sissy Bar.................... 127

Solenoid, starter.............. 217

Spark Cables, Coil & Plugs ..... 43, 49

Speedometer................. 181

Spokes...................... 101,107

Sprockets.................... 75,77

Starter Housing............... 51

Starter Motor................. 53

Switches.................... 57,205,207,213,215

217

Tachometer.................. 181

Tail Lamp.................... 189

Tappets.....................‘ 9

Terminal Plate................ 209

Throttle Control............... 141

Timer....................... 47

Transmission................. 65

Tune Up Kits................. 49

Turn Signals ................. 191,193

Valves....................... 7,19

Valve Covers................. 3

Voltage Regulator............. 219

Wheels...................... 101,103,105,107,109

Windshield................... 143,145

Wiring....................... 199,205

Page


PATENT NOTICE

Harley-Davidson products are manufactured under one or more of the following: U.S. Patents — 2986162, 2987934, 2998809,3116089, 3144631,3144860,3226994, 3229792,3434887, 3559773, 3673359, 3680403, 3683716, 3709317, Des. 225 626.

To the best knowledge of Harley-Davidson Motor Co., Inc., the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Co., Inc., reserves the right to change specifications, equipment, or designs at any time without notice and without Incurring obligation.
