Harley-Davidson
PARTS CATALOG 1978

Sportster

XLH/XLCH-1000
PART NO. 99451-78A
ISSUED: APRIL 1981

GENERAL INFORMATION
This Parts Catalog has been prepared for your convenience when ordering parts for SPORTSTER Models XLH and XLCH. Wherever possible, parts are shown In assembly breakdown sequence. Index numbers shown In the illustrations correspond to index numbers in parts lists. Consult the illustrations when ordering parts so you are sure to get what you want.

Number in parenthesis following description of part is the quantity needed for complete assembly shown in illustration. If there is no number in parenthesis, only one is used.

Prices of parts listed in this catalog are published separately in the latest RETAIL PRICE LIST.

NOTE: N/A following description of part indicates part is no longer available from the factory. Do not attempt to order these parts from Harley-Davidson.

The following instructions should be followed carefully when ordering parts:

• Specify the correct part number for each item. Check the 'Used On" column of the parts list which shows the model on which the part fits. Whenever in doubt, refer to the Vehicle Identification Number (V.I.N.) stamped on the engine crankcase and frame.

Two types of serial numbers are used:

1. 1969 and earlier: Serial number is located on the engine left crankcase. The first five or six digits represent the year and model — the same as shown in the “Used On” column in this catalog.

2. 1970 and later Serial number (V.I.N.) is located on the engine right crankcase and is the same as the frame number located on the right side of the steering head.

The V.I.N. (Vehicle Identification Number) for SPORTSTER models are as follows:

SPORTSTER (Model)	First Two Digits (Model)	Next Five Digits (Sequential Number)	Second Last Digit (Manufacturer)	Last Digit (Model Season)
XLH	ЗА			0-1970
		10000 and up	H 1970 thru 1979	1-1971
XLCH	4A		(Harley-Davidson)	(etc.)
XLT	2G

Example 1970 XLH (ЗА 12150 HO) 1970 XLCH (4A 12151 HO)
• An asterisk О in the "Used On" column indicates part is used for 1978 models (the latest model year covered by this catalog).

NOTE: See the current SPORTSTER PARTS CATALOG for 1979 and later parts information.

• Part Numbers are to be used when ordering by TELEGRAM or CABLE.

• When ordering parts use our standard Parts & Accessories order form, Part No. 99511-76, for all parts except engines and crankcases. Order form. Part No. 99514-76, must be used for engines and crankcases. The use of these forms will enable us to fill and ship your order more promptly. These forms are furnished free of charge upon request.

• Do not order motorcycles or advertising matter on Parts Order Forms. Write nothing on the order form except the order itself, as any other correspondence will not be answered until the order is shipped and billed.

• Freight. Express and Parcel Post orders should be on separate order forms.

• For your own records, number and date all orders, also keep a carbon copy for future reference.

ALPHABETICAL INDEX
Page

Air Cleaner.............. 35

Batteries................ 167

Brake — front ........... 93, 95. 97, 101

Brake — rear............ 83, 85

Cam Gears.............. 17

Capacitor............... 43, 47

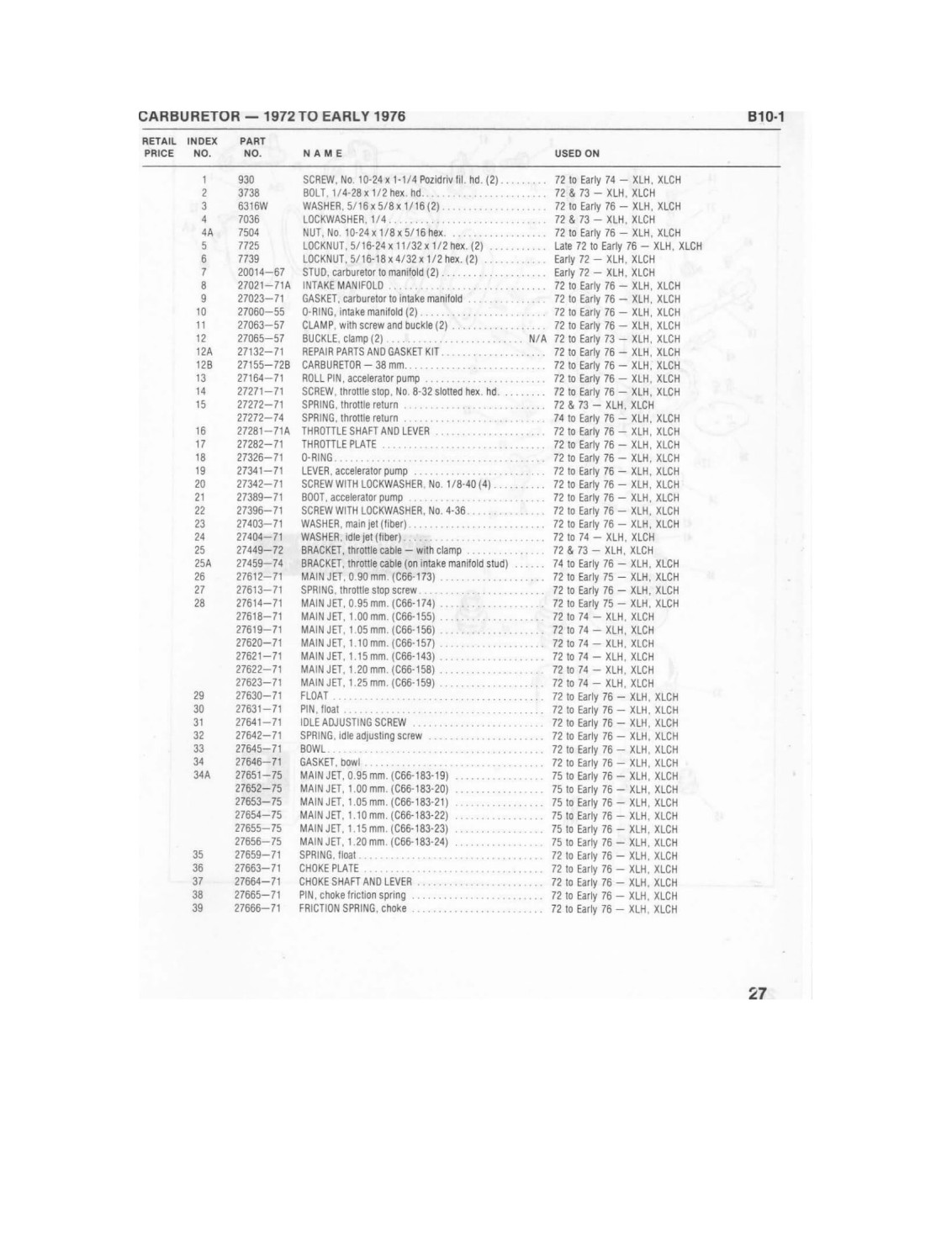

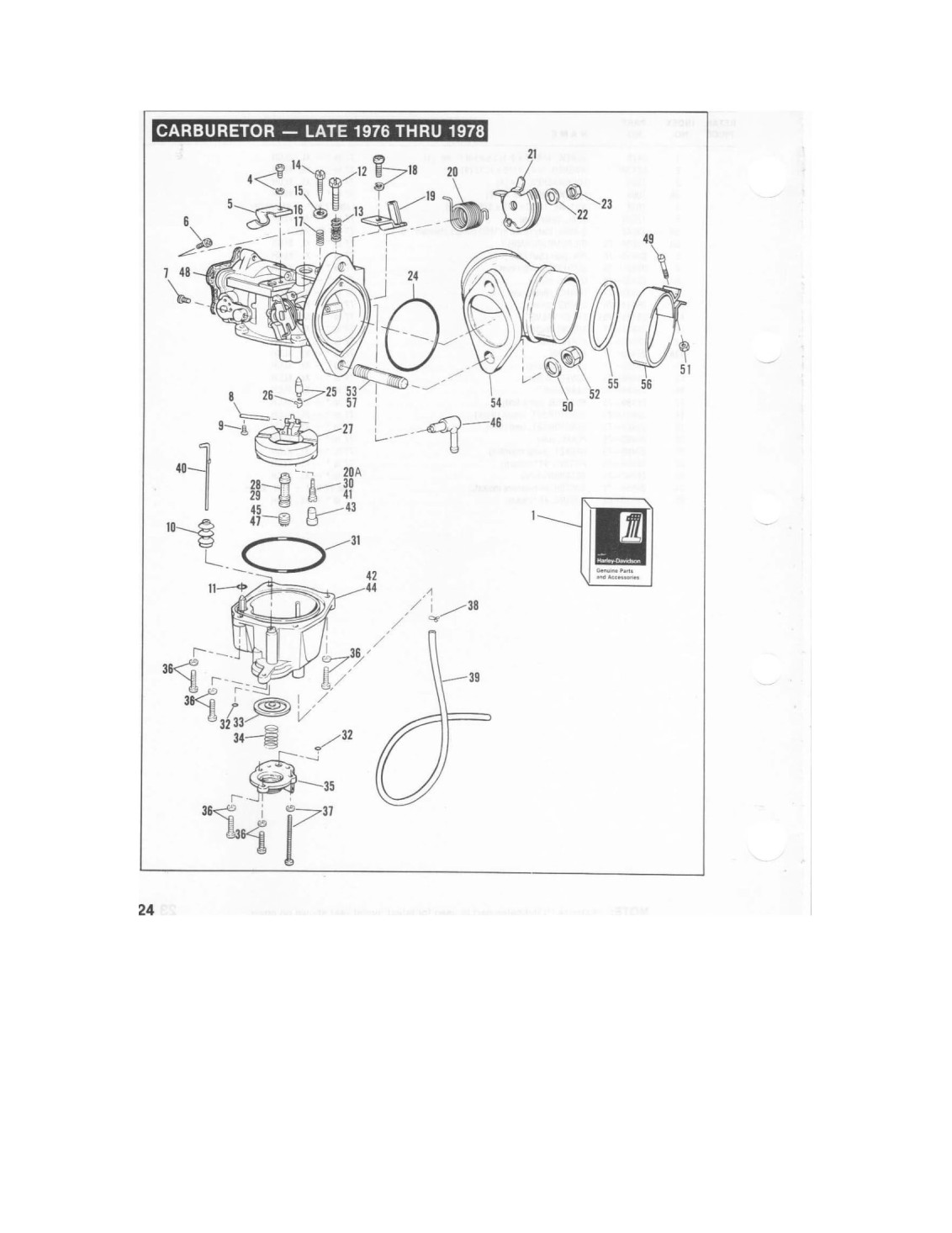

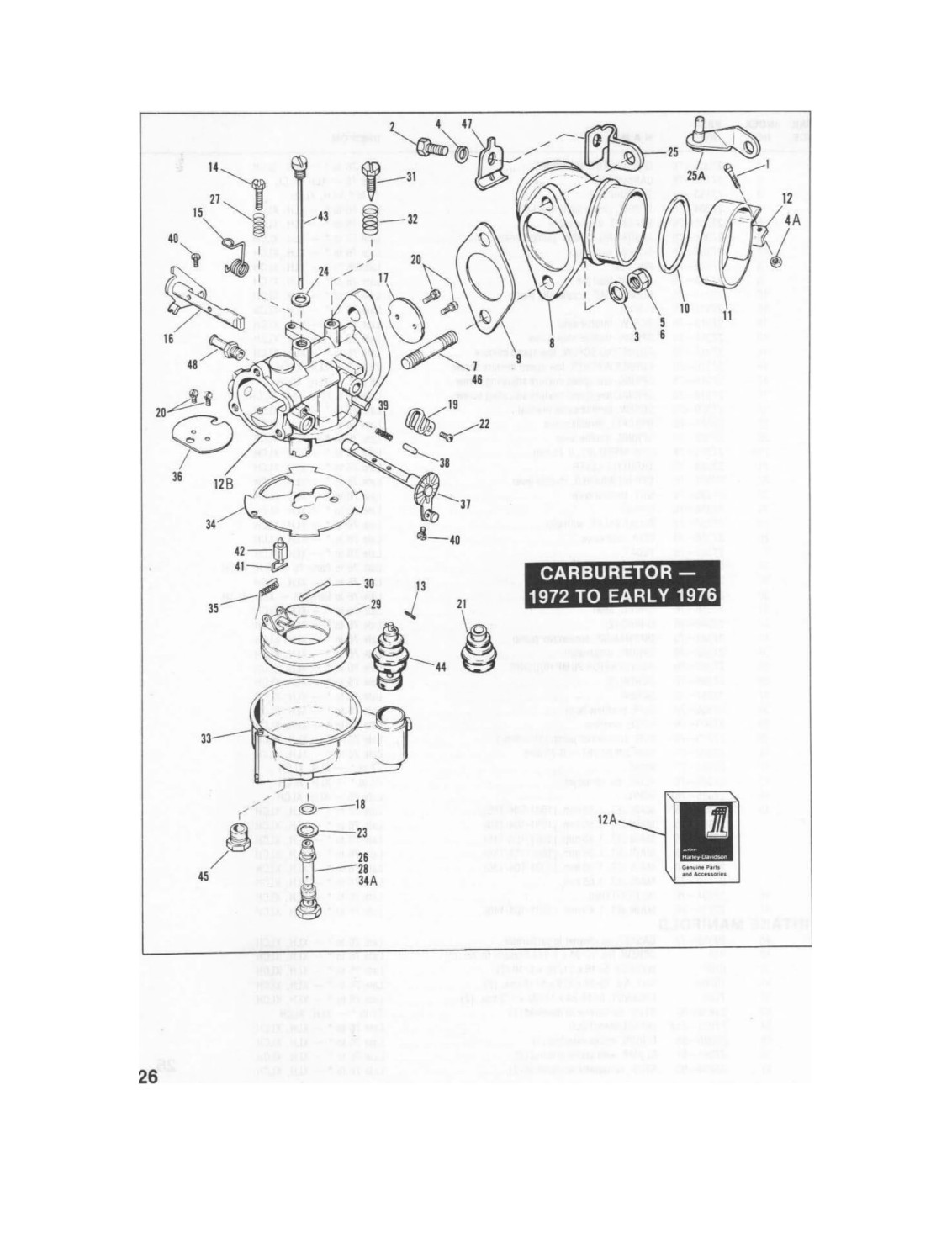

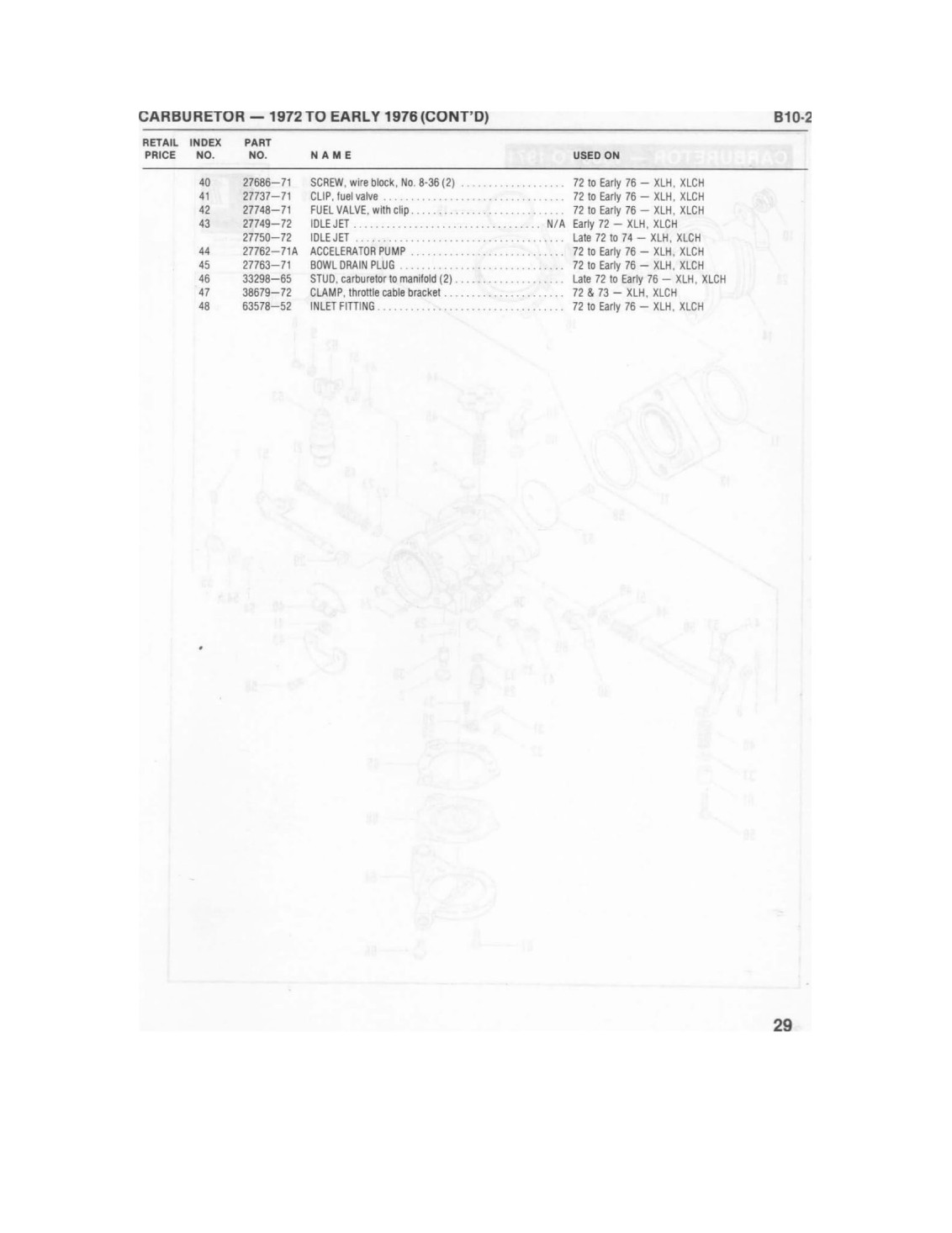

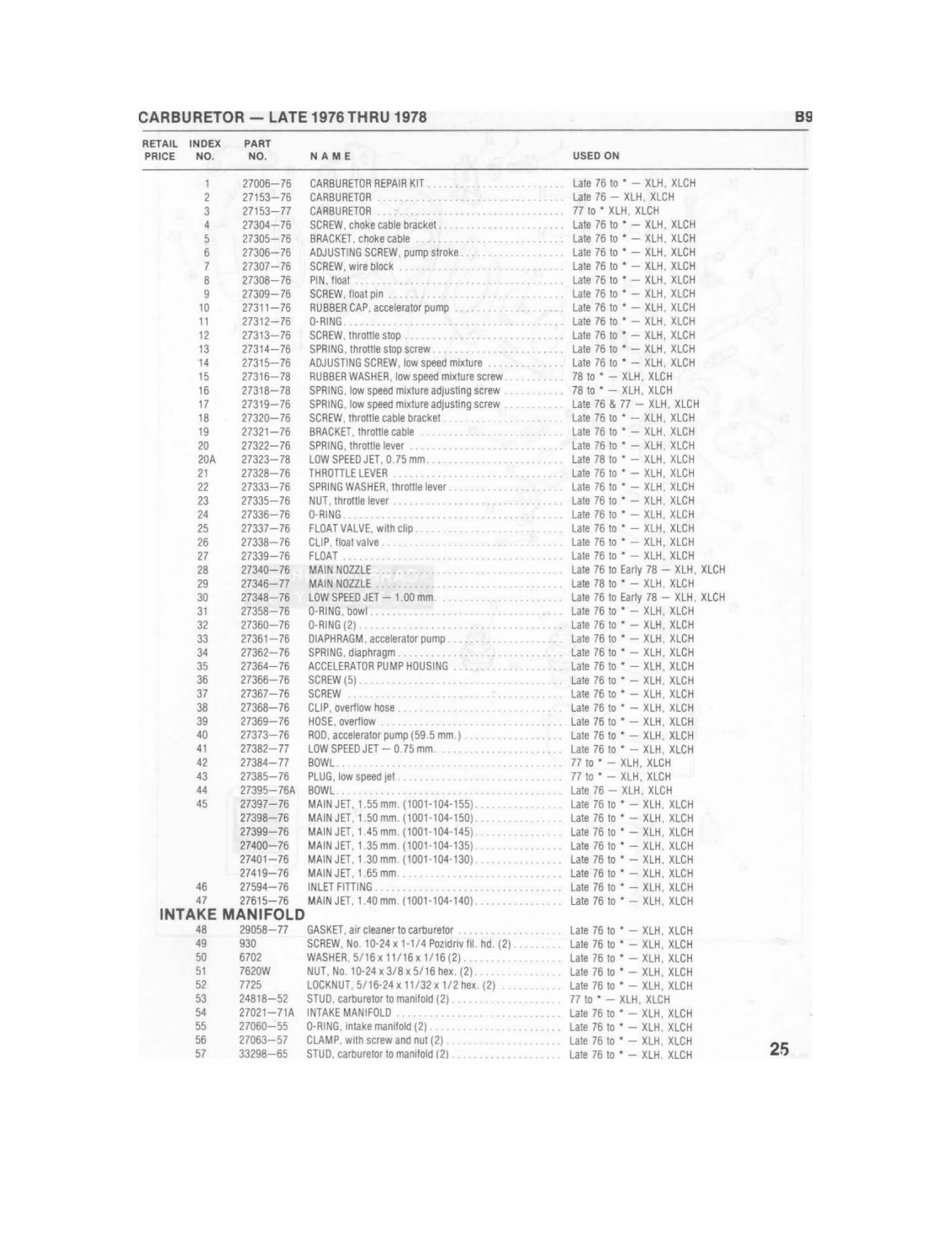

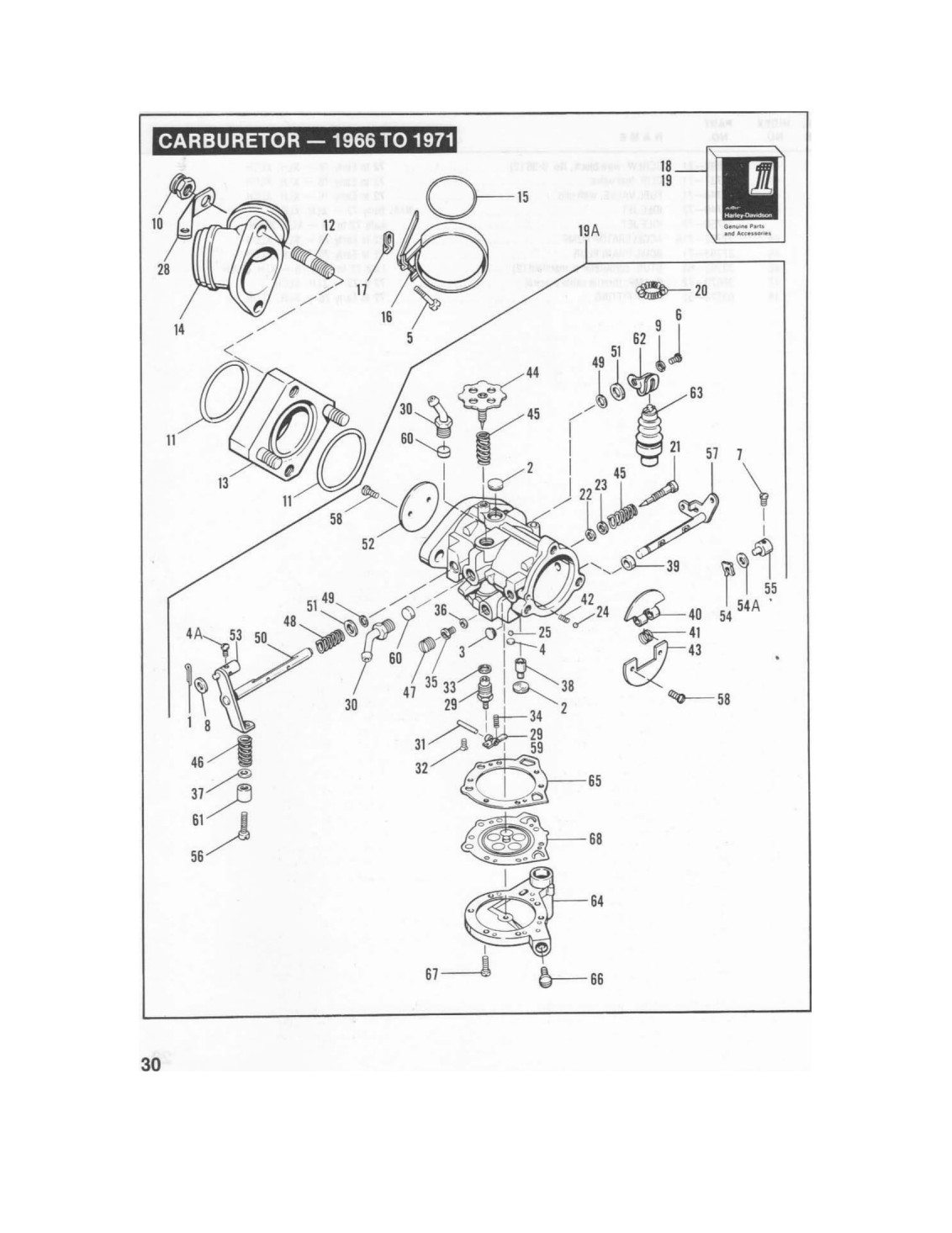

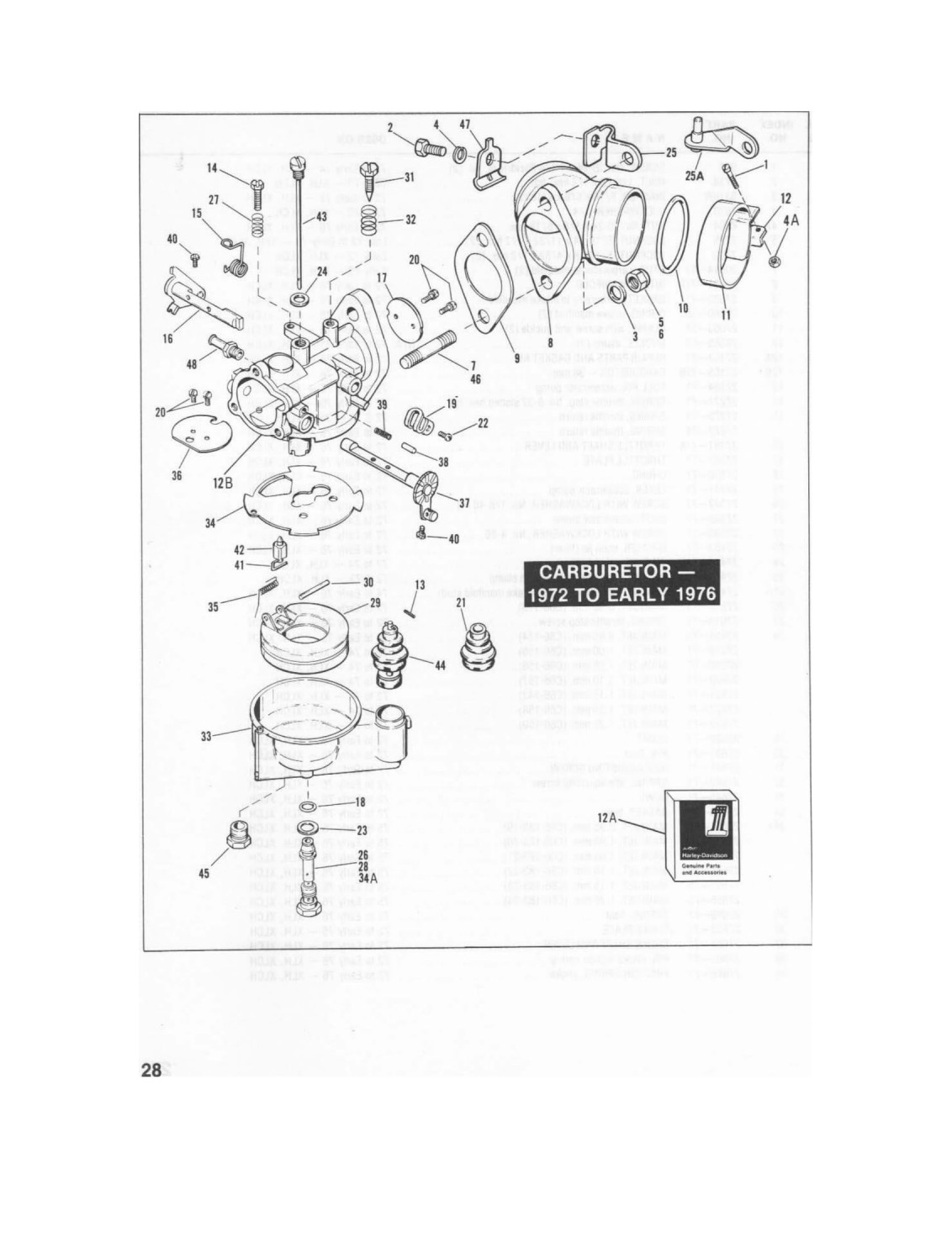

Carburetor.............. 25, 27, 31

Center Stand............ 113

Chain Guards............ 143

Chain Oiler.............. 153

Chains................. 75, 77

Choke.................. 35

Circuit Breaker........... 43,47

Clutch.................. 69, 71

Clutch Control........... 73

Condenser.............. 45, 47

Connecting Rods......... 7

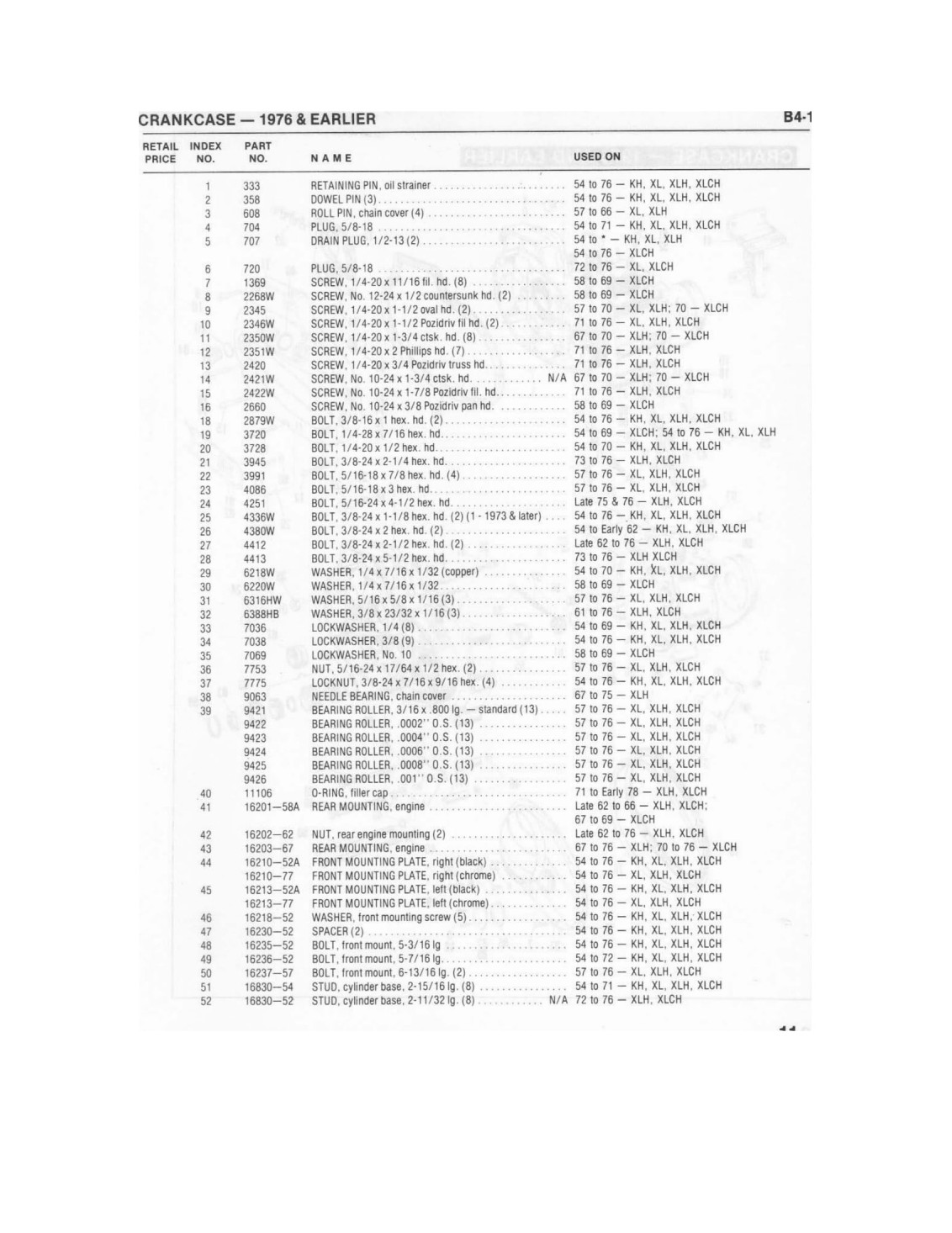

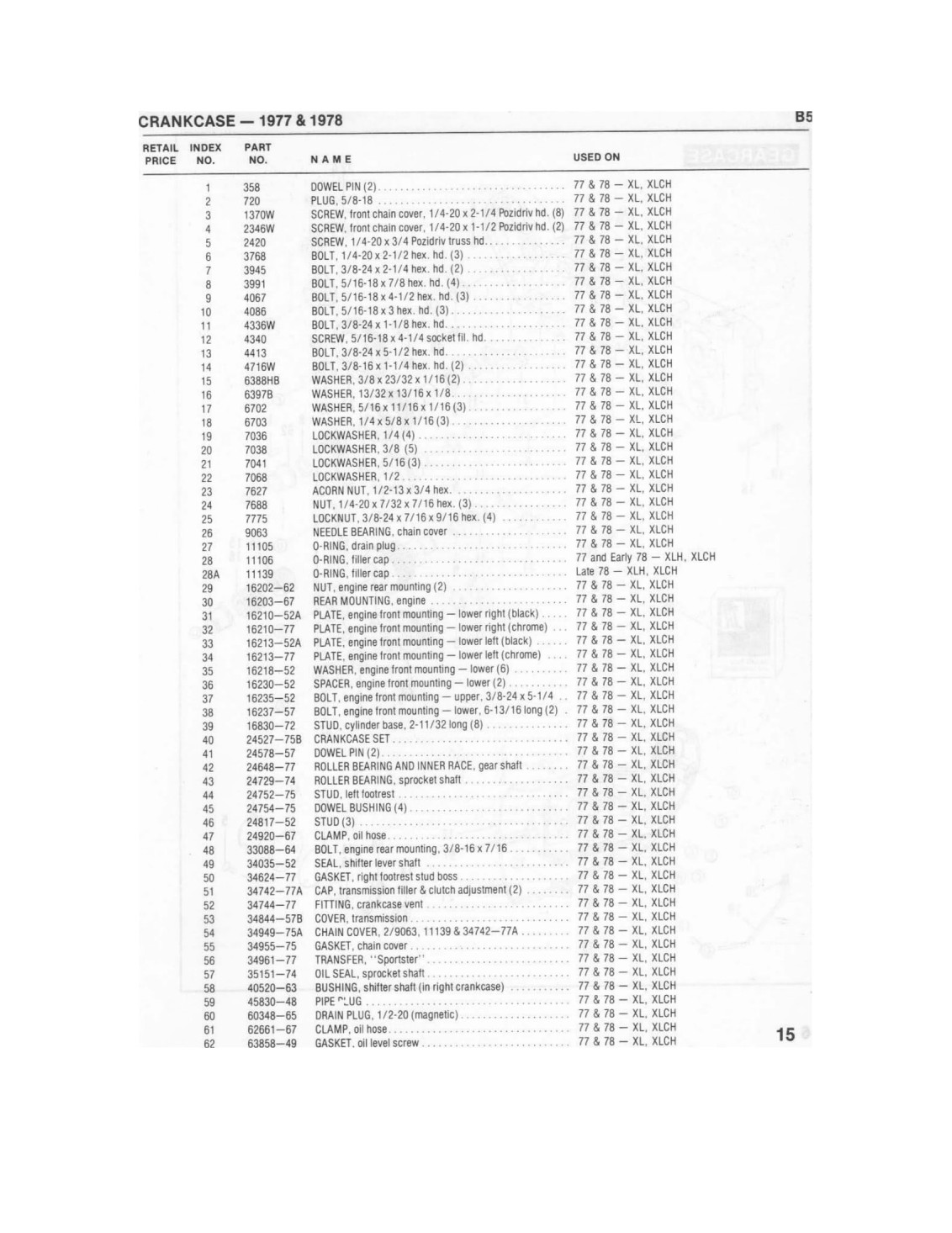

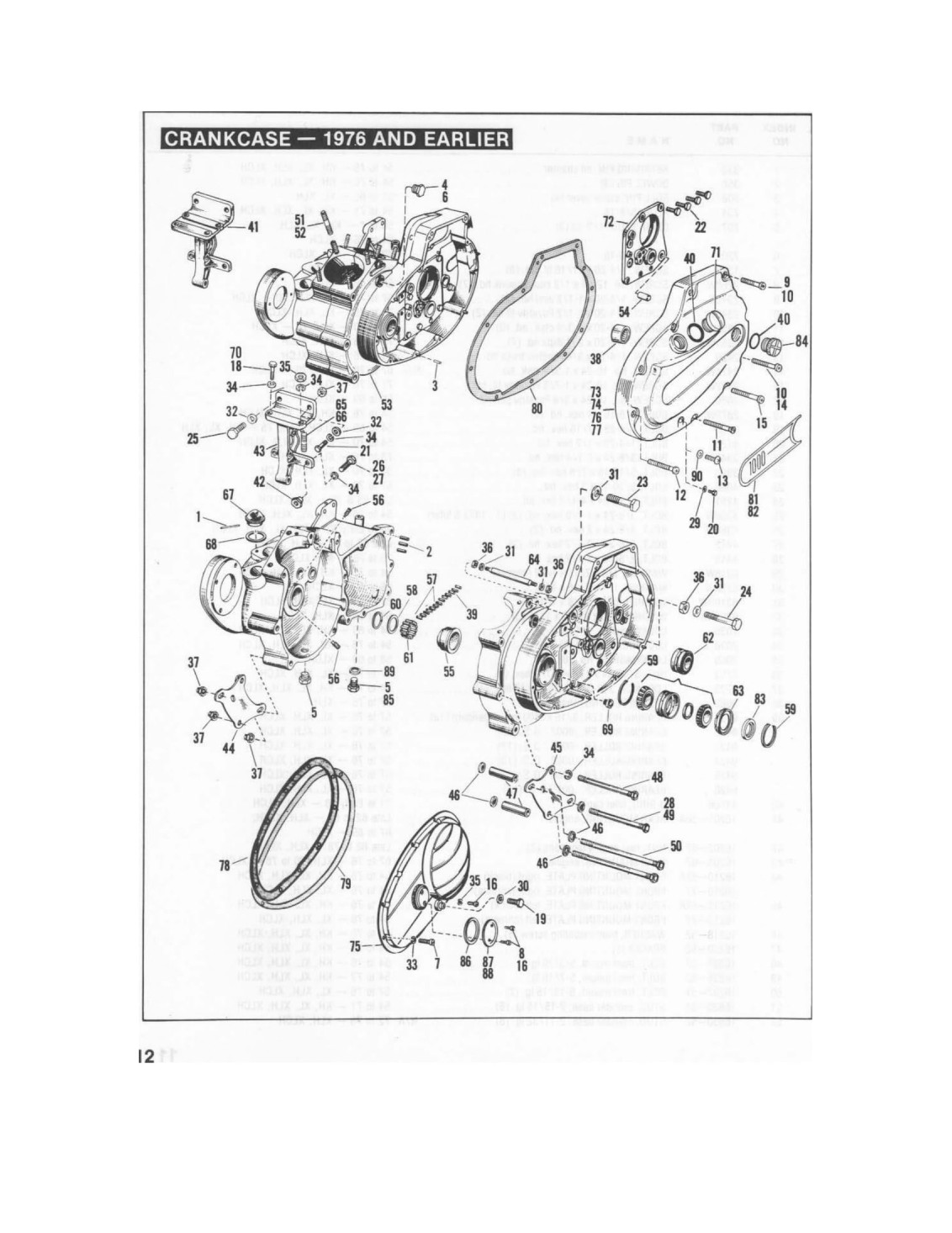

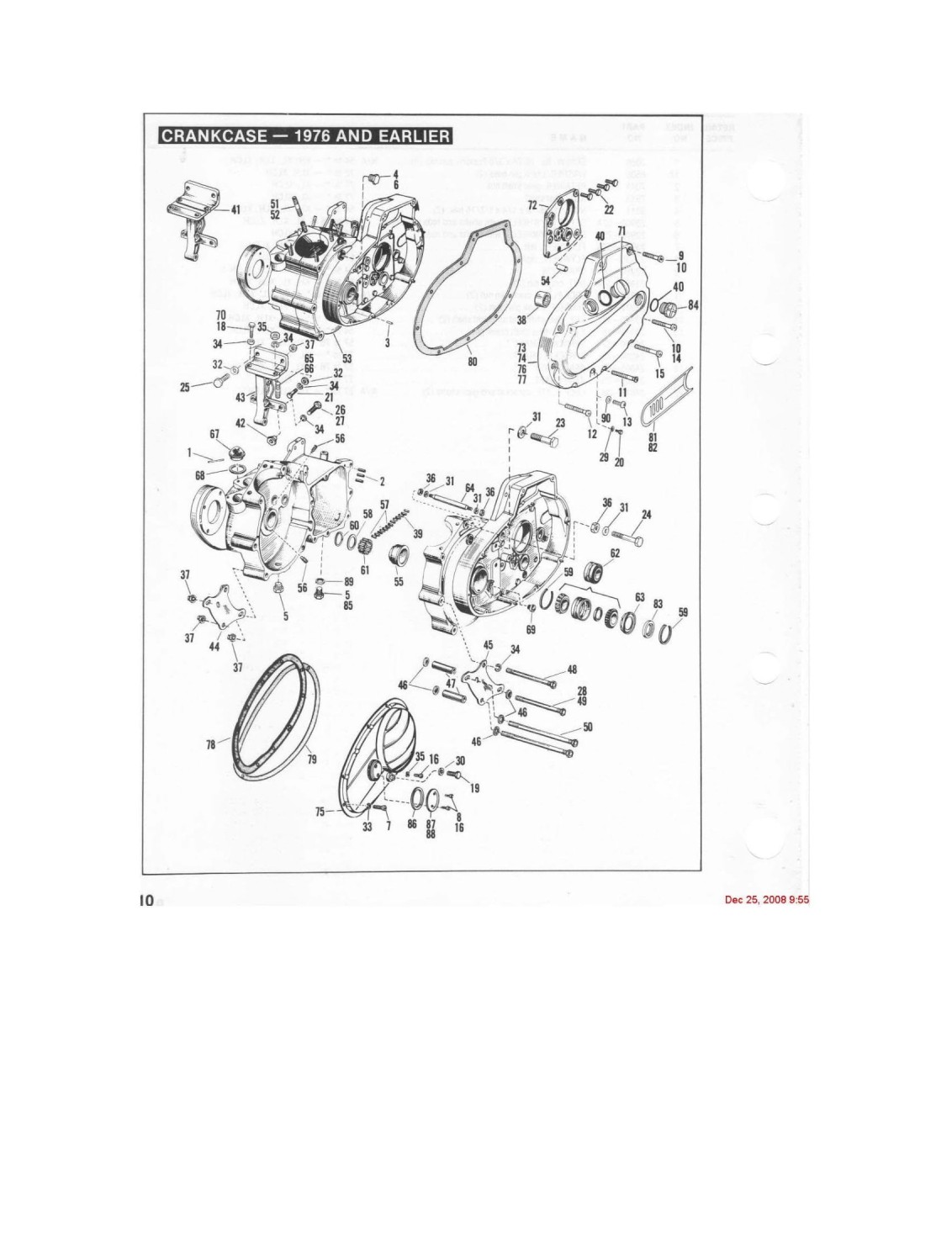

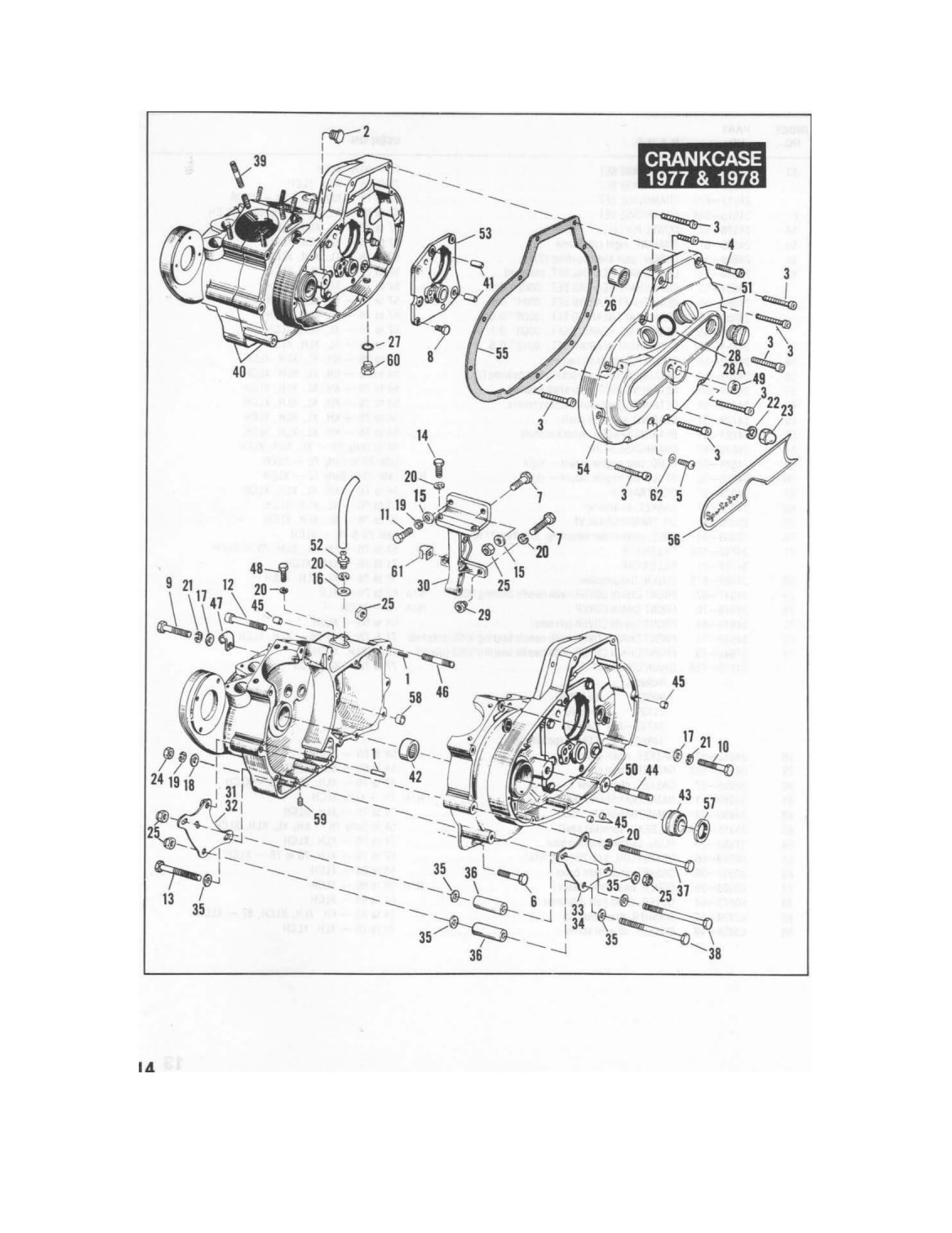

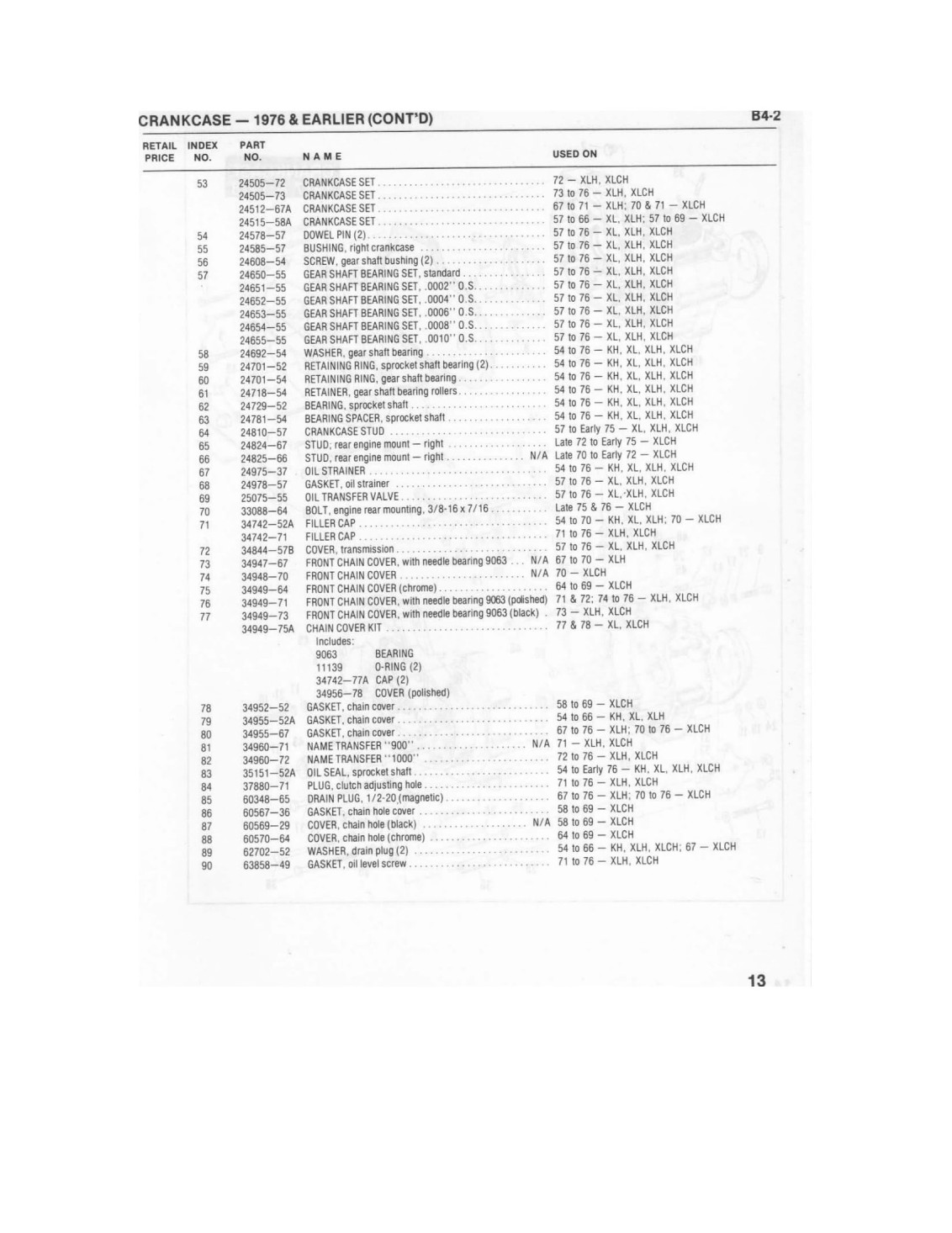

Crankcases............. 11, 15

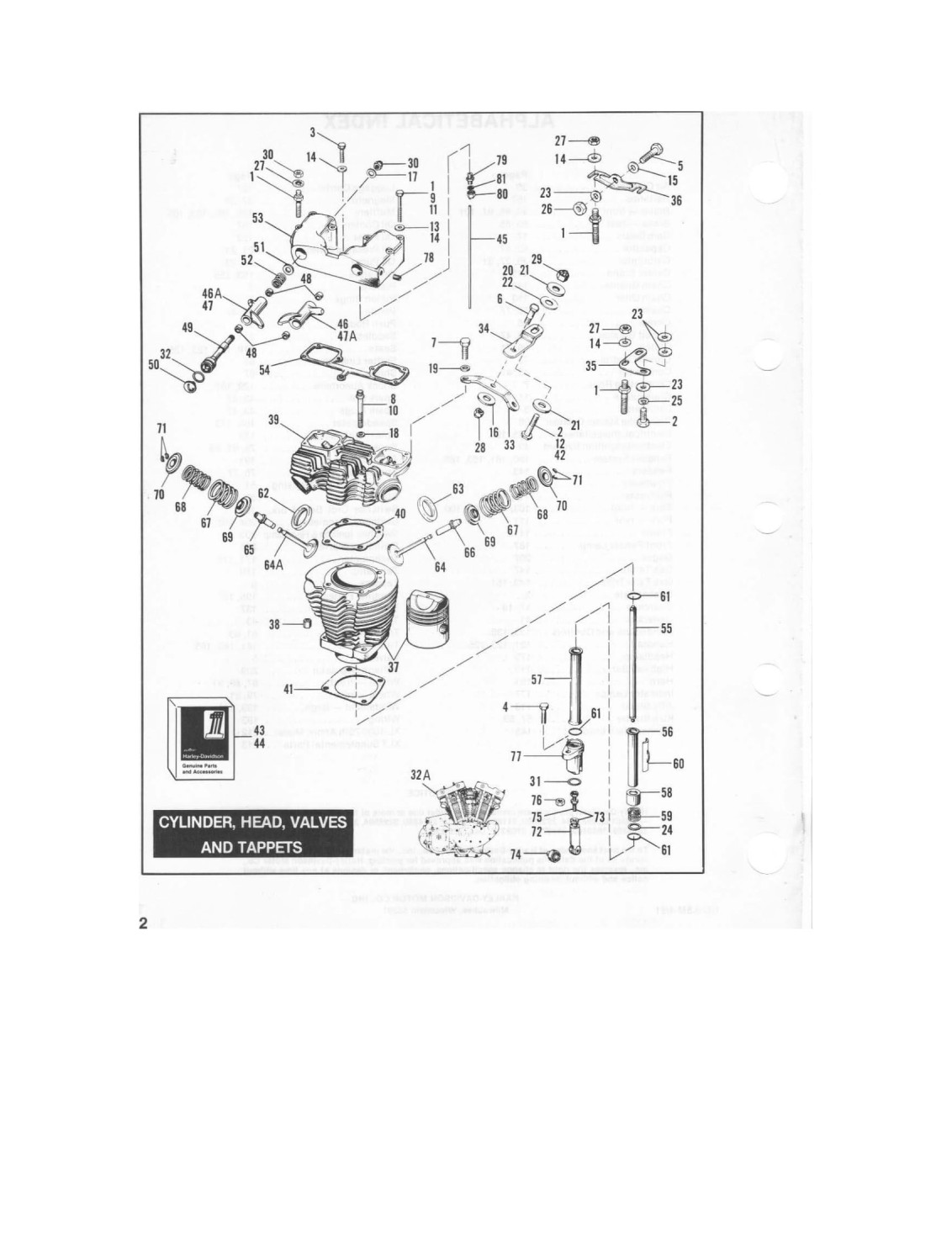

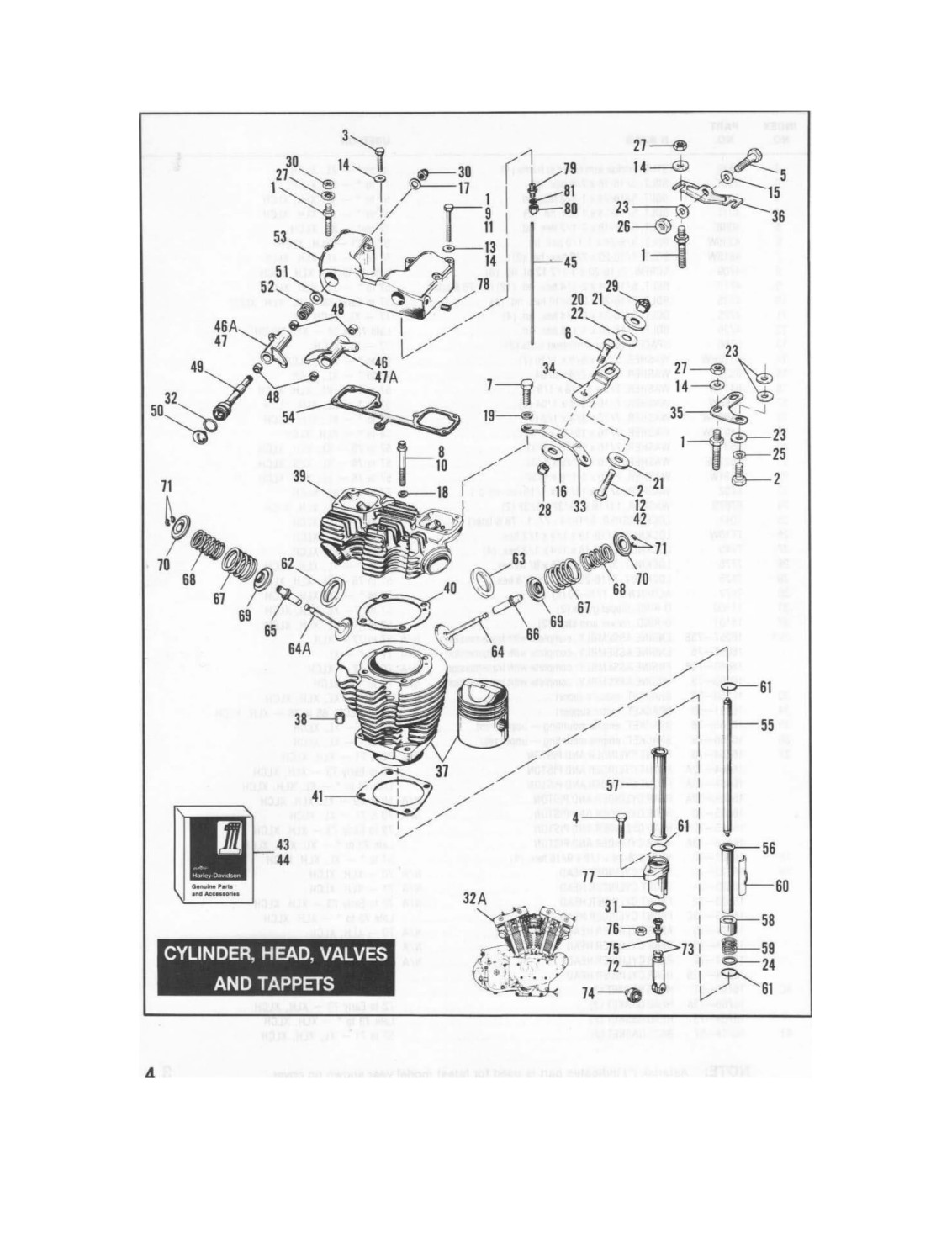

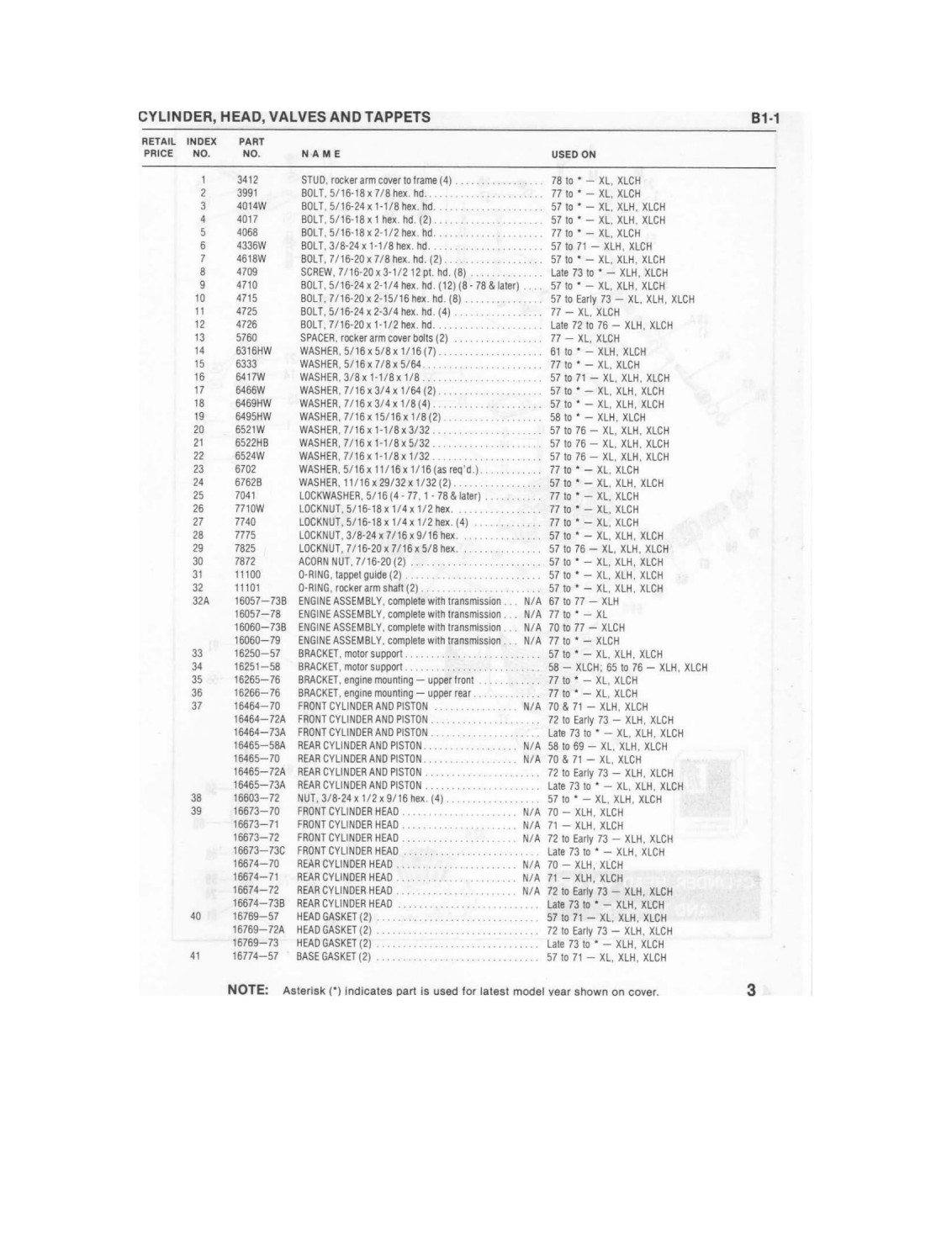

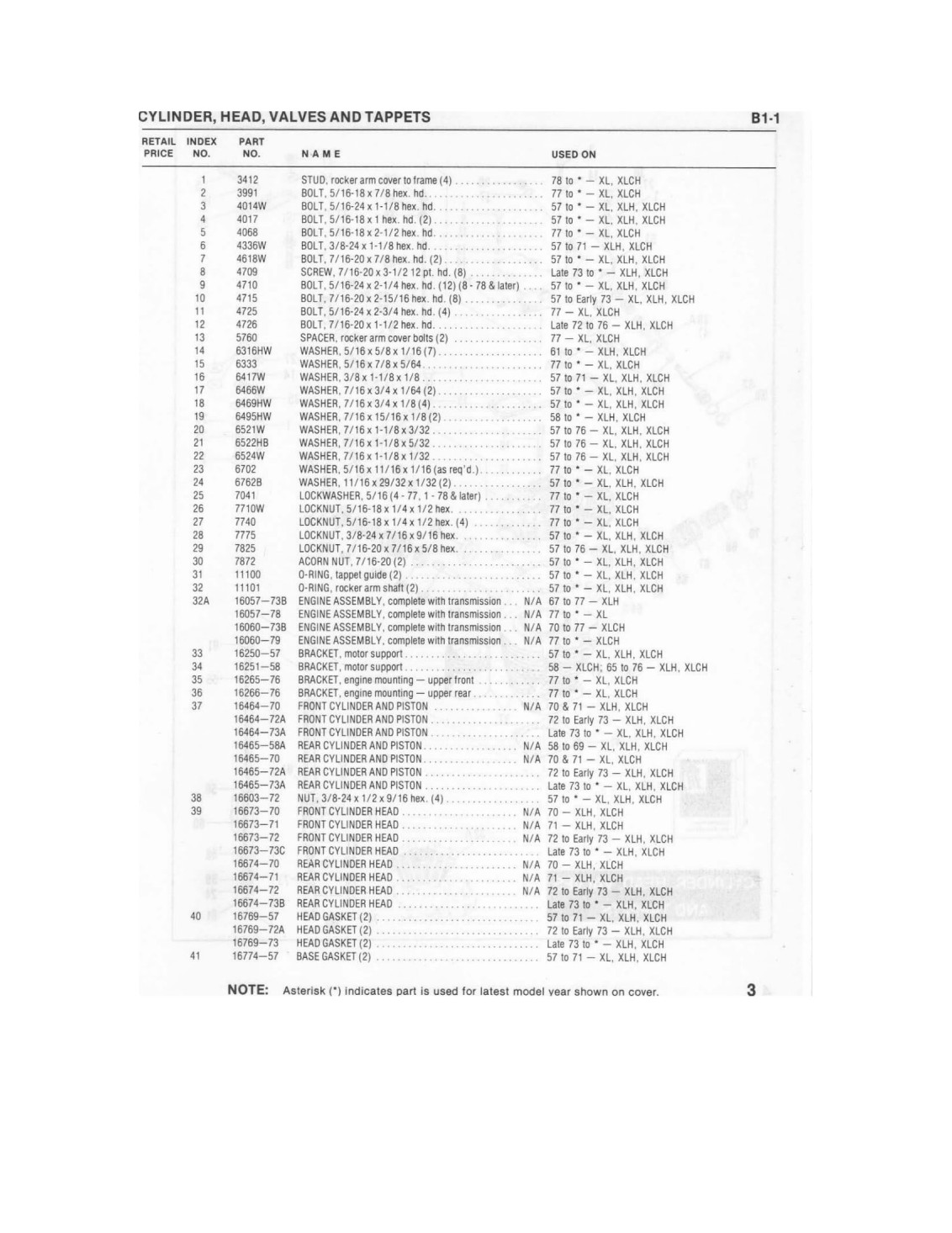

Cylinders............... 3

Disc Brake Master Cylinder . 99 Electrical, miscellaneous.. 195, 197 Electronic Ignition System . 49

Exhaust System.......... 160,161,163,165

Fenders ................ 143

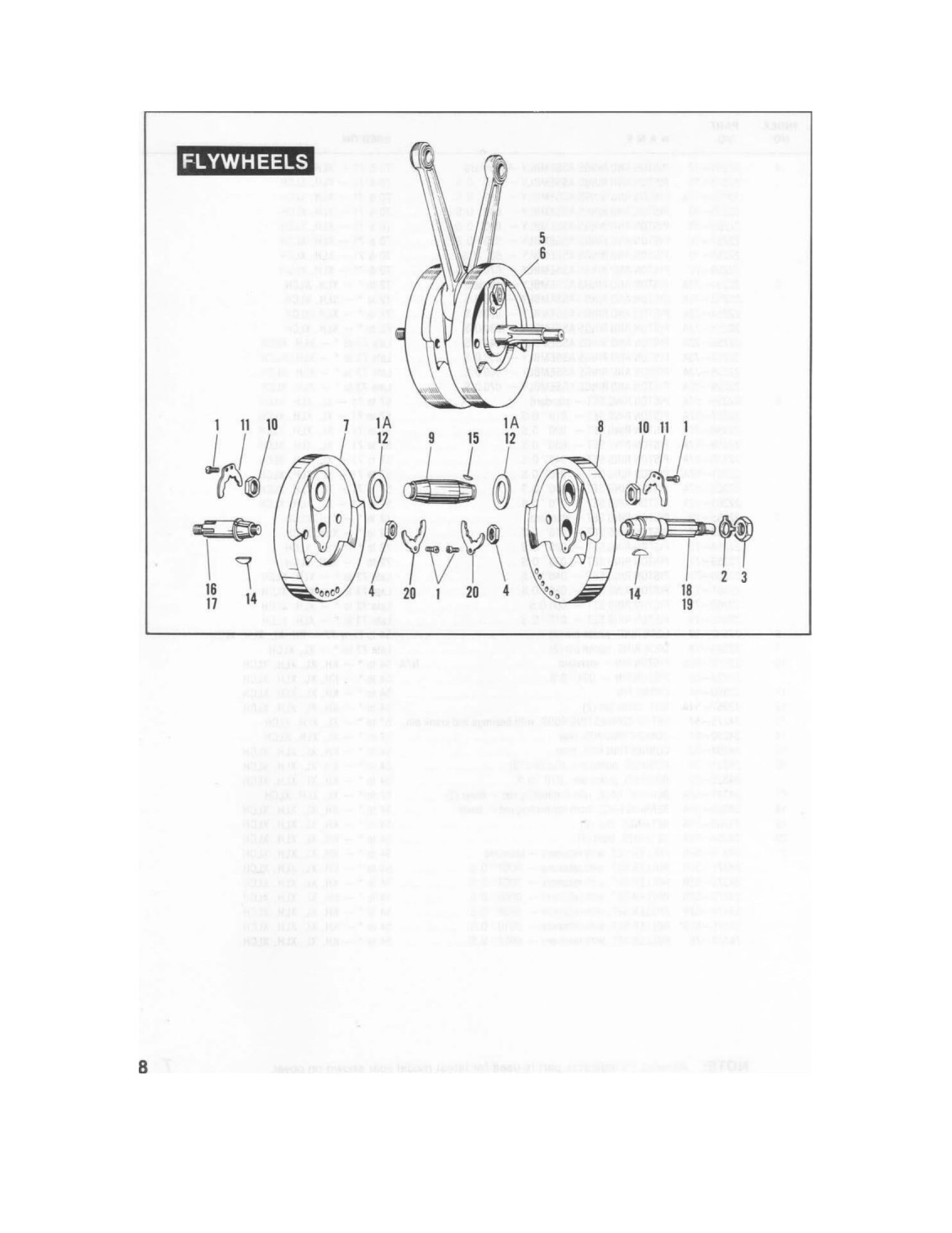

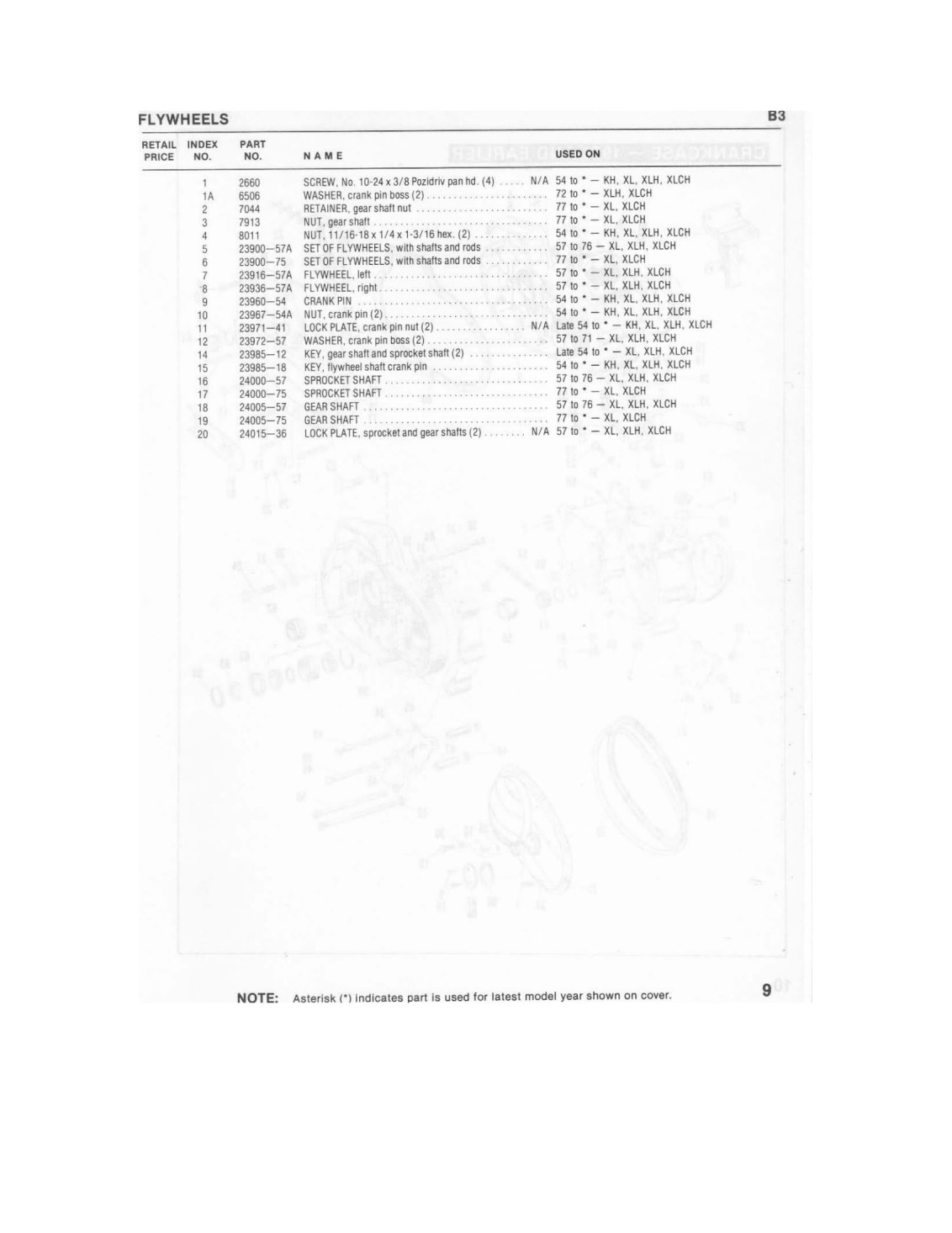

Flywheels............... 9

Footrests............... 115, 117

Fork — front............. 103, 105, 107, 109

Fork — rear............. 111

Frame.................. 111

Front Fender Lamp....... 187

Gages.................. 207

GasTanks.............. 147

Gas Tank Trim........... 149, 151

Gasket Sets............. 3

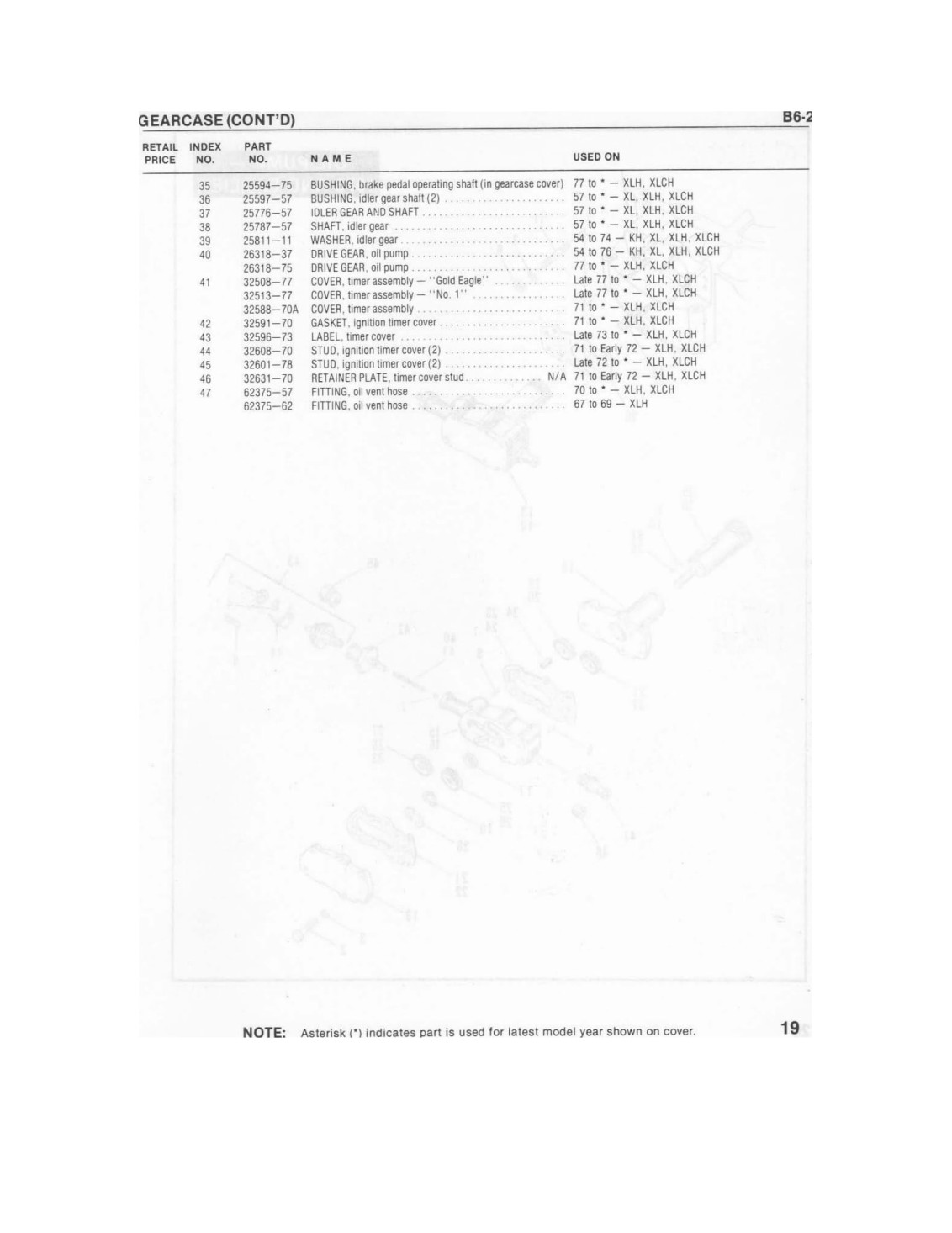

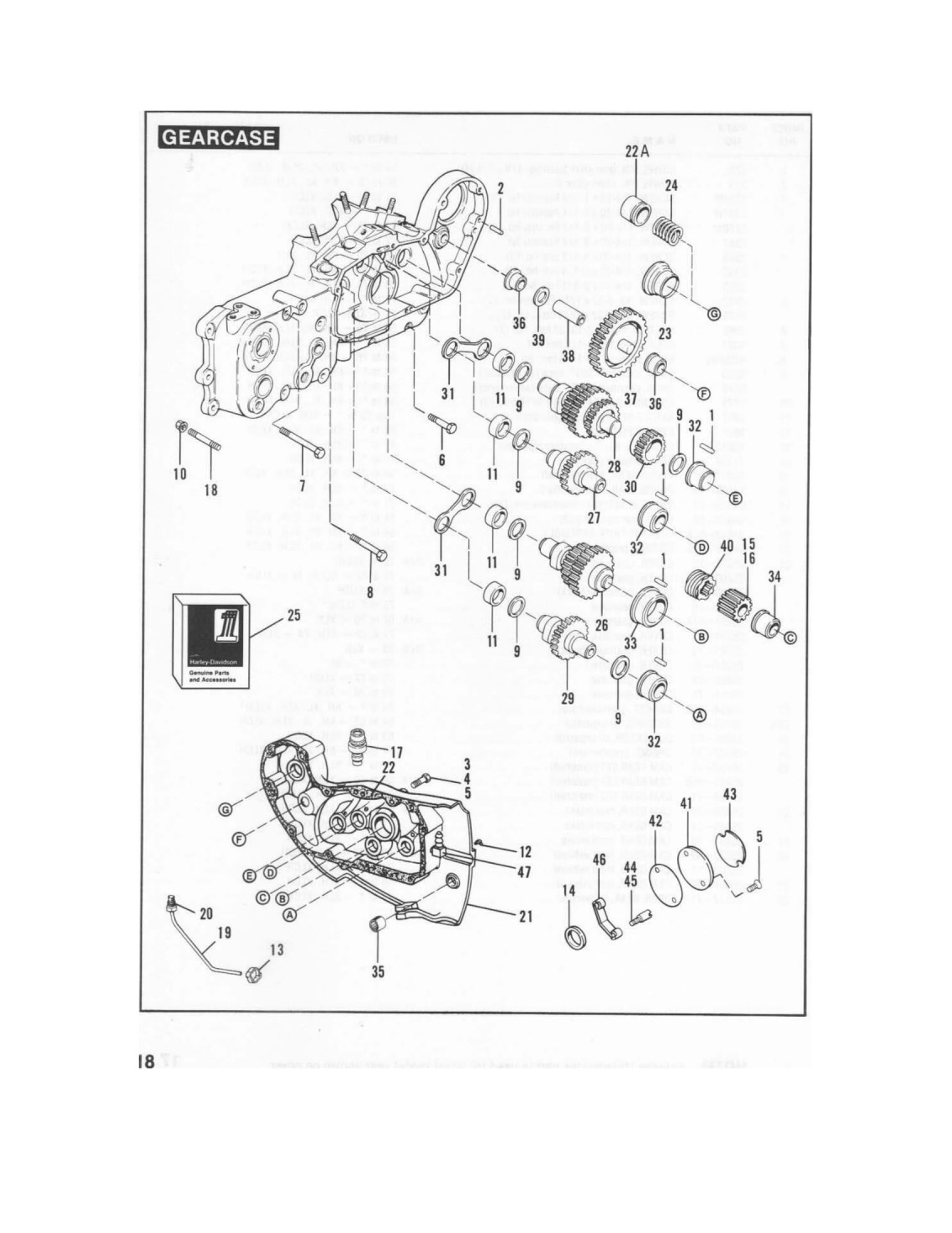

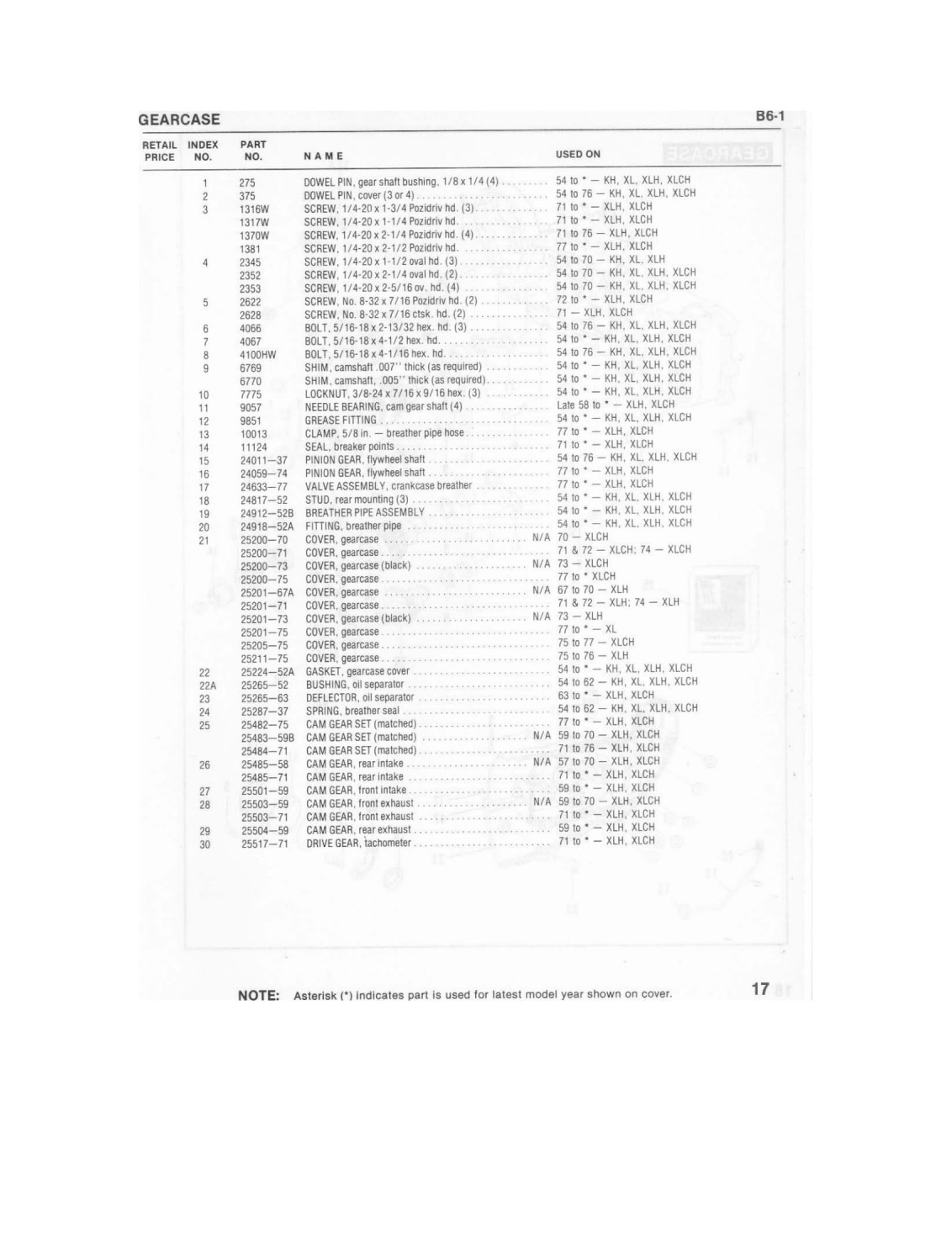

Gearcase............... 17, 19

Generator............... 41

Handlebars and Controls .. 133, 135

Handrail................ 121, 123, 125

Headlamp............... 175

Highway Bar............. 113

Horn................... 191

Indicator Lamps......... 177

Jiffy Stand.............. 113

Kick Starter............. 57, 59

License Plate Brackets____ 145

Page

Luggage Carrier.......... 127

Magneto................ 37, 39

Mufflers................ 160. 161. 163, 165

Oil Cooler............... 157

Oil Filter................ 159

Oil Pressure Switch....... 21, 23

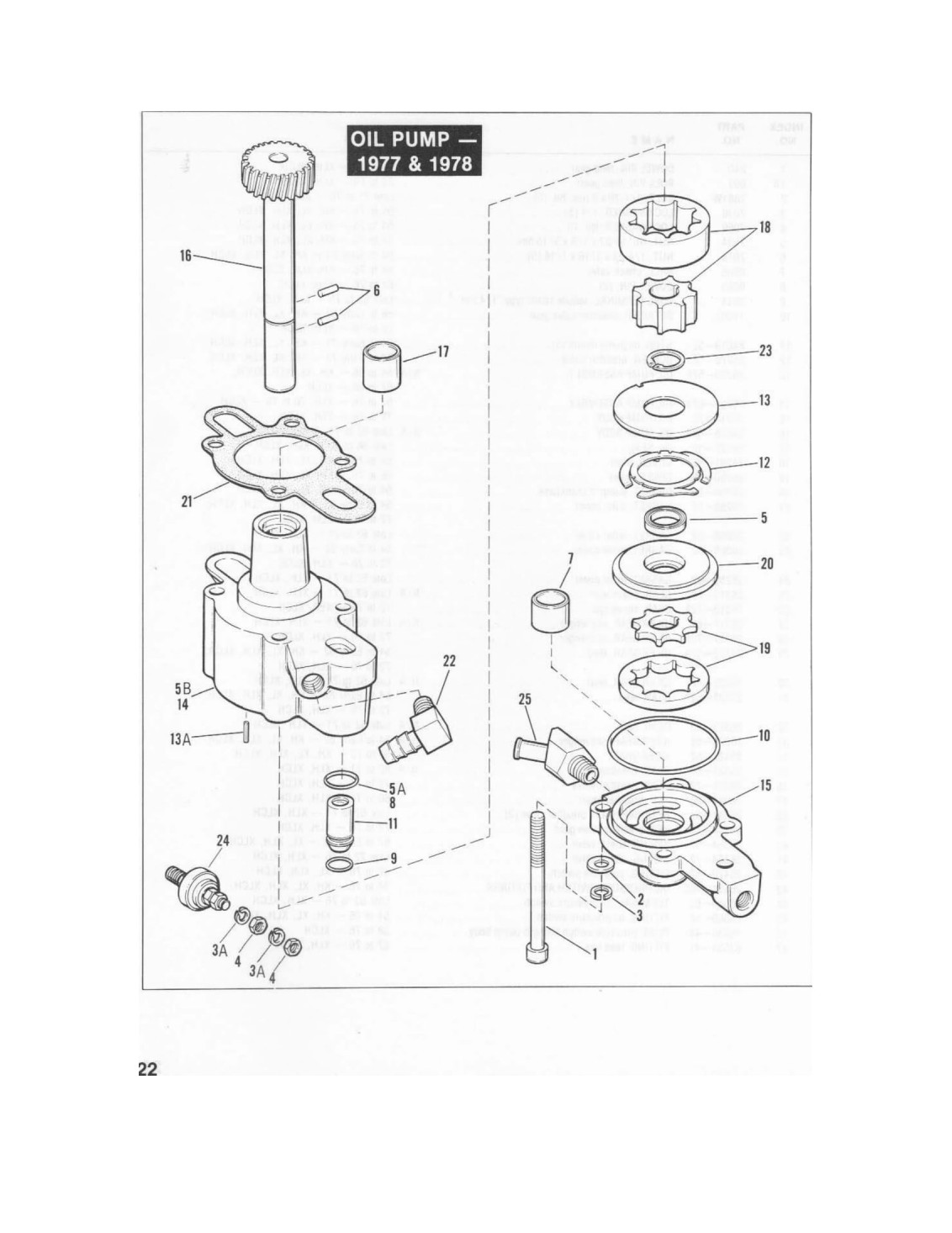

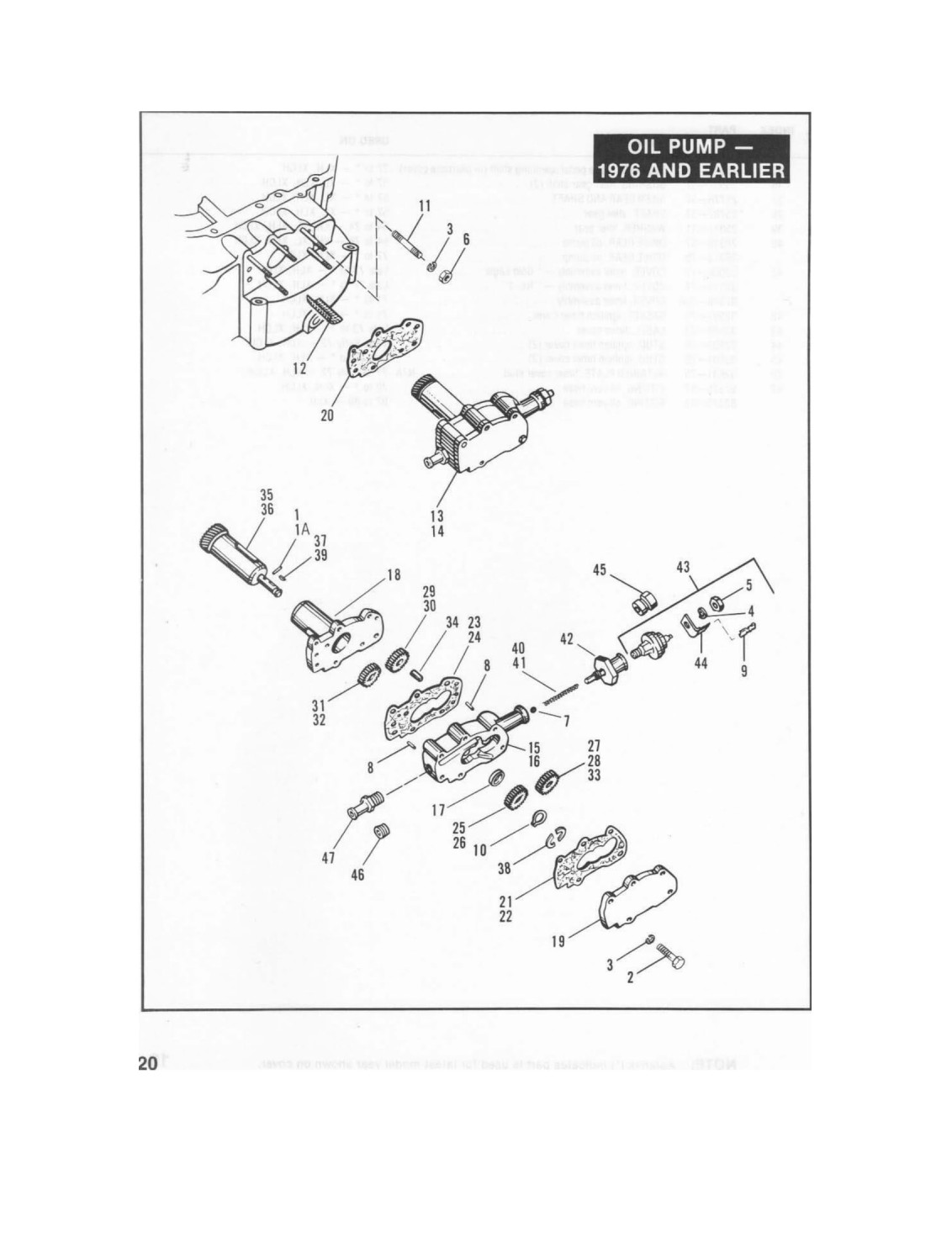

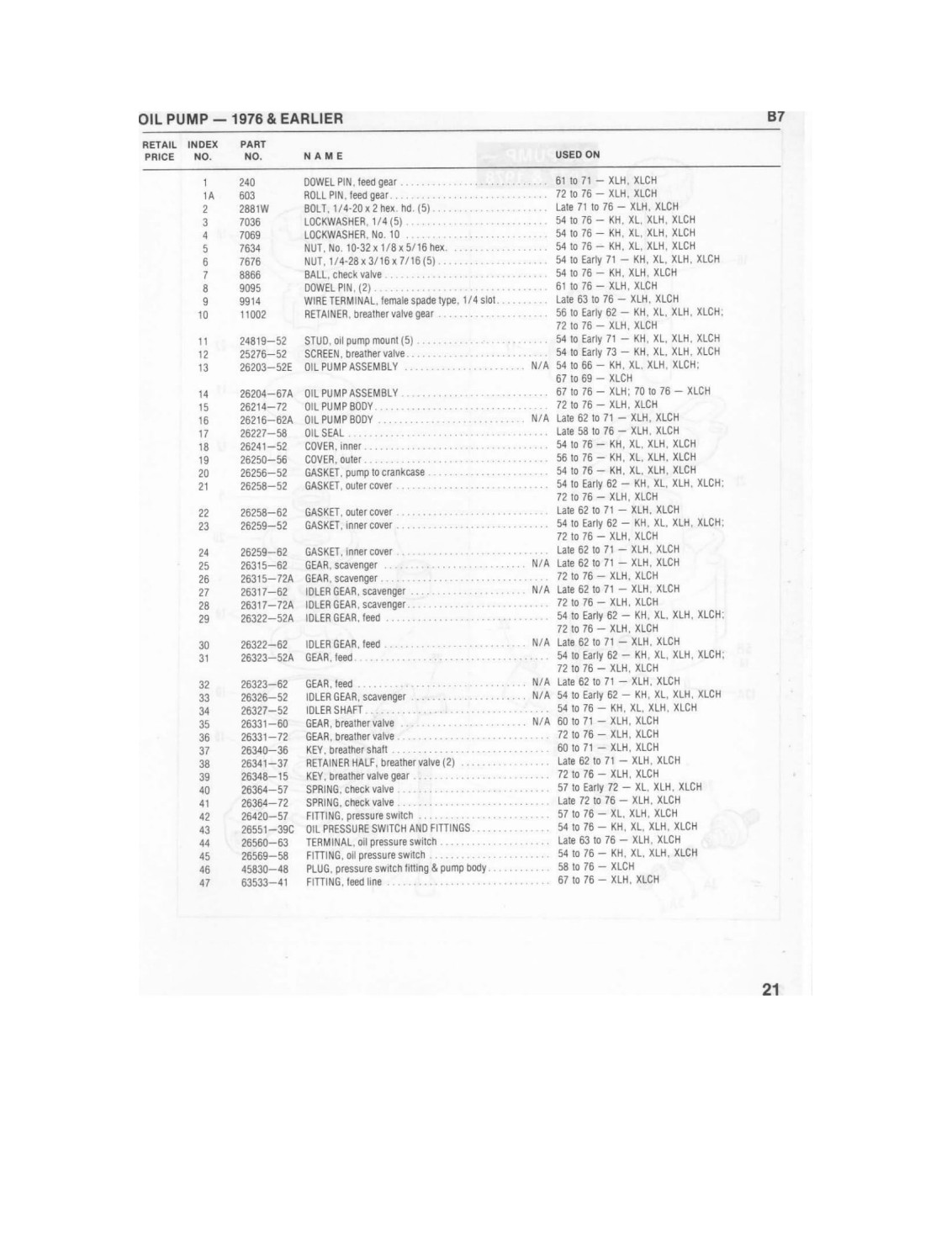

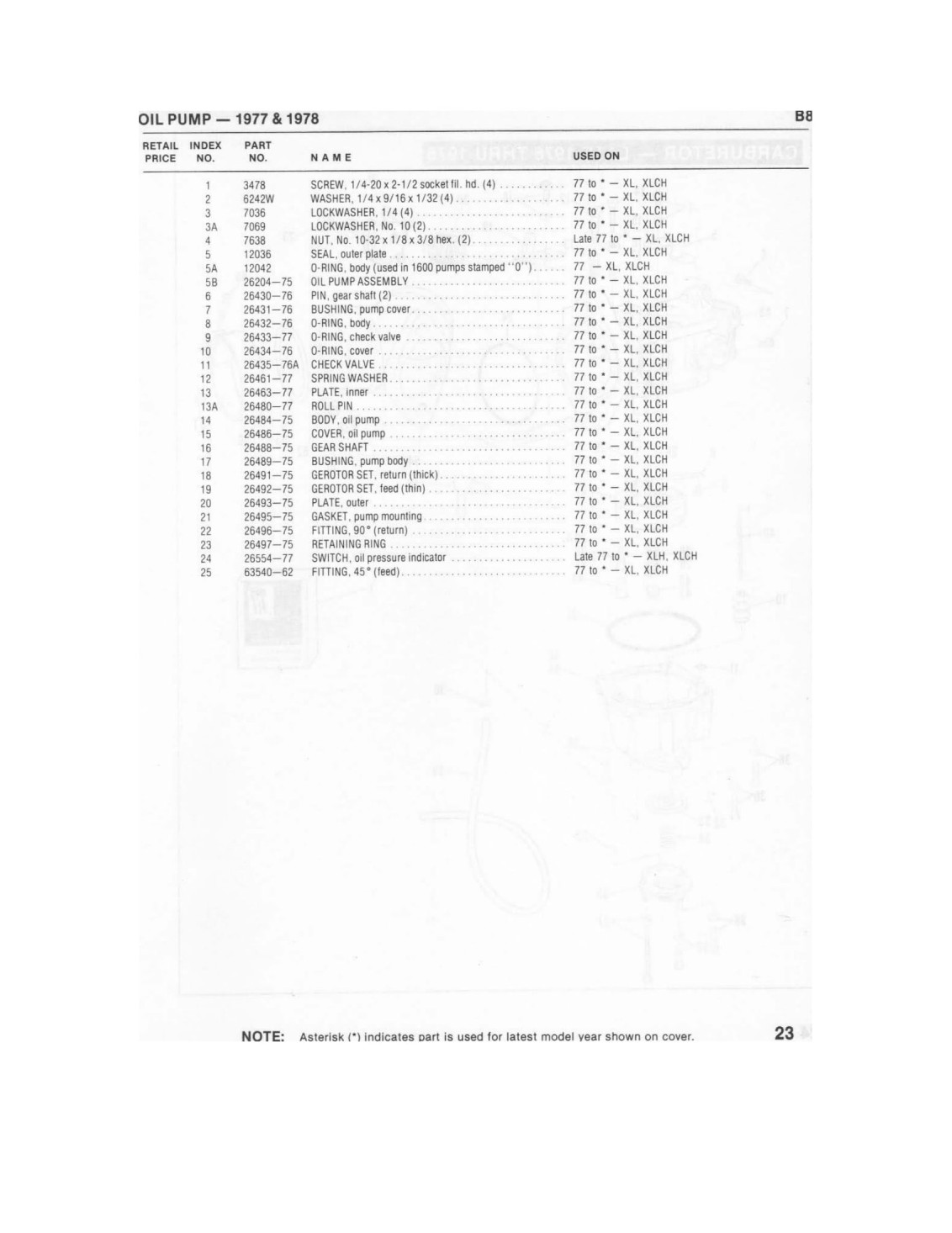

Oil Pump................ 21,23

Oil Tanks............... 153, 155

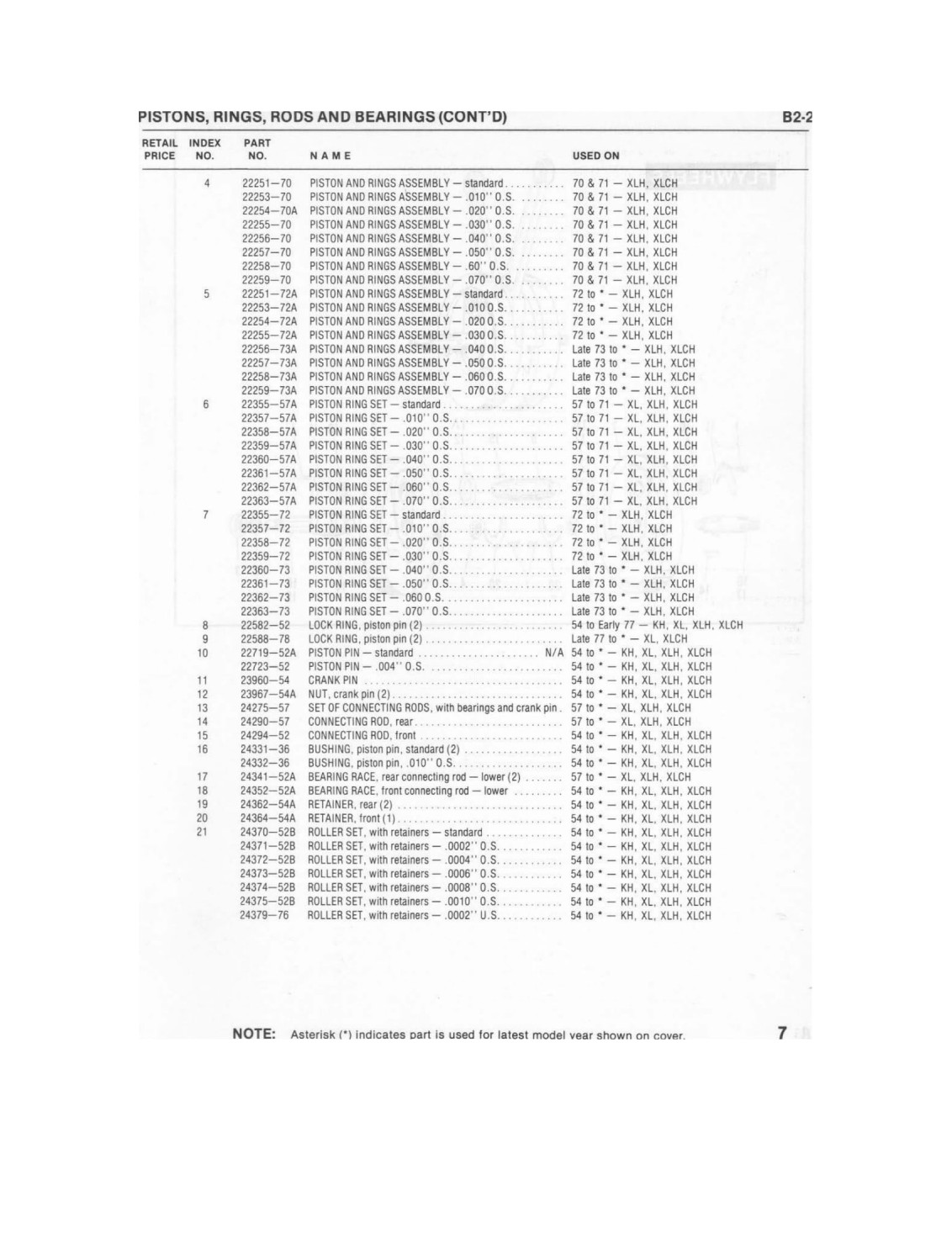

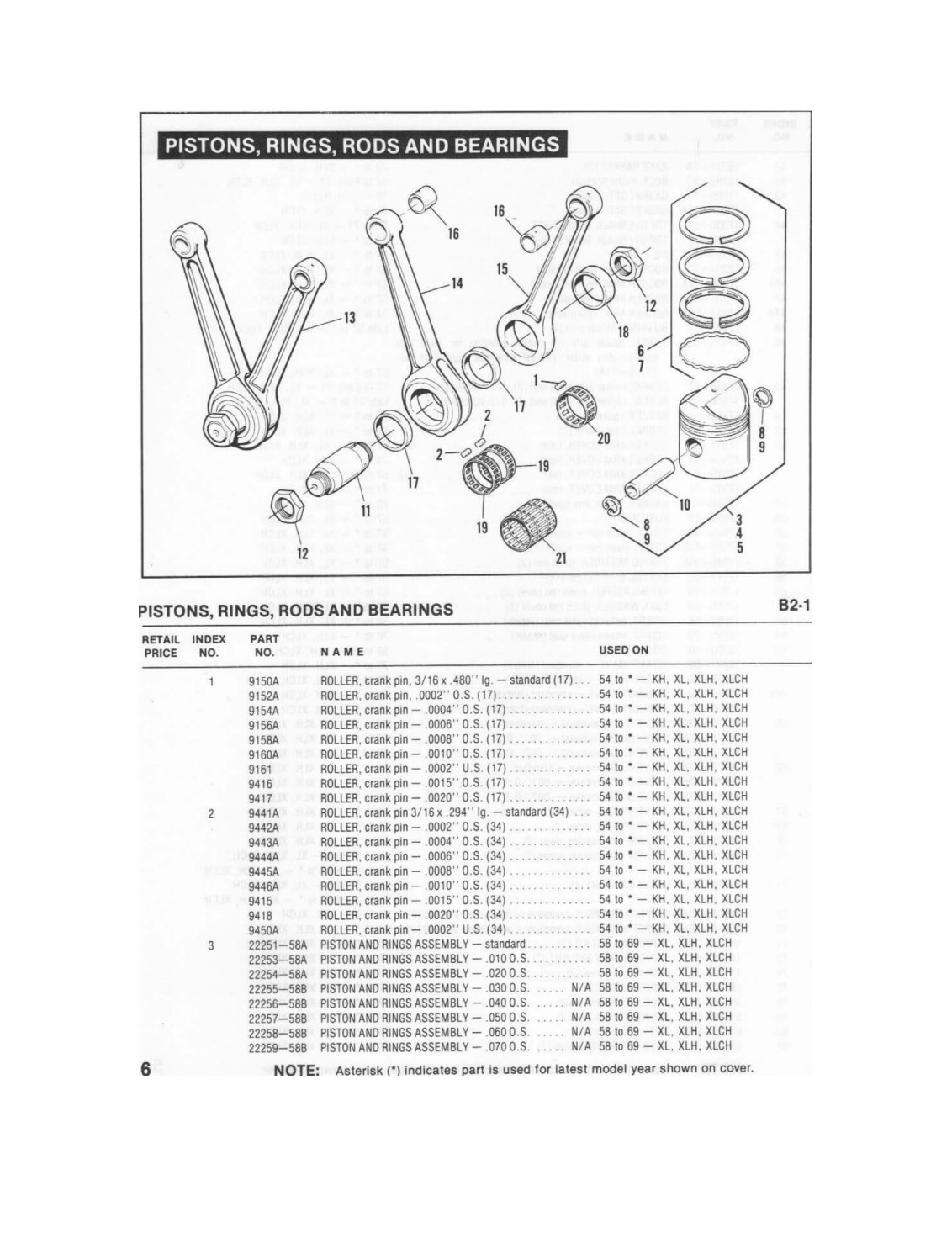

Pistons................. 7

Piston Rings............. 7

Points.................. 43, 47

Push Rods.............. 5

Saddlebags............. 211

Seats................... 119,121,123,125

Shifter Linkage.......... 65

Shifter.................. 67

Shock Absorbers......... 129.131

Spark Coil............... 43, 47

Spark Plugs............. 43, 47

Speedometer............ 169, 173

Splash Shields........... 139

Spokes................. 79, 87, 89

Spotlamp............... 191

Sprockets............... 75,77

Starter Shaft and Housing . 51

Starter Motor............ 53, 55

Switches. Crct. Brkr. & Brk. 199

Switches. Handlebar...... 204, 205

Switches. Ignition & Headlamp 203

Switches. Starter......... 201

Tachometer............. 171, 173

Tail Lamp............... 179

Tappets ................ 5

Terminal Plates.......... 195, 197

Throttle Control.......... 137

Timer................... 43

Transmission............ 61,63

Turn Signals............. 181,183,185

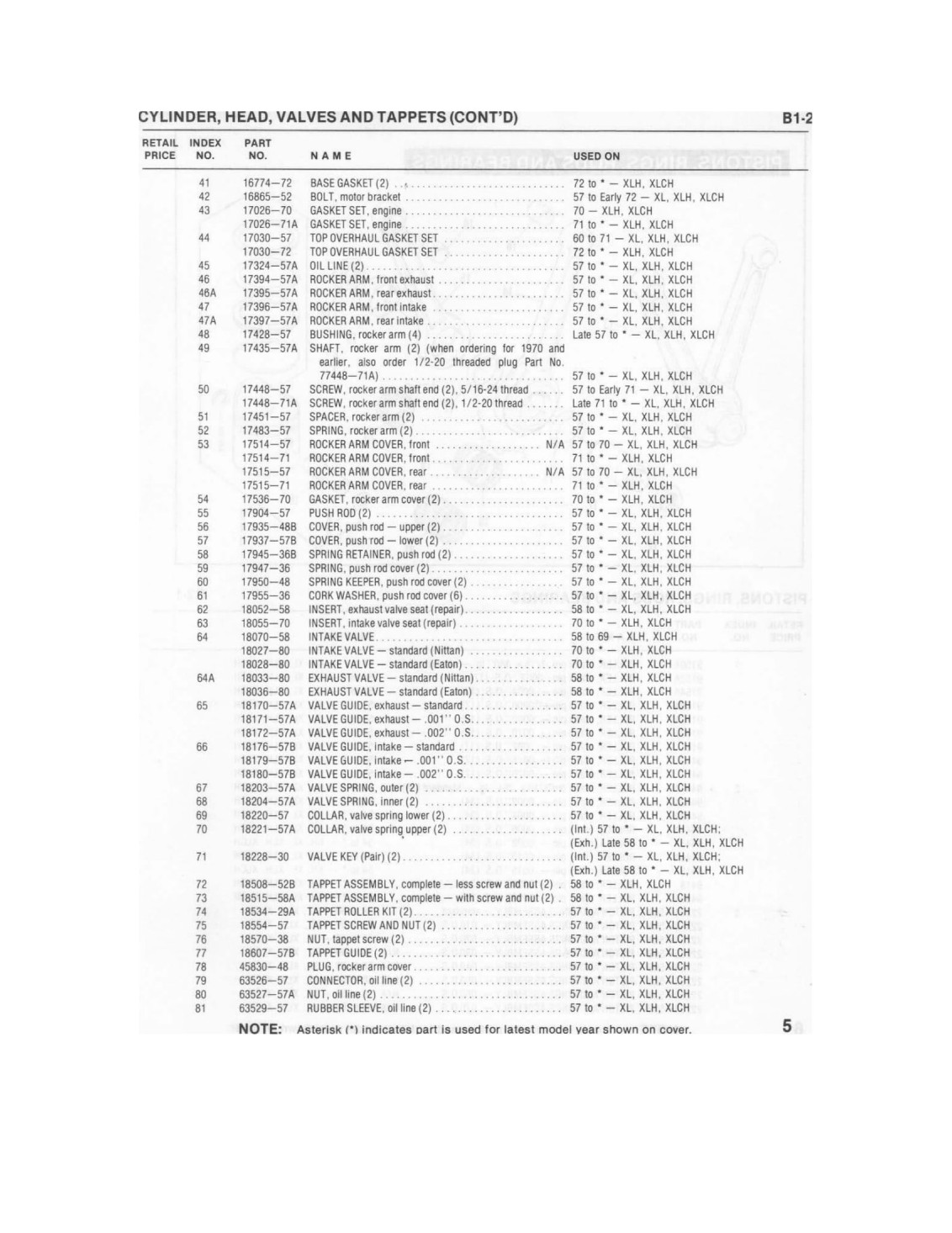

Valves.................. 5

Voltage Regulator........ 209

Wheel — front........... 87. 89, 91

Wheel — rear............ 79, 81

Windshield — large....... 139,141

Wiring.................. 193

XL-1000 75th Anniv. Model . 212 XLT Supplemental Parts... 213
PATENT NOTICE

Harley Davidson products are manufactured under one or more of the following: U.S. Patents - 2986162, 2987934, 2998809, 3116089,3144631,3144860. 3226994. 3229792, 3434887, 3559773, 3673359, 3680403, 3683716, 3709317, Des. 225 626.
