PARTS CATALOG FX Models 1971 to 1984
Part No. 99455-83C
GENERAL INFORMATION
This Parts Catalog has been prepared for your convenience when ordering parts
for 1971 to 1984 FX Models, except the FXR and FXST models which are covered in

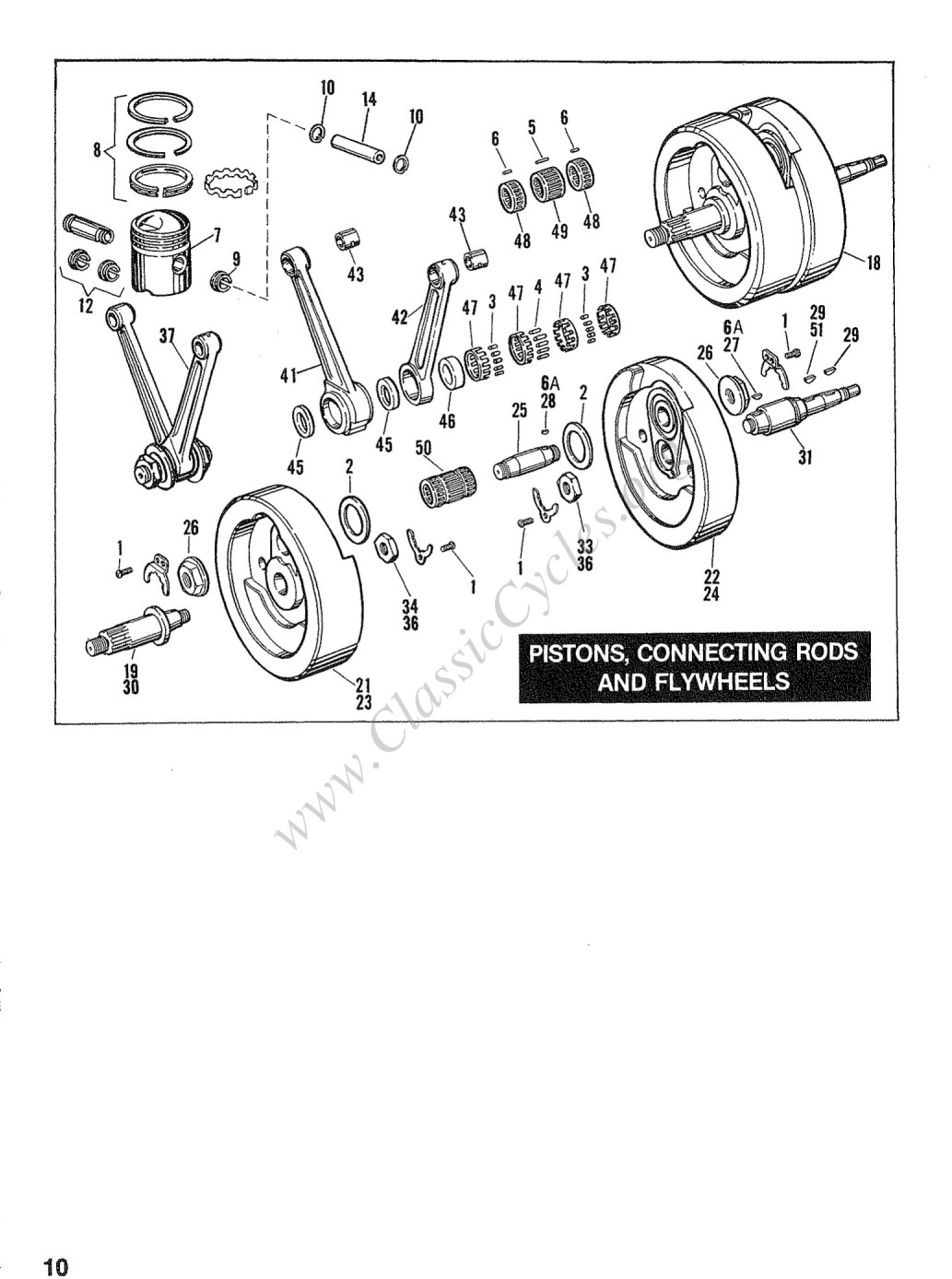

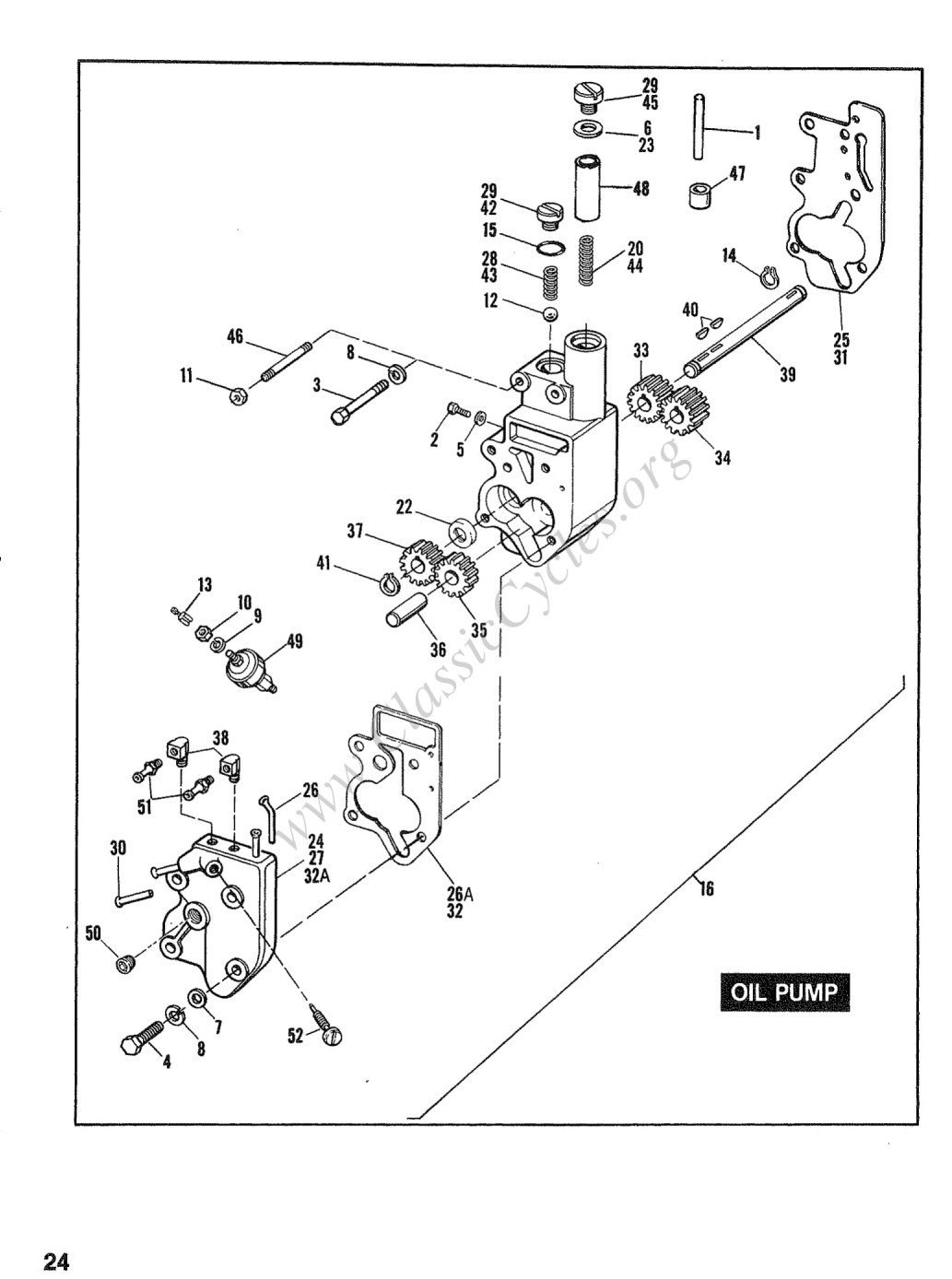

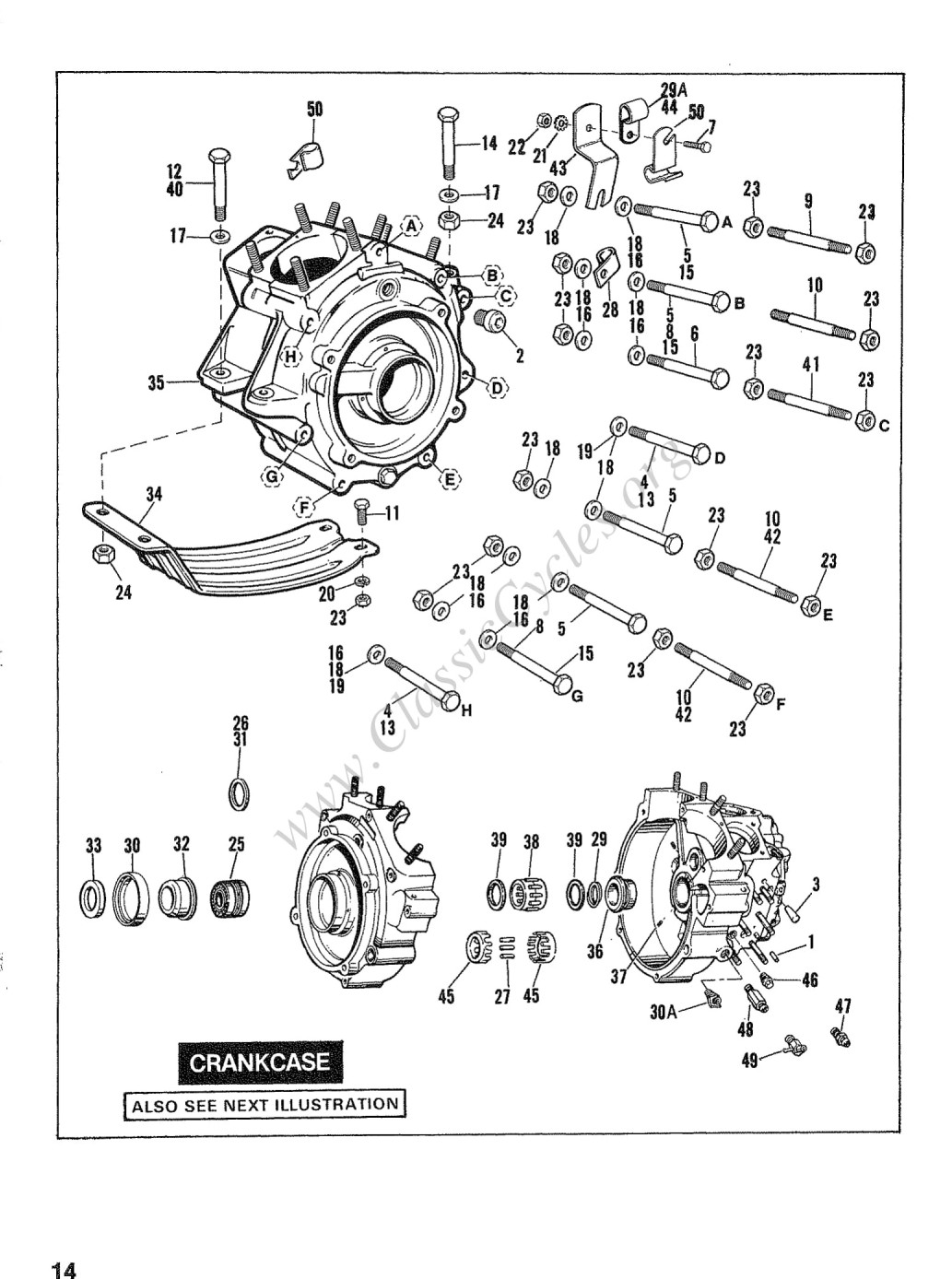

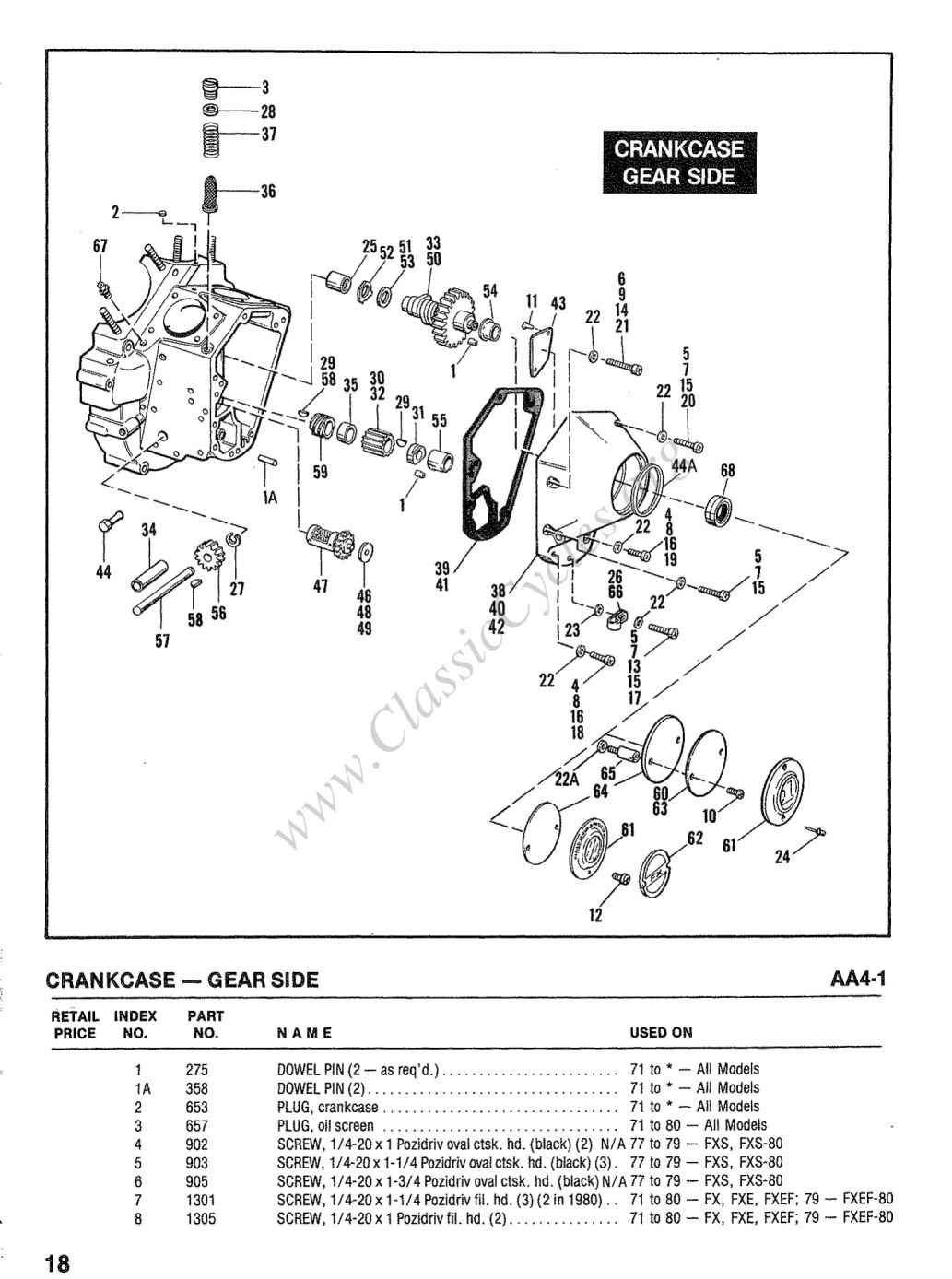

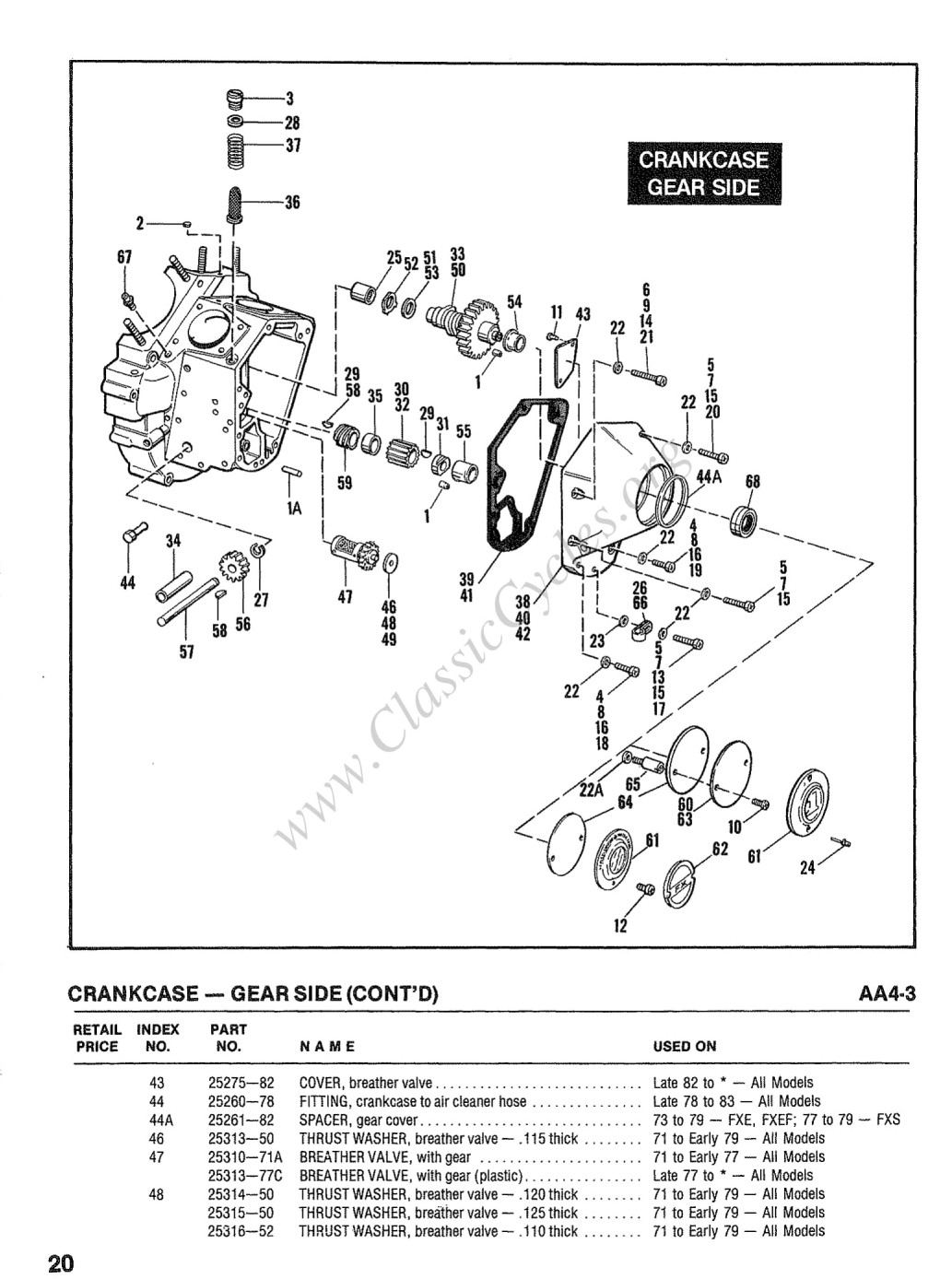

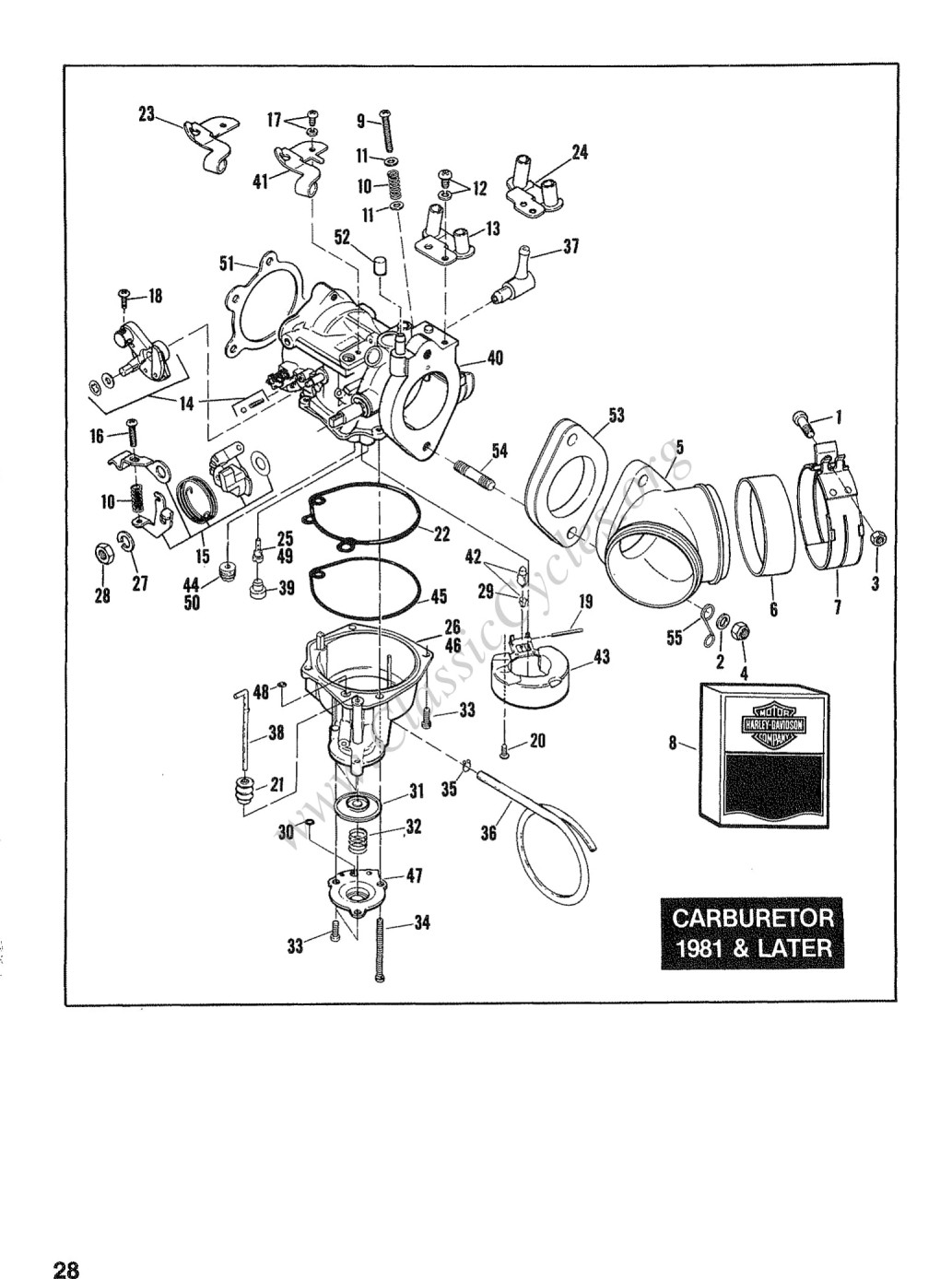

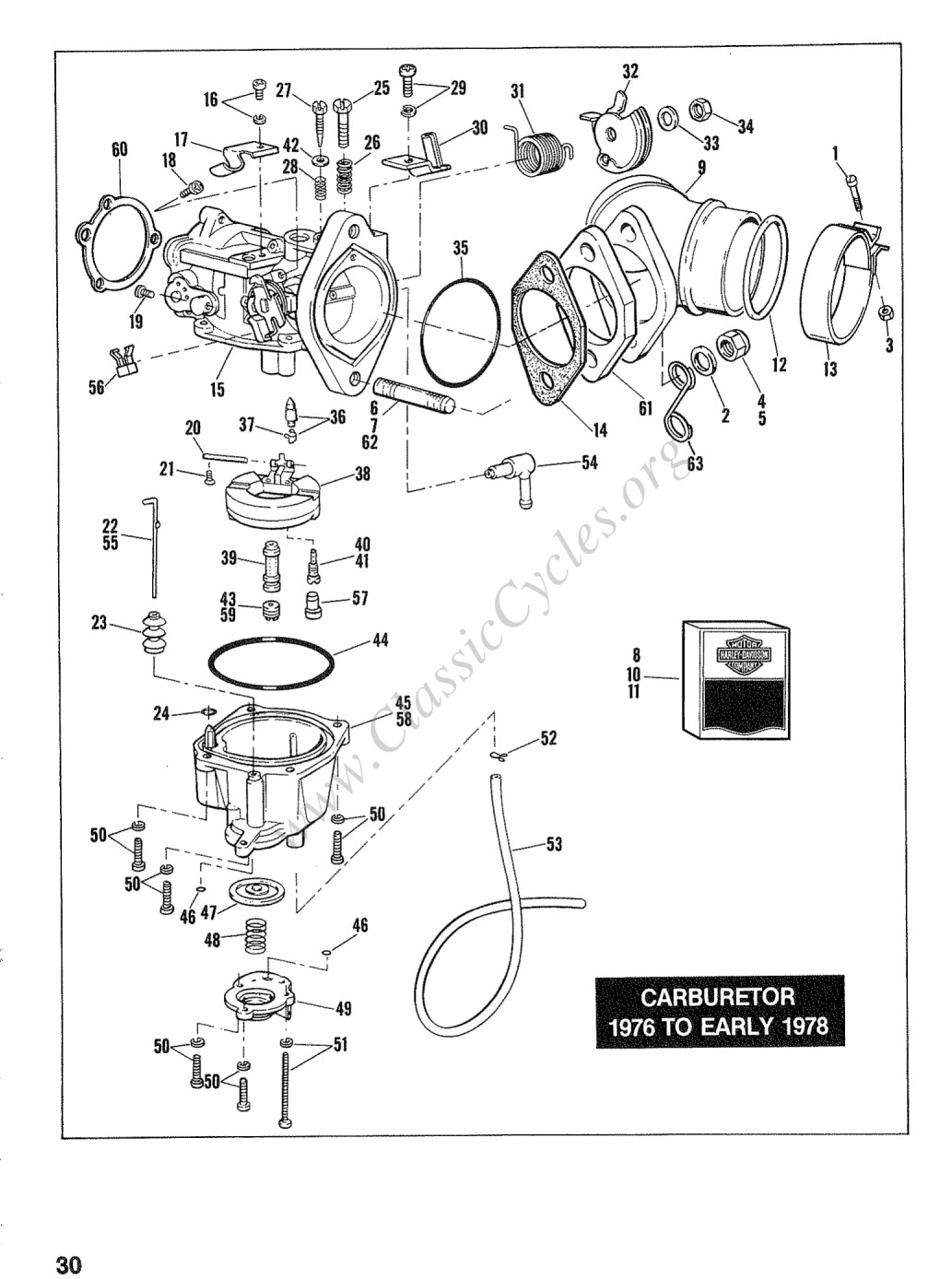

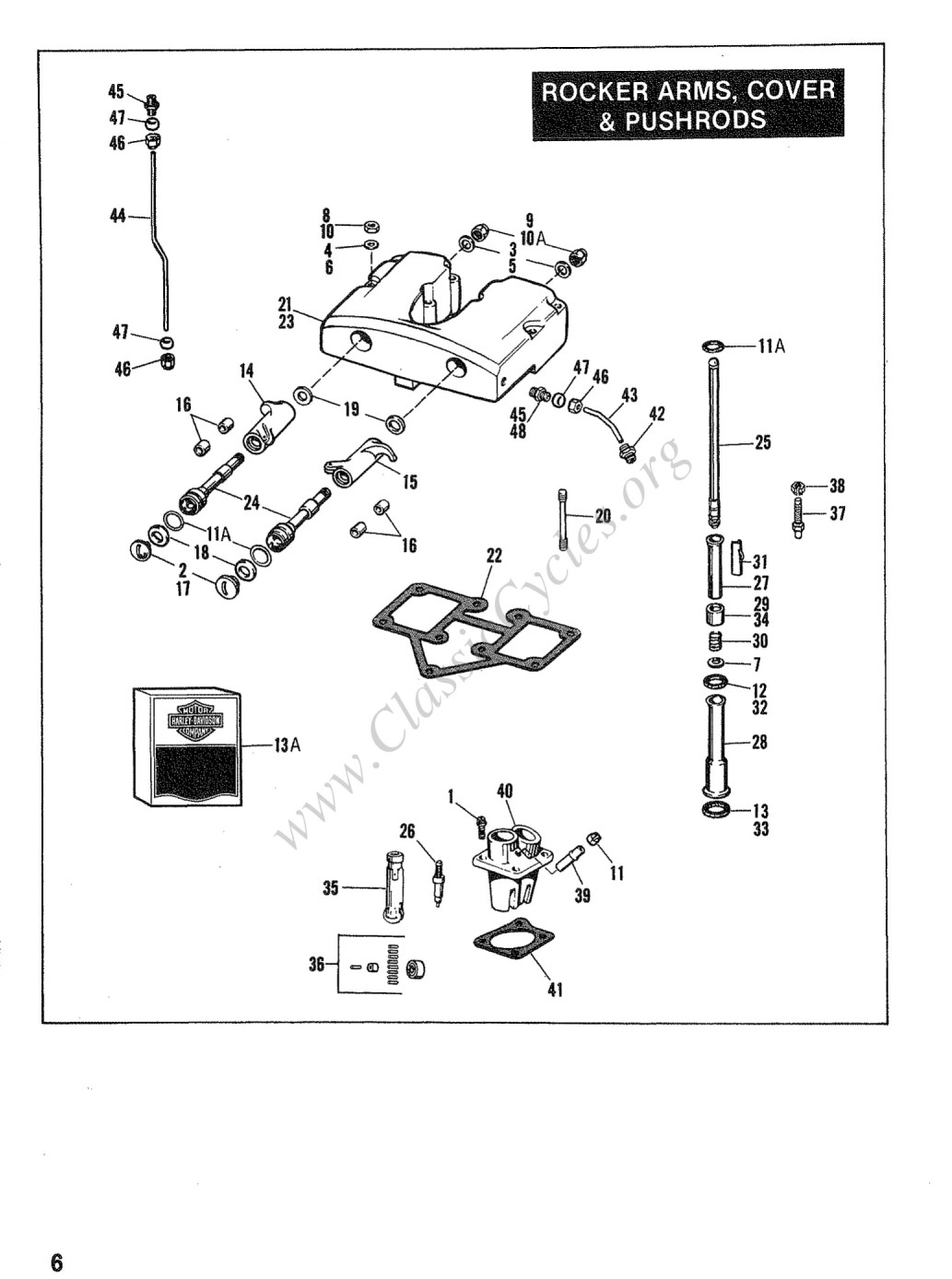

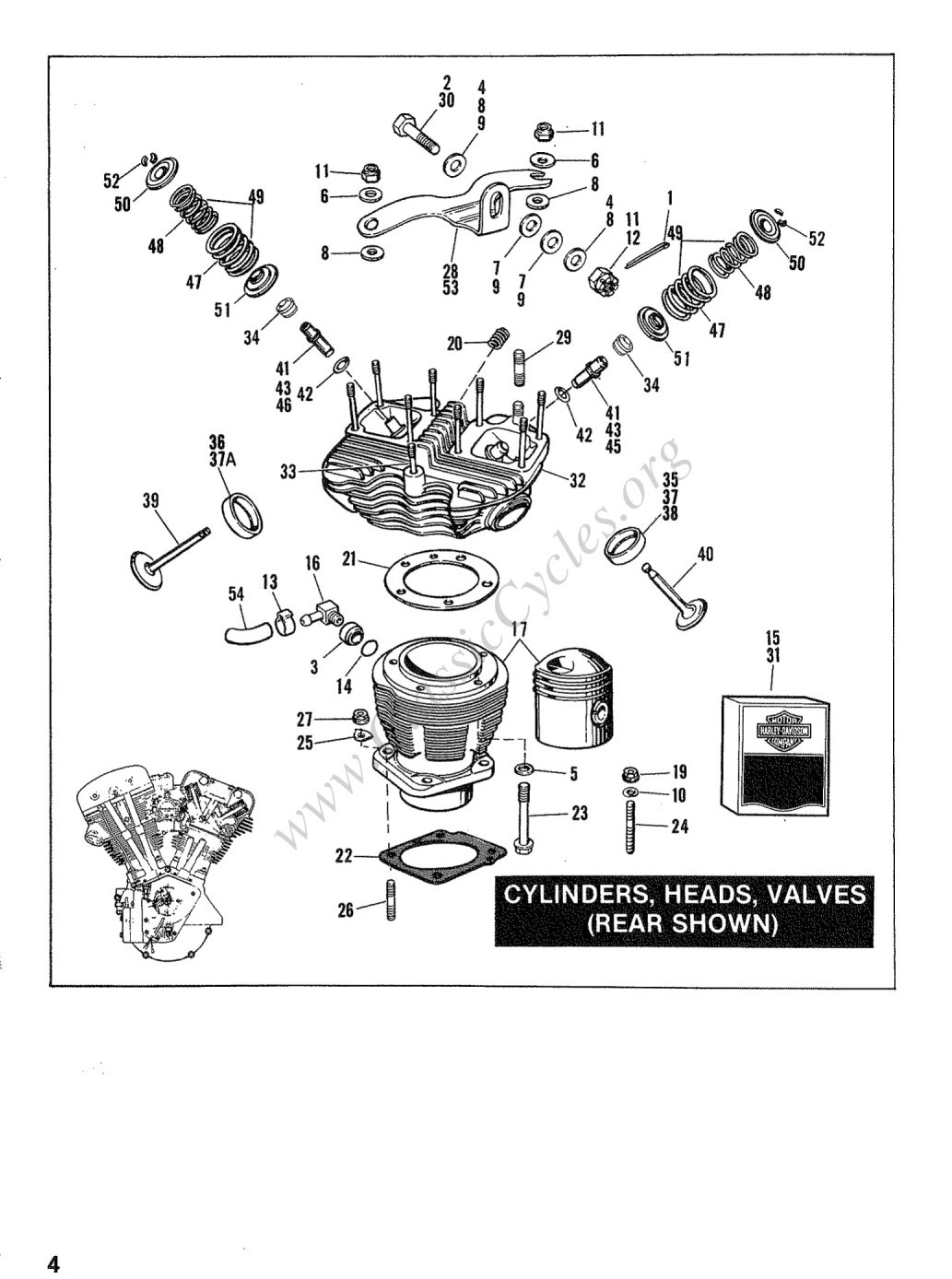

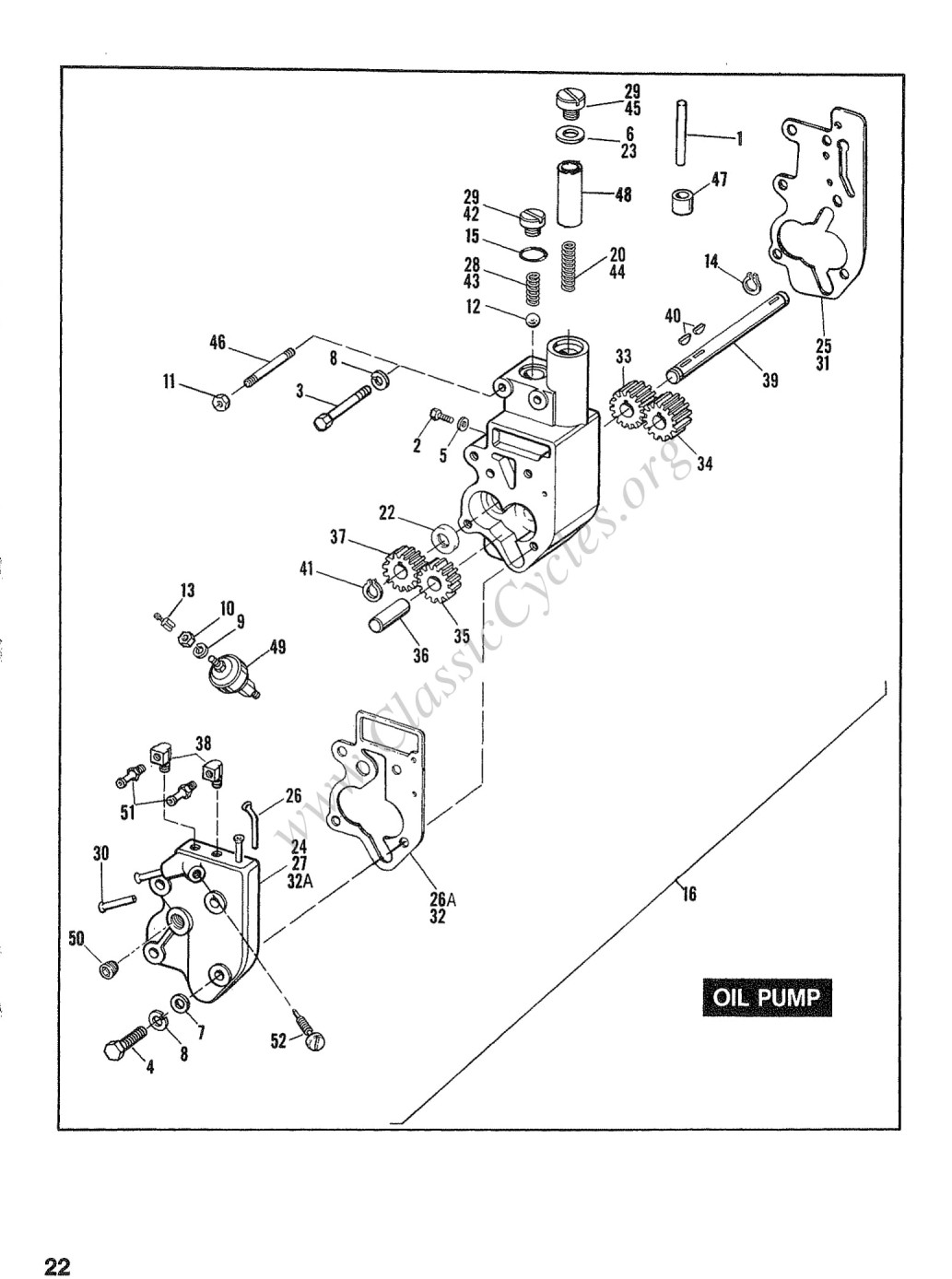

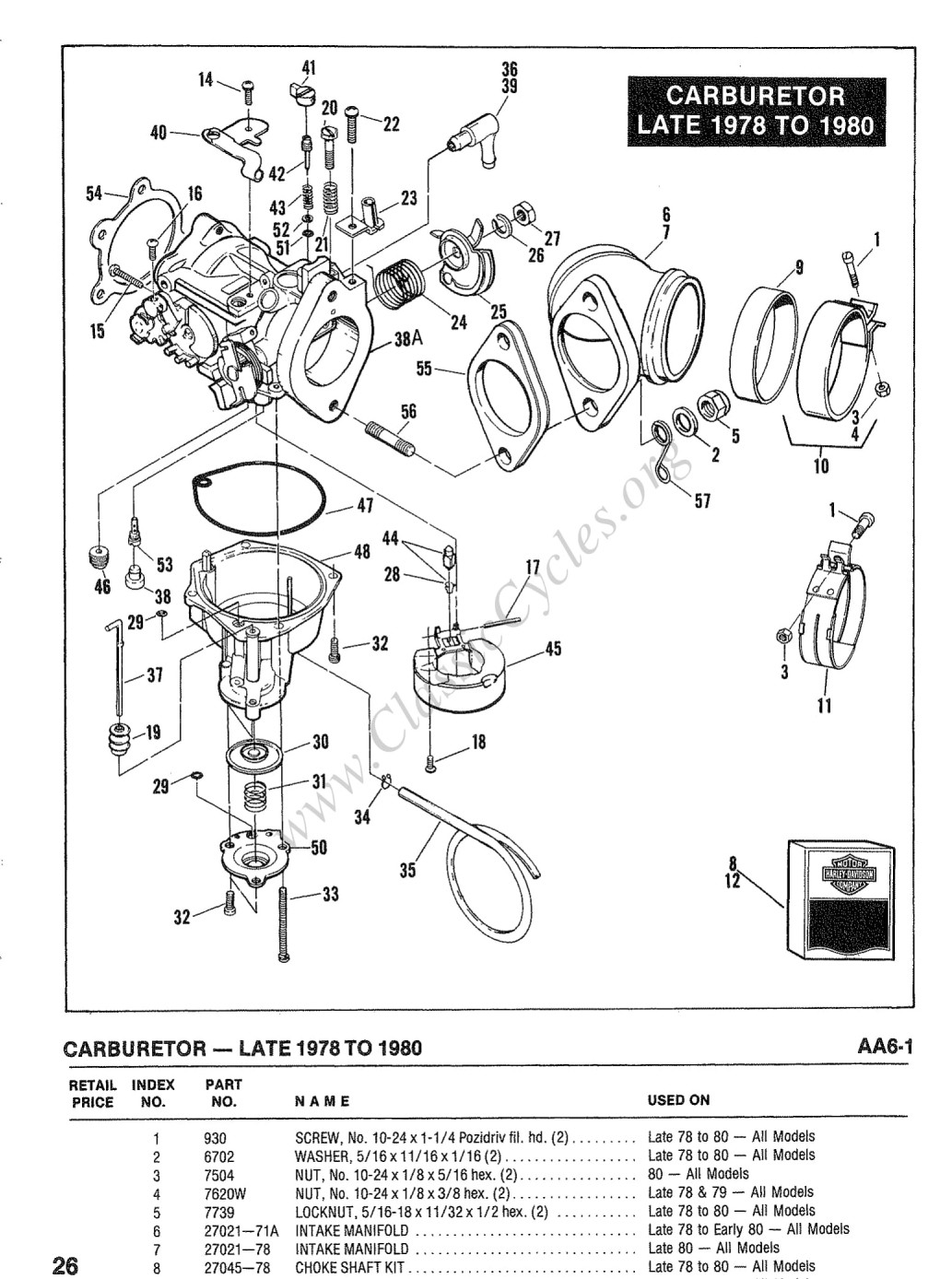

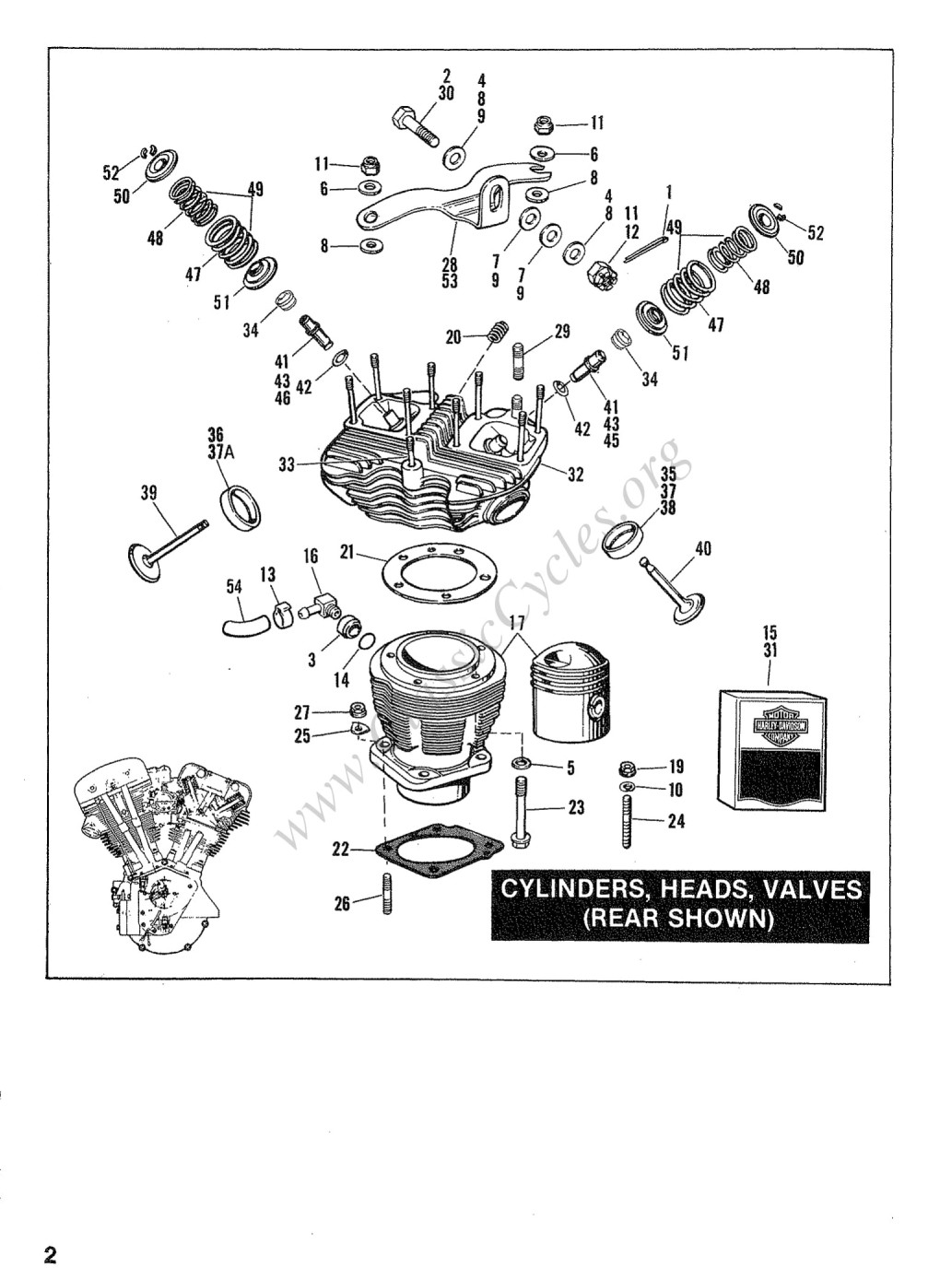

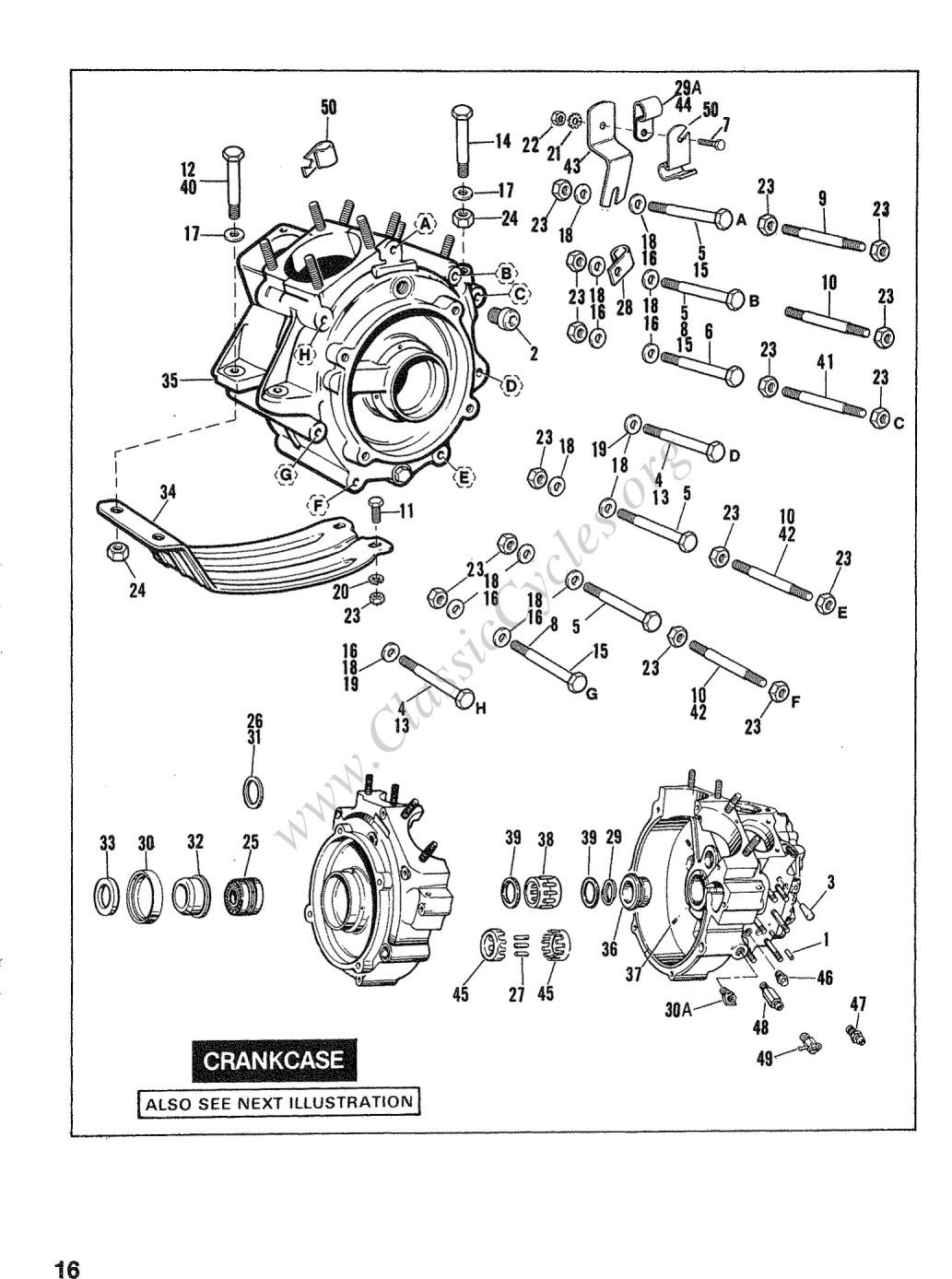

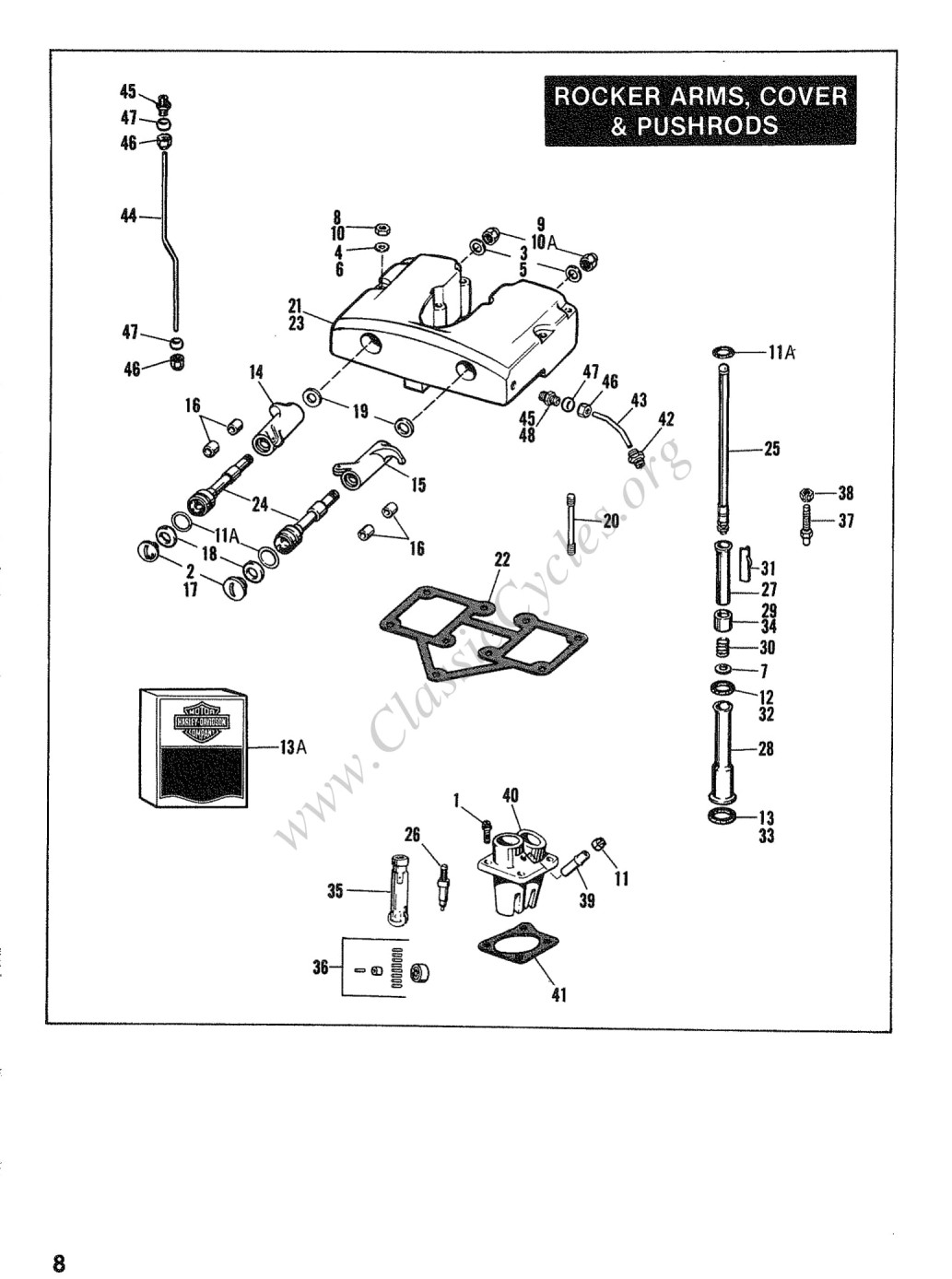

separate catalogs. Wherever possible, parts are shown in assembly breakdown
sequence. Index numbers shown in the illustrations correspond to index numbers
in parts lists. Consult the illustrations when ordering parts so you are sure to
get what you want. In most cases, only the latest parts are shown in the
illustrations, however, parts lists cover some parts used as early as 1971.
Number in parenthesis following description of part is the quantity needed for
complete assembly shown in illustration. If there is no number in parenthesis,
only one is used.
Prices of parts listed in this catalog are published separately in the latest
RETAIL PRICE LIST.
NOTE: N/A following description of part indicates part is no longer available
from the factory. Do not attempt to order these parts from Harley-Davidson Motor
Co., Inc.
The following instructions should be followed carefully when ordering parts:
® Specify the correct part number for each item. Check the “Used On” column of
the parts list which shows the model on which the part fits. Whenever in doubt,
refer to the Vehicle Identification Number (V.I.N.) stamped on the engine
crankcase.
1.1971 thru 1980: Vehicle Identification Number (V.I.N.) is located on the
engine right crankcase and is the same as the number located on the frame
steering head. (See chart on this page.)
2. 1981 and later: A 17 digit Vehicle Identification Number is stamped on the
frame steering head and frame downtube label. An abbreviated V.I.N. is stamped
on the engine right crankcase (left crankcase — Late 1983 and later). Refer to
inside back cover for chart.

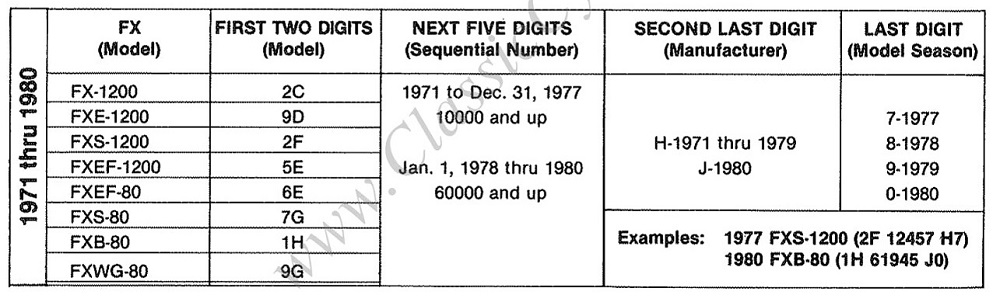

The V.I.N. (Vehicle Identification Number) for 1971 thru 1980 FX models are as
follows:
