PARTS CATALOG FX Models 1971 to 1984

Part No. 99455-83C

GENERAL INFORMATION
This Parts Catalog has been prepared for your convenience when ordering parts for 1971 to 1984 FX Models, except the FXR and FXST models which are covered in separate catalogs. Wherever possible, parts are shown in assembly breakdown sequence. Index numbers shown in the illustrations correspond to index numbers in parts lists. Consult the illustrations when ordering parts so you are sure to get what you want. In most cases, only the latest parts are shown in the illustrations, however, parts lists cover some parts used as early as 1971.

Number in parenthesis following description of part is the quantity needed for complete assembly shown in illustration. If there is no number in parenthesis, only one is used.

Prices of parts listed in this catalog are published separately in the latest RETAIL PRICE LIST.

NOTE: N/A following description of part indicates part is no longer available from the factory. Do not attempt to order these parts from Harley-Davidson Motor Co., Inc.

The following instructions should be followed carefully when ordering parts:

• Specify the correct part number for each item. Check the “Used On” column of the parts list which shows the model on which the part fits. Whenever in doubt, refer to the Vehicle Identification Number (V.I.N.) stamped on the engine crankcase.

1.1971 thru 1980: Vehicle Identification Number (V.I.N.) is located on the engine right crankcase and is the same as the number located on the frame steering head. (See chart on this page.)

2. 1981 and later: A 17 digit Vehicle Identification Number is stamped on the frame steering head and frame downtube label. An abbreviated V.I.N. is stamped on the engine right crankcase (left crankcase — Late 1983 and later). Refer to inside back cover for chart.

The V.I.N. (Vehicle Identification Number) for 1971 thru 1980 FX models are as follows:

FX (Model)	FIRST TWO DIGITS (Model)	NEXT FIVE DIGITS (Sequential Number)	SECOND LAST DIGIT (Manufacturer)	LAST DIGIT (Model Season)
FX-1200	2C	1971 to Dec. 31, 1977 10000 and up Jan. 1, 1978 thru 1980 60000 and up	H-1971 thru 1979 J-1980	7- 19 77 8- 1978 9- 1979 0-1980
FXE-1200	9D
FXS-1200	2F
FXEF-1200	5E
FXEF-80	6E
FXS-80	7G
FXB-80	1H		Examples: 1977 FXS-1200 (2F 12457 H7) 1980 FXB-80 (1H 61945 JO)
FXWG-80	9G

® An asterisk (*) in the “Used On” column indicates part is used for 1984 models (the latest model year covered by this catalog.)

«Part Numbers are to be used when ordering by TELEGRAM or CABLE.

• When ordering parts use our standard Parts & Accessories order form, Part No. 99511-76, for all parts except engines and crankcases. Order form, Part No. 99514-76, must be used for engines and crankcases. The use of these forms will enable us to fill and ship your order more promptly. These forms are furnished free of charge upon request.

• Do not order motorcycles or advertising material on Parts Order Forms. Write nothing on the order form except the order itself, as any other correspondence will not be answered until the order is shipped and billed.

® Freight, Express and Parcel Post orders should be on separate order forms.

a For your own records, number and date all orders, also keep a copy for future reference.

ALPHABETICAL INDEX
Page

Air Cleaner — Late 1978 & Later . 37 Air Cleaner — 1971 to Early 1978. 39

Alternator.................... 41

Axle-Front................. 119,121,123,125

Axle —Rear.................. 127,131,133

Battery...................... 199

Belts and Sprockets........... 87

Belt Guard — Rear............ 169

Brake — Front................ 96, 97, 101, 103, 105,

107

Brake — Rear................. 93, 95, 96, 97, 99, 117

Brake Control — Front......... 89, 91

Brake Control — Rear.......... 109, 111, 113, 114, 115

Cam Gears....................21

Carburetor — 1971 to 1975...... 35

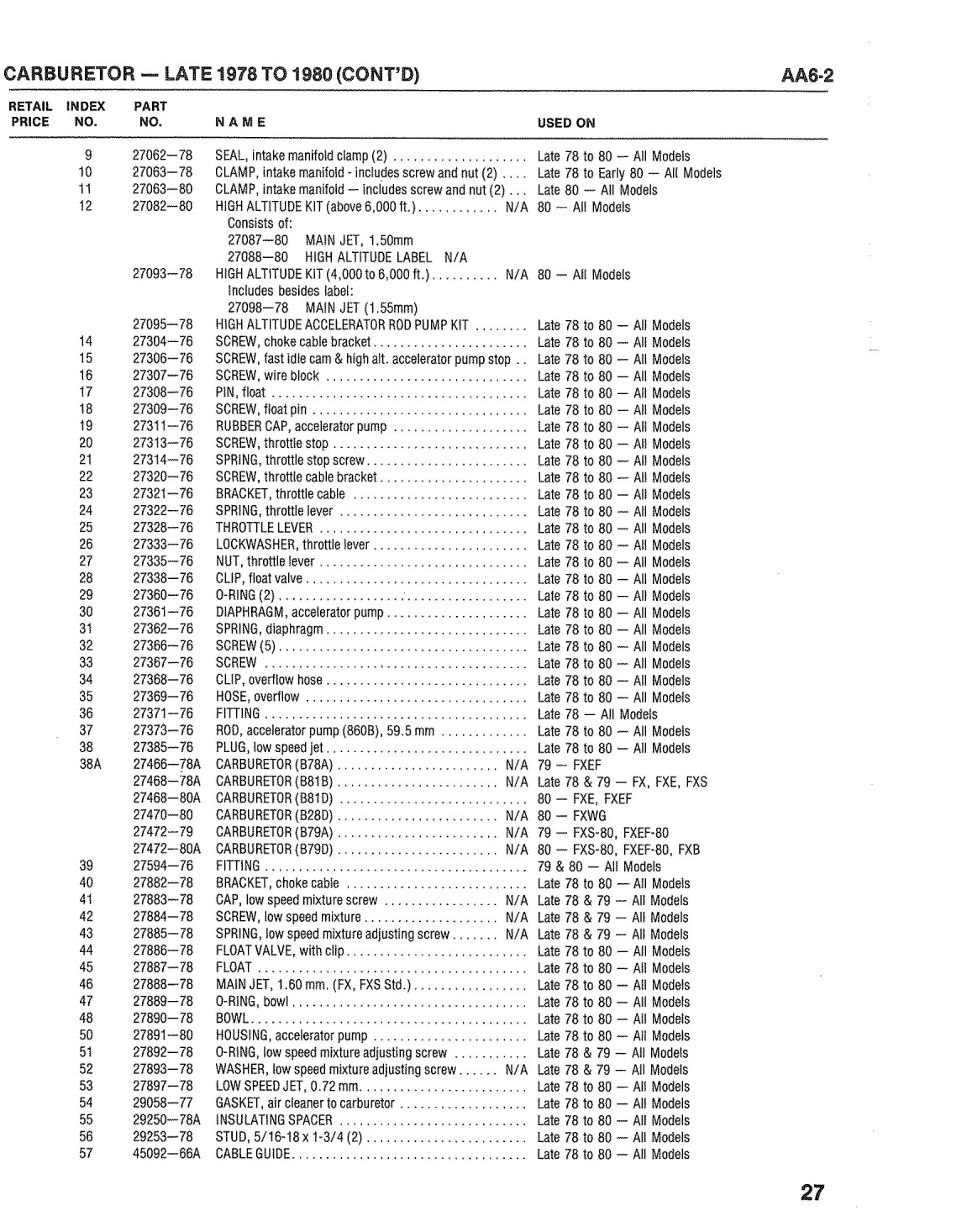

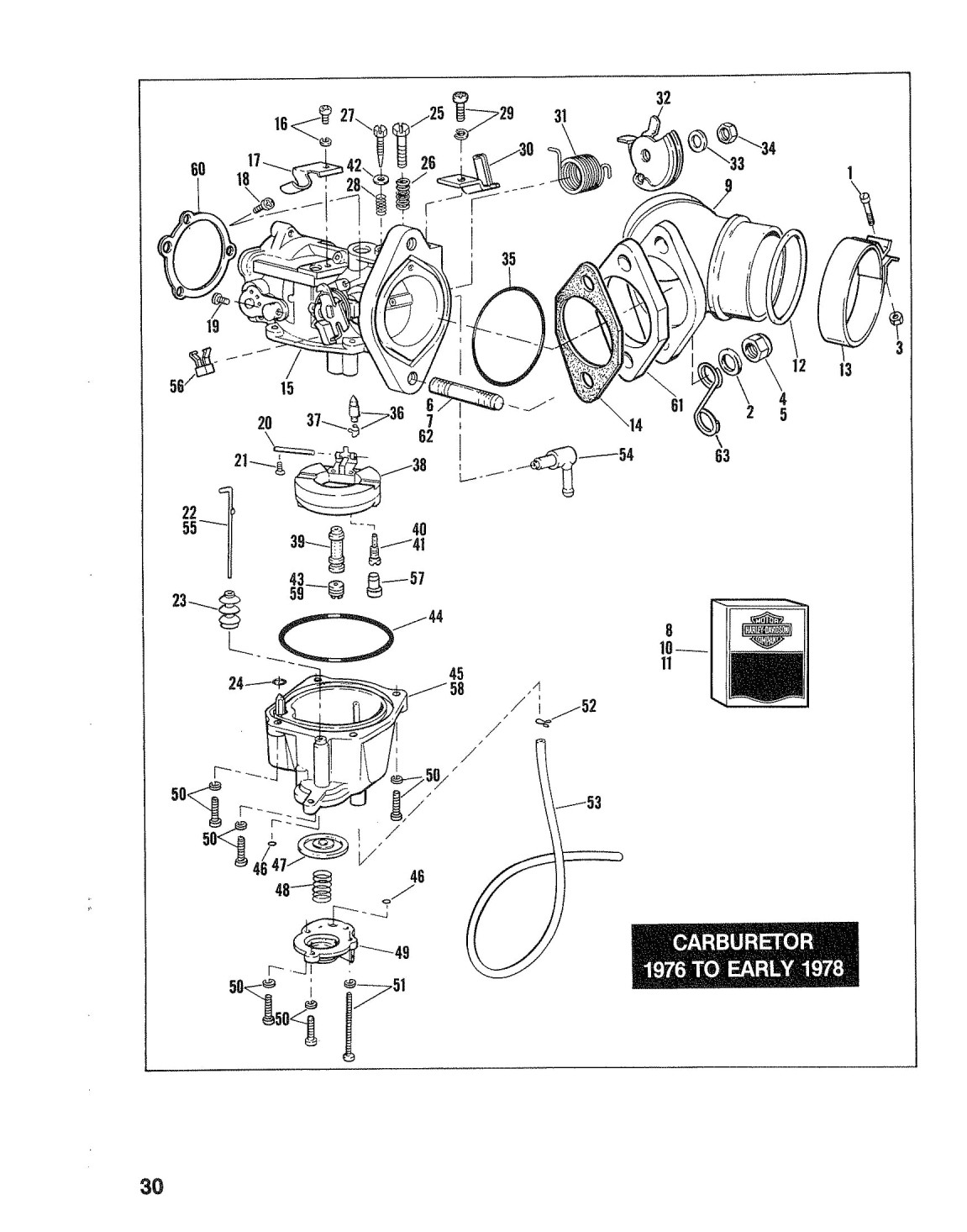

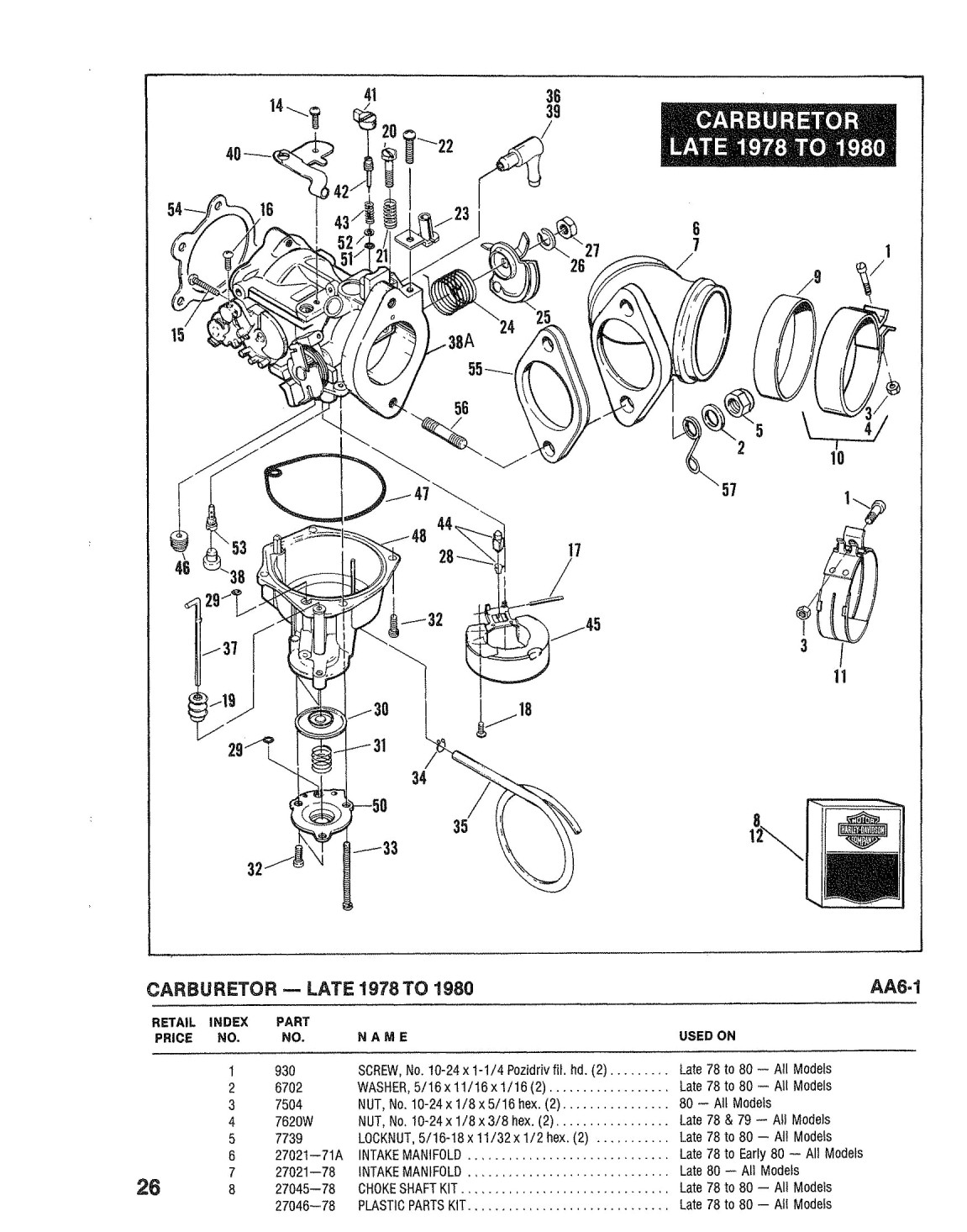

Carburetor — 1976 to Early 1978 . 31, 33 Carburetor — Late 1978 to 1980 . 26, 27

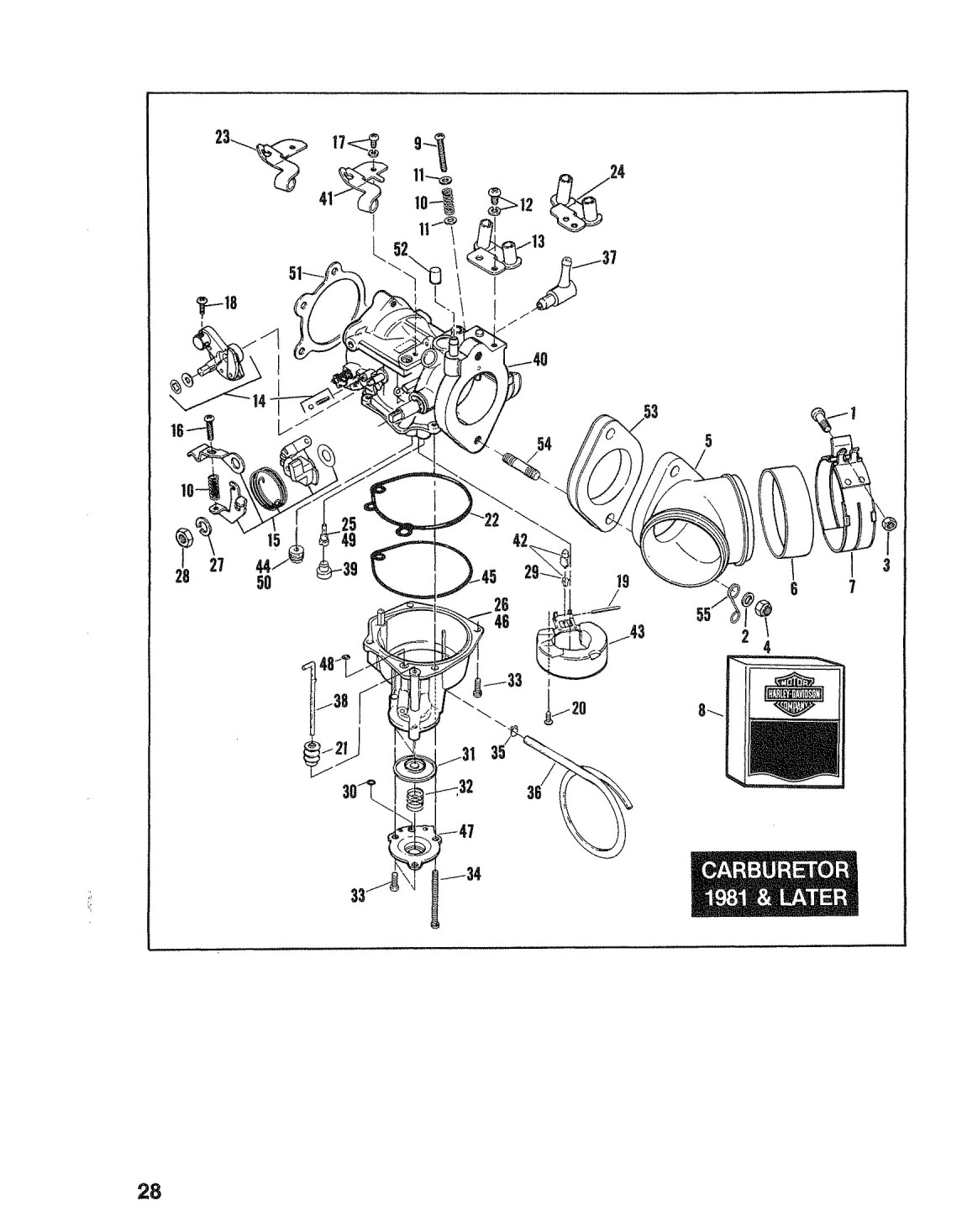

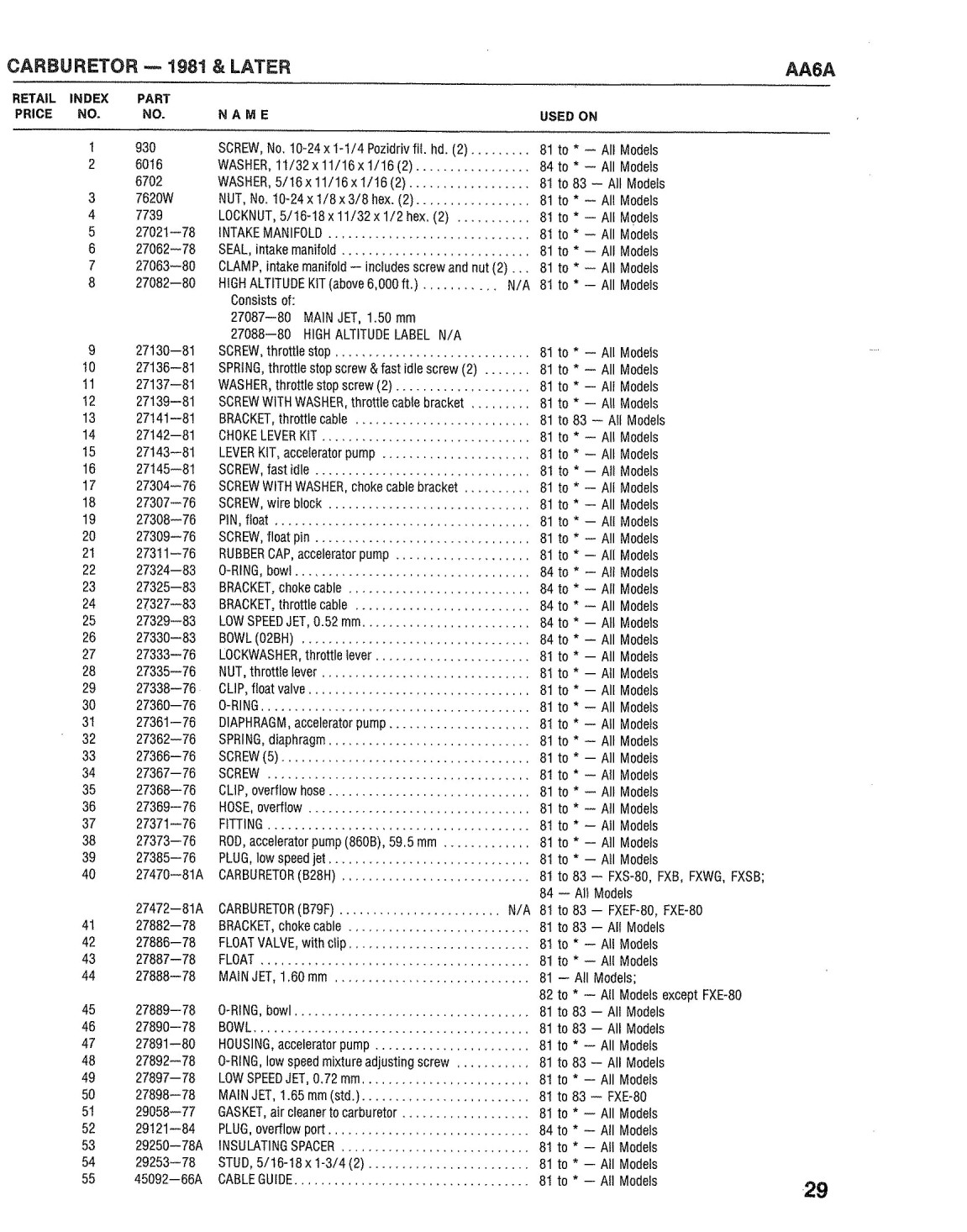

Carburetor — 1981 & Later...... 29

Cast Wheel .................. 123,131,133

Chain....................... 85

Chain Guard — Rear........... 169

Chain Oiler................... 183

Choke....................... 37, 39

Circuit Breaker............... 237

Clutch — 1979 to Early 1874 .... 79

Clutch — Late 1984 & Later..... 81

Clutch Hand Control........... 83

Connecting Rods ............. 13

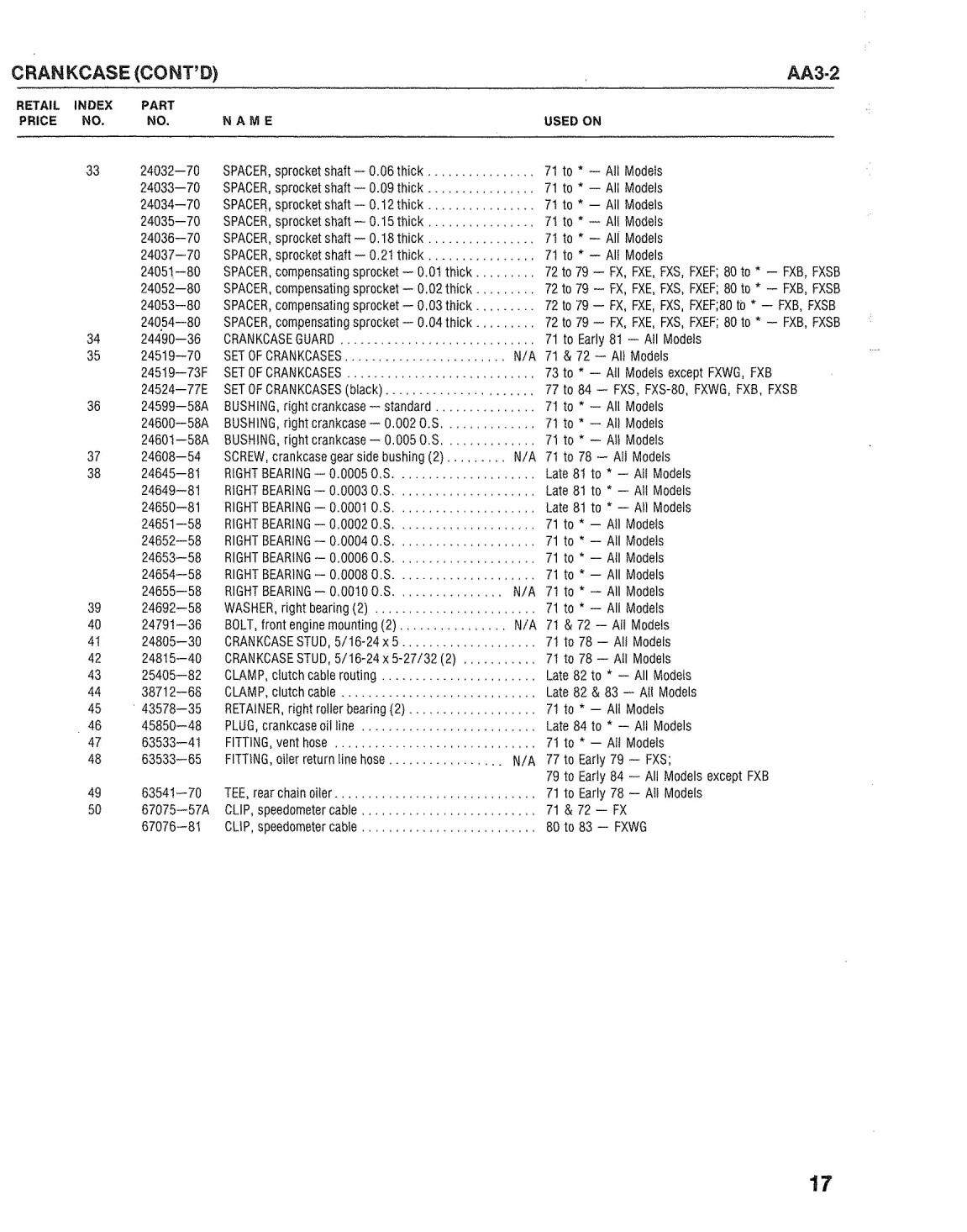

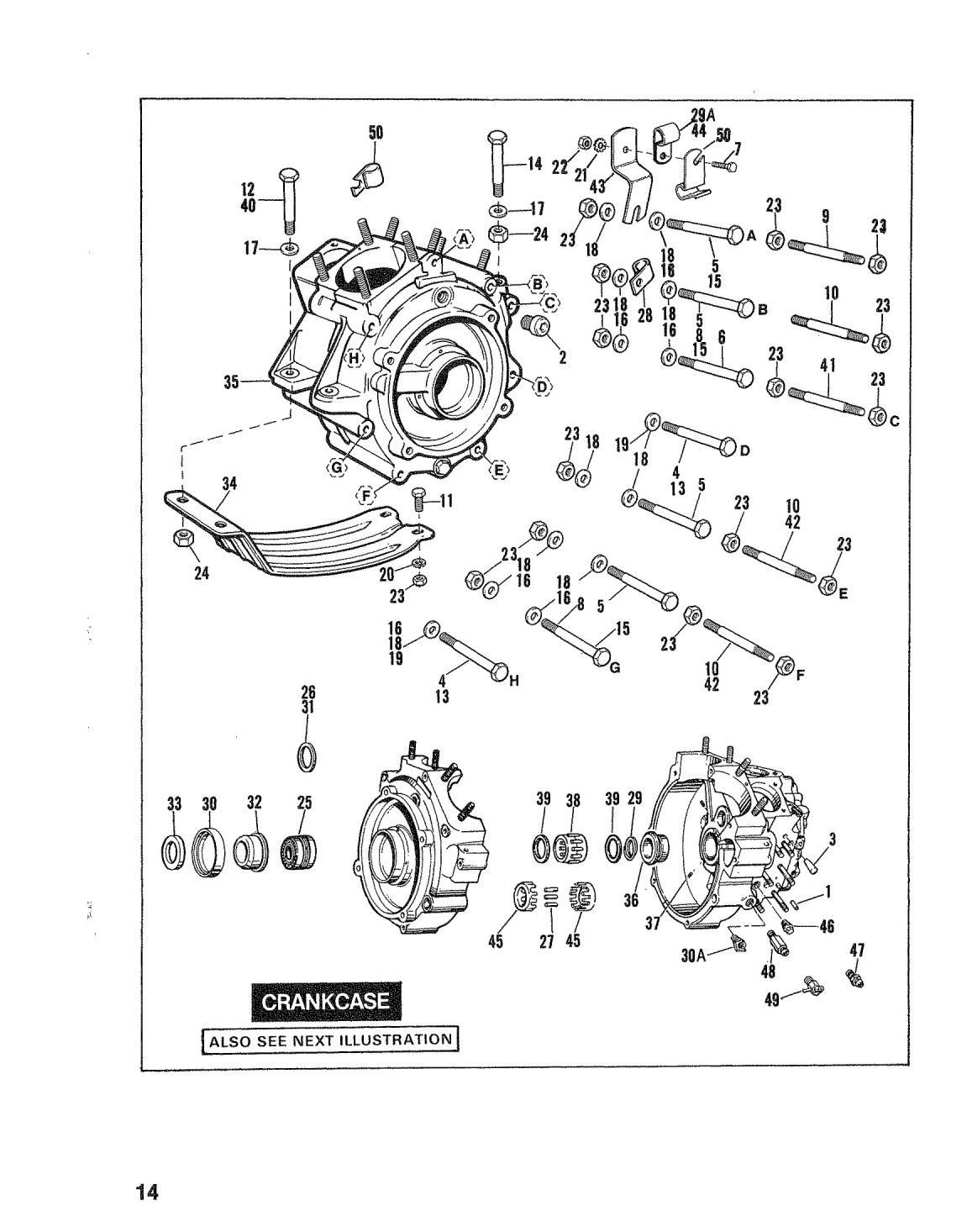

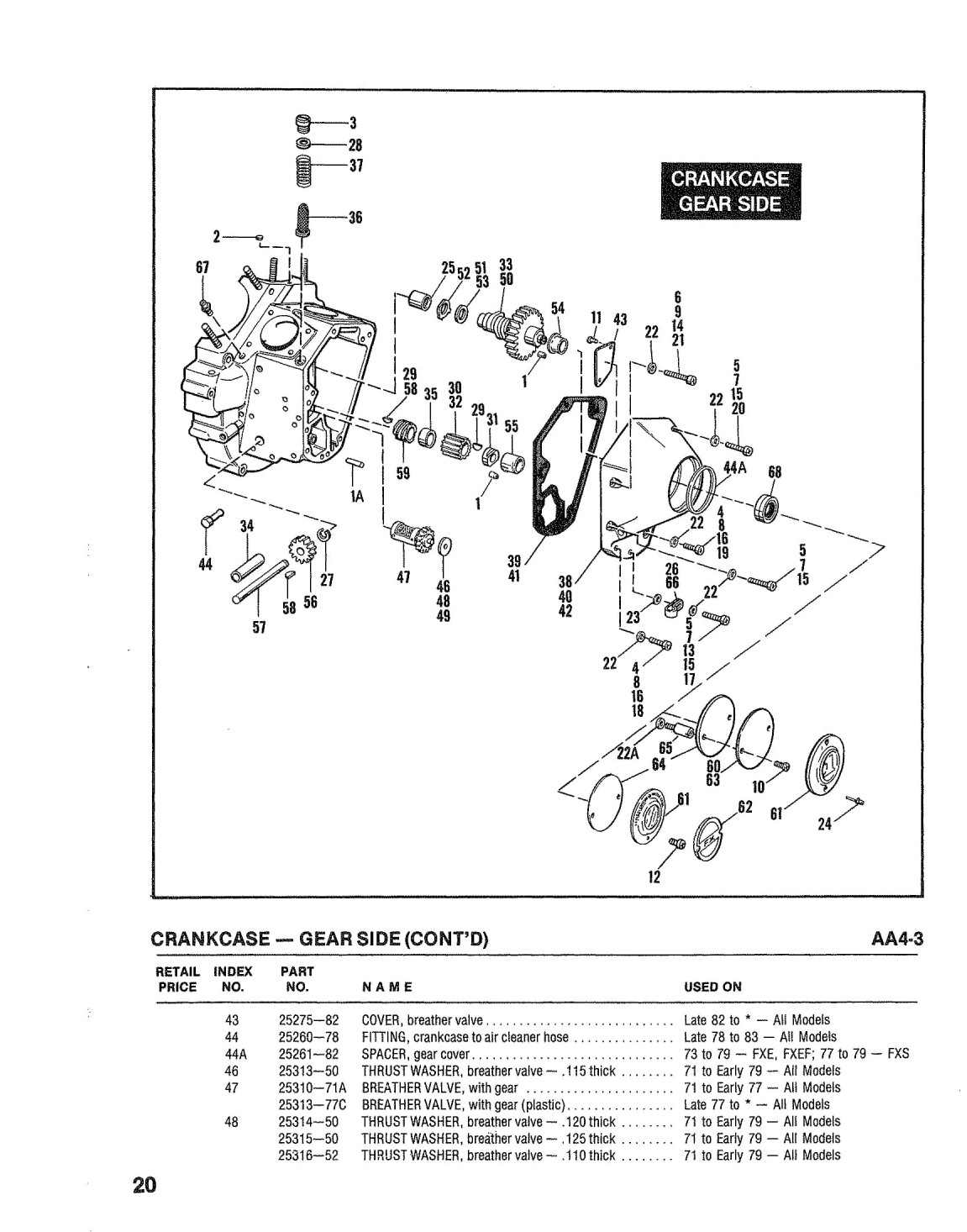

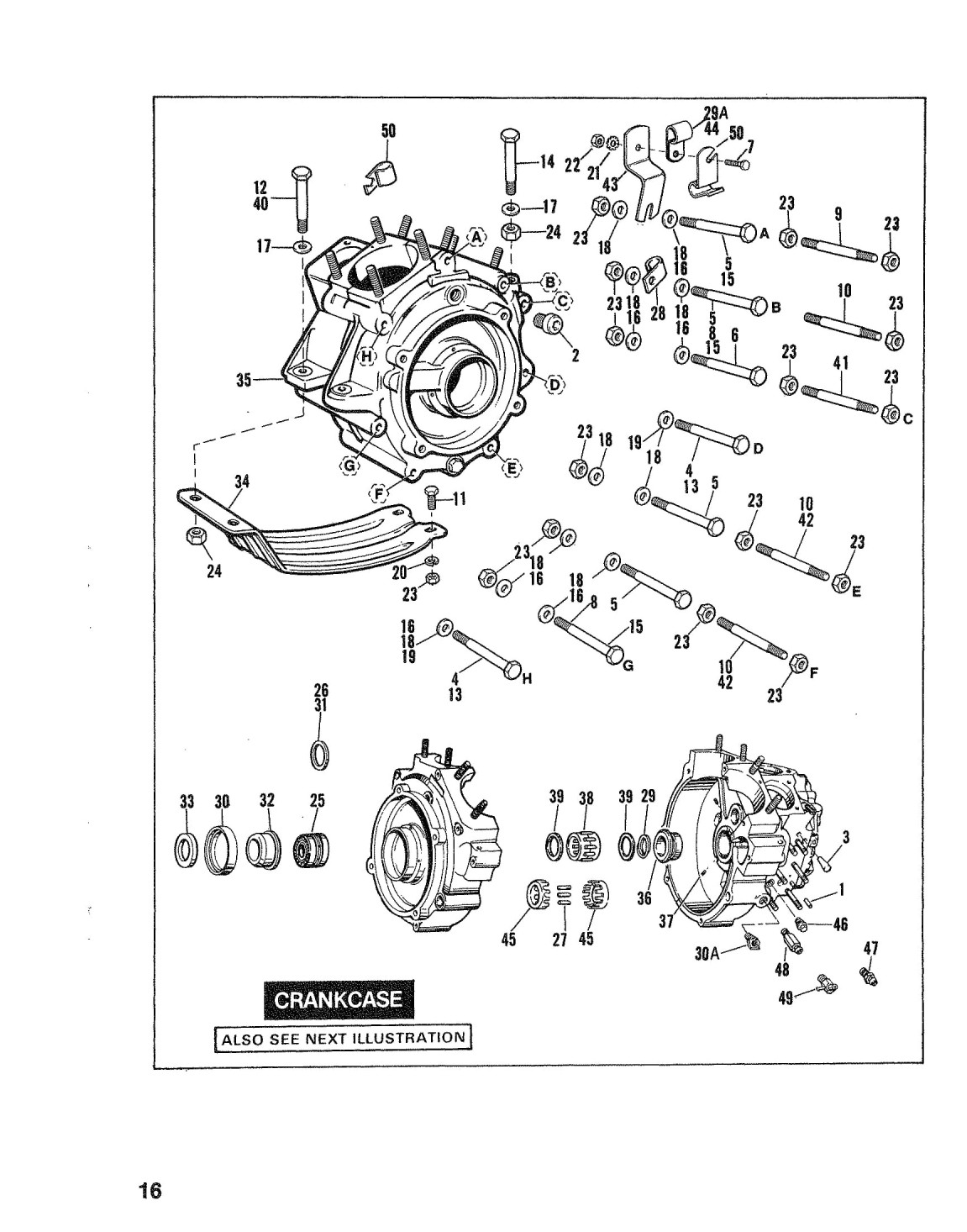

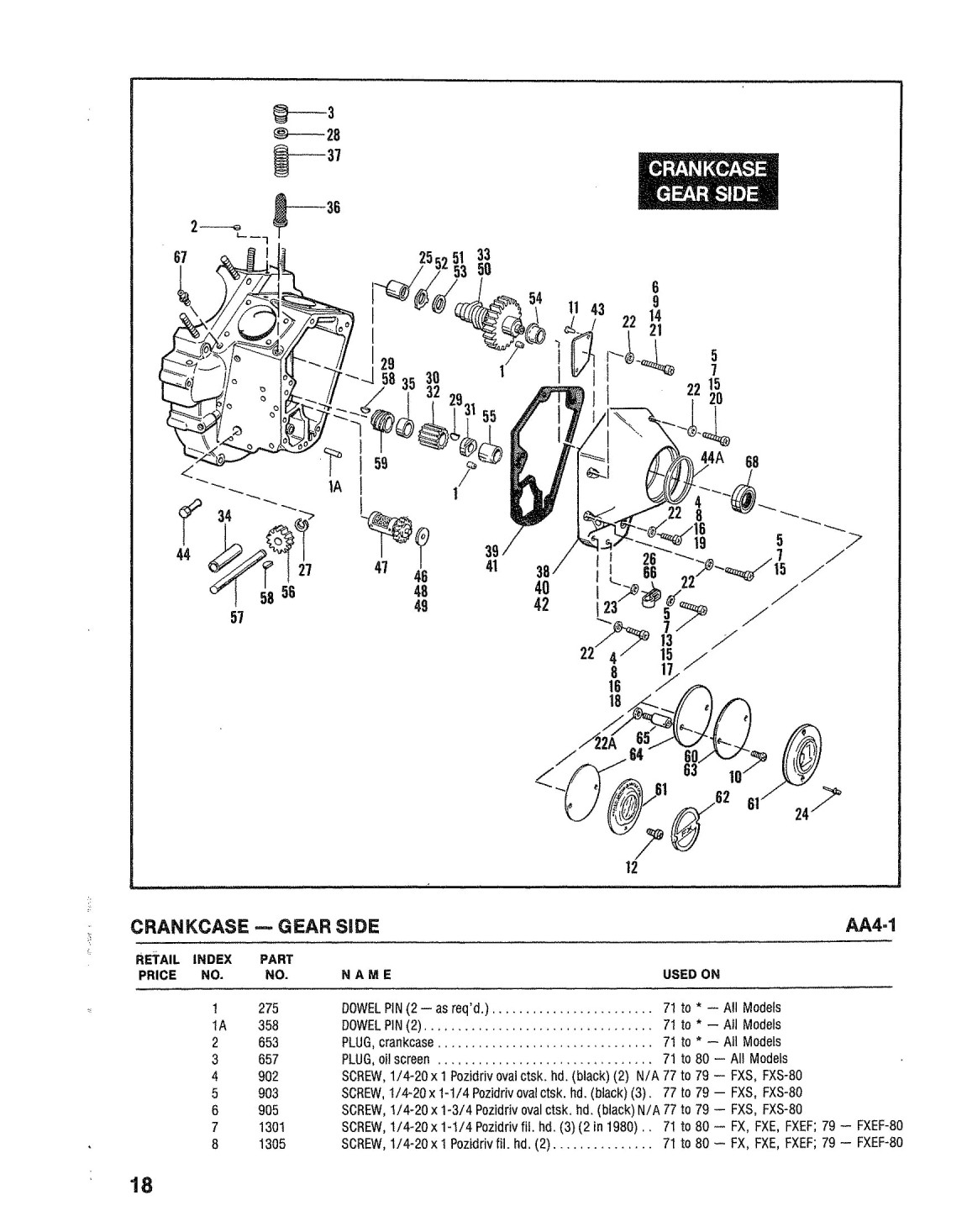

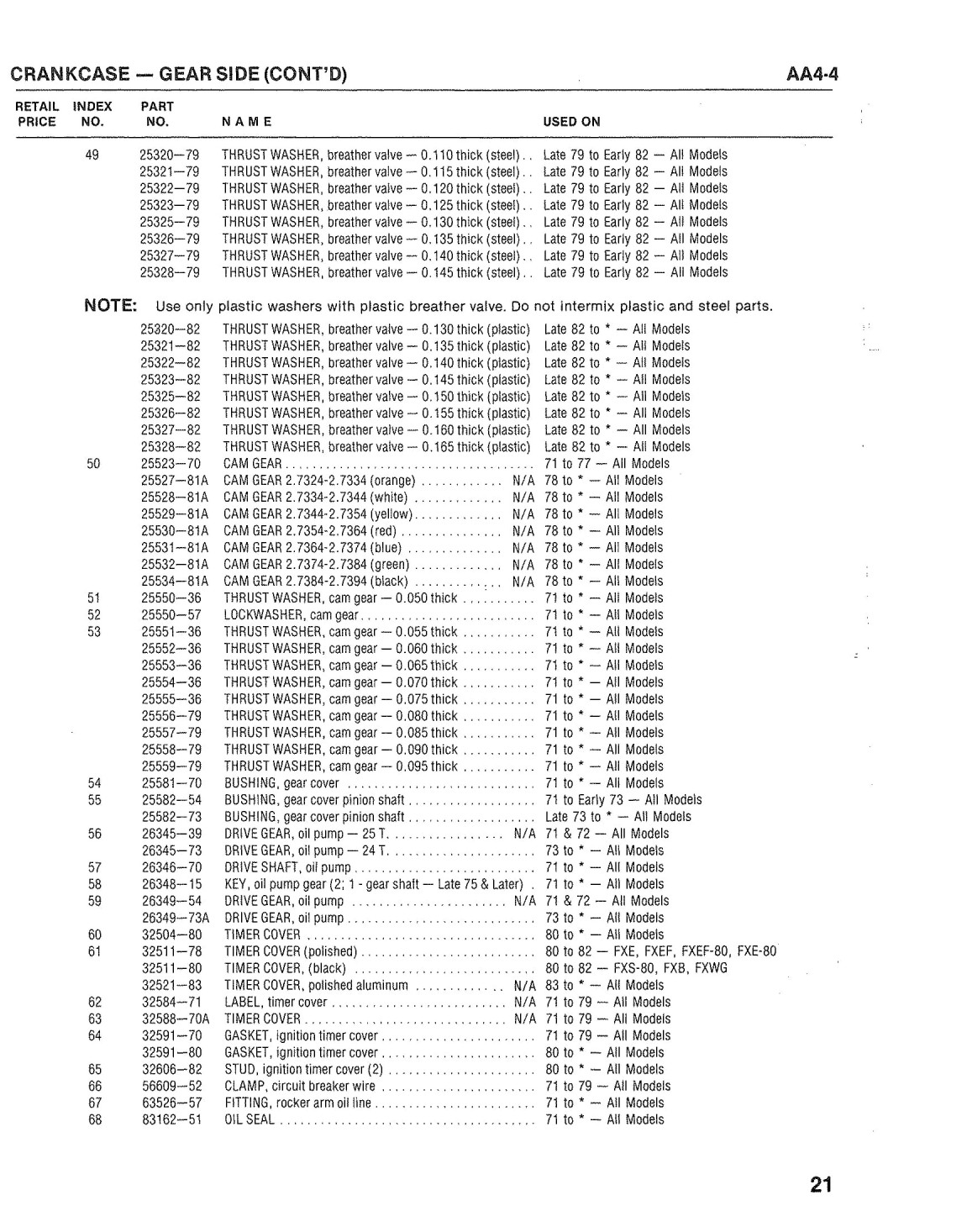

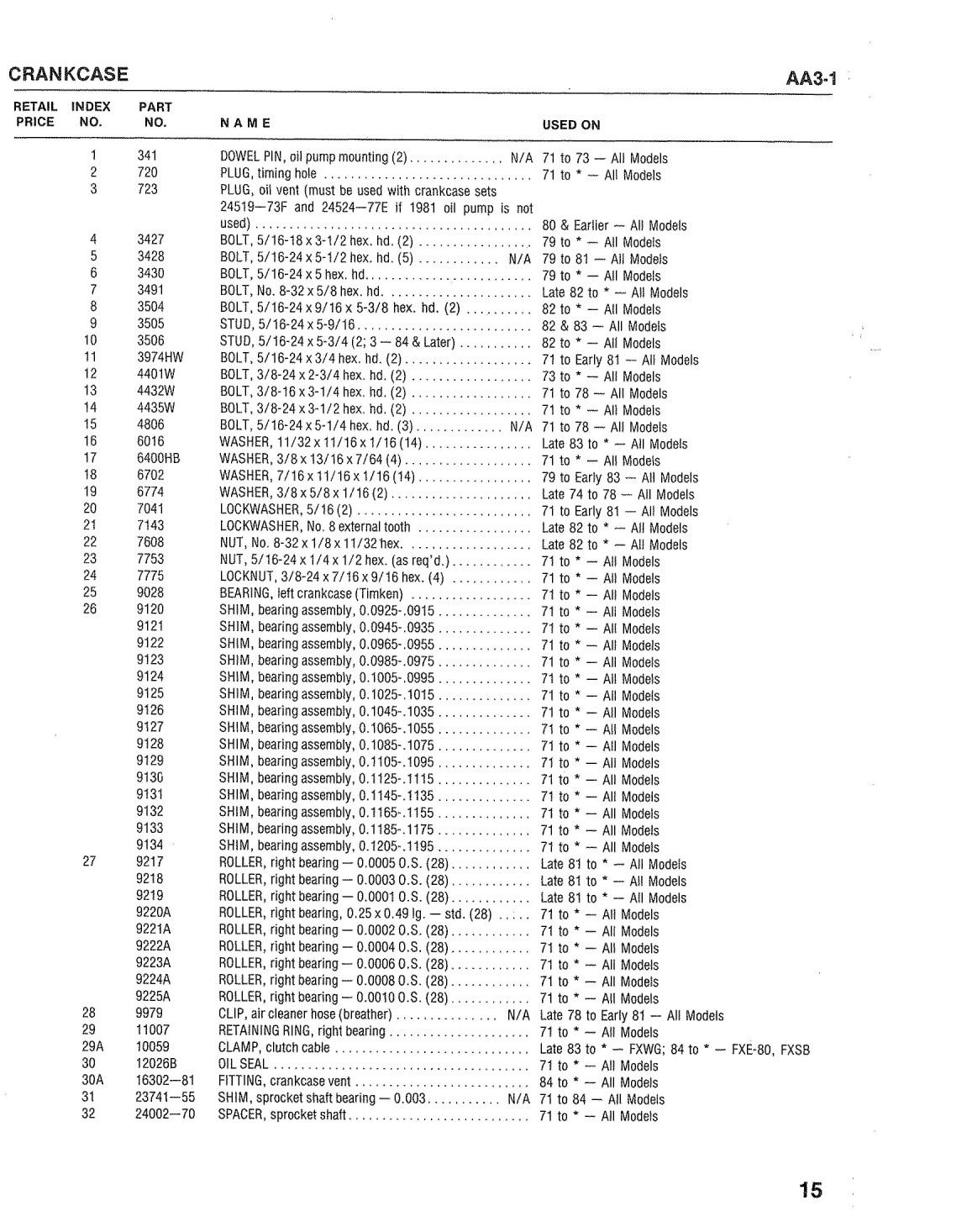

Crankcase................... 17

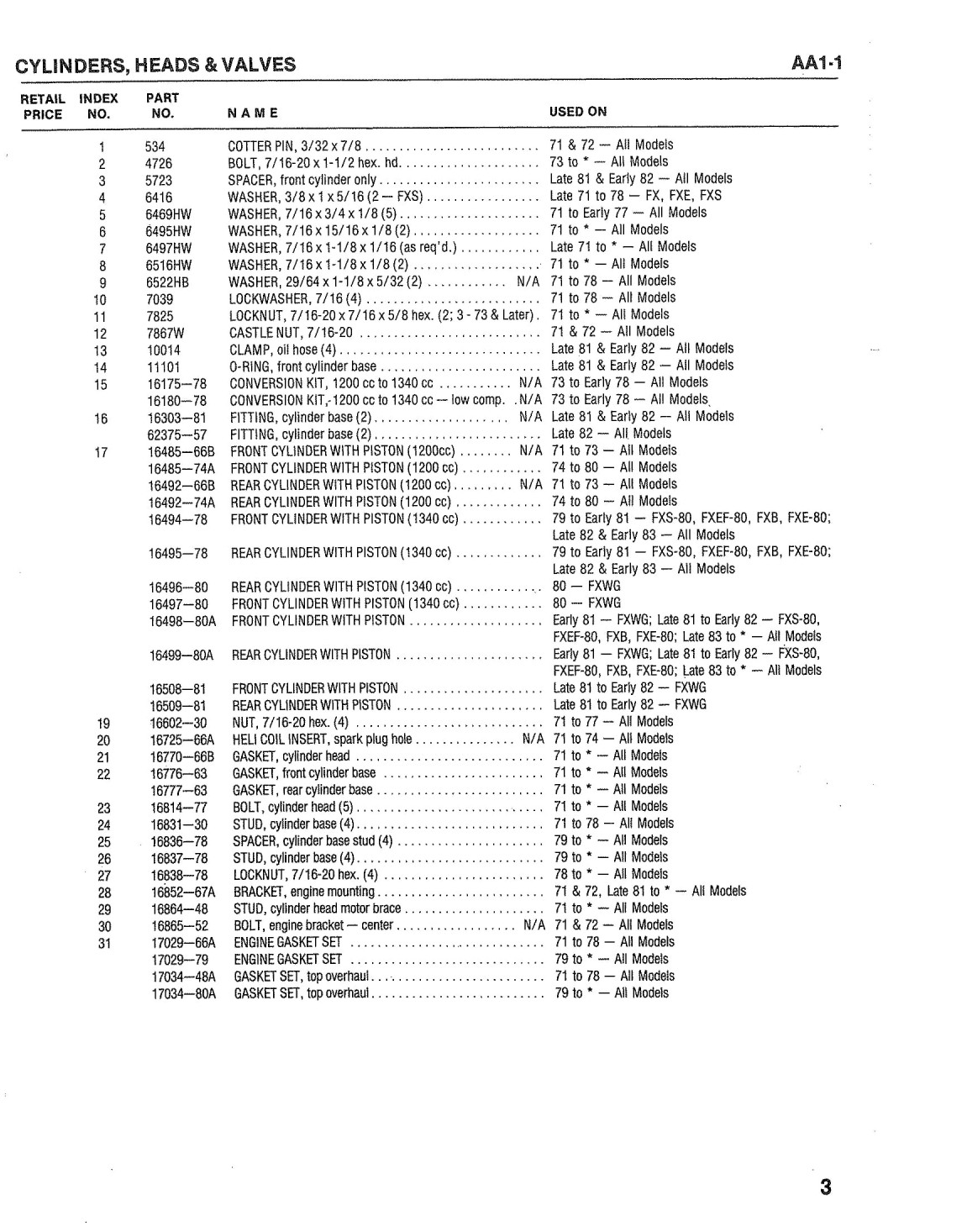

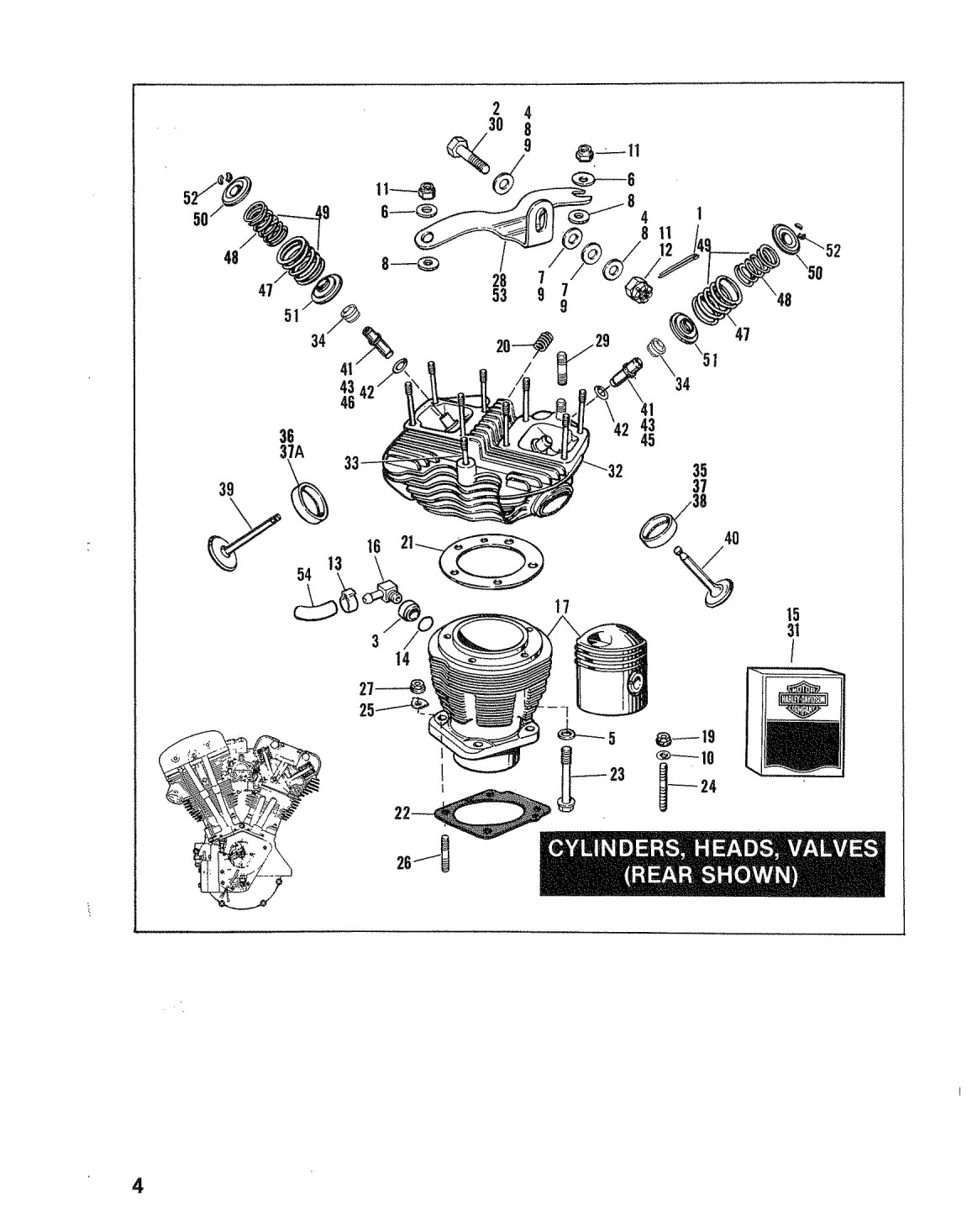

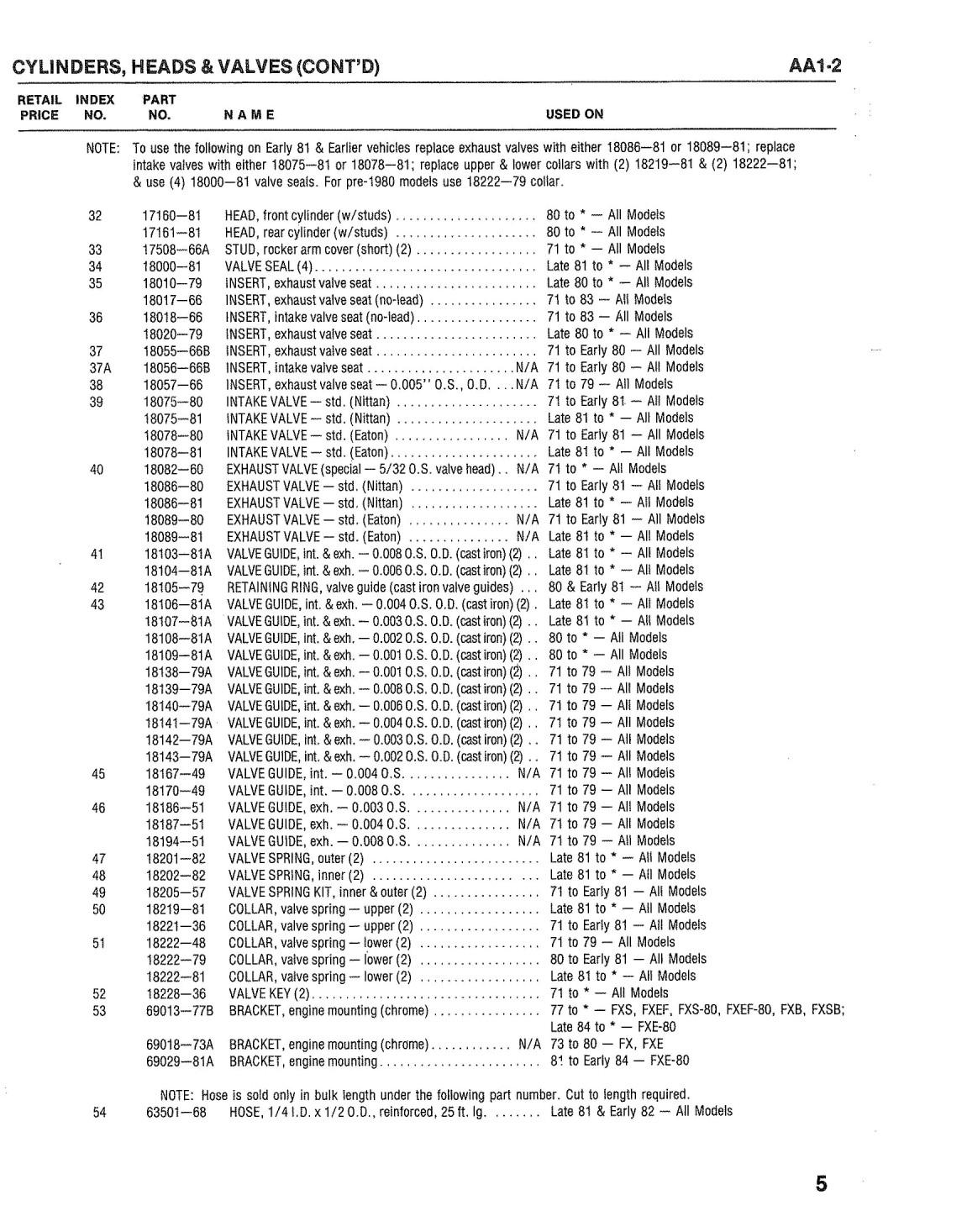

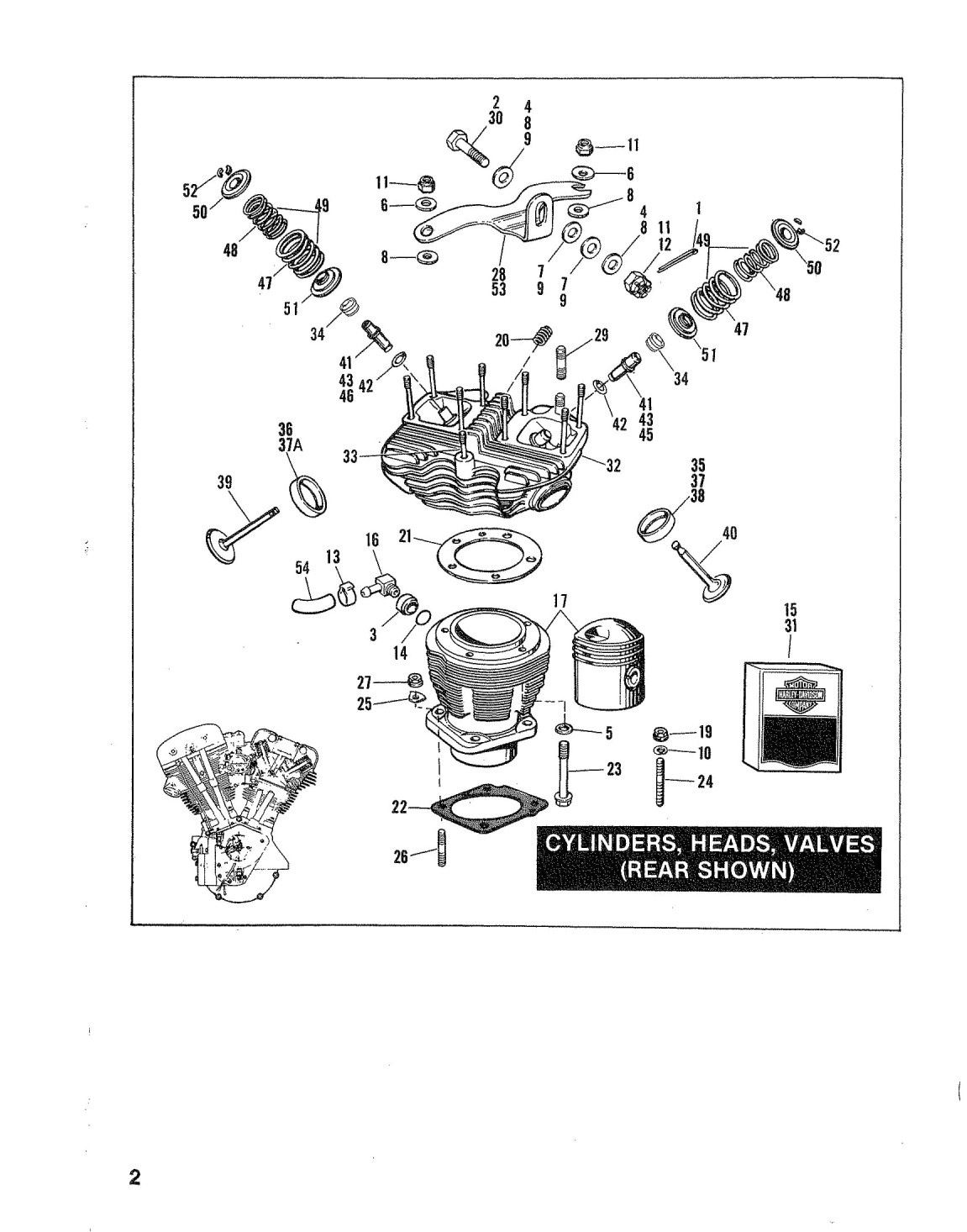

Cylinders.................... 3

Electrical.................... 223, 225

Electronic Ignition ............ 43, 47

Engine...................... 3

Exhaust Pipes................ 187, 189, 191, 193, 195,

197

Fenders..................... 167, 169

Flywheels.................... 13

Footrests.................... 155, 157

Footshift................;... 63, 65, 67, 69

Foot Shifter — Late 1979 & Later. 63, 65

Fork — Front................. 135, 137, 139, 141, 143,

145, 147

Fork —Rear.................. 149

Frame....................... 149

FXDG — Parts................ 248, 249, 250, 251

Gas Tanks................... 177, 179

Gas Tank Trim................ 181

Gaskets..................... 3, 5, 9, 173, 175

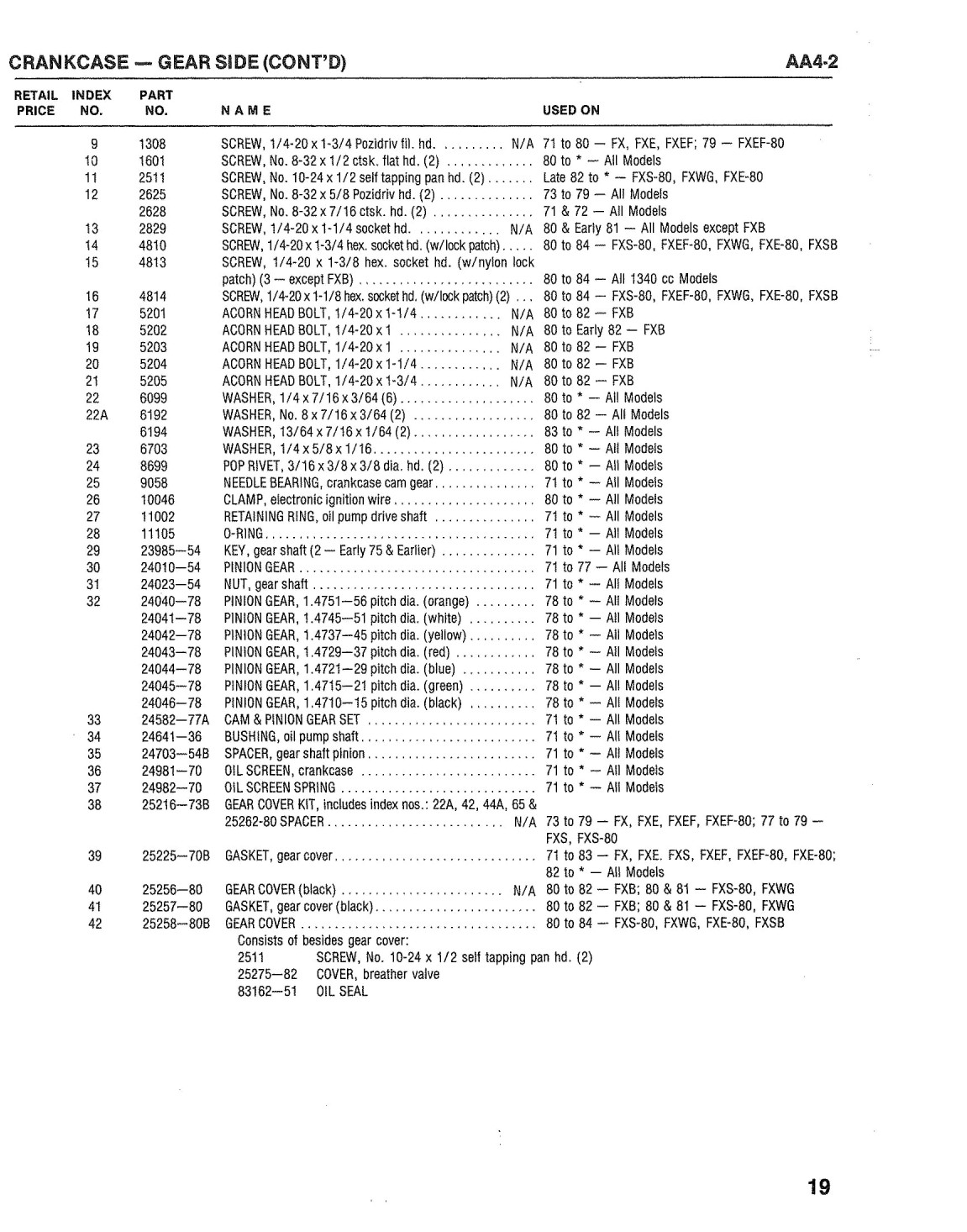

Gear Case Cover.............. 19

Handlebar ................... 161, 163

Headlamp.................... 209,211

Horn........................ 221

Ignition Circuit Breaker........ 49

Page

Ignition Module............... 43, 47

Ignition Switch............... 241

Ignition Switch — FXWG....... 243

Indicator Lamps .............. 213, 235, 237

Instrument Panel.............. 235, 237

JiffyStand................... 151

Kick Starter.................. 59, 61

License Plate Bracket.......... 171

Master Cylinder............... 89, 91, 109, 111, 113, 115

Mirror....................... 221

Mufflers..................... 187, 189, 191, 193, 195,

197

Numerical Index.............. 252

Oil Cooler.................... 185

Oil Filter..................... 184

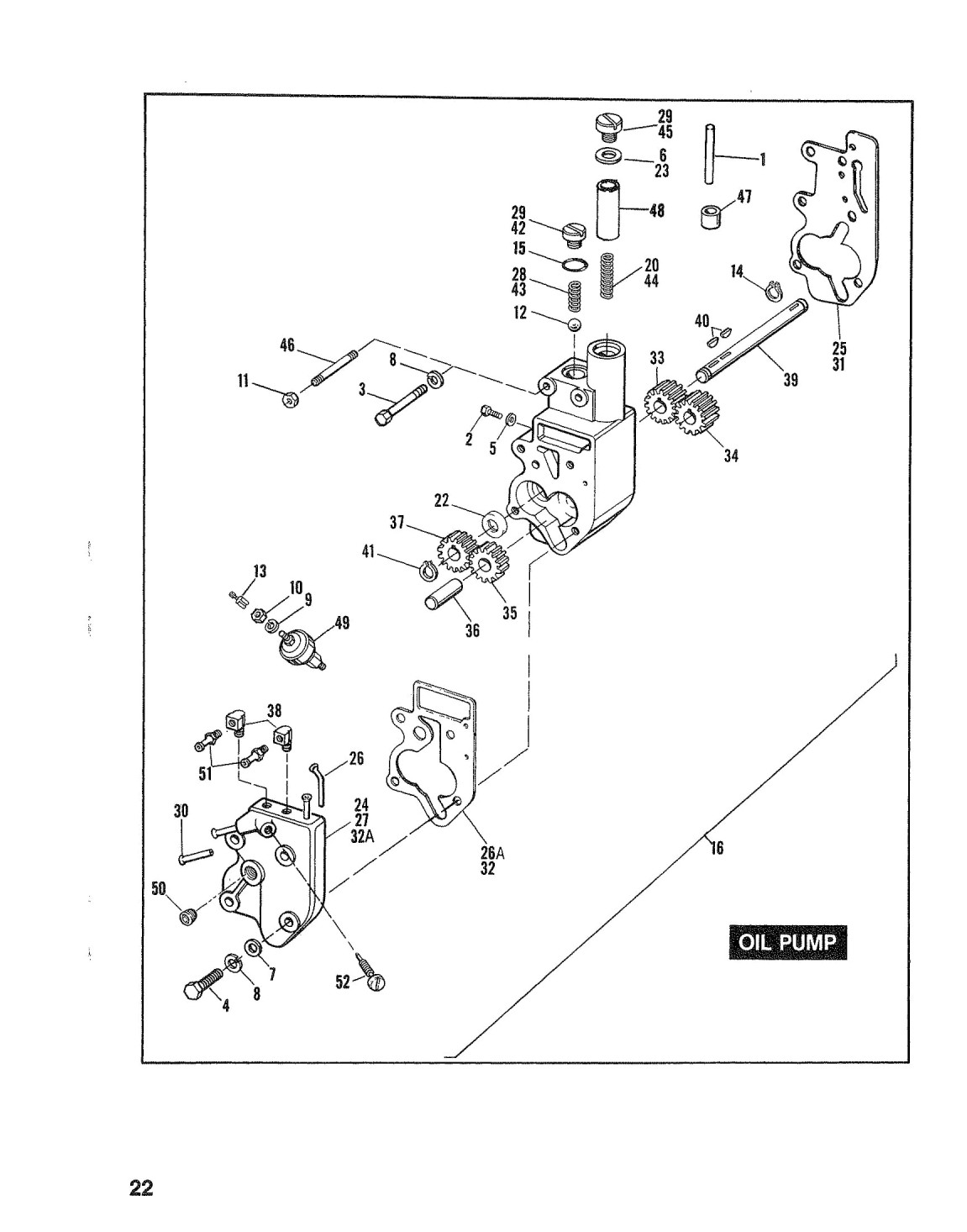

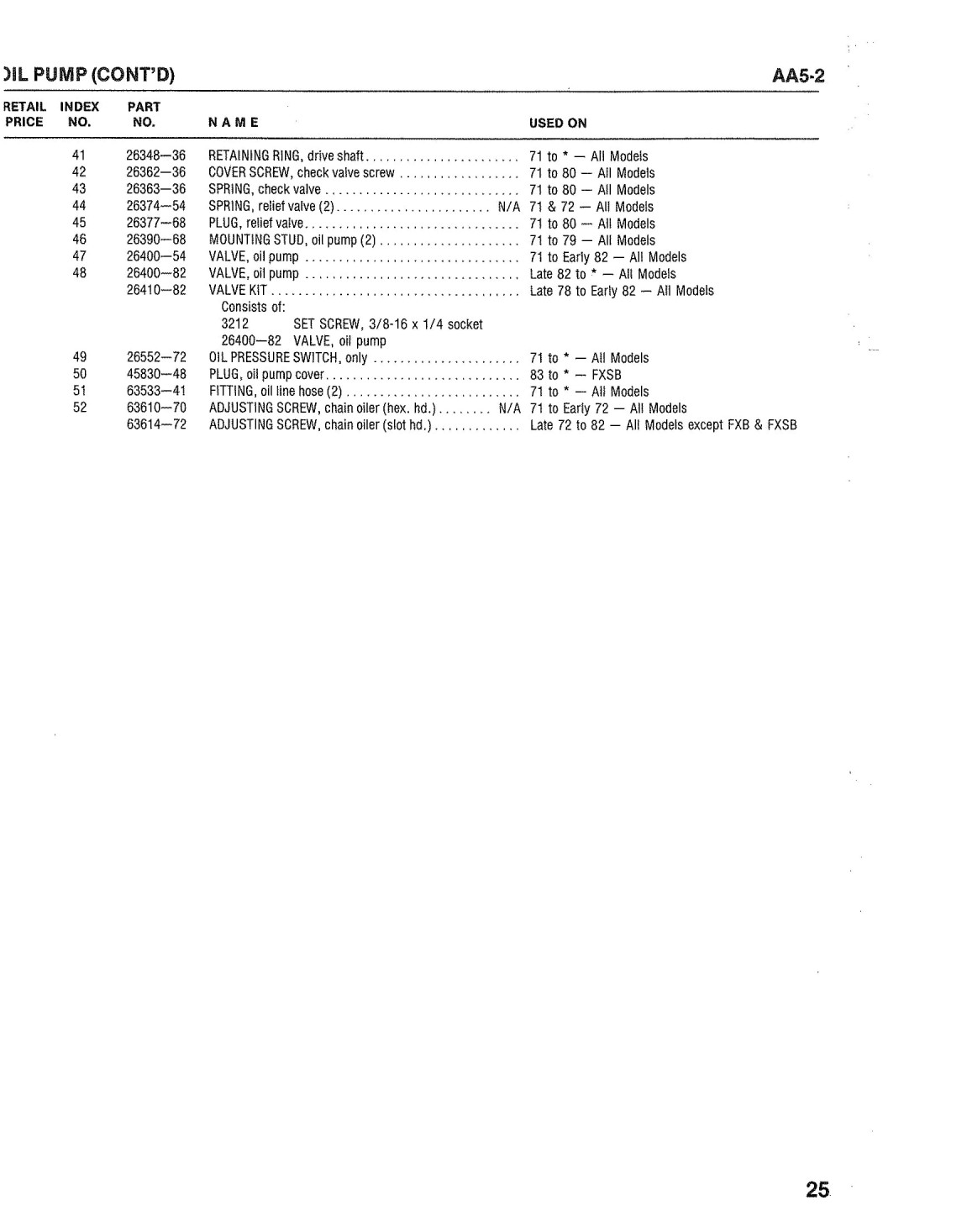

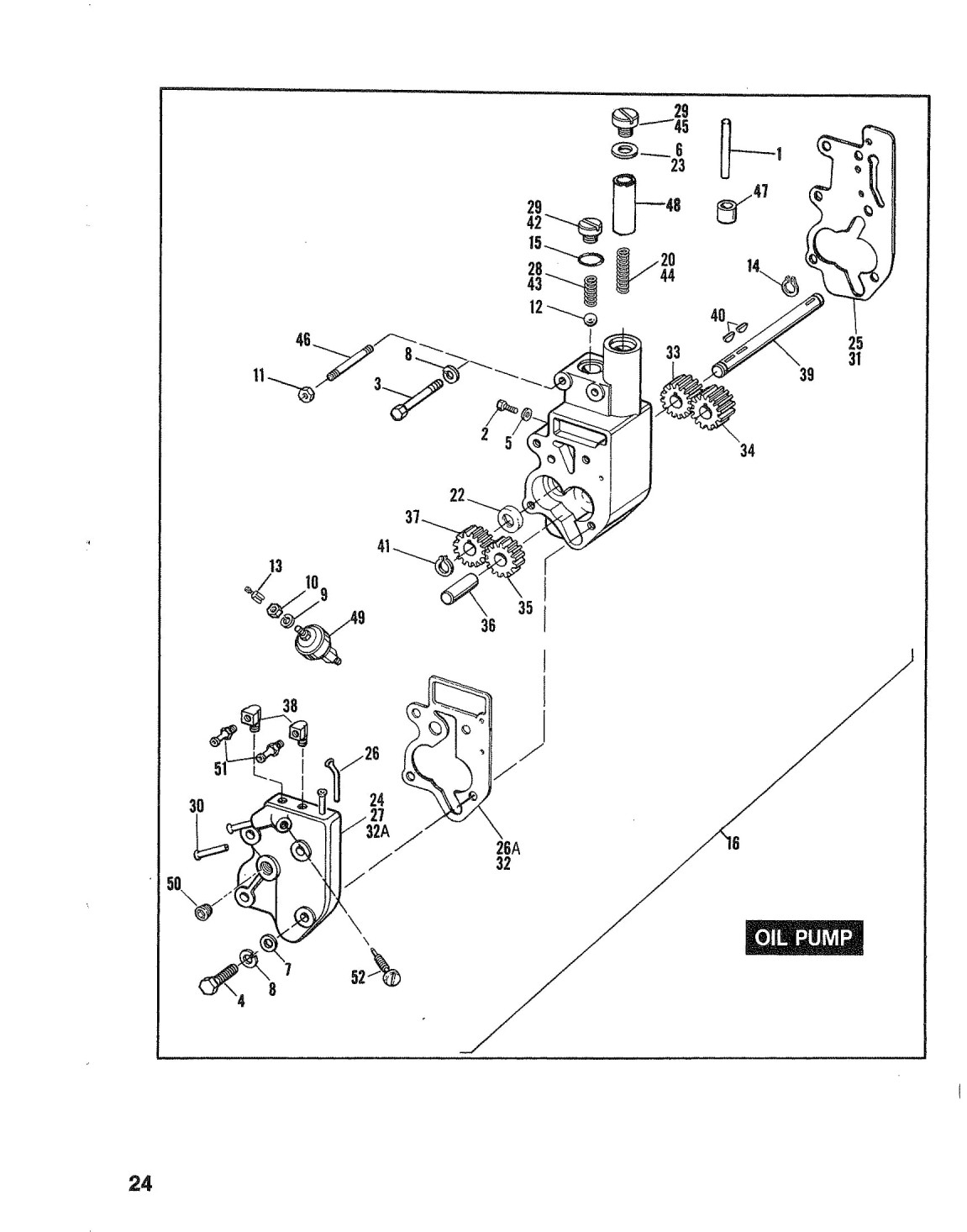

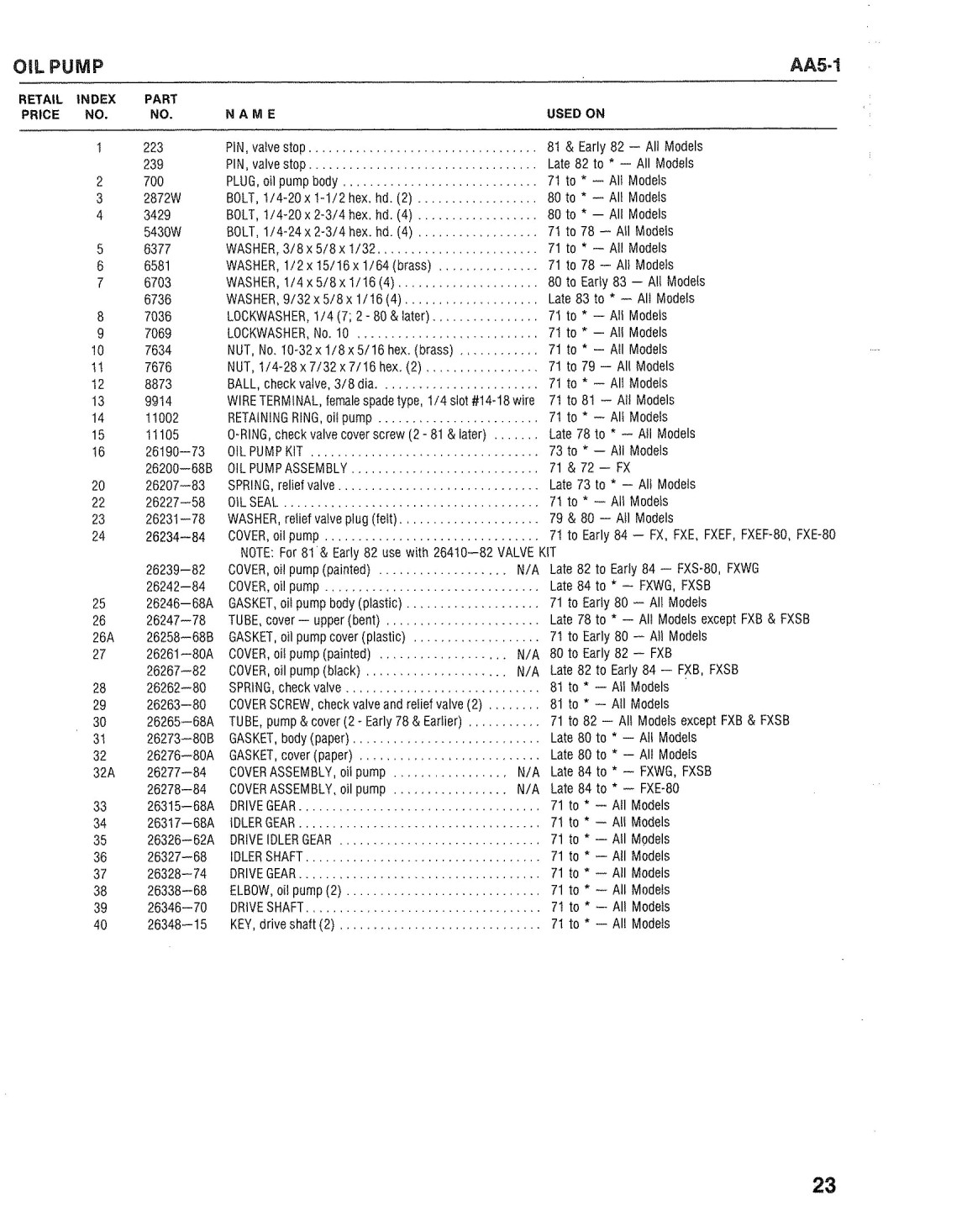

Oil Pump .................... 23, 25

Oil Tank..................... 183

Parking Lamps................ 217

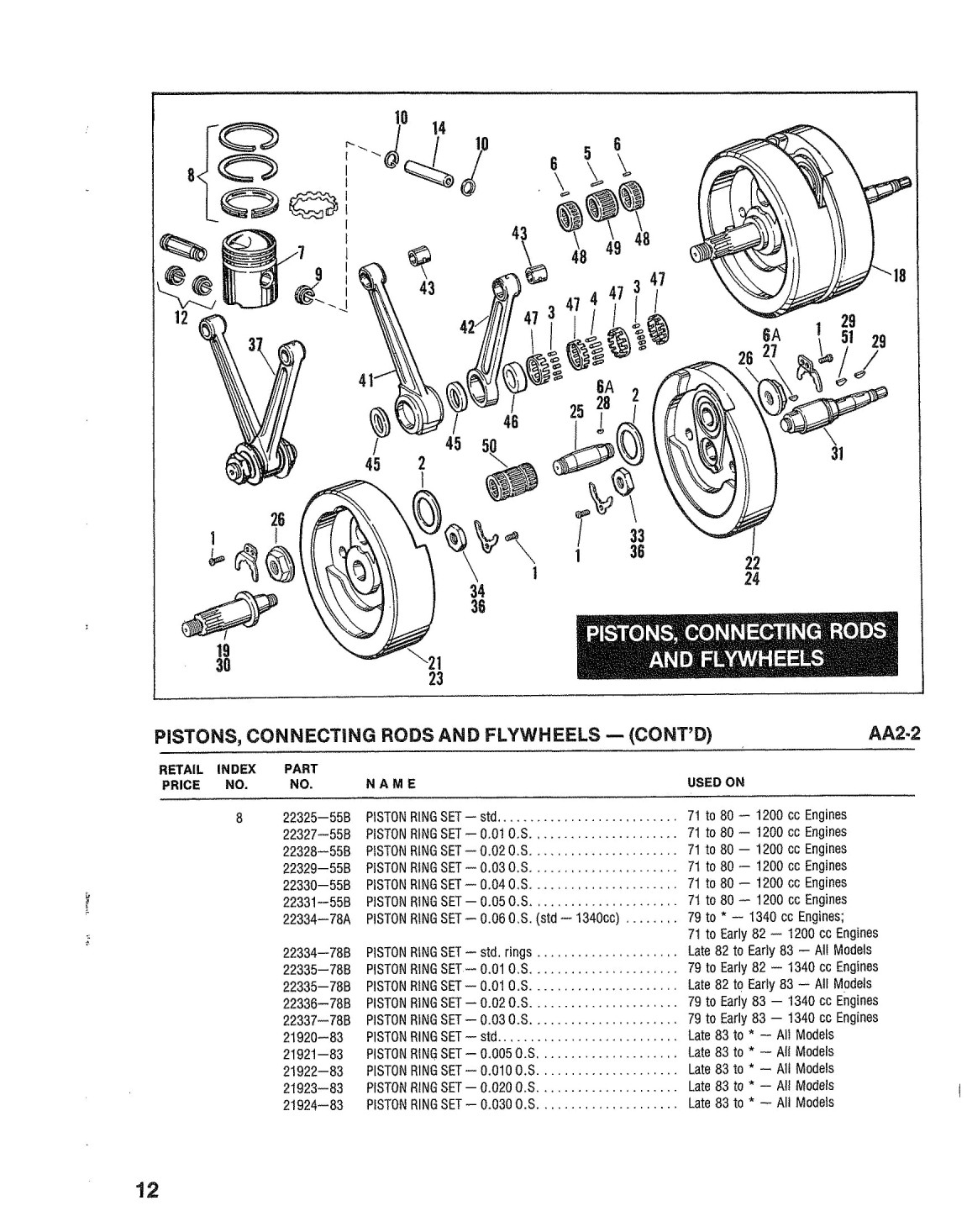

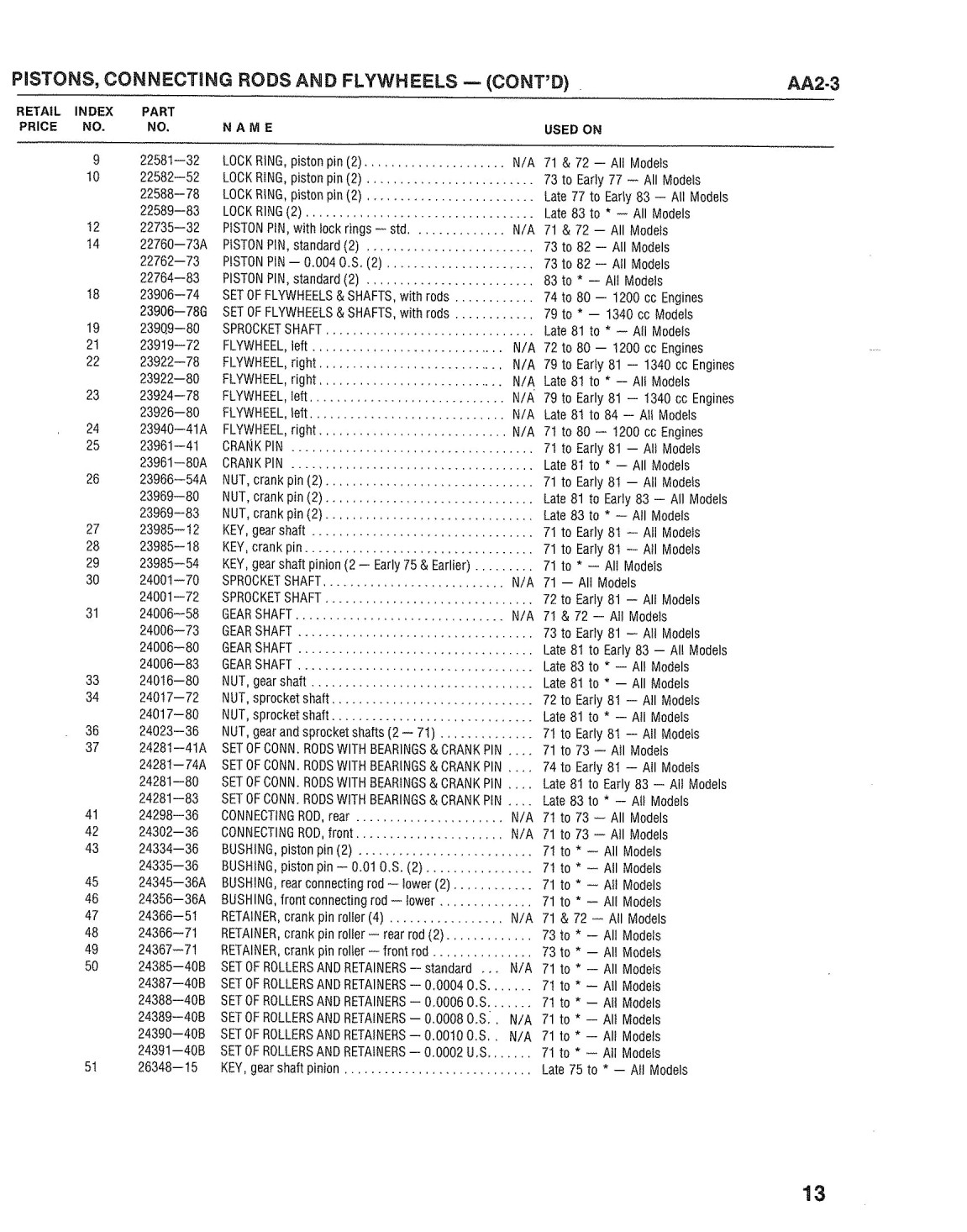

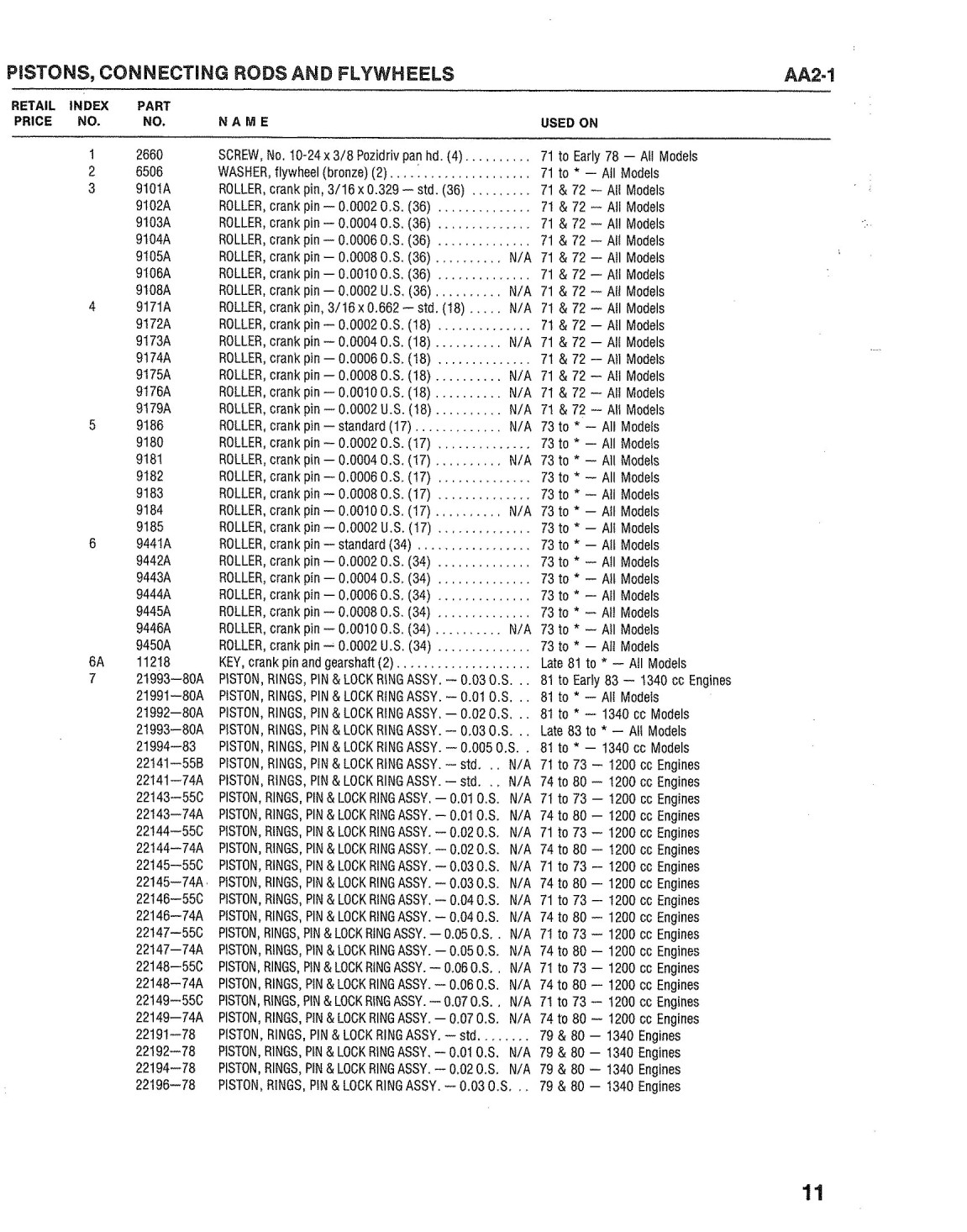

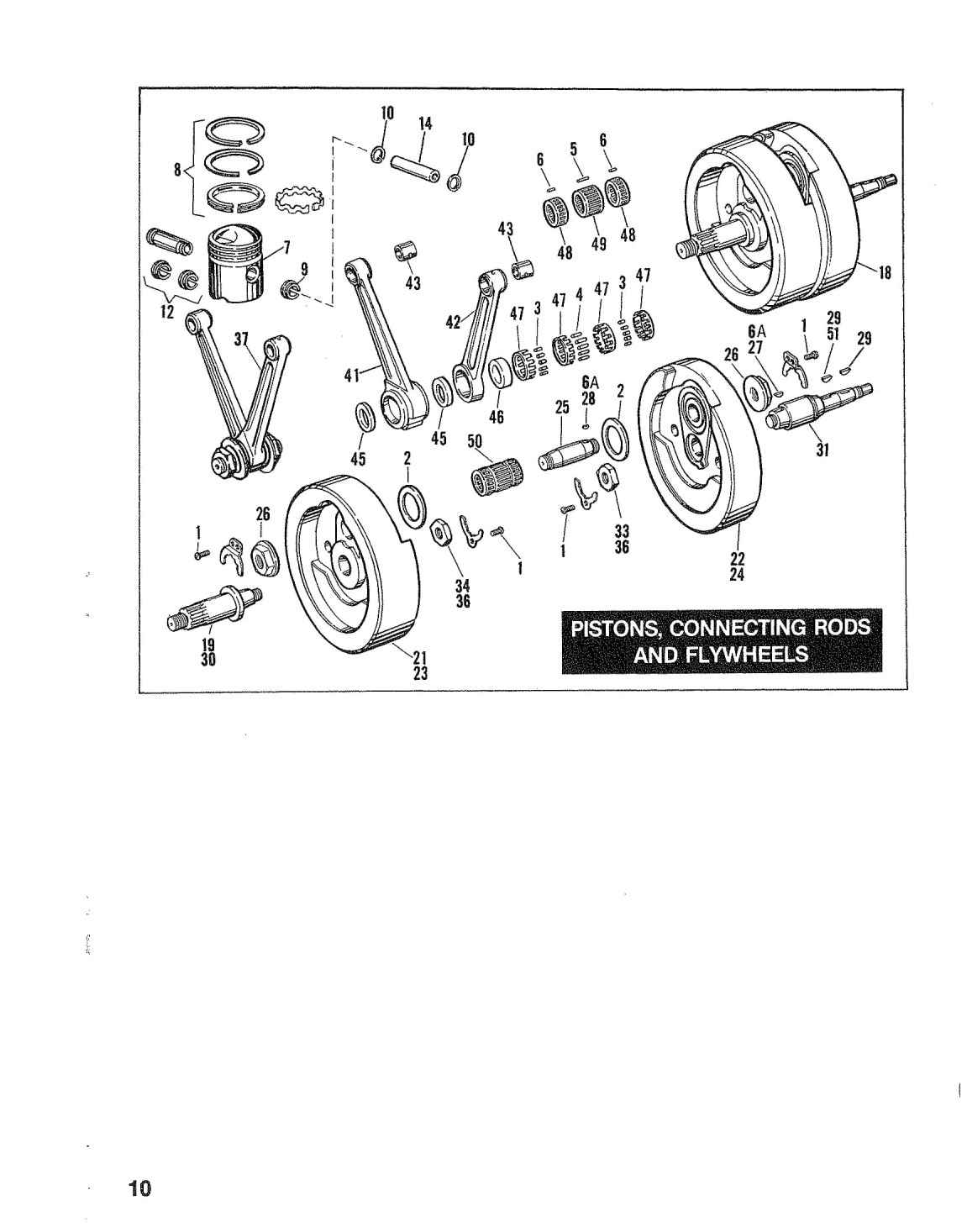

Pistons...................... 3,11

Points....................... 49

Primary Housing.............. 173, 175

Push Rods................... 7

Rims........................ 119,121,129

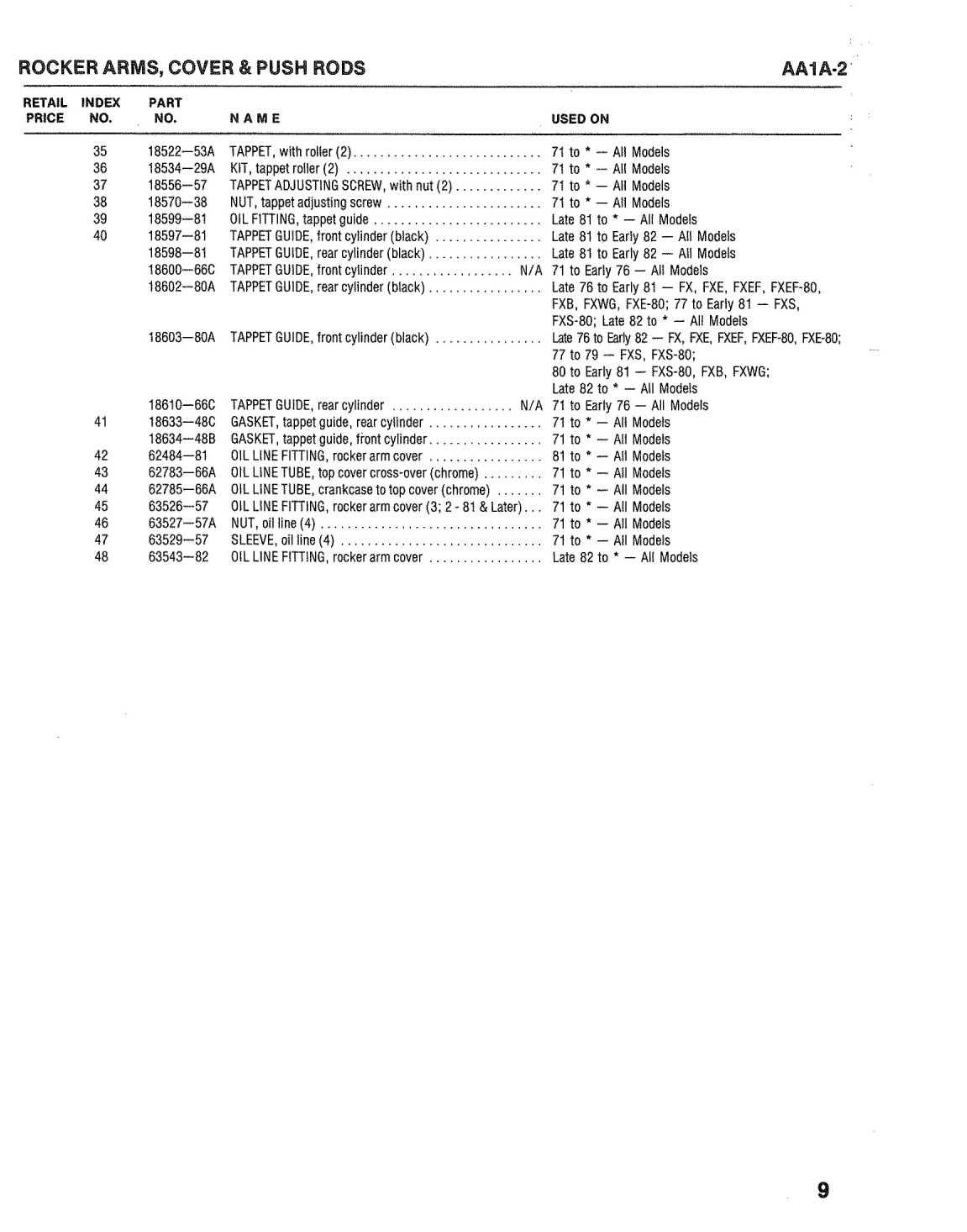

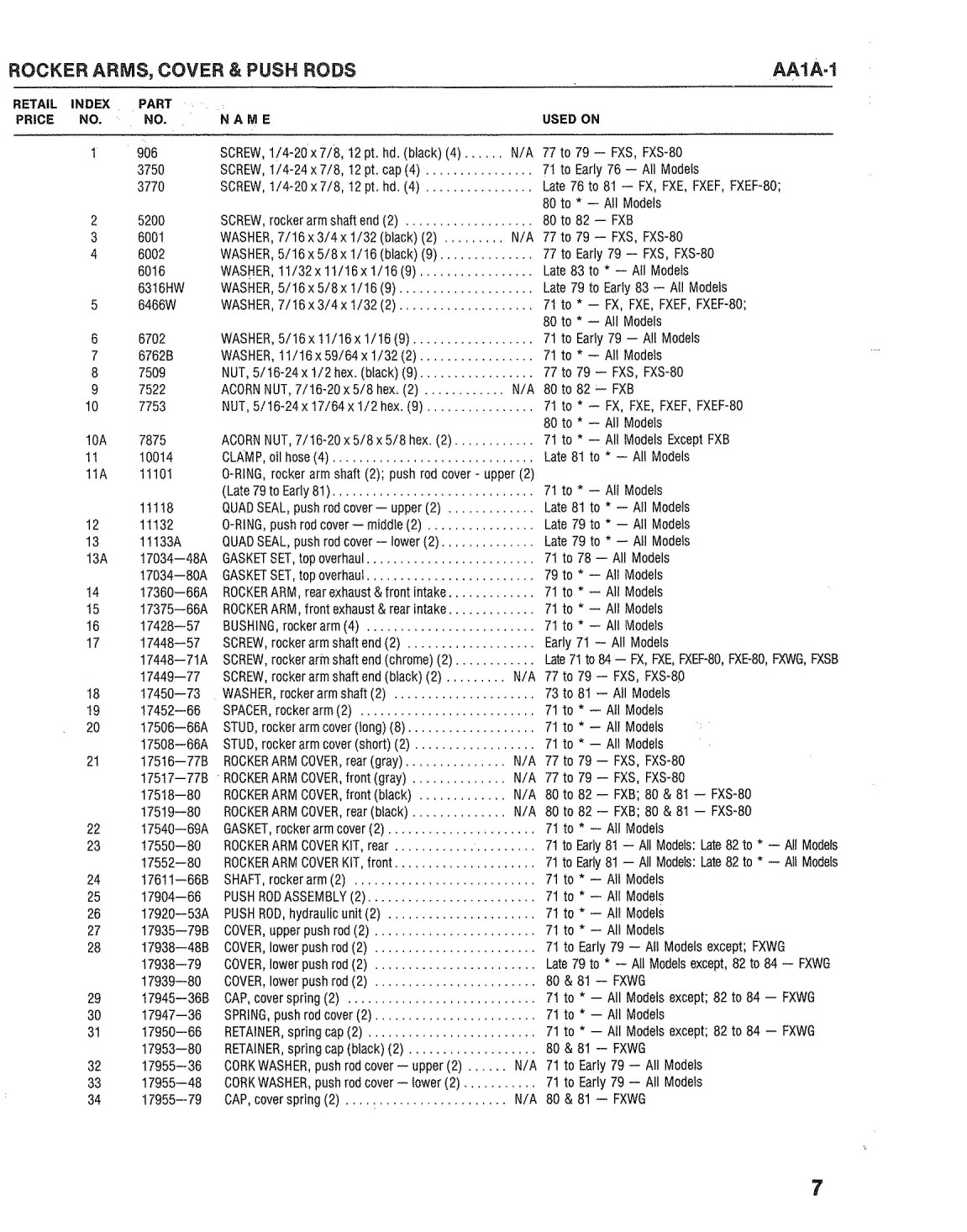

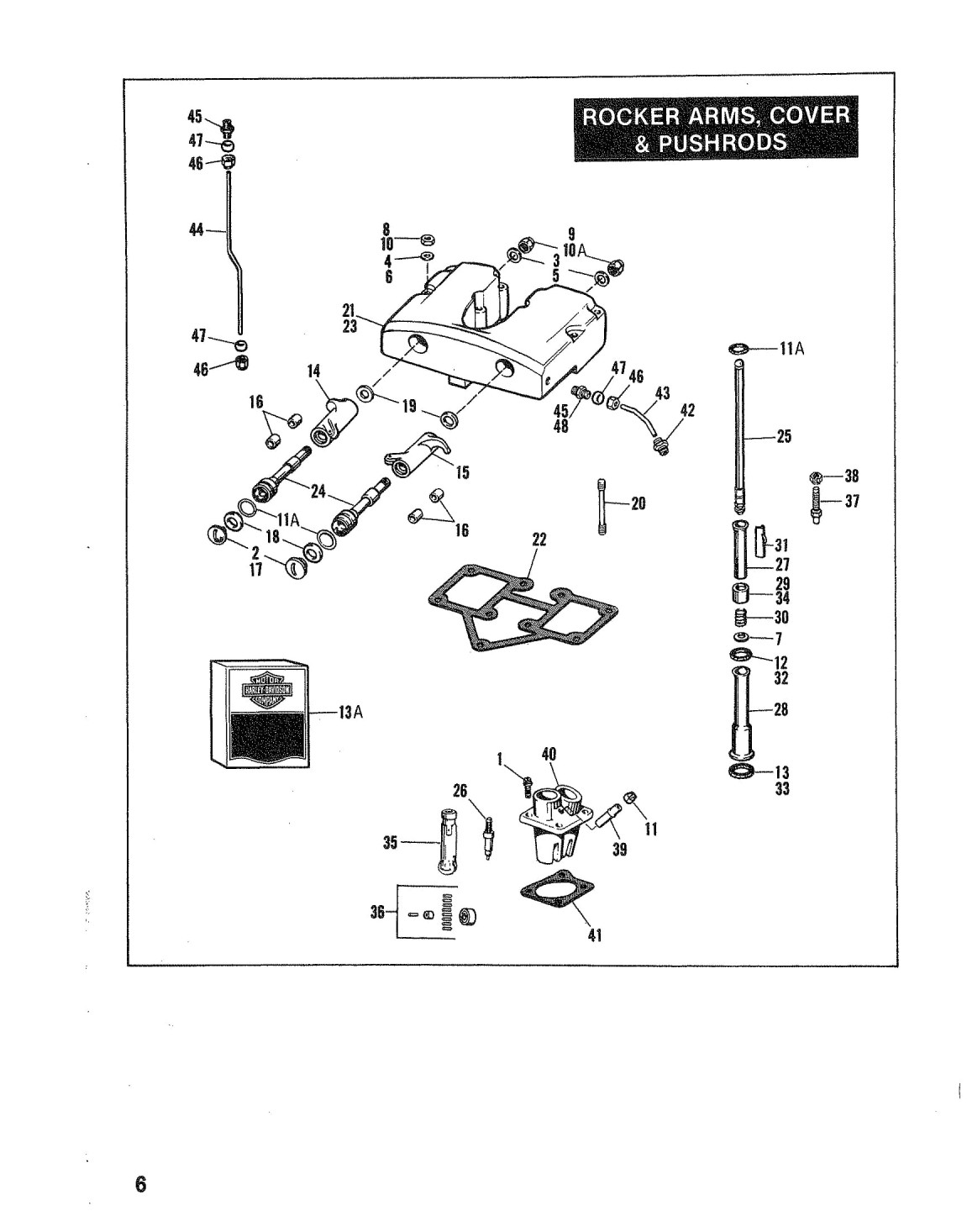

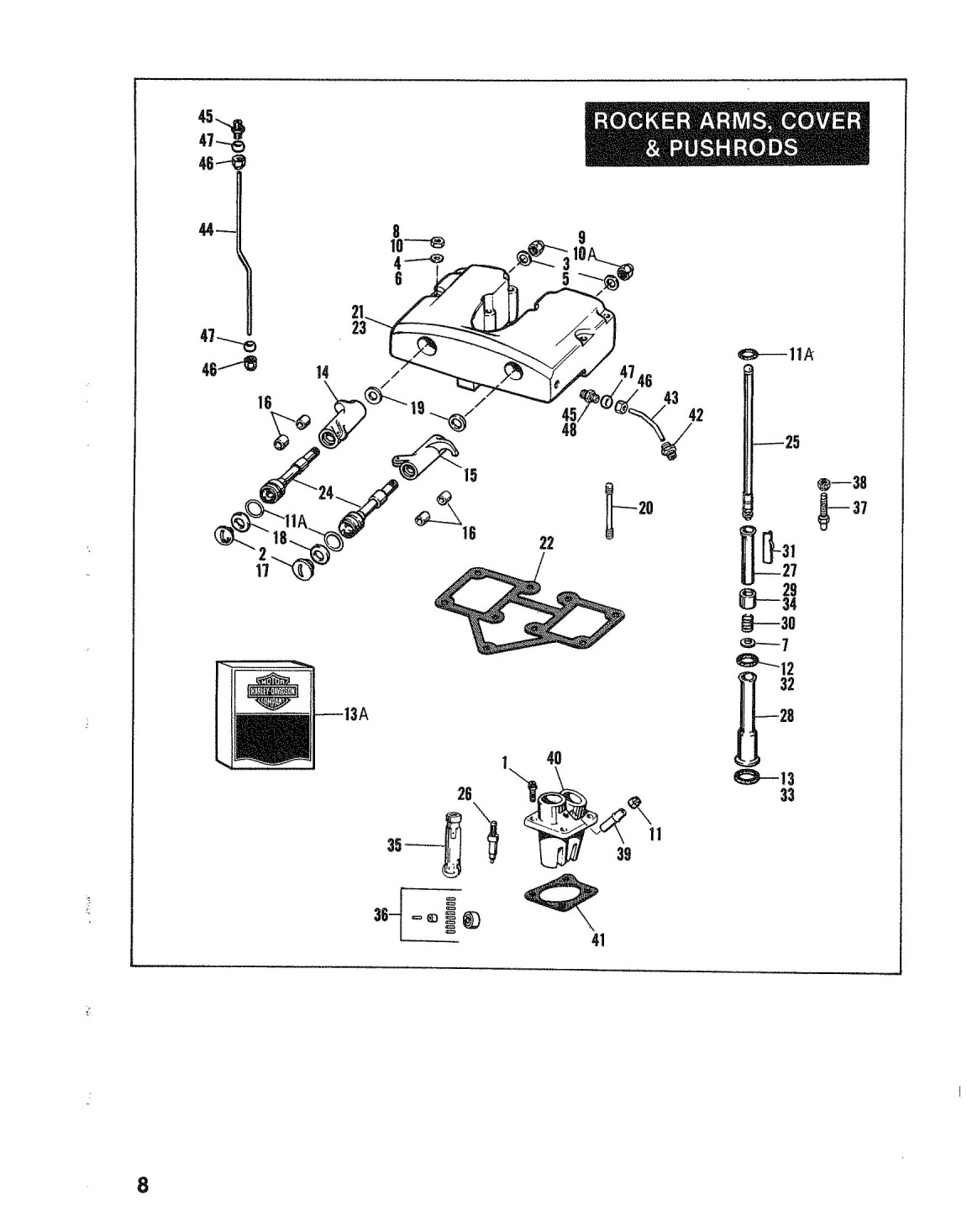

Rocker Arms................. 7

Rotor........................ 41

Seat ........................ 153

Shifter...................... 63,65,67,69

Shock Absorbers.............. 159

Sissy Bar.................... 153

Solenoid, starter.............. 245

Spark Cables, Coil & Plugs...... 43, 45, 47, 51

Speedometer................. 201, 203, 205, 207

Spoke Wheel................. 119, 121, 127, 129

Sprockets.................... 84, 85, 87, 131, 133

Starter Housing............... 53, 55

Starter Motor................. 57

Switches.................... 229, 230, 231, 233, 239,

241, 243, 245

Tachometer.................. 205

Tail Lamp.................... 215

Tappets..................... 9

Terminal Plate................ 235, 237

Throttle Control............... 163, 165, 229

Transmission—Mainshaft &

Housing..................... 71, 73

Transmission—Countershaft ... 75, 77

Tune Up Kits................. 51

Turn Signals.................. 217,219

Valves....................... 5

Voltage Regulator............. 247

Wheels...................... 119,121,123,125,127,

129, 131, 133

Wiring....................... 223, 225, 227, 228, 230,

231
PATENT NOTICE

Harley-Davidson products are manufactured under one or more of the following: U.S. Patents — 2986162,2987934,2998809,3116089,3144631,3144860, 3226994,3229792,3434887, 3559773, 3673359, 3680403, 3683716, 3709317, Des. 225 626.
