Harley Davidson 1941-1984 FL Models includes: FL, FL80, FLH, FLH1200, police models, shrine models. Parts catalog - page 1





HARLEY DAVIDSON

PARTS CATALOG

(HARLEY DAVIDSON PART NO. 99456-84B)

1941-1984 FL MODELS

INCLUDES:

FL FL80 FLH FLH1200

POLICE MODELS SHRINE MODELS





GENERAL INFORMATION (CONT’D.)

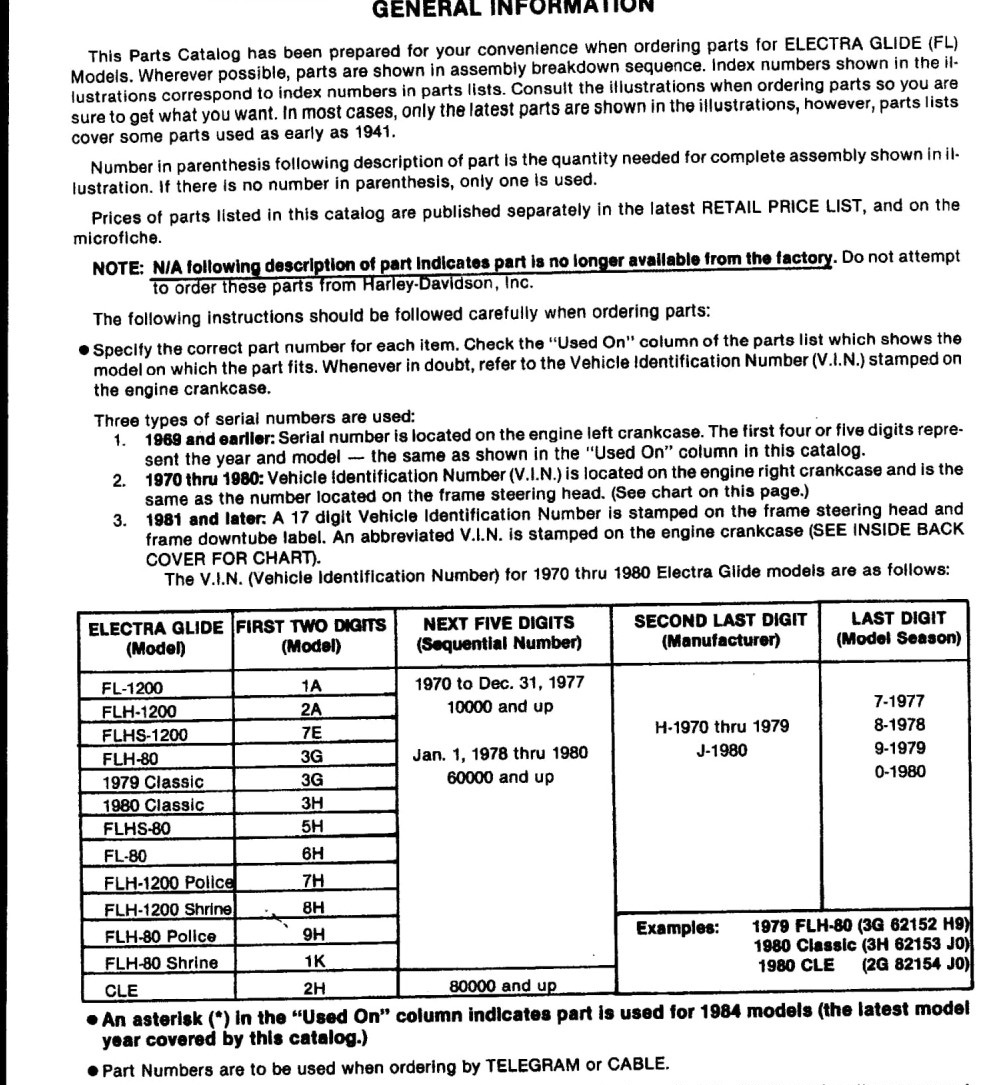

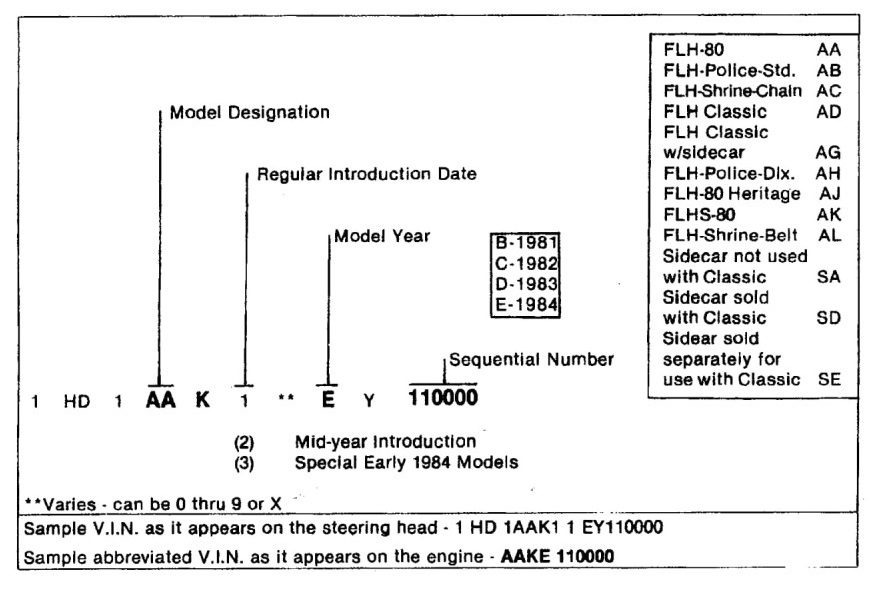

1981 & LATER VEHICLE IDENTIFICATION NUMBER

(V.I.N.)

The lull 17 digit serial, or Vehicle Identification Number (V.I.N.) is stamped on the steering head and on a label located on the front frame downtube. An abbreviated V.I.N. is stamped on the side crankcase, near the front of the engine.

Always give one of these numbers when ordering parts or making any inquiry about your motorcycle.



NOTE:

Also see inside front cover for additional ordering information and 1980 & earlier Serial Number information.





• When ordering parts use our standard Parts & Accessories order form, Part No. 99511-76, for all parts except engines and crankcases. Order form, Part No. 99514-76, must be used for engines and crankcases. The use of these forms will enable us to fill and ship your order more promptly. These forms are furnished free of charge upon request.

• Do not order motorcycles or advertising material on Parts Order Forms. Write nothing on the order form except the order itself, as any other correspondence will not be answered until the order Is shipped and billed.

e Freight, Express and Parcel Post orders should be on separate order forme.

• For your own records, number and date all orders, also keep a carbon copy for future reference.



ALPHABETICAL INDEX

Page

Air Cleaner................... 47,49

Alternator • 1970 & Later........ 51

Axle - Front & Rear............ 121,123,125

Axle-Sidecar................. 263,265

Battery...................... 199

Belt - Secondary .............. 99

Brake - Front -1971 & Earlier ... . 113

Brake - Rear.................. 111,119

Brake - Sidecar................ 255,259

Brake Caliper • 1Q72 to EatLy 1J980 105, 107 Brake Caliper-Late 1980 & Later. 109

Brake Caliper • Rear ........... 111

Brake Control - Front .......... 102,103

Brake Control - Rear........... 115,117

Bumpers..................... 173

Cam Gear.................... 23, 25, 27

Carburetor-1967 to 1970 ....... 45

Carburetor-1971 to 1975 ....... 43

Carburetor -1976 to Early 1978 .. 39,41 Carburetor - Late 1978 to 1980 ... 33, 35

Carburetor -1981 & Later....... 37

Cast Wheel .................. 121

Cast Wheel-Classic Sidecar.... 263

Center Stand................. 139

Chain....................... 99

Chain & Belt Guard - Rear....... 185

Chain Housing - Front.......... 181,183

Chain Oiler................... 183,191

Choke....................... 47, 49

Circuit Breaker............... 59, 236

Clutch • 1941 to Early 1984 ...... 88,89

Cfutch - Late 1984 & Later....... 91

Clutch Foot Control........... 93

Clutch Hand Control........... 95

Clutch Booster............... 97

Connecting Rods ............. 17

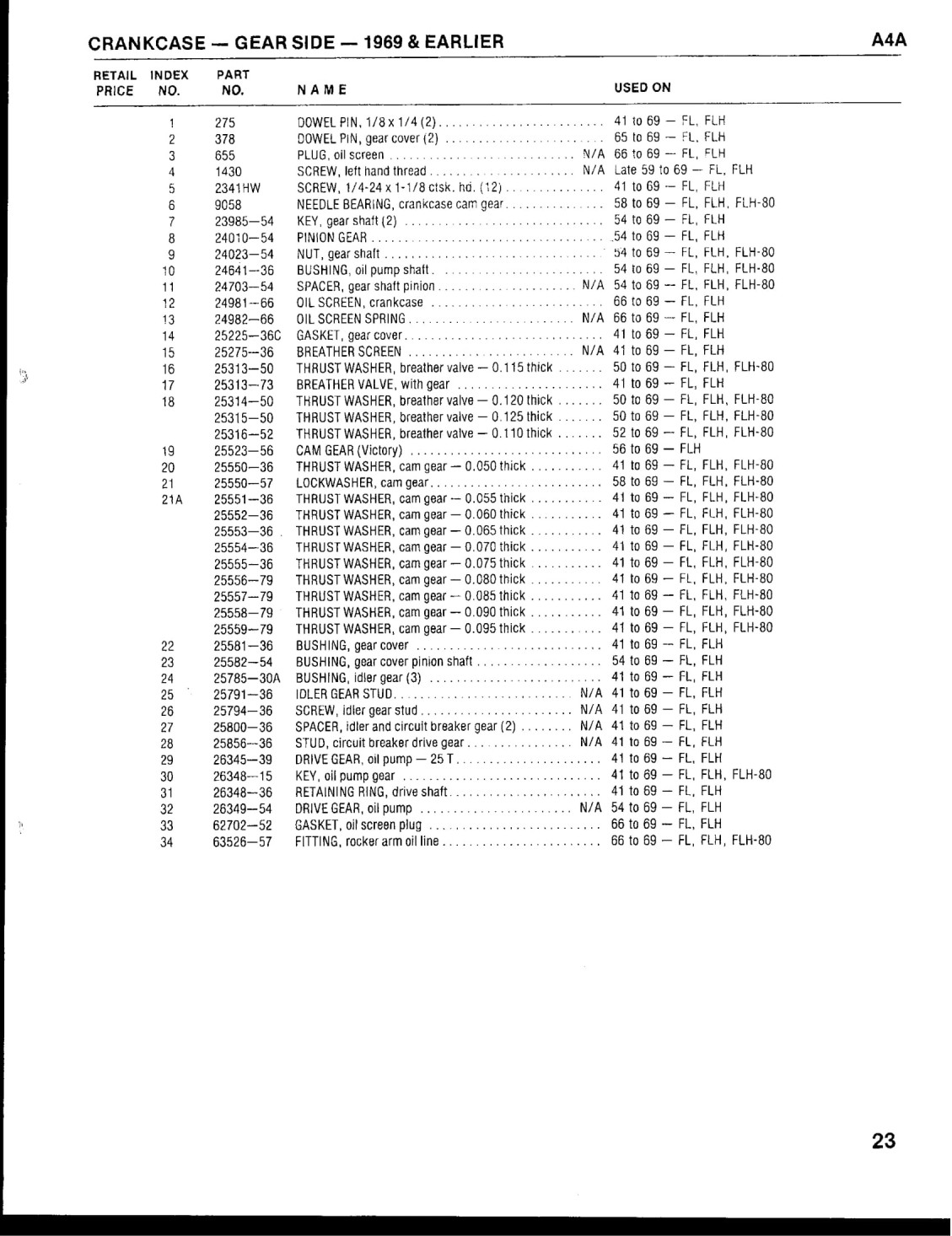

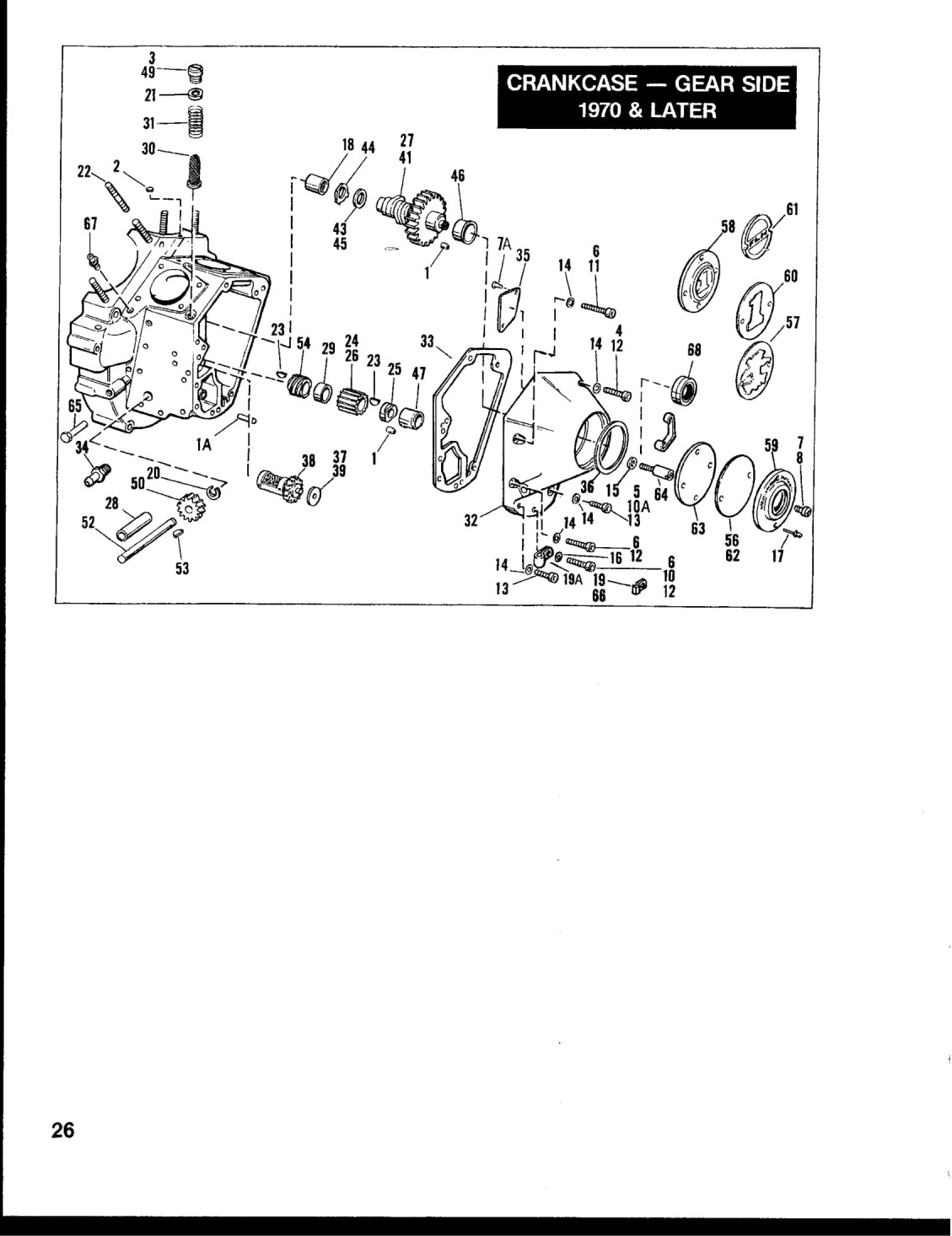

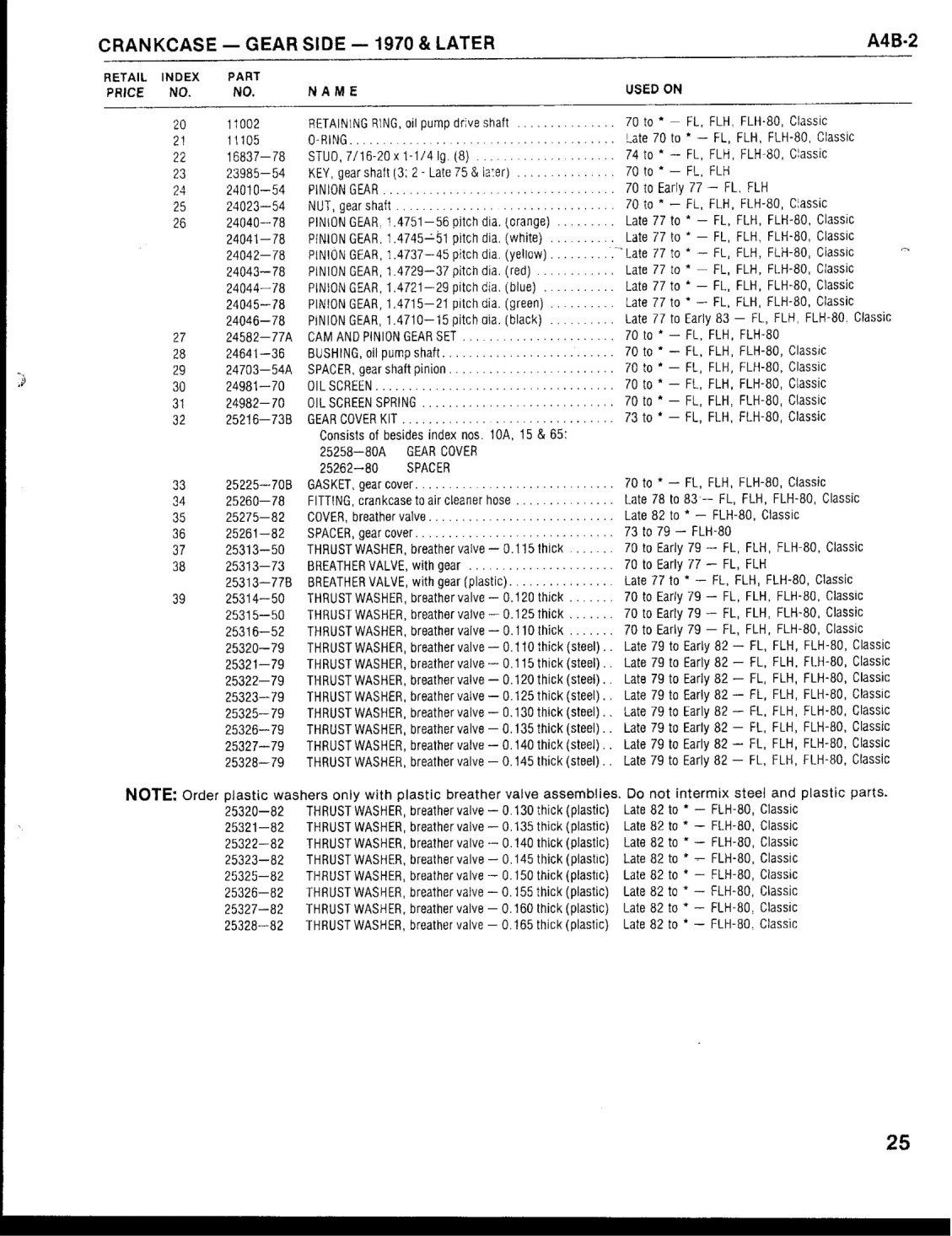

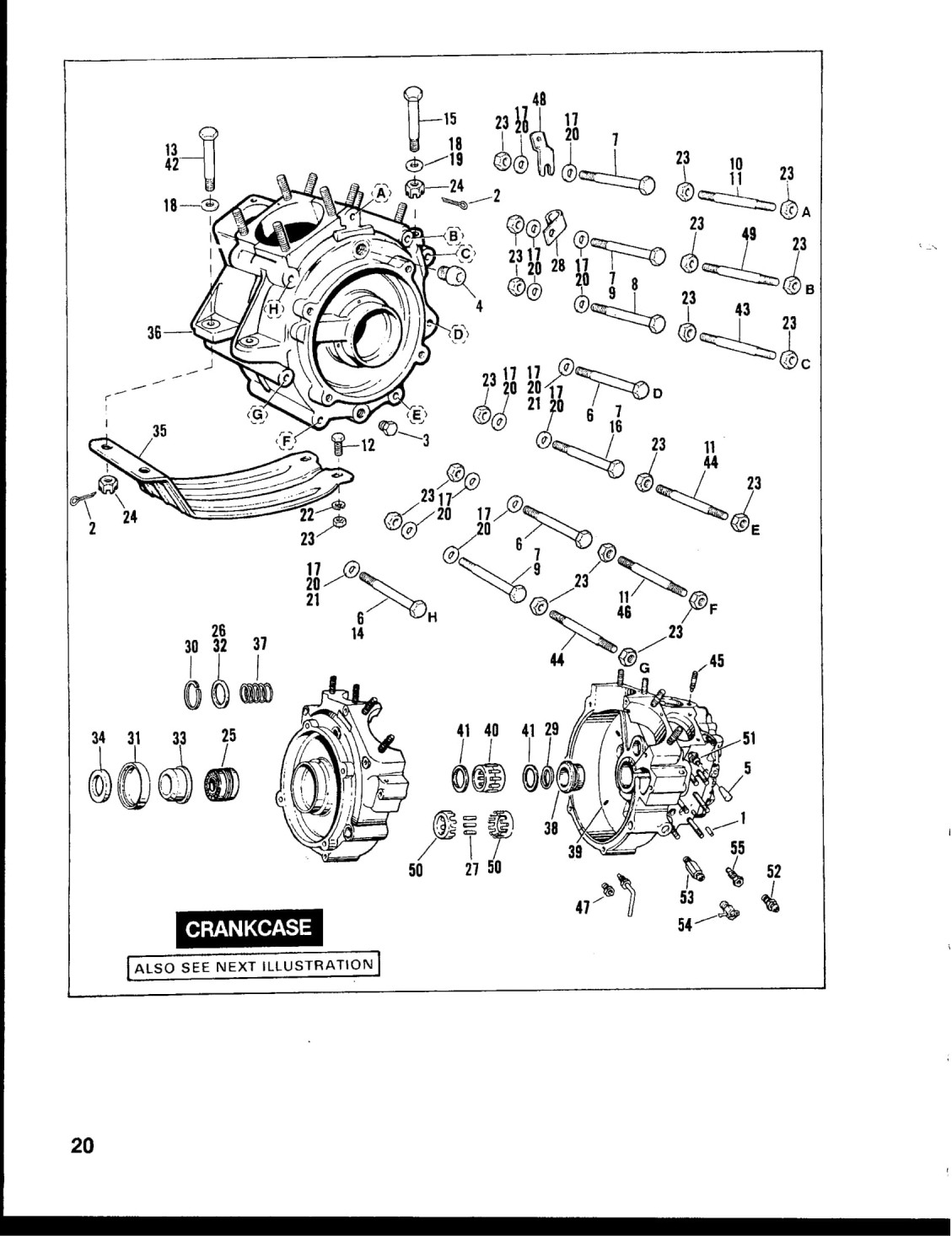

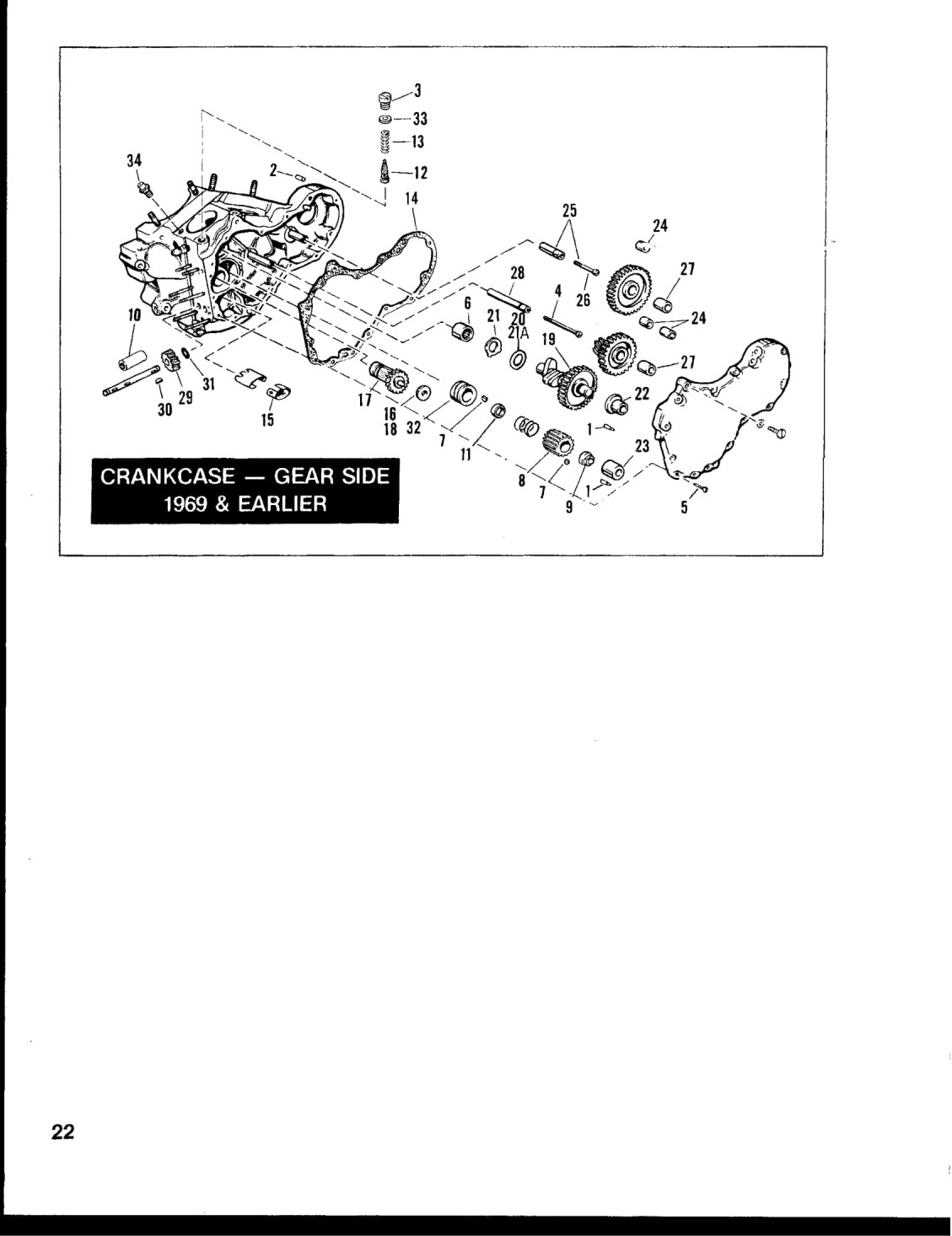

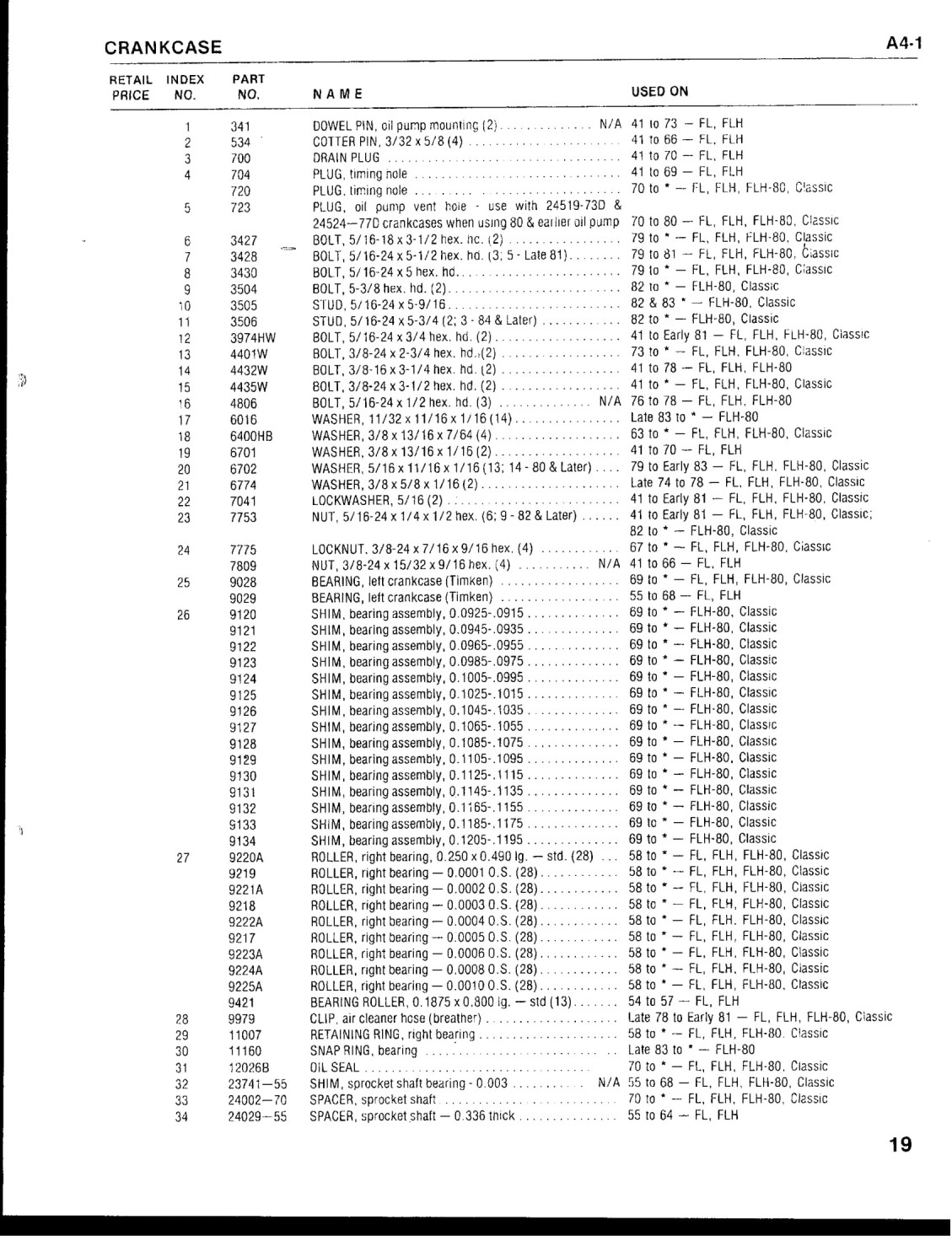

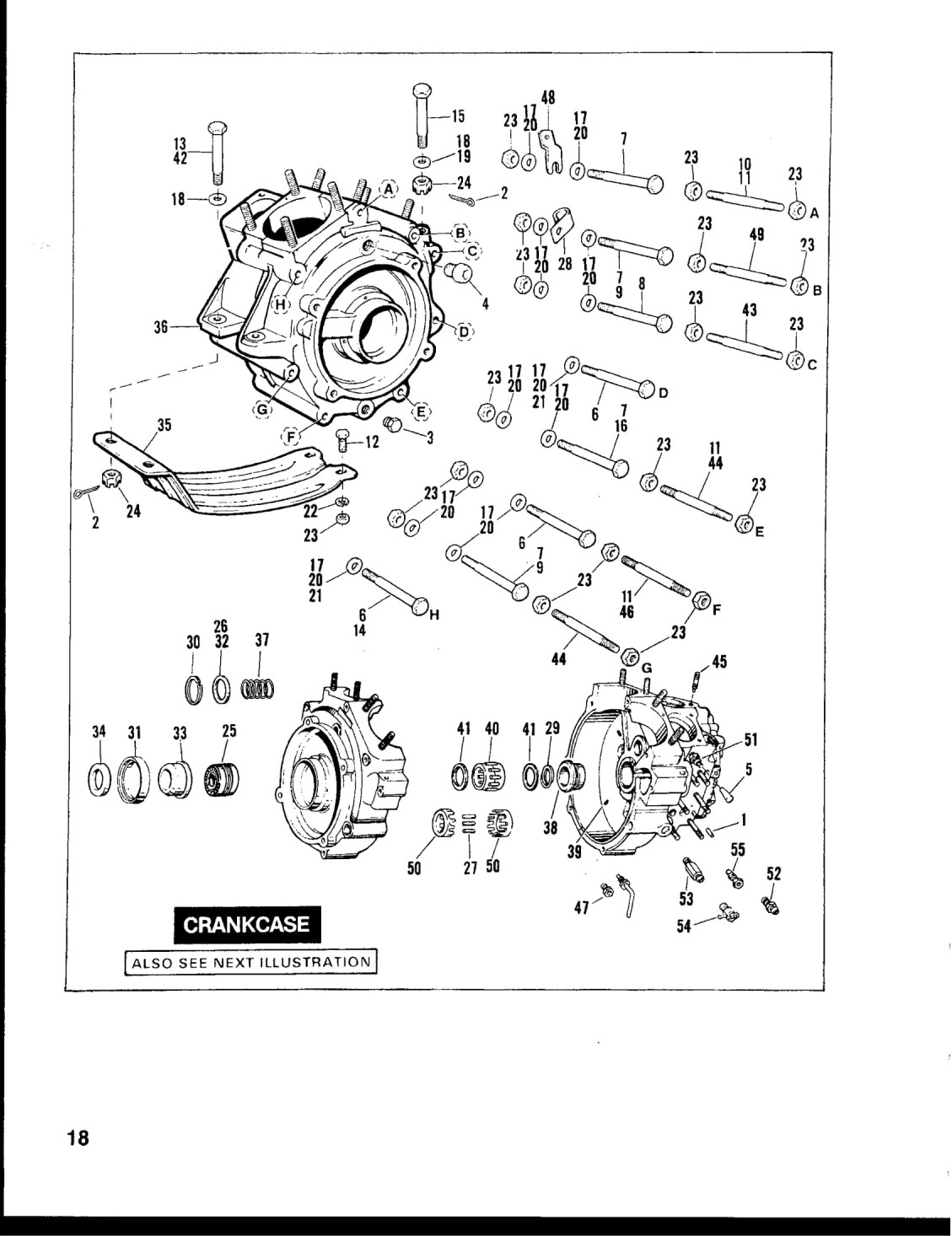

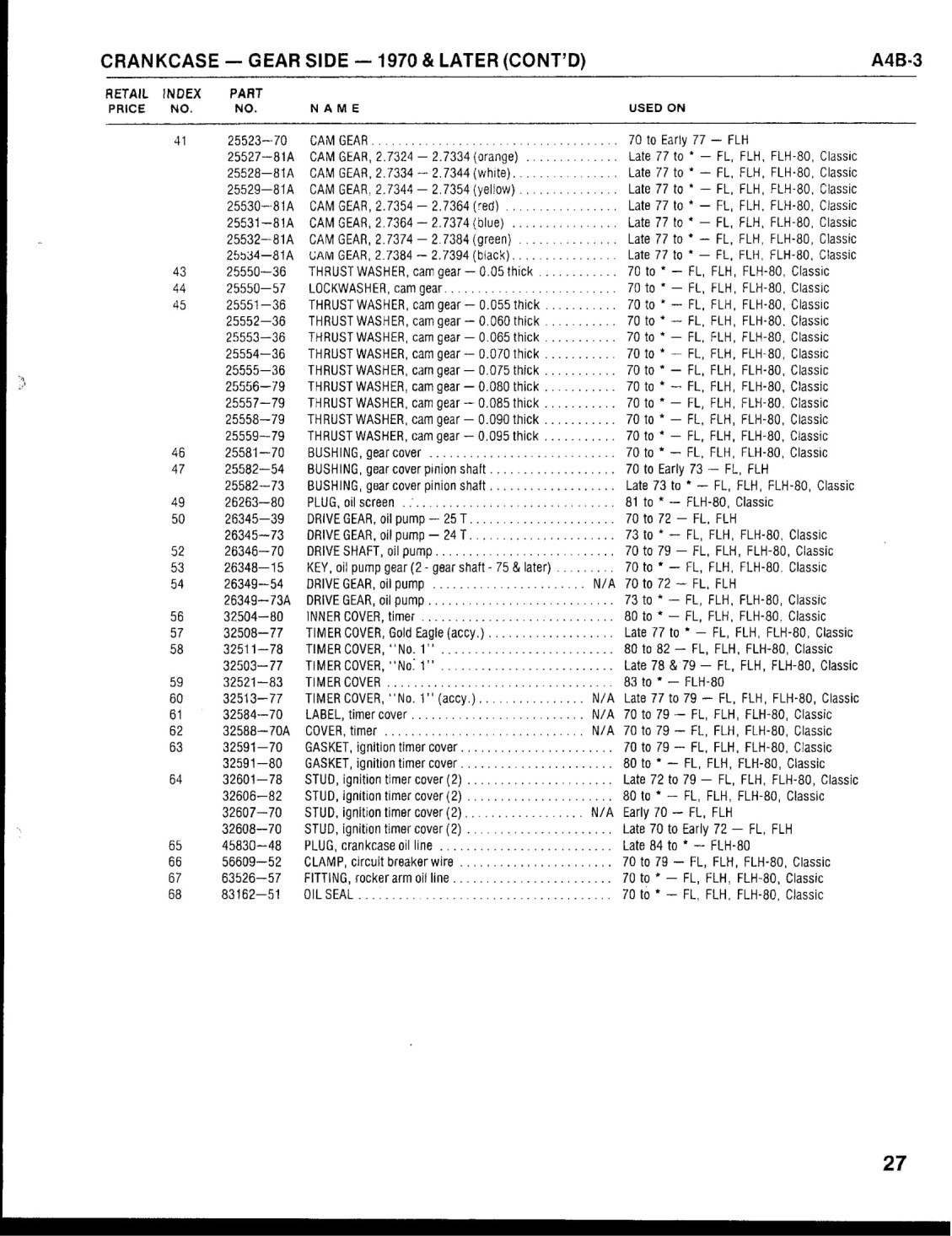

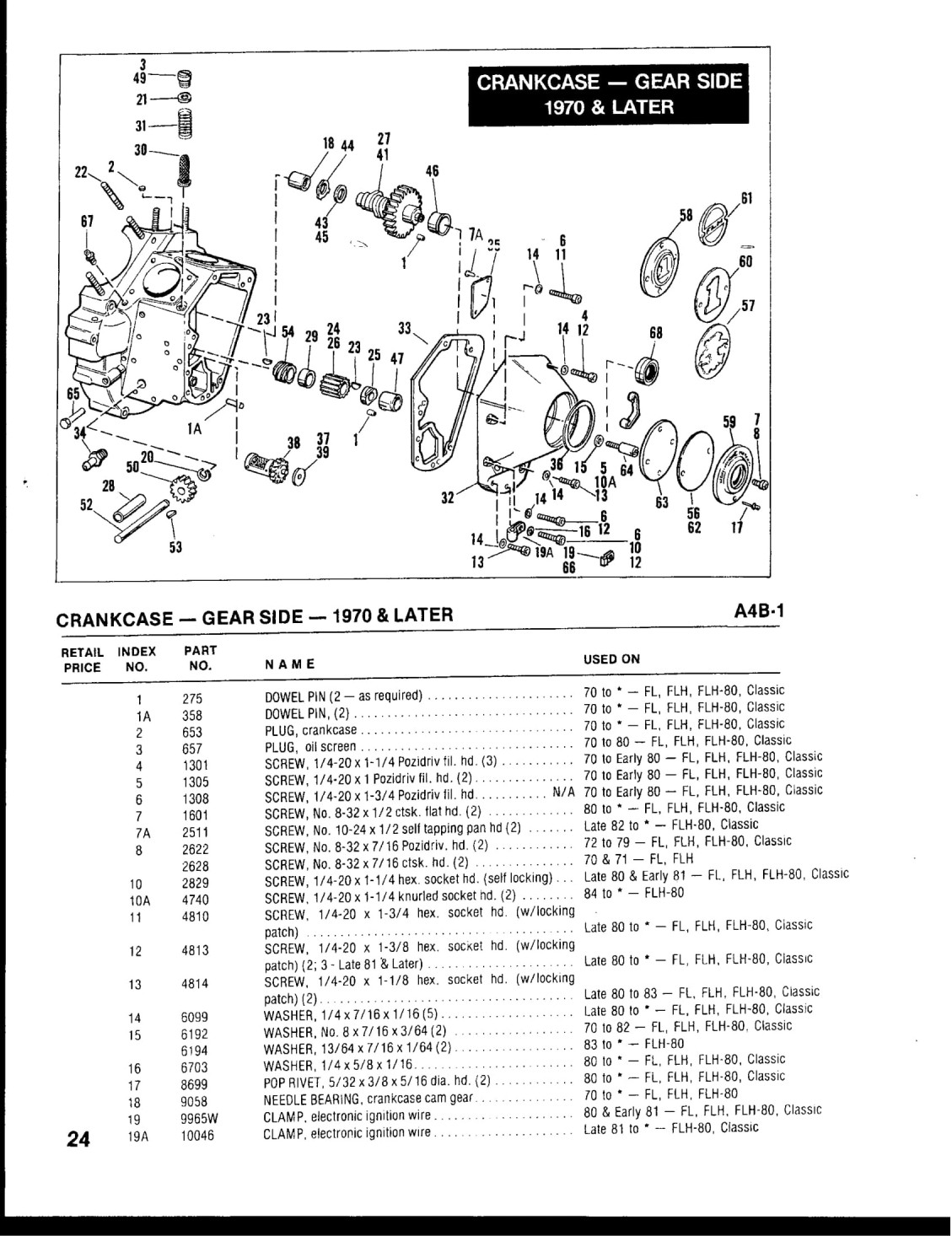

Crankcase................... 19, 21, 23, 25, 27

Cycle Signal Lamp ............ 203, 205, 207

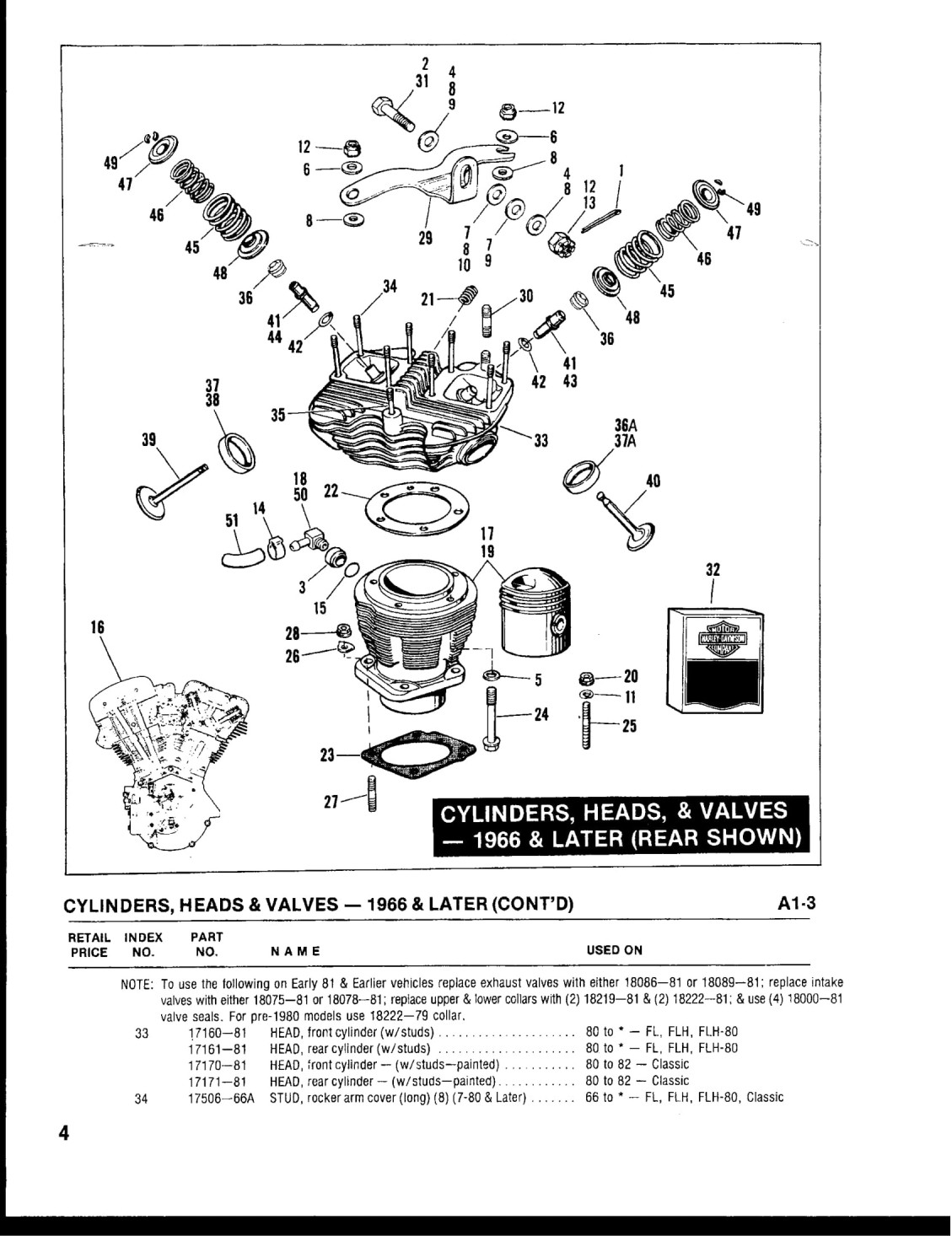

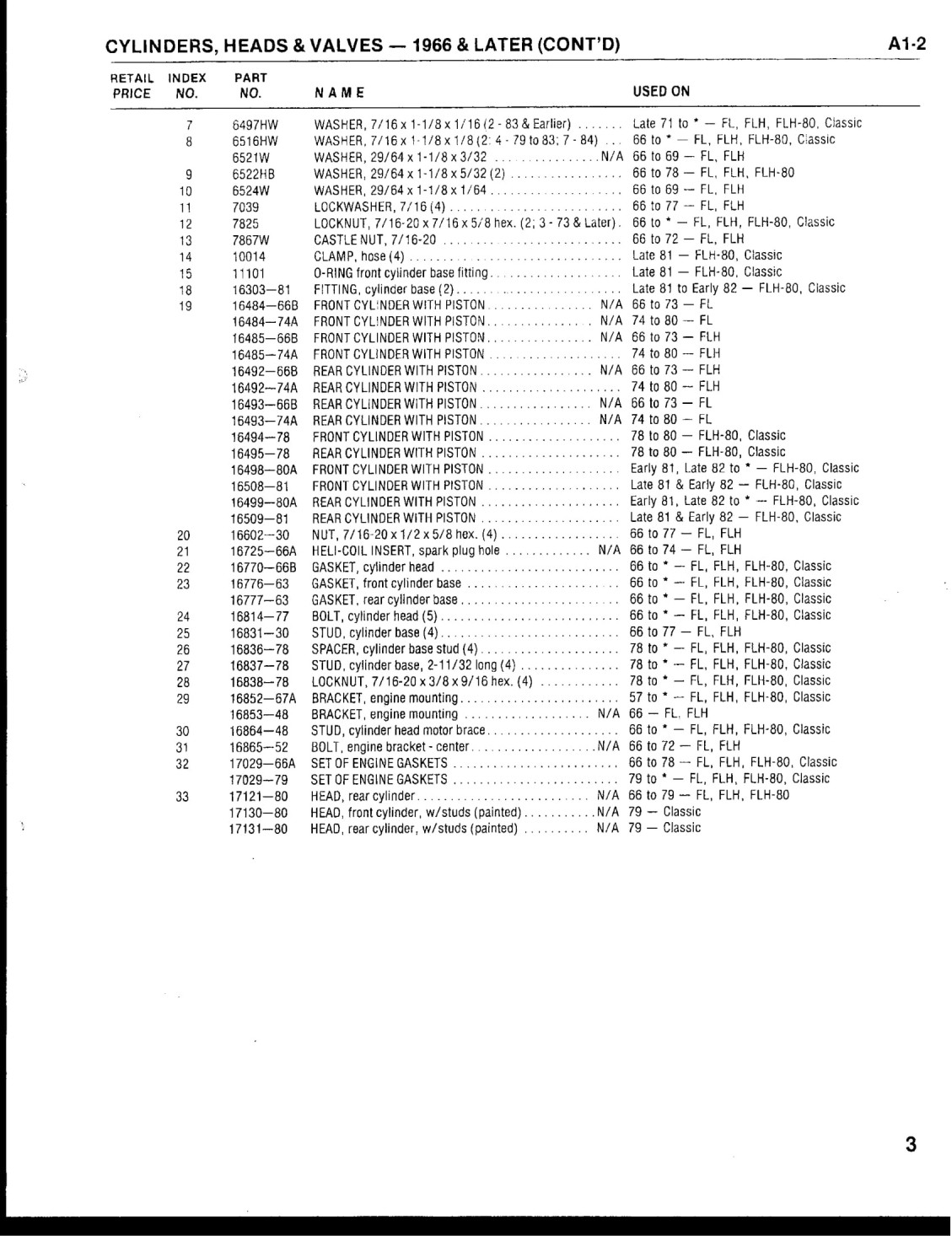

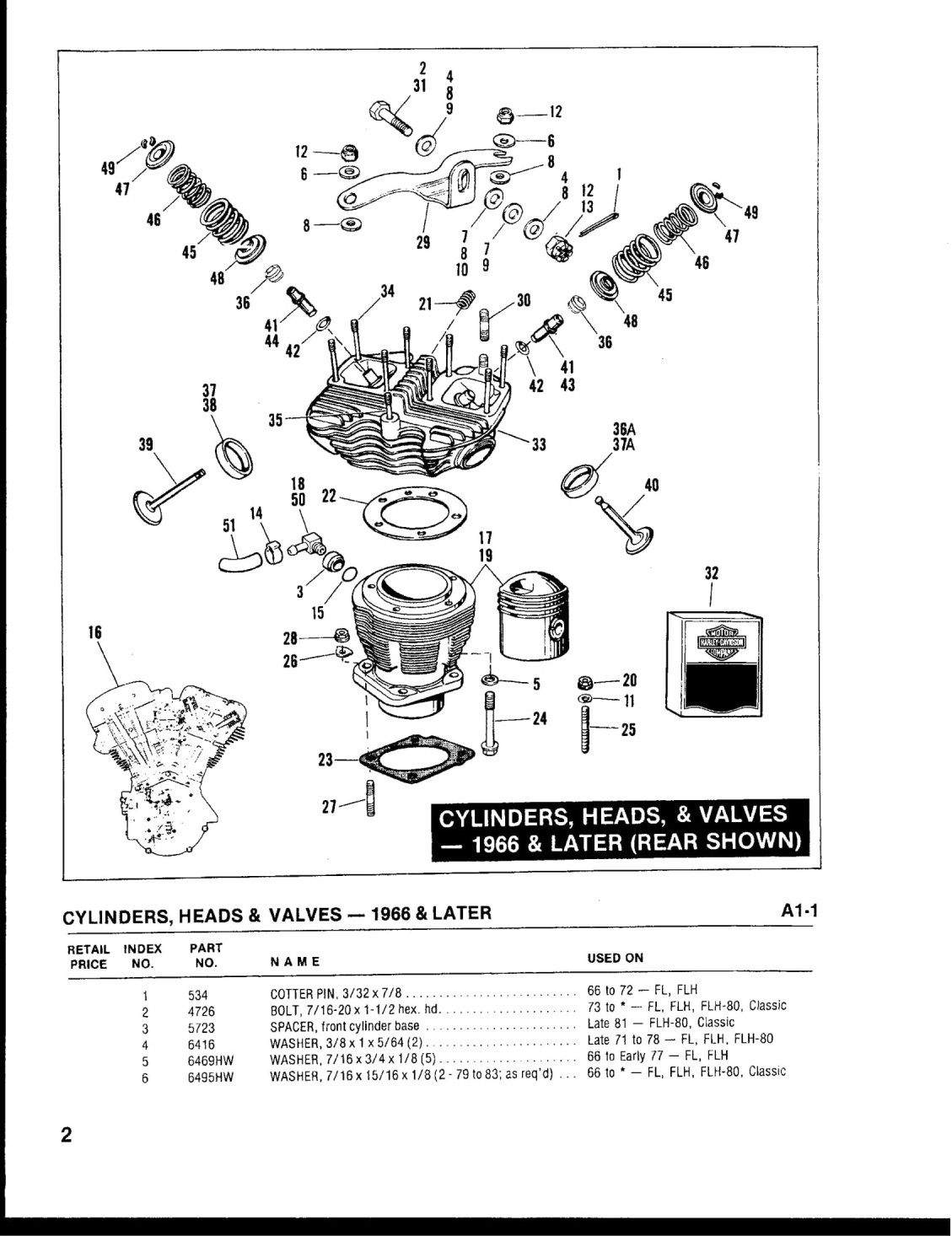

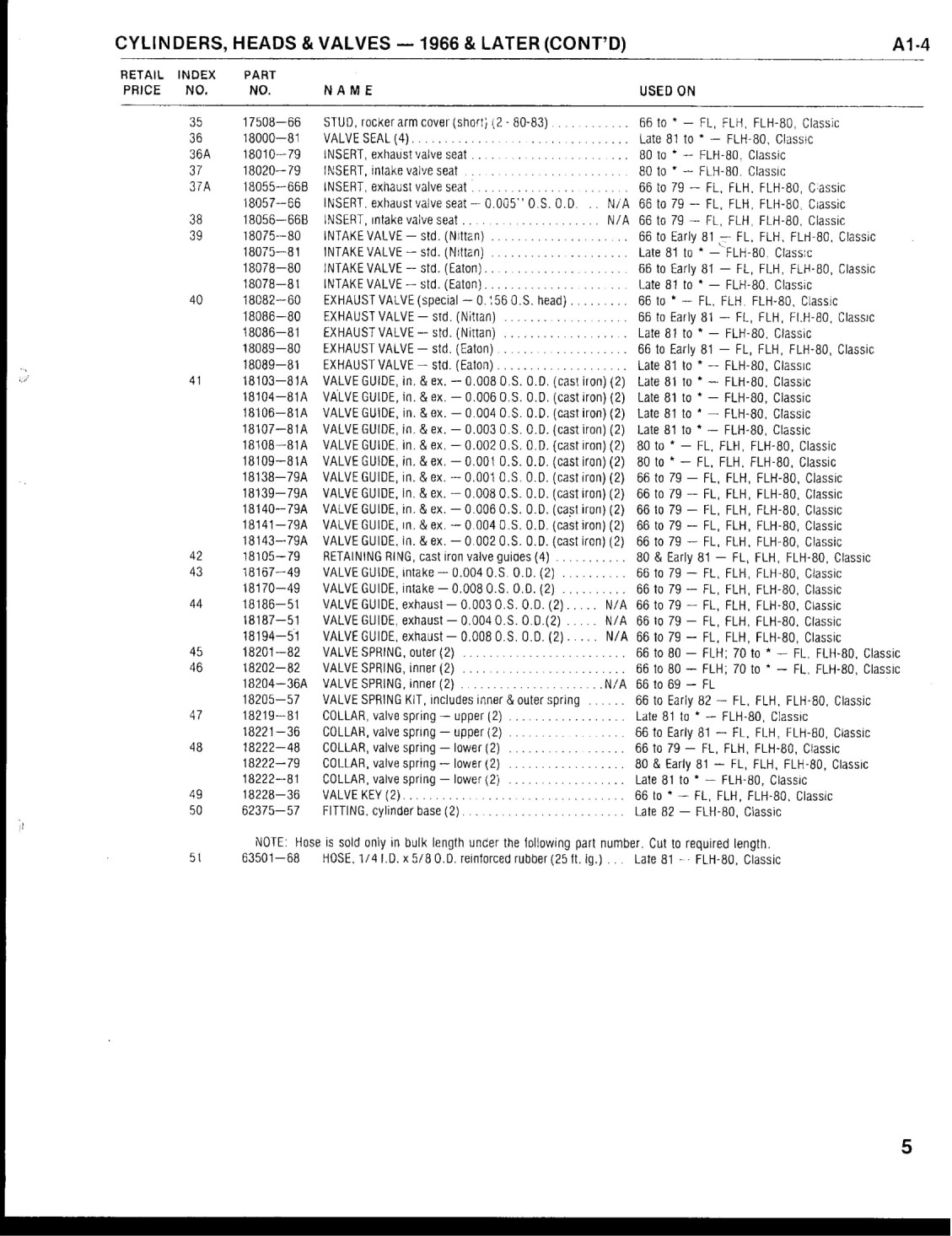

Cylinders & Heads ............ 3, 4, 5

Disc - Brake.................. 105, 121

Electrical.................... 223, 225, 227, 228, 229,

231, 233, 235, 236, 237

Engine...................... 3

Exhaust Pipes................ 195, 197

Fairing...................... 169

Fenders..................... 175, 177, 255, 257

Fender Trim.................. 178

FLHS Parts .................. 278, 279, 280, 281,

282, 283

FLHF Parts .................. 289,291

FLHX Parts .................. 291,292,293

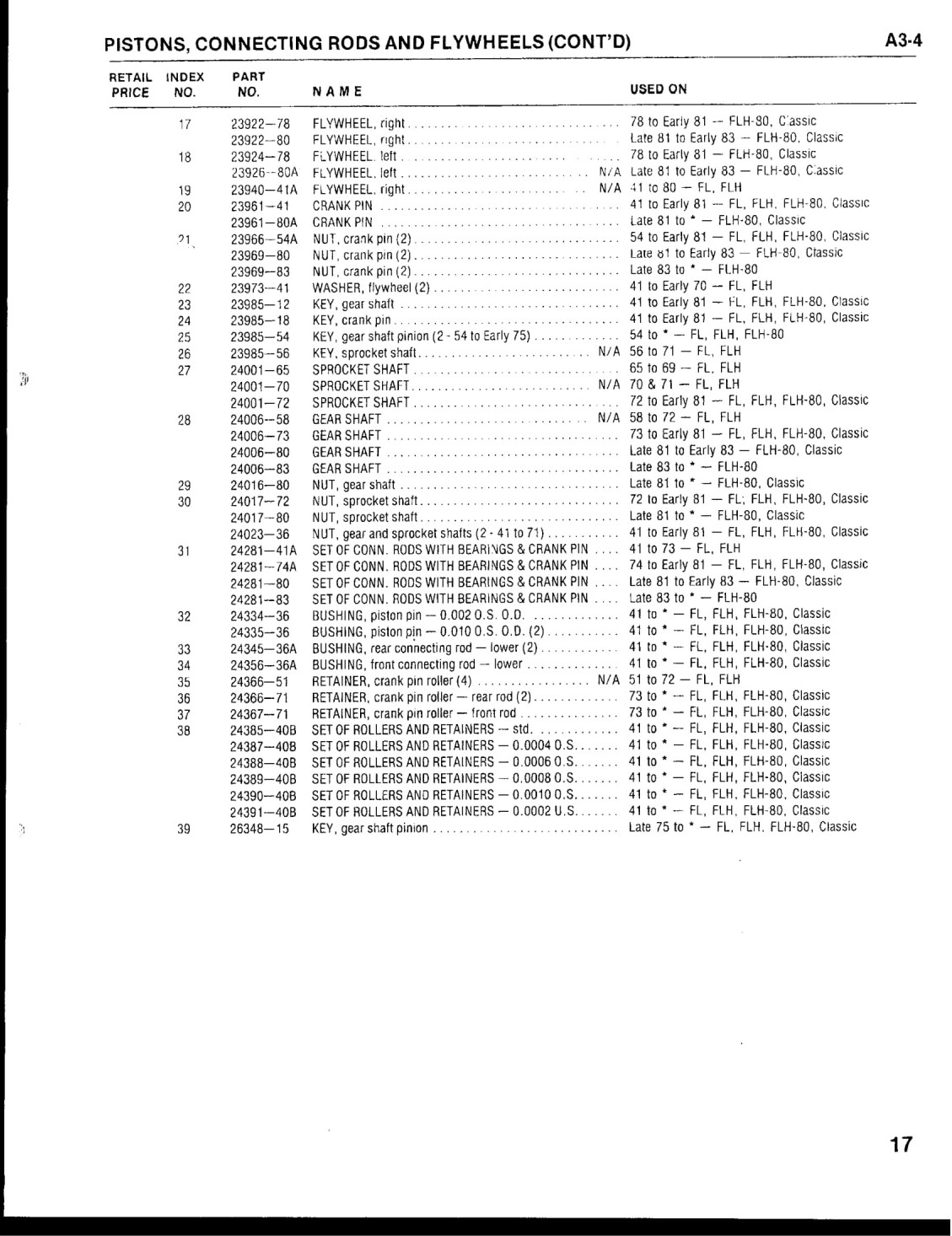

Flywheels.................... 16

Footboards & Footrests........ 150, 151

Foot Shifter.................. 72,73,75,77

Fork-Front .................. 127, 129, 131, 133

Frame & Rear Fork ............ 135

Frame-Sidecar............... 243,245,247,249

Gas Tanks................... 187

Gas Tank Trim................ 188, 189

Gaskets - Engine.............. 3,7,11,13

Gear Case & Cover............ 23, 25, 27

Generator-1958to 1969 ........ 53

Handlebar................... 163, 165

Handlebar Switches........... 228, 229, 231

Hand Shifter ................. 79,81

Headlamp...............

Heritage Edition Parts

Highway Bars ...........

Horn...................

Ignition Circuit Breaker . . .

Ignition, Electronic.......

Indicator Lamps .........

Instrument Panel.........

Jiffy Stand.............

Kick Starter -.1969 & Earlier

Leg Shields.............

Liberty Edition Parts......

License Plate Bracket.....

Luggage Carrier & Box

Master Cylinder..........

Mirror..................

Mufflers................

Numerical Index.........

Oil Cooler...............

Oil Filter................

Oil Pressure Switch ......

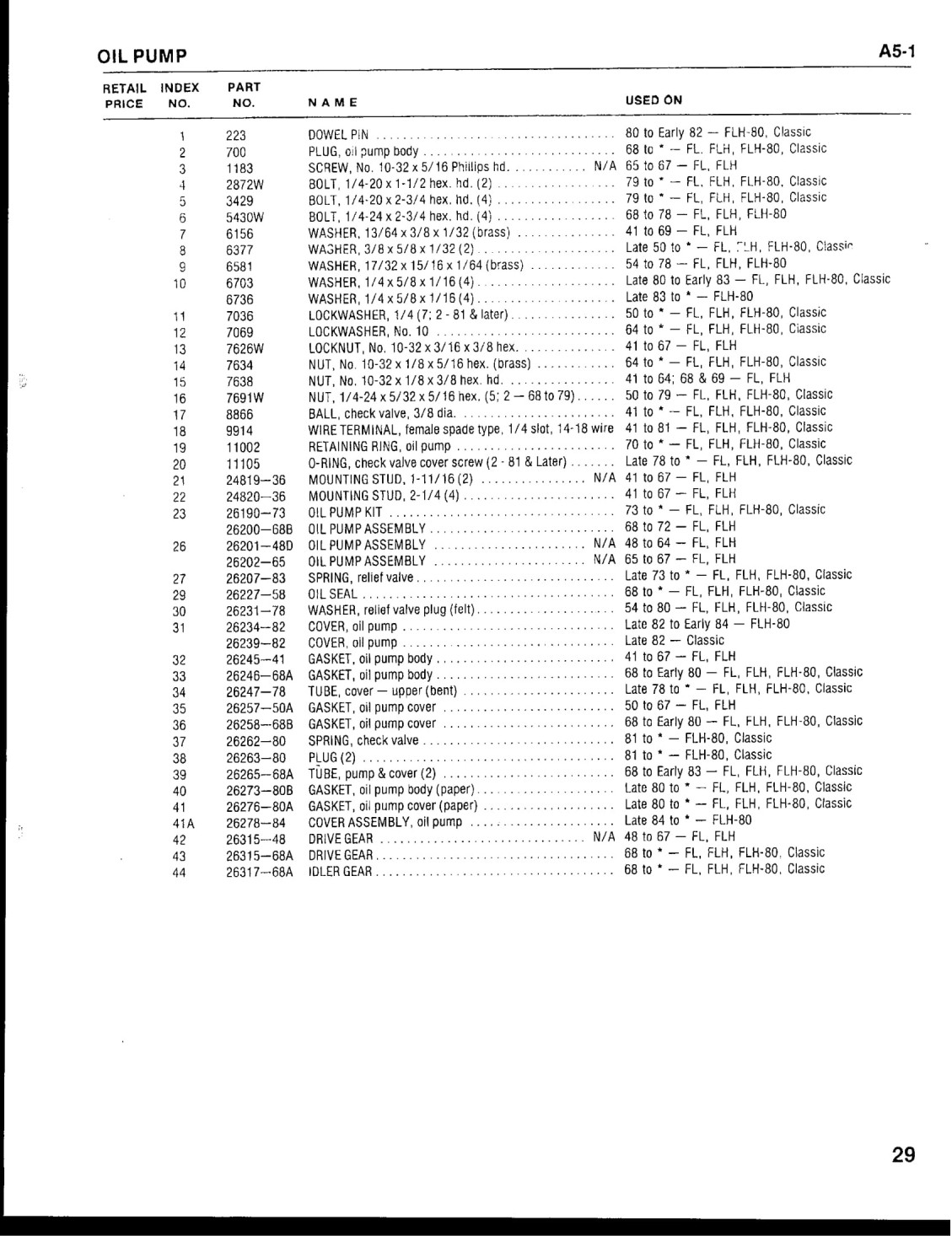

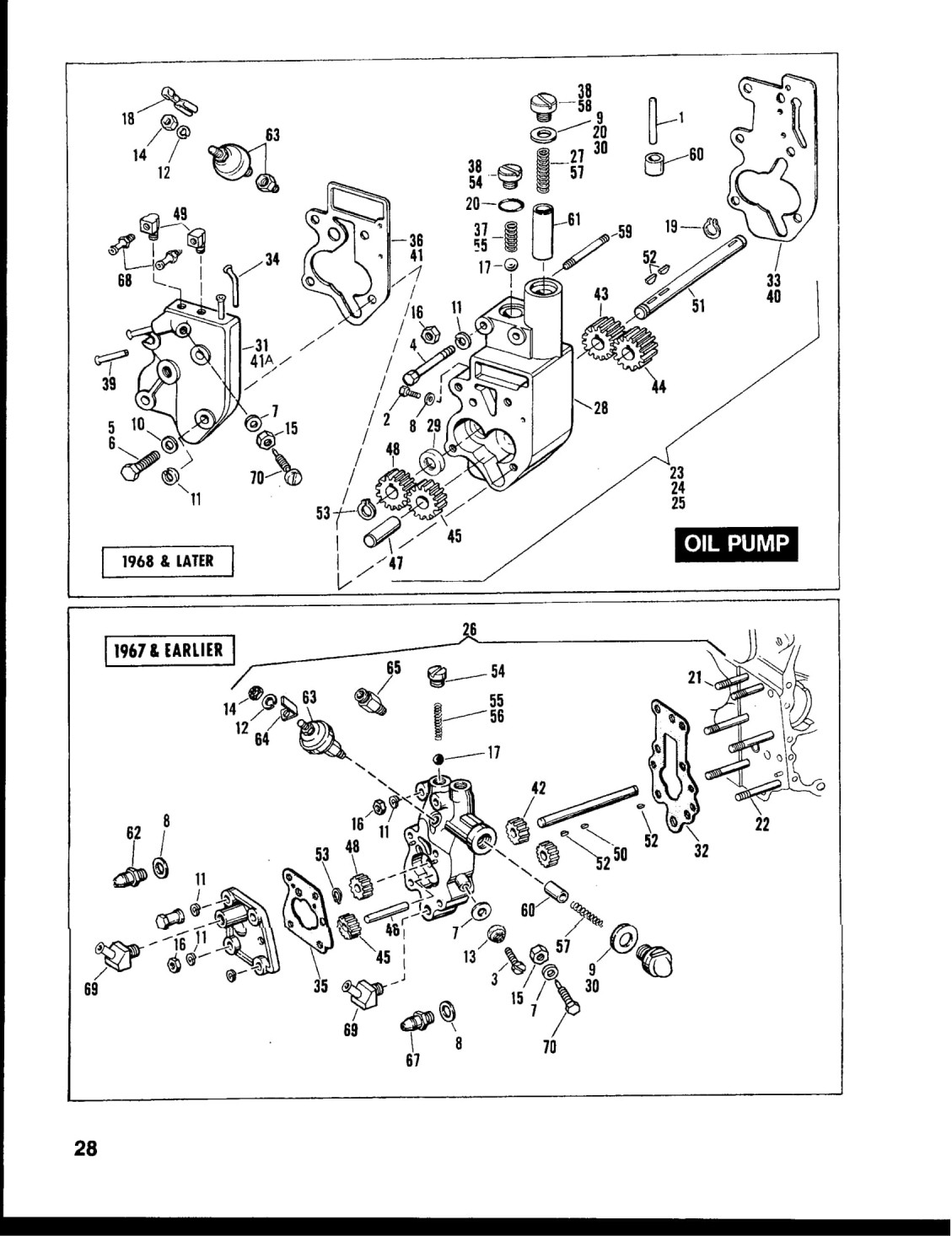

Oil Pump ...............

Oil Tank................

Parking Lamps...........

Passing Lamps..........

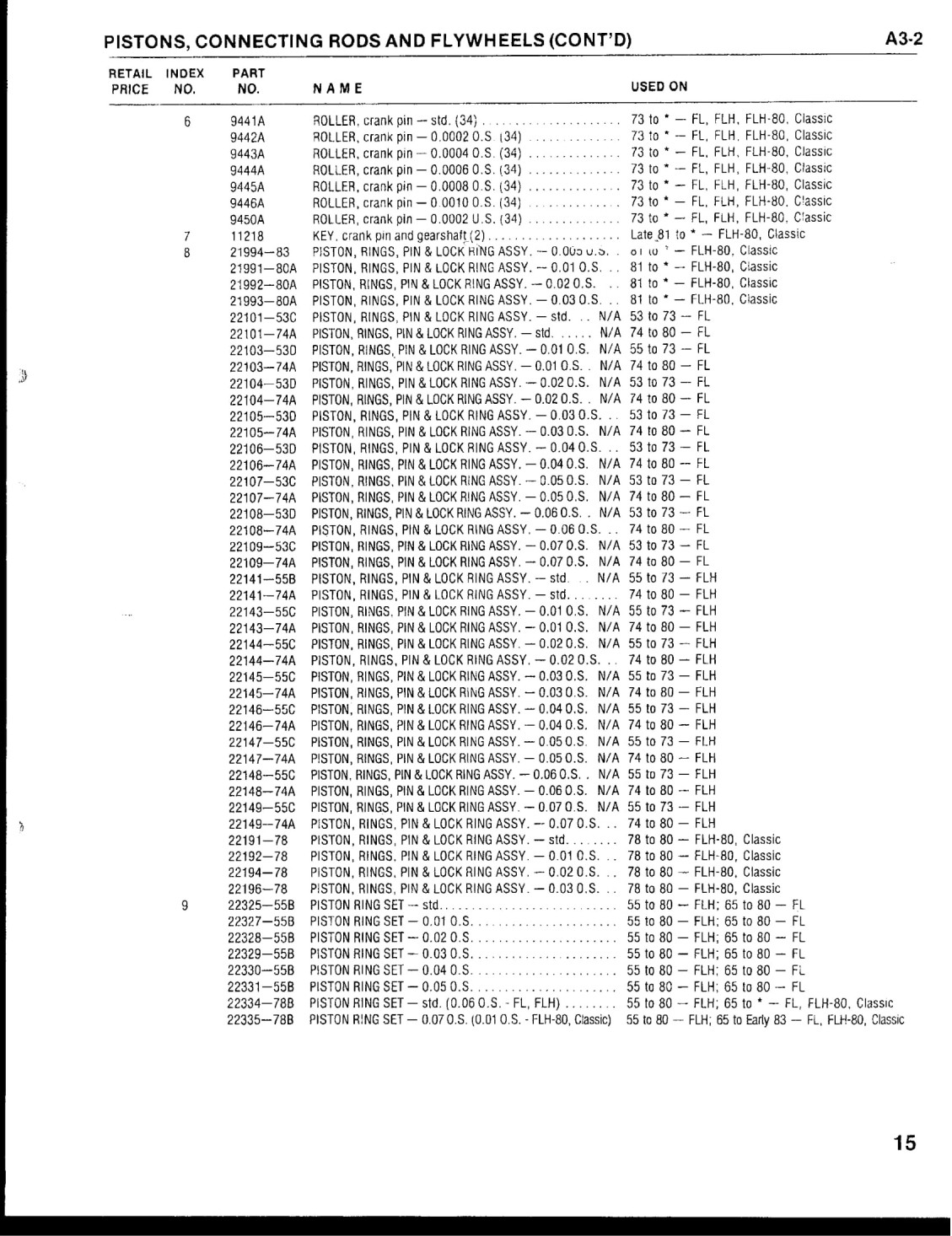

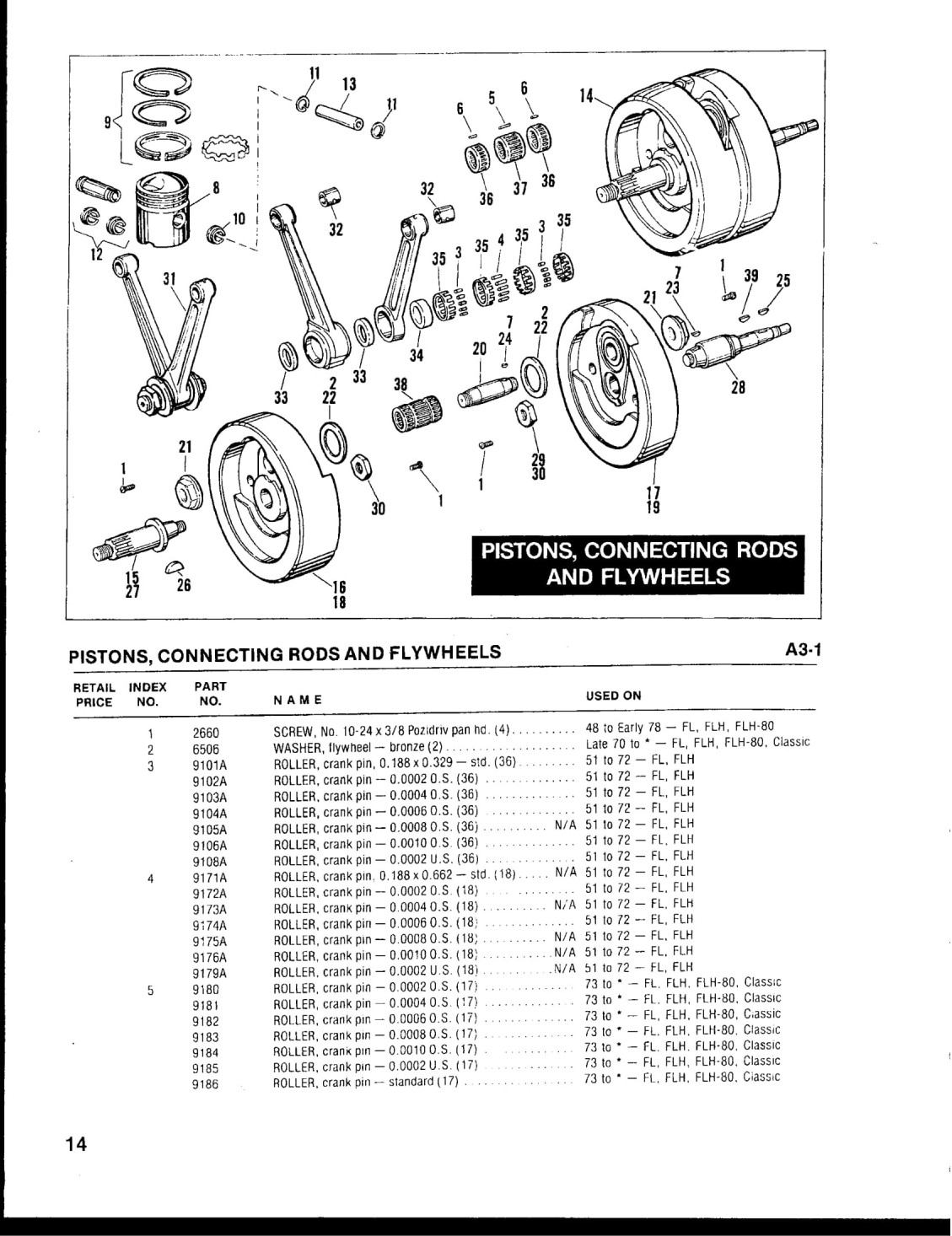

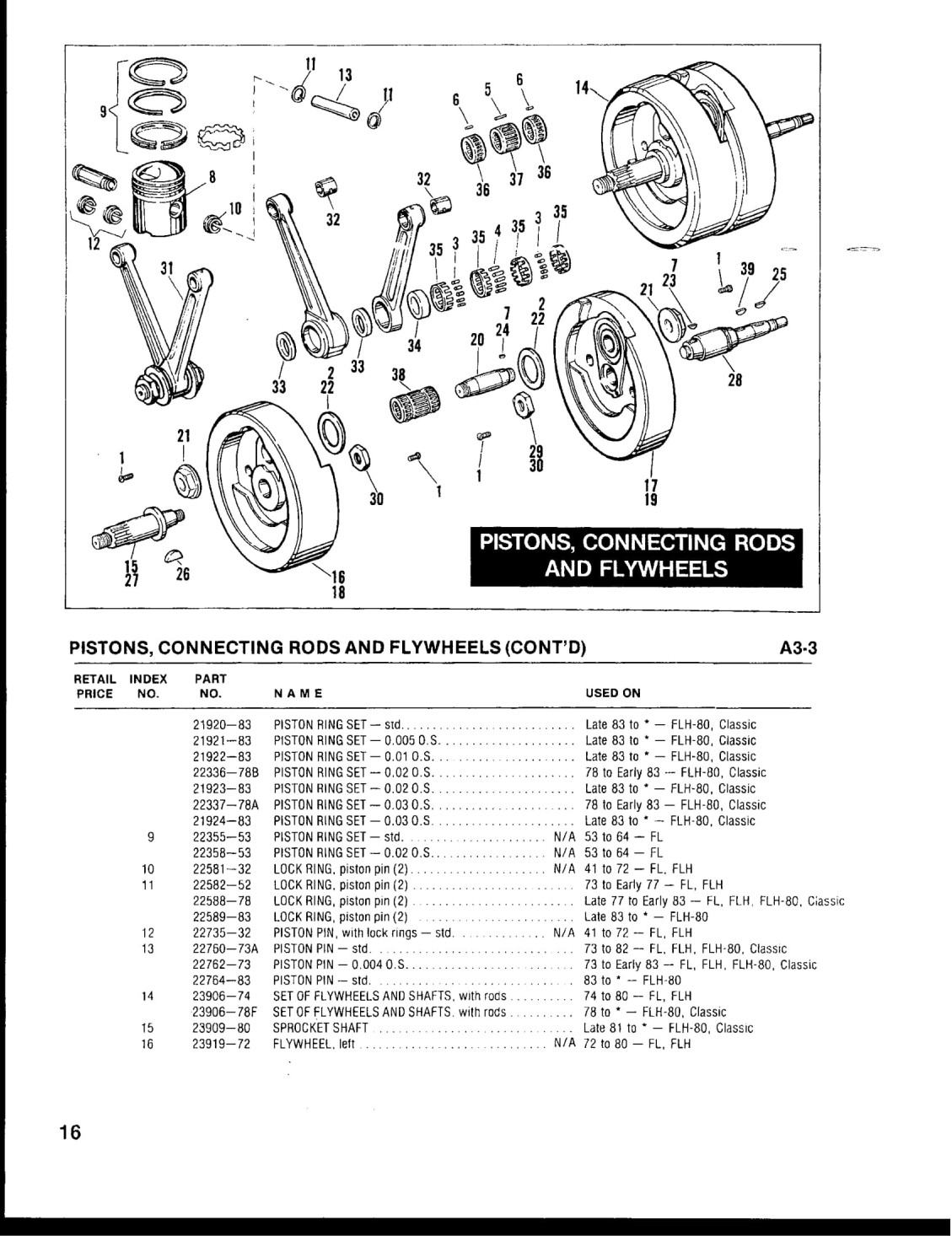

Pistons & Rings..........

Points - Ignition..........

Pursuit Lamps...........

Push Rods & Covers......

Rims...................

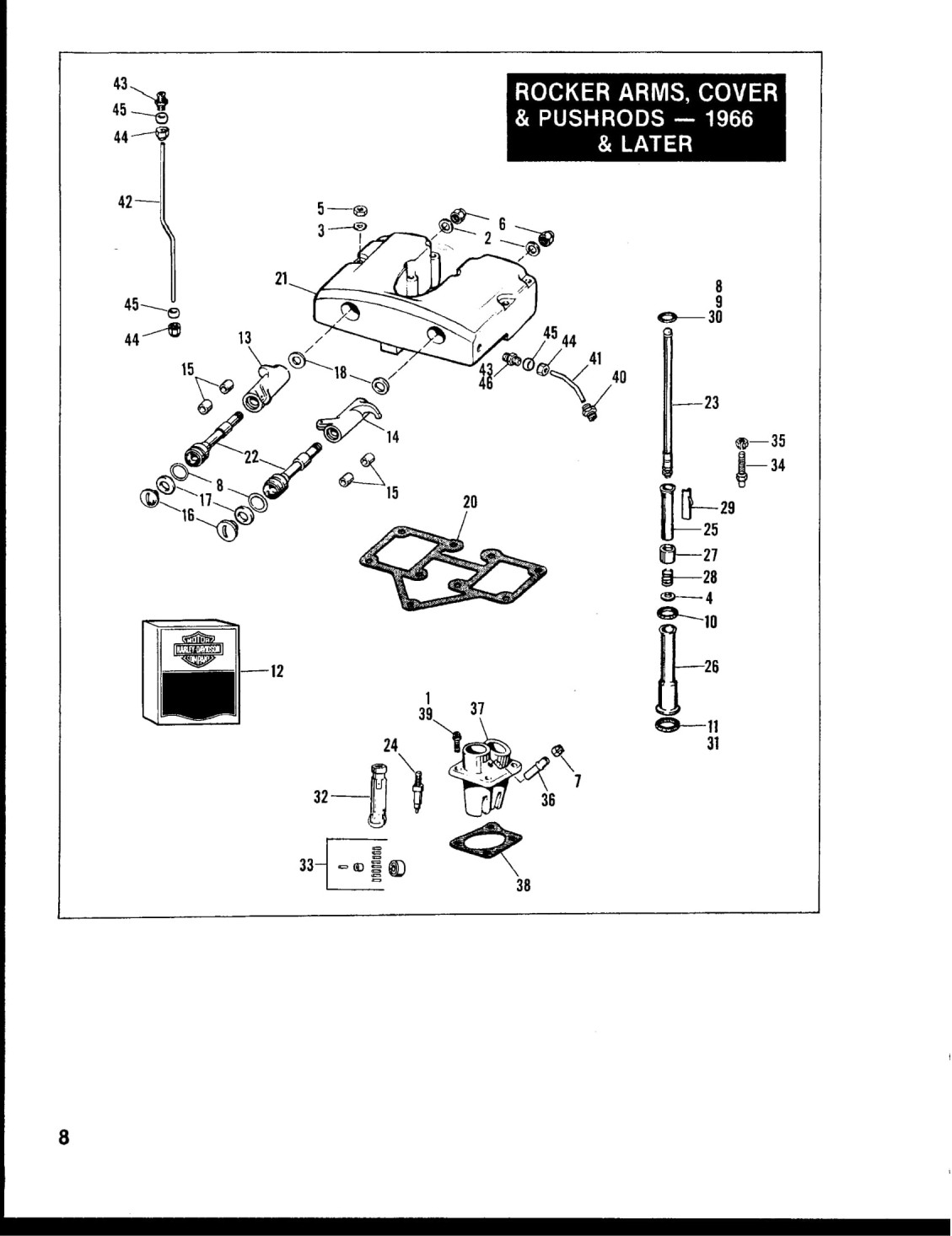

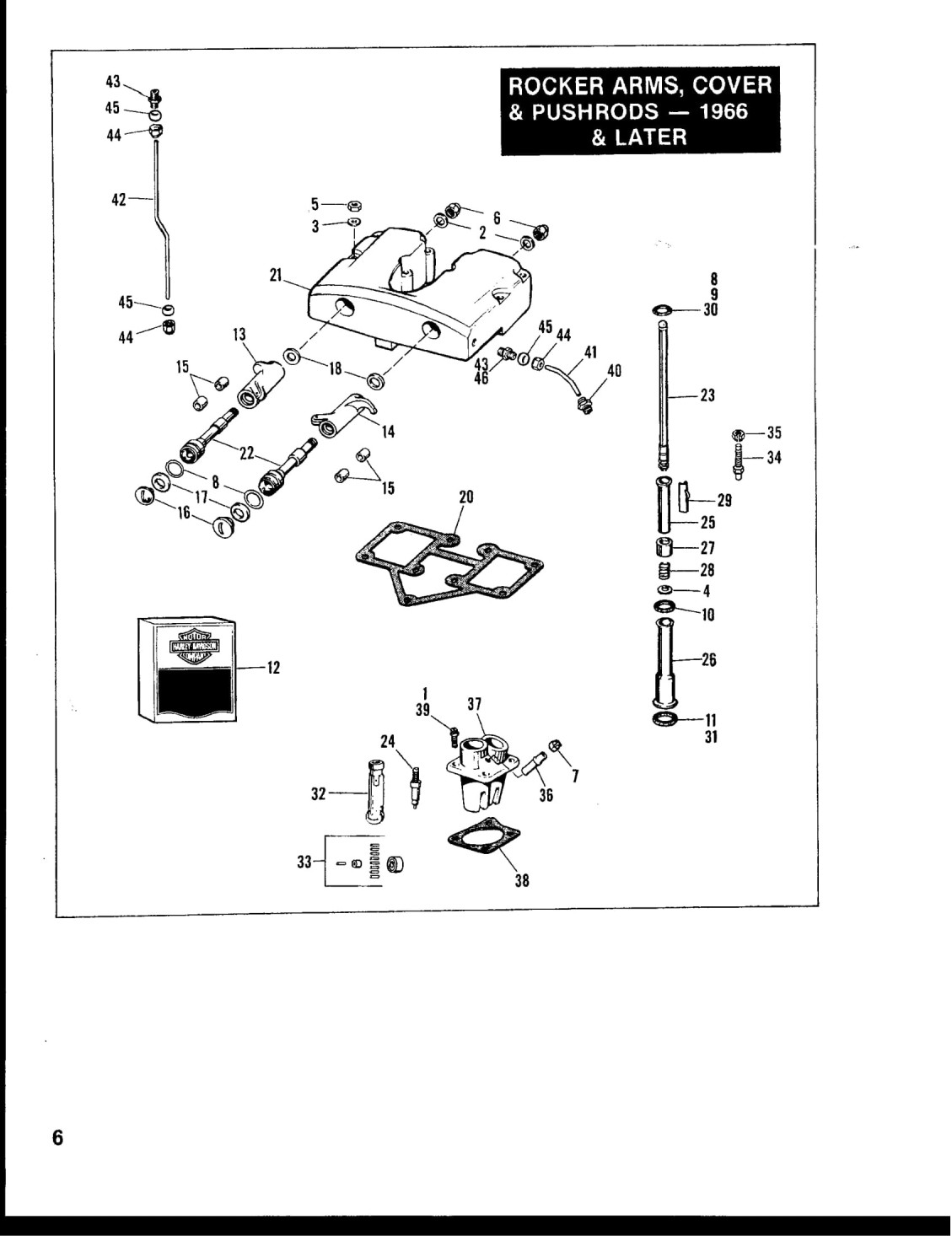

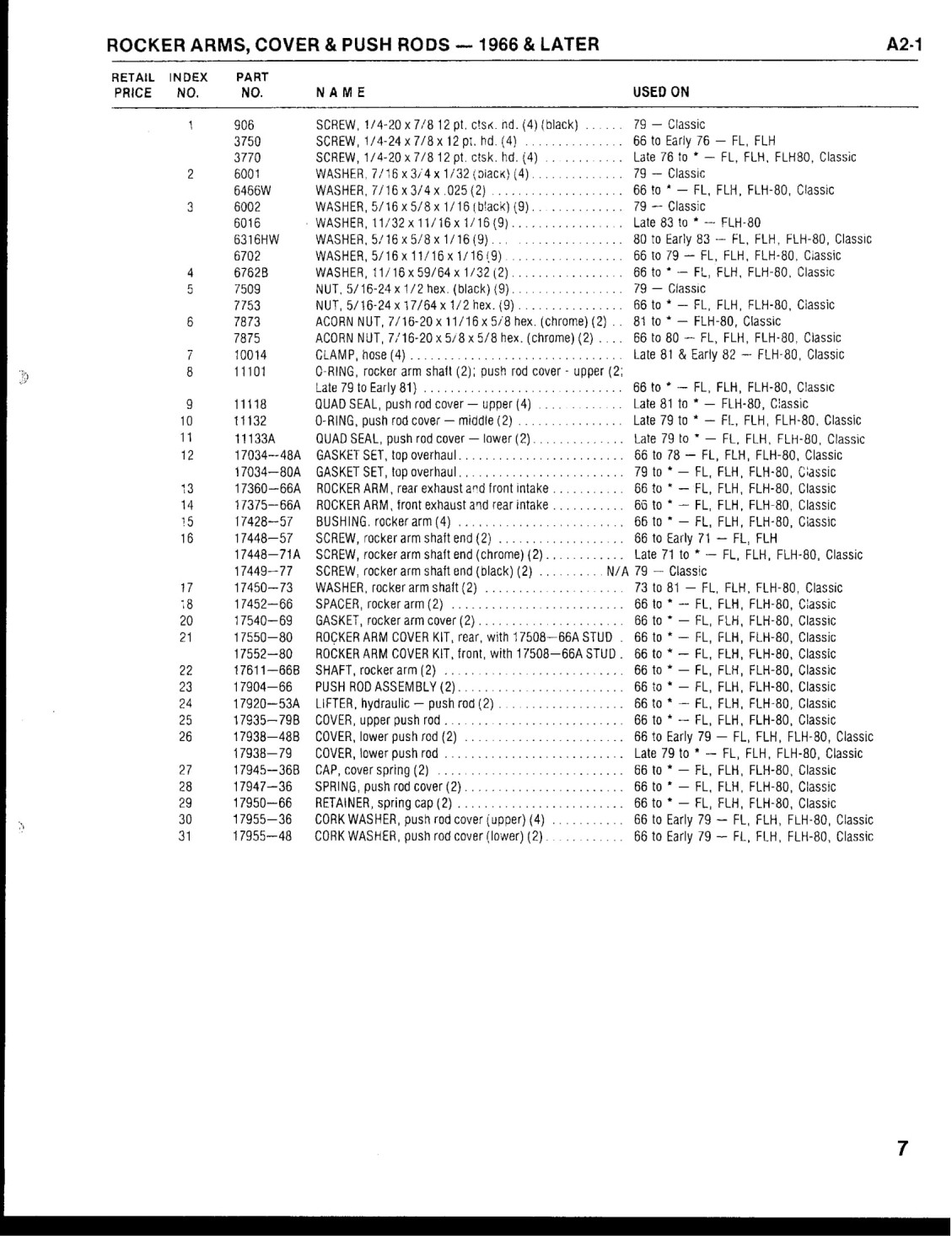

Rocker Arms & Covers----

Saddlebags.............

Seat ...................

Seat Post...............

Shifter.................

Shock Absorbers.........

Sidecar Body & Frame Sidecar Connection Kit ...

Siren...................

Spark Cables, Coil & Plugs.

Speedometer............

Splash Guards...........

Spotlamps..............

Sprockets...............

Starter Housing..........

Starter Motor............

Starter Switches.........

Switches...............

Tachometer.............

Tail Lamp...............

Tappets ................

Terminal Plate...........

Throttle Control..........

Tool Kit.................

Tour-Рак................

Transmission............

Tune Up Kits ............

Turn Signals.............

Valves & Guides.........

Voltage Regulator........

Wheels.................

Windshield..............

Wiring..................

75th Anniversary Parts ....



PATENT NOTICE
Harley-Davidson products are manufactured under one or more of the following: U.S. Patents — 2986162, 2987934, 2998809,3116089, 3144631, 3144860, 3226994, 3229792, 3434887, 3559773, 3673359, 3680403, 3683716, 3709317, Des. 225 626.

To the best knowledge of Harley-Davidson, Inc., the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson, Inc., reserves the right to change specifications, equipment, or designs at any time without notice and without incurring obligation.
