Harley Davidson 2005 Sportster Models. Parts catalog - page 1
99451-05А
GENERAL INFORMATION
THIS IS NOT AN ASSEMBLY MANUAL AND SHOULD NOT BE USED AS SUCH.
This Parts Catalog has been prepared for your convenience when ordering parts
for the 2005 XL EVOLUTION SPORTSTER models. A complete Hardware Listing is
featured at the end of the book. Index numbers shown in the illustrations
correspond to index numbers in parts lists. Consult the illustrations when
ordering parts so you are sure to get the part required. The number in
parenthesis following description of parts is the quantity needed for complete
assembly. If there is no number in parenthesis, only one is used. Prices of
parts in this catalog are published separately.
The following instructions should be followed carefully when ordering parts.
• The model usage column has a two character code, corresponding to the V.I.N.
Model Designation. If the part fits all models “All” will be in the model usage
column. The Sportster models are listed at the bottom of each right hand page.
• Specify the correct part number for each item. Check the “MODEL” column of the
parts list which shows the model on which the part fits. Whenever in doubt,
refer to the Vehicle Identification Number (V.I.N.).
VEHICLE IDENTIFICATION NUMBER (V.I.N.)

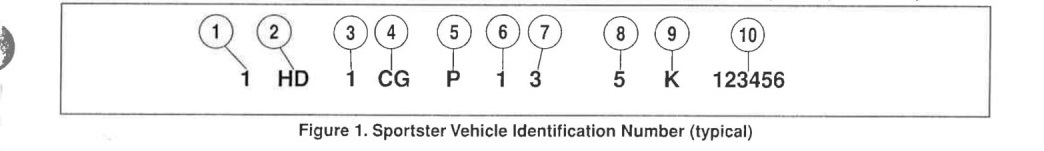

See Figure 1. The full 17 digit serial, or Vehicle Identification Number (V.I.N.)
is stamped on the right side of the steering head and on a label located on the
right side down tube.
An abbreviated V.I.N. is stamped on the left side crankcase at the base between
the cylinders.
Sample V.I.N. as it appears on the steering head - 1HD1CGP135K123456 Sample
abbreviated V.I.N. as it appears on the left crankcase - CGP5123456
NOTE
Always give the full 17 digit Vehicle Identification Number when ordering parts
or making any inquiry about your motorcycle.
