Harley Davidson 1984 FXST; 1985 to 1986 FX Models. Parts catalog - page 1

GENERAL INFORMATION

This Parts Catalog has been prepared for your convenience when ordering parts for the FXST Model; 1985 & later FXWG, FXSB and FXEF models. Wherever possible, parts are shown in assembly breakdown sequence. Index numbers shown in the illustrations correspond to index numbers in parts lists. Consult the illustrations when ordering parts so you are sure to get what you want.

Number in parenthesis following description of part is the quantity needed for complete assembly. If there is no number in parenthesis, only one is used.

Prices of parts listed in this catalog are published separately in the latest RETAIL PRICE LIST.

The following instructions should be followed carefully when ordering parts:

• Specify the correct part number for each item. Check the “Used On” column of the parts list which shows the model on which the part fits. Whenever in doubt, refer to the Vehicle Identification Number (V.I.N.) stamped on the engine crankcase.

VEHICLE IDENTIFICATION NUMBER (V.I.N.)

The full 17 digit serial, or Vehicle Identification Number (V.I.N.) is stamped on the steering head and on a label located on the front frame downtube. An abbreviated V.I.N. is stamped on the left side crankcase, near the front of the engine. Always give one of these numbers when ordering parts or making any inquiry about your motorcycle.

Page

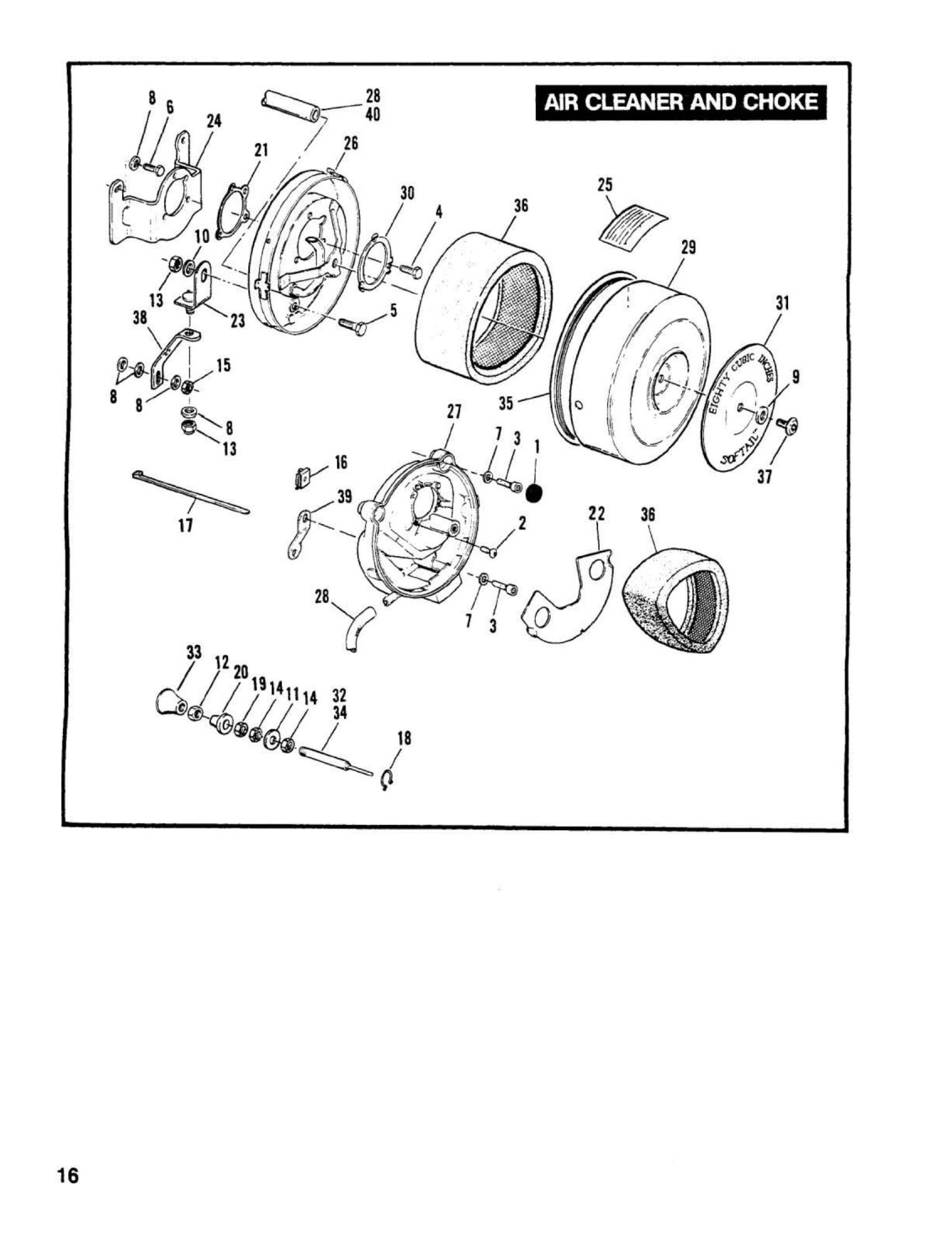

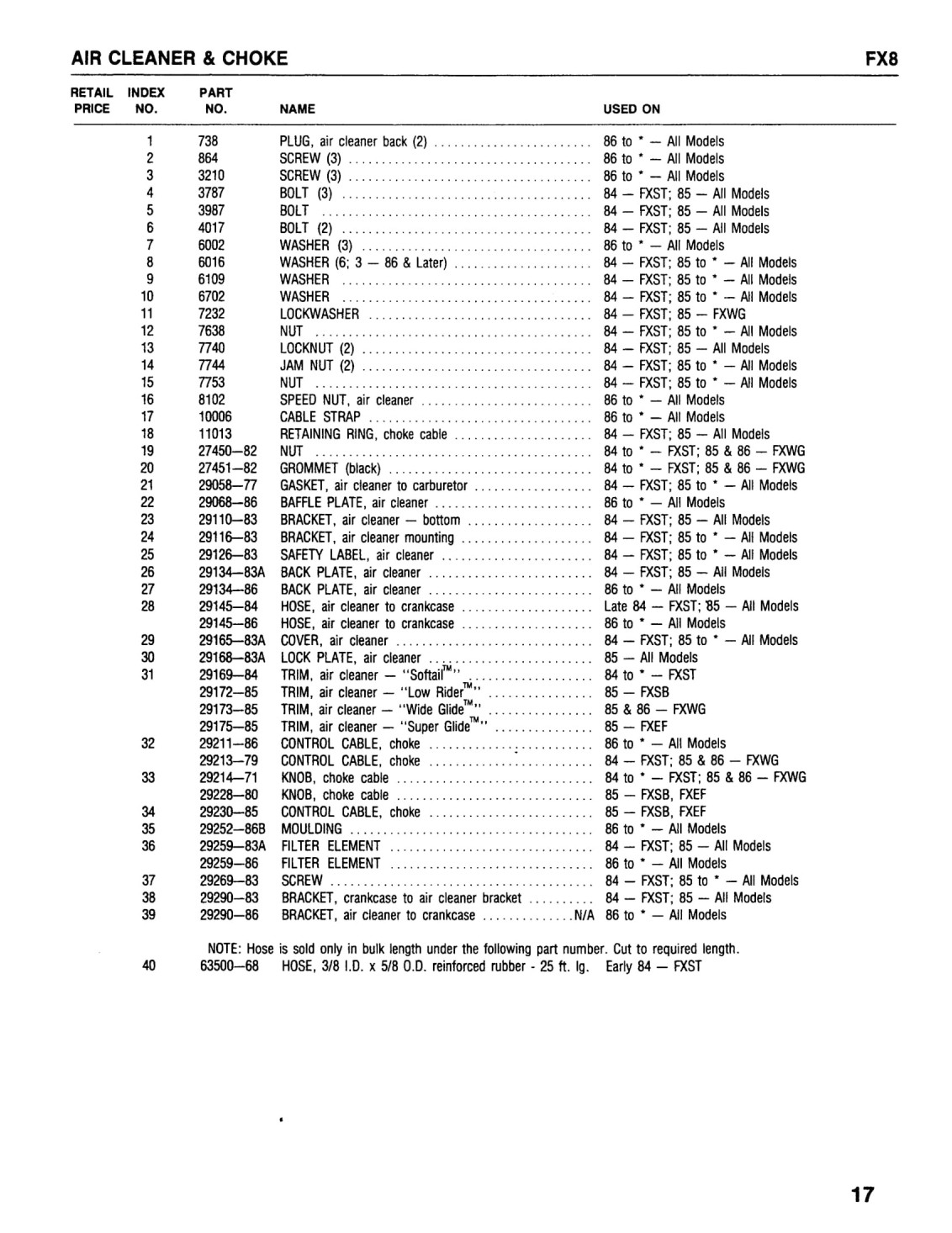

Air Cleaner......................................17

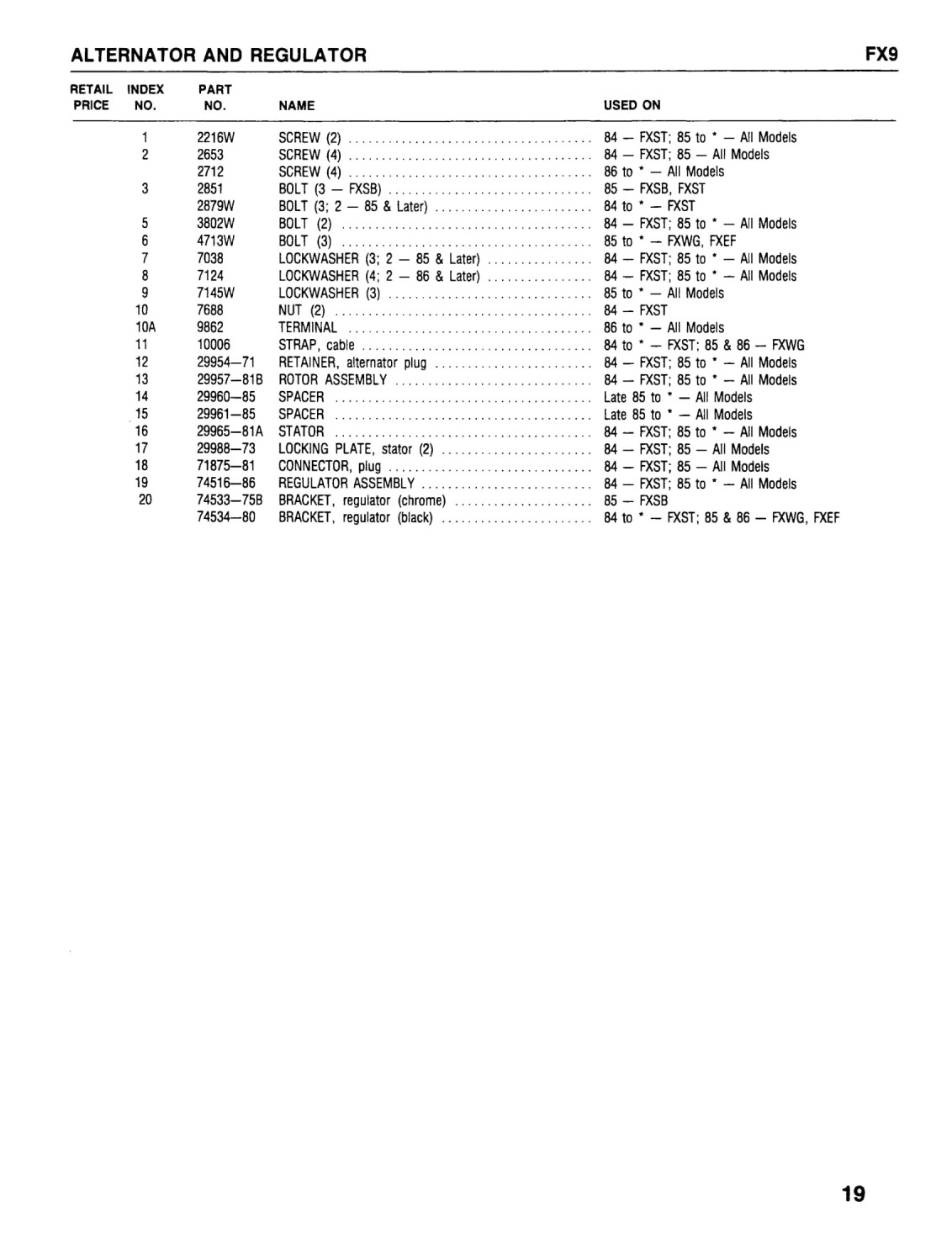

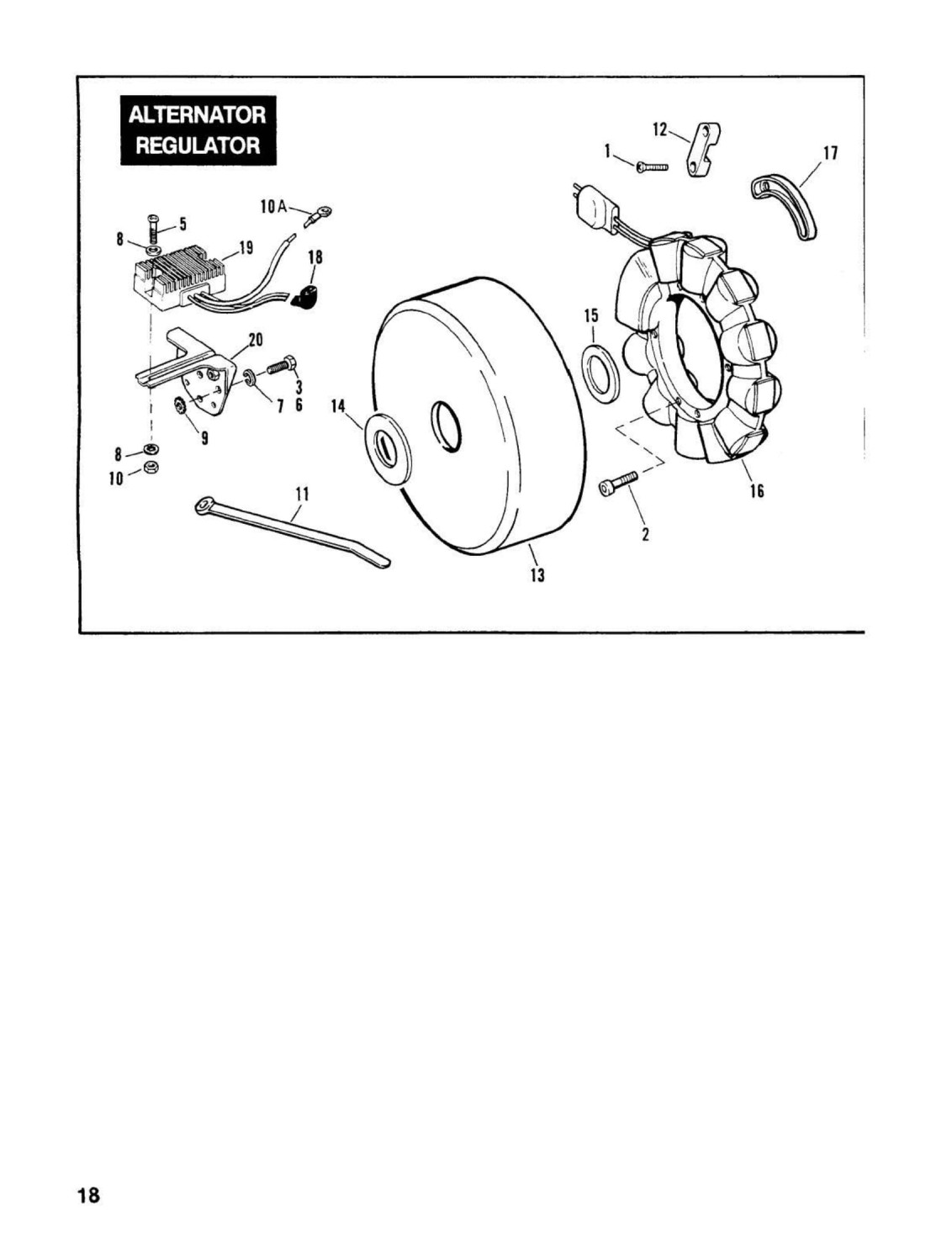

Alternator ........................................19

Axle — Front..................................63, 65

Axle — Rear ..................................67, 69

Battery - FXWG, FXSB, FXEF .. 109

Battery — FXST ............................103

Belt Guard — Rear-FXWG, FXSB 95

Belt Guard — Rear-FXST..............93

Brake — Front................................55

Brake — Rear................................61

Brake Control — Front..................53

Brake Control —

Rear-FXWG, FXST......................57

Brake Control —

Rear-FXSB, FXEF ......................59

Cam Gears ....................................11

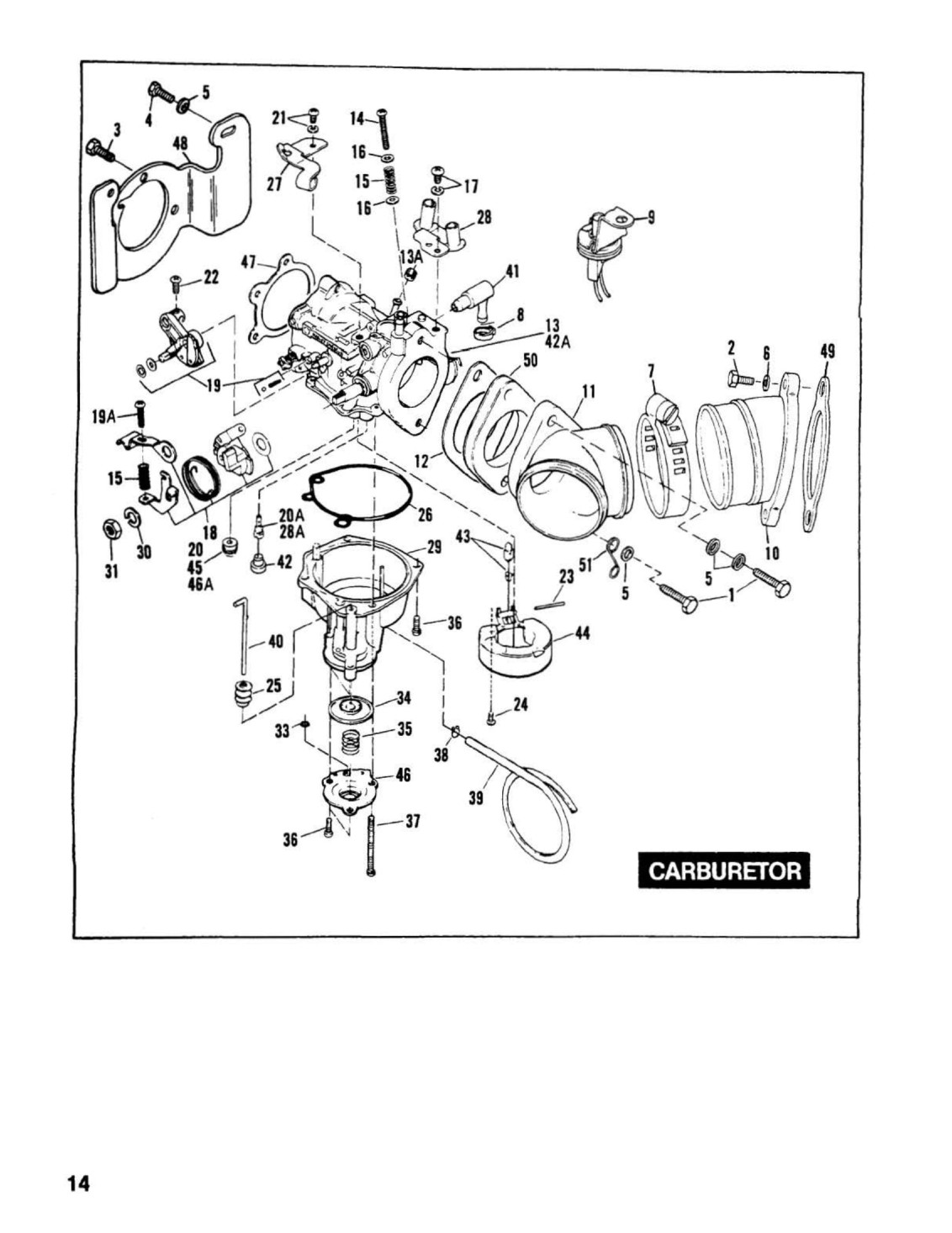

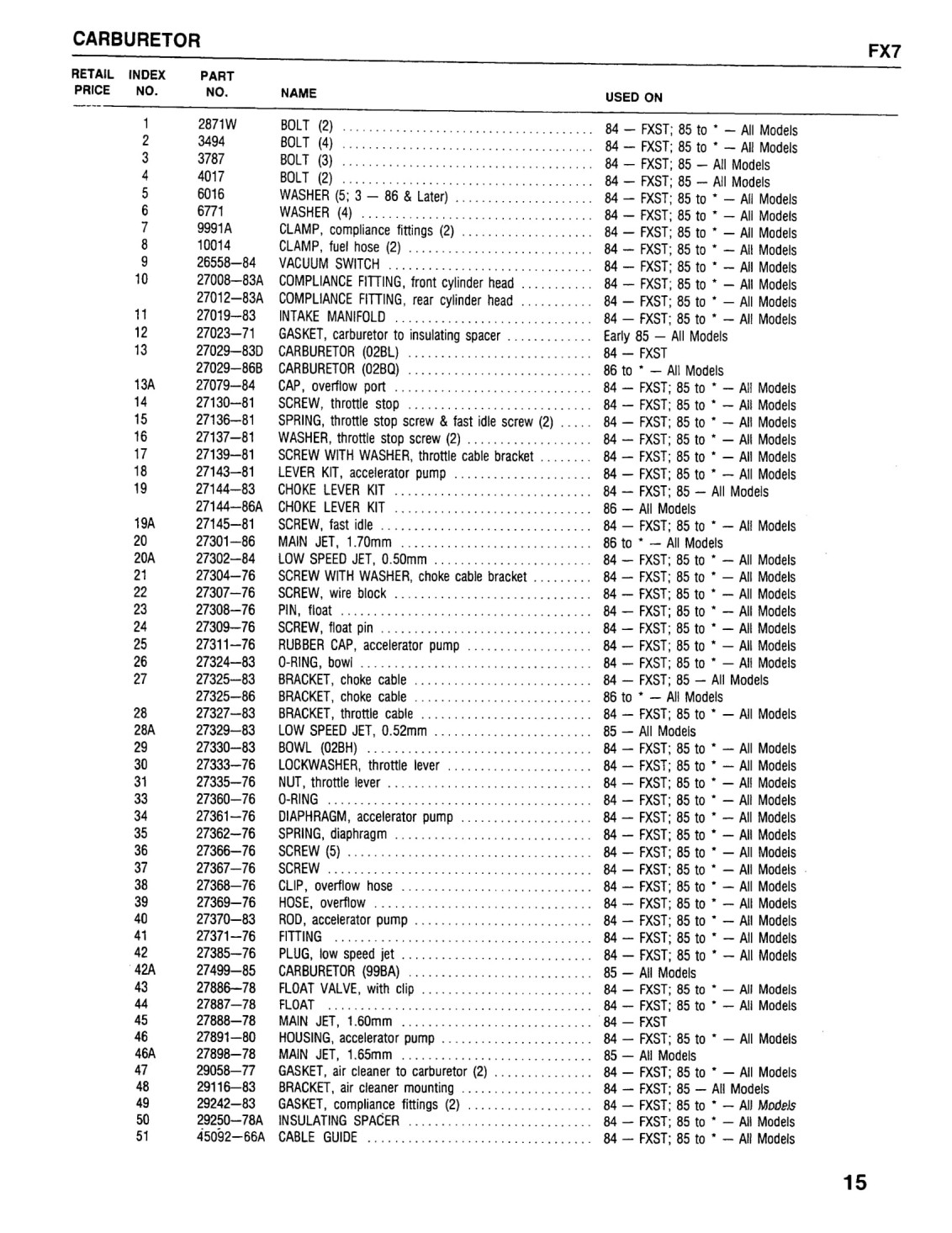

Carburetor ......................................15

Cast Wheel — Front......................65

Cast Wheel — Rear......................69

Chains, Belts & Sprockets..............51

Chain Guard — Rear-FXEF, FXST 93,95

Choke..............................................17

Circuit Breaker................................130

Clutch..............................................45, 47

Clutch Hand Control ......................49

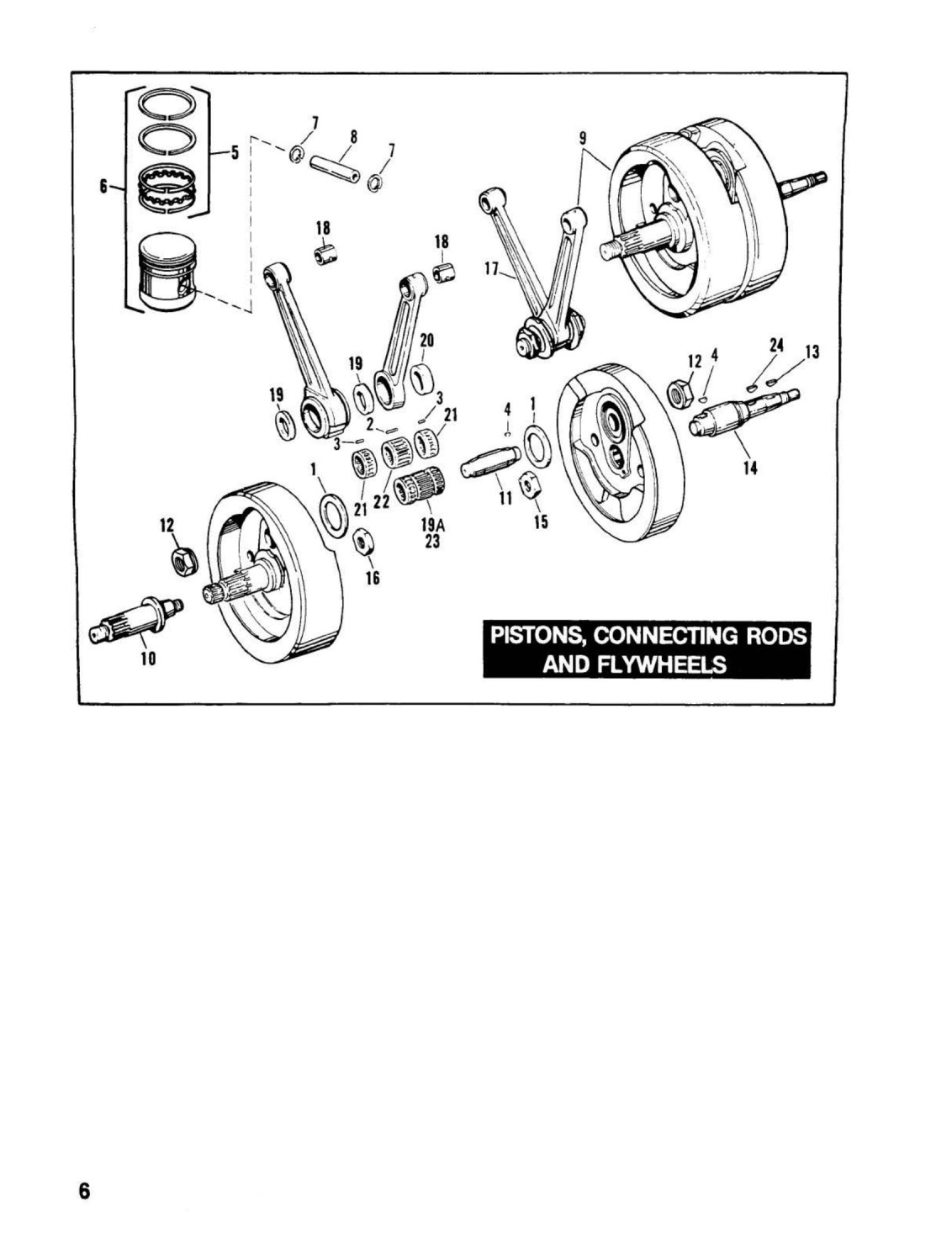

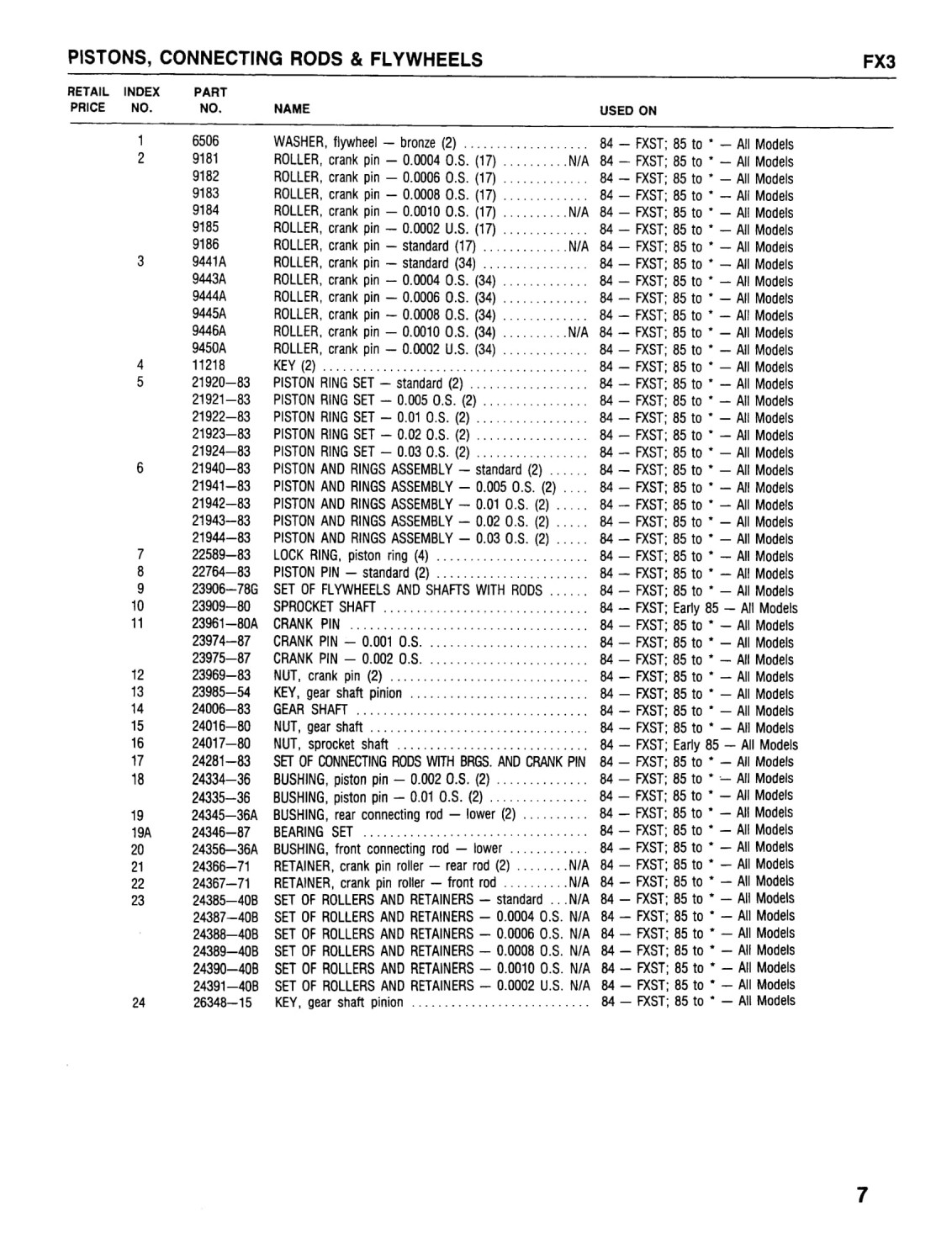

Connecting Rods ............................7

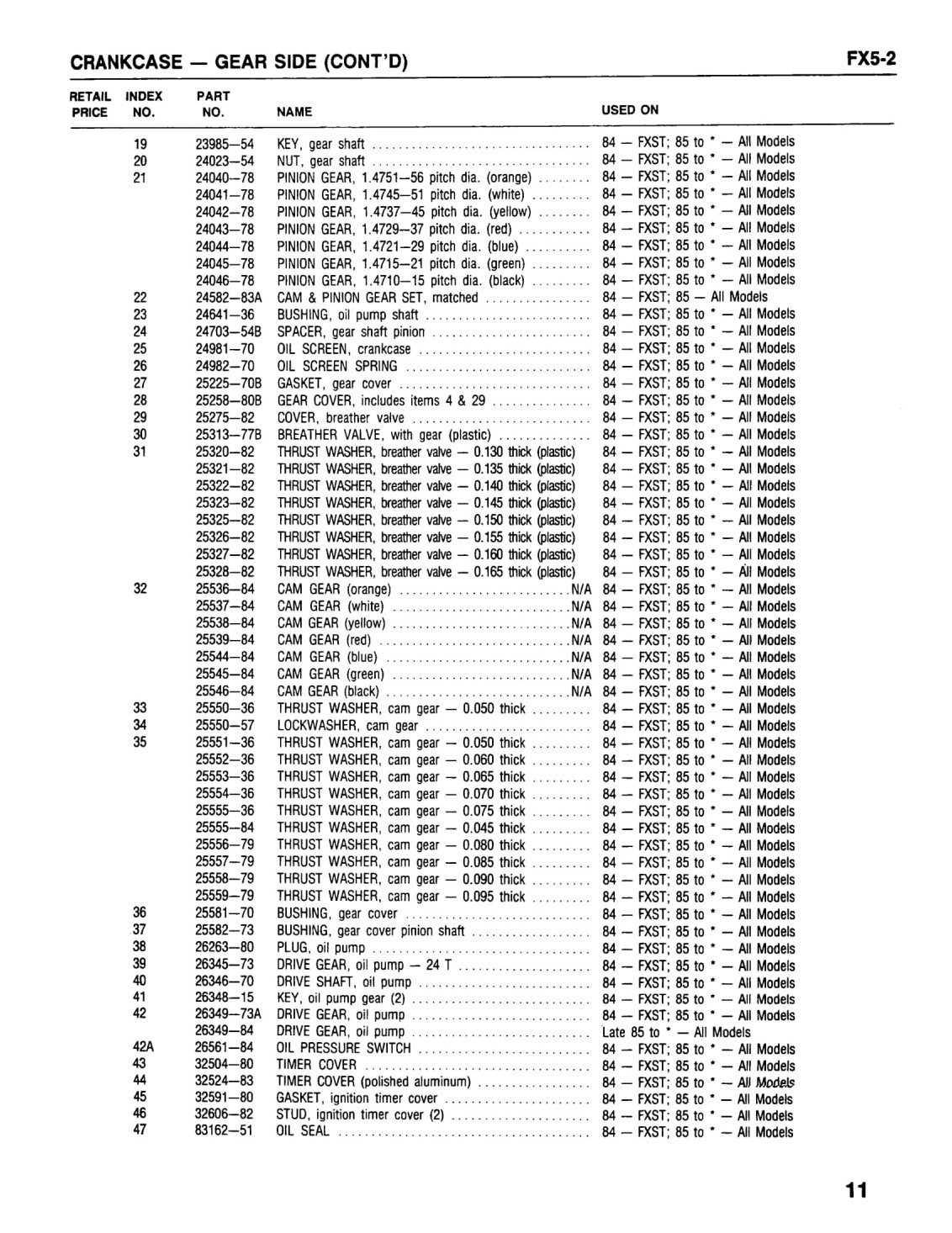

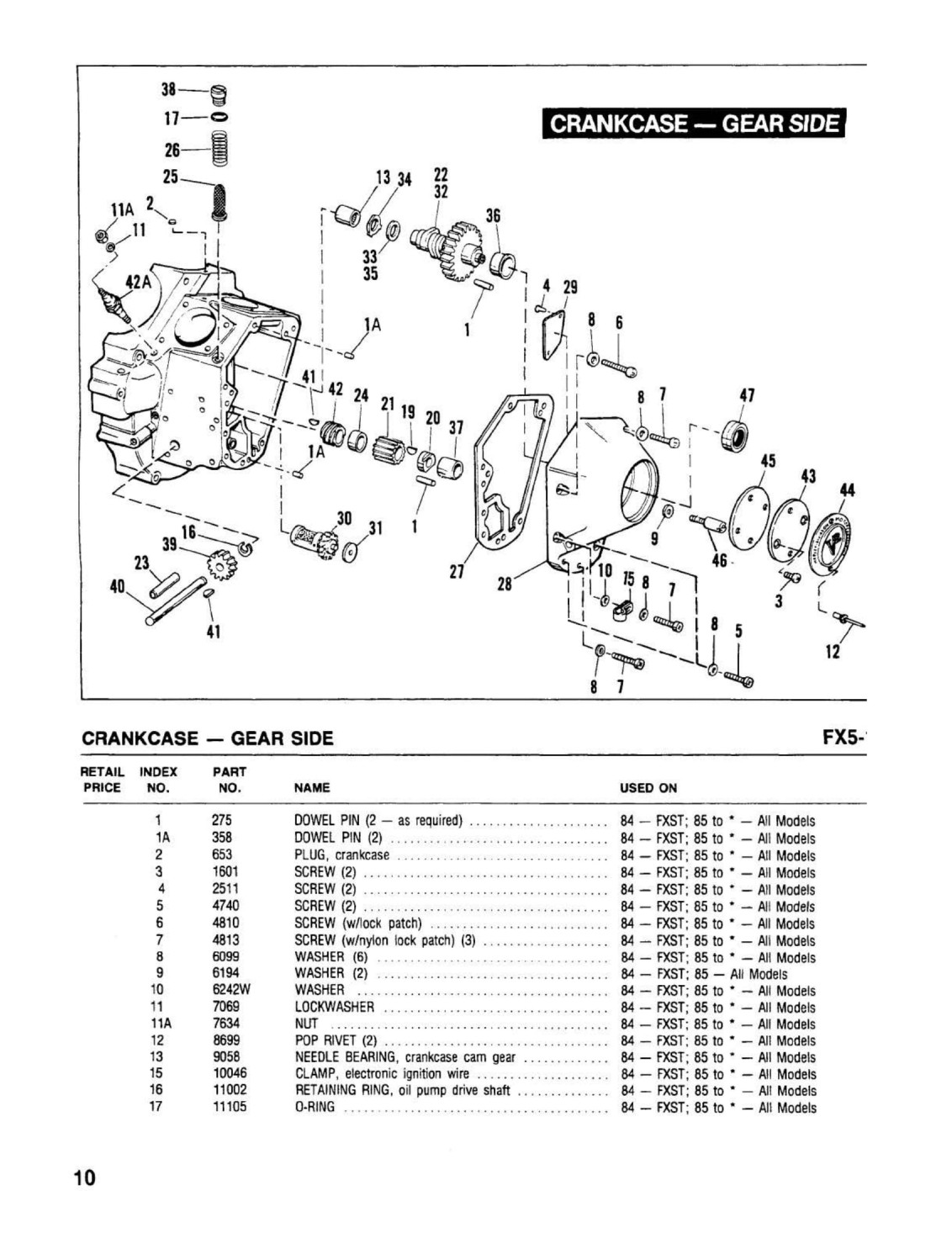

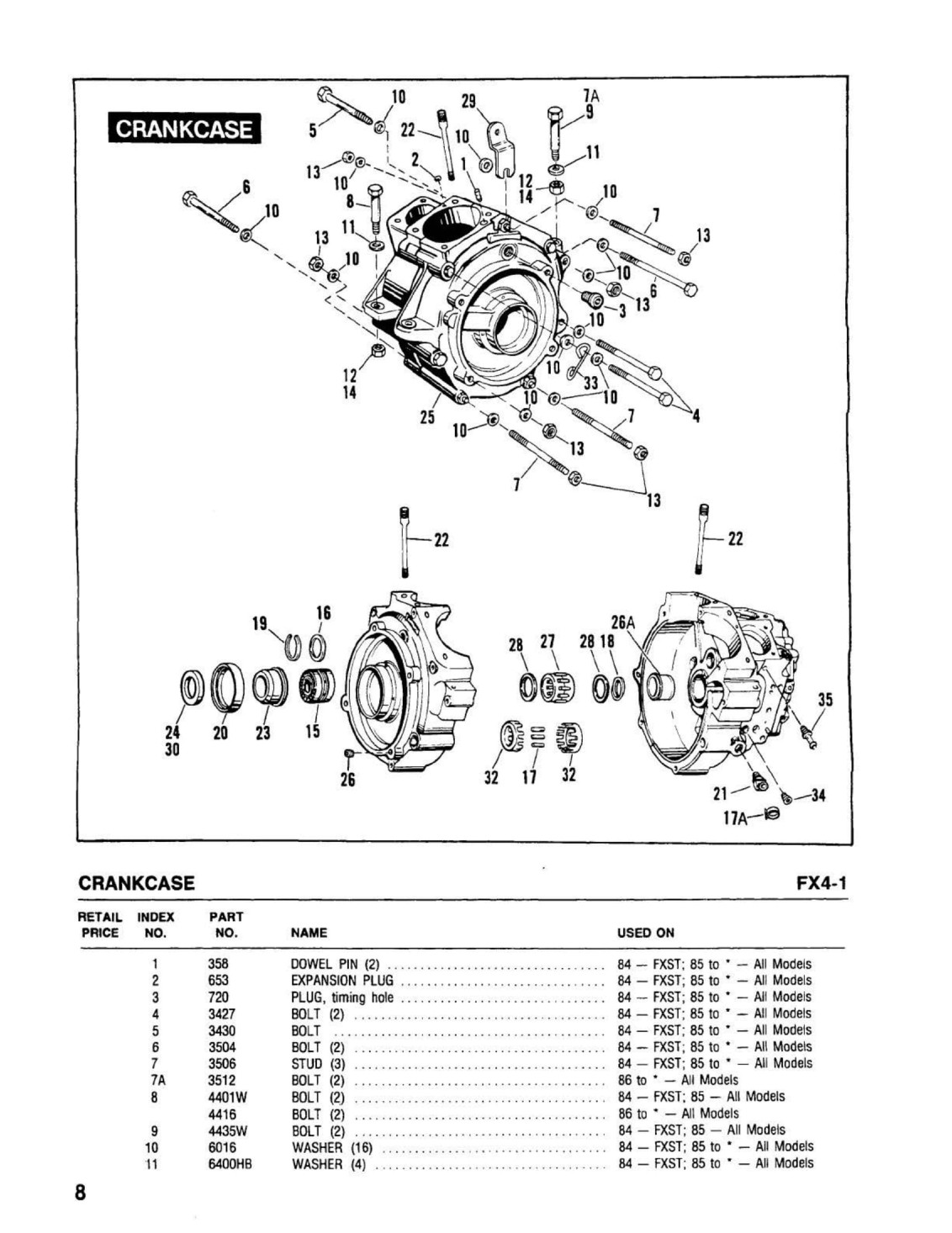

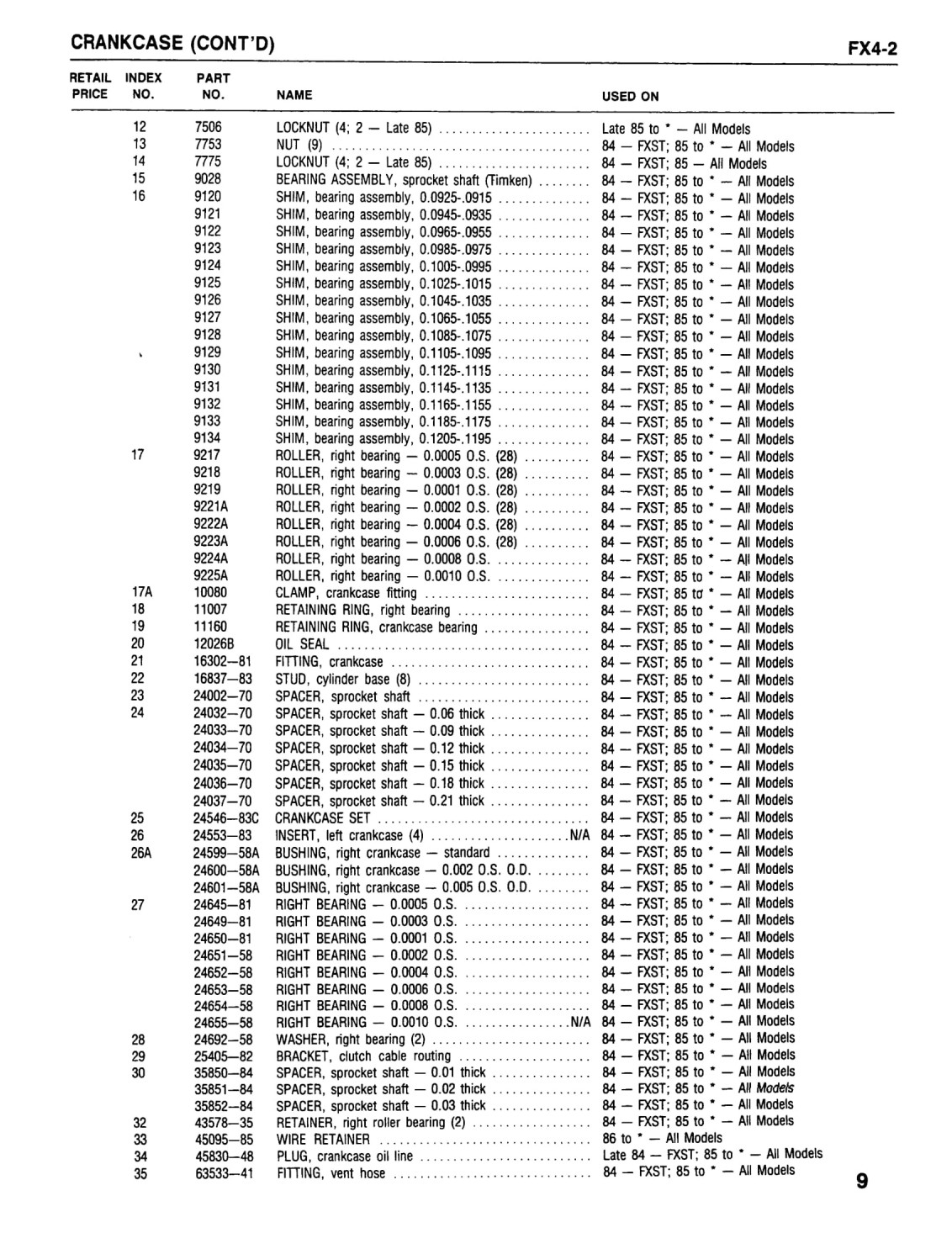

Crankcase ......................................8, 9, 10, 11

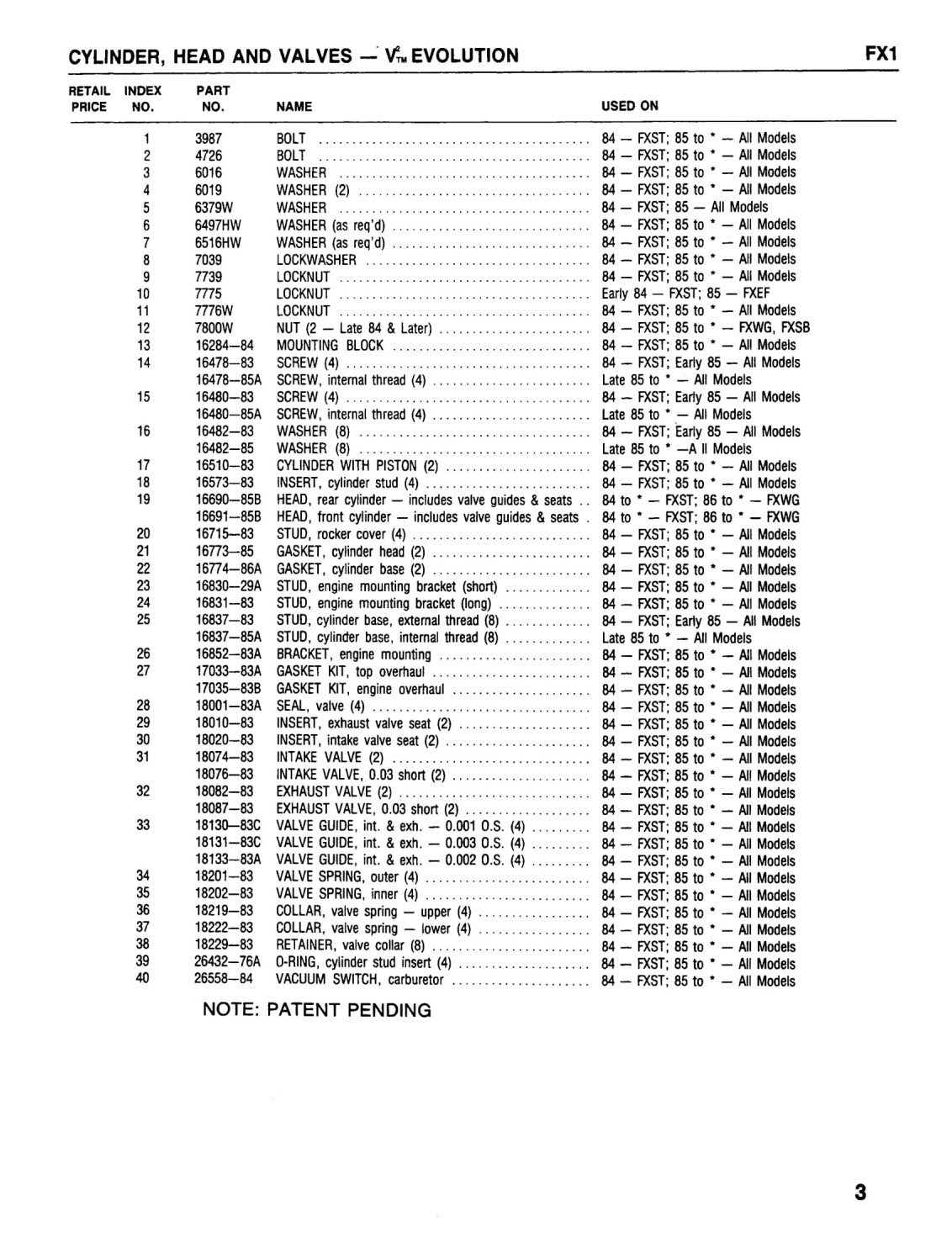

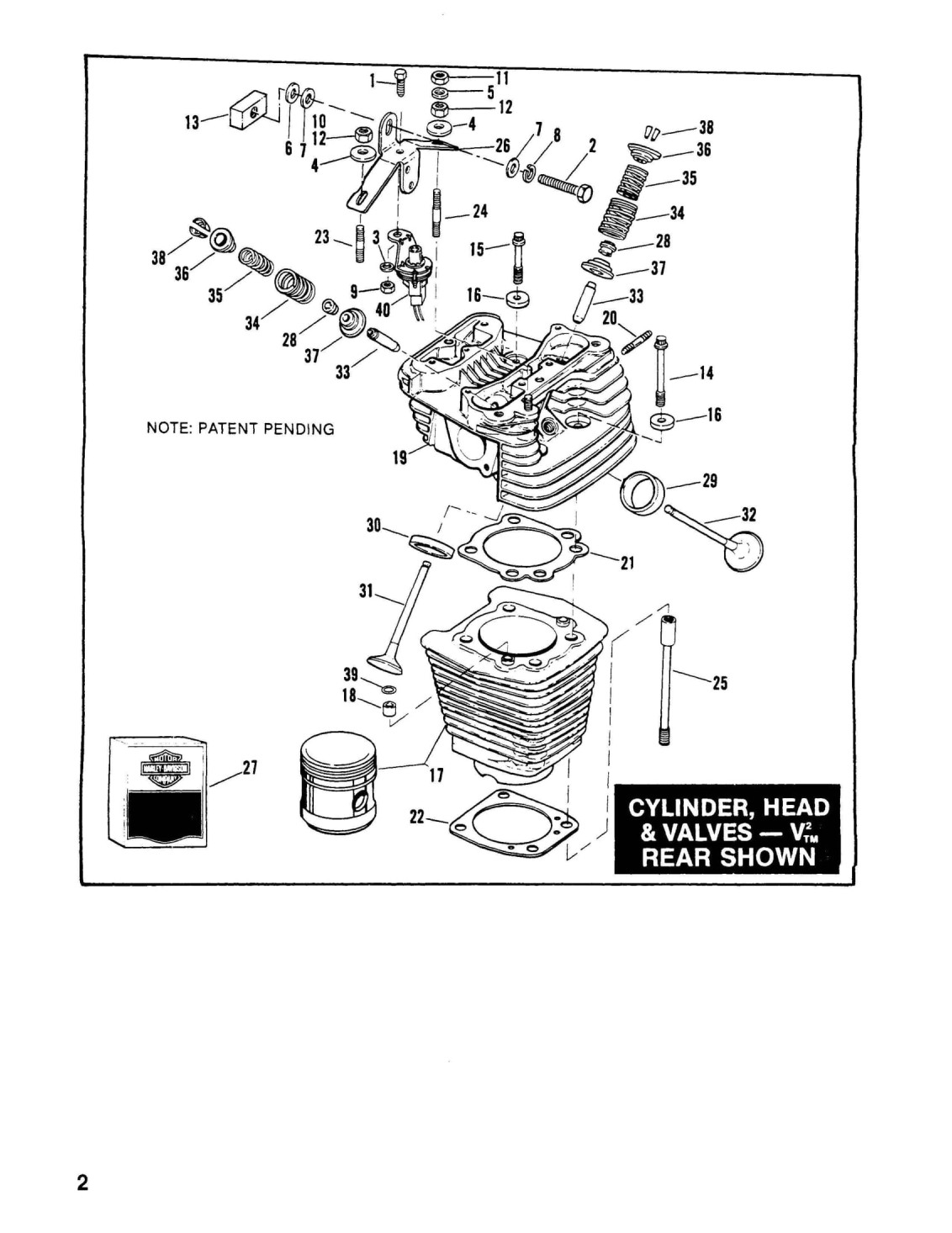

Cylinders ........................................3

Electrical..........................................121

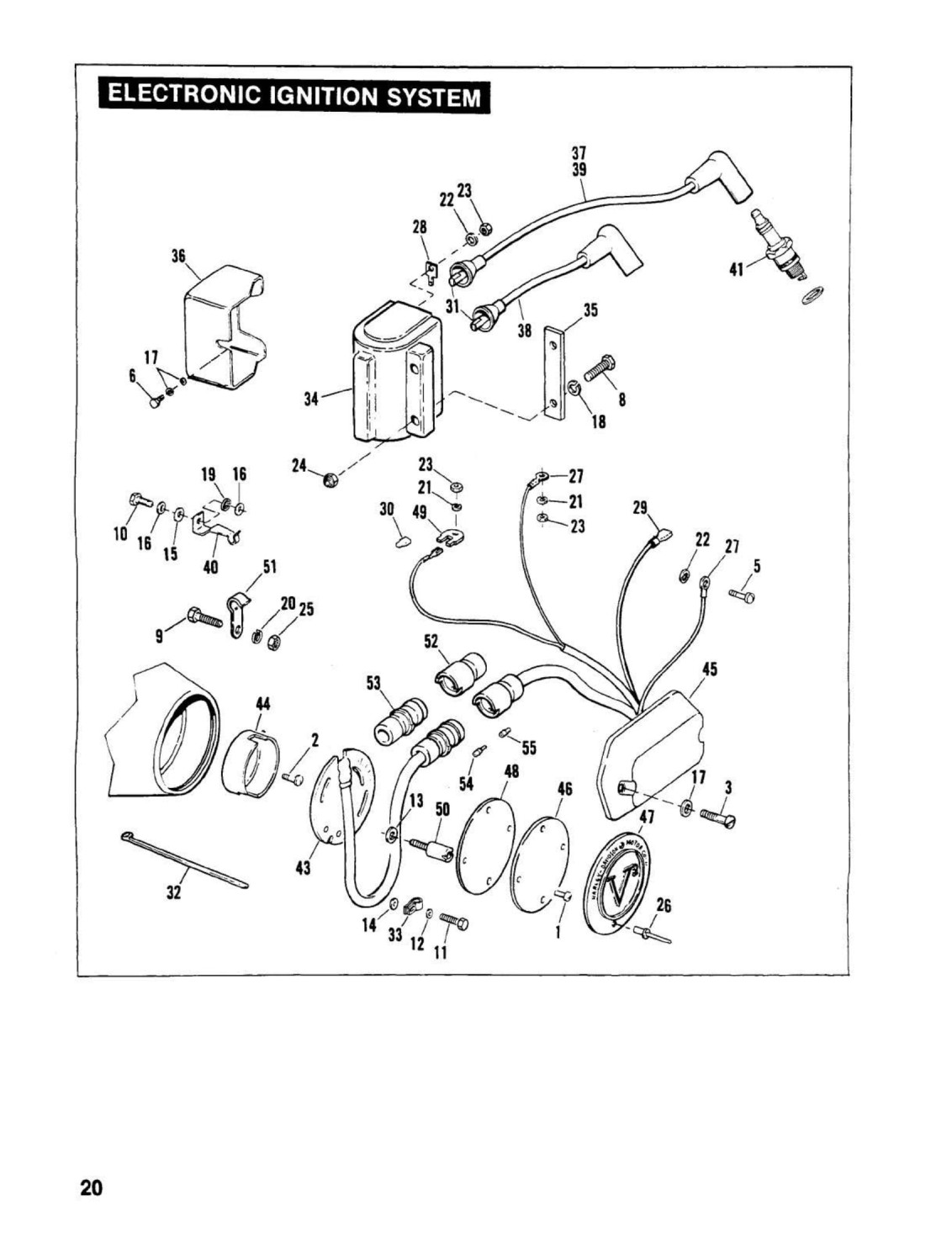

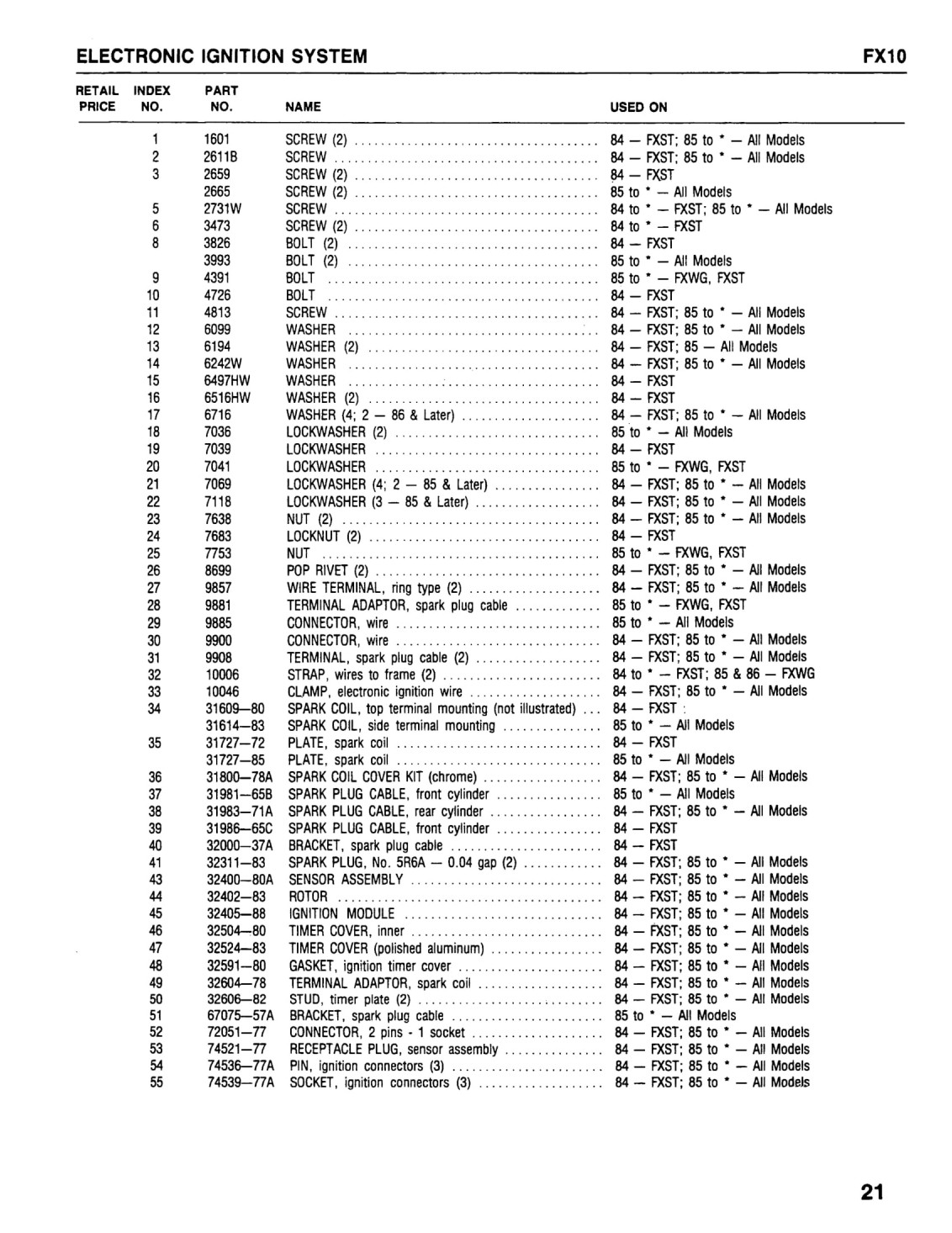

Electronic Ignition............................21

Engine ............................................3

Evaporative Emmissions Kit............136

Exhaust Pipes ................................107

Fenders — FXST............................93

Fenders — FXWG, FXSB, FXEF . 95

FLST Model....................................139 — 143

Flywheels ........................................7

Footrest — FXWG, FXST..............85

Footrest — FXSB, FXEF................86

Footrest — Highway-FXSB............87

Footshift ..........................................35

Fork - Front-FXWG, FXST............71

Fork — Front-FXSB........................73

Fork — Front-FXEF........................75

Fork — Rear-FXST........................79, 81

Fork — Rear-FXWG, FXSB, FXEF 77

Frame — FXST..............................79, 81

Frame - FXWG, FXSB, FXEF ... 77

Fuel Tanks......................................101

FXST Custom ................................137,138

Gaskets ..........................................3, 5, 11, 13, 37, 97

Gear Case Cover............................11

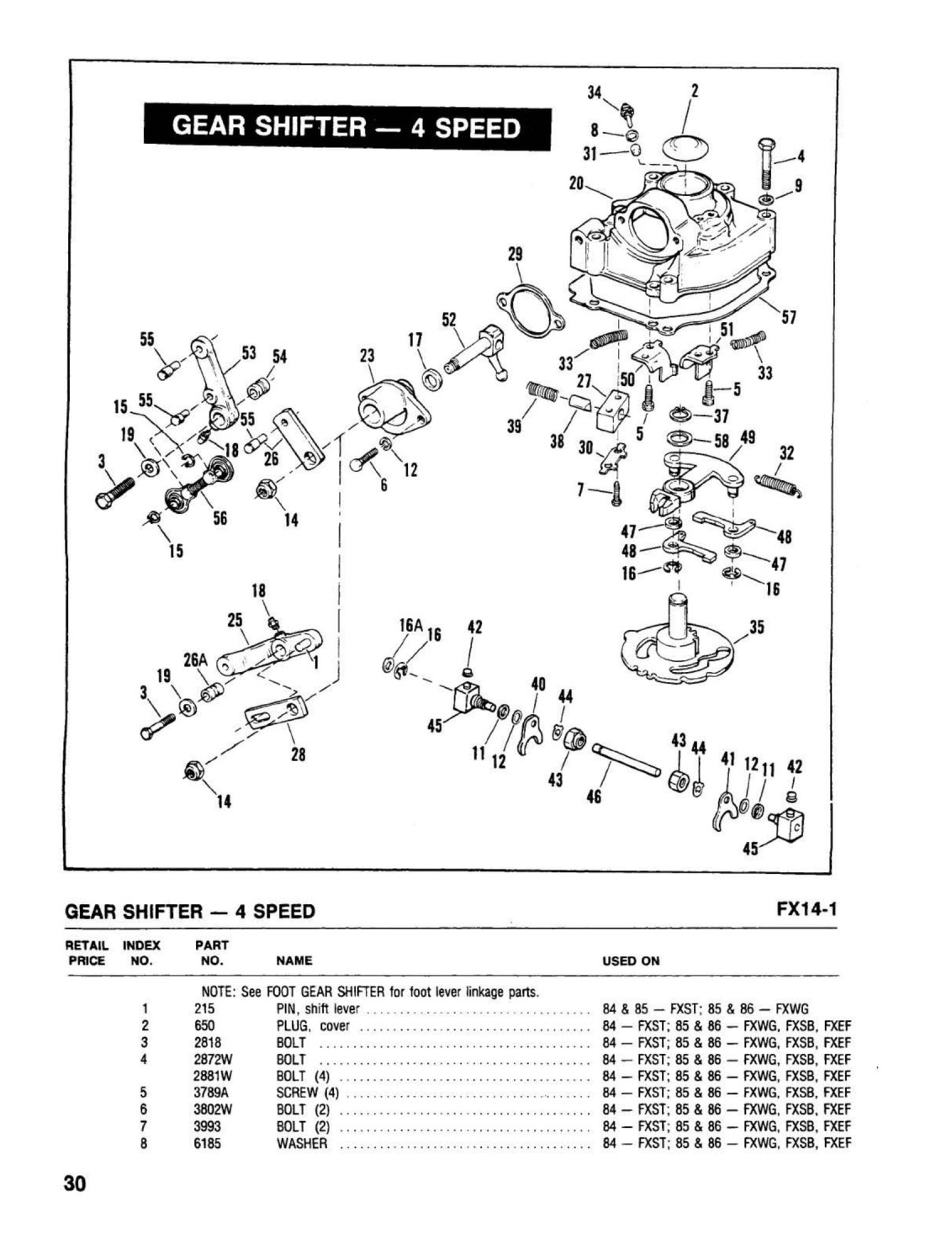

Gear Shifter — 4 Speed................31

Gear Shifter — 5 Speed................33

Handlebar ......................................90

Headlamp — FXWG, FXST............111

Headlamp — FXSB, FXEF............112

Horn ................................................117

Page

Ignition Module .......

Ignition Switch — FXWG, FXST .. 131

Ignition Switch — FXSB, FXEF ... 133

Indicator Lamps ..............................112, 125, 127

Instrument Panel — FXWG, FXST 125, 127

Instrument Panel — FXSB, FXEF . 129

Jiffy Stand ......................................83

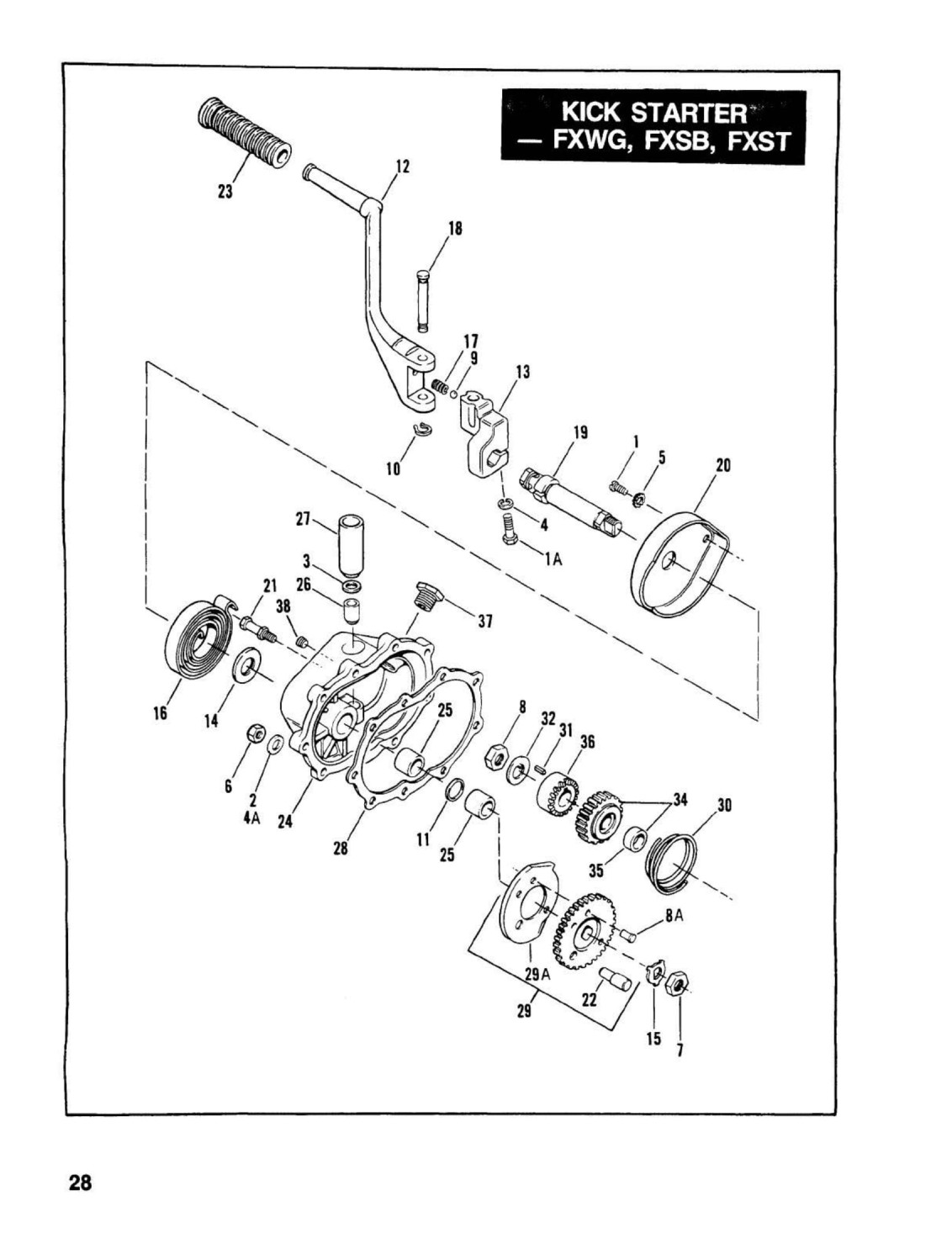

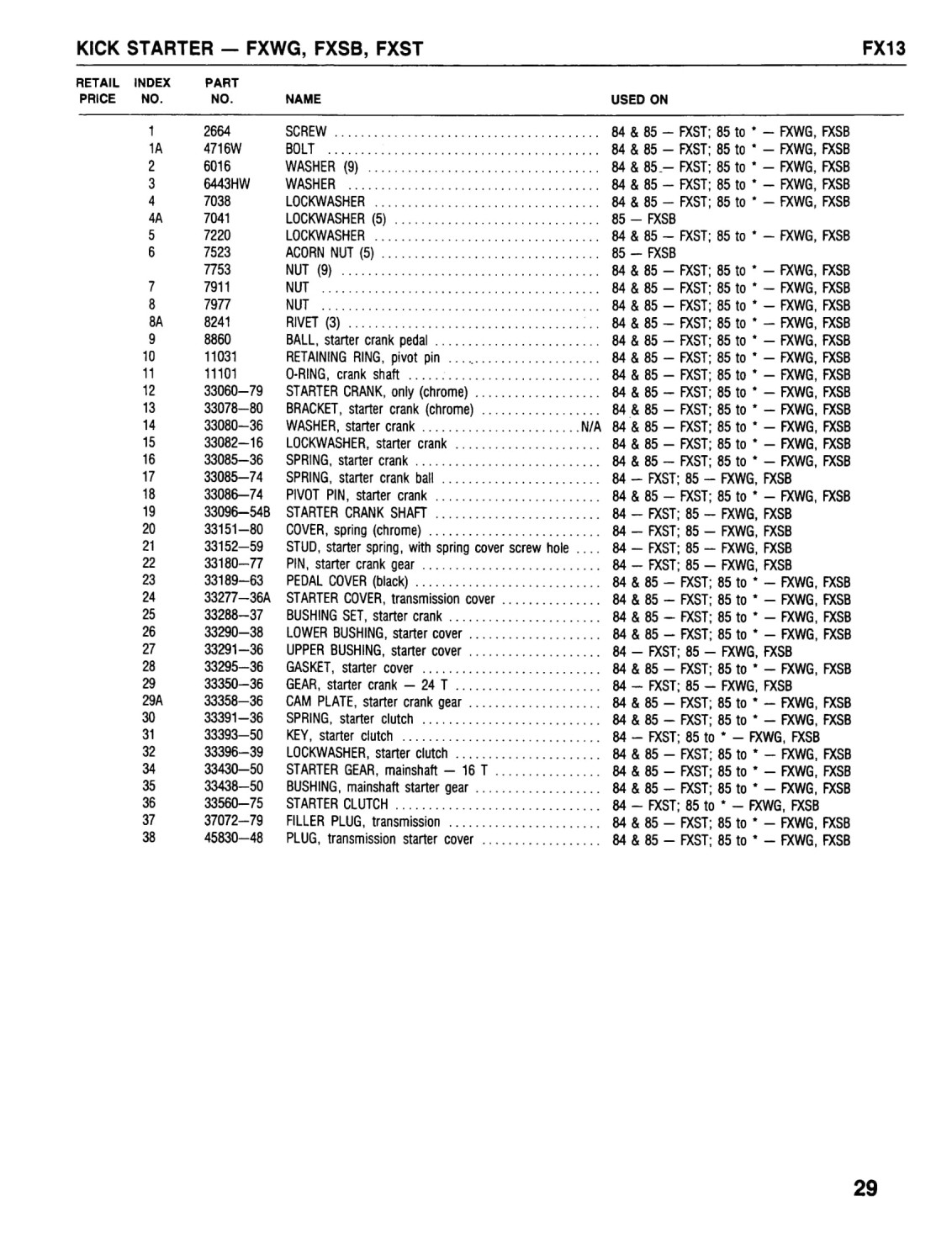

Kick Starter —

FXWG, FXSB, FSXT..................29

License Plate Bracket ....................97

Master Cylinder — Front................53

Master Cylinder — Rear................57, 59

Mirror ..............................................117

Mufflers ..........................................107

Neutral Switch ................................135

Numerical Index..............................144

Oil Filter — FXST..........................103

Oil Filter — FXWG, FXSB, FXEF . 105

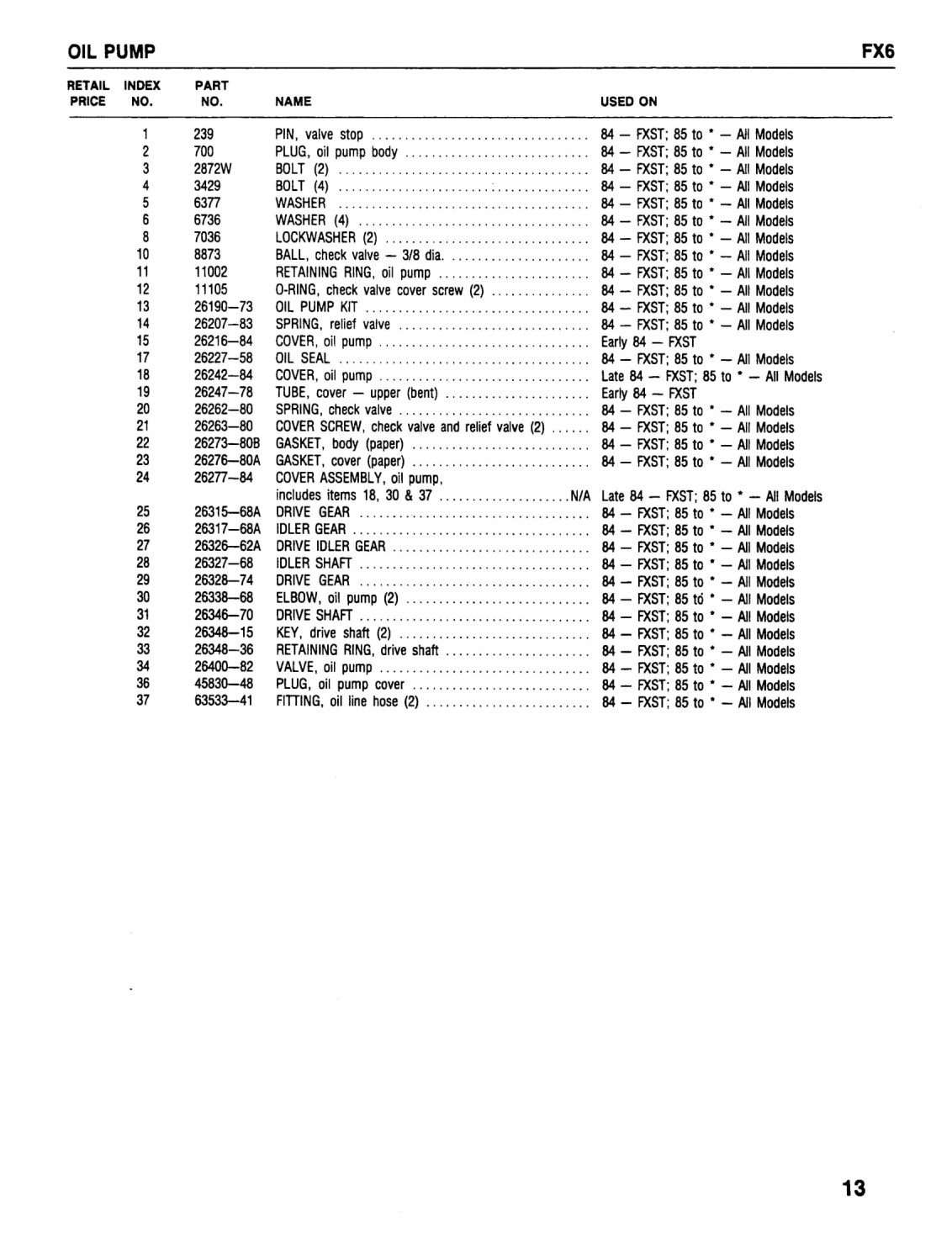

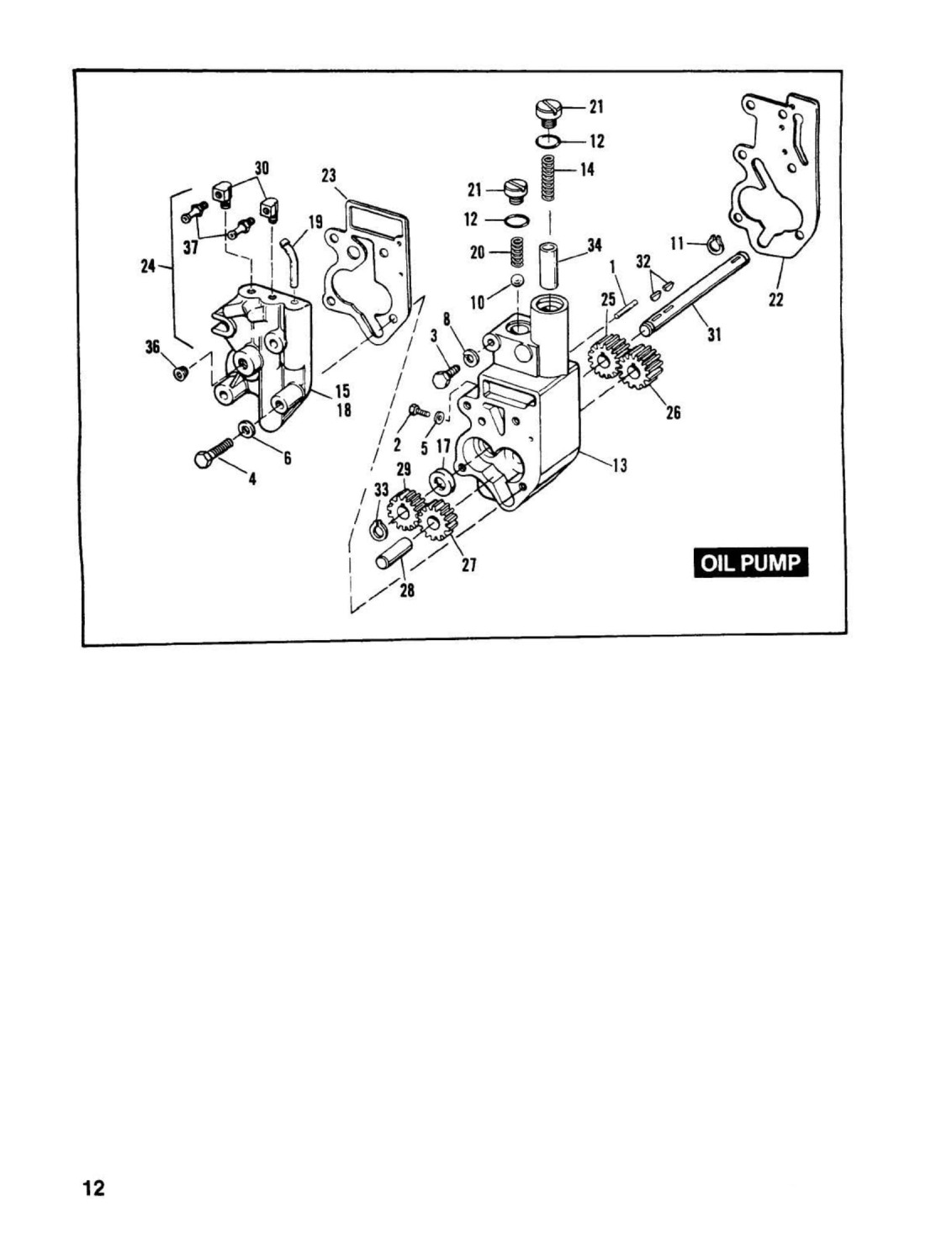

Oil Pump ........................................13

Oil Tank — FXST............. 103

Oil Tank - FXWG, FXSB, FXEF . 105

Pistons ............................................3, 7

Primary Housing ............................99

Push Rods......................................5

Rims................................................63, 67

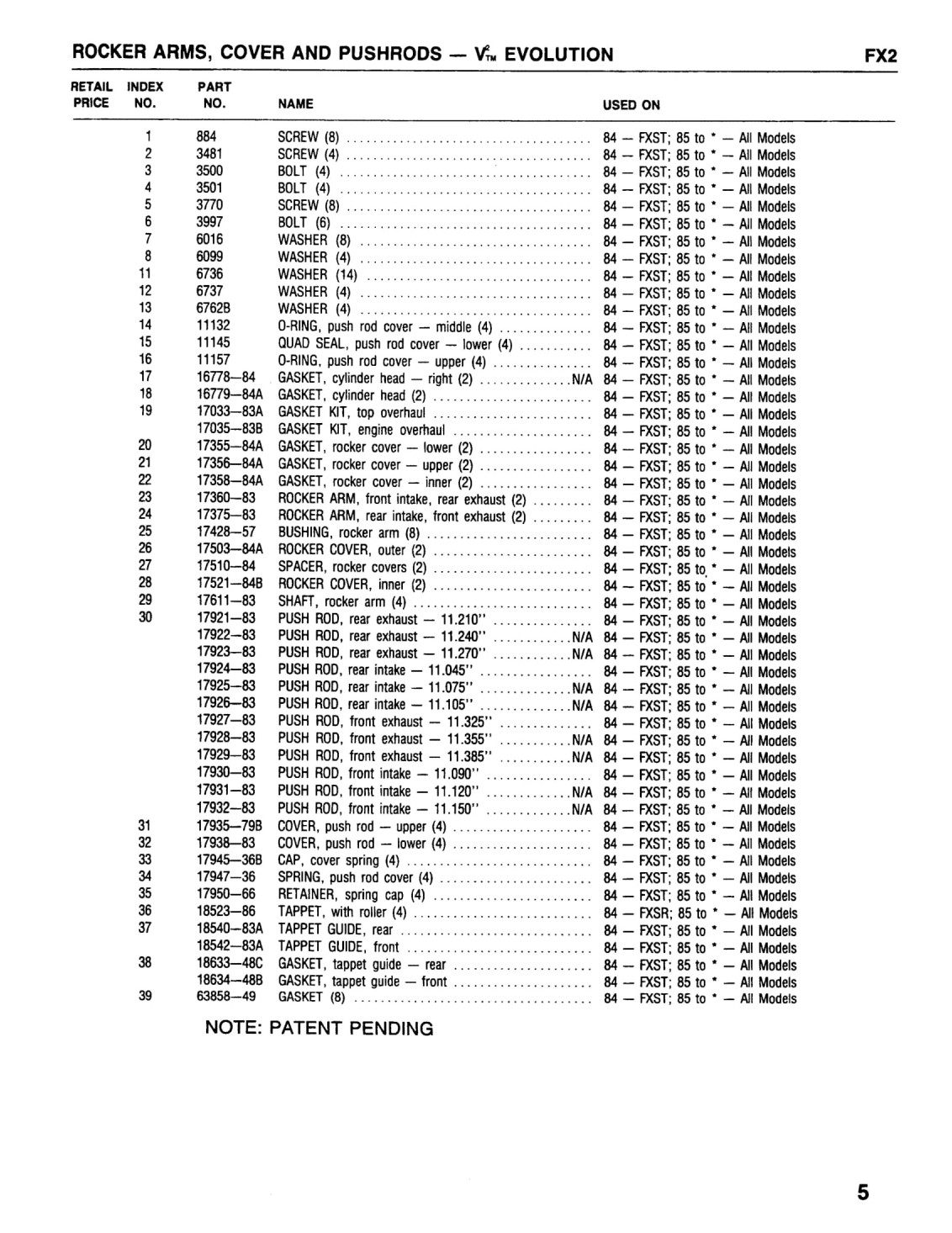

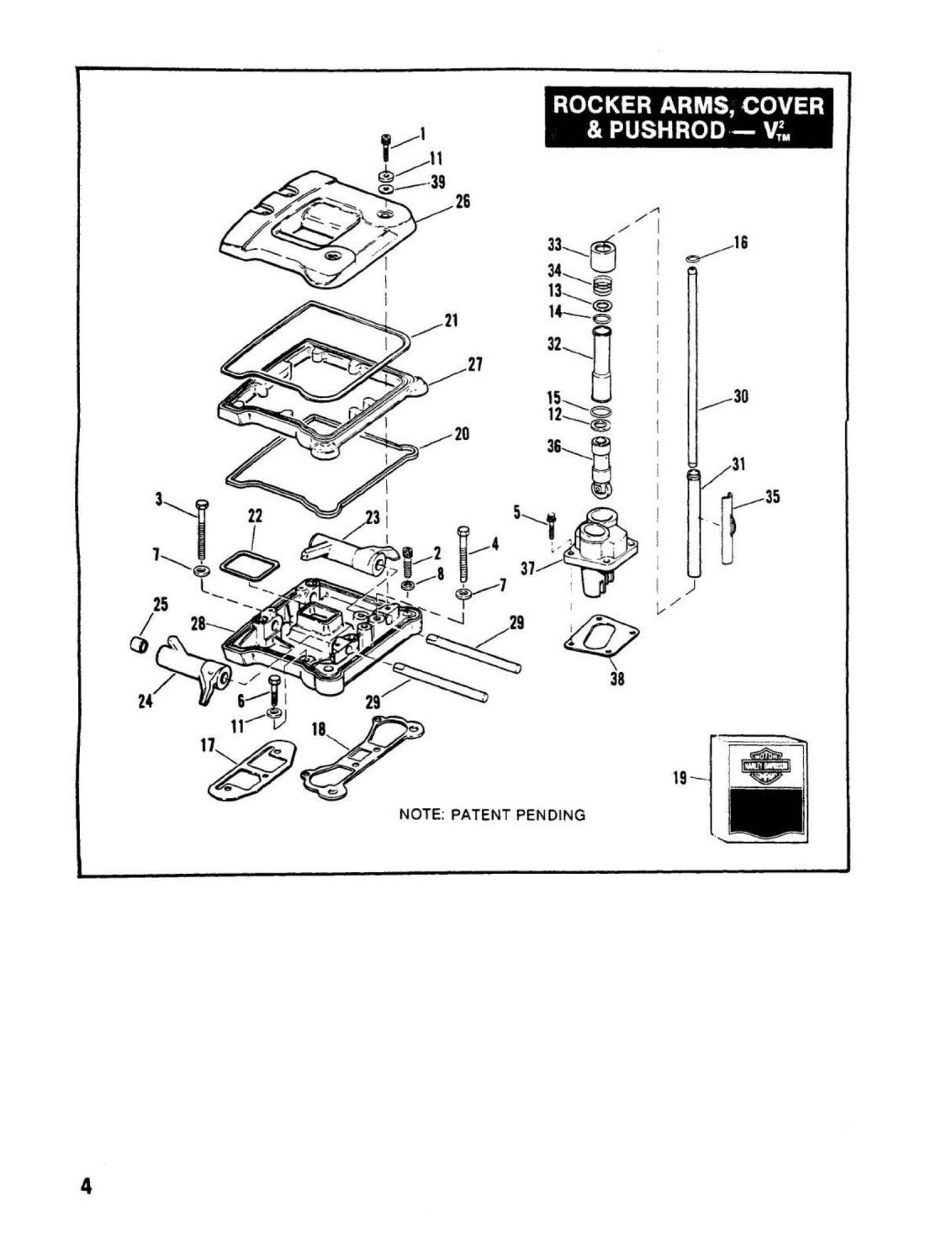

Rocker Arms ..................................5

Rotor ..............................................19

Seat ................................................84

Shifter..............................................31,33,35

Shock Absorber — FXST..............88

Shock Absorber —

FXWG, FXSB, FXEF..................89

Solenoid, starter..............................135

Spark Cables, Coil & Plugs............21

Speedometer — FXWG, FXST ... 125, 127

Speedometer — FXSB, FXEF________129

Sprockets — Belt............................39, 41, 51, 67, 69

Sprockets — Chain ........................39, 45, 47, 51, 67, 69

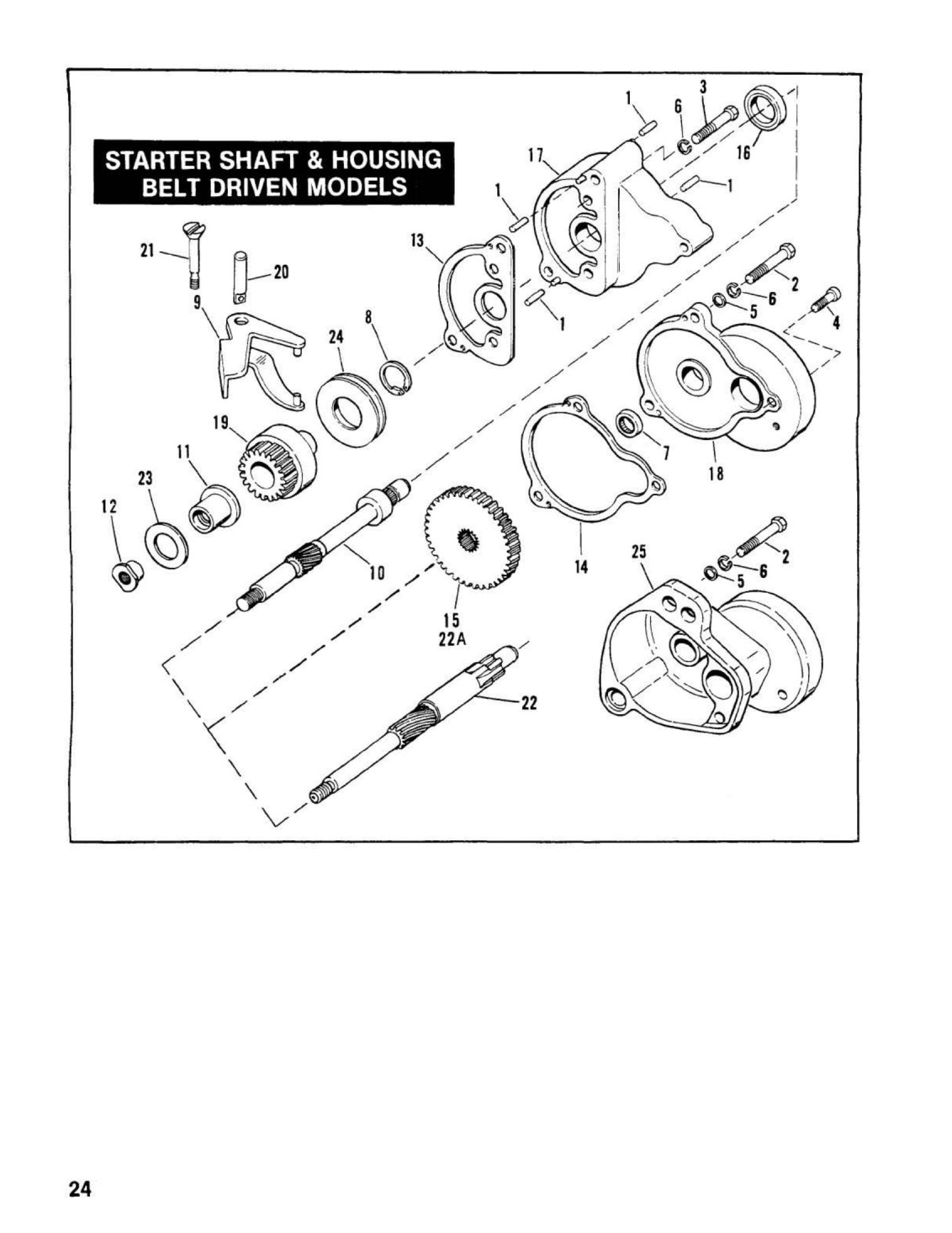

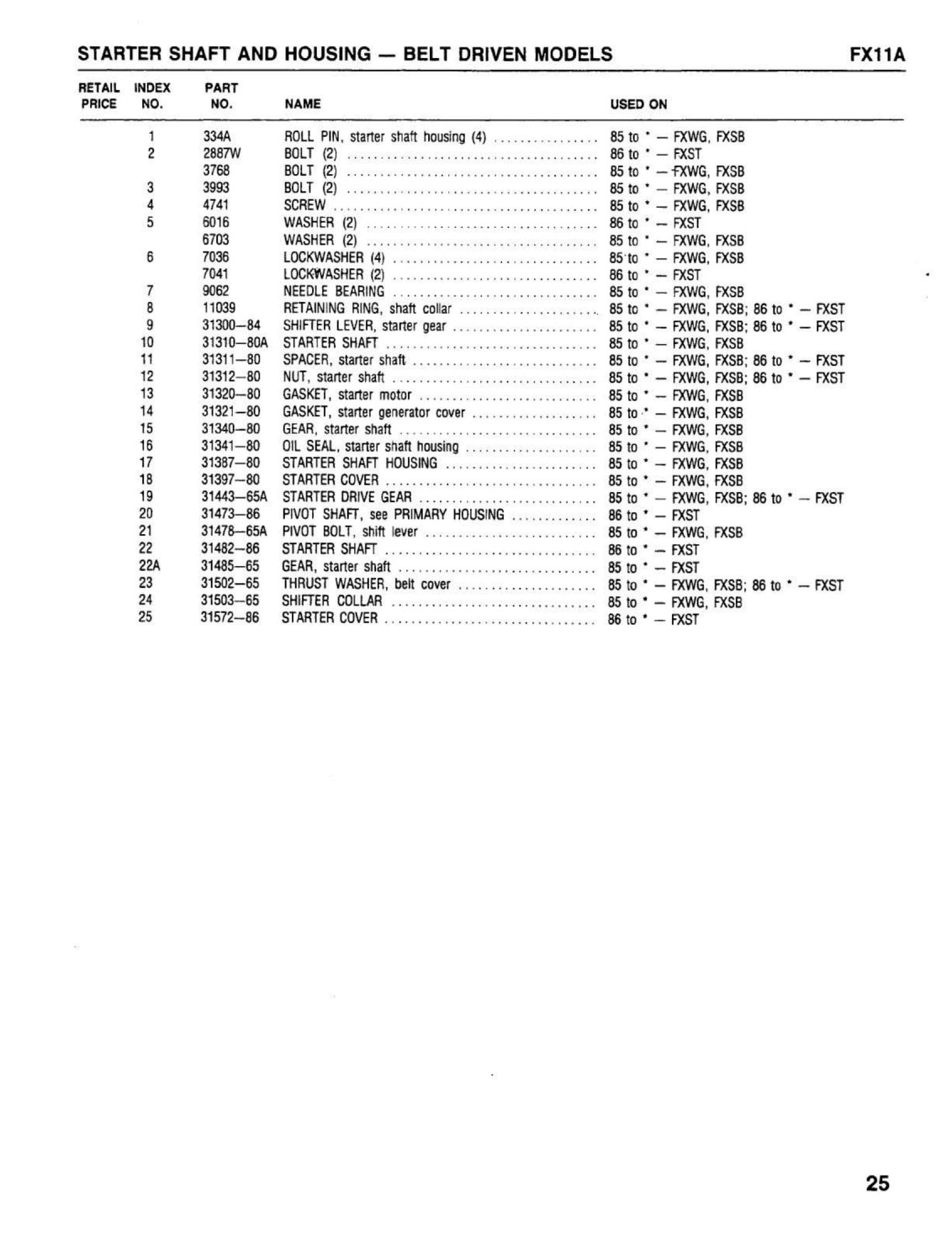

Starter Housing — Belt..................25

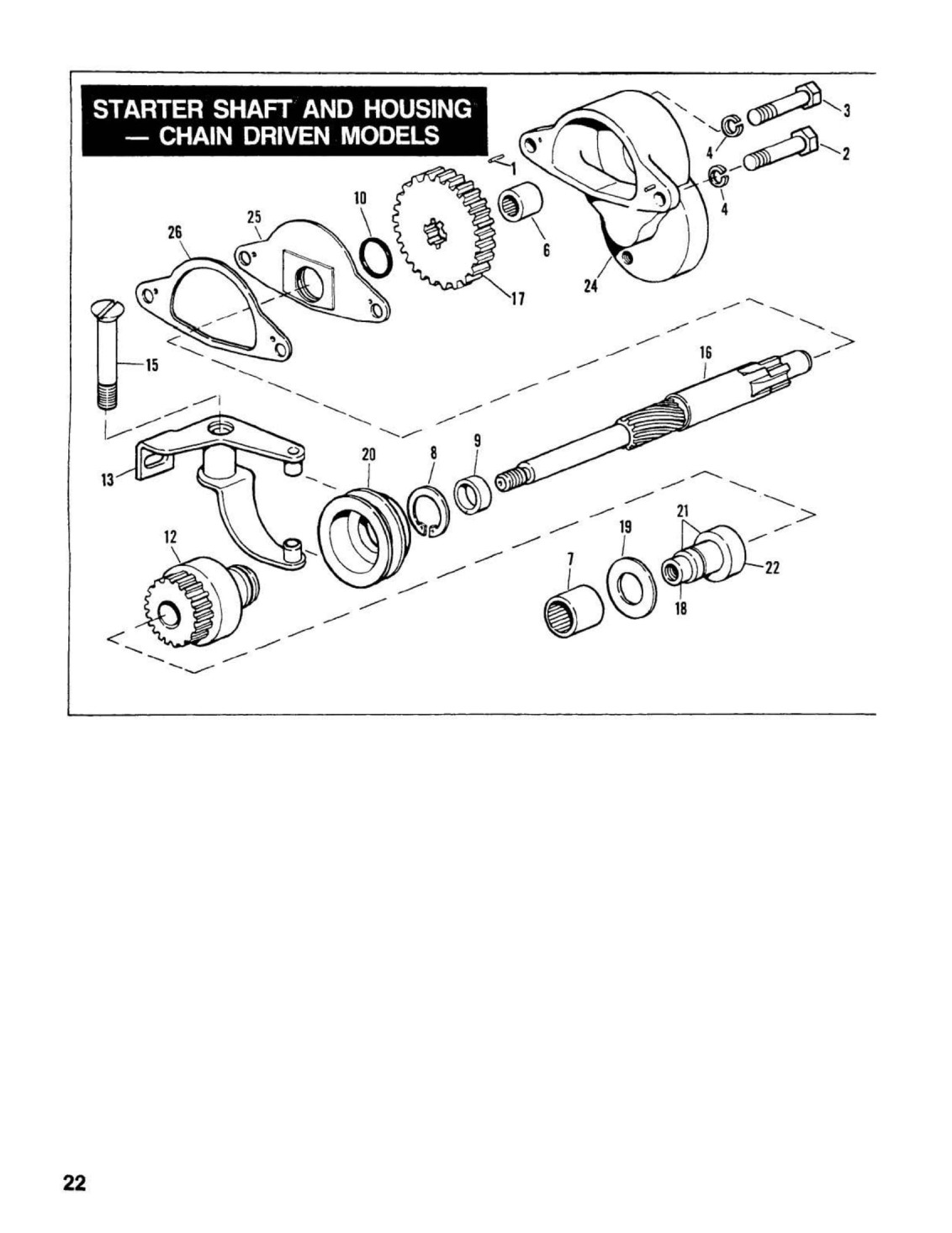

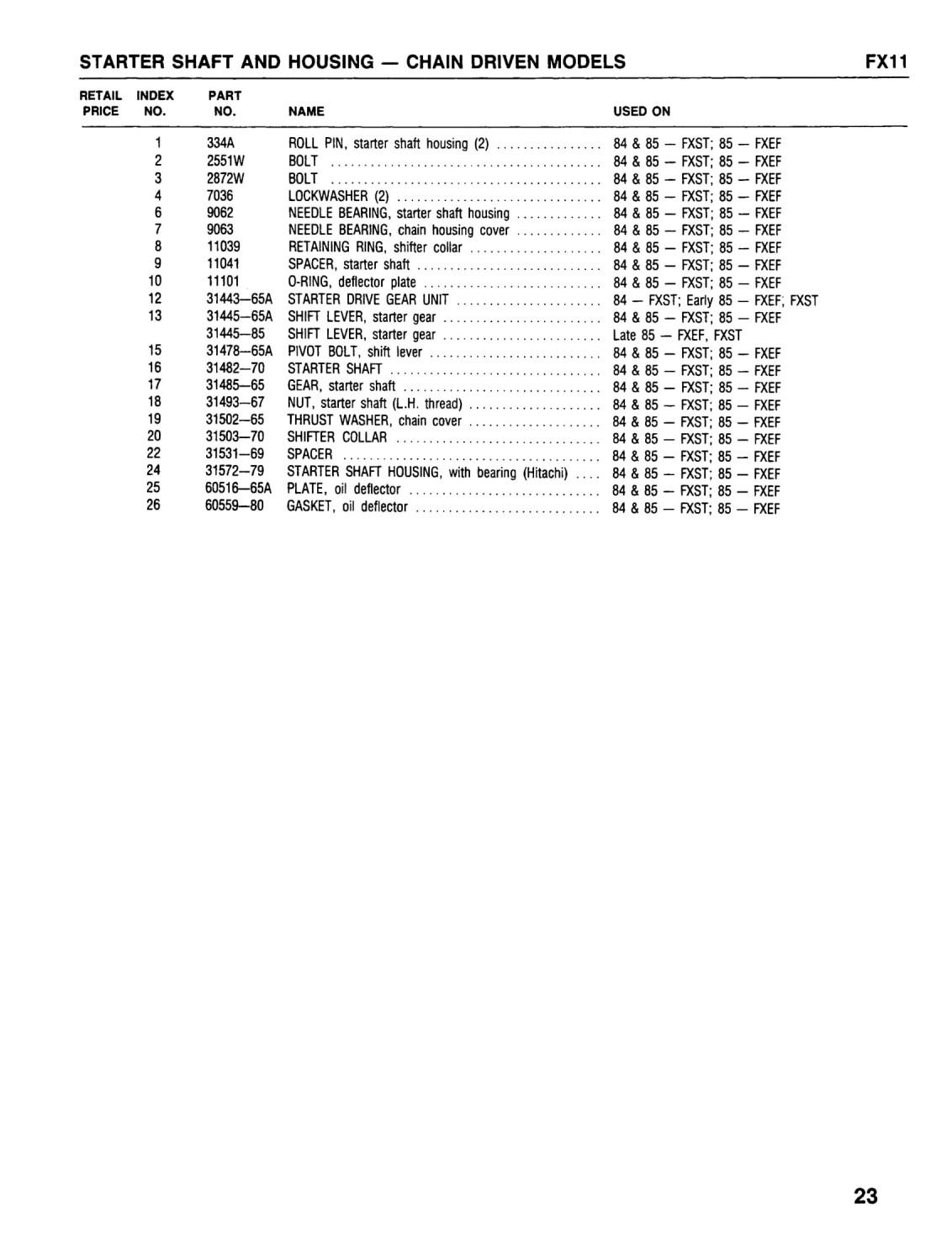

Starter Housing — Chain ..............23

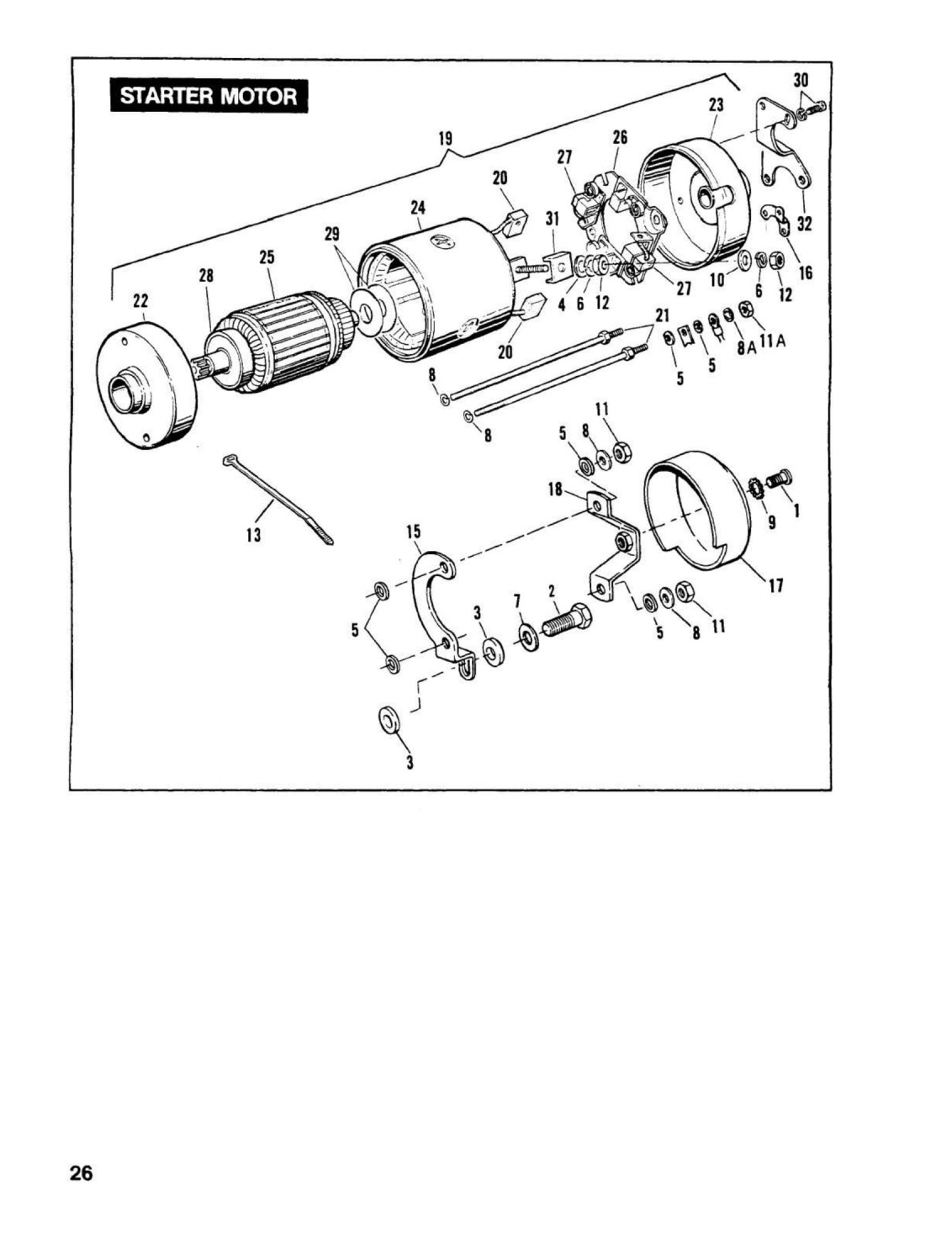

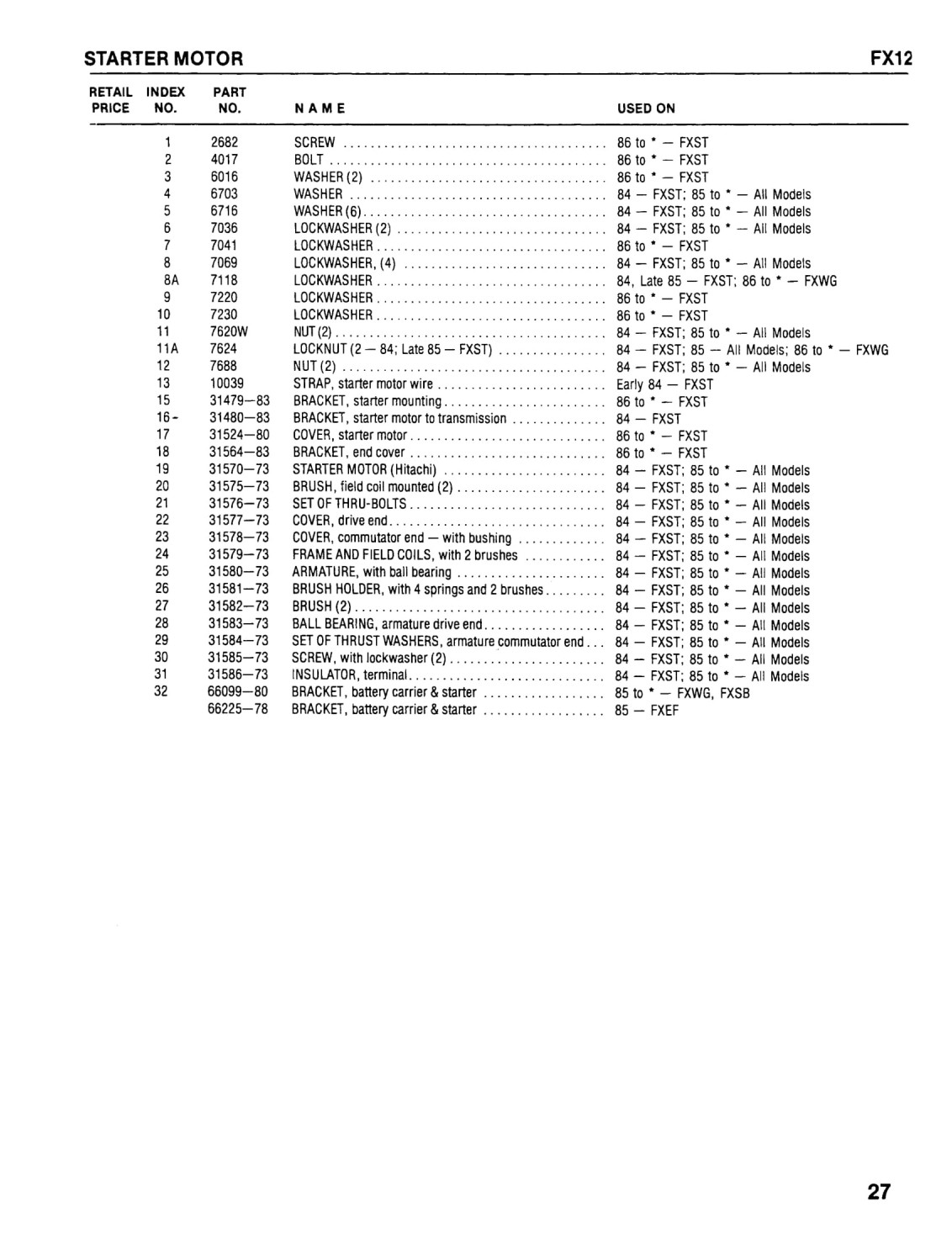

Starter Motor ..................................27

Switches..........................................123, 130, 131, 133, 135

Tachometer — FXSB, FXEF..........129

Tail Lamp........................................113

Tappets ..........................................5

Throttle Control ..............................91

Transmission Gears — 5 Speed .. 43

Transmission Housing — 5 Speed 41

Transmission — Mainshaft &

Housing — 4 Speed ..................37

Transmission — Countershaft

— 4 Speed..................................39

Turn Signals....................................115

Valves ............................................3

Voltage Regulator ..........................19

Wheels — Cast..............................65, 69

Wheels — Spoke............................63, 67

Wiring..............................................119, 121

PATENT NOTICE

Harley-Davidson products are manufactured under one or more of the following patents: U.S. Patents - 2986162, 2987934, 2998809, 3116089, 3144631, 3144860, 3226994, 3229792, 3434887, 3559773^3673359, 3709317, Des. 225,626.

У

To the best,knowledge of Harley-Davidson Motor Company, the material contained herein is accurate as of the date this publication was approved for printing. Harley-Davidson Motor Company reserves the right to change specifications, equipment, or designs at any time without notice and without incurring obligation.
