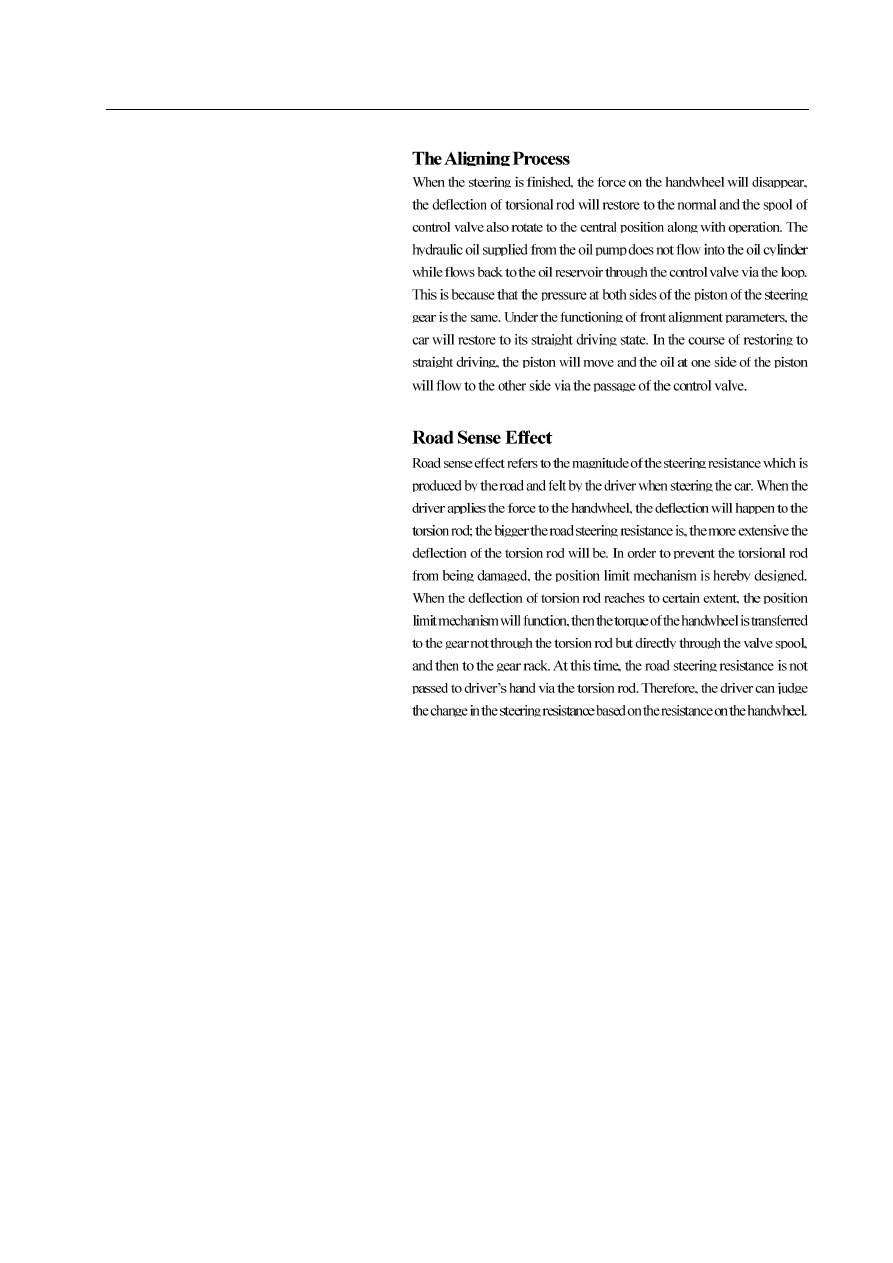

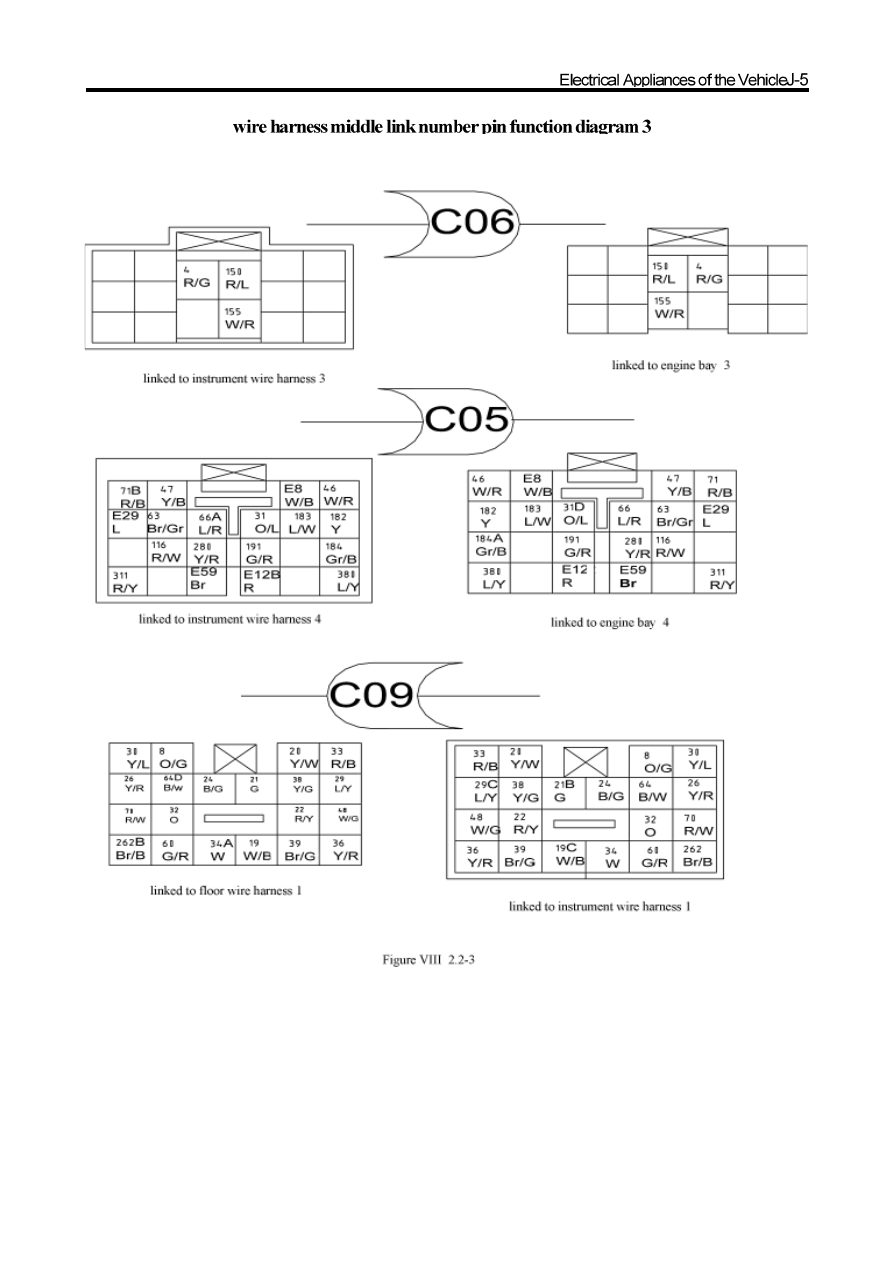

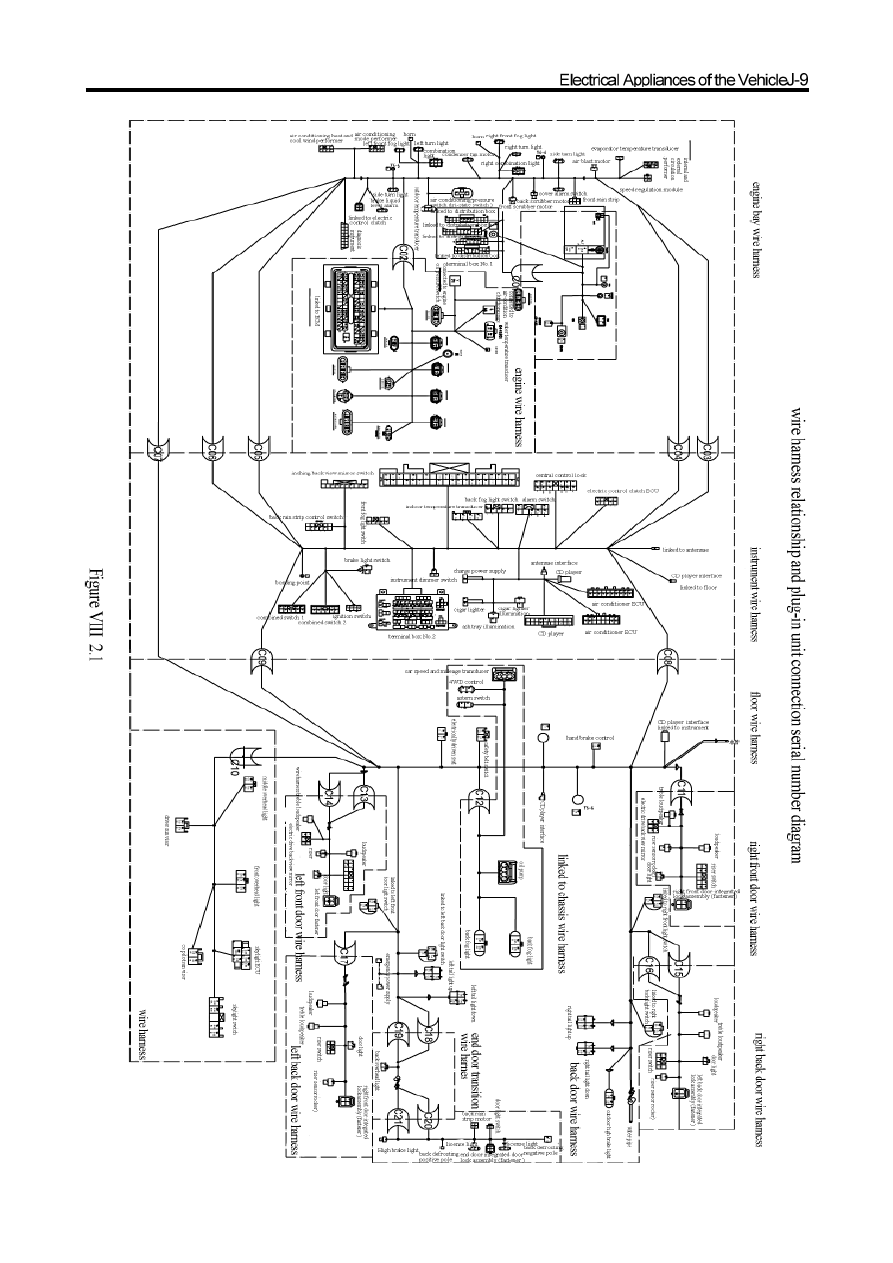

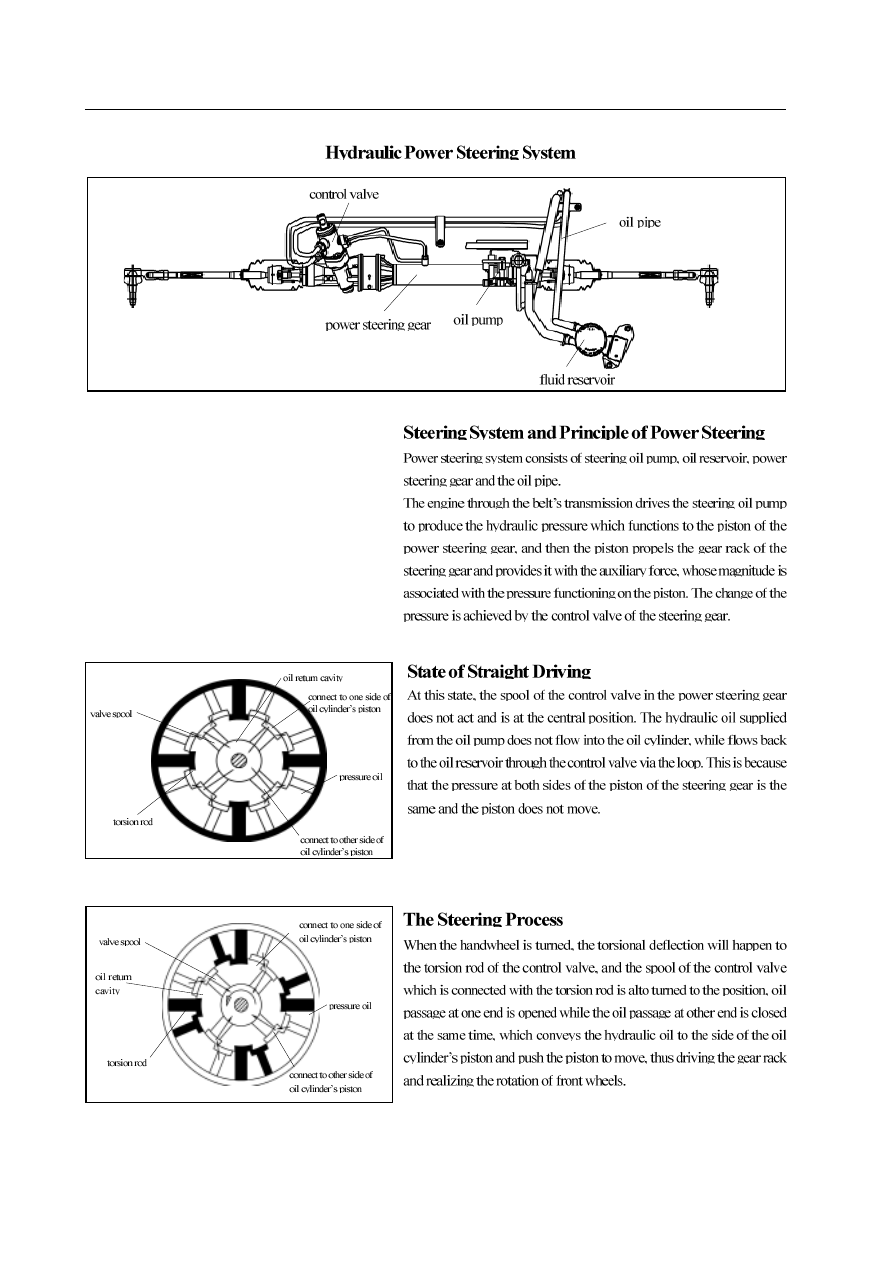

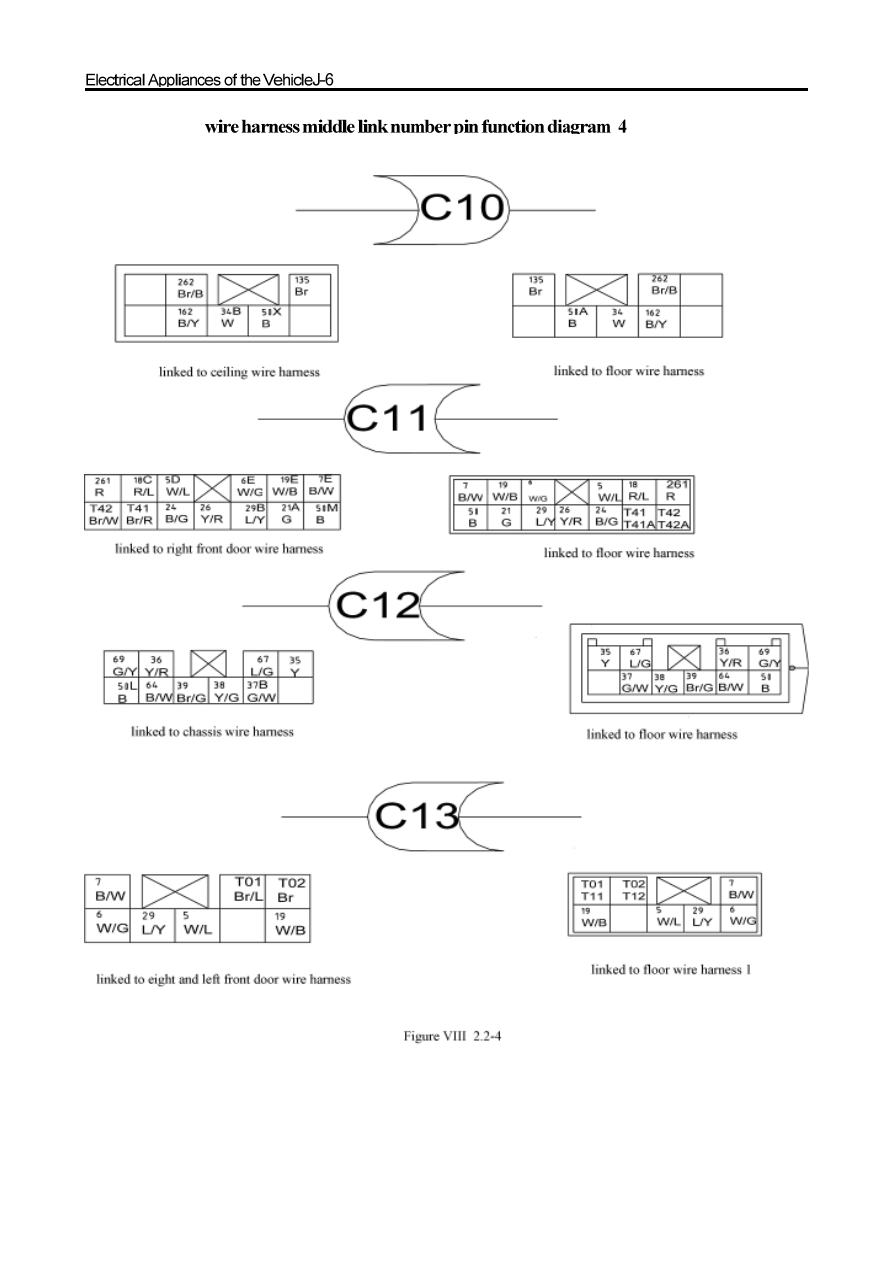

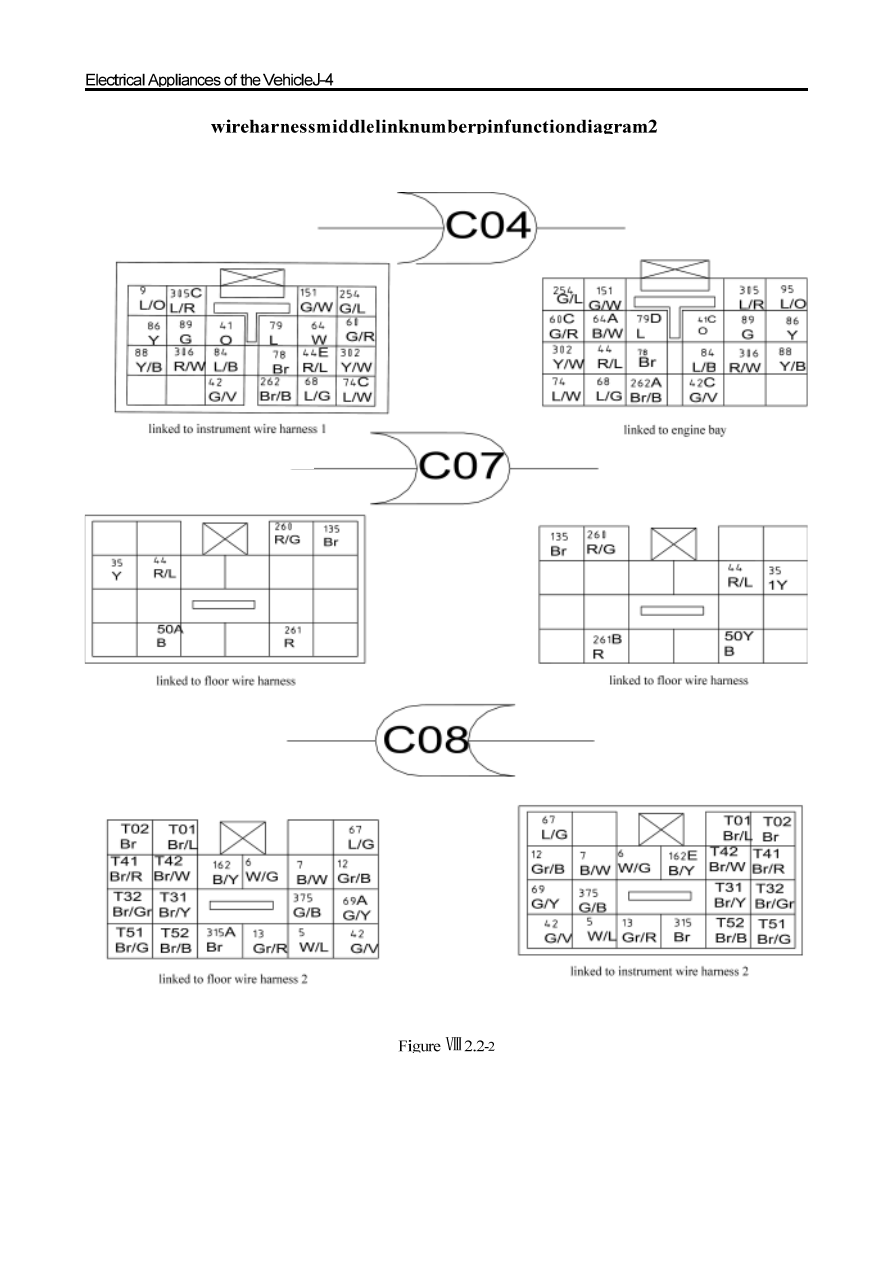

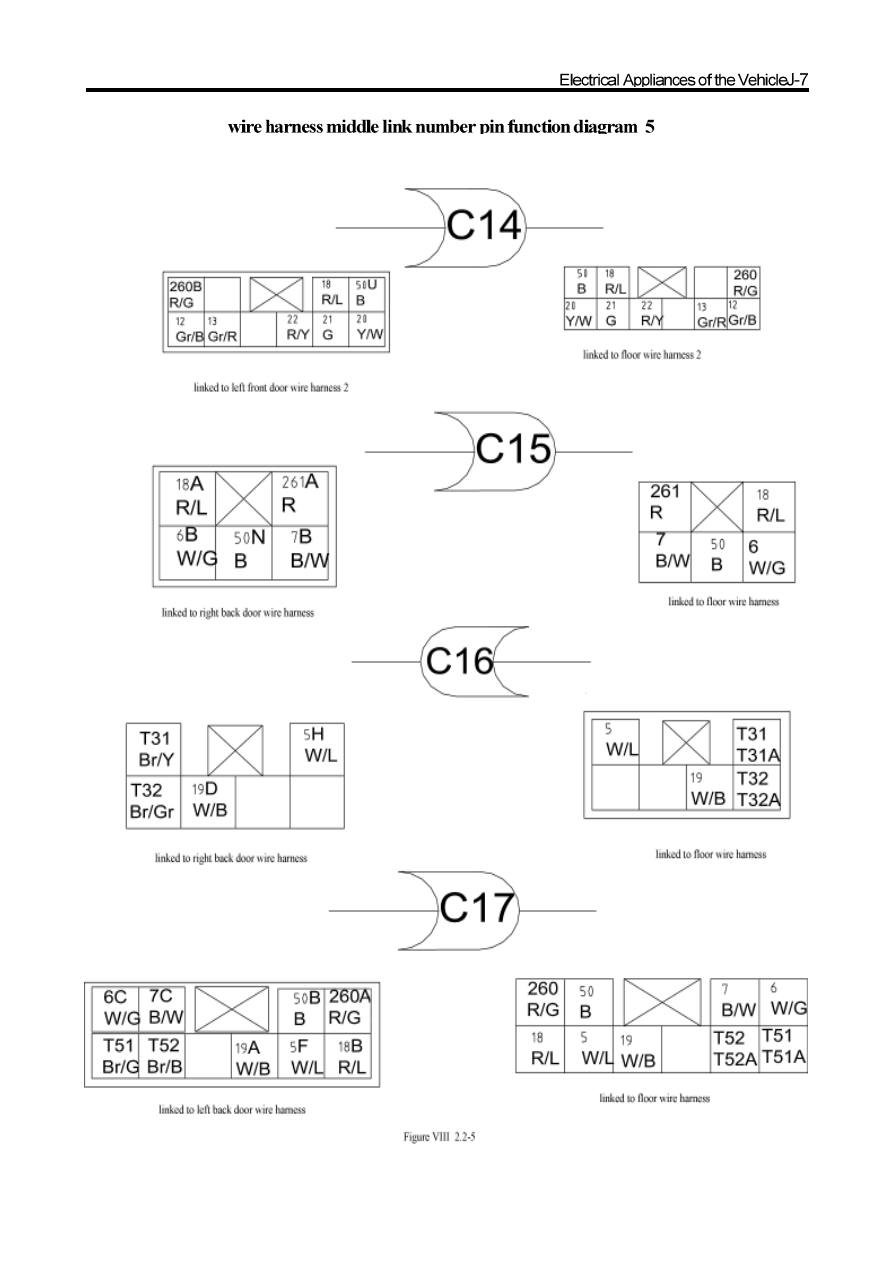

Steering-5 Technical requirements 1.The fastening torque of the mounting bolts of the integral power steering gear assembly is 2.The fastening torque of the connecting bolts of the steering drive sub- assembly and the integral power steering gear assembly is 3. The fastening torque of the connecting bolts of the steering drive assembly and the left horizontal beam of the frame is 4. The fastening torque of the mounting bolts of the power steering pump is 40N.m. 5. The tension force of multi-wedge belt 4PK1100 is 4PK1100. 6. Centering fastening of the handwheel: steer the front wheel to the right front and remove the handwheel without changing the position of the steering stem, install the handwheel aligning the center, the radials of the handwheel should be at the left & right centering state; the symbol of “the Great Wall” on the steering wheel shall be in driver’s straight view position, secure the nut firmly with the fastening torque of 7. Inspection of free clearance of the handwheel Steer the car in a straight direction and stop the engine, apply a 5N force to the handwheel along the circumference, left turn the handwheel and stop the turning when the resistance is increasingly felt with each turn; then right turn the handwheel and stop the turning when the resistance is increasingly felt with each turn; the angle rotated along the circumference is the free clearance of the handwheel, whose standard value shall be below 20 , and the angle from the center to the right shall not be more than 10 |
