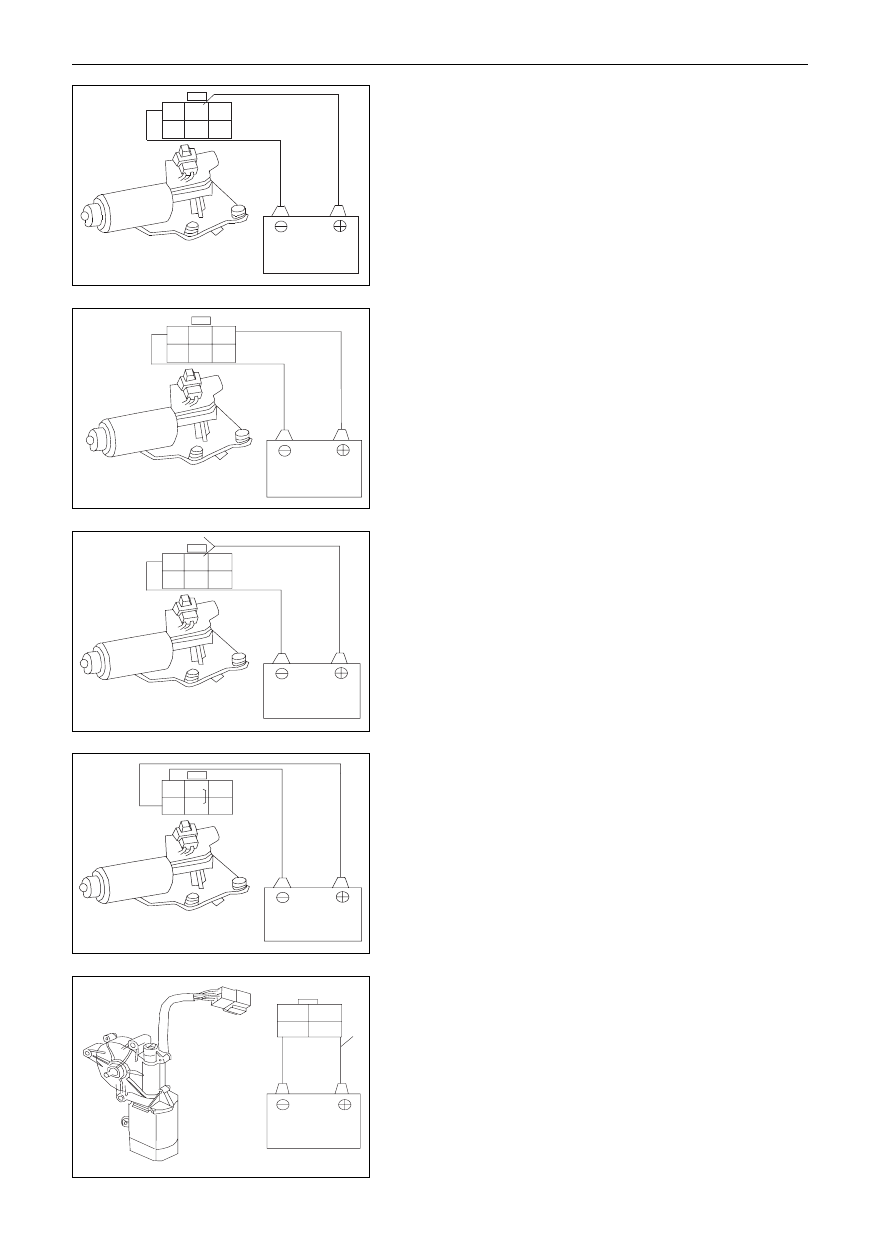

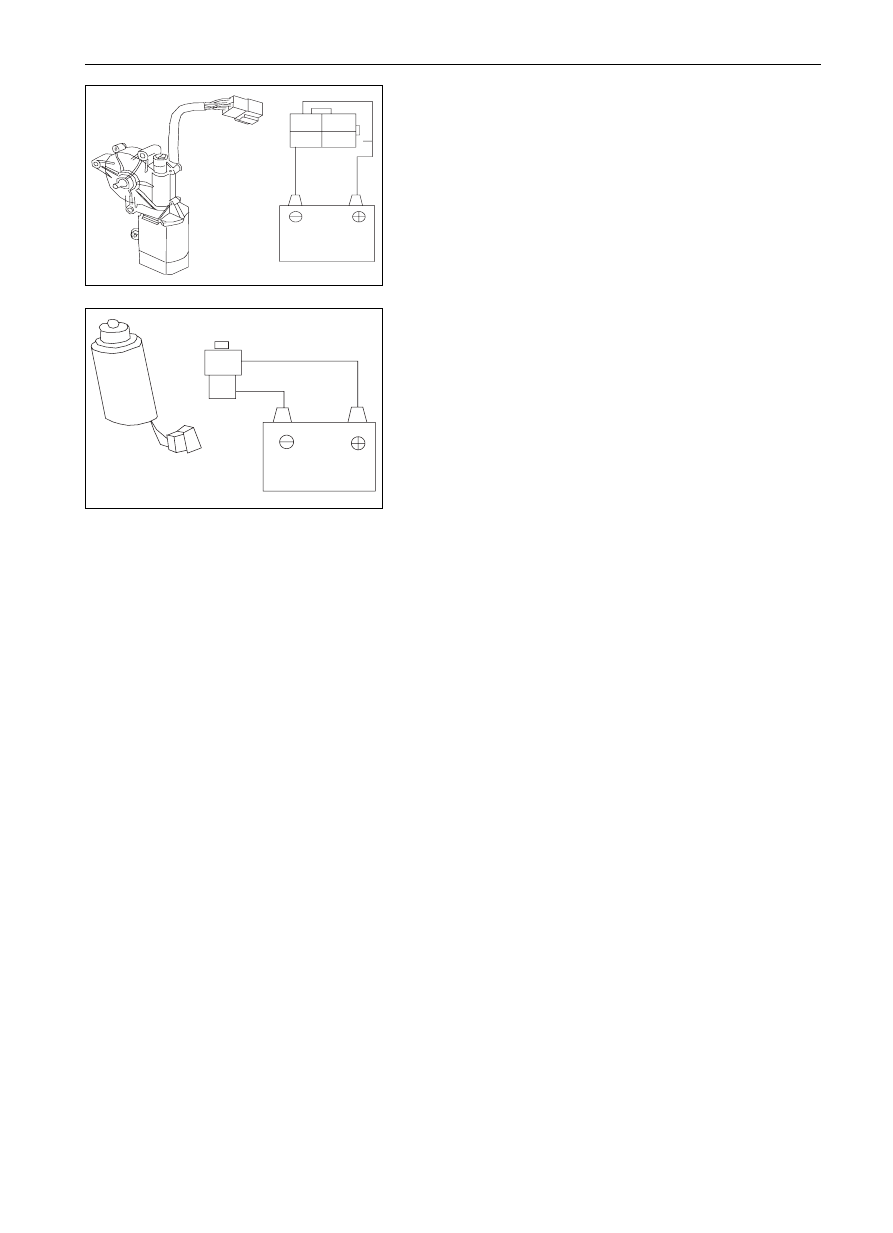

BE-48 Body Electric System Wiping and Washing System In low-speed operation the cathode lead to terminal 3, at this time, the front wiper motor should be in low-speed operation, otherwise change the front brusher motor. In high-speed operation and cathode lead to terminal 3, in such condition, the front wiper motor should be in high-speed operation. In case the operation fails to meet the requirement, change the front wiper motor. in operation stop running at the stop position a. Run the front wiper motor at low speed and stop it at any positions excluding the stop position by disconnect the anode lead from the terminal 2 (1). b. Connect the terminals 2 and 5.\ c. Connect the anode lead to the terminal 6 (4) from the accumulator, and the cathode lead to terminal 3, check whether the wiper motor parks at the stop position after it running for another time, if the requirement is not satisfied, change the front brusher motor. Remark: items in parenthesis is for Dr and SF. Rear brusher motor inspection Connect the anode lead to the terminal 3 from the accumulator, and the cathode lead to terminal 4, at this time, the wiper motor will be in normal operation, disconnect the terminal 3, the rear wiper motor should stop running at any position excluding the stop position. 1 2 3 4 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 1 2 3 4 5 6 |
