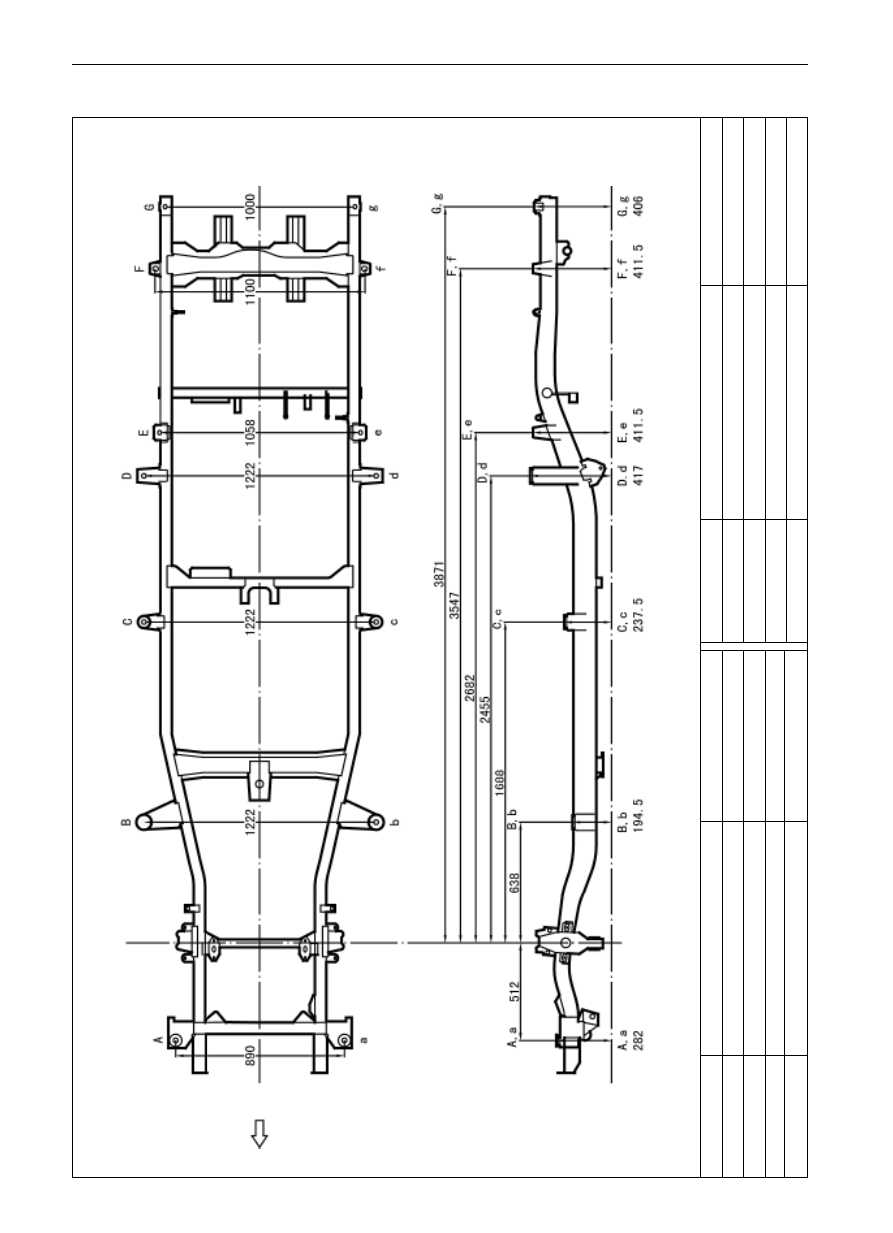

B0-84

Body

 Size of Chasis

Unit

mm

size in 2D

Small double-row Sailor

Axial spacing

3025

Mark

A,a

B,b

C,c

D,d

Name

Cab mounting hole

Cab mounting hole

Cab mounting hole

Mounting hole of cargo passage

Bore diameter

Mark

Name

Bore diameter

Mounting hole of cargo passage

Mounting hole of cargo passage

Mounting hole of cargo passage

E,e

F,f

G,g

Central line of front wheel

front

assuming

standard line

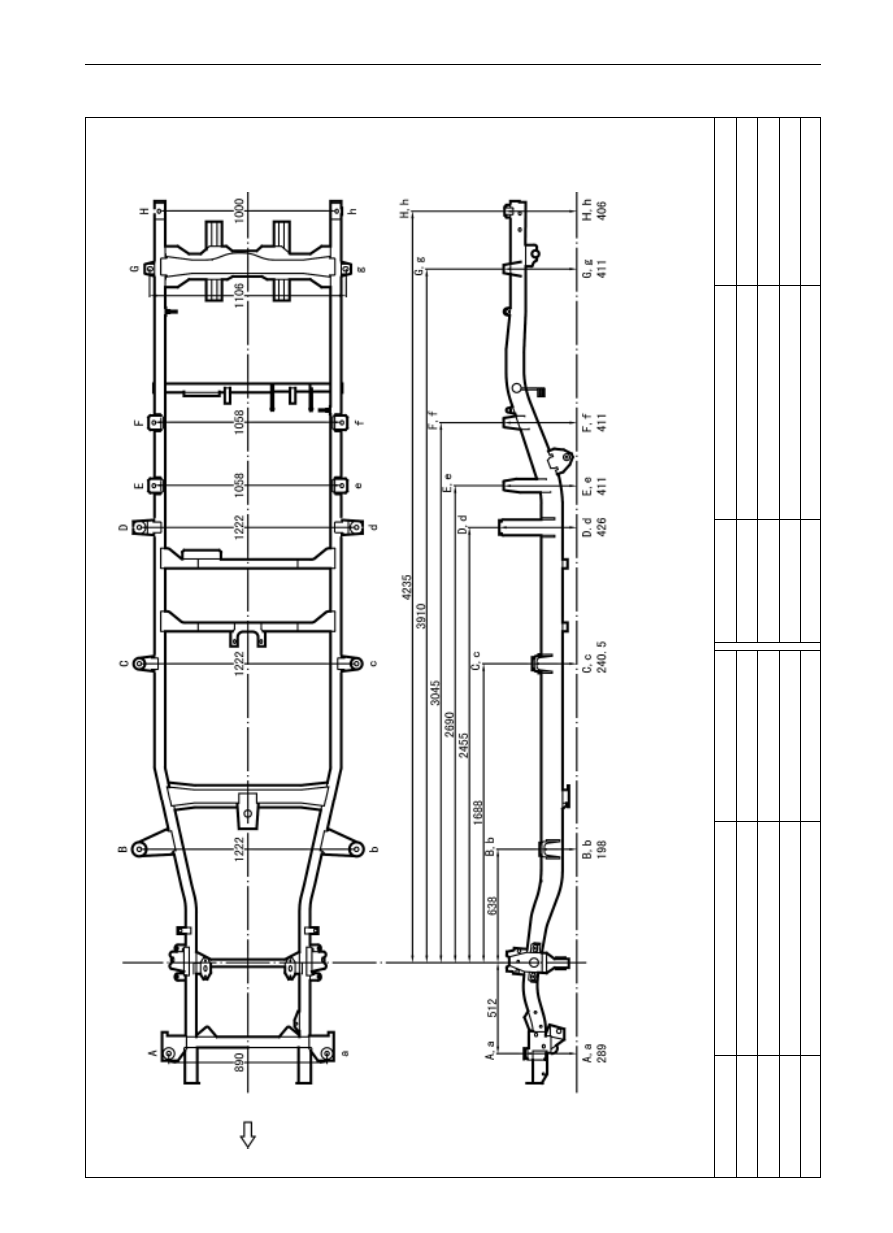

B0-85

Body

 Size of Chasis

Unit

mm

size in 2D

big double-row Sailor

 Axial spacing

3380

assuming

standard line

central line of front wheel

Mark

A,a

B,b

C,c

D,d

Name

Cab mounting hole

Cab mounting hole

Cab mounting hole

Cab mounting hole

Bore diameter

Mark

Name

Bore diameter

Cab mounting hole

Cab mounting hole

Cab mounting hole

E,e

F,f

G,g

H,h

Cab mounting hole

front

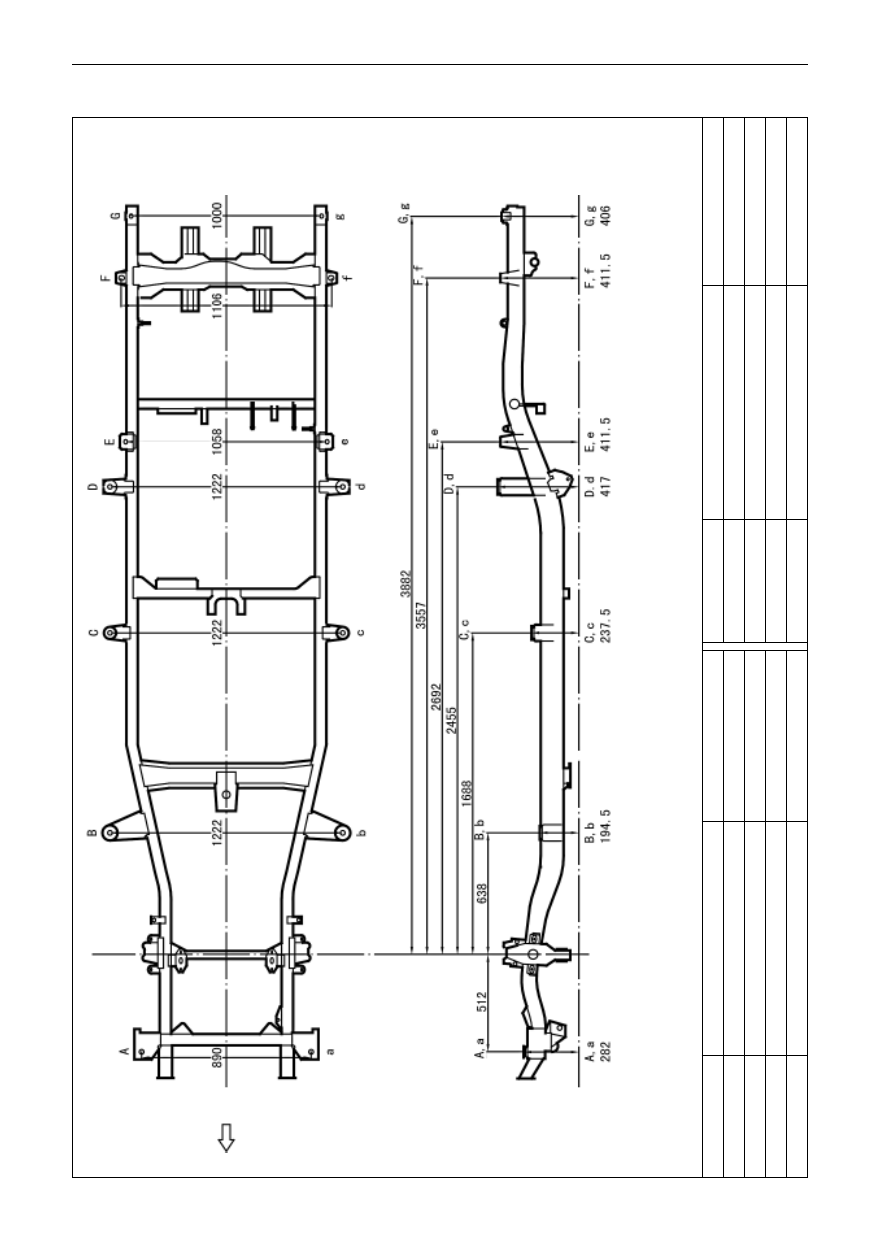

B0-86

Body

 Size of Chasis

Unit

mm

size in 2D

So Cool

Axial spacing

3025

assuming

standard ling

Mark

A,a

B,b

C,c

D,d

Name

Cab mounting hole

Cab mounting hole

Cab mounting hole

Mounting hole of cargo passage

Bore diameter

Mark

Name

Bore diameter

Mounting hole of cargo passage

Mounting hole of cargo passage

Mounting hole of cargo passage

E,e

F,f

G,g

central line of front wheel

front

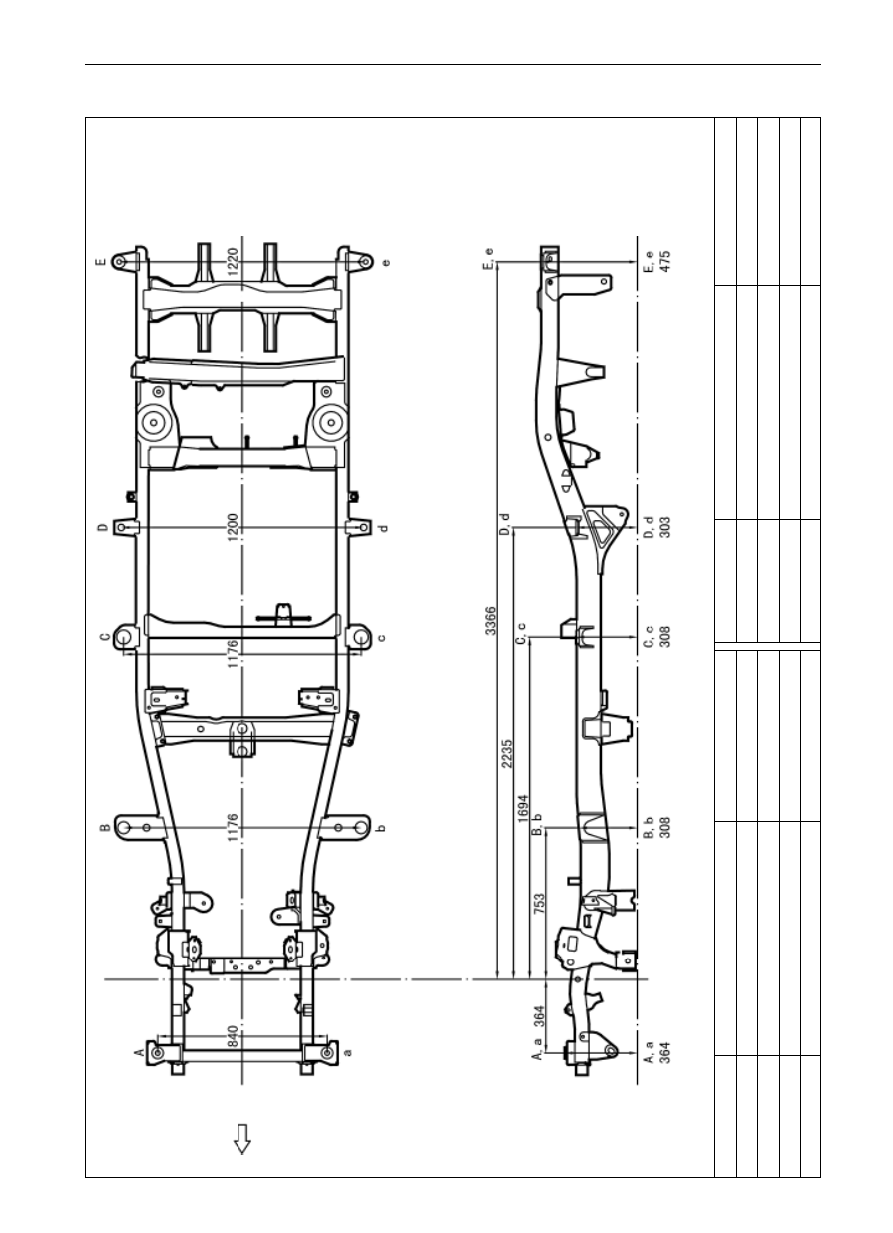

B0-87

Body

 Size of Chasis

Unit

mm

size in 2D

Safe

front

Axial spacing

2630

assuming standard

line

Mark

A,a

B,b

C,c

D,d

Name

Cab mounting hole

Cab mounting hole

Cab mounting hole

Cab mounting hole

Bore diameter

Mark

Name

Bore diameter

Cab mounting hole

E,e

central line of front wheel
