Wheel-trims wrapping angle and exterior trim panel (

)

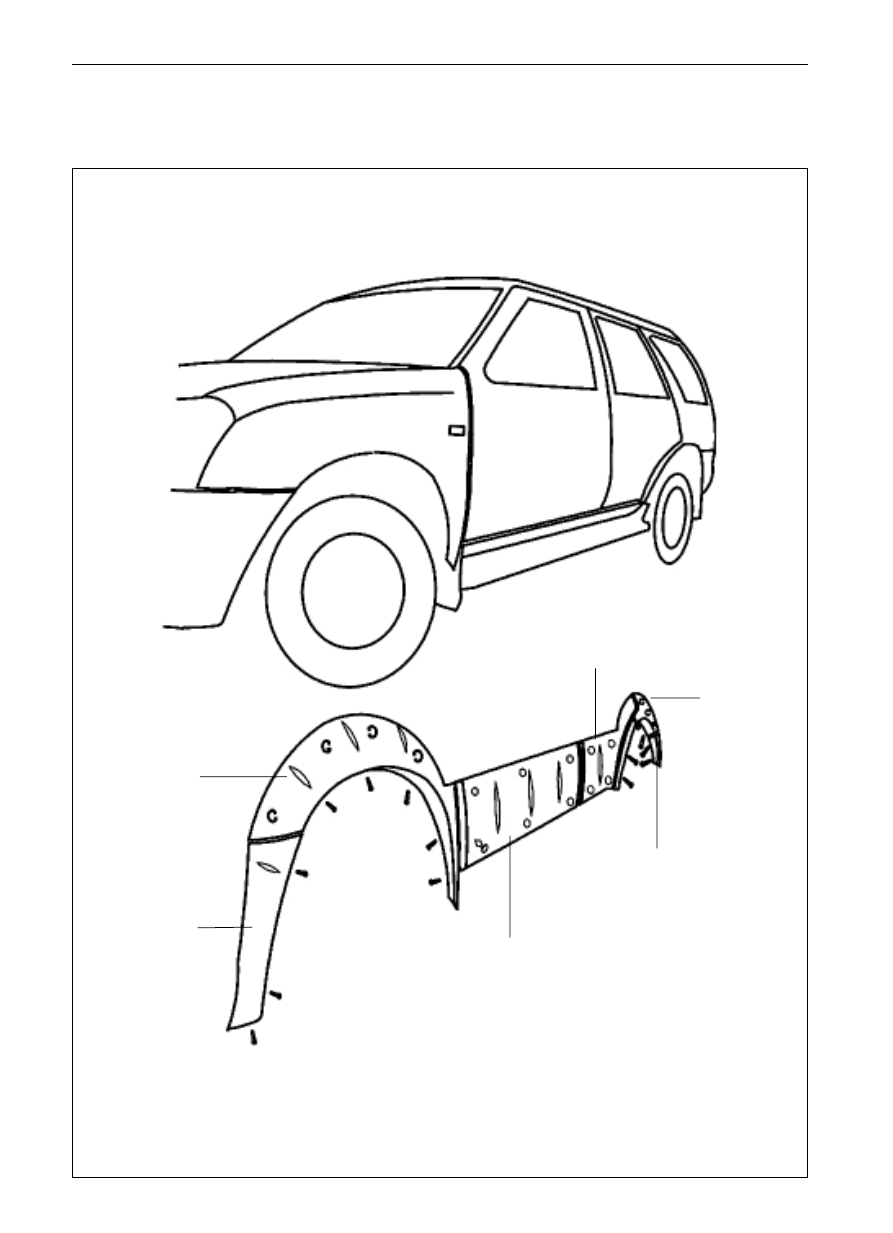

Element mounting position

Vehicle Body

 Wheel-Trims Wrapping Angle and Exterior Trim Panel

front wheel-trims

rear wheel-trims

front wrapping angle

rear wrapping angle

SJ

rim panel at rear door

trim panel at front door

B0-29

SJ

SJ

SJ

Vehicle Body

 Wheel-Trims Wrapping Angle and Exterior Trim Panel

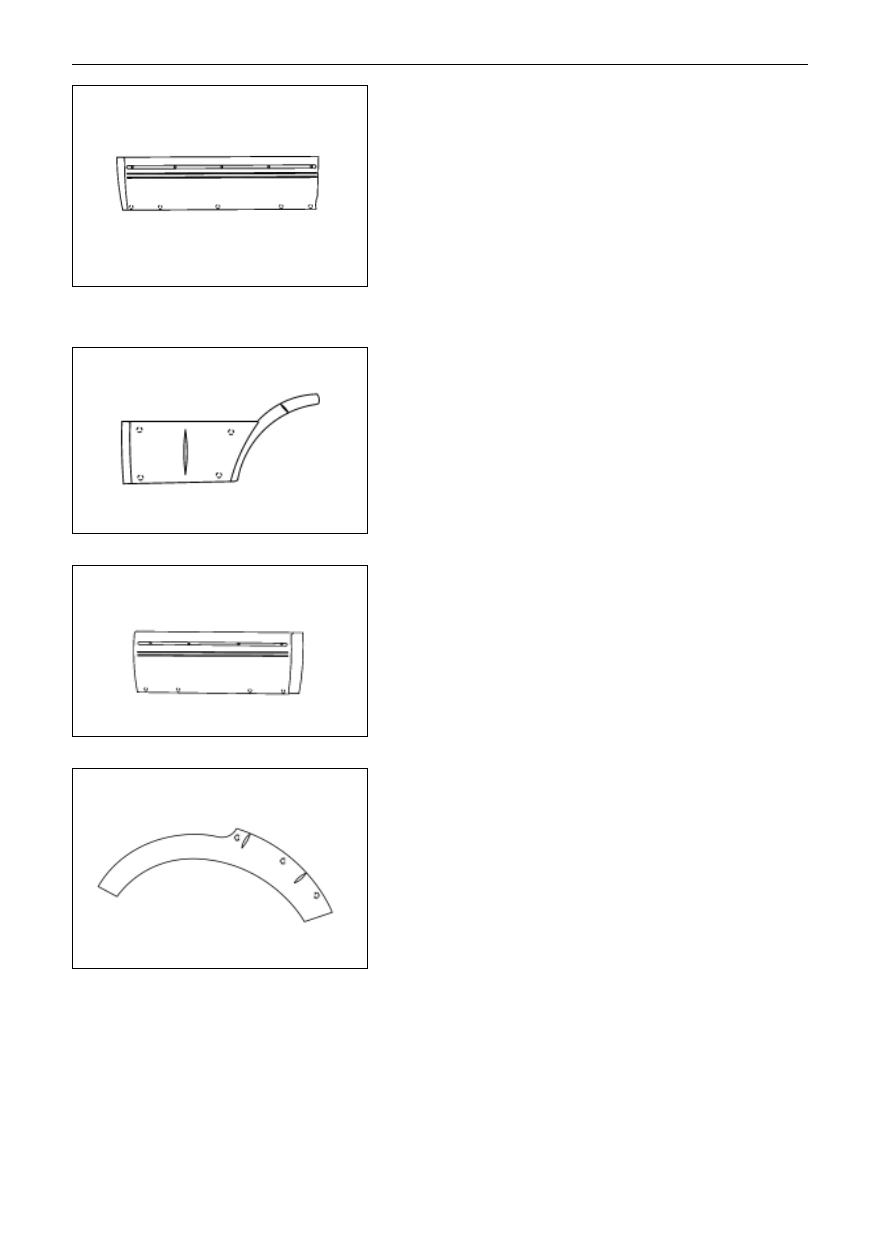

Change of trim panel at front door

1.

Tear down the trim panel at front door;

Prize up the clip of trim panel at front door and take down the

trim panel at front door. (SJ)

Uncover the luminous strip to tear down the five screws, then

open the front door and take down the trim panel at front door

after tearing down the five screws. (top-grade SY)

Change of front wrapping angle

1.

Tear down the front wrapping angle;

Tear down the three screws and take down the front wrapping

angle and adhesive strip of wrapping angle lightly (there is two

screws in top-grade SY vehicle)

2. Mount the front wrapping angle

(a)

Mount on the three screws (mount two screws for top-

grade SY vehicle)

(b)

Contact the front wrapping angle with the front bar

closely, and the seam between the front wrapping angle

and the front Wheel-trims should be even with a smooth

transmission (by the way, the adhesive strip of wrapping

angle should be pressed tightly and evenly)

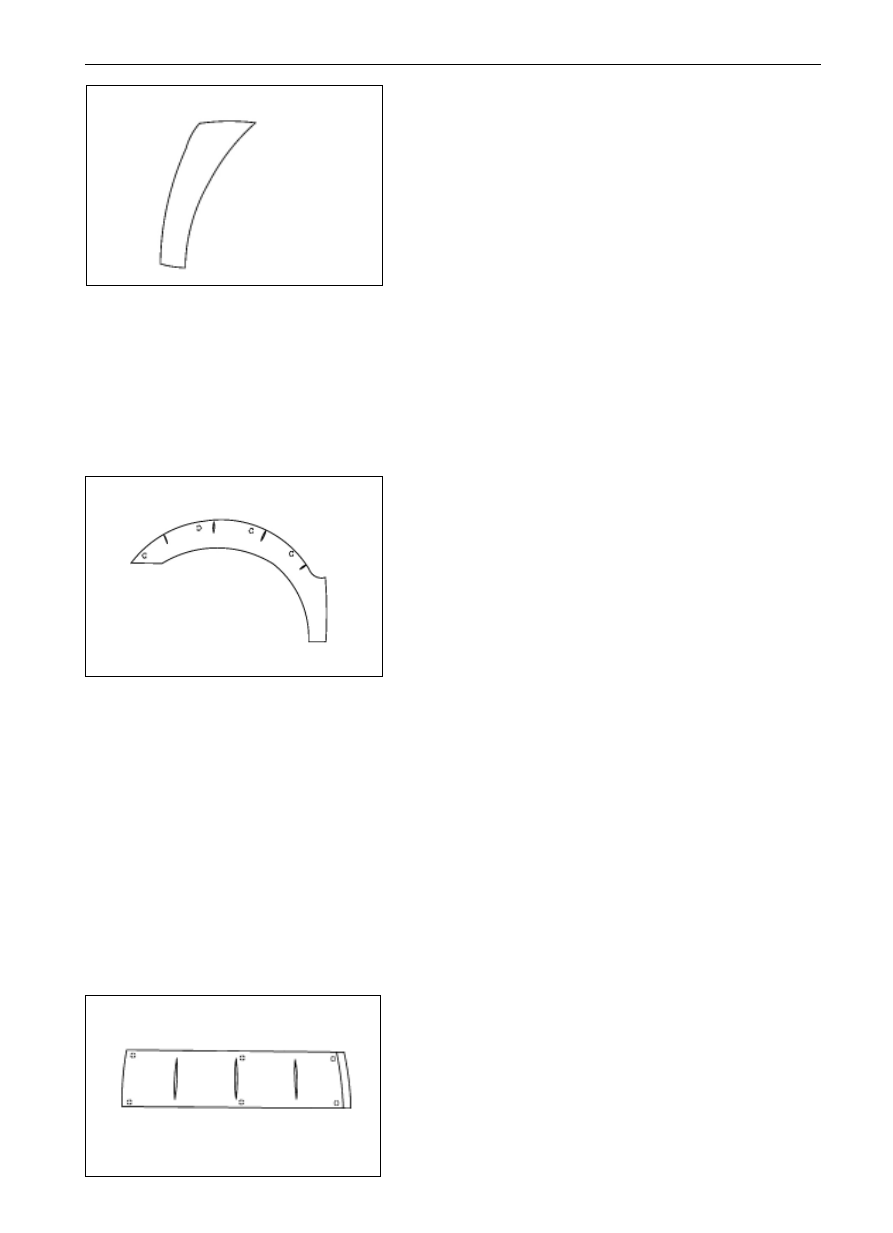

Change of front Wheel-trims

1.

Tear down the front Wheel-trims

Tear down the four screws and the pressing plate of mudguard,

and take down the front Wheel-trims and adhesive strip of

Wheel-trims tightly (SY)

Tear down the five screws and the pressing plate of mudguard,

and take down the front Wheel-trims and adhesive strip of

Wheel-trims tightly (SJ)

Tear down the four screws and uncover the lighting channel of

the front Wheel-trims, take down the front Wheel-trims after

tearing down one screw (top-grade SY).

2.

Mount the front Wheel-trims

(a)

Flush the front end of front Wheel-trims with the lower

edge of wing panel; the adhesive strip of wheel-trims

should be pressed tightly and evenly. (SY)

Flush the front end of front Wheel-trims with the lower

edge of wing panel, the rear end of front Wheel-trims

with rear edge of wing panel. (top-grade SY SJ)

(b)

Mount the four screws (five screws for SJ model) and the

pressing plate of mud guard and stick the lighting strip.

(top-grade SY)

B0-30

Top-grade SY

SJ

SJ

 Top-grade SY

Vehicle Body

 Wheel-Trims Wrapping Angle and Exterior Trim Panel

2.

Mount the trim panel at front door;

(a)

Flush the arc lines of the front and rear ends of trim panel

at front door in consistent with the door waist line, and the

rear end should flush with the rear end of front door, but

the front end should not interfere with the wing panel.

(b)

Tap the positions of six clipes of trim panel at front door

manually to mount it on.(SJ)

Mount the five screws at upper part after aligning the

holes, and mount the five screws at lower part from the

inside, then stick the luminous strip. (top-grade SY)

Change of rear Wheel-trims

1.

Tear down the rear Wheel-trims;

Tear down the three screws and take down the rear Wheel-

trims and the adhesive strip of Wheel-trims. (SY)

Take down the rear Wheel-trims after tearing down the three

screws. (SJ)

Tear down the three screws and uncover the luminous strip on

rear Wheel-trims, take down the rear Wheel-trims after tearing

down the two screws. (top-grade SY)

Change of trim panel at rear door

1.

Tear down the trim panel at rear door

Take down the trim panel at rear door after tearing down one

screw and four clipes. (SJ)

Uncover the luminous strip to tear down the four screws, and

then open the rear door to tear down the four screws inside so

as to take down the trim panel at rear door. (top-grade SY)

Top-grade SY

2.

Mount the trim panel at rear door

Tap the positions of four clipes of trim panel at rear door

manually to mount it on, meanwhile mount the one screw at

upper part of rear edge. (SJ)

Mount the four screws at upper part after aligning the holes,

and mount the four screws at lower part from the inside, then

stick the luminous strip. (top-grade SY)

2.

Mount the front Wheel-trims

(a)

Flush the front end of rear Wheel-trims with the edge line

of rear door, the rear end of the Wheel-trims with the rear

wrapping angle, the seam should be smooth with even

transmission. (top-grade SY SJ)

(b)

Mount the three screws (and mount two screws at the

position where the luminous strip is stickled).

B0-31

Top-grade SY

Vehicle Body

 Wheel-Trims Wrapping Angle and Exterior Trim Panel

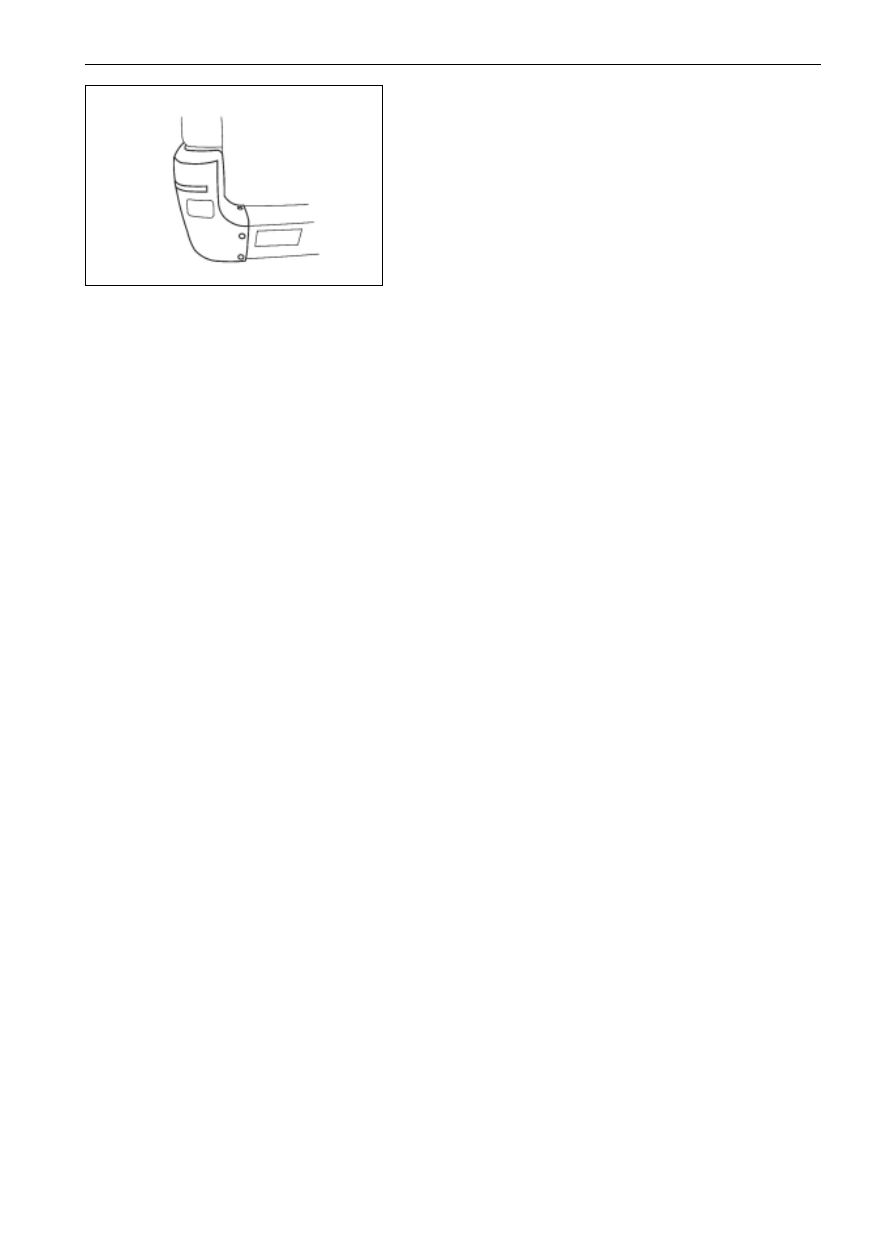

Change of rear wrapping angle

1.

Tear down the rear wrapping angle;

Tear down the three nuts, one screw and one self-drilling

screw, and then take down the rear wrapping angle, the rear

mudguard and the adhesive strip. (SY)

Tear down the four screws and then take down the rear small

Wheel-trims. (SJ)

Tear down one screw and three bolts to take down the rear

wrapping angle (top-grade SY)

2.

Mount the rear wrapping angle

(a)

Parallel the rear wrapping angle with the body waist line,

and contact the body with rear bar closely. (the adhesive

strip of wheel trims of SY model vehicle should be

pressed tightly and evenly)

(b)

Mount two bolts through the body bracket, wrapping

angle and mudguard, and another bolts should be mounted

to connect the rear bar bracket and the wrapping angle.

Then mount on one screw and one self-drilling screw.

(SY)

Flush the rear small Wheel-trims and the rear Wheel-

trims, then mount on the four screws (SJ)

Mount on one screw and the other three bolts through the

body bracket, rear bar and wrapping angle. (top-grade

SY)

Notice: the parts mentioned above should be carefully

disassemble or assemble to avoid of paint face scrape
