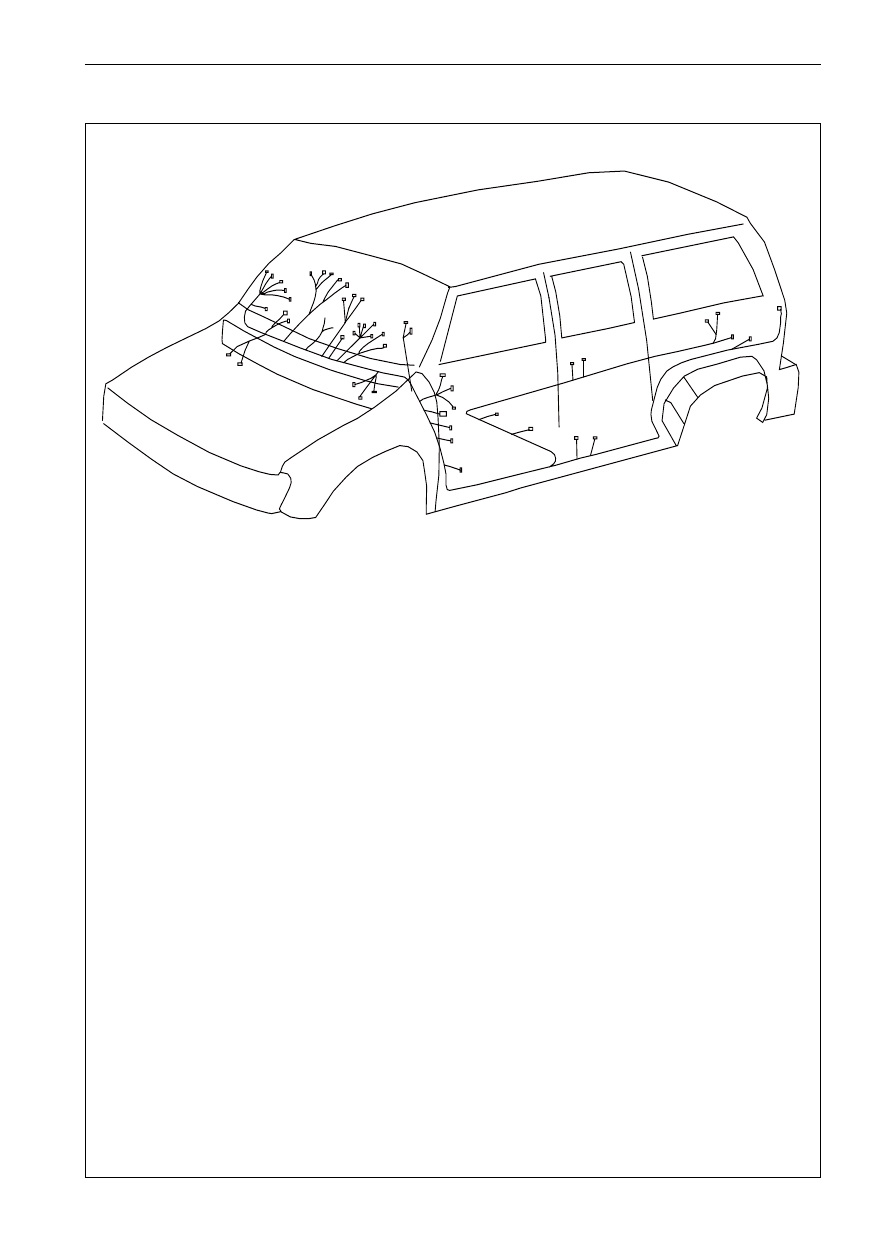

BE-73

SY SJ

1

grounding wire

2

wire harness at right front door

3

warm air motor

4

connected to wire harness at right front door

5

control case of central control lock

6

electric aerial

7

heat-sensitive resistance

8

speed-adjusting resistance

9

connected to housing wire harness

10 connected to housing wire harness

11 A/C switch

12 air-volume switch

13 ashtray luminous lamp

14 grounding wire

15 ECU

16 CD device

17 CD device

18 cigarette lighter

19 cigarette lighter grounding wire

20 cigarette lighter luminous lamp

21 combined switch

22 fog lamp switch

23 dual flasher switch

24 rear defroster switch

25 rear brush switch

26 rear washer switch

27 combination instrument

28 combination instrument

29 stop lamp switch

30 roof wire harness

31 connected to housing wire harness

32 connected to housing wire harness

33 connected to housing wire harness

34 connected to wire harness at left front door

35 connected to wire harness at left front door

36 connected to wire harness at left front door

37 protective box

38 rear defrost relay

39 connected to wire harness of rear air-conditioner

40 grounding wire

41 parking brake switch

42 connected to chassis wire harness

43 wire harness at right rear door

44 right front door lamp switch

45 right rear loudspeaker

46 rear washer motor

47 connected to wire harness at tail door

48 left front door lamp switch

49 wire harness at left rear door

50 left rear loudspeaker

51 standby power seat

1 2

3

4

5

6 7

8

9

10

111213

14

15

16

17

18 19

20

21

22

2324

25

26

27

28

29

30

31

32 33

34

35

36

37

38
39

40

41

42

43 44

45

46

47

48 49

50

51

Cab wire harness (continued)

Body Electric System

 Wire Harness Distribution

BE-74

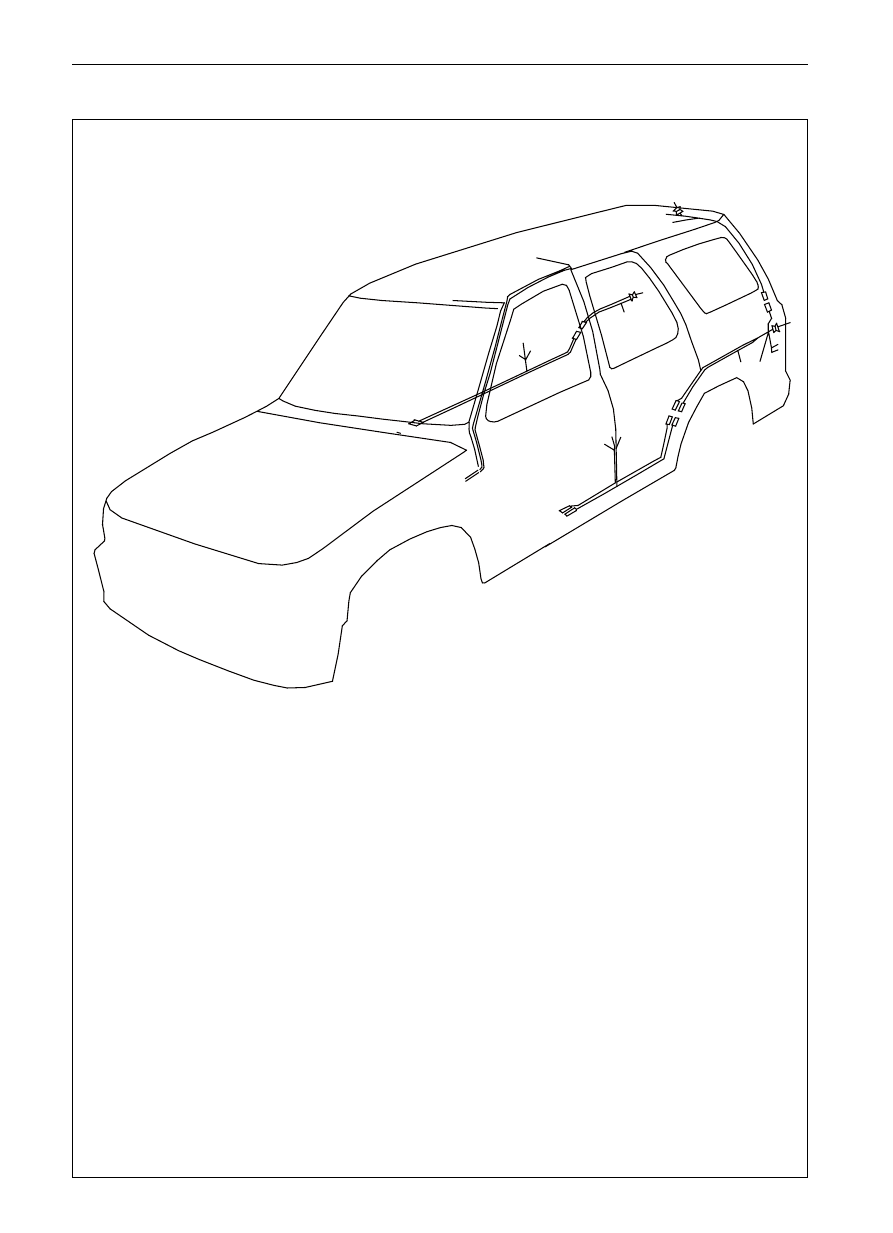

SF

8

1

connected to cab wire harness

2

left rear door lamp switch

3

door lamp at left rear door

4

electric rocker and lock-out device at left rear door

5

left rear sound box

6

controller for brush, door and window at rear door

7

connected to wire harness at tail door

8

left rear combination lamp

9

highly-mounted stop lamp

10 rear ceiling lamp

11 rear brusher motor

12 right rear combination lamp

13 right rear sound box

14 front ceiling lamp

15 lamp for reading

16 electric rocker and lock-out device at right rear door

17 right rear door lamp

18 right rear door lamp switch

19 connected to cab wire harness

20 connected to protective box I

1

2

3 4

5

6

7

9

10

11

12

13

14

15

16

17

18

19

20

Cab Wire harness (continued)

Body Electric System

 Wire Harness Distribution

BE-75

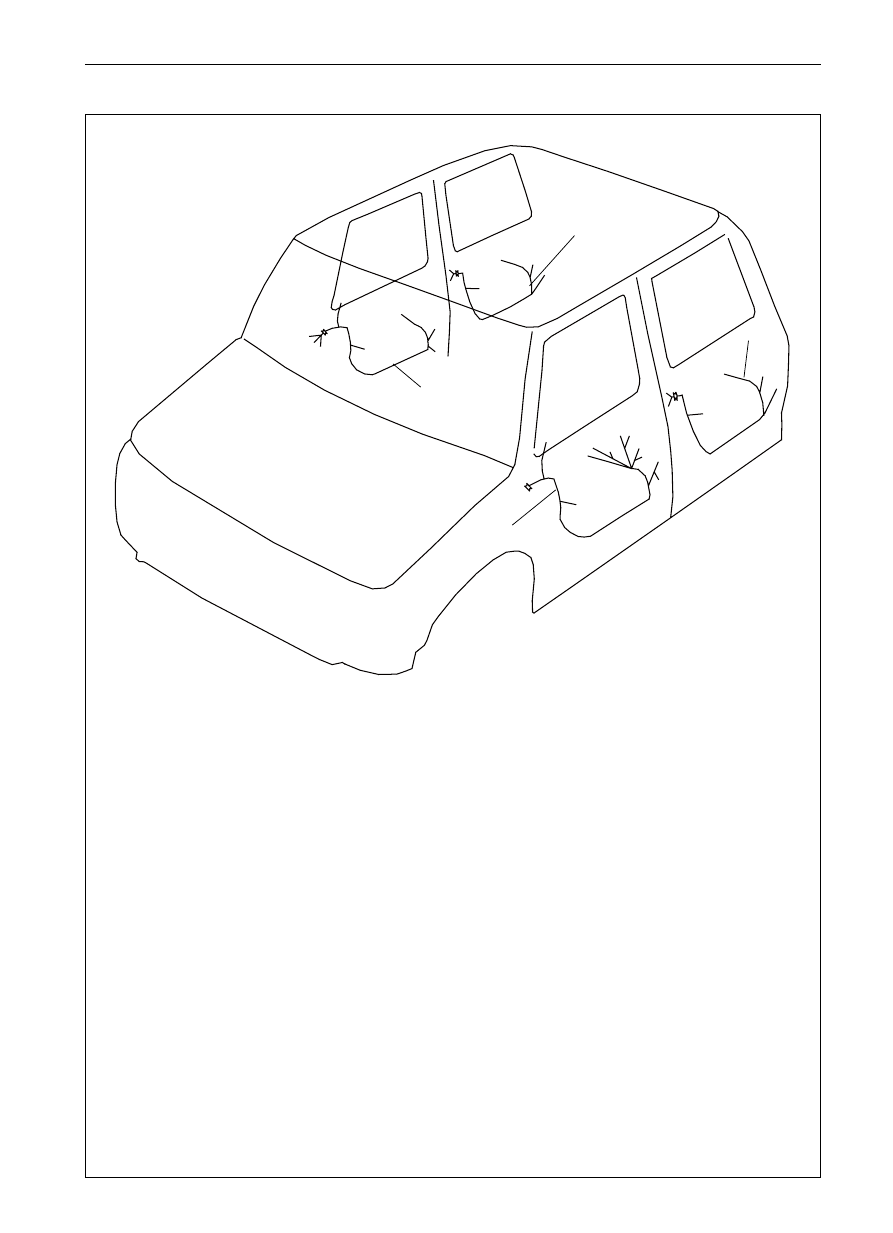

Wire harness at four door

Dr

1

2

P

4

5 6

7 8

9

1011

12

13

14

15

16

17

18

19

20

21

22

23

24

25

OS

27

28

29

30

31

32

1

connected to cab wire harness

2

left external electric rear vision mirror

3

electric rocker

4

rear vision mirror switch

5

power switch

6

romote control lock switch

7

rocker switch

8

rocker switch

9

rocker switch

10 rocker switch

11 lock-out device at left front door

12 left front door lamp

13 left rear door lamp

14 connected to wire harness a left rear door

15 left rear door lamp switch

16 left rear door switch

17 electric rocker

18 lock-out device at left rear door

19 right rear door lamp

20 connected to wire harness at right rear door

21 right rear door lamp switch

22 right rear door switch

23 electric rocker

24 lock-out device at right rear door

25 right front door lamp switch

26 connected to cab wire harness

27 connected to cab wire harness

28 right external electric rear vision mirror

29 electric rocker

30 rocker switch

31 lock-out device at right front door

32 right front door lamp

Wire harness at leftfront door

Wire harness at left rear door

Wire harness at right front door

Wire harness at right rear door

Body Electric System

 Wire Harness Distribution

BE-76

1

connected to cab wire harness

2

connected to cab wire harness

3

connected to cab wire harness

4

left front loudspeaker

5

left door lamp

6

electric rocker

7

rocker switch

8

rocker switch

9

rocker switch

10 rocker switch

11 left front lock-out device

12 connected to cab wire harness

13 left rear loudspeaker

14 electric rocker

15 left rear lock-out device

16 rocker switch

17 left rear door lamp switch

18 highly-mounted stop lamp

19 right rear door lamp switch

20 ceiling lamp

21 connected to cab wire harness

22 lamp for reading

23 car door display

24 temperature display

25 rocker switch

26 right rear lock-out device

27 electric rocker

28 right rear loudspeaker

29 connected to cab wire harness

30 rocker switch

31 right front lock-out device

32 electric rocker

33 right front loudspeaker

34 right door lamp

35 connected to cab wire harness

36 connected to cab wire harness

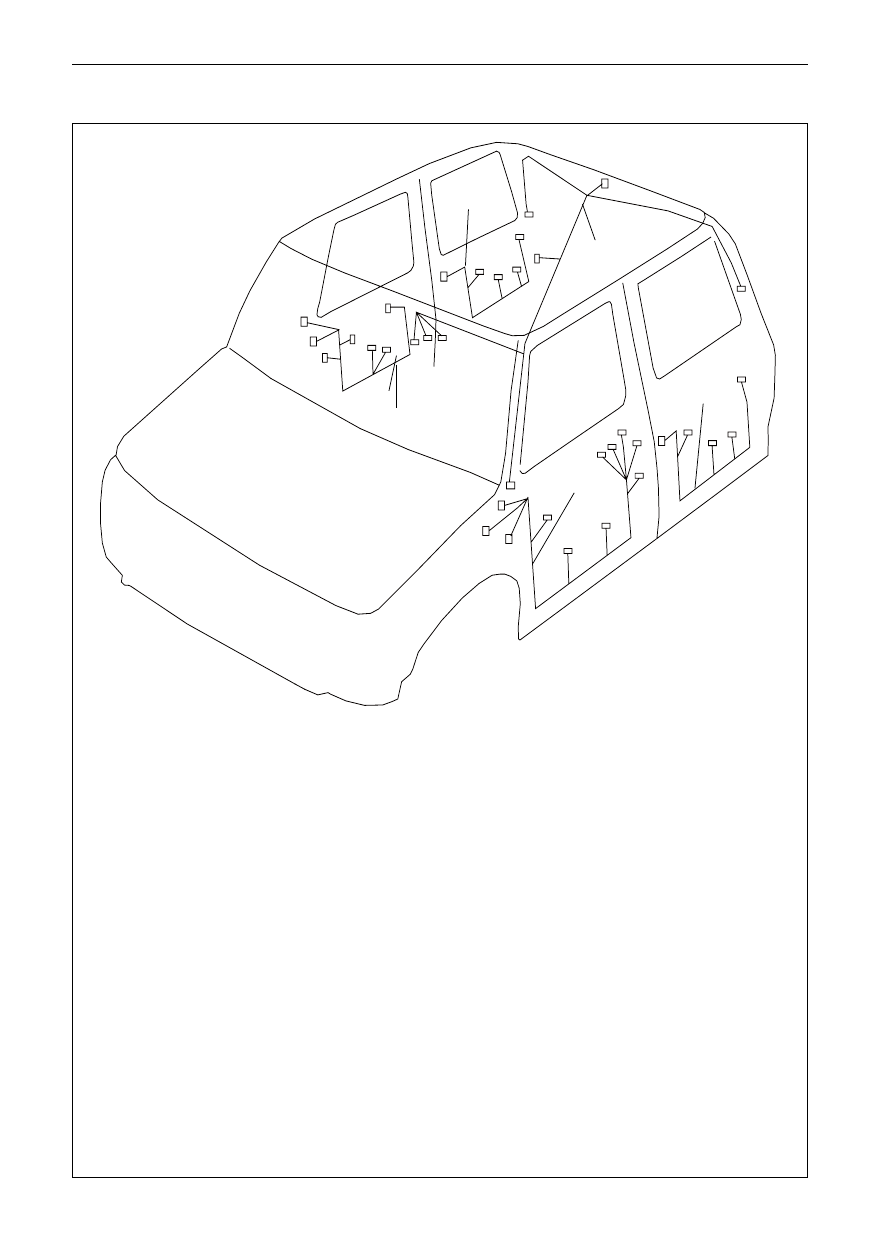

wire harness at left

rear door

wire harness at left

front door

roof wire harness

wire harness at

right rear door

wire harness at right front door

1

2

3

4

5

10

6

7

8

9

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

SL SK

Wire harness at four doors and body roof

Body Electric System

 Wire Harness Distribution
