Great Wall service chassis and body Manual - part 46
SA-80

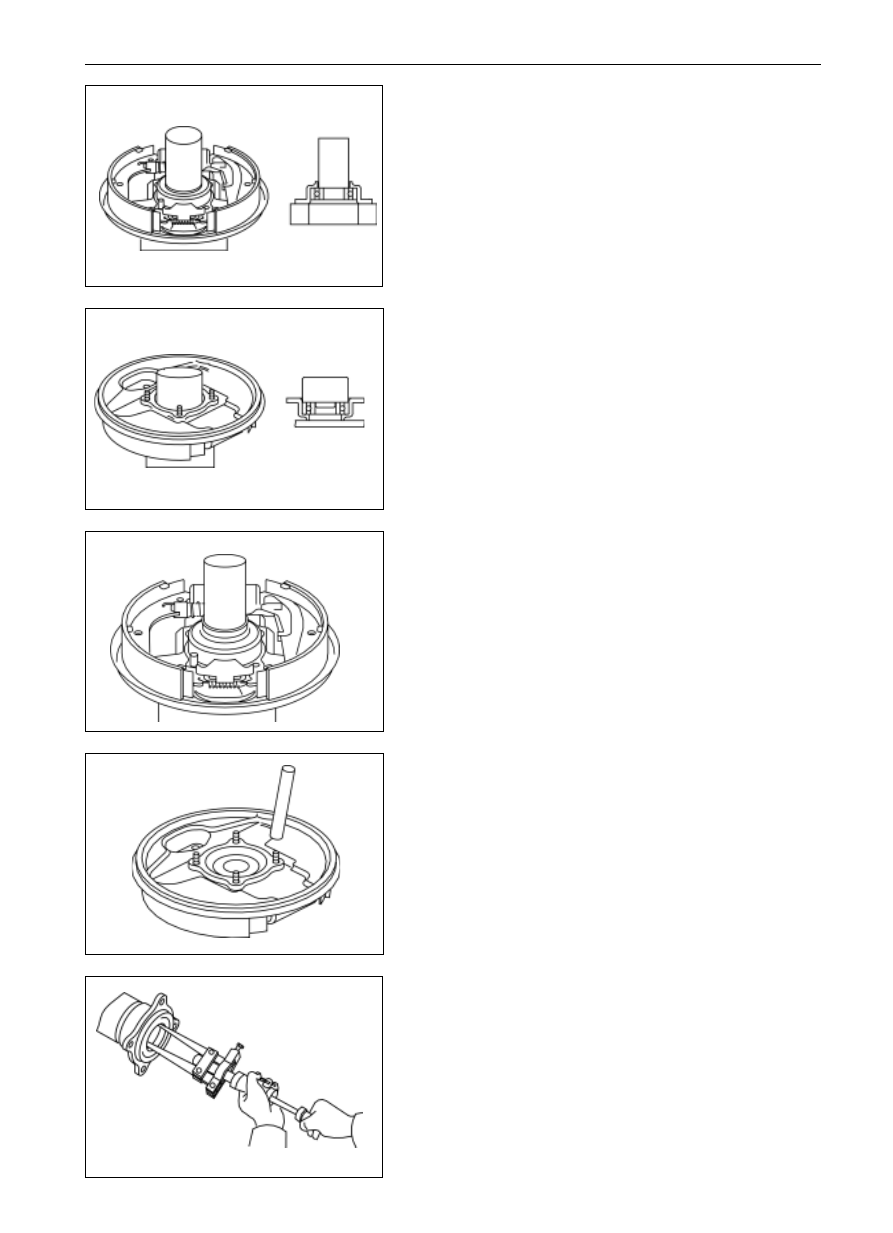

Dismantle of Rear half Axle Shaft
1.
Tear down the wheels.
2.
Tear down the rear brake drum.
3.
Tear down the grab end of the bracing wire of hand brake
from the rear brake.
4.
Tear down the half-shaft and the rear brake assembly
from the rear axle housing.
5.
Tear down the flat steel retainer ring for shaft from the
half-shaft;
Tear down the flat steel retainer ring for shaft with the ring
calipers.
6.
Tear down the half-shaft:
Put down a wooden plate on the flat ground, and thrust the end
of spline of half-shaft and rear brake assembly toward the
wooden plate to separate the shaft and the rear brake assembly.
Inspection on and repairing of half-shaft parts
1.

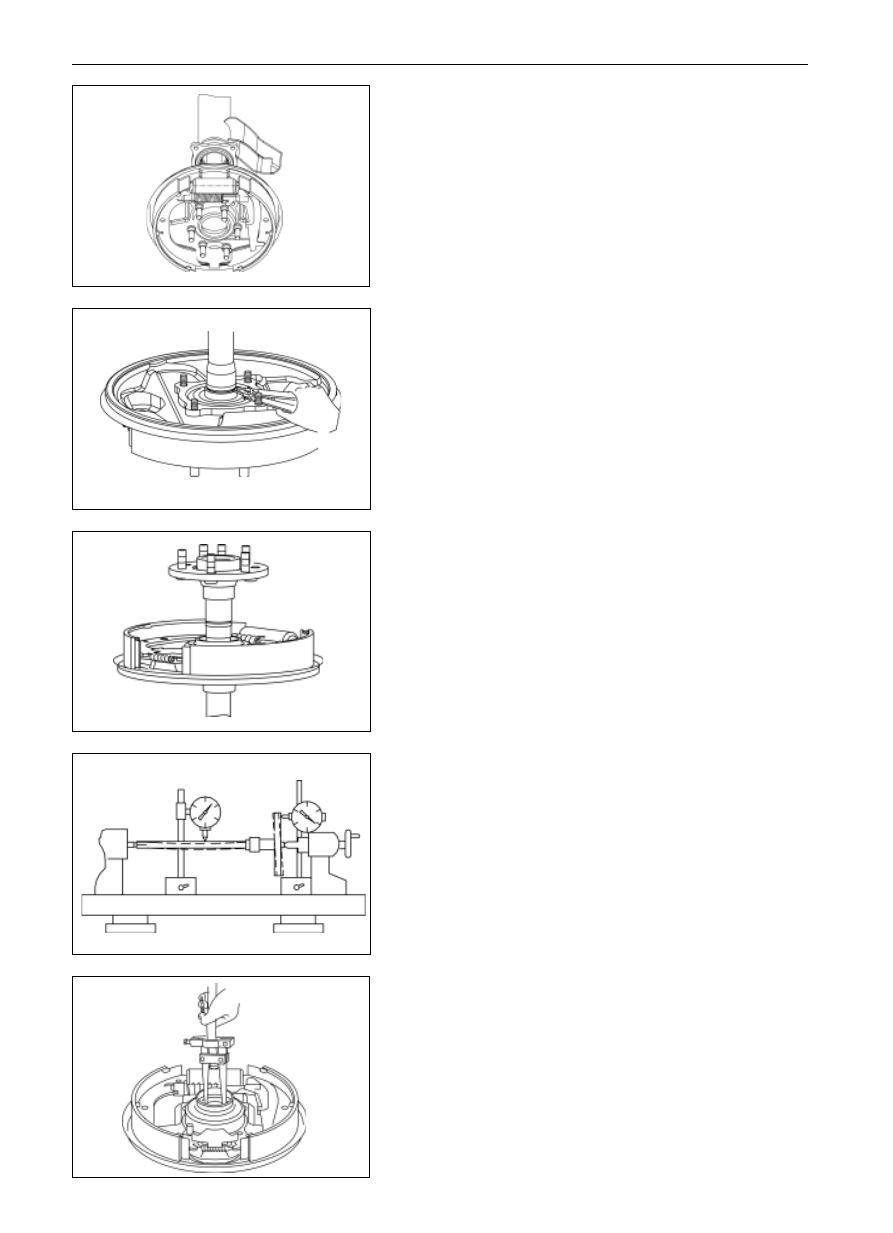

Check the wear, damage and swing difference half-shaft
and the flange.
Max shaft run-out: 2 mm
Max flange run-out: 0.2 mm
In case the half-shaft is damaged, or wearied or the measuring
value of the swing difference is excessive, change the half-
shaft.
2.
Check he oil seal of rear wheel bearing:
Check to see whether there is wear or damage, and change the
oil seal if necessary.
3.

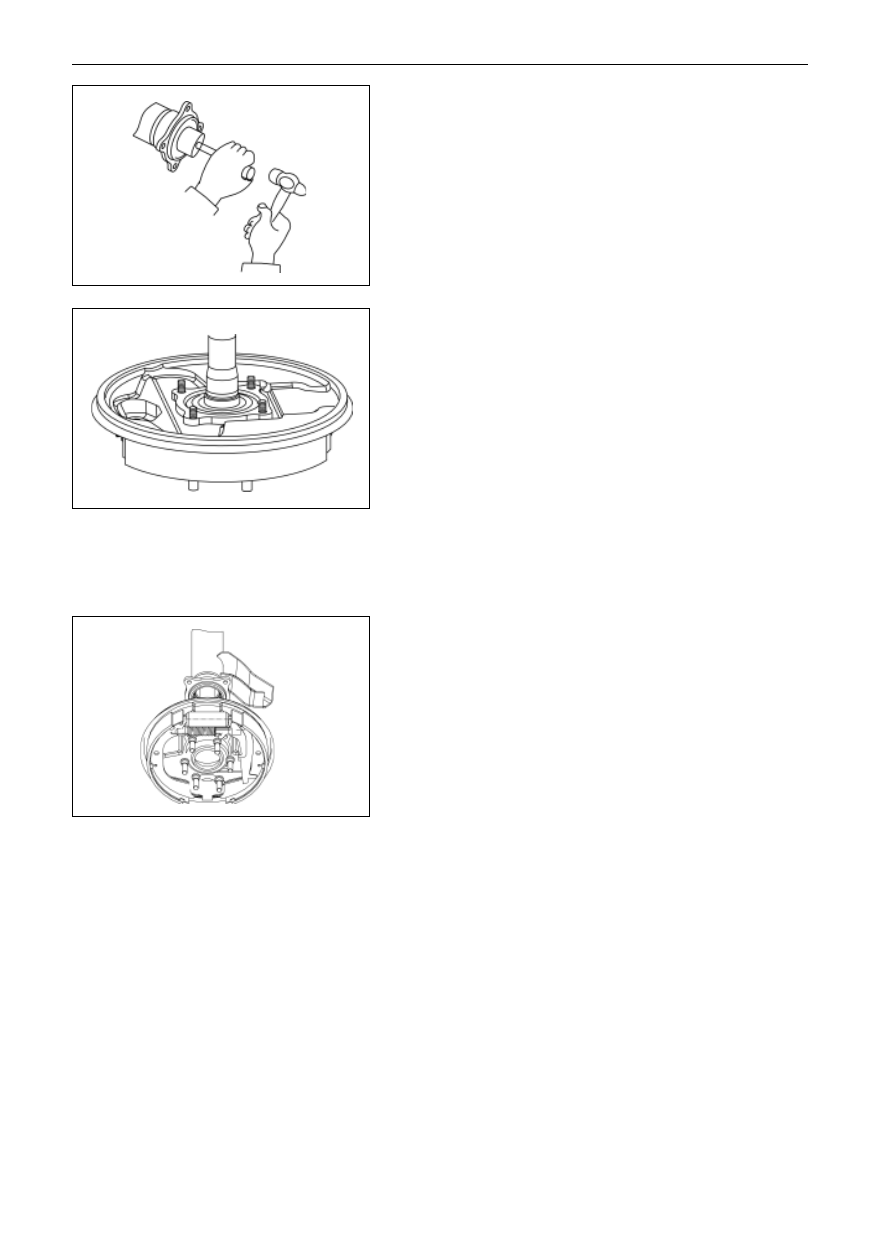

The disassembly of the outer oil seal of rear wheel
bearing;
Tear down the outer oil seal of rear wheel bearing with SST.
Suspension System and Automobile Axle (rear)
Rear Half Axle Shaft
