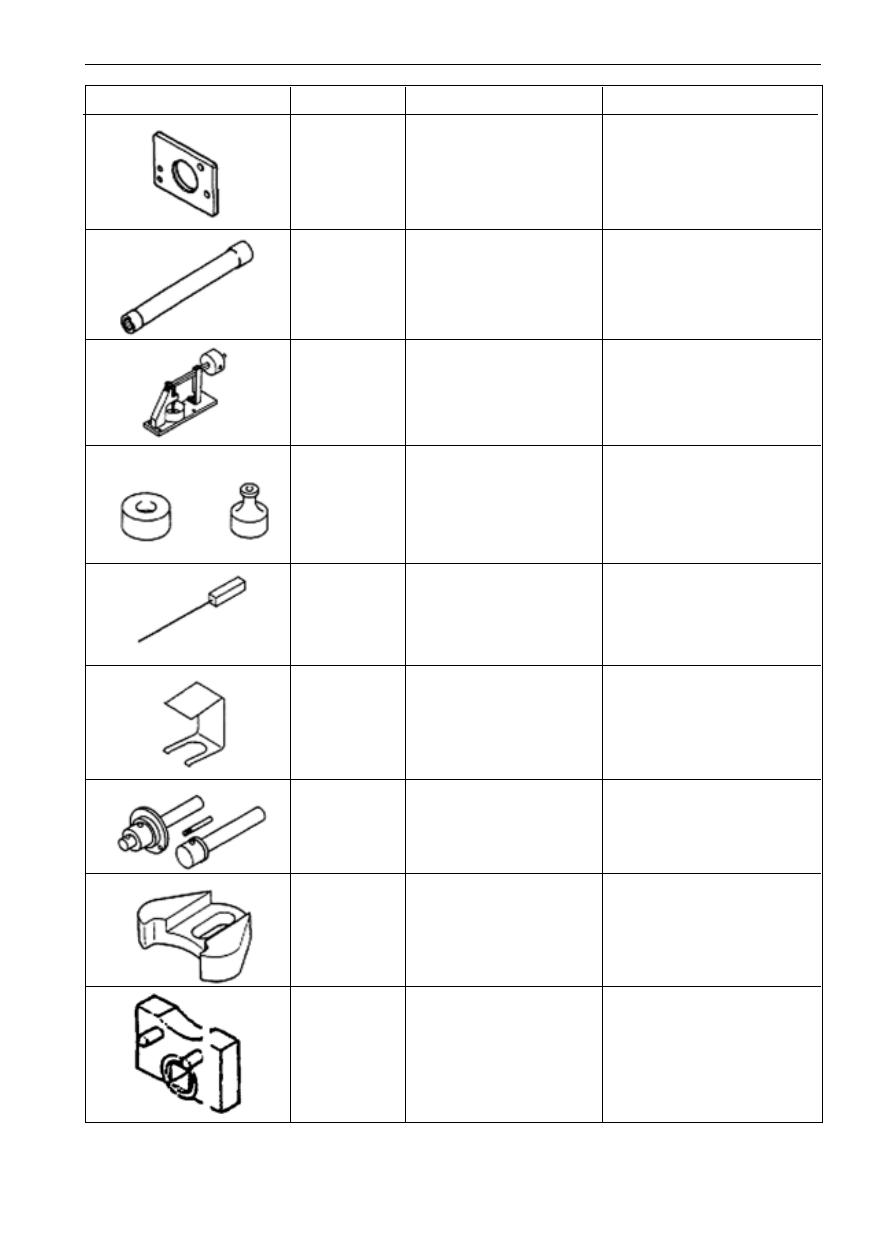

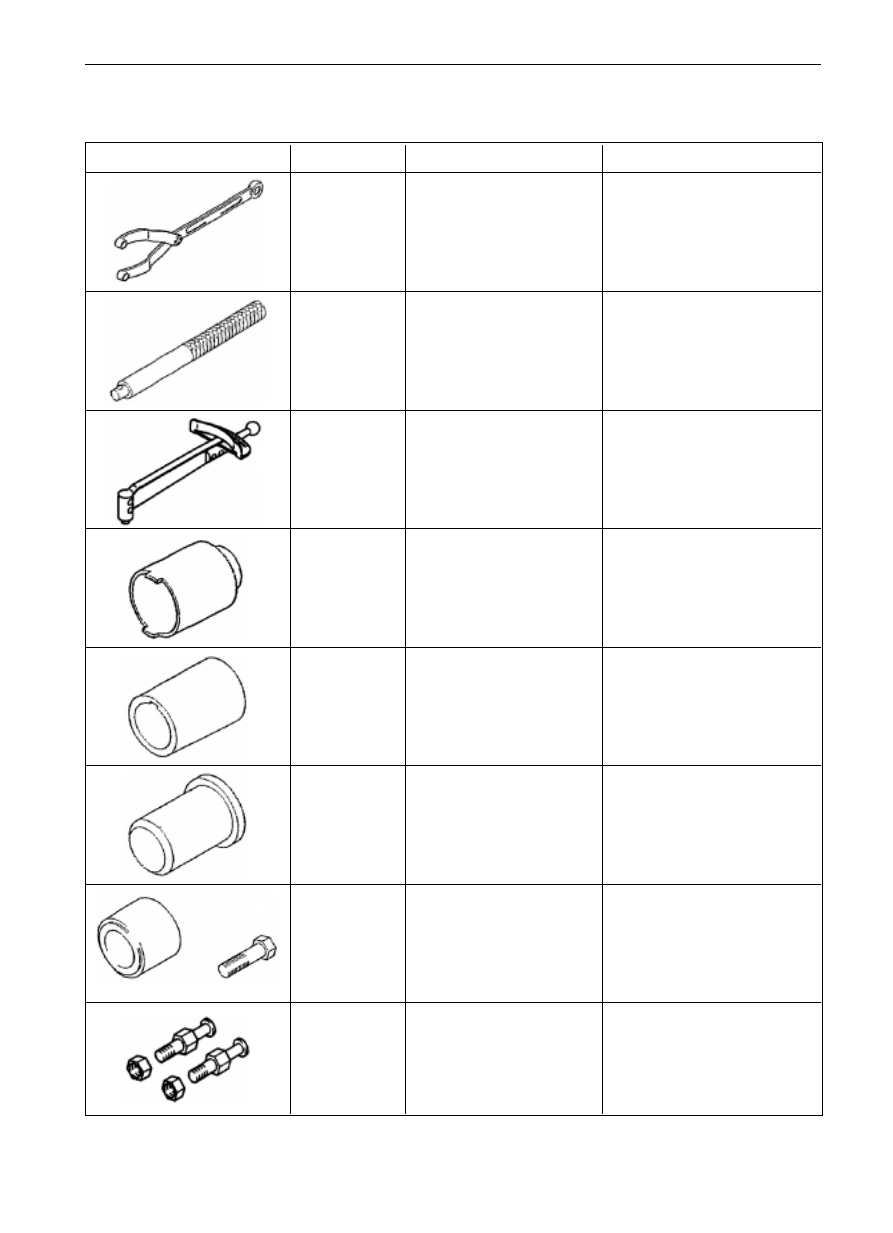

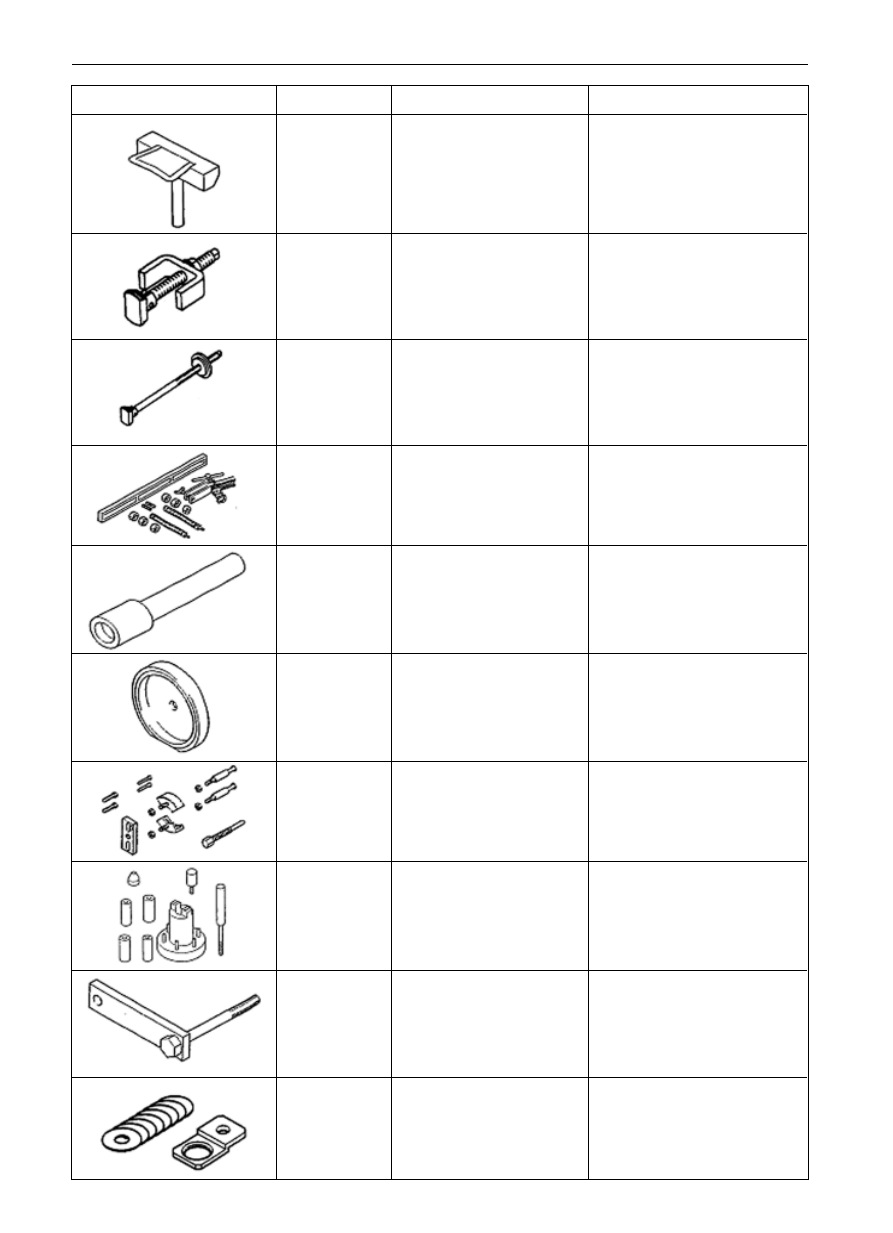

11-6 ENGINE SPECIFICATION A New Tightening Method Bolt Tightening at Plasticity Area A new tightening method bolt tightening at plasticity area will be used in some parts of engine. Different from traditional tightening method, the use limit stated herein shall be followed while tightening the bolts. This method shall be applied to the following bolts: (1) Cylinder head bolt (2) Main bearing cap bolt (3) Connecting rod bolt Tightening method: Screw the bolt till the prescribed torque is reached, then tighten another 90 100(for cylinder head bolt, 2 90 is needed). When the area is different, the method is also different. The methods stated herein shall be followed. Fastening Location Torque (Kg.M) Front cover and oil pump Oil drain plug 4.5 Oil pan 0.7 Oil suction filter bolt and nut 1.9 Oil pressure switch 1.0 Pressure relief plug 4.5 Oil suction filter bracket bolt 1.9 Front cover bolt 2.4 Plug 2.4 Flange bolt 3.7 Oil pump cover bolt 1.6 Oil pump cover screw 1.0 Piston and connecting rod assembly Connecting rod nut 2.0 90100 Crankshaft, cylinder block, flywheel and drive board Flywheel bolt 13.5 Rear cover board mounting bolt 1.1 Oil-seal retainer mounting bolt 1.1 Main bearing cap bolt 2.5 90100 Sealant Applying Location Model to Use Water outlet port coupling MD970389 or the equivalent Cooling water bypass pipe connector MD970389 or the equivalent Oil pressure switch 3M ATD No.8660 or the equivalent Oil pan MD970389 or the equivalent Oil-seal retainer MD970389 or the equivalent Water temperature sensor 3M NUT LOCKING No.4171 or the equivalent |
