Test Items

Specified Value

SO32(31)—S049(1)Resistance value

Less than 1Ω

SO32(32)—S049(3)Resistance value

Less than 1Ω

SO32(8)—S049(2)Resistance value

Less than 1Ω

S049(1)—effective grounding voltage value

10 kΩ or higher

S049(3)—effective grounding voltage value

10 kΩ or higher

S049(2)—effective grounding voltage value

10 kΩ or higher

S049(1)—effective grounding voltage value

0V

S049(3)—effective grounding voltage value

0V

S049(2)—effective grounding voltage value

0V

S049(1, 2, 3)Inter-voltage value

10 kΩ or higher

Are all tests normal?



3

Inspect the power and grounding circuit of the parking radar control module.

(a)  Refer to 11.12.6.10 System can't self-inspect (buzz doesn't make a sound)

Confirm whether various tests are normal.



4

Replace right side sensor .

(a)  Replace right side sensor, refer to11.12.7.2 parking motor sensor replacement .



5

Inspect the parking radar self-inspection function to confirm the fault has been
removed.

Next

No

Repair or replace the harness.

Yes

No

Repair or replace the harness.

Yes

2567



11.13.6.16 Intermediate sensor fault

Diagnostic steps:

Notes:

Inhibit starting the vehicle when performing this inspection step; otherwise, the damage to the
vehicle and personal injury may be caused.

1

Perform the following initial inspection.

(a)  Inspect and ensure that the surface of sensor can't be covered by foreign matters.

(b)  Inspect and make sure that the sensor surface has no damage or other situations.

(c)  For painting process of rear bumper which may cause large deposit of sensor, inspect

whether there is any abnormal condition.

Is the sensor surface checked OK?



2

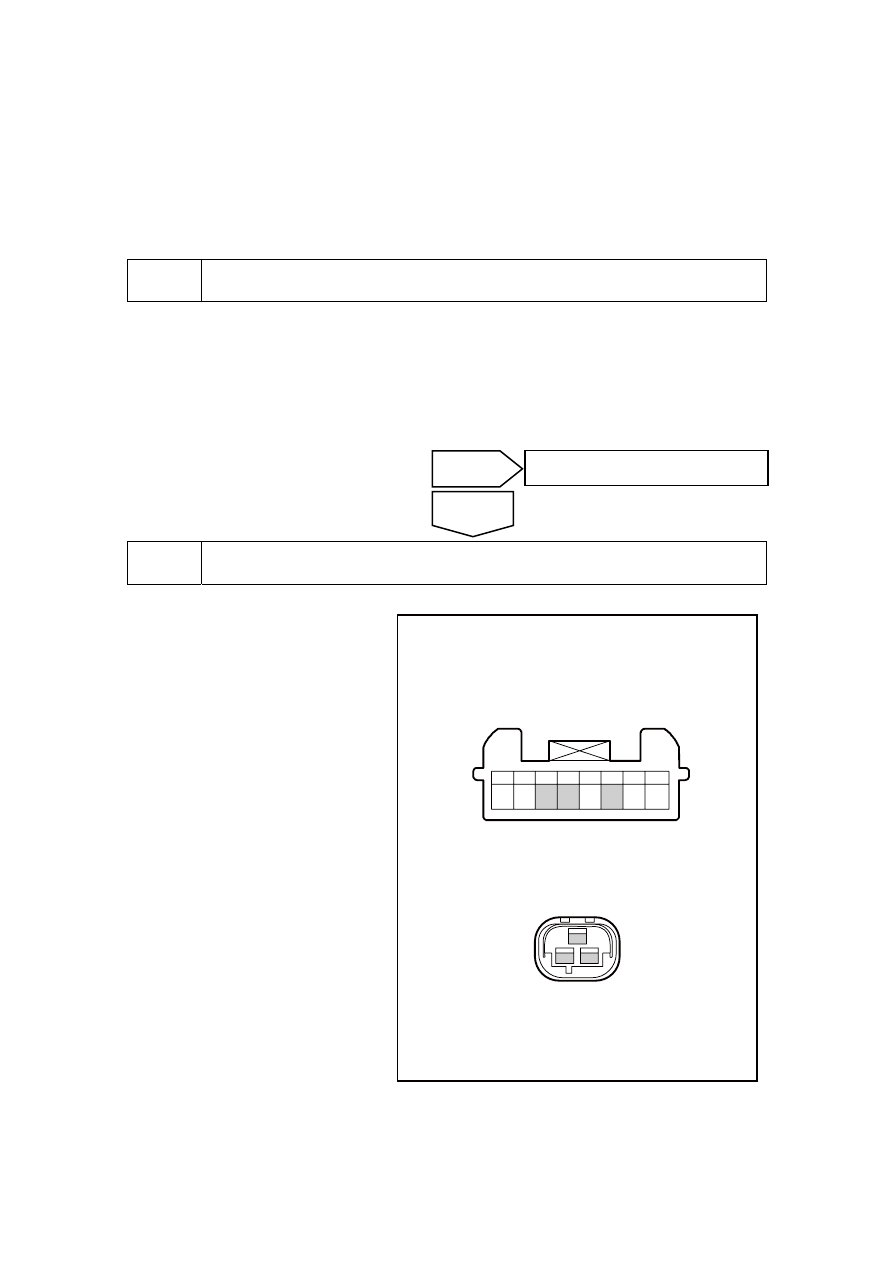

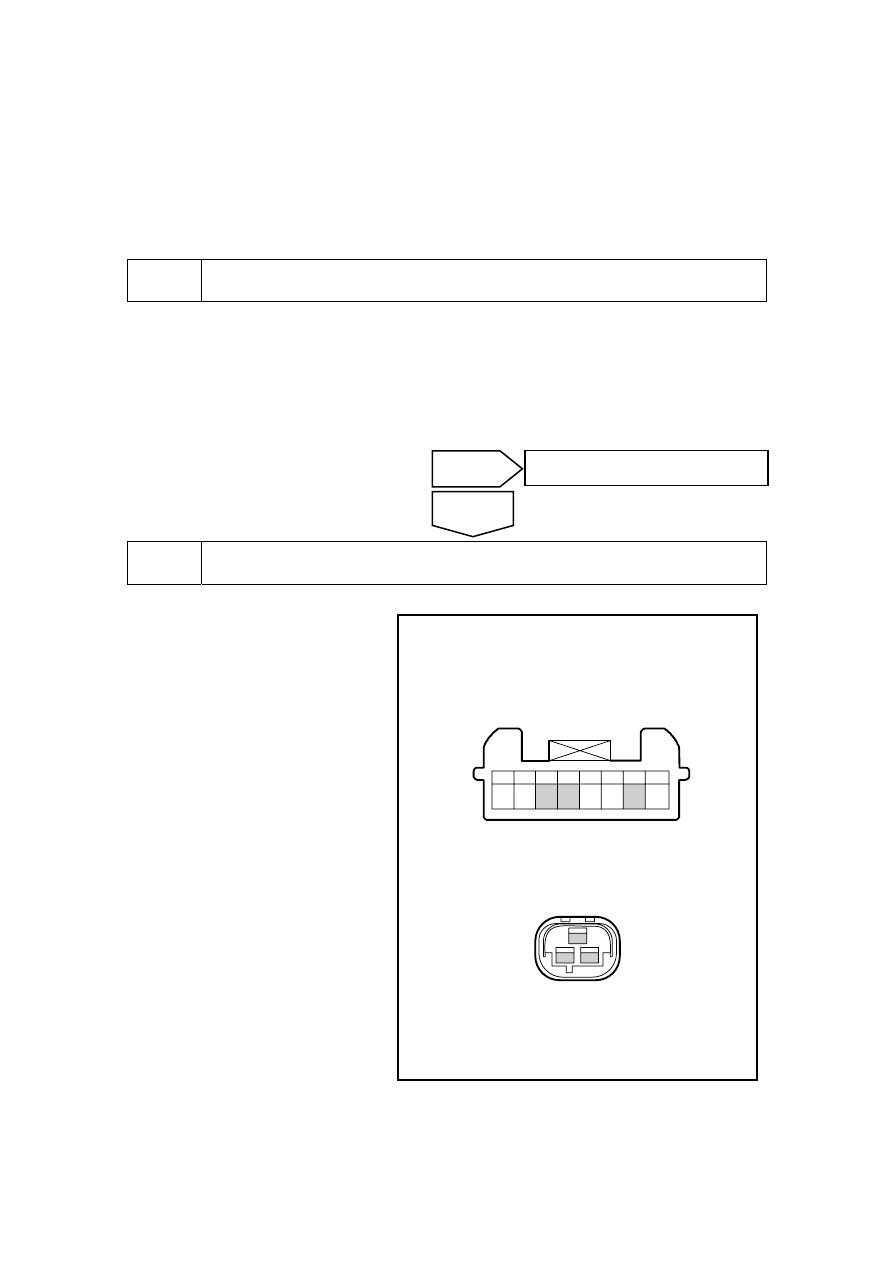

Check harness and connector.



(a)  Rotated ignition switch to "OFF"

position.

(b)  Disconnect parking motor control

module harness connector SO32.

(c)  Disconnect parking motor right

side sensor SO51.

(d)  Measure the connection situation

of each terminal in the following
table.

1

2

3

4

5

6

7

8

2

1

3

SO32 倒车雷达控制模块线束连接器

SO51 倒车雷达中间传感器线束连接器

NL11-3005 b



No

Clean the surface of the sensor and replace
the sensor if necessary.

Yes

SO32 reverse radar control module harness

connector

SO51 reverse radar intermediate Sensor

harness connector

2568

Test Items

Specified Value

SO32(31)—S051(1)Resistance value

Less than 1Ω

SO32(32)—S051(3)Resistance value

Less than 1Ω

SO32(10)—S051(2)Resistance value

Less than 1Ω

S051(1)—effective grounding voltage value

10 kΩ or higher

S051(3)—effective grounding voltage value

10 kΩ or higher

S051(2)—effective grounding voltage value

10 kΩ or higher

S051(1)—effective grounding voltage value

0V

S051(3)—effective grounding voltage value

0V

S051(2)—effective grounding voltage value

0V

S051(1, 2, 3)Inter-voltage value

10 kΩ or higher

Are all tests normal?



3

Inspect the power and grounding circuit of the parking radar control module.

(a)  Refer to 11.12.6.10 System can't self-inspect (buzz doesn't make a sound)

Confirm whether the circuit is normal.



4

Replace intermediate sensor ,

(a)  Refer to 11.12.7.2 Replacement of parking radar sensor.



5

Inspect the parking radar self-inspection function to confirm the fault has been
removed.



No

Repair or replace the harness.

Yes

Next

No

Repair or replace the harness.

Yes

2569



11.13.6.17 Left side sensor fault

Diagnostic steps:

Notes:

Inhibit starting the vehicle when performing this inspection step; otherwise, the damage to the
vehicle and personal injury may be caused.

1

Perform the following initial inspection.

(a)  Inspect and ensure that the surface of sensor can't be covered by foreign matters.

(b)  Inspect and make sure that the sensor surface has no damage or other situations.

(c)  For painting process of rear bumper which may cause large deposit of sensor, inspect

whether there is any abnormal condition.

Is the sensor surface checked OK?



2

Check harness and connector.



(a)  Rotated ignition switch to "OFF"

position.

(b)  Disconnect parking motor control

module harness connector SO32.

(c)  Disconnect parking motor right

side sensor SO50.

(d)  Measure the connection situation

of each terminal in the following
table.

1

2

3

4

5

6

7

8

2

1

3

SO32 倒车雷达控制模块线束连接器

SO50 倒车雷达左侧传感器线束连接器

NL11-3006b



No

Clean the surface of the sensor and replace
the sensor if necessary.

Yes

SO32 reverse radar control module harness

connector

SO50 reverse radar leftside Sensor harness

connector

2570
