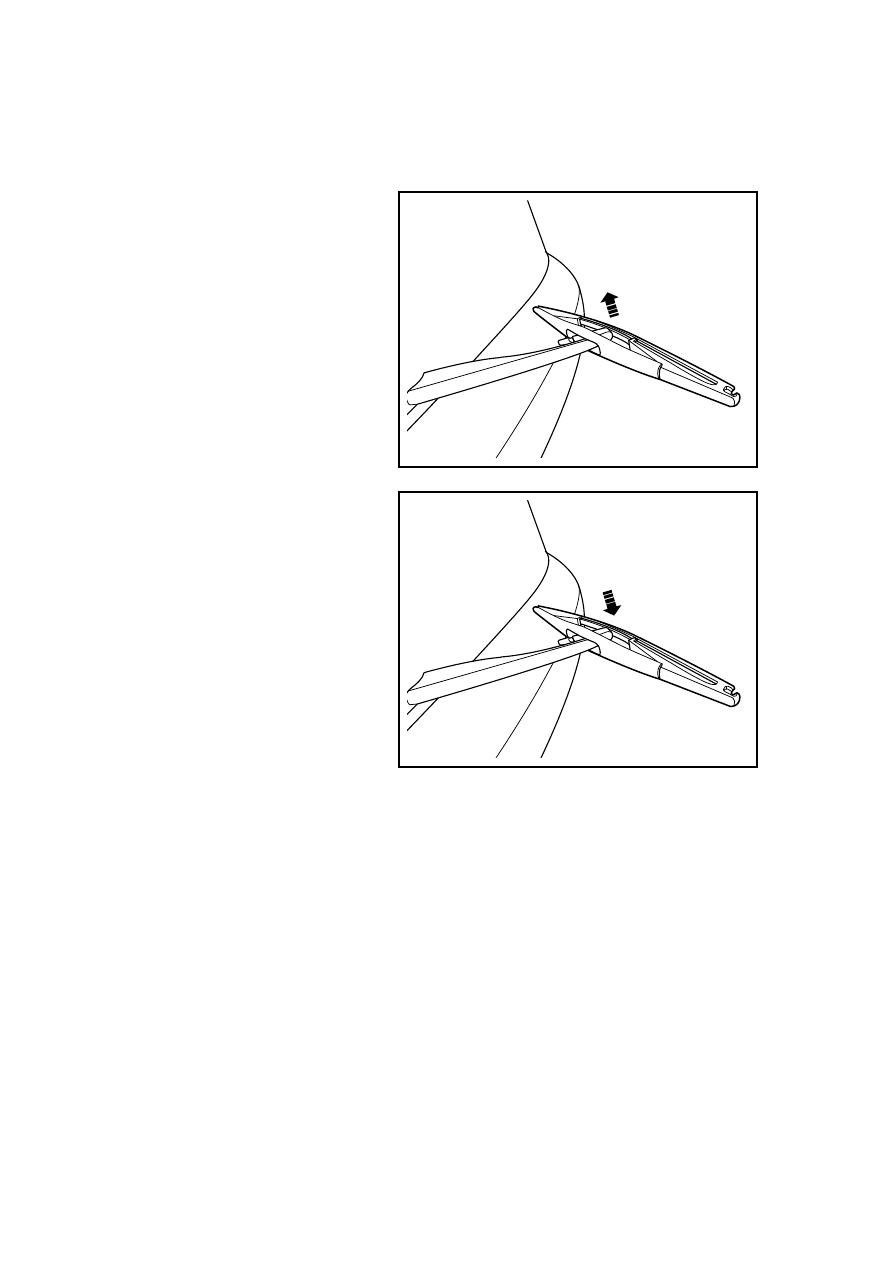

11.6.8.4 Rear wiper blade replacement

Dismantlement procedure

1.  Before dismantlement, place the

wiper arm at its initial position.

2.  Rotate the rear wiper blade to

remove it.

NL11-0126b

Installation procedure:

1.  Install the rear wiper blade to the

wiper arm.

2.  Rotate the rear wiper blade to

install it correctly.

NL11-0127b

2295

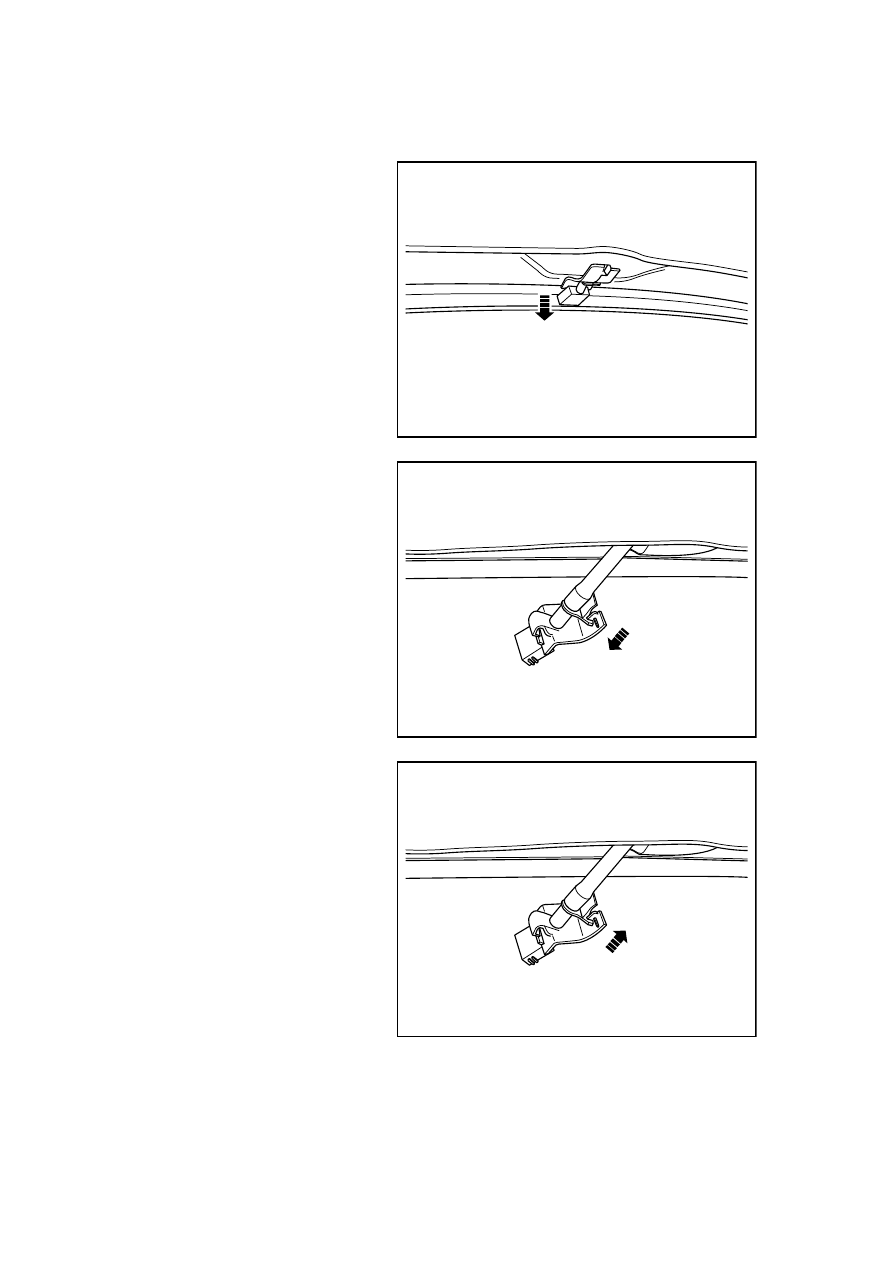

11.6.8.5 Replacement of wiper nozzle

Dismantlement procedure

1.  For dismantling of engine cover

vibration insulation pad, refer to
12.10.1.2 replacement of engine
cover vibration insulation pad.

2.  Remove wiper nozzle from

engine cover.

NL11-0128b

3.  Disconnect nozzle and washing

hose.

Installation procedure:

1.  Connect nozzle to water spraying

hole.

NL11-0129b

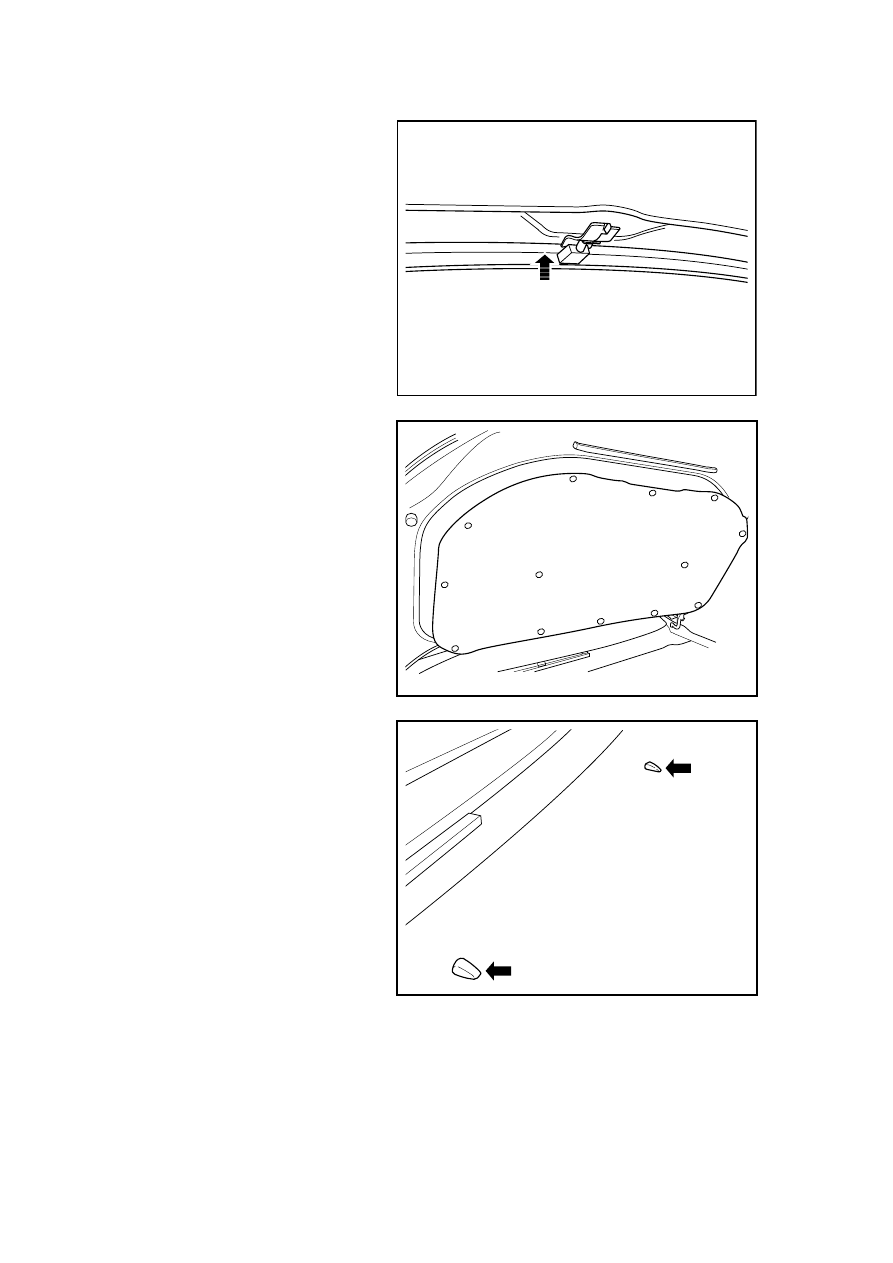

2.  Install wiper nozzle onto the

engine hood cover.

Notes:

Regulate the water spraying angle to
the proper position after assembling!

NL11-0130b

2296

3.  Install the soundproof pad of the

engine hood.

NL11-0131b

3.  Install the soundproof pad of the

engine hood.

FE11-0423b

4. Close

engine

cover.

Notes:

Regulate the water spraying angle to
the proper position after assembling.

FE11-0417b

2297

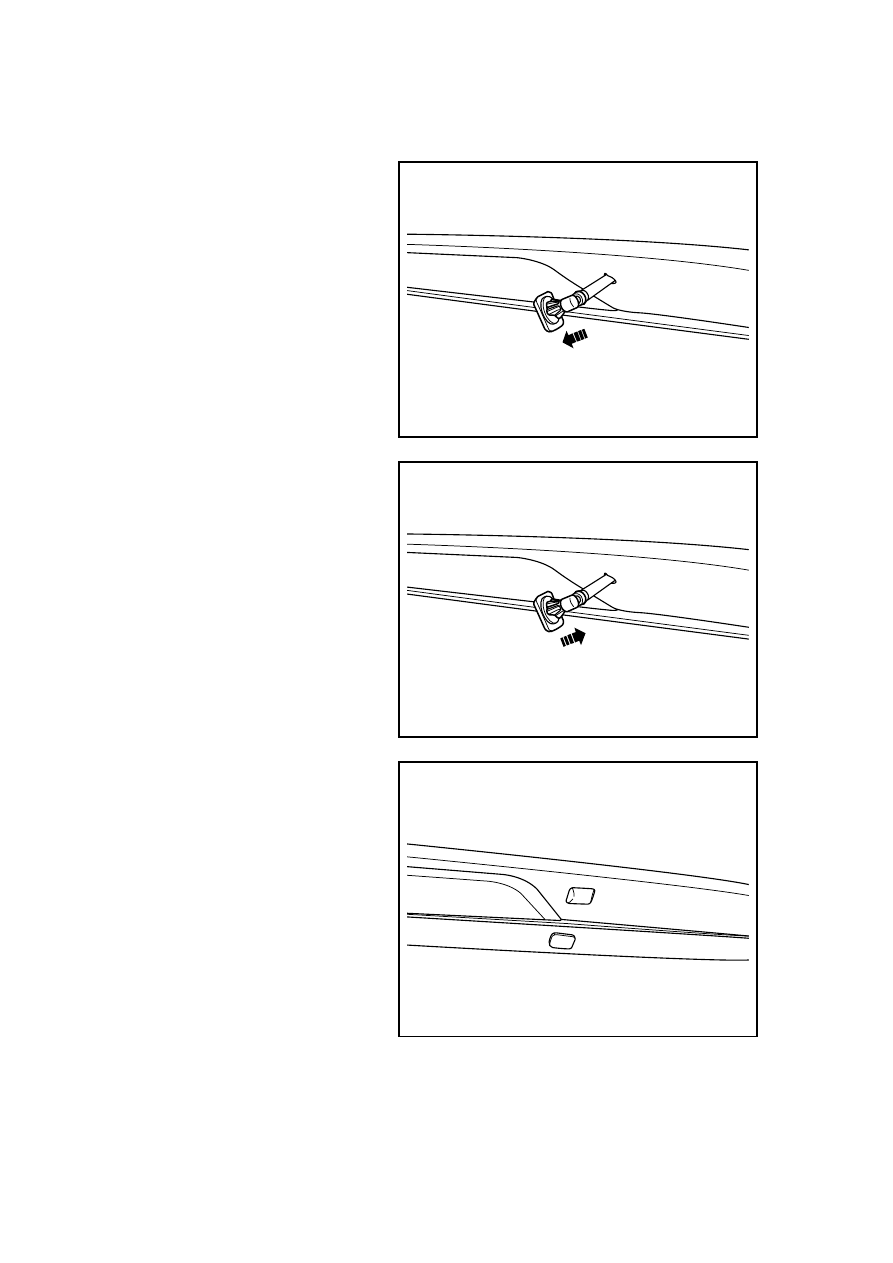

11.6.8.6 Rear wiper nozzle replacement

Dismantlement procedure

1.  Use proper tool to remove rear

wiper nozzle from spoiler.

2.  Push out wiper nozzle from water

spraying hose.

NL11-0132b

Installation procedure:

1.  Connect to nozzle and water

injecting hose.

Notes:

Hose can not be extruded and folded.

NL11-0133b

2.  Install rear wiper nozzle onto the

spoiler.

NL11-0134b
