11.5.7.8 Left front door glass lifter do not work (Only for left front door with anti-clamp)

Notes:

Refer to 11.4.7.2 visual Inspection before carrying out the following testing procedures.

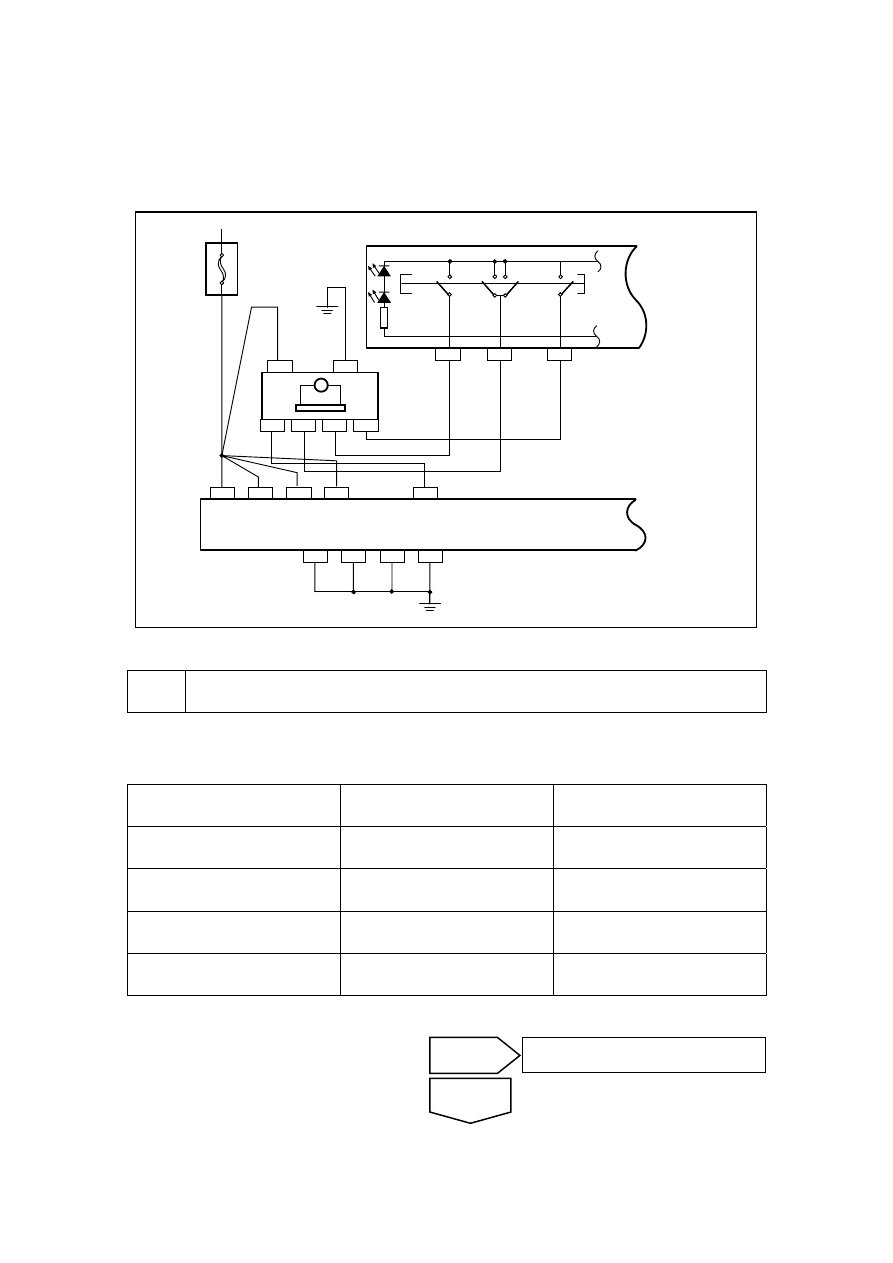

NL11-4017b

3 IP47 13 IP47

6 IP47 16 IP47

17 IP47

5 IP47 11 IP47

1 IP47

W/

G

W/

R

W/L

30A

IF

12

20

19

18

IP+B

14 IP50

4 DR02 5

7 DR02

DR02

2

1

DR02

DR02

3 DR02

LF PW

RR GND

RL GND

FR GND

FL GND

RF PW

LR PW

RR PW

LIN

M

DR10

DR10

DR10

BCM

左前门玻璃

升降器开关

DOWN

OT
DN

OT
UP

UP



Diagnostic steps:

1

Inspect the left front window switch.

(a)  Operate left front window switch.

(b)  Use multimeter to measure switch connection situation.

Test terminal

Test conditions

Conduction condition

DR10(18)—DR10(14)

LF WINDOW UP

Less than 1 Ω

DR10(20)—DR10(14)

LF WINDOW DOWN

Less than 1 Ω

DR10(19)—DR10(14)

LF WINDOW OT DN

Less than 1 Ω

DR10(19)—DR10(14)

LF WINDOW OT UP

Less than 1 Ω

Confirm if the voltage conforms to standard value.



Yes

Go to step 3

No

Left frontdoor

glass lifter switch

2191

2

Replace combination switch ,

(a)  Replace combination switch, refer to11.4.8.6 left front glass lifting switch replacement .

(b)  Operated Left front window switch.

Confirm whether the left front window works normally.



3

Inspect the left front window anti-trapping control module power supply and the
grounding.

(a)  Disconnect left front window anti-clamp module harness connector DR02.

(b)  Measure terminal voltage by millimeter.

Test Terminal

Terminal voltage

DR02(2)－grounding 11-14V

DR02(2)－DR02(1) 11-14V

Confirm whether the measures value is normal.



4

Repair and replace the wire harness.

(a)  Repair fault points between wire harness connector DR02 terminal No. 2 and fuse, DR02

terminal No. 2 and grounding circuit.

(b)  Connect to harness connector DR02.

(c)  Operate left front window switch.

Confirm whether the left front window works normally.



5

Inspect the circuit between the left front window anti-trapping control module and the left
front window switch.



Yes

The system is normal.

No

Yes

Go to step 5

No

Yes

The system is normal.

No

2192

(a)  Disconnect left front window

switch harness connector.

(b)  Disconnect Left front window

anti-clamp control module
harness connector.

(c)  Use multimeter to measure

connection sitaution of wire
harness.

NL11-4013b

DR10 左前门玻璃升降器开关线束连接器

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

18

19

20



NL11-4019b

2

1

7

6

5

4

3

DR02 左前门玻璃升降电机线束连接器

3

5

7



Test terminal

Conduction condition

DR10(20)—DR02(7) Less

than

1

Ω

DR10(19)—DR02(5) Less

than

1

Ω

DR10(18)—DR02(3) Less

than

1

Ω

Confirm whether the terminal voltage accords with the standard value?



6

Confirm whether the measures value is normal.

(a)  Repair circuit fault points between left front window switch wire harness connector DR10

and left front window anti-clamp control module wire harness connector DR02.

Yes

Go to step 7

No

DR10 left frontdoor glass lifter

switchharness connector

DR02 left front doorglass lifting motor

harness connector

2193

(b)  Connect to left front window switch harness connector.

(c)  Connect to Left front window anti-clamp control module harness connector.

(d)  Operated left front window switch,

Confirm whether the left front window works normally.



7

Inspect the control signal circuit of the fault-side glass lifter motor.

(a)  Replace left front window anti-clamp module, refer to11.4.8.5 Left front glass lifter motor

replacement.

Confirm the completion of repair.



8

The system is normal.

11.5.7.9 Left front window anti-clamp function invalidation

Circuit diagram:

See Front Left Door's Anti-jamming Window Does Not Work.

Diagnostic steps:

1

For initialization of the front left window, see 11.4.7.4 Initialization of Window Lifter
(such equipment anti-jamming function).



2

The BCM fault memory DTC code is read by a detector.



3

Repair the window. See11.4.7.7 Only Front Left Window Lifter Does Not Work (without
Anti-jamming Device).



4

The system is normal.



Next

Next

Next

Next

Yes

The system is normal.

No
