11.4.8 Dismantle and install

11.4.8.1 Replacement of lighting combination switch

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  Disconnect the battery negative

cable. Refer to 2.11.8.1 battery
cable disconnection/connection
procedures.

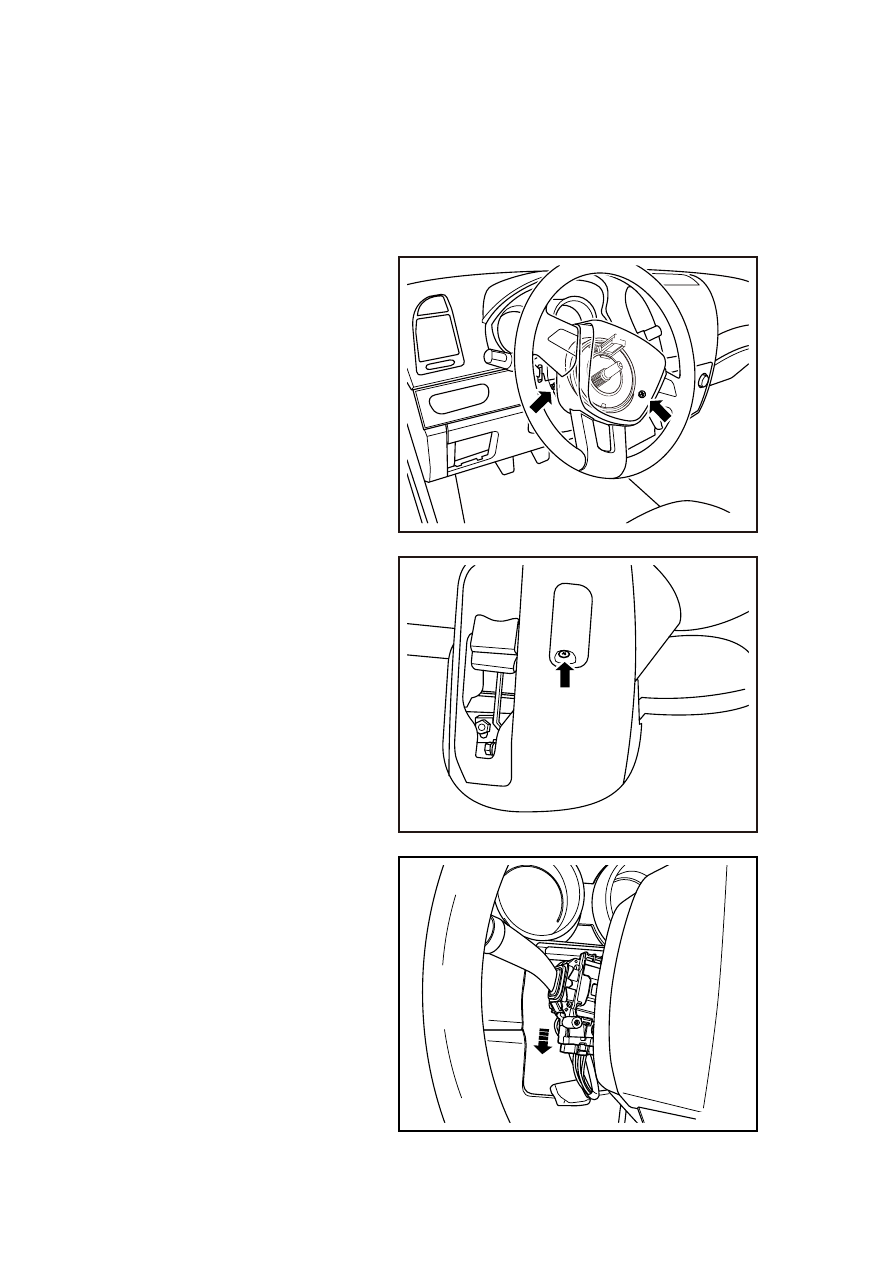

2.  Turn the steering wheel and

dismantle the upper and lower
steering column shield panel
retaining screws.

NL11-0227b

3.  Dismantle the lower steering

column shield screw.

4.  Remove the steering column

upper and lower shield panels.

NL11-0228b

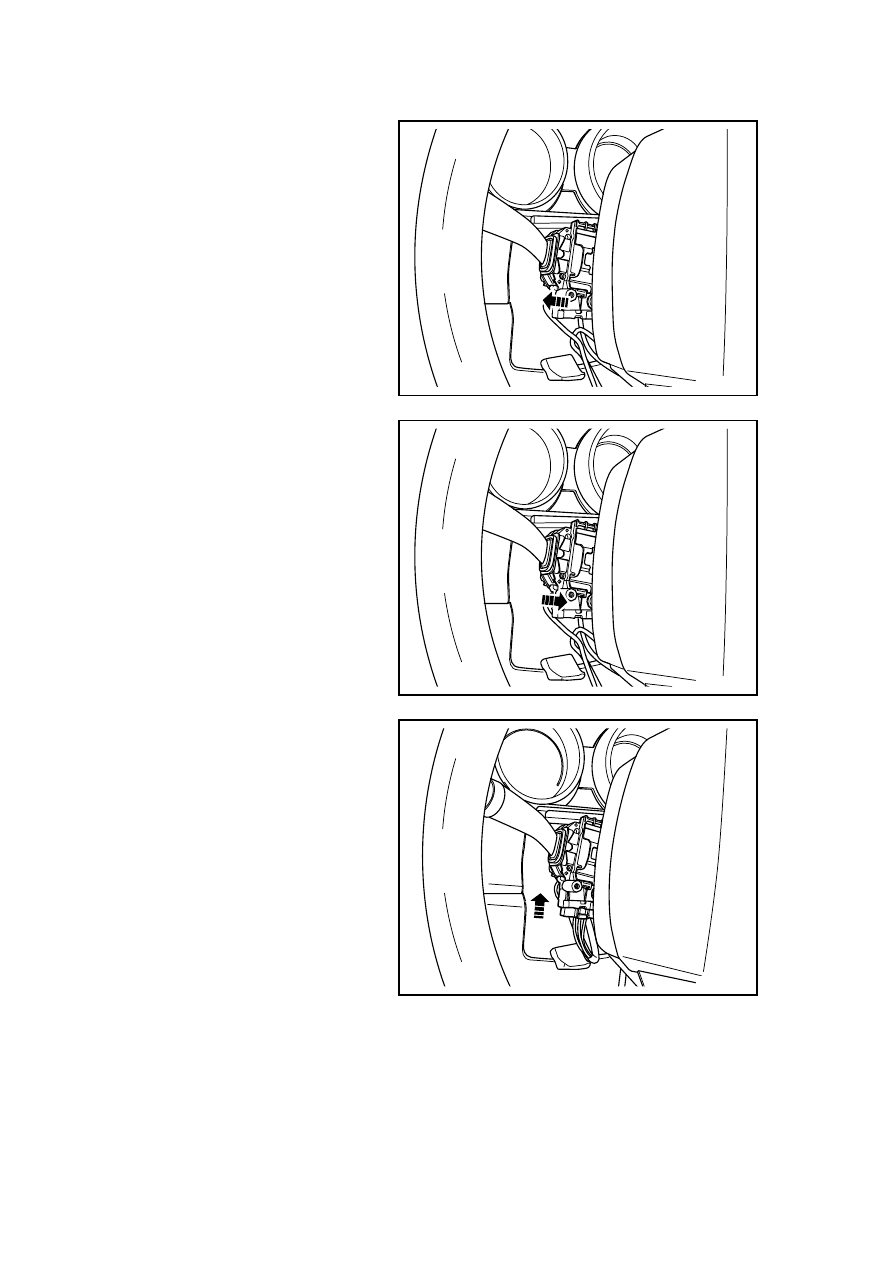

5.  Disconnect the lighting

combination switch arness
connector.

NL11-0229b

2123

6.  Press the outside tongue of

switch to dismantle the lighting
combination switch.

NL11-0230b

Installation procedure:

1.  Insert the lighting combination

switch into the switch seating.

NL11-0231b

2.  Connect the lighting combination

switch harness connector.

NL11-0232b

2124

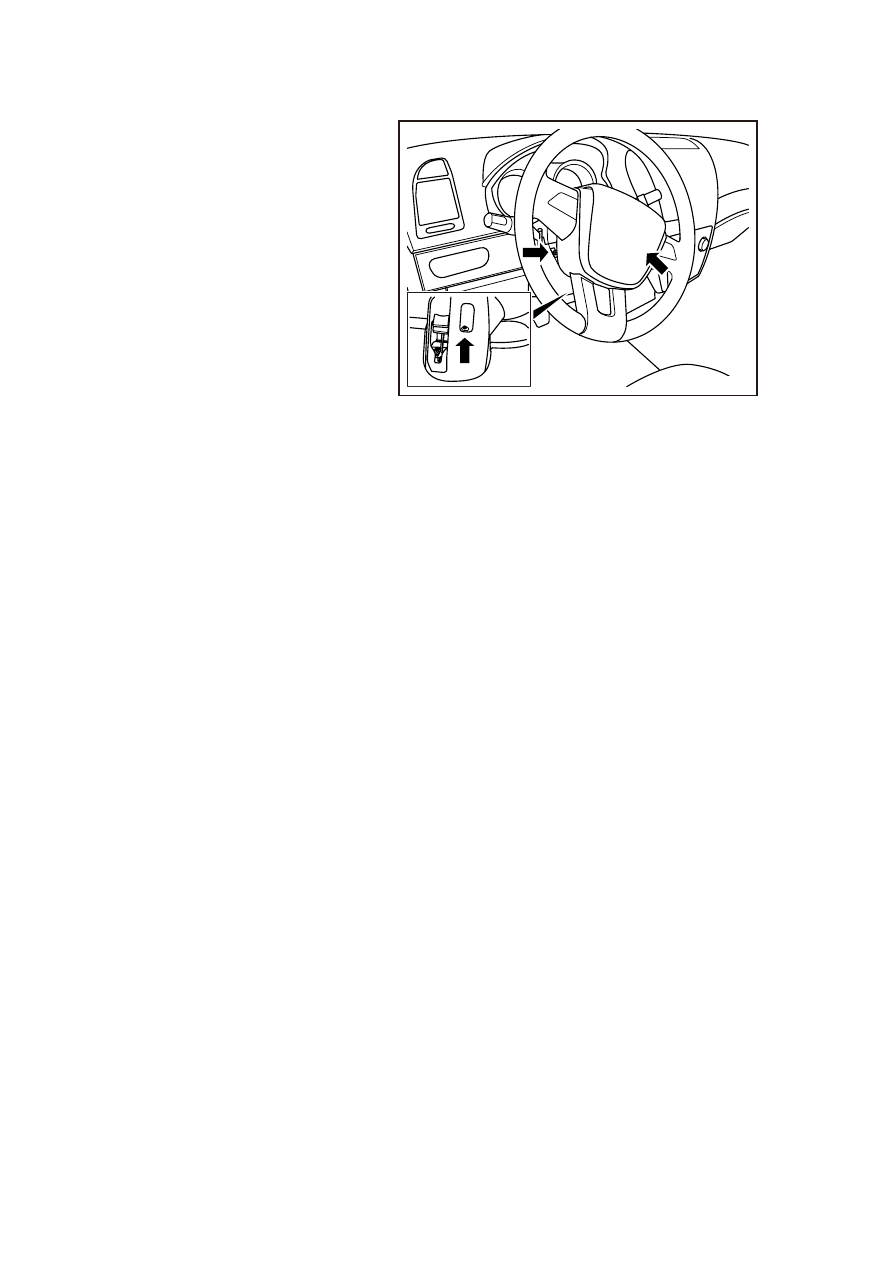

3.  Install upper and lower protective

plates of steering column, and
tighten cover plate screw.

Notes:

See "Important Cautions Regarding
Fastening Parts" in "Warnings and
Cautions".

Torque:8.8 Nm(Metric) 6.5
lb-ft(English system)

4.  Connect the battery negative

cable.

NL11-0233b



2125



11.4.8.2 Ceiling lamp and reading lamp replacement

Replacement of front ceiling lamp

Dismantlement procedure

Warning!

Warning: refer to warning on battery
disconnection in warnings and
precautions.

1.  For disconnection of negative

cable of battery, refer to 2.11.8.1
Disconnection procedures of
battery cable.

Connection procedures.

NL11-0237b

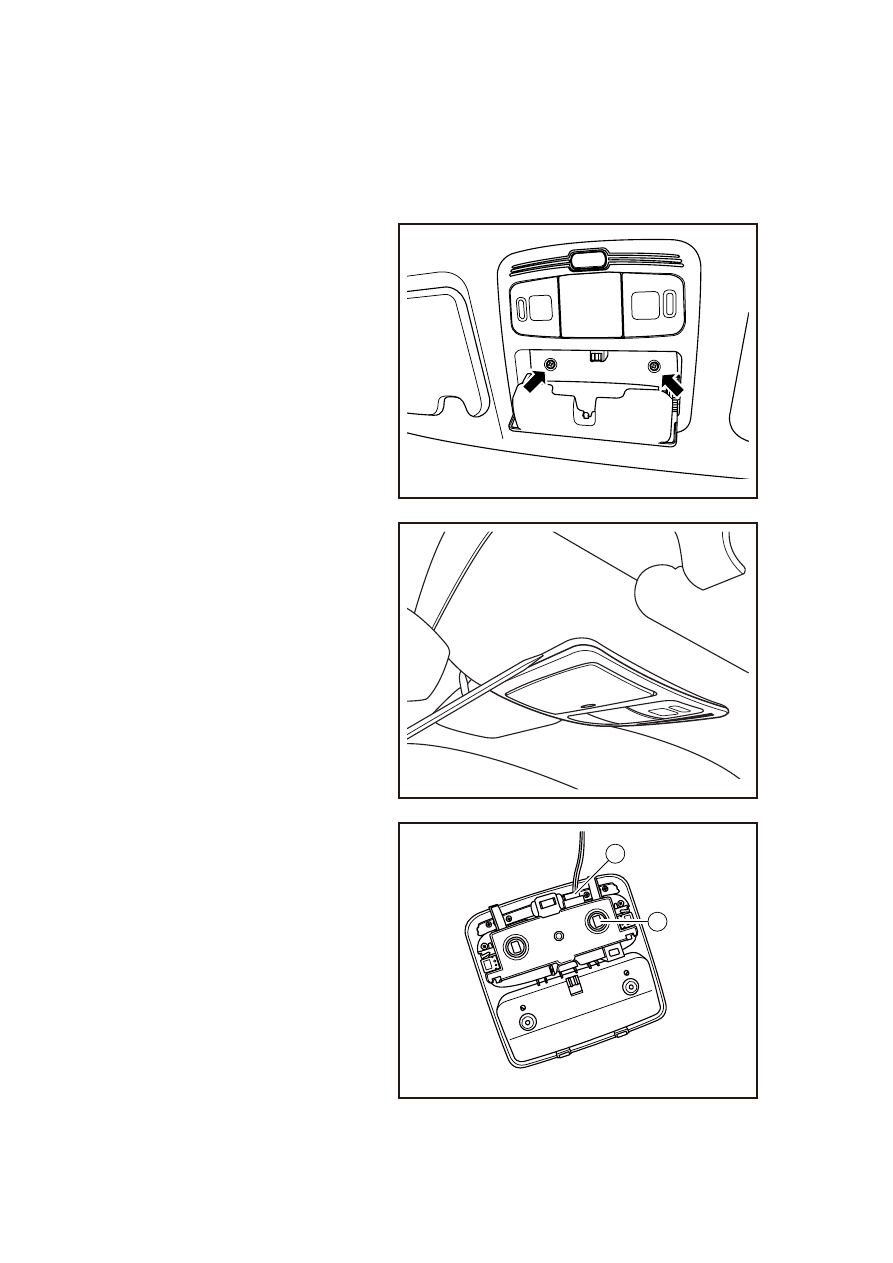

2.  Open glass box, and dismantle

screw.

3.  Use suitable tool to dismantle

front read lamp.

NL11-0238b

4.  Disconnect front read lamp wire

harness connector 1.

5.  Screw out Bulb 2.

2

1

NL11-0239b
