5 Grid

road



When driving in the place where the
road is distributed in a gird manner
and there are multiple roads nearby
extending along the same direction,
the map can match with the other
roads, so that the position mark can be
deviated from the current position.

NL11-2029b





When two roads are parallel (for
example, there is another side road
adjacent to the highway), the other
road may be wrongly matched in the
map; thus, the position mark may be
deviated from the current position.

NL11-2030b

6 Paralleling

road

Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Grid road

Paralleling road

2043





7

In the parking lot.



When running in the parking lot or on
the road that does not exist in the map,
the current position of the vehicle may
be marked on the closed road. When
the vehicle returns to the road, the
position mark point may be deviated
from the correct position.

NL11-2031b



8

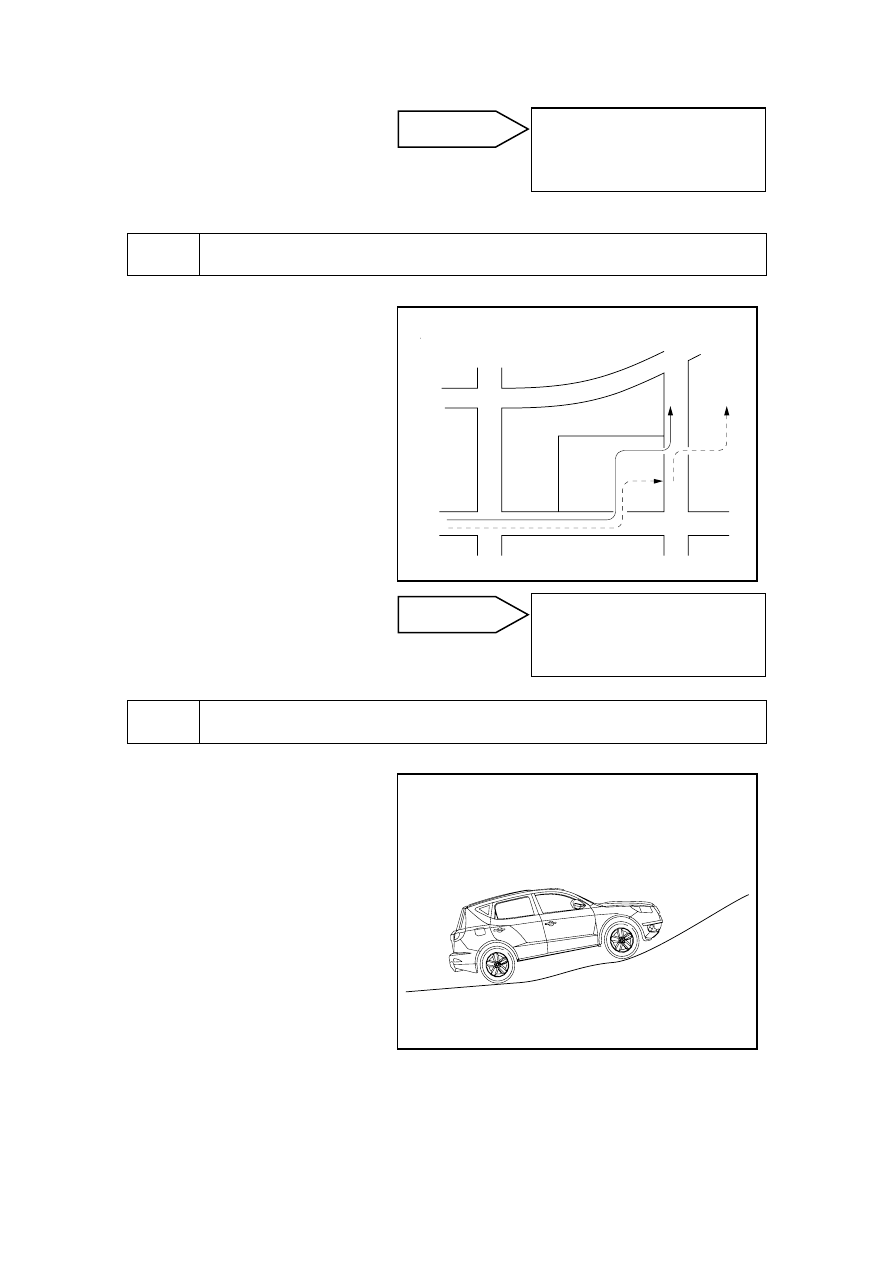

Steep mountain slope and incline.



When parking on a slope road or in
the case of the vehicle inclined, the
error of angle of turn may be caused,
so that the position mark point may be
deviated from the correct position.

NL11-2032b

Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Incline

In the parking lot

Parking lot

2044

9 Irregular

traveling

route

When the lane is frequently changed during driving, the position marking position may be
deviated from the correct position.



10

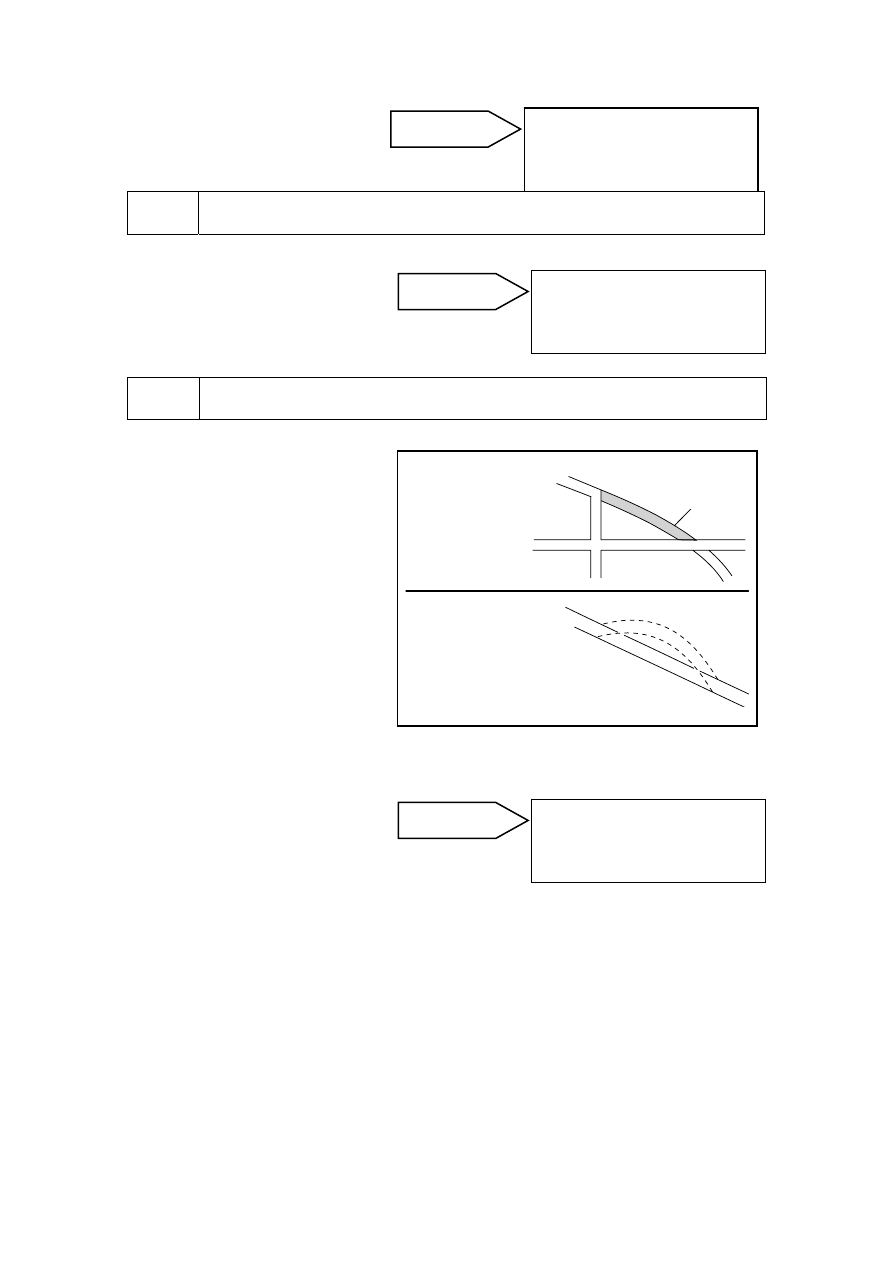

Map data correlation



(a)  When vehicle runs on new road

or road which can't be shown on
map screen, the map matching
function can't make effect.
Therefore, when other
neighboring roads are matched,
the position point will have a
little deviation from correct
position.

(b)  If road shape and actual road

stored on map data are different
from actual road, the map
matching function can't make
effect. Therefore, when other
neighboring roads are matched,
the position point will have a
little deviation from correct
position.

NL11-2033b



Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Repair method

When continually running for a
period of time, the vehicle will
be correctly positioned again
after the road is branched.



Roared do not
display on the
map screen

New
construction
road

Different road mode
(Charged due to road
maintenance)

2045



11.3.6.5 Common fault symptom table of navigation

Fault symptom

Cause

Disposal method

1.  Error series number of main host is input

when generating active code. It is
necessary to update navigation map data.

2.  When map disc has more than two

versions, misuse of map disc may cause
mismatching of map version whose active
code is generated and map version copied
into SD card. This will cause map version
mismatching and activation operation can't
be conducted.

The map cannot
be successfully
activated.

3.  When continuously operating multiple

vehicles, if oil activation code in U disc
isn't deleted and new activation code is
loaded into SD card directly, it may cause
error of file name and map can't be
activated.

Correctly update the
navigation map data

Navigation can
receive the GPS
signal, but the
GPS does not
synchronously
move when the
vehicle moves.

The on-board navigation system is equipped
with a built-in such devices as a gyroscope, etc
which require the vehicle to travel a certain
distance for paring the map data.

Drive the vehicle at
60km/h for a period of
time, then perform

Testing.

1.  Input wrong address, such as some big

hotel is input into small hotel.

2.  Old name is input and name in map is also

old, but this unit is renamed, or address is
changed, etc.

The destination is
not found out in
the map.

3.  Some information related    to state

security can't be shown in map, such as
embassy, waterworks and military unit,
etc.

Refer to the Navigation
System Operation Manual
for correct operation.
