(a)  Inspect and repair the open circuit

between the right front position
light harness connector CA12
terminal 5 and the body ground.

Confirm if the position light is working
correctly.

9

6

5

1

2

3

4

7

8

NL11-0009c

左前组合灯线束连接器 CA12











10

Inspect position lamp relay IR08 circuit.

(a)  Turn off the ignition switch.

(b)  Unplug position light relay IR08.

(c)  Disconnect the light combination switch harness connector.

(d)  Measure the resistance between terminal 1 of position light relay IR08 and fuse F05.

(e)  Measure the resistance between terminal 3 of position light relay IR08 and fuse F05.

(f)  Measure the resistance between terminal 2 of position light relay IR08 and terminal 19 of BCM harness

connector IP61.

Standard Resistance: Less than 1 Ω

Is the resistance specified value?







11

Check the light combination switch ground circuit.

No

Yes

The system is normal.

No

Repair or replace faulty circuit

Yes

Left front combination lamp harness

connectorCA12



1975




(a)  Turn off the ignition switch.

(b)  Disconnect the light combination switch harness

connector.

(c)  Measure the resistance between terminal 16 of

light combination switch corresponding with
harness connector IP42 and body reliable ground.

Standard Resistance: Less than 1 Ω

Is the resistance specified value?

1

9

2

3

4 5

6

7

8

14 15 16 17

10 11 12 13

NL11-0010c

灯光组合开关线束连接器

IP42







12

Check the light combination switch.



(a)  Turn off the ignition switch.

(b)  Disconnect the light combination switch harness

connector.

(c)  Disconnect the light combination switch harness

connector.

(d)  Measure the resistance between terminal 14 and

16 of light combination switch corresponding
with harness connector IP42.

Standard Resistance: Less than 1 Ω

Is the resistance specified value?

1

9

2

3

4 5

6

7

8

14 15 16 17

10 11 12 13

NL11-0011c

灯光组合开关线束连接器

IP42









13

Check continuity of light combination switch and BCM.

(a)  Turn the ignition switch to OFF position.

(b)  Disconnect the BCM harness connector IP61.

(c). Disconnect the light combination switch harness connector IP42.

(e)  Measure the resistance between terminal 19 of BCM harness connector IP61 and terminal 14 of harness

No

Replace combination switch

Yes

No

Repair or replace faulty circuit

Yes

Lighting combination switchharness

connectorIP42



Lighting combination switchharness

connectorIP42



1976




connector IP42 of light combination switch.

Standard Resistance: Less than 1 Ω

Is the resistance specified value?







14

Replace the BCM





15

The system is normal.

Note: Taking diagnostic steps of left front position light for example, fault diagnosis of other three position
lights can refer to left front position light.



Next

No

Repair or replace faulty circuit

Yes

1977






10.3.3.4 DTC B11B312. B11B312

Fault diagnosis code Descriptions

B11B312

License Plate Light Circuit Malfunction

B11B311

License Plate Light Circuit Malfunction

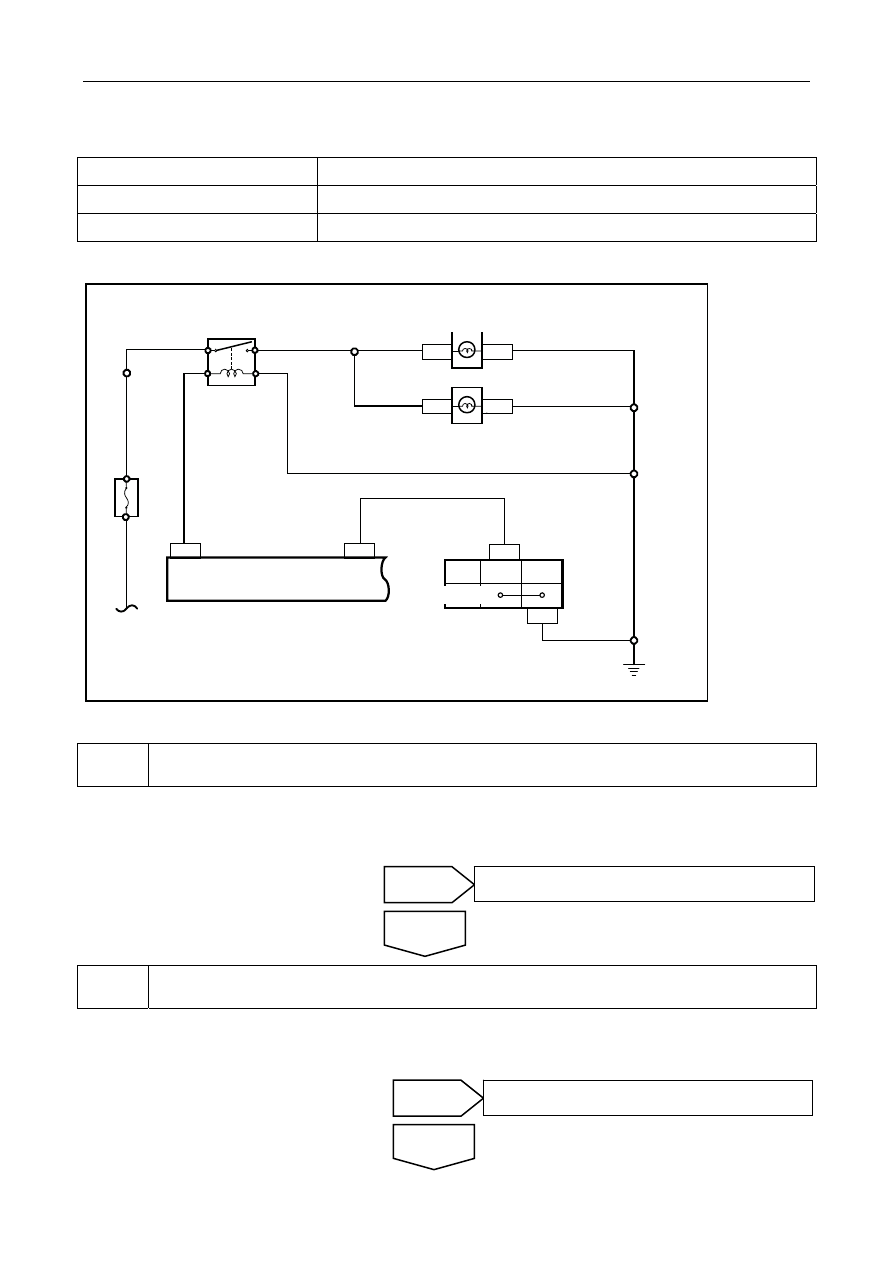

Circuit diagram:

SO44

1

SO44

2

SO41

1

SO41

2

IF

26

牌照灯继电器

左牌照灯

右牌照灯

NL11-0012c

蓄电池

1

2

3

5

位置灯
开关

BCM

16 IP63

IP61

34

14 IP42

OFF
位置

16 IP42



Diagnostic Steps:

1

Use fault diagnosis tester active test function to check the license plate light working status.

A.  Select as the following sequence: Body Control Module/active test/external light control output/license plate

light.

Is license plate light lit?







2

Check position light bulb

A.  Remove position light bulb

Is the bulb filament blown?







No

Go to step 4

Yes

Yes

Go to step 10

No

Left license lamp

License lamprelay

Right license lamp

Position

lamp switch

Position

Battery



1978
