Wipe off excess grease, and apply it to both the
yoke finger and sleeve bushing contact points.
See

Install the clutch inspection plate, then remove
the chocks.

Clutch

25/3

Title of Maintenance Operation (MOP)

MOP Number

Manual Transmission Air Filter/Regulator Check, Cleaning, or Replacement . . . . . . . . . . . . . . . . . . . . . . . 26–03

Manual and Automated Transmission Fluid Change, and Magnetic Plug

Cleaning (Synthetic Lubricant). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26–01

Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Transmission Fluid Level Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26–02

Transmission

Index, Alphabetical

Safety Precautions

DANGER

When working on the vehicle, shut down the en-
gine, set the parking brake, and chock the tires.
Before working under the vehicle, always place
jack stands under the frame rails to ensure the
vehicle can not drop. Failure to follow these steps
could result in serious personal injury or death.

26–01 Manual and Automated

Transmission Fluid
Change, and Magnetic
Plug Cleaning (Synthetic
Lubricant)

NOTICE

Operating a transmission with the fluid level
higher or lower than recommended can result in
transmission damage. Do not overfill the transmis-
sion. Overfilling will force fluid out of the case
through the main shaft openings.

Do not mix types and brands of fluid, because of
possible incompatibility. Do not use fluid addi-
tives, friction modifiers, extreme-pressure gear
fluids, or multiviscosity lubricants.

NOTE: Fluid change intervals are extended to
500,000 miles (800 000 km) on any vehicles
filled with synthetic transmission fluid.

Drain the transmission when the fluid is warm. If
not already warm, run the engine until the trans-
mission fluid reaches operating temperature.
Shift the transmission to neutral (N) and shut
down the engine.

Park the vehicle on level ground, apply the park-
ing brakes, and chock the rear tires. Place a
large drain pan under the transmission.

Clean the area around the fill plug, and remove it
from the side of the gear case. Remove each
drain plug from the bottom of the case.

Clean the fill and drain plugs. For magnetic
plugs, use a piece of key stock or any other con-

venient steel slug to short the two magnetic
poles and divert the magnetic field.

Install and tighten each drain plug 50 lbf·ft (68
N·m).

NOTE: The optional transmission fluid filter is a
remote-mount, spin-on type, and is located be-
tween the transmission and the fluid cooler. The
filter bracket is attached to the frame rail or
some other near-by location. The filter is
mounted in a vertical position, and should be
filled with fluid before installation to assure the
proper fluid level. For optimum transmission per-
formance, change the filter each time that the
fluid is changed.

For a transmission equipped with a transmission
fluid filter(s), replace the fluid filter(s).

5.1

Place a drain pan under the transmission
fluid filter.

CAUTION

To prevent skin burns from hot transmission fluid,
wear protective gloves when removing the filter.

5.2

Place a strap or chain wrench around the
filter canister, and rotate it in a counter-
clockwise motion to separate the filter
from the mounting. Carefully spin the filter
off the mount and remove it from the ve-
hicle.

5.3

Apply a light coat of transmission fluid to
the O-ring gasket on the new filter. Fill the
filter with specified transmission fluid, and
spin the filter onto the mount.

NOTE: The filter fills slowly, so be patient to
ensure the proper fluid level has been set.

5.4

Once the filter makes contact with the
mount, use a strap wrench to rotate the
canister an additional 180 to 270 degrees
to firmly tighten the filter. Wipe the filter
clean of any fluid after it is tightened.

Add fluid until it is level with the lower edge of
the fill opening. See

Fig. 1

. If the transmission

has two fill openings, add fluid to the level of
both openings. See

Table 1

for approved trans-

mission lubricants. See

Table 2

for Meritor trans-

mission lubricant capacities and

Table 3

for

Eaton Fuller transmission lubricant capacities.

Transmission

26/1

Approved Manual Transmission Lubricants

Transmission

Model

Lubricant Type

Temp.

Range

SAE

Viscosity

Eaton Fuller Transmissions

†

All Eaton
Fuller

MobilTrans SHC 50
(RN 2952 E-5)

All

50W

Synthetic transmission
lubricant approved by
Eaton

All

50W

Meritor Transmissions

FreedomLine

MobilTrans SHC 50
(RN 2952 E-5)

All

50W

All other
Meritor

Synthetic engine oil
meeting Meritor spec
0–81, or MIL–L–2104D
or –2104E

All

50W

Do not mix types or brands of fluid. Multi-weight and extreme-pressure

gear fluids are not recommended.

†

For a complete list of Eaton approved lubricants, and for more informa-

tion about Eaton lubricant specifications and suppliers, call 1-800-826-4357
or see

www.roadranger.com

Table 1, Approved Manual Transmission Lubricants

Meritor Transmission Lubricant Capacities

Transmission Model

Refill Capacity:

qt (L)

Meritor M/MO Series

M/MO (all)

10.25 (9.7)

ZF Meritor FreedomLine

All 12-Speed Models

11.6 (11.0)

All 16-Speed Models

12.5 (11.8)

Quantities listed are approximate. Fill transmission until lubricant is level

with bottom of fill hole with vehicle in normal operating position.

Table 2, Meritor Transmission Lubricant Capacities

NOTE: In all cases, the correct fluid level is es-
tablished by checking at the fill opening.

Operate the engine for five minutes after filling
the transmission, then check the fluid level again.

Clean the fill plug, then install it in the transmis-
sion. Tighten the plug as follows:

• 25 to 35 lbf·ft (34 to 48 N·m) for Eaton

Fuller transmissions with 3/4-inch pipe
threads.

• 60 to 75 lbf·ft (81 to 102 N·m) for Eaton

Fuller transmissions with 1-1/4-inch pipe
threads.

Eaton Fuller Transmission Lubricant Capacities

Transmission Model

Refill Capacity:

†

qt (L)

7-Speed T Series

All Models

18.0 (17.0)

All 9-Speed Series

All Models

13.5 (12.8)

All 10-Speed Manual (except deep reduction)

FR and FRO Series

11.75 (11.0)

RT and RTX Series

13.0 (12.3)

RTLO Series

14.0 (13.2)

10-Speed Deep Reduction

RTO–14908LL

14.0 (13.2)

RTO–16908LL

10-Speed Automated

Lightning Top 2 (all)

13.5 (12.8)

10-Speed Autoshift AS2 (all)

13.0 (12.3)

13-Speed RTLO Series

All Models

14.0 (13.2)

15-Speed RTO Series

All Models

14.0 (13.2)

All 18-Speed Series

RTLO Series

14.0 (13.2)

18-Speed Autoshift AS2 (all)

For models not listed in this table see the Eaton Fuller website,

ww-

w.roadranger.com

†

Quantities listed are approximate. Fill transmission until lubricant is level

with bottom of fill hole with vehicle in normal operating position.

Table 3, Eaton Fuller Transmission Lubricant

Capacities

f260006a

05/27/93

A. Full

B. Low

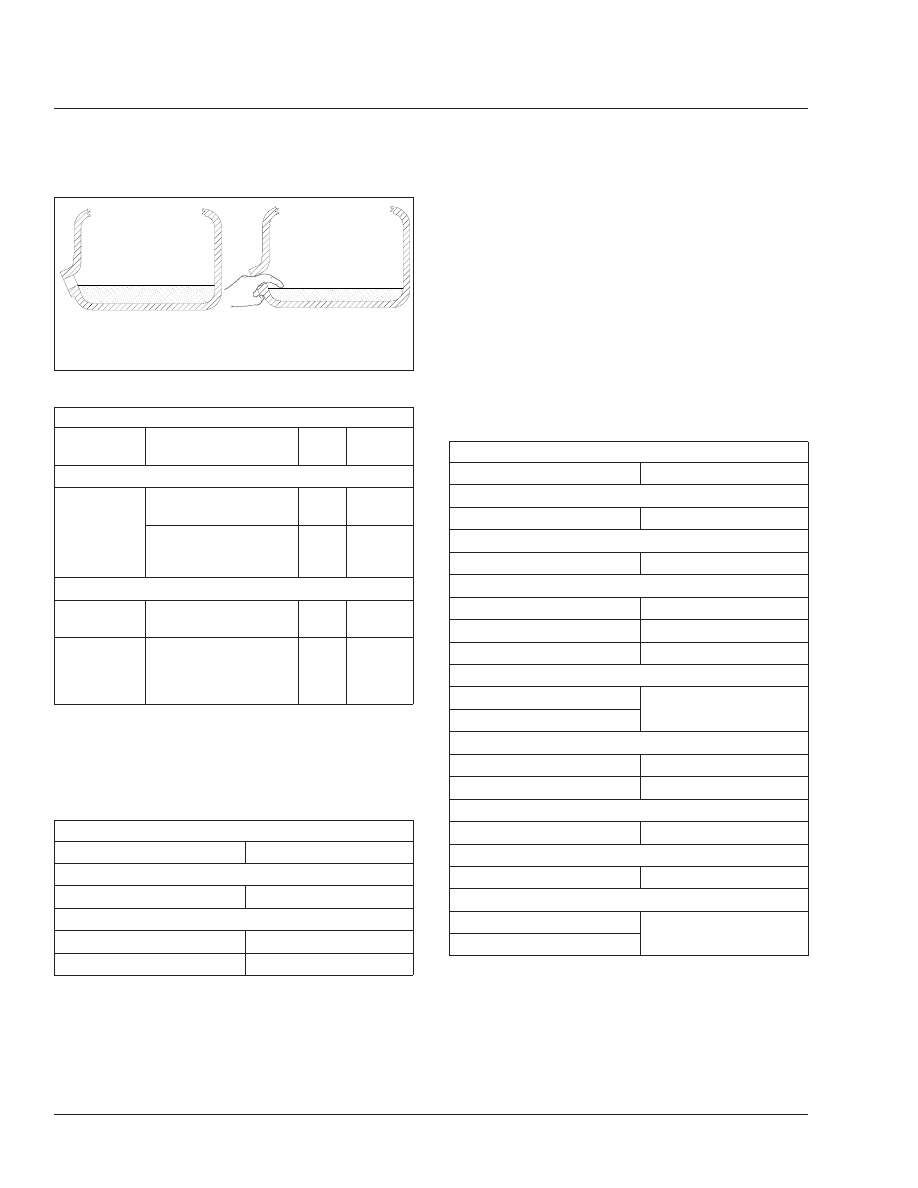

Fig. 1, Checking Transmission Fluid Level

Transmission

26/2
