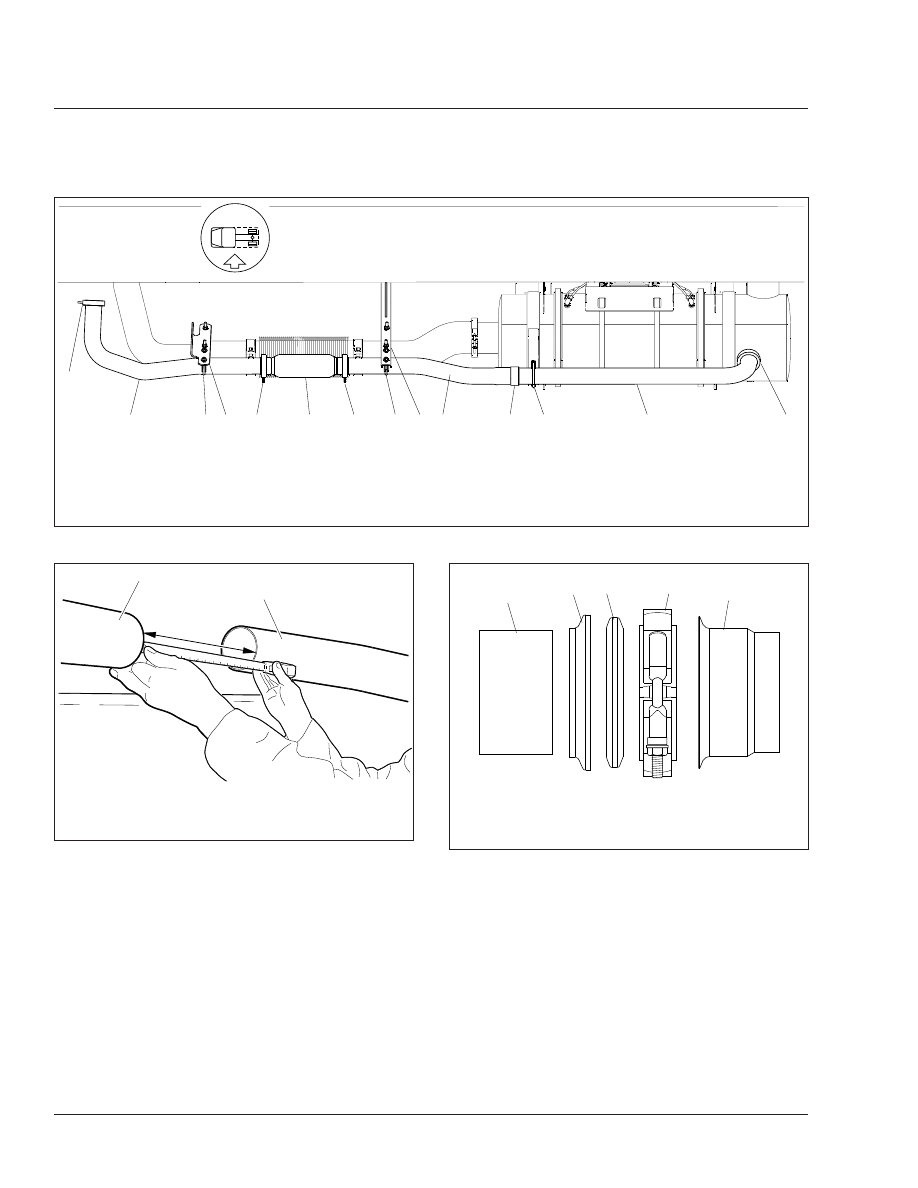

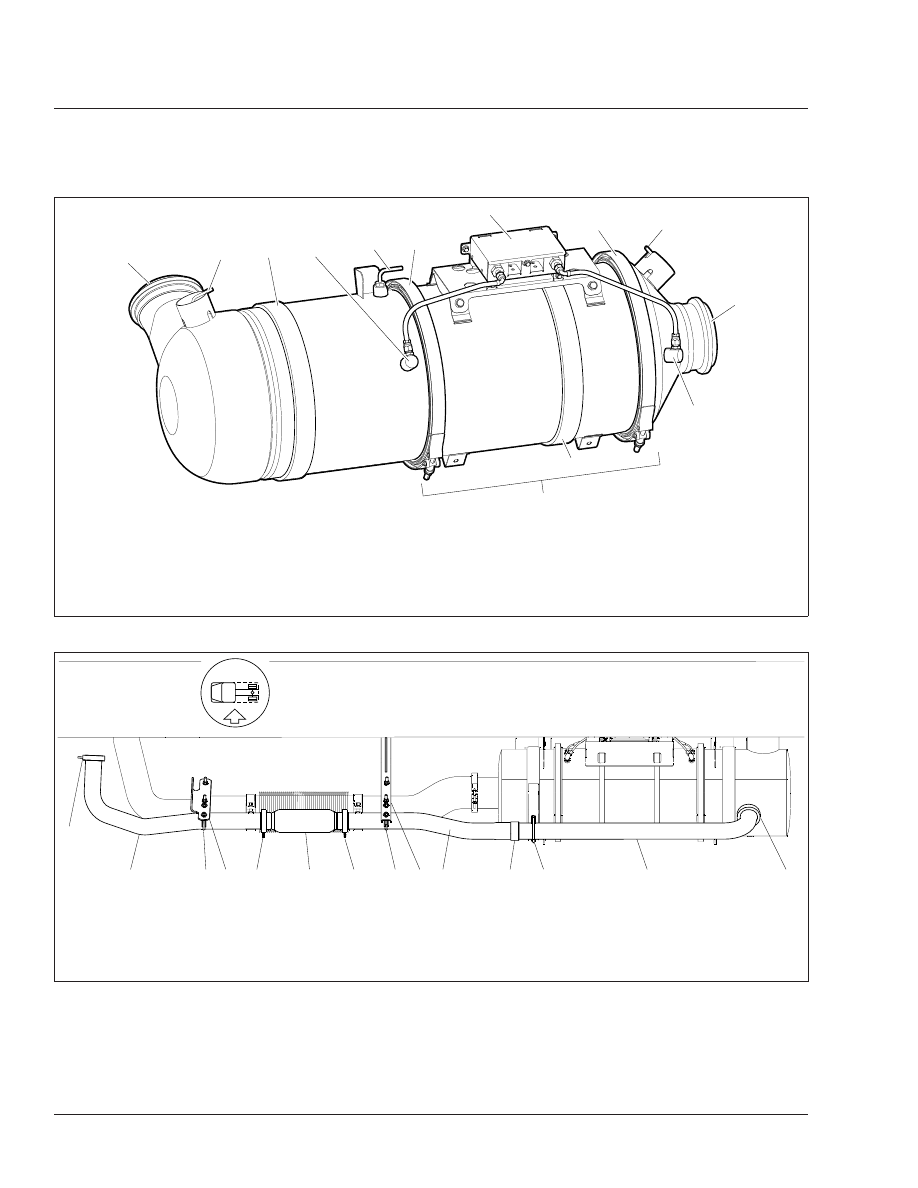

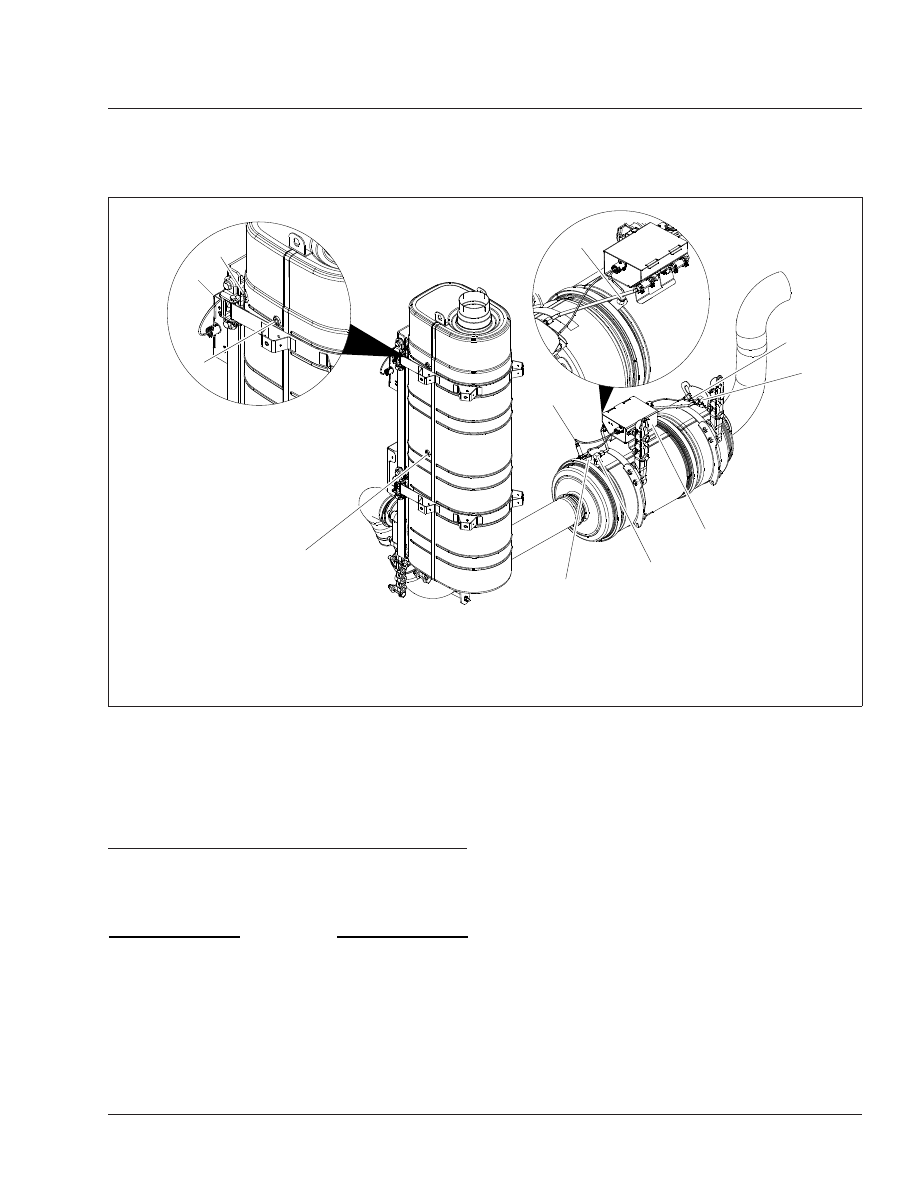

the required torque. If leakage persists, install a 49–02 CAT CGI Bellows and Piping Inspection On vehicles with CAT engines, inspect the CGI bel- NOTICE A leak in the CGI piping, including the bellows, NOTE: Because the CGI bellows is covered 1. If the bellows is damaged or leaking, replace it. for the replacement procedure. 2. Check the CGI piping and each exhaust seal for the replacement procedure. 09/16/2009 f490354 1 2 3 4 5 6 7 8 9 10 11 1. DPF Inlet Temperature Sensor 2. DOC Inlet Temperature Sensor 3. DOC Inlet Pressure Sensor 4. DPF Sensor Box 5. DPF Outlet Pressure Sensor 6. DPF Outlet Temperature 7. DPF Outlet NOx Sensor 8. SCR Inlet Temperature Sensor 9. SCR Outlet Temperature 10. SCR Sensor Box Fig. 3, 2HV Two-Box ATS Sensor Locations Exhaust 49 Business Class M2 Maintenance Manual, November 2015 49/5 |
