Action Required

Possible Cause

Warning Lamp

After inflating your tires to the manufac-
turer’s recommended pressure as shown
on the tire label, on the edge of driver
door or the B-pillar, drive your vehicle for
at least two minutes over 20 mph
(32 km/h) before the light turns off.

One or more tires are

significantly under

inflated

Solid warning lamp

On vehicles with different front and rear
tire pressures, the system must be
retrained following every tire rotation.

Tire rotation without

sensor training

Repair the damaged road wheel and tire
and refit it to your vehicle to restore
operation of the system.

Temporary spare wheel

in use

Solid warning lamp
or flashing warning

lamp

If the tires are inflated to the recom-
mended tire pressures and the temporary
spare wheel is not in use, the system
detected a fault that requires service.
Have your vehicle checked as soon as
possible.

Tire pressure monitoring

system malfunction

506

Tire Pressure Monitoring System

(If Equipped)

TIRE PRESSURE MONITORING SYSTEM – INFORMATION MESSAGES

Action

Message

After inflating your tires to the manufacturer’s recommended
pressure as shown on the Tire Label, on the edge of the driver
door or the B-Pillar, drive your vehicle for at least two minutes

over 20 mph (32 km/h) before the light turns off.

Tire Pressure Low

The system has detected a fault that requires service. Have

your vehicle checked as soon as possible.

Tire Pressure Monitor

Fault

The system has detected a fault that requires service or a

spare tire is in use. Have your vehicle checked as soon as

possible.

Tire Pressure Sensor

Fault

Trailer Tire Pressure Monitoring System

Action

Message

One or more tires on your trailer is below the specified

tire pressure.

Trailer Tire Low Specified:

Displays when one or more tires on your trailer is above

the recommended temperature.

Trailer Tire Over Temperature

A trailer tire pressure sensor is malfunctioning. If the

warning stays on or continues to come on, contact an

authorized dealer as soon as possible.

Trailer Tire Pressure Sensor

Fault

The trailer tire pressure monitoring system is

malfunctioning. If the warning stays on or continues

to come on, contact an authorized dealer.

Trailer Tire Pressure Monitor

Fault

The system cannot detect the trailer tire pressure

monitoring system.

Trailer Tire Pressure Monitor

Capability Not Detected

The trailer tire pressure monitoring system is not setup.

See

Tire Pressure Monitoring System

(page 500).

Trailer Tire Pressure Indication

Not Setup See Manual

507

Tire Pressure Monitoring System

(If Equipped)

CHANGING A FLAT TIRE

If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed, hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.

Have a flat serviced by an authorized
dealer to prevent damage to the system
sensors. See

Tire Pressure Monitoring

System Precautions

(page 501). Replace

the spare tire with a road tire as soon as
possible. During repairing or replacing the
flat tire, have the authorized dealer inspect
the system sensor for damage.

Note:

Only use tire sealants in roadside

emergencies as they may damage the tire
pressure monitoring system sensor.

Note:

The tire pressure monitoring system

indicator light illuminates when the spare
tire is in use. To restore the full functionality
of the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on this vehicle.

Dissimilar Spare Wheel and Tire
Assembly Information

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.

A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and
wheels.

Full-size dissimilar spare

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•

Exceed 70 mph (113 km/h).

•

Use more than one dissimilar spare
wheel and tire assembly at a time.

•

Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.

•

Engage any four-wheel drive mode.
See

Four-Wheel Drive Limitations

(page 235).

When driving with the full-size dissimilar
spare wheel and tire assembly, 4WD
functionality may be limited. You may
experience the following:
•

Additional noise from the transfer case
or other drive components.

•

Difficulty shifting out of a mechanically
locked 4WD mode.

When driving with the full-size dissimilar
spare wheel and tire assembly, it is
recommended that you do not:
•

Engage 4WD High or 4WD Low, if
equipped, other than to get your vehicle
unstuck.

Using a full-size dissimilar spare wheel and
tire assembly can compromise the
effectiveness of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

Four-wheel drive capability.

508

Changing a Road Wheel

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a
camper body.

•

Driving vehicles with a load on the
cargo rack.

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.

Location of the Spare Tire and
Tools

See the following table for their locations:

Location

Item

Under the vehicle, just forward of the rear

bumper.

Spare tire - pick-up trucks only

Fastened to the floor pan behind the rear-

most seat on the passenger side.

Jack

Regular Cab: Fastened to floor behind the

driver seat.

Jack handle, lug wrench, lug wrench exten-

sion - only provided on dual rear wheel

vehicles.

Super Cab and Crew Cab: Fastened to the

floor under the rear seat on the driver's side.

Tire Change Procedure

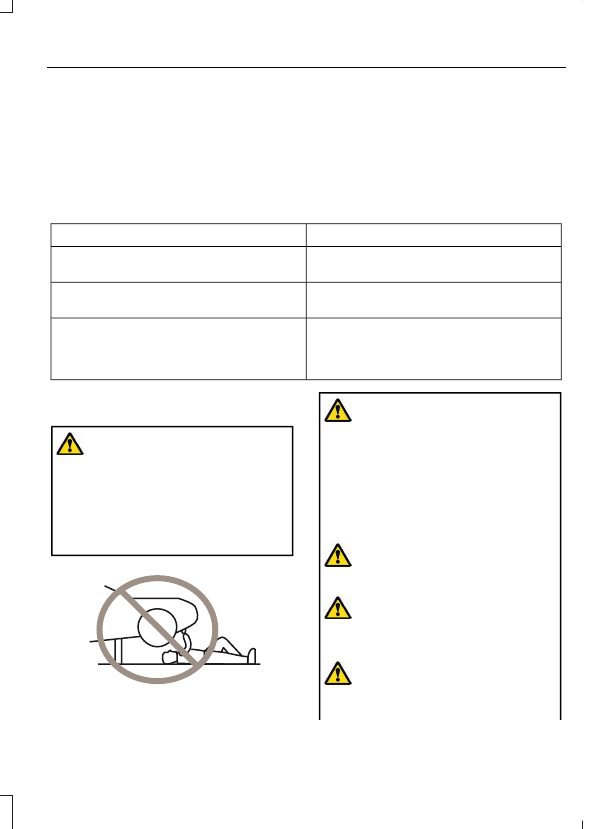

WARNING:

The jack supplied with

this vehicle is only intended for changing
a flat tire in an emergency. Do not
attempt to do any other work on your
vehicle when it is supported by the jack,
as your vehicle could slip off the jack.
Failure to follow this instruction could
result in personal injury or death.

E166722

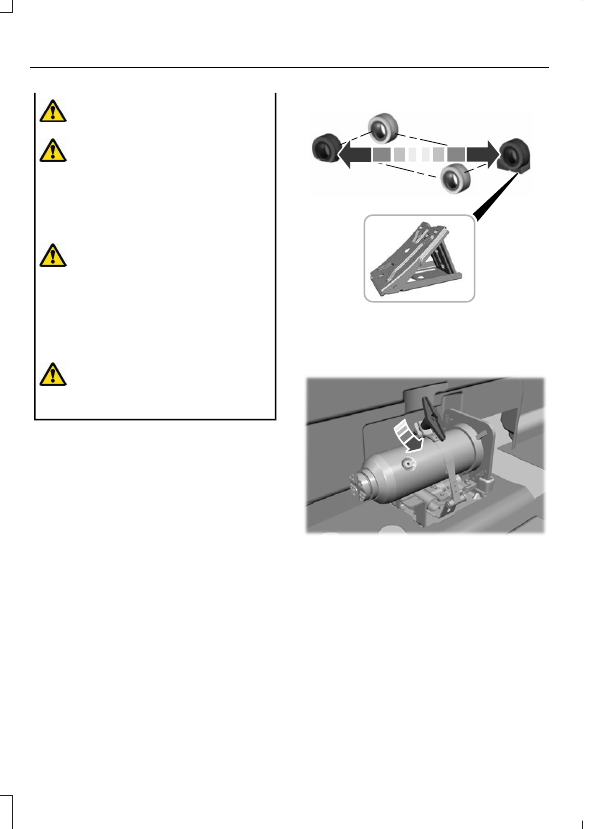

WARNING:

To help prevent your

vehicle from moving when changing a
wheel, shift the transmission into park
(P), set the parking brake and use an
appropriate block or wheel chock to
secure the wheel diagonally opposite to
the wheel being changed. For example,
when changing the front left wheel,
place an appropriate block or wheel
chock on the right rear wheel.

WARNING:

Only use the jack

provided as original equipment with your
vehicle.

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

WARNING:

Never place anything

between the vehicle jack and your
vehicle.

509

Changing a Road Wheel

WARNING:

Never place anything

between the vehicle jack and the ground.

WARNING:

Do not attempt to

change a tire on the side of the vehicle
close to moving traffic. Pull far enough
off the road to not obstruct the flow of
traffic and avoid the danger of being hit
when operating the jack or changing the
wheel.

WARNING:

The jack supplied with

WARNING:

Only use the spare

wheel carrier to stow wheels provided
with your vehicle.

Note:

Do not use impact tools or power

tools operating at over 200 RPM on the
spare wheel carrier winch, which may cause
it to malfunction and result in the wheel and
tire not being securely stowed.

Note:

Passengers should not remain in the

vehicle when the vehicle is being jacked.

Park the vehicle on a level firm ground
and activate the hazard flashers.

2. Apply the parking brake, place the

transmission in park (P), switch the
engine off.

3. Block the wheel diagonally opposite

the flat tire. If equipped, use the wheel
chocks attached to the tool bag. For
example, if the left front tire is flat,
block the right rear wheel.

E388040

4. The jack is on the floor behind the

rearmost seat on the passenger side.
Turn the retainers counterclockwise to
remove the jack.

E309424

5. The took kit is on the floor under the

driver seat or under the rear seat on the
driver side. The tool kit could be
attached to the floor, inside the storage
bin, or attached to a bracket. Turn the
retainers counterclockwise to remove
the tool kit.

510

Changing a Road Wheel

E309795

6. Use the ignition key to open the lock at

the rear bumper.

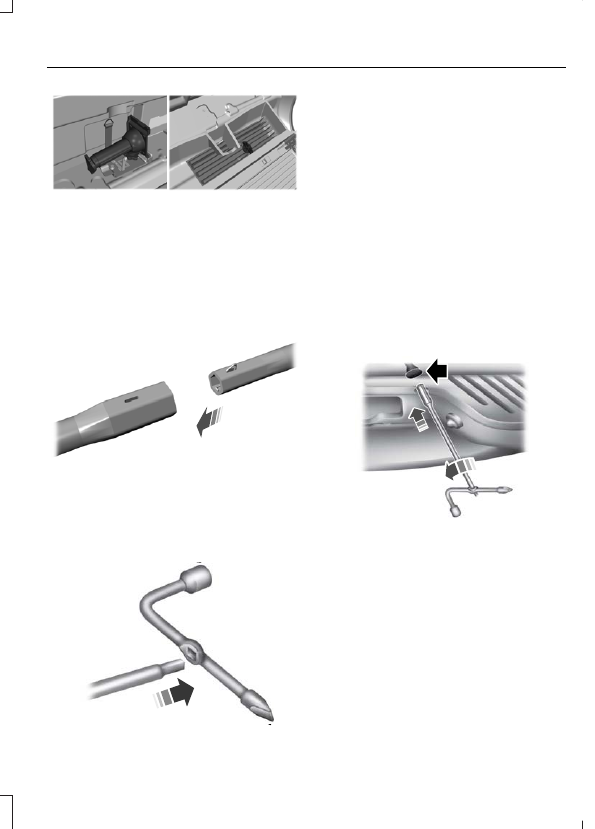

One or more handle extensions are
used to operate the spare tire carrier.
To assemble, align the button with the
hole and slide the parts together. To
disconnect, press the button and pull
apart.

E308882

8. The lug wrench turns the handle

extensions and the jack handle. Slide
the square end of the handle extension
into the square hold of the lug wrench
until it clicks in place.

E162796

9. Fully insert the jack handle, with one

extension, through the bumper hole
and into the guide tube. Additional
extensions are needed if the tailgate is
in the lowered position and cannot be
raised. Turn the handle
counterclockwise and lower the spare
tire until you can slide the tire rearward
and the cable is slack. You will feel
some resistance when you turn the jack
handle assembly. If not replacing the
spare or flat tire to the underbody
storage area, raise the wheel retainer
up into the installed position. Do not
store spare or flat tire at other
locations.

10.

Slide the retainer through the center
of the spare tire wheel and remove
the spare tire.

E310417

11.

Remove the wheel trim with the lug
wrench tip, or use the wheel trim tool
described later in this section.

12.

Loosen each wheel nut one-half turn
counterclockwise, but do not remove
them until the wheel is raised off the
ground. For dual rear wheel, assemble
the lug wrench and extension tool
together to access the wheel nuts.

511

Changing a Road Wheel

E309794

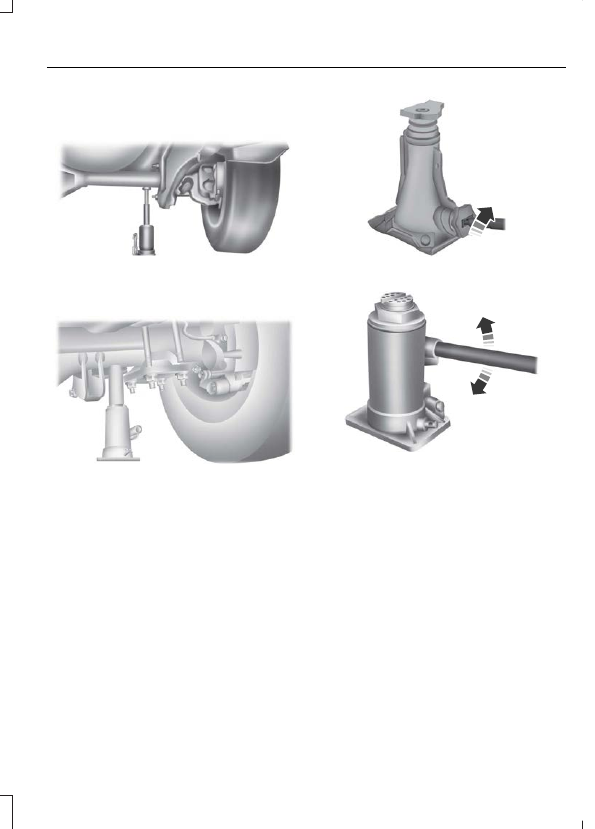

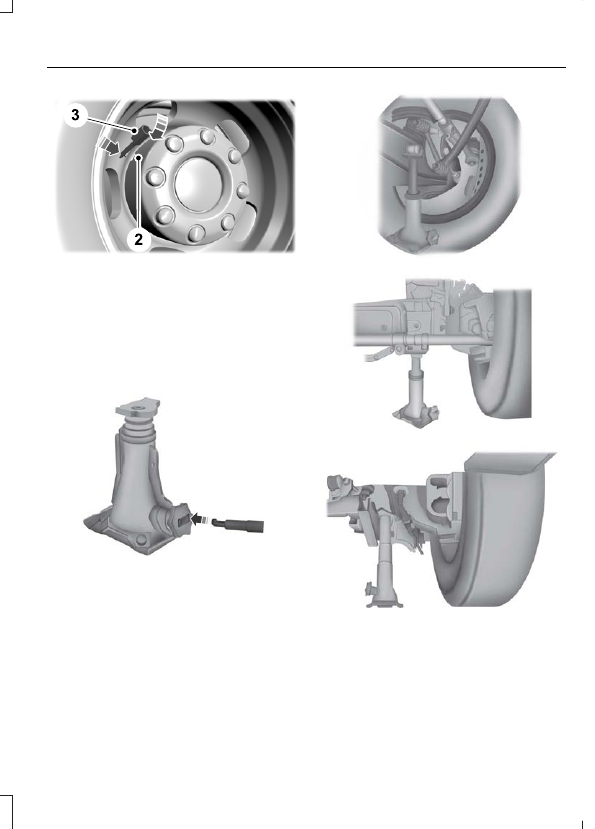

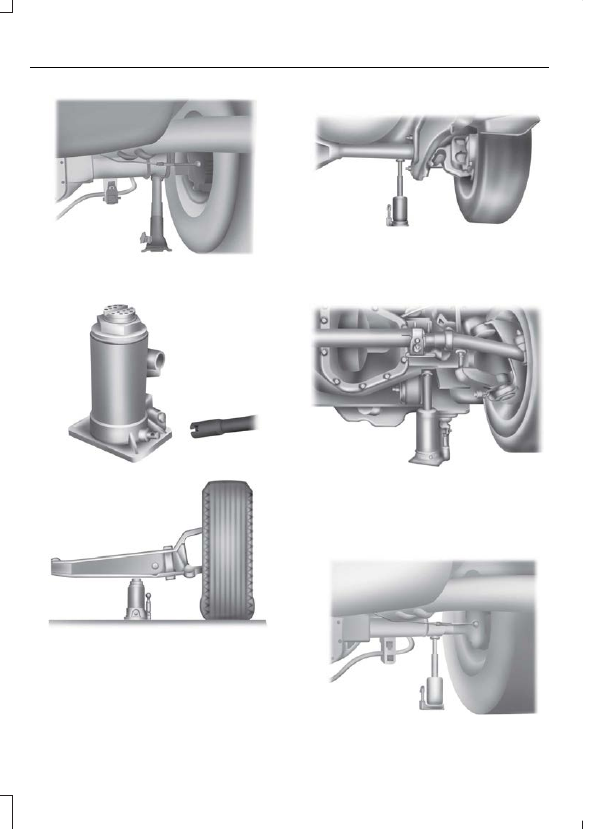

13.

Position the jack under the correct
jacking points.

Removing Wheel Trim With Single
Wheels

Insert the flat end of the lug wrench
between the wheel rim and the wheel
trim.

2. Carefully remove the wheel trim.

Vehicles With Dual Rear Alloy Wheels

E338541

E338539

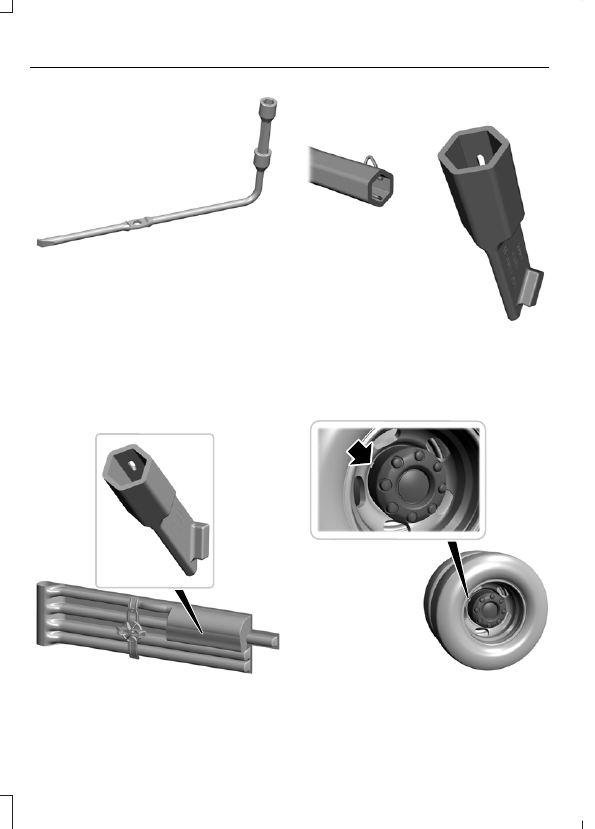

The wheel trim removal tool is in the
storage bag near the lug wrench.

Rear Wheel Trim

E338557

Locate the notch in the wheel trim.

512

Changing a Road Wheel

E162805

F-350 Dual Rear Wheel, F-450, F-550 and
F-600 Vehicles

E162812

E162813

Front (4x2):F350 Dual rear wheel

Note:

Place the jack directly under the

I-beam.

E162815

Front passenger side (4x4): F-350 dual
rear wheel

E162814

Front driver side (4x4): F-350 dual rear
wheel

Note:

Make sure the jack fits onto the flat

area on the outboard side of the differential
housing.

E162817

514

Changing a Road Wheel

Rear: F-350 dual rear wheel

E162816

Front: F-450 , F-550 and F-600

E162818

Rear: F-450 , F-550 and F-600

Insert the hooked end of the jack handle
into the jack and turn the jack handle
clockwise. For hydraulic jacks, operate the
handle up and down until the wheel is
completely off the ground and high enough
to install the spare tire.

Note:

Hydraulic jacks have a pressure relief

valve that prevents lifting loads which
exceed the jack's rated capacity.

F-250 and F-350 Single Rear Wheel
Vehicles

E162811

F-350 Dual Rear Wheel Vehicles

E162819

Remove the wheel nuts with the lug
wrench, replace the flat tire with the spare,
making sure the valve stem of the spare is
facing outward when replacing a front
wheel. For the rear wheel position on
vehicles with single rear wheel fitments,
install the spare with the valve stem facing
outward. For vehicles with dual rear
wheels, the valve stem of the spare must
face outward when replacing an inner
wheel, but must face inward when
replacing an outboard wheel.

Reinstall the wheel nuts until the wheel is
snug against the hub. Do not fully tighten
the wheel nuts until the wheel has been
lowered.

Lower the vehicle completely by turning
the jack handle counterclockwise until the
vehicle is completely lowered.

515

Changing a Road Wheel

Note:

For F-350 Dual Rear Wheel, F-450,

F-550 and F-600 Vehicles, insert the
notched end of the jack handle to the
release valve, open the release valve slightly
by turning the handle counterclockwise.
Stop turning the release valve when vehicle
starts to lower. Close the valve when you
completely lower your vehicle.

F-350 Dual Rear Wheel, F-450, F-550
and F-600 Vehicles.

E162812

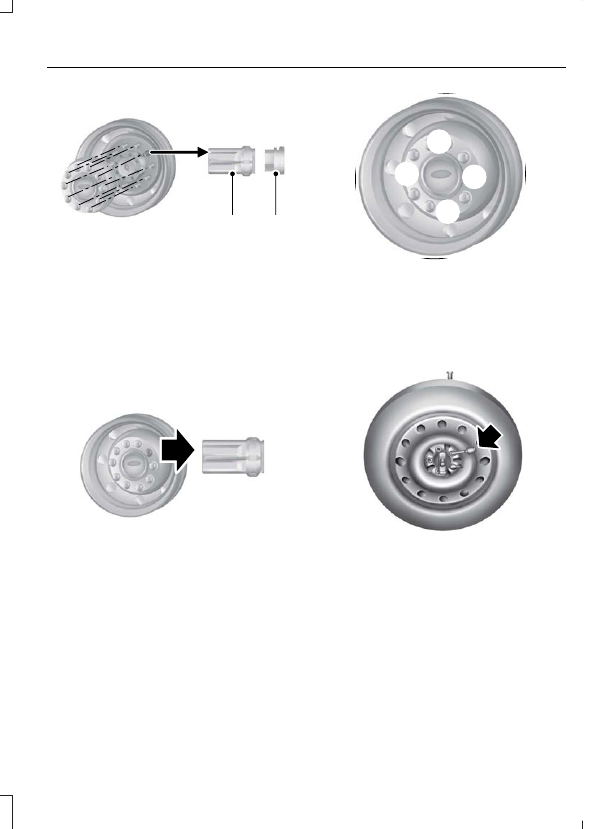

Installing the Wheel Nuts and
Ornaments

E161441

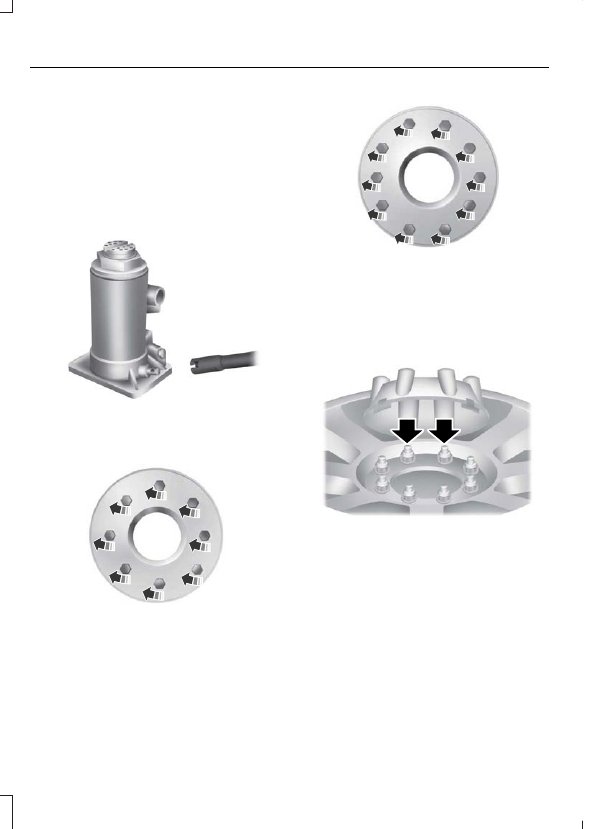

8-wheel nut torque sequence

E169375

10-wheel nut torque sequence

Note:

When installing the wheel center

ornaments, align the ornament retention
towers on the back side of the ornament
with the studs or nuts and retain to the
flange on the wheel nuts.

E162820

Note:

For dual rear wheels, align the

ornament with the wheel nuts. (A) is the
clip in the ornament and (B) is the flange of
the wheel nut. Make sure that each of the
retention clips are sitting on a wheel nut
flange.

516

Changing a Road Wheel

E162822

Note:

If the ornament retention clips are

misaligned between the studs or wheel nuts,
the ornament will be improperly installed.
This improper installation may appear and
sound correct, but will not keep the
ornament on the vehicle. Ornaments
improperly installed in this manner may
become loose or fall off during driving.

E162823

Use your hand or a rubber mallet to tap the
ornament until the retention clips snap
over the wheel nut flanges. Tap in a star
pattern until the ornament seats fully onto
the wheel. There should be an even gap
between the ornament and the wheel
when it is properly installed.

E162824

Stowing the Flat Tire or Spare Tire

Place the tire on end with the valve
stem facing toward the front of the
vehicle. Lay the tire on the ground, near
the rear of the vehicle, with the valve
stem side facing up.

E162800

2. Slide the wheel partially under the

vehicle and install the retainer through
the wheel center. If equipped, you may
have to remove the wheel center cap
prior to pushing the retainer through
the center of the wheel. To remove the
center cap, press it off with the lug
wrench tip from the inner side of the
wheel. Pull on the cable to align the
components at the end of the cable.

517

Changing a Road Wheel

3. Reinsert the lug wrench extension(s)

through the rear bumper and guide
tube and turn the lug wrench clockwise
until the tire is raised to its stowed
position underneath the vehicle. The
wrench becomes harder to turn and
the spare tire winch ratchets or slips
when the tire is raised to maximum
tightness. You will hear a clicking sound
from the winch indicating that the tire
is properly stowed, tighten until a
minimum of three clicks are heard.
Check that the tire lies flat against the
frame and is secure.

4. Carefully place all tools back in the tool

kit bag.

5. Reinstall the tool kit bag and tighten

the wing nut.

E410152

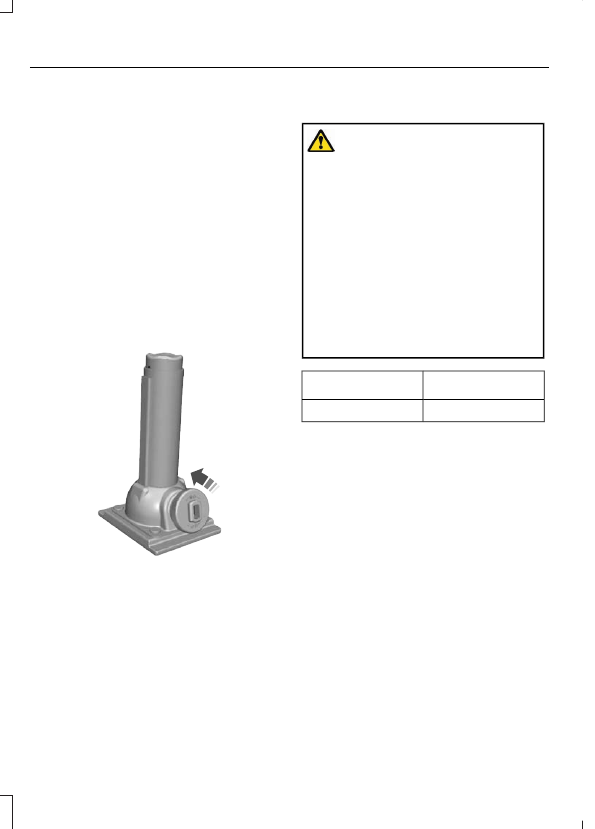

6. Properly reinstall the jack into the

bracket and tighten the wing nut.

Note:

For the mechanical style bottle jack

tighten the jack counterclockwise as shown
in the image above.

WHEEL NUTS

WARNING:

When you install a

wheel, always remove any corrosion, dirt
or foreign materials present on the
mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make
sure to secure any fasteners that attach
the rotor to the hub so they do not
interfere with the mounting surfaces of
the wheel. Installing wheels without
correct metal-to-metal contact at the
wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to
come off while your vehicle is in motion,
resulting in loss of vehicle control,
personal injury or death.

lb.ft (Nm)

Bolt Size

150 lb.ft (204 Nm)

M14 x 1.5

Torque specifications are for nut and bolt

threads free of dirt and rust. Use only our
recommended replacement wheel nuts
and or wheel bolts.

Retighten the wheel nuts to the specified
torque within 100 mi (160 km) after any
wheel disturbance, such as tire rotation,
changing a flat tire or wheel removal.

On vehicles equipped with dual rear
wheels, retighten the wheel lug nuts to the
specified torque at 100 mi (160 km), and
again at 500 mi (800 km) of new vehicle
operation and after any wheel disturbance,
such as tire rotation, changing a flat tire,
or wheel removal.

It is important to follow the proper wheel
mounting and lug nut torque procedures.

518

Changing a Road Wheel

ENGINE SPECIFICATIONS - 7.3L, GASOLINE

7.3L V8 Engine

Engine

445 in³ (7,293 cm³)

Displacement.

Minimum 87 octane

Required fuel.

1-5-4-8-6-3-7-2

Firing order.

Coil near spark plug with spark plug wire

Ignition system.

0.049 in (1.25 mm) - 0.053 in (1.35 mm)

Spark plug gap.

10.5:1

Compression ratio.

522

Capacities and Specifications

MOTORCRAFT PARTS - 6.7L DIESEL

Motorcraft Part Number

Component

FA-2031

Air filter.

FA-1952

Foam pre-filter.

BAGM-65-A

Battery (two required).

FP-119

Cabin air filter.

FL-2124-S

Engine oil filter.

FD-4625AA

Fuel filter.

FT-221

Ten-speed automatic transmission fluid
filter (10R140).

WW-2248-A

Windshield wiper blades.

If a Motorcraft oil filter is not available, use an oil filter that meets WSS-M99P55-D1.

We recommend Motorcraft® parts that are available at your authorized dealer or at
www.fordparts.com. These parts are engineered for your vehicle, and meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

523

Capacities and Specifications

MOTORCRAFT PARTS - 6.8L, GASOLINE

Motorcraft Part number

Component

FA-1950

Air filter element.

BXT-65-750

One battery.

BAGM-65-A

Two batteries (optional).

FP-119

Cabin air filter.

FL-820-S

Engine oil filter.

SP-589

Spark plug.

FT-202

Transmission fluid filter.

WW-2248-A

Windshield wiper blade.

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type D.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. These parts are engineered for your vehicle, and meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

524

Capacities and Specifications

MOTORCRAFT PARTS - 7.3L, GASOLINE

Motorcraft Part Number

Component

FA-1950

Air filter element.

BXT-65-750

One battery.

BAGM-65-A

Two batteries (optional).

FP-119

Cabin air filter.

FL-820-S

Engine oil filter.

SP-589

Spark plugs.

FT-221

Ten-speed automatic transmission fluid
filter (10R140).

WW-2248-A

Windshield wiper blades.

If a Motorcraft oil filter is not available, use an oil filter that aligns to SAE/USCAR – 36

Performance Specifications. Filter Type D.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

525

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 6.7L DIESEL

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

Engine Oil

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft motor oil is not
available, use motor oil of the
recommended viscosity grade that meets
our specification WSS-M2C171-F1. You can
find the list of approved motor oils at
www.motorcraft.com.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

The use of correct oil viscosities for diesel
engines is important for satisfactory
operation. Determine which oil viscosity
best suits the temperature range you
expect to encounter for the next service
interval from the SAE Viscosity Grades
chart.

Note:

An engine block heater is

recommended at temperatures below -9°F
(-23°C).

E327351

526

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

15.0 qt (14.2 L)

All.

Materials

Specification

Name

WSS-M2C171-F1

Motorcraft® SAE 10W-30 Super Duty Diesel Motor
Oil(U.S.)
Motorcraft® Super Duty Motor Oil SAE 10W-30 /
Huile moteur Super Duty SAE 10W-30 Motor-
craft®(Canada)
XO-10W30-QSDF(U.S.)
CXO-10W30-LSD12(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C171-F1

Engine Oil - SAE 0W-40

Alternative Engine Oil for Biodiesel
Fuel Blends (B20 Max)

527

Capacities and Specifications

Materials

Specification

Name

WSS-M2C171-F1

Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor
Oil(U.S.)
(Canada)
XO-5W40-5Q3SD(U.S.)

WSS-M2C171-F1

Motorcraft® SAE 15W-40 Super Duty Diesel Motor
Oil(U.S.)
Motorcraft® Super Duty Motor Oil SAE 15W-40 /
Huile moteur Super Duty SAE 15W-40 Motor-
craft®(Canada)
XO-15W40-QSDF(U.S.)
CXO-15W40-LSD12(Canada)

Alternative Engine Oil for Severe
Duty Service

Materials

Specification

Name

WSS-M2C171-F1

Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor
Oil(U.S.)
(Canada)
XO-5W40-5Q3SD(U.S.)

ENGINE OIL CAPACITY AND
SPECIFICATION - 6.8L,
GASOLINE

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

528

Capacities and Specifications

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

8.0 qt (7.57 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

529

Capacities and Specifications

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

ENGINE OIL CAPACITY AND
SPECIFICATION - 7.3L,
GASOLINE

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

530

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

8.0 qt (7.57 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Motor Oil(U.S.)
Motorcraft® SAE 5W-30 Motor Oil / Huile moteur
SAE 5W-30 Motorcraft®(Canada)
XO-5W30-Q1SP, XO-5W30-Q1FS(U.S.)
CXO-5W30-LSP6, CXO-5W30-LFS6(Canada)

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil in extremely cold
climates, where the ambient temperature
reaches -22°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30

531

Capacities and Specifications

E240523

Note:

If you use your vehicle regularly above

the altitude of 5,000 ft (1,524 m) and under
the temperature of -4.0°F (-20°C), it is
recommended to use the alternative engine
oil.

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 6.7L
DIESEL

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Note:

An engine block heater is

recommended at temperatures below-9°F
(-23°C).

Capacities

Quantity

Variant

31.7 qt (30 L)

Primary cooling system.

33.3 qt (31.5 L)

Primary cooling system with auxiliary radi-
ator.

8.2 qt (7.8 L)

Secondary cooling system with urea
injector cooling.

10.0 qt (9.5 L)

Secondary cooling system with urea
injector cooling and cooled compressor.

532

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 6.8L,
GASOLINE

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

22.5 qt (21.3 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

533

Capacities and Specifications

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 7.3L,
GASOLINE

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

22.5 qt (21.3 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

FUEL TANK CAPACITY - DIESEL

Capacities

Quantity

Variant

29.0 gal (109.8 L)

Complete vehicle-142 inch and 148 inch
wheelbase, middle location.

34.0 gal (128.7 L)

Complete vehicle-160 inch and 164 inch
wheelbase, middle location.

48.0 gal (181.7 L)

Complete vehicle-176 inch wheelbase,
middle location.

26.5 gal (100.3 L)

Incomplete vehicle, middle location.

40.0 gal (151.4 L)

Incomplete vehicle, aft- axle -location.

66.5 gal (251.7 L)

Incomplete vehicle, middle and aft- axle -
locations.

534

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.7 fl oz (110 ml)

27 oz (0.765 kg)

All.

Materials

Specification

Name

WSH-M17B19-A

Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-RB(Canada)

WSH-M1C231-B

Motorcraft® PAG Refrigerant Compressor Oil(U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile
PAG pour compresseur frigorifique Motor-
craft®(Canada)
YN-12-D(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

536

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

DIESEL EXHAUST FLUID
CAPACITY AND
SPECIFICATION

Use fluid that meets the defined
specification.

If you do not use fluid that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

7.5 gal (28.4 L)

Complete vehicle.

7.2 gal (27.3 L)

Incomplete vehicle.

Materials

Specification

Name

WSS-M99C130-A

Motorcraft® Diesel Exhaust Fluid(U.S.)
Motorcraft® Diesel Exhaust Fluid / Fluide pour
échappement diesel Motorcraft®(Canada)
PM-27-GAL,PM-27-JUG(U.S.)
CPM-27-JA(Canada)

537

Capacities and Specifications

Ford F-350 (2024 year). Manual in english - page 16
